Article

Synthesis of Pillar[5]arene- and Phosphazene-Linked Porous Organic Polymers for Highly Efficient Adsorption of Uranium

by
Xiaoxiao Zhao
1,
Ziyi Liu
1,
Shuguang Zhang
1,
Mehdi Hassan
2,
Chunxin Ma
3,4,*,
Zhenzhong Liu
4 and
Weitao Gong
1,*
1
School of Chemical Engineering, Dalian University of Technology, Dalian 116024, China
2
Department of Chemistry, University of Baltistan, Skardu 16100, Pakistan
3
State Key Laboratory of Marine Resource Utilization in South China Sea, Hainan University, Haikou 570228, China
4
Research Institute of Zhejiang University-Taizhou, Taizhou 318000, China
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(3), 1029; https://doi.org/10.3390/molecules28031029
Submission received: 24 December 2022 / Revised: 15 January 2023 / Accepted: 17 January 2023 / Published: 19 January 2023
(This article belongs to the Special Issue Porous Materials as Catalysts and Sorbents)
Browse Figures
Versions Notes

Abstract

:
It is crucial to design efficient adsorbents for uranium from natural seawater with wide adaptability, effectiveness, and environmental safety. Porous organic polymers (POPs) provide superb tunable porosity and stability among developed porous materials. In this work, two new POPs, i.e., HCCP-P5-1 and HCCP-P5-2 were rationally designed and constructed by linked with macrocyclic pillar[5]arene as the monomer and hexachlorophosphate as the core via a macrocycle-to-framework strategy. Both pillar[5]arene-containing POPs exhibited high uranium adsorption capacity compared with previously reported macrocycle-free counterparts. The isothermal adsorption curves and kinetic studies showed that the adsorption of POPs on uranium was consistent with the Langmuir model and the pseudo-second-order kinetic model. Especially, HCCP-P5-1 has reached 537.81 mg/g, which is greater than most POPs that have been reported. Meanwhile, the comparison between both HCCP-P5-1 and HCCP-P5-2 can illustrate that the adsorption capacity and stability could be adjusted by the monomer ratio. This work provides a new idea for the design and construction of uranium adsorbents from macrocycle-derived POPs.

Graphical Abstract

1. Introduction

With the traditional energy resources depleted, the universal need for nuclear energy is emerging rapidly as a sustainable energy source with no emission of greenhouse gases and unlimited energy proficiency [1,2]. Uranium is the main fuel resource for the nuclear industry and plays a dominating role in the field of energy production [3]. However, as the major contaminant of nuclear waste, uranium causes long-term harmful effects on human health and the ecological system [4]. In addition, the estimated quantity of uranium in seawater is 4.5 billion tons which is about one thousand times greater than terrestrial uranium [3]. Thus, currently designed and developed new adsorbents with proficient uranium extraction from aqueous solutions, i.e., seawater and nuclear industry wastewater have become a burning scientific issue in the field of energy production and environmental perspective [5,6].
Recently, various approaches were used for uranium extraction from aqueous solutions, i.e., membrane filtration [7], ion exchange [8], electrochemical [9], solvent extraction [6], and adsorption [10,11,12,13]. In these processes, adsorption shows great potential in uranium separation and recovery because of its environmental friendliness, easy operation, low cost, and wide adaptability. Furthermore, numerous varieties of adsorbing materials have also been developed and applied for the extraction of uranium, e.g., inorganic oxides [14,15], carbon materials [16,17] biomass materials [2,5,18], and metal–organic frameworks [19,20,21]. However, these materials exhibited several limitations such as relatively high expensive, less adsorption capacity, low selectivity, slow adsorption kinetics, and poor adsorbent stability.
In addition, among developed porous materials, porous organic polymers (POPs) receive widespread attention with high surface area, excellent porosity, and stability [22,23,24,25,26,27]. Therefore, it is necessary to design and develop new and efficient porous organic polymer materials for rapid, efficient, and stable adsorption of uranium. By tailoring the properties of diverse monomers and linkers, many fascinating POPs have been explored to exhibit impressive uranium adsorption capability [28,29,30,31,32]. As a new-generation supramolecular macrocyclic compound, pillar[n]arene has great advantages as a functional monomer to be incorporated into POPs to afford win–win merits, such as simple synthesis with the inherent electric-rich cavity, diverse post-synthetic strategies, and multi-stage pore structure i.e., fixed and cross-linked pores [33,34,35,36,37,38,39]. Despite several pillararene-based POPs that have been demonstrated with applications potential in the field of adsorption and separation [40,41,42,43,44], studies on their uranium adsorption properties are still unexplored.
Herein, to obtain stable and efficient pillararene-based POPs adsorbent materials, we chose highly stable hexachlorophosphonitrile (HCCP) as the linker and pillar[5]arene (P5) macrocycle as the monomer to fabricate two new POPs (HCCP-P5-1 and HCCP-P5-2) by a macrocycle-to-framework strategy. The P–O bond formed by the polymerization of HCCP and the hydroxyl groups of P5 is stable enough to form a highly tolerant framework [11]. Meanwhile, the nitrogen-rich structure in HCCP and the multiple hydroxyl groups bearing in the P5 structure can collaboratively bind to the 5f orbitals of the actinides, which can confer higher selectivity of the polymer [6]. The structural, physical, and chemical properties of both POPs have been studied in detail. The adsorption of both POPs for uranium in pure water and simulated seawater were studied systematically. As a result, both pillar[5]arene-containing POPs exhibit high uranium adsorption capacity compared with previously reported macrocycle-free counterparts. Especially, HCCP-P5-1 has reached 537.81 mg/g which is greater than most POPs that have been reported. The distinct difference between HCCP-P5-1 and HCCP-P5-2 is derived from the ratios between monomer P5 and linker HCCP, which gives rise to a tunable adsorption capacity and stability of both polymers. We believe this macrocycle-to-framework strategy could provide new insight into the design and construction of highly efficient uranium adsorbents.

2. Results and Discussion

2.1. Characterization

Both porous organic polymers, i.e., HCCP-P5-1 and HCCP-P5-2 were successfully synthesized by one-step polymerization (Scheme 1). FT-IR and 13C solid-state NMR confirmed the successful formation of the polymers. As presented in Figure 1a, the infrared spectra of the POPs and monomers displayed a broad peak at 3300 cm−1 corresponding to –OH, while a peak at 1234 cm−1 represents the P–O–Ar bond and a weak signal of P-Cl exhibited at 563 cm−1. Moreover, 13C solid-state NMR spectra (Figure 1b) showed significant signals at 28.08 ppm, 126.04 ppm, and 146.57 ppm, which implied the presence of pillar[5]arene macrocycle in both polymers.
Thermal stabilities of HCCP-P5-1 and HCCP-P5-2 were examined by thermal gravimetric analysis (TGA) presented in Figure S1. The TGA experiment exhibited four steps of weight loss. The first step recorded at less than 200 °C means the loss of adsorbed water and residual solvent. The second step of weight loss was noted down at lower 480 °C which is 21% for HCCP-P5-1 and 27% for HCCP-P5-2, respectively. This outcome can be ascribed to the elimination of the phosphazene moiety. In the third step weight loss was observed at 480 to 550 °C which indicated about 9% and 7% for both polymers which may be due to P–O bond cleavage. In the fourth weight loss step, the HCCP-P5-1 and HCCP-P5-2 were detected at over 550 °C which could be due to carbonization of the residual benzene ring of the core framework.
The morphology of polymers HCCP-P5-1 and HCCP-P5-2 were observed by using scanning electron microscopy (SEM), and both polymers showed irregular particles and loose porous states presented in Figure S2. Further, XRD analysis has no substantial characteristic of diffraction peaks which demonstrated that both POPs exhibited amorphous solid features (Figure S3).
The hydrophilicity of HCCP-P5-1 and HCCP-P5-2 were recorded by the surface contact angle test. As shown in Figure 2, both polymers exhibited good hydrophilic capability which is rather critical for them as absorbent materials. Furthermore, the time for HCCP-P5-1 to reach the minimum contact angle is shorter compared with that of HCCP-P5-2, which indicated that HCCP-P5-1 has a higher hydrophilic property with more hydroxyl groups. This result implied that the hydrophilicity of both polymers can be easily tuned by adjusting the ratio between monomers P5 macrocycle and HCCP.
The permanent porosity and specific surface area of HCCP-P5-1 and HCCP-P5-2 were further examined and calculated by using a nitrogen adsorption–desorption isotherm at 77 K. As shown in Figure 3 and Table 1, the specific surface area of HCCP-P5-1 and HCCP-P5-2 were recorded at 17.12 m2/g and 23.3 m2/g, respectively, while the main hole sizes of both polymers were observed as 4.728 nm. Both POPs are mesoporous materials, and although the BET is relatively low, the multi-hydroxyl structure of POPs makes the materials have a strong diffusion ability in the water, which accelerates the rapid contact between POPs and uranium in water. In addition, POPs are rich in nitrogen which makes POPs have a strong binding ability with uranium, so POPs have a strong adsorption ability to uranium although the surface area is small.

2.2. Adsorption Experiments

2.2.1. Effect of Acidity

The pH effect on the uranium adsorption capacity of both adsorbents HCCP-P5-1 and HCCP-P5-2 was investigated in the pH range from 3 to 9 which is presented in Figure 4. The adsorption ability of HCCP-P5-1 decreased from 360 mg/g to 150 mg/g at basic pH which revealed that deprotonating of the -OH groups of polymers occurred which decrease coordination capability with uranium. In contrast, HCCP-P5-2 is more stable, and the adsorption capacity change was recorded from 290 mg/g to 200 mg/g, which is indeed due to a smaller number of hydroxyl groups. Under acidic conditions, uranium is present in hydroxides and the prevalent cationic species are mainly UO22+, UO2(OH)+, (UO2)2(OH)22+, and (UO2)3(OH)5 5+. Under neutral conditions, uranium can be found in neutral species and starts to precipitate as UO3·2H2O and UO2(OH)2·H2O. Under basic conditions, uranium is mainly present in anionic species in the form of UO2(OH)3− and UO2(OH)42−. In acidic solutions, the hydrolysis process gradually occurs because of the abundance of OH− ions in the solution and deprotonation takes place.

2.2.2. Effect of Sorption Time and Kinetic Studies

The sorption kinetics of adsorbents were scrutinized by using uranium adsorption in pure water and seawater with diverse times at pH 6 as given in Figure 5. The pseudo-first, as well as second-order models, were used to study the controlled mechanism of the adsorption method. The equations are shown as under.
This is example 1 of the pseudo-first-order model equation:
l o g q e − q t = l o g q e − K 1 t 2.303
This is example 2 of the pseudo-second-order model equation:
t q t = 1 K 2 q e 2 + t q e
where qt denotes the sum of uranium (mg/g) sorption at time t and qe indicates the quantity of uranium (mg/g) sorption at equilibrium. K1 (min−1) and K2 (g/(mg·min) is the kinetic constants for the pseudo-first-order and pseudo-second-order models.
The experimental data of HCCP-P5-1 and HCCP-P5-2 were fitted by the two models. The respective kinetic constant values were presented in Table 2. (The fitted linear forms were displayed in Figures S5 and S6). In pure water, the R2 value of HCCP-P5-1 in pseudo-first-order and pseudo-second-order models are 0.810 and 0.995, respectively. Further, the values of R2 for HCCP-P5-2 in the two models are 0.821 and 0.997 whereas in the simulated seawater R2 values of HCCP-P5-1 in pseudo-first-order and pseudo-second-order models are 0.872 and 0.999, respectively. Moreover, the R2 value of HCCP-P5-2 in the two models is 0.930 and 0.999. These results suggested that the R2 value for the pseudo-second-order model is significantly high (R2 > 0.99). Hence, it is assumed that the uranium adsorption kinetics of HCCP-P5-1 and HCCP-P5-2 are pseudo-second-order processes and chemisorption can be the rate-controlling step.

2.2.3. Effect of Initial Concentration and Isotherm Studies

The effect of the concentration of uranium and isotherm was investigated to gain more insight into the uranium adsorption capability of polymers, i.e., HCCP-P5-1 and HCCP-P5-2. As shown in Figure 6, initially sorption amounts of polymer HCCP-P5-1 were rising with the increasing concentration of C0 of uranium. After the uranium concentration reached 64 ppm, the sorption amounts of HCCP-P5-1 remained the same at 502 mg/g. Furthermore, the result for polymer HCCP-P5-2 was fully consistent with HCCP-P5-1 and recorded a maximum capacity of 432 mg/g. Further, Langmuir and Freundlich’s models are used to analyze the experimental data for describing the adsorption of solid to the liquid interface.
The Langmuir isotherm presumed that the sorption method is monolayer adsorption present at the particular homogenous site and its linear expression is shown in the given equation.
q e = q m K L C e 1 + K L C e
where the qe represents the amount of equilibrium sorption (mg/g). Ce is the concentration of uranium (mg/L) at equilibrium while qm is the Langmuir monolayer saturated sorption amount (mg/L).
Furthermore, Freundlich’s model is an empirical calculation and exponential distribution of sorption’s site through the characteristic of heterogeneous surface and the linear formula which is given in the equation.
Where KF (mmol1−1/nL1/ng−1) is the constant for Freundlich’s adsorption capacity and n (unitless) is a constant for the adsorption intensity of the adsorbent. Langmuir and Freundlich’s model parameters of HCCP-P5-1 and HCCP-P5-2 are tabulated in Table 3 (fitted linear forms as seen in Figure S7).
The maximum theoretical sorption amount of the Langmuir model for HCCP-P5-1 and HCCP-P5-2 were calculated as 537.81 mg/g and 473.32 mg/g, respectively. The comparative study of the two models showed the R2 value of Langmuir’s model is higher (R2 > 0.99) which demonstrated that the adsorption route is monolayer whereas the adsorption sites on the surface of the materials are homogeneous.

2.2.4. Mechanism of Uranium Sorption

FT-IR and XPS analysis were used to elucidate the variations of chemical composition and boding arrangements of HCCP-P5-1 and HCCP-P5-2 earlier and after the adsorption. For both polymers, a diagnostic new peak of the U–O bond was observed in the infra-red spectrum (Figure S8) and robust U 4f peaks were noticed in the XPS spectrum (Figures S8 and S9a) after sorption. This result validated that certain adsorption of uranium occurred on HCCP-P5-1 and HCCP-P5-2. The comparison of the electronic binding energy of elements showed no substantial shifts except O, N, and P. Furthermore, the high-resolution O 1s analysis shown in Figure 7b confirmed the existence of two species of oxygen in HCCP-P5-1 before sorption. The peaks exhibited at 530.0 eV and 531.6 eV could attribute to unreacted –OH and P–O bonds, respectively. After the sorption of uranium, electron binding energies of the two chemical states increased by 0.33 and 0.4 eV, respectively, and a new U–O peak seemed at 530.9 eV. Moreover, the high-resolution N 1s spectra (Figure 7c) showed two sorts of nitrogen species in HCCP-P5-1. The signal at 398.2 corresponds to P=N whereas the peak at 400.9 eV belongs to the P–NH2 which is formed via the isomerization of phosphazene. After the uranium sorption, the binding energy of electrons of both nitrogen species is enhanced by 2.6 eV and 1.8 eV, respectively. As shown in Figure 8d, the high-resolution P 2p spectra exhibited significant peaks at 132.9 eV and 133.9 eV, which can be attributed to the synthetic P–N and P–O bonds correspondingly. Further, after the uranium sorption, the electronic binding energies of species were decreased by 0.4 and 0.5 eV due to the inductive effect. Likewise, the FT-IR spectra of HCCP-P5-2 after sorption showed a consistent result as the electronic binding energies of O and N increased and P decreased noticeably (Figure S10). Therefore, both FT-IR and the XPS analysis certified that HCCP-P5-1 and HCCP-P5-2 have strong connections with uranyl ions via the N and O atoms.

2.2.5. The Recyclability of the HCCP-P5-2

To illustrate the recyclability of both polymers, HCCP-P5-2 was taken as an example. An eluent solvent with ultrapure water, 30% aqueous hydrogen peroxide solution, and sodium bicarbonate powder was prepared to recycle HCCP-P5-2. After five runs, the adsorption capability of the HCCP-P5-2 decreased slightly to 88.9% in an aqueous solution (Figure 8). Even ten cycles later, HCCP-P5-2 remained at 81.0% adsorption efficiency and 82.5% elution efficiency, indicating that the HCCP-P5-2 showed high adsorption performance with a robust structural framework. The loss of some of the adsorbent during the experiment became the main reason for the decrease in adsorption capacity. These results implied that the HCCP-P5-2 could be used as an excellent adsorbent with a cost-effective strategy for the extraction and recovery of uranium.

2.2.6. The Uranium Sorption Proficiencies of Other Reported POPs

The adsorption capacities of several representative materials in the uranium solution were compared and presented in Table 4. The results illustrated that the adsorption capability of HCCP-P5-1 in solution was superior as compared to reported COF or POPs adsorption materials.

3. Materials and Methods

3.1. Materials and Chemicals

P5 macrocycle was synthesized according to the method reported previously [36]. The required chemicals and solvents were acquired from authentic suppliers and utilized without further purification.

3.2. Synthesis of Polymer HCCP-P5-1 and HCCP-P5-2

P5 (2.0 mmol) and HCCP (2.0 mmol) were dissolved with 2 mL of dioxane solvent in a Schlenk bottle. Then, 1.68 mL trimethylamine was added, and the mixture was stirred for 24 h at 80 °C under the nitrogen condition. When the reaction has accomplished, the mixture was cooled down, filtered, and washed frequently with deionized water, ethanol, and acetone successively. Further, the product was dried in the vacuum oven overnight at 50 °C. Finally, HCCP-P5-1 was obtained with more than 55% yield. Moreover, a similar synthetic procedure has been adopted for the synthesis of the HCCP-P5-2 compound except that the ratio between P5 and HCCP was changed from 1:1 to 3:5 to decrease the number of free hydroxyl groups.

3.3. Materials Characterizations

The Bruker Avance II 400 instrument (Bruker BioSpin, Billerica, MA, USA) and CD3OD, DMSO-d6, and CDCl3 solvents were used to study 1H NMR spectroscopy while 13C NMR spectra were investigated by using a Bruker Av500 NMR spectrometer at 126 MHz. The FT-IR study was examined by a JASCO IR-4100 spectrometer (Jasco Int. Co. Ltd., Tokyo, Japan). HRMS (high-resolution mass) analyses were deliberate with a mass spectrometer (Agilent G6224A-TOF, Agilent Technologies UK Ltd., Stockport, UK). The solid-state 13C cross-polarization with magic angle spinning (CP/MAS) results were collected by a 500 MHz nuclear magnetic resonance spectrometer (Agilent DD2). X-ray diffraction (XRD) results were obtained by using diffractometers called Rigku D/max-2400 (40 kV, 200 mA) from 2° to 40° with a scanning rate of 2°/min. The FE-SEM analysis was examined by using an FEI Nova Nano SEM 450 scanning electron microscopy (Thermo Fisher Scientific, Inc., Waltham, MA, USA). The results of the adsorption and desorption of gases were obtained by an analyzer named Quantachrome Autosorb iQ (Quantachrome Instruments, Anton Paar, Graz, Austria). The TGA (thermogravimetric) analysis was achieved by the thermal analyzer (Mettler Toledo TGA/DSC 3+, Mettler Toledo, Zurich, Switzerland) under the N2 condition. Samples were heated from 25–600 °C with a 10 °C/min heating rate. XPS spectroscopy (X-ray photoelectron, Thermo Scientific ESCALAB 250Xi) was utilized to evaluate the elemental species on the surface of the materials.

3.4. Sorption Experiments

The stock solutions of uranium with different concentrations in pure water and simulated seawater were prepared. The pH of the solutions was adjusted by 3M HNO3 or 1M NaOH solution. The concentrations of uranium during experiments were detected via ICP-OES (Inductively coupled plasma optical emission) spectroscopy while inductively coupled plasma mass spectrometry (ICP-MS) was used for extra-low concentrations. The adsorption experiments were performed under ambient conditions. In addition, the uranium solution without sorbent was scrutinized for respective sorption experiments as a negative control. The same experiment was repeated three times and the final results were obtained by taking the average value.

3.4.1. Uranium Sorption Isotherms

To acquire the uranium adsorption isotherms for two adsorbents, 5 mg of HCCP-P5-1 or HCCP-P5-2 were mixed into aqueous solutions of uranium (10 mL) with various concentrations. Adsorbents were fully suspended by short sonication and the mixtures were vigorously stirred overnight. The solutions were filtered via a 0.45 µm membrane filter. The supernatant was evaluated by using ICP analysis to find the concentration of uranium remains. The adsorbed quantity at equilibrium (QE, mg g−1) was attained in the given equation.
q e = C 0 − C e V m
Wherever V is the volume of the treated solution (mL), m is the amount of used adsorbent (g), C0 and Ce are the initial concentration and equilibrium concentration of uranium correspondingly.

3.4.2. Uranium Adsorption Kinetics from U-Spiked Pure Water

Uranium aqueous solution (400 mL, 9.25 ppm) and adsorbent (5 mg) were added to an Erlenmeyer flask. The mixture was stirred for 3 h at 25 °C. At appropriate time intervals, aliquots (5 mL) were taken from the mixture, and the adsorbents were filtered by a syringe with a 0.45 μm membrane filter. The uranium concentrations in the resulting solutions were analyzed with ICP-OES.

3.4.3. Uranium Adsorption Kinetics from U-Spiked Simulated Seawater

An amount of 200 mL of the simulated seawater spiked with uranium (20 ppm) and 5 mg adsorbents were mixed in the Erlenmeyer flask. The reaction mixture was strongly stirred at 25 °C. After the reaction time, 5 mL of the aliquots were taken from the mixture then the adsorbents were filtered by a 0.45 μm membrane filter syringe. The concentrations of uranium in the resulting solutions were examined by using ICP-OES.

3.4.4. The Recyclability of the Sample

A 5 mg sample was immersed and shaken in 500 mL of 16 ppm U-spiked water (pH = 6) for 48 h. Further, the U-uptake sample was immersed and shaken in a 100 mL eluent for 30 min. The eluent solution was prepared with 1000 mL ultrapure water, 11.4 mL 30% aqueous hydrogen peroxide solution, and 106 g sodium bicarbonate powder. The U-adsorption and the U-desorption amount can be calculated on sed the U-concentration change in the U-spiked water and eluent solution, respectively.

4. Conclusions

In this research, two new pillar[5]arene- and phosphazene-linked POPs, HCCP-P5-1, and HCCP-P5-2 were successfully constructed by a macrocycle-to-framework strategy using P5 macrocycle as the functional monomer and hexachlorophosphates (HCCP) as the linker. The isothermal adsorption curves and kinetic studies showed that the adsorption of POPs on uranium was consistent with the Langmuir model and the pseudo-second-order kinetic model. Both materials displayed a high-efficient uranium adsorption capacity of 537.81 mg/g of HCCP-P5-1 and 473.32 mg/g of HCCP-P5-2 which were much better performances than the previously reported POPs adsorption materials to date, especially those non-macrocycle-incorporated counterparts. In addition, the stability and adsorption capacity of both polymers can be regulated by the monomer ratio between P5 and HCCP. HCCP-P5-1 with more P5 has higher uranium adsorption capacity, but HCCP-P5-2 with a higher HCCP ratio has stronger stability under the conditions of strong acid and alkali. Even ten cycles later, HCCP-P5-2 remained at 81.0% adsorption efficiency and 82.5% elution efficiency, which is more suitable for a complex realistic environment. This work is expected to promote the application of pillararene-based porous polymers in the field of uranium adsorption and the macrocycle-to-framework strategy could provide new insight into the design and construction of highly efficient uranium adsorbents.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28031029/s1, Scheme S1: Synthetic pathway for the preparation of monomers pillar[5]arene. Figure S1: TGA curves of HCCP-P5-1 and HCCP-P5-2. Figure S2: SEM micrographs of (a) HCCP-P5-1 and (b) HCCP-P5-2. Figure S3: XRD patterns of HCCP-P5-1 and HCCP-P5-2. Figure S4. Pore size distribution of HCCP-P5-1 and HCCP-P5-2 from the N2 adsorption isotherm. Figure S5. The fitted linear forms of (a) pseudo-first-order kinetic model and (b) pseudo-second-order kinetic model of HCCP-P5-1 and HCCP-P5-2 in pure water. Figure S6. The fitted linear forms of (a) pseudo-first-order kinetic model and (b) pseudo-second-order kinetic model of HCCP-P5-1 and HCCP-P5-2 in the seawater. Figure S7. The Langmuir isotherm fitted linear forms and the Freundlich isotherm fitted linear forms of HCCP-P5-1 and HCCP-P5-2. Figure S8. The XPS spectra of (a) HCCP-P5-1 and (b) HCCP-P5-2. Figure S9. The XPS high-resolution spectra of HCCP-P5-2 before and after sorption of uranium: (a) U4f, (b) O1s, (c) N1s, and (d) P2p. Figure S10 The FT-IR of HCCP-P5-1 and HCCP-P5-2 before and after adsorption of UO2+.

Author Contributions

W.G. and C.M. conceived and designed the experiments.; X.Z., Z.L. (Ziyi Liu), and S.Z. completed the synthesis.; X.Z., Z.L. (Ziyi Liu), S.Z., M.H., and Z.L. (Zhenzhong Liu) analyzed the data and wrote the manuscript. All the authors discussed the results and commented on and proofread the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

Natural Science Foundation of Liaoning Province [No. 2019-MS-046]; National Natural Science Foundation of China (No. 21965010).

Data Availability Statement

All data related to this study are presented in this publication.

Acknowledgments

We are grateful for financial support from the Natural Science Foundation of Liaoning Province (No. 2019-MS-046), National Natural Science Foundation of China (No. 21965010) and the authors acknowledge the assistance of the DUT Instrumental Analysis Center.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Xie, X.Q.; Wang, Y.F.; Xiong, Z.; Li, H.Z.; Yao, C. Highly efficient removal of uranium (VI) from aqueous solution using poly (cyclotriphosphazene-co-polyethyleneimine) microspheres. J. Radioanal. Nucl. Chem. 2020, 326, 1867–1877. [Google Scholar] [CrossRef]
  2. Singhal, R.K.; Basu, H.; Pimple, M.V.; Manisha, V.; Basan, M.K.T.; Reddy, A.V.R. Spectroscopic determination of U (VI) species sorbed by the Chlorella (Chlorella pyrenoidosa) freshwater algae. J. Radioanal. Nucl. Chem. 2013, 298, 587–592. [Google Scholar] [CrossRef]
  3. Sholl, D.S.; Lively, R.P. Seven chemical separations to change the world. Nature 2016, 532, 435–437. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Liu, Y.; Zhao, Z.P.; Yuan, D.Z.; Wang, Y.; Dai, Y.; Zhu, Y.; Chew, J.W. Introduction of amino groups into polyphosphazene framework supported on CNT and coated Fe3O4 nanoparticles for enhanced selective U (VI) adsorption. Appl. Surf. Sci. 2019, 466, 893–902. [Google Scholar] [CrossRef]
  5. Yuan, Y.H.; Yu, Q.H.; Wen, J.; Li, C.Y.; Guo, Z.H.; Wang, X.L.; Wang, N. Ultrafast and Highly Selective Uranium Extraction from Seawater by Hydrogel-like Spidroin-based Protein Fiber. Angew. Chem. Int. Ed. 2019, 58, 11785–11790. [Google Scholar] [CrossRef] [PubMed]
  6. Cai, Y.M.; Yan, Q.; Wang, M.X.; Chen, J.; Fu, H.Y.; Ye, J.W.; Conradson, S.D.; Yuan, L.H.; Xu, C.; Feng, W. Endowing 2,6-bis-triazolyl-pyridine of poor extraction with superior efficiency for actinide/lanthanide separation at high acidity by anchoring to a macrocyclic scaffold. J. Hazard. Mater. 2021, 416, 125745. [Google Scholar] [CrossRef] [PubMed]
  7. Wu, T.; Wang, Z.; Lu, Y.X.; Liu, S.; Li, H.P.; Ye, G.; Chen, J. Graphene Oxide Membranes for Tunable Ion Sieving in Acidic Radioactive Waste. Adv. Sci. 2021, 8, 2002717–2002724. [Google Scholar] [CrossRef] [PubMed]
  8. Sureshkumar, M.K.; Das, D.; Mallia, M.B.; Gupta, P.C. Adsorption of uranium from aqueous solution using chitosan-tripolyphosphate (CTPP) beads. J. Hazard. Mater. 2010, 184, 65–72. [Google Scholar] [CrossRef] [PubMed]
  9. Pan, M.; Zhang, D.X.; Xu, X.Y.; Reda, A.T.; Li, J.Y. Efficient electrosorption of uranyl ions by a homemade amidoxime-modified carbon paper-based electrode in acidic aqueous condition. J. Chem. Technol. Biotechnol. 2021, 96, 2916–2929. [Google Scholar] [CrossRef]
  10. Zhang, S.; Zhao, X.S.; Li, B.; Bai, C.Y.; Li, Y.; Wang, L.; Wen, R.; Zhang, M.; Ma, L.; Li, S. “Stereoscopic” 2D super-microporous phosphazene-based covalent organic framework: Design, synthesis and selective sorption towards uranium at high acidic condition. J. Hazard. Mater. 2016, 314, 95–104. [Google Scholar] [CrossRef]
  11. Zhang, M.C.; Li, Y.; Bai, C.Y.; Guo, X.H.; Han, J.; Hu, S.; Jiang, H.; Tan, W.; Li, S.J.; Ma, L.J. Synthesis of Microporous Covalent Phosphazene-Based Frameworks for Selective Separation of Uranium in Highly Acidic Media Based on Size-Matching Effect. ACS Appl. Mater. Interfaces 2018, 10, 28936–28947. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, Z.H.; Wang, Y.F.; Yao, C. Highly efficient removal of uranium (VI) from aqueous solution using the Chitosan- Hexachlorocyclotriphosphazene composite. J. Radioanal. Nucl. Chem. 2021, 330, 113–125. [Google Scholar] [CrossRef]
  13. Sun, Q.; Aguila, B.; Earl, L.D.; Abney, C.W.; Wojtas, L.; Thallapally, P.K.; Ma, S. Covalent Organic Frameworks as a Decorating Platform for Utilization and Affinity Enhancement of Chelating Sites for Radionuclide Sequestration. Adv. Mater. 2018, 30, 1705479–1705487. [Google Scholar] [CrossRef] [PubMed]
  14. Chouyyok, W.; Pittman, J.W.; Warner, M.G.; Nell, K.M.; Clubb, D.C.; Gill, G.A.; Addleman, R.S. Surface functionalized nanostructured ceramic sorbents for the effective collection and recovery of uranium from seawater. Dalton Trans. 2016, 45, 11312–11325. [Google Scholar] [CrossRef] [PubMed]
  15. Li, R.M.; Che, R.; Liu, Q.; Su, S.Z.; Li, Z.S.; Zhang, H.S.; Liu, J.J.; Liu, L.H.; Wang, J. Hierarchically structured layered-double-hydroxides derived by ZIF-67 for uranium recovery from simulated seawater. J. Hazard. Mater. 2017, 338, 167–176. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, Q.; Wang, Y.Y.; Wang, Z.; Zhang, Z.J.; Wang, X.D.; Yang, Z.L. Active biochar support nano zero-valent iron for efficient removal of U(VI) from sewage water. J. Alloys Compd. 2021, 852, 156993. [Google Scholar] [CrossRef]
  17. Hu, B.W.; Wang, H.F.; Liu, R.R.; Qiu, M.Q. Highly efficient U (VI) capture by amidoxime/carbon nitride composites: Evidence of EXAFS and modeling. Chemosphere 2021, 274, 129743–129751. [Google Scholar] [CrossRef]
  18. Tripathi, A.; Melo, J.S. Synthesis of low-density biopolymeric chitosan–agarose cryomatrix and its surface functionalization with bio-transformed melanin for the enhanced recovery of uranium (vi) from aqueous subsurfaces. RSC Adv. 2016, 6, 37067–37078. [Google Scholar] [CrossRef]
  19. Yang, P.P.; Liu, Q.; Liu, J.Y.; Zhang, H.S.; Li, Z.S.; Li, R.M.; Liu, L.H.; Wang, J. Interfacial growth of a metal–organic framework (UiO-66) on functionalized graphene oxide (GO) as a suitable seawater adsorbent for extraction of uranium (vi). J. Mater. Chem. A 2017, 5, 17933–17942. [Google Scholar] [CrossRef]
  20. Zhong, X.; Wen, L.; Wang, H.F.; Xue, C.; Hu, B.W. Aluminum-based metal-organic frameworks (CAU-1) highly efficient UO2(2+) and TcO4(-) ions immobilization from aqueous solution. J. Hazard. Mater. 2021, 407, 124729. [Google Scholar] [CrossRef]
  21. Feng, L.J.; Wang, H.; Feng, T.T.; Yan, B.J.; Yu, Q.H.; Zhang, J.C.; Guo, Z.H.; Yuan, Y.H.; Ma, C.X.; Liu, T.; et al. In-situ synthesis of uranyl-imprinted nanocage for selective uranium recovery from seawater. Angew. Chem. Int. Ed. 2021, 61, 82–86. [Google Scholar] [CrossRef]
  22. Wu, D.; Xu, F.; Sun, B.; Fu, R.; He, H.; Matyjaszewski, K. Design and preparation of porous polymers. Chem. Rev. 2012, 112, 3959–4015. [Google Scholar] [CrossRef] [PubMed]
  23. Dawson, R.; Cooper, A.I.; Adams, D.J. Nanoporous organic polymer networks. Prog. Polym. Sci. 2012, 37, 530–563. [Google Scholar] [CrossRef]
  24. Gong, W.T.; Deng, X.R.; Dong, K.X.; Liu, L.; Ning, G.L. A boranil-based conjugated microporous polymer for efficient visible-light-driven heterogeneous photocatalysis. Polym. Chem. 2021, 12, 3153–3159. [Google Scholar] [CrossRef]
  25. Gong, W.T.; Dong, K.X.; Liu, L.; Hassan, M.; Ning, G.L. β-Diketone boron difluoride dye-functionalized conjugated microporous polymers for efficient aerobic oxidative photocatalysis. Catal. Sci. Technol. 2021, 11, 3905–3913. [Google Scholar] [CrossRef]
  26. Qu, W.D.; Zhang, S.G.; Dong, K.X.; Deng, X.R.; Gong, W.T.; Ning, G.L. Construction of rigid ionic porous organic polymers (iPOPs) via Zincke reaction with tunable absorption behaviors. J. Porous Mater. 2021, 28, 507–514. [Google Scholar] [CrossRef]
  27. Zhang, S.Y.; Gong, W.T.; Qu, W.D.; Deng, X.R.; Dong, K.X.; Zhang, S.G.; Ning, G.L. Construction of Ionic Porous Organic Polymers (iPOPs) via Pyrylium Mediated Transformation. Chin. J. Polym. Sci. 2020, 38, 958–964. [Google Scholar] [CrossRef]
  28. Xu, M.Y.; Wang, T.; Gao, P.; Zhao, L.; Zhou, L.; Hua, D.B. Highly fluorescent conjugated microporous polymers for concurrent adsorption and detection of uranium. J. Mater. Chem. A 2019, 7, 11214–11222. [Google Scholar] [CrossRef]
  29. Tian, Y.; Liu, L.J.; Ma, F.Q.; Zhu, X.Y.; Dong, H.X.; Zhang, C.H.; Zhao, F.B. Synthesis of phosphorylated hyper-cross-linked polymers and their efficient uranium adsorption in water. J. Hazard. Mater. 2021, 419, 126538. [Google Scholar] [CrossRef]
  30. Li, L.Y.; Li, H.; Lin, M.Z.; Wen, J.; Hu, S. Effects of chain conformation on uranium adsorption performance of amidoxime adsorbents. Sep. Purif. Technol. 2023, 307, 122777. [Google Scholar] [CrossRef]
  31. Sakr, A.K.; Al-Hamarneh, I.F.; Gomaa, H.; Abdel Aal, M.M.; Hanfi, M.Y.; Sayyed, M.I.; Khandaler, S.U.; Cheira, M.F. Re-moval of uranium from nuclear effluent using regenerated bleaching earth steeped in β–naphthol. Radiat. Phys. Chem. 2022, 200, 110204. [Google Scholar] [CrossRef]
  32. Atia, B.M.; Sakr, A.K.; Gado, M.A.; El-Gendy, H.S.; Abdelazeem, N.M.; El-Sheikh, E.M.; Hanfi, M.Y.; Sayyed, M.I.; Al-Otaibi, J.S.; Cheira, M.F. Synthesis of a New Chelating Iminophosphorane Derivative (Phosphazene) for U (VI) Recovery. Polymers 2022, 14, 1687. [Google Scholar] [CrossRef] [PubMed]
  33. Ali, W.; Gong, W.T.; Hassan, M.; Qu, W.D.; Liu, L.; Ning, G.L. Guest induced morphology transitions of star shaped pillar[5]arene trimer via endo host-guest and “exo-wall” electron-transfer interactions. Chin. Chem. Lett. 2021, 32, 371–374. [Google Scholar] [CrossRef]
  34. Liu, L.; Hu, Y.M.; Huang, S.F.; Jin, Y.H.; Cui, J.N.; Gong, W.T.; Zhang, W. A pillar[5]arene-based covalent organic framework with pre-encoded selective host–guest recognition. Chem. Sci. 2021, 12, 13316–13320. [Google Scholar] [CrossRef] [PubMed]
  35. Li, M.H.; Yang, Z.Q.; Li, Z.; Wu, J.R.; Yang, B.; Yang, Y.W. Construction of Hydrazone-Linked Macrocycle-Enriched Covalent Organic Frameworks for Highly Efficient Photocatalysis. Chemistry of Materials. Chem. Mater. 2022, 34, 5726–5739. [Google Scholar] [CrossRef]
  36. Li, Z.; Yang, Z.Q.; Zhang, Y.N.; Yang, B.Y.; Yang, Y.W. Synthesis of an Acidochromic and Nitroaromatic Responsive Hydrazone-Linked Pillararene Framework by a Macrocycle-To-Framework Strategy. Angew. Chem. Int. Ed. 2022, 61, e202206144. [Google Scholar] [CrossRef]
  37. Chen, W.B.; Chen, P.; Zhang, G.; Xing, G.L.; Feng, Y.; Yang, Y.W.; Chen, L. Macrocycle-derived hierarchical porous organic polymers: Synthesis and applications. Chem. Soc. Rev. 2021, 50, 11684–11714. [Google Scholar] [CrossRef]
  38. Li, M.H.; Lou, X.Y.; Yang, Y.W. Pillararene-based molecular-scale porous materials. Chem. Commun. 2021, 57, 13429–13447. [Google Scholar] [CrossRef]
  39. Ogoshi, T.; Kanai, S.; Fujinami, S.; Yamagishi, T.A.; Nakamoto, Y. para-Bridged Symmetrical Pillar[5]arenes: Their Lewis Acid Catalyzed Synthesis and Host–Guest Property. J. Am. Chem. Soc. 2008, 130, 5022–5023. [Google Scholar] [CrossRef]
  40. Zhou, Y.J.; Yao, Y.; Huang, F.H. Four Pillar[5]arene Constitutional Isomers: Synthesis, Crystal Structures, and Host-Guest Complexation of Their Derivatives with Paraquat in Water. Chin. J. Chem. 2015, 33, 356–360. [Google Scholar] [CrossRef]
  41. Zhang, S.Y.; Li, X.H.; Gong, W.T.; Sun, T.J.; Wang, Z.G.; Ning, G.L. Pillar[5]arene-Derived Microporous Polyaminal Networks with Enhanced Uptake Performance for CO2 and Iodine. Ind. Eng. Chem. Res. 2020, 59, 3269–3278. [Google Scholar] [CrossRef]
  42. Tan, L.L.; Li, H.; Tao, Y.; Zhang, S.X.; Wang, B.; Yang, Y.W. Pillar[5]arene-based supramolecular organic frameworks for highly selective CO2-capture at ambient conditions. Adv. Mater. 2014, 26, 7027–7031. [Google Scholar] [CrossRef] [PubMed]
  43. Bai, C.Y.; Li, J.; Liu, S.B.; Yang, X.Y.; Yang, X.D.; Tian, Y.; Cao, K.C.; Huang, Y.; Ma, L.J.; Li, S.J. In situ preparation of nitrogen-rich and functional ultramicroporous carbonaceous COFs by “segregated” microwave irradiation. Microporous Mesoporous Mater. 2014, 197, 148–155. [Google Scholar] [CrossRef]
  44. Bai, C.Y.; Zhang, M.C.; Li, B.; Zhao, X.S.; Zhang, S.; Wang, L.; Li, Y.; Zhang, J.; Ma, L.J.; Li, S.J. Modifiable diyne-based covalent organic framework: A versatile platform for in situ multipurpose functionalization. RSC Adv. 2016, 6, 39150–39158. [Google Scholar] [CrossRef]
  45. Li, J.; Yang, X.D.; Bai, C.Y.; Tian, Y.; Li, B.; Zhang, S.; Yang, X.Y.; Ding, S.D.; Xia, C.Q.; Tan, X.Y.; et al. A novel benzimidazole-functionalized 2-D COF material: Synthesis and application as a selective solid-phase extractant for separation of uranium. J. Colloid Interface Sci. 2015, 437, 211–218. [Google Scholar] [CrossRef]
  46. Yu, J.P.; Yuan, L.Y.; Wang, S.; Lan, J.H.; Zheng, L.R.; Xu, C.; Chen, J.; Wang, L.; Huang, Z.W.; Tao, W.Q.; et al. Phosphonate-decorated covalent organic frameworks for actinide extraction: A breakthrough under highly acidic conditions. CCS Chem. 2019, 1, 286–295. [Google Scholar] [CrossRef] [Green Version]
  47. Li, B.Y.; Sun, Q.; Zhang, Y.M.; Abney, C.W.; Aguila, B.; Lin, W.B.; Ma, S.Q. Functionalized Porous Aromatic Framework for Efficient Uranium Adsorption from Aqueous Solutions. ACS Appl. Mater. Interfaces 2017, 9, 12511–12517. [Google Scholar] [CrossRef]
  48. Cui, W.R.; Zhang, C.R.; Jiang, W.; Li, F.F.; Liang, R.P.; Liu, J.; Qiu, J.D. Regenerable and stable sp2 carbon-conjugated covalent organic frameworks for selective detection and extraction of uranium. Nat. Commun. 2020, 11, 436–445. [Google Scholar] [CrossRef] [Green Version]
  49. Xiong, X.H.; Yu, Z.W.; Gong, L.L.; Tao, Y.; Gao, Z.; Wang, L.; Yin, W.H.; Yang, L.X.; Luo, F. Ammoniating Covalent Organic Framework (COF) for High-Performance and Selective Extraction of Toxic and Radioactive Uranium Ions. Adv. Sci. 2019, 6, 1900547–1900554. [Google Scholar] [CrossRef] [Green Version]
  50. You, Z.X.; Zhang, N.; Guan, Q.L.; Xing, Y.H.; Bai, F.Y.; Sun, L.X. High Sorption Capacity of U (VI) by COF-Based Material Doping Hydroxyapatite Microspheres: Kinetic, Equilibrium and Mechanism Investigation. J. Inorg. Organomet. Polym. Mater. 2020, 30, 1966–1979. [Google Scholar] [CrossRef]
Molecules 28 01029 sch001 550

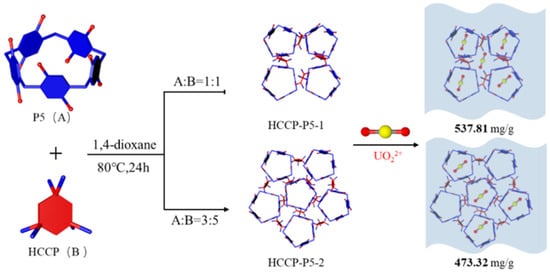

Scheme 1. The illustration of pillar[5]arene-based HCCP-P5-1 and HCCP-P5-2 for efficient uranium adsorption.
Scheme 1. The illustration of pillar[5]arene-based HCCP-P5-1 and HCCP-P5-2 for efficient uranium adsorption.
Molecules 28 01029 sch001
Molecules 28 01029 g001 550

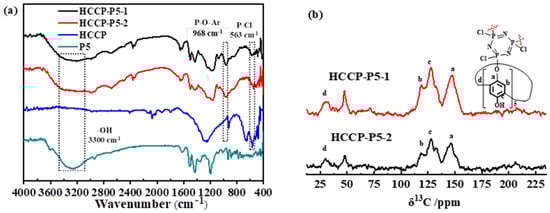

Figure 1. (a) FT-IR spectra of P5, HCCP-P5-1, and HCCP-P5-2; (b) 13C CPMAS NMR spectra and the structure of HCCP-P5-1 and HCCP-P5-2.
Figure 1. (a) FT-IR spectra of P5, HCCP-P5-1, and HCCP-P5-2; (b) 13C CPMAS NMR spectra and the structure of HCCP-P5-1 and HCCP-P5-2.
Molecules 28 01029 g001
Molecules 28 01029 g002 550

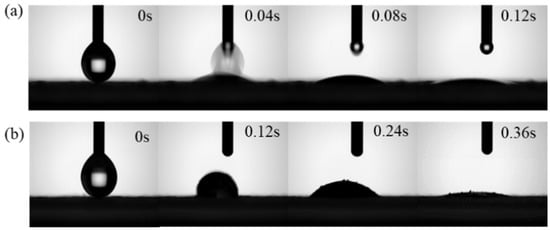

Figure 2. The surface contact angle of polymer (a) HCCP-P5-1, (b) HCCP-P5-2.
Figure 2. The surface contact angle of polymer (a) HCCP-P5-1, (b) HCCP-P5-2.
Molecules 28 01029 g002
Molecules 28 01029 g003 550

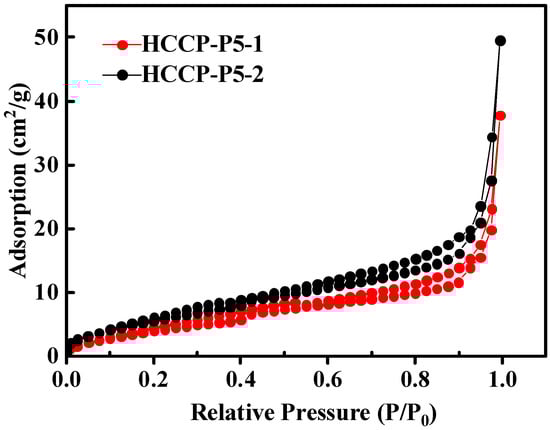

Figure 3. Nitrogen adsorption–desorption isotherm of HCCP-P5-1 and HCCP-P5-2 at 77 K.
Figure 3. Nitrogen adsorption–desorption isotherm of HCCP-P5-1 and HCCP-P5-2 at 77 K.
Molecules 28 01029 g003
Molecules 28 01029 g004 550
Figure 4. Effect of pH on uranium sorption on HCCP-P5-1 and HCCP-P5-2. (C0 = 9.25 ppm, V = 10 mL, T = 298.15 K, m = 5 mg).
Figure 4. Effect of pH on uranium sorption on HCCP-P5-1 and HCCP-P5-2. (C0 = 9.25 ppm, V = 10 mL, T = 298.15 K, m = 5 mg).
Molecules 28 01029 g004
Molecules 28 01029 g005 550

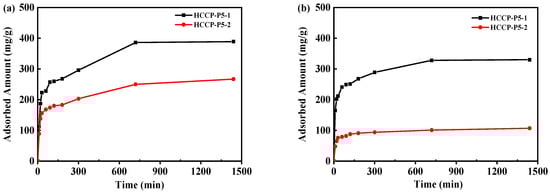

Figure 5. Effect of contact time on the uranium adsorption of HCCP-P5-1 and HCCP-P5-2 in (a) 9.25 ppm uranium-containing pure water and (b) 20 ppm uranium-containing simulated seawater. (V = 400 mL, T = 298.15 K, m = 5 mg).
Figure 5. Effect of contact time on the uranium adsorption of HCCP-P5-1 and HCCP-P5-2 in (a) 9.25 ppm uranium-containing pure water and (b) 20 ppm uranium-containing simulated seawater. (V = 400 mL, T = 298.15 K, m = 5 mg).
Molecules 28 01029 g005
Molecules 28 01029 g006 550

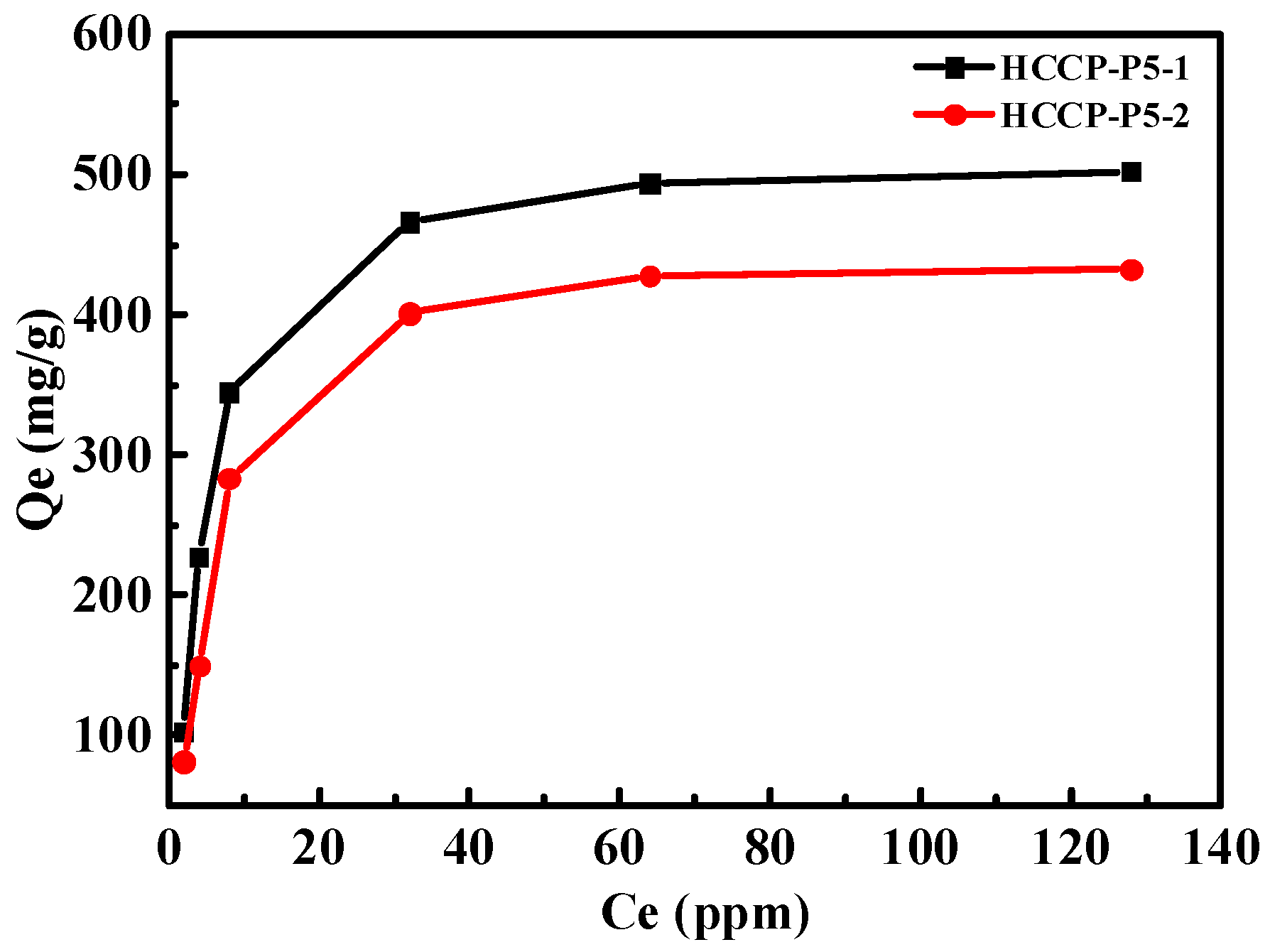

Figure 6. Initial concentration effect of uranium adsorption with HCCP-P5-1 and HCCP-P5-2. (V = 10 mL, T = 298.15 K, m = 5 mg).
Figure 6. Initial concentration effect of uranium adsorption with HCCP-P5-1 and HCCP-P5-2. (V = 10 mL, T = 298.15 K, m = 5 mg).
Molecules 28 01029 g006
Molecules 28 01029 g007 550

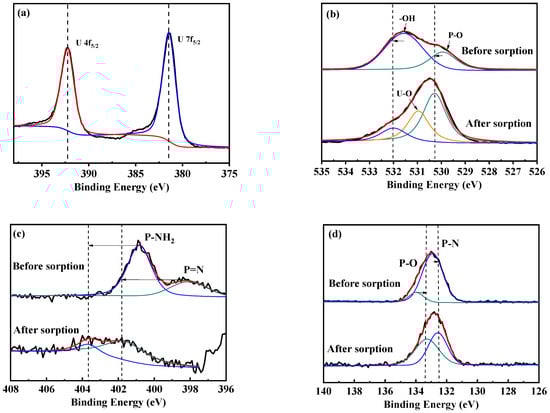

Figure 7. The XPS high-resolution spectra of HCCP-P5-1 before and after sorption of uranium: (a) U4f, (b) O1s, (c) N1s, and (d) P2p.
Figure 7. The XPS high-resolution spectra of HCCP-P5-1 before and after sorption of uranium: (a) U4f, (b) O1s, (c) N1s, and (d) P2p.
Molecules 28 01029 g007
Molecules 28 01029 g008 550

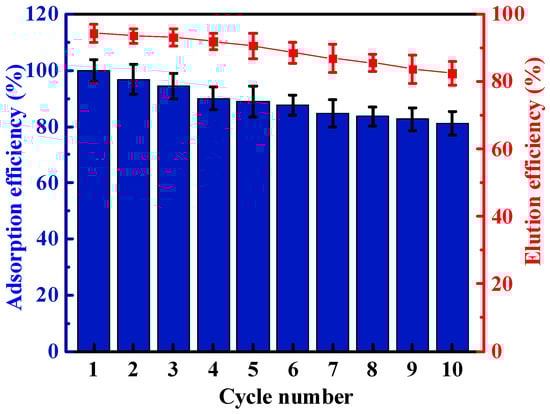

Figure 8. Effects of desorption on uranium adsorption behavior of HCCP-P5-2. (C0 = 9.25 ppm, V = 500 mL, T = 298.15 K, m = 5 mg).
Figure 8. Effects of desorption on uranium adsorption behavior of HCCP-P5-2. (C0 = 9.25 ppm, V = 500 mL, T = 298.15 K, m = 5 mg).
Molecules 28 01029 g008
Table
Table 1. Textural and sorption performance.
Table 1. Textural and sorption performance.
POPsSBET (m2/g)VTotal (cc/g) aPore Size (nm)
HCCP-P5-117.10.0434.728
HCCP-P5-223.30.0584.728
a Total pore volume calculated from nitrogen isotherm at P/P0 = 0.99.
Table
Table 2. The data were evaluated from pseudo-first-order and pseudo-second-order.
Table 2. The data were evaluated from pseudo-first-order and pseudo-second-order.
SolutionPolymersPseudo-First-Order ModelPseudo-Second-Order Model
Qe (mg/g)K1R2Qe (mg/g)K2R2
Pure waterHCCP-P5-1310.230.0370.810401.604.95 × 10−50.995
HCCP-P5-2207.640.0470.821271.737.50 × 10−50.997
Simulated seawaterHCCP-P5-1279.370.0640.872335.571.09 × 10−40.999
HCCP-P5-292.270.0620.930107.643.76 × 10−40.999
Table
Table 3. Value of parameters for langmuir and freundlich.
Table 3. Value of parameters for langmuir and freundlich.
PolymersLangmuir IsothermFreundlich Isotherm
Qm (mg/g)KLR2KFNR2
HCCP-P5-1537.810.09860.976170.280.2450.793
HCCP-P5-2473.320.06960.973128.810.2740.799
Table
Table 4. Comparisons of uranium adsorption capacities of different porous organic adsorbents.
Table 4. Comparisons of uranium adsorption capacities of different porous organic adsorbents.
NoAdsorptionqm (mg/g)pHRef.
1CCOF-SCU1501.0[43]
2COF TCD1584.5[44]
3MPCOF2144.5[10]
4COF-TpAb-AO4086.0[13]
5COF-HBI2114.5[45]
6COF-IHEP11125.0[46]
7PAF-1-CH2AO300——[47]
8TFPT-BTAN-AO4274.0[48]
9COF-SO3H3605.0[49]
10COF-HAP5103.0[50]
11HCCP-P5-15376.0This work
12HCCP-P5-24736.0This work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhao, X.; Liu, Z.; Zhang, S.; Hassan, M.; Ma, C.; Liu, Z.; Gong, W. Synthesis of Pillar[5]arene- and Phosphazene-Linked Porous Organic Polymers for Highly Efficient Adsorption of Uranium. Molecules 2023, 28, 1029. https://doi.org/10.3390/molecules28031029

AMA Style

Zhao X, Liu Z, Zhang S, Hassan M, Ma C, Liu Z, Gong W. Synthesis of Pillar[5]arene- and Phosphazene-Linked Porous Organic Polymers for Highly Efficient Adsorption of Uranium. Molecules. 2023; 28(3):1029. https://doi.org/10.3390/molecules28031029

Chicago/Turabian Style

Zhao, Xiaoxiao, Ziyi Liu, Shuguang Zhang, Mehdi Hassan, Chunxin Ma, Zhenzhong Liu, and Weitao Gong. 2023. "Synthesis of Pillar[5]arene- and Phosphazene-Linked Porous Organic Polymers for Highly Efficient Adsorption of Uranium" Molecules 28, no. 3: 1029. https://doi.org/10.3390/molecules28031029

Article Metrics

Back to TopTop
