Article

Single-Atom Platinum Catalyst for Efficient CO2 Conversion via Reverse Water Gas Shift Reaction

by
Yulian He
1 and
Dahong Huang
2,*
1
University of Michigan and Shanghai Jiao Tong University Joint Institute, Shanghai Jiao Tong University, Shanghai 200240, China
2
Department of Environmental Science and Engineering, University of Science and Technology of China, Hefei 230026, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(18), 6630; https://doi.org/10.3390/molecules28186630
Submission received: 31 August 2023 / Revised: 11 September 2023 / Accepted: 13 September 2023 / Published: 14 September 2023
(This article belongs to the Special Issue Single-Atom Catalysts for Environmental Remediation and Resource Recovery: From Preparation to Applications)
Browse Figures
Versions Notes

Abstract

:
The need to tackle CO2 emissions arising from the continuously rising combustion of fossil fuels has sparked considerable interest in investigating the reverse water gas shift (RWGS) reaction. This reaction holds great promise as an alternative technique for the conversion and utilization of CO2. In this study, a scalable method was employed to synthesize a single-atom Pt catalyst, uniformly dispersed on SiC, where up to 6.4 wt% Pt1 was loaded onto a support based on ligand modification and UV photoreduction. This Pt1/SiC catalyst exhibited a high selectivity (100%) towards the RWGS reaction; 54% CO2 conversion was observed at 900 °C with a H2/CO2 feed-in ratio of 1:1, significantly higher than the conventional Pt nanoparticle counterparts. Moreover, Pt1/SiC displayed a robust stability during the long-term test. The activation energy with as-synthesized Pt1/SiC was further calculated to be 61.6 ± 6.4 kJ/mol, which is much lower than the 91.6 ± 15.9 kJ/mol of the Pt nanoparticle counterpart and other Pt-based catalysts reported so far. This work offers new insights into the utilization of diverse single-atom catalysts for the RWGS reaction and other crucial catalytic processes, paving the way for the further exploration and application of SACs in various industrial endeavors.

Graphical Abstract

1. Introduction

Noble metals have been extensively explored as catalysts and co-catalysts, since they exhibit exceptional performance in catalyzing various reactions such as hydrogen evolution [1,2], hydrogenation [3], and alcohol oxidation [4,5]. However, the scarcity of noble metals in nature and the resultant high costs have restricted their potential in large-scale commercial applications [6,7]. The last decade has witnessed a rapid development on single-atom catalysts (SACs), which have attracted extensive attention due to the superior catalytic performance in various important processes [8]. The most important advantage of SACs, compared to their nanoparticle counterparts, is the maximized atom efficiency (~100%), where each atom is accessible to the reaction due to atomic dispersion [9]. Previous studies have identified additional benefits, such as a strong interaction with the supportive substrate, the absence of metallic bonds, and a low coordination state [10,11]. In particular, the low coordination state of metal is considered critical for the improved catalytic performance of SACs, compared to their metal oxide counterparts, which also lack metallic bonds [12]. SACs represent the forefront of catalysis research, and offer ideal models to understand catalytic behavior at the atomic level, addressing the emerging concerns over the design and optimization of catalysts that remains a fundamental challenge and is of great interest in regard to the practical applications.
The ever-growing concentration of carbon dioxide (CO2) in the atmosphere, and its detrimental impact on climate change, have spurred widespread research efforts aimed at developing effective strategies for CO2 reduction. CO2 conversion and utilization, aligning with the “waste-to-wealth” concept through the prism of green chemistry, have gained significant attention as feasible approaches to mitigate greenhouse gas emissions while simultaneously producing valuable chemicals and fuels. Among the alternative processes, the reverse water gas shift reaction (RWGS, CO2 + H2 → CO + H2O) is garnering immense attention as one of the most promising routes for sustainable and efficient carbon management [13,14]. CO, as the simplest CO2-derived product, can be further exploited as a building block for various value-added hydrocarbons via Fischer–Tropsch synthesis [15,16]. Moreover, RWGS serves as a crucial intermediate step in many other hydrogenation processes, such as the Sabatier reaction [17] and methanol synthesis [18], fostering the development of a more circular and sustainable economy and contributing to the transition to a low-carbon future. Due to the vital importance of RWGS reactions, the rational design of catalysts has thus attracted global attentions.
A well-designed catalyst for the RWGS reaction should possess several critical characteristics. First, high selectivity is important in order to minimize undesired reactions and to avoid the formation of byproducts, maximizing the efficiency of the target reaction and eliminating the need for downstream separation processes. Second, the impressive activity is also critical to enable the reaction at relatively low temperatures by reducing the energy barrier. These two features improve the overall efficiency of the conversion of CO2 and H2 to CO and H2O, respectively. Furthermore, it is imperative that the catalyst demonstrates robust stability under the operational conditions, retaining structural integrity and sustained catalytic performance throughout the challenging scenarios of elevated temperatures and the resultant corrosion. Pt-based catalysts have been regarded as promising candidates in meeting the aforementioned requirements based on reported studies [19,20]. However, the scarcity of Pt in nature leads to elevated costs, which imposes constraints on practical applications. To address this challenge, the emergence of SACs offers a potential solution by maximizing the atomic efficiency of Pt-based catalysts. In SACs, each Pt atom participates in the reaction as an active site on the catalyst’s interface, reducing the Pt loading and overall cost. Additionally, the presence of strong metal–support interactions in SACs can guarantee the stable coordination structure of single-atom Pt catalysts, enhancing their longevity and performance over extended periods. However, most SACs are limited by their low loading amount, which is typically below 1%. Such low loading quantities are necessary to prevent the aggregation of atomically dispersed metal centers into nanoparticle counterparts during the synthesis and reaction. Unfortunately, the limited number of active sites resulting from low loading negatively impacts the overall activity of SACs. Therefore, developing single-atom Pt catalysts with a high loading amount is essential to meet the urgent demand for practical implementation.
In this work, we introduce a simple method to load a 6.4 wt% Pt catalyst on a silicon carbide (SiC) substrate, utilizing a 254 nm UVC photoreduction method. We exploit a wide range of techniques, including X-ray absorption fine structure spectroscopy (XAFS), aberration-corrected high-angle annular dark-field scanning transmission electron microscopy (AC-HAADF-STEM), and X-ray photoelectron spectroscopy (XPS), to fully characterize the synthesized nanostructures. The catalytic performance of atomically dispersed Pt surpasses that of conventional Pt nanoparticle catalysts. This superiority can be attributed to two factors: the near 100% atomic utilization of Pt1, and the inherent higher catalytic performance of Pt1 compared to Pt atoms within Pt nanoparticles. The exploration of RWGS using the Pt1/SiC catalyst holds the potential to deepen our understanding of the catalytic behavior of SACs and broaden their applications in the realm of industrial catalysis, serving as an inspiration for future studies that aim to advance SACs-related research.

2. Results and Discussion

The atomic dispersion of Pt was confirmed by AC-HAADF-STEM. The estimated radius of the Pt species was approximately 2 Å (Figure 1a), suggesting that the Pt was dispersed at the atomic level rather than forming metallic Pt clusters. Furthermore, the coordination environment of Pt1/SiC was investigated by XAFS. The white line (WL) intensity of Pt1/SiC from the normalized near-edge X-ray absorption spectroscopy (XANES) analysis, as shown in Figure 1b, qualitatively demonstrated the presence of positively charged Pt atoms between Pt2+ and Pt4+, indicating the 5d-orbitals of the Pt in Pt1/SiC are partially unoccupied. The Fourier-transformed extended XAFS (FT-EXAFS, Figure 1c,d) spectra of Pt L3-edge indicated that Pt1 only bonds with the O atoms, wherein the interatomic distance of Pt-O path in the first coordination shell was determined to be 1.6 Å. The absence of Pt-Pt coordination excludes the formation of Pt nanoparticle, consistent with the AC-HAADF-STEM result. Comparison with the Pt cisplatin reference confirms the disappearance of Pt-Cl bonds in Pt1/SiC, suggesting the complete reduction of the PtCl62− precursor. Best-fit parameters extracted from FT-EXAFS data are presented in Table 1. The average Pt-O coordination number equals to 5, implying the unsaturated coordination of Pt atoms in the Pt1/SiC, which benefits catalytic performance.
The XPS analysis, presented in Figure 2a, quantitatively determined the oxidation state of Pt1 to be ~2.9 (55% Pt2+ and 45% Pt4+), which agrees well with the XANES analysis shown above. The adjacent O atoms originate from the surface -OH groups on SiC [21,22], as evidenced by peaks at 102.2 eV and 532.6 eV from the Si 2p (Figure 2b) and O 1s (Figure S1) regions, respectively. The atomic ratio of oxygen is calculated to be 21.8% by integrating peak area; peak intensities are normalized to the strongest peak. Sufficient -OH groups are of vital importance to the stabilization of Pt1, where each Pt atom is stabilized onto the SiC support by coordinating with neighboring oxygen atoms on its surface based on our previous work [3].
Prior to the measurement of the actual RWGS reaction, the Pt1/SiC catalyst was pre-treated in a H2 atmosphere, cleaning the -OH groups from the chemisorbed water that had accumulated on their surfaces [23]. A temperature-programmed reduction (TPR) in 10% H2/Ar was conducted to evaluate the pre-treatment conditions. From the recorded mass spectra in Figure 3, we observed no dips in the H2 signal up to 900 °C, demonstrating that no H2 was consumed during the TPR process. It is therefore deduced that Pt1/SiC can retain a remarkable anti-reduction stability even under high temperatures and a reductive atmosphere. To avoid the potential catalyst sintering at high temperatures, the H2 pre-treatment was set to 200 °C for 1 h before the RWGS reaction.
The RWGS reactions were conducted in a flow reactor setup, as illustrated in the SI (Figure S2). The full mass spectrometry and conversion dependence over temperature plots are given in Figure 4a,b, respectively. Using the Equation (1) below, CO2/H2 conversion was tested at each temperature point. Measurements were taken approximately every 3 s. No change in the background argon signal was observed in the mass spectra, suggesting that the partial pressure in the chamber remained unchanged over the reaction course.
% C O 2 ( H 2 )   C o n v e r s i o n = ( 1 − M e a s u r e d   C O 2 ( H 2 ) s i g n a l P r e − r e a c t i o n   C O 2 ( H 2 ) s i g n a l ) × 100 %
According to Figure 4b, it can be concluded that the RWGS reaction is endothermic, which is supported by the observation that the reaction is more favorable at higher temperatures, consistent with the findings previously reported in the literature [24]. Mass spectrometry analysis revealed that no hydrocarbons other than CO (e.g., CH4, C2H6, etc.) were detected, indicating a 100% selectivity of CO2 to CO. This high selectivity at low temperatures (<700 °C) is valuable, as the consumption of H2 feed can be significantly lowered by the suppression of other competing H2-intensive pathways such as methanation [25]. Moreover, the onset temperature of the reaction was approximately 280 °C (Figure 4b), falling within the range of many other reported values for Pt-based catalysts. The maximal CO2 conversion was found to be around 54% at 900 °C, corresponding with a turnover frequency (TOF) of 0.49 molCO2 molPt−1 s−1 (Section S1). This represents a significant improvement compared to other studies on supported Pt catalysts for the RWGS reaction, approaching the thermodynamic equilibrium conversion under the H2/CO2 = 1:1 feed-in conditions [26]. Due to the endothermic nature of the RWGS reaction, very limited catalysts reported so far have exhibited a conversion rate of more than half (50%) at above 800 °C. Some exceptions include NiO supported on SBA-15, with 55% conversion of CO2 at 900 °C and 100% selectivity to CO [27], 1D hematite nanowire with 55% conversion of CO2 at 850 °C and 100% selectivity to CO [24], and 2D MnO2 nanosheets with 50% conversion at 850 °C [25]. A comparative table regarding important kinetic parameters of various typical catalysts for RWGS is concluded in Table S1.
To serve as a control, a conventional Pt nanoparticle counterpart supported by the SiC substrate (prepared using the hydrothermal method, Figure S3) was tested under the same experimental procedures, as shown in Figure 4c. The results show that the conventional Pt nanoparticle catalyst exhibited significantly lower catalytic performance in converting CO2 to CO, despite having a one-order-of-magnitude higher Pt mass loading, as determined by the ICP-MS results (6.4 wt% of Pt1 and 10.3 wt% of metallic Pt, Figure S3). Moreover, the regular Pt/SiC catalyst exhibited a sharp decrease in CO2 conversion at 700 °C, and the reaction almost ceased at 900 °C, likely due to the catalyst sintering, caused by surface atom rearrangements and the collapse of the Pt nanostructures and/or poisoning of Pt by CO.
Contrastingly, the Pt1/SiC catalyst did not display a comprised activity, with the CO2 conversion increasing almost linearly with the reaction temperature, as shown in Figure 4c. The high thermal stability of Pt1/SiC can be ascribed to the strong metal–support interaction through interfacial bonds (i.e., Pt-O in this work) between Pt1 and the SiC support [28,29]. The superior catalytic performance of the Pt1/SiC is probably a result of the promoted CO2 adsorption on Pt, stemming from the partially unoccupied 5d orbitals, given that the SiC support is highly irreducible itself. Additionally, H2 adsorption was found to be unfavorable during TPR, as discussed in Figure 3. Therefore, it is demonstrated that the reaction primarily proceeds through CO2 adsorption on Pt first, presumably through the surface Pt-OH species to form surface-bound CO2 (mostly in the form of carbonates [30,31]), followed by H2 reduction to the final product of CO. Such a reaction pathway has been observed in several Pt-based systems, as well as oxides such as MnO2 [25].
Exploring the deactivation behavior of a catalyst is crucial, particularly when the catalyst is prone to being poisoned during the reaction course. Pt catalysts are well known to be susceptible to CO poisoning because of the high desorption energy of CO. Therefore, it is essential to assess the stability of the Pt1/SiC catalyst under the reaction conditions over an extended period. In this study, 50 mg of catalyst were tested using the same setup discussed above for a duration of 10 h at 900 °C, as shown in Figure 4d. During the first few hours, the Pt1/SiC catalyst exhibited excellent stability with negligible activity drop. However, as time progressed, Pt1/SiC experienced gradual deactivation. Nonetheless, the CO2 conversion still remained relatively stable at approximately 50%, even after 10 h. The slight decline in activity can be attributed to two factors: (1) catalyst poisoning resulted from the occupation of Pt1/SiC by CO molecules; and (2) a small amount of Pt1/SiC reduction, as demonstrated by the binding energy shift to 72.5 eV, lower than the fresh Pt1/SiC catalyst (72.7 eV), as demonstrated by the XPS results in Figure 5a. The change in binding energy (BE) is as follows: Pt foil (71.3 eV) < Pt1/SiC after reaction (72.5 eV) < Pt1/SiC before reaction (72.7 eV) < PtO2 (77.7 eV) [32]. Although the precise regulation of Pt1/SiC significantly improves the activity, high temperature leads to instability after long-term use, reflected by a peak shift towards the lower value of 0.2 eV detected in above figure. Though a small amount of Pt1/SiC may migrate and aggregate into Pt nanoparticles after the reaction, we would like to point out that Pt1/SiC should remain mostly stable. Otherwise, the peak of Pt1/SiC should move even closer to that of Pt foil. The negligible difference indicates the high stability of the Pt1/SiC catalyst, as shown in Figure 5b. This additionally excludes the existence of Pt nanoparticle due to the absence of corresponding Pt peaks. Further developments are necessary to overcome this essential obstacle, in order to prolong the catalyst’s lifespan to meet the needs of practical applications. In conclusion, our results call for further efforts to design and optimize atomically dispersed Pt-based catalysts to mitigate the catalyst poisoning and further enhance the stability of SACs, extending catalyst’s lifespan for practical applications.
In addition, we also performed a kinetic analysis to compare the apparent activation energies of the two Pt/SiC systems. Based on the principles of collision theory, molecules involved in a chemical reaction must possess sufficient energy to undergo rearrangement and reach the activated states necessary for the reaction to take place. The activation energy, in this context, refers to the minimum energy threshold required for a reaction to occur. Here, we employed the Arrhenius equation (see Section S2) to analyze the catalytic performance of the Pt1/SiC catalyst, which provided valuable information for understanding and optimizing the catalytic behavior of the Pt1/SiC catalyst.
Continuous data points were collected within the range of 450 °C to 500 °C under kinetic control, ensuring CO2 conversions below 10% (Figure 6). By performing linear fitting on the data and extrapolating the slope, the apparent activation energy of the Pt1/SiC catalyst for the rate reaction of the RWGS process was determined to be 61.6 ± 6.4 kJ/mol. Notably, this activation energy is significantly lower than the value of 91.6 ± 15.9 kJ/mol obtained for the Pt nanoparticle counterpart. It is important to mention that this low activation energy is unusual compared to other reported values in the literature for the RWGS reaction [33]. The observed difference in activation energy between the Pt1/SiC catalyst and the Pt nanoparticle catalyst indicates a distinct reaction pathway, i.e., CO2 adsorption, H2 activation, CO desorption, and so on, which originated from the different properties of atomically dispersed Pt sites. Further investigation is warranted to gain a comprehensive understanding of these underlying factors and to elucidate the specific characteristics that enable SACs to exhibit this superior catalytic performance in the RWGS reaction.

3. Materials and Methods

3.1. Reagents and Materials

All chemicals used in this work were of reagent grade or higher and were used as-received without further purification. Aminopropyltrimethoxysilane (APTMS), platinum oxide (PtO2), and cis-diammineplatinumdichloride (Pt(NH3)2Cl2, Pt cisplatin) were obtained from Sigma-Aldrich, Burlington, MA, USA. Silicon carbide (beta-phase, nanopowder, 95% purity) was purchased from Alfa Aesar, Ward Hill, MA, USA. Chloroplatinic acid (H2PtCl6, 8 wt% in H2O) was obtained from J&K Scientific (San Jose, CA, USA). Hexane was supplied by J. T. Baker, Phillipsburg, NJ, USA. All aqueous solutions were prepared with ultrapure/deionized water obtained from a Milli-Q system, Bay City, MI, USA.

3.2. Preparation of Pt1/SiC Catalysts

The Pt1/SiC was synthesized by photoreduction of H2PtCl6 into Pt1. As shown in Figure S4, the potential of zero charge (PZC) of pristine SiC was estimated to be 9 according to the zeta-potential measurement. Thus, we dispersed SiC into the deionized (DI) water solution using sonication with a pH of 4, mediated by the H2SO4, where the surface of SiC would be highly positively charged. Subsequently, an electrostatic interaction took place between the negatively charged Pt precursors (PtCl62−) and the positively charged SiC, ensuring good distribution of Pt precursors onto the surface of SiC. Pt precursors were photo-reduced under a moderate ultraviolet C (UV-C) irradiation of 7.8 mWcm−2. The synthesized Pt1/SiC was finally separated by centrifugation and dried by the vacuum oven.

3.3. Preparation of Pt/SiC Catalysts

A total of 50 mg of SiC powder was dispersed in the solution (consisting of 90 mL H2O, and 10 mL ethylene glycol). After 30 min of sonication, H2PtCl6 (3 mL, 10 mM) was added to the solution. The mixture was sonicated for another 30 min, and then sealed in a Teflon container at 120 °C for 180 min. The samples were separated by centrifugation and washed with ethanol and deionized water to remove any impurities. The final Pt/SiC (metallic Pt) was oven-dried overnight at 80 °C and stored for the subsequent experiments.
Aberration-corrected high-angle annular dark-field scanning transmission electron microscopy (AC-HAADF-STEM): The AC-HAADF-STEM images were collected with a Hitachi 2700C at the Center for Functional Nanomaterials at Brookhaven National Laboratory, which has a dedicated scanning transmission electron microscope (STEM), operating at 80 kV, 120 kV, and 200 kV, with a probe aberration-corrector to improve the imaging resolution to less than 1 Å.

3.4. X-ray Absorption Fine Structure (XAFS)

The XAFS spectra at Pt L3-edge for our samples were meticulously acquired from Beamline 8-ID within the esteemed confines of the National Synchrotron Light Source II, situated at Brookhaven National Laboratory. To ensure precision and accuracy, a Si (111) double crystal monochromator was employed to select the output beam. The energy calibration process was executed with the utmost care, utilizing a Pt foil as the reference standard. Our samples, handled with great attention to detail, were diligently pressed into pellets and hermetically sealed within Kapton films, a necessary step in preparing them for the ensuing XAFS measurements. Data acquisition took place at room temperature, employing the fluorescence mode and benefiting from the capabilities of a passivated implanted planar silicon (PIPS) detector, thus ensuring the highest quality of data. All XAFS results were processed using Demeter XAFS analysis software (0.9.26). The fitting process was performed following the procedures previously established [34]. Athena software (0.9.26) was applied for XAS data processing, including the conversion of raw data to μ(E) spectra, background subtraction and normalization, and Fourier transformation and plotting. Artemis software (0.9.26) was used for the analysis of extended X-ray absorption fine structure (EXAFS) data using theoretical standards, including setting the range of the Fourier transform from k-space and fitting range parameters in R-space. Reference samples of Pt foil and commercially acquired PtO2 were used for calibrating S02 parameters.

3.5. X-ray Photoelectron Spectroscopy (XPS)

XPS were performed to characterize the variations of oxidation states of the Pt1/SiC. XPS analysis was conducted with a Versa Probe II Scanning XPS Microprobe (Physical Electronics (PHI), Chanhassen, MN, USA). For each sample, a survey analysis across the entire energy range and higher resolution analyses in the Pt 4f, Si 2p, and O 1s regions were performed.

3.6. Inductively Coupled Plasma Mass Spectrometry (ICP-MS) Experiments

ICP-MS was performed using a PerkinELmer SCIEX Elan DRC-e (PerkinELmer, Shelton, CT, USA)to determine the loading of Pt on SiC. The sample (10 mg) was acid-digested in mixtures of 7.5 mL 37% HCl, 2.5 mL 70% HNO3, and 2.0 mL 47.5% HF solutions using a Mars5 CEM microwave system (CEM corporation, Charlotte, NC, USA; first step, heating to 220 °C for 15 min; and second step, holding at 220 °C for 40 min). The samples were allowed to cool to room temperature for at least 3 h. To neutralize HF, 1.2 g of boric acid (ACS grade) was added to each solution. These solutions were then digested for a second time in the microwave oven. Each digested solution was then transferred into a polypropylene centrifuge tube and diluted to 50 mL with ultrapure water. From this solution, an aliquot of 0.15 mL was taken and diluted to 12 mL prior to ICP-MS analysis. According to our ICP-MS results, we determined the loading amount of single-atom Pt and Pt nanoparticle are 6.4 wt% and 10.3 wt%, respectively.

3.7. Temperature-Programmed Reduction (TPR)

TPR was used to evaluate the reduction conditions and thermal stability of the solid catalysts in a reductive environment. Gas flow rates were regulated using mass flow controllers, while the temperature was controlled using K-type thermocouples. This experiment involved loading 50 mg of Pt1/SiC catalyst into a straight tube quartz reactor containing a rough silica bed. The reactor was heated gradually from 100 °C to 900 °C at a rate of 10 °C/min. This temperature range was selected to investigate the optimal operating temperature for the pre-treatment process. During this phase, the hydrogen weight hourly space velocity (WHSV) was maintained at 12,000 mL g−1 h−1. A total gas flow rate of 100 mL/min was continuously purged during the reaction, with the feed gas composition consisting of 10% H2 and 90% Ar. Gas composition at the reactor outlet was monitored using an Standard Research Systems (SRS) RGA 100 Mass Spectrometer (Stanford Research Systems, Sunnyvale, CA, USA).

3.8. RWGS Reactions

A total of 50 mg of Pt1/SiC catalyst was loaded into a straight tube quartz reactor and heated from 100–900 °C at 10 °C·min−1. The total gas flow rate was 100 mL·min−1 and the inlet feed compositions were 20% H2 (WHSV = 24,000 mL g−1 h−1), 20% CO2, and 60% Ar. To quantify the CO2/H2 conversion, the outlet gas composition was compared to the measurements of the pre-reaction steady state CO2/H2 mass spectrometer signal.

4. Conclusions

In this work, we have developed a facile synthetic method to obtain the Pt1/SiC catalyst, which exhibits a superior catalytic performance surpassing the traditional Pt nanoparticle counterparts. The Pt1/SiC catalyst achieved an impressive conversion efficiency of approximately 54% at 900 °C, while displaying a high selectivity of up to 100% towards CO, as evidenced by the absence of other hydrocarbon byproducts. Moreover, the as-synthesized Pt1/SiC demonstrated remarkable thermal stability under a reductive H2 atmosphere. We additionally calculated the apparent activation barrier of the RWGS on Pt1/SiC to be 61.6 ± 6.4 kJ/mol, which is lower than most Pt-based catalyst reported to date. This finding highlights the exceptional catalytic performance of the Pt1/SiC catalyst and its potential for various industrial chemical processes, and provides pivotal inspirations for the rational design and optimization of SACs.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules28186630/s1: Section S1: Turnover Frequencies (TOF) Calculation. Section S2: Calculation of the Activation Energy. Figure S1: Binding energy of O 1s for pristine SiC by high-resolution XPS spectra. O peak position at 532.6 eV demonstrate the surface -OH groups, which are critical to the stabilization of Pt1; Figure S2: setup for TPR and RWGS experiments; Figure S3: (a,b) High-resolution transmission electron microscopy (HRTEM) images, and (c) energy dispersive spectroscopy (EDS) of Pt/SiC (metallic Pt), synthesized via hydrothermal method with ethylene glycol as the reducing agent; Figure S4: zeta potential of pristine SiC vs. pH value; Table S1: comparisons of catalysts towards RWGS reaction. References [35,36,37,38,39,40,41,42] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, Y.H. and D.H.; methodology, Y.H. and D.H.; formal analysis, Y.H. and D.H.; writing—review and editing, Y.H. and D.H.; funding acquisition, Y.H. and D.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation for Youth from China (No. 52100172) and the National Natural Science Foundation of China (22202131).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yin, H.; Zhao, S.; Zhao, K.; Muqsit, A.; Tang, H.; Chang, L.; Zhao, H.; Gao, Y.; Tang, Z. Ultrathin platinum nanowires grown on single-layered nickel hydroxide with high hydrogen evolution activity. Nat. Commun. 2015, 6, 6430. [Google Scholar] [CrossRef] [PubMed]
  2. Yu, F.-Y.; Lang, Z.-L.; Yin, L.-Y.; Feng, K.; Xia, Y.-J.; Tan, H.-Q.; Zhu, H.-T.; Zhong, J.; Kang, Z.-H.; Li, Y.-G. Pt-O bond as an active site superior to Pt0 in hydrogen evolution reaction. Nat. Commun. 2020, 11, 490. [Google Scholar] [CrossRef] [PubMed]
  3. Huang, D.; He, N.; Zhu, Q.; Chu, C.; Weon, S.; Rigby, K.; Zhou, X.; Xu, L.; Niu, J.; Stavitski, E. Conflicting roles of coordination number on catalytic performance of single-atom Pt catalysts. ACS Catal. 2021, 11, 5586–5592. [Google Scholar] [CrossRef]
  4. Zhang, Z.; Liu, J.; Wang, J.; Wang, Q.; Wang, Y.; Wang, K.; Wang, Z.; Gu, M.; Tang, Z.; Lim, J. Single-atom catalyst for high-performance methanol oxidation. Nat. Commun. 2021, 12, 5235. [Google Scholar] [CrossRef] [PubMed]
  5. Li, T.; Liu, F.; Tang, Y.; Li, L.; Miao, S.; Su, Y.; Zhang, J.; Huang, J.; Sun, H.; Haruta, M. Maximizing the number of interfacial sites in single-atom catalysts for the highly selective, solvent-free oxidation of primary alcohols. Angew. Chem. Int. Ed. 2018, 57, 7795–7799. [Google Scholar] [CrossRef]
  6. Banerjee, B.; Amoli, V.; Maurya, A.; Sinha, A.K.; Bhaumik, A. Green synthesis of Pt-doped TiO2 nanocrystals with exposed (001) facets and mesoscopic void space for photo-splitting of water under solar irradiation. Nanoscale 2015, 7, 10504–10512. [Google Scholar] [CrossRef]
  7. Cai, J.; Yu, Z.; Fan, X.; Li, J. Effect of TiO2 calcination pretreatment on the performance of Pt/TiO2 catalyst for CO oxidation. Molecules 2022, 27, 3875. [Google Scholar] [CrossRef]
  8. Gawande, M.B.; Fornasiero, P.; Zbořil, R. Carbon-Based Single-Atom Catalysts for Advanced Applications. ACS Catal. 2020, 10, 2231–2259. [Google Scholar] [CrossRef]
  9. Li, Z.; Hong, R.; Zhang, Z.; Wang, H.; Wu, X.; Wu, Z. Single-Atom Catalysts in Environmental Engineering: Progress, Outlook and Challenges. Molecules 2023, 28, 3865. [Google Scholar] [CrossRef]
  10. Tiburcio, E.; Greco, R.; Mon, M.; Ballesteros-Soberanas, J.; Ferrando-Soria, J.; López-Haro, M.; Hernández-Garrido, J.C.; Oliver-Meseguer, J.; Marini, C.; Boronat, M. Soluble/MOF-supported palladium single atoms catalyze the ligand-, additive-, and solvent-free aerobic oxidation of benzyl alcohols to benzoic acids. J. Am. Chem. Soc. 2021, 143, 2581–2592. [Google Scholar] [CrossRef]
  11. Yang, X.-F.; Wang, A.; Qiao, B.; Li, J.; Liu, J.; Zhang, T. Single-atom catalysts: A new frontier in heterogeneous catalysis. Acc. Chem. Res. 2013, 46, 1740–1748. [Google Scholar] [CrossRef]
  12. Rivero-Crespo, M.A.; Mon, M.; Ferrando-Soria, J.; Lopes, C.W.; Boronat, M.; Leyva-Pérez, A.; Corma, A.; Hernández-Garrido, J.C.; López-Haro, M.; Calvino, J.J. Confined Pt11+ Water Clusters in a MOF Catalyze the Low-Temperature Water–Gas Shift Reaction with both CO2 Oxygen Atoms Coming from Water. Angew. Chem. Int. Ed. 2018, 57, 17094–17099. [Google Scholar] [CrossRef] [PubMed]
  13. Daza, Y.A.; Kuhn, J.N. CO2 conversion by reverse water gas shift catalysis: Comparison of catalysts, mechanisms and their consequences for CO2 conversion to liquid fuels. RSC Adv. 2016, 6, 49675–49691. [Google Scholar] [CrossRef]
  14. Figueiredo, W.T.; Escudero, C.; Perez-Dieste, V.; Ospina, C.A.; Bernardi, F. Determining the Surface Atomic Population of Cu × Ni1–x/CeO2 (0< x ≤ 1) Nanoparticles during the Reverse Water–Gas Shift (RWGS) Reaction. J. Phys. Chem. C 2020, 124, 16868–16878. [Google Scholar]
  15. Wolf, M.; Gibson, E.K.; Olivier, E.J.; Neethling, J.H.; Catlow, C.R.A.; Fischer, N.; Claeys, M. Water-induced formation of cobalt-support compounds under simulated high conversion Fischer–Tropsch environment. ACS Catal 2019, 9, 4902–4918. [Google Scholar] [CrossRef]
  16. Cheng, Q.; Tian, Y.; Lyu, S.; Zhao, N.; Ma, K.; Ding, T.; Jiang, Z.; Wang, L.; Zhang, J.; Zheng, L. Confined small-sized cobalt catalysts stimulate carbon-chain growth reversely by modifying ASF law of Fischer–Tropsch synthesis. Nat. Commun. 2018, 9, 3250. [Google Scholar] [CrossRef]
  17. Wu, H.; Chang, Y.; Wu, J.; Lin, J.; Lin, I.; Chen, C. Methanation of CO2 and reverse water gas shift reactions on Ni/SiO2 catalysts: The influence of particle size on selectivity and reaction pathway. Catal. Sci. Technol. 2015, 5, 4154–4163. [Google Scholar] [CrossRef]
  18. Xu, J.; Su, X.; Liu, X.; Pan, X.; Pei, G.; Huang, Y.; Wang, X.; Zhang, T.; Geng, H. Methanol synthesis from CO2 and H2 over Pd/ZnO/Al2O3: Catalyst structure dependence of methanol selectivity. Appl. Catal. A Gen. 2016, 514, 51–59. [Google Scholar] [CrossRef]
  19. Chen, L.; Kovarik, L.; Szanyi, J. Temperature-Dependent Communication between Pt/Al2O3 Catalysts and Anatase TiO2 Dilutant: The Effects of Metal Migration and Carbon Transfer on the Reverse Water–Gas Shift Reaction. ACS Catal. 2021, 11, 12058–12067. [Google Scholar] [CrossRef]
  20. Chen, L.; Unocic, R.R.; Hoffman, A.S.; Hong, J.; Braga, A.H.; Bao, Z.; Bare, S.R.; Szanyi, J. Unlocking the catalytic potential of TiO2-supported Pt single atoms for the reverse water–gas shift reaction by altering their chemical environment. JACS Au 2021, 1, 977–986. [Google Scholar] [CrossRef]
  21. Chambers, S.; Droubay, T.; Jennison, D.R.; Mattsson, T. Laminar Growth of Ultrathin Metal Films on Metal Oxides: Co on Hydroxylated α-Al2O3 (0001). Science 2002, 297, 827–831. [Google Scholar] [CrossRef] [PubMed]
  22. Peng, Y.; Wang, L.; Luo, Q.; Cao, Y.; Dai, Y.; Li, Z.; Li, H.; Zheng, X.; Yan, W.; Yang, J. Molecular-level Insight into How Hydroxyl Groups Boost Catalytic Activity in CO2 Hydrogenation into Methanol. Chem 2018, 4, 613–625. [Google Scholar] [CrossRef]
  23. Schryer, D.R.; Upchurch, B.T.; Van Norman, J.D.; Brown, K.G.; Schryer, J. Effects of pretreatment conditions on a Pt/SnO2 catalyst for the oxidation of CO in CO2 lasers. J. Catal. 1990, 122, 193–197. [Google Scholar] [CrossRef]
  24. Fishman, Z.S.; He, Y.; Yang, K.R.; Lounsbury, A.W.; Zhu, J.; Tran, T.M.; Zimmerman, J.B.; Batista, V.S.; Pfefferle, L.D. Hard templating ultrathin polycrystalline hematite nanosheets: Effect of nano-dimension on CO2 to CO conversion via the reverse water-gas shift reaction. Nanoscale 2017, 9, 12984–12995. [Google Scholar] [CrossRef]
  25. He, Y.; Yang, K.R.; Yu, Z.; Fishman, Z.S.; Achola, L.A.; Tobin, Z.M.; Heinlein, J.A.; Hu, S.; Suib, S.L.; Batista, V.S.; et al. Catalytic manganese oxide nanostructures for the reverse water gas shift reaction. Nanoscale 2019, 11, 16677–16688. [Google Scholar] [CrossRef]
  26. Ro, I.; Sener, C.; Stadelman, T.M.; Ball, M.R.; Venegas, J.M.; Burt, S.P.; Hermans, I.; Dumesic, J.A.; Huber, G.W. Measurement of intrinsic catalytic activity of Pt monometallic and Pt-MoOx interfacial sites over visible light enhanced PtMoOx/SiO2 catalyst in reverse water gas shift reaction. J. Catal. 2016, 344, 784–794. [Google Scholar] [CrossRef]
  27. Lu, B.; Kawamoto, K. Preparation of monodispersed NiO particles in SBA-15, and its enhanced selectivity for reverse water gas shift reaction. J. Environ. Chem. Eng. 2013, 1, 300–309. [Google Scholar] [CrossRef]
  28. Jones, J.; Xiong, H.; DeLaRiva, A.T.; Peterson, E.J.; Pham, H.; Challa, S.R.; Qi, G.; Oh, S.; Wiebenga, M.H.; Hernández, X.I.P. Thermally stable single-atom platinum-on-ceria catalysts via atom trapping. Science 2016, 353, 150–154. [Google Scholar] [CrossRef]
  29. Lang, R.; Xi, W.; Liu, J.-C.; Cui, Y.-T.; Li, T.; Lee, A.F.; Chen, F.; Chen, Y.; Li, L.; Li, L. Non defect-stabilized thermally stable single-atom catalyst. Nat. Commun. 2019, 10, 234. [Google Scholar] [CrossRef]
  30. Kobayashi, D.; Kobayashi, H.; Kusada, K.; Yamamoto, T.; Toriyama, T.; Matsumura, S.; Kawaguchi, S.; Kubota, Y.; Haneda, M.; Aspera, S.M.; et al. Boosting reverse water-gas shift reaction activity of Pt nanoparticles through light doping of W. J. Mater. Chem. A 2021, 9, 15613–15617. [Google Scholar] [CrossRef]
  31. Goguet, A.; Meunier, F.C.; Tibiletti, D.; Breen, A.J.; Burch, R. Spectrokinetic Investigation of Reverse Water-Gas-Shift Reaction Intermediates over a Pt/CeO2 Catalyst. J. Phys. Chem. B 2004, 108, 20240–20246. [Google Scholar] [CrossRef]
  32. Dao, V.-D.; Hoa, N.T.Q.; Larina, L.L.; Lee, J.-K.; Choi, H.-S. Graphene–platinum nanohybrid as a robust and low-cost counter electrode for dye-sensitized solar cells. Nanoscale 2013, 5, 12237–12244. [Google Scholar] [CrossRef] [PubMed]
  33. Spencer, M. On the activation energies of the forward and reverse water-gas shift reaction. Catal. Lett. 1995, 32, 9–13. [Google Scholar] [CrossRef]
  34. Ravel, B.; Newville, M. Athena, Artemis, Hephaestus: Data analysis for X-ray absorption spectroscopy using IFEFFIT. J. Synchrotron Radiat. 2005, 12, 537–541. [Google Scholar] [CrossRef] [PubMed]
  35. Chen, X.; Su, X.; Liang, B.; Yang, X.; Ren, X.; Duan, H.; Huang, Y.; Zhang, T. Identification of relevant active sites and a mechanism study for reverse water gas shift reaction over Pt/CeO2 catalysts. J. Energy Chem. 2016, 25, 1051–1057. [Google Scholar] [CrossRef]
  36. Yang, X.; Su, X.; Chen, X.; Duan, H.; Liang, B.; Liu, Q.; Liu, X.; Ren, Y.; Huang, Y.; Zhang, T. Promotion effects of potassium on the activity and selectivity of Pt/zeolite catalysts for reverse water gas shift reaction. Appl. Catal. B Environ. 2017, 216, 95–105. [Google Scholar] [CrossRef]
  37. Lu, B.; Kawamoto, K. Preparation of mesoporous CeO2 and monodispersed NiO particles in CeO2, and enhanced selectivity of NiO/CeO2 for reverse water gas shift reaction. Mat. Res. Bull. 2014, 53, 70–78. [Google Scholar] [CrossRef]
  38. Liu, Y.; Liu, D. Study of bimetallic Cu–Ni/γ-Al2O3 catalysts for carbon dioxide hydrogenation. Int. J. Hydrogen Energy 1999, 24, 351–354. [Google Scholar] [CrossRef]
  39. Chen, C.-S.; Cheng, W.-H.; Lin, S.-S. Study of reverse water gas shift reaction by TPD, TPR and CO2 hydrogenation over potassium-promoted Cu/SiO2 catalyst. Appl. Catal. A Gen. 2003, 238, 55–67. [Google Scholar] [CrossRef]
  40. Zhang, X.; Zhu, X.; Lin, L.; Yao, S.; Zhang, M.; Liu, X.; Wang, X.; Li, Y.-W.; Shi, C.; Ma, D. Highly dispersed copper over β-Mo2C as an efficient and stable catalyst for the reverse water gas shift (RWGS) reaction. ACS Catal. 2017, 7, 912–918. [Google Scholar] [CrossRef]
  41. Liu, X.; de la Piscina, P.R.; Toyir, J.; Homs, N. CO2 reduction over Cu-ZnGaMO (M = Al, Zr) catalysts prepared by a sol-gel method: Unique performance for the RWGS reaction. Catal. Today 2017, 296, 181–186. [Google Scholar] [CrossRef]
  42. Zhao, K.; Bkour, Q.; Hou, X.; Kang, S.W.; Park, J.C.; Norton, M.G.; Yang, J.-I.; Ha, S. Reverse water gas shift reaction over CuFe/Al2O3 catalyst in solid oxide electrolysis cell. Chem. Eng. J. 2018, 336, 20–27. [Google Scholar] [CrossRef]
Molecules 28 06630 g001

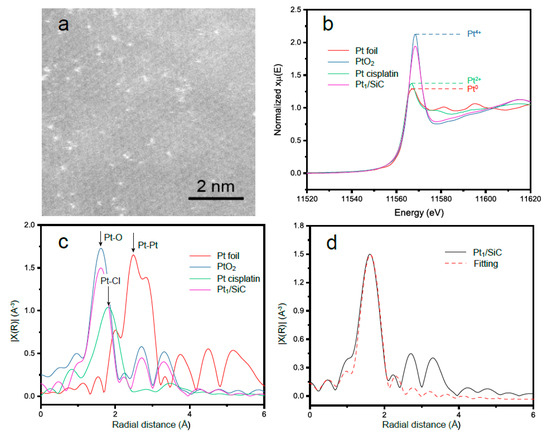

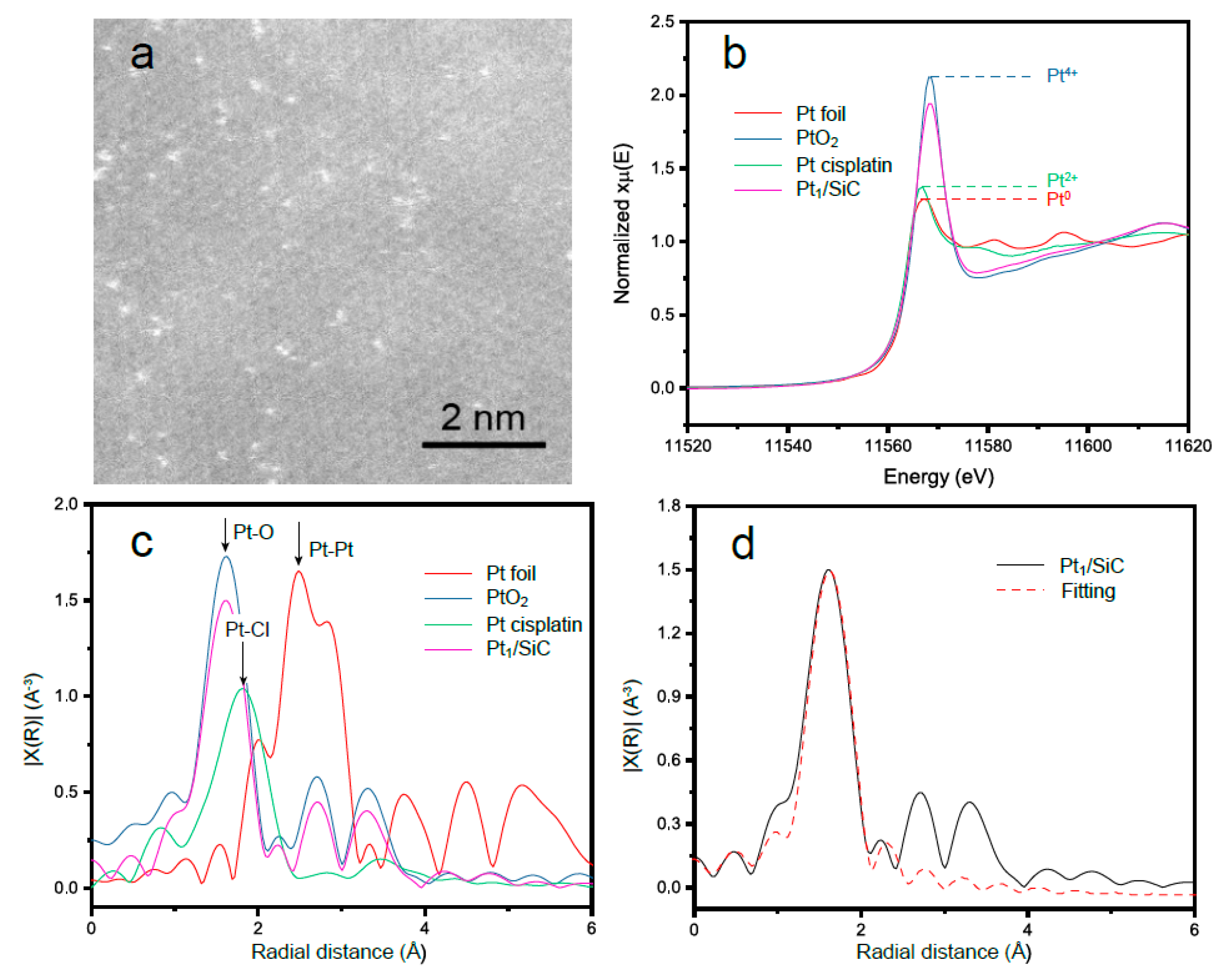

Figure 1. (a) AC-HAADF-STEM of Pt1/SiC, showing the atomically dispersed Pt single atoms on the SiC substrate; (b) normalized XANES measurements at the Pt L3-edge of Pt1/SiC sample and Pt foil, PtO2, Pt cisplatin standards; (c) the Pt k3-weighted FT-EXAFS of standards and Pt1/SiC; and(d) the fitting results for Pt1/SiC (the parameters extracted from the fit are provided in Table 1). The data ranges used for data fitting in K-space and R-space were 3.0−10 Å−1 and 1.2−2.5 Å, respectively.
Figure 1. (a) AC-HAADF-STEM of Pt1/SiC, showing the atomically dispersed Pt single atoms on the SiC substrate; (b) normalized XANES measurements at the Pt L3-edge of Pt1/SiC sample and Pt foil, PtO2, Pt cisplatin standards; (c) the Pt k3-weighted FT-EXAFS of standards and Pt1/SiC; and(d) the fitting results for Pt1/SiC (the parameters extracted from the fit are provided in Table 1). The data ranges used for data fitting in K-space and R-space were 3.0−10 Å−1 and 1.2−2.5 Å, respectively.
Molecules 28 06630 g001
Molecules 28 06630 g002

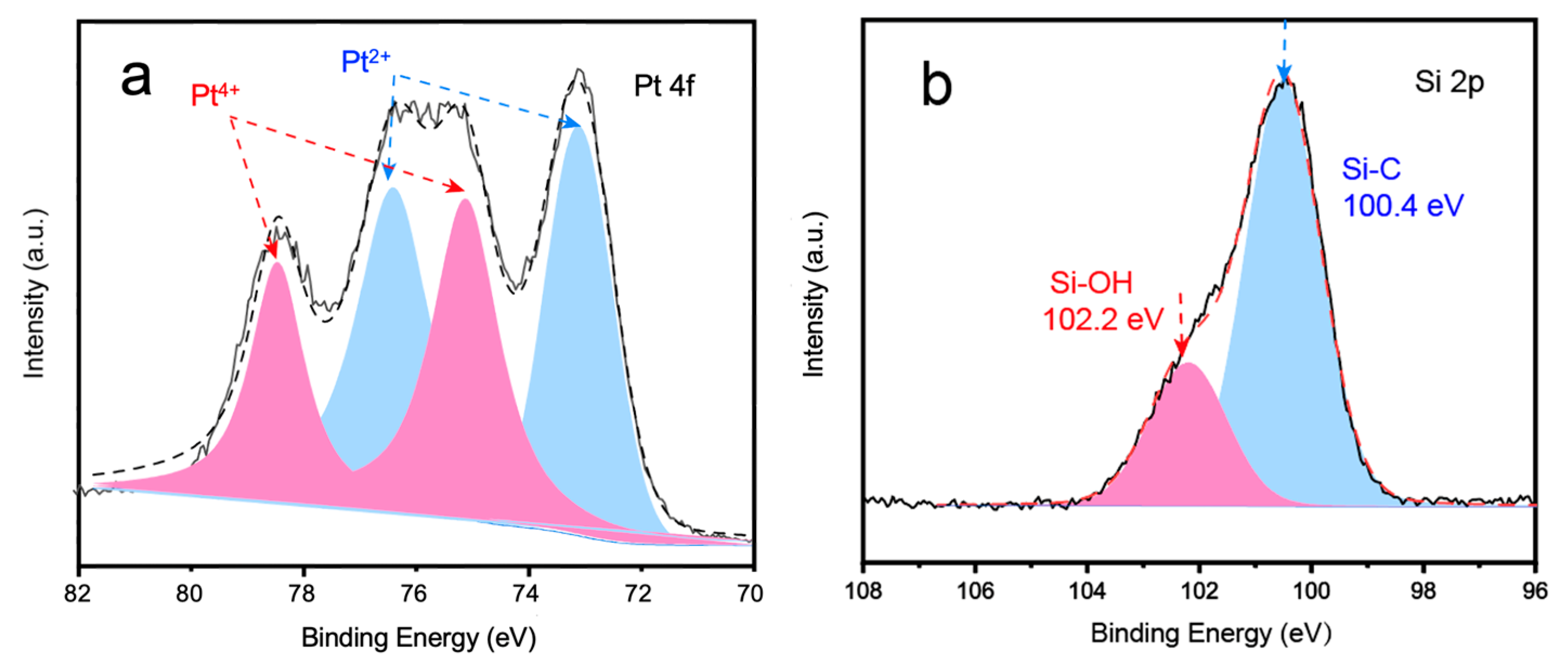

Figure 2. Binding energy of (a) Pt 4f Pt1/SiC and (b) Si 2p for pristine SiC by high-resolution XPS spectra. Pt peak position indicates that the oxidation state of Pt1 was between 2+ and 4+, consistent with XAFS results. Si peaks at 102.2 eV indicate surface -OH groups, which are critical to the stabilization of Pt1.
Figure 2. Binding energy of (a) Pt 4f Pt1/SiC and (b) Si 2p for pristine SiC by high-resolution XPS spectra. Pt peak position indicates that the oxidation state of Pt1 was between 2+ and 4+, consistent with XAFS results. Si peaks at 102.2 eV indicate surface -OH groups, which are critical to the stabilization of Pt1.
Molecules 28 06630 g002
Molecules 28 06630 g003

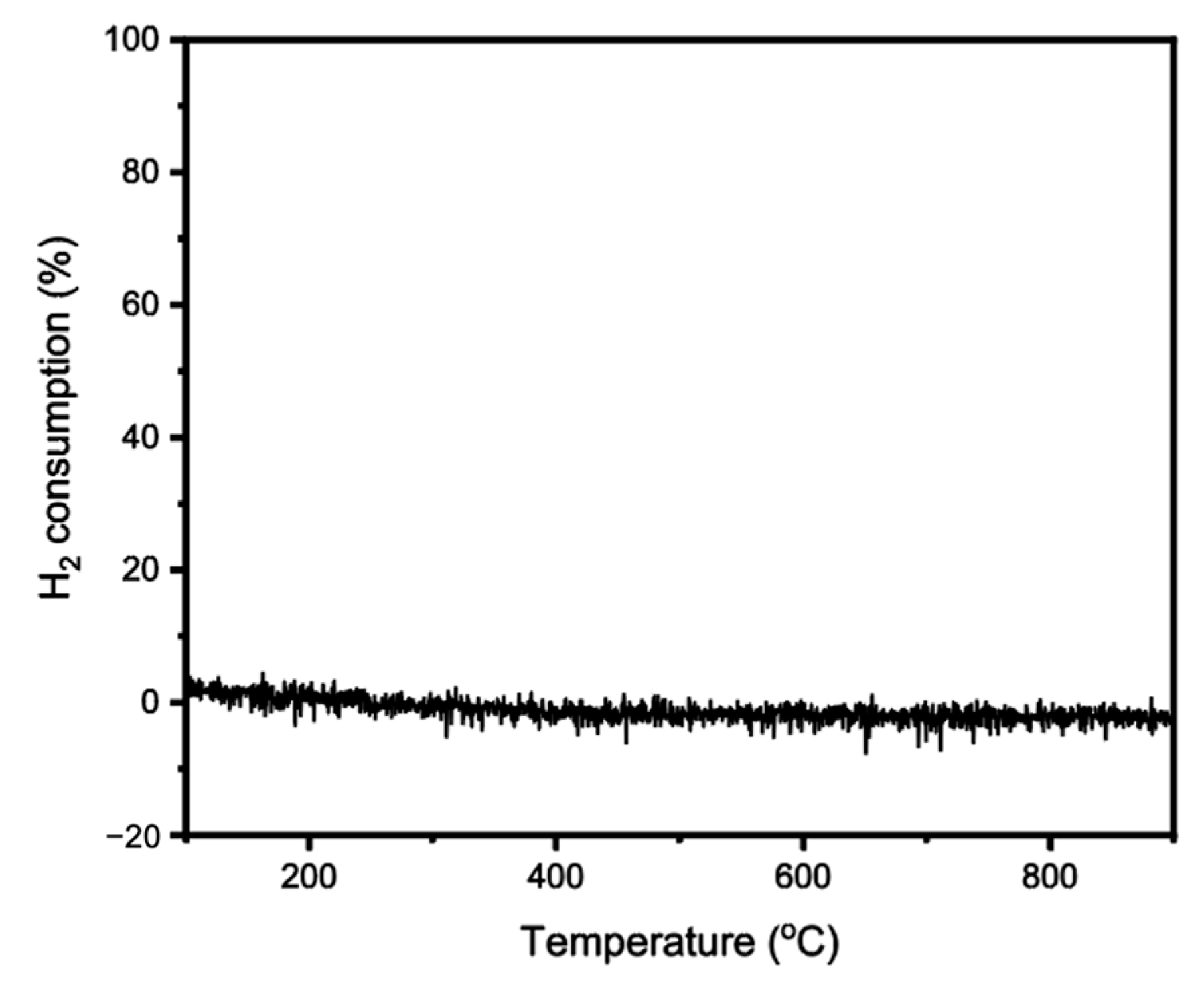

Figure 3. On-line mass spectrometry measurement during TPR process of the Pt1/SiC catalyst, the weight hourly space velocity of H2 was set at 12,000 mL·gcat−1·h−1.
Figure 3. On-line mass spectrometry measurement during TPR process of the Pt1/SiC catalyst, the weight hourly space velocity of H2 was set at 12,000 mL·gcat−1·h−1.
Molecules 28 06630 g003
Molecules 28 06630 g004

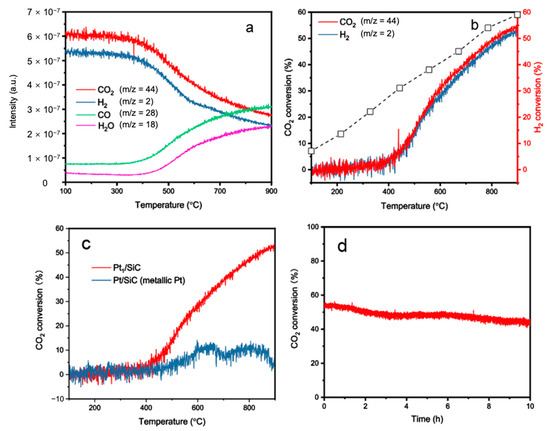

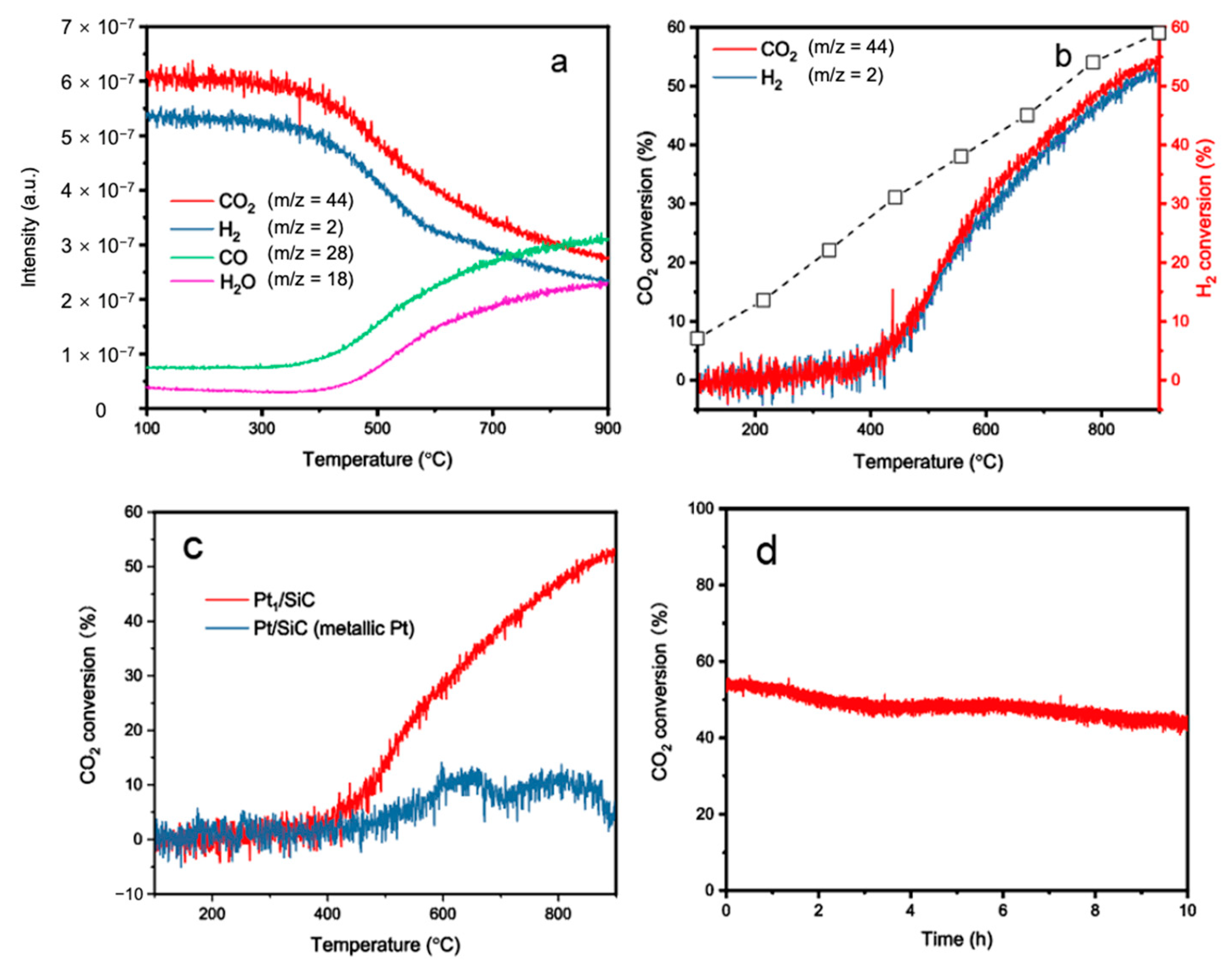

Figure 4. (a) On-line mass spectrometry measurements during RWGS reaction of the H2 pre-treated Pt catalyst; (b) conversion dependence over temperature plot. %CO2 conversion and %H2 conversion are computed using differences in the m/z = 44 and m/z = 2 channels as a function of temperature. The dash line with square corresponds to the theoretical equilibrium conversion under the H2/CO2 = 1:1 feed-in condition; (c) CO2 conversion for single atom Pt catalyst and conventional Pt nanoparticles as a function of temperature; (d) long-term stability test of Pt1/SiC at 900 °C.
Figure 4. (a) On-line mass spectrometry measurements during RWGS reaction of the H2 pre-treated Pt catalyst; (b) conversion dependence over temperature plot. %CO2 conversion and %H2 conversion are computed using differences in the m/z = 44 and m/z = 2 channels as a function of temperature. The dash line with square corresponds to the theoretical equilibrium conversion under the H2/CO2 = 1:1 feed-in condition; (c) CO2 conversion for single atom Pt catalyst and conventional Pt nanoparticles as a function of temperature; (d) long-term stability test of Pt1/SiC at 900 °C.
Molecules 28 06630 g004
Molecules 28 06630 g005

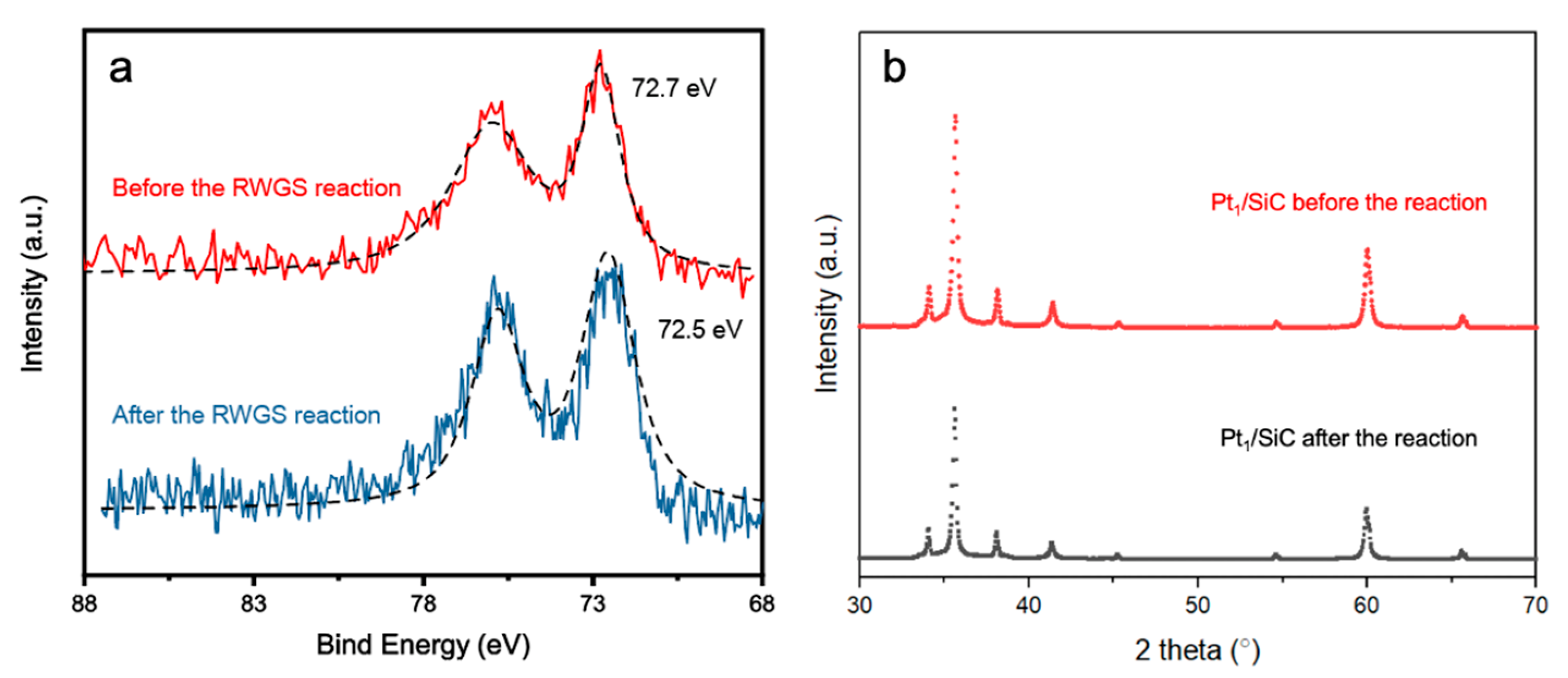

Figure 5. (a) X-ray photoelectron spectroscopy (XPS) and (b) X-ray diffraction (XRD) analyses of Pt1/SiC samples before and after the RWGS reaction, showing Pt 4f peak shifts of XPS spectra.
Figure 5. (a) X-ray photoelectron spectroscopy (XPS) and (b) X-ray diffraction (XRD) analyses of Pt1/SiC samples before and after the RWGS reaction, showing Pt 4f peak shifts of XPS spectra.
Molecules 28 06630 g005
Molecules 28 06630 g006

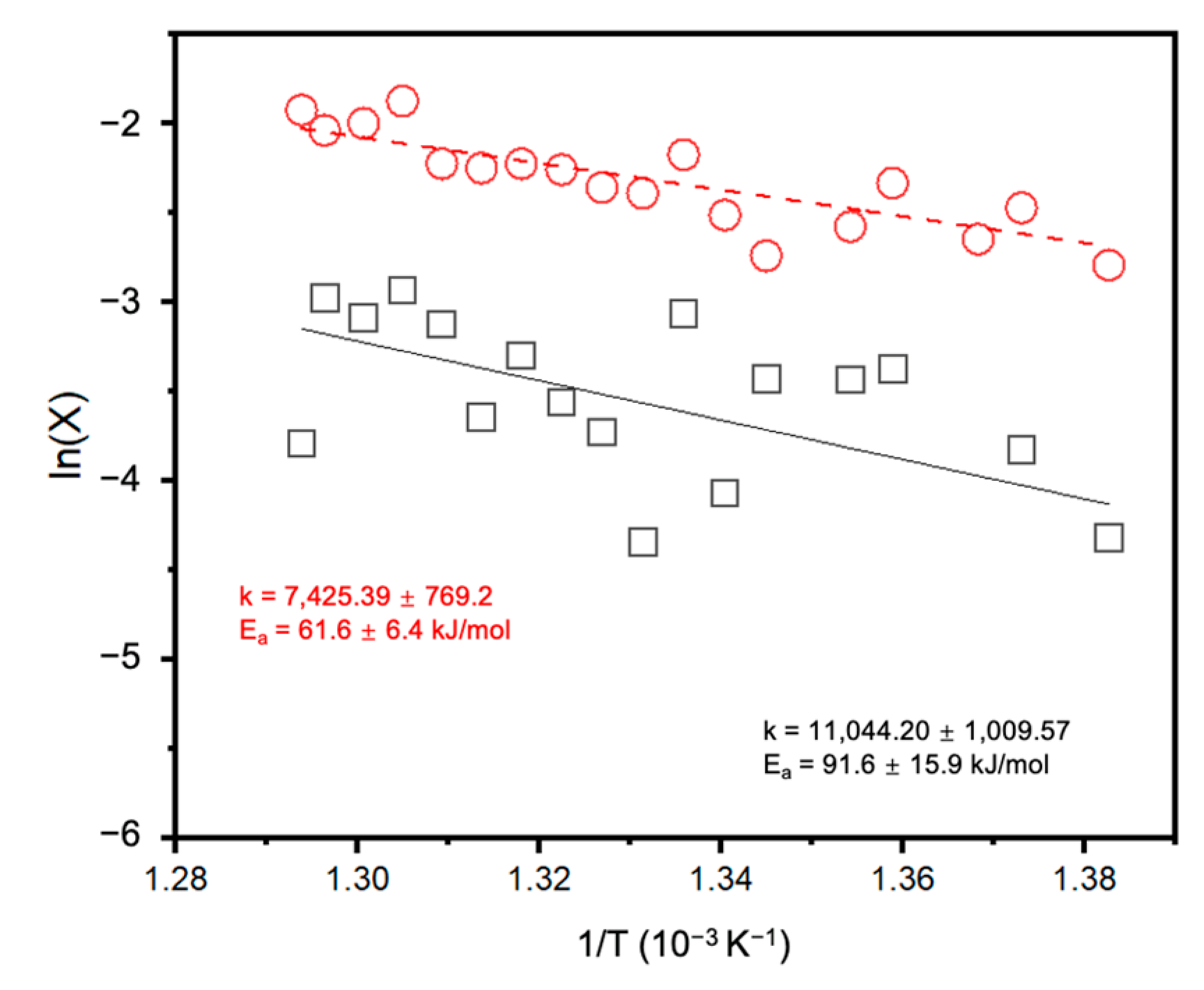

Figure 6. Arrhenius plot for the calculation of apparent activation energy under kinetic control. The red line represents the Pt1/SiC; the black one represents the metallic Pt/SiC.
Figure 6. Arrhenius plot for the calculation of apparent activation energy under kinetic control. The red line represents the Pt1/SiC; the black one represents the metallic Pt/SiC.
Molecules 28 06630 g006
Table 1. Best-fit parameters extracted from the Pt L3-edge FT EXAFS spectra of PtO2, Pt foil and Pt1/SiC. CN are coordination numbers for first coordination (Pt-O). R refers to the average interatomic distances between Pt and O atoms. σ2 are Debye Waller factors, revealing the variance of the distance distribution.
Table 1. Best-fit parameters extracted from the Pt L3-edge FT EXAFS spectra of PtO2, Pt foil and Pt1/SiC. CN are coordination numbers for first coordination (Pt-O). R refers to the average interatomic distances between Pt and O atoms. σ2 are Debye Waller factors, revealing the variance of the distance distribution.
SampleShellCNR/Åσ2/Å2
PtO2Pt-O62.060.0010 ± 0.0016
Pt foilPt-Pt122.800.0013 ± 0.0014
Pt1/SiCPt-O5.2 ± 0.72.05 ± 0.010.0051 ± 0.0011
