Article

Traditional vs. Energetic and Perchlorate vs. “Green”: A Comparative Study of the Choice of Binders and Oxidising Agents

1
Department of Physical Chemistry and Technology of Polymers, Silesian University of Technology, 44-100 Gliwice, Poland
2
Shostka Institute, Sumy State University, 41100 Shostka, Ukraine
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(15), 5787; https://doi.org/10.3390/molecules28155787
Submission received: 30 June 2023 / Revised: 26 July 2023 / Accepted: 27 July 2023 / Published: 31 July 2023

Abstract

:
The aim of this article is to compare rocket propellants containing a traditional binder (hydroxyl-terminated polybutadiene) and an energetic binder (glycidyl azide polymer), as well as a perchlorate oxidising agent and a “green” one, i.e., ammonium perchlorate and phase-stabilised ammonium nitrate. We have outlined the effects of individual substances on the sensitivity parameters and decomposition temperature of the produced solid propellants. The linear combustion velocity was determined using electrical methods. Heats of combustion for the propellant samples and the thermal decomposition features of the utilised binders were investigated via differential scanning calorimetry (DSC). Activation energy values for the energetic decomposition of the propellants were determined via the Kissinger method, based on DSC measurements at varied heating rates.

Graphical Abstract

1. Introduction

Solid propellants have found a wide range of civilian and military applications, both in large- and micro-scale propulsion systems [1]. The main components of solid propellants are the oxidising agent and binder, which also fulfils the role of fuel. These components are typically supplemented by auxiliary components, such as metallic fuels, combustion modifiers, plasticisers, and other additives [2].
Many of the solid propellants reported in the recent literature utilise hydroxyl-terminated polybutadiene (HTPB) as the binder [2]. This stems from the fact that HTPB exhibits a range of favourable properties, including good adhesive properties, high heat of combustion, and high stability [3,4]. It should be noted, however, that HTPB requires curing, which is typically conducted using highly toxic isocyanates, and exhibits a very strongly negative oxygen balance value (e.g., −313 % for HTPB cured by toluene diisocyanate) [5]. This translates to the need for HTPB-based solid propellants to contain a significant amount of oxidising agent, achieving a high degree of loading of the polymer with solids.
The above does not preclude producing viable fuels, as seen by the popularity of the ammonium perchlorate (AP)-based AP/HTPB propellant base, but limits the extent to which other auxiliary compounds can be utilised. This, in turn, limits the achievable parameters of the propellants. Consequently, alternative materials were sought after, leading to the development of “energetic binders” (EBs). Most of the early attempts at EBs involved equipping polymer chains with explosophore groups, such as nitrate (-ONO2), nitro (-NO2), and nitramino (-NHNO2) and azido (-N3) functionalities [6]. Later on, research on EBs focused on polymers bearing oxygen atoms in their main chain (e.g., polyoxetanes, polyoxiranes) rather than hydrocarbon main chains [7,8,9]. Currently, the benefits of using EBs are widely recognised, even though solid propellant formulations based on “traditional” binders, such as HTPB, remain in common use [10].
In regards to the oxidising agent utilised in solid propellant formulations, AP is among the most popular, as its affords the resultant propellants high specific impulses and high reliability [11,12]. It is also possible to fine-tune both the porosity and particle size of AP [13], as well as to modify its reactivity by supplementing it with catalysts, typically metal oxides [14,15]. The main drawback of AP is that its combustion results in the formation of hydrogen chloride, chlorine, and chlorine oxides, which are highly problematic atmosphere pollutants [16,17]. Consequently, significant research interest is devoted to developing oxidising agents for solid propellants that can replace AP.
Potential alternatives to AP include trinitroethyl esters [18], ammonium dinitramide [19], and nitrates (e.g., ammonium nitrate) [20,21,22]. The former two oxidising agents are highly reactive and can yield propellants exhibiting favourable parameters, but require complex synthesis and are relatively expensive. Nitrates and ammonium nitrate, in particular, are relatively inexpensive, but due to their low reactivity, produce propellants with limited parameters. Consequently, the application of nitrates in solid propellants typically requires the use of catalysts to achieve reasonable performance [23,24].
In this work, we have presented our studies on model solid propellants, comparing the use of “traditional” and energetic binders, as well as the use of AP and phase-stabilised ammonium nitrate as the oxidising agents.

2. Results and Discussion

2.1. Friction and Impact Sensitivity

Regardless of the oxidising agent used (Table 9), samples containing glycidyl azide polymer (GAP) as a binder were more sensitive to friction (Table 1) than those where HTPB was used as the binder. This stems from the fact that GAP has a more rigid polymer chain than HTPB, due to the presence of azido groups [6], translating to a higher hardness upon curing. As expected, samples containing ammonium perchlorate showed higher friction sensitivity, compared to samples containing phase-stabilised ammonium nitrate (PSAN).
Interestingly, the impact sensitivity of the samples is presented quite differently from that of friction sensitivity. Regardless of the oxidising agent used, samples containing HTPB are more sensitive to impact. This may be an issue related to the utilised standard methodology, in which the impact of the fallhammer produces adiabatic compression of air in the sample chamber, as has been recently pointed out in literature [25]. This compression may be enough to induce decomposition of the samples, thereby influencing the result of the test for the investigated samples, particularly in light of the solid rocket propellant (SRP) samples containing both magnesium dust and nitroguanidine (NQ). This feature may also be a result of the higher hardness of GAP-bearing samples, in which more of the released mechanical energy is consumed for fracturing the cured polymer matrix than in the case of HTPB-bearing samples.

2.2. Determination of Ignition/Explosion Temperature

The results of the determination of the ignition/explosion temperature of the samples are shown in Table 2. As in the case of the determination of sensitivity to friction, samples containing GAP have a lower ignition temperature—it can be concluded that samples containing this polymer have a higher sensitivity to flame and temperature than samples containing HTPB. Again, the effect of the oxidising agent used was observed—the high-energy decomposition process for PSAN-containing samples can occur at a lower temperature than for AP-containing samples.

2.3. Determination of Linear Combustion Velocity

The results of combustion velocity tests are presented in Table 3. A higher burning rate was recorded for samples containing GAP as a binder. Again, such a result can be linked to the presence of additional high-energy azide groups in the polymer. Comparing the effect of the oxidising agent used on the combustion velocity obtained, it can be seen that a higher value of linear combustion velocity was obtained for samples with AP. This is due to the fact that ammonium perchlorate is a more reactive and, therefore, more energetic oxidising agent.

2.4. Study of the Kinetics of High-Energy Transformations

The DSC thermograms of the polymers used as the binders (Figure A1 and Figure A2) are consistent with those reported in the literature, with their features being summarised in Table 4. In the case of HTPB, the first exothermic peak can be attributed to the cis-trans isomerisation, cyclisation, and cross- linking of HTPB [26]. The second peak, in turn, is associated with the decomposition of the polymer, as in the case of the first exothermic peak observed for GAP [27].
The DSC studies of the SRP samples were conducted at multiple heating rates, i.e., 3 K/min, 5 K/min, 7 K/min, 10 K/min, 12 K/min, and 15 K/min, so as to allow the determination of the activation energy values for the reactions taking place in the samples (Table 5, Table 6 and Table 7). In the case of SRP-1 (containing HTPB and PSAN), the results of the DSC measurements were considered to not be sufficiently reliable. Despite additional standardisation measures being taken, the DSC thermograms showed poor repeatability. These issues may be linked to interactions of the ZnO and CuO in PSAN with HTPB or to minor impurities in the obtained polymer.
In terms of the heat of combustion of the SRP samples, we have chosen the lowest employed heating rate (i.e., 3 K/min) as the diagnostic one, due to the fact that it introduces the least thermal inertia. When the heats of combustion of the samples are arranged in descending order, the sequence SRP-2 > SRP-1 > SRP-3 is established. This is in line with expectations, due to HTPB containing a much higher carbon atom content than GAP.
An interesting observation is the comparison of the ignition temperatures of the SRP samples (Table 2) with the temperatures of the exothermic peak temperatures of the binders—the use of GAP, which shows a peak at temperatures approximately 40 °C higher than HTPB translates to an increase in SRP ignition temperature, respectively, by 16 °C (SRP-2 vs SRP-1) and by 30 °C (SRP-4 vs SRP-3), depending on the utilised oxidising agent.
The results of the Ea investigation are presented in Table 8. The sample containing GAP and PSAN exhibits the lowest activation energy, whereas the sample containing HTPB and AP exhibits the highest one. From the point of view of rocket propellants, it is more favourable to obtain lower activation energies, as this indicates that high-energy decomposition reactions occur more easily.

3. Materials and Methods

3.1. Materials

The materials used in this work, along with their suppliers and any relevant notes are listed in Table 9. It should be noted that glycidyl azide polymer (GAP) and nitroguanidine (NQ) have been synthesised for the purpose of this work, as per the indicated procedures published in literature and described in the following sections.

3.2. Synthesis

GAP was synthesised according to the literature [29]. The first step was the polymerisation of epichlorohydrin using ethylene glycol, boron trifluoride-diethyl ether adduct (BF3·Et2O) as catalyst and dichloromethane as a solvent. The next step was the substitution of chloride groups with azide groups via a reaction with sodium azide.
Nitroguanidine was prepared according to [30]. Nitroguanidine was obtained by reacting concentrated sulphuric acid with guanidine nitrate. The precipitate obtained in this reaction was then recrystallised from deionised water.

3.3. NMR and IR Spectra of Synthesised Substances

1H-NMR analysis was performed for solutions in CDCl3 on a Varian Unity Inova (Palo Alto, CA, USA) spectrometer with a resonance frequency of 300 MHz using TMS as the internal standard. IR spectroscopy was carried out on a PerkinElmer Spectrum Two (Waltham, MA, USA) spectrometer with a UATR (Single Reflection Diamond (Waltham, MA, USA)) module. The results of spectroscopic investigations for the synthesised samples are summarised in Table 10 and Table 11.
In the case of GAP, the most characteristic peak occurs in the range of about (3.00–3.80 ppm)—a peak originating from protons of the -CH2N3 group. It is impossible to accurately determine the value of the shift characteristic of this group, due to the overlapping signals from the other groups present in the repeat unit.
For glycidyl azide polymer, the IR spectrum contains signals at 2101 cm−1 and at 1258 cm−1, originating from stretching vibrations of the azide group. The absorption band present at 1089 cm−1 corresponds to C-O-C stretching vibrations from the ether chain connecting the moieties in the polymer molecule.
Absorption bands, characteristic of -NO2 group vibrations, are observed for nitroguanidine at 1394 cm−1 and at 1631 cm−1. Absorption bands at 3259 cm−1 and at 339 cm−1 correspond to vibrations originating from the N-H bond.

3.4. Preparation of Solid Propellant Samples

Rocket propellant samples were prepared in 50 mL glass beakers. Mixing was performed by hand with a glass stirring rod used. The cross-linking process was carried out at 60 °C. The exact composition of the produced solid propellant samples is shown in Table 12.
High hygroscopicity is a major disadvantage of ammonium nitrate (AN), as the absorption of water by rocket propellants significantly decreases their performance. In order to assess whether the use of phase-stabilised ammonium nitrate (PSAN) can mitigate this issue to some extent, gravimmetry was employed. The investigated samples of AN and PSAN of similar mass were left in identical open containers in a climate chamber maintaining a temperature of 25 °C and a relative humidity of 33 %. The samples were periodically taken out of the chamber and weighed to determine the amount of moisture absorbed by the two oxidising agents over time. A comparison of the results of the mass change measurements reveal that, although initially PSAN absorbs almost as much moisture as AN (0.014 % vs. 0.019 % after 30 min), after 24 h (1440 min) have elapsed, its absorption of moisture is approximately 50 % less than in the case of AN (Table 13). Consequently, though the inherent hygroscopicity of AN cannot be negated, its use in the form of PSAN mitigates this issue to a significant extent.

3.5. Investigation of Sensitivity to Impact and Friction

Friction and impact sensitivity values were determined according to the relevant international standards [31,32] using a Peters Friction Apparatus and a BAM Fallhammer, respectively.

3.6. Determination of Ignition/Explosion Temperature

The ignition/explosion temperatures of the produced solid propellants were determined using an Automatic Explosion Temperature 402 Tester (OZM Research, Bliznovice, Czech Republic). The ignition/explosion temperature measurement was repeated five times for each sample, and the final result is presented as an average. Samples of 50 ± 1 mg were used to determine the ignition/explosion temperature. The measurement was carried out in the range of 100–400 °C, with a heating rate of 5 K/min.

3.7. Determination of Linear Combustion Velocity

Electrical resistance measurement methods were used to determine the linear combustion velocity. The utilised experimental set-up (Figure 1) measured the time between state changes (conducting/non-conducting) at the inputs. These changes were caused by the moving flame front and the burning through of successive wires attached to the sample. The measuring device used gave the time in which the flame front covered the distance with millisecond accuracy.
Samples for the determination of linear combustion velocity were placed in a cellulose tube, measuring h = 9.7 cm, ϕ = 1.0 cm. The determination of linear combustion velocity was repeated five times for each sample, and the final result is presented as an average. The bulk density for each sample was 1.2 ± 0.1 g/cm3.

3.8. Study of the Kinetics of High-Energy Transformations

To analyse the thermal exothermic decomposition processes of the rocket propellant samples, differential scanning calorimetry (DSC) was used. Measurements were taken using a Mettler Toledo DSC 3 instrument, operating with a maximum temperature range from −90 to 700°. The measurements for each of the samples were performed for approximately 1 ± 0.1 mg of the sample placed in a sealed aluminium vessel. The samples were heated between in a range of 20–450° for different heating rates of 3, 5, 7, 10, 12, and 15 K/min.
The linear relationship between exothermic peak temperature and heating rate can be used to determine thermokinetic parameters of thermal decomposition (activation energy) according to the Kissinger method. This method has been used to determine the activation energy for the decomposition of the investigated samples, being used analogously as in the literature [33,34].

4. Conclusions

The obtained results show a significant effect of the utilised binder and oxidising agent on the properties of solid rocket propellants. Interestingly, the combination of an energetic binder with a “green” oxidising agent leads to the lowest observed energetic decomposition activation energy. It should, however, be noted that apart from activation energy, the total heat of combustion of the propellants is also of significant importance in shaping their performance.
As far as the binder comparison is concerned, the use of an energetic binder is more favourable from the point of view of the requirements of solid propellants. The presence of additional energetic groups in the polymer structure (i.e., azide) contributes to their improved properties. Differences can also be seen in the oxidants used. The use of AP leads to higher performance, related to propellant efficiency, compared to PSAN. However, as a result of the formation of toxic gaseous thermal decomposition products of AP, it seems preferable to use more “green” oxidisers, such as PSAN.
The interplay between the choice of binder and oxidising agent is well-illustrated by the fact that replacing GAP with HTPB in propellants containing ammonium perchlorate results in lowering their linear combustion velocity by approximately 36 %. Conversely, the loss of performance associated with replacing AP with the less energetic PSAN (loss of approximately 45 % combustion velocity) can be mostly mitigated by using the energetic binder in place of the traditional one, resulting in only an approximately 12 % loss in combustion velocity (SRP-3 vs. SRP-2). This is a significant factor in favour of transitioning to “green” and high-performance components in the design of solid propellants.

Author Contributions

Conceptualisation: T.J.; methodology: K.L., S.W., A.S., A.M., and T.J.; validation: S.W., A.M., R.Z., and T.J.; formal analysis: K.L., S.W., and A.M.; investigation: K.L., S.W., A.S., A.M., and T.J.; data curation: A.S. and T.J.; writing—original draft preparation: K.L., S.W., A.S., A.M., and T.J; writing—review and editing: T.J.; visualisation: K.L. and A.S.; supervision: T.J. All authors have read and agreed to the published version of the manuscript.

Funding

K.L. acknowledges the grant for starting research on a new subject no. 32/014/SDU/10-22-40 of the Rector of Silesian University of Technology. A.S. acknowledges the scientific and innovative merit grant no. 04/040/RGJ23/0251 of the Rector of Silesian University of Technology. T.J. acknowledges the “habilitation” grant no. 04/040/RGH21/0189 of the Rector of Silesian University of Technology.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available from the authors on request.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

Appendix A

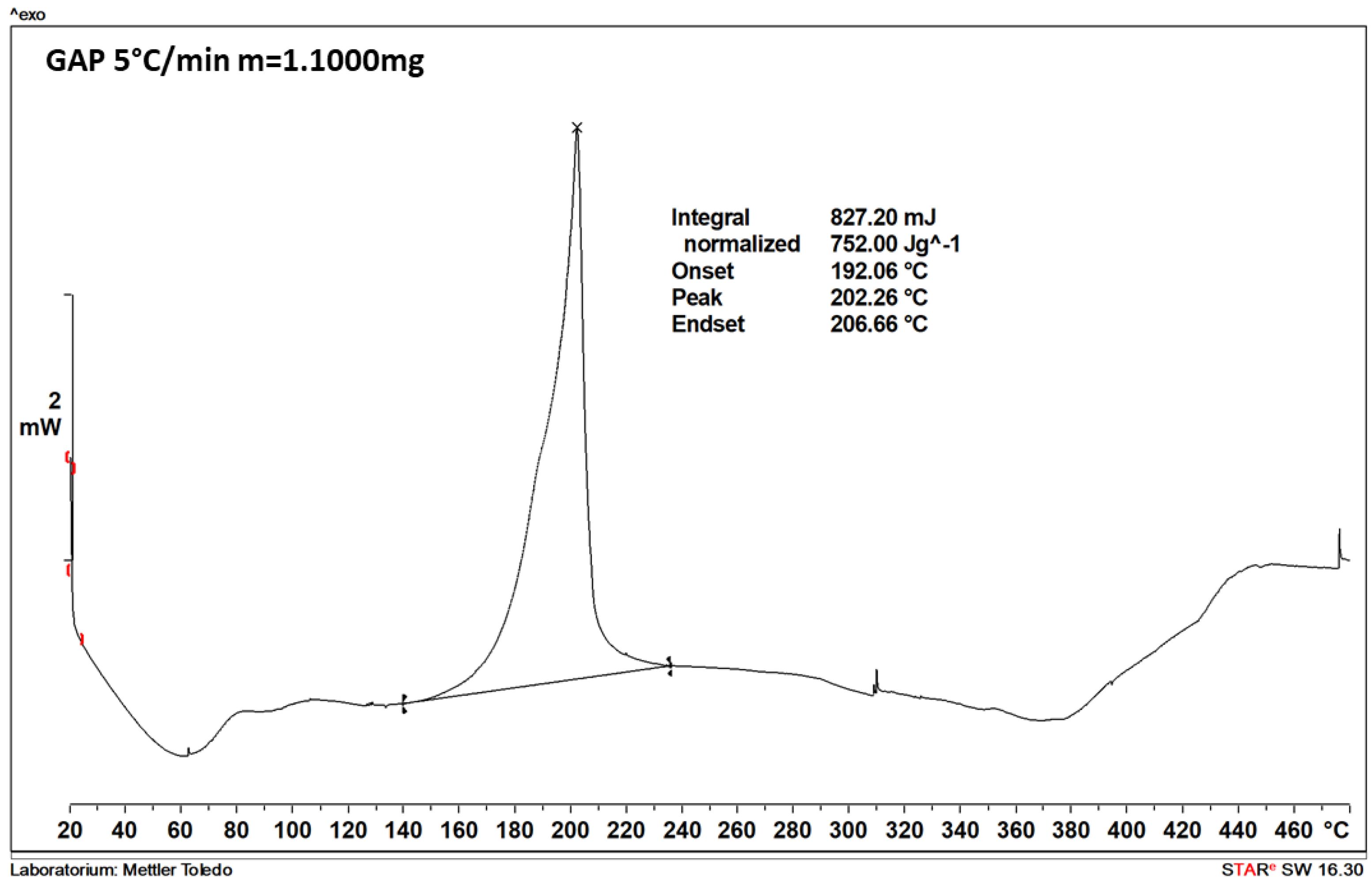

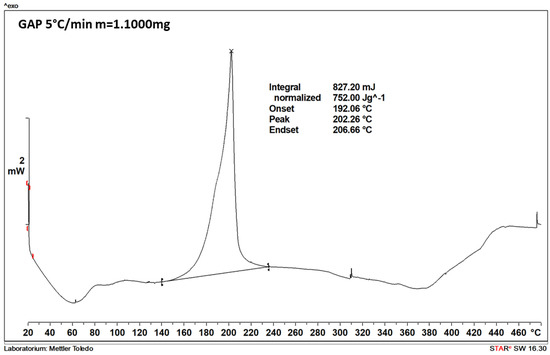

Figure A1. The DSC thermogram recorded for GAP (sample mass of 1.1 mg).
Figure A1. The DSC thermogram recorded for GAP (sample mass of 1.1 mg).
Molecules 28 05787 g0a1

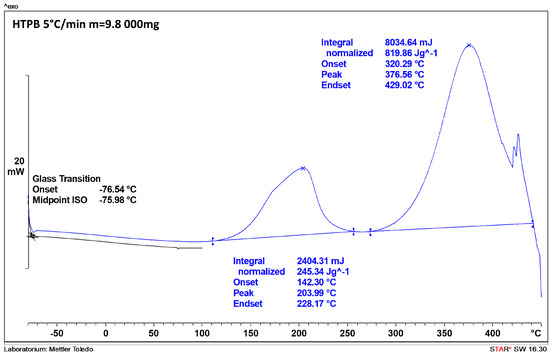

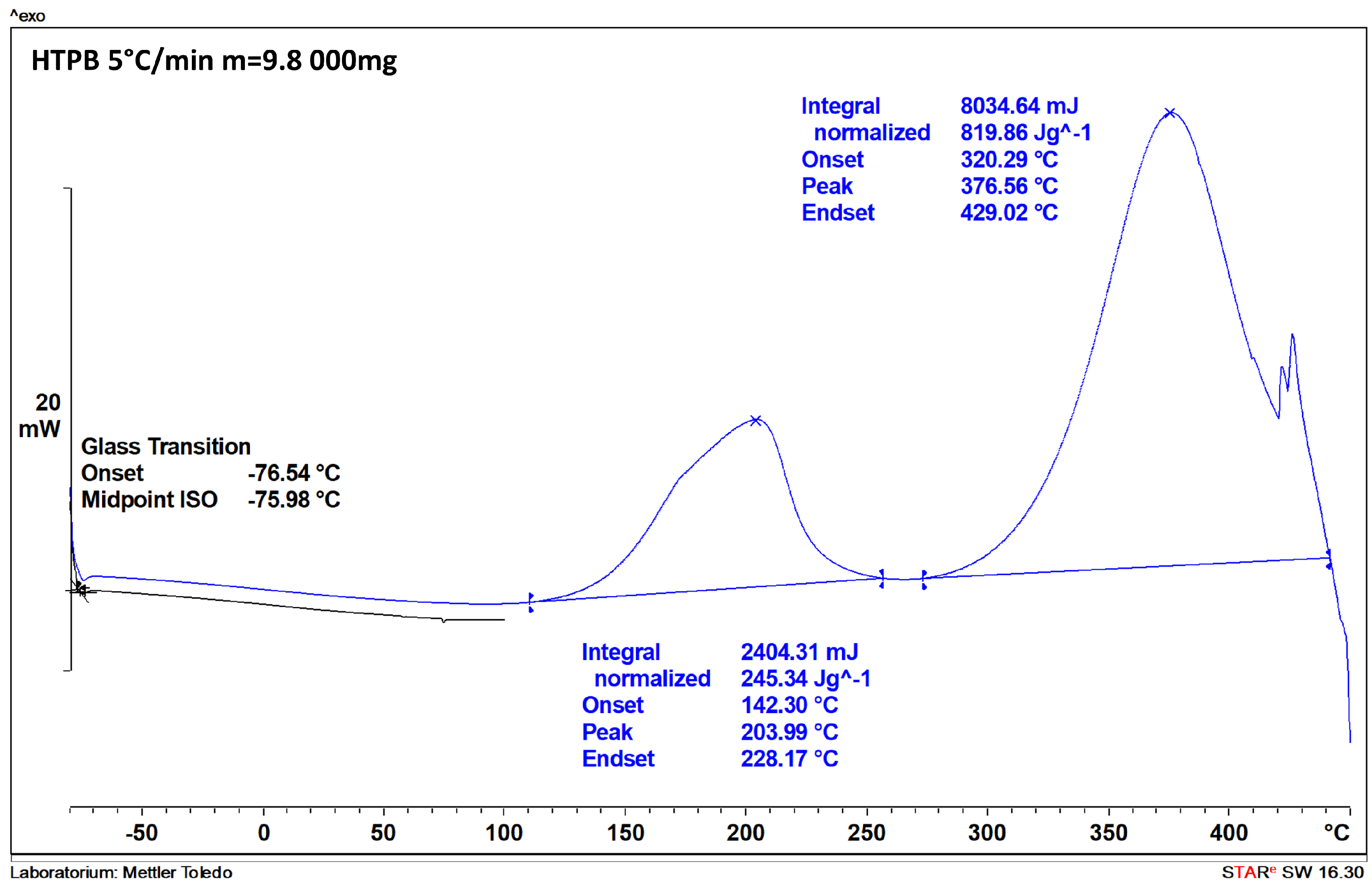

Figure A2. The DSC thermogram recorded for HTPB (sample mass of 9.8 mg).
Figure A2. The DSC thermogram recorded for HTPB (sample mass of 9.8 mg).
Molecules 28 05787 g0a2

References

  1. Xu, J.; Zhang, J.; Li, F.; Liu, S.; Ye, Y.; Shen, R. A review on solid propellant micro-thruster array based on MEMS technology. FirePhysChem 2023, in press. [Google Scholar] [CrossRef]
  2. Chaturvedi, S.; Dave, P.N. Solid propellants: AP/HTPB composite propellants. Arab. J. Chem. 2019, 12, 2061–2068. [Google Scholar] [CrossRef] [Green Version]
  3. Sutton, G.P.; Biblarz, O. Rocket Propulsion Elements; John Wiley & Sons: Hoboken, NJ, USA, 2016. [Google Scholar]
  4. Guery, J.F.; Chang, I.S.; Shimada, T.; Glick, M.; Boury, D.; Robert, E.; Napior, J.; Wardle, R.; Pérut, C.; Calabro, M.; et al. Solid propulsion for space applications: An updated roadmap. Acta Astronaut. 2010, 66, 201–219. [Google Scholar] [CrossRef]
  5. Venugopalan, S.; Sarwade, D.; Agrawal, J. Role of oxygen balance on the thermal decomposition behaviour of composite propellants. Indian J. Eng. Mater. Sci. 1994, 1, 289–291. [Google Scholar]
  6. Stacer, R.G.; Husband, D.M. Molecular structure of the ideal solid propellant binder. Propellants Explos. Pyrotech. 1991, 16, 167–176. [Google Scholar] [CrossRef]
  7. Selim, K.; Özkar, S.; Yilmaz, L. Thermal characterization of glycidyl azide polymer (GAP) and GAP-based binders for composite propellants. J. Appl. Polym. Sci. 2000, 77, 538–546. [Google Scholar] [CrossRef]
  8. Nazare, A.; Asthana, S.; Singh, H. Glycidyl azide polymer (GAP)-an energetic component of advanced solid rocket propellants-a review. J. Energetic Mater. 1992, 10, 43–63. [Google Scholar] [CrossRef]
  9. Gaur, B.; Lochab, B.; Choudhary, V.; Varma, I. Azido polymers—Energetic binders for solid rocket propellants. J. Macromol. Sci. Part C Polym. Rev. 2003, 43, 505–545. [Google Scholar] [CrossRef]
  10. Liu, J.; Yu, H.; Wang, D.; Sun, S.; Li, F. Application of spherical ultrafine CuO@ AP with core–shell in AP/HTPB composite solid propellant. J. Therm. Anal. Calorim. 2023, 148, 5235–5246. [Google Scholar] [CrossRef]
  11. Aziz, A.B.; Mamat, R.; Wan Ali, W.K.; Mohd Perang, M.R. Review on typical ingredients for ammonium perchlorate based solid propellant. Appl. Mech. Mater. 2015, 773, 470–475. [Google Scholar] [CrossRef] [Green Version]
  12. Zuo, B.; Wang, S.Z.; Yang, S.; Liu, P.; Yan, Q.L. Thermal decomposition and combustion behavior of solid propellant containing Si-based composites. Combust. Flame 2022, 240, 111959. [Google Scholar] [CrossRef]
  13. Leu, A.L.; Yeh, T.F.; Chang, F.M.; Liu, C.S.; Huang, C.C.; Liu, F.; Shih, Y.S. Burning behavior of composite solid propellant containing porous ammonium perchlorate. Propellants Explos. Pyrotech. 1989, 14, 108–112. [Google Scholar] [CrossRef]
  14. Zhang, T.; Shi, H.; Zhang, Y.; Liu, Q.; Fei, W.; Wang, T. Hollow flower-like nickel particles as the promoter of ammonium perchlorate-based solid propellant. Appl. Surf. Sci. 2021, 552, 149506. [Google Scholar] [CrossRef]
  15. Hu, Y.; Wang, X.; Hao, J.; Jiang, S.; Zhang, J.; Yang, Y.; Lin, K.; Zheng, J.; Shuai, Y. The catalytic thermal decomposition of ammonium perchlorate on CuMxOy (M= Fe, Ni, Co and Zn) catalysts and their applications in solid propellant. J. Therm. Anal. Calorim. 2023, 148, 6013–6026. [Google Scholar] [CrossRef]
  16. Tsuchiya, H.; Togashi, R.; Kohga, M. Burning characteristics of ammonium nitrate propellant containing fine ammonium perchlorate–influence of porosity of ammonium perchlorate. Propellants Explos. Pyrotech. 2023, 48, e202300027. [Google Scholar] [CrossRef]
  17. Cruz-Cabrera, A.; Gill, W.; Surmick, D. Spectral Measurements of HCl and AlO from the Burning of Aluminized Ammonium Perchlorate Solid Propellant; Technical Report; Sandia National Lab. (SNL-NM): Albuquerque, NM, USA, 2019. [Google Scholar]
  18. Unger, C.C.; Holler, M.; Krumm, B.; Klapötke, T.M. Oxygen-rich bis (trinitroethyl esters): Suitable oxidizers as potential ammonium perchlorate replacements. Energy Fuels 2020, 34, 16469–16475. [Google Scholar] [CrossRef]
  19. Chen, F.-y.; Xuan, C.-l.; Lu, Q.-q.; Xiao, L.; Yang, J.-q.; Hu, Y.-b.; Zhang, G.P.; Wang, Y.-l.; Zhao, F.-q.; Hao, G.-z.; et al. A review on the high energy oxidizer ammonium dinitramide: Its synthesis, thermal decomposition, hygroscopicity, and application in energetic materials. Def. Technol. 2023, 19, 163–195. [Google Scholar] [CrossRef]
  20. Dîrloman, F.M.; Țigănescu, T.V.; Rotariu, T.; Ungureanu, M.I.; Zecheru, T.; Alin-Constantin, S. Eco-Oxidizers for Composite Propellants: Ammonium Nitrate and Ammonium Dinitramide. J. Mil. Technol. 2020, 3, 31–36. [Google Scholar] [CrossRef]
  21. Kohga, M.; Togo, S. Catalytic effect of added Fe2O3 amount on thermal decomposition behaviors and burning characteristics of ammonium nitrate/ammonium perchlorate propellants. Combust. Sci. Technol. 2020, 192, 1668–1681. [Google Scholar] [CrossRef]
  22. Amrousse, R.; Katsumi, T.; Azuma, N.; Hori, K. Hydroxylammonium nitrate (HAN)-based green propellant as alternative energy resource for potential hydrazine substitution: From lab scale to pilot plant scale-up. Combust. Flame 2017, 176, 334–348. [Google Scholar] [CrossRef]
  23. Sinditskii, V.P.; Egorshev, V.Y.; Tomasi, D.; DeLuca, L.T. Combustion mechanism of ammonium-nitrate-based propellants. J. Propuls. Power 2008, 24, 1068–1078. [Google Scholar] [CrossRef]
  24. Pandey, M.; Jha, S.; Kumar, R.; Mishra, S.; Jha, R. The pressure effect study on the burning rate of ammonium nitrate-HTPB-based propellant with the influence catalysts. J. Therm. Anal. Calorim. 2012, 107, 135–140. [Google Scholar] [CrossRef]
  25. Gruhne, M.S.; Lommel, M.; Wurzenberger, M.H.; Szimhardt, N.; Klapötke, T.M.; Stierstorfer, J. OZM ball drop impact tester (BIT-132) vs. BAM standard method–A comparative investigation. Propellants Explos. Pyrotech. 2020, 45, 147–153. [Google Scholar] [CrossRef]
  26. Chiantore, O.; di Cortemiglia, M.P.L.; Guaita, M.; Rendina, G. Thermal degradation of polybutadiene, 1. Reactions at temperatures lower than 250 °C. Die Makromol. Chem. Macromol. Chem. Phys. 1989, 190, 3143–3152. [Google Scholar] [CrossRef]
  27. Korobeinichev, O.; Kuibida, L.; Volkov, E.; Shmakov, A. Mass spectrometric study of combustion and thermal decomposition of GAP. Combust. Flame 2002, 129, 136–150. [Google Scholar] [CrossRef]
  28. Hamilton, B.K. Phase-Stabilized Ammonium Nitrate. US Patent 6,872,265, 29 March 2005. [Google Scholar]
  29. Vandenberg, E.J. Polyethers Containing Azidomethyl Side Chains. US Patent 3,645,917, 29 February 1972. [Google Scholar]
  30. Cetner, W. Preparatyka Materiałów Wybuchowych i Produktów Pośrednich; Military University of Technology: Warszawa, Poland, 1986. [Google Scholar]
  31. EN 13631-3:2005; Explosives for Civil Uses—High Explosives—Part 3: Determination of Sensitiveness to Friction of Explosives. European Union: Brussels, Belgium, 2005.
  32. EN 13631-4:2002; Explosives for Civil Uses. High Explosives—Part 4: Determination of Sensitiveness to Impact of Explosives. European Union: Brussels, Belgium, 2002.
  33. Svoboda, R.; Málek, J. Interpretation of crystallization kinetics results provided by DSC. Thermochim. Acta 2011, 526, 237–251. [Google Scholar] [CrossRef]
  34. Málek, J. The kinetic analysis of non-isothermal data. Thermochim. Acta 1992, 200, 257–269. [Google Scholar] [CrossRef]

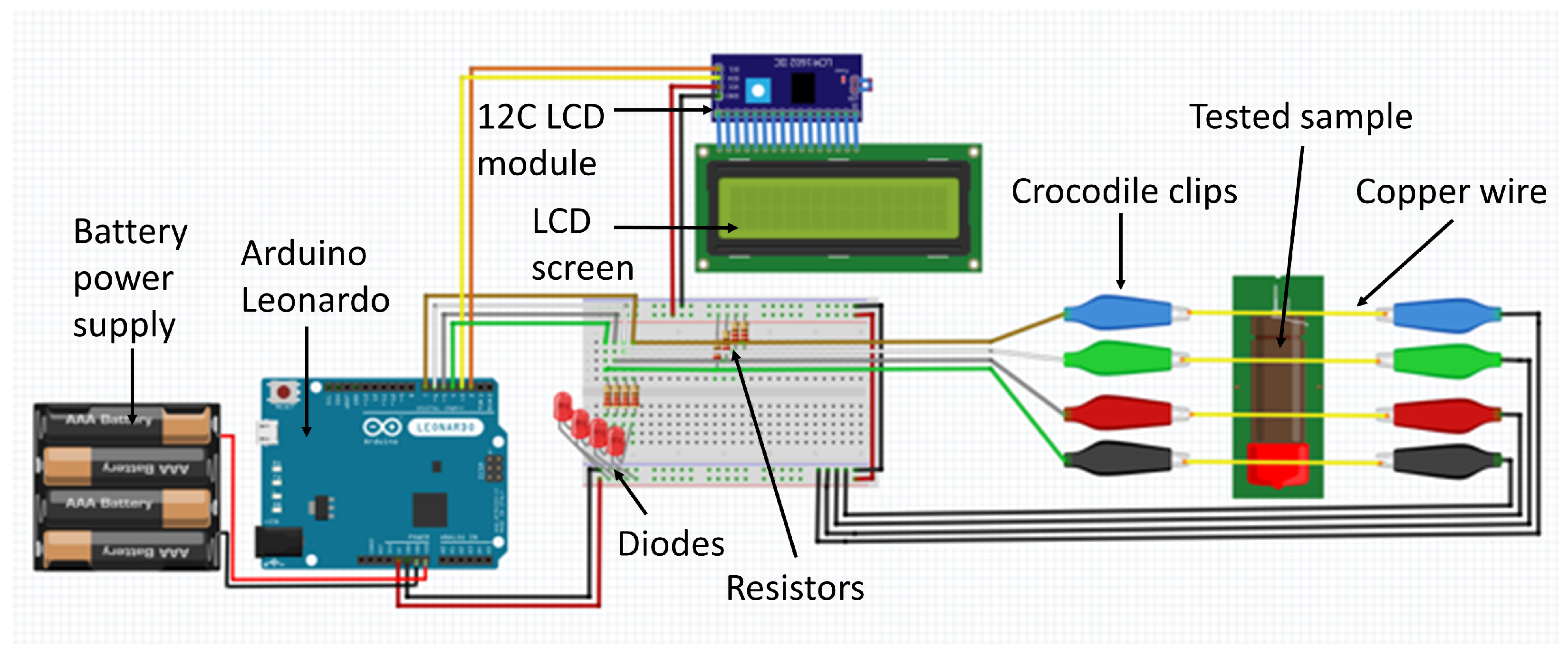

Figure 1. Schematic diagram of the experimental set-up for measuring linear combustion velocity.
Figure 1. Schematic diagram of the experimental set-up for measuring linear combustion velocity.
Molecules 28 05787 g001
Table 1. Friction and impact insensitivity of the produced solid rocket propellant (SRP) samples.
Table 1. Friction and impact insensitivity of the produced solid rocket propellant (SRP) samples.
SampleFriction Sensitivity (N)Impact Sensitivity (J)
SRP-1 (GAP + AP)845
SRP-2 (HTPB + AP)1202
SRP-3 (GAP + PSAN)1127.5
SRP-4 (HTPB + PSAN)16050
Table 2. Determined ignition/explosion temperature of solid propellant samples. The listed temperature is an average of n = 5 experiments.
Table 2. Determined ignition/explosion temperature of solid propellant samples. The listed temperature is an average of n = 5 experiments.
SampleSRP-1SRP-2SRP-3SRP-4
Ignition/explosion temperature   (°C)320336229259
Table 3. Determined linear combustion velocity of samples.
Table 3. Determined linear combustion velocity of samples.
SampleSRP-1SRP-2SRP-3SRP-4
Linear combustion velocity (mm/s)6.2613.9863.4882.161
Table 4. DSC investigation of the utilised binders prior to curing.
Table 4. DSC investigation of the utilised binders prior to curing.
SampleHTPBGAP
Property
Glass transition (°C)−76.3−55.7
1st exothermic peak (°C)204246.7
Δ hP1 (J/g)245610
2nd exothermic peak (°C)376n/a
Δ hP2 (J/g)819n/a
Table 5. Kinetics of high-energy transformation of SRP-1.
Table 5. Kinetics of high-energy transformation of SRP-1.
β  aPeak Temperature (K)ln ( β /T2)1·103/Tp Δ h (J/g)
3597−11.6871.6741322
5594−11.1641.6831751
7599−10.8451.6691550
10610−10.5241.6391460
12611−10.3461.6361531
15612−10.1251.6342037
a heating rate (K/min).
Table 6. Kinetics of high-energy transformation of SRP-2.
Table 6. Kinetics of high-energy transformation of SRP-2.
β  aPeak Temperature (K)ln ( β /T2)1·103/Tp Δ h (J/g)
3608−11.7201.6461905
5621−11.2531.6102011
7620−10.9131.6131322
10625−10.5731.6001311
12633−10.4161.5792185
15641−10.2191.5592088
a heating rate (K/min).
Table 7. Kinetics of high-energy transformation of SRP-3.
Table 7. Kinetics of high-energy transformation of SRP-3.
β  aPeak Temperature (K)ln ( β /T2)1·103/Tp Δ h (J/g)
3469−11.2022.132648
5475−10.7182.104752
7477−10.3892.096724
10485−10.0652.063634
12488−9.8962.049688
15489−9.6772.045760
a heating rate (K/min).
Table 8. Activation energy determination results using Kissinger method.
Table 8. Activation energy determination results using Kissinger method.
SampleEa (kJ/mol)
SRP-1148.5
SRP-2189.7
SRP-3129.2
Table 9. Materials used in this work.
Table 9. Materials used in this work.
Chemical (Code)Purity GradeSourceNotes
Ammonium perchlorate (AP)>95%POCH S.A (Gliwice, Poland)
Phase-stabilised ammonium nitrate (PSAN)Produced as per [28]
Hydroxyl-terminated polybutadiene (HTPB)>90%Aldrich Chemicals M n = 5607 g/mol,
dispersity = 2.57
Glycidyl azide polymer (GAP)Synthesised as per [29], M n = 1478 g/mol, dispersity = 1.2
Dichloromethane>95%PureLand
N,N′-dimethylformamide>95%EUROCHEM BGD
Sodium azide>99%Acros Organics
Ethane-1,2-diol>95%Chempur
Nitroguanidine (NQ)Synthesised, as per [30]
Sulphuric acid>95%Chempur95 wt. % solution
Guanidine nitrate>95%Sigma Aldrich USA
Methylene diphenyl diisocyanate (MDI)>95%Sigma Aldrich USAused as cross-linking agent
Magnesium>95%POCH S.A (Gliwice, Poland)89 μ m
Dibutylin dilaureate>95%Sigma Aldrich USAused as a catalyst for
cross-linking reaction
Table 10. Signal listing for the 1H NMR spectra of substances synthesised in this work.
Table 10. Signal listing for the 1H NMR spectra of substances synthesised in this work.
CompoundChemical Shifts (ppm)
GAP (solvent: CDCl3)4 ( δ 1.18-1.20 -CH2-O), ( δ 1.18-1.20 -CH2-); 1 ( δ 3.36-3.99 O-CH2-); 2 ( δ 3.36-3.99 O-CH2-); 3 ( δ 3.36-3.99 -CH2N3)
NQ (solvent: DMSO-d6) δ 7.46
Table 11. Signal listing for the FT-IR ATR spectra of substances synthesised in this work.
Table 11. Signal listing for the FT-IR ATR spectra of substances synthesised in this work.
CompoundWavenumber (cm−1)
GAP ν 2928 (C-H); ν 2865 (C-H); ν 2101 (-N3); ν 1258 (-N3); ν 1089 (C-O-C)
Nitroguanidine ν 1038 (C-N); ν 1394.5 (NO2); ν 1631 (-NO2); ν 3259.5 (N-H); ν 3339 (N-H)
Table 12. Components of prepared rocket propellant samples.
Table 12. Components of prepared rocket propellant samples.
Components, wt. %SRP-1SRP-2SRP-3SRP-4
Glycidyl azide polymer25-25-
Hydroxyl-terminated polybutadiene-25-25
Ammonium perchlorate5252--
Phase-stabilised ammonium nitrate (PSAN) a--5252
Mg18181818
NQ2222
MDI3333
a PSAN was prepared according to ref. [28] and it consisted of 96 wt.% NH4NO3, 2 wt.% KNO 3, 1 wt.% CuO, and 1 wt.% ZnO.
Table 13. Measured percentage mass increase of AN and PSAN.
Table 13. Measured percentage mass increase of AN and PSAN.
Time, minMass Increase, % Initial Mass
ANPSAN
300.0190.014
600.0300.018
900.0390.020
1200.0590.025
1800.0690.029
2100.0690.029
3300.1030.033
14400.4250.197
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lysien, K.; Waśkiewicz, S.; Stolarczyk, A.; Mielańczyk, A.; Zakusylo, R.; Jarosz, T. Traditional vs. Energetic and Perchlorate vs. “Green”: A Comparative Study of the Choice of Binders and Oxidising Agents. Molecules 2023, 28, 5787. https://doi.org/10.3390/molecules28155787

AMA Style

Lysien K, Waśkiewicz S, Stolarczyk A, Mielańczyk A, Zakusylo R, Jarosz T. Traditional vs. Energetic and Perchlorate vs. “Green”: A Comparative Study of the Choice of Binders and Oxidising Agents. Molecules. 2023; 28(15):5787. https://doi.org/10.3390/molecules28155787

Chicago/Turabian Style

Lysien, Kinga, Sylwia Waśkiewicz, Agnieszka Stolarczyk, Anna Mielańczyk, Roman Zakusylo, and Tomasz Jarosz. 2023. "Traditional vs. Energetic and Perchlorate vs. “Green”: A Comparative Study of the Choice of Binders and Oxidising Agents" Molecules 28, no. 15: 5787. https://doi.org/10.3390/molecules28155787

Article Metrics

Back to TopTop
