Article

Advanced Stimuli-Responsive Structure Based on 4D Aerogel and Covalent Organic Frameworks Composite for Rapid Reduction in Tetracycline Pollution

by
Wenxin Wang
1,
Wenjing Wang
1,
Ying Liang
1,
Liwen Du
1,
Huan Yang
2,
Haoxiang Ma
3,
Huiting Cheng
1,
Yaqian Yan
1,
Yijun Shen
1,* and
Qi Chen
1,*
1
State Key Laboratory of Marine Resource Utilization in South China Sea, Collaborative Innovation Center of Marine Science and Technology, Hainan University, Haikou 570228, China
2
School of Materials Science and Engineering, Hainan University, Haikou 570228, China
3
Deep Sea Engineering Division, Institute of Deep Sea Science and Engineering, Chinese Academy of Sciences, Sanya 572000, China
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(14), 5505; https://doi.org/10.3390/molecules28145505
Submission received: 16 June 2023 / Revised: 14 July 2023 / Accepted: 17 July 2023 / Published: 19 July 2023
(This article belongs to the Special Issue Porous Organic Materials: Design and Applications)
Browse Figures
Versions Notes

Abstract

Intelligentization of materials and structures is an important trend. Herein, the stimuli-responsive 4D aerogel is used as a smart substrate for rapid reduction in tetracycline (TC) pollution, in which this smart stimuli-responsive substrate is designated as P4D. Its fourth dimension originates from stimuli-responsive characteristics with time evolution. Meanwhile, the covalent organic frameworks (COFs) composite is constructed by BiPO4 and triazine-based sp2 carbon-conjugated g-C18N3-COF (COF-1), which is another key aspect of COF-1/BiPO4@P4D for rapid photocatalytic degradation regarding TC pollution. This emerging smart structure of COFs@P4D can fix programmable temporary state and recover permanent state under thermal or water stimulus without any complicated equipment. Its performance can be tailored by structure, composition, and function. Compared with traditional powder-form photocatalysts, this stimuli-responsive structure provides attractive advantages, such as high permeable framework, self-adaptivity, flexibly customized functional groups, and fast reduction in TC pollution. The predictable development of COFs@P4D could draw much attention for various promising applications in pollution treatment and sensors.

1. Introduction

Quickly reducing antibiotic pollution is still a serious challenge in designing, preparing, and engineering materials and structures. There are obvious differences in performance, energy consumption, and cost regarding various treatment methods. Semiconductor photocatalysis is one of the most promising green technologies in terms of environmental purification [1,2,3]. So far, the development of a photocatalytic system that possesses suitable structure, performance, efficiency, energy consumption, and cost is very desirable. Although some photocatalysts have good photocatalytic degradation ability, their powder form and high raw material cost represent a bottleneck regarding widespread application [4,5]. Therefore, new strategies are still highly anticipated to break through that bottleneck.
In order to solve this problem, an original strategy is proposed here that merges conventional photocatalysts into a stimuli-responsive substrate. This work constructs the COF-1/BiPO4@P4D composite for demonstrating this strategy. BiPO4 is a stable, green, and good ultraviolet-photocatalytic nanomaterial, but the visible light absorption of BiPO4 is poor, leading to low utilization of sunlight [6,7]. Modification of BiPO4 helps to enhance the visible light absorption and achieve optimization of photocatalytic performance [8,9,10,11,12,13,14]. Combined with a suitable semiconductor, it is a common and effective way to improve the photocatalytic performance of BiPO4 [10,11,12].
Porous organic polymers are types of two-dimensional or three-dimensional network skeleton semiconductor materials that are connected by covalent bonds [15]. As porous organic semiconductor materials, COFs have good visible light absorption, designable porous structure, energy band adjustability, and easy modification, resulting in an excellent functional customization material [16,17]. In 2005, Omar M. Yaghi first reported two-dimensional COFs, which initiated the study of COFs [16]. In 2007, Omar M. Yaghi reported three-dimensional COFs for the first time [18]. This marks the beginning of an innovation in the dimension of COFs. Lan et al. synthesized several COF–semiconductor Z-scheme photocatalysts using TiO2, BiWO6, α-Fe2O3, and COF-318/316-semiconductor [19]. These COF composites are Z-type heterojunction catalysts connected by covalent bonds. Z-type heterojunction catalysts improve the separation efficiency of photo-generated carriers so as to improve their photocatalytic activity [19].
For overcoming the shortcomings of conventional powder-form photocatalysts, the stimuli-responsive 4D aerogel is used as a smart substrate for developing a COFs@P4D. This stimuli-responsive 4D aerogel is a particularly distinctive and useful smart porous material, and it has fixable temporary shape, multiple stimuli response, programmable fractal structure, high permeability, easy functionalization, and fast enrichment [20]. Its intelligence is reflected in its stimuli-responsive capacity that can recover its original shape from a pre-programmed temporary “freezing” shape under the right stimulus. This 3D aerogel can change state over time, so it is able to be regarded as 4D material. Herein, the fourth dimension is time.
The design strategy of an original COFs@P4D is illustrated in Figure 1. The typical stimuli-responsive aerogel substrate is obtained from the precursor system of poly (vinyl alcohol) (PVA) and cross-linker by the precrosslinked ice template strategy based on previous work [20]. Then, the COF-1/BiPO4 is coated into P4D. After lyophilization, the COF-1/BiPO4@P4D composite is ultimately gained. For comparison with COF-1/BiPO4@P4D, the BiPO4/P4D and COF-1/P4D composites are prepared by similar preparation processes. The pre-programmed stimuli-responsive process of COF-1/BiPO4@P4D consists of programmable fixing and recovering, which distinguishes it from almost all other traditional pollution treatment processes.
The programmable time evolution capacity of P4D is a significant difference and advantage compared to conventional porous substrate. It is well-known that the stimuli-responsive performance could usually be adjusted by its cross-linked molecular network. The submicron structure and functionality of a stimuli-responsive aerogel can be regulated by cross-linker content, precrosslinked parameters, and functional components. Movie S1 and previous work demonstrate the fast enrichment effect of P4D. It is observed that P4D can adsorb crystal violet quickly during the stimuli-responsive recovery process in water. After the extrusion process, the crystal violet can still be firmly absorbed in the P4D [20]. As a common porous substrate, the melamine sponge (MS) only adsorbs crystal violet slowly and slightly in similar environments and at the same time. Remarkably, this stimuli-responsive recovery process of P4D not only accelerates the diffusion-controlled adsorption process but also possesses enrichment capacity of pollutants under the scouring of waste water.
Antibiotics have super stability in a water environment and become one of the most harmful water pollutants in the world. One of the most typical is TC, which accounts for one-third of the total production and consumption of antibiotics and contributes major residues in soil and water around the world [21,22,23,24,25]. Yun Hang Hu verified that TiO2 can also degrade 25.1% TC under 700 nm light irradiation [26]. The TC-sensitizing TiO2 can absorb visible light, and this surface complex can also generate •O2− to degrade TC. Weidong Shi constructed direct solid-state Z-scheme V2O5/g-C3N4 heterojunctions, which have the electrons of high reducibility in the g-C3N4 conduction band bottom (CBB) and the holes of high oxidizability in the V2O5 valence band top (VBT) [27]. They can be used to degrade 75.7% TC after 120 min. Xun Cao prepared Bi2WO6/MOF-ZIF-8 to degrade TC [28]. MOF-ZIF-8 improves the separation of photo-generated carriers and the utilization efficiency of electrons. Herein, the superoxide radicals enhance the photocatalytic degradation ratio of TC. A Z-scheme g-C3N4/Ag/AgBr heterojunction photocatalyst shows good photocatalytic ability for the degradation of TC [29]. This Z-scheme heterojunction improves the separation efficiency of photo-generated carriers and maintains the oxidation and reduction capability of Ag/AgBr and g-C3N4, respectively. The results show that •O2− and •OH are the main active species in the photo-degradation of TC. Fang Liu synthesized a S-g-C3N4/N-TiO2@PTFE membrane to degrade TC [30]. The heterojunction between S-g-C3N4 and N-TiO2 can be beneficial for the light absorption and separation of photo-generated carriers, and the superoxide radicals also play an important role in the degradation of TC. As a loading material, PTFE is conducive to recover the S-g-C3N4/N-TiO2 photocatalyst powder. Weiting Yang developed an MS @COF-TpTt composite in which the COF-TpTt grew uniformly on the MS fibers [31]. This composite can not only degrade TC under visible light but also overcomes poor recyclability of the COF powder. It has become clear that the heterojunctions can improve photocatalytic performance, and the loading materials are conducive to recover the photocatalyst powder. Usually, their preparation method is complex and has a high cost. The primary deficiency regarding these loading materials is that they only have carrying capacity. An ideal substrate should possess both carrying capacity and functionality, such as accelerating or enhancing removal capabilities of pollution.
This work, taking TC as an example, tests the pollutant removal of a corresponding sample. The stimuli-responsive 4D aerogel substrate plays a critical role in the rapid adsorption removal of TC pollution during the stimuli-responsive recovery process in water, and COF-1/BiPO4 composite works as a key functional component of COF-1/BiPO4@P4D for rapid photocatalytic degradation regarding TC pollution. Therefore, this stimuli-responsive structure merges the advantages of the stimuli-responsive 4D aerogel and COFs composites, which has not yet been reported.
The multiscale structure, fundamental properties, photocatalytic performance, and stimuli-responsive performance of smart COFs@P4D are the key elements to influence potential applications, such as pollutant removal.

2. Results and Discussion

2.1. Fundamental Properties and Microstructure

The morphologies of BiPO4, COF-1, and COF-1/BiPO4 are studied by scanning electron microscopy (SEM), which can provide the basis for discussing the photocatalysis mechanism of COF-1/BiPO4. As shown in Figure 2a, BiPO4 is regular nanorod of approximately 100 nm diameter and has good dispersion. These characteristics are conducive to expose more active sites in the photocatalysis process. The SEM image of COF-1 reveals its uniform lance-shaped morphology with about 200 nm diameter and 2 μm length, indicating that it tends to form regular fibrous aggregates at the micro-nano scale (Figure 2b). After several attempts, a blend heat treatment method is used to construct the COF-1/BiPO4 composite, maintaining the advantages regarding specific morphology (Figure 2c). In principle, the BiPO4 nanorod and the COF-1 fibrous structure closely contact and retain their respective original morphologies in the COF-1/BiPO4 composite.
The chemical properties of the COF-1/BiPO4 composite are characterized by powder X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and Fourier transform infrared spectroscopy (FTIR). Figure 3a shows a high-intensity diffraction peak at 4.7, corresponding to the [100] crystal plane. The [110] and [210] crystal plane diffraction peaks are located at 8.2 and 12.7, respectively. The XRD pattern of COF-1 is consistent with those reported in the literature [30]. This indicates that COF-1 is synthesized successfully with good crystallinity. In Figure 3b, there are the lattice oxygen and the adsorbed oxygen of BiPO4 at 531.16 eV and 530.56 eV, respectively [10,14]. In the high-resolution XPS spectra of the O 1s regions for COF-1/BiPO4, the peaks shift to higher binding energy (Figure 3c). This suggests that there are chemical forces between COF-1 and BiPO4 in COF-1/BiPO4. Figure 3d includes the FTIR spectra of BiPO4, COF-1, and COF-1/BiPO4. The absorption bands at 1105 cm−1–922 cm−1, and 628 cm−1–515 cm−1 refer to the –PO4 of BiPO4. The absorption peaks of COF-1 at 1629 cm−1 and 833 cm−1 refer to the C=C and the C-H of the benzene ring skeleton, respectively. In addition, the absorption peaks of COF-1 at 1517 cm−1 and 1361 cm−1 refer to the C=N and the C-N of triazine structure, respectively. The absorption peak at 973 cm−1 refers to the C=C, which connects the benzene ring to the triazine structure in COF-1. Compared with COF-1 and BiPO4, there are the absorption peaks of benzene ring skeleton and triazine structure, as well as the absorption bands of the –PO4 in the COF-1/BiPO4 composite. This shows that the COF-1/BiPO4 composite is synthesized successfully. The changes in these characteristic absorption peaks also show that there are certain bonding interactions between COF-1 and BiPO4 in COF-1/BiPO4, which also corresponds to the analysis of XPS spectra, as confirmed by Figure 3.

2.2. Photocatalytic Performance and Mechanism

As a typical antibiotic pollution, TC is used to evaluate the photocatalytic performance of BiPO4, COF-1, and COF-1/BiPO4. In a TC solution, the samples are evenly dispersed to reach adsorption equilibrium under complete darkness. As shown in Figure 4, the adsorption capacity values of BiPO4 and COF-1/BiPO4 are 14.2% and 23.5% within 30 min, respectively. COF-1/BiPO4 has better adsorption capacity just because COF-1 is multi-hole with larger specific surface area and better adsorption capacity. Interestingly enough, COF-1/BiPO4 can quickly reduce TC pollution by 60.2% through photocatalytic degradation only in about 5 min. Its removal ratio of TC can reach nearly 83.6% within only 1 h. In comparison, under the same conditions, BiPO4 only removes 38.4% TC. The no catalyst group is the control group for researching the effects of light irradiation to TC. This group result shows that there is little influence on TC under light irradiation. It takes into consideration that the adsorption removal ratio and the photocatalytic degradation removal ratio of COF-1 are about 32.4% and 46.9%, respectively. According to the above results, COF-1 is the key component of COF-1/BiPO4 for rapid reduction in TC pollution, and there is a good interaction with COF-1 and BiPO4. Figure S1 illustrates the liquid chromatograms and mass spectra of photocatalytic degradation of TC in the presence of COF-1/BiPO4. At a retention time of 4.12 min, the eluted TC obviously reduced after a 30 min photocatalytic reaction. A liquid chromatograph mass spectrometer (LC–MS) is used to explore the photoproducts from the photocatalytic oxidation of TC. After a 30 min photocatalytic reaction, the mass spectra only detected a tetracycline ion under the current experimental conditions. According to the detected photoproducts and the related literature reports [32,33,34,35,36,37], it can be concluded that TC can be mineralized safely by COF-1/BiPO4, which has been reported in Zhang’s study [32].
In order to better compare the photocatalytic activity of different samples, the Langmuir–Hinshelwood (L-H) equation is used to fit analysis [38]. In Figure 4a, the photocatalytic degradation ratio of the COF-1/BiPO4 reaches equilibrium quickly within the first 5 min. Figure 5a is the photocatalytic degradation kinetics curve of TC in 120 s. As expected, COF-1/BiPO4 shows a faster degradation rate (0.391 min−1) than BiPO4 (0.014 min−1) with the same conditions. As shown in Figure 5b, the photocatalytic rate of COF-1/BiPO4 is much faster than other previously reported photocatalysts, such as COF-TpTt composite (0.026 min−1), MOF-ZIF-8 composite (0.040 min−1), g-C3N4 composites (0.070 min−1 and 0.028 min−1), and TiO2 (0.038 min−1) [26,38,39,40,41,42,43]. From the foregoing, COF-1 is one of the main influences in improving the photocatalytic activity of COF-1/BiPO4. COF-1/BiPO4 photocatalysts contain about half the COF-1 levels that COF-1 would have. However, the photocatalytic performance levels of COF-1/BiPO4 and COF-1 are similar. This suggests that COF-1 and BiPO4 have good synergies, which will be discussed later.
In general, the photocatalytic performance is conditioned with migration, separation, and utilization of photo-generated carriers. For a semiconductor photocatalytic reaction, the VBT potential is much more positive the stronger the oxidation capacity, and the CBB potential is much more negative the greater the reduction capacity. The stronger the migration and separation of photo-generated carriers, the better the utilization of photo-generated carriers and more favorable the oxidation–reduction reaction in the photocatalytic process. To obtain further insight into the synergies of COF-1 and BiPO4, Figure 6 shows the ultraviolet–visible diffuse reflectance spectra (DRS), the band gap calculation, the impact of various trapping agents, Mott–Schottky curves, and schematic of charge transfer process of BiPO4, COF-1, and COF-1/BiPO4. The band gap is a very important influence factor on photocatalytic performance. The DRS is used to test the optical property of BiPO4 and COF-1. In their absorption spectra, the absorption band edges of BiPO4 and COF-1 are about 280 nm and 486 nm, respectively. This shows that the BiPO4 is an ultraviolet photocatalyst and the COF-1 displays good visible light absorption capacity. This is one of the reasons that the COF-1 has better light harvesting and photocatalytic activity under simulated solar irradiation (Figure 4 and Figure 5). In addition, the band gaps of BiPO4 and COF-1 are calculated to be 4.09 eV and 2.51 eV from the DRS via the Tauc plot, respectively [30,40,41].
In Figure 6c, the trapping experiments of COF-1 provide a basis for further investigating the photocatalytic mechanism. The trapping agents include vitamin C (VC) for the superoxide anion radical (•O2−), ethylenediaminetetraacetic acid disodium salt (EDTA-2Na) for the hole (h+), AgNO3 for the electron (e−), and isopropyl alcohol (IPA) for the hydroxyl radical (•OH). The removal ration of TC is inhibited after adding EDTA-2Na, AgNO3, and IPA. It can be inferred that the photo-generated electrons and holes as well as the generated •OH radicals would benefit from the removal of TC. Figure 6d,e show the Mott–Schottky curves of BiPO4 and COF-1 measured under 1000 Hz, 1500 Hz, and 2000 Hz frequency, respectively. The CBB potential values of BiPO4 and COF-1 are calculated to be −0.69 V and −0.93 V, respectively.
Based on the above results, a proposed schematic of the photo-generated charge carriers transfer process and photocatalytic mechanism is shown in Figure 6f. When COF-1/BiPO4 is illuminated by simulated sunlight, the electrons on the valence band (VB) of BiPO4 and COF-1 can be excited to the conduction band (CB), leaving the holes on their VB. The holes on the valence band of BiPO4 can transfer to the valence band of COF-1, while the electrons on the conduction band of COF-1 can transfer to the conduction band of BiPO4. From the thermodynamic requirement, the holes on the VB oxidize OH− to generate •OH and the electrons on the CB reduce O2 to yield •O2−. Hence, the photo-generated carriers of COF-1/BiPO4 can be more effectively separated than BiPO4, which is beneficial to improve its photocatalytic performance due to the effective separation of photo-generated charge carriers improving its utilization intrinsically. Both the photo-generated carriers and the obtained radicals would play important roles in the advanced removal of TC. As a result, COF-1/BiPO4 displays higher photocatalytic activity than BiPO4. Figure 4, Figure 5 and Figure 6 also indicate that the kinetic requirement may have a more important effect for COF-1/BiPO4.

2.3. Stimuli-Responsive Photocatalytic Structure

Generally, the photocatalysts are usually in powder form, whose photocatalytic efficiency is intrinsically limited by mass transfer of diffusion. Considering that photocatalysts in powder form are not easy to use and recycle, this stimuli-responsive photocatalytic structure uses a stimuli-responsive 4D aerogel substrate with creativity. Movies S2 and S3 substantiate the water-driven stimuli-responsive capacity of P4D and COF-1/BiPO4@P4D. In water, COF-1/BiPO4@P4D can recover its original shape within only 10 s at room temperature, which is much faster than most previous water-driven stimuli-responsive polymers in the literature. Its cross-linked network influences dramatically its stimuli-responsive performance [42,43,44]. The water-driven stimuli-responsive behavior of P4D is triggered by the plasticizing effect of water, often with an increase in flexibility of its macromolecule chains [45]. The water-driven stimuli-responsive recovery process of P4D and COF-1/BiPO4@P4D can produce suction for facilitating obvious molecules’ and ions’ diffusion to their inner active sites. They have a fast adsorption-enrichment effect during the stimuli-responsive recovery process. This stimuli-responsive 4D aerogel substrate could provide suitable mass transfer pathways.
The diffusion speed of water and the hydrogen bond of the cross-linked network are basic conditions for impacting water-driven stimuli-responsive and adsorption removal performance. As shown in Figure 7, the P4D composites have highly permeable 3D frameworks. The BiPO4 of regular nanorod and uniform lance-shaped COF-1 are observed in the SEM micrographs of BiPO4/P4D, COF-1/P4D, and COF-1/BiPO4@P4D. This shows that BiPO4, COF-1, and COF-1/BiPO4 dispersed and composited well on the 3D framework surface of P4D. Those nano-functional materials help to raise the specific surface area of the P4D composites, especially for COF-1/BiPO4, which is more favorable for increasing the specific surface area and the active site to the benefit of adsorption and photocatalytic removal. The P4D, the BiPO4 nanorod, and the COF-1 fibrous structure not only maintain their respective original morphology but also contact closely. The structural characterizations of the P4D composites imply that the interconnected 3D network structure of P4D and large specific surface area of BiPO4, COF-1, and COF-1/BiPO4 would have beneficial effects on liquid spread, physical adsorption removal, and chemical interaction. The COF-1/BiPO4@P4D composite maintains the specific morphology advantages of P4D, BiPO4, and COF-1, which would have the benefit of adsorption removal (Movie S1) and photocatalytic removal.
In Figure 8a, the XRD of COF-1/BiPO4@P4D shows diffraction peaks at 4.7, 29.1, and 19.3, corresponding to the [100] crystal plane of COF-1 and the [120] crystal plane of BiPO4 and the characteristic peak of P4D, respectively. As shown in Figure 8b, there are C-O and C=O of P4D at 286.23 eV and 289.15 eV, respectively. The 531.97 eV peak is C=O of P4D and the 533.00 eV peak is O-H of P4D (Figure 8c). Compared with P4D, the high-resolution XPS spectra of the C 1s and O 1s regions for COF-1/BiPO4@P4D have noticeable changes in binding energy peaks (Figure 8d,e). Figure 8f includes the FTIR spectra of P4D, COF-1/P4D, BiPO4/P4D, and COF-1/BiPO4@P4D. The absorption bands at 1108 cm−1–920 cm−1 refer to the –PO4 of BiPO4/P4D and COF-1/BiPO4@P4D. The absorption peaks of COF-1/P4D and COF-1/BiPO4@P4D at 1513 cm−1 and 1370 cm−1 refer to the C=N and the C-N of triazine structure, respectively. It is observed that COF-1/BiPO4@P4D has the characteristic peaks of the –PO4 and triazine structure. Their FTIR results are consistent with XRD and XPS. They indicate that COF-1/BiPO4@P4D is successfully constructed and there are chemical forces between COF-1/BiPO4 and P4D.
COF-1/BiPO4@P4D has the best removal ratio of TC compared with P4D, BiPO4/P4D, and COF-1/P4D (Figure 9a). After 1 h, the TC pollution removal ratio of COF-1/BiPO4@P4D is 6.1% higher than BiPO4/P4D (Figure 9b). The results in Figure 9c indicate that, under the same conditions, the TC removal ratio of COF-1/BiPO4@P4D increases with COF-1/BiPO4 content increasing. In addition, the photocatalytic removal ratios of COF-1/BiPO4@P4D show good repeatability. As shown in Figure S2, the adsorption isotherm of COF-1 presented a type I adsorption isotherm, so it is a microporous material. Furthermore, its Brunauer–Emmett–Teller (BET) specific surface area is 540 m2/g. The temperature dependence of the dynamic compression tests of P4D is shown in Figure S3a. Its shape memory fixing ratio (Rf) and shape memory recovering ratio (Rr) are above 90%. Those results further prove its programmable and reversible transitions between permanent and temporary states. Figure S3b shows that P4D has good thermostability within approximately 230 °C. These features enable COF-1/BiPO4@P4D to exhibit water-induced and thermal-induced shape memory performance, as shown in Movie S3 and S4 and Figure S4. It can rapidly recover to its original shape under heat control. In Figure S5a, COF-1/BiPO4 shows good visible light absorption, which is consistent with the optical property analysis (Figure 6). The absorption band edges of COF-1/BiPO4 and COF-1/BiPO4@P4D are about 501 nm and 467 nm, respectively. This indicates that COF-1/BiPO4 and COF-1/BiPO4@P4D display good visible light absorption capacity. P4D has almost no ability to absorb visible light. The visible light harvesting activity of COF-1/BiPO4@P4D is mainly attributed to COF-1/BiPO4. The results of Figure S6 show that the contact angles of P4D and COF-1/BiPO4@P4D are almost 0o, so they have good hydrophilic properties. The water drops are completely wetting and spreading on their mat surface (contact time within 2.8 s and 1.7 s, respectively). It is obvious that COF-1/BiPO4@P4D has a better hydrophilic property. These are favorable factors for photocatalytic removal of TC. The P4D of the pre-fixed temporary compressed shape can quickly reach adsorption equilibrium only in 3 min, while the P4D of the original shape must take more than 30 min to reach adsorption equilibrium (Figure S7). The highly permeable 3D framework as well as abundant surface-oxygen-containing, nitrogenous-containing, and phosphorus-containing groups of COF-1/BiPO4@P4D are conducive to the spread and the plasticizing effect of water, so it has good water-driven stimuli-responsive and adsorption removal performance. The TC pollution removal capacity of COF-1/BiPO4@P4D is attributed to the fast photocatalytic degradation TC of COF-1/BiPO4 as well as good adsorption removal TC of COF-1/BiPO4 and P4D (Figure 4, Figure 5 and Figure 9). These active influence factors are strong supports for fast reduction in TC pollution.

3. Materials and Methods

3.1. Materials

Bismuth nitrate pentahydrate (Bi(NO3)3·5H2O), monosodium phosphate (NaH2PO4), potassium hydroxide (KOH), and ethylene glycol were acquired from Shanghai Macklin Biochemical Technology Co., Ltd. (Shanghai, China). 1,4-diformylbenzene (DFB) and 2,4,6-trimethyl-1,3,5-triazine (TMTA) were ordered from Jilin Chinese Academy of Sciences/Yanshen Technology Co., Ltd. (Jilin, China). Sodium hydrogen carbonate (NaHCO3), glutaraldehyde (GA), and PVA were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd. (Shanghai, China).

3.2. Preparation of the COF-1/BiPO4@P4D

1 mmol Bi(NO3)3·5H2O is mixed with 15 mL ethylene glycol and 1 mmol NaH2PO4 dissolves in 10 mL water. Their mixture is ivory after stirring 1 h. In the experiment of hydrothermal treatment, this mixture is heated to 200 °C for 12 h in the hydrothermal reactor. BiPO4 is washed by ethyl alcohol and water, respectively. Then, it is dried at 60 °C for 12 h. COF-1 is prepared based on our previous research results [30]. COF-1/BiPO4 is compounded by combining equal parts of COF-1 and BiPO4, which is heat-treated at 200 °C under the atmosphere of nitrogen. On the basis of the first stage of our research [18], P4D is prepared by precrosslinked vacuum-freeze-drying method. The P4D is coated with 5 wt.% COF-1/BiPO4, and then the COF-1/BiPO4@P4D composite is vacuum-freeze-dried. In order to ensure the comparability of the experiment data, BiPO4@P4D and COF-1@P4D are prepared by the same method.

3.3. Characterization

SEM (Hitachi S-4800, Hitachi, Chiyoda, Japan) is used to observe the microscopic surface morphology of samples. XRD patterns and the electron binding energy of the samples are measured using XRD measurement system (Rigaku SmartLab, Rigaku, Akishima, Japan) and XPS measurement system (Thermo Scientific Escalab 250Xi, Thermo Scientific, Waltham, MA, USA), respectively. FTIR spectra are recorded on the Perkin-Elmer spectrometer (Spectrum 100, Perkin-Elmer, Waltham, MA, USA). LC–MS (Shimadzu LCMS-IT-TOF, Shimadzu, Kyoto, Japan) is used to explore the photoproducts from the photocatalytic oxidation of TC. Ultraviolet–visible diffused reflectance spectroscopy (Ultraviolet–visible DRS, Shimadzu UV-2600i spectrometer, Shimadzu, Japan) is used to calculate the band gap (Eg) of BiPO4 and COF-1. Mott–Schottky curves of BiPO4 and COF-1 are recorded by the electrochemical workstation (Vantone PGSTAT101, Vantone, Zurich, Switzerland). N2 adsorption–desorption isotherms are measured with automated sorption analyzer (Micromeritics ASAP 2460, Micromeritics, Norcross, GA, USA) and the sample is degassed at 110 °C for 10 h before the test. Dynamic mechanical analysis (DMA) is performed by DMA system (TA Instruments Q850, TA Instruments, New Castle, DE, USA). Thermogravimetric analyses (TGA) are carried out with thermogravimetric analyzer (TA Instruments Q500, TA Instruments, New Castle, DE, USA). The surface hydrophilicity is detected by contact angle meter (Powereach JC2000D4, Shanghai Zhongchen Digital Technology Equipment Co., Ltd., Shanghai, China).

3.4. Photocatalytic Performance

The photocatalytic performance is evaluated by photocatalytic degradation of TC solution. Typically, 30 mg sample and 150 mL of 5 mg/L TC solution are mixed by a magnetic stirrer. First, it is stirred evenly for testing its adsorption removal property in the dark, and then the photocatalytic performance is tested using 500 W xenon lamp illumination. The concentration changes regarding TC are monitored by measuring the ultraviolet–visible absorption of the suspensions at appropriate intervals. The characteristic absorption peak of TC at 357nm is used to determine its concentration by a UV-2600i spectrophotometer. VC, EDTA-2Na, AgNO3, and IPA are used to test impact of various trapping agents on TC removal ratio.

4. Conclusions

Based on 4D aerogel and COF-1/BiPO4, this advanced stimuli-responsive structure has the capacity of programmable and fixable temporary state, water-driven stimuli-responsive recovery, adsorption, and photocatalytic removal performance, which are the significant advantages contrasted with traditional powder-form photocatalysts. The photogenic carrier separation and utilization of COF-1/BiPO4 is better than BiPO4 because of the relatively matched band structure of COF-1 and BiPO4. The photocatalytic rates of COF-1/BiPO4 are increased by about 11 times, especially compared with ordinary g-C3N4 or TiO2, etc. Especially because of its fixable temporary shape and stimuli-responsive recovery, this smart photocatalytic structure can also accelerate reducing TC pollution, with the suction resulting from water-driven stimuli-responsive recovery as well as the interaction between TC and its active sites. Its functionalities and performances can be optimized by regulating the porous structure, composition, pre-programmed stimuli response, and functional groups. This strategy is expected to solve problems that are difficult for practical applications of powder-form photocatalysts and lower raw material costs of pollutant removal. There are vital advantages in practical applications. The development of this COFs@P4D would be further promoted by exploring various high-value applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28145505/s1, Figure S1: (a) Liquid chromatograms of photocatalytic degradation of TC in the presence of the COF-1/BiPO4 for different photocatalytic reaction times: 0 min and 30 min. Mass spectra at retention time (RT) = 4.12 min for photocatalytic degradation of TC in the presence of the COF-1/BiPO4: (b) photocatalytic reaction time 0 min and (c) photocatalytic reaction time 30 min. Figure S2: N2 adsorption–desorption isotherms of COF-1; Figure S3: (a) Cyclic thermodynamic compression experiment and (b) TGA curve of P4D; Figure S4: Thermal-induced shape memory process of COF-1/BiPO4@P4D; Figure S5: The optical property of (a) the COF-1/BiPO4 and (b) COF-1/BiPO4@P4D (illustration is DRS of P4D); Figure S6: (a) The contact angle images of P4D at 0 s and 2.8 s after touching with water drop, respectively. (b) The contact angle images of COF-1/BiPO4@P4D at 0 s and 1.7 s after touching with water drop, respectively; Figure S7: The P4D of the pre-fixed temporary compressed shape to reduce TC pollution ratio curve; Movie S1: Rapid adsorption dye during stimuli-responsive recovery process in the water at room temperature; Movies S2 and S3: The stimuli-responsive recovery process of P4D and COF-1/BiPO4@P4D in the water at room temperature, respectively; Movie S4: Thermal-induced shape memory process of COF-1/BiPO4@P4D.

Author Contributions

Conceptualization, W.W. (Wenxin Wang); Methodology, W.W. (Wenxin Wang) and Q.C.; Validation, W.W. (Wenxin Wang), W.W. (Wenjing Wang), Y.L. and Y.Y.; Formal analysis, W.W. (Wenxin Wang), W.W. (Wenjing Wang), Y.L., H.M., Y.Y. and Q.C.; Investigation, W.W. (Wenjing Wang), L.D., H.Y., H.M. and H.C.; Writing—original draft, W.W. (Wenxin Wang) and W.W. (Wenjing Wang); Writing—review & editing, W.W. (Wenxin Wang) and Q.C.; Visualization, LD., H.M. and H.C.; Supervision, W.W. (Wenxin Wang), Y.S. and Q.C.; Funding acquisition, W.W. (Wenxin Wang), Y.S. and Q.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research is supported by Hainan Provincial Natural Science Foundation of China (grant numbers 520QN222, 2019RC091); National Natural Science Foundation of China (grant numbers 12262011, 11902105,52063014, 51873053); Hainan Province Science and Technology Special Fund (ZDYF2022SHFZ299); Science Foundation of National Key Laboratory of Science and Technology on Advanced Composites in Special Environments (grant numbers JCKYS2020603C012); Hainan University (grant number KYQD(ZR)1813, MRUKF2021037).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors thank and acknowledge Liqiang Jing and Linlu Bai for their assistance testing Mott–Schottky curves.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. Deepracha, S.; Ayral, A.; Ogawa, M. Acceleration of the photocatalytic degradation of organics by in-situ removal of the products of degradation. Appl. Catal. B Environ. 2020, 284, 119705. [Google Scholar] [CrossRef]
  2. Wang, W.X.; Jing, L.Q.; Qu, Y.C.; Luan, Y.B.; Fu, H.G.; Xiao, Y.C. Facile fabrication of efficient AgBr-TiO2 nanoheterostructured photocatalyst for degrading pollutants and its photogenerated charge transfer mechanism. J. Hazard. Mater. 2012, 243, 169–178. [Google Scholar] [CrossRef]
  3. Huang, Q.Q.; Hua, Y.; Peia, Y.; Zhang, J.H.; Fu, M.L. In situ synthesis of TiO2@NH2-MIL-125 composites for use in combined adsorption and photocatalytic degradation of formaldehyde. Appl. Catal. B Environ. 2019, 259, 118106. [Google Scholar] [CrossRef]
  4. Haounati, R.; Ighnih, H.; Ouachtak, H.; Malekshah, R.E.; Hafid, N.; Jada, A.; Ait Addi, A. Z-scheme g-C3N4/Fe3O4/Ag3PO4@sep magnetic nanocomposites as heterojunction photocatalysts for green malachite degradation and dynamic molecular studies. Colloids Surf. A Physicochem. Eng. Asp. 2023, 671, 131509. [Google Scholar] [CrossRef]
  5. Haounati, R.; Ighnih, H.; Malekshah, R.E.; Alahiane, S.; Alakhras, F.; Alabbad, E.; Alghamdi, H.; Ouachtak, H.; Addi, A.A.; Jada, A. Exploring ZnO/Montmorillonite photocatalysts for the removal of hazardous RhB Dye: A combined study using molecular dynamics simulations and experiments. Mater. Today Commun. 2023, 35, 105915. [Google Scholar] [CrossRef]
  6. Wang, Y.X.; Ye, X.J.; Chen, G.B.; Li, D.Z.; Meng, S.G.; Chen, S.F. Synthesis of BiPO4 by crystallization and hydroxylation with boosted photocatalytic removal of organic pollutants in air and water. J. Hazard. Mater. 2020, 399, 122999. [Google Scholar] [CrossRef]
  7. Zhu, Y.Y.; Ling, Q.; Liu, Y.F.; Wang, H.; Zhu, Y.F. Photocatalytic performance of BiPO4 nanorods adjusted via defects. Appl. Catal. B Environ. 2016, 187, 204–211. [Google Scholar] [CrossRef]
  8. Di, J.; Chen, J.; Ji, M.X.; Zhang, Q.; Xu, L.; Xia, J.X.; Li, H.M. Reactable ionic liquid induced homogeneous carbon superdoping of BiPO4 for superior photocatalytic removal of 4-chlorophenol. Chem. Eng. J. 2017, 313, 1477–1485. [Google Scholar] [CrossRef]
  9. Fulekar, M.H.; Singh, A.; Dutta, D.P.; Roy, M.; Ballal, A.; Tyagi, A.K. Ag incorporated nano BiPO4: Sonochemical synthesis, characterization and improved visible light photocatalytic properties. RSC Adv. 2014, 4, 10097–10107. [Google Scholar] [CrossRef]
  10. Bai, J.W.; Yang, Y.; Hu, X.L.; Lu, P.; Fu, M.; Ren, X.L. Fabrication of novel organic/inorganic polyimide-BiPO4 heterojunction for enhanced photocatalytic degradation performance. J. Colloid Interface Sci. 2022, 625, 512–520. [Google Scholar] [CrossRef]
  11. Fellah, I.; Djellabi, R.; Amor, H.B.; Abderrahim, N.; Bianchi, C.L.; Giordana, A.; Cerrato, G.; Michele, A.D.; Hamdi, N. Visible light responsive heterostructure HTDMA-BiPO4 modified clays for effective diclofenac sodium oxidation: Role of interface inter-actions and basal spacing. J. Water Process Eng. 2022, 48, 102788. [Google Scholar] [CrossRef]
  12. Wang, Y.J.; Zhang, J.Y.; Hou, S.S.; Wu, J.X.; Wang, C.; Li, Y.M.; Jiang, G.Y.; Cui, G.Q. Novel CoAl-LDH Nanosheets/BiPO4 nanorods composites for boosting photocatalytic degradation of phenol. Pet. Sci. 2022, 19, 3080–3087. [Google Scholar] [CrossRef]
  13. Ben, S.K.; Gupta, S.; Harit, A.K.; Raj, K.K.; Chandra, V. Enhanced photocatalytic degradation of Reactive Red 120 dye under solar light using BiPO4@g-C3N4 nanocomposite photocatalyst. Environ. Sci. Pollut. Res. 2022, 29, 84325–84344. [Google Scholar] [CrossRef]
  14. El-Shazly, A.N.; Hamza, M.A.; Allam, N.K. Enhanced photoelectrochemical water splitting via engineered surface defects of BiPO4 nanorod photoanodes. Int. J. Hydrogen Energy 2021, 46, 23214–23224. [Google Scholar] [CrossRef]
  15. Feng, X.; Ding, X.S.; Jiang, D.L. Covalent organic frameworks. Chem. Soc. Rev. 2012, 41, 6010–6022. [Google Scholar] [CrossRef]
  16. Côté, A.P.; Benin, A.I.; Ockwig, N.W.; O’Keeffe, M.; Matzger, A.J.; Yaghi, O.M. Porous, crystalline, covalent organic frameworks. Science 2005, 310, 1166–1170. [Google Scholar] [CrossRef]
  17. Freund, R.; Zaremba, O.; Arnauts, G.; Ameloot, R.; Skorupskii, G.; Dincă, M.; Bavykina, A.; Gascon, J.; Ejsmont, A.; Goscianska, J.; et al. The Current Status of MOF and COF Applications. Angew. Chem. Int. Ed. 2021, 60, 23975–24001. [Google Scholar] [CrossRef]
  18. El-Kaderi, H.M.; Hunt, J.R.; Mendoza-Cortés, J.L.; Côté, A.P.; Taylor, R.E.; O’Keeffe, M.; Yaghi, O.M. Designed Synthesis of 3D Covalent Organic Frameworks. Science 2007, 316, 268–272. [Google Scholar] [CrossRef] [PubMed]
  19. Zhang, M.; Lu, M.; Lang, Z.L.; Liu, J.; Liu, M.; Chang, J.N.; Li, L.Y.; Shang, L.J.; Wang, M.; Li, S.L.; et al. Semiconductor/Covalent-Organic-Framework Z-Scheme heterojunctions for artificial photosynthesis. Angew. Chem. Int. Ed. 2020, 59, 6500–6506. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, W.X.; Du, L.W.; Xie, Y.; Zhang, F.H.; Li, P.; Xie, F.; Wan, X.; Pei, Q.B.; Leng, J.S.; Wang, N. Bioinspired four-dimensional polymeric aerogel with programmable temporal-spatial multiscale structure and functionality. Compos. Sci. Technol. 2021, 206, 108677. [Google Scholar] [CrossRef]
  21. Kovalakova, P.; Cizmas, L.; McDonald, T.J.; Marsalek, B.; Feng, M.; Sharma, V.K. Occurrence and toxicity of antibiotics in the aquatic environment: A review. Chemosphere 2020, 251, 126351. [Google Scholar] [CrossRef]
  22. Gaudino, E.C.; Canova, E.; Liu, P.Y.; Wu, Z.L.; Cravotto, G. Degradation of antibiotics in wastewater: New advances in cavitational treatments. Molecules 2021, 26, 617. [Google Scholar] [CrossRef] [PubMed]
  23. Wammer, K.H.; Slattery, M.T.; Stemig, A.M.; Ditty, J.L. Tetracycline photolysis in natural waters: Loss of antibacterial activity. Chemosphere 2011, 85, 1505–1510. [Google Scholar] [CrossRef]
  24. Conde-Cid, M.; Fernández-Calviño, D.; Nóvoa-Muñoz, J.; Arias-Estévez, M.; Díaz-Raviña, M.; Fernández-Sanjurjo, M.; Núñez-Delgado, A.; Álvarez-Rodríguez, E. Biotic and abiotic dissipation of tetracyclines using simulated sunlight and in the dark. Sci. Total Environ. 2018, 635, 1520–1529. [Google Scholar] [CrossRef]
  25. Fu, S.F.; Chen, K.Q.; Zou, H.; Xu, J.X.; Zheng, Y.; Wang, Q.F. Using calcium peroxide (CaO2) as a mediator to accelerate tetracycline removal and improve methane production during co-digestion of corn straw and chicken manure. Energy Convers. Manag. 2018, 172, 588–594. [Google Scholar] [CrossRef]
  26. Wu, S.Q.; Hu, H.Y.; Lin, Y.; Zhang, J.L.; Hu, Y.H. Visible light photocatalytic degradation of tetracycline over TiO2. Chem. Eng. J. 2020, 382, 122842. [Google Scholar] [CrossRef]
  27. Hong, Y.Z.; Jiang, Y.H.; Li, C.S.; Fan, W.Q.; Yan, X.; Yan, M.; Shi, W.D. In-situ synthesis of direct solid-state Z-scheme V2O5/g-C3N4 heterojunctions with enhanced visible light efficiency in photocatalytic degradation of pollutants. Appl. Catal. B Environ. 2016, 180, 663–673. [Google Scholar] [CrossRef]
  28. Dai, X.J.; Feng, S.; Wu, W.; Zhou, Y.; Ye, Z.W.; Wang, Y.; Cao, X. Photocatalytic degradation of tetracycline by Z-Scheme Bi2WO6/ZIF-8. J. Inorg. Organomet. Polym. Mater. 2022, 32, 2371–2383. [Google Scholar] [CrossRef]
  29. Song, J.H.; Zhao, K.; Yin, X.B.; Liu, Y.; Khan, I.; Liu, S.Y. Photocatalytic degradation of tetracycline hydrochloride with g-C3N4/Ag/AgBr composites. Front. Chem. 2022, 10, 1069816. [Google Scholar] [CrossRef] [PubMed]
  30. Xia, T.; Wu, Z.Z.; Liang, Y.; Wang, W.X.; Li, Y.P.; Sui, Z.Y.; Shan, L.L.; Li, C.K.; Fan, R.M.; Chen, Q. Sp2 carbon-conjugated covalent organic frameworks for efficient photocatalytic degradation and visualized pH detection. Mater. Today Chem. 2022, 25, 100962. [Google Scholar] [CrossRef]
  31. Lin, D.Y.; Duan, P.; Yang, W.T.; Huang, X.J.; Zhao, Y.J.; Wang, C.T.; Pan, Q.H. Facile fabrication of melamine sponge@covalent organic framework composite for enhanced degradation of tetracycline under visible light. Chem. Eng. J. 2022, 430, 132817. [Google Scholar]
  32. Hao, R.; Xiao, X.; Zuo, X.X.; Nan, J.M.; Zhang, W.D. Efficient adsorption and visible-light photocatalytic degradation of tetracycline hydrochloride using mesoporous BiOI microspheres. J. Hazard. Mater. 2012, 209–210, 137–145. [Google Scholar]
  33. Jiang, D.L.; Wang, T.Y.; Xu, Q.; Li, D.; Meng, S.C.; Chen, M. Perovskite oxide ultrathin nanosheets/g-C3N4 2D-2D heterojunction photocatalysts with significantly enhanced photocatalytic activity towards the photodegradation of tetracycline. Appl. Catal. B Environ. 2017, 201, 617–628. [Google Scholar]
  34. Wang, W.; Fang, J.J.; Shao, S.F.; Lai, M.; Lu, C.H. Compact and uniform TiO2@g-C3N4 core-shell quantum heterojunction for photocatalytic degradation of tetracycline antibiotics. Appl. Catal. B Environ. 2017, 217, 57–64. [Google Scholar]
  35. Yang, Y.; Zeng, Z.T.; Zhang, C.; Huang, D.L.; Zeng, G.M.; Xiao, R.; Lai, C.; Zhou, C.Y.; Guo, H.; Xue, W.J.; et al. Construction of iodine vacancy-rich BiOI/Ag@AgI Z-scheme heterojunction photocatalysts for visible-light-driven tetracycline degradation: Transformation pathways and mechanism insight. Chem. Eng. J. 2018, 349, 808–821. [Google Scholar] [CrossRef]
  36. Chen, F.; Yang, Q.; Li, X.M.; Zeng, G.M.; Wang, D.B.; Niu, C.G.; Zhao, J.W.; An, H.X.; Xie, T.; Deng, Y.C. Hierarchical assembly of graphene-bridged Ag3PO4/Ag/BiVO4(040) Z-scheme photocatalyst: An efficient, sustainable and heterogeneous catalyst with enhanced visible-light photoactivity towards tetracycline degradation under visible light irradiation. Appl. Catal. B Environ. 2017, 200, 330–342. [Google Scholar] [CrossRef]
  37. Xie, Z.J.; Feng, Y.P.; Wang, F.L.; Chen, D.N.; Zhang, Q.X.; Zeng, Y.Q.; Lv, W.Y.; Liu, G.G. Construction of carbon dots modified MoO3/g-C3N4 Z-scheme photocatalyst with enhanced visible-light photocatalytic activity for the degradation of tetracycline. Appl. Catal. B Environ. 2018, 229, 96–104. [Google Scholar] [CrossRef]
  38. Zhu, S.R.; Qi, Q.; Fang, Y.; Zhao, W.N.; Wu, M.K.; Han, L. Covalent Triazine Framework modified BiOBr nanoflake with enhanced photocatalytic activity for antibiotic removal. Cryst. Growth Des. 2018, 18, 883–891. [Google Scholar] [CrossRef]
  39. You, X.H.; Liu, F.; Jiang, G.F.; Chen, S.H.; An, B.Y.; Cui, R.L. S-g-C3N4/N−TiO2 @PTFE membrane for photocatalytic degradation of tetracycline. ChemistrySelect 2022, 7, e202203024. [Google Scholar]
  40. Pan, C.S.; Zhu, Y.F. New type of BiPO4 oxy-acid salt photocatalyst with high photocatalytic activity on degradation of dye. Environ. Sci. Technol. 2010, 44, 5570–5574. [Google Scholar]
  41. Pan, C.S.; Zhu, Y.F. Size-controlled synthesis of BiPO4 nanocrystals for enhanced photocatalytic performance. J. Mater. Chem. 2011, 21, 4235–4241. [Google Scholar] [CrossRef]
  42. Wang, W.X.; Liu, Y.J.; Leng, J.S. Recent developments in shape memory polymer nanocomposites: Actuation methods and mechanisms. Coord. Chem. Rev. 2016, 320–321, 38–52. [Google Scholar]
  43. Wang, W.X.; Liu, D.Y.; Liu, Y.J.; Leng, J.S.; Bhattacharyya, D. Electrical actuation properties of reduced graphene oxide paper/epoxy-based shape memory composites. Compos. Sci. Technol. 2015, 106, 20–24. [Google Scholar] [CrossRef]
  44. Wang, W.X.; Liu, X.B.; Xu, W.; Wei, H.Q.; Liu, Y.J.; Han, Y.; Jin, P.; Du, H.J.; Leng, J.S. Light-induced microfluidic chip based on shape memory gold nanoparticles/poly (vinyl alcohol) nanocomposites. Smart Mater. Struct. 2018, 27, 105047. [Google Scholar] [CrossRef]
  45. Wang, W.X.; Lu, H.B.; Liu, Y.J.; Leng, J.S. Sodium dodecyl sulfate/epoxy composite: Water-induced shape memory effect and its mechanism. J. Mater. Chem. A 2014, 2, 5441–5449. [Google Scholar] [CrossRef]
Molecules 28 05505 g001

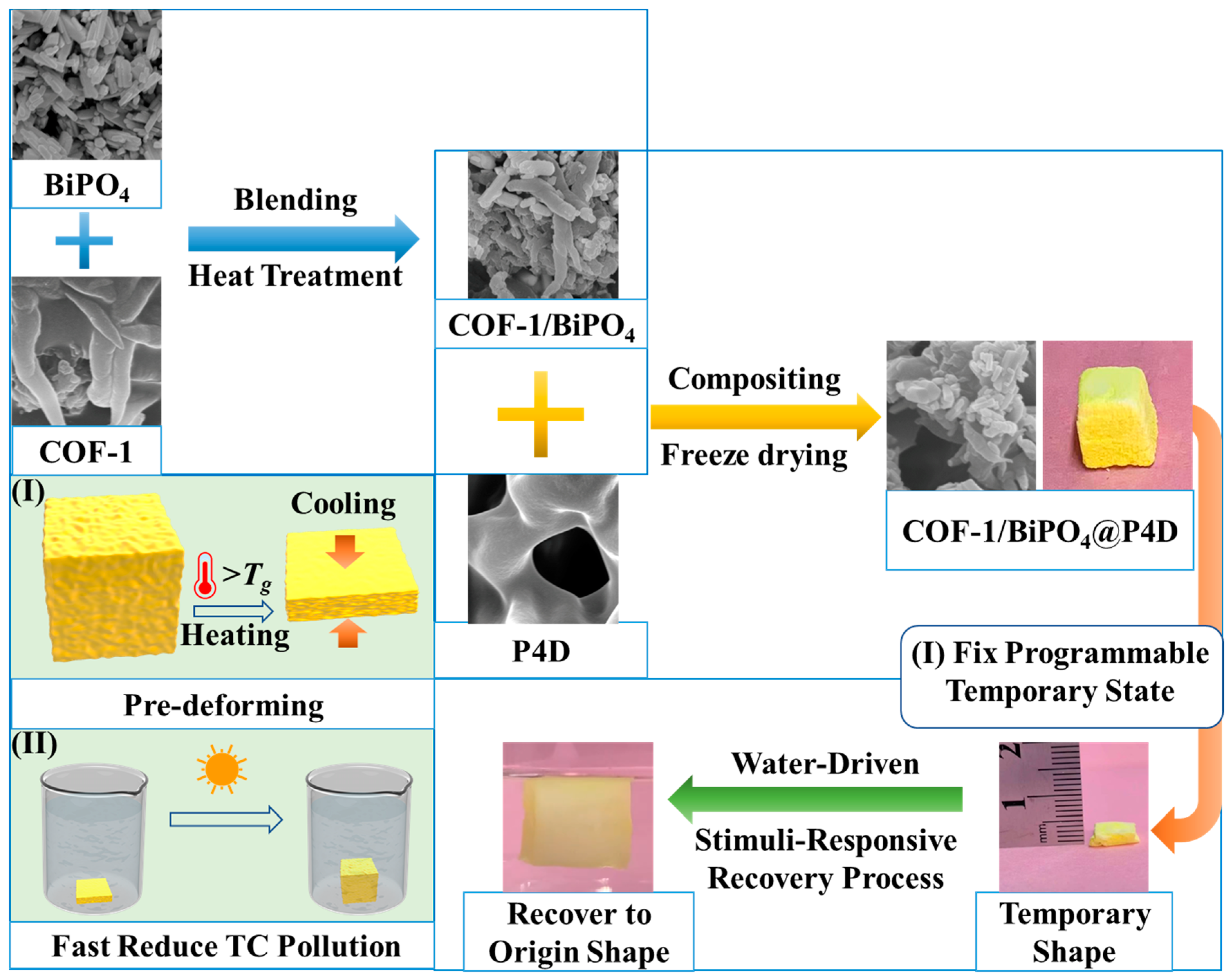

Figure 1. The design strategy of programmable COF-1/BiPO4@P4D for fast reduction in TC pollution. (I) Pre-deforming and fixing its programmable temporary shape. (II) The pre-deforming COF-1/BiPO4 @P4D for fast reduction in TC pollution process.
Figure 1. The design strategy of programmable COF-1/BiPO4@P4D for fast reduction in TC pollution. (I) Pre-deforming and fixing its programmable temporary shape. (II) The pre-deforming COF-1/BiPO4 @P4D for fast reduction in TC pollution process.
Molecules 28 05505 g001
Molecules 28 05505 g002
Figure 2. The SEM micrographs of (a) BiPO4, (b) COF-1, and (c) COF-1/BiPO4.
Figure 2. The SEM micrographs of (a) BiPO4, (b) COF-1, and (c) COF-1/BiPO4.
Molecules 28 05505 g002
Molecules 28 05505 g003

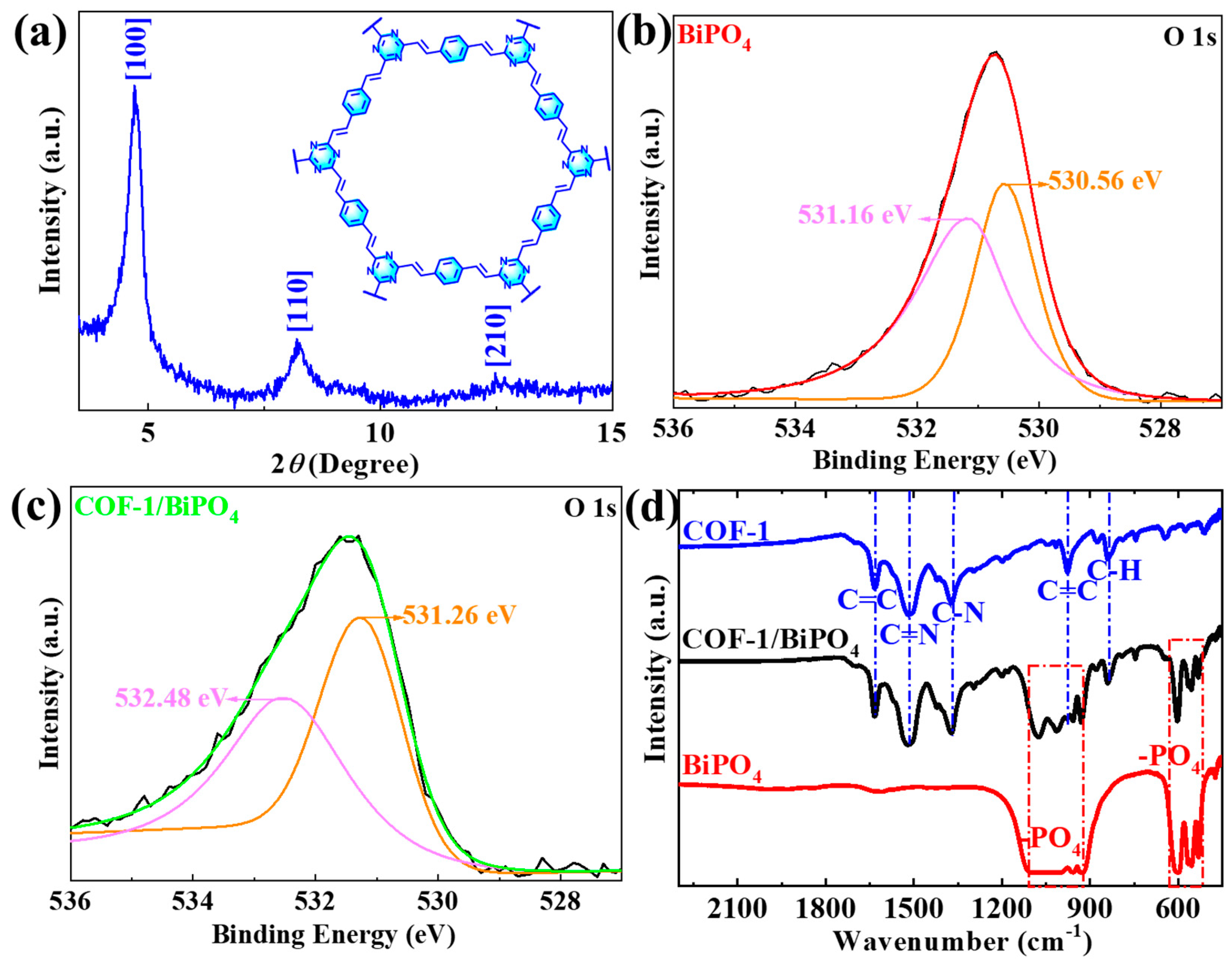

Figure 3. (a) XRD pattern of COF-1. The high-resolution XPS spectra of the O 1s regions for (b) BiPO4 and (c) COF-1/BiPO4. (d) FTIR spectra of BiPO4, COF-1, and COF-1/BiPO4.
Figure 3. (a) XRD pattern of COF-1. The high-resolution XPS spectra of the O 1s regions for (b) BiPO4 and (c) COF-1/BiPO4. (d) FTIR spectra of BiPO4, COF-1, and COF-1/BiPO4.
Molecules 28 05505 g003
Molecules 28 05505 g004

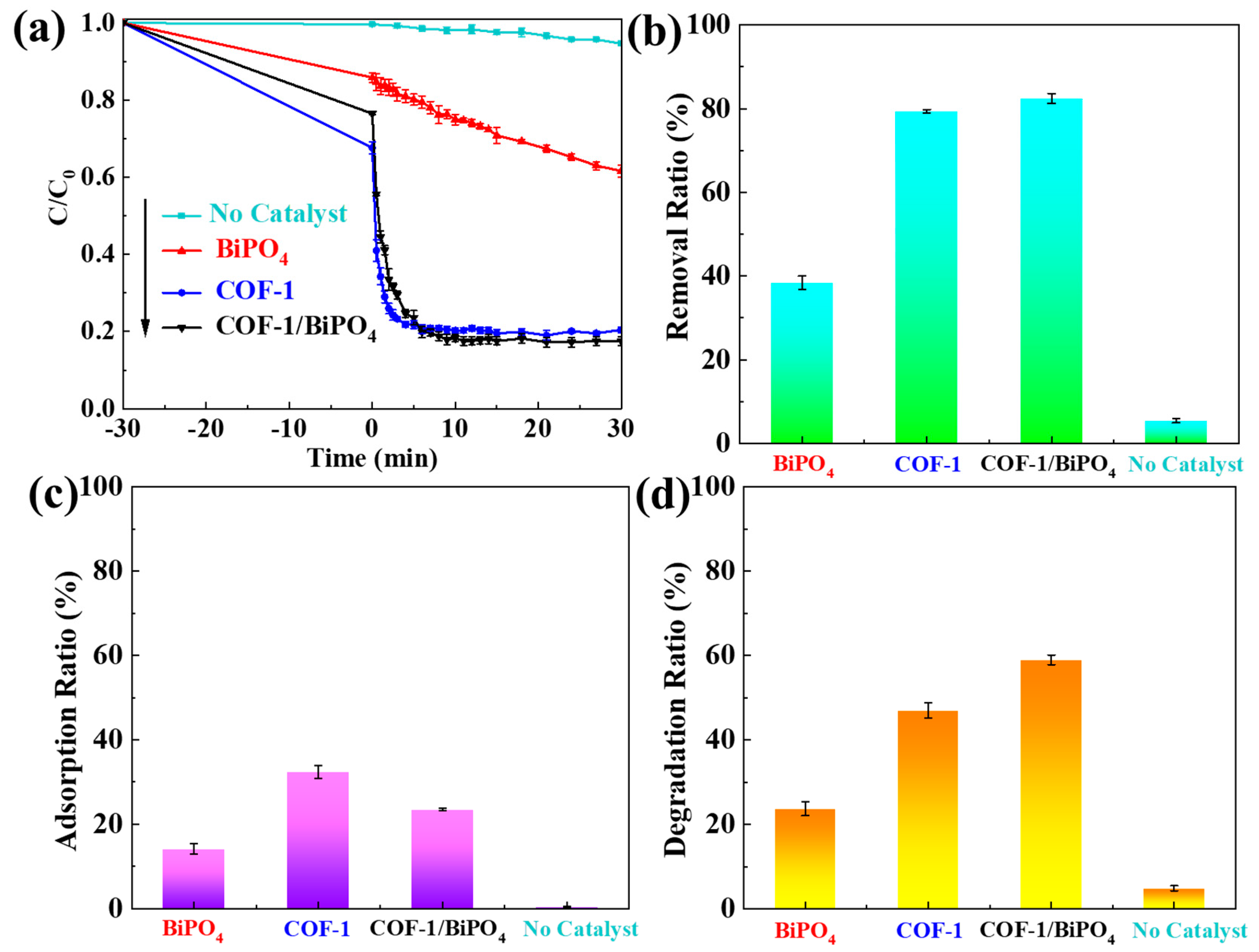

Figure 4. (a) BiPO4, COF-1, COF-1/BiPO4, no catalyst to reduce TC pollution ratio curve. (b) Removal ratio of TC in 60 min: BiPO4, COF-1, COF-1/BiPO4, no catalyst. (c) Adsorption ratio of TC in 30 min: BiPO4, COF-1, COF-1/BiPO4, no catalyst. (d) Degradation ratio of TC in 60 min: BiPO4, COF-1, COF-1/BiPO4, no catalyst.
Figure 4. (a) BiPO4, COF-1, COF-1/BiPO4, no catalyst to reduce TC pollution ratio curve. (b) Removal ratio of TC in 60 min: BiPO4, COF-1, COF-1/BiPO4, no catalyst. (c) Adsorption ratio of TC in 30 min: BiPO4, COF-1, COF-1/BiPO4, no catalyst. (d) Degradation ratio of TC in 60 min: BiPO4, COF-1, COF-1/BiPO4, no catalyst.
Molecules 28 05505 g004
Molecules 28 05505 g005

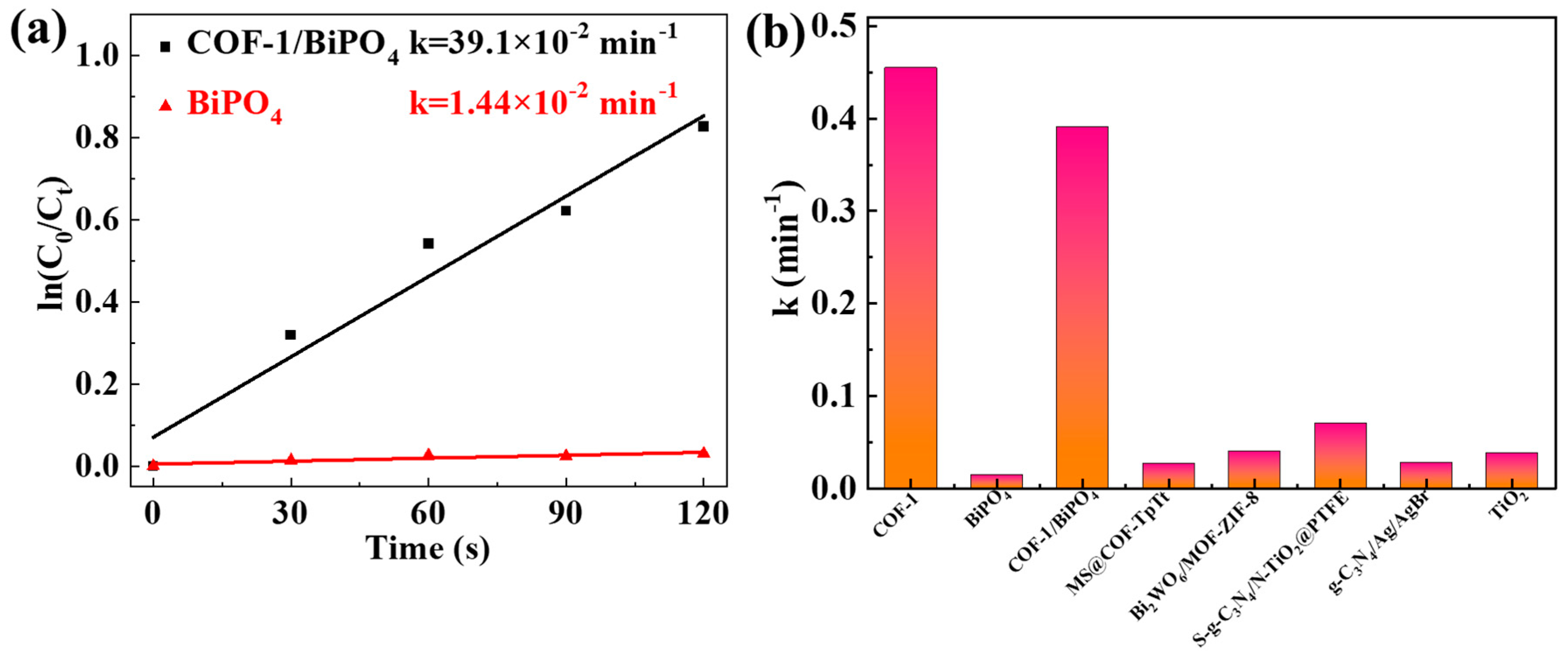

Figure 5. (a) The photocatalytic degradation kinetics curve of TC in 120 s: BiPO4 and COF-1/BiPO4. (b) Comparison of TC degradation rate constants in this work and other photocatalysts in the literature [26,28,29,30,31].
Figure 5. (a) The photocatalytic degradation kinetics curve of TC in 120 s: BiPO4 and COF-1/BiPO4. (b) Comparison of TC degradation rate constants in this work and other photocatalysts in the literature [26,28,29,30,31].
Molecules 28 05505 g005
Molecules 28 05505 g006

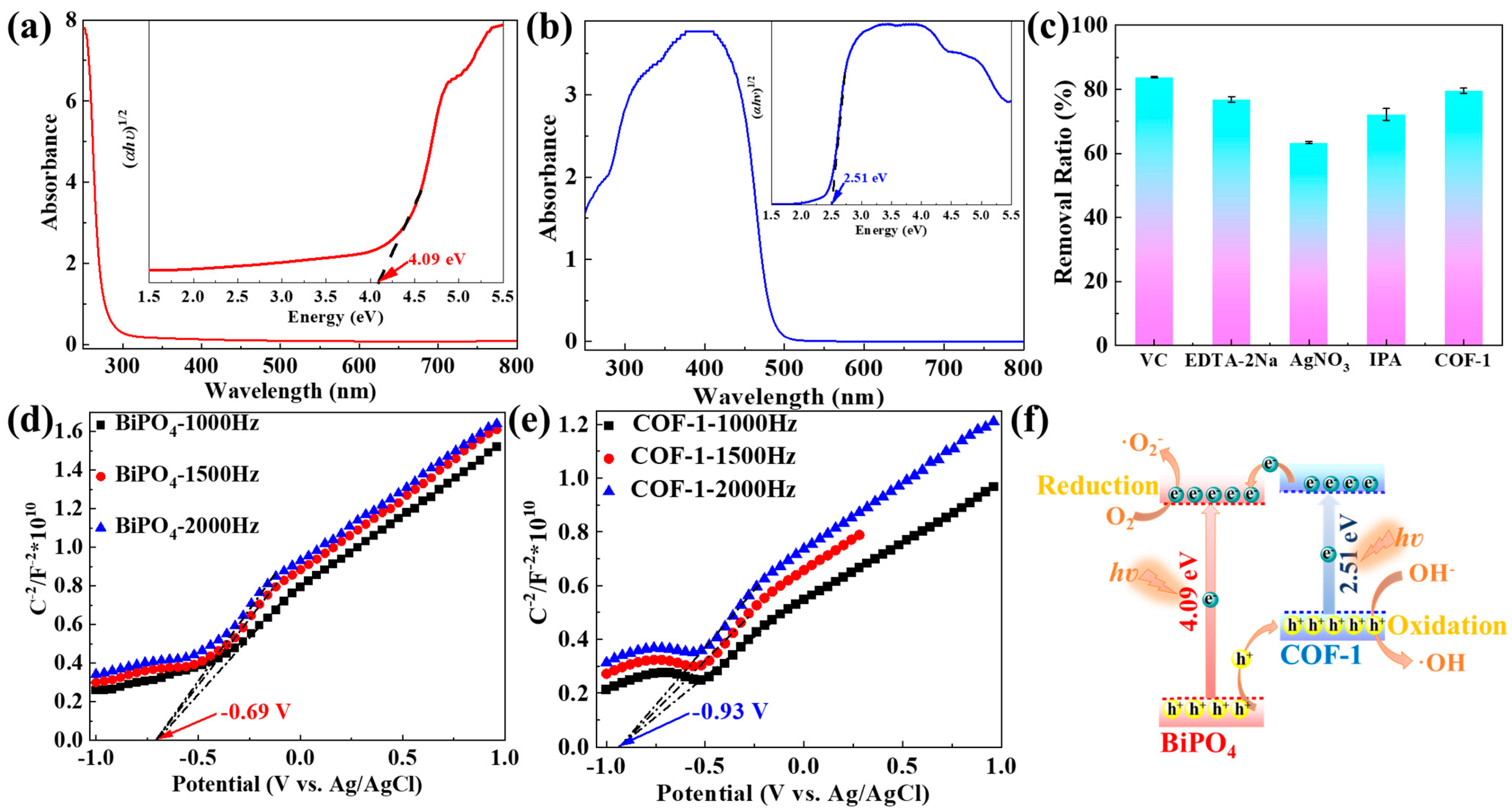

Figure 6. DRS and the band gap calculation of (a) BiPO4 and (b) COF-1. (c) Impact of various trapping agents on TC removal ratio: vitamin C (VC) for superoxide anion radical (•O2−), ethylenediaminetetraacetic acid disodium salt (EDTA-2Na) for hole (h+), AgNO3 for electron (e−), isopropyl alcohol (IPA) for hydroxyl radical (•OH), and COF-1 without trapping agent. Mott–Schottky curves of (d) BiPO4 and (e) COF-1. (f) Schematic of photo-generated charge carriers transfer process and photocatalytic mechanism.
Figure 6. DRS and the band gap calculation of (a) BiPO4 and (b) COF-1. (c) Impact of various trapping agents on TC removal ratio: vitamin C (VC) for superoxide anion radical (•O2−), ethylenediaminetetraacetic acid disodium salt (EDTA-2Na) for hole (h+), AgNO3 for electron (e−), isopropyl alcohol (IPA) for hydroxyl radical (•OH), and COF-1 without trapping agent. Mott–Schottky curves of (d) BiPO4 and (e) COF-1. (f) Schematic of photo-generated charge carriers transfer process and photocatalytic mechanism.
Molecules 28 05505 g006
Molecules 28 05505 g007
Figure 7. The SEM micrographs of (a) P4D, (b) BiPO4/P4D, (c) COF-1/P4D, and (d) COF-1/BiPO4@P4D.
Figure 7. The SEM micrographs of (a) P4D, (b) BiPO4/P4D, (c) COF-1/P4D, and (d) COF-1/BiPO4@P4D.
Molecules 28 05505 g007
Molecules 28 05505 g008

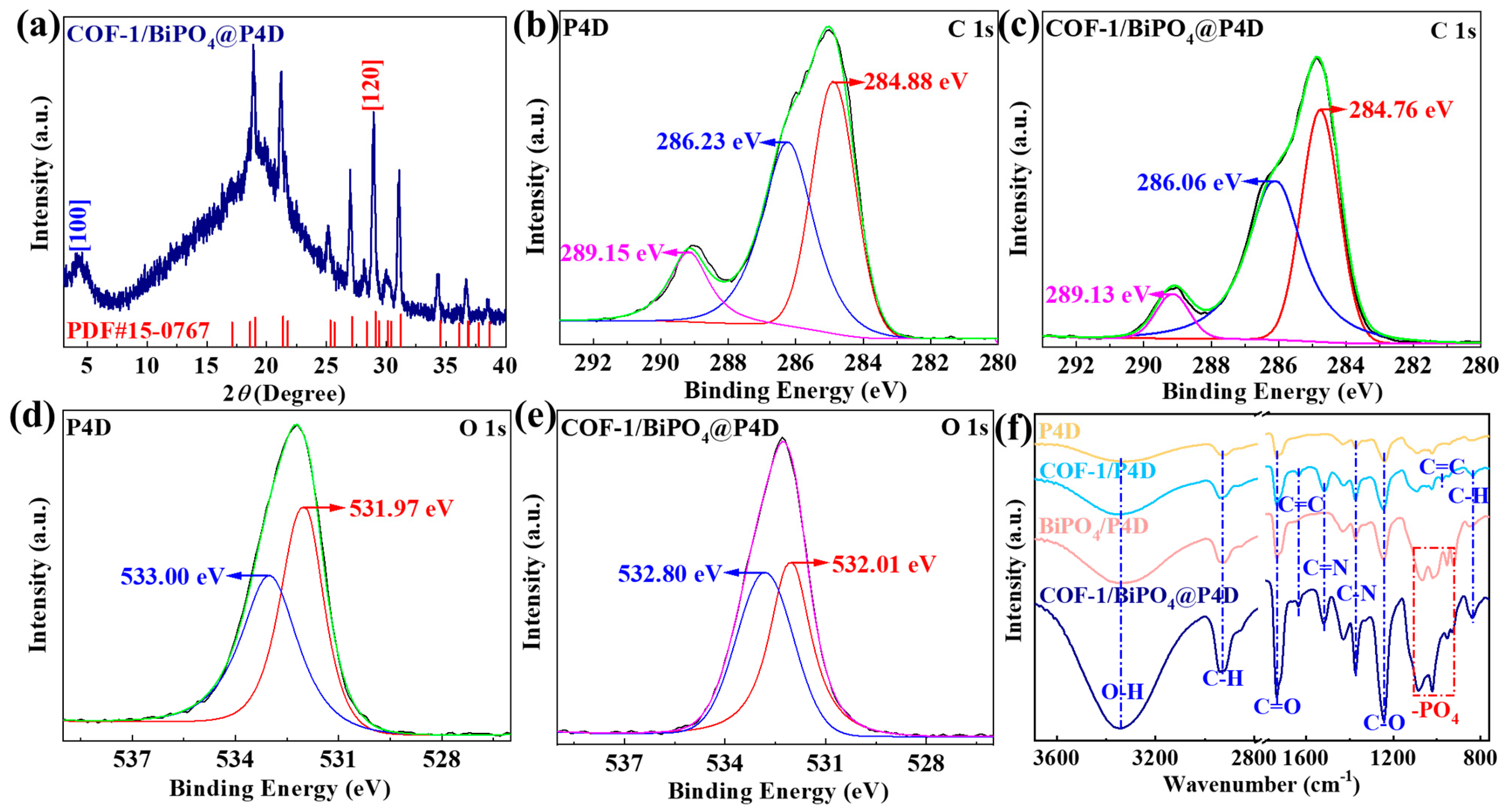

Figure 8. (a) XRD pattern of COF-1/BiPO4@P4D. The high-resolution XPS spectra of the C 1s regions for (b) P4D and (c) COF-1/BiPO4@P4D. The high-resolution XPS spectra of the O 1s regions for (d) P4D and (e) COF-1/BiPO4@P4D. (f) FTIR spectra of P4D, COF-1/P4D, BiPO4/P4D, and COF-1/BiPO4@P4D.
Figure 8. (a) XRD pattern of COF-1/BiPO4@P4D. The high-resolution XPS spectra of the C 1s regions for (b) P4D and (c) COF-1/BiPO4@P4D. The high-resolution XPS spectra of the O 1s regions for (d) P4D and (e) COF-1/BiPO4@P4D. (f) FTIR spectra of P4D, COF-1/P4D, BiPO4/P4D, and COF-1/BiPO4@P4D.
Molecules 28 05505 g008
Molecules 28 05505 g009

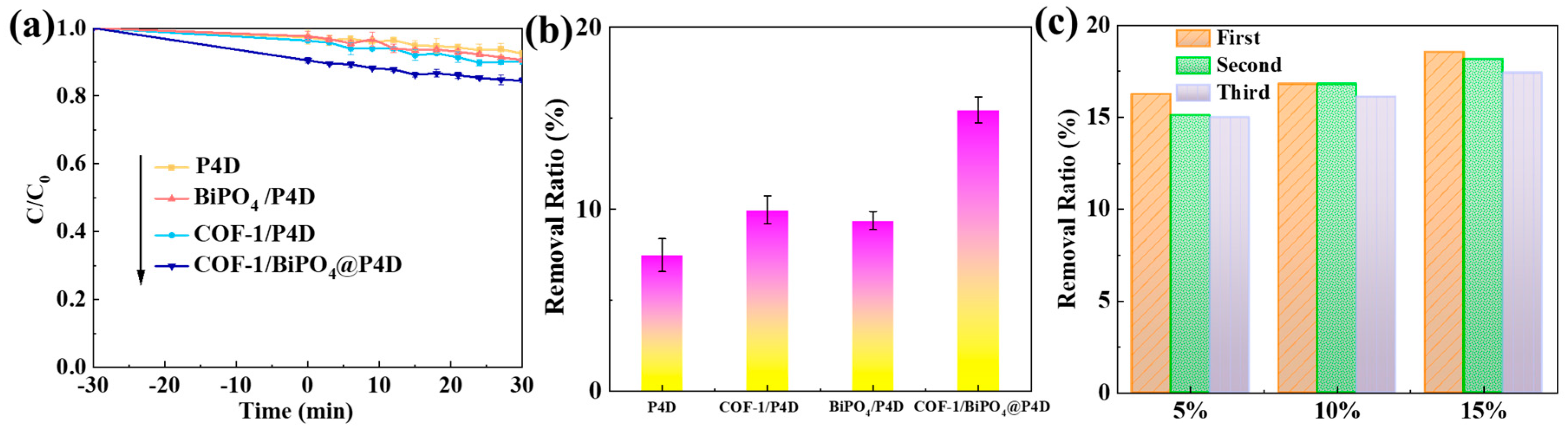

Figure 9. (a) P4D, BiPO4/P4D, COF-1/P4D, and COF-1/BiPO4@P4D to reduce TC pollution ratio curve. (b) Removal ratio of TC in 60 min: P4D, COF-1/P4D, BiPO4/P4D, and COF-1/BiPO4@P4D. (c) Removal ratio of TC was repetitively tested in 60 min: 5% COF-1/BiPO4@P4D, 10% COF-1/BiPO4@P4D, and 15% COF-1/BiPO4@P4D.
Figure 9. (a) P4D, BiPO4/P4D, COF-1/P4D, and COF-1/BiPO4@P4D to reduce TC pollution ratio curve. (b) Removal ratio of TC in 60 min: P4D, COF-1/P4D, BiPO4/P4D, and COF-1/BiPO4@P4D. (c) Removal ratio of TC was repetitively tested in 60 min: 5% COF-1/BiPO4@P4D, 10% COF-1/BiPO4@P4D, and 15% COF-1/BiPO4@P4D.
Molecules 28 05505 g009
