Synthesis of Renewable High-Density Fuel with Vanillin and Cyclopentanone Derived from Hemicellulose

Abstract

1,3-bis(cyclohexylmethyl)cyclopentane, a renewable high-density fuel, was first produced in a high overall carbon yield (79.5%) with vanillin and cyclopentanone, which can be derived from biomass. The synthetic route used in this work contains two steps. In the first step, 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone was synthesized by aldol condensation of vanillin and cyclopentanone under the catalysis of sulphuric acid. Over the optimized condensation, a high carbon yield (82.6%) of 2,5-bis(4-hydroxy-3-methoxybenzylidene) cyclopentanone was achieved at 80 ºC. In the second step, 2,5-bis(4-hydroxy-3-methoxybenzylidene) cyclopentanone was hydrodeoxygenated over the Pd/HY catalyst in cyclohexane as solvent. High carbon yields of 1,3-bis(cyclohexylmethyl)cyclopentane (96.2%) was obtained. The polycycloalkane mixture as obtained has a density of 0.943 g mL⁻¹ and a freezing point of −35 °C. It can be blended into conventional high-density fuels (e.g., JP-10) for rockets and missile propulsion as a potential application.

1. Introduction

The rapid consumption of fossil energy, and environmental problems, have attracted more and more attention. The production of renewable chemicals and liquid fuels [1,2,3] from biomass lignocellulose is fascinating. Multi-cyclic hydrocarbons have higher densities and volumetric heating values compared with non-naphthenic and mono-cyclic hydrocarbons. In real applications, polycycloalkanes can be used to increase the range, payload and/or velocity of aircraft without increasing the volume of the oil tank. The currently used high-density fuels (for example JP-10, RJ-5, RJ-7, etc.) are derived from fossil energy by the Diels−Alder reactions of cyclopentadiene (or methyl-cyclopentadiene) followed by isomerization and hydrogenation [4,5]. The high-density fuel precursors of tricyclic and bicyclic compounds were synthesized by Diels−Alder reactions of isoprene and p-benzoquinone [6,7].

Bio-JP-10 fuel has been synthesized with furfuryl alcohol on an industrial scale with agricultural and forestry residues [8]. Methylcyclopentadiene dimers were produced from linalool [9]. High density fuels were synthesized by terpene [10], pinenes [11,12,13] and sesquiterpanes [14]. Several synthetic routes for renewable high-density fuels have been developed using cyclohexanone, cyclohexanol, phenol, anisole and guaiacol as feedstocks [15,16,17]. Other synthetic methods for high-energy density fuels have been reported using cyclohexanol [18,19], cyclopentanone [20,21,22], cellulose [23] and isophorone [24] as feedstocks. However, to realize large-scale industrial applications in the future, more new methods for synthesizing high-density liquid fuels will be developed.

Cyclopentanone is a lignocellulose platform compound, which can be acquired by hydrogenation and rearrangement of furfural [25,26,27]. Vanillin is prepared through the oxidation of kraft lignin, alkali lignin, lignosulfonate, or two enzymatic lignins. The inter-unit bond of lignin had a significant effect on the yield of vanillin [28]. The more the β-O-4 bonds in lignin, the higher the yield of the corresponding aldehyde. The use of lignin with high β-O-4 bond content can significantly improve the yield of vanillin [29,30]. Vanillin was produced by partial photocatalytic oxidation of ferulic acid in an aqueous solution at ambient temperature. A photocatalytic membrane reactor was obtained by effective coupling of dialysis and photocatalytic reaction. The total amount of vanillin produced by the reaction of ferulic acid aqueous solution in the reactor for 5 h is more than that in the photocatalytic reactor without dialysis [31]. A new method for the synthesis of vanillin by a three-step two-enzyme cascade sequence was reported. Bacillus megaterium CYP102A1 catalyzes the conversion of substrate 3-methyl anisole to vanillin via inter-mediate 4-methyl guaiacol. The vanillin alcohol oxidase variant was selected to catalyze the conversion of vanillin alcohol to vanillin [32]. Vanillin and cyclohexanone undergo aldol condensation reaction and hydrodeoxygenation to obtain polycyclic alkanes of C₁₃ [33]. Polycyclic alkanes of C₁₂ were obtained through the aldol condensation reaction of vanillin and cyclopentanone, followed by hydrodeoxygenation [34].

As mentioned in the review, many methods for preparing high-density liquid fuels from biomass derivatives through carbon-carbon coupling and hydrodeoxygenation have been reported. However, due to the limited quantity of raw materials and high production costs, these methods are still in the laboratory stage and cannot be applied in industrial applications. Therefore, the continuous development of new methods for synthesizing high-density liquid fuels using biomass and its derivatives remains a current research hotspot. At the same time, the route for the synthesis of C₁₉ polycyclic alkanes from vanillin and cyclopentanone via aldol condensation and hydrodeoxygenation has not been reported. Therefore, in this work, 1,3-bis(cyclohexylmethyl)cyclopentane, a C₁₉ polycycloalkane with a density of 0.943 g mL⁻¹ and a freezing point of −35 °C, was obtained in an overall carbon yield of ~79.5% with vanillin and cyclopentanone. According to our review, this density is high. In future applications, it can be used as fuel or an additive for rockets and missile propulsion.

2. Results and Discussion

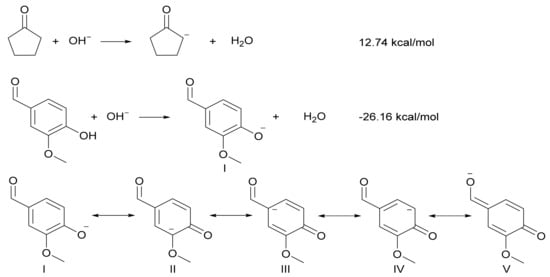

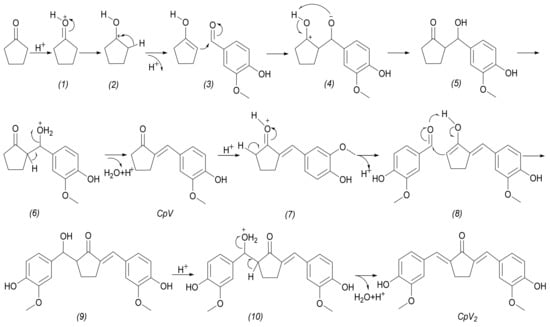

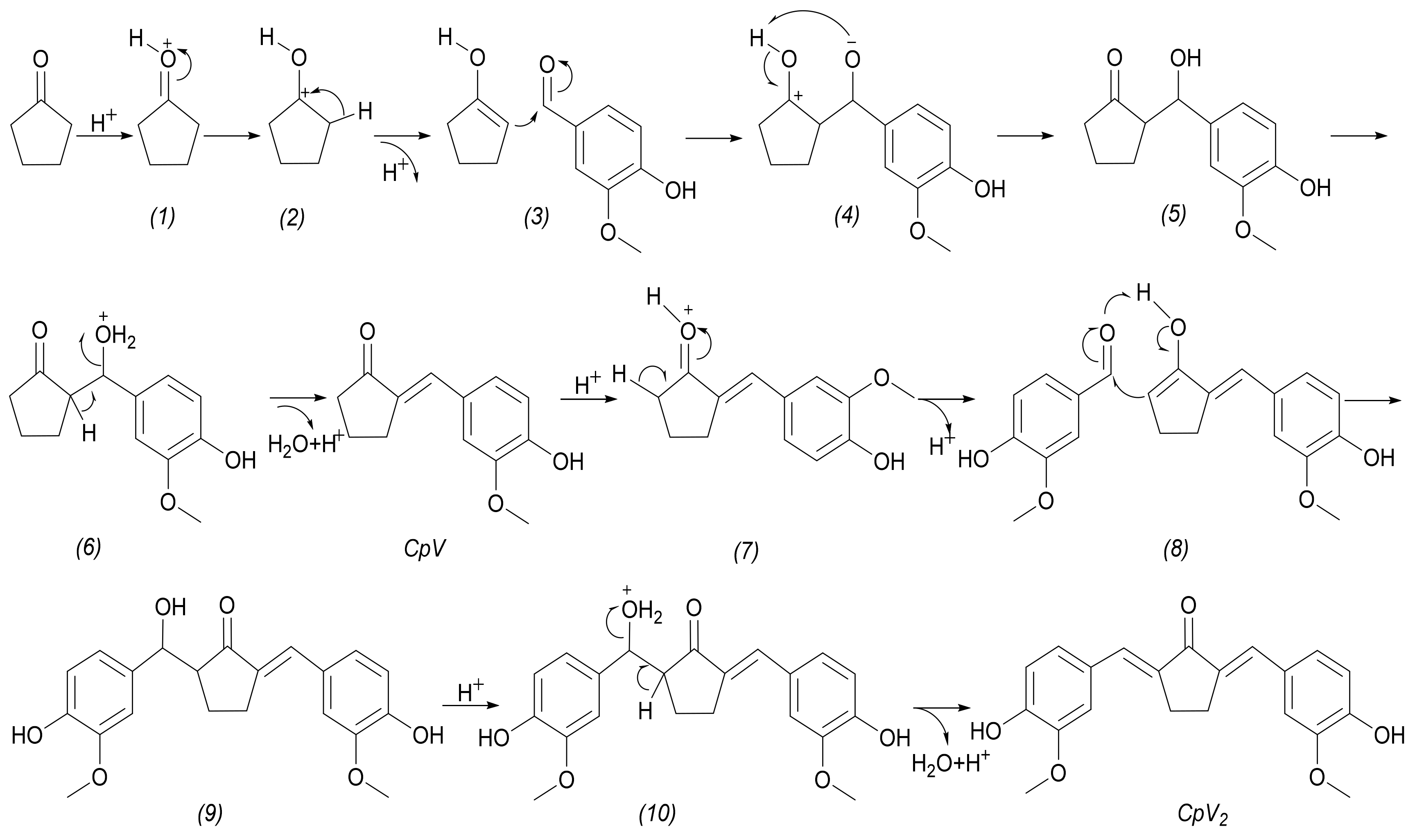

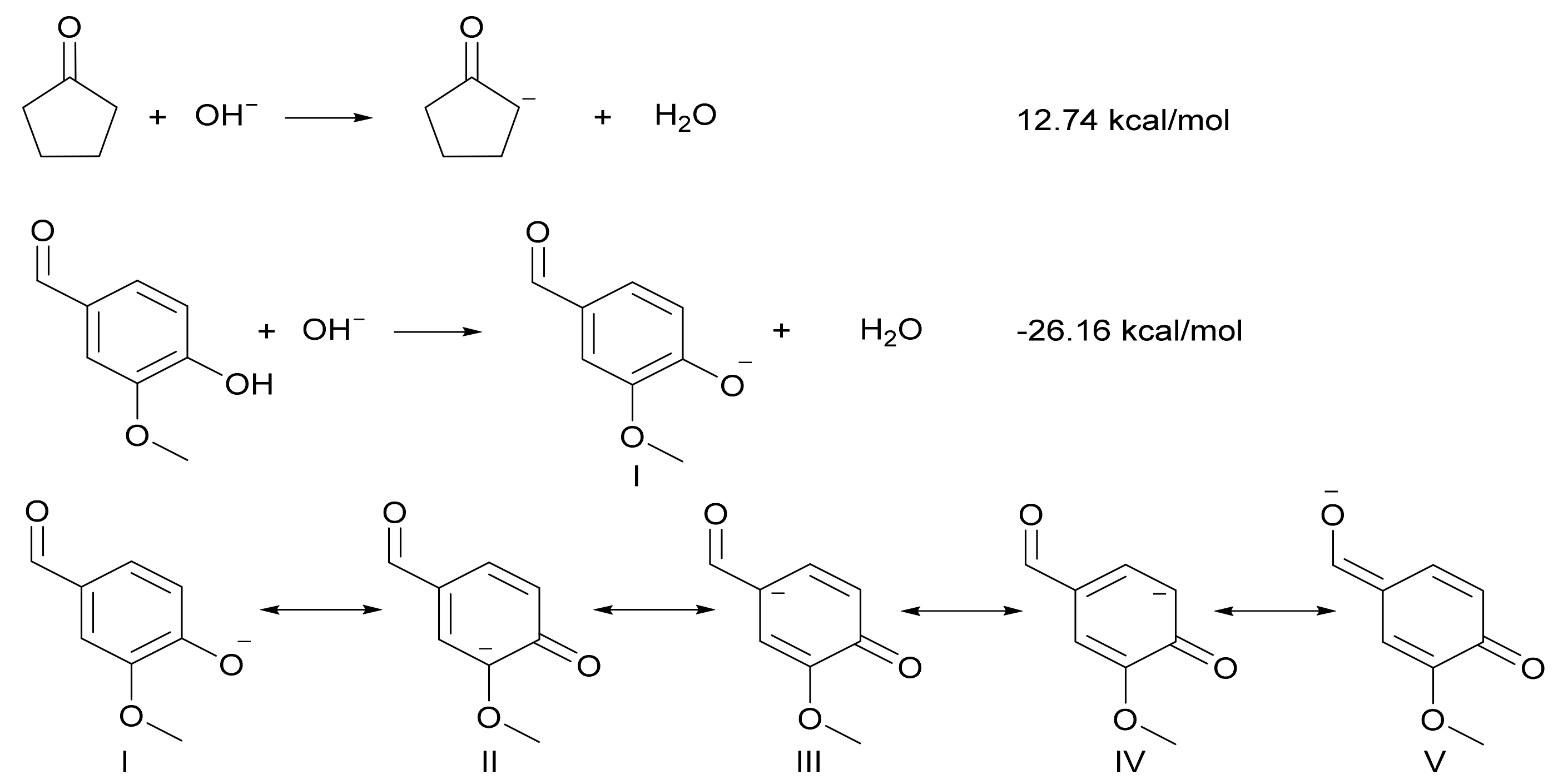

Synthesis of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone. The reaction between vanillin and cyclopentanone is a typical aldol condensation reaction. For general aldol condensation reactions, both alkaline and acid catalysts can be used for catalysis. The reaction of cyclopentanone with vanillin over a basic catalyst is shown in Scheme 1. However, we found that the aldol condensation of vanillin and cyclopentanone could not be carried out under an alkaline catalyst. This is because the gibbs-free energy of vanillin and cyclopentanone with OH⁻ are−26.16 kcal/mol and 12.74 kcal/mol, respectively, when calculated to find the reaction of cyclopentanone with vanillin under basic catalyst by the Density Functional Theory (DFT). This indicates that under alkaline conditions, the oxygen anion of vanillin is higher than that of cyclopentanone α, and carbanion is easier to form. To our knowledge, the phenolic hydroxyl groups in vanillin are somewhat acidic (Phenol, pKa = 9.99; 4-Hydroxybenzaldehyde, pKa = 7.61), which is consistent with the DFT. The oxygen-negative ion (I) formed by vanillin under alkaline conditions can form four resonance formulations (II, III, IV and V). Due to the inability to form cyclopentanone carbon anions in the presence of alkaline catalysts, it is impossible to form aldol condensation products. Therefore, the aldol condensation reaction of vanillin with cyclopentanone can only be carried out under the acid catalyst. The pathway for the acid-catalyzed aldol condensation reaction of vanillin and cyclopentanone is shown in Scheme 2. The cyclopentanone reacts with one molecule of vanillin to produce 2-(4-hydroxy-3-methoxybenzylidene)cyclopentanone (CpV). The reaction of cyclopentanone with two molecules of vanillin produces 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone (CpV₂).

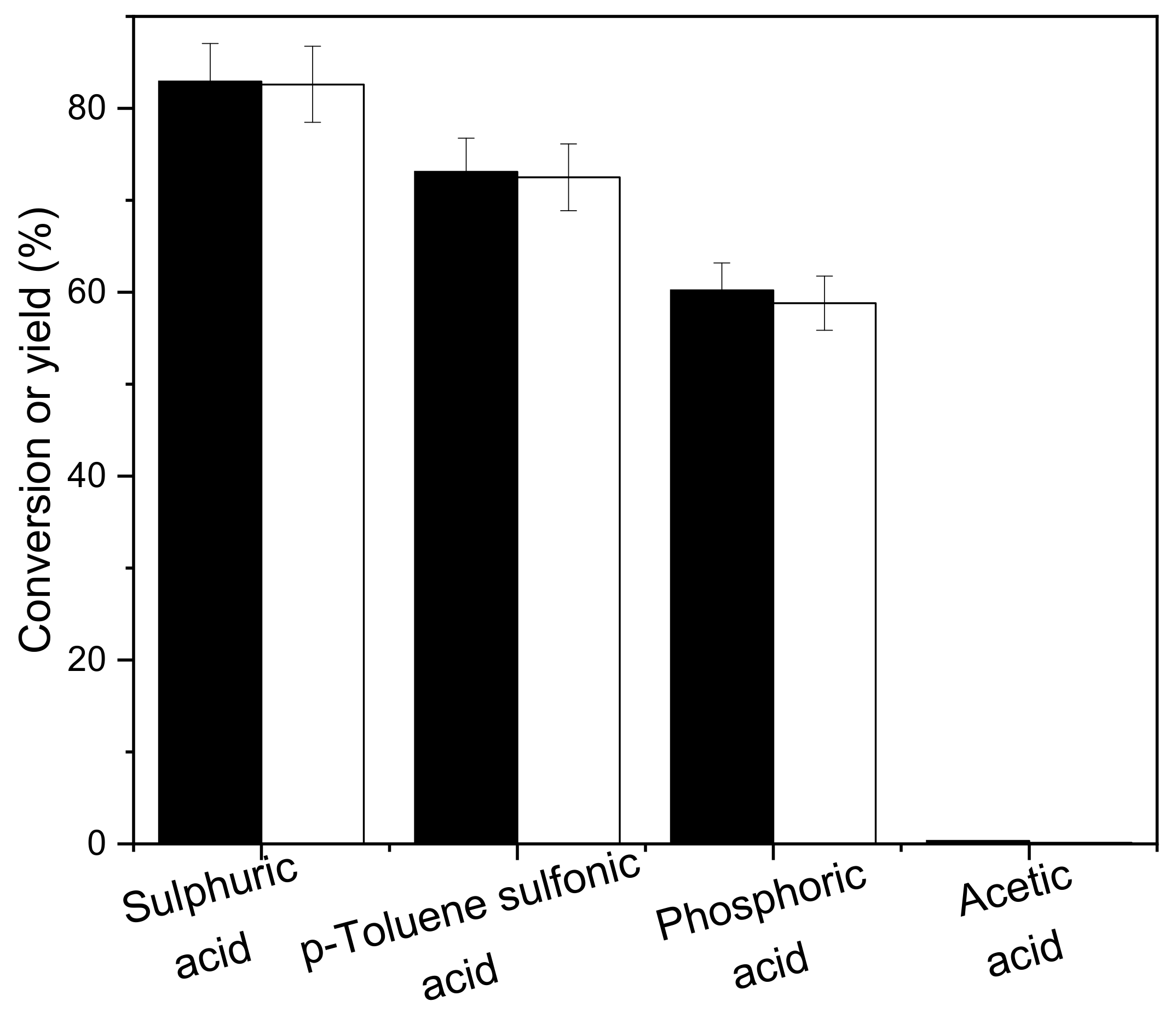

The synthesis of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone was used as the target product. As shown in Figures S1 and S2 of the Supplementary Materials, the products were characterized by nuclear magnetic resonance and mass spectrometry. The influence of various catalysts on the aldol condensation of vanillin and cyclopentanone was investigated. The experimental results in Figure 1 show that the activity sequence of aldol condensation reaction of vanillin and cyclopentanone is from high to low on the catalysts of concentrated sulfuric acid, p-toluenesulfonic acid, phosphoric acid and acetic acid. The catalyst with the highest activity is concentrated sulfuric acid. The conversion of cyclopentanone is 82.9%, and the yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone, is 82.6%. The next one with higher catalytic activity is p-toluenesulfonic acid. Cyclopentanone is converted to 73.1%, and the yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone is 72.5%. The conversion of cyclopentanone was 60.2% under phosphoric acid catalysis, while the yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone was 58.8%. Acetic acid is the least acidic of the three acids, and it scarcely combines with vanillin and cyclopentanone in the aldol condensation reaction. As a result, the catalyst was chosen to be concentrated sulphuric acid.

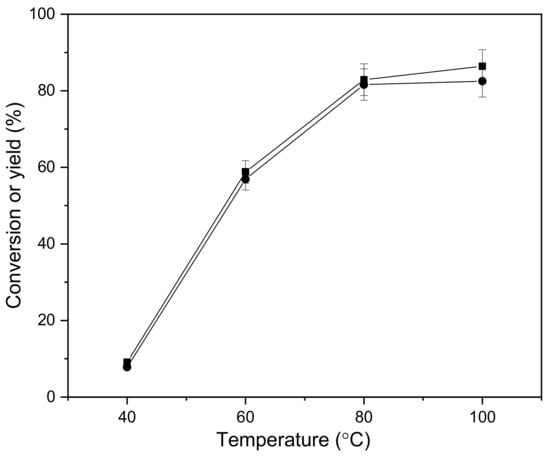

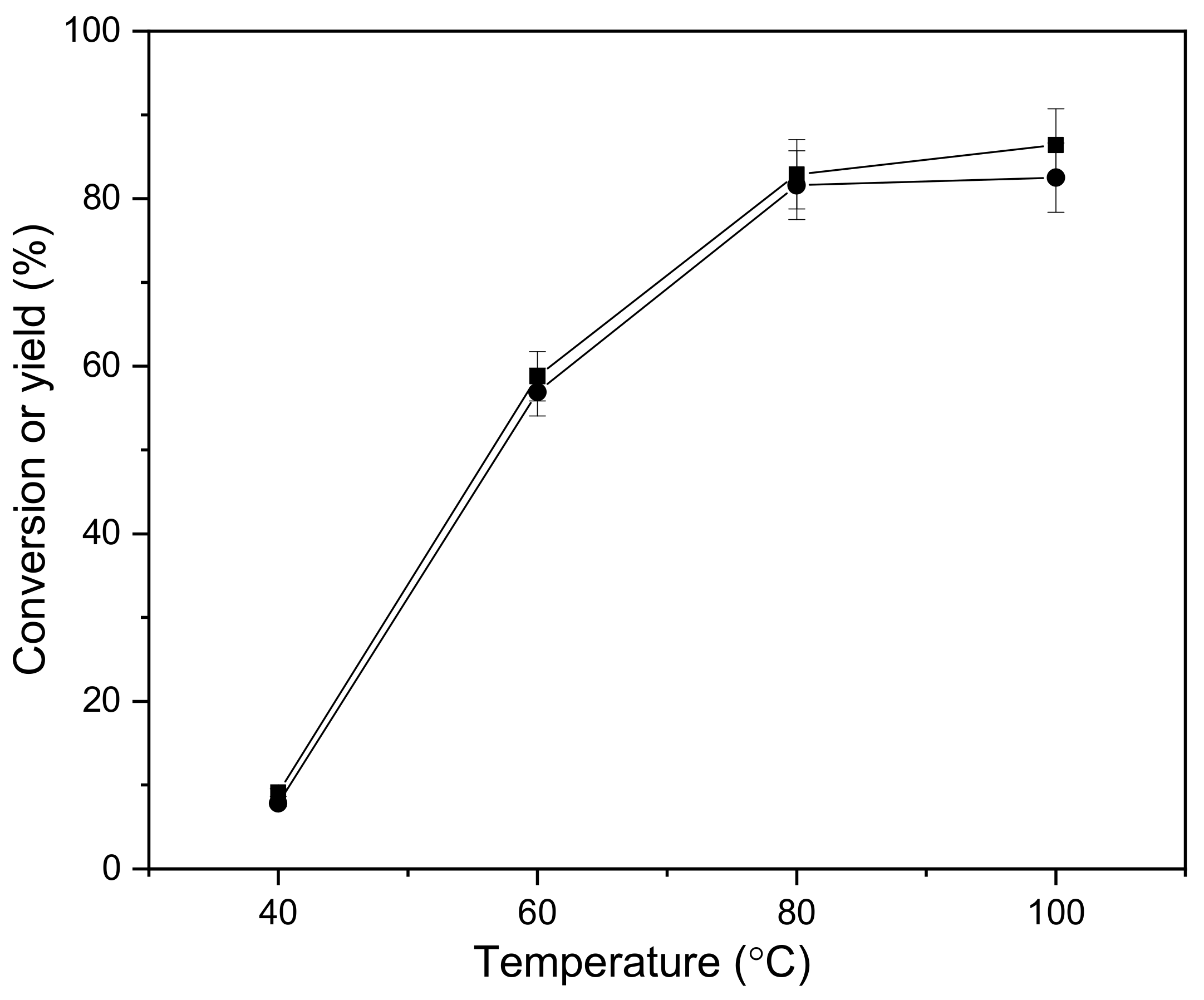

Figure 2 depicts the influence of temperatures on the aldol condensation of cyclopentanone and vanillin. In the range of temperature from 40 °C to 100 °C, and with the increase of temperature, the conversion of cyclopentanone and the yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone increased first, and then tended to be stable. The yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone peaked at 80 °C, after which it stabilized, meaning it reached its maximum.

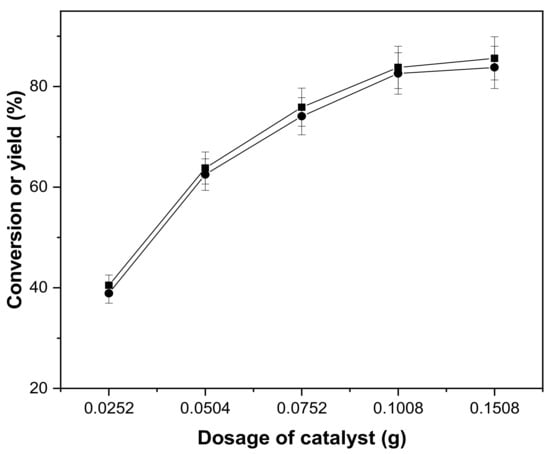

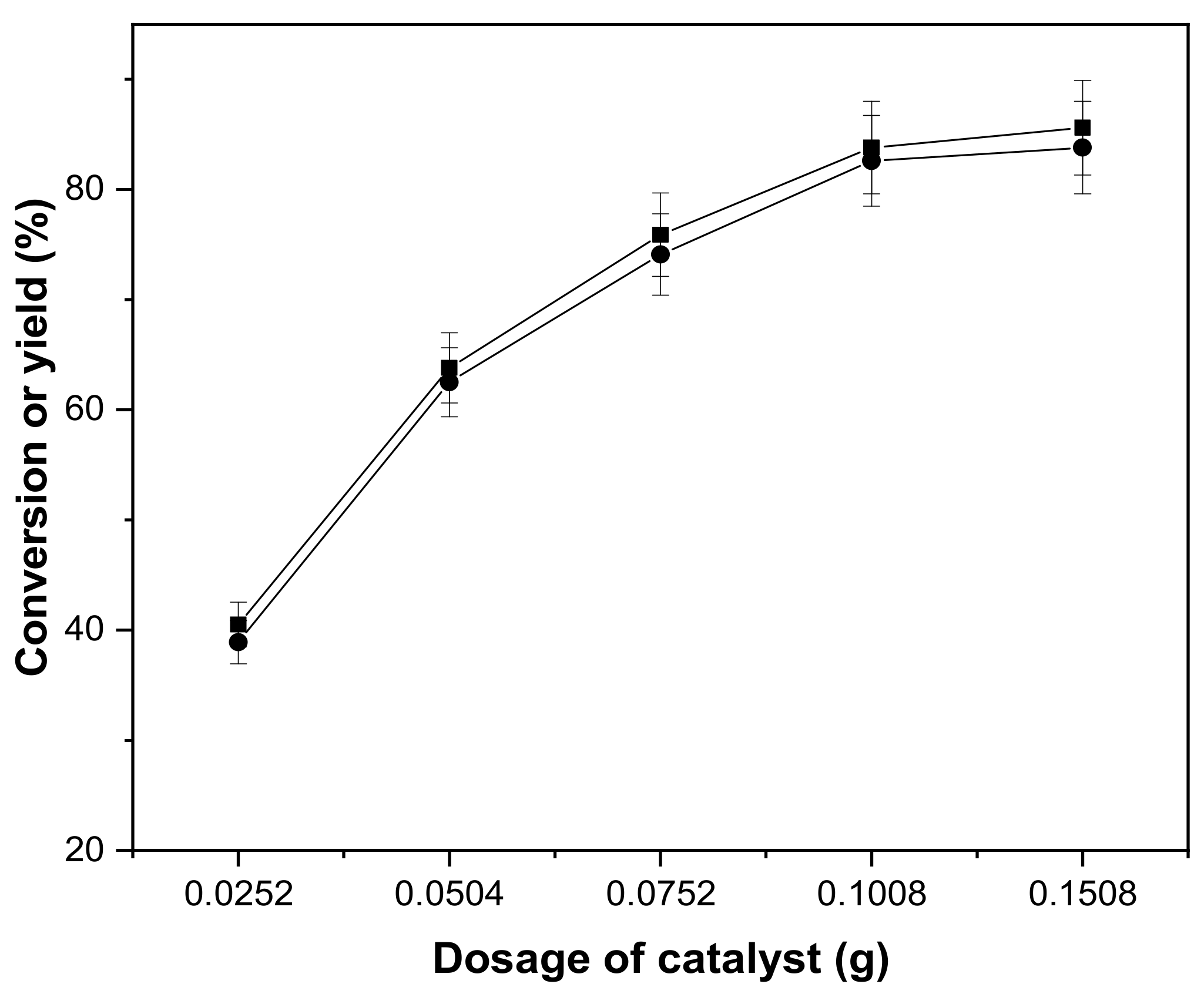

The impact of catalyst dose on aldol condensation of the cyclopentanone and vanillin is depicted in Figure 3. Within the range of 0.0250 g to 0.1500 g of concentrated sulphuric acid, the conversion of cyclopentanone and the yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone exhibited a rising and then steady trend. At 0.1008 g, the greatest yield of 2,5-bis(4-hydroxy-3-methoxy benzylidene)cyclopentanone was obtained. A tiny amount of concentrated sulphuric acid was added, which resulted in a smaller acid center and reduced output. As the quantity of concentrated sulphuric acid grows, the acid center expands and the cyclopentanone activity expands, enabling easier and faster aldol condensation.

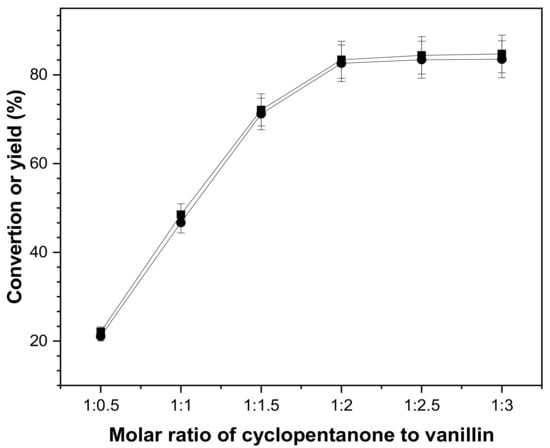

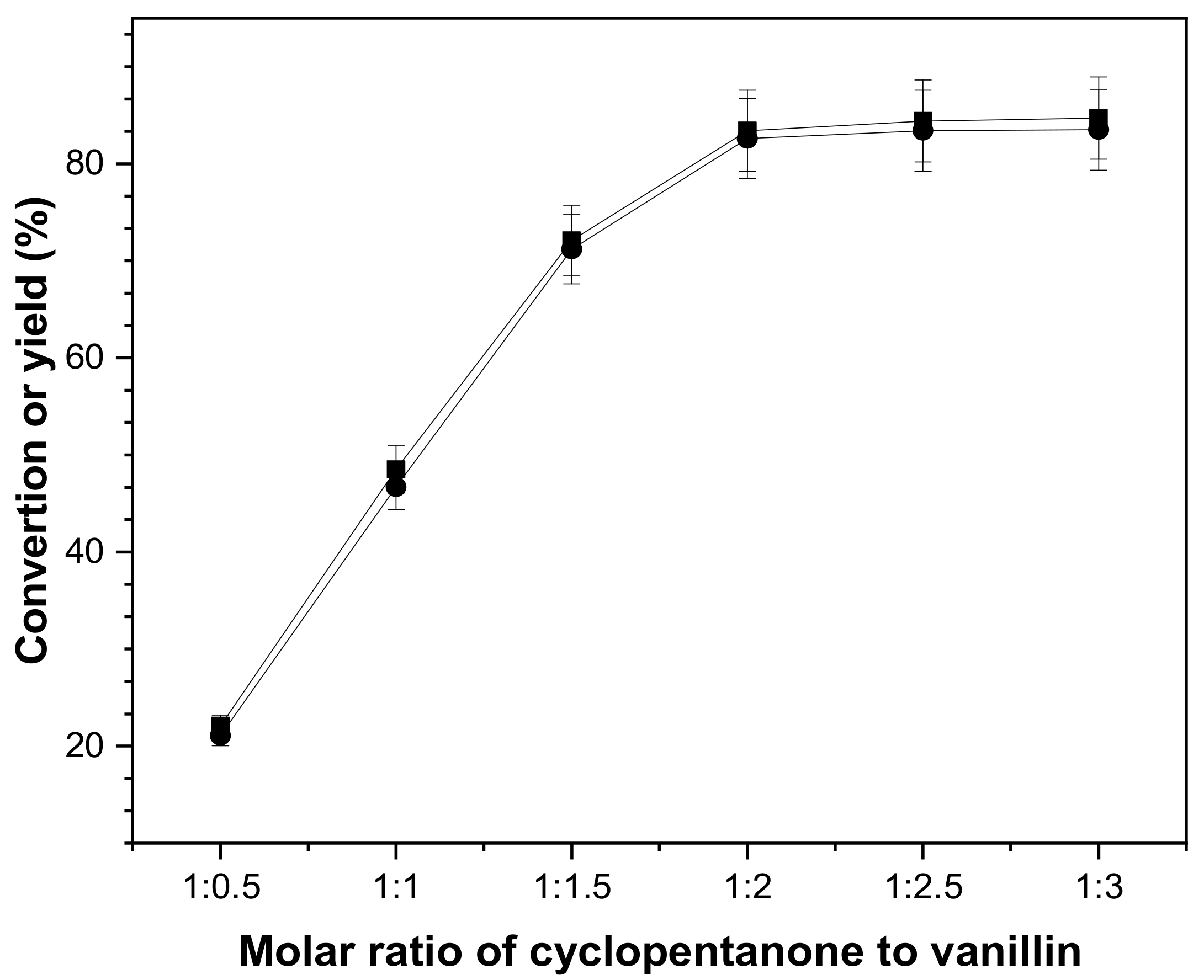

Figure 4 illustrates the influence of the cyclopentanone to vanillin molar ratio on the aldol condensation reaction of cyclopentanone and vanillin, which demonstrates that cyclopentanone conversion and yield of 2,5-bis(4-hydroxy-3-methoxy benzylidene)cyclopentanone rose and subsequently stabilized in the range of 1:0.5 to 1:3. The conversion of cyclopentanone and yield of 2,5-bis(4-hydroxy-3-methoxy benzylidene)cyclopentanone were increasing and then stabilizing. The yield of 2,5-bis(4-hydroxy-3-methoxy benzylidene)cyclopentanone was maximized when the ratio of cyclopentanone and vanillin were 1:2.

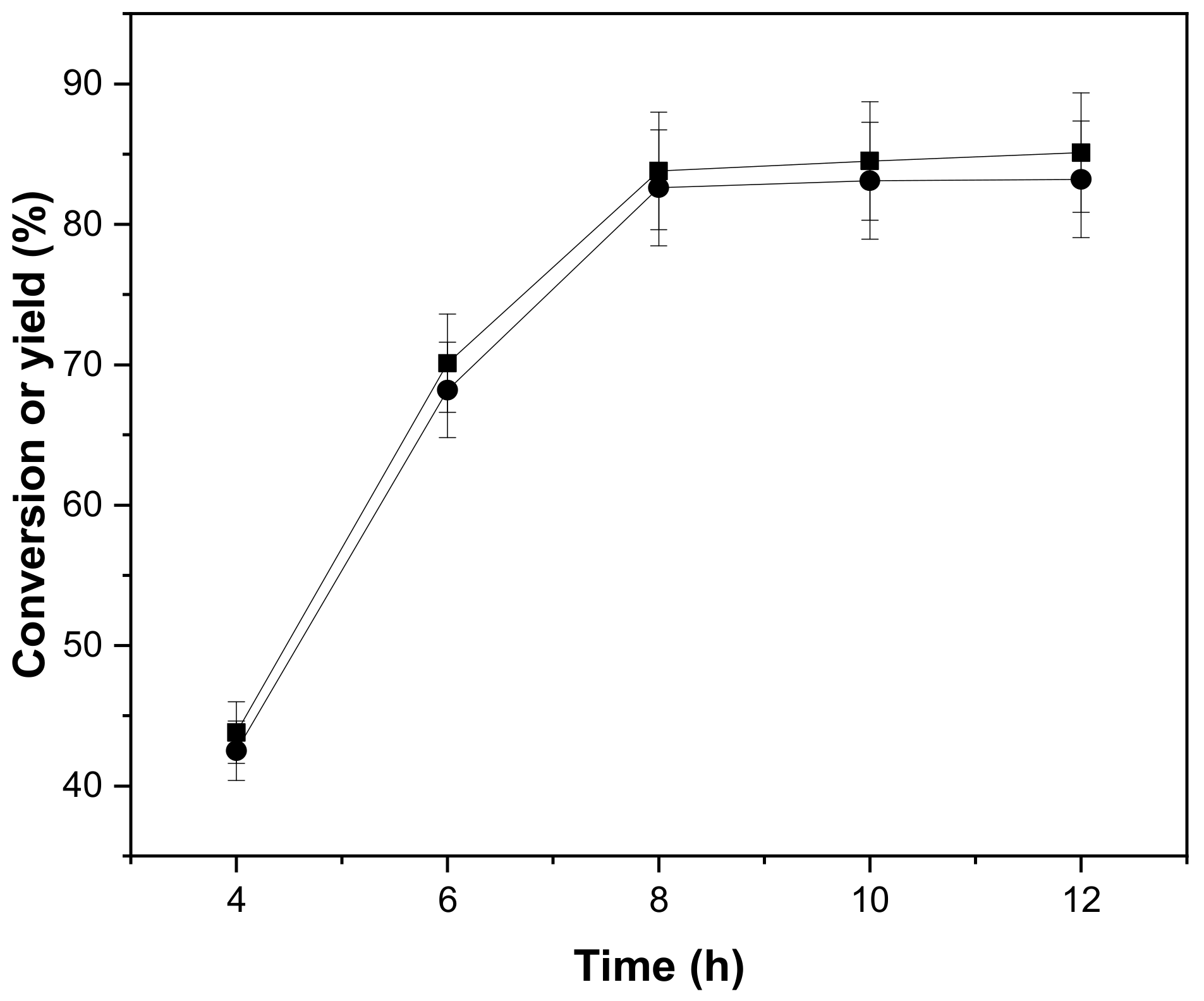

The aldol condensation of cyclopentanone with vanillin was also affected by reaction times, as shown in Figure 5. The conversion of cyclopentanone and the yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene) cyclopentanone increased first and then stabilized within 4 h to 12 h. At 8 h, the yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone reached the maximum, so the optimal reaction time was 8 h. With the extension of reaction time, the quantity of reactants decreased, and the number of products gradually increased. After a period of reaction, the aldol condensation reached a dynamic equilibrium, and the yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene) cyclopentanone did not change.

Based on the above single-factor experimental optimization results, the conversion of cyclopentanone is 82.9%, and the yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone is 82.6% under the optimized conditions: the molar ratio of cyclopentanone to Vanillin is 1:2, the reaction temperature is 80 °C, the amount of concentrated sulfuric acid is 0.1008 g, 10 mL ethanol, and the time is 8 h.

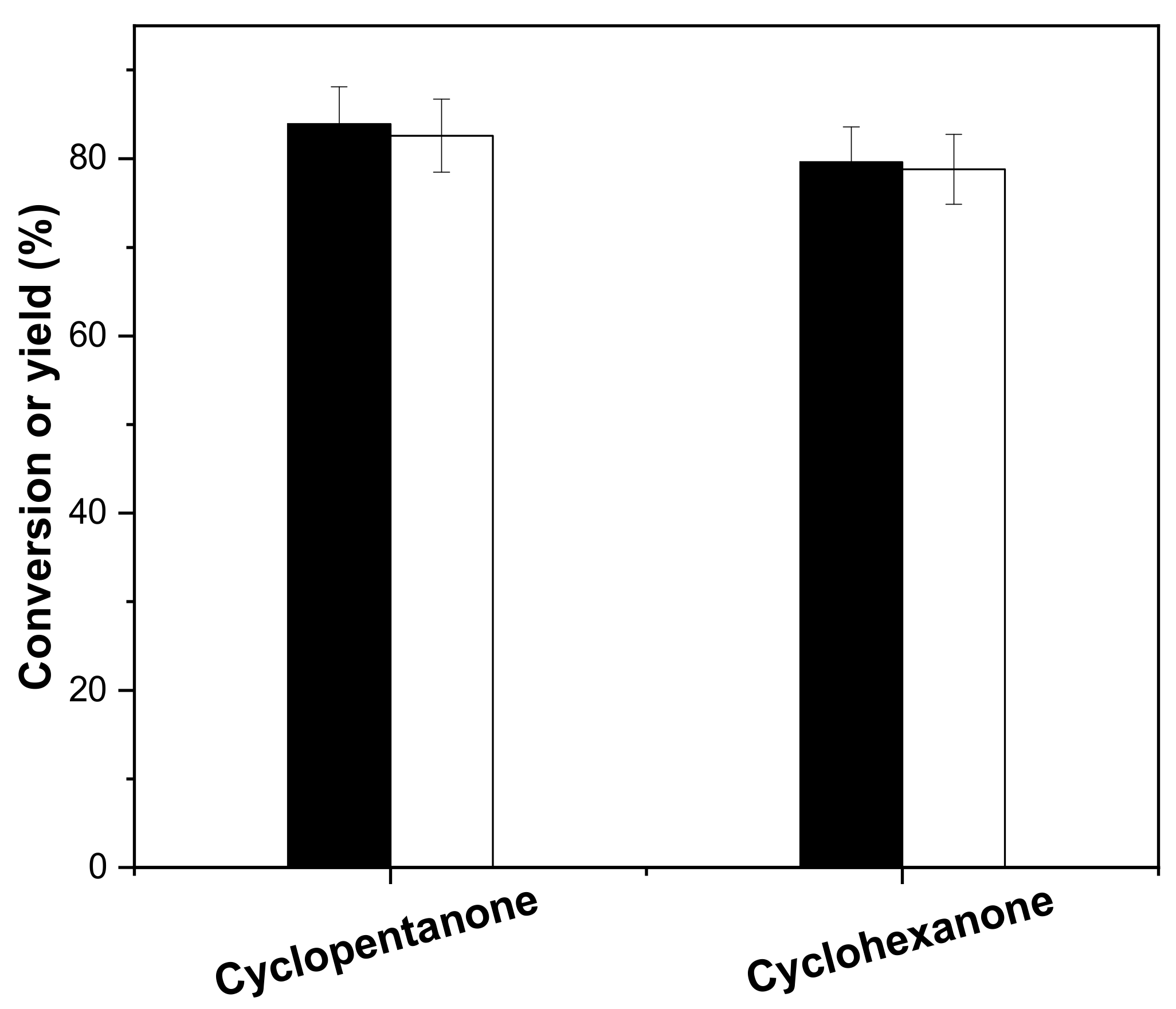

Under the optimized conditions, aldol condensation of cyclohexanone and vanillin was implemented, and the results are shown in Figure 6. The conversion of cyclohexanone is 79.6%, and the yield of 2,6-bis(4-hydroxy-3-methoxybenzylidene)cyclohexanone (ChV₂) is 78.8%. ChV₂ was characterized by nuclear magnetic resonance and mass spectrometry as shown in Figures S3 and S4.

The objective of this work is to synthesize biomass liquid fuel. Considering that the 2,5-bis(4-hydroxy-3-methoxybenzylidene) cyclopentanone contains benzene rings, C=C double bonds, C=O double bonds, hydroxyl groups, and methoxy group functional groups, the hydrodeoxygenation catalyst needs a bifunctional catalyst containing active metal and solid acid. A pathway for hydrodeoxygenation of 2,5-bis(4-hydroxy-3-methoxybenzylidene) cyclopentanone can be seen in Scheme 3.

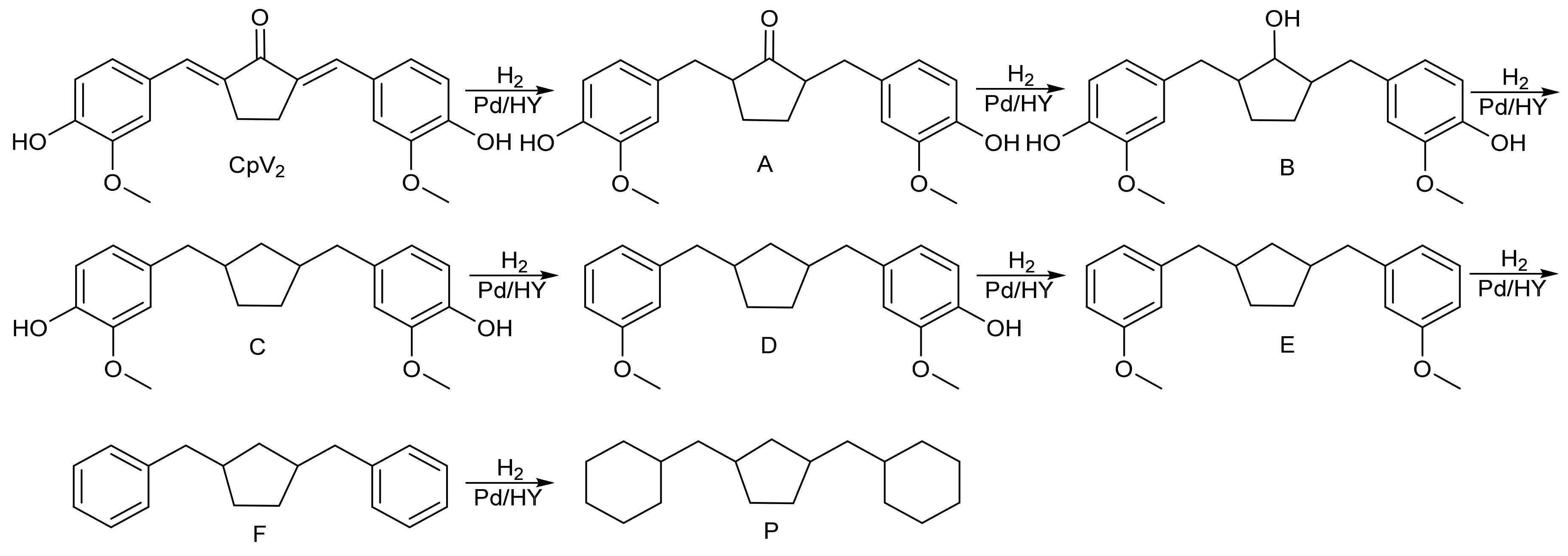

The hydrodeoxygenation product of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone (CpV₂) was analyzed by GC-MS, as shown in Figure S5. The C=C double bond in CpV₂ is first hydrogenated, followed by the hydrogenation of the C=O double bond to 4,4′-((2-hydroxy Cyclopentane-1,3-diyl) bis (methylene)) bis (2-methoxy phenol) (B). B continues to be hydrogenated, and the hydroxyl group on the cyclopentanol in B is removed to generate 4,4‘-(cyclopentane-1,3-diylbis (methylene)) bis (2-Methoxy phenol) (C). C is further hydrogenated, and the hydroxyl group on the phenol in C is removed to generate 2-methoxy-4-((3-(trimethoxybenzyl) cyclopentyl) methyl) phenol (D) and 1,3-bis (3-methyloxybenzyl) cyclopentane (E). Through the hydrogenolysis of methyl phenyl ether in E, 1,3-dibenzyl cyclopentane (F) is obtained, and then the benzene ring in F is further hydrogenated to obtain the target of 1,3-bis (cyclohexylmethyl) cyclopentane (P).

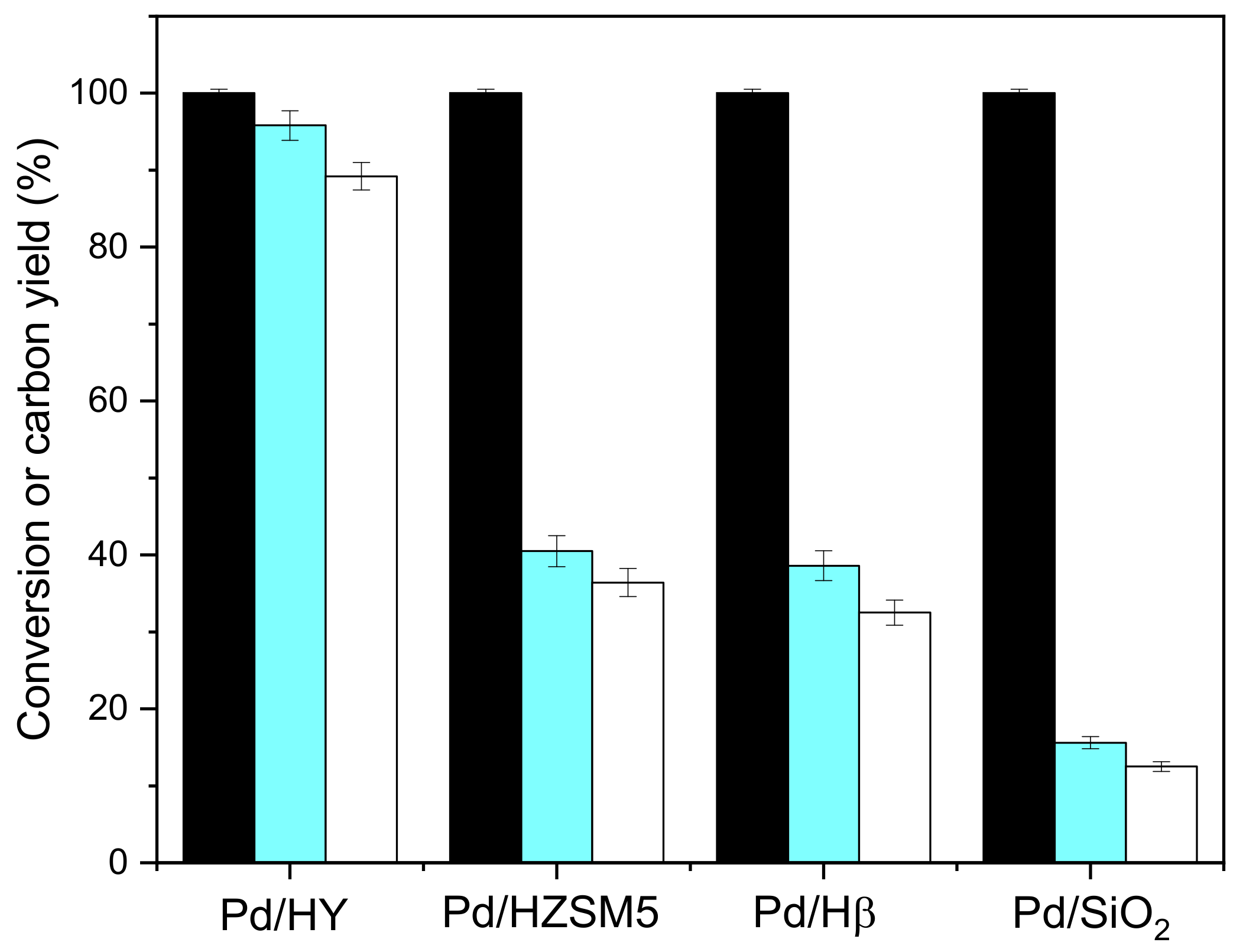

The hydrodeoxygenation of CpV₂ is carried out on different solid acid catalysts supported on palladium. The results are shown in Figure 7. The hydrodeoxygenation activity is in the order: Pd/HY > Pd/Hβ > Pd/HZSM5 > Pd/SiO₂. This activity sequence was in good agreement with the acidity of the carrier (-H° of HY, Hβ and HZSM5 were 4.4, 4.4–5.7 and 5.6–5.7, respectively). Under the catalysis of Pd/HY, the yield of 1,3-bis (cyclohexylmethyl)cyclopentane was 89.2%, and the yield of C₉–C₁₉ diesel ranges was 95.8%. Therefore, the selected catalyst carrier is HY.

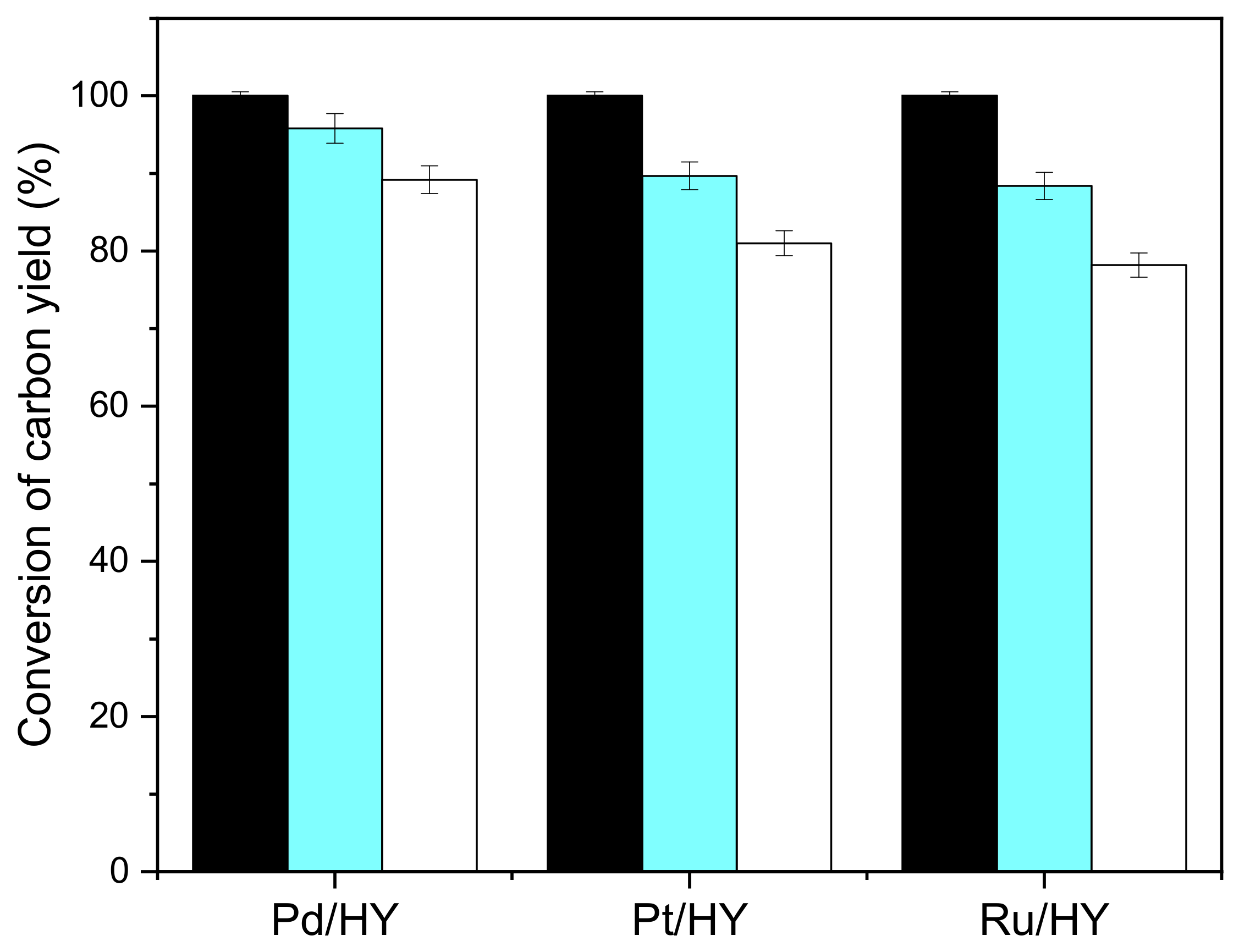

At the same time, a study was conducted to determine catalytic activity of different metals on the HY carrier affecting the hydrodeoxygenation of CpV₂. The experimental results are shown in Figure 8. The activity order of the catalyst for hydrodeoxygenation of CpV₂ is Pd/HY > Pt/HY > Ru/HY. Pd was chosen as the active metal, has better hydrogenation activity and selectivity than Pt.

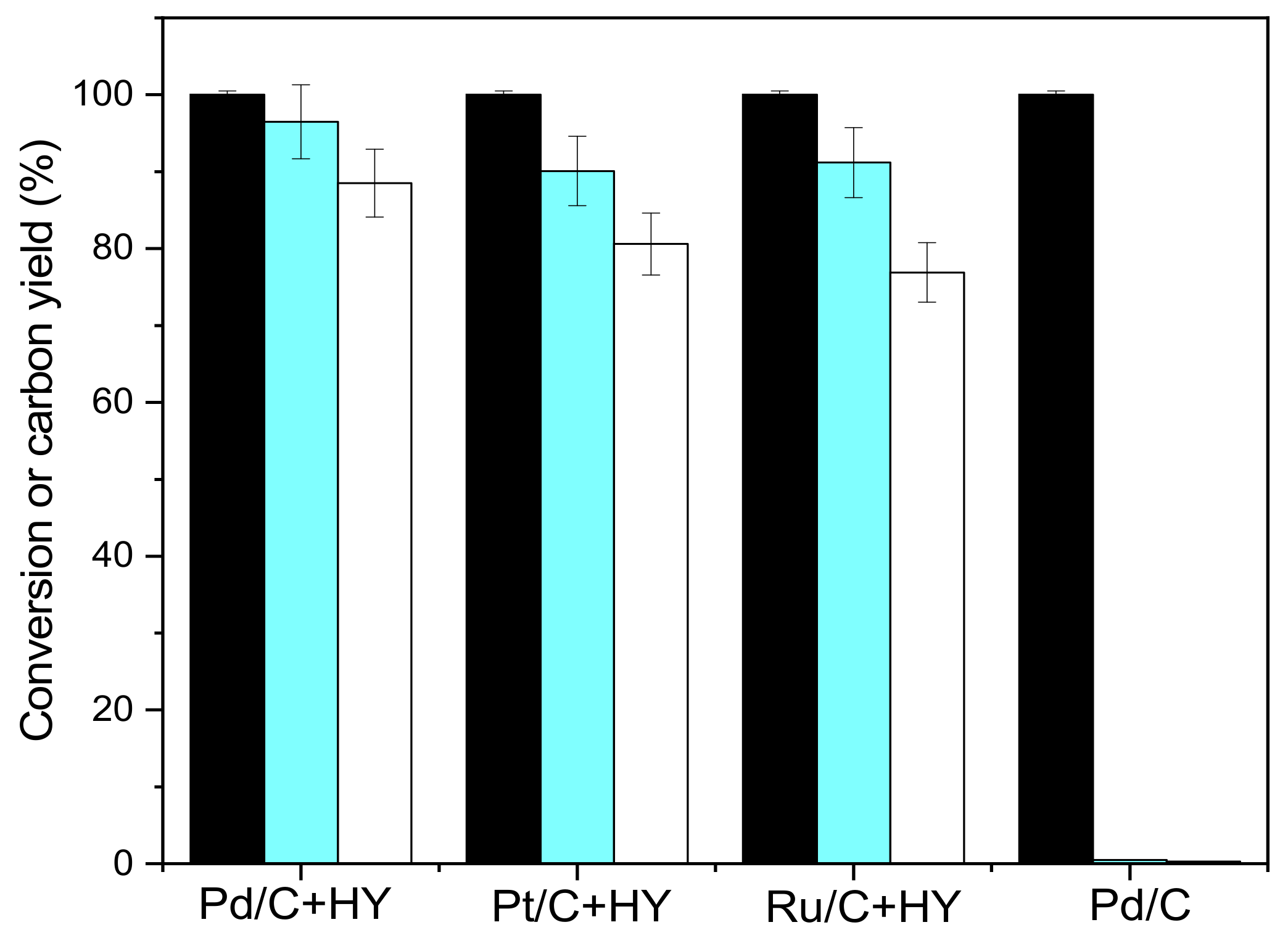

In this paper, catalysts of Pd/C + HY, Pt/C + HY and Ru/C + HY were also prepared by a grinding method, and the obtained catalysts were used to catalyze the hydrodeoxygenation of CpV₂. The reaction results are shown in Figure 9. The activity sequences of Pd/C + HY, Pt/C + HY and Ru/C + HY were consistent with those of Pd/HY, Pt/HY and Ru/HY. Under the catalysis of Pd/C + HY, the yield of 1,3-bis (cyclohexylmethyl)cyclopentane was 88.5%, and the yield of the C₉–C₁₉ diesel ranges was 96.5%. Pd/C can only hydrogenate the C=C and C=O double bonds in CpV₂ to generate 4,4′-((2-hydroxycyclopentane-1,3-diyl)bis(methylene))bis(2-methoxyphenol).

Under the optimized conditions of CpV₂ hydrodeoxygenation, 2,6-bis(4-hydroxy-3-methoxybenzylidene)-cyclohexanone was hydrodeoxygenated and completely converted. The hydrodeoxygenation product of 2,6-bis (4-hydroxy-3-methoxybenzylidene)cyclohexanone was analyzed by GC-MS, as shown in Figure S6. The yield of 1,3-bis (cyclohexylmethyl) cyclohexene was 89.5%, and the carbon yield of C₉–C₁₉ diesel range alkanes was 96.8%.

The density and freezing point of mixture A and mixture B of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone and 2,6-bis(4-hydroxy-3-methoxybenzylidene)-cyclohexanone hydrodeoxygenation were measured. The density and the freezing point of mixture A obtained in this work were 0.943 g mL⁻¹ and −32 °C, respectively. The density and the freezing point of mixture B in this work were 0.946 g mL⁻¹ and −35 °C, respectively. These properties are similar to those of JP-10, and the hydrogenated pinene dimers have been reported in the previous work of Harvey, Zou and their co-workers. These mixtures of alkanes can be used as high-density liquid fuels or fuel additives.

3. Materials and Methods

3.1. Material

Vanillin (99%), cyclopentanone (98%), cyclohexanone (99%), ethanol (95%), phosphoric acid (85%) and acetic acid (99.5%) were purchased by West Asian reagents. Methanol (99.5%) was purchased from Aladdin Reagent Plant (Shanghai, Country). Concentrated sulfuric acid (98%) and p-toluenesulfonic acid (98%) were obtained by Beijing Chemical Reagent Factory. PdCl₂, RuCl₃∙3H₂O, H₂PtCl₆∙3H₂O were purchased by Tianjin FengChuan Chemical Reagent Technology Co., Ltd. (Tianjin, Country) Pd/C, Pt/C and Ru/C were supplied by Aladdin Reagent Plant. HY, H-β, HZSM5 and SiO₂ (99%) were collected by catalyst plant of Nanjing University. The chemicals mentioned above are all made in China.

3.2. Catalyst Preparation

The Pd/HY catalyst used for hydrodeoxygenation of CpV₂ was prepared by the incipient wetness impregnation of HY with an aqueous solution of PdCl₂. The catalyst precursors obtained were dried at 80 °C for 24 h and then reduced by H₂ (160 mL min⁻¹ g_cat⁻¹) at 400 °C for 2 h. After cooling in H₂ to room temperature, the catalysts were passivated with 1 vol.% O₂ in N₂. To facilitate comparison, the metal content in each catalyst was fixed at 5% by weight (denoted as 5 wt.%). Preparation of Pt/HY, Ru/HY, Pd/HZSM5, Pd/Hβ and Pd/SiO₂ catalysts are the same as the above method.

3.3. Activity Test

The direct synthesis of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone by the aldol condensation of cyclopentanone and vanillin was conducted in a stainless steel batch reactor with Teflon. For each test, 0.84 g cyclopentanone, 3.04 g vanillin, 0.10 g sulphuric acid and 10 mL ethanol were utilized. Before the test, the stainless-steel batch reactor was purged by nitrogen two times. The mixture of catalyst and reactant was stirred at 80 °C for 8 h. Subsequently, the stainless-steel batch reactor was cooled to room temperature with water, and the reaction mixture was quenched with 20 mL of ice water. The reaction mixture was filtered and the solid was washed twice with 10 mL of ethanol (10 mL × 2). The yellow solid obtained was 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone. The yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone was calculated. The filtrate was analyzed by gas chromatograph (GC) of Agilent 7890B, which is equipped with a HP-INNOWAX capillary column (30 m, 0.25 mm ID, 0.5 mm film) and a flame ionization detector (FID). The oven temperature was held at 40 °C for 2 min, increased to 280 °C at a rate of 15 °C min⁻¹, and stayed at that temperature for 5 min. Nitrogen was used as the carrier gas at a flow rate of 1.5 mL min⁻¹. The conversion of cyclopentanone was determined by gas chromatography. The conversion of cyclopentanone was calculated according to the following formulas:

$$\mathrm{c}\mathrm{o}\mathrm{n}\mathrm{v}\mathrm{e}\mathrm{r}\mathrm{s}\mathrm{i}\mathrm{o}\mathrm{n}=\frac{\mathrm{T}\mathrm{h}\mathrm{e} \mathrm{a}\mathrm{m}\mathrm{o}\mathrm{u}\mathrm{n}\mathrm{t} \mathrm{o}\mathrm{f} \mathrm{c}\mathrm{o}\mathrm{n}\mathrm{s}\mathrm{u}\mathrm{m}\mathrm{e}\mathrm{d} \mathrm{c}\mathrm{y}\mathrm{c}\mathrm{l}\mathrm{o}\mathrm{p}\mathrm{e}\mathrm{n}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{o}\mathrm{n}\mathrm{e}\left(\mathrm{m}\mathrm{o}\mathrm{l}\right)}{\mathrm{T}\mathrm{h}\mathrm{e} \mathrm{a}\mathrm{m}\mathrm{o}\mathrm{u}\mathrm{n}\mathrm{t} \mathrm{o}\mathrm{f} \mathrm{c}\mathrm{y}\mathrm{c}\mathrm{l}\mathrm{o}\mathrm{p}\mathrm{e}\mathrm{n}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{o}\mathrm{n}\mathrm{e} \mathrm{i}\mathrm{n}\mathrm{p}\mathrm{u}\mathrm{t}\left(\mathrm{m}\mathrm{o}\mathrm{l}\right)}\times 100\mathrm{\%}$$

The aldol condensation of cyclohexanone and vanillin to 2,6-bis(4-hydroxy-3-methoxy benzylidene) cyclohexanone was conducted in a stainless-steel batch reactor with Teflon. The reaction conditions, post-treatment and determination methods were the same as those of 2,5-Bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone. The yield of 2,5-Bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone was calculated according to the following formulas:

$$\mathrm{y}\mathrm{i}\mathrm{e}\mathrm{l}\mathrm{d}\left(\mathrm{\%}\right)=\frac{\mathrm{T}\mathrm{h}\mathrm{e} \mathrm{a}\mathrm{m}\mathrm{o}\mathrm{u}\mathrm{n}\mathrm{t} \mathrm{o}\mathrm{f} \mathrm{g}\mathrm{e}\mathrm{n}\mathrm{e}\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e}\mathrm{s} \mathrm{2,5}-\mathrm{B}\mathrm{i}\mathrm{s}\left(4-\mathrm{h}\mathrm{y}\mathrm{d}\mathrm{r}\mathrm{o}\mathrm{x}\mathrm{y}-3-\mathrm{m}\mathrm{e}\mathrm{t}\mathrm{h}\mathrm{o}\mathrm{x}\mathrm{y}\mathrm{b}\mathrm{e}\mathrm{n}\mathrm{z}\mathrm{y}\mathrm{l}\mathrm{i}\mathrm{d}\mathrm{e}\mathrm{n}\mathrm{e}\right)\mathrm{c}\mathrm{y}\mathrm{c}\mathrm{l}\mathrm{o}\mathrm{p}\mathrm{e}\mathrm{n}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{o}\mathrm{n}\mathrm{e}\left(\mathrm{m}\mathrm{o}\mathrm{l}\right)}{\mathrm{T}\mathrm{h}\mathrm{e} \mathrm{a}\mathrm{m}\mathrm{o}\mathrm{u}\mathrm{n}\mathrm{t} \mathrm{o}\mathrm{f} \mathrm{t}\mathrm{h}\mathrm{e}\mathrm{o}\mathrm{r}\mathrm{e}\mathrm{t}\mathrm{i}\mathrm{c}\mathrm{a}\mathrm{l}\mathrm{l}\mathrm{y} \mathrm{g}\mathrm{e}\mathrm{n}\mathrm{e}\mathrm{r}\mathrm{a}\mathrm{t}\mathrm{e}\mathrm{s} \mathrm{2,5}-\mathrm{B}\mathrm{i}\mathrm{s}\left(4-\mathrm{h}\mathrm{y}\mathrm{d}\mathrm{r}\mathrm{o}\mathrm{x}\mathrm{y}-3-\mathrm{m}\mathrm{e}\mathrm{t}\mathrm{h}\mathrm{o}\mathrm{x}\mathrm{y}\mathrm{b}\mathrm{e}\mathrm{n}\mathrm{z}\mathrm{y}\mathrm{l}\mathrm{i}\mathrm{d}\mathrm{e}\mathrm{n}\mathrm{e}\right)\mathrm{c}\mathrm{y}\mathrm{c}\mathrm{l}\mathrm{o}\mathrm{p}\mathrm{e}\mathrm{n}\mathrm{t}\mathrm{a}\mathrm{n}\mathrm{o}\mathrm{n}\mathrm{e}\left(\mathrm{m}\mathrm{o}\mathrm{l}\right)}\times 100\mathrm{\%}$$

The HDO of the CpV₂ was conducted at a 100 mL high-pressure reactor. Typically, 1.0 g 2,5-bis(4-hydroxy-3-methoxybenzylidene) cyclopentanone, 0.10 g Pd/HY, 0.10 g n-tridecane as internal standard and 40.0 mL cyclohexane were vigorously stirred at 260 ºC and ~4 MPa for 24 h. After the reaction was completed, we cooled it to room temperature with water, centrifuged the reaction mixture (10,000 rpm) for 2 min, took samples for gas chromatography, and calculated the yield. The carbon yields of different alkanes in the HDO process were calculated according to the following formulas:

$$\mathrm{c}\mathrm{a}\mathrm{r}\mathrm{b}\mathrm{o}\mathrm{n} \mathrm{y}\mathrm{i}\mathrm{e}\mathrm{l}\mathrm{d}\left(\mathrm{\%}\right)=\frac{\mathrm{T}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l} \mathrm{c}\mathrm{a}\mathrm{r}\mathrm{b}\mathrm{o}\mathrm{n} \mathrm{o}\mathrm{f} {\mathrm{C}}_9-{\mathrm{C}}_{19} \mathrm{a}\mathrm{l}\mathrm{k}\mathrm{a}\mathrm{n}\mathrm{e}\mathrm{s} \mathrm{i}\mathrm{n} \mathrm{t}\mathrm{h}\mathrm{e} \mathrm{l}\mathrm{i}\mathrm{q}\mathrm{u}\mathrm{i}\mathrm{d} \mathrm{p}\mathrm{r}\mathrm{o}\mathrm{d}\mathrm{u}\mathrm{c}\mathrm{t}\mathrm{s}}{\mathrm{T}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l} \mathrm{c}\mathrm{a}\mathrm{r}\mathrm{b}\mathrm{o}\mathrm{n} \mathrm{o}\mathrm{f} \mathrm{f}\mathrm{e}\mathrm{e}\mathrm{d}\mathrm{s}\mathrm{t}\mathrm{o}\mathrm{c}\mathrm{k}}\times 100\mathrm{\%}$$

$$\mathbf{c}\mathbf{a}\mathbf{r}\mathbf{b}\mathbf{o}\mathbf{n} \mathbf{y}\mathbf{i}\mathbf{e}\mathbf{l}\mathbf{d}\left(\mathbf{\%}\right)=\frac{\mathbf{T}\mathbf{o}\mathbf{t}\mathbf{a}\mathbf{l} \mathbf{c}\mathbf{a}\mathbf{r}\mathbf{b}\mathbf{o}\mathbf{n} \mathbf{o}\mathbf{f} {\mathbf{C}}_5-{\mathbf{C}}_8 \mathbf{a}\mathbf{l}\mathbf{k}\mathbf{a}\mathbf{n}\mathbf{e}\mathbf{s} \mathbf{i}\mathbf{n} \mathbf{t}\mathbf{h}\mathbf{e} \mathbf{l}\mathbf{i}\mathbf{q}\mathbf{u}\mathbf{i}\mathbf{d} \mathbf{p}\mathbf{r}\mathbf{o}\mathbf{d}\mathbf{u}\mathbf{c}\mathbf{t}\mathbf{s}}{\mathbf{T}\mathbf{o}\mathbf{t}\mathbf{a}\mathbf{l} \mathbf{c}\mathbf{a}\mathbf{r}\mathbf{b}\mathbf{o}\mathbf{n} \mathbf{o}\mathbf{f} \mathbf{f}\mathbf{e}\mathbf{e}\mathbf{d}\mathbf{s}\mathbf{t}\mathbf{o}\mathbf{c}\mathbf{k} \mathbf{p}\mathbf{u}\mathbf{m}\mathbf{p}\mathbf{e}\mathbf{d} \mathbf{i}\mathbf{n}\mathbf{t}\mathbf{o} \mathbf{t}\mathbf{h}\mathbf{e} \mathbf{r}\mathbf{e}\mathbf{a}\mathbf{c}\mathbf{t}\mathbf{o}\mathbf{r} \mathbf{p}\mathbf{e}\mathbf{r} \mathbf{u}\mathbf{n}\mathbf{i}\mathbf{t} \mathbf{t}\mathbf{i}\mathbf{m}\mathbf{e}}\times 100\mathbf{\%}$$

3.4. Computing Method

The density functional theory was used to verify the proposed mechanism. The RB3LYP/UB3LYP/6-311+G(d,p) basis set was used to optimize the structure of cyclopentanone and vanillin, as well as their carbon-negative ions. The frequency of the obtained molecular structure was then calculated using the above basis set to ensure that no imaginary frequency existed in the calculated structure and enthalpy of formation.

4. Conclusions

A new method has been developed for synthesizing high-density biomass liquid fuel. 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone was prepared from aldol condensation of vanillin and cyclopentanone by sulfuric acid. Various factors affecting aldol condensation of vanillin and cyclopentanone have been studied, including reaction temperature, catalyst dosage, cyclopentanone-vanillin molar ratio and reaction time. The yield of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone was 82.6% under optimized conditions (80 °C, 8 h, 0.10 g sulfuric acid). Under these conditions, the aldol condensation of cyclohexanone with vanillin was extended, and the yield of 2,6-bis(4-hydroxy-3-methoxybenzylidene)cyclohexanone was 78.8%. Hydrodeoxygenation of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone was implemented over Pd/HY, Pt/HY, Ru/HY, Pd/HZSM5, Pd/Hβ, Pd/SiO₂, Pt/C + HY, and Ru/C + HY catalysts. At 260 °C, 4 MPa H₂, and 24 h the conversion of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone was 100%, and yield of 1,3-bis(cyclohexylmethyl)cyclopentane was 89.2%, and the yield of C₉-C₁₉ diesel range alkanes was 95.8% over Pd/HY. These conditions created an 89.5% yield of 1,3-bis(cyclohexylmethyl)cyclohexane and 96.8% carbon yield of C₉–C₁₉ diesel range alkane. The density and freezing point of mixture A and mixture B of 2,5-bis(4-hydroxy-3-methoxybenzylidene)cyclopentanone and 2,6-bis(4-hydroxy-3-methoxybenzylidene)hydrodeoxygenation also were tested. The densities of mixture A and mixture B were 0.943 g·mL⁻¹ and 0.946 g·mL⁻¹, respectively. At the same time, the freezing points of mixture A and mixture B were −32 °C and −35 °C, respectively. This is similar to the properties of JP-10. Those mixtures are suitable as high-density aviation fuels or additives. As a potential application, it can be blended into conventional high-density fuels (such as JP-10) for rockets and missile propulsion.
