Fe-Incorporated Nickel-Based Bimetallic Metal–Organic Frameworks for Enhanced Electrochemical Oxygen Evolution

by
Dan Wang
1,
Fuhe Le
1,2,*,
Jing Lv
3,
Xue Yang
1,
Xianhao Chen
1,
Haibin Yao
1 and
Wei Jia
1,*
1
State Key Laboratory of Chemistry and Utilization of Carbon Based Energy Resources, College of Chemistry, Xinjiang University, Urumqi 830017, China
2
Xinjiang Uygur Autonomous Region Research Institute of Measurement & Testing, Urumqi 830011, China
3
Quality and Safety Testing Center of Urumqi Agricultural Products, Urumqi 830000, China
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(11), 4366; https://doi.org/10.3390/molecules28114366
Submission received: 4 May 2023 / Revised: 19 May 2023 / Accepted: 24 May 2023 / Published: 26 May 2023
(This article belongs to the Special Issue Advanced Electrode Materials for Electrochemical Energy Storage and Conversion)
Browse Figures
Versions Notes

Abstract

:
Developing cost-effective and high-efficiency catalysts for electrocatalytic oxygen evolution reaction (OER) is crucial for energy conversions. Herein, a series of bimetallic NiFe metal–organic frameworks (NiFe-BDC) were prepared by a simple solvothermal method for alkaline OER. The synergistic effect between Ni and Fe as well as the large specific surface area lead to a high exposure of Ni active sites during the OER. The optimized NiFe-BDC-0.5 exhibits superior OER performances with a small overpotential of 256 mV at a current density of 10 mA cm−2 and a low Tafel slope of 45.4 mV dec−1, which outperforms commercial RuO2 and most of the reported MOF-based catalysts reported in the literature. This work provides a new insight into the design of bimetallic MOFs in the applications of electrolysis.

1. Introduction

The development of green, clean, and sustainable energy sources has become increasingly important in view of alleviating environmental pollution caused by fossil fuel combustion [1,2,3,4]. The electrocatalytic oxygen evolution reaction (OER) is a crucial reaction in water splitting and in many renewable-energy-related devices. However, as a typical four-electron transfer process, OER is severely hindered by its intrinsically sluggish kinetics, which requires a large potential to overcome the reaction energy barrier [5,6]. Presently, IrO2 and RuO2 are the benchmark catalysts for OER. Nevertheless, scarcity, high price, and poor stability have greatly restricted their applications [7,8,9,10,11]. Therefore, to address these drawbacks, tremendous efforts have been devoted to developing Ir/Ru-free catalysts for OER.
In the past few years, earth-abundant and cost-effective transition-metal-based electrocatalysts have been widely investigated as alternatives for noble metals. Among them, Ni-based materials, such as oxides [12,13], hydroxides [6,14], phosphides [15,16], sulfides [17], nitrides [18,19,20], and metal–organic frameworks (MOFs) [21,22] have been extensively studied as alternative catalysts for OER due to their large accessible active sites and good electrical conductivity. As is known, electrocatalysis usually occurs on the surface of the catalysts. Therefore, the OER performance is strongly related to the surface structure of a catalyst. For instance, tailoring the size of a catalyst can significantly increase the surface-to-volume ratio, leading to several attractive features, such as a unique morphology and distinctive electronic structure, and thereby facilitating the catalytic activity [23,24,25,26]. Therefore, the rational design of electrocatalysts with a large surface area and a high exposure of active sites is vital to achieve a high activity. Benefiting from the rich combinations of metal centers and functional ligands as well as a large surface area and porosity, MOFs have drawn particular attention in many fields. Considering that MOFs usually possess low electrical conductivities and electrocatalytic activities, directly using MOFs as electrocatalysts remains a great challenge. Recently, pyrolysis of MOFs has been demonstrated as an effective way to synthesize MOF-derived electrocatalysts, including metal oxides [27], phosphides [28], nitrides [29] etc. However, high-temperature pyrolysis treatment results in a severe aggregation and a sacrifice of organic ligands, which not only collapses the structure, but also reduces the number of active sites. In addition, compared with monometallic MOFs, bimetallic MOFs can provide higher oxidation states of transition metal species and synergistic interactions between different metal ions, which make them more favorable for OER [30,31]. In addition, two-dimensional (2D) MOFs with a high exposure of unsaturated coordinative metal active sites and increased surface areas facilitate mass transport and electron transfer during electrocatalysis [32]. Thus, directly designing bimetallic 2D MOFs as OER catalysts is a promising way to achieve high OER activity. For instance, Jia et al. reported the use of 2D ultrathin NiFe-UMNs for OER [33]. The abundant coordinatively unsaturated Ni active sites, enhanced eg-orbital filling and higher valence of Ni ions make the NiFe-UMNs exhibit excellent electrocatalytic performances in basic media. Zhuang and co-workers verified that the synergistic interaction between Co and Fe ions endows the FeCo-MOFs nanosheets with outstanding OER performances [34]. Although significant progresses have been made, in-depth investigations on functional MOF materials that can be directly employed as OER catalysts are highly required.
Herein, 1,4-bezenedicarboxylate (1,4-BDC) was used as an organic ligand to prepare NiFe bimetallic MOF (NiFe-BDC-0.5) nanosheets via a facile solvothermal treatment. Compared with the monometallic Ni-BDC, the appropriate introduction of Fe into the Ni-BDC leads to partial charge transfer from Ni ions to Fe ions, increasing the oxidation state of Ni ions, thereby boosting the activity of OER. Furthermore, an electrochemical reconstruction occurs during OER, which leads to the generation of NiFe (oxy)hydroxide and more Ni sites serving as the electrochemical active sites, endowing the NiFe-BDC-0.5 with improved OER performances. Specifically, the NiFe-BDC-0.5 exhibits a low overpotential of 256 mV to achieve a current density of 10 mA cm−2 and a long-term stability over 50 h in 1 M KOH, which is superior to that of RuO2 and most of the reported transition-metal-based catalysts reported in the literature.

2. Results and Discussion

A series of bimetallic metal–organic frameworks NiFe-BDC-x (x = 0.1, 0.3, 0.5, 0.7) were synthesized by a simple solvothermal method. Among the as-prepared samples, the NiFe-BDC-0.5 exhibits the highest activity toward OER; therefore, the NiFe-BDC-0.5 is primarily discussed in this work. The preparation route of the bimetallic metal–organic frameworks (NiFe-BDC-0.5 MOF) is illustrated in Figure 1. First, an Fe-based metal–organic compound (Fe-precursor) was prepared via a solvothermal reaction. The power X-ray diffraction (XRD) pattern of the Fe-precursor (Figure S1) is consistent with that reported in the literature [35], indicating the successful synthesis of the Fe-precursor. Subsequently, the NiFe-BDC-0.5 nanosheets are obtained by adding NiCl2·6H2O to react with the Fe precursor through a simple solvothermal treatment. By analyzing the phase of the NiFe-BDC-0.5, it can be observed that the main diffraction peaks centered at 8.8°, 14.2°, 15.7°, and 17.7° in the XRD pattern (Figure 2a) can be attributed to the (200), (001), (201), and (400) crystal planes of MIL-53(NiFe) (CCDC No. 985792), suggesting that the Ni-MOF was successfully prepared [36,37]. The XRD patterns of the as-prepared NiFe-BDC-x with different added amounts of Ni are displayed in Figure S2. It is obvious that the intensities of the diffraction peaks increase and become sharper with an increase in the addition of Ni in NiFe-BDC. Meanwhile, the diffraction peaks of the NiFe-BDC-x (x = 0.1, 0.3, 0.5, 0.7) shift slightly toward lower angles compared with those of the simulated MIL-53(NiFe). In addition, the XRD pattern of the Ni-BDC, which was prepared without the addition of Fe-precursor, is also similar to that of NiFe-BDC-0.5 (Figure S3). All these points indicate the successful preparation of NiFe bimetallic MOFs.
The morphologies and structures of the Ni-BDC and NiFe-BDC-x were observed using a scanning electron spectroscope (SEM) and transmission electron microscope (TEM). As illustrated in Figure S4a, the Ni-BDC displays a sheet-like morphology. When Fe-precursor is added during the preparation process, the morphologies of the as-synthesized samples are closely related to the added amount of NiCl2·6H2O. When adding 0.1 mmol of NiCl2·6H2O, the as-obtained NiFe-BDC-0.1 consists of nanoparticles with a size of ~50 nm (Figure S4b). As the added amount of NiCl2·6H2O increases to 0.3 mmol, some nanosheets appear in the NiFe-BDC-0.3 (Figure S4c). Upon further increasing the amount of NiCl2·6H2O to 0.5 mmol, the morphology of the NiFe-BDC-0.5 is basically identical to that of the Ni-BDC (Figure 2b). When the molar ratio of Ni2+ to BDC is lower than 1:1, the coordination between Ni2+ ions and BDC ligands is insufficient, and the BDC ligands cannot be connected to form the sheet-like structure. When the ratio is higher than 1:1, the nanosheets pack together, resulting in an aggregated morphology and a low exposure of active sites (Figure S4d). By carefully comparing the SEM images of Ni-BDC and NiFe-BDC-0.5, it can be seen that the thickness of the NiFe-BDC-0.5 nanosheet is thinner than that of the Ni-BDC, implying that the introduction of Fe-precursor can reduce the thickness of the nanosheets and increase the specific surface area. The N2 adsorption–desorption isotherm of NiFe-BDC-0.5 is displayed in Figure 2c. It is clear that the NiFe-BDC-0.5 exhibits a type IVa adsorption isotherm with H3-type hysteresis loops, which is commonly found in layered structures. The specific surface area of the NiFe-BDC-0.5, based on the Brunauer–Emmett–Teller (BET) method, is 344.8 m2 g−1, and the pore size is mainly distributed in a range of 30–40 nm, which indicates its mesoporous structure. The unique nanosheets and mesoporous feature are favorable for an increase in the number of active sites and promote mass transfer, and thus improve the OER performance. The transmission electron microscopy (TEM) image of the NiFe-BDC-0.5 further displays that the ultrathin nanosheets are hundreds of nanometers in size, and curling can be observed at the edges (Figure 2d,e), further demonstrating its ultrathin nature. The high-resolution TEM (HRTEM) image (Figure 2f) reveals that these nanosheets are composed by amorphous and polycrystalline regions. The lattice distance of 0.981 nm in the crystalline region is close to the theoretical values of the (200) plane [38]. The elemental mapping images shown in Figure 2g demonstrate a uniform distribution of Ni, Fe, C, and O elements over the entire NiFe-BDC-0.5. To further reveal the composition of the as-obtained samples, energy-dispersive X-ray spectroscopy (EDX) was then carried out (Figure S5), which confirmed the existence of Ni, Fe, C, and O elements in the four samples. The atomic ratios of Ni to Fe in the NiFe-BDC-x were determined to be 0.5, 1.5, 2.5, and 3.6, respectively, which increased with the added amount of NiCl2·6H2O.
The chemical valences of the Ni-BDC and NiFe-BDC-0.5 were then investigated by X-ray photoelectron spectroscopy (XPS). The XPS survey scan shows the presence of Ni, Fe, C, and O elements in the NiFe-BDC-0.5 (Figure S6). The deconvoluted results of Ni 2p spectra are presented in Figure 3a. For the NiFe-BDC-0.5, peaks at 856.2 eV and 873.7 eV can be assigned to the Ni2+ 2p3/2 and Ni2+ 2p1/2, respectively. The corresponding satellite peaks are centered at 861.4 eV and 879.2 eV. The existence of Ni2+ originated from the link between Ni2+ and BDC ligands [39,40]. In addition, peaks located at 857.4 eV (Ni3+ 2p3/2) and 875.3 eV (Ni3+ 2p1/2) along with two satellite peaks at 864.4 eV and 881.8 eV indicate the existence of Ni-OH [41,42]. The relative peak areas for Ni3+ 2p and Ni2+ 2p show that the Ni species exist as 45% of Ni2+ and 55% of Ni3+. In the Fe 2p spectrum displayed in Figure 3b, the binding energies located at 709.8 eV (Fe2+ 2p3/2), 723.2 (Fe2+ 2p1/2), 711.9 eV (Fe3+ 2p3/2), and 725.7 eV (Fe3+ 2p1/2) demonstrate that Fe mainly exists as Fe3+ and Fe2+ species [43,44]. Additionally, compared with the Ni-BDC, the peaks of Ni 2p in NiFe-BDC shift toward higher binding energies, suggesting the increase in the Ni valence after Fe introduction due to a synergistic interaction between Ni and Fe ions. Theoretically, the valence electronic configuration of Ni2+ is 3d8 and the corresponding orbital occupancy is t2g6eg2 [45], while the valence electronic configuration of Fe3+ is 3d5 and the eg orbital of Fe3+ (3d5, t2g5eg0) is unoccupied [34]. As previously reported [38,46], when Ni2+ is coupled with Fe3+, the charge can be partially transferred from Ni2+ to Fe3+ and can generate more high-valence Ni ions. The higher oxidation state of Ni ions is favorable for increasing the adsorption of OH−, which can significantly boost the charge transfer between NiFe-BDC and OH−, thereby optimizing the OER performance [30,47]. Figure 3c depicts the C 1s spectra of Ni-BDC and NiFe-BDC, which can be fitted into three characteristic peaks at 284.8 eV, 286.1 eV, and 288.5 eV, belonging to the C=C/C-C bonds, C-O bond, and the carboxyl (O-C=O) groups in BDC ligands, respectively [38]. The XPS spectra of O 1s can be deconvoluted into three peaks at 529.8 eV, 531.8 eV, and 533.8 eV, which originate from oxygen atoms on the Ni (Fe)-O, O-C=O, and absorbed water [48]. The above XPS analyses further demonstrate the coordination between Ni2+/Fe3+ ions and BDC ligands, which is consistent with the XRD results.
The electrocatalytic OER performances of the NiFe-BDC-0.5 was studied in 1 M KOH. The linear sweep voltammetry (LSV) curve of the NiFe-BDC-0.5 was compared with those of Ni-BDC and RuO2. As depicted in Figure 4a, the Ni-BDC exhibits unsatisfactory OER activity with an overpotential of 371 mV at a current density of 10 mA cm−2. With the introduction of Fe into the Ni-BDC, the OER activity of the NiFe-BDC-0.5 increases remarkably, which only needs an overpotential of 256 mV to achieve 10 mA cm−2. Impressively, the activity of the NiFe-BDC-0.5 surpasses commercial RuO2 when the current density exceeds 13 mA cm−2. Furthermore, pronounced oxidation peaks centered at ~1.38 V were observed in the LSV curves of the Ni-BDC and NiFe-BDC-0.5, which can be ascribed to the transformation of Ni2+ to NiOOH [49,50]. Earlier studies have verified that the NiOOH is more active than Ni2+ species toward OER in Ni-based electrocatalysts [51,52,53]. Meanwhile, the oxidation peak of Ni2+ to NiOOH shifts to a higher potential (~1.42 V) and the integral area of the peak is enhanced by 66% with the addition of Fe, suggesting the generation of a more active NiOOH phase by introducing Fe into the Ni-BDC. The OER kinetics were then analyzed by the corresponding Tafel slopes (Figure 4b). It is obvious that the Tafel slope of the NiFe-BDC-0.5 is 45.4 mV dec−1, which is significantly lower than that of the Ni-BDC (87.1 mV dec−1) and RuO2 (58.1 mV dec−1), implying that NiFe-BDC-0.5 possesses fast OER kinetics and a high affinity toward adsorbed OH− intermediates. Thus, the equilibrium of adsorbed OH− and derived-O-containing intermediates in the following steps can be developed quickly, and therefore the rate-determining step of the OER occurring on the NiFe-BDC-0.5 is the electron-transfer reaction [54,55]. In addition, LSV curves of different NiFe-BDC-x catalysts were compared to investigate the effect of the Ni amount on the OER performance. As shown in Figure S7, all the bimetallic NiFe-BDC-x catalysts exhibit improved OER activities compared with the monometallic Ni-BDC. Among all the as-prepared catalysts, the NiFe-BDC-0.5 exhibits the highest activity and the fastest OER kinetics.
The double-layer capacitance (Cdl) was determined by cyclic voltammetry (CV) in a 0.1 V potential range without faradaic currents to obtain the electrochemical active area (ECSA) of the catalysts (Figure 4c,d and Figure S8). The value of Cdl for NiFe-BDC-0.5 was 15.41 mF cm−2, outperforming those of the Ni-BDC (3.16 mF cm−2), NiFe-BDC-0.1 (2.83 mF cm−2), NiFe-BDC-0.3 (4.09 mF cm−2), NiFe-BDC-0.7 (5.02 mF cm−2), and RuO2 (9.91 mF cm−2). This indicates that the unique nanosheet can afford the NiFe-BDC-0.5 the largest electrochemically active surface area (ECSA). In order to obtain an insight into the OER kinetics of the catalysts, electrochemical impedance spectroscopy (EIS) was performed. The Nyquist plots of Ni-BDC, NiFe-BDC-0.5 and RuO2 are shown in Figure 4e and the insert is an equivalent circuit. It is clear that the NiFe-BDC-0.5 possesses the smallest charge transfer resistance (Rct) of 1.5 Ω, indicating a high charge transfer ability and the fastest OER kinetics [56]. In addition, the NiFe-BDC-x catalysts with different incorporated amounts of Ni were also tested. As expected, the value of Rct follows the same trend as that of the Cdl, namely NiFe-BDC-0.1 (5.1 Ω) > NiFe-BDC-0.3 (10.9 Ω) > NiFe-BDC-0.7 (3.8 Ω) > NiFe-BDC-0.5 (1.5 Ω) (Figure S9). Apart from activity, long-term operational stability is another essential parameter to evaluate the practicality for electrocatalysts. As shown in Figure 4f, the polarization curve of the NiFe-BDC-0.5 shows a negligible change after uninterrupted 5000 CV scanning compared with the initial one. Figure 4g displays the chronoamperometric curves for the NiFe-BDC-0.5 and RuO2 at a fixed overpotential of η10. Apparently, the current on the RuO2 electrode decreased gradually by 56.7% after 50 h of testing. In contrast, the NiFe-BDC-0.5 only showed 28.0% activity loss, implying a higher stability of the NiFe-BDC-0.5. The superior OER performances of the NiFe-BDC-0.5 may be due to the large electrochemical active area and more active Ni sites, as well as a fast charge transfer. Importantly, the activity of the NiFe-BDC-0.5 outperforms most of the recently reported transition-metal-based MOFs toward the OER (Figure 4h and Table S1).
In order to gain a deep insight into the structural evolution of the NiFe-BDC-0.5 during the OER, the phase of the NiFe-BDC-0.5 after the OER was first studied. Figure 5a depicts the XRD pattern of the NiFe-BDC-0.5 after 50 h of testing; it can be seen that the NiFe-BDC-0.5 has completely evolved into NiFe hydroxide carbonate hydrate (JCPDS no. 51-0463). This phenomenon is caused by the organic ligands being replaced by the hydroxide ions and the oxidation of ligands, which usually occurs when MOFs directly electrocatalyze OER in alkaline media [56,57]. The SEM image displayed in Figure 5b reveals that the sheet-like NiFe-BDC-0.5 changes into bulks after the OER. The EDX spectrum illustrates that the contents of Ni and Fe increase from 2.98 at.% and 1.20 at.% to 10.98 at.% and 4.20 at.%, respectively, while C decreases by 17.75 at.% after the OER (Figure S10 and Table S2), indicating that more active Ni species were generated. XPS was then carried out to investigate the change in electronic valence of the NiFe-BDC-0.5 after the OER (Figure S11). The signal F comes from Nafion which was used during the preparation of the electrode. The XPS peaks representing Ni 2p and Fe 2p shift toward higher binding energies and the ratio of Ni3+ to Ni2+ increases (Figure 5c and Figure S12), verifying that the contents of Ni3+ species increase after OER. In addition, the O 1s spectrum of the NiFe-BDC-0.5 after the OER shows the presence of M-O (529.8 eV) and M-OH (531.2 eV), confirming the generation of NiFe hydroxyl oxides, which is consistent with earlier reports [58,59]. The formation of metal-hydroxyl groups (M-OH) significantly improves the hydrophilicity of the catalysts and facilitates the adsorption of H2O and –OH groups, and thereby promote oxygen production in the NiFe-BDC-0.5. Based on the above analyses, it can be concluded that the outstanding OER performances of the NiFe-BDC-0.5 originated from its large specific surface area, which exposes more active sites and facilitates the formation of NiFe hydroxyl oxides via structural reconstruction, which facilitates the OER process.

3. Materials and Methods

3.1. Materials

Nickel chloride hexahydrate (NiCl2·6H2O), ethanol (CH3CH2OH), ethylene glycol (C2H6O2), N,N-dimethylformamide (C3H7NO, DMF), polyvinylpyrrolidone (PVP, K30) and potassium hydroxide (KOH, ≥85%) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Iron(II) acetate ([Fe(OAc)2]), triethylamine (C6H15N), and methanol (CH3OH) were purchased from Aladdin. Terephthalic acid (C8H6O4, H2BDC) and ruthenium (Ⅳ) oxide (RuO2) were purchased from Alfa Aesar. Nafion perfluorinated resin solution (5 wt.%) was purchased from Sigma-Aldrich. All chemicals were directly used without further purification.

3.2. Synthesis of Fe-Precursor

Fe-precursor was prepared according to a reported method [33]. Typically, 1.15 mmol of Fe(OAc)2 and 0.4 g of PVP were dissolved in 5 mL of ethylene glycol under stirring for about 10 min. Then, 25 mL of methanol was poured into the above mixture, and stirred at room temperature for 20 min to obtain a transparent solution. Afterwards, the solution was transferred into a 50 mL Teflon-lined autoclave, following by a solvothermal treatment at 90 °C for 12 h. Finally, the precipitates were washed three times with absolute ethanol and deionized water, and dried in vacuum at 60 °C for 12 h to obtain the Fe-precursor.

3.3. Synthesis of NiFe-BDC

The bimetallic NiFe-terephthalic acid (NiFe-BDC-0.5) nanosheets were synthesized by a solvothermal method. First, 0.5 mmol of NiCl2·6H2O was dissolved in 9 mL of DMF and 1 mL of deionized water under continuous stirring, and 0.5 mmol of H2BDC and 300 μL of triethylamine were added in sequence to form the transparent solution. Subsequently, 2 mL of ethanol containing 60 mg of the as-prepared Fe-precursor was added to the above solution. After continuously stirring at room temperature for 30 min, the mixture was transferred into a 20 mL Teflon-lined autoclave, followed by a solvothermal treatment at 90 °C for 12 h. Finally, after washing with ethanol three times and drying in a vacuum at 60 °C for 12 h, the sample was obtained and denoted as NiFe-BDC-0.5. In order to investigate the effect of the Ni content on the OER performance, the NiFe-BDC-x (x = 0.1, 0.3, and 0.7) were also prepared by the same method, except that the added amount of NiCl2·6H2O was changed from 0.5 mmol to 0.1 mmol, 0.3 mmol, and 0.7 mmol, respectively.

3.4. Synthesis of Ni-BDC

Ni-BDC was prepared through the same synthesis procedure as NiFe-BDC except that Fe-precursor was not added.

3.5. Material Characterization

X-ray diffraction (XRD) patterns were collected on a Bruker D8 Advance diffractometer equipped with a Cu Kα radiation (λ = 1.5406 Å, 40 kV, 40 mA) ranging from 5° to 80°. Scanning electron spectroscopy (SEM) images and energy-dispersive X-ray spectroscopy (EDX) spectra were collected on a Hitachi SU8010. High-resolution transmission electron microscopy (HRTEM) images and elemental mapping images were obtained on a JEOL JEM-2100F under an accelerating voltage of 200 kV. N2-adsorption/desorption isotherms were obtained on a Micromeritics ASAP 2020. The specific surface area and pore size distributions were determined by the Brunauer–Emmett–Teller (BET) method and Density Functional Theory (DFT) algorithm, respectively. X-ray photoelectron spectroscopy (XPS) spectra were collected on a Thermo Fisher Scientific ESCALAB 250Xi instrument, taking C 1s of 284.8 eV as a reference.

3.6. Electrochemical Measurements

Electrochemical measurements were performed on a CHI 760E electrochemical workstation (CH Instruments, Inc., Shanghai) with a typical three-electrode system in 1 M KOH solution. A glassy carbon electrode (GCE) with a diameter of 5 mm, an Hg/HgO (filled with 1 M KOH, pH = 14) electrode, and a graphite rod were used as the working electrode, reference electrode, and counter electrode, respectively. To prepare the working electrode, an ink containing 2.5 mg of the catalyst, 480 μL of ethanol and 20 μL of Nafion solution (5 wt.%) was ultrasonically mixed for about 30 min. Then, 10 μL of the well-dispersed ink was dropped onto the surface of the GCE with a fixed catalyst loading of 0.255 mg cm−2, then naturally dried in air before the electrochemical test. All the potentials were referenced with a reversible hydrogen electrode (RHE) according to the follow equation:
ERHE = EHg/HgO + 0.098 V + 0.059 pH
Linear sweep voltammetry (LSV) polarization curves were performed at a scan rate of 5 mV s–1. Nyquist plots of electrochemical impedance spectroscopy (EIS) measurements with a frequency ranging from 100 kHz to 0.01 Hz at an amplitude of 5 mV were charted. The electrical double-layer capacitances (Cdl) were obtained by cyclic voltammetry (CV) curves in a non-faradaic region with 0.1 V potential range. The electrochemically active surface area (ECSA) was obtained by dividing the calculated capacitance to a specific capacitance (CS = 40 μF cm−2 in 1 M KOH). Accelerated CV scanning was conducted from 1.1 V to 1.7 V with a scan rate of 100 mV s−1 for 5000 cycles to evaluate durability. The long-term stability test was carried out by a chronoamperometric measurement at an overpotential of η10 for 50 h. All LSV curves were obtained with 100% iR compensation.

4. Conclusions

In summary, NiFe bimetallic MOFs (NiFe-BDC-0.5) were prepared by a facile solvothermal method. When directly applied as an OER electrocatalyst, the NiFe-BDC-0.5 transforms into nickel iron hydroxide and more Ni3+ active sites are generated. The large specific surface area, synergistic effect between Ni and Fe, as well as the enhanced Ni3+ active sites via electrochemical reconstruction ensure a superior OER performance over long-term electrocatalysis in alkaline media, even exceeding commercial RuO2 and most of the reported transition-metal-based MOFs. This work provides a simple method for the design of low-cost and highly efficient electrocatalysts based on MOFs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28114366/s1, Figure S1: XRD pattern of the Fe-precursor; Figure S2: XRD patterns of the NiFe-BDC-x (x = 0.1, 0.3, 0.5, 0.7); Figure S3: XRD patterns of Ni-BDC and simulated NiFe-BDC; Figure S4: SEM images of (a) Ni-BDC, (b) NiFe-BDC-0.1, (c) NiFe-BDC-0.3, and (d) NiFe-BDC-0.7; Figure S5: EDX spectra of NiFe-BDC-x (x = 0.1, 0.3, 0.5, and 0.7); Figure S6: XPS survey spectra of (a) Ni-BDC and (b) NiFe-BDC-0.5; Figure S7: (a) LSV curves and (b) Tafel slopes of the NiFe-BDC-x (x = 0.1, 0.3, 0.5, and 0.7); Figure S8: (a–d) CV curves, (e) Cdl, and (f) ECSA of the NiFe-BDC-x (x = 0.1, 0.3, 0.5, and 0.7); Figure S9: EIS of the NiFe-BDC-x (x = 0.1, 0.3, 0.5, and 0.7); Figure S10: EDX spectrum of the NiFe-BDC-0.5 after OER; Figure S11: XPS survey scan of the NiFe-BDC-0.5 after the OER; Figure S12: Fe 2p XPS spectrum of the NiFe-BDC-0.5 after OER; Table S1: Comparisons of the OER performances of the NiFe-BDC-0.5 with other reported transition-metal-based MOFs in the literature in 1 M KOH [27,28,29,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80]; Table S2: The contents of Ni, Fe, C, and O in NiFe-BDC-0.5 before and after the OER test.

Author Contributions

Conceptualization, D.W. and F.L.; methodology, D.W.; software, X.Y.; validation, D.W., F.L. and J.L.; formal analysis, F.L.; investigation, D.W. and F.L.; resources, X.Y. and X.C.; data curation, D.W. and W.J.; writing—original draft preparation, D.W. and F.L.; writing—review and editing, F.L. and W.J.; visualization, X.C.; supervision, F.L. and W.J.; project administration, H.Y. and W.J.; funding acquisition, W.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (No. 22062023) and the Open Project of Key Laboratory of Xinjiang Uygur Autonomous Region (No. 2022D04011).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Yu, Z.Y.; Duan, Y.; Feng, X.Y.; Yu, X.; Gao, M.R.; Yu, S.H. Clean and affordable hydrogen fuel from alkaline water splitting: Past, recent progress, and future prospects. Adv. Mater. 2021, 33, 2007100. [Google Scholar] [CrossRef] [PubMed]
  2. Hou, J.; Wu, Y.; Zhang, B.; Cao, S.; Li, Z.; Sun, L. Rational design of nanoarray architectures for electrocatalytic water splitting. Adv. Funct. Mater. 2019, 29, 1808367. [Google Scholar] [CrossRef]
  3. Wang, Q.; Ming, M.; Niu, S.; Zhang, Y.; Fan, G.; Hu, J.-S. Scalable solid-state synthesis of highly dispersed uncapped metal (Rh, Ru, Ir) nanoparticles for efficient hydrogen evolution. Adv. Energy Mater. 2018, 8, 1801698. [Google Scholar] [CrossRef]
  4. Sun, H.; Xu, X.; Kim, H.; Jung, W.; Zhou, W.; Shao, Z. Electrochemical water splitting: Bridging the gaps between fundamental research and industrial applications. Energy Environ. Mater. 2023, e12441. [Google Scholar] [CrossRef]
  5. Li, H.; Chen, C.; Yan, D.; Wang, Y.; Chen, R.; Zou, Y.; Wang, S. Interfacial effects in supported catalysts for electrocatalysis. J. Mater. Chem. A 2019, 7, 23432–23450. [Google Scholar] [CrossRef]
  6. Karmakar, A.; Karthick, K.; Sankar, S.S.; Kumaravel, S.; Madhu, R.; Kundu, S. A vast exploration of improvising synthetic strategies for enhancing the OER kinetics of LDH structures: A review. J. Mater. Chem. A 2021, 9, 1314–1352. [Google Scholar] [CrossRef]
  7. Sivanantham, A.; Ganesan, P.; Vinu, A.; Shanmugam, S. Surface activation and reconstruction of non-oxide-based catalysts through in situ electrochemical tuning for oxygen evolution reactions in alkaline media. ACS Catal. 2019, 10, 463–493. [Google Scholar] [CrossRef]
  8. Fan, X.-Z.; Pang, Q.-Q. Recent research advances in ruthenium-based electrocatalysts for water electrolysis across the pH-Universal conditions. Eng. Technol. 2022, 10, 2200655. [Google Scholar] [CrossRef]
  9. Anantharaj, S. Ru-tweaking of non-precious materials: The tale of a strategy that ensures both cost and energy efficiency in electrocatalytic water splitting. J. Mater. Chem. A 2021, 9, 6710–6731. [Google Scholar] [CrossRef]
  10. Feng, C.; Faheem, M.B.; Fu, J.; Xiao, Y.; Li, C.; Li, Y. Fe-based electrocatalysts for oxygen evolution reaction: Progress and perspectives. ACS Catal. 2020, 10, 4019–4047. [Google Scholar] [CrossRef]
  11. Yang, K.; Xu, P.; Lin, Z.; Yang, Y.; Jiang, P.; Wang, C.; Liu, S.; Gong, S.; Hu, L.; Chen, Q. Ultrasmall Ru/Cu-doped RuO2 complex embedded in amorphous carbon skeleton as highly active bifunctional electrocatalysts for overall water splitting. Small 2018, 14, 1803009. [Google Scholar] [CrossRef] [PubMed]
  12. Suen, N.-T.; Hung, S.-F.; Quan, Q.; Zhang, N.; Xu, Y.-J.; Chen, H.M. Electrocatalysis for the oxygen evolution reaction: Recent development and future perspectives. Chem. Soc. Rev. 2017, 46, 337–365. [Google Scholar] [CrossRef] [PubMed]
  13. Cao, X.; Sang, Y.; Wang, L.; Ding, G.; Yu, R.; Geng, B. A multi-interfacial FeOOH@NiCo2O4 heterojunction as a highly efficient bifunctional electrocatalyst for overall water splitting. Nanoscale 2020, 12, 19404–19412. [Google Scholar] [CrossRef] [PubMed]
  14. Hamal, E.K.; Toroker, M.C. The effect of Fe and Co additions on the efficiency of NiOOH catalyst under strain. ChemCatChem 2020, 12, 2801–2806. [Google Scholar] [CrossRef]
  15. Luo, Y.; Wang, P.; Zhang, G.; Wu, S.; Chen, Z.; Ranganathan, H.; Sun, S.; Shi, Z. Mn-doped nickel–iron phosphide heterointerface nanoflowers for efficient alkaline freshwater/seawater splitting at high current densities. Chem. Eng. J. 2023, 454, 140061. [Google Scholar] [CrossRef]
  16. Jiang, H.; Zhang, S.; Fu, Q.; Yan, L.; Zhang, J.; Zhao, X. Metal–organic framework derived Ni2P/FeP@NPC heterojunction as stability bifunctional electrocatalysts for large current density water splitting. Molecules 2023, 28, 2280. [Google Scholar] [CrossRef]
  17. Konkena, B.; Masa, J.; Botz, A.J.R.; Sinev, I.; Xia, W.; Koßmann, J.; Drautz, R.; Muhler, M.; Schuhmann, W. Metallic NiPS3@NiOOH core–shell heterostructures as highly efficient and stable electrocatalyst for the oxygen evolution reaction. ACS Catal. 2017, 7, 229–237. [Google Scholar] [CrossRef]
  18. Xu, K.; Chen, P.; Li, X.; Tong, Y.; Ding, H.; Wu, X.; Chu, W.; Peng, Z.; Wu, C.; Xie, Y. Metallic nickel nitride nanosheets realizing enhanced electrochemical water oxidation. J. Am. Chem. Soc. 2015, 137, 4119–4125. [Google Scholar] [CrossRef]
  19. Li, R.-Q.; Wan, X.-Y.; Chen, B.-L.; Cao, R.-Y.; Ji, Q.-H.; Deng, J.; Qu, K.-G.; Wang, X.-B.; Zhu, Y.-C. Hierarchical Ni3N/Ni0.2Mo0.8N heterostructure nanorods arrays as efficient electrocatalysts for overall water and urea electrolysis. Chem. Eng. J. 2021, 409, 128240. [Google Scholar] [CrossRef]
  20. Lai, C.; Gong, M.; Zhou, Y.; Fang, J.; Huang, L.; Deng, Z.; Liu, X.; Zhao, T.; Lin, R.; Wang, K.; et al. Sulphur modulated Ni3FeN supported on N/S co-doped graphene boosts rechargeable/flexible Zn-air battery performance. Appl. Catal. B Environ. 2020, 274, 119086. [Google Scholar] [CrossRef]
  21. Song, Z.; Cheng, N.; Lushington, A.; Sun, X. Recent progress on MOF-derived nanomaterials as advanced electrocatalysts in fuel cells. Catalysts 2016, 6, 116. [Google Scholar] [CrossRef]
  22. Su, J.; Ge, R.; Jiang, K.; Dong, Y.; Hao, F.; Tian, Z.; Chen, G.; Chen, L. Assembling ultrasmall copper-doped ruthenium oxide nanocrystals into hollow porous polyhedra: Highly robust electrocatalysts for oxygen evolution in acidic media. Adv. Mater. 2018, 30, 1801351. [Google Scholar] [CrossRef]
  23. Han, W.; Chen, L.; Ma, B.; Wang, J.; Song, W.; Fan, X.; Li, Y.; Zhang, F.; Peng, W. Ultra-small Mo2C nanodots encapsulated in nitrogen-doped porous carbon for pH-universal hydrogen evolution: Insights into the synergistic enhancement of HER activity by nitrogen doping and structural defects. J. Mater. Chem. A 2019, 7, 4734–4743. [Google Scholar] [CrossRef]
  24. Zhang, J.; Jia, W.; Dang, S.; Cao, Y. Sub-5nm octahedral platinum-copper nanostructures anchored on nitrogen-doped porous carbon nanofibers for remarkable electrocatalytic hydrogen evolution. J. Colloid Interface Sci. 2020, 560, 161–168. [Google Scholar] [CrossRef]
  25. Jia, W.; Zhang, J.; Lu, Z.; Wang, S.; Feng, S. Pt decorated POMOF-derived constructions for efficient electrocatalytic hydrogen evolution. Nanoscale 2020, 12, 3902–3906. [Google Scholar] [CrossRef]
  26. Wang, C.; Qi, L. Heterostructured inter-doped ruthenium-cobalt oxide hollow nanosheet arrays for highly efficient overall water splitting. Angew. Chem. Int. Ed. 2020, 59, 17219–17224. [Google Scholar] [CrossRef]
  27. Peng, Y.; Huang, C.; Huang, J.; Feng, M.; Qiu, X.; Yue, X.; Huang, S. Filling octahedral interstices by building geometrical defects to construct active sites for boosting the oxygen evolution reaction on NiFe2O4. Adv. Funct. Mater. 2022, 32, 2201011. [Google Scholar] [CrossRef]
  28. Vijayakumar, E.; Ramakrishnan, S.; Sathiskumar, C.; Yoo, D.J.; Balamurugan, J.; Noh, H.S.; Kwon, D.; Kim, Y.H.; Lee, H. MOF-derived CoP-nitrogen-doped carbon@NiFeP nanoflakes as an efficient and durable electrocatalyst with multiple catalytically active sites for OER, HER, ORR and rechargeable zinc-air batteries. Chem. Eng. J. 2022, 428, 131115. [Google Scholar] [CrossRef]
  29. Wang, Z.; Ang, J.; Liu, J.; Ma, X.Y.D.; Kong, J.; Zhang, Y.; Yan, T.; Lu, X. FeNi alloys encapsulated in N-doped CNTs-tangled porous carbon fibers as highly efficient and durable bifunctional oxygen electrocatalyst for rechargeable zinc-air battery. Appl. Catal. B Environ. 2020, 263, 118344. [Google Scholar] [CrossRef]
  30. Zhu, Y.; Chen, G.; Zhong, Y.; Chen, Y.; Ma, N.; Zhou, W.; Shao, Z. A surface-modified antiperovskite as an electrocatalyst for water oxidation. Nat. Commun 2018, 9, 2326. [Google Scholar] [CrossRef]
  31. Joya, K.S.; de Groot, H.J.M. Controlled surface-assembly of nanoscale leaf-type Cu-oxide electrocatalyst for high activity water oxidation. ACS Catal. 2016, 6, 1768–1771. [Google Scholar] [CrossRef]
  32. Xu, X.; Sun, H.; Jiang, S.P.; Shao, Z. Modulating metal–organic frameworks for catalyzing acidic oxygen evolution for proton exchange membrane water electrolysis. SusMat 2021, 1, 460–481. [Google Scholar] [CrossRef]
  33. Hai, G.; Jia, X.; Zhang, K.; Liu, X.; Wu, Z.; Wang, G. High-performance oxygen evolution catalyst using two-dimensional ultrathin metal-organic frameworks nanosheets. Nano Energy 2018, 44, 345–352. [Google Scholar] [CrossRef]
  34. Zhuang, L.; Ge, L.; Liu, H.; Jiang, Z.; Jia, Y.; Li, Z.; Yang, D.; Hocking, R.K.; Li, M.; Zhang, L.; et al. A surfactant-free and scalable general strategy for synthesizing ultrathin two-dimensional metal–organic framework nanosheets for the oxygen evolution reaction. Angew. Chem. Int. Ed. 2019, 58, 13565–13572. [Google Scholar] [CrossRef]
  35. Zhang, P.; Yu, L.; Lou, X.W. Construction of heterostructured Fe2O3-TiO2 microdumbbells for photoelectrochemical water oxidation. Angew. Chem. Int. Ed. 2018, 57, 15076–15080. [Google Scholar] [CrossRef]
  36. Zhao, S.; Wang, Y.; Dong, J.; He, C.-T.; Yin, H.; An, P.; Zhao, K.; Zhang, X.; Gao, C.; Zhang, L.; et al. Ultrathin metal–organic framework nanosheets for electrocatalytic oxygen evolution. Nat. Energy 2016, 1, 16184. [Google Scholar] [CrossRef]
  37. Mesbah, A.; Rabu, P.; Sibille, R.; Lebègue, S.; Mazet, T.; Malaman, B.; François, M. From hydrated Ni3(OH)2(C8H4O4)2(H2O)4 to anhydrous Ni2(OH)2(C8H4O4): Impact of structural transformations on magnetic properties. Inorg. Chem. 2014, 53, 872–881. [Google Scholar] [CrossRef]
  38. Sun, F.; Wang, G.; Ding, Y.; Wang, C.; Yuan, B.; Lin, Y. NiFe-based metal–organic framework nanosheets directly supported on nickel foam acting as robust electrodes for electrochemical oxygen evolution reaction. Adv. Energy Mater. 2018, 8, 1800584. [Google Scholar] [CrossRef]
  39. Zhou, Y.; López, N. The role of Fe species on NiOOH in oxygen evolution reactions. ACS Catal. 2020, 10, 6254–6261. [Google Scholar] [CrossRef]
  40. Li, J.; Song, J.; Huang, B.-Y.; Liang, G.; Liang, W.; Huang, G.; Jin, Y.Q.; Zhang, H.; Xie, F.; Chen, J.; et al. Enhancing the oxygen evolution reaction performance of NiFeOOH electrocatalyst for Zn-air battery by N-doping. J. Catal. 2020, 389, 375–381. [Google Scholar] [CrossRef]
  41. Tang, Y.; Liu, Q.; Dong, L.; Wu, H.B.; Yu, X.-Y. Activating the hydrogen evolution and overall water splitting performance of NiFe LDH by cation doping and plasma reduction. Appl. Catal. B Environ. 2020, 266, 118627. [Google Scholar] [CrossRef]
  42. Rong, F.; Zhao, J.; Yang, Q.; Li, C. Nanostructured hybrid NiFeOOH/CNT electrocatalysts for oxygen evolution reaction with low overpotential. RSC Adv. 2016, 6, 74536–74544. [Google Scholar] [CrossRef]
  43. Wu, K.; Chu, F.; Meng, Y.; Edalati, K.; Gao, Q.; Li, W.; Lin, H.-J. Cathodic corrosion activated Fe-based nanoglass as a highly active and stable oxygen evolution catalyst for water splitting. J. Mater. Chem. A 2021, 9, 12152–12160. [Google Scholar] [CrossRef]
  44. Ma, F.; Wu, Q.; Liu, M.; Zheng, L.; Tong, F.; Wang, Z.; Wang, P.; Liu, Y.; Cheng, H.; Dai, Y.; et al. Surface fluorination engineering of NiFe prussian blue analogue derivatives for highly efficient oxygen evolution reaction. ACS Appl. Mater. Interfaces 2021, 13, 5142–5152. [Google Scholar] [CrossRef]
  45. Li, S.; Gao, Y.; Li, N.; Ge, L.; Bu, X.; Feng, P. Transition metal-based bimetallic MOFs and MOF-derived catalysts for electrochemical oxygen evolution reaction. Energy Environ. Sci. 2021, 14, 1897–1927. [Google Scholar] [CrossRef]
  46. Thangavel, P.; Kim, G.; Kim, K.S. Electrochemical integration of amorphous NiFe (oxy)hydroxides on surface-activated carbon fibers for high-efficiency oxygen evolution in alkaline anion exchange membrane water electrolysis. J. Mater. Chem. A 2021, 9, 14043–14051. [Google Scholar] [CrossRef]
  47. Zhang, H.; Wang, J.; Qin, F.; Liu, H.; Wang, C. V-doped Ni3N/Ni heterostructure with engineered interfaces as a bifunctional hydrogen electrocatalyst in alkaline solution: Simultaneously improving water dissociation and hydrogen adsorption. Nano Res. 2021, 14, 3489–3496. [Google Scholar] [CrossRef]
  48. Liu, C.; Han, Y.; Yao, L.; Liang, L.; He, J.; Hao, Q.; Zhang, J.; Li, Y.; Liu, H. Engineering bimetallic NiFe-based hydroxides/selenides heterostructure nanosheet arrays for highly-efficient oxygen evolution reaction. Small 2021, 17, 2007334. [Google Scholar] [CrossRef]
  49. Louie, M.W.; Bell, A.T. An investigation of thin-film Ni–Fe oxide catalysts for the electrochemical evolution of oxygen. J. Am. Chem. Soc. 2013, 135, 12329–12337. [Google Scholar] [CrossRef]
  50. Bernard, M.C.; Bernard, P.; Keddam, M.; Senyarich, S.; Takenouti, H. Characterisation of new nickel hydroxides during the transformation of α Ni(OH)2 to β Ni(OH)2 by ageing. Electrochim. Acta 1996, 41, 91–93. [Google Scholar] [CrossRef]
  51. Song, F.; Hu, X. Exfoliation of layered double hydroxides for enhanced oxygen evolution catalysis. Nat. Commun. 2014, 5, 4477. [Google Scholar] [CrossRef] [PubMed]
  52. Wehrens-Dijksma, M.; Notten, P.H.L. Electrochemical quartz microbalance characterization of Ni(OH)2-based thin film electrodes. Electrochim. Acta 2006, 51, 3609–3621. [Google Scholar] [CrossRef]
  53. Chang, G.; Zhou, Y.; Wang, J.; Zhang, H.; Yan, P.; Wu, H.B.; Yu, X.-Y. Dynamic reconstructed RuO2/NiFeOOH with coherent Interface for efficient seawater oxidation. Small 2023, 19, 2206768. [Google Scholar] [CrossRef] [PubMed]
  54. Yang, Y.; Fei, H.; Ruan, G.; Tour, J.M. Porous cobalt-based thin film as a bifunctional catalyst for hydrogen generation and oxygen generation. Adv. Mater. 2015, 27, 3175–3180. [Google Scholar] [CrossRef]
  55. Li, Z.; Lv, L.; Ao, X.; Li, J.-G.; Sun, H.; An, P.; Xue, X.; Li, Y.; Liu, M.; Wang, C.; et al. An effective method for enhancing oxygen evolution kinetics of LaMO3 (M=Ni, Co, Mn) perovskite catalysts and its application to a rechargeable zinc–air battery. Appl. Catal. B Environ. 2020, 262, 118291. [Google Scholar] [CrossRef]
  56. Liu, X.; Meng, J.; Zhu, J.; Huang, M.; Wen, B.; Guo, R.; Mai, L. Comprehensive understandings into complete reconstruction of precatalysts: Synthesis, applications, and characterizations. Adv. Mater. 2021, 33, 2007344. [Google Scholar] [CrossRef] [PubMed]
  57. Zheng, W.; Liu, M.; Lee, L.Y.S. Electrochemical instability of metal–organic frameworks: In situ spectroelectrochemical investigation of the real active sites. ACS Catal. 2020, 10, 81–92. [Google Scholar] [CrossRef]
  58. Yu, Z.Y.; Duan, Y.; Liu, J.D.; Chen, Y.; Liu, X.K.; Liu, W.; Ma, T.; Li, Y.; Zheng, X.S.; Yao, T.; et al. Unconventional CN vacancies suppress iron-leaching in Prussian blue analogue pre-catalyst for boosted oxygen evolution catalysis. Nat. Commun. 2019, 10, 2799. [Google Scholar] [CrossRef]
  59. Liu, T.; Li, P.; Yao, N.; Kong, T.; Cheng, G.; Chen, S.; Luo, W. Self-sacrificial template-directed vapor-phase growth of MOF assemblies and surface vulcanization for efficient water splitting. Adv. Mater. 2019, 31, 1806672. [Google Scholar] [CrossRef]
  60. Zhou, J.; Han, Z.; Wang, X.; Gai, H.; Chen, Z.; Guo, T.; Jiang, H. Discovery of quantitative electronic structure-OER activity relationship in metal-organic framework electrocatalysts using an integrated theoretical-experimental approach. Adv. Funct. Mater. 2021, 31, 2102066. [Google Scholar] [CrossRef]
  61. Jia, L.; Du, G.; Han, D.; Wang, Y.; Zhao, W.; Su, Q.; Xu, B. Magnetic electrode configuration with polypyrrole-wrapped Ni/NiFe2O4 core–shell nanospheres to boost electrocatalytic water splitting. Chem. Eng. J. 2023, 454, 140278. [Google Scholar] [CrossRef]
  62. Liu, W.; Zheng, D.; Deng, T.; Chen, Q.; Zhu, C.; Pei, C.; Cao, X. Boosting electrocatalytic activity of 3d-block metal (hydro) oxides by ligand-induced conversion. Angew. Chem. Int. Ed. 2021, 60, 10614–10619. [Google Scholar] [CrossRef] [PubMed]
  63. Li, T.; Lu, T.; Li, Y.; Yin, J.; Tang, Y.; Zhang, M.; Zhang, Y. Interfacial engineering-induced electronic regulation drastically enhances the electrocatalytic oxygen evolution: Immobilization of Janus-structured NiS/NiO nanoparticles onto carbon nanotubes/nanofiber-integrated superstructures. Chem. Eng. J. 2022, 428, 131094. [Google Scholar] [CrossRef]
  64. Yan, P.; Liu, Q.; Zhang, H.; Qiu, L.; Wu, H.B.; Yu, X.Y. Deeply reconstructed hierarchical and defective NiOOH/FeOOH nanoboxes with accelerated kinetics for the oxygen evolution reaction. J. Mater. Chem. A 2021, 9, 15586–15594. [Google Scholar] [CrossRef]
  65. Xue, Y.; Liu, M.; Qin, Y.; Zhang, Y.; Zhang, X.; Fang, J.; Zhuang, Z. Ultrathin NiFeS nanosheets as highly active electrocatalysts for oxygen evolution reaction. Chin. Chem. Lett. 2022, 33, 3916–3920. [Google Scholar] [CrossRef]
  66. Cai, M.; Liu, Q.; Xue, Z.; Li, Y.; Fan, Y.; Huang, A.; Li, G. Constructing 2D MOFs from 2D LDHs: A highly efficient and durable electrocatalyst for water oxidation. J. Mater. Chem. A 2020, 8, 190–195. [Google Scholar] [CrossRef]
  67. Cheng, W.; Lu, X.F.; Luan, D.; Lou, X.W. NiMn-based bimetal–organic framework nanosheets supported on multi-channel carbon fibers for efficient oxygen electrocatalysis. Angew. Chem. Int. Ed. 2020, 59, 18234–18239. [Google Scholar] [CrossRef]
  68. Guo, Y.; Zhang, C.; Zhang, J.; Dastafkan, K.; Wang, K.; Zhao, C.; Shi, Z. Metal–organic framework-derived bimetallic NiFe selenide electrocatalysts with multiple phases for efficient oxygen evolution reaction. ACS Sustain. Chem. Eng. 2021, 9, 2047–2056. [Google Scholar] [CrossRef]
  69. Guo, X.; Yao, L.; Hou, X.; Wu, X.; Zhang, Y.; Zhu, Q.; Huang, K. An exsolution constructed FeNi/NiFe2O4 composite: Preferential breaking of octahedral metal–oxygen bonds in a spinel oxide. Chem. Sci. 2022, 13, 9440–9449. [Google Scholar] [CrossRef]
  70. Li, X.; Zhou, J.; Liu, C.; Xu, L.; Lu, C.; Yang, J.; Hou, W. Encapsulation of Janus-structured Ni/Ni2P nanoparticles within hierarchical wrinkled N-doped carbon nanofibers: Interface engineering induces high-efficiency water oxidation. Appl. Catal. B: Environ. 2021, 298, 120578. [Google Scholar] [CrossRef]
  71. Zhao, C.X.; Li, B.Q.; Zhao, M.; Liu, J.N.; Zhao, L.D.; Chen, X.; Zhang, Q. Precise anionic regulation of NiFe hydroxysulfide assisted by electrochemical reactions for efficient electrocatalysis. Energy Environ. Sci. 2020, 13, 1711–1716. [Google Scholar] [CrossRef]
  72. Li, S.; Wang, J.; Lv, X.; Zheng, S.; Wang, J.; Li, Z. Controllable synthesis of MOFs-derived porous and tubular bimetallic Fe–Ni phosphides for efficient electrocatalytic water splitting. Catal. Sci. Technol. 2023, 13, 1512–1517. [Google Scholar] [CrossRef]
  73. Wu, J.; Yu, Z.; Zhang, Y.; Niu, S.; Zhao, J.; Li, S.; Xu, P. Understanding the effect of second metal on CoM (M= Ni, Cu, Zn) metal–organic frameworks for electrocatalytic oxygen evolution reaction. Small 2021, 17, 2105150. [Google Scholar] [CrossRef] [PubMed]
  74. Yang, L.; Liu, H.; Shen, H.; Huang, Y.; Wang, S.; Zheng, L.; Cao, D. Physically adsorbed metal ions in porous supports as electrocatalysts for oxygen evolution reaction. Adv. Funct. Mater. 2020, 30, 1909889. [Google Scholar] [CrossRef]
  75. Liu, Y.; Zhang, S.; Jiao, C.; Chen, H.; Wang, G.; Wu, W.; Mao, J. Axial phosphate coordination in Co single atoms boosts electrochemical oxygen evolution. Adv. Sci. 2023, 10, 2206107. [Google Scholar] [CrossRef]
  76. Cheng, W.; Xi, S.; Wu, Z.P.; Luan, D.; Lou, X.W. In situ activation of Br-confined Ni-based metal–organic framework hollow prisms toward efficient electrochemical oxygen evolution. Sci. Adv. 2021, 7, eabk0919. [Google Scholar] [CrossRef]
  77. Ren, D.; Ying, J.; Xiao, M.; Deng, Y.P.; Ou, J.; Zhu, J.; Chen, Z. Hierarchically porous multimetal-based carbon nanorod hybrid as an efficient oxygen catalyst for rechargeable zinc–air batteries. Adv. Funct. Mater. 2020, 30, 1908167. [Google Scholar] [CrossRef]
  78. Diao, J.; Qiu, Y.; Liu, S.; Wang, W.; Chen, K.; Li, H.; Guo, X. Interfacial engineering of W2N/WC heterostructures derived from solid-state synthesis: A highly efficient trifunctional electrocatalyst for ORR, OER, and HER. Adv. Mater. 2020, 32, 1905679. [Google Scholar] [CrossRef]
  79. Yang, C.C.; Zai, S.F.; Zhou, Y.T.; Du, L.; Jiang, Q. Fe3C-Co nanoparticles encapsulated in a hierarchical structure of N-doped carbon as a multifunctional electrocatalyst for ORR, OER, and HER. Adv. Funct. Mater. 2019, 29, 1901949. [Google Scholar] [CrossRef]
  80. Wang, X.L.; Dong, L.Z.; Qiao, M.; Tang, Y.J.; Liu, J.; Li, Y.; Lan, Y.Q. Exploring the performance improvement of the oxygen evolution reaction in a stable bimetal–organic framework system. Angew. Chem. Int. Ed. 2018, 57, 9660–9664. [Google Scholar] [CrossRef]
Molecules 28 04366 g001 550

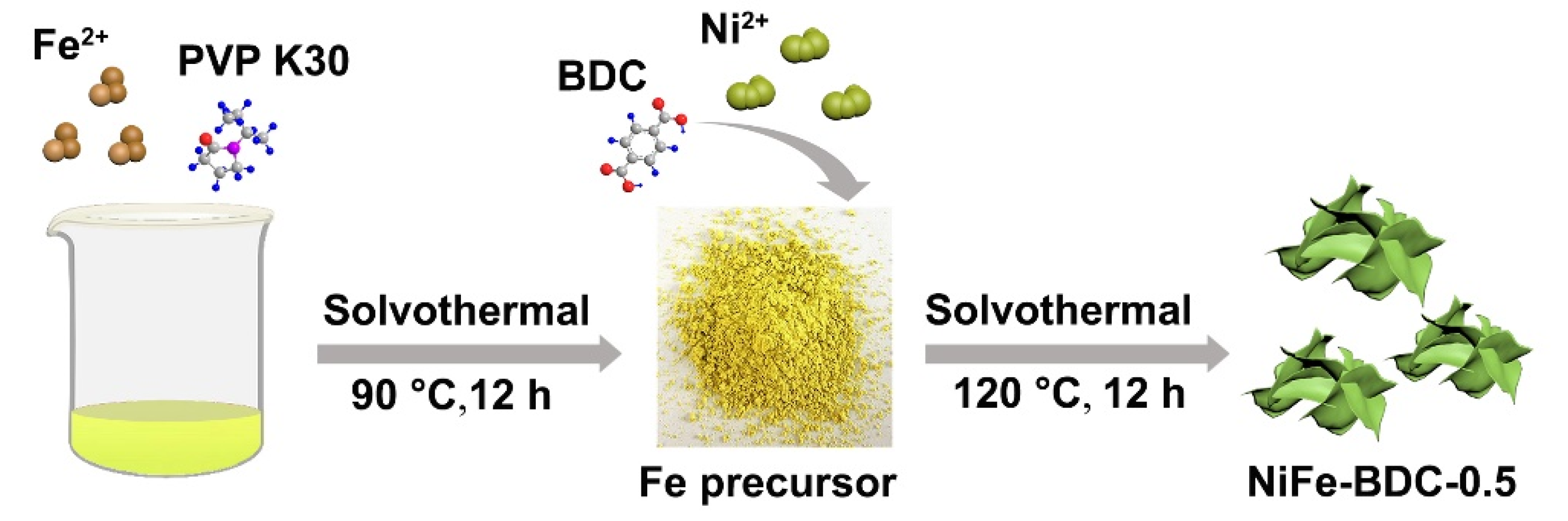

Figure 1. Schematic illustration of the preparation of the NiFe-BDC-0.5.
Figure 1. Schematic illustration of the preparation of the NiFe-BDC-0.5.
Molecules 28 04366 g001
Molecules 28 04366 g002 550

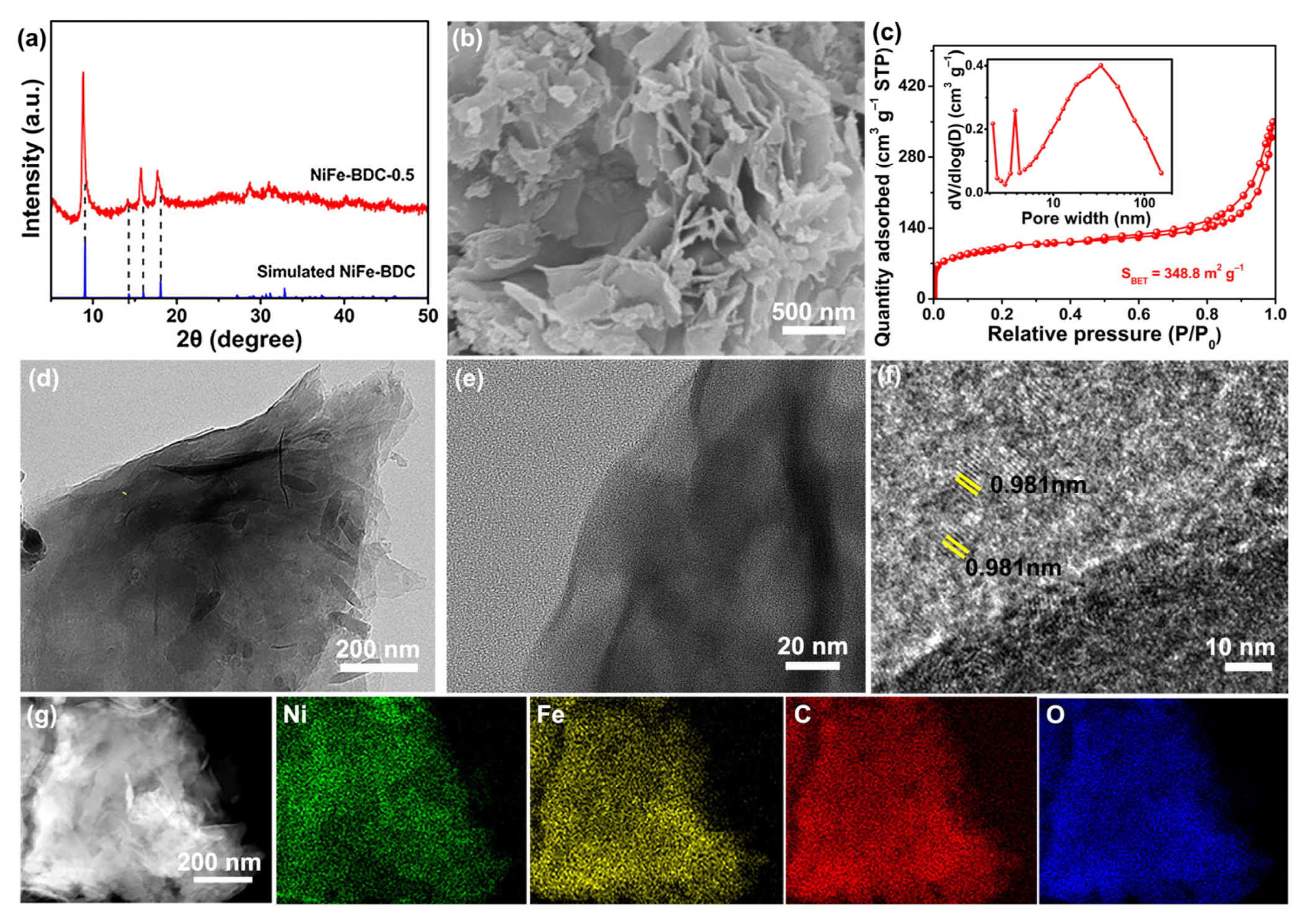

Figure 2. Structure and morphology of NiFe–BDC–0.5. (a) XRD patterns, (b) SEM image, (c) N2–adsorption/desorption isotherms and pore size distribution, (d) TEM image, (e) enlarged TEM image, (f) HRTEM image, (g) HAADF–STEM and corresponding elemental mappings.
Figure 2. Structure and morphology of NiFe–BDC–0.5. (a) XRD patterns, (b) SEM image, (c) N2–adsorption/desorption isotherms and pore size distribution, (d) TEM image, (e) enlarged TEM image, (f) HRTEM image, (g) HAADF–STEM and corresponding elemental mappings.
Molecules 28 04366 g002
Molecules 28 04366 g003 550

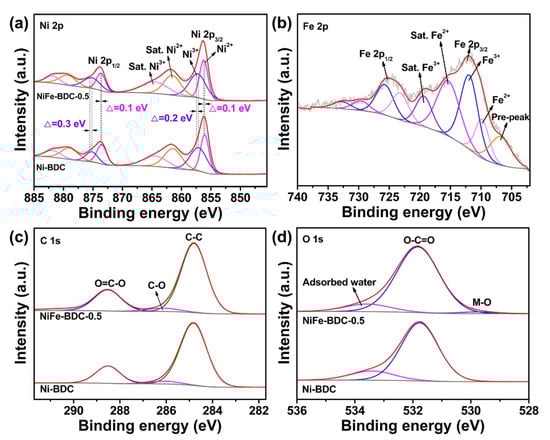

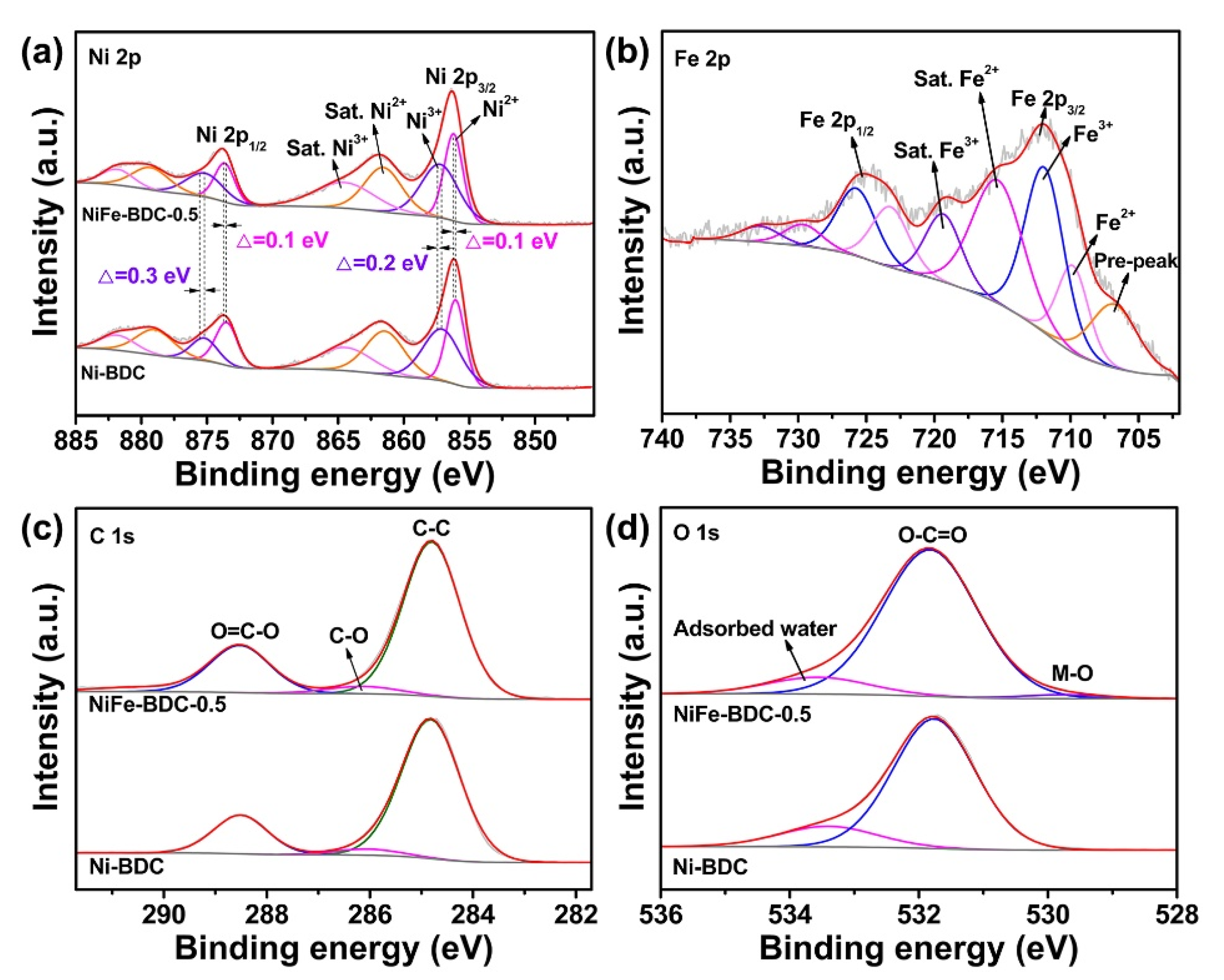

Figure 3. XPS spectra of (a) Ni 2p for the NiFe-BDC-0.5 and Ni-BDC, (b) Fe 2p of the NiFe-BDC-0.5, (c) C 1s, and (d) O 1s for the NiFe-BDC-0.5 and Ni-BDC.
Figure 3. XPS spectra of (a) Ni 2p for the NiFe-BDC-0.5 and Ni-BDC, (b) Fe 2p of the NiFe-BDC-0.5, (c) C 1s, and (d) O 1s for the NiFe-BDC-0.5 and Ni-BDC.
Molecules 28 04366 g003
Molecules 28 04366 g004 550

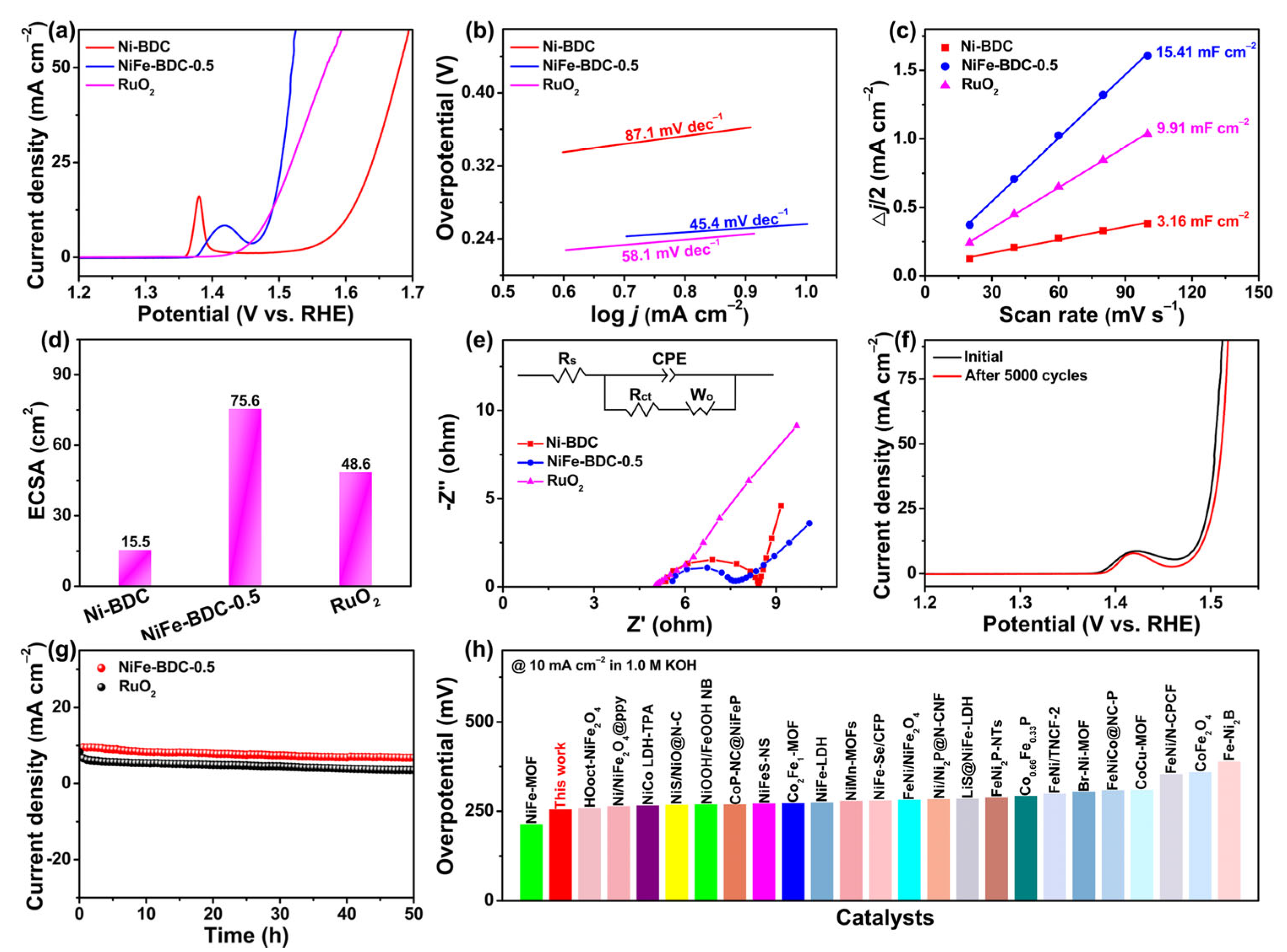

Figure 4. Electrocatalytic OER performance of the NiFe-BDC-0.5 and other comparable samples tested in 1 M KOH solution. (a) LSV curves, (b) Tafel plots, (c) Cdl, (d) ECSA, and (e) EIS of the Ni-BDC, NiFe-BDC-0.5, and RuO2. (f) Polarization curves of the NiFe-BDC-0.5 before and after 5000 CV cycles. (g) Time-dependent current density curves of the NiFe-BDC-0.5 and RuO2 under a constant overpotential of η10 for 50 h. (h) Comparisons of OER activity of the NiFe-BDC-0.5 with recently reported MOF-based electrocatalysts.
Figure 4. Electrocatalytic OER performance of the NiFe-BDC-0.5 and other comparable samples tested in 1 M KOH solution. (a) LSV curves, (b) Tafel plots, (c) Cdl, (d) ECSA, and (e) EIS of the Ni-BDC, NiFe-BDC-0.5, and RuO2. (f) Polarization curves of the NiFe-BDC-0.5 before and after 5000 CV cycles. (g) Time-dependent current density curves of the NiFe-BDC-0.5 and RuO2 under a constant overpotential of η10 for 50 h. (h) Comparisons of OER activity of the NiFe-BDC-0.5 with recently reported MOF-based electrocatalysts.
Molecules 28 04366 g004
Molecules 28 04366 g005 550

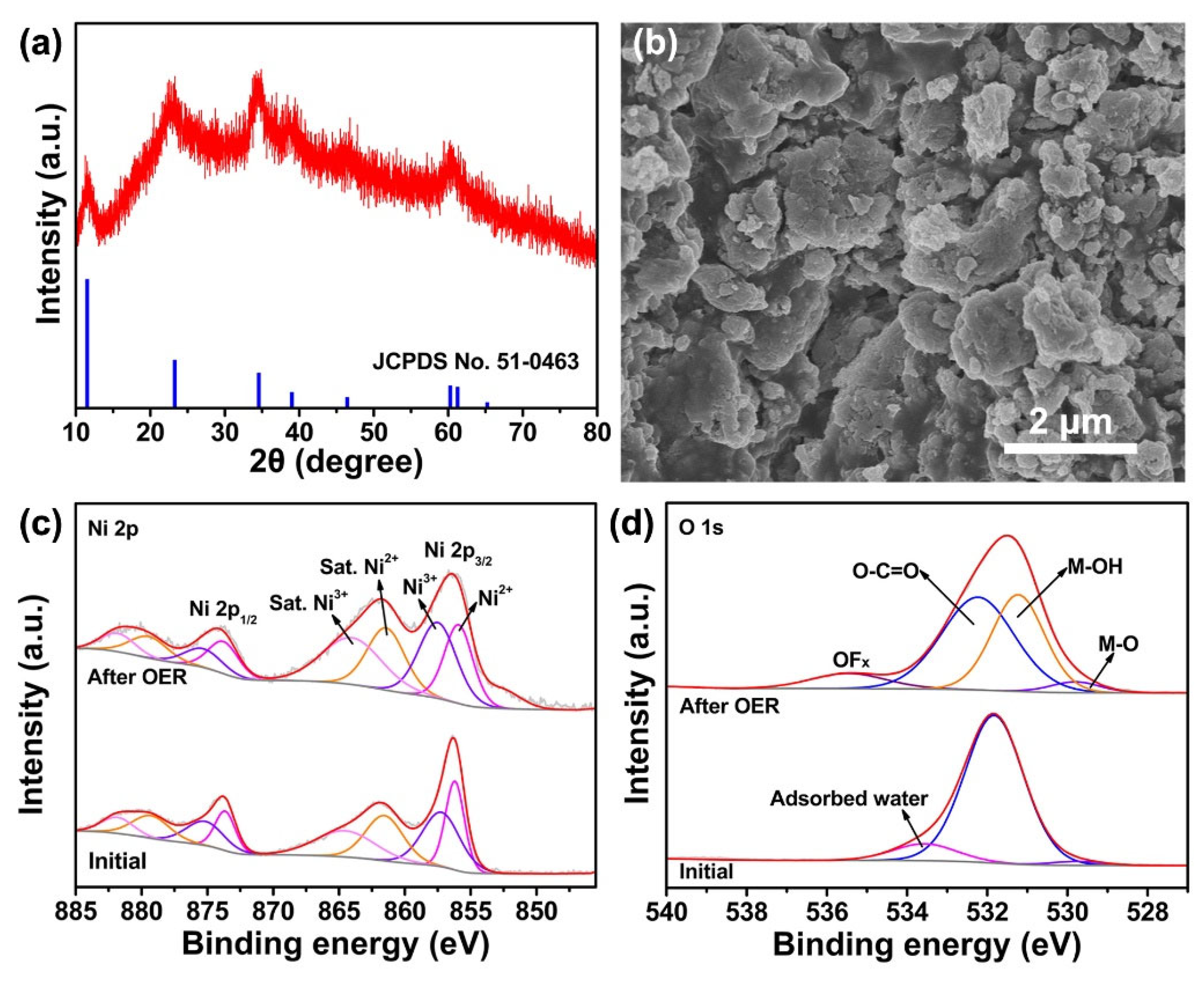

Figure 5. Structural and compositional analysis of the NiFe-BDC-0.5 after OER: (a) XRD patterns, (b) SEM image, XPS spectra of (c) Ni 2p and (d) O 1s.
