Electrochemically Induced Synthesis of Imidazoles from Vinyl Azides and Benzyl Amines

by
Vera A. Vil’
,
Sergei S. Grishin
and
Alexander O. Terent’ev
*
N. D. Zelinsky Institute of Organic Chemistry, Russian Academy of Sciences, 47 Leninsky Prospect, Moscow 119991, Russia
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(22), 7721; https://doi.org/10.3390/molecules27227721
Submission received: 24 October 2022 / Revised: 5 November 2022 / Accepted: 7 November 2022 / Published: 9 November 2022
(This article belongs to the Special Issue Recent Developments in the Synthesis and Functionalization of Nitrogen Heterocycles)
Browse Figures
Versions Notes

Abstract

:
An electrochemically induced synthesis of imidazoles from vinyl azides and benzyl amines was developed. A wide range of imidazoles were obtained, with yields of 30 to 64%. The discovered transformation is a multistep process whose main steps include the generation of electrophilic iodine species, 2H-azirine formation from the vinyl azide, followed by its reactions with benzyl amine and with imine generated from benzyl amine. The cyclization and aromatization of the obtained intermediate lead to the target imidazole. The synthesis proceeds under constant current conditions in an undivided cell. Despite possible cathodic reduction of various unsaturated intermediates with C=N bonds, the efficient electrochemically induced synthesis of imidazoles was carried out.

1. Introduction

The imidazole family of N-heterocycles is widely found in natural products and pharmaceutical compounds [1,2,3,4,5]. Additionally, imidazoles are used in organic chemistry and material design [6,7]. As a result, various methods have been developed to synthesize 1,2,4-trisubstituted-(1H)-imidazoles [8,9,10]. Substituted imidazoles were obtained from aryl ketones and benzylamines using N-heterocyclic carbene (NHC)/BF3·Et2O/tert-butyl hydroperoxide (TBHP) [11], CuI/BF3·Et2O/O2 [12], I2/HCl/O2 [13], and NaIO4/2,2,6,6-tetramethylpiperidin-1-yl)oxyl (TEMPO) [14] systems (Scheme 1a). The electrochemical cyclization of aryl ketones [15,16] with benzyl amines into 1,2,4-trisubstituted-(1H)-imidazoles was also reported (Scheme 1a). Approaches to 1,2,4-trisubstituted imidazoles via cyclization of enamides [17] and enamines [18] with benzyl amines were developed. However, there are some problems associated with these strategies, due to necessity of stoichiometric chemical reagents or heavy metal residues. Therefore, metal-free and stoichiometric-oxidant-free multicomponent strategies for the synthesis of imidazoles are highly desirable.
Vinyl azides have versatile reactivity: they can be nucleophiles, electrophiles, 1,3-dipoles, or radical acceptors [19,20]. Due to their ability to eliminate N2 during transformation, vinyl azides are convenient precursors in organic synthesis [21,22,23]. It is becoming increasingly popular to use vinyl azides as substrates for the preparation of N-heterocyclic compounds [24]. Oxidative cyclization of vinyl azides and benzyl amines into substituted imidazoles using I2/TBHP was reported (Scheme 1b) [25].
Nowadays, electro-organic synthesis is considered to be among the areas of organic chemistry with the most active development [26,27,28,29,30,31,32,33]. Currently, much attention is devoted to electrochemical synthesis of heterocyclic structures [34,35,36,37,38,39,40], which have always been essential scaffolds in organic chemistry. However, there are only a few examples of the electrochemically induced formation of the C−N bond for the synthesis of heterocyclic compounds such as imidazoles [15,41,42,43].
The electrolysis can be performed in an undivided or divided cell under controlled potential (CPE) or constant current conditions (CCE). Constant current (CCE) conditions benefit from the high current density, shorter process time, and technically convenient reaction setup. Using an undivided cell is more practical, but at the same time, undesirable processes connected to the counter-electrode action at reaction intermediates must be avoided.
As far as we know, the electrochemical method for the synthesis of substituted imidazoles using vinyl azides has not been disclosed yet. Inspired by the synthetic application of vinyl azides and our experience in the organic electrosynthesis [44], herein, we report an electrochemical approach to imidazoles from vinyl azides and benzyl amines (Scheme 1c).

2. Results and Discussion

We began testing our hypotheses using (1-azidovinyl)benzene 1a and benzyl amine 2a as the model substrates in N,N-dimethylformamide (DMF) with tetrabutylammonium iodide (TBAI) as the electrolyte under electrolysis at 30 mA (j = 10 mA/cm2) with 4.0 F/mol electricity passed, as shown in Table 1. To our delight, the expected 1-benzyl-2,4-diphenyl-1H-imidazole (3a) was isolated, with a yield of 24% from the crude mixture (entry 1, Table 1). We then investigated other reaction parameters. The detailed optimization of the imidazole electrosynthesis is presented in SI (Table S1).
Screening of electrolytes indicated that KI (37%, entry 2) was superior to TBAI and LiClO4, which gave lower yields (entries 1 and 3, 24% and 22%, respectively). The yield of 3a has not risen with an increase in benzyl amine amount to 4.0 eq. (entry 4). The addition of p-TsOH·H2O improved the 3a yield up to 48% (entry 5). The product (3a) was isolated, with a yield of 39% with the applied current density 20 mA/cm2 (entry 6). The yield increased as the amount of electricity passed achieved 6.0 F/mol (entry 7). When the electric current was absent, traces of the product formed (entry 8). Several acids were later screened. When H2SO4 or CH3SO3H were employed, the expected product (3a) was not detected (entries 9, 10); the replacement of p-TsOH·H2O with Amberlyst-15 dramatically lowered the yield (entry 11). To compare the influence of the cathode materials, the reaction was carried out with glassy carbon, stainless steel, and nickel cathodes (entries 12–14). Nickel cathode was almost as effective as platinum (48%, entries 7 and 14), the others were less. Product 3a was obtained with a yield of 36% when a graphite plate was employed as anode (entry 15), and even lower yield was observed with platinum plate as anode (entry 16). Similar efficiency was obtained when dimethyl sulfoxide (DMSO) (34%, entry 17) was used as a solvent. However, the yield of product 3a decreased to 18% when the reaction was performed in PhCl (entry 18). The reduction in the temperature to 70 °C led to the best 3a yield (61%, entry 19). A further reduction in the temperature to 50 °C significantly drops the yield of the cyclization product, suggesting that the temperature also plays a crucial role in the electrochemical cyclization (entry 20). Under optimal conditions (yield 3a 61%, entry 19), a complete conversion of 1a was observed, with no evidence of byproducts that could be isolated.
With the best conditions in hand (Table 1, entry 19), we next turned our attention to the scope of various vinyl azides 1 as depicted in Scheme 2. Substituted (1-azidovinyl)benzenes 1 were subjected to transformation under the reaction conditions. All (1-azidovinyl)benzenes 1 containing electron-donating (e.g., CH3, t-Bu, and OCH3) as well as electron-withdrawing groups (e.g., F, Br, and Cl) worked well, affording the desired products 3a–3i with yields of 34–64%. (1-Azidovinyl)benzene 1j with the other azido-group gave the desired product 3j with a yield of 30%. The aliphatic vinyl azide 1k did not provide the cyclization product, and the possible reason is insufficient stabilization of the imine-enamine intermediates due to the lack of a conjugated bond system.
Subsequently, representative amines 2 with electron-donating and electron-withdrawing groups were evaluated (Scheme 3). The various benzyl amines 2 were suitable for this transformation, giving the desired products 3l–p, with yields of 35–55%. 2-(Aminomethyl)furan and 3-(aminomethyl)pyridine afforded the corresponding products 3q and 3r with yields of 38% and 30%, respectively. The application of 1-aminohexane did not lead to the cyclization product.
In order to determine the reaction mechanism, we conducted a series of control experiments (Scheme 4). Firstly, 1a and 2a were placed with iodine (4.0 eq.) as the oxidant, so the target product 3a was not observed, and acetophenone was isolated in a 20% yield (Scheme 4a). This result demonstrated the unique reactivity of the electrochemical system, which is far more complex than the iodine generation. Moreover, ω-iodoacetophenone 4 and acetophenone 5, instead of 1a, were investigated under electrochemical conditions (Scheme 4b,c). The reaction of ω-iodoacetophenone 4 with benzyl amine 2a did not lead to the desired imidazole 3a, unlike the reaction of acetophenone 5 with benzyl amine 2a. The imidazole 3a was synthesized from acetophenone, 5 with a low yield of 14% under optimal conditions (Scheme 4c). These results implied that the iodination of α-carbon in the vinyl substrate might not be the required reaction step. The substrate 2a was employed to react with 3-phenyl-2H-azirine 6; the product 3a was obtained with a yield of 35%, thus 3-phenyl-2H-azirine 6 might be the intermediate in electrochemically induced synthesis of substituted imidazoles (Scheme 4d).
To understand the influence of the cathodic processes and p-TsOH on the yield of 3a, we performed comparative electrochemical experiments in undivided and divided electrochemical cells (Scheme 5). There is no significant difference in 3a yield between an undivided and divided electrochemical cells in the presence of p-TsOH. Without acid the reaction in the divided cell resulted in higher yields than in the undivided one. So, in the undivided cell, an acid is likely reduced on the cathode, preventing cathodic side processes.
Cyclic voltammetry (CV) was used to study the redox potentials of the substrates (Figure 1). The mixture of DMF and p-TsOH∙H2O did not show considerable reactivity in anodic oxidation under the potential below 1.4 V (curve a). The KI demonstrated two reversible anodic waves at 0.4 and 0.9 V in the presence of the acid, which is in accordance with the triiodide (I3−) and iodine (I2) formation (curve b) [45]. The CV of vinyl azide 1a and p-TsOH∙H2O exhibited a broad and reversible wave above 1.0 V (curve c). The mixture of benzyl amine 2a and p-TsOH∙H2O turned out to be electrochemically inert under the potential below 1.5 V (curve d). The addition of KI to the mixture of benzyl amine 2a and p-TsOH∙H2O led to decreased oxidation and reduction peaks of KI (curves b, d, e). The mixture vinyl azide 1a, benzyl amine 2a, KI, and p-TsOH∙H2O (curves e, f) demonstrated increased oxidation peaks, which may indicate the oxidation of the reaction products from vinyl azide 1a with electrochemically generated intermediates from benzyl amine 2a, KI, and p-TsOH∙H2O.
Based on our experimental results and previous works [17,25,46], a plausible reaction mechanism for electrochemical transformation of vinyl azides and benzyl amines into imidazoles was proposed in Scheme 6. First, molecular iodine is generated via the anodic oxidation of I− [15,16,22]. Generated I2 can further react with the I− to result in I3− formation or with traces of water from the solvent, as well as OH− generated on the cathode, to give electrophilic iodine species [47,48]. Then, molecular iodine oxidizes 2a to form imine 8. The vinyl azide 1a is converted to 2H-azirine 6 by thermal decomposition. A nucleophilic attack of starting benzyl amine 2a to 2H-azirine 6 leads to intermediate 7 [25]. Subsequently, 7 reacts with imine 8 to provide intermediate 9, which has imine-enamine tautomerism with intermediate 10 under optimized conditions. Due to this tautomerism, two routes are possible. The route I includes the oxidation of 10 into intermediate 11, further cyclization into intermediate 12, and ammonia elimination providing the target imidazole 3a. According to route II, intermediate 9 cyclizes into imidazolidine 13, which eliminates NH3 with the formation of intermediate 14. The oxidation of 14 results in imidazole 3a.

3. Materials and Methods

3.1. General Materials and Methods

1H and 13C NMR spectra were recorded on Bruker AVANCE II 300 spectrometer (300.13 and 75.48 MHz, respectively) in CDCl3. Chemical shifts were reported in parts per million (ppm), and the residual solvent peak was used as an internal reference: 1H (CDCl3 δ = 7.25 ppm), 13C (CDCl3 δ = 77.00 ppm). Multiplicity was indicated as follows: s (singlet), d (doublet), t (triplet), q (quartet), sept (septet), m (multiplet).
High-resolution mass spectra (HR-MS) were measured on a Bruker micrOTOF II instrument using electrospray ionization (ESI). The measurements were performed in a positive ion mode (interface capillary voltage—4500 V); mass range from m/z 50 to m/z 3000 Da; external calibration with Electrospray Calibrant Solution (Fluka). A syringe injection was used for all acetonitrile solutions (flow rate 3 µL/min). Nitrogen was applied as a dry gas; interface temperature was set at 180 °C.
FT-IR spectra were recorded on Bruker Alpha instrument.
The TLC analysis was carried out on standard silica gel chromatography plates (DC-Fertigfolien ALUGRAMR Xtra SIL G/UV254). Column chromatography was performed using silica gel (0.040–0.060 mm, 60 A).
DMF, p-TsOH°H2O, TBAI, KI, NH4I, NH4Br, LiClO4, H2SO4, CH3SO3H, Amberlyst-15, and chlorobenzene were purchased from commercial sources and were used as is. All solvents were distilled before use using standard procedures.

3.2. Synthesis of Starting Compounds

(1-Azidovinyl)benzene (1a), 1-(1-azidovinyl)-4-methylbenzene (1b), 1-(1-azidovinyl)-4-tertbutylbenzene (1c), 1-(1-azidovinyl)-3-methylbenzene (1d), 1-(1-azidovinyl)-4-methoxylbenzene (1e), 1-(1-azidovinyl)-4-fluorobenzene (1f), 1-(1-azidovinyl)-4-bromobenzene (1g), 1-(1-azidovinyl)-3-bromobenzene (1h), and 1-(1-azidovinyl)-2-chlorobenzene (1i) were synthesized according to the literature through the bromination of corresponding styrenes followed by the reaction of dibromides with NaN3 [49]. 1-(Azidomethyl)-4-(1-azidovinyl)benzene (1j) was synthesized according the same procedure from 1-(chloromethyl)-4-vinylbenzene as a result of simultaneous azidation of formed dibromide and nucleophilic substitution of chlorine atom [49]. 2-Azidododec-1-ene was synthesized according to the literature through the reaction between styrenes and I2/NaN3 system followed by dehydroiodination with t-BuOK [50].
Amines 2 were obtained from commercial suppliers and used without further purification.

3.3. Electrochemical Cell

For the electrosynthesis glassy carbon and platinum plates from Russian commercial suppliers were used as electrodes (glassy carbon: CУ-2000: TУ 1916-027-27208846-01; platinum grade: AISI 304). The reactions were performed in a common chemical tube. Undivided electrochemical cell equipped with glassy carbon plate anode and platinum plate cathode with reaction mixture during electrolysis under constant current conditions. The detailed electrochemical equipment was presented in our previous study [44].
Before all electrochemical reactions, the electrodes were placed into a 5 M solution of KOH and this mixture was electrolyzed for 10 min at j = 200 mA/cm2. After that, the polarity of electrodes was changed and the mixture was electrolyzed under these conditions again. After electrolysis, the electrodes were washed with running water and then with acetone. All these procedures help to clean the electrodes from the impurities from the previous electrolysis.

3.4. General Experimental Procedure for Scheme 2 and Scheme 3

An undivided cell was equipped with a glassy carbon anode (3 cm2) and a platinum plate cathode (3 cm2) and connected to a DC regulated power supply. The solution of 1a (1.0 mmol, 1.0 eq.), 2a (2.0 mmol, 2.0 eq.), p-TsOH°H2O (2.0 mmol, 380.0 mg, 2.0 eq.), and KI (1.0 mmol, 166.0 mg, 1.0 eq.) in 10 mL of DMF was electrolyzed using constant current conditions at 70 °C under magnetic stirring for 160 min with I = 60 mA (j = 20 mA/cm2). After that, the reaction mixture was diluted with H2O (30 ml) and washed with mixture of PE and ethyl acetate (1:1) (2 × 30 mL). The combined organic layer was washed with a 0.3 M solution of Na2S2O3 (2 × 10 mL), water (2 × 10 mL), dried over Na2SO4 and concentrated under reduced pressure using a rotary evaporator (15–20 mmHg), (bath temperature, ca. 30–40 °C). Product 3 was isolated by chromatography on SiO2.

3.4.1. 1-Benzyl-2,4-diphenyl-1H-imidazole (3a)

Yellow solid. Yield 61% (189.7 mg, 0.61 mmol, PE/EtOAc = from 15:1 to 2:1 as eluent), mp = 123–124 °C (lit. [25] mp = 123–124 °C). Rf = 0.36 (PE:EtOAc = 5:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.88 (d, J = 7.4 Hz, 2H), 7.68–7.58 (m, 2H), 7.51–7.43 (m, 3H), 7.43–7.35 (m, 5H), 7.33–7.27 (m, 2H), 7.23–7.13 (m, 2H), 5.26 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 148.7, 141.6, 136.9, 134.2, 130.5, 129.1, 128.7, 128.6, 128.0, 126.9, 126.7, 125.0, 116.9, 50.5. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C22H19N2]+: 311.1543. Found: 311.1543. IR (KBr): 3469, 3034, 1651, 1474, 1446, 1398, 772, 736, 697 cm−1. The compound was previously described in [25].

3.4.2. 1-Benzyl-2-phenyl-4-(p-tolyl)-1H-imidazole (3b)

Yellow solid. Yield 52% (168.5 mg, 0.52 mmol, PE/EtOAc = from 15:1 to 2:1 as eluent), mp = 140–142 °C (lit. [25] mp = 138–140 °C). Rf = 0.37 (PE:EtOAc = 5:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.75 (d, J = 8.0 Hz, 2H), 7.68–7.58 (m, 2H), 7.47–7.38 (m, 3H), 7.37–7.28 (m, 3H), 7.24–7.10 (m, 5H), 5.21 (s, 2H), 2.36 (s, 3H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 148.5, 141.6, 137.0, 136.6, 131.2, 130.5, 129.3, 129.2, 129.1, 128.7, 128.1, 126.8, 125.0, 116.5, 50.6, 21.3. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C23H21N2]+: 325.1699. Found: 325.1696. IR (KBr): 3542, 3498, 3468, 3438, 3066, 3029, 2957, 2924, 2855, 1729, 1644, 1646, 1273, 1178, 822, 763, 731, 698 cm−1. The compound was previously described in [25].

3.4.3. 1-Benzyl-4-(4-(tert-butyl)phenyl)-2-phenyl-1H-imidazole (3c)

Yellow liquid. Yield 64% (234.6 mg, 0.64 mmol, PE/EtOAc = from 15:1 to 2:1 as eluent). Rf = 0.25 (PE:EtOAc = 5:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.80 (d, J = 8.3 Hz, 2H), 7.68–7.58 (m, 2H), 7.46–7.37 (m, 5H), 7.37–7.29 (m, 3H), 7.23 (s, 1H), 7.13 (d, J = 6.6 Hz, 2H), 5.22 (s, 2H), 1.36 (s, 9H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 149.9, 148.5, 141.7, 137.1, 131.3, 130.6, 129.2, 129.1, 129.0, 128.7, 128.0, 126.7, 125.5, 124.8, 116.6, 50.6, 34.6, 31.5. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C26H27N2]+: 367.2169. Found: 367.2165. IR (KBr): 3465, 3444, 3142, 3116, 3064, 3029, 2957, 2866, 1604, 1495, 1470, 1451, 1415, 1365, 1202, 836, 773, 730, 699, 522 cm−1. The compound was previously described in [25].

3.4.4. 1-Benzyl-2-phenyl-4-(m-tolyl)-1H-imidazole (3d)

Yellow solid. Yield 44% (142.7 mg, 0.44 mmol, PE/EtOAc = from 15:1 to 2:1 as eluent), mp = 124–126 °C (lit. [15] mp = 125–126 °C). Rf = 0.23 (PE:EtOAc = 5:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.78 (s, 1H), 7.69–7.59 (m, 3H), 7.47–7.38 (m, 3H), 7.39–7.27 (m, 4H), 7.24 (s, 1H), 7.17–7.07 (m, 3H), 5.18 (s, 2H), 2.41 (s, 3H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 148.5, 141.5, 138.1, 136.9, 133.9, 130.4, 128.98, 128.95, 128.6, 128.4, 127.9, 127.6, 126.6, 125.6, 122.0, 116.9, 50.4, 21.5. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C23H21N2]+: 325.1699. Found: 325.1695. IR (KBr): 3471, 3134, 3030, 2952, 2918, 1604, 1449, 1402, 1359, 753, 696 cm−1. The compound was previously described in [15].

3.4.5. 1-Benzyl-4-(4-methoxyphenyl)-2-phenyl-1H-imidazole (3e)

Yellow liquid. Yield 34% (115.6 mg, 0.34 mmol, PE/EtOAc = from 10:1 to 2:1 as eluent). Rf = 0.13 (PE:EtOAc = 5:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.78 (d, J = 8.6 Hz, 2H), 7.67–7.57 (m, 2H), 7.47–7.39 (m, 3 H), 7.38–7.30 (m, 3H), 7.19–7.10 (m, 3H), 6.92 (d, J = 8.6 Hz, 2H), 5.21 (s, 2H), 3.82 (s, 3H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 159.0, 148.4, 141.3, 136.9, 130.2, 129.21, 129.15, 128.8, 128.1, 126.8, 126.7, 126.4, 115.9, 114.1, 55.4, 50.7. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C23H21N2O]+: 341.1648. Found: 341.1649. IR (KBr): 3446, 3427, 3126, 3103, 3060, 3030, 2959, 2835, 1612, 1559, 1497, 1453, 1248, 1172, 1024, 833, 765, 698, 526 cm−1. The compound was previously described in [15].

3.4.6. 1-Benzyl-4-(4-fluorophenyl)-2-phenyl-1H-imidazole (3f)

Yellow solid. Yield 53% (174.0 mg, 0.53 mmol, PE/EtOAc = from 10:1 to 2:1 as eluent), mp = 105–107 °C (lit. [25] mp = 106–107 °C). Rf = 0.67 (PE:EtOAc = 2:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.87–7.75 (m, 2H), 7.66–7.57 (m, 2H), 7.46–7.39 (m, 3H), 7.38–7.31 (m, 3H), 7.19 (s, 1H), 7.17–7.10 (m, 2H), 7.09–7.00 (m, 2H), 5.20 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 162.0 (d, J = 245.4 Hz), 148.7, 140.7, 136.8, 130.4 (d, J = 2.8 Hz), 129.12, 129.07, 129.0, 128.7, 128.1, 126.7, 126.60 (d, J = 7.9 Hz), 116.5, 115.4 (d, J = 21.5 Hz), 50.55. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C22H18FN2]+: 329.1449. Found: 329.1443. IR (KBr): 3458, 3059, 3032, 2357, 1644, 1495, 1348, 1218, 1156, 840, 761, 731, 695, 583, 519 cm−1. The compound was previously described in [25].

3.4.7. 1-Benzyl-4-(4-bromophenyl)-2-phenyl-1H-imidazole (3g)

Yellow solid. Yield 56% (218.0 mg, 0.56 mmol, PE/EtOAc = from 10:1 to 2:1 as eluent), mp = 166–167 °C (lit. [25] mp = 164–166 °C). Rf = 0.71 (PE:EtOAc = 2:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.72 (d, J = 8.4 Hz, 2H), 7.66–7.57 (m, 2H), 7.48 (d, J = 8.4 Hz, 2H), 7.46–7.40 (m, 3H), 7.39–7.30 (m, 3H), 7.22 (s, 1H), 7.17–7.08 (m, 2H), 5.19 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 148.8, 140.4, 136.7, 133.1, 131.6, 130.2, 129.2, 129.1, 129.0, 128.7, 128.1, 126.8, 126.6, 120.5, 117.1, 50.6. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C22H18BrN2]+: 389.0648, 391.0628. Found: 389.0645, 391.0628. IR (KBr): 3472, 3129, 3059, 3025, 2977, 2952, 1599, 1550, 1478, 1413, 1188, 1070, 946, 830, 767, 701, 506 cm−1. The compound was previously described in [25].

3.4.8. 1-Benzyl-4-(3-bromophenyl)-2-phenyl-1H-imidazole (3h)

Yellow solid. Yield 42% (163.5 mg, 0.42 mmol, PE/EtOAc = from 10:1 to 2:1 as eluent), mp = 104–106 °C. Rf = 0.69 (PE:EtOAc = 2:1). 1H NMR (300.13 MHz, CDCl3, δ): 8.02 (s, 1H), 7.75 (d, J = 7.7 Hz, 1H), 7.66–7.56 (m, 2 H), 7.48–7.39 (m, 3H), 7.38–7.29 (m, 4H), 7.25–7.17 (m, 2H), 7.17–7.09 (m, 2H), 5.21 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 148.9, 140.2, 136.7, 136.3, 130.3, 130.2, 129.7, 129.3, 129.2, 129.1, 128.8, 128.2, 128.0, 126.8, 123.5, 122.9, 117.5, 50.7. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C22H18BrN2]+: 389.0648. Found: 389.0645. IR (KBr): 3477, 3129, 3062, 3031, 2951, 1600, 1566, 1468, 1450, 1205, 1072, 956, 872, 735, 697, 461 cm−1.

3.4.9. 1-Benzyl-4-(2-chlorophenyl)-2-phenyl-1H-imidazole (3i)

Yellow liquid. Yield 36% (124.2 mg, 0.36 mmol, PE/EtOAc = from 15:1 from 2:1 as eluent). Rf = 0.31 (PE:EtOAc = 5:1). 1H NMR (300.13 MHz, CDCl3, δ): 8.35 (dd, J = 7.9, 1.6 Hz, 1H), 7.77 (s, 1H), 7.67–7.58 (m, 2H), 7.46–7.39 (m, 4H), 7.38–7.30 (m, 4H), 7.22–7.10 (m, 3H), 5.26 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 147.8, 137.6, 136.9, 132.5, 130.9, 130.4, 130.2, 129.8, 129.12, 129.07, 128.7, 128.0, 127.5, 126.9, 126.6, 121.7, 50.6. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C22H18ClN2]+: 345.1153. Found: 345.1149. IR (KBr): 3449, 3147, 3057, 3031, 1473, 1451, 1426, 1351, 1182, 1047, 764, 736, 700, 560 cm−1. The compound was previously described in [25].

3.4.10. 4-(4-(Azidomethyl)phenyl)-1-benzyl-2-phenyl-1H-imidazole (3j)

Yellow liquid. Yield 30% (109.6 mg, 0.30 mmol, PE/EtOAc = from 15:1 to 2:1 as eluent). Rf = 0.55 (PE:EtOAc = 2:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.86 (d, J = 8.2 Hz, 2H), 7.66–7.56 (m, 2H), 7.48–7.39 (m, 3H), 7.38–7.28 (m, 5H), 7.26 (s, 1H), 7.18–7.08 (m, 2H), 5.20 (s, 2H), 4.32 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 148.8, 141.0, 136.8, 134.2, 133.7, 130.4, 129.14, 129.07, 128.7, 128.6, 128.1, 126.8, 125.4, 117.2, 54.8, 50.6. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C23H20N5]+: 366.1713. Found: 366.1712. IR (KBr): 3108, 3063, 3031, 2929, 2875, 2098, 1613, 1498, 1471, 1452, 1422, 1355, 1249, 1181, 1075, 1021, 948, 848, 771, 732, 699 cm−1.

3.4.11. 1-(4-Methoxybenzyl)-2-(4-methoxyphenyl)-4-phenyl-1H-imidazole (3l)

Yellow liquid. Yield 35% (129.7 mg, 0.35 mmol, PE/EtOAc = 5:1 as eluent). Rf = 0.38 (PE:EtOAc = 2:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.80 (d, J = 7.3 Hz, 2H), 7.57–7.47 (m, 2H), 7.33 (t, J = 7.6 Hz, 2H), 7.24–7.14 (m, 2H), 7.04 (d, J = 8.6 Hz, 2H), 6.96–6.89 (m, 2H), 6.88–6.78 (m, 2H), 5.09 (s, 2H), 3.81 (s, 3H), 3.77 (s, 1H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 160.3, 159.4, 148.5, 141.3, 134.3, 130.5, 129.0, 128.6, 128.2, 126.8, 125.0, 123.2, 116.5, 114.5, 114.1, 55.44, 55.42, 50.1. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C24H23N2O2]+: 371.1754. Found: 371.1751. IR (KBr): 3130, 3060, 3033, 3002, 2957, 2935, 2834, 1611, 1514, 1485, 1457, 1295, 1253, 1177, 1029, 838, 735, 697, 611, 518 cm−1. The compound was previously described in [25].

3.4.12. 1-(4-Chlorobenzyl)-2-(4-chlorophenyl)-4-phenyl-1H-imidazole (3m)

Yellow liquid. Yield 55% (208.6 mg, 0.55 mmol, PE/EtOAc = from 15:1 to 2:1 as eluent). Rf = 0.29 (PE:EtOAc = 5:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.80 (d, J = 7.5 Hz, 2H), 7.54–7.44 (m, 2H), 7.42–7.35 (m, 4H), 7.34–7.27 (m, 2H), 7.26–7.18 (m, 2H), 7.01 (d, J = 8.3 Hz, 2H), 5.12 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 147.4, 142.0, 135.3, 135.1, 134.1, 133.8, 130.2, 129.4, 129.0, 128.8, 128.7, 128.0, 127.2, 125.0, 117.1, 50.0. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C22H17Cl2N2]+: 379.0763. Found: 379.0760. IR (KBr): 3130, 3062, 3032, 2931, 1896, 1606, 1489, 1450, 1411, 1180, 1092, 1014, 947, 910, 837, 732. 696, 488 cm−1. The compound was previously described in [25].

3.4.13. 1-(2-Chlorobenzyl)-2-(2-chlorophenyl)-4-phenyl-1H-imidazole (3n)

Yellow solid. Yield 40% (151.7 mg, 0.40 mmol, PE/EtOAc = from 15:1 to 2:1 as eluent), mp = 134–136 °C (lit. [15] mp = 135–136 °C). Rf = 0.22 (PE:EtOAc = 5:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.81 (d, J = 7.4 Hz, 2H), 7.51–7.42 (m, 2H), 7.40–7.27 (m, 5H), 7.25–7.11 (m, 4H), 6.97–6.87 (m, 1H), 5.08 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 145.9, 141.5, 134.7, 133.9, 133.8, 133.1, 132.8, 131.1, 129.9, 129.7, 129.5, 129.3, 128.6, 127.3, 127.0, 126.9, 124.9, 115.9, 48.2. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C22H17Cl2N2]+: 379.0763. Found: 379.0761. IR (KBr): 3138, 3057, 2937, 2854, 1604, 1446, 1405, 1382, 1336, 1192, 1028, 948, 915, 753, 697, 506 cm−1. The compound was previously described in [15].

3.4.14. 1-(4-Fluorobenzyl)-2-(4-fluorophenyl)-4-phenyl-1H-imidazole (3o)

Yellow liquid. Yield 40% (138.6 mg, 0.40 mmol, PE/EtOAc = from 10:1 to 2:1 as eluent). Rf = 0.62 (PE:EtOAc = 2:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.87–7.77 (m, 2H), 7.60–7.49 (m, 2H), 7.36 (t, J = 7.6 Hz, 2H), 7.28–7.22 (m, 1H), 7.21 (s, 1H), 7.16–7.09 (m, 1H), 7.09–6.97 (m, 5H), 5.12 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 164.5 (d, J = 247.0 Hz), 161.24 (d, J = 245.2Hz), 147.6, 141.7, 133.9, 132.4 (d, J = 3.3 Hz), 131.0 (d, J = 8.4 Hz), 128.7, 128.5 (d, J = 8.2 Hz), 127.1, 126.6 (d, J = 3.7 Hz), 125.0, 116.8, 116.1 (d, J = 19.4 Hz), 115.8 (d, J = 19.7 Hz), 49.9. 19F NMR (282 MHz, CDCl3) δ -112.31, -114.50. HRMS (ESI-TOF) m/z [M + H]+: Calcd for [C22H17F2N2]+: 347.1354. Found: 347.1354. IR (KBr): 3129, 3065, 3038, 2932, 1607, 1511, 1485, 1451, 1419, 1226, 1159, 1097, 1015, 947, 910, 843, 733, 697, 607, 505 cm−1. The compound was previously described in [15].

3.4.15. 1-(3,4-Dimethoxybenzyl)-2-(3,4-dimethoxyphenyl)-4-phenyl-1H-imidazole (3p)

Yellow solid. Yield 38% (163.6 mg, 0.38 mmol, PE/EtOAc = 3:1 as eluent), mp = 181–183 °C (lit. [25] mp = 182–184 °C). Rf = 0.15 (PE:EtOAc = 2:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.84 (d, J = 7.4 Hz, 2H), 7.36 (t, J = 7.4 Hz, 2 H), 7.28–7.17 (m, 3H), 7.13 (d, J = 8.6 Hz, 1H), 6.94–6.79 (m, 2H), 6.74–6.66 (m, 1H), 6.63 (s, 1H), 5.16 (s, 2H), 3.90 (s, 3H), 3.87 (s, 3H), 3.82 (s, 3H), 3.80 (s, 3H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 149.9, 149.5, 149.1, 148.9, 148.4, 141.1, 133.9, 129.4, 128.6, 126.9, 125.0, 123.0, 121.6, 119.1, 116.7, 112.5, 111.6, 111.1, 109.9, 56.0, 55.9, 50.4. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C26H27N2O4]+: 431.1965. Found: 431.1969. IR (KBr): 3453, 3130, 3099, 3012, 2959,2936,2835, 1606, 1515, 1442, 1320, 1261, 1244, 1141, 1025, 812, 765, 723, 696 cm−1. The compound was previously described in [25].

3.4.16. 2-(Furan-2-yl)-1-(furan-2-ylmethyl)-4-phenyl-1H-imidazole (3q)

Yellow liquid. Yield 38% (110.3 mg, 0.38 mmol, PE/EtOAc = from 10:1 to 2:1 as eluent). Rf = 0.55 (PE:EtOAc = 2:1). 1H NMR (300.13 MHz, CDCl3, δ): 7.81 (d, J = 7.4 Hz, 2H), 7.58–7.51 (m, 1H), 7.40–7.30 (m, 3H), 7.25–7.20 (m, 2H), 6.96 (d, J = 3.4 Hz, 1H), 6.58–6.49 (m, 1H), 6.36–6.31 (m, 1H), 6.31–6.26 (m, 1H), 5.36 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 149.3, 145.4, 143.1, 142.9, 141.7, 139.1, 133.7, 128.6, 127.0, 125.1, 116.7, 111.7, 110.7, 110.4, 109.1, 44.0. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C18H15N2O2]+: 291.1128. Found: 291.1125. IR (KBr): 3124, 3061, 3032, 2928, 2853, 1678, 1606, 1482, 1446, 1343, 1222, 1185, 1149, 1073, 1011, 948, 909, 885, 816, 736, 696, 596, 504 cm−1. The compound was previously described in [15].

3.4.17. 3-(4-Phenyl-1-(Pyridin-3-Ylmethyl)-1H-Imidazol-2-yl)Pyridine (3r)

Yellow liquid. Yield 30% (93.7 mg, 0.30 mmol, PE/EtOAc = 1:1 as eluent). Rf = 0.10 (PE:EtOAc = 1:1). 1H NMR (300.13 MHz, CDCl3, δ): 8.80 (s, 1H), 8.61 (d, J = 4.7, 1H), 8.52 (d, J = 4.7, 1H), 8.40 (s, 1H), 7.88 (d, J = 7.8 Hz, 1H), 7.78 (d, J = 7.9 Hz, 2H), 7.40–7.29 (m, 4H), 7.29–7.19 (m, 3H), 5.20 (s, 2H). 13C{1H} NMR (75.48 MHz, CDCl3, δ): 150.1, 149.7, 149.3, 148.2, 145.4, 142.6, 136.4, 134.3, 133.4, 131.9, 128.7, 127.3, 126.5, 125.0, 124.0, 123.6, 117.3, 48.4. HRMS (ESI-TOF) m/z [M + H]+. Calcd for [C20H17N4]+: 313.1448. Found: 313.1440. IR (KBr): 3386, 3127, 3059, 3035, 2934, 2219, 1606, 1575, 1481, 1450, 1426, 1193, 1090, 1027, 912, 816, 731, 644, 507 cm−1.

4. Conclusions

In summary, we have disclosed the electrochemical synthesis of imidazoles from vinyl azides and benzyl amines in moderate to high yields. Application of an electric current makes it possible to conduct the reaction without application of unrecoverable chemical oxidants. The process was carried out under constant current conditions in an experimentally simple undivided electrochemical cell equipped with a platinum cathode and a glassy carbon anode. Potassium iodide served as both a supporting electrolyte and a redox catalyst. With the use of cyclic voltammetry and control experiments, a possible reaction pathway was proposed. Presumably, during the reaction, 2H-azirine is generated from the vinyl azide followed by its reaction with benzyl amine and the corresponding imine. The cyclization and aromatization of the obtained intermediate lead to the target imidazole.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27227721/s1, Figure S1: CV curves; Table S1: Detailed optimization of imidazole electrosynthesis, characterization data of synthesized compounds, NMR spectra, HRMS, and IR spectra.

Author Contributions

Conceptualization, V.A.V. and A.O.T.; methodology, S.S.G.; writing—original draft preparation, V.A.V. and S.S.G.; writing—review and editing, V.A.V. and A.O.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in insert article or Supplementary Materials here.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 3 are available from the authors.

References

  1. Sharma, P.; LaRosa, C.; Antwi, J.; Govindarajan, R.; Werbovetz, K.A. Imidazoles as Potential Anticancer Agents: An Update on Recent Studies. Molecules 2021, 26, 4213. [Google Scholar] [CrossRef]
  2. Fan, Y.-L.; Jin, X.-H.; Huang, Z.-P.; Yu, H.-F.; Zeng, Z.-G.; Gao, T.; Feng, L.-S. Recent advances of imidazole-containing derivatives as anti-tubercular agents. Eur. J. Med. Chem. 2018, 150, 347–365. [Google Scholar] [CrossRef] [PubMed]
  3. Siwach, A.; Verma, P.K. Synthesis and therapeutic potential of imidazole containing compounds. BMC Chem. 2021, 15, 12. [Google Scholar] [CrossRef]
  4. Beltran-Hortelano, I.; Alcolea, V.; Font, M.; Pérez-Silanes, S. The role of imidazole and benzimidazole heterocycles in Chagas disease: A review. Eur. J. Med. Chem. 2020, 206, 112692. [Google Scholar] [CrossRef] [PubMed]
  5. Jin, Z. Muscarine, imidazole, oxazole and thiazole alkaloids. Nat. Prod. Rep. 2009, 26, 382–445. [Google Scholar] [CrossRef] [PubMed]
  6. Ouakki, M.; Galai, M.; Cherkaoui, M. Imidazole derivatives as efficient and potential class of corrosion inhibitors for metals and alloys in aqueous electrolytes: A review. J. Mol. Liq. 2022, 345, 117815. [Google Scholar] [CrossRef]
  7. Chen, W.-C.; Zhu, Z.-L.; Lee, C.-S. Organic Light-Emitting Diodes Based on Imidazole Semiconductors. Adv. Opt. Mater. 2018, 6, 1800258. [Google Scholar] [CrossRef]
  8. Rossi, R.; Angelici, G.; Casotti, G.; Manzini, C.; Lessi, M. Catalytic Synthesis of 1,2,4,5-Tetrasubstituted 1H-Imidazole Derivatives: State of the Art. Adv. Synth. Catal. 2019, 361, 2737–2803. [Google Scholar] [CrossRef]
  9. Daraji, D.G.; Prajapati, N.P.; Patel, H.D. Synthesis and Applications of 2-Substituted Imidazole and Its Derivatives: A Review. J. Heterocycl. Chem. 2019, 56, 2299–2317. [Google Scholar] [CrossRef]
  10. Shabalin, D.A.; Camp, J.E. Recent advances in the synthesis of imidazoles. Org. Biomol. Chem. 2020, 18, 3950–3964. [Google Scholar] [CrossRef]
  11. Alanthadka, A.; Elango, S.D.; Thangavel, P.; Subbiah, N.; Vellaisamy, S.; Chockalingam, U.M. Construction of substituted imidazoles from aryl methyl ketones and benzylamines via N-heterocyclic carbene-catalysis. Catal. Commun. 2019, 125, 26–31. [Google Scholar] [CrossRef]
  12. Cai, Z.-J.; Wang, S.-Y.; Ji, S.-J. CuI/BF3·Et2O Cocatalyzed Aerobic Dehydrogenative Reactions of Ketones with Benzylamines: Facile Synthesis of Substituted Imidazoles. Org. Lett. 2012, 14, 6068–6071. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, H.; Ji, X.; Wu, W.; Jiang, H. Practical Synthesis of Polysubstituted Imidazoles via Iodine- Catalyzed Aerobic Oxidative Cyclization of Aryl Ketones and Benzylamines. Adv. Synth. Catal. 2013, 355, 170–180. [Google Scholar] [CrossRef]
  14. Geng, F.; Wu, S.; Gan, X.; Hou, W.; Dong, J.; Zhou, Y. TEMPO mediated oxidative annulation of aryl methyl ketones with amines/ammonium acetate for imidazole synthesis. Org. Biomol. Chem. 2022, 20, 5416–5422. [Google Scholar] [CrossRef] [PubMed]
  15. Yang, Z.; Zhang, J.; Hu, L.; Li, A.; Li, L.; Liu, K.; Yang, T.; Zhou, C. Electrochemical HI-mediated Intermolecular C–N Bond Formation to Synthesize Imidazoles from Aryl Ketones and Benzylamines. J. Org. Chem. 2020, 85, 5952–5958. [Google Scholar] [CrossRef] [PubMed]
  16. Zeng, L.; Li, J.; Gao, J.; Huang, X.; Wang, W.; Zheng, X.; Gu, L.; Li, G.; Zhang, S.; He, Y. An electrochemical oxidative multicomponent cascade annulation of ketones and amines used to produce imidazoles. Green Chem. 2020, 22, 3416–3420. [Google Scholar] [CrossRef]
  17. Cao, J.; Zhou, X.; Ma, H.; Shi, C.; Huang, G. A facile and efficient method for the synthesis of 1,2,4-trisubstituted imidazoles with enamides and benzylamines. RSC Adv. 2016, 6, 57232–57235. [Google Scholar] [CrossRef]
  18. Wang, W.; Zhang, S.; Shi, G.; Chen, Z. Electrochemical synthesis of 1,2,4,5-tetrasubstituted imidazoles from enamines and benzylamines. Org. Biomol. Chem. 2021, 19, 6682–6686. [Google Scholar] [CrossRef]
  19. Fu, J.; Zanoni, G.; Anderson, E.A.; Bi, X. α-Substituted vinyl azides: An emerging functionalized alkene. Chem. Soc. Rev. 2017, 46, 7208–7228. [Google Scholar] [CrossRef]
  20. Nguyen, T.K.; Titov, G.D.; Khoroshilova, O.V.; Kinzhalov, M.A.; Rostovskii, N.V. Light-induced one-pot synthesis of pyrimidine derivatives from vinyl azides. Org. Biomol. Chem. 2020, 18, 4971–4982. [Google Scholar] [CrossRef]
  21. Yin, W.; Wang, X. Recent advances in iminyl radical-mediated catalytic cyclizations and ring-opening reactions. New J. Chem. 2019, 43, 3254–3264. [Google Scholar] [CrossRef]
  22. Mulina, O.M.; Zhironkina, N.V.; Paveliev, S.A.; Demchuk, D.V.; Terent’ev, A.O. Electrochemically Induced Synthesis of Sulfonylated N-Unsubstituted Enamines from Vinyl Azides and Sulfonyl Hydrazides. Org. Lett. 2020, 22, 1818–1824. [Google Scholar] [CrossRef] [PubMed]
  23. Paveliev, S.A.; Churakov, A.I.; Alimkhanova, L.S.; Segida, O.O.; Nikishin, G.I.; Terent’ev, A.O. Electrochemical Synthesis of O-Phthalimide Oximes from α-Azido Styrenes via Radical Sequence: Generation, Addition and Recombination of Imide-N-Oxyl and Iminyl Radicals with C−O/N−O Bonds Formation. Adv. Synth. Catal. 2020, 362, 3864–3871. [Google Scholar] [CrossRef]
  24. Nayl, A.A.; Aly, A.A.; Arafa, W.A.A.; Ahmed, I.M.; Abd-Elhamid, A.I.; El-Fakharany, E.M.; Abdelgawad, M.A.; Tawfeek, H.N.; Bräse, S. Azides in the Synthesis of Various Heterocycles. Molecules 2022, 27, 3716. [Google Scholar] [CrossRef] [PubMed]
  25. Xiang, L.; Niu, Y.; Pang, X.; Yang, X.; Yan, R. I2-catalyzed synthesis of substituted imidazoles from vinyl azides and benzylamines. Chem. Commun. 2015, 51, 6598–6600. [Google Scholar] [CrossRef]
  26. Yoshida, J.-I.; Kataoka, K.; Horcajada, R.; Nagaki, A. Modern Strategies in Electroorganic Synthesis. Chem. Rev. 2008, 108, 2265–2299. [Google Scholar] [CrossRef]
  27. Frontana-Uribe, B.A.; Little, R.D.; Ibanez, J.G.; Palma, A.; Vasquez-Medrano, R. Organic electrosynthesis: A promising green methodology in organic chemistry. Green Chem. 2010, 12, 2099–2119. [Google Scholar] [CrossRef]
  28. Horn, E.J.; Rosen, B.R.; Baran, P.S. Synthetic Organic Electrochemistry: An Enabling and Innately Sustainable Method. ACS Cent. Sci. 2016, 2, 302–308. [Google Scholar] [CrossRef]
  29. Sperry, J.B.; Wright, D.L. The application of cathodic reductions and anodic oxidations in the synthesis of complex molecules. Chem. Soc. Rev. 2006, 35, 605–621. [Google Scholar] [CrossRef]
  30. Wiebe, A.; Gieshoff, T.; Möhle, S.; Rodrigo, E.; Zirbes, M.; Waldvogel, S.R. Electrifying Organic Synthesis. Angew. Chem. Int. Ed. 2018, 57, 5594–5619. [Google Scholar] [CrossRef]
  31. Yan, M.; Kawamata, Y.; Baran, P.S. Synthetic Organic Electrochemical Methods Since 2000: On the Verge of a Renaissance. Chem. Rev. 2017, 117, 13230–13319. [Google Scholar] [CrossRef] [PubMed]
  32. Waldvogel, S.R.; Janza, B. Renaissance of Electrosynthetic Methods for the Construction of Complex Molecules. Angew. Chem. Int. Ed. 2014, 53, 7122–7123. [Google Scholar] [CrossRef] [PubMed]
  33. Vil’, V.A.; Merkulova, V.M.; Ilovaisky, A.I.; Paveliev, S.A.; Nikishin, G.I.; Terent’ev, A.O. Electrochemical Synthesis of Fluorinated Ketones from Enol Acetates and Sodium Perfluoroalkyl Sulfinates. Org. Lett. 2021, 23, 5107–5112. [Google Scholar] [CrossRef] [PubMed]
  34. Francke, R. Recent advances in the electrochemical construction of heterocycles. Beilstein J. Org. Chem. 2014, 10, 2858–2873. [Google Scholar] [CrossRef]
  35. Jiang, Y.; Xu, K.; Zeng, C. Use of Electrochemistry in the Synthesis of Heterocyclic Structures. Chem. Rev. 2018, 118, 4485–4540. [Google Scholar] [CrossRef]
  36. Sbei, N.; Listratova, A.V.; Titov, A.A.; Voskressensky, L.G. Recent Advances in Electrochemistry for the Synthesis of N-Heterocycles. Synthesis 2019, 51, 2455–2473. [Google Scholar] [CrossRef]
  37. Liang, S.; Zeng, C.-C. Organic electrochemistry: Anodic construction of heterocyclic structures. Curr. Opin. Electrochem. 2020, 24, 31–43. [Google Scholar] [CrossRef]
  38. Ye, Z.; Wu, Y.; Chen, N.; Zhang, H.; Zhu, K.; Ding, M.; Liu, M.; Li, Y.; Zhang, F. Enantiospecific electrochemical rearrangement for the synthesis of hindered triazolopyridinone derivatives. Nat. Commun. 2020, 11, 3628. [Google Scholar] [CrossRef]
  39. Li, Y.; Ye, Z.; Chen, N.; Chen, Z.; Zhang, F. Intramolecular electrochemical dehydrogenative N–N bond formation for the synthesis of 1,2,4-triazolo[1,5-a]pyridines. Green Chem. 2019, 21, 4035–4039. [Google Scholar] [CrossRef]
  40. Ye, Z.; Zhang, F. Recent Advances in Constructing Nitrogen-Containing Heterocycles via Electrochemical Dehydrogenation. Chin. J. Chem. 2019, 37, 513–528. [Google Scholar] [CrossRef]
  41. Feng, M.-L.; Li, S.-Q.; He, H.-Z.; Xi, L.-Y.; Chen, S.-Y.; Yu, X.-Q. Electrochemically initiated intermolecular C–N formation/cyclization of ketones with 2-aminopyridines: An efficient method for the synthesis of imidazo[1,2-a]pyridines. Green Chem. 2019, 21, 1619–1624. [Google Scholar] [CrossRef]
  42. Qian, P.; Yan, Z.; Zhou, Z.; Hu, K.; Wang, J.; Li, Z.; Zha, Z.; Wang, Z. Electrocatalytic Intermolecular C(sp3)–H/N–H Coupling of Methyl N-Heteroaromatics with Amines and Amino Acids: Access to Imidazo-Fused N-Heterocycles. Org. Lett. 2018, 20, 6359–6363. [Google Scholar] [CrossRef] [PubMed]
  43. Qian, P.; Yan, Z.; Zhou, Z.; Hu, K.; Wang, J.; Li, Z.; Zha, Z.; Wang, Z. Electrocatalytic Tandem Synthesis of 1,3-Disubstituted Imidazo[1,5-a]quinolines via Sequential Dual Oxidative C(sp3)–H Amination in Aqueous Medium. J. Org. Chem. 2019, 84, 3148–3157. [Google Scholar] [CrossRef] [PubMed]
  44. Vil’, V.A.; Grishin, S.S.; Baberkina, E.P.; Alekseenko, A.L.; Glinushkin, A.P.; Kovalenko, A.E.; Terent’ev, A.O. Electrochemical Synthesis of Tetrahydroquinolines from Imines and Cyclic Ethers via Oxidation/Aza-Diels-Alder Cycloaddition. Adv. Synth. Catal. 2022, 364, 1098–1108. [Google Scholar] [CrossRef]
  45. El-Hallag, I.S. Electrochemical oxidation of iodide at a glassy carbon electrode in methylene chloride at various temperatures. J. Chilean Chem. Soc. 2010, 55, 67–73. [Google Scholar] [CrossRef] [Green Version]
  46. Sun, J.; Nie, Q.; Fang, X.; He, Z.; Zhang, G.; Li, Y.; Li, Y. Vinyl azide as a synthon for DNA-compatible divergent transformations into N-heterocycles. Org. Biomol. Chem. 2022, 20, 5045–5049. [Google Scholar] [CrossRef]
  47. Wen, J.; Shi, W.; Zhang, F.; Liu, D.; Tang, S.; Wang, H.; Lin, X.-M.; Lei, A. Electrooxidative Tandem Cyclization of Activated Alkynes with Sulfinic Acids To Access Sulfonated Indenones. Org. Lett. 2017, 19, 3131–3134. [Google Scholar] [CrossRef]
  48. Liu, K.; Song, C.; Lei, A. Recent advances in iodine mediated electrochemical oxidative cross-coupling. Org. Biomol. Chem. 2018, 16, 2375–2387. [Google Scholar] [CrossRef]
  49. Dey, R.; Banerjee, P. Lewis Acid Catalyzed Diastereoselective Cycloaddition Reactions of Donor–Acceptor Cyclopropanes and Vinyl Azides: Synthesis of Functionalized Azidocyclopentane and Tetrahydropyridine Derivatives. Org. Lett. 2017, 19, 304–307. [Google Scholar] [CrossRef]
  50. Andresini, M.; Degannaro, L.; Luisi, R. A sustainable strategy for the straightforward preparation of 2H-azirines and highly functionalized NH-aziridines from vinyl azides using a single solvent flow-batch approach. Beilstein J. Org. Chem. 2021, 17, 203–209. [Google Scholar] [CrossRef]
Molecules 27 07721 sch001 550

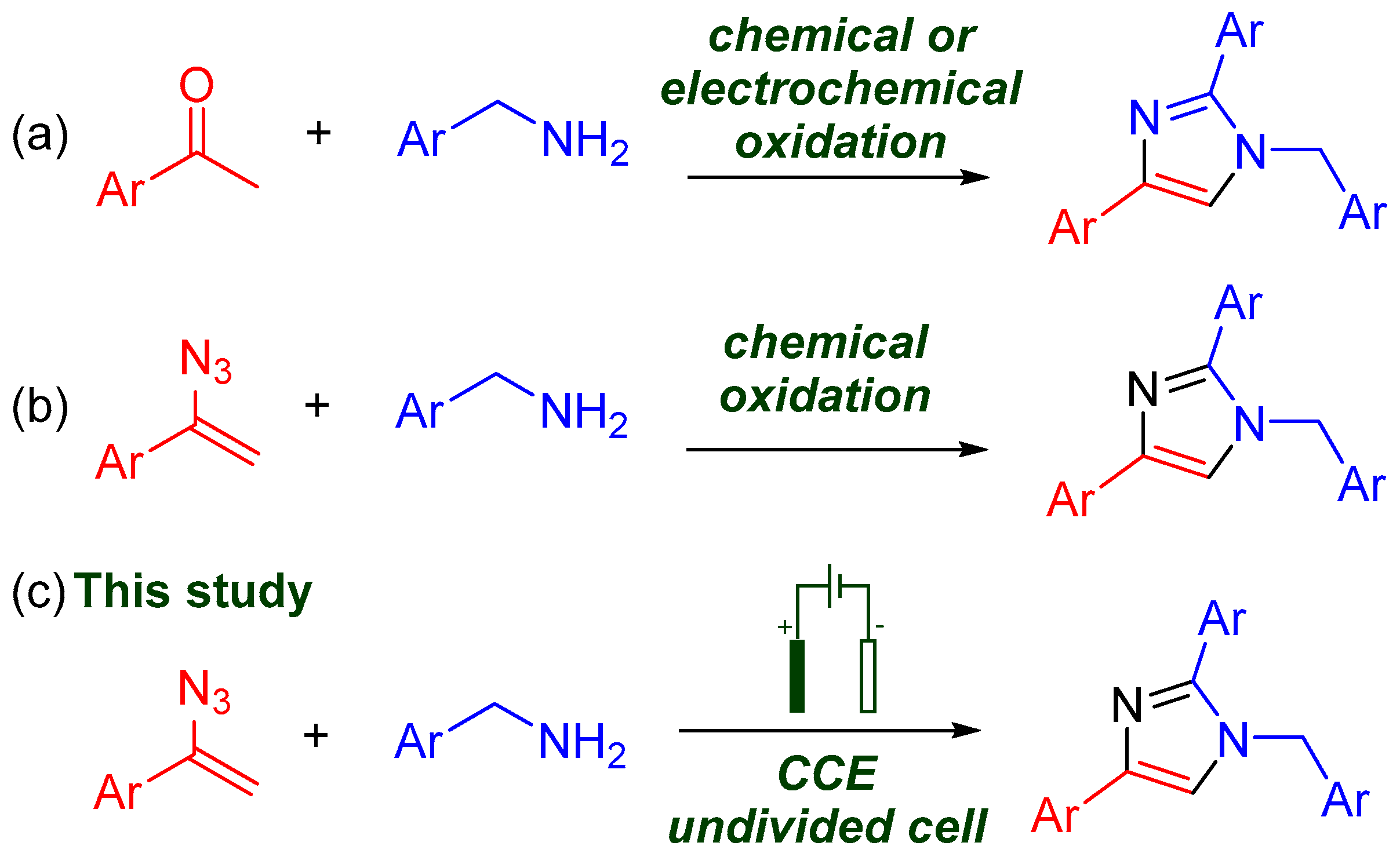

Scheme 1. (a,b) Known methods for the synthesis of 1,2,4-trisubstituted imidazoles. (c) The presented herein method for imidazole synthesis.
Scheme 1. (a,b) Known methods for the synthesis of 1,2,4-trisubstituted imidazoles. (c) The presented herein method for imidazole synthesis.
Molecules 27 07721 sch001
Molecules 27 07721 sch002 550

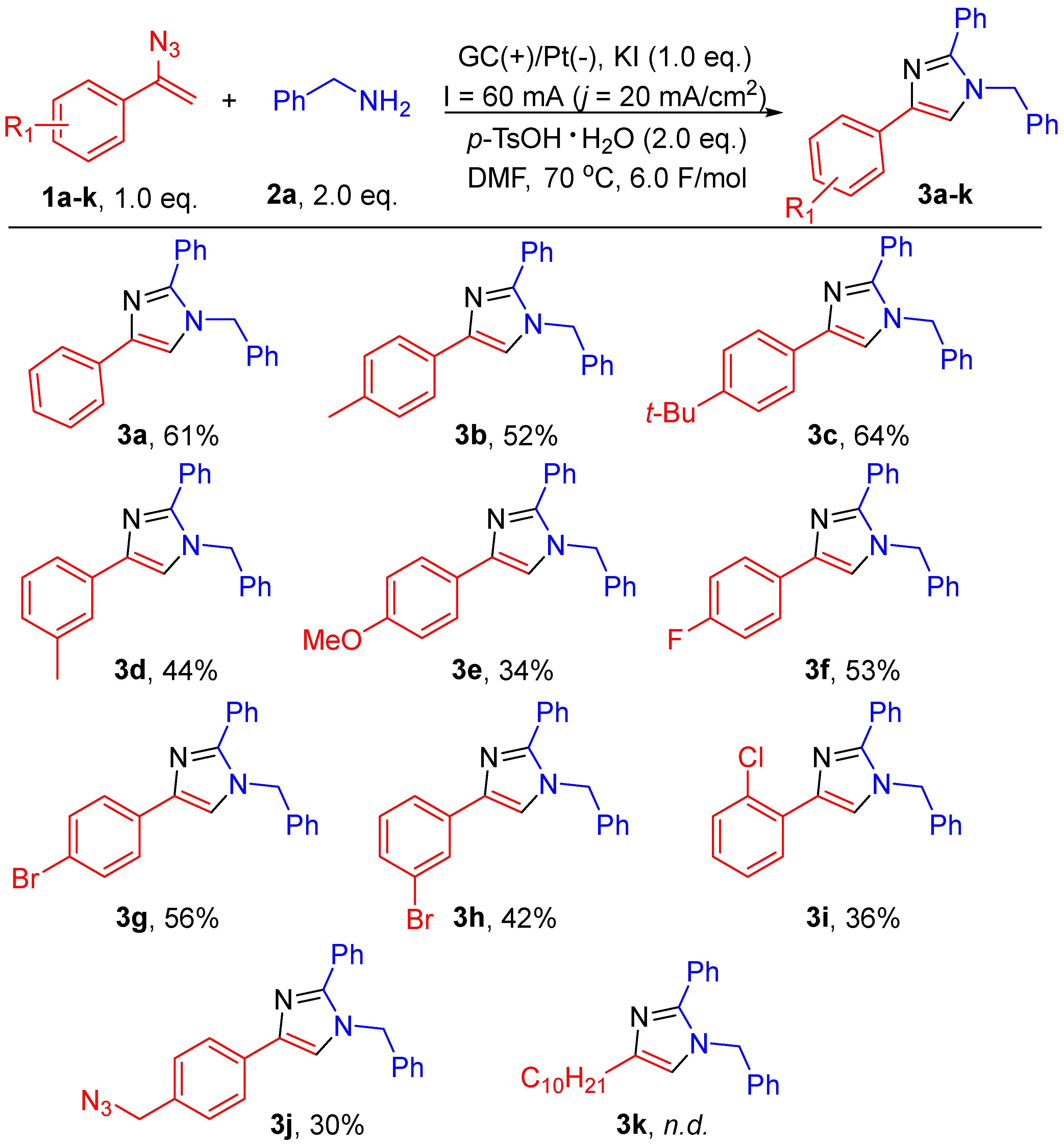

Scheme 2. The scope of vinyl azides 1.
Scheme 2. The scope of vinyl azides 1.
Molecules 27 07721 sch002
Molecules 27 07721 sch003 550

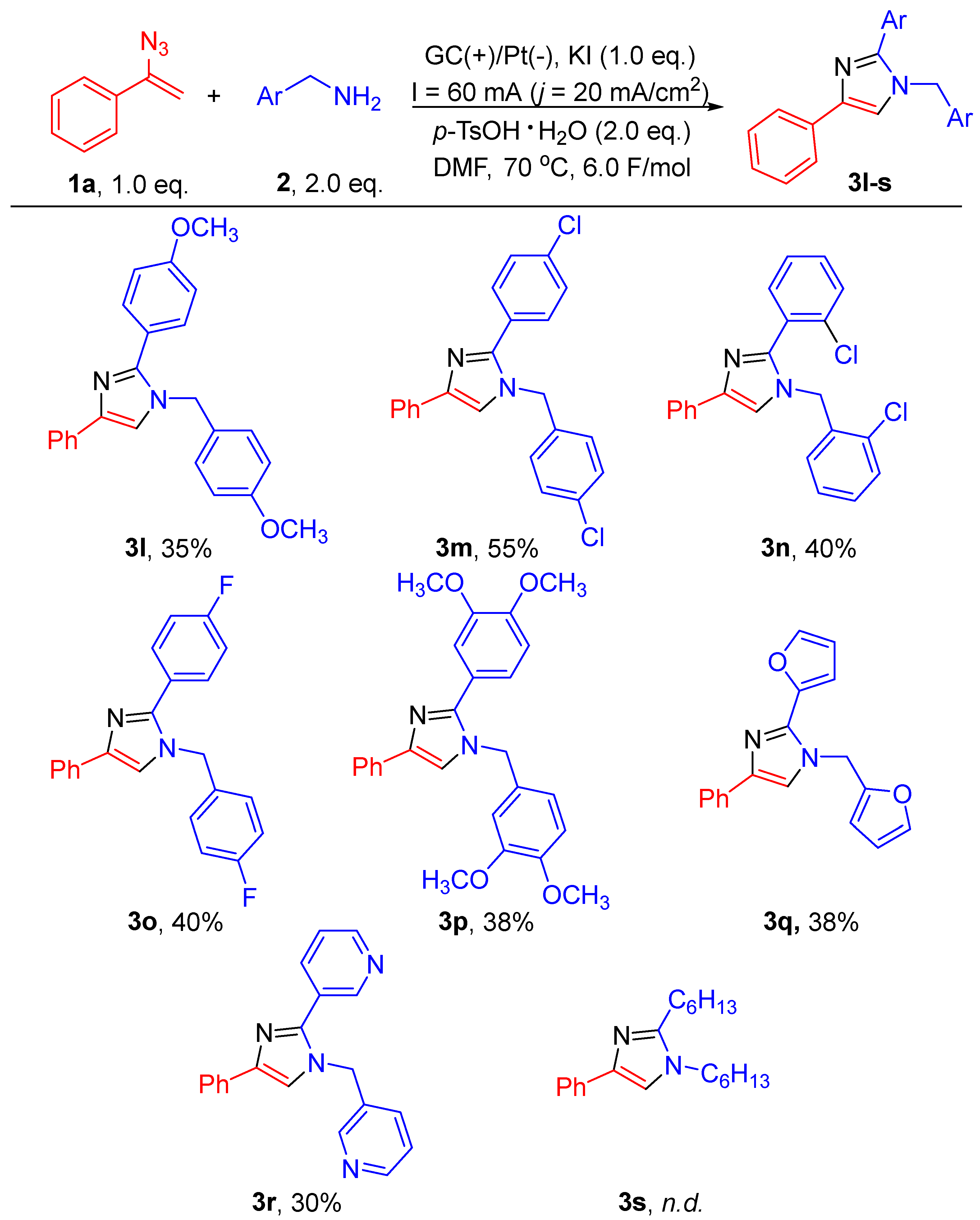

Scheme 3. The scope of benzyl amines 2.
Scheme 3. The scope of benzyl amines 2.
Molecules 27 07721 sch003
Molecules 27 07721 sch004 550
Scheme 4. Control experiments. (a) The use of iodine as the oxidant. (b,c) The electrolysis of benzyl amine with ω-iodoacetophenone 4 and acetophenone 5. (d) The electrolysis of benzyl amine with 3-phenyl-2H-azirine 6.
Scheme 4. Control experiments. (a) The use of iodine as the oxidant. (b,c) The electrolysis of benzyl amine with ω-iodoacetophenone 4 and acetophenone 5. (d) The electrolysis of benzyl amine with 3-phenyl-2H-azirine 6.
Molecules 27 07721 sch004
Molecules 27 07721 sch005 550

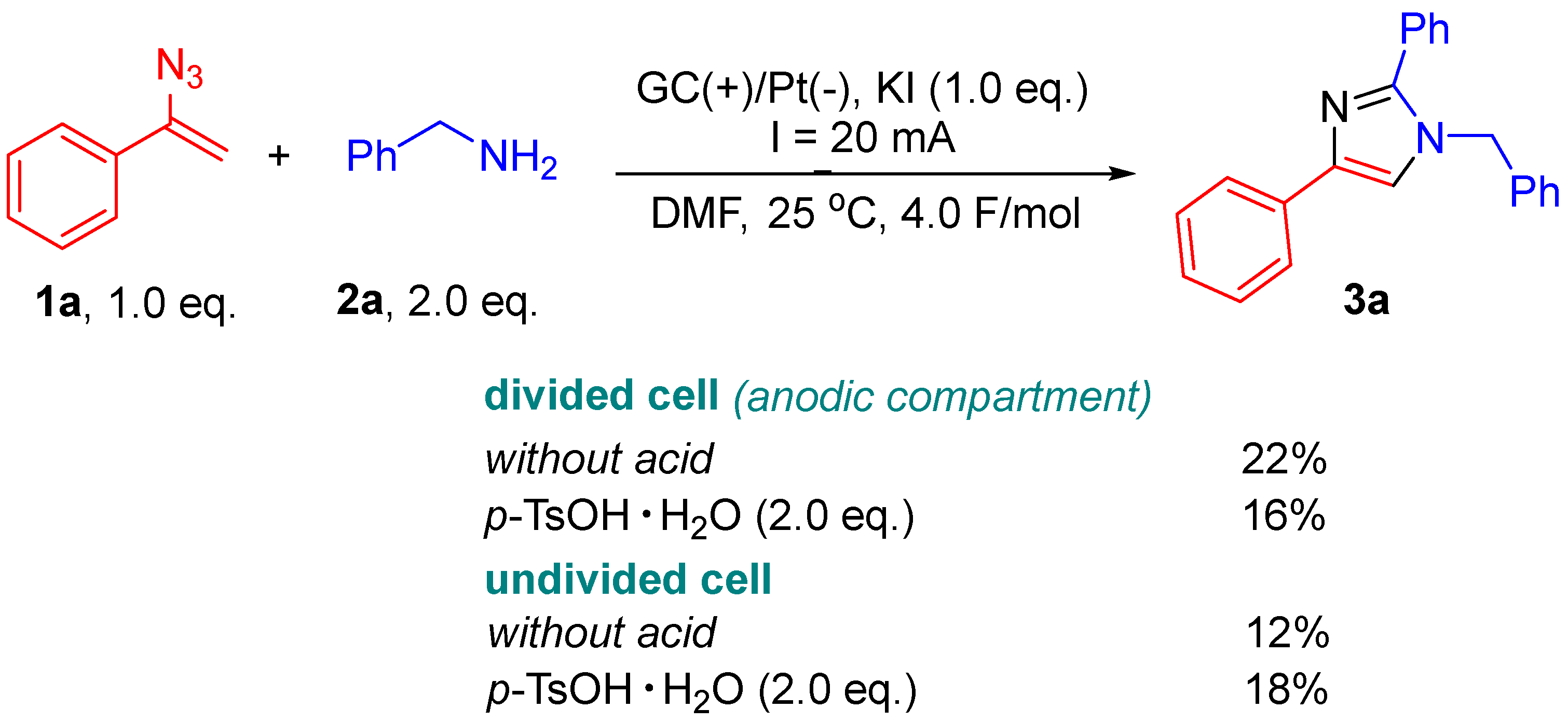

Scheme 5. Comparing the divided and undivided electrochemical cells.
Scheme 5. Comparing the divided and undivided electrochemical cells.
Molecules 27 07721 sch005
Molecules 27 07721 g001 550

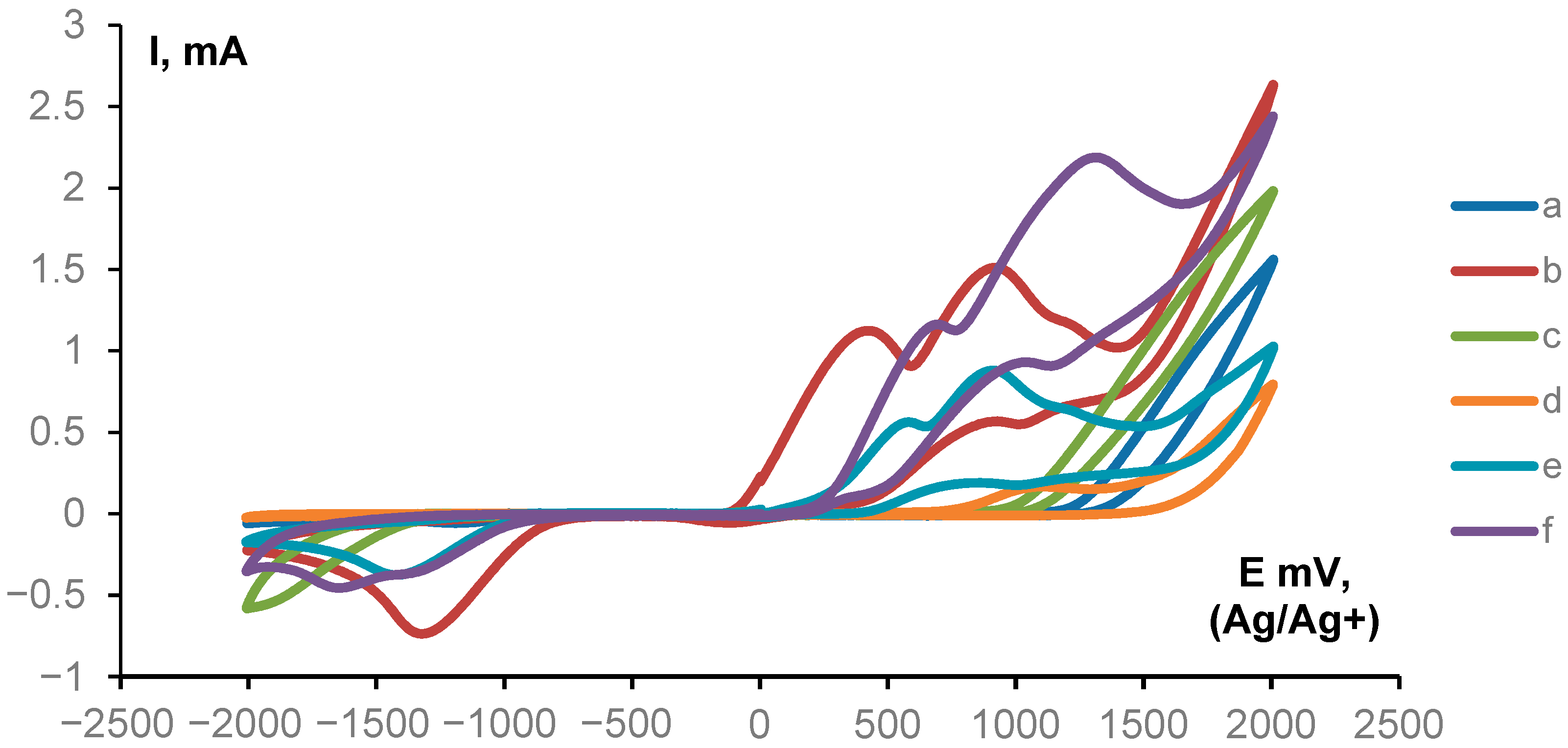

Figure 1. CV curves for the corresponding solutions on a working glassy-carbon electrode (d = 3 mm) under a scan rate of 0.1 V/s at 20 °C. (a) A 0.2 M solution of p-TsOH∙H2O in 0.1 M n-Bu4NBF4 solution in DMF; (b) a 0.1 M solution of KI in a 0.2 M solution of p-TsOH∙H2O in 0.1 M n-Bu4NBF4 solution in DMF; (c) mixture of vinyl azide 1a and p-TsOH∙H2O in 0.1 M n-Bu4NBF4 solution in DMF; (d) mixture of amine 2a and p-TsOH∙H2O in 0.1 M n-Bu4NBF4 solution in DMF; (e) mixture of amine 2a and p-TsOH∙H2O in a 0.1 M solution of KI in 0.1 M n-Bu4NBF4 solution in DMF; (f) mixture of vinyl azide 1a, amine 2a and p-TsOH∙H2O in a 0.1 M solution of KI in 0.1 M n-Bu4NBF4 solution in DMF.
Figure 1. CV curves for the corresponding solutions on a working glassy-carbon electrode (d = 3 mm) under a scan rate of 0.1 V/s at 20 °C. (a) A 0.2 M solution of p-TsOH∙H2O in 0.1 M n-Bu4NBF4 solution in DMF; (b) a 0.1 M solution of KI in a 0.2 M solution of p-TsOH∙H2O in 0.1 M n-Bu4NBF4 solution in DMF; (c) mixture of vinyl azide 1a and p-TsOH∙H2O in 0.1 M n-Bu4NBF4 solution in DMF; (d) mixture of amine 2a and p-TsOH∙H2O in 0.1 M n-Bu4NBF4 solution in DMF; (e) mixture of amine 2a and p-TsOH∙H2O in a 0.1 M solution of KI in 0.1 M n-Bu4NBF4 solution in DMF; (f) mixture of vinyl azide 1a, amine 2a and p-TsOH∙H2O in a 0.1 M solution of KI in 0.1 M n-Bu4NBF4 solution in DMF.
Molecules 27 07721 g001
Molecules 27 07721 sch006 550
Scheme 6. The proposed reaction mechanism.
Scheme 6. The proposed reaction mechanism.
Molecules 27 07721 sch006
Table

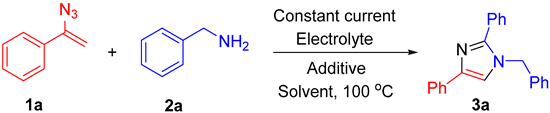

Table 1. Optimization of imidazole electrosynthesis 1.
Table 1. Optimization of imidazole electrosynthesis 1.
Molecules 27 07721 i001
EntryCathode/AnodeElectrolyte (eq)Additive (eq.)SolventCurrent Density, mA/cm2Electricity Passed per 1a, F/molYield 3a, %
1Pt/GCTBAI (1.0)-DMF10.04.024
2Pt/GCKI (1.0)-DMF10.04.037
3Pt/GCLiClO4 (1.0)-DMF10.04.022
4 2Pt/GCKI (1.0)-DMF10.04.033
5Pt/GCKI (1.0)p-TsOH·H2O (2.0)DMF10.04.048
6Pt/GCKI (1.0)p-TsOH·H2O (2.0)DMF20.04.039
7Pt/GCKI (1.0)p-TsOH·H2O (2.0)DMF20.06.055
8Pt/GCKI (1.0)p-TsOH·H2O (2.0)DMF--7
9Pt/GCKI (1.0)H2SO4 (2.0)DMF20.06.0-
10Pt/GCKI (1.0)CH3SO3H (2.0)DMF20.06.0-
11Pt/GCKI (1.0)Amberlyst-15 (2.0)DMF20.06.046
12GC/GCKI (1.0)p-TsOH·H2O (2.0)DMF20.06.015
13SS/GCKI (1.0)p-TsOH·H2O (2.0)DMF20.06.034
14Ni/GCKI (1.0)p-TsOH·H2O (2.0)DMF20.06.048
15Pt/CKI (1.0)p-TsOH·H2O (2.0)DMF20.06.036
16Pt/PtKI (1.0)p-TsOH·H2O (2.0)DMF20.06.022
17Pt/GCKI (1.0)p-TsOH·H2O (2.0)DMSO20.06.034
18Pt/GCKI (1.0)p-TsOH·H2O (2.0)
n-Bu4NClO4 (1.0)		PhCl20.06.018
19 3Pt/GCKI (1.0)p-TsOH·H2O (2.0)DMF20.06.061
20 4Pt/GCKI (1.0)p-TsOH·H2O (2.0)DMF20.06.031
1 General reaction conditions: undivided cell, glassy carbon plate anode/platinum plate cathode (3 cm2), constant current, 1a (1.0 mmol, 145.2 mg), 2a (2.0 mmol, 214.4 mg), solvent (10.0 mL), 100 °C, and air atmosphere. 2 3a (4.0 mmol, 428.8 mg). 3 70 °C. 4 50 °C.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Vil’, V.A.; Grishin, S.S.; Terent’ev, A.O. Electrochemically Induced Synthesis of Imidazoles from Vinyl Azides and Benzyl Amines. Molecules 2022, 27, 7721. https://doi.org/10.3390/molecules27227721

AMA Style

Vil’ VA, Grishin SS, Terent’ev AO. Electrochemically Induced Synthesis of Imidazoles from Vinyl Azides and Benzyl Amines. Molecules. 2022; 27(22):7721. https://doi.org/10.3390/molecules27227721

Chicago/Turabian Style

Vil’, Vera A., Sergei S. Grishin, and Alexander O. Terent’ev. 2022. "Electrochemically Induced Synthesis of Imidazoles from Vinyl Azides and Benzyl Amines" Molecules 27, no. 22: 7721. https://doi.org/10.3390/molecules27227721

Article Metrics

Back to TopTop
