Integrating a Luminescent Porous Aromatic Framework into Indicator Papers for Facile, Rapid, and Selective Detection of Nitro Compounds

by
Bo Cui
1,†,
Changyuan Gao
2,†,
Jiating Fan
1,
Jinni Liu
1,
Bin Feng
1,
Xianghui Ruan
3,
Yajie Yang
3,
Ye Yuan
3,
Kuo Chu
2,*,
Zhuojun Yan
1,* and
Lixin Xia
1,4,*
1
College of Chemistry, Liaoning University, Shenyang 110036, China
2
School of Environmental Science, Liaoning University, Shenyang 110036, China
3
Key Laboratory of Polyoxometalate and Reticular Material Chemistry of Ministry of Education, Faculty of Chemistry, Northeast Normal University, Changchun 130024, China
4
Liaoning Key Laboratory of Chemical Additive Synthesis and Separation, Yingkou Institute of Technology, Yingkou 115014, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2022, 27(19), 6252; https://doi.org/10.3390/molecules27196252
Submission received: 31 August 2022 / Revised: 19 September 2022 / Accepted: 20 September 2022 / Published: 22 September 2022
(This article belongs to the Special Issue Potential Applications of Functional Porous Organic Frameworks)
Browse Figures
Review Reports Versions Notes

Abstract

:
Porous aromatic framework materials with high stability, sensitivity, and selectivity have great potential to provide new sensors for optoelectronic/fluorescent probe devices. In this work, a luminescent porous aromatic framework material (LNU-23) was synthesized via the palladium-catalyzed Suzuki cross-coupling reaction of tetrabromopyrene and 1,2-bisphenyldiborate pinacol ester. The resulting PAF solid exhibited strong fluorescence emission with a quantum yield of 18.31%, showing excellent light and heat stability. Because the lowest unoccupied molecular orbital (LUMO) of LNU-23 was higher than that of the nitro compounds, there was an energy transfer from the excited LNU-23 to the analyte, leading to the selective fluorescence quenching with a limit of detection (LOD) ≈ 1.47 × 10−5 M. After integrating the luminescent PAF powder on the paper by a simple dipping method, the indicator papers revealed a fast fluorescence response to gaseous nitrobenzene within 10 s, which shows great potential in outdoor fluorescence detection of nitro compounds.

Graphical Abstract

1. Introduction

Nitro compounds are an important chemical raw material in medicine, dyes, spices, explosives, and other industries. However, with the widespread use of nitro compounds, their hazards have gradually led to the wide concern that they will be discharged into the groundwater and soil, and then cause serious pollution to ecosystems through biological pathways [1,2]. For example, nitrobenzene, a non-degradable toxin, could cause nausea, vomiting, pulmonary dysfunction, genotoxicity, and severe brain disease after excessive deposition in the human body. Therefore, a lot of scientific research has been devoted to exploring the trace detection of nitro compounds [3]. The fluorescence detection method has several distinctive characteristics of portability, fast response, and high sensitivity, and has been considered a reliable technology for wide usage in the detection of nitro compounds [4,5,6]. To achieve facile and sensitive fluorescence detection of nitro compounds, one of the research challenges is the synthesis of target substances with high sensitivity and anti-interference capability.
Characterized by pure organic structural components, porous organic polymers (POPs) have attracted wide attention due to their rigid skeleton and large surface area [7,8,9,10,11]. Among them, porous aromatic frameworks (PAFs) are composed of strong carbon–carbon bonds connecting aromatic building units, which makes them possess good stability in harsh application environments. Compared with traditional porous solids of inorganic and inorganic–organic hybrid architectures, the surface and structure of PAF materials can be easily fine-tuned to suit different applications, such as catalysis, adsorption, energy storage, fluorescence detection, etc. [12,13,14,15,16]. Especially in the field of fluorescence detection, the materials have unique optoelectronic properties by constructing large delocalized π-conjugated structures [17,18,19,20]. Zhao et al. improved the sensitivity of porous organic polymer MFCMP-1 to explosive molecules (such as nitrobenzene, 2-nitrotoluene, and 2,4-dinitrotoluene) by exploiting the high-emission and three-dimensional π-conjugated characteristics of the framework [21]. Yuan et al. exploited the σ*-π* conjugation generated by the interaction between the σ* orbital of germanium and the π* orbital of the benzene ring to enhance the sensitivity of electron delocalization [22]. Ma et al. synthesized a core-shell porous aromatic framework that enables the selective detection of nitro compounds TNT and TNP by tuning the LUMO level of core-shell PAFs [23], etc. [24,25,26]. These studies show that porous organic polymers have great application prospects in the fluorescence detection of nitro-explosives. However, the research on this issue is still in its infancy; a simple POP sample containing large delocalized π-conjugated units should be proposed to illustrate the fluorescence detection mechanism of POP networks.
In this study, a fluorescent porous aromatic framework (PAF), LNU-23, was synthesized through a Suzuki cross-coupling reaction using tetrabromopyrene and 1,2-diphenyldiboronic acid pinacol ester as the building monomers. Due to the introduction of the fluorescence emission pyrene group, electrons quickly migrate along the polymer chain to the acceptor for the amplification of the fluorescence signal, and improve the sensitivity [27]. Accordingly, the PAF powder-dipped paper effectively real-time monitored nitro compounds in their respective solid, gas, and liquid states.

2. Results and Discussion

LNU-23 was synthesized through the Suzuki cross-coupling reaction of tetrabromopyrene and 1,2-bisphenyldiboronic acid pinacol ester in the catalytic system of Pd[P(C6H5)3]4/K2CO3/DMF (Figure 1). FT-IR spectra of the PAF polymer and its raw monomers were shown in Figure 2a. Compared with the monomers, the typical peaks assigned to the stretching vibration of C-B bond at 1417 cm−1 and B-O bond at 1351 cm−1, respectively, disappeared in the spectrum of LNU-23 polymer. Meanwhile, there was no characteristic absorption band at 500 cm−1 in the FTIR spectrum of LNU-23 that demonstrated the successful preparation of polymeric network. The 13C CP/MAS NMR spectrum further confirmed the structural integrity of LNU-23 (Figure 2b). The chemical shift at 143 ppm belonged to the carbon atoms connected to the pyrene ring or the benzene ring; the main signal at 135 ppm was attributed to the carbon in the pyrene group. There was a broad peak at 127 ppm corresponding to the unsubstituted phenyl and pyrene carbons [28]. Both FT-IR and 13C NMR spectra were well consistent with the proposed structure of the LNU-23 polymer.
The powder X-ray diffraction (PXRD) spectrum indicated that LNU-23 possessed an amorphous structure (Figure S1). This is mainly due to the free rotation of phenyl linkers and the uncorrected binding patterns of LNU-23 oligomers result in architectural defects and an irregular whole structure [29]. Thermal stability for LNU-23 was evaluated under a nitrogen atmosphere. As shown in Figure S2, ~8% weight loss occurred at around 400 °C, which was attributed to the decomposing of the LNU-23 skeleton, indicating its excellent thermal stability [30,31]. Scanning electron microscopy (SEM) showed that the PAF sample was composed of irregular particles. Transmission electron microscopy (TEM) illustrated a similar result of the amorphous network of LNU-23 (Figure 2c,d). The porous property of LNU-23 was evaluated by measuring N2 adsorption–desorption isotherms at 77 K. As shown in Figure S3a, the adsorption–desorption curve of the material exhibits a large hysteresis loop, indicating the existence of mesopores in the LNU-23 network. The pore width was mainly distributed in 5 and 7.5 nm and evaluated by the slit/cylindrical non-local density functional theory (NLDFT) model. The BET-specific surface area of LNU-23 was calculated to be 10 m2 g−1 in the range of P/P0 = 0.03–0.25. This low specific surface area was due to the large π-conjugated segments in the LNU-23 network forming a tightly packed structure [32].
As shown in Figure S4, the ultraviolet visible absorption spectra of the monomers and LNU-23 were measured in absolute ethanol. The absorption wavelengths of the monomers were located in the range of 250–400 nm. Compared with the 1,3,6,8-tetrabromopyrene monomer, the polymer LNU-23 showed an obvious red shift. In addition, the luminescence intensity of LNU-23 was significantly increased, which was ascribed to the fact that the stable conjugated structure of LNU-23 reduced the energy consumption during vibrational relaxation, thus enhancing the luminescence intensity [33]. Under 365 nm UV light irradiation, the LNU-23 powder exhibited green fluorescence with a fluorescence quantum yield of 18.31% (Figure S5 and Figure 3a). The outstanding fluorescence property of LNU-23 makes it a promising material in the sensing field, which urges us to explore the application of monitoring nitro compounds through fluorescence sensing.
The polymer LNU-23 was dispersed in tetrahydrofuran solvent, and then added dropwise to respective benzene (B), toluene (MB), bromobenzene (BB), monochlorobenzene (MCB), p-nitrophenol (PN), and nitrobenzene (NB), to study the fluorescent quenching capability of LNU-23. As seen in Figure 3a, the fluorescent LNU-23 was not quenched in all non-nitro solvents. On the contrary, it revealed an obvious quenching phenomenon in various nitro compounds of PN and NB. There was an obvious quenching phenomenon that can be observed by the naked eye in Figure 3b. It demonstrated that LNU-23 possessed a real-time visual on-site fluorescence detection of nitro compounds.
To explore the sensing ability of LNU-23, luminescence quenching experiments were performed with different amounts of nitrobenzene. As seen in Figure 3c, the fluorescence intensity of LNU-23 gradually decreased with the increase in the nitrobenzene amount. The quenching efficiency was calculated according to the formula (I0 − I)/I0 × 100% (I0 is the initial fluorescence intensity, I is the fluorescence intensity after quenching) [34]. When the concentration of nitrobenzene reached 3.91 × 10−2 mol L−1, the quenching efficiency of LNU-23 was calculated to be 98.24%, indicating that LNU-23 exhibited a good fluorescence quenching ability for nitro compounds (Figure 3d). The fluorescence quenching efficiency was further analyzed using the Stern–Volmer (SV) equation (Figure S6), I0/I = KSVM, where M is the analyte concentration, and I0 and I are the emission intensities in the absence and presence of the analyte, respectively. The correlation of the quenching effect (I0/I) to the nitrobenzene concentration showed a good linear relationship (R2 = 0.996) (Figure S6). KSV was calculated to be approximately 1.54 × 103 M−1, which was comparable to other luminescent probes for the detection of nitrobenzene, such as Zn3(BTC)2 (3.957 × 103 M−1) [35], Eu3+@SOF-1 (2.419 × 102 M−1) [36], MOF 1 (3001.7 M−1) [37], MOF 2 (1644.1 M−1) [37], [(Pr2(TATMA)2·4DMF·4H2O]n (4.1 × 103 M−1) [38], and Ln-MOFs (1.4 × 103 M−1) [39]. The detection limit for nitrobenzene was determined to be 1.47 × 10−5 M using the formula 3σ/k (σ = standard error; k = slope), which was better than most of other luminescent probes for detecting nitrobenzene, including Eu3+@SOF-1 (3.7 × 10−5 M) [36], Cd-MOF (4.2 × 10−5 M) [40], DF (8.12 × 10−4 M) [41], BDS (4.06 × 10−4 M) [41], and M-15 (9.91 × 10−6 M) [42] (Table S1).
To better understand the fluorescence-sensing mechanism, the molecular orbitals (MOs) of LNU-23 and analytes were calculated (Figure 4). Because the energy of the lowest unoccupied molecular orbital (LUMO) of LNU-23 was higher than that of the analytes, the excited LNU-23 acted as an electron donor and the analyte served as an electron acceptor. The sustainable electron transfer from the LNU-23 to the analyte resulted in the excellent fluorescence quenching capability of LNU-23 [43]. As for B, MB, and MCB molecules, their LUMO levels were higher than those of LNU-23, implying that the electronic transitions from the excited LNU-23 to these analytes were thermodynamically forbidden, leading to poor fluorescence responses. In particular, the LUMO level of NB was the lowest among all analytes. There was a photo-induced electron transfer (PET) process of the PAF sample in the detection of NB molecules (Figure 4b), which brought about a rapid and sensitive detection of NB by LNU-23 [44,45]. In addition, LNU-23 possessed large delocalized π-conjugated units along the polymeric chain, which significantly amplified the sensing signal and improved the sensitivity of the detection of nitro compounds [27].
From the perspective of practical application, it is of great significance to prepare portable sensors that can be used for real-time and on-site detection of nitro compounds. As shown in the SEM image (Figure S7), there were many holes on the surface of the blank filter paper, which provided numerous spaces for the PAF particle loading. Through a simple immersion, LNU-23 powder was evenly loaded on a filter paper to prepare a portable indicator paper (Figure S8). As shown in Figure 5a, the indicator paper was placed on the mouth of the vial containing 10 µL of nitrobenzene. After 10 s contact, the indicator paper exhibited obvious fluorescence quenching capability under UV light (Figure 5b). The speed of detecting nitrobenzene was faster than many previously reported indicator papers, such as BDS thin film (120 s) [38], F-5 (60 s) [46], compound 1 (>25 s) [47], compound 2 (>25 s) [47], compound 9 (<60 s) [48], and DPTB-TMS (120–180 s) [2]. In addition, the LNU-23 indicator paper could be used in the detection of solid nitrobenzene. As shown in Figure 5c, the LNU-23 indicator paper was wiped with a dry fabric (5 μL NB solution dipped on a 1 × 1 cm polyester fabric). It was clearly seen that the wiped part of the indicator paper revealed an obvious fluorescence-quenching phenomenon (Figure 5d). Finally, the indicator paper performed the fluorescence detection for liquid nitrobenzene (Figure 5e). There were fluorescence changes in the indicator papers in the presence of different concentrations of nitrobenzene under UV light. With the increase in nitrobenzene concentration, the fluorescence quenching effect of the indicator paper became more obvious. These results indicated that the LNU-23-loaded indicator paper could serve as a simple, fast, and on-site to detect nitro compounds in different states of gaseous, liquid, and solid.

3. Materials and Methods

3.1. Materials

1,3,6,8-Tetrabromopyrene (TCI), 1,2-bisphenyldiboronic acid pinacol ester (Aladdin), tetrakis(triphenylphosphine)palladium (Sigma–Aldrich), p-nitro phenol (Aladdin), p-nitrochlorobenzene (Aladdin), nitrobenzene (Aladdin), and other chemicals were purchased from commercial suppliers without further purification.

3.2. Synthesis of LNU-23

A total of 300 mg of 1,3,6,8-tetrabromopyrene (0.579 mmol) and 382 mg of 1,2-bisphenyldiboronic acid pinacol ester (1.158 mmol) were poured into a 100 mL round bottom flask, and then 60 mL DMF was added into the mixture. After freezing the reaction system with liquid nitrogen, the bottle was evacuated with a vacuum pump, and then filled with nitrogen gas to normal pressure. Next, 40 mg of tetrakis(triphenylphosphine)palladium and 5 mL of K2CO3 (2 moL L−1) were rapidly added to the reaction system. Repeating the pumping-to-filling step three times, the reaction mixture was placed at 130 °C for 48 h, and finally cooled to room temperature. The insoluble product was successively washed with water, N,N’-dimethylformamide, tetrahydrofuran, and acetone several times to remove unreacted monomers or catalyst residues. The crude product was subjected to Soxhlet extraction with tetrahydrofuran, chloroform, and dichloromethane in turn, and then a green powder was obtained by vacuum drying, named LNU-23.

3.3. Preparation of LNU-23 Indicator Paper

In total, 5 mg of LNU-23 was placed in 5 mL of THF solution, and the mixture was sonicated for 10 min. The filter paper was soaked in the above solution for 12 h and dried for 12 h. The fluorescent filter paper was cut out (1 × 5 cm) to finally obtain a portable indicator paper.

4. Conclusions

A fluorescent porous aromatic framework (PAFs) LNU-23 was synthesized by the Suzuki cross-coupling reaction. The highly conjugated system of LNU-23 allowed for the rapid migration of excited electrons along the polymeric chain, which amplified the weak fluorescent signal. Based on the proper LUMO of LNU-23, an efficient energy transfer from the excited LNU-23 to the analyte was achieved, leading to selective fluorescence quenching. After integrating the luminescent PAF powder into the paper, the indicator paper produced a fluorescence response to gaseous, solid, and liquid nitrobenzene. The novel fluorescence sensor has several certain characteristics of high sensitivity, high selectivity, and strong versatility, and possesses huge application potential in the outdoor detection of nitro compounds.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27196252/s1, Figure S1: Powder X-ray diffraction pattern of LNU-23, Figure S2: TGA plot of LNU-23 at N2 condition, Figure S3: (a) N2 adsorption–desorption isotherm of LNU-23; (b) pore size distribution of LNU-23, Figure S4: UV-Vis absorption spectra of 1,3,6,8-tetrabromopyrene, 1,2-bis(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzene, and LNU-23, Figure S5: Luminescence photographs of LNU-23 powder under UV irradiation at 365 nm, Figure S6: Stern–Volmer plot of LNU-23 treated with nitrobenzene at different concentrations, Figure S7: (a) SEM image of blank filter paper, (b) LNU-23-loaded paper, and (c) paper sensor soaked in absolute ethanol, Figure S8: Preparation process of LNU-23-loaded paper sensor, Table S1: Summary of luminescent probes for NB sensing. References [49,50,51,52] are cited in the supplementary materials.

Author Contributions

Z.Y., K.C. and L.X. designed and planned the project. B.C., C.G. and B.F. conducted all of the experiments. J.F., J.L. and X.R. helped to characterize the samples. Y.Y. (Yajie Yang) and Y.Y. (Ye Yuan) helped to explain the mechanism. B.C., C.G., Z.Y. and Y.Y. (Ye Yuan) analyzed the data and wrote the paper. Z.Y., K.C. and L.X. revised the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Natural Science Foundation of China (21704037, 31972522, 21671089), National Key Research and Development Project of China (2018YFC1801200), Liaoning Revitalization Talents Program (XLYC2007032, XLYC2002097), Scientific Research Fund of Liaoning Provincial Education Department (LQN202003, L2020002), and Liaoning Provincial Natural Science Foundation (2021-MS-149, 2020-YKLH-22).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data related to this study are presented in this publication.

Acknowledgments

All individuals appreciate the partial support of Liaoning University.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples are not available from the author.

References

  1. Xie, W.; Yuan, Y.; Zhou, T.Y.; Wang, J.J.; Nie, Z.B.; Xu, Y.H.; Su, Z.M. Stable zinc metal-organic framework as efficient bifunctional fluorescent probe for selective detection of nitrobenzene and Fe(III). J. Solid State Chem. 2022, 310, 123093–123099. [Google Scholar] [CrossRef]
  2. Wang, X.F.; Bian, J.Y.; Xu, L.C.; Wang, H.; Feng, S.Y. Thiophene functionalized silicon-containing aggregation-induced emission enhancement materials: Applications as fluorescent probes for the detection of nitroaromatic explosives in aqueous-based solutions. Phys. Chem. Chem. Phys. 2015, 17, 32472–324878. [Google Scholar] [CrossRef] [PubMed]
  3. Sun, Z.; Sun, J.; Xi, L.; Xie, J.; Wang, X.; Ma, Y.; Li, L. Two novel lanthanide metal-organic frameworks: Selective luminescent sensing for nitrobenzene, Cu2+, and MnO4−. Cryst. Growth Des. 2020, 20, 5225–5234. [Google Scholar] [CrossRef]
  4. Zhang, B.; Li, B.; Wang, Z.G. Creation of carbazole-based fluorescent porous polymers for recognition and detection of various pesticides in water. ACS Sens. 2020, 5, 162–170. [Google Scholar] [CrossRef]
  5. Lei, S.N.; Cong, H. Fluorescence detection of perfluorooctane sulfonate in water employing a tetraphenylethylene-derived dual macrocycle BowtieCyclophane. Chinese Chem. Lett. 2022, 33, 1493–1496. [Google Scholar] [CrossRef]
  6. Zhang, Z.; Gao, Y.; Li, P.; Qu, B.; Mu, Z.; Liu, Y.; Qu, Y.; Kong, D.; Chang, Q.; Jing, L. Highly sensitive fluorescence detection of chloride ion in aqueous solution with Ag-modified porous g-C3N4 nanosheets. Chinese Chem. Lett. 2020, 31, 2725–2729. [Google Scholar] [CrossRef]
  7. Yan, Z.J.; Ren, H.; Ma, H.P.; Yuan, R.R.; Yuan, Y.; Zou, X.Q.; Sun, F.X.; Zhu, G.S. Construction and sorption properties of pyrene-based porous aromatic frameworks. Micropor. Mesopor. Mat. 2013, 173, 92–98. [Google Scholar] [CrossRef]
  8. Qiao, J.; Liu, L.; Shen, J.; Qi, L. Enzyme immobilization on a pH-responsive porous polymer membrane for enzymatic kinetics study. Chin. Chem. Lett. 2021, 32, 3195–3198. [Google Scholar] [CrossRef]
  9. Chen, Y.; Wang, L.; Kong, J.; Shen, B.; Xu, J. Superhydrophobic hierarchical porous divinylbenzene polymer for BTEX sensing and toluene/water selective detection. Chin. Chem. Lett. 2020, 31, 2125–2128. [Google Scholar] [CrossRef]
  10. Gao, W.; Li, M.; Fa, Y.; Zhao, Z.; Cai, Y.; Liang, X.; Yu, Y.; Jiang, G. Porous covalent organic frameworks-improved solid phase microextraction ambient mass spectrometry for ultrasensitive analysis of tetrabromobisphenol-A analogs. Chin. Chem. Lett. 2021, 33, 3849–3852. [Google Scholar] [CrossRef]
  11. He, Q.; Zhang, C.; Li, X.; Wang, X.; Mu, P.; Jiang, J.X. Pyrene-based conjugated microporous polymer as high performance electrode for lithium-ion batteries. Acta Chim. Sin. 2018, 76, 202–208. [Google Scholar] [CrossRef]
  12. Zhao, Y.B.; Yuan, Y.; Xu, Y.M.; Zheng, G.Y.; Zhang, Q.; Jiang, Y.Q.; Wang, Z.Y.; Bu, N.S.; Xia, L.X.; Yan, Z.J. Fine-regulating ultramicropores in porous carbon via a self-sacrificial template route for high-performance supercapacitors. Nanoscale 2021, 13, 1961–1969. [Google Scholar] [CrossRef] [PubMed]
  13. Yuan, Y.; Zhu, G. Porous aromatic frameworks as a platform for multifunctional applications. ACS Cent. Sci. 2019, 5, 409–418. [Google Scholar] [CrossRef]
  14. Han, Z.Y.; Li, H.K.; Zhu, Q.Q.; Yuan, R.; He, H. An intriguing electrochemical impedance aptasensor based on a porous organic framework supported silver nanoparticles for ultrasensitively detecting theophylline. Chin. Chem. Lett. 2021, 32, 2865–2868. [Google Scholar] [CrossRef]
  15. Wang, W.; Yuan, Y.; Sun, F.-X.; Zhu, G.S. Targeted synthesis of novel porous aromatic frameworks with selective separation of CO2/CH4 and CO2/N2. Chinese Chem. Lett. 2014, 25, 1407–1410. [Google Scholar] [CrossRef]
  16. Cui, P.; Jing, X.F.; Yuan, Y.; Zhu, G.S. Synthesis of porous aromatic framework with Friedel-Crafts alkylation reaction for CO2 separation. Chin. Chem. Lett. 2016, 27, 1479–1484. [Google Scholar] [CrossRef]
  17. Bai, M.G.M.; Babu, H.V.; Lakshmi, V.; Rao, M.R. Structure-property-function relationship of fluorescent conjugated microporous polymers. Mater. Chem. Front. 2021, 5, 2506–2551. [Google Scholar] [CrossRef]
  18. Finden, J.; Kunz, T.K.; Branda, N.R.; Wolf, M.O. Reversible and amplified fluorescence quenching of a photochromic polythiophene. Adv. Mater. 2008, 20, 1998–2000. [Google Scholar] [CrossRef]
  19. Li, X.; Li, Z.; Yang, Y.W. Tetraphenylethylene-interweaving conjugated macrocycle polymer materials as two-photon fluorescence sensors for metal ions and organic molecules. Adv. Mater. 2018, 30, 1800177–1800183. [Google Scholar] [CrossRef]
  20. Li, Z.P.; Li, H.; Xia, H.; Ding, X.S.; Luo, X.L.; Liu, X.M.; Mu, Y. Triarylboron-linked conjugated microporous polymers: Sensing and removal of fluoride ions. Chem. Eur. J. 2015, 21, 17355–17362. [Google Scholar] [CrossRef]
  21. Zhang, Y.W.; Sigen, A.; Zou, Y.C.; Luo, X.L.; Li, Z.P.; Xia, H.; Liu, X.M.; Mu, Y. Gas uptake, molecular sensing and organocatalytic performances of a multifunctional carbazole-based conjugated microporous polymer. J. Mater. Chem. A 2014, 2, 13422–13430. [Google Scholar] [CrossRef]
  22. Yuan, Y.; Ren, H.; Sun, F.X.; Jing, X.F.; Cai, K.; Zhao, X.J.; Wang, Y.; Wei, Y.; Zhu, G.S. Sensitive detection of hazardous explosives via highly fluorescent crystalline porous aromatic frameworks. J. Mater. Chem. 2012, 22, 24558–24562. [Google Scholar] [CrossRef]
  23. Ma, H.P.; Li, B.; Zhang, L.M.; Han, D.; Zhu, G.S. Targeted synthesis of core-shell porous aromatic frameworks for selective detection of nitro aromatic explosives via fluorescence two-dimensional response. J. Mater. Chem. A 2015, 3, 19346–19352. [Google Scholar] [CrossRef]
  24. Xi, E.P.; Zhao, Y.; Xie, Y.L.; Gao, N.; Bian, Z.; Zhu, G.S. Biological application of porous aromatic frameworks: State of the art and opportunities. J. Phys. Chem. Lett. 2021, 12, 11050–11060. [Google Scholar] [CrossRef] [PubMed]
  25. Xia, L.X.; Zhang, H.C.; Feng, B.; Yang, D.Q.; Bu, N.S.; Zhao, Y.B.; Yan, Z.J.; Li, Z.N.; Yuan, Y.; Zhao, X.J. Facile strategy to prepare fluorescent porous aromatic frameworks for sensitive detection of nitroaromatic explosives. Chem. J. Chin. Univ. 2019, 40, 2456–2464. [Google Scholar]
  26. Xu, Y.H.; Jin, S.B.; Xu, H.; Nagai, A.; Jiang, D.L. Conjugated microporous polymers: Design, synthesis and application. Chem. Soc. Rev. 2013, 42, 8012–8031. [Google Scholar] [CrossRef]
  27. Echeverri, M.; Gámez-Valenzuela, S.; González-Cano, R.C.; Guadalupe, J.; Cortijo-Campos, S.; Navarrete, J.T.L.; Iglesias, M.; Delgado, M.C.R.; Gómez-Lor, B. Effect of the linkage position on the conjugation length of truxene-based porous polymers: Implications for their sensing performance of nitroaromatics. Chem. Mater. 2019, 31, 6971–6978. [Google Scholar] [CrossRef]
  28. Geng, T.M.; Zhang, C.; Hu, C.; Liu, M.; Fei, Y.T.; Xia, H.Y. Synthesis of 1,6-disubstituted pyrene-based conjugated microporous polymers for reversible adsorption and fluorescence sensing of iodine. New J. Chem. 2020, 44, 2312–2320. [Google Scholar] [CrossRef]
  29. Yuan, Y.; Yang, Y.J.; Zhu, G.S. Multifunctional porous aromatic frameworks: State of the art and opportunities. EnergyChem 2020, 2, 100037–100056. [Google Scholar] [CrossRef]
  30. Geng, T.M.; Zhu, Z.M.; Zhang, W.Y.; Wang, Y. A nitrogen-rich fluorescent conjugated microporous polymer with triazine and triphenylamine units for high iodine capture and nitro aromatic compound detection. J. Mater. Chem. A 2017, 5, 7612–7617. [Google Scholar] [CrossRef]
  31. Sun, L.B.; Zou, Y.C.; Liang, Z.Q.; Yu, J.H.; Xu, R.R. A one-pot synthetic strategy via tandem Suzuki-Heck reactions for the construction of luminescent microporous organic polymers. Polym. Chem. 2014, 5, 471–478. [Google Scholar] [CrossRef]
  32. Shen, X.S.; Faheem, M.; Matsuo, Y.; Aziz, S.; Zhang, X.; Li, Y.H.; Song, J.; Tian, Y.-Y.; Zhu, G.-S. Polarity engineering of porous aromatic frameworks for specific water contaminant capture. J. Mater. Chem. A 2019, 7, 2507–2512. [Google Scholar] [CrossRef]
  33. Wang, M.; Guo, L.; Cao, D.P. Porous organic polymer nanotubes as luminescent probe for highly selective and sensitive detection of Fe3+. Sci. China Chem. 2017, 60, 1090–1097. [Google Scholar] [CrossRef]
  34. Zhang, B.; Yan, J.; Shang, Y.Q.; Wang, Z.G. Synthesis of fluorescent micro- and mesoporous polyaminals for detection of toxic pesticides. Macromolecules 2018, 51, 1769–1776. [Google Scholar] [CrossRef]
  35. Majeed, S.; Junaid, H.M.; Waseem, M.T.; Mahmood, T.; Farooq, U.; Shahzad, S.A. Receptor free fluorescent and colorimetric sensors for solution and vapor phase detection of hazardous pollutant nitrobenzene; a new structural approach to design AIEE active and piezofluorochromic sensors. J. Photoch. Photobiol. A 2022, 431, 114022–114033. [Google Scholar] [CrossRef]
  36. Jiang, D.Y.; Fang, H.F.; Li, G.; Zheng, G.L. A responsive supramolecular-organic framework: Functionalization with organic laser dye and lanthanide ions for sensing of nitrobenzene. J. Solid State Chem. 2020, 284, 121171–121177. [Google Scholar] [CrossRef]
  37. Li, H.H.; Han, Y.B.; Shao, Z.C.; Li, N.; Huang, C.; Hou, H.W. Water-stable Eu-MOF fluorescent sensors for trivalent metal ions and nitrobenzene. Dalton Trans. 2017, 46, 12201–12208. [Google Scholar] [CrossRef]
  38. He, H.; Chen, S.H.; Zhang, D.Y.; Yang, E.C.; Zhao, X.J. A luminescent metal-organic framework as an ideal chemosensor for nitroaromatic compounds. RSC Adv. 2017, 7, 38871–38876. [Google Scholar] [CrossRef]
  39. Wang, X.; Yan, P.; Li, Y.; An, G.; Yao, X.; Li, G. Highly efficient white-light emission and UV-Visible/NIR Luminescence sensing of lanthanide metal-organic frameworks. Cryst. Growth Des. 2017, 17, 2178–2185. [Google Scholar] [CrossRef]
  40. Wang, X.L.; Liu, Y.; Lin, H.Y.; Xu, N.; Liu, G.C.; Wang, X.; Chang, Z.H.; Li, J.R. A novel cadmium metal-organic framework-based multiresponsive fluorescent sensor demonstrating outstanding sensitivities and selectivities for detecting NB, Fe3+ ions and Cr2O72− anions. CrystEngComm 2020, 22, 6626–6631. [Google Scholar] [CrossRef]
  41. Xie, H.L.; Wang, H.; Xu, Z.; Qiao, R.J.; Wang, X.F.; Wang, X.M.; Wu, L.F.; Lu, H.F.; Feng, S.Y. A silicon-cored fluoranthene derivative as a fluorescent probe for detecting nitroaromatic compounds. J. Mater. Chem. C 2014, 2, 9425–9430. [Google Scholar] [CrossRef]
  42. Quan, X.P.; Xu, X.; Yan, B. Facile fabrication of Tb3+-functionalized COF mixed-matrix membrane as a highly sensitive platform for the sequential detection of oxolinic acid and nitrobenzene. J. Hazard. Mater. 2022, 427, 127869–127878. [Google Scholar] [CrossRef] [PubMed]
  43. Haug, W.K.; Moscarello, E.M.; Wolfson, E.R.; McGrier, P.L. The luminescent and photophysical properties of covalent organic frameworks. Chem. Soc. Rev. 2020, 49, 839–864. [Google Scholar] [CrossRef] [PubMed]
  44. Geng, T.M.; Zhu, Z.M.; Wang, X.; Xia, H.Y.; Wang, Y.; Li, D.-K. Poly{tris[4-(2-Thienyl)phenyl]amine} fluorescent conjugated microporous polymer for selectively sensing picric acid. Sensor. Actuat. B 2017, 244, 334–343. [Google Scholar] [CrossRef]
  45. Yang, T.; Feng, C.Y.; Zhao, P.; Wu, Y.S.; Ding, Y.; Wang, G.-Y.; Hu, A.G. Fluorescent electronic tongue supported with water-borne polyurethane for the discrimination of nitroaromatics in aqueous solution. J. Mater. Chem. C 2020, 8, 2500–2506. [Google Scholar] [CrossRef]
  46. Kumar, S.; Venkatramaiah, N.; Patil, S. Fluoranthene based derivatives for detection of trace explosive nitroaromatics. J. Phys. Chem. C 2013, 117, 7236–7245. [Google Scholar] [CrossRef]
  47. Dou, A.N.; Yang, L.B.; Fang, X.D.; Yin, Q.; Li, M.D.; Li, J.; Wang, M.Y.; Zhu, A.X.; Xu, Q.Q. Two luminescent lanthanide-organic frameworks containing bithiophene groups for the selective detection of nitrobenzene and Fe3+. CrystEngComm 2018, 20, 3609–3619. [Google Scholar] [CrossRef]
  48. Xie, W.Z.; Zhang, H.C.; Zheng, Y.S. Tetraphenylethylene tetracylhydrazine macrocycle with capability for discrimination of n-propanol from i-propanol and highly sensitive/selective detection of nitrobenzene. J. Mater. Chem. C 2017, 5, 10462–10468. [Google Scholar] [CrossRef]
  49. Lu, Y.B.; Liao, Y.Q.; Dong, L.; Zhu, S.D.; Wen, H.R.; Huang, J.; Dai, X.X.; Lian, P.; Jiang, X.M.; Li, R.; et al. Ultra-stable metal-organic framework with concurrent high proton conductivity and fluorescence sensing for nitrobenzene. Chem. Mater. 2021, 33, 7858–7868. [Google Scholar] [CrossRef]
  50. Yi, D.; Yang, H.; Liu, R.; Shao, C.; Yang, L. A multi-responsive chemosensor for highly sensitive and selective detection of Fe3+, Cu2+, Cr2O72− and nitrobenzene based on a luminescent lanthanide metal-organic framework. Dalton. Trans. 2020, 49, 13003–13016. [Google Scholar]
  51. Wang, L.B.; Wang, J.J.; Yue, E.L.; Li, J.F.; Tang, L.; Wang, X.; Hou, X.Y.; Zhang, Y.Q.; Ren, Y.X.; Chen, X.L. Luminescent Zn (II) coordination polymers for highly selective detection of triethylamine, nitrobenzene and tetracycline in water systems. Dye. Pigment. 2022, 197, 109863–109872. [Google Scholar] [CrossRef]
  52. Zhang, Y.; Ying, Y.; Feng, M.; Wu, L.; Wang, D.; Li, C. Two isostructural Ln3+-based heterometallic MOFs for the detection of nitro-aromatics and Cr2O72−. New J. Chem. 2020, 44, 12748–12754. [Google Scholar] [CrossRef]
Molecules 27 06252 g001 550

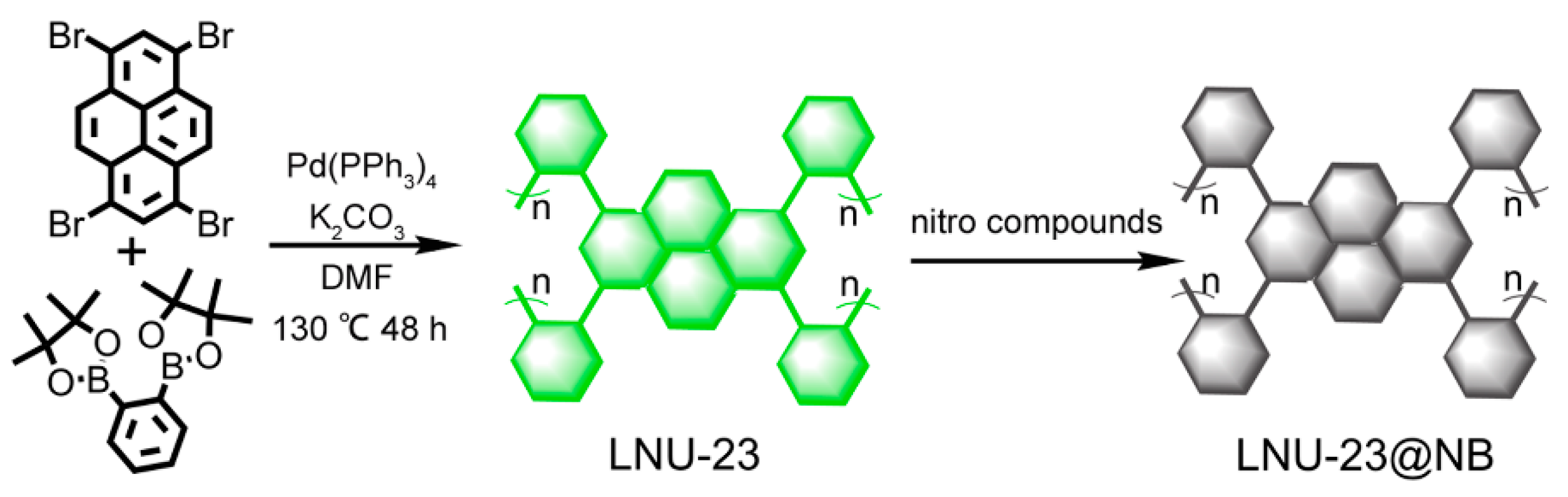

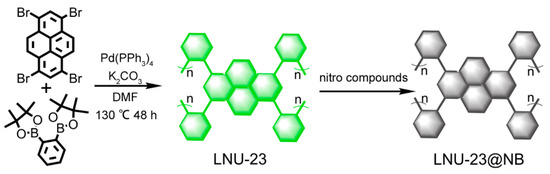

Figure 1. Synthesis and schematic structure of LNU-23. LNU-23 is composed of benzene rings and pyrene building blocks connected by carbon–carbon bonds. During this process, the irreversible coupling reaction tends to form defects in the architecture leading to the formation of an amorphous porous network of LNU-23.
Figure 1. Synthesis and schematic structure of LNU-23. LNU-23 is composed of benzene rings and pyrene building blocks connected by carbon–carbon bonds. During this process, the irreversible coupling reaction tends to form defects in the architecture leading to the formation of an amorphous porous network of LNU-23.
Molecules 27 06252 g001
Molecules 27 06252 g002 550

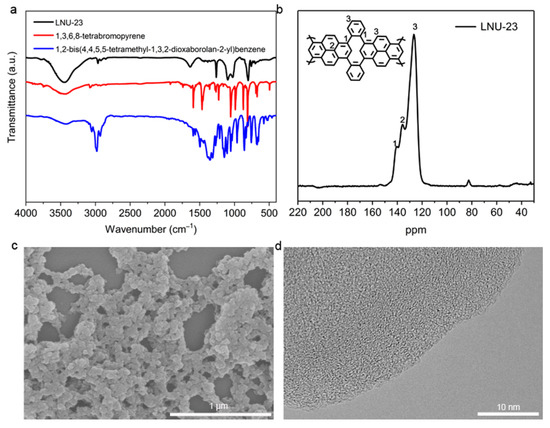

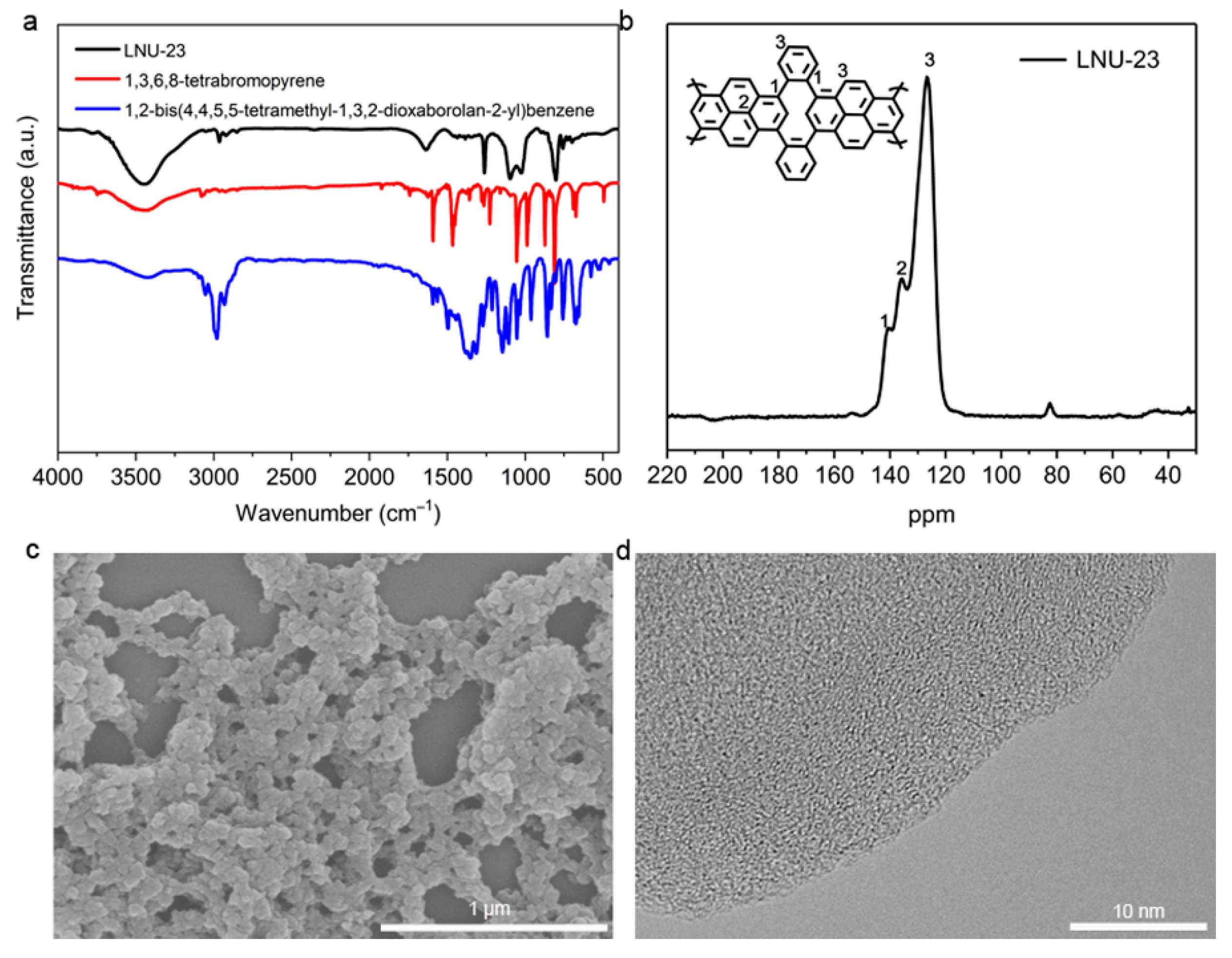

Figure 2. (a) FTIR spectra of LNU-23 and raw materials; (b) solid-state 13C NMR spectrum of LUN-23; (c) SEM and (d) TEM images of LNU-23.
Figure 2. (a) FTIR spectra of LNU-23 and raw materials; (b) solid-state 13C NMR spectrum of LUN-23; (c) SEM and (d) TEM images of LNU-23.
Molecules 27 06252 g002
Molecules 27 06252 g003 550

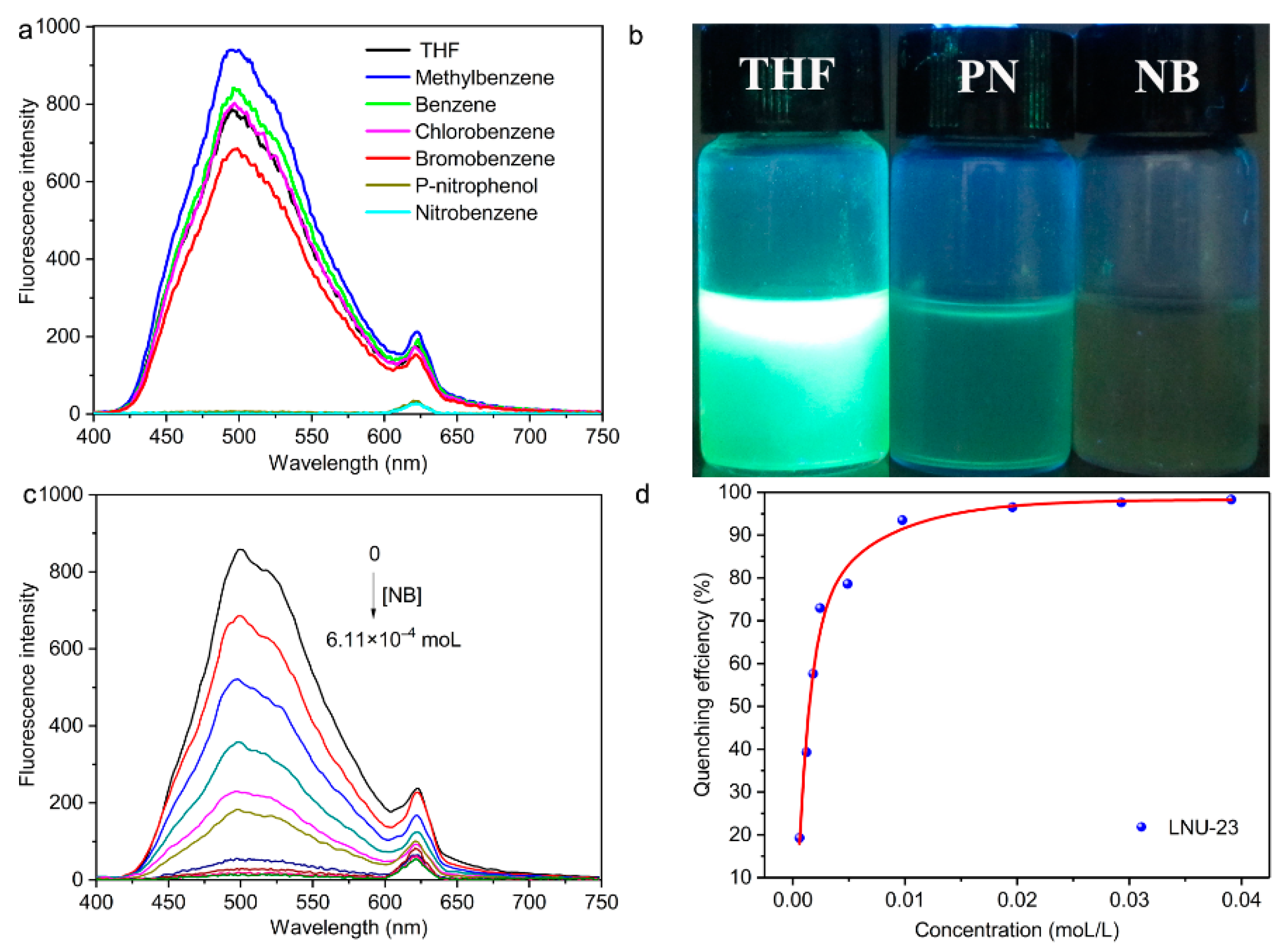

Figure 3. (a) Luminescence emission spectra of LNU-23 in the presence of various aromatic substrates. (b) Luminescence photographs of LNU-23 with different nitro explosives under UV irradiation at 365 nm. (c) Luminescence emission spectra of LNU-23 dispersion with different concentrations of nitrobenzene. (d) Fluorescence efficiency diagram of LNU-23.
Figure 3. (a) Luminescence emission spectra of LNU-23 in the presence of various aromatic substrates. (b) Luminescence photographs of LNU-23 with different nitro explosives under UV irradiation at 365 nm. (c) Luminescence emission spectra of LNU-23 dispersion with different concentrations of nitrobenzene. (d) Fluorescence efficiency diagram of LNU-23.
Molecules 27 06252 g003
Molecules 27 06252 g004 550

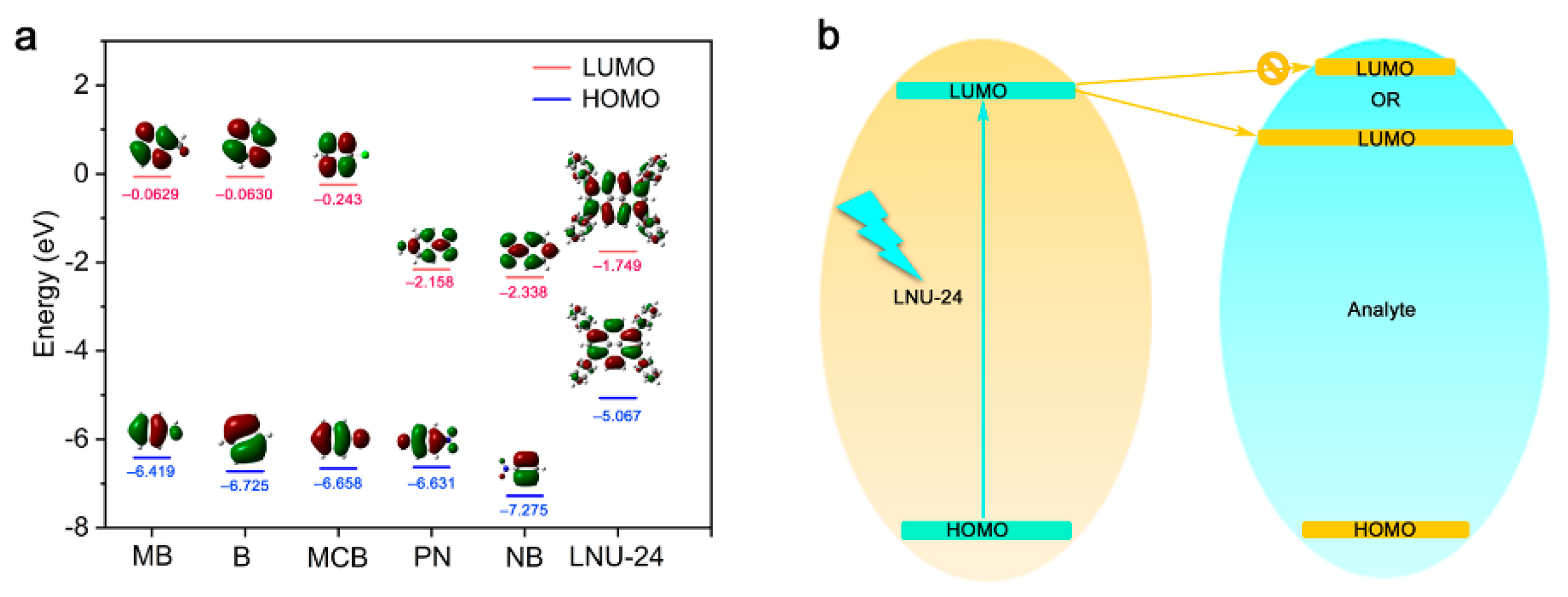

Figure 4. (a) HOMO and LUMO for tested analytes and LNU-23; (b) scheme of electron transfer phenomena between LNU-23 and the analyte via PET mechanism.
Figure 4. (a) HOMO and LUMO for tested analytes and LNU-23; (b) scheme of electron transfer phenomena between LNU-23 and the analyte via PET mechanism.
Molecules 27 06252 g004
Molecules 27 06252 g005 550

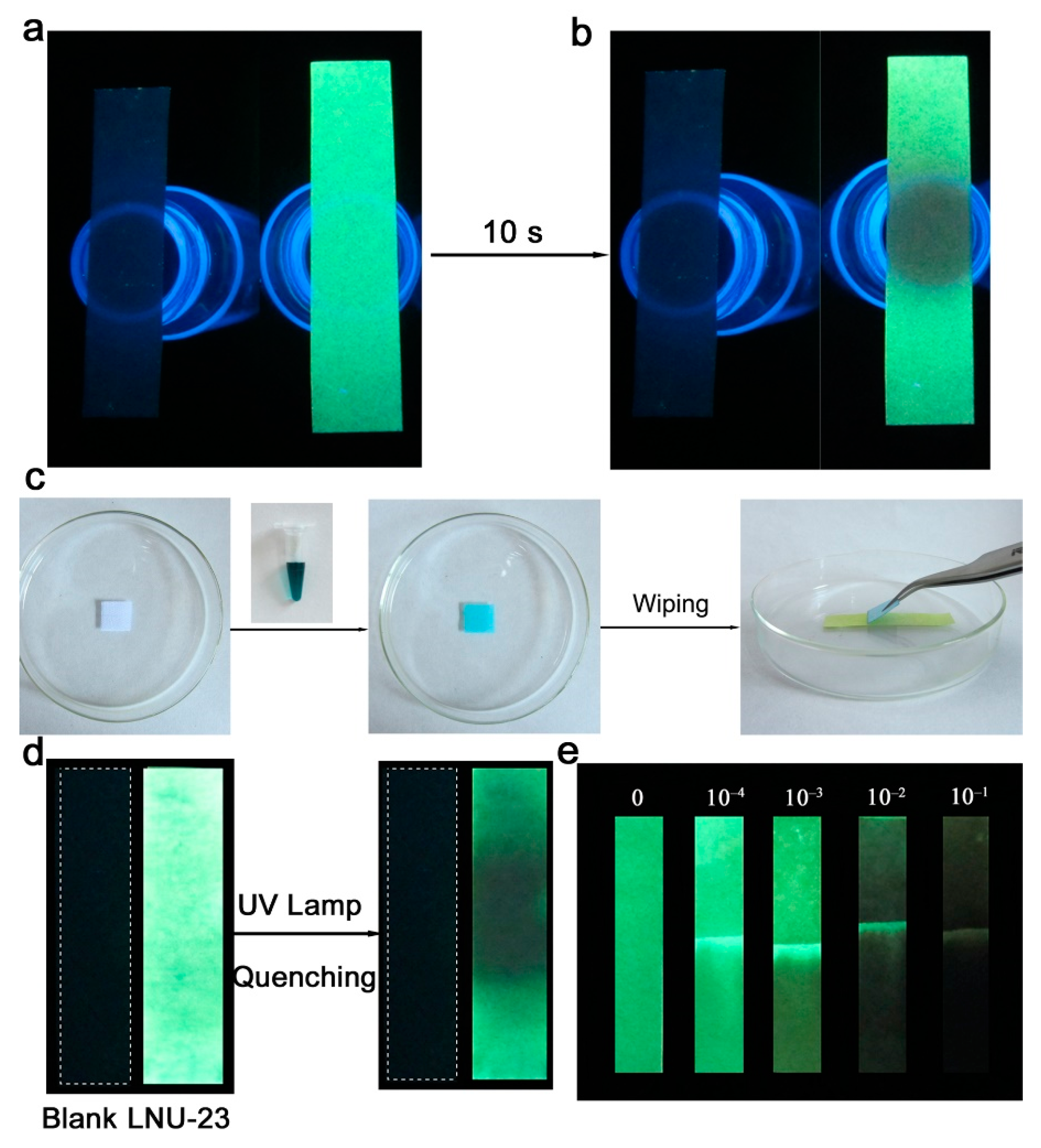

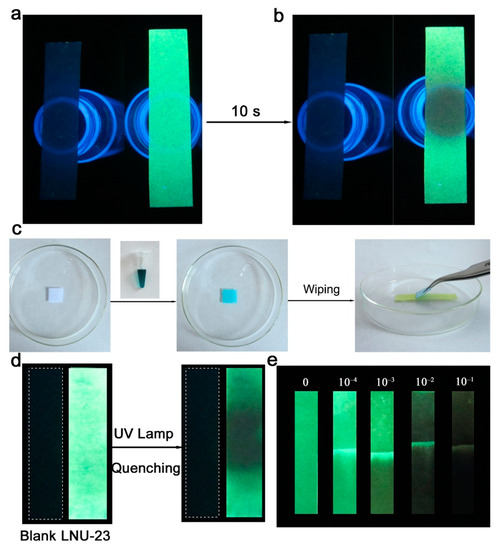

Figure 5. (a) Fluorescence diagram of indicator paper loaded with LNU-23. (b) Fluorescence diagram of indicator paper loaded with LNU-23 after the contact with gaseous nitrobenzene. (c) Process diagram of indicator paper for detecting solid nitrobenzene. (d) Diagram of indicator paper for detecting liquid nitrobenzene. (e) Fluorescence diagram of indicator papers in the presence of different concentrations of liquid nitrobenzene.
Figure 5. (a) Fluorescence diagram of indicator paper loaded with LNU-23. (b) Fluorescence diagram of indicator paper loaded with LNU-23 after the contact with gaseous nitrobenzene. (c) Process diagram of indicator paper for detecting solid nitrobenzene. (d) Diagram of indicator paper for detecting liquid nitrobenzene. (e) Fluorescence diagram of indicator papers in the presence of different concentrations of liquid nitrobenzene.
Molecules 27 06252 g005
