The Valorisation of Olive Mill Wastewater from Slovenian Istria by Fe3O4 Particles to Recover Polyphenolic Compounds for the Chemical Specialties Sector

InnoRenew CoE, Livade 6, 6310 Izola, Slovenia
Andrej Marušič Institute, University of Primorska, Muzejski trg 2, 6000 Koper, Slovenia
Faculty of Mathematics, University of Primorska, Natural Sciences and Information Technologies, Glagoljaška 8, 6000 Koper, Slovenia
Author to whom correspondence should be addressed.
Molecules 2021, 26(22), 6946;
Received: 26 October 2021 / Revised: 12 November 2021 / Accepted: 15 November 2021 / Published: 17 November 2021
(This article belongs to the Section Analytical Chemistry)


Olive oil production using three-phase decanter systems creates olive oil and two by-products: olive mill wastewater (OMWW) and pomace. These by-products contain the highest share of polyphenolic compounds that are known to be associated with beneficial effects on human health. Therefore, they are an attractive source of phenolic compounds for further industrial use in the cosmetic, pharmaceutical and food industries. The use of these phenolics is limited due to difficulties in recovery, high reactivity, complexity of the OMWW matrix and different physiochemical properties of phenolic compounds. This research, focused on OMWW, was performed in two phases. First, different polyphenol extraction methods were compared to obtain the method that yields the highest polyphenol concentration. Twenty-five phenolic compounds and their isomers were determined. Acidifying OMWW, followed by five minutes of ultrasonication, resulted in the highest measured polyphenol content of 27 mg/L. Second, the collection of polyphenolic compounds from OMWW via adsorption on unmodified iron (II, III) oxide particles was investigated. Although low yields were obtained for removed polyphenolic compounds in one removal cycle, the process has a high capability to be repeated.

Graphical Abstract

1. Introduction

Polyphenols are naturally occurring compounds found largely in fruits, vegetables, cereals and beverages, and they are characterized by powerful antioxidant activity [1]. They are generally involved in plants as a defence against ultraviolet radiation or aggression by pathogens, parasites and predators [1,2]. In food, polyphenols may contribute to bitterness, astringency, colour, flavour, odour and oxidative stability. Several studies showed that long-term consumption of diets rich in plant polyphenols offered some protection against the development of cancers, cardiovascular diseases, diabetes, osteoporosis and neurodegenerative diseases [3,4]. Bio-based polyphenolic compounds are of increasing scientific interest because of their possible beneficial effects on human health [5,6].
A large source of polyphenols and complex secoiridoids that are not present in other edible plants can be found in the olive industry. Olive oil is the principal fat source of the traditional Mediterranean diet and, due to its high content of polyphenols and monounsaturated fats, has been associated with numerous beneficial human health properties [7]. However, only two percent of the total phenolic content of the milled olive fruit goes into the oil phase, while most is partitioned between the liquid olive mill wastewater (OMWW) (≈53%) and solid pomace (≈45%)―two by-products that olive mills generate using a three-phase decanting system [8]. At the same time, due to this high concentration of organic substances (14–15%) and phenolic compounds (up to 10 g/L) [9], OMWW is known to be one of the most polluting effluents produced by the agrofood industries [10]. Phenolic compounds, especially, exhibit high toxicity towards plants, bacteria, soil and aquatic animals [11]. Due to these negative environmental effects, and because the annual global OMWW production is estimated to be between 10 and 30 million m3 [12], different systems have been proposed over the years to treat, minimize or prevent the release of these pollutants [13]. However, the large number of small olive mills across the Mediterranean region make individual on-site treatment options difficult. Moreover, the high phenolic nature of OMWW and its organic content make it highly resistant to biodegradation. Instead of safe OMWW disposal, this matrix (i.e., the components of a sample other than the analyte of interest) can be used as a cheap source of valuable components; thus, it is an interesting opportunity to recover phenols and utilize them as a source in natural food additives, pharmaceuticals or cosmetics.
The recovery of biophenols from OMWW is a difficult task. Phenols are a reactive chemical species, vulnerable to oxidation, conjugation, hydrolysis, polymerization and complexation [9]. OMWW is a complex matrix that offers a reaction medium (water), catalysts (enzymes, organic acids and metals) and substrates (proteins, polysaccharides, metals, small molecular weight reactive compounds and phenols themselves) [14]. Phenolic compounds can bridge or cross-link easily with these compounds [15] or remain attached to cell walls or in the cytoplasmic vacuoles, which all prevent successful extraction. The high variety of phenolic compounds have different structures and different physicochemical properties that makes any attempt to optimize the extraction a difficult task [14]. Several methods to recover polyphenolic compounds were recently investigated with the help of adsorbents [16,17,18], ultrafiltration or nanofiltration membranes [19,20,21,22], microwave assisted solvent extraction [23], drowning-out crystallization-based separation [24] and co-precipitation reactions [25]. A clear review of the different polyphenol recovery methods was prepared by Gullón et al. [26] and Carporasa et al. [27].
Before phenols can be recovered, the quantity and identity of phenols present in OMWW must be determined. Various procedures to determine the phenol content in OMWW have been studied, but most rely on maximizing the recovery of one compound, hydroxytyrosol. Thus, the complexity of the biophenols may be underrepresented [14]. The analysis of phenols in OMWW is similar to methods for phenols from other sources. Solvent extraction is the most common technique to determine the content of phenolic compounds in OMWW, and according to Allouche et al. [28], ethyl acetate is the most effective solvent for the treatment of OMWW under acidic conditions. In this type of extraction, OMWW is pre-treated by filtering solid particles. Fats and oils are removed with n-hexane and then liquid–liquid extraction is performed with ethyl acetate [29,30,31]. Adaptions of this method include (1) adjustment of the OMWW pH to 2 with HCl before extraction [32,33,34], (2) treatment of OMWW with 20% ethanol (v/v) followed by adjustment of pH to 2 with hydrochloric acid (HCl) before extraction [6] and (3) liquid–liquid extraction with an equal volume of ethyl acetate followed by half volume of hexane [35,36]. Other researchers simply filtered OMWW [37,38,39,40,41,42,43,44]. Delisi et al. [45] and Jebabli et al. [46] compared two methods: (1) ethyl acetate extraction of acidified OMWW, as described before, and (2) lyophilisation OMWW and resuspension in methanol (MeOH). Sedej et al. [47] added MeOH to defatted OMWW, sonicated, centrifuged and evaporated the extract to dryness. The most extensive studies were performed by Jerman Klen et al. [48], who compared five sample preparation methods: filtration, solid-phase (SPE), liquid–liquid (LLE) and ultrasonic (US)-assisted extraction of liquid and solid (freeze-dried) OMWW. The results showed that ultrasonication is a good alternative to conventional solvent extractions, providing higher recoveries at both levels of individual and total phenol yields. In a later study, they also used freeze-dried samples, which were sonicated and extracted with MeOH [49]. Another type of extraction was enzymatic hydrolysis of OMWW using Aspergillus niger, Trichoderma atroviride and Trametes trogii, to release free simple phenolic compounds, combined with ethyl acetate extraction [50]. The phenolic concentration can be measured in different ways. The total phenol content and different phenol classes can be determined by spectrophotometric methods. To determine individual compounds, HPLC, NMR or HPLC-ESI-MS-MS are used [28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50]. Abbatista et al. [51] summarized the methods for the structural characterization of polyphenols in olive by-products.
In this investigation, the polyphenol extraction method that yielded the highest polyphenol recovery from OMWW was studied first. Next, our goal was to collect polyphenolic compounds to valorise OMWW, using them after further clean-up and separation, as a potential polyphenol source for the chemical specialties sector. For this, we investigated the use of unmodified iron (II, III) oxide (Fe3O4) particles. The key advantage of these iron oxide particles is that they can be easily collected by a magnetic field and therefore deployed into existing technology and infrastructure, providing few barriers to operational uptake [52]. Moreover, they can easily be regenerated and reused, enabling a closed-loop process with several extraction cycles. Conventional techniques such as adsorbing beds are limited because OMWW must run through the whole adsorption bed. This creates a situation that, at the start of the bed, the adsorbent may already be saturated and in equilibrium with the feed, while downstream, the absorbent may not yet be in contact with any solutes [53]. Cleaning saturated adsorption beds is also an intensive process. The use of Fe3O4 particles also avoids the use of ultrafiltration or nanofiltration membranes, which can be costly to clean or replace after biofouling. The process also avoids mixing of solvents inside the OMWW to collect the polyphenols, in comparison with drowning-out crystallization-based separation microwave assisted solvent extraction.

2. Results

2.1. Identification of the Polyphenol Content in OMWW from Slovenian Istria

It is known that the composition of OMWW can differ based on the olive types, varietals and provenance. Because of the high variety in polyphenolic compounds, one high-yield extraction technique may be effective for one phenolic compound but not another Therefore, it is not a surprise that several research groups came to different results to determine which is the best extraction technique to obtain the highest polyphenol yield in OMWW. The polyphenolic composition of OMWW obtained from Slovenian Istria was determined via several extraction techniques.
First, different extraction techniques, which were found in literature, were compared to detect the polyphenolic compounds present in OMWW. We used the ethyl acetate and acidified ethyl acetate method since it was claimed to have the best polyphenol extraction yields. We also tested MeOH or MeOH:water (1:1) as an extraction agent. OMWW was also simply filtered. It was shown that simple filtration and lyophilisation with subsequent extraction in MeOH have the same efficiency and give the highest total polyphenol yield [30]. The simple filtration method was also updated by resuspending the obtained residue in MeOH; the final concentration was the sum of the polyphenol concentrations in the OMWW filtrate and MeOH fraction. Quantities of individual polyphenol compounds were measured by LC-MS/MS and expressed semi-quantitatively as counts on the MS detector, whereas the quantification of the total phenol concentration was performed by HPLC-DAD and expressed in mg/mL (Section 4.4). The results are summarized in Table 1.
To allow a quick overview of Table 1, a colour code was applied according to the extracted content of each polyphenolic compound. The lowest concentrations are depicted in dark red, higher concentrations are lighter red, moving towards orange, then yellow and light green, while the highest concentrations are dark green. The lowest extraction efficiency was obtained with the most popular ethyl acetate method (total: 0.95 ± 0.07 mg/mL). Acidifying OMWW before using the ethyl acetate extraction improved the results slightly (1.48 ± 0.10 mg/mL). It is interesting to see that even normal filtered OMWW (total: 3.43 ± 0.24 mg/mL) results in higher extraction yields than the ethyl acetate extract, since simple filtering of OMWW will only lead to the detection of the dissolved polyphenols. With the upgraded filtration, where the residue is dissolved in MeOH, we obtained a total phenol yield of 4.67 ± 0.33 mg/mL. The MeOH extracted weakly bound phenolic compounds such as oleoside isomers, β-oH-verbascoside isomers and caffeoyl-6-secologanoside from the residue. We found that the highest phenol concentrations were obtained with freeze-drying of OMWW and resuspension of the dry matter in MeOH via shaking or ultrasonication (10.1–10.2 ± 0.7 mg/mL). A ten times higher polyphenol content was detected via this method compared to the otherwise popular ethyl acetate method, confirming that the latter is not adequate to determine the polyphenol content in OMWW from Slovenian Istria. Freeze-drying of OMWW and resuspension of the dry matter in MeOH: water (total: 4.99 ± 0.35 mg/mL) was less efficient than resuspension in pure MeOH. MeOH extraction has the highest positive influence on the phenolic compounds oleoside, sacolagonoside, hydroxytyrosol glucoside and 3,4-DHPEA-EDA.
In a second experiment, the influence of ultrasonication and change of pH was tested. OMWW has a pH close to 5 and has a strong buffer capacity; 2M HCl or 2M NaOH was added until the OMWW buffer changed its pH. With HCl, we obtained pH 2; with NaOH, we obtained pH 8. The samples were ultrasonicated for 5, 20 and 40 min to obtain the optimal sonication time. Since no general trend was found between the ultrasonication time and the extracted polyphenol concentration, an ultrasonication time of 40 min was chosen. The results are presented in Table 2.
By only acidifying OMWW, the detected polyphenol concentration increased slightly. In general, acidification had a positive influence on 3,4-DHPEA-EDA and oleuropein aglycone isomers. A more alkali pH decreased the detected polyphenol content. Also here, the alkalization had the most profound effect on 3,4-DHPEA-EDA and oleuropein aglycone isomers, which completely degraded. It is interesting that while most polyphenols degrade, the oleoside and hydroxytyrosol concentration increased. This is probably the result of the cleavage of the oleuropein moieties. The result is in accordance with the phenomenon described by Gentile et al. [54]. In a second step, ultrasonication was applied to the three types of OMWW. Ultrasonication did not seem to have a major effect on OMWW at its natural pH or at pH 8. At acidic pH, however, high polyphenol concentrations were detected (27.6 mg/mL). The total measured phenol concentrations were almost ten times higher than simple filtration of OMWW.
In a last set of experiments, we tested the influence of enzymes on the determined polyphenol content in OMWW. Enzymes are known to cleave bonds within carbohydrates (cellulase, hemicellulase, pectinase) and fats (lipase). Therefore, we used them as a tool to potentially release phenolic compounds, which are bound to such compounds. Different types of enzymes (cellulase, hemicellulase, lipase, pectinase) and their combinations were tested on OMWW. Enzymes were chosen to be compatible with the pH of OMWW. The different treatments showed that enzymatic treatment did not have the expected outcome of releasing high amounts of different polyphenolic compounds in their monomeric form. In general, the amount of detected known polyphenols did not increase and even slightly degraded. Exception was an increase in vanillin (RT 2.4), oleoside (RT 6.5) and caffeic acid (RT 6.7). The main characteristic of the enzymatic treatment was the rise of a large peak within the UV chromatogram (280 nm) at RT 9.04 with m/z of 242.22 and molecular formula C11H14O6 (see Figure 1). The most straightforward option of the compound identity was an elenolic acid, but the retention time in comparison with other elenolic acid isomers is quite late.

2.2. Removal of Polyphenolic Compounds from OMWW by Fe3O4 Particles

The goal of our research was to valorise OMWW by collecting polyphenolic compounds by adsorption on (un)modified Fe3O4 particles and desorption in an alcoholic solution. Further processing, clean up or separation can subsequently make OMWW suitable as a new source for polyphenolic compounds in the food, pharmaceutical or cosmetic industries.
The desorbed polyphenol concentrations were measured in MeOH (see Table 3). The first polyphenol extraction with the Fe3O4 particles yielded what appeared to be a very low quantity of the targeted compounds (0.231 mg per mL of OMWW), especially when compared to extraction in acidified and sonicated OMWW, which yielded over 27 mg/mL (Section 2.1). However, Fe3O4 particles can be easily regenerated, and reused, enabling a closed-loop process with several extraction cycles. Therefore, we tested a system where these particles were cycled fifteen times between the adsorption (OMWW) and desorption (MeOH) process (each repetition measured separately). The results are summarised in Table 3, where it can be clearly seen that even after fifteen cycles, the Fe3O4 particles are still taking up polyphenolic compounds, proving their reusability. Most polyphenolic compounds are adsorbed in similar concentrations to the particles even after fifteen cycles. Exceptions are hydroxytyrosol, elenolic acid glucoside and verbascoside, where the desorbed concentrations decrease with each treatment cycle.
To see if the collected polyphenols come from the water-soluble polyphenol fraction or get detached during treatment from other organic matter such as pectin, sugars, fats, proteins or cell walls, the soluble polyphenol content was determined before and after the 15 treatments. Compounds in OMWW such as hydroxytyrosol glucoside and elenolic acid glucoside seem to be collected primarily from particulate organic matter and not the soluble fraction because they have been collected by Fe3O4 particles in comprehensive amounts, while the elenolic acid and hydroxyltyrosol glucoside content in the water-soluble OMWW fraction did not decrease. The concentrations of caffeic acid and oleuropein aglycone decrease. Apigenin is a compound that is only attached to the organic matter in OMWW, as we do not detect it in the soluble OMWW fraction, but it is extracted by the Fe3O4 particles in considerable quantity. The content of p-HPEA-EDA and oleuropein aglycone in the OMWW decreases over time in accordance with the attached polyphenolic quantity on the Fe3O4 particles. The hydroxytyrosol concentrations in OMWW drop much faster than the concentrations that are adsorbed-desorbed by particles, indicating that during the treatment this compound also degrades. Verbascoside seems to turn into β-OH-verbascoside in OMWW during the treatment.

3. Discussion

The higher detected polyphenol content, when using MeOH as an extraction solvent instead of ethyl acetate, matched our expectations and was in accordance with the results from Jerman Klen and Mozetič Vodpivec [48], which also indicated the insufficient character of the popular liquid–liquid extraction method. Although the literature evidenced that there is no generally acceptable best solvent for the extraction of polyphenols, it is generally believed that solvents of higher polarity often perform best in terms of polyphenols extraction because of the high solubility of polyphenols in such solvents [55]. An explanation as to why our freeze-drying with resuspension of the OMWW residue in MeOH performed much better than in Jerman Klen and Mozetič Vodpivec [48] could be because we did not acidify the OMWW prior to storage. It is known that pectins can hydrolyse and precipitate under acidic conditions in polar solvents [56]. We suspect that hydrolysed pectins interacted strongly with polyphenols. The fact that acidification with ultrasound extraction was so successful is probably related to a combination of factors. The energy of ultrasonication is known to break bonds, which is why the technique is often used in other matrices to extract different types of compounds. The low pH has a strong effect on fatty acids, protonating their polar head and removing ionic interactions. Alkali pH will have the opposite effect, ionizing all fatty acid groups and making stronger interactions. The phenomenon of phenolic compound degradation under alkali conditions was in accordance with the observations of Friedman and Jürgens [57]. Enzymatic treatment with cellulases, hemicellulases and lipases to break molecular bonds was not as efficient as hoped for. Drawbacks are the long sample preparation times and heating the OMWW to prepare conditions as aligned with enzyme activity as optimally as possible, which also makes it prone to matrix and compound changes.
Removing polyphenolic compounds from OMWW via Fe3O4 particles is a technique with potential when a multi-step approach is used, by repeating several cycles of adsorption of polyphenols onto the particles and desorbing them into a solvent. This technique will be economically profitable if the Fe3O4 particles can start a new cycle after desorption and the solvent can be reused by evaporation, leading to a concentration of the polyphenolic compounds in small solvent volumes.

4. Materials and Methods

4.1. Materials and Instrumentation

Extraction solvents: methanol (MeOH) (Honeywell, HPLC grade, Charlotte, NC, USA) hexane and ethyl acetate (EtAc) (Honeywell, reagent grade). Reagents to adapt the pH of OMWW: hydrochloric acid (HCl, 37%) and sodium hydroxide (NaOH) (Honeywell, reagent grade). OMWW was filtered with 200 nm polyamid (nylon) syringe filters before LC-MS/MS measurements. Iron (II, III) oxide particles (Fe3O4, 50–100 nm, Sigma Aldrich, St. Louis, MO, USA) were used to collect polyphenolic compounds from OMWW. Solvents for LC-MS/MS analysis: acetonitrile, MeOH and water (Honeywell, LC-MS chromasolv grade).
Enzymes: Tailorenzyme, Herfev, Denmark. Tail 175: xylanase + hemicellulase, pH 4–5, 50–60 °C; Tail 113: pectinase, arabinase, hemicellulase, cellulase, pH 4–5, 45–55 °C; Tailorfood: Tail 157, CAS: 62213-14-3, pectinase, hemicellulase, pH 4–5, 50–60 °C; Tailorfood: Tail 127, CAS: 9001-62-1, lipase (1,3-specific), pH 6.5, 30–40 °C; Tailorfood: CellulX-1L, CAS: 9012-54-8, cellulase + beta-glucanase, pH 4.5–6, 50–60 °C; TailorWine: Extract-01L, CAS: 62213-14-3, pectinase + hemicellulase, pH 3.5–5.5, 45–55 °C.
The liophilizer (Martin Christ, Alpha 1-4 LSCplus, Osterode am Harz, Germany) freeze-dried OMWW; high-performance liquid chromatography coupled to electrospray ionisation and quadrupole time-of-flight mass spectrometer (HPLC-ESI-QTOF-MS, 6530 Agilent Technologies, Santa Clara, CA, USA) was used to qualify and quantify the present polyphenolic compounds. The HPLC equipment incorporated a Poroshell 120 column (EC-C18; 2.7 µm; 3.0 × 150 mm).

4.2. Sample Collection

The samples were collected in the first week of October 2019, at the Franka Marzi olive mill (N 45° 30.6588 E 13° 42.2574, Koper, Slovenian Istria). The samples were collected from a three-phase decanter centrifuge. During the three-phase decanting process, olives, from mixed varieties (“Maurino”, “Leccino”, “Buga” and “Istrska belica”), obtained from different cultivars located in the region, are initially washed, crushed and malaxed (churned). Then water is added to a horizontal centrifuge (40–60 L/100 kg fruits weight), separating pomace from the oily mix consisting of the vegetable water and oil. This results in oil, pomace and wastewater fraction. Immediately after sampling, OMWW samples were stored in a freezer (−18 °C). Since these experiments were performed to ultimately find a new way to collect polyphenolic compounds from OMWW on a large scale, OMWW was not acidified as recommended by Jerman Klen and Mozetič Vodpivec [48] because this would not be economically feasible. Since the different steps in the experimental procedures were performed on different days, differences can be found in OMWW composition between experiments. Comparisons made within one experiment were prepared on the same date with the same OMWW.

4.3. Extraction Methods to Determine the Polyphenol Content in OMWW

For the results shown in Table 1:
  • 20 mL of OMWW was freeze-dried. The residue was shaken (20 min, 200 rpm) using 20 mL MeOH. To remove particles, the MeOH extract was filtered through a 0.2 pore size filter before measurement.
  • 20 mL of OMWW was freeze-dried. The residue was shaken (20 min, 200 rpm) using 20 mL of water:MeOH (1:1) mixture. To remove particles, the MeOH extract was filtered through a 0.2 pore size filter before measurement.
  • 20 mL of OMWW was freeze-dried. The residue was sonicated for 15 min using 20 mL MeOH. To remove particles, the MeOH extract was filtered through a 0.2 pore size filter before measurement.
  • 20 mL OMWW was defatted with hexane (1:1, v/v). The 2 layers were separated by centrifugation (4000 rpm, 15min) and the hexane layer was removed. Phenolic compounds in the OMWW were three times extracted using a liquid–liquid extraction method by adding ethyl acetate (1:1, v/v) to the OMWW. The mixture was shaken for 20 min at 200 rpm. Layers were separated by 10 min of centrifugation at 4000 rpm and the ethyl acetate extracts were collected. Ethyl acetate was removed by vacuum evaporation at 40 °C and the oily residue was dissolved in 10 mL of MeOH before measurement [29].
  • The pH of 20 mL OMWW was adjusted to pH 2 using HCl (2 M). OMWW was defatted with hexane (1:1, v/v). The 2 layers were separated by centrifugation (4000 rpm, 15min) and the hexane layer was removed. Phenolic compounds in the OMWW were three times extracted using a liquid–liquid extraction method by adding ethyl acetate (1:1, v/v) to the OMWW. The mixture was shaken for 20 min at 200 rpm. Layers were separated by 10 min of centrifugation at 4000 rpm and the ethyl acetate extracts were collected. Ethyl acetate was removed by vacuum evaporation at 40 °C and the oily residue was dissolved in 10 mL of MeOH before measurement [12].
  • Filtration through paper filters; dissolving the obtained residue in methanol and filtering it through 0.2 µm pore size filters. Sum the polyphenol concentration found in the filtrate and the MeOH fraction.
  • Filtration through 0.2 µm pore size filters
For the results shown in Table 2:
  • The pH of 20 mL of OMWW was adjusted to pH 2 using HCl (2 M), raised to pH 8 using NaOH (2 M) or remained at its original pH (pH 5).
  • The pH of 20 mL of OMWW was adjusted to pH 2 using HCl (2 M), raised to pH 8 using NaOH (2 M) or remained at its original pH (pH 5). OMWW was sonicated for 5, 20 and 40 min.

4.4. LC-MS/MS Analysis

HPLC-ESI-Q-TOF-MS: An elution gradient of 100% water: formic acid (99.5:0.5, v/v) (A) towards 100% acetonitrile: MeOH (1:1, v/v) was used over a period of 20 min (flow rate: 0.5 mL/min; injection volume: 1 µL). The separated phenolic compounds were firstly monitored using a diode-array detector (DAD) (280 nm) and then MS scans were performed in the m/z range 40–1000 (capillary voltage, 2.5 kV; gas temperature 250 °C; drying gas 8 L/min; sheath gas temperature 375 °C; sheath gas flow 11 L/min). In those conditions, the instruments were expected to provide experimental data with accuracy within ±3 ppm. All data were processed using Qualitative Workflow B.08.00 and Qualitative Navigator B.080.00 software.
The extracts were screened for the range of phenolic compounds previously reported in O. europaea L., and their identification was confirmed, based on accurate mass and fragmentation profile, with literature data and analytical grade standards (hydroxytyrosol, luteolin, verbascoside, apigenin, oleuropein) [58]. Tyrosol cannot be detected by MS because of its high ionization energy; its presence in the extracts was confirmed by comparison with the retention times of the tyrosol standard solution using a DAD. Twenty-five phenolic compounds and their isomers were determined by MS: oleoside, hydroxytyrosol glucoside, hydroxtyrosol, elenolic acid glucoside, sacolagonoside, trans p-coumaric acid-4 glucoside, verbascoside, vanillin, demethyloleuropein, rutin, luteolin-O-glucoside, luteolin rutinoside, nuzhenide, caffeoyl-6-secologanoisde, apigenin glucoside, oleuropein, hydroxyl acetate, 3,4-DHPEA-EDA, oleuropein aglycone, oleuroside, p-HPEA-EDA, listroside and apigenin.
The quantification of the total phenol concentration in samples was performed using calibration graphs prepared using tyrosol by HPLC-DAD. The standard deviation between duplicate samples was about 7%. The calibration plots indicated good correlations between peak areas and commercial standard concentrations. Regression coefficients were higher than 0.990. LOQ was determined as the signal-to-noise ratio of 10:1 and was 8.3 µg/mL. For individual polyphenolic compounds found by MS, only semi-quantification was possible since standards of all compounds are needed for full quantification.

4.5. OMWW Treatment with Fe3O4 Particles

A total of 5 g/L of Fe3O4 particles were added to 80 mL of OMWW. The solution was shaken for 15 min (200 rpm). The particles were collected at the side of the beaker with a Neodynium magnet, and the OMWW was decanted. Subsequently, 5 mL of MeOH was added to the Fe3O4 particles. The MeOH was shaken for 5 min (200 rpm) to desorb the polyphenols from the particles. The particles were collected at the side of the beaker with a Neodynium magnet, and MeOH was decanted. The polyphenol concentration was determined with LC–MS/MS. The modified Fe3O4 and alcoholic solvent could be reused. In this study, the potential of this concept was tested with unmodified Fe3O4 particles. The scheme depicting the treatment of OMWW by removing polyphenols with Fe3O4 particles can be found in Figure 2.

5. Conclusions

This article discusses the importance of using an appropriate method to determine polyphenolic compounds of interest in a certain matrix. It was found that liquid–liquid extraction with ethyl acetate, one of the most applied methods in OMWW research, had the lowest performance of all polyphenol determination techniques in OMWW from Slovenian Istria. Lyophilisation of OMWW and resuspension in MeOH resulted in the detection of ten times higher polyphenol concentration, while ultrasonication of acidified OMWW resulted in almost thirty times higher polyphenol concentration.
With a total polyphenol concentration in OMWW of around 30 mg/mL, less than one percent of the polyphenols is removed by Fe3O4 particles (0.230 mg/mL) in one run. However, the technique’s adsorption and desorption, with help from magnetic collection of Fe3O4 particles, lends itself to easy repetition. Further research is needed to test different modifications (citric acid, C18, sodium dodecyl sulphate) of Fe3O4 particles to increase their adsorption efficiency or selectivity.

Author Contributions

Conceptualization, K.P.; methodology, K.P. and Č.T.; formal analysis, A.M.V.; investigation, K.P. and A.M.V.; data analysis, A.M.V. and K.P.; writing—original draft preparation, K.P.; writing—review and editing, K.P., Č.T., E.S.E., M.S. and A.M.V.; project administration, M.S. All authors have read and agreed to the published version of the manuscript.


The authors would like to thank the Bio Based Industries Joint Undertaking for providing funding for the Pro-Enrich project (Grant Agreement No. 792050), under the European Union’s Horizon 2020 research and innovation programme. The authors also acknowledge and thank the European Commission for funding the InnoRenew project (grant agreement #739574), under the H2020 Widespread-2-Teaming programme, the Republic of Slovenia (investment funding from the Republic of Slovenia and the European Regional Development Fund) and the ARRS infrastructure program IO-0035 and Project J4-1767.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.


The authors gratefully thank Franka Marzi and the Lisjak olive mills (Koper, Slovenian Istria) for the provision of samples for this study. They also thank TailorEnzyme for providing enzymes.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.


  1. Pandey, K.B.; Rizvi, S.I. Plant polyphenols as dietary antioxidants in human health and disease. Oxid. Med. Cell. Longev. 2009, 2, 270–278. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Beckman, C.H. Phenolic-storing cells: Keys to programmed cell death and periderm formation in wilt disease resistance and in general defence responses in plants? Physiol. Mol. Plant Pathol. 2000, 57, 101–110. [Google Scholar] [CrossRef]
  3. Graf, B.A.; Milbury, P.E.; Blumberg, J.B. Flavonols, flavonones, flavanones and human health: Epidemological evidence. J. Med. Food 2005, 8, 281–290. [Google Scholar] [CrossRef]
  4. Arts, I.C.W.; Hollman, P.C.H. Polyphenols and disease risk in epidemiologic studies. Am. J. Clin. Nutr. 2005, 81, 317–325. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Cory, H.; Passarelli, S.; Szeto, J.; Tamez, M.; Mattei, J. The role of polyphenols in human health and food systems: A mini-review. Front. Nutr. 2018, 5, 87. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. González-Burgos, E.; Pilar Gómez-Serranillos, M. Effect of phenolic compounds on human health. Nutrients 2021, 13, 3922. [Google Scholar] [CrossRef]
  7. Keys, A.; Mienotti, A.; Karvonen, M.J.; Aravanis, C.; Blackburn, H.; Buzina, R.; Djordjevic, B.S.; Dontas, A.S.; Fidanza, F.; Keys, M.H.; et al. The diet and 15-year death rate in the seven countries study. Am. J. Epidemiol. 1986, 124, 903–915. [Google Scholar] [CrossRef] [PubMed]
  8. Rodis, P.S.; Karathanos, V.T.; Mantzavinou, A. Partitioning of olive oil antioxidants between oil and water phases. J. Agric. Food Chem. 2002, 50, 596–601. [Google Scholar] [CrossRef]
  9. Kalogerakis, N.; Politi, M.; Foteinis, S.; Chatzisymeon, E.; Mantzavinos, D. Recovery of antioxidants from olive mill waste waters: A viable solution that promotes their overall sustainable management. J. Environ. Manag. 2013, 128, 749–758. [Google Scholar] [CrossRef][Green Version]
  10. Azaizeh, H.; Halahlih, F.; Najami, N.; Brunner, D.; Faulstich, M.; Tafesh, A. Antioxidant activity of phenolic fractions in olive mill wastewater. Food Chem. 2012, 134, 2226–2234. [Google Scholar] [CrossRef]
  11. Guerra, R. Ecotoxicological and chemical evaluation of phenolic compounds in industrial effluents. Chemosphere 2001, 44, 1737–1747. [Google Scholar] [CrossRef]
  12. EL Abbassi, A.; Kiai, H.; Hafidi, A. Phenolic profile and antioxidant activities of olive mill wastewater. Food Chem. 2012, 132, 406–412. [Google Scholar] [CrossRef] [PubMed]
  13. Sahnoun, H.; Serbaji, M.M.; Karray, B.; Medhioub, K. Olive mill waste water management study by using principal component analysis. Int. J. Geosci. 2013, 4, 29413. [Google Scholar] [CrossRef][Green Version]
  14. Obied, H.K.; Allen, M.S.; Bedgood, D.R.; Prenzler, P.D.; Robards, K.; Stockmann, R. Bioactivity and analysis of biophenols recovered from olive mill waste. J. Agric. Food Chem. 2005, 53, 823–837. [Google Scholar] [CrossRef] [PubMed]
  15. Pérez-Jiménez, J.; Diaz-Rubio, E.M.; Saura-Calixto, F. Non-extractable polyphenols in plant foods: Nature, isolation, and analysis. In Polyphenols in Plants. Isolation, Purification and Extract Preparation; Watson, R.R., Ed.; Academic Press-Elsevier: San Diego, CA, USA, 2014; pp. 203–218. [Google Scholar]
  16. Vavouraki, A. Removal of polyphenols from olive mill wastewater by FPX 66 resin: Part II. Adsorption kinetics and equilibrium studies. Int. J. Waste Resour. 2020, 10, 1–7. [Google Scholar] [CrossRef][Green Version]
  17. Papaoikonomou, L.; Labanaris, K.; Kaderides, K.; Goula, A.M. Adsorption–desorption of phenolic compounds from olive mill wastewater using a novel low-cost biosorbent. Environ. Sci. Pollut. Res. 2021, 28, 24230–24244. [Google Scholar] [CrossRef]
  18. Annab, H.; Fiol, N.; Villaescusa, I.; Essamri, A. A proposal for the sustainable treatment and valorisation of olive mill wastes. J. Environ. Chem. Eng. 2019, 7, 102803. [Google Scholar] [CrossRef]
  19. Ochando-Pulido, J.M.; Martínez-Férez, A. About the recovery of the phenolic fraction from olive mill wastewater by micro and ultracentrifugation membranes. Chem. Eng. Trans. 2017, 60, 271–276. [Google Scholar]
  20. Garcia-Castello, E.M.; Cassano, A.; Criscuoli, A.; Conidi, C.; Drioli, E. Recovery and concentration of polyphenols from olive mill wastewaters by integrated membrane system. Water Res. 2010, 44, 3883–3892. [Google Scholar] [CrossRef]
  21. Jahangiri, M.; Rahimpour, A.; Nemati, S.; Alimohammady, M. Recovery of polyphenols from olive mill wastewater by nano-filtration. Cellul. Chem. Technol. 2016, 50, 961–966. [Google Scholar]
  22. Mudimu, O.A.; Peters, M.; Brauner, F.; Braun, G. Overview of membrane processes for the recovery of polyphenols from olive mill wastewater. Am. J. Environ. Sci. 2012, 8, 195–201. [Google Scholar]
  23. Boudissa, F.; Kadi, H. Transfer of phenolic compounds from olive mill wastewater to olive cake oil. J. Am. Oil Chem. Soc. 2013, 90, 717–723. [Google Scholar] [CrossRef]
  24. Dammak, I.; Neves, M.A.; Isoda, H.; Sayadi, S.; Nakajima, M. Recovery of polyphenols from olive mill wastewater using drowning-out crystallization based separation process. Innov. Food Sci. Emerg. Technol. 2016, 34, 326–335. [Google Scholar] [CrossRef][Green Version]
  25. Yahiaouia, N.; Kadia, H.; Moussaouia, R.; Sebaouia, O.; Fiallo, M. Treatment and valorization of olive mill wastewater by hydroxyapatite co-precipitation using experimental design. Desalin. Water Treat. 2020, 195, 232–239. [Google Scholar] [CrossRef]
  26. Gullón, P.; Gullón, B.; Astray, G.; Carpena, M.; Fraga-Corral, M.; Prieto, M.A.; Simal-Gandara, J. Valorization of by-products from olive oil industry and added-value applications for innovative functional foods. Food Res. Int. 2020, 137, 109683. [Google Scholar] [CrossRef]
  27. Caporaso, N.; Formisano, D.; Genovese, A. Use of phenolic compounds from olive mill wastewater as valuable ingredients for functional foods. Crit. Rev. Food Sci. Nutr. 2018, 58, 2829–2841. [Google Scholar] [CrossRef] [PubMed]
  28. Allouche, N.; Fki, A.I.; Sayadi, S. Toward a high yield recovery of antioxidants and purified hydroxytyrosol from olive mill wastewaters. J. Agric. Food Chem. 2004, 52, 267–273. [Google Scholar] [CrossRef] [PubMed]
  29. Leouifoudi, I.; Zyad, A.; Amechrouq, A.; Oukerrou, M.A.; Mouse, H.A.; Mbarki, M. Identification and characterisation of phenolic compounds extracted from Moroccan olive mill wastewater. Food Sci. Technol. 2014, 34, 249–257. [Google Scholar] [CrossRef][Green Version]
  30. Leouifoudi, I.; Harnafi, H.; Zyad, A. Olive mill waste extracts: Polyphenols content, antioxidant, and antimicrobial activities. Adv. Pharmacol. Sci. 2015, 2015, 714138. [Google Scholar] [CrossRef]
  31. Abu-Lafi, S.; Al-Natsheh, M.S.; Yaghmoor, R.; Al-Rimawi, F. Enrichment of phenolic compounds from olive mill wastewater and in vitro evaluation of their antimicrobial activities. Evid. Based Complement. Altern. Med. 2017, 2017, 3706915. [Google Scholar] [CrossRef][Green Version]
  32. De Marco, E.; Sa Varese, M.; Paduano, A.; Sacchi, R. Characterization and fractionnement of phenolic compounds extracted from olive mill wastewaters. Food Chem. 2007, 104, 858–867. [Google Scholar] [CrossRef]
  33. Bedouhene, S.; Hurtado-Nedelec, M.; Sennani, N.; Marie, J.-C.; El-Benna, J.; Moulti-Mati, F. Polyphenols extracted from olive mill wastewater exert a strong antioxidant effect in human neutrophils. Int. J. Waste Resour. 2014, 4, 1000161. [Google Scholar] [CrossRef][Green Version]
  34. Romeo, R.; De Bruno, A.; Imeneo, V.; Piscopo, A.; Poiana, M. Evaluation of enrichment with antioxidants from olive oil mill wastes in hydrophilic model system. J. Food Process. Preserv. 2019, 43, e14211. [Google Scholar] [CrossRef]
  35. El Hadrami, A.; Belaqziz, M.; El Hassni, M.; Hanifi, S.; Abbad, S.; Capasso, R.; El Hadrami, I. Physico-chemical characterization and effects of olive oil mill wastewaters fertirrigation on the growth of some mediterranean crops. J. Agron. 2004, 3, 247–254. [Google Scholar] [CrossRef][Green Version]
  36. Belaqziz, M.; Tan, S.P.; EL Abbassi, A.; Kiai, H.; Hafidi, A.; Donovan, O.O.; McLoughlin, P. Assessment of the antioxidant and antibacterial activities of different olive processing wastewaters. PLoS ONE 2017, 12, e0182622. [Google Scholar] [CrossRef]
  37. Di Mauro, M.D.; Giardina, R.C.; Fava, G.; Mirabella, E.F.; Acquaviva, R.; Renis, M.; D’Antona, N. Polyphenolic profile and antioxidant activity of olive mill wastewater from two Sicilian olive cultivars: Cerasuola and nocellara etnea. Eur. Food Res. Technol. 2017, 243, 1895–1903. [Google Scholar] [CrossRef]
  38. Di Mauro, M.D.; Fava, G.; Spampinato, M.; Aleo, D.; Melilli, B.; Saita, M.G.; Centonze, G.; Maggiore, R.; D’Antona, N. Poly-phenolic fraction from olive mill wastewater: Scale-up and in vitro studies for ophthalmic nutraceutical applications. Antiox-idants 2019, 8, 462. [Google Scholar] [CrossRef][Green Version]
  39. Frascari, D.; Bacca, A.E.M.; Zama, F.; Bertin, L.; Fava, F.; Pinelli, D. Olive mill wastewater valorisation through phenolic compounds adsorption in a continuous flow column. Chem. Eng. J. 2016, 283, 293–303. [Google Scholar] [CrossRef]
  40. Galanakis, C.; Tornberg, E.; Gekas, V. Clarification of high-added value products from olive mill wastewater. J. Food Eng. 2010, 99, 190–197. [Google Scholar] [CrossRef]
  41. Alfano, A.; Corsuto, L.; Finamore, R.; Savarese, M.; Ferrara, F.; Falco, S.; Santabarbara, G.; De Rosa, M.; Schiraldi, C. Valori-zation of olive mill wastewater by membrane processes to recover natural antioxidant compounds for cosmeceutical and nutraceutical applications or functional foods. Antioxidants 2018, 7, 72. [Google Scholar] [CrossRef][Green Version]
  42. Savarese, M.; De Marco, E.; Falco, S.; D’Antuoni, I.; Sacchi, R. Biophenol extracts from olive oil mill wastewaters by membrane separation and adsorption resin. Int. J. Food Sci. Technol. 2016, 51, 2386–2395. [Google Scholar] [CrossRef]
  43. Aytar, P.; Gedikli, S.; Çelikdemir, M.; Uzuner, S.; Farizoğlu, B.; Şam, M.; Çabuk, A.; Sağlam, N. Dephenolization of olive mill wastewater by pellets of some white rot fungi. J. Biol. Chem. 2011, 39, 379–390. [Google Scholar]
  44. Bazoti, F.N.; Gikas, E.; Skaltsounis, A.L.; Tsarbopoulos, A. Development of a liquid chromatography–electrospray ionization tandem mass spectrometry (LC–ESI MS/MS) method for the quantification of bioactive substances present in olive oil mill wastewaters. Anal. Chim. Acta 2006, 573, 258–266. [Google Scholar] [CrossRef] [PubMed]
  45. DeLisi, R.; Saiano, F.; Pagliaro, M.; Ciriminna, R. Quick assessment of the economic value of olive mill waste water. Chem. Central J. 2016, 10, 63. [Google Scholar] [CrossRef][Green Version]
  46. Jebabli, H.; Nsir, H.; Taamalli, A.; Abu-Reidah, I.; Álvarez-Martínez, F.J.; Losada-Echeberria, M.; Catalán, E.B.; Mhamdi, R. Industrial-scale study of the chemical composition of olive oil process-derived matrices. Processes 2020, 8, 701. [Google Scholar] [CrossRef]
  47. Sedej, I.; Milczarek, R.; Wang, S.C.; Sheng, R.; de Jesús Avena-Bustillos, R.; Dao, L.; Takeoka, G. Spray drying of a phenol-ic-rich membrane filtration fraction of olive mill wastewater: Optimisation and dried product quality. Int. J. Food Sci. Technol. 2016, 51, 1900–1909. [Google Scholar] [CrossRef]
  48. Jerman Klen, T.; Mozetič Vodopivec, B. Ultrasonic extraction of phenols from olive mill wastewater: Comparison with con-ventional methods. J. Agric. Food Chem. 2011, 59, 12725–12731. [Google Scholar] [CrossRef]
  49. Jerman Klen, T.; Golc Wondra, A.; Vrhovšek, U.; Mozetič Vodopivec, B. Phenolic profiling of olives and olive oil process-derived matrices using UPLC-DAD-ESI-QTOF-HRMS analysis. J. Agric. Food Chem. 2015, 63, 3859−3872. [Google Scholar] [CrossRef]
  50. Hamza, M.; Khoufi, S.; Sayadi, S. Fungal enzymes as a powerful tool to release antioxidants from olive mill wastewater. Food Chem. 2012, 131, 1430–1436. [Google Scholar] [CrossRef]
  51. Abbattista, R.; Ventura, G.; Calvano, C.; Cataldi, T.; Losito, I. Bioactive compounds in waste by-products from olive oil production: Applications and structural characterization by mass spectrometry techniques. Foods 2021, 10, 1236. [Google Scholar] [CrossRef]
  52. Tesh, S.J.; Scott, T.B. Iron nanoparticles for water treatment: Is the future free or fixed? In Iron Oxides, from Nature to Applications; Faivre, D., Ed.; Wiley-VCH Verlag GmbH & Co.: Weinheim, Germany, 2016; pp. 473–522. [Google Scholar]
  53. Catalano, S.; Lawrence, J.; Seadeek, C.; Palazzolo, J.; Wesorick, S.; Cotton, S.; TerBeek, E. Visual Encyclopedia of Chemical Engineering: Adsorbers (n.d.). Available online: (accessed on 12 October 2021).
  54. Gentile, L.; Uccella, N.A.; Sivakumar, G. Soft-MS and computational mapping of oleuropein. Int. J. Mol. Sci. 2017, 18, 992. [Google Scholar] [CrossRef] [PubMed][Green Version]
  55. Alara, O.R.; Abdurahman, N.H.; Ukaegbu, C.I. Extraction of phenolic compounds: A review. Curr. Res. Food Sci. 2021, 4, 200–214. [Google Scholar] [CrossRef] [PubMed]
  56. Belkheiri, A.; Forouhar, A.; Ursu, A.; Dubessay, P.; Pierre, G.; Delattre, C.; Djelveh, G.; Abdelkafi, S.; Hamdami, N.; Michaud, P. Extraction, characterization, and applications of pectins from plant by-products. Appl. Sci. 2021, 11, 6596. [Google Scholar] [CrossRef]
  57. Friedman, M.; Jürgens, H.S. Effect of pH on the stability of plant phenolic compounds. J. Agric. Food Chem. 2000, 48, 2101–2110. [Google Scholar] [CrossRef]
  58. Miklavčič Višnjevec, A.; Baker, P.; Charlton, A.; Preskett, D.; Peeters, K.; Tavzes, Č.; Kramberger, K.; Schwarzkopf, M. Developing an olive biorefinery in slovenia: Analysis of phenolic compounds found in olive mill pomace and wastewater. Molecules 2020, 26, 7. [Google Scholar] [CrossRef]

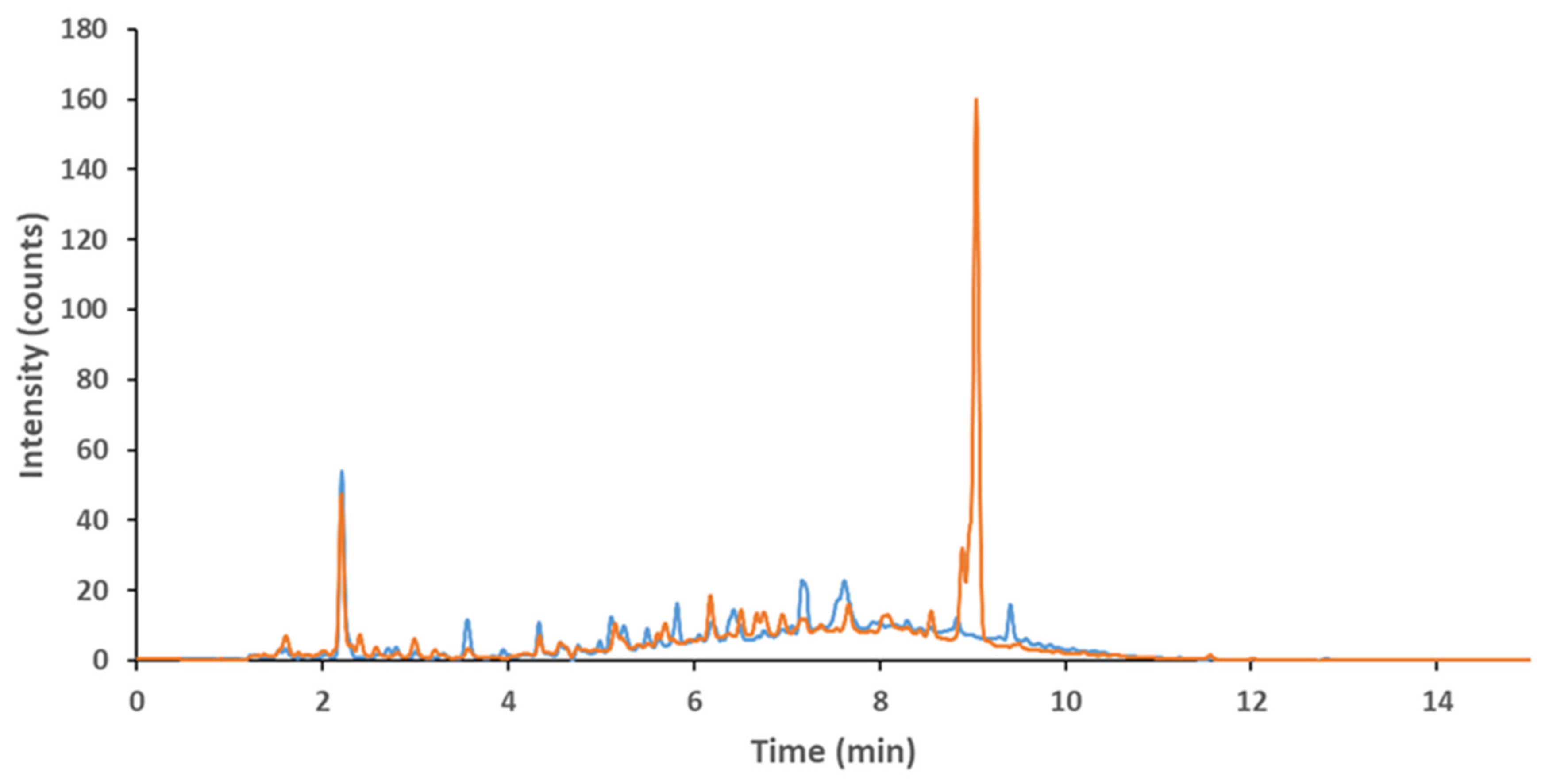

Figure 1. Comparison between OMWW (blue) and enzymatic treated OMWW (orange).
Figure 1. Comparison between OMWW (blue) and enzymatic treated OMWW (orange).
Molecules 26 06946 g001

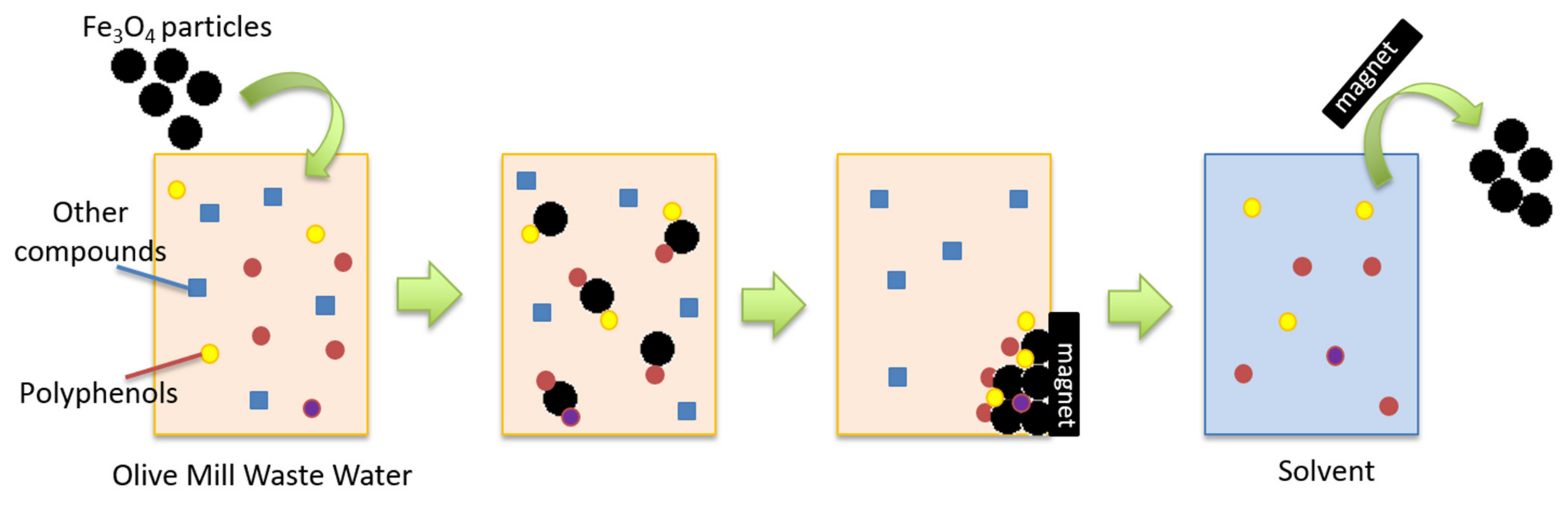

Figure 2. Scheme depicting the removal of polyphenols by the use of Fe3O4 particles.
Figure 2. Scheme depicting the removal of polyphenols by the use of Fe3O4 particles.
Molecules 26 06946 g002
Table 1. Comparison between different OMWW treatment techniques to determine their polyphenol content. Individual phenolic compounds are semi-quantified (counts on the MS detector), total phenolic concentrations are in mg/mL.
Table 1. Comparison between different OMWW treatment techniques to determine their polyphenol content. Individual phenolic compounds are semi-quantified (counts on the MS detector), total phenolic concentrations are in mg/mL.
Phenolic CompoundFreeze Dry MeOH, ShakeFreeze Dry MeOH:H2OFreeze Dry, MeOH, USAcidfied EtAcEtAcOMWW Filtered + ResidueOMWW Filtered
Oleoside isomers1,445,5741,110,8632,289,053<LOD<LOD645,128328,597
Hydroxytyrosol glucoside5,66,618304,6941,960,374132,473209,382242,80773,459
Elenolic acid glucoside isomers1,029,428321,1831,180,57275,02565,159698,553584,125
Trans p-coumaric acid 4-glucoside34,388<LOD<LOD<LOD<LOD70,22635,977
β-OH-verbascoside isomers945,209535,374998,241329,091145,549528,836341,598
Verbascoside isomers674,206474,729633,051128,34986,880295,769201,862
Luteolin-O-glucoside isomers<LOD382,343<LOD69,310<LOD79,061<LOD
Luteolin rutinoside<LOD<LOD<LOD58,880<LOD114,975<LOD
Nuzhenide Isomers538,060580,076882,46178,569<LOD359,262298,155
Oleuropein isomers453,752845,967483,535143,477<LOD745,436707,012
Hydroxytyrosol acetate<LOD<LOD<LOD29,961<LOD<LOD<LOD
Oleuropein aglycone Isomers1,475,716749,6891,440,826625,458395,7101,164,5601,008,817
Total (mg/mL)10.2 ± 0.74.99 ± 0.3510.1 ± 0.71.48 ± 0.100.95 ± 0.074.67 ± 0.333.43 ± 0.24
Table 2. Comparison between different OMWW treatment techniques using pH change and ultrasonication (40 min) to determine the polyphenol content. Total concentrations are in mg/mL, individual phenolic compounds are semi-quantified (counts on the MS detector).
Table 2. Comparison between different OMWW treatment techniques using pH change and ultrasonication (40 min) to determine the polyphenol content. Total concentrations are in mg/mL, individual phenolic compounds are semi-quantified (counts on the MS detector).
Phenolic CompoundOMWW (pH 2)OMWW (pH 5)OMWW (pH 8)OMWW (pH2 + US)OMWW (pH5 + US)OMWW (pH8 + US)
Oleoside isomers309,970370399427,3451,697,180289,116466,507
Hydroxytyrosol glucoside471,09628421921,7865,227,070388,31221,006
Elenolic acid glucoside isomers568,689715803506,2672,481,760717,451535,038
Trans p-coumaric acid 4-glucoside99,95016971674,408728,910114,82662,571
β-OH-verbascoside isomers399,555351,584223,9354,395,790351,633172,049
Verbascoside isomers270,546227,444186,8902,518,070272,648183,198
Nuzhenide Isomers167,438138,946<LOD379,690220,018<LOD
Hydroxytyrosol acetate<LOD<LOD<LOD177,91031,639<LOD
Oleuropein aglycone Isomers819,442607,781<LOD4,189,430674,198<LOD
Total (mg/mL)3.83 ± 0.273.29 ± 0.231.98 ± 0.1427.6 ± 1.93.48 ± 0.241.96 ± 0.14
Table 3. Fifteen subsequent treatments of OMWW with unmodified Fe3O4 particles. The particles were thereafter desorbed in MeOH. Total concentrations are quantified in mg per mL of OMWW, individual compounds are semi-quantified (counts on the MS detector).
Table 3. Fifteen subsequent treatments of OMWW with unmodified Fe3O4 particles. The particles were thereafter desorbed in MeOH. Total concentrations are quantified in mg per mL of OMWW, individual compounds are semi-quantified (counts on the MS detector).
Phenolic CompoundsPolyphenol Content in 1st MeOH FractionPolyphenol Content in 15th MeOH FractionSoluble Polyphenol Content in OMWW -Before TreatmentSoluble Polyphenol Concentration in OMWW—After Treatment
Oleoside isomers17,17318,190322,365322,726
Hydroxytyrosol glucoside3995687671,54972,656
Caffeic acid62467554151,33493,235
Elenolic acid glucoside isomers7967188951,51948,253
β-OH-verbascoside isomers82757939129,286179,532
Verbascoside isomers6474<LOD148,867<LOD
Luteolin rutinoside1060134717,36911,588
Luteolin-O-glucoside isomers4042352923,15615,171
Oleuropein isomers<LOD426<LOD<LOD
Oleuropein/Oleuroside951< LOD49,132< LOD
Oleuropein aglycone isomers369<LOD6813<LOD
Total (mg/mL)0.23 ± 0.020.19 ± 0.023.86 ± 0.122.68 ± 0.09
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Peeters, K.; Miklavčič Višnjevec, A.; Esakkimuthu, E.S.; Schwarzkopf, M.; Tavzes, Č. The Valorisation of Olive Mill Wastewater from Slovenian Istria by Fe3O4 Particles to Recover Polyphenolic Compounds for the Chemical Specialties Sector. Molecules 2021, 26, 6946.

AMA Style

Peeters K, Miklavčič Višnjevec A, Esakkimuthu ES, Schwarzkopf M, Tavzes Č. The Valorisation of Olive Mill Wastewater from Slovenian Istria by Fe3O4 Particles to Recover Polyphenolic Compounds for the Chemical Specialties Sector. Molecules. 2021; 26(22):6946.

Chicago/Turabian Style

Peeters, Kelly, Ana Miklavčič Višnjevec, Esakkiammal Sudha Esakkimuthu, Matthew Schwarzkopf, and Črtomir Tavzes. 2021. "The Valorisation of Olive Mill Wastewater from Slovenian Istria by Fe3O4 Particles to Recover Polyphenolic Compounds for the Chemical Specialties Sector" Molecules 26, no. 22: 6946.

Article Metrics

Back to TopTop
