Article

Structural Diversity of Di-Metalized Arginine Evidenced by Infrared Multiple Photon Dissociation (IRMPD) Spectroscopy in the Gas Phase

by
Ruxia Feng
1,
Yicheng Xu
1 and
Xianglei Kong
1,2,*
1
State Key Laboratory and Institute of Elemento-Organic Chemistry, College of Chemistry, Nankai University, Tianjin 300071, China
2
Collaborative Innovation Center of Chemical Science and Engineering, Nankai University, Tianjin 300071, China
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(21), 6546; https://doi.org/10.3390/molecules26216546
Submission received: 23 September 2021 / Revised: 23 October 2021 / Accepted: 27 October 2021 / Published: 29 October 2021
(This article belongs to the Special Issue Molecular Metal Clusters: Fundamental and Applied Aspects)
Browse Figures
Versions Notes

Abstract

:
Although metal cations are prevalent in biological media, the species of multi-metal cationized biomolecules have received little attention so far. Studying these complexes in isolated state is important, since it provides intrinsic information about the interaction among them on the molecular level. Our investigation here demonstrates the unexpected structural diversity of such species generated by a matrix-assisted laser desorption ionization (MALDI) source in the gas phase. The photodissociation spectroscopic and theoretical study reflects that the co-existing isomers of [Arg+Rb+K−H]+ can have energies ≥95 kJ/mol higher than that of the most stable one. While the result can be rationalized by the great isomerization energy barrier due to the coordination, it strongly reminds us to pay more attention to their structural diversities for multi-metalized fundamental biological molecules, especially for the ones with the ubiquitous alkali metal ions.

Graphical Abstract

1. Introduction

Metal ions are essential for living processes by regulating structures and functions of various biological molecules, including amino acids, peptides, proteins, and nucleic acids [1,2,3,4,5]. They also play an important role in synthetic chemistry relative to those biomolecules [6]. Experimental and theoretical studies on the metal-biomolecule complexes in isolated state are very important to the issue since they can provide unique and intrinsic information about the interaction between the metal ion and the biomolecule on the molecular level [7,8,9,10]. Among them, infrared multiple photon dissociation (IRMPD) spectroscopy, combined with mass spectrometry, provides valuable information about their structures and interactions and have been widely applied in the field [11,12,13,14,15,16,17,18,19,20,21,22,23,24]. For example, the interaction of metal ions with amino acids and peptides have been extensively studied and the internal rules relative to their structural preference have been gradually revealed in the past 20 years [17,18,19,20,21,22,23,24,25]. However, most of these studies only focus on the singly metalized complexes, and we still know little about such complexes with multiple metal ions. Considering that metal ions including Na+ and K+ have concentration-dependent effects on chemical properties of amino acids in cell [26], multiply metalized complexes, just as the singly metalized counterparts, need further investigation. It is also known that the bimetallic complexes can provide different chemical properties and reactivity patterns from their monometallic counterpart in organic chemistry [27]. Thus, a detailed structural study on such di-metalized complexes is a good test. Herein we report the first gas phase IRMPD spectrum of the heteronuclear bimetallic complex ion of Arginine (Arg). The complex ion of [Arg+Rb+K−H]+ was chosen as the example for this study, since the ion can be generated herein with a better reproducibility than other observed bimetallic complex ions, such as [Arg+2Na−H]+ and [Arg+2K−H]+. This research aims at a better understanding for the interaction and structure of the species, based on the experimental IRMPD method and theoretical calculations. The results can further introduce the study of micro solvation of such bimetallic ions on the single molecule level, which bridges the structure and property study for such molecules in the gas and condensed phases.

2. Results

Under suitable IR wavelengths, the absorption of IR photons can induce the fragmentation of the precursor ions. As shown in Figure S1, two fragment ions were observed for the target ions of [Arg+Rb+K−H]+. One is the fragment ion due to the loss of NH2 group, and the other is Rb+. By tuning output wave-numbers of the optical parametric oscillator (OPO) laser, IRMPD mass spectra of the precursor ion in the region were recorded in a step of 5 cm−1, thus the action spectrum of the target ion was obtained (Figure 1a).
For comparison, the previously observed IRMPD spectrum of [Arg+Rb]+ is also shown here as Figure 1b. Interestingly, their IRMPD spectra are quite different from each other. The spectrum of [Arg+Rb]+ is clearly characterized by sharp peaks at 2940, 3455, 3525 and 3555 cm−1, while that of [Arg+Rb+K−H]+ shows relatively weak peaks at 3030, 3065, 3115, 3170, 3380, 3465, 3505 and 3565 cm−1, accompanied with broad absorptions in the region of 2680–3000 cm−1.
In order to better understand the results, systematic theoretical calculations relative to the most stable isomers of [Arg+Rb+K−H]+ were investigated by a self-developed procedure based on the density functional theory (DFT) method of B3LYP. The 80 isomers with relative energies no more than 230 kJ/mol to the most stable isomer were identified at the level of B3LYP/ 6-311++G(d,p)~LAN (Table S1). These structures are summarized in Figure 2 and Figure S2. Figure 2 shows a statistical view on the calculated isomers corresponding to their energy orders and structural characteristics. As shown there, the top 45 isomers are all characterized by a deprotonation place at Cα-COOH, and most of them own one intramolecular NH…O H-bond. The three most stable isomers of 1a, 2a and 3a are listed and shown in Table 1 and Figure 3, respectively. Among them, the most stable isomer 1a has a structure free of intramolecular H-bond. The distance between the two metal atoms extends to 5.35 Å to reduce the Coulomb repulsion. Interestingly, each structure has a twin isomer, which is formed by exchanging the positions of Rb and K atoms. For convenience, the twin isomers are respectively named as a and b here, in which the one with lower energy is identified as a. As shown in Figure 3 and Table 1, the twins of 1a and 1b have very similar structures except the positions of two metal atoms. However, the isomer 1b has an energy 5.0 kJ/mol higher than that of 1a.
For the isomer 2a with the second lowest energy, the distance of Rb and K atoms (5.27 Å) is very close to that of 1a. But the structure is characterized a NH…O H-bond with a length of 1.95 Å and an angle of 158.7°. A different aspect is that its twin isomer 2b is somewhat different from 2a after the optimization. The structure is more compactly folded and thus the distance of the metal atoms reduces to 4.51 Å, accompanied by a small change of the intramolecular H-bond. The isomers of 3a and 3b are similar to that of 2a, except that the metal–metal distance increases to 5.4/5.5 Å. Other low-energy isomers also generally have similar structures to that of 3a (Figure S2).
These isomers were also optimized with B3LYP based on a more size-consistent basis set of def2-TZVP. Both structures and relative energies are very similar to those calculated in B3LYP/6-311++G(d,p)~LAN level, as shown in Table 1. To further check the results, the method of MP2 was also applied for the optimization and frequency analysis of these isomers. The optimized isomers have structures very close to those shown in Figure 3. As shown in Table 1, the results obtained based on the two methods are generally consistent with each other. Based on the MP2 method, the isomer 1a is still the most stable one, with the energy 16.3 kJ/mol lower than that of 1b. The distances between the two metal atoms in 1a and 1b are 5.34 and 5.25 Å, respectively. For isomer 2a, its energy is 2.5 kJ/mol higher than that of 1a. The M06-2X method also reports a similar NH…O H-bond with a length of 1.93 Å and an angle of 154.1°, and a closer Rb-K distance of 5.18 Å than that one reported by the method of B3LYP in structure 2a. However, the relative energy of 2b is found to be only 2.6 kJ/mol, much lower than the value of 17.2 kJ/mol obtained with the B3LYP method. A shorter H-bond length is reported to be 1.82 Å with an angle of 163.8°. For isomers 3a and 3b, very similar results have been obtained for both methods.
As shown in Figure 4, the calculated IR spectra of 1a and 1b (based on B3LYP/6-311++G(d,p)~LAN) are very similar to each other. The predicted band in the region of 3350–3550 cm−1 (from NH stretches) corresponds to experimental results well (Restricted by the S/N ratios of the experimental spectrum, a quantitative description of the frequencies and relative intensities of IR vibrations in such complexes was not performed here [28,29].) For the experimentally observed broad band 2680–3000 cm−1, the predicted spectra only show strong and weak absorptions in two regions of 2820–2930 cm−1 and 2930–3000 cm−1 (both from CH stretches). On the other hand, the calculated IR spectra of 2a/2b and 3a/3b are similar, but poorly agree with the experimental results in the region 3250–3350 cm−1. All those spectra show strong absorption at ~3300 cm−1 coming from the vibrations of hydrogen bound NH bond, which are obviously absent in the experimental spectrum. The calculated IR spectra based on the methods of B3LYP/def2-TZVP and MP2/6-311++G(d,p)~SDD show similar results. The results obtained by the MP2 method are shown in Figure S3.
Obviously, some bands in the experimental spectrum, such as the absorption at 3565 cm−1 and the band in the region 3020–3200 cm−1, cannot be explained by these low-energy isomers. Even considering all the top 30 isomers (Figure S4), their predicted spectra are all absent in these characteristics. Thus, the experimentally generated ions should include some isomers with different structures. Considering that the observed peak at 3565 cm−1 is from the vibrations of free carboxylic OH vibrations [30,31,32], there must exist isomers with the group of -COOH. This is very unexpected, since all previous experimental and calculational proofs clearly indicated that Arg is very likely to form zwitterionic structures when interacted with metal ions, or other molecules in the gas phase [33,34,35,36]. A further check on the calculated isomers of [Arg+Rb+K−H]+ (Figure 2 and Table S1) also shows that the isomers including the -COOH group are typically 125–250 kJ/mol higher in energy than the most stable isomer of 1a.
Based on the method of B3LYP/6-311++G(d,p)~LAN, among these isomers including a group of -COOH, the most stable one is 23a, which has an energy 116.5 kJ/mol higher than 1a (Figure 3). The structure is characterized by a free -COOH, a NH…N H-bond (1.90 Å) and a relatively short distance between the two metals (4.06 Å). Its twin isomer 23b and other relative isomers (24a, 24b and others) have similar structures (Figure 3 and Figure S2). Both predicted spectra of 23a and 23b show their free carboxylic OH vibrations at ~3575 cm−1 and weak absorptions at the nearby of 3360, 3410, and 3515 cm−1 due to the NH stretch, the symmetric and antisymmetric stretches of the NH2 group. Remarkably, the spectra of 23a and 23b show strong absorptions at 3042 and 3110 cm−1 that are assigned as the intramolecular H-bonded NH stretches, respectively. For the isomer 24a and 24b, similar spectroscopic characteristics, including the free carboxylic OH at ~3600 cm−1 and the intramolecular H-bonded NH vibrations at 3115 and 3165 cm−1 are predicted. Obviously, the combination of these peaks agrees with the experimental spectrum in the regions of 3010–3200 cm−1 and 3550–3600 cm−1, which cannot be explained by the isomer of 1a and its relatives.
CH stretches are normally considered of little diagnostic value in structural analysis. However, an inspection of the experimental spectrum in the low wavenumber region is very helpful here. Although the observed absorptions in the region of 2820–3010 cm−1 can be assigned to be CH stretches of 1a/1b, the absorptions below 2820 cm−1 do not. Considering the small size of the ion, the intramolecular H-bonded groups of NH or OH are restricted very much, which can be hardly red-shifted to this region. Unexpectedly, the predicted CH bands of 23a/23b and 24a/24b have significantly expanded to ~2730 cm−1, although the observed absorption below 2730 cm−1 is still puzzling. Overall, the experimental and calculational results support the co-existence of both type isomers of 1 and 23/24.
The suggestions are also supported by the calculation based on the MP2 method. As shown in Table 1, the structures of 23/24 obtained with the two methods are very similar. Their relative energies based on the MP2 method are typically 21–25 kJ/mol lower than those based on the B3LYP/6-311++G(d,p)~LAN method. The predicted vibrational spectra of them are also very similar to those shown in Figure 4 (Figure S3).

3. Discussion

Even if the co-existence of multiply isomeric ions in the gas phase has been previously proven [37,38,39,40,41,42], the large energy difference between the two co-existing isomers reported here (≥95 kJ/mol based on the MP2 method) is still very surprising for such a small-sized ion. Solvation effect was also considered in water by employing the integral equation formalism polarizable continuum model (IEFPCM) [43]. Similar results were obtained, in which the isomers 23a and 23b both had energies 111 kJ/mol higher than 1a. The ratios of these high-energy isomers cannot be directly explained by their Boltzmann distribution. On the other hand, considering the amino acid has a zwitterionic structure in the solid or solution phase, it cannot be rationalized by the memory effect of the structure before the ionization. A conjecture for the results is that the rapid process of metal coordination from the initially generated species hinders the subsequent processes of isomerization (unlike organic matrices, graphene can generate a laser plume with metal cations in high density [25]). The consecutive metallization happens so quickly that the thermodynamic driven processes of isomerization do not have enough time to fully occur. After the bimetal coordination, the complex ions become much less flexible, since the rotation of the C-C bond is restricted by the coordination of metals, which also results in high energy barriers for isomerization. However, further computational investigation is still needed for a better understand of its potential energy surface and isomerization barriers. On the other hand, how the replacement of Rb+ with Na+ or K+ can affect their structures, energies, and isomerization processes for such complexes is a very attractive question. Previous results about singly alkali metal cationized amino acids show that the arginine changes from its nonzwitterionic to zwitterionic form between lithium and sodium, indicating the metal ion size can highly affect their structures [19]. At the same time, because the charge densities of Na+ and K+ can lead to larger repulsive forces than Rb+, Coulomb interaction may give priority to structures with longer distances of two metal atoms (such as 1a) in such di-metalized species, making other structures (such as 23a) less stable (which may be one of the reasons why the signals of such species were weak in our experiments). However, considering the ubiquitous existence of sodium or potassium and their concentration-dependent effects on amino acids in cells [26], these di-metalized species are worthy of further study.

4. Materials and Methods

Sample of graphene was purchased from Timesnano Company (Beijing, China). l-arginine (Arg), KCl and RbCl were obtained from Sigma-Aldrich (St. Louis, MO, USA). The solution of Arg was prepared with a concentration of 2 mM in CH3CN/water (1:1, v/v), together with 0.2 mM RbCl and 0.2 mM KCl. The sample of graphene was suspended in acetone containing 15% water with a concentration of 1 mg/mL. After a process of sonication for 10 min, 0.5 μL graphene suspension was pipetted and spotted on the metal target in the first step. After it dried, 0.5 μL of Arg with RbCl and KCl was dropped on it in the second step. The target was then dried in the air and sent into the matrix-assisted laser desorption ionization (MALDI) source for experiments.
The experimental setup has been described in our previous paper [16]. Briefly, an IR OPO laser (M Squared Lasers Ltd., Glasgow, UK) was combined with a 7.0 T Fourier-transform ion cyclotron resonance mass spectrometer (FT-ICR-MS) (Varian, Inc., Lake Forest, CA, USA). The ions are generated by a MALDI source equipped with a 355 nm Nd:YAG laser (Orion, New Wave, Fremont, CA, USA) at a typical pulse energy of 2.4 mJ. The OPO has a typical line width of 7 cm−1 and can be tunable in the range from 2680–4000 cm−1 with an average power at 160 mW. In the experiments, ions produced by six consecutive laser pulses were accumulated in the hexapole first. After the accumulation, the hexapole exit lens was gated so that ions could be transferred into the cell of FT-ICR. The target ions were selected by the method of stored waveform inverse Fourier transform (SWIFT) [42] and then trapped in the cell for laser irradiation. The irradiation time of the laser is set as 40 s and controlled with a mechanical shutter (Sigma-Koki, Tokyo, Japan). No focus lens is used in the experiment. During the process of IR irradiation, the cell of FT-ICR kept high vacuum with a pressure less than 4 × 10−10 Torr, indicating that the collision-induced dissociation or secondary reaction can be neglected. However, due to the long irradiation time, sequential dissociation of primary fragment ion is also possible in the process. The IRMPD spectra were recorded with a step size of 5 cm−1. The spectral intensity at each wavelength is calculated with the same method described previously [16].
Systematic theoretical calculations of [Arg+Rb+K−H]+ were investigated by a self-developed procedure shown in Scheme S1. Briefly, based on the initial structures of [Arg+K]+ previously reported [32], the isomers with all possible seven deprotonation sites were considered and then the second metal was added. To make the calculation on AM1 method performable, we used two K atoms at the first step. After the selection of the top energy isomers, one K atom were replaced by one Rb atom and reoptimized. At last the 80 (40 pairs of twins) isomers were optimized and selected on the level of B3LYP/6-311++G(d,p)~LAN [32,44,45,46]. Frequencies of all these structures were also calculated on the same level. Their electronic energies were calculated at 0 K with zero-point energy corrections and Gibbs energies were calculated at 298 K. Methods of B3LYP/def2-TZVP and MP2/6-311++G(d,p)~SDD were further applied for the optimization and frequency analysis of some selected isomers [47,48]. To get their predicted IR spectra, scaling factors of 0.952 and 0.940 were used for the B3LYP and MP2 methods, respectively. All calculations were carried out using the Gaussian 09 program package [49]. The Cartesian coordinates of some structures (1a/b~3a/b, 23a/b, 24a/b) are shown in Table S2.

5. Conclusions

In summary, [Arg+Rb+K−H]+, as one example of the di-metal cationized molecules that have received little attention so far, was generated in the gas phase with the matrix of graphene and investigated by IRMPD spectroscopy and theoretical calculations. Its IRMPD spectrum in the region of 2680–3700 cm−1 was found to be very complicated. For the hetero di-metal cationized species, each stable isomer was found to be accompanied by a twin isomer, characterized by exchanging the positions of the two different metal ions. Spectroscopic and calculational evidences show that the most stable isomer of [Arg+Rb+K−H]+, 1a, co-exists with some unexpected isomers, including the -COOH group, which have energies 95 kJ/mol higher than that of the former. The phenomenon is unverified, suggesting it could be rationalized by rapid processes of metallization in the ion source, resulting in blocking subsequent isomerization, since the coordination greatly restricts the rotation of relative sigma bonds. As alkali metal ions are prevalent in organic solvent or biological media, the present results provide a new perspective into the generation, stabilization, and existence of high-energy isomers of metal cationized amino acids and their relatives, which might affect their functions and reactivities. However, to further understand how structural diversity can be affected by solvents, and how gas phase structures can be related to ones in solution or gas-liquid interfaces, studies on the micro solvation of such bimetallic ions should be investigated systemically in further steps.

Supplementary Materials

The following are available online. Scheme S1: calculation procedure, Table S1: relative energies of the 80 isomers, Table S2: Cartesian coordinates of some structures (1a/b~3a/b, 23a/b, 24a/b), Figure S1: mass spectra, Figure S2: structures of the 80 isomers, Figure S3: IR spectra of some isomers based on the MP2 method, Figure S4: the predicted vibrational spectra of the top isomers of 4a/b~16a/b.

Author Contributions

Conceptualization, X.K.; experiment, R.F.; calculation, R.F., Y.X., and X.K.; writing—original draft preparation, R.F.; writing—review and editing, X.K.; funding acquisition, X.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (21627801).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Acknowledgments

The authors acknowledge the Computing Center of State Key Laboratory of Elemento-Organic Chemistry for providing computing resources.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Sigel, H.; Martin, R.B. Coordinating properties of the amide bond. Stability and structure of metal ion complexes of peptides and related ligands. Chem. Rev. 1982, 82, 385–426. [Google Scholar] [CrossRef]
  2. Holm, R.H.; Kennepohl, P.; Solomon, E.I. ChemInform Abstract: Structural and Functional Aspects of Metal Sites in Biology. ChemInform 2010, 28, 2239–2314. [Google Scholar] [CrossRef]
  3. Baldwin, R.L. How Hofmeister ion interactions affect protein stability. Biophys. J. 1996, 71, 2056–2063. [Google Scholar] [CrossRef] [Green Version]
  4. Toyoshima, C.; Nomura, H. Structural changes in the calcium pump accompanying the dissociation of calcium. Nature 2002, 418, 605–611. [Google Scholar] [CrossRef] [PubMed]
  5. Shi, G.; Dang, Y.; Pan, T.; Liu, X.; Liu, H.; Li, S.; Zhang, L.; Zhao, H.; Li, S.; Han, J.; et al. Unexpectedly Enhanced Solubility of Aromatic Amino Acids and Peptides in an Aqueous Solution of Divalent Transition-Metal Cations. Phys. Rev. Lett. 2016, 117, 238102. [Google Scholar] [CrossRef] [PubMed]
  6. Li, M.-L.; Yu, J.-H.; Li, Y.-H.; Zhu, S.-F.; Zhou, Q.-L. Highly enantioselective carbene insertion into N–H bonds of aliphatic amines. Science 2019, 366, 990–994. [Google Scholar] [CrossRef]
  7. Gross, D.S.; Williams, E.R. Structure of Gramicidin S (M + H + X)2+ Ions (X = Li, Na, K) Probed by Proton Transfer Reactions. J. Am. Chem. Soc. 1996, 118, 202–204. [Google Scholar] [CrossRef]
  8. Dilger, J.M.; Valentine, S.J.; Glover, M.S.; Clemmer, D.E. A Database of Alkaline-Earth-Coordinated Peptide Cross Sections: Insight into General Aspects of Structure. J. Am. Soc. Mass Spectrom. 2013, 24, 768–779. [Google Scholar] [CrossRef]
  9. Wongkongkathep, P.; Han, J.Y.; Choi, T.S.; Yin, S.; Kim, H.I.; Loo, J.A. Native Top-Down Mass Spectrometry and Ion Mobility MS for Characterizing the Cobalt and Manganese Metal Binding of α-Synuclein Protein. J. Am. Soc. Mass Spectrom. 2018, 29, 1870–1880. [Google Scholar] [CrossRef] [PubMed]
  10. Ro, S.Y.; Schachner, L.F.; Koo, C.W.; Purohit, R.; Remis, J.P.; Kenney, G.E.; Liauw, B.W.; Thomas, P.M.; Patrie, S.M.; Kelleher, N.L.; et al. Native top-down mass spectrometry provides insights into the copper centers of membrane-bound methane monooxygenase. Nat. Commun. 2019, 10, 2675. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Wyttenbach, T.; Witt, A.M.; Bowers, M.T. On the Stability of Amino Acid Zwitterions in the Gas Phase: The Influence of Derivatization, Proton Affinity, and Alkali Ion Addition. J. Am. Chem. Soc. 2000, 122, 3458–3464. [Google Scholar] [CrossRef]
  12. Oomens, J.; Moore, D.T.; von Helden, G.; Meijer, G.; Dunbar, R.C. The Site of Cr+ Attachment to Gas-Phase Aniline from Infrared Spectroscopy. J. Am. Chem. Soc. 2004, 126, 724–725. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Kapota, C.; Lemaire, J.; Maitre, P.; Ohanessian, G. Vibrational Signature of Charge Solvation vs Salt Bridge Isomers of Sodiated Amino Acids in the Gas Phase. J. Am. Chem. Soc. 2004, 126, 1836–1842. [Google Scholar] [CrossRef] [PubMed]
  14. Dunbar, R.C.; Polfer, N.C.; Berden, G.; Oomens, J. Metal ion binding to peptides: Oxygen or nitrogen sites? Int. J. Mass Spectrom. 2012, 330–332, 71–77. [Google Scholar] [CrossRef]
  15. Dunbar, R.C.; Steill, J.D.; Oomens, J. Encapsulation of Metal Cations by the PhePhe Ligand: A Cation−π Ion Cage. J. Am. Chem. Soc. 2011, 133, 9376–9386. [Google Scholar] [CrossRef] [PubMed]
  16. Feng, R.; Mu, L.; Yang, S.; Kong, X. IRMPD spectroscopy of metal cationized ions generated by MALDI source with graphene as the matrix. Int. J. Mass Spectrom. 2017, 419, 37–43. [Google Scholar] [CrossRef]
  17. Dunbar, R.C.; Polfer, N.C.; Oomens, J. Gas-Phase Zwitterion Stabilization by a Metal Dication. J. Am. Chem. Soc. 2007, 129, 14562–14563. [Google Scholar] [CrossRef]
  18. Fridgen, T.D. Infrared consequence spectroscopy of gaseous protonated and metal ion cationized complexes. Mass Spectrom. Rev. 2009, 28, 586–607. [Google Scholar] [CrossRef] [PubMed]
  19. Bush, M.F.; Oomens, J.; Saykally, R.J.; Williams, E.R. Effects of Alkaline Earth Metal Ion Complexation on Amino Acid Zwitterion Stability: Results from Infrared Action Spectroscopy. J. Am. Chem. Soc. 2008, 130, 6463–6471. [Google Scholar] [CrossRef] [PubMed]
  20. Dunbar, R.C.; Steill, J.D.; Polfer, N.C.; Berden, G.; Oomens, J. Peptide Bond Tautomerization Induced by Divalent Metal Ions: Characterization of the Iminol Configuration. Angew. Chem. Int. Ed. 2012, 51, 4591–4593. [Google Scholar] [CrossRef]
  21. Dunbar, R.C. Spectroscopy of Metal-Ion Complexes with Peptide-Related Ligands. Top. Curr. Chem. 2014, 364, 183–223. [Google Scholar] [CrossRef]
  22. Cheng, R.; Martens, J.; Fridgen, T.D. A vibrational spectroscopic and computational study of gaseous protonated and alkali metal cationized G–C base pairs. Phys. Chem. Chem. Phys. 2020, 22, 11546–11557. [Google Scholar] [CrossRef]
  23. Corinti, D.; Crestoni, M.E.; Chiavarino, B.; Fornarini, S.; Scuderi, D.; Salpin, J.-Y. Insights into Cisplatin Binding to Uracil and Thiouracils from IRMPD Spectroscopy and Tandem Mass Spectrometry. J. Am. Soc. Mass Spectrom. 2020, 31, 946–960. [Google Scholar] [CrossRef] [PubMed]
  24. Corinti, D.; Maccelli, A.; Chiavarino, B.; Maitre, P.; Scuderi, D.; Bodo, E.; Fornarini, S.; Crestoni, M.E. Vibrational signatures of curcumin’s chelation in copper(II) complexes: An appraisal by IRMPD spectroscopy. J. Chem. Phys. 2019, 150, 165101. [Google Scholar] [CrossRef]
  25. Yang, S.; Shi, Y.; Ma, Y.; Mu, L.; Kong, X. Competition between metal cationization and protonation/reduction in MALDI process: An example of riboflavin. Int. J. Mass Spectrom. 2018, 434, 209–214. [Google Scholar] [CrossRef]
  26. Salazar, A.; Keusgen, M.; Von Hagen, J. Amino acids in the cultivation of mammalian cells. Amino Acids 2016, 48, 1161–1171. [Google Scholar] [CrossRef] [Green Version]
  27. Kysliak, O.; Görls, H.; Kretschmer, R. Cooperative Bond Activation by a Bimetallic Main-Group Complex. J. Am. Chem. Soc. 2021, 143, 142–148. [Google Scholar] [CrossRef] [PubMed]
  28. Levina, E.O.; Penkov, N.V.; Rodionova, N.N.; Tarasov, S.A.; Barykina, D.V.; Vener, M.V. Hydration of the Carboxylate Group in Anti-Inflammatory Drugs: ATR-IR and Computational Studies of Aqueous Solution of Sodium Diclofenac. ACS Omega 2018, 3, 302–313. [Google Scholar] [CrossRef]
  29. Vener, M.V.; Shenderovich, I.G.; Rykounov, A.A. A qualitative study of the effect of a counterion and polar environment on the structure and spectroscopic signatures of a hydrated hydroxyl anion. Theor. Chem. Accounts 2013, 132, 1361. [Google Scholar] [CrossRef]
  30. Kong, X.; Tsai, I.-A.; Sabu, S.; Han, C.-C.; Lee, Y.T.; Chang, H.-C.; Tu, S.-Y.; Kung, A.H.; Wu, C.-C. Progressive Stabilization of Zwitterionic Structures in [H(Ser)2–8]+ Studied by Infrared Photodissociation Spectroscopy. Angew. Chem. Int. Ed. 2006, 45, 4130–4134. [Google Scholar] [CrossRef]
  31. Kong, X.; Lin, C.; Infusini, G.; Oh, H.-B.; Jiang, H.; Breuker, K.; Wu, C.-C.; Charkin, O.P.; Chang, H.-C.; McLafferty, F.W. Numerous Isomers of Serine Octamer Ions Characterized by Infrared Photodissociation Spectroscopy. ChemPhysChem 2009, 10, 2603–2606. [Google Scholar] [CrossRef]
  32. Feng, R.; Yin, H.; Kong, X. Structure of protonated tryptophan dimer in the gas phase investigated by IRPD spectroscopy and theoretical calculations. Rapid Commun. Mass Spectrom. 2016, 30, 24–28. [Google Scholar] [CrossRef] [Green Version]
  33. Bush, M.F.; O’Brien, J.T.; Prell, J.S.; Saykally, R.J.; Williams, E.R. Infrared Spectroscopy of Cationized Arginine in the Gas Phase: Direct Evidence for the Transition from Nonzwitterionic to Zwitterionic Structure. J. Am. Chem. Soc. 2007, 129, 1612–1622. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Jockusch, R.A.; Price, W.D.; Williams, E.R. Structure of Cationized Arginine (Arg·M+, M = H, Li, Na, K, Rb, and Cs) in the Gas Phase: Further Evidence for Zwitterionic Arginine. J. Phys. Chem. A 1999, 103, 9266–9274. [Google Scholar] [CrossRef] [Green Version]
  35. Forbes, M.W.; Bush, M.F.; Polfer, N.C.; Oomens, J.; Dunbar, R.C.; Williams, A.E.R.; Jockusch, R.A. Infrared Spectroscopy of Arginine Cation Complexes: Direct Observation of Gas-Phase Zwitterions. J. Phys. Chem. A 2007, 111, 11759–11770. [Google Scholar] [CrossRef]
  36. Li, H.-B.; Lin, Z.-J.; Luo, Y. Local Structures and Chemical Properties of Deprotonated Arginine. Chin. J. Chem. Phys. 2012, 25, 681–686. [Google Scholar] [CrossRef]
  37. Warnke, S.; Seo, J.; Boschmans, J.; Sobott, F.; Scrivens, J.H.; Bleiholder, C.; Bowers, M.T.; Gewinner, S.; Schöllkopf, W.; Pagel, K.; et al. Protomers of Benzocaine: Solvent and Permittivity Dependence. J. Am. Chem. Soc. 2015, 137, 4236–4242. [Google Scholar] [CrossRef] [Green Version]
  38. Steill, J.D.; Oomens, J. Gas-Phase Deprotonation of p-Hydroxybenzoic Acid Investigated by IR Spectroscopy: Solution-Phase Structure Is Retained upon ESI. J. Am. Chem. Soc. 2009, 131, 13570–13571. [Google Scholar] [CrossRef] [PubMed]
  39. Schröder, D.; Buděšínský, M.; Roithova, J. Deprotonation of p-Hydroxybenzoic Acid: Does Electrospray Ionization Sample Solution or Gas-Phase Structures? J. Am. Chem. Soc. 2012, 134, 15897–15905. [Google Scholar] [CrossRef] [PubMed]
  40. Almasian, M.; Grzetic, J.; van Maurik, J.; Steill, J.D.; Berden, G.; Ingemann, S.; Buma, W.J.; Oomens, J. Non-Equilibrium Isomer Distribution of the Gas-Phase Photoactive Yellow Protein Chromophore. J. Phys. Chem. Lett. 2012, 3, 2259–2263. [Google Scholar] [CrossRef] [PubMed]
  41. Ma, L.; Ren, J.; Feng, R.; Zhang, K.; Kong, X. Structural characterizations of protonated homodimers of amino acids: Revealed by infrared multiple photon dissociation (IRMPD) spectroscopy and theoretical calculations. Chin. Chem. Lett. 2018, 29, 1333–1339. [Google Scholar] [CrossRef]
  42. Cody, R.B.; Hein, R.E.; Goodman, S.D.; Marshall, A.G. Stored waveform inverse fourier transform excitation for obtaining increased parent ion selectivity in collisionally activated dissociation: Preliminary results. Rapid Commun. Mass Spectrom. 1987, 1, 99–102. [Google Scholar] [CrossRef]
  43. Tomasi, J.; Mennucci, B.; Cancès, E. The IEF version of the PCM solvation method: An overview of a new method addressed to study molecular solutes at the QM ab initio level. J. Mol. Struct. THEOCHEM 1999, 464, 211–226. [Google Scholar] [CrossRef]
  44. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef] [PubMed]
  45. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  46. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Reddy, A.S.; Sastry, G.N. Cation [M = H+, Li+, Na+, K+, Ca2+, Mg2+, NH4+, and NMe4+] Interactions with the Aromatic Motifs of Naturally Occurring Amino Acids: A Theoretical Study. J. Phys. Chem. A 2005, 109, 8893–8903. [Google Scholar] [CrossRef] [PubMed]
  48. Pérez, J.R.; Loroño, M.; Domínguez, R.M.; Córdova, T.; Chuchani, G. MP2 study of the gas phase elimination mechanism of some neutral amino acids and their ethyl esters. J. Phys. Org. Chem. 2008, 21, 402–408. [Google Scholar] [CrossRef]
  49. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09; Gaussian, Inc.: Wallingford, UK, 2009. [Google Scholar]
Molecules 26 06546 g001 550

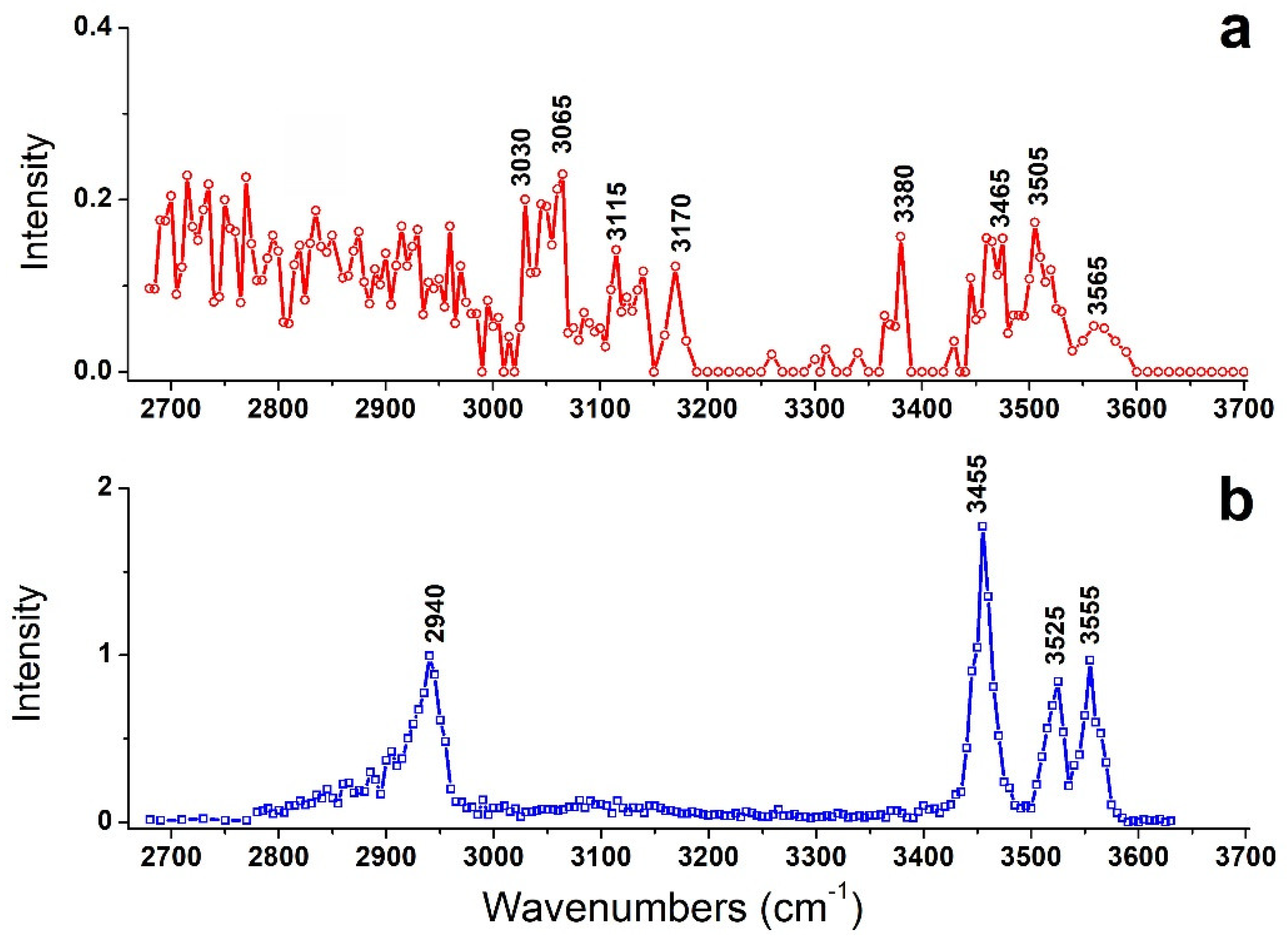

Figure 1. IRMPD spectra of (a) [Arg+Rb+K−H]+ and (b) [Arg+Rb]+. The latter is taken from ref [16].
Figure 1. IRMPD spectra of (a) [Arg+Rb+K−H]+ and (b) [Arg+Rb]+. The latter is taken from ref [16].
Molecules 26 06546 g001
Molecules 26 06546 g002 550

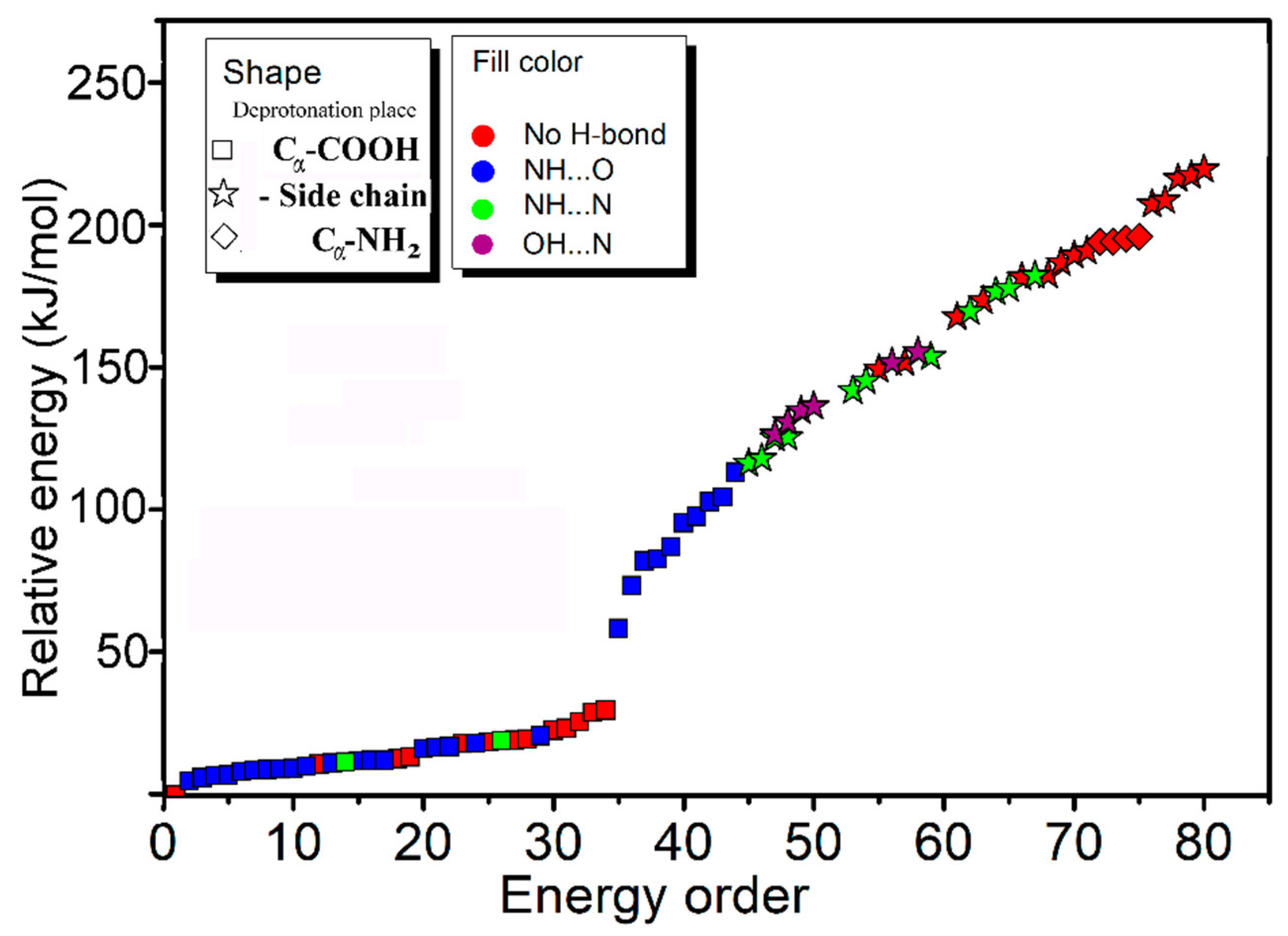

Figure 2. A statistical view on the 80 isomers of [Arg+Rb+K−H]+ corresponding to their energy orders based on the method of B3LYP/6-311++G(d,p)~LAN and their structural characteristics.
Figure 2. A statistical view on the 80 isomers of [Arg+Rb+K−H]+ corresponding to their energy orders based on the method of B3LYP/6-311++G(d,p)~LAN and their structural characteristics.
Molecules 26 06546 g002
Molecules 26 06546 g003 550

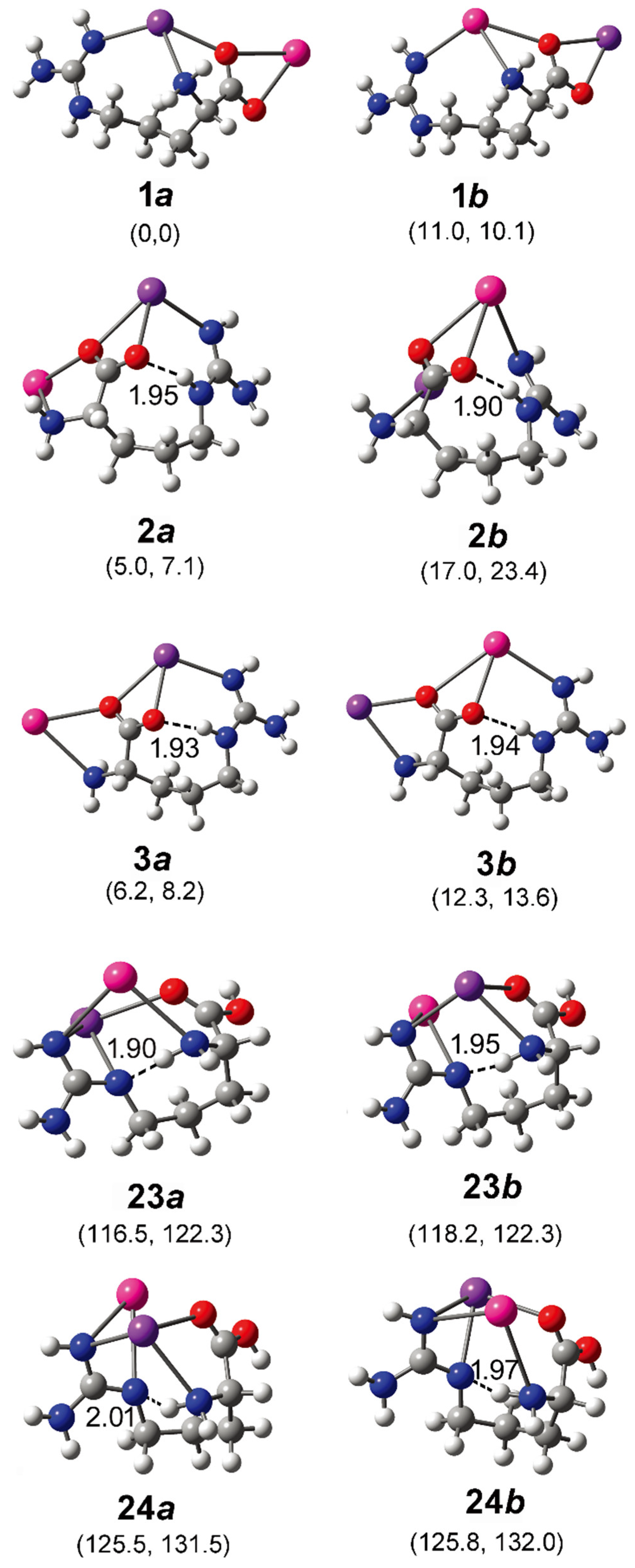

Figure 3. Some optimized isomers of [Arg+Rb+K−H]+ at the level of B3LYP/6-311++G(d,p)~LAN. The most stable isomer is identified as 1a. The relative energies at 0 K and Gibbs energies at 298 K relative to those of 1a are shown in the parentheses below each subfigure (in kJ/mol). The distance of each intramolecular H-bond (in Å) is shown too. The pair of isomer a and b are obtained by exchanging the positions of Rb and K atoms and re-optimization. The atoms of K, Rb, O, N, C, and H are colored by purple, pink, red, blue, gray, and light gray, in turn.
Figure 3. Some optimized isomers of [Arg+Rb+K−H]+ at the level of B3LYP/6-311++G(d,p)~LAN. The most stable isomer is identified as 1a. The relative energies at 0 K and Gibbs energies at 298 K relative to those of 1a are shown in the parentheses below each subfigure (in kJ/mol). The distance of each intramolecular H-bond (in Å) is shown too. The pair of isomer a and b are obtained by exchanging the positions of Rb and K atoms and re-optimization. The atoms of K, Rb, O, N, C, and H are colored by purple, pink, red, blue, gray, and light gray, in turn.
Molecules 26 06546 g003
Molecules 26 06546 g004 550

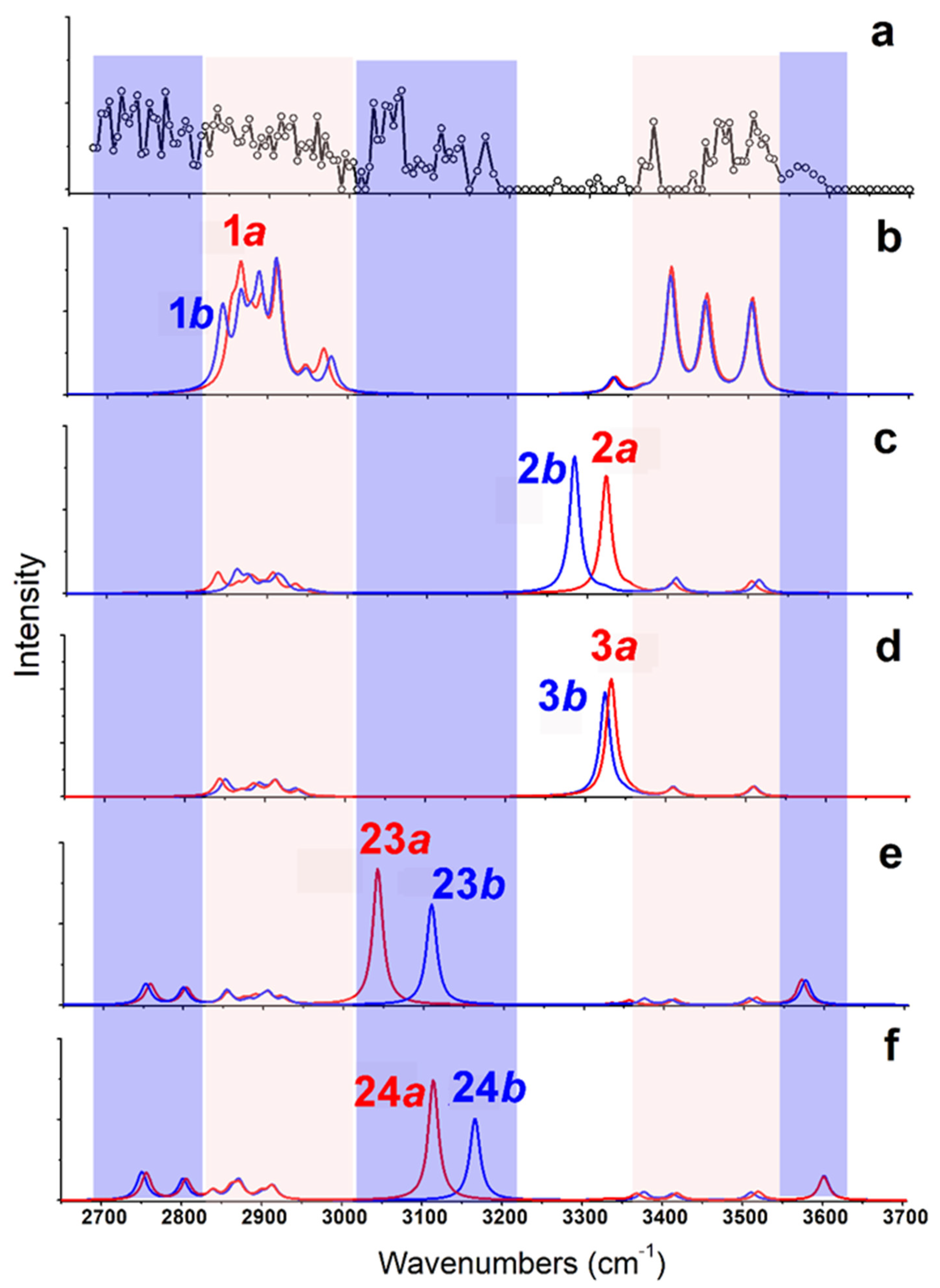

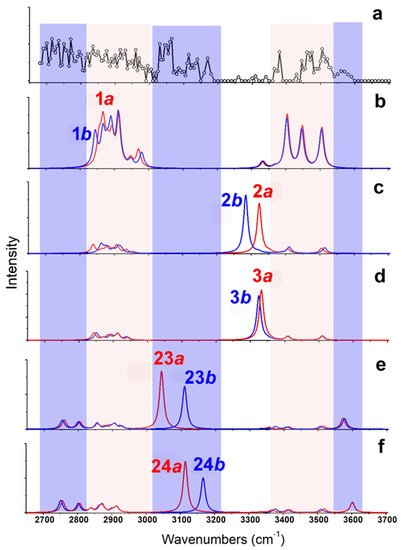

Figure 4. (a) Experimental IRMPD spectrum of [Arg+Rb+K−H]+ and (b–f) the calculated vibrational spectra of different isomers obtained at the level of B3LYP/6-311++G(d,p)~LAN. The structures of these isomers are shown in Figure 3.
