3.1. Chalcogen-Bonded Dyads Involving MCO3

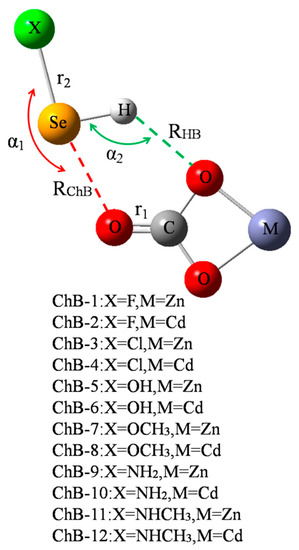

Figure 1 shows a diagram of 12 chalcogen-boned dyads of MCO
3-SeHX (X = F, Cl, OH, OCH
3, NH
2, and NHCH
3, M = Zn
2+ and Cd
2+), respectively represented from ChB-1 to ChB-12. In each dyad, there are both a ChB and a HB, where the ChB is stronger than the HB. Both the ChB and HB jointly maintain the stability of MCO
3-SeHX.
Table 1 summarizes their geometric parameters including the angles of X-Se⋯O (α
1) and Se-H⋯O (α
2), distances of Se⋯O (R
ChB) and H⋯O (R
HB), and changes of C=O (r
1) and Se-X (r
2) bond lengths. Both α
1 and α
2 angles reflect the direction of ChB and HB, respectively. Both angles vary in ranges of 160–170° and 120–140°, respectively, and the former is bigger than the latter. Accordingly, the ChB is more easily formed and the HB is weak. Moreover, both angles display a slight dependence on the M atom of MCO
3. Interestingly, both angles vary inversely (
Figure S1, Supplementary Materials). That is, the enhancement of ChB is at the sacrifice of the HB weakening, displaying negative cooperativity. Although the ChB is stronger than the HB, R
ChB is longer than R
HB due to the bigger atomic radius of Se. Both R
ChB and R
HB become shorter in the CdCO
3 complex than in the ZnCO
3 analogue since the O atom of CdCO
3 has the greater negative MEP [
14]. When MCO
3 is fixed, R
ChB is shorter in sequence of NHCH
3 > NH
2 > OCH
3 > OH > Cl > F, while R
HB is longer irregularly. Both C=O and Se-X bonds are lengthened in the complexes, and the Se-X bond suffers the larger elongation than the C=O bond due to the fact that the C=O bond is double and there is an increase of charge density on the Se-X anti-bonding orbital.
The last column of
Table 1 lists the interaction energy of chalcogen-bonded dyad, which ranges from −3.6 kcal/mol in ChB-11 to −12.3 kcal/mol in ChB-2. There are some regular variations for the interaction energy. Firstly, for a fixed MCO
3, the interaction energy becomes more negative in the sequence of NHCH
3 < NH
2 < OCH

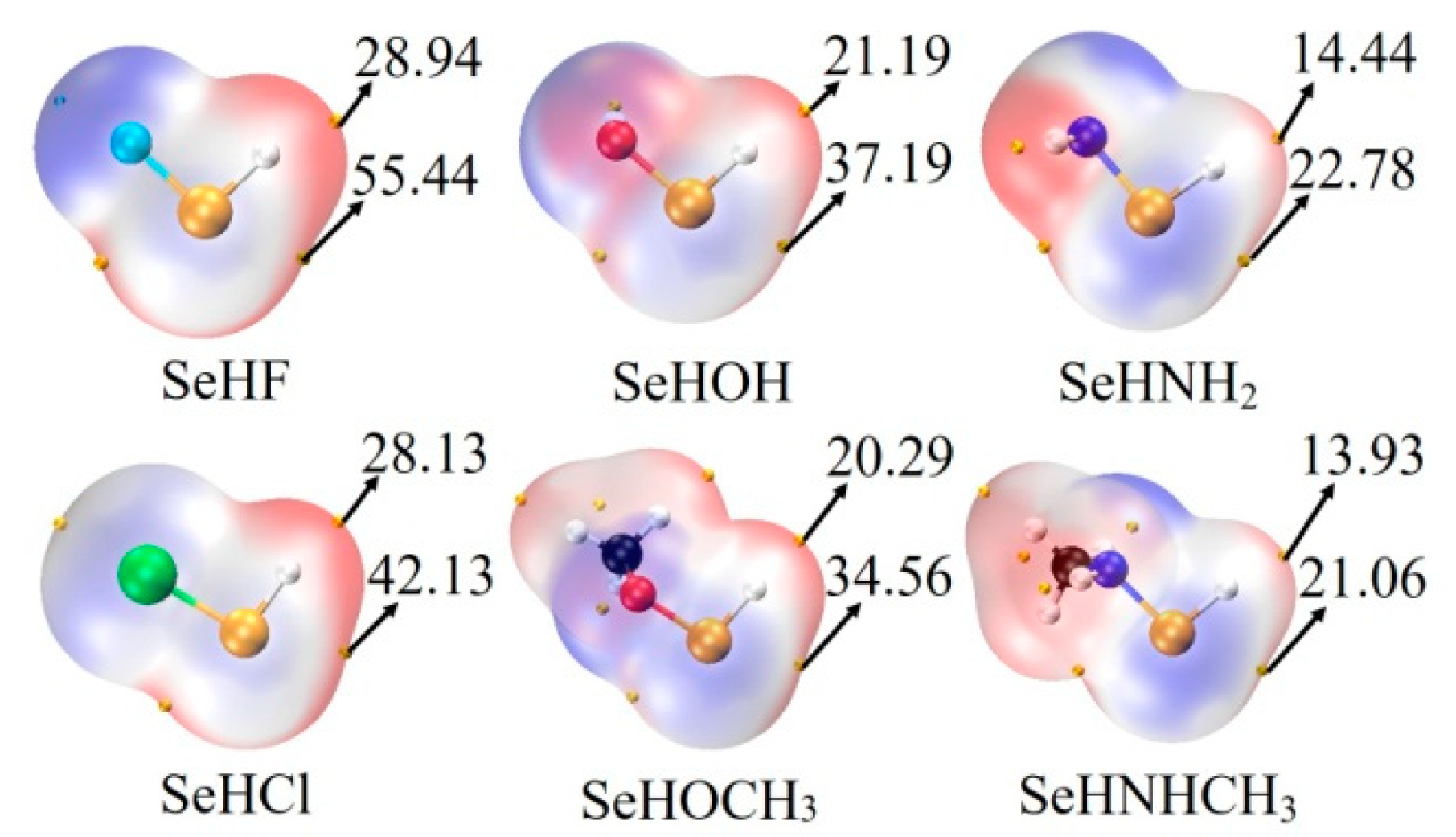

3 < OH < Cl < F, which is consistent with the positive MEPs on the Se and H atoms (
Figure 2). Secondly, comparing SeHOCH
3 complex with SeHOH analogue, or SeHNHCH
3 complex with SeHNH
2 analogue, it is found that the methyl group in the chalcogen donor reduces the interaction energy, showing the electron-donating role of the methyl group (confirmed by the increase of positive MEPs on the Se and H atoms). This weakening effect of methyl group is the same as that in the CH∙∙∙O HB [
43]. Thirdly, the interaction energy is larger in the CdCO
3 complex than that in the ZnCO
3 analogue, evidenced by the more negative MEP on the O atom of CdCO
3 [
14]. The interaction energy between MCO
3 and SeHX is larger than that with H
2O [
44], thus the O atom of MCO
3 is a good electron donor in the chalcogen bond.
Table 2 lists some important AIM parameters including electron density (ρ), its Laplacian (∇

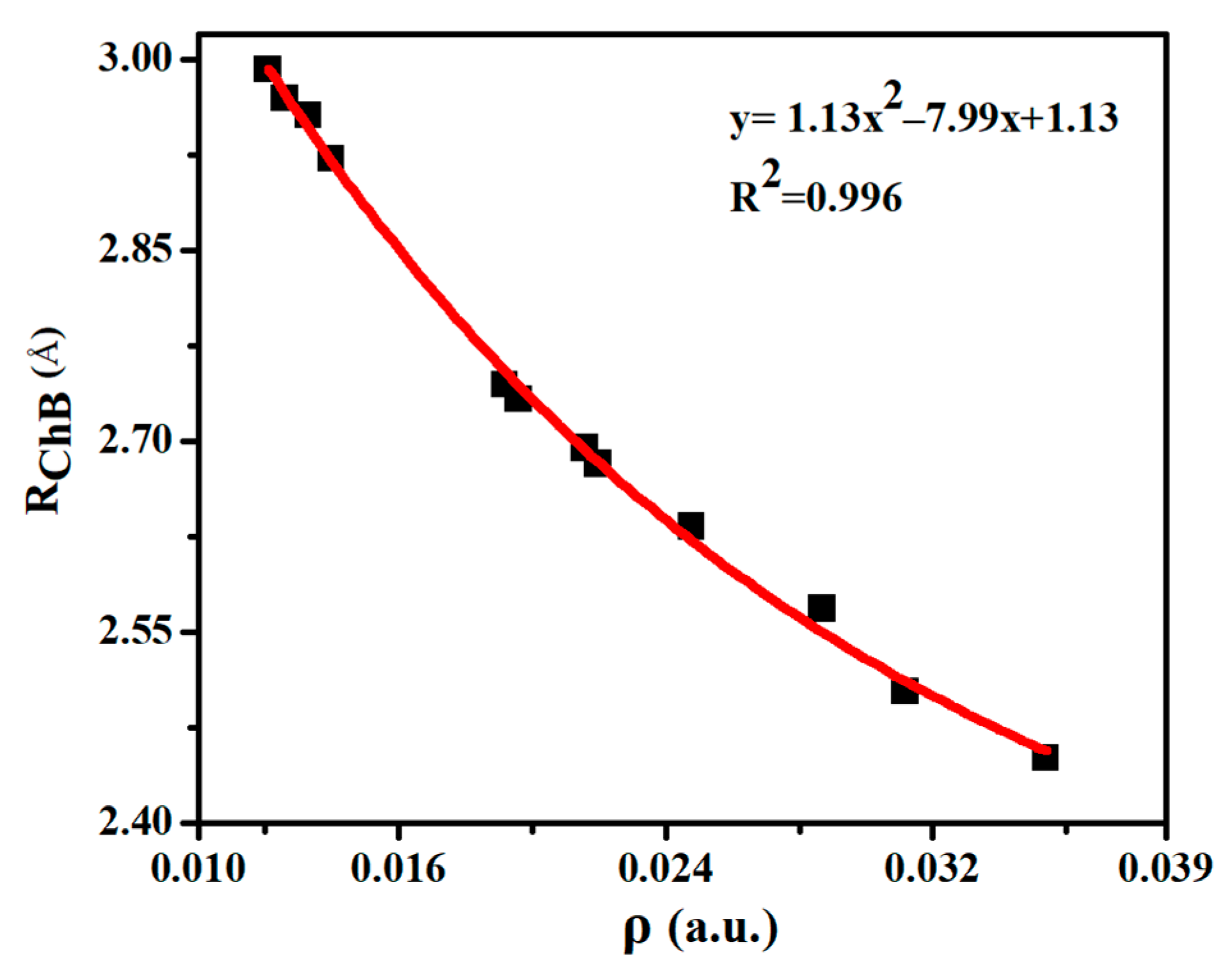

2ρ), and energy density (H) at the Se∙∙∙O BCP in the chalcogen-bonded dyads. ρ is in the range of 0.012–0.035 a.u., and it displays a quadratic relationship with the Se∙∙∙O distance (
Figure 3), with a correlation coefficient of 0.996. Thus the electron density at the Se∙∙∙O BCP can be used to estimate the change of ChB strength. The trend of density Laplacian is the same as the ρ. H is greater than zero in most dyads except ChB-1, ChB-2, and ChB-4. The negative H in ChB-1, ChB-2, and ChB-4 means that the ChB is a partially covalent interaction, consistent with the larger interaction energy (>10 kcal/mol). Although the AIM parameters of H∙∙∙O BCP are not analyzed, its coexistence with the ChB is obviously observed in the NCI diagram (
Figure S2), where a blue or green area is present between the bonded two atoms.
A charge density moves from MCO
3 to SeHX, which is in a range of 0.009–0.005 e (

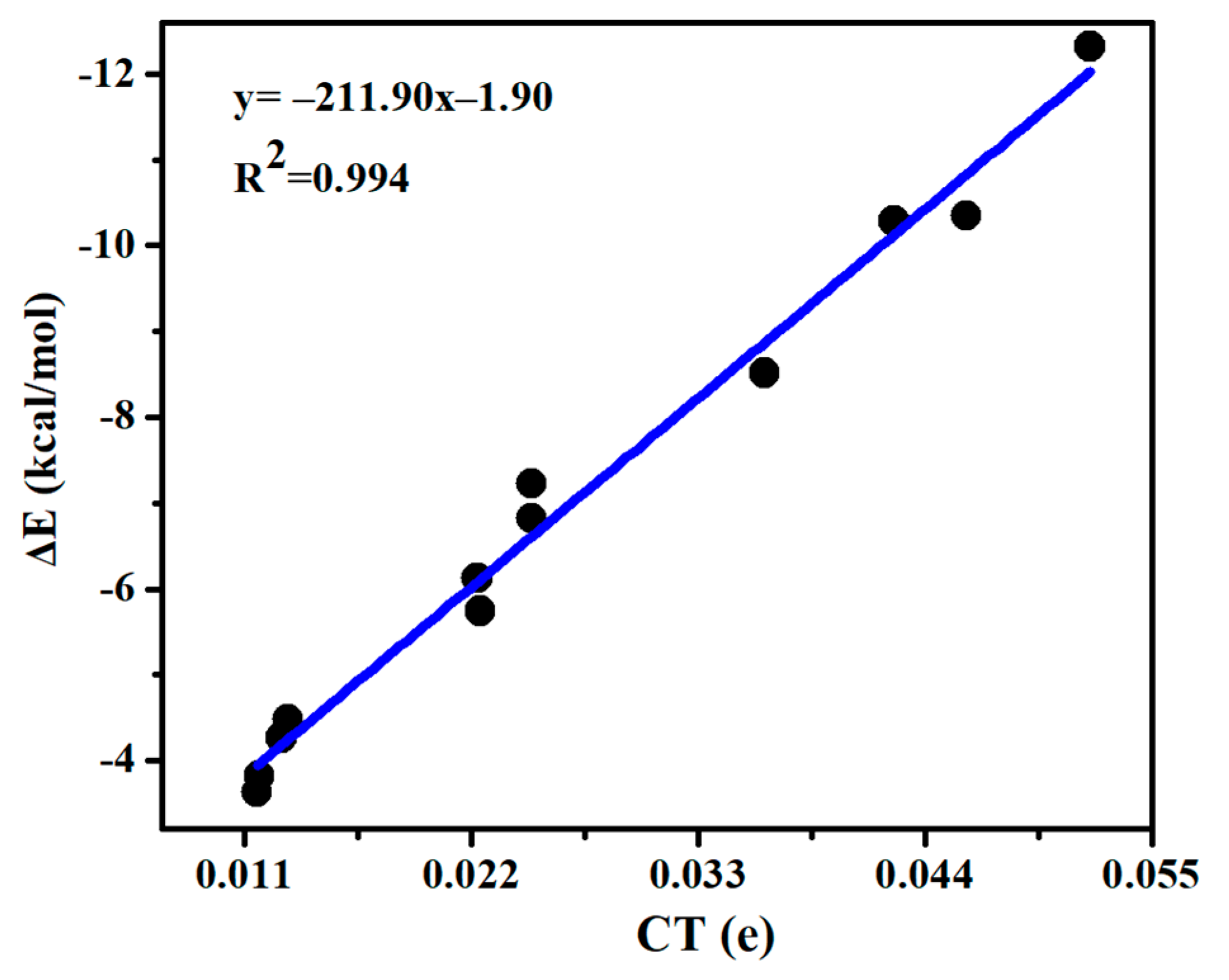

Table 3). There are two types of ChB and HB in each complex, but the direction of charge transfer is the same for both bonds, thus a linear relationship is present between the interaction energy and charge transfer (
Figure 4), with a correlation coefficient of 0.994. For the ChB, the charge transfer is moved from the O lone pair orbital (Lp
O) into the Se-X anti-bonding orbital (σ*
Se-X), i.e., Lp
O→σ*
Se-X. This orbital interaction results in the elongation of the Se-X and C=O bonds. Likely, the perturbation energy of Lp
O→σ*
Se-X orbital interaction also displays a linear relationship with the interaction energy (
Figure S3). The HB is characterized with an orbital interaction of Lp
O→σ*
Se-H, which is much weaker than that in the ChB, thus MCO
3-SeHX is primarily stabilized by the ChB. CdCO
3 engages in a stronger HB than ZnCO
3, confirmed by the larger perturbation energy of Lp
O→σ*
Se-H in the CdCO
3 complex.
The interaction energy was decomposed into electrostatic (E
es), exchange (E
ex), repulsion (E
rep), polarization (E
pol) and dispersion energies (E
disp), collected in
Table 4. The total interaction energy obtained with GAMESS program is almost equal to that with Gaussian program. Among the three attractive terms (E
es, E
pol, and E
disp), E
es is largest, confirming that electrostatic interaction is dominant. This conclusion is further confirmed by the linear relationship between the total interaction energy and the electrostatic interaction (
Figure S4). No linear relationship is present between the total interaction energy and the other attractive terms. Politzer and co-authors explained most σ-hole interactions by means of Coulombic interactions and concluded that charge transfer is an extreme form of polarization [
45,
46]. However, the interaction energy of chalcogen bond displays a good linear relationship with the charge transfer but not with polarization energy. Both E
pol and E
disp are comparable since the latter corresponds to 50–90% of the former.
3.2. Cooperativity between Spodium and Chalcogen Bonds in Triads
Only three chalcogen-bonded dyads of ChB-1, ChB-2, and ChB-4 have a larger interaction energy exceeding 10 kcal/mol, thus we are interested in how to strengthen the ChB by adding a spodium bond (SpB) and its enhancing mechanism.

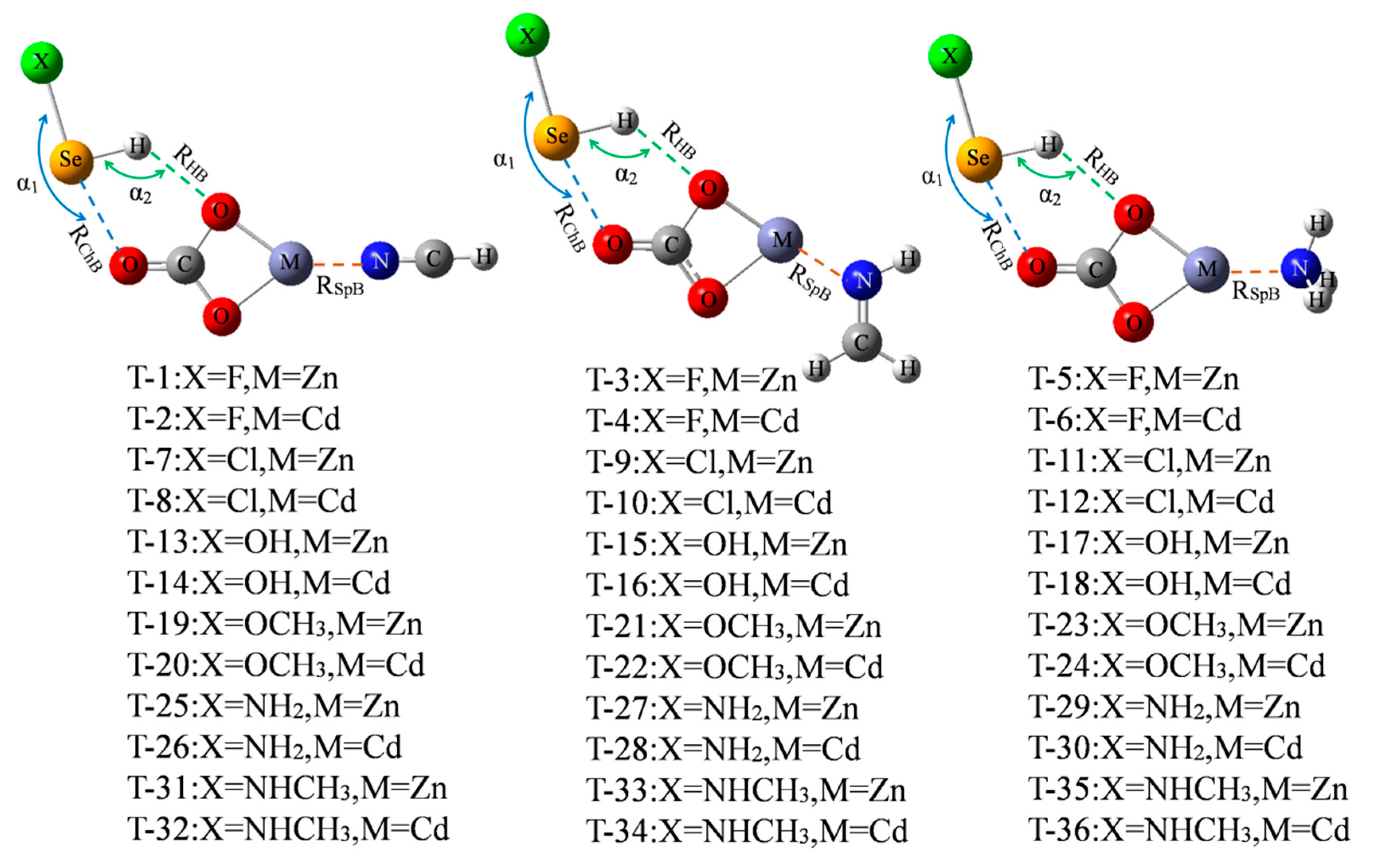

Figure 5 shows the diagram of the ternary complex, where a M⋯N SpB coexists with a ChB and a HB. The formation of SpB can be understood by the MEP maps of MCO
3 and three N-bases (
Figure S5), where a red region with positive MEPs and a blue one with negative MEPs are found on the M and N atoms, respectively. Since such M∙∙∙N SpB was analyzed in the previous study [
14], thus it is not studied here and our aim is to strengthen the chalcogen bond by means of SpB. These triads are marked from T-1 to T-36. The molecular configuration in the triad is similar to that in the dyad. The angles of X-Se⋯O (α
1) and Se-H⋯O (α
2) are almost not changed in the triad relative to the dyad in spite of no regular variation (
Table S1).
Both the ChB and HB interactions are enhanced in the ternary complexes, which can be clearly evidenced by the shorter binding distances (
Table 5). The shortening of both Se⋯O and H⋯O distances is very prominent and the largest shortening is up to 0.1 Å for each distance. The largest shortening of Se⋯O distance is found in the triads involving SeHCl. Therefore, an introduction of a spodium bond to MCO
3 leads to a prominent change in the binding distances of the ChB and HB though a slight change takes place for the angles of X-Se⋯O (α
1) and Se-H⋯O (α
2). The shortening of Se⋯O distance is larger than that of H⋯O distance in most triads excluding T-16 and from T-25 to T-36, and their largest difference is up to 0.057 Å. On the other hand, the SpB binding distance is also shortened in the triads although its shortening is much smaller than that of ChB and HB. This indicates that all bonds of ChB, HB, and SpB strengthened each other.
The first column in
Table 6 is the total interaction energy of triad, ranging from −37.36 kcal/mol in T-36 to −68.28 kcal/mol in T-3. The interaction energy between SeHX and the N base (∆E
far) was deducted in calculating the interaction energies of SpB and ChB although this value is very small (<0.4 kcal/mol). Both ∆E
SpB and ∆E
ChB are increased in the triads relative to the corresponding dyads and their increase is almost equal in most triads. However, the increased percentage is larger for ∆E
ChB due to its smaller crude value. This shows that the enhancement of ChB and HB is larger than that of SpB, which supports the previous conclusion that the stronger interaction has a larger effect on the weaker one [
47]. Similarly, the largest increased percentage of ChB interaction energy is found in the triads involving SeHCl.
The interplay between different types of bonds in the triad can be estimated with cooperative energy (E
coop), which was calculated with the formulas of E
coop = ∆
Etotal,T − ∆E
ChB,D − ∆E
SpB,D − ∆E
far, in which ∆E
total,T is the total interaction energy of a triad, ∆E
ChB,D the interaction energy of the optimized chalcogen-bonded dyad, and ∆E
SpB,D the interaction energy of the optimized spodium-bonded dyad. This value is positive in all triads, confirming the positive cooperativity. Moreover, E
coop accounts for 2–10% of the total interaction energy, and this ratio falls within 6% of HB cooperativity [
48].
The enhancement of ChB and SpB can also be confirmed by the larger electron densities at the Se⋯O and M⋯N BCPs of chalcogen and spodium bonds in the ternary systems compared to their binary analogues (
Table S2). Interestingly, the largest increase in the electron density at the Se⋯O BCP is found in the triads involving SeHCl. Both Laplacians and energy densities are also varied in the triads, but no essential change is found in most triads with an exception in the triads involving SeHCl (
Table S3). For the latter, the energy density at the Se⋯O BCP varies from positive in the chalcogen-bonded dyad to negative in the triad.
As presented in
Table S4, both the positive MEP on the M atom and the negative MEP on the O atom of MCO
3 are increased when it forms a chalcogen bond and a spodium bond, respectively. This means that the M atom of MCO
3 in the chalcogen-bonded dyad engages in a stronger SpB, while the O atom of MCO
3 in the spodium-bonded dyad participates in a stronger ChB and HB. Thus, the positive cooperativity can be explained by a “pull-push” model, in which the SeHX molecule draws more electrons and the N-containing base donates more electrons simultaneously in the ternary complexes. The increase of ∆
EChB in the triad is attributed to the contribution from the ChB and HB interactions, thus we explore the relationship between the increase of electron density at the Se⋯O BCP (∆ρ
ChB,
Table S2) and the increase of negative MEP on the O atom of spodium-bonded dyad (ΔV
S,min,
Table S4). However, no consistent change is found between both terms, and even a reverse change is observed for them. For example, with the increase of ΔV
S,min on the O atom from H
3N-ZnCO
3 to H
2CHN-ZnCO
3 to HCN-ZnCO
3, ∆ρ
ChB is reduced from 0.0079 a.u. in T = 6 to 0.0075 a.u. in T = 3 to 0.0071 a.u. in T-1. Thus the electrostatic interaction is only used to explain qualitatively the enhancement of ChB by the SpB.
Table S4 presents the charge transfer between MCO
3 and SeHX (CT
ChB) as well as between MCO
3 and N-base (CT
SpB) in the triads. CT
SpB exceeds 0.1e in most triads and is much bigger than CT
ChB. CT
ChB is half of CT
SpB for the strong ChB, while the former is less than 10% of the latter for the weak ChB. Both CT
ChB and CT
SpB are increased in the triads relative to the dyads. Moreover, the increase of CT
ChB is much larger than that of CT

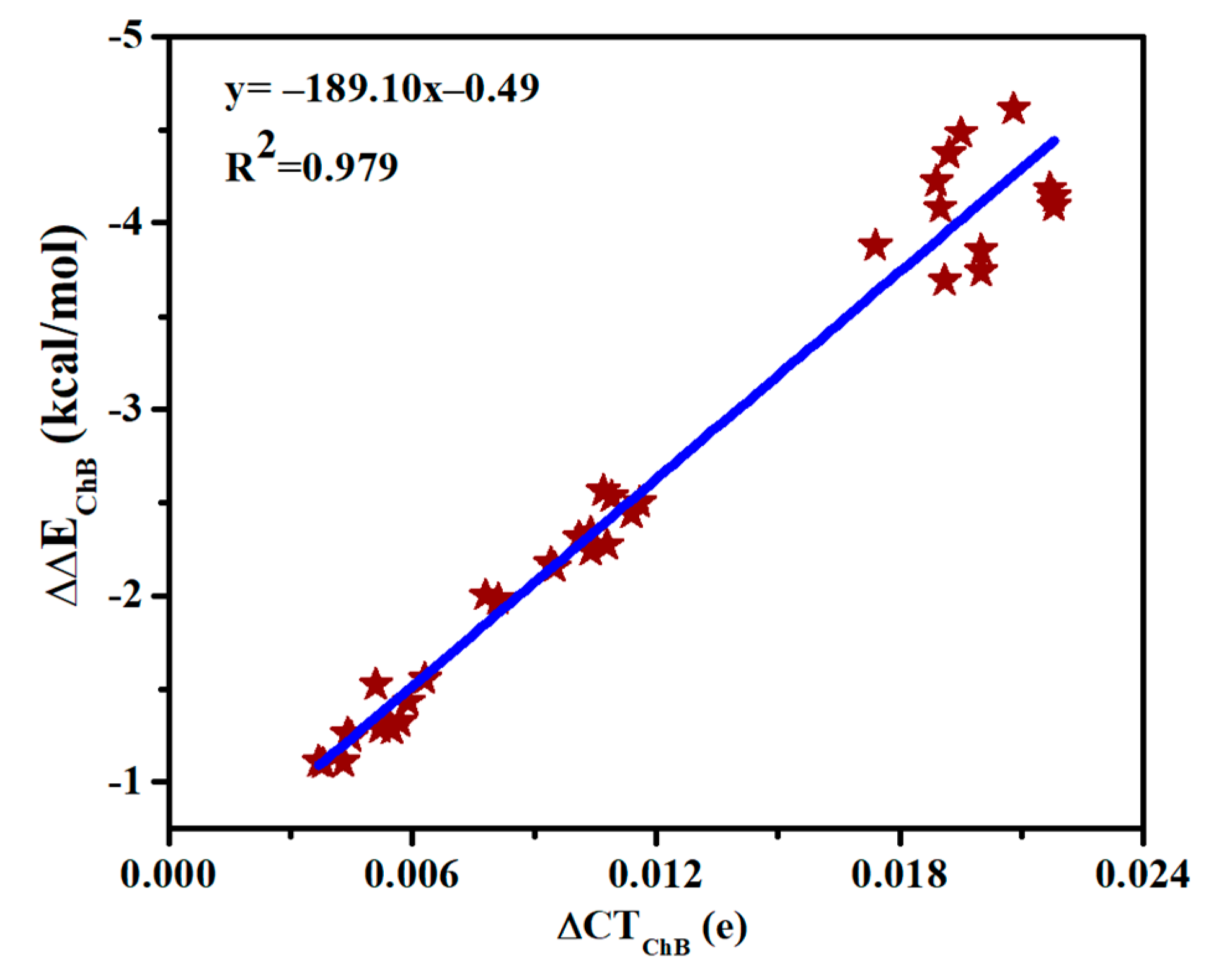

SpB. Being consistent with the increase of the chalcogen bonding interaction energy, the increase of charge transfer for the ChB is largest in the triads involving SeHCl. A linear relationship is found between the increase of CT
ChB and the increase of chalcogen-bonded interaction energy (
Figure 6), thus the enhancement of ChB and HB is attributed to the increase of charge transfer.
