Review

Molecular Details on Multiple Cofactor Containing Redox Metalloproteins Revealed by Infrared and Resonance Raman Spectroscopies

by
Célia M. Silveira
1,
Lidia Zuccarello
1,
Catarina Barbosa
1,
Giorgio Caserta
2,
Ingo Zebger
2,
Peter Hildebrandt
2 and
Smilja Todorovic
1,*
1
Instituto de Tecnologia Química e Biológica António Xavier, Universidade NOVA de Lisboa, Av. da República, 2780-157 Oeiras, Portugal
2
Institut fur Chemie, Sekr. PC14, Technische Universitat Berlin, Strasse des 17. Juni 135, D-10623 Berlin, Germany
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(16), 4852; https://doi.org/10.3390/molecules26164852
Submission received: 12 July 2021 / Revised: 6 August 2021 / Accepted: 7 August 2021 / Published: 11 August 2021
(This article belongs to the Special Issue Vibrational Spectroscopy as a Versatile Tool To Predict Protein Structure)
Browse Figures
Versions Notes

Abstract

:
Vibrational spectroscopy and in particular, resonance Raman (RR) spectroscopy, can provide molecular details on metalloproteins containing multiple cofactors, which are often challenging for other spectroscopies. Due to distinct spectroscopic fingerprints, RR spectroscopy has a unique capacity to monitor simultaneously and independently different metal cofactors that can have particular roles in metalloproteins. These include e.g., (i) different types of hemes, for instance hemes c, a and a3 in caa3-type oxygen reductases, (ii) distinct spin populations, such as electron transfer (ET) low-spin (LS) and catalytic high-spin (HS) hemes in nitrite reductases, (iii) different types of Fe-S clusters, such as 3Fe-4S and 4Fe-4S centers in di-cluster ferredoxins, and (iv) bi-metallic center and ET Fe-S clusters in hydrogenases. IR spectroscopy can provide unmatched molecular details on specific enzymes like hydrogenases that possess catalytic centers coordinated by CO and CN− ligands, which exhibit spectrally well separated IR bands. This article reviews the work on metalloproteins for which vibrational spectroscopy has ensured advances in understanding structural and mechanistic properties, including multiple heme-containing proteins, such as nitrite reductases that house a notable total of 28 hemes in a functional unit, respiratory chain complexes, and hydrogenases that carry out the most fundamental functions in cells.

1. Introduction

Vibrational spectroscopy has, over the past couple of decades, provided valuable information on structure-function relationship in proteins, contributing to the elucidation of molecular mechanisms, dynamics and interactions on the level that goes beyond high-resolution crystallographic structures. It does not depend on size or paramagnetic properties of the protein like nuclear magnetic resonance (NMR) and electron paramagnetic resonance (EPR) spectroscopies, and furthermore, it can be coupled with electrochemical methods and employed in time-resolved mode, offering the possibility to probe redox and transient molecular events down to the femtosecond time scale [1].
In the case of metalloproteins, the intrinsically low sensitivity and the selectivity of Raman spectroscopy are strongly increased when the energy of the incident laser light is in resonance with an electronic transition of the chromophore. The resultant resonance Raman (RR) spectra display several orders of magnitude higher intensity for the vibrational modes of the cofactor, regardless of the size of the protein matrix [1]. RR spectroscopic studies have mainly focused onto metalloproteins containing iron and copper ions, but they have also been reported for other transition metals such as nickel, cobalt, and molybdenum [2,3,4,5]. The studies of heme and non-heme iron, iron-sulfur cluster and copper-containing metalloproteins have provided a wealth of details on their active sites, hence contributing to understanding of their mechanistic properties. In particular, RR spectra of heme proteins obtained upon Soret-band excitation are, in the high-frequency (1300–1700 cm−1) region, dominated by the core-size marker bands νi (ν4, ν3, ν2 and ν10) originating from complex porphyrin vibrations that are sensitive to the redox, spin, and coordination state of the heme iron (Figure 1).
For instance, a five coordinated high-spin (5cHS) heme has an increased size of the iron ion in comparison with six-coordinated low-spin LS (6cLS) heme, which is reflected by a frequency downshift of the corresponding ν3 and ν2 modes (Figure 1, Table 1) [1]. The spectral distinction between LS and HS heme populations is therefore straightforward in RR spectra, which has helped addressing, e.g., processes at catalytic HS vs. electron transfer (ET) LS hemes in oxygen and nitrite reductases and the activation mechanism of cytochrome c peroxidases (CcPs) [6,7,8,9]. Similarly, reduction of the heme iron, while maintaining the spin and coordination state, causes an increased back-donation of electron density into the π* orbital of the ferrous heme porphyrin and thus results in a downshift of the ν4 mode frequency (Figure 1, Table 1) [1]. The capacity of RR spectroscopy to distinguish between ferric and ferrous heme populations has contributed to disentangling of the ET processes in numerous metalloproteins, as well as those that involve semi-reduced forms of Complex III and dihemic bacterial CcPs [9,10].
RR spectra of Fe-S cluster-containing proteins, obtained with a laser wavelength that matches the energy of S → Fe charge transfer (CT) transitions, show selectively enhanced modes involving the metal–ligand stretching coordinates in the low-frequency (200–450 cm−1) region (Table 1). The spectra are sensitive to the cluster type, structure, and symmetry and moreover allow for distinguishing between bridging vs. terminal Fe-S vibrational modes that predominantly involve inorganic and cysteine-bound S atoms in each cluster, respectively [11]. Unlike in the case of heme proteins, in Fe-S proteins usually only one redox state is RR active; [2Fe-2S]2+, [3Fe-4S]1+, and [4Fe-4S]2+ (and [4Fe-4S]3+ in HiPIPs). RR spectroscopy can simultaneously probe different types of clusters present in the same protein, alongside with processes that account for their interconversion [11].
Large enhancements of Raman signals are obtained by measuring the spectra of molecules located in close proximity to plasmonic metals (e.g., Ag and Au), due to the surface enhanced Raman (SER) scattering effect [1]. Accordingly, SER spectroscopy can provide sensitive (bio)chemical information about the studied system, representing a promising analytical tool for, e.g., medical diagnostics [12,13,14]. The combination of the SER and RR effects (SERR spectroscopy) enables sensitive and selective probing of the chromophoric part of molecules, such as the cofactors of metalloproteins attached to SER active metal surfaces [1]. SERR spectroscopy can provide specific molecular information about proteins that perform their physiological function in the immobilized state (e.g., membrane proteins). In the case of heme proteins, the conditions for SERR signal enhancement are met upon immobilization on plasmonic Ag structures, for which the surface plasmon energy matches that of the heme Soret electronic transition, when using a laser excitation line around 410 nm. Thus, SERR spectra of heme proteins reveal the oxidation, spin, and coordination states of the heme group, but exclusively of molecules immobilized on plasmonic surfaces. In addition, the nanostructured metal that amplifies the signals can serve as a working electrode, allowing for spectro-electrochemical SERR studies capable of monitoring the changes of the heme group as a consequence of variations of the electrode potential [1,15]. This approach can reveal redox potentials (E0) of distinct and simultaneously present heme groups in immobilized proteins, e.g., E0 (HS) vs. E0 (LS), which is particularly relevant for understanding of ET pathway in membrane proteins [6,16,17].
Infrared (IR) spectroscopy most commonly provides information on the secondary structure of proteins based on the analysis of the amide I (1600–1700 cm−1) and amide II (1480–1580 cm−1) bands [1]. However, when measured in the difference mode, IR spectra can probe structural changes of individual cofactors and sensitively detect redox-linked structural changes, protonation events or amino acids, and specific groups upon isotopic labeling (e.g., 13C and 15N labeled heme) [18]. Analogous to SERR, surface enhanced infrared absorption (SEIRA) spectroscopy takes advantage of protein molecules that are found in the vicinity of nanostructured metal surfaces deposited on a transmission window or an inert ATR (attenuated total reflection) crystal, experiencing an enhanced absorption of the incident IR radiation. SEIRA can be used to control the protein attachment and orientation at the biocompatible surface upon immobilization, but more importantly it can also provide fine details about redox-linked changes of the secondary structural elements when employed in spectro-electrochemical mode (vide supra) [1,15]. For certain metalloenzymes, where the active site harbors ligands that possess spectrally isolated IR absorption bands, such as hydrogenases, IR (transmission) spectroscopy and its surface sensitive variants offer unique insights in the redox behavior of the catalytic center (Figure 2) [19].
[NiFe] and [FeFe] hydrogenases, for example, contain bimetallic catalytic centers with unusual CO and CN− ligands, exhibiting distinct IR bands related to the corresponding stretching vibrations that are normally centered between 1780 and 2150 cm−1 (Table 1). Their particular frequencies are sensitive to electron density distribution at the bimetallic center. While spectro-electrochemical studies in solution in the transmission mode probe individual redox transitions of the catalytic center and the steps of its activation, as displayed in Figure 2, surface sensitive ATR and SEIRA spectro-electrochemistry allows in situ studies under controlled gas atmospheres and potential control for a better understanding of the activation mechanism and catalysis [19,20,21,22].
Here, we review work on several multicofactor redox enzymes, which have been challenging for conventional, e.g., electronic absorption and EPR spectroscopies, and for which vibrational spectroscopy ensured true advancement in understanding of their structural and mechanistic properties. In the following, we (i) discuss multiple heme-containing proteins, such as nitrite reductases harboring an impressive total of 28 hemes in a functional unit, (ii) describe the work on Complex III and dihemic CcPs, the heme groups of which can be distinguished via selective reduction due to large differences in the respective redox potentials, and (iii) dwell on oxygen reductases for which RR and SERR spectroscopy played a crucial role in disentangling the structure and formation kinetics of catalytic intermediates. In the last section, Fe-S-containing proteins, such as hydrogenases and di-cluster-containing ferredoxins, are depicted. The main focus is therefore given to the systems that carry multiple cofactors that can be simultaneously observed in RR spectra, for which in parallel IR spectroscopy can provide further details. The cases in which one of the cofactors has an intrinsically low absorption coefficient and is therefore not observed in (SE)RR spectra, such as the molybdopterin Moco cofactor of human sulfite oxidase that also houses a heme group, will not be discussed [15].

2. Heme Proteins

2.1. Nitrite Reductases (NiR)

NrfHA menaquinol: nitrite oxidoreductase complex catalyzes the six-electron reduction of nitrite to ammonia in a reaction that involves eight protons. It houses a total of 28 heme groups in the biological unit and, as such, represents a challenge for every experimental approach. Twenty-two heme groups have 6cLS and six have 5cHS configuration (Figure 3a); two of the HS hemes are membrane-integrated and the other four represent catalytic sites that carry unusual Lys-coordination. The HS and LS hemes can be easily distinguished in the RR spectra of NrfHA, with redox-sensitive ν4 and redox/spin-sensitive ν3 modes of the HS species at 1366 and 1493 cm−1, and of the LS at 1373 and 1501 cm−1, respectively (Figure 3b), allowing for independent monitoring of the processes that involve these two populations. Binding of nitrite to the catalytic HS hemes and the resulting spin configuration of the initial enzyme/substrate complex have profound consequences for the reaction mechanism of nitrite reduction, indicating whether the N-O bond cleavage follows the homolytic or heterolytic route, and the subsequent steps of the catalytic cycle. RR data have provided the first experimental evidence that nitrite binding to NrfHA-active site HS hemes causes a spin conversion from HS to LS configuration, which implies that the heterolytic cleavage of the N-O bond is favored in the first step of the catalytic reaction [23].
SERR spectro-electrochemistry furthermore helped disentangle the ET pathway in NrfHA. Potentiometric titrations of NrfHA immobilized on biocompatible Ag electrodes was followed by the analysis of the ν4 band of the HS hemes only (1366 cm−1) in the presence/absence of 2-n-heptyl-4-hydroxyquinoline N-oxide (HQNO). The inhibitor selectively binds in the proximity of the membrane-integrated HS heme subpopulation (red empty symbols, Figure 3a). Out of the two redox transitions, observed at E0 = −270 ± 10 mV vs. NHE and at E0 = −50 ± 10 mV vs. NHE, only the former was modulated in the presence of HQNO (Figure 3c,d). The E0 which remained unaltered in the presence of the inhibitor was therefore assigned to the catalytic NrfA HS hemes. These SERR-based insights provided the first evidence for the downhill biological electron flow in the integral NrfHA [6].
Cytochrome cd1 nitrite reductases (cd1NiRs) catalyze the reduction of nitrite to NO as a part of bacterial dissimilatory denitrification pathway. They are homodimer proteins containing a d1-type heme in the active site and a c-type heme as ET center in each subunit [24,25]. Owing to their distinctive electronic absorption properties, the hemes c and d1 can be selectively probed by RR spectroscopy employing 413 (or 514 nm) and 457 nm laser excitation, respectively [26,27,28]. Upon binding of the reaction product, NO, the Soret band of heme d1 (ca. 460 nm) is blue shifted, allowing for both hemes to be probed with 413 nm excitation [28]. RR spectra of cd1NiR-NO adducts revealed that in addition to the heme c, two d1-heme spin configurations co-exist: a 6cLS-NO species and a 5cHS-NO state, in which the proximal His residue is detached from the heme [28]. The presence of the 5c adduct was confirmed by a 520 cm−1 mode whose frequency falls in the range of Fe-NO stretching modes characteristic for 5c-NO adducts of c-type cytochromes [29,30,31]. Conversely, the stretching coordinates of the 6cLS-NO d1 heme have been observed at unusually high frequencies (585 cm−1 in Pseudomonas aeruginosa cd1NiR) in comparison to other heme–NO complexes [29,30], which is thought to be related with the electronic properties and highly ruffled structure of heme d1 [27].

2.2. Heme-Containing Respiratory Chain and Analogous Complexes

Complex III (ubiquinol: cyt c oxidoreductase or bc1 complex) catalyzes the transfer of two electrons from ubiquinol to two cyt c molecules. bc1 complexes are formed by a minimum of three subunits, one contains a c1-type heme (or structurally and functionally analogous cytochrome f in plants, cyanobacteria, and green algae that house cytochrome b6f complex), one holds a Rieske type [2Fe-2S] cluster, and the third one contains two LS b-type hemes, designated bL and bH [10]. RR spectroscopy has been employed in the initial characterization of heme groups of the complex at different stages of reduction. Namely, due to the differences in midpoint redox potentials of the heme c1, low-potential heme b (bL) and high-potential heme b (bH), it is possible to selectively reduce the higher-potential sites (heme c1 and bH). A selective resonance enhancement using multiple excitation lines and sequential stoichiometric reduction of the complex allowed for spectral distinction between the c and b-type hemes, providing insights into the differences in peripheral heme–protein interactions, and in particular the conformation of vinyl substituents of the pyrrole rings [10].
RR spectra of cyt c1- and cyt f-containing subunits of bc1 and b6f complexes employing Q-band (550 nm) excitation effectively probe the respective local heme environments of these sites, indicating remarkably similar macrocycle geometry of the two hemes [32]. Cyt b6f participates in the oxygenic photosynthesis as a redox link between the two reaction center complexes. RR spectroscopy initially helped identify the chromophoric groups in b6f complexes isolated from different species, revealing a presence of chlorophyll a, β-carotene, and an additional 5cHS c1-type heme [33]. RR spectra of oxidized, native, ascorbate-and dithionite-reduced forms of spinach cyt b6f, obtained using 441, 413, and 406 nm lasers, reveal RR contributions of chlorophyll a, β carotene, the 5cHS c-type heme of cytochrome f, and the b-type hemes of cytochrome b6 of the complex [34]. RR bands arising from the pigments, found in 1520–1575 cm−1 range, are particularly intense in the spectra obtained with 441 nm [34]. Different conformations of the two b-type hemes, a strongly distorted vs. largely planar geometry, were observed and correlated to the differences in the redox potentials of the two hemes in cyt b6f, which appears to be a common feature for the bc1 and b6f complexes. A functional analogue to bc1 complex carrying two b-type hemes and one a-type heme was found in an archaeon. RR spectroscopy helped characterize the heme groups in this enzyme that show bc1 complex activity [35].
IR difference spectroscopic studies of the bc1 complex revealed redox-induced structural changes, while additional information obtained on site-directed mutants and site-directed labeling of cofactors ensured complete assignments of the observed vibrational modes [36]. More recently, ATR-IR spectroscopy was employed to study redox changes in thin layers of bovine bc1 complex that have been deposited on the surface of a silicon microprism. Thereby, redox-sensitive IR absorption bands in the potential-induced difference spectra of c1, bH, and bL hemes, ubiquinone, and surrounding amino acid residues were identified upon selective reduction. A similar approach was used to probe the [2Fe–2S] cluster of the complex. The pH-dependent IR features in the reduced minus oxidized difference spectra revealed specific signals that were attributed to an imidazolate-to-imidazole transition, providing the first experimental evidence that a cluster coordinating His is the most likely candidate for redox-linked protonation site [37,38].
Cytochrome c peroxidase, CcP: Soluble, periplasmic, dihemic CcPs catalyze the reduction of hydrogen peroxide to water by two electrons delivered from small redox proteins in some bacteria. These CcPs contain two c-type hemes, one which is in analogy to Complex III, high-potential, H-heme (E0 = 330 to 450 mV vs. NHE), and the other low-potential, L-heme (E0 = −330 to −250 mV vs. NHE) in the active site. The resting state of a dihemic CcP is typically a catalytically inactive diferric form, with a His- and Met-coordinated H-heme that participates in ET to the active site, and catalytic bis-His coordinated L-heme that requires activation. It is achieved by reduction of the H-heme, which induces Ca2+-dependent spin and coordination change of ferric L-heme to a 5cHS state upon distal FeL-N (His) bond disruption. RR spectroscopy helped characterize these conformational changes on the level of the two hemes that occur in some CcPs in parallel with those rare CcPs that do not require activation [7,8,9]. More recently, RR experiments revealed that some CcPs do not follow either of the abovementioned scenarios, as no significant amount of 5cHS ferric heme population could be detected either in diferric or semi-reduced states. This was rationalized in terms of a novel, more subtle activation mechanism that likely involves formation of a 6c hydroxo complex, which could react with hydrogen peroxide to create the ferric hydroperoxo complex [7,8,9].
Oxygen reductase—Complex IV (cyt c: oxygen oxidoreductase, CcO, or heme copper oxygen reductase, or heme copper oxidase, HCO) catalyzes the reduction of molecular oxygen to water by utilizing four electrons and four protons. This is one of the most fundamental reactions in living organisms. HCOs pump protons from the N to the P side of the membrane, contributing to the generation of transmembrane electrochemical potential, which drives the ATP synthesis [39]. The catalytic reaction occurs at a binuclear center formed by a HS heme (e.g., heme a3 in mitochondrial enzyme, here designated as CcO) and a copper atom (CuB). The ET to the binuclear center is mediated by a LS heme group in the catalytic subunit (heme a in CcO) and a copper center in the non-catalytic subunit, which is composed of two copper atoms (CuA) that hold one redox equivalent (Figure 4a middle). The number of non-catalytic subunits and their cofactors vary in HCOs. Bacteria and archaea have complexes that are simpler than the mammalian CcO, and if required, the expression of the appropriate HCO (e.g., aa3-, cbb3-, or ba3- type) can be fine-tuned as a function of oxygen pressure levels in the environment. RR spectroscopy played a fundamental role in identification and description of the cofactors in these enzymes, such as (i) the type and spin, oxidation, and coordination state of the heme groups in structurally diverse HCOs of different origin [40,41,42,43,44] and (ii) interactions, conformations, and the dynamics of small ligand (CO, CN−, N3, NO) binding [45,46,47,48,49,50,51].
The low-frequency region of RR spectra has provided unprecedented details on (i) mechanistic properties of HCOs, including detection and identification of the short living catalytic intermediates formed upon oxygen binding to the catalytic HS heme (i.e., a3, b3, o3) and (ii) molecular environment and conformation of the catalytic site, based on correlation of Fe-CO and Fe-C-O stretching mode frequencies of HS heme-CO adduct [52,53]. Moreover, protonation events during the catalytic reaction and in particular the role of the two HS heme propionates and the highly conserved amino acid residues found in their vicinity, have been elucidated by RR spectroscopy using structurally different HCOs [50,54], isotopic substitution, wavelength selective resonance enhancement, and mutagenesis studies [55]. A presence of a-type hemes in some HCOs offers further advantages as the effect of mutations and other molecular perturbations can be monitored via porphyrin formyl stretching C=O modes, which are well resolved in RR spectra of ferrous HS and LS hemes at 1661 and 1628 cm−1, respectively. In this manner, the frequencies of a (C=O) and a3 (C=O) stretching modes reveal the respective heme environments [56]. They highlight the importance of H bonding interactions stabilizing the heme a and hydrophobic environment surrounding the heme a3 in an aa3-type HCO and the role of the specific amino acids that participate and ensure a proper environment and H network [54].
Perhaps the most significant contribution of RR spectroscopy of heme proteins can be attributed to the understanding of the complex catalytic reaction of HCOs, as it provided identification and structural characterization of the transient intermediate species and kinetics of their formation. Reduced HCOs bind molecular oxygen and reduce it via formation of short living A, P, F, and H intermediates [57], which were initially only tentatively described by electronic absorption spectroscopy. RR experiments performed independently by the groups of Kitagawa, Rousseau, and Babcock led to a consistent mechanistic model of HCOs, employing isotopic labeling, mutagenesis studies, a number of structurally different HCOs, and individually developed TR RR experimental approaches [39,57,58,59,60,61]. In particular, iron–oxygen stretching frequencies obtained by TR RR 16O2–18O2 difference spectra, measured in H2O and D2O media, helped identify proton-coupled ET reactions and establish structural fingerprints of each catalytic intermediate (Figure 4b). These include the first formed compound A, assigned to ferric-superoxide species with iron–oxygen stretching frequency at 568 cm−1, compound P (iron–oxygen stretching frequency at 804 cm−1, electronic transition at 607 nm), and compound F (iron–oxygen stretching frequency at 786 cm−1, electronic transition at 580 nm). The P and F are both attributed to oxoferryl, Fe4+ = O, species with subtle differences in the proximal His ligand of a3 and one of its propionates, and/or the presence of a nearby amino acid (Tyr) radical [57,62]. The intermediate F decays into hydroxyl H species, with Fe-OH stretching frequency of 450 cm−1, Figure 4b.
IR difference spectroscopy recorded under steady state conditions and in the TR mode identified protonation/deprotonation and re-protonation events during the catalytic cycle of aa3-type HCO. The data in particular point out the role of a proton shuttle of glutamic acid found at ~11 Å from the active site, which changes its protonation state a number of times during the catalytic cycle. The role of the Tyr located in the proximity of the binuclear center in the splitting of the O-O bond during the catalysis was also highlighted by IR spectroscopy [63].
More recently, SERR spectroscopy provided a novel platform for investigations of HCOs under conditions that can mimic some basic features of their natural environment. Since these enzymes exert their function integrated into a phospholipid bilayer under restricted mobility, directionalized ET from electron donor to LS heme and binuclear site, and influence of strong interfacial electric fields, the immobilization onto biocompatible electrodes mimics far better these conditions than the solution studies [16]. Furthermore, SERR potentiometric titrations represent a powerful alternative to common methods for the determination of the E0 value, which is a prerequisite for understanding the ET pathway in these enzymes. The determination of E0 of the individual heme groups of HCOs by conventional electronic absorption titrations is hampered by strong overlapping of the spectra of individual hemes and by complex cooperative effects that modulate the electroprotonic energy transduction [16]. To that end, an aa3-type quinol oxidase (aa3 QO) that contains the catalytic and one cofactor-free non-catalytic subunit (Figure 4a) was attached to detergent-coated Ag electrodes by spontaneous adsorption. A comparison of RR and SERR spectra of the enzyme in solution and adsorbed states revealed that the enzyme preserved its native structure upon immobilization (Figure 5a). Deconvolution of the (SE)RR spectra by component analysis (Figure 5b,c) allowed separation of the contributions from the LS and the HS hemes based on their respective ν3 and νC=O modes, among more than 40 vibrational modes originating from the two hemes [16]. The potential dependence of these spin- and redox-state-sensitive marker bands allowed for determination of midpoint redox potentials of hemes a (E0 = 320 mV vs. NHE) and a3 (E0 = 390 mV vs. NHE), which reveal a reversed order of reduction compared to mitochondrial-like HCOs. This suggests a distinct mechanism of electroprotonic energy transduction in aa3 QO in comparison with, e.g., CcO (Figure 5d). A downhill ET is already guaranteed by the order of the midpoint redox potentials at the onset of enzyme reduction, indicating that this enzyme does not require a complex network of cooperativities to ensure exergonicity. Another SERR study employed a more complex, pentahemic cbb3-type HCO, anchored to nanostructured Ni-NTA-coated Ag electrodes and further embedded into a lipid bilayer that mimics the natural membrane, which was catalytically active within the electrode construct [64]. This strategy, which allows the control of the enzyme orientation that can be probed by SEIRA spectroscopy, was first developed in the studies of aa3-type HCO [17,65,66]. SERR potentiometric titrations of the whole cbb3-type HCO complex and of the two individually expressed non-catalytic subunits, indicate that the dihemic subunit can be considered redundant for ET and catalysis, supporting the hypothesis that it plays a role in oxygen sensing. SERR also helped clarify the poorly understood coupling between heme reduction and proton translocation in HCOs and in particular the involvement of heme a3 propionates in the proton pumping. The analysis was based on the protonation dependent CH2 propionate bending modes that have been detected by H2O-D2O (SE)RR difference spectroscopy. This allowed individual assignment of all four heme propionates. The data support the hypothesis that heme a3 propionates act as possible proton loading sites in HCOs [67].
IR difference spectroscopy was employed to specifically probe the heme propionate protonation events using a CcO mutant with 13C labeled propionates to distinguish its signal from possible concomitant changes of CO stretching modes of carboxylic acid groups of side chains [18]. In such a way, differential IR spectra, employing isotopically labeled ligands or different redox states of the protein (e.g., oxidized minus reduced), provided further structural details on active site conformations in HCOs and specific protonatable sites [68,69]. It was demonstrated that NO binding to cbb3, which also efficiently reduces NO to N2O, exclusively occurs via HS heme b3, and not via CuB as suggested [70]. Step-scan IR spectroscopy, using CuB-CO adduct as a probe, showed that the protonation events in the binuclear site of ba3-type HCO involve Tyr residues [71]. Moreover, electrochemical redox titrations of aa3- and caa3-type HCOs, performed using IR spectroscopy in the transmission and the ATR mode, helped identify the redox-sensitive bands originating from heme groups, their ligands, amino acid residues and/or protein backbone. This strategy allowed for tentative assignment of the redox transitions of the individual redox centers [36,68,72]. A similar approach, in which electrochemistry coupled to redox induced IR difference spectroscopy was used to address the E0 of the heme b3 in cbb3 HCOs, revealed relatively low midpoint redox potential of this HS heme. It was rationalized in terms of a unique coordination scheme involving hydrogen bonding between the His ligand of the heme b3 and a highly conserved glutamic acid, which participate in coupled electron and proton transfer steps and facilitate ET between LS and HS hemes during turnover [73].
Nitric oxide reductase (NOR) catalyzes the two-electron reduction of NO to N2O at the di-nuclear heme b3-FeB center. Similarly to the active site of HCOs, the heme b3 is in the HS state, while FeB is a non-hemic iron atom. NORs in addition house c-type and b-type LS hemes. RR spectroscopy provided evidence about NO reduction by monitoring the events that occur upon NO binding to the catalytic b3-type heme. Specifically, formation of the N-N bond and the fate of the proximal His-heme b3 bond along this process, as well as the recovery of the b3-O-FeB state, have been disentangled by RR spectroscopy [74].

3. Fe-S Proteins

3.1. Hydrogenases

Hydrogenases catalyze the reversible splitting of molecular dihydrogen (H2) into protons and electrons (or hydride species), often with high catalytic rates, and can be classified into [NiFe], [FeFe], and [Fe]-hydrogenases, depending on the particular metal composition of their catalytic centers [75]. These metalloenzymes have been extensively studied in recent years, revealing new insights into the mechanistic details of the H2 splitting, which are regarded as benchmarks for the development of biomimetic and bioinspired catalysts for H2 production and/or uptake [76]. In this context, vibrational spectroscopy has greatly contributed to the understanding of hydrogenases, targeting inorganic cofactors, such as the particular catalytic site and Fe-S cluster relays, as well as organic protein cofactors (e.g., FAD and FMN) and certain adjacent protein residues (e.g., cysteine, glutamate) all involved in the biological H2 conversion [77]. Thereby, IR spectroscopy has played a major role in the characterization of these enzymes, which is related to the presence of the unusual inorganic carbon monoxide (CO) and cyanide (CN−) ligands coordinated to the particular active sites (Figure 6a) that exhibit characteristic IR bands in a spectral region free of other protein absorptions. Noteworthily, the specific band position of the CO (1780–2030 cm−1) and CN− (2030–2150 cm−1) stretching modes (Figure 6b, Table 1) are particularly sensitive to changes of the local protein environment, oxidation states of the metal centers, as well as external perturbations induced by changes of e.g., temperature and pH [78,79]. Solution IR spectro-electrochemical studies [80] were thus extremely helpful for the structural and electronic characterization of the different redox states, providing key insights into the catalytic mechanism. Briefly, the [NiFe] hydrogenase catalytic cycle comprises four intermediates, i.e., Nia-S, Nia-L, Nia-C, and Nia-SR differing in the oxidation state of nickel (Ni1+/2+/3+) while iron retains a Fe2+ LS configuration throughout the entire catalytic cycle. In the [FeFe] hydrogenase catalytic cycle, the di-iron center, 2FeH, has been isolated in a variety of intermediates, some of which are well understood (Hox, Hred/HredH+, Hhyd) while other presumed intermediates (Hred’H, Hsred, HhydH+, HoxH+) are still a subject of intense discussion [81,82]. For understanding the assignment of the catalytic competency of hydrogenase intermediates, a number of studies employing ATR-IR [22] and SEIRA [20] spectroscopy, both under controlled gas atmosphere or/and potential, photogating with time-resolved IR spectroscopy [83], and protein film IR electrochemistry (PFIRE) [21] have been performed.
Recently, ultrafast pump-probe and two-dimensional (2D) IR provided novel insights into the dynamic interactions between the hydrogenase CO/CN− ligands and the complex interplay between the [NiFe] site and the protein scaffold [84]. Apart from the distinct CO and CN− markers bands, IR spectroscopy has also unveiled the participation of protein residues in the stabilization of certain intermediates. Combined IR difference spectroscopy and hydrogen/deuterium (H/D) isotopic labeling allowed for direct monitoring of the changes in the protonation state of conserved glutamate and arginine residues in both [NiFe] and [FeFe] hydrogenases [85]. Noteworthily, the IR detection of S-H/S-D stretching bands at 2505 cm−1 and 1822 cm−1, respectively, confirmed the protonation of a Ni-bound cysteine in the Nia-L intermediate.
Additional understanding of mechanistic properties of hydrogenases has been derived from RR spectroscopy that enables the detection of multiple protein cofactors. RR spectra of the F-420 [NiFe] hydrogenase revealed the spectral contributions of FAD, Fe-S clusters, and the [NiFe] active site [86]. Notably, 458 nm laser excitation preferentially enhanced the metal-ligand modes of the Fe-S clusters (Figure 6c, blue trace, Table 1), while the excitation lines distant from the S → Fe CT transition resulted in a preferential enhancement of the active site vibrational modes (Figure 6c, green trace, Table 1) [87,88]. Supported by theoretical methods, RR spectroscopy has shown to be highly versatile in unraveling key electronic and structural details of the [NiFe] and [FeFe] bimetallic centers. Additionally, RR and IR spectroscopic studies were successfully performed on the same single hydrogenase crystals, complementing the crystallographic data and facilitating structural assignment of ambiguous inhibited and active redox states, such as the oxygen-stable Hinact and the hydrogen-binding intermediate Nia-S state in [FeFe] and [NiFe] hydrogenases, respectively [86,89]. Notably, well-defined redox states in hydrogenase single crystals for IR imaging have been generated by electrochemical and gas control [90,91,92,93]. Furthermore, Fe-OH ligation at the unprecedented [4Fe–3S] cluster of the O2-tolerant membrane-bound [NiFe] hydrogenase from R. eutropha has been identified by RR spectroscopy and confirmed by theoretical quantum and molecular mechanics methods [94,95]. The corresponding FeS region of the three different clusters in the enzyme has been disentangled recently by RR spectroscopy in combination with protein engineering and X-ray crystallography [96], while its coupling with the physiological electron acceptor, cytochrome b3, was investigated by SERR spectro-electrochemistry [21,97].

3.2. Multi-Cluster Containing Ferredoxins

Ferredoxin, Fd, is a small ET protein that can have one or more Fe-S clusters and that takes part in a number of metabolic reactions. Multiple wavelength excitation of Fe-S proteins that contain different clusters can assure selective RR enhancement of individual clusters and provide their independent monitoring. IR and RR spectroscopies of a Fd that houses one [3Fe-4S]1+/0 and one [4Fe-4S]2+/1+ center have addressed the effect of thermal perturbation on the level of secondary structural elements and the individual clusters, respectively. RR spectroscopy provided fine details about the disassembly of the centers in Fd, on the level of bridging and terminal Fe-S bonds of each cluster [98]. Three different laser excitation lines (413, 458, and 514 nm) were used to achieve a differential enhancement of the RR bands associated with [3Fe-4S] and [4Fe-4S] centers. For all three excitation wavelengths, the most prominent RR band is observed at 346 cm−1, which is a fingerprint of the [3Fe-4S] cluster bridging mode, [3Fe-4SB]. Terminal vibrations of the same cluster, [3Fe-4ST], are found at 366 cm−1. The RR spectra recorded with 413 nm and 458 nm excitation show two additional features at 336 cm−1 and 358 cm−1 that are indicative of bridging and terminal modes of the [4Fe-4S] cluster, respectively ([4Fe-4SB] and [4Fe-4ST]). The spectral contributions of the clusters were accurately determined by applying band-fitting procedures. The intensity changes of the individual RR bands, i.e., [3Fe-4SB,T] and [4Fe-4SB,T], upon successive incubations of Fd at increasing temperatures revealed an apparent transition at around 53 °C for all vibrational modes. The simultaneous degradation of the two metal centers follows the initial loss of the alfa helical structure and triggers major structural changes of the protein matrix, including the loss of tertiary contacts and a secondary structure reorganization that is consistent with the formation of a molten globule state, which could be assessed by IR spectroscopy [98].

4. Outlook

The continuous progress in experimental methodologies that ensure improved metalloprotein expression systems and purification and selective isotopic labeling methods, alongside the development of faster, more sensitive, and sophisticated vibrational spectroscopic techniques, allow us nowadays to study exceptionally complex, dynamic, and transient metal centers and processes in which they participate. For example, in the past few years, the synchrotron Mössbauer technique, nuclear resonance vibrational spectroscopy, NRVS, has greatly contributed to the understanding of iron dynamics in certain hydrogenase intermediates. Considerable achievements in particular resulted from the development of biochemical and chemical procedures enabling selective 57Fe-labeling exclusively at the [NiFe] and [FeFe] bimetallic centers [99,100]. Similarly, recent advances in femtosecond-stimulated Raman spectroscopy (FSRS), and in particular, the unique power of tunable FSRS to achieve different resonance conditions (i.e., FSRRS) and track various species and states of heme proteins, allow nowadays studies of protein dynamics and energy flow with femtosecond resolution [101,102]. To that end, well established RR, SERR, IR, and SEIRA spectroscopies, complemented with these more recently developed methods and theoretical calculations, have an unforeseen future in discovering new roles and physiologically relevant forms, metal centers with unique structures, and the processes that occur in multiple cofactor-containing metalloenzymes.

Author Contributions

Conceptualization, S.T.; writing—original draft preparation, S.T., C.M.S., L.Z. and G.C.; writing—review and editing, C.B., G.C., S.T., I.Z. and P.H.; supervision, S.T. and I.Z.; funding acquisition, S.T; C.M.S.; I.Z. and P.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by FEDER funds through COMPETE2020—Programa Operacional Competitividade e Internacionalização (POCI) and by national funds through FCT—Fundacão para a Ciência e a Tecnologia, grant Project LISBOA-01-0145-FEDER-007660 (Microbiologia Molecular, Estrutural e Celular). S.T. acknowledges grant PTDC/BTM-SAL/29507/2017, C.M.S. acknowledges grant PTDC/BIA-BFS/31026/2017 project, and C.B. acknowledges fellowship 2020.05017.BD all funded by FCT. G.C., I.Z., and P.H. are grateful for funding from the Einstein Foundation Berlin (grant number EVF-2016-277). This work was also supported through the cluster of excellence “UniSysCat“ funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) under Germany’s Excellence Strategy-EXC2008/1-390540038 and the SPP 1927 ”Iron Sulfur for Life”—ZE 510/2-2 (IZ). The APC was funded by the TIMB3 project, European Union’s Horizon 2020 research and innovation program, under grant agreement No 810856.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Siebert, F.; Hildebrandt, P. Vibrational Spectroscopy in Life Science; Wiley-VCH: Weinheim, Germany, 2008. [Google Scholar]
  2. Czernuszewicz, R.S.; Fraczkiewicz, G.; Zareba, A.A. A Detailed Resonance Raman Spectrum of Nickel (II)-Substituted Pseudomonas aeruginosa Azurin. Inorg. Chem. 2005, 44, 5745–5752. [Google Scholar] [CrossRef]
  3. Woodruff, W.H.; Spiro, T.G.; Yonetani, T. Resonance Raman Spectra of Cobalt-Substituted Hemoglobin: Cooperativity and Displacement of the Cobalt Atom upon Oxygenation. Proc. Natl. Acad. Sci. USA 1974, 71, 1065–1069. [Google Scholar] [CrossRef] [Green Version]
  4. Woodruff, W.H.; Adams, D.H.; Spiro, T.G.; Yonetani, T. Resonance Raman spectra of cobalt myoglobins and cobalt porphyrins. Evaluation of protein effects on porphyrin structure. J. Am. Chem. Soc. 1975, 97, 1695–1698. [Google Scholar] [CrossRef] [PubMed]
  5. Garton, S.D.; Garrett, R.M.; Rajagopalan, K.V.; Johnson, M.K. Resonance Raman Characterization of the Molybdenum Center in Sulfite Oxidase: Identification of MoO Stretching Modes. J. Am. Chem. Soc. 1997, 119, 2590–2591. [Google Scholar] [CrossRef]
  6. Todorovic, S.; Rodrigues, M.L.; Matos, D.; Pereira, I.A.C. Redox Properties of Lysine- and Methionine-Coordinated Hemes Ensure Downhill Electron Transfer in NrfH2A4 Nitrite Reductase. J. Phys. Chem. B 2012, 116, 5637–5643. [Google Scholar] [CrossRef] [PubMed]
  7. Li, X.; Feng, M.; Wang, Y.; Tachikawa, A.H.; Davidson, V.L. Evidence for Redox Cooperativity between c-Type Hemes of MauG Which Is Likely Coupled to Oxygen Activation during Tryptophan Tryptophylquinone Biosynthesis. Biochemistry 2006, 45, 821–828. [Google Scholar] [CrossRef] [Green Version]
  8. Pauleta, S.R.; Lu, Y.; Goodhew, C.F.; Qiu, Y.; Moura, I.; Pettigrew, G.; Shelnutt, J.A. Structural changes in the calcium-dependent activation of the di-heme cytochrome c peroxidase of Paracoccus pantotrophus. Biophys. J. 2002, 82, 14A. [Google Scholar]
  9. Wolf, M.W.; Rizzolo, K.; Elliott, S.J.; Lehnert, N. Resonance Raman, Electron Paramagnetic Resonance, and Magnetic Circular Dichroism Spectroscopic Investigation of Diheme Cytochrome c Peroxidases from Nitrosomonas europaea and Shewanella oneidensis. Biochemistry 2018, 57, 6416–6433. [Google Scholar] [CrossRef]
  10. Hobbs, D.D.; Kriauciunas, A.; Güner, S.; Knaff, D.B.; Ondrias, M.R. Resonance Raman spectroscopy of cytochrome bc1 complexes from Rhodospirillum rubrum: Initial characterization and reductive titrations. Biochim. Biophys. Acta Bioenerg. 1990, 1018, 47–54. [Google Scholar] [CrossRef]
  11. Todorovic, S.; Teixeira, M. Resonance Raman spectroscopy of Fe-S proteins and their redox properties. JBIC J. Biol. Inorg. Chem. 2018, 23, 647–661. [Google Scholar] [CrossRef] [Green Version]
  12. Qiu, C.; Cheng, Z.; Lv, C.; Wang, R.; Yu, F. Development of bioorthogonal SERS imaging probe in biological and biomedical applications. Chin. Chem. Lett. 2021. [Google Scholar] [CrossRef]
  13. Cheng, Z.; Wang, R.; Xing, Y.; Zhao, L.; Choo, J.; Yu, F. SERS-based immunoassay using gold-patterned array chips for rapid and sensitive detection of dual cardiac biomarkers. Analyst 2019, 144, 6533–6540. [Google Scholar] [CrossRef]
  14. Todorovic, S.; Murgida, D.H. Surface-Enhanced Raman Scattering of Biological Materials. In Encyclopedia of Analytical Chemistry; John Wiley & Sons, Ltd.: Chichester, UK, 2016; pp. 1–29. [Google Scholar]
  15. Sezer, M.; Millo, D.; Weidinger, I.; Zebger, I.; Hildebrandt, P. Analyzing the catalytic processes of immobilized redox enzymes by vibrational spectroscopies. IUBMB Life 2012, 64, 455–464. [Google Scholar] [CrossRef] [Green Version]
  16. Todorovic, S.; Pereira, M.M.; Bandeiras, T.M.; Teixeira, M.; Hildebrandt, P.; Murgida, D.H. Midpoint Potentials of Hemes a and a3 in the Quinol Oxidase from Acidianus ambivalens are Inverted. J. Am. Chem. Soc. 2005, 127, 13561–13566. [Google Scholar] [CrossRef] [PubMed]
  17. Hrabáková, J.; Ataka, K.; Heberle, J.; Hildebrandt, P.; Murgida, D.H. Long distance electron transfer in cytochrome c oxidase immobilised on electrodes. A surface enhanced resonance Raman spectroscopic study. Phys. Chem. Chem. Phys. 2006, 8, 759–766. [Google Scholar] [CrossRef] [Green Version]
  18. Behr, J.; Michel, H.; Mäntele, A.W.; Hellwig, P. Functional Properties of the Heme Propionates in Cytochrome c Oxidase from Paracoccus denitrificans. Evidence from FTIR Difference Spectroscopy and Site-Directed Mutagenesis. Biochemistry 2000, 39, 1356–1363. [Google Scholar] [CrossRef] [PubMed]
  19. Millo, D.; Pandelia, M.-E.; Utesch, T.; Wisitruangsakul, N.; Mroginski, M.A.; Lubitz, W.; Hildebrandt, P.; Zebger, I. Spectroelectrochemical Study of the [NiFe] Hydrogenase from Desulfovibrio vulgaris Miyazaki F in Solution and Immobilized on Biocompatible Gold Surfaces. J. Phys. Chem. B 2009, 113, 15344–15351. [Google Scholar] [CrossRef] [PubMed]
  20. Wisitruangsakul, N.; Lenz, O.; Ludwig, M.; Friedrich, B.; Lendzian, F.; Hildebrandt, P.; Zebger, I. Monitoring Catalysis of the Membrane-Bound Hydrogenase from Ralstonia eutropha H16 by Surface-Enhanced IR Absorption Spectroscopy. Angew. Chem. Int. Ed. 2009, 48, 611–613. [Google Scholar] [CrossRef]
  21. Hidalgo, R.; Ash, P.; Healy, A.J.; Vincent, K.A. Infrared Spectroscopy During Electrocatalytic Turnover Reveals the Ni-L Active Site State During H2 Oxidation by a NiFe Hydrogenase. Angew. Chem. Int. Ed. 2015, 54, 7110–7113. [Google Scholar] [CrossRef] [Green Version]
  22. Senger, M.; Mebs, S.; Duan, J.; Wittkamp, F.; Apfel, U.-P.; Heberle, J.; Haumann, M.; Stripp, S.T. Stepwise isotope editing of [FeFe]-hydrogenases exposes cofactor dynamics. Proc. Natl. Acad. Sci. USA 2016, 113, 8454–8459. [Google Scholar] [CrossRef] [Green Version]
  23. Martins, G.; Rodrigues, L.; Cunha, F.M.; Matos, D.; Hildebrandt, P.; Murgida, D.H.; Pereira, I.A.C.; Todorovic, S. Substrate Binding to a Nitrite Reductase Induces a Spin Transition. J. Phys. Chem. B 2010, 114, 5563–5566. [Google Scholar] [CrossRef]
  24. Rinaldo, S.; Cutruzzolà, F. Chapter 3—Nitrite Reductases in Denitrification. In Biology of the Nitrogen Cycle; Bothe, H., Ferguson, S.J., Newton, W.E., Eds.; Elsevier: Amsterdam, The Netherlands, 2007; pp. 37–55. [Google Scholar]
  25. Castiglione, N.; Rinaldo, S.; Giardina, G.; Stelitano, V.; Cutruzzolà, F. Nitrite and Nitrite Reductases: From Molecular Mechanisms to Significance in Human Health and Disease. Antioxid. Redox Signal. 2012, 17, 684–716. [Google Scholar] [CrossRef] [Green Version]
  26. Cotton, T.M.; Timkovich, R.; Cork, M.S. Resonance Raman and surface-enhanced resonance Raman studies of cytochrome cd1. FEBS Lett. 1981, 133, 39–44. [Google Scholar] [CrossRef] [Green Version]
  27. Das, T.; Wilson, E.; Cutruzzola, F.; Brunori, M.; Rousseau, D.L. Binding of NO and CO to the d1 Heme of cd1 Nitrite Reductase from Pseudomonas aeruginosa. Biochemistry 2001, 40, 10774–10781. [Google Scholar] [CrossRef]
  28. Silveira, C.M.; Quintas, P.O.; Moura, I.; Moura, J.J.G.; Hildebrandt, P.; Almeida, M.G.; Todorovic, S. SERR Spectroelectrochemical Study of Cytochrome cd1 Nitrite Reductase Co-Immobilized with Physiological Redox Partner Cytochrome c552 on Biocompatible Metal Electrodes. PLoS ONE 2015, 10, e0129940. [Google Scholar] [CrossRef] [Green Version]
  29. Spiro, T.G.; Jarzecki, A.A. Heme-based sensors: Theoretical modeling of heme-ligand–protein interactions. Curr. Opin. Chem. Biol. 2001, 5, 715–723. [Google Scholar] [CrossRef]
  30. Andrew, C.R.; George, S.; Lawson, D.M.; Eady, R.R. Six- to Five-Coordinate Heme―Nitrosyl Conversion in Cytochrome c‘ and Its Relevance to Guanylate Cyclase. Biochemistry 2002, 41, 2353–2360. [Google Scholar] [CrossRef]
  31. Quintas, P.; Catarino, T.; Todorovic, S.; Turner, D. Highly Selective Ligand Binding by Methylophilus methylotrophus Cytochrome c″. Biochemistry 2011, 50, 5624–5632. [Google Scholar] [CrossRef] [PubMed]
  32. Gao, F.; Qin, H.; Knaff, D.; Zhang, L.; Yu, L.; Yu, C.; Gray, K.; Daldal, F.; Ondrias, M. Q-Band resonance Raman investigation of turnip cytochrome f and Rhodobacter capsulatus cytochrome c1. Biochim. Biophys. Acta Protein Struct. Mol. Enzym. 1999, 1430, 203–213. [Google Scholar] [CrossRef]
  33. De Vitry, C.; Desbois, A.; Redeker, V.; Zito, F.; Wollman, F.-A. Biochemical and Spectroscopic Characterization of the Covalent Binding of Heme to Cytochrome b6. Biochemistry 2004, 43, 3956–3968. [Google Scholar] [CrossRef] [PubMed]
  34. Picaud, T.; Le Moigne, C.; De Gracia, A.G.; Desbois, A. Soret-Excited Raman Spectroscopy of the Spinach Cytochrome b6f Complex. Structures of the b- and c-Type Hemes, Chlorophylla, and β-Carotene. Biochemistry 2001, 40, 7309–7317. [Google Scholar] [CrossRef] [PubMed]
  35. Bandeiras, T.M.; Refojo, P.; Todorovic, S.; Murgida, D.H.; Hildebrandt, P.; Bauer, C.; Pereira, M.M.; Kletzin, A.; Teixeira, M. The cytochrome ba complex from the thermoacidophilic crenarchaeote Acidianus ambivalens is an analog of bc1 complexes. Biochim. Biophys. Acta Bioenerg. 2009, 1787, 37–45. [Google Scholar] [CrossRef] [Green Version]
  36. Hellwig, P.; Grzybek, S.; Behr, J.; Ludwig, B.; Michel, H.; Mäntele, W. Electrochemical and ultraviolet/visible/infrared spectroscopic analysis of heme a and a3 redox reactions in the cytochrome c oxidase from Paracoccus denitrificans: Separation of heme a and a3. Biochemistry 1999, 38, 1685–1694. [Google Scholar] [CrossRef] [PubMed]
  37. Iwaki, M.; Giotta, L.; Akinsiku, A.O.; Schägger, H.; Fisher, N.; Breton, J.; Rich, P.R. Redox-Induced Transitions in Bovine Cytochrome bc1 Complex Studied by Perfusion-Induced ATR-FTIR Spectroscopy. Biochemistry 2003, 42, 11109–11119. [Google Scholar] [CrossRef]
  38. Iwaki, M.; Yakovlev, G.; Hirst, J.; Osyczka, A.; Dutton, P.L.; Marshall, D.; Rich, P.R. Direct Observation of Redox-Linked Histidine Protonation Changes in the Iron−Sulfur Protein of the Cytochrome bc1 Complex by ATR-FTIR Spectroscopy. Biochemistry 2005, 44, 4230–4237. [Google Scholar] [CrossRef] [PubMed]
  39. Ferguson-Miller, S.; Babcock, G.T. Heme/Copper Terminal Oxidases. Chem. Rev. 1996, 96, 2889–2908. [Google Scholar] [CrossRef]
  40. Uno, T.; Nishimura, Y.; Tsuboi, M.; Kita, K.; Anraku, Y. Resonance Raman study of cytochrome b562-o complex, a terminal oxidase of Escherichia coli in its ferric, ferrous, and CO-ligated states. J. Biol. Chem. 1985, 260, 6755–6760. [Google Scholar] [CrossRef]
  41. Wang, J.; Rumbley, J.; Ching, Y.-C.; Takahashi, S.; Gennis, R.B.; Rousseau, D.L. Reaction of Cytochrome bo3 with Oxygen: Extra Redox Center(s) are Present in the Protein. Biochemistry 1995, 34, 15504–15511. [Google Scholar] [CrossRef]
  42. Heibel, G.E.; Hildebrandt, P.; Ludwig, B.; Steinruecke, P.; Soulimane, T.; Buse, G. Comparative resonance Raman study of cytochrome c oxidase from beef heart and Paracoccus denitrificans. Biochemistry 1993, 32, 10866–10877. [Google Scholar] [CrossRef]
  43. Varotsis, C.; Babcock, G.T.; Garcia-Horsman, J.A.; Gennis, R.B. Resonance Raman Spectroscopy of the Heme Groups of Cytochrome cbb3 in Rhodobacter sphaeroides. J. Phys. Chem. 1995, 99, 16817–16820. [Google Scholar] [CrossRef]
  44. Pinakoulaki, E.; Pfitzner, U.; Ludwig, B.; Varotsis, C. The Role of the Cross-link His-Tyr in the Functional Properties of the Binuclear Center in Cytochrome c Oxidase. J. Biol. Chem. 2002, 277, 13563–13568. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Varotsis, C.; Vamvouka, M. Resonance Raman and Fourier Transform Infrared Detection of Azide Binding to the Binuclear Center of Cytochrome bo3 Oxidase from Escherichia coli. J. Phys. Chem. B 1999, 103, 3942–3946. [Google Scholar] [CrossRef]
  46. Varotsis, C.; Vamvouka, M. Resonance Raman and FTIR Studies of Carbon Monoxide-Bound Cytochrome aa3-600 Oxidase of Bacillus subtilis. J. Phys. Chem. B 1998, 102, 7670–7673. [Google Scholar] [CrossRef]
  47. Oertling, W.A.; Surerus, K.K.; Einarsdóttir, Ó.; Fee, J.A.; Dyer, R.B.; Woodruff, W.H. Spectroscopic characterization of cytochrome ba3, a terminal oxidase from Thermus thermophilus: Comparison of the a3/CuB site to that of bovine cytochrome aa3. Biochemistry 1994, 33, 3128–3141. [Google Scholar] [CrossRef]
  48. Varotsis, C.; Ohta, T.; Kitagawa, T.; Soulimane, T.; Pinakoulaki, E. The Structure of the Hyponitrite Species in a Heme Fe-Cu Binuclear Center. Angew. Chem. Int. Ed. 2007, 46, 2210–2214. [Google Scholar] [CrossRef] [PubMed]
  49. Pinakoulaki, E.; Vamvouka, M.; Varotsis, C. Resonance Raman Detection of the Fe2+-C-N Modes in Heme−Copper Oxidases: A Probe of the Active Site. Inorg. Chem. 2004, 43, 4907–4910. [Google Scholar] [CrossRef]
  50. Egawa, T.; Lin, M.T.; Hosler, J.P.; Gennis, R.B.; Yeh, S.-R.; Rousseau, D.L. Communication between R481 and CuB in Cytochrome bo3 Ubiquinol Oxidase from Escherichia coli. Biochemistry 2009, 48, 12113–12124. [Google Scholar] [CrossRef] [Green Version]
  51. Lauraeus, M.; Wikstrom, M.; Varotsis, C.; Tecklenburg, M.M.J.; Babcock, G.T. Optical and resonance Raman spectroscopy of the heme groups of the quinol-oxidizing cytochrome aa3 of Bacillus subtilis. Biochemistry 1992, 31, 10054–10060. [Google Scholar] [CrossRef] [PubMed]
  52. Wang, J.; Gray, K.A.; Daldal, F.; Rousseau, D.L. The cbb3-Type Cytochrome c Oxidase from Rhodobacter capsulatus Contains a Unique Active Site. J. Am. Chem. Soc. 1995, 117, 9363–9364. [Google Scholar] [CrossRef]
  53. Ji, H.; Das, T.K.; Puustinen, A.; Wikström, M.; Yeh, S.-R.; Rousseau, D.L. Modulation of the active site conformation by site-directed mutagenesis in cytochrome c oxidase from Paracoccus denitrificans. J. Inorg. Biochemistry 2010, 104, 318–323. [Google Scholar] [CrossRef] [Green Version]
  54. Egawa, T.; Lee, H.J.; Gennis, R.B.; Yeh, S.-R.; Rousseau, D.L. Critical structural role of R481 in cytochrome c oxidase from Rhodobacter sphaeroides. Biochim. Biophys. Acta Bioenerg. 2009, 1787, 1272–1275. [Google Scholar] [CrossRef] [Green Version]
  55. Egawa, T.; Lee, H.J.; Ji, H.; Gennis, R.B.; Yeh, S.-R.; Rousseau, D.L. Identification of heme propionate vibrational modes in the resonance Raman spectra of cytochrome c oxidase. Anal. Biochemistry 2009, 394, 141–143. [Google Scholar] [CrossRef] [Green Version]
  56. Das, T.; Gomes, C.M.; Bandeiras, T.M.; Pereira, M.M.; Teixeira, M.; Rousseau, D.L. Active site structure of the aa3 quinol oxidase of Acidianus ambivalens. Biochim. Biophys. Acta Bioenerg. 2004, 1655, 306–320. [Google Scholar] [CrossRef] [Green Version]
  57. Rousseau, D.L.; Han, S. 26—Time-Resolved Resonance Raman Spectroscopy of Intermediates in Cytochrome Oxidase. In Enzyme Kinetics and Mechanism; Purich, D.L., Ed.; Methods in Enzymology; Academic Press: Cambridge, MA, USA, 2002; Volume 354, pp. 351–368. [Google Scholar] [CrossRef]
  58. Ogura, T.; Kitagawa, T. Resonance Raman characterization of the P intermediate in the reaction of bovine cytochrome c oxidase. Biochim. Biophys. Acta Bioenerg. 2004, 1655, 290–297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Kitagawa, T. Structures of reaction intermediates of bovine cytochrome c oxidase probed by time-resolved vibrational spectroscopy. J. Inorg. Biochem. 2000, 82, 9–18. [Google Scholar] [CrossRef]
  60. Han, S.; Takahashi, S.; Rousseau, D.L. Time Dependence of the Catalytic Intermediates in Cytochrome c Oxidase. J. Biol. Chem. 2000, 275, 1910–1919. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Proshlyakov, D.A.; Pressler, M.A.; Babcock, G.T. Dioxygen activation and bond cleavage by mixed-valence cytochrome c oxidase. Proc. Natl. Acad. Sci. USA 1998, 95, 8020–8025. [Google Scholar] [CrossRef] [Green Version]
  62. Pinakoulaki, E.; Daskalakis, V.; Varotsis, C. The origin of the FeIV=O intermediates in cytochrome aa3 oxidase. Biochim. Biophys. Acta Bioenerg. 2012, 1817, 552–557. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Nyquist, R.M.; Heitbrink, D.; Bolwien, C.; Gennis, R.B.; Heberle, J. Direct observation of protonation reactions during the catalytic cycle of cytochrome c oxidase. Proc. Natl. Acad. Sci. USA 2003, 100, 8715–8720. [Google Scholar] [CrossRef] [Green Version]
  64. Todorovic, S.; Verissimo, A.; Wisitruangsakul, N.; Zebger, I.; Hildebrandt, P.; Pereira, M.M.; Teixeira, M.; Murgida, D.H. SERR-Spectroelectrochemical Study of a cbb3 Oxygen Reductase in a Biomimetic Construct. J. Phys. Chem. B 2008, 112, 16952–16959. [Google Scholar] [CrossRef]
  65. Friedrich, M.G.; Giebeta, F.; Naumann, R.; Knoll, W.; Ataka, K.; Heberle, J.; Hrabakova, J.; Murgida, D.H.; Hildebrandt, P. Active site structure and redox processes of cytochrome c oxidase immobilised in a novel biomimetic lipid membrane on an electrode. Chem. Commun. 2004, 2376–2377. [Google Scholar] [CrossRef] [PubMed]
  66. Ataka, K.; Richter, B.; Heberle, J. Orientational Control of the Physiological Reaction of Cytochrome c Oxidase Tethered to a Gold Electrode. J. Phys. Chem. B 2006, 110, 9339–9347. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Sezer, M.; Woelke, A.-L.; Knapp, E.W.; Schlesinger, R.; Mroginski, M.A.; Weidinger, I. Redox induced protonation of heme propionates in cytochrome c oxidase: Insights from surface enhanced resonance Raman spectroscopy and QM/MM calculations. Biochim. Biophys. Acta Bioenerg. 2017, 1858, 103–108. [Google Scholar] [CrossRef] [PubMed]
  68. Hellwig, P.; Soulimane, T.; Mäntele, W. Electrochemical, FT-IR and UV/VIS spectroscopic properties of the caa3 oxidase from T. thermophilus. JBIC J. Biol. Inorg. Chem. 2002, 269, 4830–4838. [Google Scholar] [CrossRef] [PubMed]
  69. Hellwig, P.; Gomes, C.M.; Teixeira, M. FTIR Spectroscopic Characterization of the Cytochrome aa3 from Acidianus ambivalens: Evidence for the Involvement of Acidic Residues in Redox Coupled Proton Translocation. Biochemistry 2003, 42, 6179–6184. [Google Scholar] [CrossRef] [PubMed]
  70. Stavrakis, S.; Pinakoulaki, E.; Urbani, A.; Varotsis, C. Fourier Transform Infrared Evidence for a Ferric Six-Coordinate Nitrosylheme b3 Complex of Cytochrome cbb3 Oxidase from Pseudomonas stutzeri at Ambient Temperature. J. Phys. Chem. B 2002, 106, 12860–12862. [Google Scholar] [CrossRef]
  71. Koutsoupakis, C.; Kolaj-Robin, O.; Soulimane, T.; Varotsis, C. Probing Protonation/Deprotonation of Tyrosine Residues in Cytochrome ba3 Oxidase from Thermus thermophilus by Time-resolved Step-scan Fourier Transform Infrared Spectroscopy. J. Biol. Chem. 2011, 286, 30600–30605. [Google Scholar] [CrossRef] [Green Version]
  72. Gorbikova, E.A.; Vuorilehto, K.; Wikström, M.; Verkhovsky, M.I. Redox Titration of All Electron Carriers of Cytochrome c Oxidase by Fourier Transform Infrared Spectroscopy. Biochemistry 2006, 45, 5641–5649. [Google Scholar] [CrossRef]
  73. Melin, F.; Xie, H.; Meyer, T.; Ahn, Y.O.; Gennis, R.B.; Michel, H.; Hellwig, P. The unusual redox properties of c-type oxidases. Biochim. Biophys. Acta Bioenerg. 2016, 1857, 1892–1899. [Google Scholar] [CrossRef]
  74. Pinakoulaki, E.; Varotsis, C. Resonance Raman Spectroscopy of Nitric Oxide Reductase and cbb3 Heme-Copper Oxidase. J. Phys. Chem. B 2008, 112, 1851–1857. [Google Scholar] [CrossRef]
  75. Lubitz, W.; Ogata, H.; Ruediger, O.; Reijerse, E. Hydrogenases. Chem. Rev. 2014, 114, 4081–4148. [Google Scholar] [CrossRef] [PubMed]
  76. Kleinhaus, J.T.; Wittkamp, F.; Yadav, S.; Siegmund, D.; Apfel, U.-P. [FeFe]-Hydrogenases: Maturation and reactivity of enzymatic systems and overview of biomimetic models. Chem. Soc. Rev. 2021, 50, 1668–1784. [Google Scholar] [CrossRef]
  77. Ash, P.A.; Hidalgo, R.; Vincent, K.A. Proton Transfer in the Catalytic Cycle of [NiFe] Hydrogenases: Insight from Vibrational Spectroscopy. ACS Catal. 2017, 7, 2471–2485. [Google Scholar] [CrossRef]
  78. Caserta, G.; Pelmenschikov, V.; Lorent, C.; Waffo, A.F.T.; Katz, S.; Lauterbach, L.; Schoknecht, J.; Wang, H.; Yoda, Y.; Tamasaku, K.; et al. Hydroxy-bridged resting states of a [NiFe]-hydrogenase unraveled by cryogenic vibrational spectroscopy and DFT computations. Chem. Sci. 2021, 12, 2189–2197. [Google Scholar] [CrossRef]
  79. Lorent, C.; Katz, S.; Duan, J.; Kulka, C.J.; Caserta, G.; Teutloff, C.; Yadav, S.; Apfel, U.-P.; Winkler, M.; Happe, T.; et al. Shedding Light on Proton and Electron Dynamics in [FeFe] Hydrogenases. J. Am. Chem. Soc. 2020, 142, 5493–5497. [Google Scholar] [CrossRef] [PubMed]
  80. Corrigan, P.S.; Tirsch, J.L.; Silakov, A. Investigation of the Unusual Ability of the [FeFe] Hydrogenase from Clostridium beijerinckii to Access an O2-Protected State. J. Am. Chem. Soc. 2020, 142, 12409–12419. [Google Scholar] [CrossRef]
  81. Rodríguez-Maciá, P.; Breuer, N.; Debeer, S.; Birrell, J.A. Insight into the Redox Behavior of the [4Fe–4S] Subcluster in [FeFe] Hydrogenases. ACS Catal. 2020, 10, 13084–13095. [Google Scholar] [CrossRef]
  82. Land, H.; Senger, M.; Berggren, G.; Stripp, S.T. Current State of [FeFe]-Hydrogenase Research: Biodiversity and Spectroscopic Investigations. ACS Catal. 2020, 10, 7069–7086. [Google Scholar] [CrossRef]
  83. Greene, B.L.; Van Such, G.E.; Chica, B.C.; Adams, M.W.W.; Dyer, R.B. Applications of Photogating and Time Resolved Spectroscopy to Mechanistic Studies of Hydrogenases. Acc. Chem. Res. 2017, 50, 2718–2726. [Google Scholar] [CrossRef] [PubMed]
  84. Horch, M.; Schoknecht, J.; Wrathall, S.L.D.; Greetham, G.M.; Lenz, O.; Hunt, N.T. Understanding the structure and dynamics of hydrogenases by ultrafast and two-dimensional infrared spectroscopy. Chem. Sci. 2019, 10, 8981–8989. [Google Scholar] [CrossRef] [Green Version]
  85. Tai, H.; Hirota, S.; Stripp, S.T. Proton Transfer Mechanisms in Bimetallic Hydrogenases. Acc. Chem. Res. 2021, 54, 232–241. [Google Scholar] [CrossRef]
  86. Ilina, Y.; Lorent, C.; Katz, S.; Jeoung, J.H.; Shima, S.; Horch, M.; Zebger, I.; Dobbek, H. X-ray Crystallography and Vibrational Spectroscopy Reveal the Key Determinants of Biocatalytic Dihydrogen Cycling by [NiFe] Hydrogenases. Angew. Chem. Int. Ed. 2019, 58, 18710–18714. [Google Scholar] [CrossRef] [Green Version]
  87. Katz, S.; Noth, J.; Horch, M.; Shafaat, H.S.; Happe, T.; Hildebrandt, P.; Zebger, I. Vibrational spectroscopy reveals the initial steps of biological hydrogen evolution. Chem. Sci. 2016, 7, 6746–6752. [Google Scholar] [CrossRef] [Green Version]
  88. Horch, M.; Schoknecht, J.; Mroginski, M.A.; Lenz, O.; Hildebrandt, P.; Zebger, I. Resonance Raman Spectroscopy on [NiFe] Hydrogenase Provides Structural Insights into Catalytic Intermediates and Reactions. J. Am. Chem. Soc. 2014, 136, 9870–9873. [Google Scholar] [CrossRef] [PubMed]
  89. Rodríguez-Maciá, P.; Galle, L.M.; Bjornsson, R.; Lorent, C.; Zebger, I.; Yoda, Y.; Cramer, S.P.; Debeer, S.; Span, I.; Birrell, J.A. Caught in the H inact: Crystal Structure and Spectroscopy Reveal a Sulfur Bound to the Active Site of an O2− stable State of [FeFe] Hydrogenase. Angew. Chem. Int. Ed. 2020, 59, 16786–16794. [Google Scholar] [CrossRef]
  90. Ash, P.A.; Carr, S.B.; Reeve, H.A.; Skorupskaitė, A.; Rowbotham, J.S.; Shutt, R.; Frogley, M.D.; Evans, R.M.; Cinque, G.; Armstrong, F.A.; et al. Generating single metalloprotein crystals in well-defined redox states: Electrochemical control combined with infrared imaging of a NiFe hydrogenase crystal. Chem. Commun. 2017, 53, 5858–5861. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  91. Morra, S.; Duan, J.; Winkler, M.; Ash, P.A.; Happe, T.; Vincent, K.A. Electrochemical control of [FeFe]-hydrogenase single crystals reveals complex redox populations at the catalytic site. Dalton Trans. 2021. [Google Scholar] [CrossRef]
  92. Ash, P.A.; Kendall-Price, S.; Evans, R.M.; Carr, S.B.; Brasnett, A.; Morra, S.; Hidalgo, R.; Healy, A.J.; Cinque, G.; Frogley, M.; et al. The crystalline state as a dynamic system: IR microspectroscopy under electrochemical control for a [NiFe] hydrogenase. Chem. Sci. 2021. [Google Scholar] [CrossRef]
  93. Lorent, C.; Pelmenschikov, V.; Frielingsdorf, S.; Schoknecht, J.; Caserta, G.; Yoda, Y.; Wang, H.; Tamasaku, K.; Lenz, O.; Cramer, S.P.; et al. Exploring Structure and Function of Redox Intermediates in [NiFe]-Hydrogenases by an Advanced Experimental Approach for Solvated, Lyophilized and Crystallized Metalloenzymes. Angew. Chem. Int. Ed. 2021, 60, 15854–15862. [Google Scholar] [CrossRef]
  94. Siebert, E.; Rippers, Y.; Frielingsdorf, S.; Fritsch, J.; Schmidt, A.; Kalms, J.; Katz, S.; Lenz, O.; Scheerer, P.; Paasche, L.; et al. Resonance Raman Spectroscopic Analysis of the [NiFe] Active Site and the Proximal [4Fe-3S] Cluster of an O2-Tolerant Membrane-Bound Hydrogenase in the Crystalline State. J. Phys. Chem. B 2015, 119, 13785–13796. [Google Scholar] [CrossRef]
  95. Frielingsdorf, S.; Fritsch, J.; Schmidt, A.; Hammer, M.; Löwenstein, J.; Siebert, E.; Pelmenschikov, V.; Jaenicke, T.; Kalms, J.; Rippers, Y.; et al. Reversible [4Fe-3S] cluster morphing in an O2-tolerant [NiFe] hydrogenase. Nat. Chem. Biol. 2014, 10, 378–385. [Google Scholar] [CrossRef]
  96. Siebert, E.; Schmidt, A.; Frielingsdorf, S.; Kalms, J.; Kuhlmann, U.; Lenz, O.; Scheerer, P.; Zebger, I.; Hildebrandt, P. Resonance Raman spectroscopic analysis of the iron–sulfur cluster redox chain of the Ralstonia eutropha membrane-bound [NiFe]-hydrogenase. J. Raman Spectrosc. 2021. [Google Scholar] [CrossRef]
  97. Sezer, M.; Frielingsdorf, S.; Millo, D.; Heidary, N.; Utesch, T.; Mroginski, M.-A.; Friedrich, B.; Hildebrandt, P.; Zebger, I.; Weidinger, I.M. Role of the HoxZ Subunit in the Electron Transfer Pathway of the Membrane-Bound [NiFe]-Hydrogenase fromRalstonia eutropha Immobilized on Electrodes. J. Phys. Chem. B 2011, 115, 10368–10374. [Google Scholar] [CrossRef] [PubMed]
  98. Todorovic, S.; Leal, S.S.; Salgueiro, C.; Zebger, I.; Hildebrandt, P.; Murgida, D.H.; Gomes, C.M. A Spectroscopic Study of the Temperature Induced Modifications on Ferredoxin Folding and Iron−Sulfur Moieties. Biochemistry 2007, 46, 10733–10738. [Google Scholar] [CrossRef] [PubMed]
  99. Caserta, G.; Lorent, C.; Pelmenschikov, V.; Schoknecht, J.; Yoda, Y.; Hildebrandt, P.; Cramer, S.P.; Zebger, I.; Lenz, O. In Vitro Assembly as a Tool to Investigate Catalytic Intermediates of [NiFe]-Hydrogenase. ACS Catal. 2020, 10, 13890–13894. [Google Scholar] [CrossRef] [PubMed]
  100. Gilbert-Wilson, R.; Siebel, J.F.; Adamska-Venkatesh, A.; Pham, C.C.; Reijerse, E.; Wang, H.; Cramer, S.P.; Lubitz, W.; Rauchfuss, T.B. Spectroscopic Investigations of [FeFe] Hydrogenase Maturated with [57 Fe2 (adt) (CN)2 (CO)4 ]2−. J. Am. Chem. Soc. 2015, 137, 8998–9005. [Google Scholar] [CrossRef] [Green Version]
  101. Brasseur, G.; Sariba, A.S.; Daldal, F. A compilation of mutation located in cytochrome b subunit of the bacterial and mito-chondrial bc1 complex. Biochim. Biophys. Acta 1996, 1275, 61–69. [Google Scholar] [CrossRef] [Green Version]
  102. Crofts, A.R.; Lhee, S.; Crofts, S.B.; Cheng, J.; Rose, S. Proton pumping in the bc1 complex: A new gating mechanism that prevents short circuits. Biochim. Biophys. Acta Bioenerg. 2006, 1757, 1019–1034. [Google Scholar] [CrossRef] [PubMed] [Green Version]

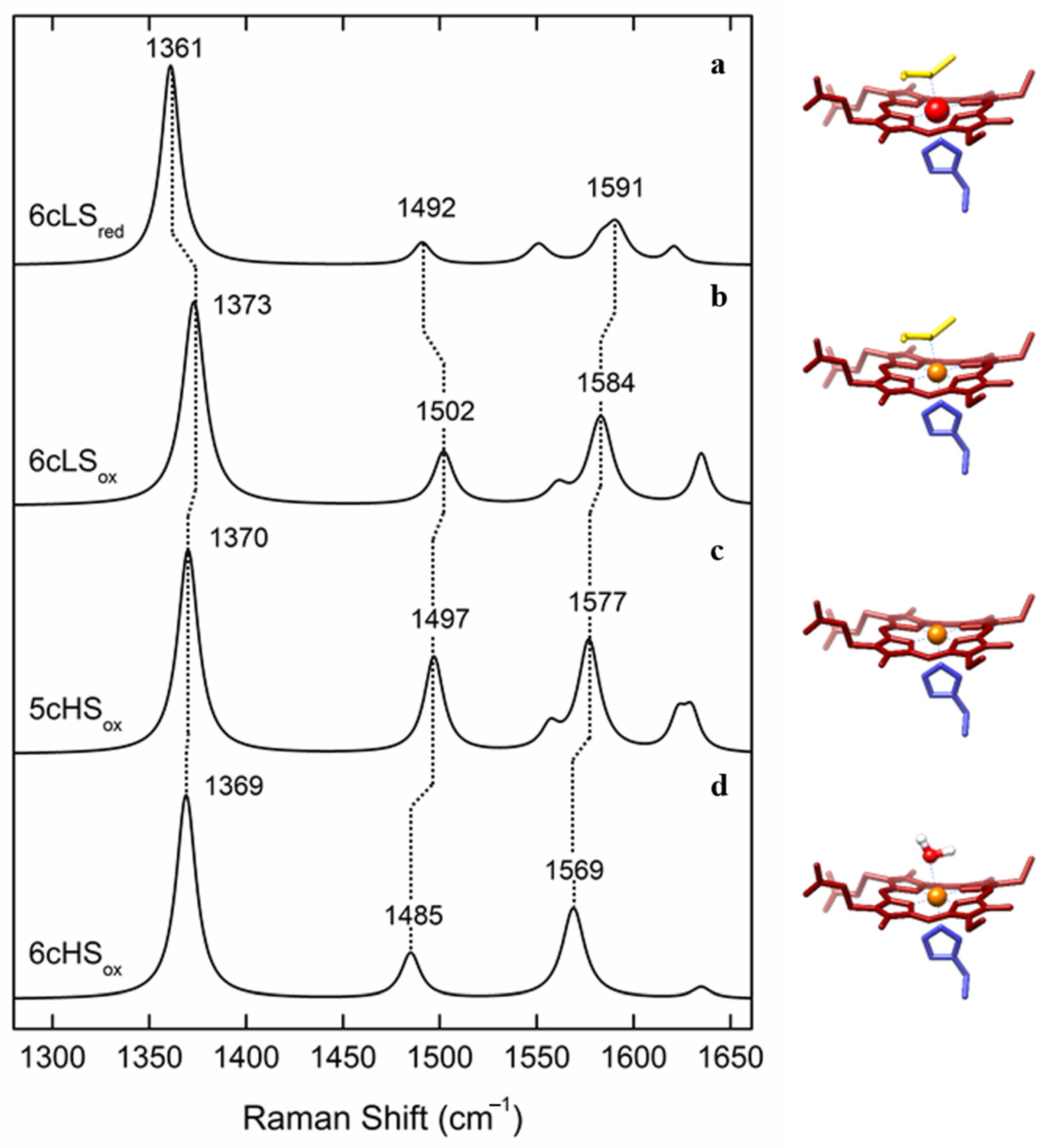

Molecules 26 04852 g001 550
Figure 1. Simulated resonance Raman (RR) spectra of different oxidation, spin, and coordination states of cytochrome c, with depicted marker bands, left, and corresponding heme configurations, right. (a) Ferrous (Fe2+) heme in low-spin (LS) state, coordinated by distal Met and proximal His (6cLS). (b) Ferric (Fe3+) heme in 6cLS state, coordinated by distal Met and proximal His. (c) Ferric heme in a high-spin (HS) state, coordinated by proximal His and vacant 6th axial position (5cHS). (d) Ferric heme in 6cHS state, coordinated by a distal water molecule and proximal His.
Figure 1. Simulated resonance Raman (RR) spectra of different oxidation, spin, and coordination states of cytochrome c, with depicted marker bands, left, and corresponding heme configurations, right. (a) Ferrous (Fe2+) heme in low-spin (LS) state, coordinated by distal Met and proximal His (6cLS). (b) Ferric (Fe3+) heme in 6cLS state, coordinated by distal Met and proximal His. (c) Ferric heme in a high-spin (HS) state, coordinated by proximal His and vacant 6th axial position (5cHS). (d) Ferric heme in 6cHS state, coordinated by a distal water molecule and proximal His.
Molecules 26 04852 g001

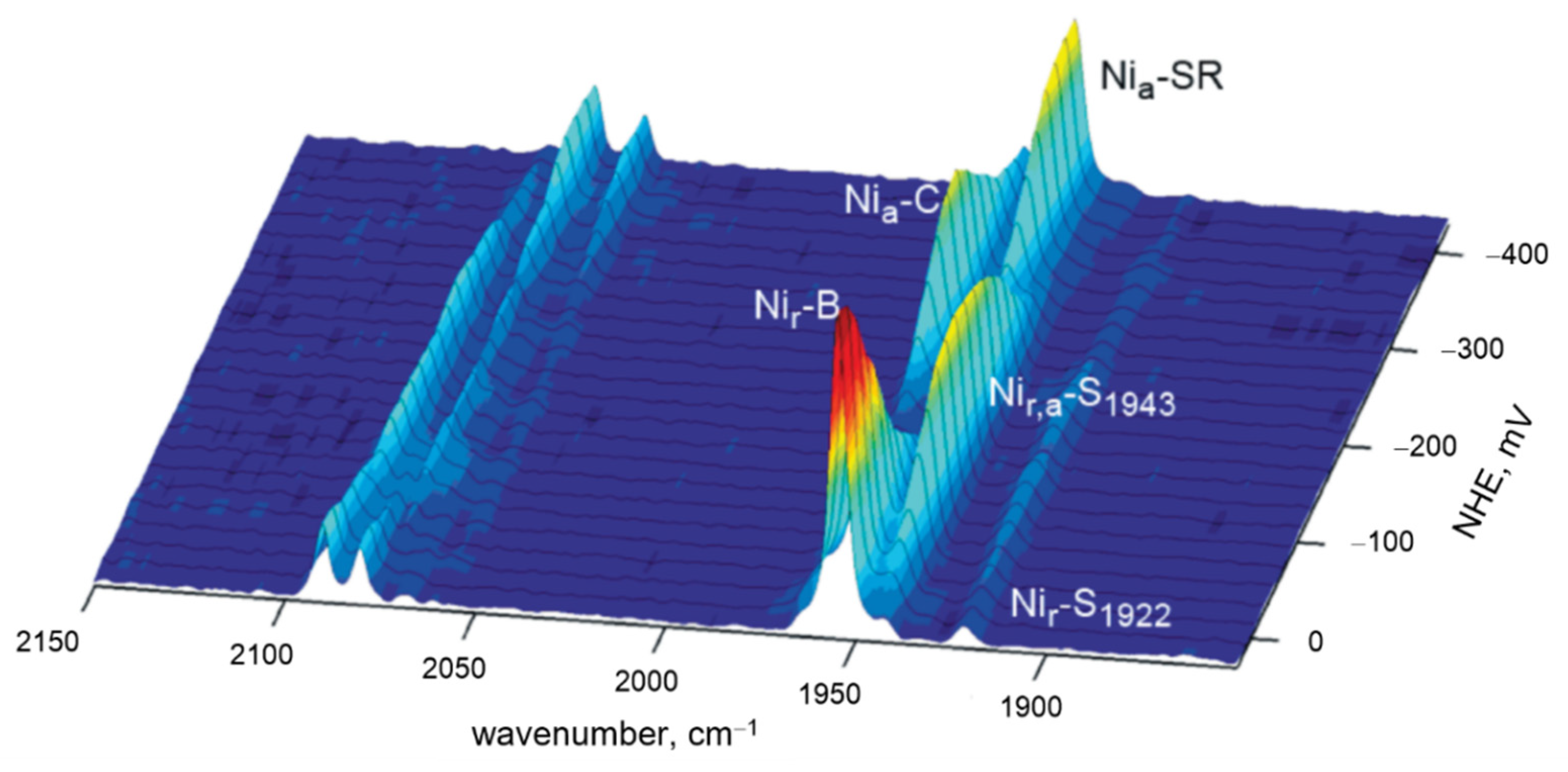

Molecules 26 04852 g002 550
Figure 2. Infrared (IR) potentiometric titration of a [NiFe] hydrogenase in solution, shown in a three-dimensional representation. Each slice represents a spectrum recorded at a designated potential. Redox transition of the active site can be monitored via the characteristic IR absorptions of the CO and CN− ligands between 1920 and 1965 cm−1 and 2050 and 2100 cm−1, respectively. Adapted from Millo et al. [19]. Copyright © (2009) American Chemical Society.
Figure 2. Infrared (IR) potentiometric titration of a [NiFe] hydrogenase in solution, shown in a three-dimensional representation. Each slice represents a spectrum recorded at a designated potential. Redox transition of the active site can be monitored via the characteristic IR absorptions of the CO and CN− ligands between 1920 and 1965 cm−1 and 2050 and 2100 cm−1, respectively. Adapted from Millo et al. [19]. Copyright © (2009) American Chemical Society.
Molecules 26 04852 g002

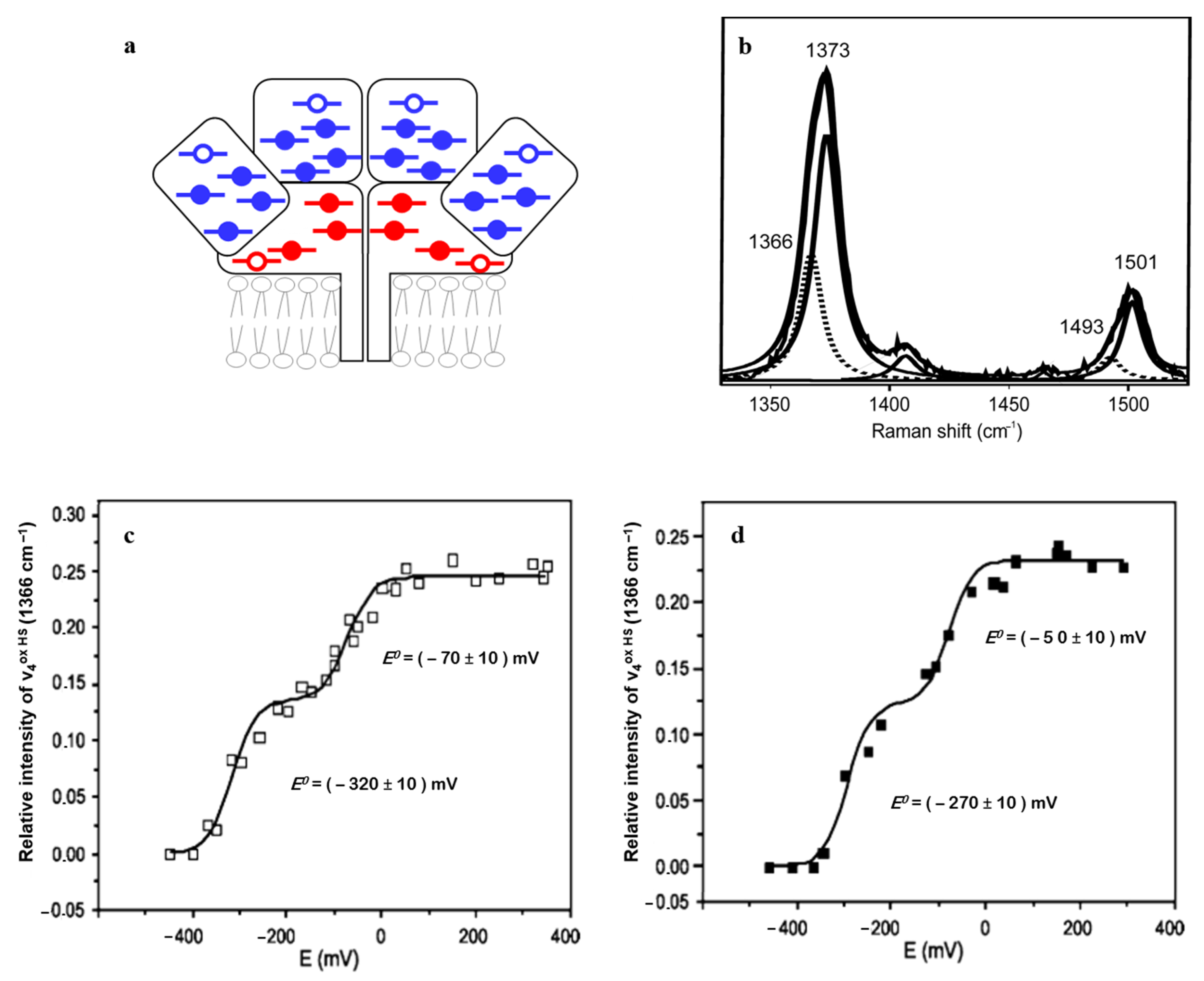

Molecules 26 04852 g003 550
Figure 3. NrfHA nitrite reductase. (a) Schematic representation of 28 heme groups in a functional unit (with LS hemes depicted as solid and HS as empty symbols). (b) High-frequency RR spectrum of ferric NrfHA and its component analysis with designated ν4 and ν3 modes of the HS (dotted line) and LS (solid line) species. (c,d) Nernst plots based on variation of ν4 (HS) along SERR spectro-electrochemical titration of immobilized NrfHA in the (c) presence and (d) absence of 2-n-heptyl-4-hydroxyquinoline N-oxide, HQNO. Adapted from Todorovic et al. [6] and Martins et al. [23]. Copyright © (2010, 2012) American Chemical Society.
Figure 3. NrfHA nitrite reductase. (a) Schematic representation of 28 heme groups in a functional unit (with LS hemes depicted as solid and HS as empty symbols). (b) High-frequency RR spectrum of ferric NrfHA and its component analysis with designated ν4 and ν3 modes of the HS (dotted line) and LS (solid line) species. (c,d) Nernst plots based on variation of ν4 (HS) along SERR spectro-electrochemical titration of immobilized NrfHA in the (c) presence and (d) absence of 2-n-heptyl-4-hydroxyquinoline N-oxide, HQNO. Adapted from Todorovic et al. [6] and Martins et al. [23]. Copyright © (2010, 2012) American Chemical Society.
Molecules 26 04852 g003

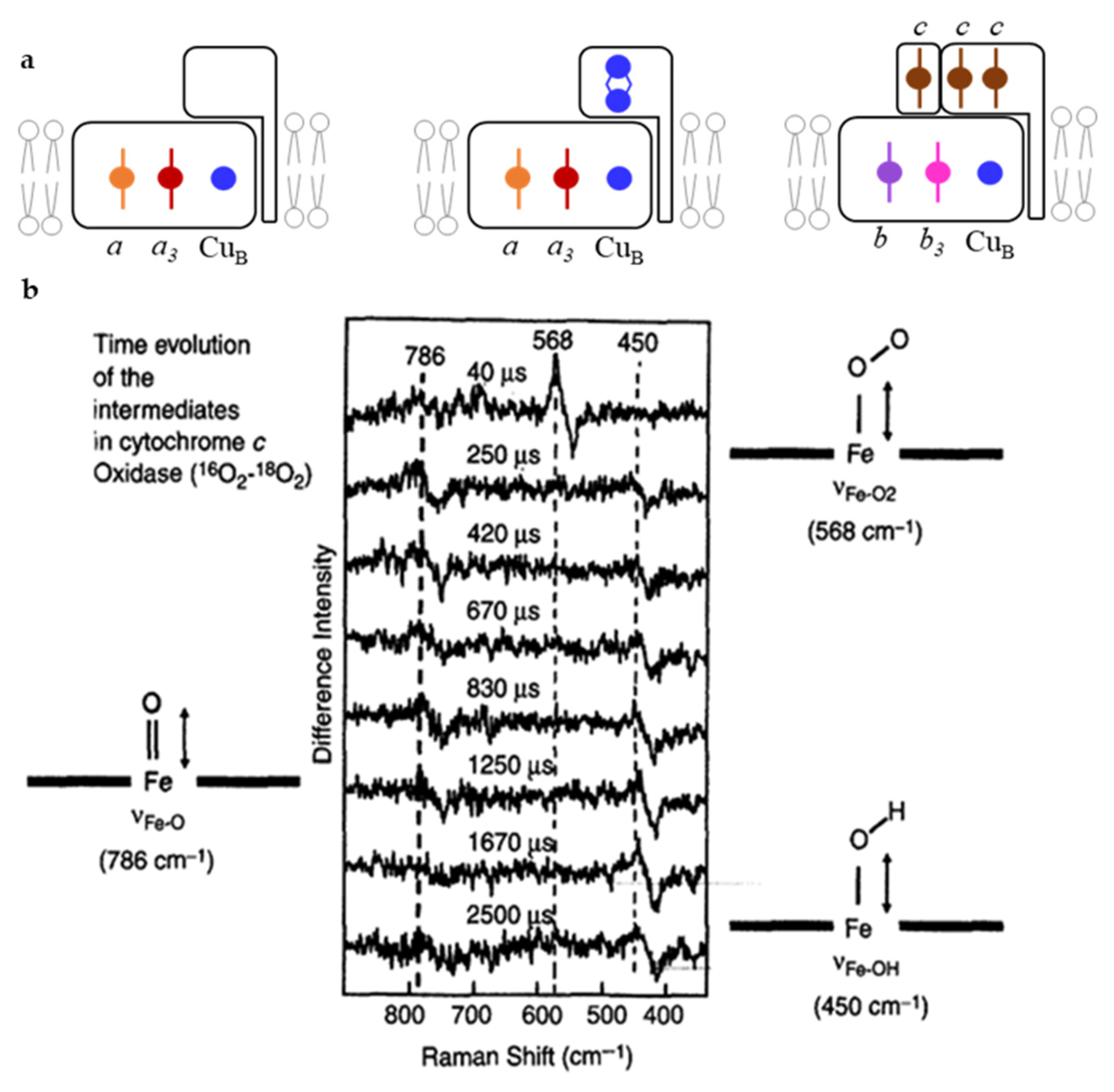

Molecules 26 04852 g004 550
Figure 4. Heme copper oxygen reductases. (a) Schematic representation of cofactors in membrane-integrated catalytic (subunit I) and membrane-anchored non-catalytic subunits in aa3 quinol oxidase (QO), mitochondrial aa3 cytochrome c oxidase (CcO) and cbb3-type HCO. (b) Low-frequency RR spectra of catalytic intermediates of HCOs. Difference RR spectra of CcO reacting with 18O2 and 16O2. (b) Adapted from Rousseau et al. [57]. Copyright © 2021 Elsevier Science (USA). All rights reserved.
Figure 4. Heme copper oxygen reductases. (a) Schematic representation of cofactors in membrane-integrated catalytic (subunit I) and membrane-anchored non-catalytic subunits in aa3 quinol oxidase (QO), mitochondrial aa3 cytochrome c oxidase (CcO) and cbb3-type HCO. (b) Low-frequency RR spectra of catalytic intermediates of HCOs. Difference RR spectra of CcO reacting with 18O2 and 16O2. (b) Adapted from Rousseau et al. [57]. Copyright © 2021 Elsevier Science (USA). All rights reserved.
Molecules 26 04852 g004

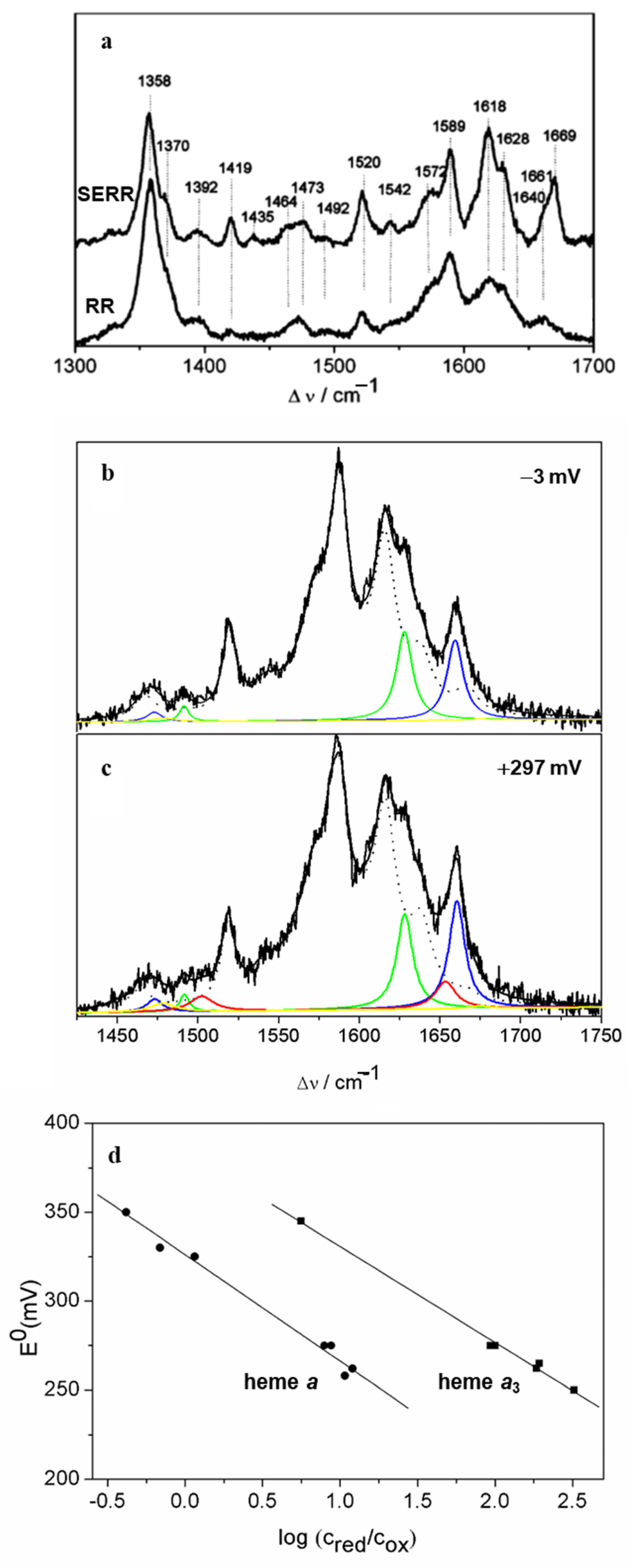

Molecules 26 04852 g005 550
Figure 5. aa3 quinol oxidase (QO). (a) SERR spectrum of ferrous QO immobilized on Ag electrode at a potential of −403 mV vs. NHE and RR spectrum of QO in solution reduced with dithionite. (b,c) SERR spectra of the immobilized QO at electrode poised potential of (b) −3 and (c) +297 mV vs. NHE; component spectra represent the overall simulated spectra (black), ferrous heme a (green), ferric heme a (yellow), ferrous heme a3 (blue), ferric heme a3 (red), and the envelope containing all other bands common to hemes a and a3 (dotted black). (d) Nernst plots for the redox processes of immobilized QO. Adapted from Todorovic et al. [16]. Copyright © (2005) American Chemical Society.
Figure 5. aa3 quinol oxidase (QO). (a) SERR spectrum of ferrous QO immobilized on Ag electrode at a potential of −403 mV vs. NHE and RR spectrum of QO in solution reduced with dithionite. (b,c) SERR spectra of the immobilized QO at electrode poised potential of (b) −3 and (c) +297 mV vs. NHE; component spectra represent the overall simulated spectra (black), ferrous heme a (green), ferric heme a (yellow), ferrous heme a3 (blue), ferric heme a3 (red), and the envelope containing all other bands common to hemes a and a3 (dotted black). (d) Nernst plots for the redox processes of immobilized QO. Adapted from Todorovic et al. [16]. Copyright © (2005) American Chemical Society.
Molecules 26 04852 g005
Molecules 26 04852 g006 550
Figure 6. (a) Schematic representation of the active sites of [NiFe], [FeFe] and [Fe] hydrogenase. In [NiFe] hydrogenases, the nickel ion is coordinated by four cysteine residues, two of which are shared with the iron ion. One CO and CN− ligands complete the coordination sphere of the iron. In [FeFe] hydrogenases, the catalytic center is the H-cluster comprising a di-iron (2FeH) and a [4Fe-4S]H site sharing a cysteine coordination. Each iron of the 2FeH is coordinated by one CN− and one CO ligand. A bridging CO and an azadithiolate ligand complete the 2FeH coordination. In [Fe] hydrogenases, the single iron is coordinated by two CO ligands, a cysteine thiolate, and a guanylyl pyridinol cofactor bound to the iron via its acyl-carbon and pyridinol–nitrogen. Substrates and inhibitors bind at the coordination site marked by X. (b) IR spectra of as-isolated (top trace, Nia-S intermediate) and H2-reduced (bottom, Nia-C and Nia-SR intermediates) RH (HoxBC) at 283 K displaying the ligand stretching vibrations of the CO and CN− ligands of the active site, located between 1890 and 2000 cm−1 and 2030 and 2120 cm−1, respectively. (c) Low-temperature RR spectra at 80 K of the regulatory [NiFe] hydrogenase (RH) recorded with excitation at 458 (blue trace) and 514 (green trace) nm in its as-isolated form. Color code of various metal ligand vibrations: Fe-CN/CO (red); Ni/Fe-S of bridging cysteines (black); Fe-S of [4Fe-4S] clusters (dark yellow). The lattice modes of ice are denoted by an asterisk (*).
Figure 6. (a) Schematic representation of the active sites of [NiFe], [FeFe] and [Fe] hydrogenase. In [NiFe] hydrogenases, the nickel ion is coordinated by four cysteine residues, two of which are shared with the iron ion. One CO and CN− ligands complete the coordination sphere of the iron. In [FeFe] hydrogenases, the catalytic center is the H-cluster comprising a di-iron (2FeH) and a [4Fe-4S]H site sharing a cysteine coordination. Each iron of the 2FeH is coordinated by one CN− and one CO ligand. A bridging CO and an azadithiolate ligand complete the 2FeH coordination. In [Fe] hydrogenases, the single iron is coordinated by two CO ligands, a cysteine thiolate, and a guanylyl pyridinol cofactor bound to the iron via its acyl-carbon and pyridinol–nitrogen. Substrates and inhibitors bind at the coordination site marked by X. (b) IR spectra of as-isolated (top trace, Nia-S intermediate) and H2-reduced (bottom, Nia-C and Nia-SR intermediates) RH (HoxBC) at 283 K displaying the ligand stretching vibrations of the CO and CN− ligands of the active site, located between 1890 and 2000 cm−1 and 2030 and 2120 cm−1, respectively. (c) Low-temperature RR spectra at 80 K of the regulatory [NiFe] hydrogenase (RH) recorded with excitation at 458 (blue trace) and 514 (green trace) nm in its as-isolated form. Color code of various metal ligand vibrations: Fe-CN/CO (red); Ni/Fe-S of bridging cysteines (black); Fe-S of [4Fe-4S] clusters (dark yellow). The lattice modes of ice are denoted by an asterisk (*).
Molecules 26 04852 g006
Table
Table 1. Assignment of characteristic resonance Raman (RR) and IR active vibrational modes found in metalloprotein. Heme proteins―typical frequency range of the RR marker bands (νi) of ferric and ferrous His/Met and His/- coordinated c-type heme. Iron-sulfur proteins―typical frequency range of predominantly bridging (B) and terminal (T) Fe-S RR modes for different cluster types. Hydrogenases―typical frequency regions of IR and RR bands for metal bound CO and CN− ligand vibrations.
Table 1. Assignment of characteristic resonance Raman (RR) and IR active vibrational modes found in metalloprotein. Heme proteins―typical frequency range of the RR marker bands (νi) of ferric and ferrous His/Met and His/- coordinated c-type heme. Iron-sulfur proteins―typical frequency range of predominantly bridging (B) and terminal (T) Fe-S RR modes for different cluster types. Hydrogenases―typical frequency regions of IR and RR bands for metal bound CO and CN− ligand vibrations.
Heme Group (1300–1700 cm−1)
Coordination and Spin StateRedox Stateν4ν3ν2ν10
His/Met6cLS3+
2+		1374 ± 2
1363 ± 2		1505 ± 3
1495 ± 3		1586 ± 2
1592 ± 3		1638 ± 3
1624 ± 3
His/-5cHS3+
2+		1371 ± 2
1357 ± 3		1496 ± 2
1472 ± 1		1576 ± 2
1573 ± 3		1627 ± 4
1606 ± 2
Fe-S Clusters (200–450 cm−1)
ClusterRR Active Redox StateFrequency Range (cm−1)
1Fe-4S3+314–318
2Fe-2S2+281–290 (T)
3Fe-4S1+346–348 (B)
4Fe-4S2+/3+333–339 (B)/341–344 (B)
[NiFe] and [FeFe] Hydrogenase Active Sites
HydrogenaseBands Frequency Range (cm−1)
NiFe/FeFeν(CO)IR1780–2030
NiFe/FeFeν(CN)IR2030–2150
NiFe/FeFeFe-CN/CORR400–650
FeFeFe-S [adt]RR300–400
NiFe(Ni/Fe)-S [µCys]RR280–400
NiFeFe-OH [4Fe-3S]RR500–600
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Silveira, C.M.; Zuccarello, L.; Barbosa, C.; Caserta, G.; Zebger, I.; Hildebrandt, P.; Todorovic, S. Molecular Details on Multiple Cofactor Containing Redox Metalloproteins Revealed by Infrared and Resonance Raman Spectroscopies. Molecules 2021, 26, 4852. https://doi.org/10.3390/molecules26164852

AMA Style

Silveira CM, Zuccarello L, Barbosa C, Caserta G, Zebger I, Hildebrandt P, Todorovic S. Molecular Details on Multiple Cofactor Containing Redox Metalloproteins Revealed by Infrared and Resonance Raman Spectroscopies. Molecules. 2021; 26(16):4852. https://doi.org/10.3390/molecules26164852

Chicago/Turabian Style

Silveira, Célia M., Lidia Zuccarello, Catarina Barbosa, Giorgio Caserta, Ingo Zebger, Peter Hildebrandt, and Smilja Todorovic. 2021. "Molecular Details on Multiple Cofactor Containing Redox Metalloproteins Revealed by Infrared and Resonance Raman Spectroscopies" Molecules 26, no. 16: 4852. https://doi.org/10.3390/molecules26164852

Article Metrics

Back to TopTop
