Article

First Example of Catalytic Synthesis of Cyclic S-Containing Di- and Triperoxides

by
Nataliya Makhmudiyarova
*,
Irina Ishmukhametova
,
Lilya Dzhemileva
*,
Vladimir D’yakonov
,
Askhat Ibragimov
and
Usein Dzhemilev
Institute of Petrochemistry and Catalysis, Russian Academy of Sciences, Ufa 450075, Russia
*
Authors to whom correspondence should be addressed.
Molecules 2020, 25(8), 1874; https://doi.org/10.3390/molecules25081874
Submission received: 23 March 2020 / Revised: 13 April 2020 / Accepted: 15 April 2020 / Published: 18 April 2020
(This article belongs to the Special Issue Chemistry of Peroxides)
Browse Figures
Versions Notes

Abstract

An efficient method for the synthesis of tetraoxathiaspiroalkanes, tetraoxathiocanes, and hexaoxathiadispiroalkanes was developed by reactions of pentaoxacanes, pentaoxaspiroalkanes, and heptaoxadispiroalkanes with hydrogen sulfide in the presence of a catalyst, Sm(NO3)3·6H2O. We found that the synthesized S-containing di- and triperoxides exhibit high cytotoxic activity against Jurkat, K562, U937, and HL60 tumor cultures, and fibroblasts.

Graphical Abstract

1. Introduction

Cyclic peroxides occur widely in nature, and they often possess desired pharmacological properties. For example, an eight-membered cyclic azaperoxide moiety is included in the biologically active alkaloid compounds fumitremorgins [1,2,3,4,5,6,7], namely into the fumitremorgin A Verruculogen produced by fungi of species Penicillium verruculosum [8], Aspergillus caespitosus [9], A. fumigatus [10], A. fischeri [11], Penicillium piscarium [12], Penicillium paxilli [13], Penicillium estinogenum [14], Penicillium simplicissimum, Penicillium piceum, Penicillium nigricans, Penicillium raistricki [15], and Neosartorya fischeri [16]. Fumitremorgin and related compounds are active against various cancer cells [17]. Some of these natural compounds can arrest cancer cells in their cell cycle, and some can block ABC transporters and reverse resistance in chemotherapy. Assessment of structural–functional relationships enabled prediction of biological activity in peroxide compounds due to a presence of heteroatom in the α-position with regard to the peroxide group [18,19,20]. Previously, we synthesized azaperoxides and demonstrated the cytotoxic activity of these compounds [21,22,23,24]. In continuation of ongoing research on the synthesis of heteroatom-containing peroxides, we attempted to synthesize S-peroxides.
The data available on heteroatom-containing peroxides with high pharmacological activity [25,26,27,28,29,30,31,32,33,34,35,36,37,38,39] suggest that S-containing peroxides could be useful for the development of antimalarial and antibacterial agents. Those cyclic S-containing peroxides known from the literature are represented by thio-ozonides [40,41,42,43,44], obtained via photooxidation at a temperature of –78 °C. In most instances [40,41,42,43,44], these compounds are already unstable at 0 °C. There is no data available on stable S-containing cyclic diperoxides. This paper describes a catalytic method developed for the synthesis of cyclic thia-diperoxides with high yields and selectivity.

2. Results and Discussion

2.1. Chemistry

A classic example of the preparation of cyclic thioesters is recyclization of furan using hydrogen sulfide according to the Yuriev reaction at a temperature of 550 °C in the presence of Al2O3 [45]. Practically no information is available in the literature on the synthesis of cyclic thioesters at room temperature under the action of lanthanide catalysts. We developed a method for the preparation of thioperoxycarbocycles through the recyclization of pentaoxacanes and heptaoxadispiroalkanes with hydrogen sulfide under the action of lanthanide catalysts. We chose lanthanide catalysts due to their high activity in recyclization reactions involving primary amines, leading to cyclic N-containing di- and triperoxides [46,47,48,49,50].
We assumed that cyclic thia-diperoxides may be synthesized by a reaction of pentaoxacanes with hydrogen sulfide in a similar manner to what we reported previously for the synthesis of cyclic aza-diperoxides via the reaction of pentaoxacanes with primary amines [46,47,50]. Preliminary experiments demonstrated that 7,8,10,12,13-pentaoxaspiro[5.7]tridecane [51] (1) reacts with H2S in the presence of the catalyst Sm(NO3)3·6H2O [46,47,48,49,50] for 6 h at room temperature in tetrahydrofuran (THF) solvent to produce 7,8,12,13-tetraoxa-10-thiaspiro[5.7]tridecane (8) in 98% yield. The reaction does not proceed in the absence of a catalyst (Scheme 1).
Subsequent experiments demonstrated that in certain conditions (5 mol % Sm(NO3)3.6H2O, 20 °C, 6 h), the yield of the target product 8 is dependent on the solvent and decreases in the following order: THF > CH2Cl2 > Et2O > C6H12 > EtOAc > C2H5OH (Table 1). To ascertain the dependency relationship between the nature of a central atom in the lanthanide catalyst and the yield of 8, in the reaction presented here, we tested, along with the compound Sm(NO3)3·6H2O, a series of other lanthanide salts and complexes based on Ho, Tb, Dy, Nd, and La (Table 1). Use of the catalysts based on d- and f-elements, such as Co, Fe, Al, and Ni salts, results in decomposition of the peroxide group that enables the isolation of ketones and cyclic sulfides from the reaction mass. The reactions were conducted at ~20 °C in THF in the presence of the catalysts (5 mol %) specified earlier. Under the indicated conditions, selective formation of the 7,8,12,13-tetraoxa-10-thiaspiro[5.7]tridecane (8) was observed with yields of 58% to 84% (Table 1). In the determined conditions (5 mol % Sm(NO3)3·6H2O, THF, 20 °C, 6 h), the reaction of cyclocondensation of pentaoxaspiroalkanes (2,3) with H2S results in selective formation of tetraoxathiaspiroalkanes (9,10) in yields of 90% and 85%, respectively.
The reaction thus developed provides a convenient tool for preparation of various tetraoxathiocanes. By using the described procedure, the synthesis of 3,3-disubstituted tetraoxathiocanes was implemented via the catalytic reaction of pentaoxacanes with hydrogen sulfide. In reactions of 3,3-disubstituted pentaoxacanes 4–7 with H2S catalyzed by Sm(NO3)3·6H2O, 1,2,4,5,7-tetraoxathiocanes, 11–14 are selectively formed with yields of 80% to 89%.
It can be assumed [52] that formation of tetraoxathiaspiroalkanes 8–14 occurs via a pentaoxacane ring opening affected by the catalyst [53,54]. Subsequent nucleophilic addition of H2S to the carbocation results in intramolecular cyclization, where the corresponding tetraoxathiaspiroalkanes 8–14 are obtained (Scheme 2).
To expand the scope of applicability of the method for the synthesis of cyclic thio-peroxides developed here, we produced spiro-fused hexaoxathiocanes 18–20 by reaction of heptaoxacanes 15–17 [48] with hydrogen sulfide in THF (~20 °C, 6 h), catalyzed by Sm(NO3)3·6H2O (0.5 mol %). we observed that the size of the carbocycles in initial heptaoxadispiroalkanes 15–17 does not affect the yield of hexaoxathiocanes 18–20 (83–86%).
The structures of cyclic S-containing peroxides 8–14 and 18–20 were confirmed by 1H and 13C NMR spectra of the synthesized compounds. The methylene fragment signals characteristic of these –S-CH2-O-O- systems are manifested in the regions of 4.81 to 5.31 ppm and 81.4 to 83.7 ppm in the spectra of 1H and 13C NMR, respectively. These signals reflect the process of cyclic interconversion in solution; therefore, we observed a set of signals with close chemical shifts for each of the individual compounds. The effect of the splitting of the NMR signals of the ring atoms is due to the presence of a multicomponent conformational equilibrium at room temperature, which can be assumed on the basis of published data on the identification of known heteroatom-containing peroxides, in particular azadi- and triperoxides [46,47,48,49,50]. The presence of one conformation was observed only in the case of 3-(adamantyl-2-yl)-1,2,4,5,7-tetraaoxatiocane (14), probably due to the rigidity of the structure of the spiroadamantane substituent.

2.2. Biological Evaluation

Cytotoxicity of azaperoxide-based compounds is well known [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18], so we screened the representative compounds for their cytotoxicity activity against Jurkat, K562, U937, and HL60 fibroblasts cell lines. The results are summarized in Table 2.
The synthesized S-containing diperoxides 8–14 and triperoxides 18–20 exhibited a cytotoxic effect against a number of suspension tumor cell lines (Jurkat, K562, U937, and HL60) in the range of 2.24 to 65.81 µM and 79.17 to 195.87 µM for normal fibroblasts. The synthesized compounds had a rather high selectivity index (SI = IC50 fibroblasts/IC50 cancer cells) for Jurkat, HL60, and K562 tumor cells, ranging from 8 to 35, whereas for the U937 culture the selectivity index ranged from 3 to 7. The highest cytotoxic activity (2.24–11.79 µM) was exhibited by triperoxide 19, synthesized based on 4-methylcyclohexane derivative 16, as well as a number of diperoxides 8–12. As can be seen from Table 2, a pronounced selective effect is observed on the myelocytic (K562) and lymphocytic (Jurkat, HL60) cell lines, in comparison with the cytotoxicity of the studied compounds to a cell culture of monocytic origin (U937). The lowest cytotoxicity with respect to the studied tumor cultures was demonstrated by symmetric diperoxides with 13 dibutyl and 14 adamantane substituents.

3. Materials and Methods

3.1. Chemistry

All reactions were performed at room temperature in air in round-bottom flasks equipped with a magnetic stir bar. The NMR spectra were recorded on a Bruker Avance 500 spectrometer at 500.17 MHz for 1H and 125.78 MHz for 13C according to standard Bruker procedures. CDCl3 was used as the solvent and tetramethylsilane as the internal standard. The mixing time for the NOESY (Nuclear Overhauser Effect SpectroscopY) experiments was 0.3 sec. Mass spectra were recorded on a Bruker Autoflex III MALDI TOF/TOF (Matrix Assisted Laser Desorption/Ionization) instrument with α-cyano-4-hydroxycinnamic acid as a matrix. Samples were prepared by the dried droplet method. C, H, and S were quantified by a Carlo Erba 1108 analyzer. The oxygen content was determined on a Carlo Erba 1108 analyzer. The progress of reactions was monitored by TLC on Sorbfil (PTSKh-AF-A) plates, with a 5:1 hexane:EtOAc mixture as the eluent and visualized with I2 vapor. For column chromatography, silica gel MACHEREY-NAGEL (0.063–0.2 mm) was used.
The synthesis of the pentaoxacanes 1–7 was as reported in the literature [51]. The synthesis of the heptaoxadispiroalkanes 15–17 was also as reported in the literature [48]. THF was freshly distilled over LiAlH4. Hydrogen sulfide was obtained by the action of sodium hydrogen sulfate on hydrochloric acid.

3.1.1. Reactions of Pentaoxacanes with Hydrogen Sulfide in the Presence of a Catalyst, Sm(NO3)3·6H2O

General procedure: A calcined and argon-filled Schlenk vessel equipped with a magnetic stir bar was charged with THF (5 mL), Sm(NO3)3·6H2O (0.5 mmol), and pentaoxacanes (10 mmol). The mixture was stirred at 20 °C for 1 h. Next, the hydrogen sulfide obtained by in situ was added while continuously bubbling for 1.5 h to the mixture, which was stirred for 5 h at 20 °C. After completion of the reaction, H2O (5 mL) and CH2Cl2 (5 mL) were added. The organic layer was separated, dried (anhydrous MgSO4), and concentrated to isolate products stable during storage at room temperature. Products of the reaction were purified by column chromatography on SiO2 using 10:1 PE:Et2O as the eluent. The progress of reactions was monitored by TLC, with a 5:1 hexane:EtOAc mixture as the eluent; visualization was performed with I2 vapor. 1H NMR and 13C NMR spectra of all new compounds are in the supplementary file.
6,7,11,12-tetraoxa-9-thiaspiro[4.7]dodecane (8), colorless oil; 0.19 g (98% yield), retention factors (Rf ) 0.74 (PE/Et2O = 10/1). 1H NMR (400 MHz, CDCl3, 25 °C): δ = 1.43–1.58 (m, 4H, CH2), 1.78–1.99 (m, 4H, CH2), 5.18–5.22 (m, 4H, CH2). 13C NMR (100 MHz, CDCl3, 25 °C): δ = 22.4, 24.5, 25.3, 29.7, 29.5, 33.0, 81.8, 81.9, 82.3, 110.1, 110.5. MALDI TOF/TOF, m/z: 191 [M-H]+. Anal. calcd. for C7H12O4S: C, 43.74; H, 6.29; S, 16.68%. Found C, 43.72; H, 6.27; S, 16.66%.
7,8,12,13-tetraoxa-10-thiaspiro[5.7]tridecane (9), colorless oil; 0.18 g (90% yield), Rf 0.76 (PE/Et2O = 10/1). 1H NMR (400 MHz, CDCl3, 25 °C): δ = 1.45–1.62 (m, 6H, CH2), 1.74–1.90 (m, 4H, CH2), 5.20 (s, 4H, CH2). 13C NMR (100 MHz, CDCl3, 25 °C): δ = 22.4, 25.3, 24.9, 25.4, 29.5, 29.8, 81.8, 110.1, 110.5. MALDI TOF/TOF, m/z: 205 [M-H]+. Anal. calcd. for C8H14O4S: C, 46.59; H, 6.84; S, 15.54%. Found C, 46.58; H, 6.82; S, 15.52%.
1,2,6,7-tetraoxa-4-thiaspiro[7.11]nonadecane (10), colorless oil; 0.25 g (85% yield), Rf 0.78 (PE/Et2O = 10/1). 1H NMR (400 MHz, CDCl3, 25 °C): δ = 1.27–1.81 (m, 22H, CH2), 5.17–5.20 (m, 4H, CH2). 13C NMR (100 MHz, CDCl3, 25 °C): δ = 19.3, 21.8, 22.2, 22.3, 22.6, 24.2, 24.6, 24.7, 25.9, 26.0, 26.1, 26.2, 26.9, 82.4, 83.6, 113.9. MALDI TOF/TOF, m/z: 289 [M-H]+. Anal. calcd. for C14H26O4S: C, 57.90; H, 9.02; S, 11.04%. Found C, 57.88; H, 9.00; S, 11.01%.
3-hxyl-3-methyl-1,2,4,5,7-tetraoxathiocane (11), colorless oil; 0.19 g (80% yield), Rf 0.73 (PE/Et2O = 10/1). 1H NMR (400 MHz, CDCl3, 25 °C): δ = 0.89–0.92 (m, 3H, CH3), 1.28–1.75 (m, 13H, CH2), 4.81–5.29 (m, 4H, CH2). 13C NMR (100 MHz, CDCl3, 25 °C): δ = 14.1, 18.9, 22.5, 23.9, 24.1, 29.4, 31.6, 33.9, 82.5, 83.7, 111.4. MALDI TOF/TOF, m/z: 235 [M-H]+. Anal. calcd. for C10H20O4S: C, 50.82; H, 8.53; S, 13.57%. Found C, 50.80; H, 8.51; S, 13.55%.
3-butyl-3-ethyl-1,2,4,5,7-tetraoxathiocane (12), colorless oil; 0.19 g (84% yield), Rf 0.75 (PE/Et2O = 10/1). 1H NMR (400 MHz, CDCl3, 25 °C): δ = 0.89–0.94 (m, 6H, CH3), 1.32–1.33 (m, 4H, CH2), 1.66–1.74 (m, 4H, CH2), 5.00–5.26 (m, 4H, CH2). 13C NMR (100 MHz, CDCl3, 25 °C): δ = 7.9, 13.9, 22.4, 22.8, 25.5, 25.6, 28.5, 29.6, 81.4, 81.6, 113.7, 113.8. MALDI TOF/TOF, m/z: 221 [M-H]+. Anal. calcd. for C9H18O4S: C, 48.63; H, 8.16; S, 14.42%. Found C, 48.61; H, 8.14; S, 14.40%.
3,3-dibutyl-1,2,4,5,7-tetraoxathiocane (13), colorless oil; 0.22 g (87% yield), Rf 0.74 (PE/Et2O = 10/1). 1H NMR (400 MHz, CDCl3, 25 °C): δ = 0.92–0.94 (m, 6H, CH3), 1.27–1.75 (m, 12H, CH2), 4.97–5.31 (m, 4H, CH2). 13C NMR (100 MHz, CDCl3, 25 °C): δ = 7.9, 13.9, 22.8, 25.6, 25.7, 25.9, 29.1, 29.3, 29.8, 81.7, 82.4, 83.6, 113.3, 113.6. MALDI TOF/TOF, m/z: 249 [M-H]+. Anal. calcd. for C11H22O4S: C, 52.77; H, 8.86; S, 12.81%. Found C, 52.75; H, 8.85; S, 12.80%.
3-(adamantyl-2-yl)-1,2,4,5,7-tetraaoxatioocane (14), colorless oil; 0.23 g (89% yield), Rf 0.76 (PE/Et2O = 10/1). 1H NMR (400 MHz, CDCl3, 25 °C): δ = 1.67–1.71 (m, 6H, CH2), 1.88 (s, 1H, CH), 2.01–2.03 (m, 4H, CH2), 2.33–2.38 (m, 3H, CH, CH2), 5.21 (d, 4H, J = 4 Hz, CH2). 13C NMR (100 MHz, CDCl3, 25 °C): δ = 26.9, 27.0, 27.1, 31.2, 31.5, 33.7, 37.7, 37.1, 81.7, 112.1, 112.6. MALDI TOF/TOF, m/z: 257 [M-H]+. Anal. calcd. for C12H18O4S: C, 55.79; H, 7.02; S, 12.41%. Found C, 55.77; H, 7.00; S, 12.40%.

3.1.2. Reactions Heptaoxadispiroalkanes with Hydrogen Sulfide in Presence of a Catalyst, Sm(NO3)3·6H2O

General procedure: A calcined and argon-filled Schlenk vessel equipped with a magnetic stir bar was charged with THF (5 mL), Sm(NO3)3·6H2O (0.5 mmol), and heptaoxadispiroalkanes (10 mmol). The mixture was stirred at 20 °C for 1 h. Next, the hydrogen sulfide obtained in situ was added while continuously bubbling for 1.5 h to the mixture, which was stirred for 5 h at 20 °C. After completion of the reaction, H2O (5 mL) and CH2Cl2 (5 mL) were added. The organic layer was separated, dried (anhydrous MgSO4), and concentrated to isolate products stable during storage at room temperature. Products of the reaction were purified by column chromatography on SiO2 using 10:1 PE:Et2O as the eluent. The progress of reactions was monitored by TLC, with a 5:1 hexane:EtOAc mixture as the eluent; visualization was performed with I2 vapor.
6,7,13,14,18,19-hexaoxa-16-thiadispiro[4.2.48.75]nonadecane (15), colorless oil; 0.29 g (87% yield), Rf 0.79 (PE/Et2O = 10/1). 1H NMR (400 MHz, CDCl3, 25 °C): δ = 1.73–1.80 (m, 4H, CH2), 1.93–2.09 (m, 4H, CH2), 5.13–5.25 (m, 4H, CH2). 13C NMR (100 MHz, CDCl3, 25 °C): δ = 24.5, 24.6, 33.1, 33.3, 33.4, 33.8, 33.9, 81.9, 82.5, 120.3. MALDI TOF/TOF, m/z: 291 [M-H]+. Anal. calcd. for C12H20O6S: C, 49.30; H, 6.90; S, 10.97%. Found C, 49.28; H, 6.89; S, 10.95%.
3,12-dimethyl-7,8,15,16,20,21-hexaoxa-18-thiadispiro[5.2.59.76]henicosane (16), colorless oil; 0.29 g (83% yield), Rf 0.79 (PE/Et2O = 10/1). 1H NMR (400 MHz, CDCl3, 25 °C): δ = 0.93–0.94 (m, 6H, CH3), 1.20–1.26, and 1.44–1.57 (m, 8H, CH2), 1.60–1.64 and 2.16–2.25 (m, 8H, CH2), 1.99–2.00 (m, 2H, CH), 5.18–5.23 (m, 4H, CH2). 13C NMR (100 MHz, CDCl3, 25 °C): δ = 21.3, 21.4, 22.7, 29.1, 29.2, 29.3, 29.4,29.8, 30.5, 30.6, 30.7, 31.6, 31.7, 33.1, 81.8, 81.9, 110.1, 111.1. MALDI TOF/TOF, m/z: 347 [M-H]+. Anal. calcd. for C16H28O6S: C, 55.15; H, 8.10; S, 9.20%. Found C, 55.13; H, 8.08; S, 9.17%.
8,9,17,18,22,23-hexaoxa-20-thiadispiro[6.2.610.77]tricosane (17), colorless oil; 0.29 g (85% yield), Rf 0.80 (PE/Et2O = 10/1). 1H NMR (400 MHz, CDCl3, 25 °C): δ = 1.58–1.73 (m, 16H, CH2), 1.86–2.04 (m, 8H, CH2), 5.13–5.31 (m, 4H, CH2). 13C NMR (100 MHz, CDCl3, 25 °C): δ = 22.7, 22.8, 29.8, 29.9, 30.2, 30.4, 32.4, 32.8, 32.9, 81.8, 82.5, 115.2, 116.2. MALDI TOF/TOF, m/z: 347 [M-H]+. Anal. calcd. for C16H28O6S: C, 55.15; H, 8.10; S, 9.20%. Found C, 55.14; H, 8.08; S, 9.18%.

3.2. Biology

3.2.1. Cell Culturing

Cells (Jurkat, K562, U937, HeLa, HEK293, and normal fibroblasts) were purchased from Russian Cell Culture Collection (Institute of Cytology of the Russian Academy of Sciences) and cultured according to standard mammalian tissue culture protocols and sterile technique. Human cell lines HEK293 and HeLa were obtained from the HPA Culture Collections (U.K.). All cell lines used in the study were tested and shown to be free of mycoplasma and viral contamination.
HEK293, HeLa cell lines, and fibroblasts were cultured as monolayers and maintained in Dulbecco’s modified eagle’s medium (DMEM, Gibco BRL) supplemented with 10% fetal bovine serum (FBS) and 1% penicillin-streptomycin solution at 37 °C in a humidified incubator under a 5% CO2 atmosphere.
Cells were maintained in RPMI (Roswell Park Memorial Institute medium) 1640 (Jurkat, K562, U937) (Gibco) supplemented with 4 mM glutamine, 10% FBS (Sigma), and 100 units/mL penicillin-streptomycin (Sigma). All types of cells were grown in an atmosphere of 5% CO2 at 37 °C. The cells were subcultured at 2- to 3-day intervals. Adherent cells (HEK293, HeLa, fibroblasts) were suspended using trypsin/EDTA (Ethylenediaminetetraacetic acid) and counted after they reached 80% confluency. Cells were then seeded in 24 well plates at 5 × 104 cells per well and incubated overnight. Jurkat, K562, and U937 cells were subcultured in 2-day intervals with a seeding density of 1 × 105 cells per 24 well plates in RPMI with 10% FBS.

3.2.2. Cytotoxicity Assay

Viability (live/dead) assessment was performed by staining cells with 7-aminoactinomycin D (7-AAD) (Biolegend). After treatment, cells were harvested, washed 1 to 2 times with phosphate-buffered saline (PBS), and centrifuged at 400× g for 5 min. Cell pellets were resuspended in 200 µL of flow cytometry staining buffer (PBS without Ca2+ and Mg2+, 2,5% FBS) and stained with 5 µL of 7-AAD staining solution for 15 min at room temperature in the dark. Samples were acquired on the NovoCyteTM 2000 FlowCytometry System (ACEA) equipped with a 488 nm argon laser. Detection of 7-AAD emission was collected through a 675/30 nm filter in the FL4 channel.

4. Conclusions

For the first time, an approach was developed that allows for the selective synthesis of new classes of stable tetraoxathiaspiroalkanes, tetraoxathiocanes, and hexaoxathiadispiroalkanes by reactions of pentaoxaspiroalkanes, pentaoxacanes, and heptaoxadispiroalkanes with hydrogen sulfide in the presence of lanthanide catalysts (Sm(NO3)3.6H2O, Ho(NO3)3∙5H2O, TbCl3∙6H2O, DyCl3∙6H2O, NdCl3, La(NO3)3). In addition, we found that the synthesized S-containing di- and triperoxides exhibit high cytotoxic activity against Jurkat, K562, U937, HL60 tumor cultures and fibroblasts.

Supplementary Materials

The following are available online: 1H NMR and 13C NMR spectra of all new compounds.

Author Contributions

Conceptualization, U.D. and A.G.; methodology and validation N.M. and I.I., performing the chemistry experiments; L.D. and V.D. performing the biology experiments; The manuscript was prepared through the contributions N.M., L.D., A.I., and D.A. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Russian Science Foundation (RSF projects 18-73-00014).

Acknowledgments

The structural studies of the synthesized compounds were performed with the use of Collective Usage Centre “Agidel” at the Institute of Petrochemistry and Catalysis of RAS. The anticancer activity studies of the synthesized compounds were performed in the laboratory of molecular design and biological screening of candidate substances for the pharmaceutical industry at the Institute of Petrochemistry and Catalysis of RAS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yamazaki, M.; Suzuki, S.; Miyaki, K. Tremorgenic toxins from Aspergillus fumigatus Fres. Chem. Pharm. Bull. 1971, 19, 1739–1740. [Google Scholar] [CrossRef] [PubMed]
  2. Yamazaki, M.; Fujimoto, H.; Kawasaki, T. Chemistry of tremorogenic metabolites. I. Fumitremorgin A from Aspergillus fumigatus. Chem. Pharm. Bull. 1980, 28, 245–254. [Google Scholar] [CrossRef] [PubMed]
  3. Cole, R.J.; Kirksey, J.W. Mycotoxin verruculogen. 6-O-Methylindole. J. Agric. Food Chem. 1973, 21, 927–929. [Google Scholar] [CrossRef] [PubMed]
  4. Fayos, J.; Lokensgard, D.; Clardy, J.; Cole, R.J.; Kirksey, J.W. Structure of verruculogen, a tremor producing peroxide from Penicillium verruculosum. J. Am. Chem. Soc. 1974, 96, 6785–6787. [Google Scholar] [CrossRef] [PubMed]
  5. Cole, R.J.; Kirksey, J.W.; Cox, R.H.; Clardy, J. Structure of the tremor-producing indole, TR-2. J. Agric. Food Chem. 1975, 23, 1015–1018. [Google Scholar] [CrossRef]
  6. Yoshizawa, T.; Morooka, N.; Sawada, Y.; Udagawa, S. Host specificity of filamentous, segmented microorganisms adherent to the small bowel epithelium in mice and race. Appl. Environ. Microbiol. 1976, 32, 441–442. [Google Scholar] [CrossRef]
  7. Liu, D.-Z.; Liu, J.-K. Peroxy natural products. Natural Products and Bioprospecting. Nat. Prod. Bioprospect. 2013, 3, 161–206. [Google Scholar] [CrossRef]
  8. Cole, R.J.; Kirksey, J.W.; Moore, J.H.; Blankenship, B.R.; Diner, U.L.; Davis, N.D. Tremorgenic Toxin from Penicillium verruculosum. J. Appl. Microbiol. 1972, 24, 248–256. [Google Scholar]
  9. Schroeder, H.W.; Cole, R.J.; Hein, H.; Kirksey, J.W. Tremorgenic mycotoxins from Aspergillus caespitosus. J. Appl. Microbiol. 1975, 29, 857–858. [Google Scholar] [CrossRef][Green Version]
  10. Dorner, J.W.; Cole, R.J.; Hill, R.A. Tremorgenic mycotoxins produced by Aspergillus fumigatus and Penicillium crustosum isolated from molded corn implicated in a natural intoxication of cattle. J. Agric. Food. Chem. 1984, 32, 411–413. [Google Scholar] [CrossRef]
  11. Patterson, D.S.P.; Shreeve, B.J.; Roberts, B.A.; MacDonald, S.M. Verruculogen Produced by soil fungi in England and Wales. Appl. Environ. Microbiol. 1981, 42, 916–917. [Google Scholar] [CrossRef] [PubMed]
  12. Gallagher, R.T.; Latch, G.C.M. Production of the Tremorgenic Mycotoxins Verruculogen and Fumitremorgin B by Penicillium piscarium Westling. Appl. Environ. Microbiol. 1977, 33, 730–731. [Google Scholar] [CrossRef] [PubMed]
  13. Cockrum, P.A.; Culvenor, C.C.J.; Edgar, J.A.; Payne, A.L. Chemically Different Tremorgenic Mycotoxins in Isolates of Penicillium paxilli From Australia and North America. J. Nat. Prod. 1979, 42, 534–536. [Google Scholar] [CrossRef]
  14. Day, J.B.; Mantle, P.G.; Show, B.I. Production of verruculogen by Penicillium estinogenum in stirred fermenters. J. Gen. Microbiol. 1980, 117, 405–410. [Google Scholar] [CrossRef] [PubMed]
  15. Day, J.B.; Mantle, P.G. Biosynthesis of radiolabeled verruculogen by Penicillium simplicissimum. Appl. Environ. Microbiol. 1982, 43, 514–516. [Google Scholar] [CrossRef] [PubMed]
  16. Nelsen, P.V.; Beuchat, L.R.; Frisvad, J.C. Growth of and fumitremorgin production by Neosartorya fischeri as affected by temperature, light, and water activity. Appl. Environ. Microbiol. 1988, 54, 1504–1510. [Google Scholar] [CrossRef]
  17. Feng, Y.; Holte, D.; Zoller, J.; Umemiya, S.; Simke, L.R.; Baran, P.S. Total Synthesis of Verruculogen and Fumitremorgin A Enabled by Ligand-Controlled C–H Borylation. J. Am. Chem. Soc. 2015, 137, 10160–10163. [Google Scholar] [CrossRef] [PubMed]
  18. Rabindran, S.K.; Ross, D.D.; Doyle, L.A.; Yang, W.; Greenberger, L.M. Fumitremorgin C reverses multidrug resistance in cells transfected with the breast cancer resistance protein. Cancer Res. 2000, 60, 47–50. [Google Scholar]
  19. Allen, J.D.; van Loevezijn, A.; Lakhai, J.M.; van der Valk, M.; van Tellingen, O.; Reid, G.; Schellens, J.H.M.; Koomen, G.-J.; Schinkel, A.H. Potent and Specific Inhibition of the Breast Cancer Resistance Protein Multidrug Transporter in Vitro and in Mouse Intestine by a Novel Analogue of Fumitremorgin C 1. Mol. Cancer Ther. 1 2002, 417–425. [Google Scholar]
  20. Wang, X.; Furukawa, T.; Nitanda, T.; Okamoto, M.; Sugimoto, Y.; Akiyama, S.-I.; Baba, M. Breast Cancer Resistance Protein (BCRP/ABCG2) Induces Cellular Resistance to HIV-1 Nucleoside Reverse Transcriptase Inhibitors. Mol. Pharmacol. 2003, 63, 65–72. [Google Scholar] [CrossRef]
  21. Vennerstrom, J.L. Amine peroxides as potential antimalarials. J. Med. Chem. 1989, 32, 64–67. [Google Scholar] [CrossRef] [PubMed]
  22. Yadav, L.; Tiwari, M.K.; Shyamlal, B.R.K.; Mathur, M.; Swami, A.K.; Puri, S.K.; Naikade, N.K.; Chaudhary, S. Synthesis and antimalarial activity of novel bicyclic and tricyclic aza-peroxides. RSC Adv. 2016, 6, 23718–23725. [Google Scholar] [CrossRef]
  23. Sundar, N.; Jacob, V.T.; Bhat, S.V.; Valecha, N.; Biswas, S. Antimalarial t-butylperoxyamines. Bioorg. Med. Chem. Lett. 2001, 11, 2269–2272. [Google Scholar] [CrossRef]
  24. Crespo-Ortiz, M.P.; Wei, M.Q. Antitumor Activity of Artemisinin and Its Derivatives: From a Well-Known Antimalarial Agent to a Potential Anticancer Drug. J. Biomed. Biotechnol. 2012, 257597. [Google Scholar] [CrossRef]
  25. Ellis, G.L.; Amewu, R.; Sabbani, S.; Stocks, P.A.; Shone, A.; Stanford, D.; Gibbons, P.; Davies, J.; Vivas, L.; Charnand, S.; et al. Two-Step Synthesis of Achiral Dispiro-1,2,4,5-tetraoxanes with Outstanding Antimalarial Activity, Low Toxicity, and High-Stability Profiles. J. Med. Chem. 2008, 51, 2170–2177. [Google Scholar] [CrossRef]
  26. Opsenica, I.; Opsenica, D.; Lanteri, C.A.; Anova, L.; Milhous, W.K.; Smith, K.S.; Solaja, B.A. New Chimeric Antimalarials with 4-Aminoquinoline Moiety Linked to a Tetraoxane Skeleton. J. Med. Chem. 2008, 51, 6216–6219. [Google Scholar] [CrossRef]
  27. Rode, A.B.; Chung, K.; Kim, Y.W.; Hong, I.S. Synthesis and cetane-improving performance of 1,2,4,5-tetraoxane and 1,2,4,5,7,8-hexaoxonane derivatives. Energy Fuels 2010, 24, 1636–1639. [Google Scholar] [CrossRef]
  28. Coghi, P.; Yaremenko, I.A.; Prommana, P.; Radulov, P.S.; Syroeshkin, M.A.; Wu, Y.J.; Gao, J.Y.; Gordillo-Martinez, F.M.; Mok, S.; Kam-Wai Wong, V.; et al. Novel Peroxides as Promising Anticancer Agents with Unexpected Depressed Antimalarial Activity. Chem. Med. Chem. 2018, 13, 902–908. [Google Scholar] [CrossRef]
  29. Vil’, V.A.; Yaremenko, I.A.; Ilovaisky, A.I.; Terent’ev, A.O. Peroxides with Anthelmintic, Antiprotozoal, Fungicidal and Antiviral Bioactivity: Properties, Synthesis and Reactions. Molecules 2017, 22, 1881. [Google Scholar] [CrossRef]
  30. Vil’, V.A.; Yaremenko, I.A.; Ilovaisky, A.I.; Terent’ev, A.O. Synthetic Strategies for Peroxide Ring Construction in Artemisinin. Molecules 2017, 22, 117. [Google Scholar] [CrossRef]
  31. Yaremenko, I.A.; Syroeshkin, M.A.; Levitsky, D.O.; Fleury, F.; Terent’ev, A.O. Cyclic peroxides as promising anticancer agents: In vitro cytotoxicity study of synthetic ozonides and tetraoxanes on human prostate cancer cell lines. Med. Chem. Res. 2017, 26, 170–179. [Google Scholar] [CrossRef]
  32. Zheng, W.; Wojtas, L.; Antilla, J.C. Chiral Phosphoric Acid Catalyzed Peroxidation of Imines. Angew. Chem., Int. Ed. 2010, 49, 6589–6591. [Google Scholar] [CrossRef] [PubMed]
  33. Blumenthal, H.; Liebscher, J. Isoquinoline- and piperazinedione-derived α-acylamino peroxide moieties in asymmetric oxidation of sulphides and epoxidation of naphthoquinones (09-3919NP). Arkivoc 2009, 11, 204–220. [Google Scholar]
  34. Kienle, M.; Argyrakis, W.; Baro, A.; Laschat, S. Diketopiperazine-derived hydroperoxide for chemoselective oxidations of sulfides and enantioselective Weitz–Scheffer epoxidations. Tetrahedron Lett. 2008, 49, 1971–1974. [Google Scholar] [CrossRef]
  35. Rebek, J.; McCready, R. Olefin epoxidation with.alpha.-substituted hydroperoxides. J. Am. Chem. Soc. 1980, 102, 5602–5605. [Google Scholar] [CrossRef]
  36. Rebek, J. Progress in the Development of New Epoxidation Reagents. Heterocycles 1981, 15, 517–545. [Google Scholar] [CrossRef]
  37. Schmidt, U.; Hausler, J. Trialkylallenes from 1,1-disubstituted propargylic acetates. Angew. Chem., Int. Ed. Engl. 1976, 15, 497–498. [Google Scholar] [CrossRef]
  38. Casteel, D.A. Peroxy natural products. Nat. Prod. Rep. 1999, 16, 55–73. [Google Scholar] [CrossRef]
  39. Chung, L.W.; Hayashi, S.; Lundberg, M.; Nakatsu, T.; Kato, H.; Morokuma, K. Mechanism of efficient firefly bioluminescence via adiabatic transition state and seam of sloped conical intersection. J. Am. Chem. Soc. 2008, 130, 12880–12881. [Google Scholar] [CrossRef]
  40. Gollnick, K.; Griesbeck, A. Thiaozonide formation by singlet oxygen cycloaddition to 2,5-dimethylthiophene. Tetrahedron Lett. 1984, 25, 4921–4924. [Google Scholar] [CrossRef]
  41. Skold, C.N.; Schlessinger, R.H. The reaction of singlet oxygen with a simple thiophene. Tetrahedron Lett. 1970, 10, 791–794. [Google Scholar] [CrossRef]
  42. Hoffman, J.M., Jr.; Schlessinger, R.M. Thioozonides: A new class of reactive organosulfur compounds. Tetrahedron Lett. 1970, 10, 797–804. [Google Scholar] [CrossRef]
  43. Adam, W.; Eggelte, H.J. 2,3-Dioxa-7-thiabicyclo[2.2.1]heptane: A New Heterobicyclic System Possessing the Thiaozonide Structure. Angew. Chern. Znt. Ed. Engl. 1978. [Google Scholar] [CrossRef]
  44. Tabuchi, T.; Nojima, M.; Kusabayashi, S. Reaction of thioketones with carbonyl oxides and 3,3-dimethyl-1,2-dioxirane. [3 + 2] Cycloaddition vs. oxygen atom transfer. J Chem. Soc. Perkin Trans. 1 1991, 3043–3046. [Google Scholar] [CrossRef]
  45. Yur’ev, Y.K. Catalytic transformations of heterocyclic compounds. I. Transformations of furan into pyrrole and thiophene. Ber. Dtsch. Chem. Ges. [Abteilung] B: Abhandlungen 1936, 69B, 440–443. [Google Scholar]
  46. Makhmudiyarova, N.N.; Khatmullina, G.M.; Rakhimov, R.S.; Meshcheryakova, E.S.; Ibragimov, A.G.; Dzhemilev, U.M. The first example of catalytic synthesis of N-aryl-substituted tetraoxazaspiroalkanes. Tetrahedron 2016, 72, 3277–3281. [Google Scholar] [CrossRef]
  47. Tyumkina, T.V.; Makhmudiyarova, N.N.; Kiyamutdinova, G.M.; Meshcheryakova, E.S.; Bikmukhametov, K.S.; Abdullin, M.F.; Khalilov, L.M.; Ibragimov, A.G.; Dzhemilev, U.M. Synthesis, molecular structure, conformation and biological activity of Ad-substituted N-aryl-tetraoxaspiroalkanes. Tetrahedron 2018, 74, 1749–1758. [Google Scholar] [CrossRef]
  48. Makhmudiyarova, N.N.; Ishmukhametova, I.R.; Tyumkina, T.V.; Ibragimov, A.G.; Dzhemilev, U.M. Synthesis of N-aryl-hexaoxazadispiroalkanes using lanthanide catalysts. Tetrahedron Lett. 2018, 59, 3161–3164. [Google Scholar] [CrossRef]
  49. Makhmudiyarova, N.N.; Ishmukhametova, I.R.; Dzhemileva, L.U.; Tyumkina, T.V.; D’yakonov, V.A.; Ibragimov, A.G.; Dzhemilev, U.M. Synthesis and anticancer activity novel dimeric azatriperoxides. RSC Adv. 2019, 9, 18923–18929. [Google Scholar] [CrossRef]
  50. Makhmudiyarova, N.N.; Rakhimov, R.S.; Tyumkina, T.V.; Meshcheryakova, E.S.; Ibragimov, A.G.; Dzhemilev, U.M. Sm-Catalyzed Synthesis and Biological Activity of Acyclic and Cyclic Azadiperoxides. Russ. J. Org. Chem. 2019, 5, 620–632. [Google Scholar] [CrossRef]
  51. Makhmudiyarova, N.N.; Khatmullina, G.M.; Rakhimov, R.S.; Ibragimov, A.G.; Dzhemilev, U.M. Synthesis of pentaoxaspiroalkanes and pentaoxocanes catalyzed by lanthanide compounds. Arkivoc 2016, 5, 427–433. [Google Scholar] [CrossRef]
  52. Kukushkin, Y.N. The Reactivity of Coordination Compounds; Khimiya: Leningrad, Russia, 1987; p. 228. [Google Scholar]
  53. Pearson, R.G. Hard and soft acids and bases. Russ. Chem. Rev. 1971, 40, 1259–1282. [Google Scholar]
  54. Denekamp, C.; Gottlieb, L.; Tamiri, T.; Tsoglin, A.; Shilav, R.; Karon, M. Two Separable Conformers of TATP and Analogues Exist at Room Temperature. Org. Lett. 2005, 7, 2461–2464. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of all compounds are available from the authors.
Molecules 25 01874 sch001

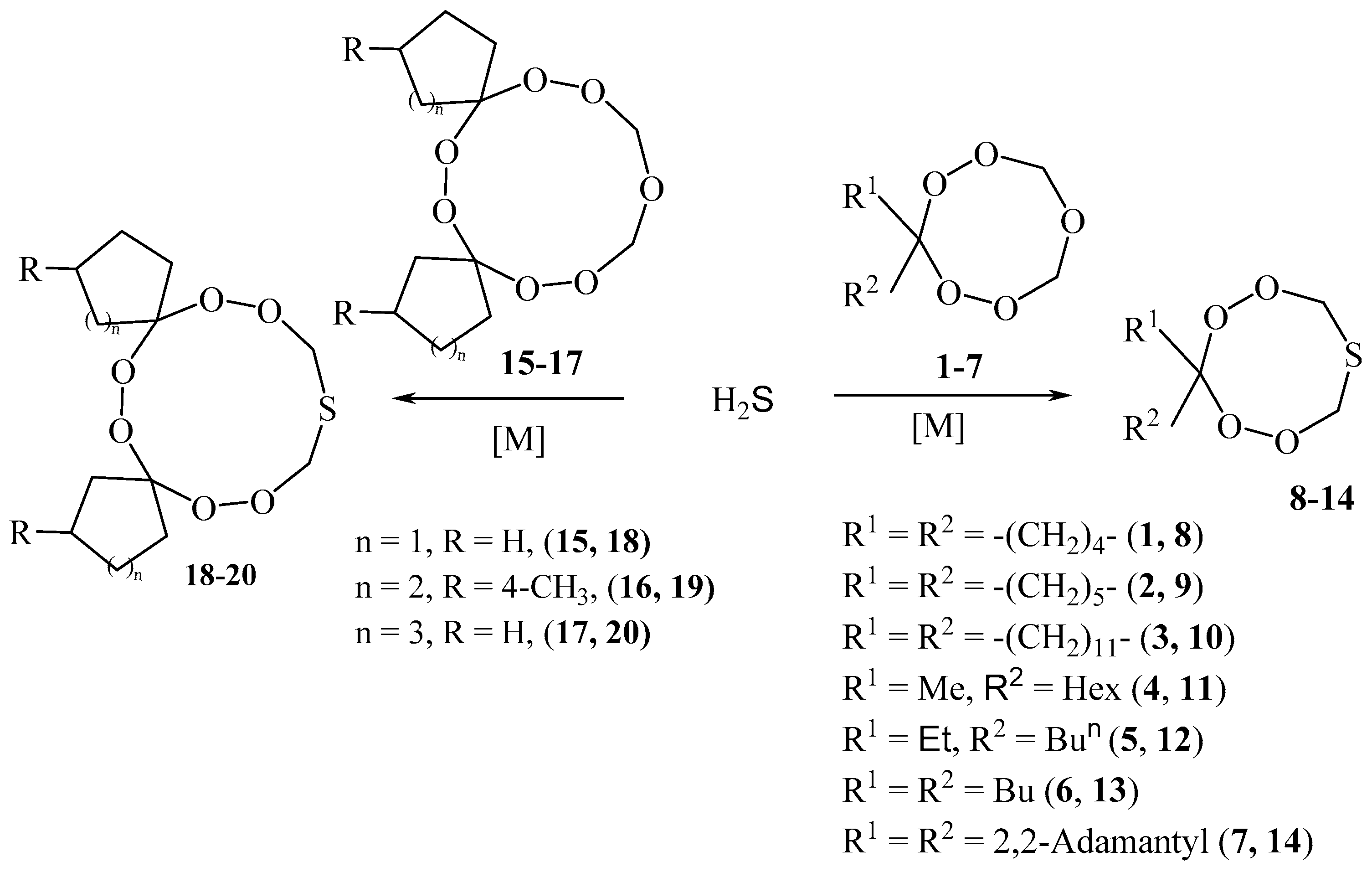

Scheme 1. Synthesis of cyclic S-containing di- and triperoxides.
Scheme 1. Synthesis of cyclic S-containing di- and triperoxides.
Molecules 25 01874 sch001
Molecules 25 01874 sch002

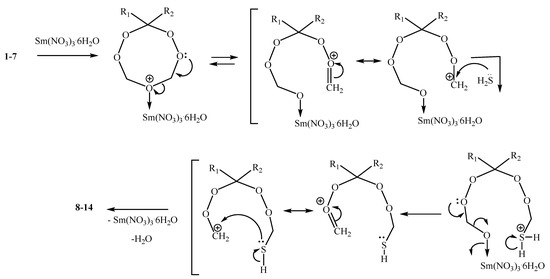

Scheme 2. Formation of S-containing diperoxides (8–14).
Scheme 2. Formation of S-containing diperoxides (8–14).
Molecules 25 01874 sch002
Table 1. Optimization of the reaction conditions for the synthesis 7,8,12,13-tetraoxa-10-thiaspiro[5.7]tridecane (8).
Table 1. Optimization of the reaction conditions for the synthesis 7,8,12,13-tetraoxa-10-thiaspiro[5.7]tridecane (8).
Entry[M]SolventYield * of 8%
1Sm(NO3)3·6H2OTHF98
2Sm(NO3)3·6H2OCH2Cl285
3Sm(NO3)3·6H2OEt2O79
4Sm(NO3)3·6H2OC6H1215
5Sm(NO3)3·6H2OEtOAc10
6Sm(NO3)3·6H2OC2H5OH7
7Ho(NO3)3 5H2OTHF84
8TbCl3 6H2OTHF72
9DyCl3 6H2OTHF67
10NdCl3 6H2OTHF61
11La(NO3)3·6H2OTHF58
* Experimental conditions: 1:[M] molar ratio of 1:0.05; 20 °C; 6 h; 5 mL solvent.
Table 2. Cytotoxic activities in vitro of compounds 8–14 and 18–20 measured on tumor cell cultures (Jurkat, K562, U937, and HL60, fibroblasts) (µM).
Table 2. Cytotoxic activities in vitro of compounds 8–14 and 18–20 measured on tumor cell cultures (Jurkat, K562, U937, and HL60, fibroblasts) (µM).
CompoundJurkat
(IC50, µM)		K562
(IC50, µM)		HL60
(IC50, µM)		U937
(IC50, µM)		Fibroblasts
(IC50, µM)
85.26 ± 0.577.15 ± 0.644.59 ± 0.3824.13 ± 1.87118.61 ± 8.74
94.91 ± 0.436.83 ± 0.594.14 ± 0.3421.17 ± 2.1197.88 ± 6.81
103.52 ± 0.315.77 ± 0.462.67 ± 0.2115.24 ± 1.2681.42 ± 5.12
124.45 ± 0.496.29 ± 0.573.91 ± 0.3319.89 ± 1.5785.93 ± 5.47
1310.21 ± 0.8714.37 ± 0.968.56 ± 0.6935.24 ± 2.65142.17 ± 9.76
149.61 ± 0.7911.97 ± 0.918.22 ± 0.7432.81 ± 2.89129.23 ± 8.92
1817.11 ± 1.2421.75 ± 1.5914.96 ± 0.9746.67 ± 3.76188.36 ± 12.91
192.81 ± 0.374.37 ± 0.312.24 ± 0.2911.79 ± 0.9979.17 ± 5.41
2023.94 ± 1.6728.26 ± 1.4819.61 ± 1.1265.81 ± 4.84195.87 ± 14.67
IC50, or the concentration of half-maximal inhibition, is an indicator of the effectiveness of a ligand in inhibiting biochemical or biological interaction.
