Fully Biobased Epoxy Resins from Fatty Acids and Lignin

Flemish Institute for Technological Research–VITO, Separation & Conversion Technology, Boeretang 200, 2400 Mol, Belgium
Biorizon, Auvergnedijk 2, 4612 PZ Bergen op Zoom, The Netherlands
Department of Chemistry, University of Antwerp, Groenenborgerlaan 171, B-2020 Antwerpen, Belgium
Author to whom correspondence should be addressed.
Molecules 2020, 25(5), 1158;
Received: 13 February 2020 / Revised: 2 March 2020 / Accepted: 2 March 2020 / Published: 5 March 2020
(This article belongs to the Special Issue Lignocellulosic Biomass)


The use of renewable resources for plastic production is an imperious need for the reduction of the carbon footprint and the transition towards a circular economy. With that goal in mind, fully biobased epoxy resins have been designed and prepared by combining epoxidized linseed oil, lignin, and a biobased diamine derived from fatty acid dimers. The aromatic structures in lignin provide hardness and strength to an otherwise flexible and breakable epoxy resin. The curing of the system was investigated by infrared spectroscopy and differential scanning calorimetry (DSC). The influence of the different components on the thermo-mechanical properties of the epoxy resins was analyzed by DSC, thermal gravimetric analysis (TGA), and tensile tests. As the content of lignin in the resin increases, so does the glass transition, the Young’s modulus, and the onset of thermal degradation. This correlation is non-linear, and the higher the percentage of lignin, the more pronounced the effect. All the components of the epoxy resin being commodity chemicals, the present system provides a realistic opportunity for the preparation of fully biorenewable resins at an industrial scale.

Graphical Abstract

1. Introduction

We live surrounded by plastics: from packaging to clothing, including construction materials, components of vehicles, furniture, electronics, and an endless list of commodities. In these days of banishment of plastics, their benefits should be kept in mind. For example, the use of plastics for automotive parts results in lighter vehicles that consume less fuel, therefore reducing the greenhouse emissions [1]. However, the overall carbon footprint of most plastics is high because their production relies on fossil fuels. The use of renewable resources for plastic production is, therefore, an imperious need. It is a challenging endeavor because the high performance of current fossil-derived plastics has set a high bar for biobased plastics. The replacement of petrol-derived monomers by their biobased analogs offers, in principle, a win-win situation; that is, the same characteristics and processing as fossil-derived plastics but derived from renewable sources. However, direct replacement is commonly not the most (resource and waste) efficient option because the biomass-derived building blocks are different from the petrol-derived ones [2]. Furthermore, although possible in some cases (as in the case of polyethylene), few of the current industrially produced biobased polymers have a 100% biomass content [3]. Currently, the use of new, biomass-derived building blocks for the production of fully biobased polymers is practically restricted to academia. Unfortunately, the price and/or availability of the monomers employed in these studies are a great obstacle for their industrial application [4].
Here, we report a fully biobased epoxy resin from biorenewable bulk chemicals: lignin and vegetable oils [5]. Currently, the glycidyl ether of bisphenol A is the main epoxy monomer, and it is synthesized from BPA and epichlorohydrin. There have been many attempts to replace BPA with biobased aromatic structures and subsequently cure it [6]. This approach, however, incurs the above-mentioned limitations, namely not being fully biobased (usually due to the curing agent) and the exotic monomers that are used [7]. Some of the few biobased epoxy building blocks that reach industrial-scale production are two epoxidized vegetable oils (EVO), namely epoxidized soybean oil (ESO) and epoxidized linseed oil (ELO) (Scheme 1). The possibility of using epoxidized vegetable oils (EVO) in epoxy polymers has been known for decades, but due to the lack of rigid structures (cycloaliphatic, aromatic) the resulting polymers had a low strength [8].
Lignin, with its highly cross-linked phenolic network (Scheme 1), could act as a counterbalance for that deficit of stiffness. Moreover, lignin is currently a waste product from the pulp and paper industry and the only biorenewable source of aromatics that can provide enough feedstock to replace petrol-based aromatics. Technical (industrially produced) lignins are currently the only lignins available at a large scale. Among them, the Kraft process is the dominant in the pulp and paper industry (Scheme 1) [9]. By the use of high temperatures and basic conditions, lignin and hemicellulose are separated from cellulose. High-quality cellulose is obtained, but the resulting lignin is altered. In the pulp and paper industry, this is not a problem because lignin is burned to generate energy and to recover inorganic chemicals. However, the use of this lignin for polymer synthesis represents a challenge due to high polydispersity, limited solubility, and heterogenicity [10]. The fractionation of kraft lignin (KL) [11,12] is an interesting technique that has successfully been applied for epoxy resins synthesis [13]. In epoxy resins, the catalog of hardeners that can be used to cure epoxy resins is broad, the polyamines being the most common choice. Unfortunately, the industrial production of biobased polyamines is still in its infancy [7,14]. One of the few marketed biobased diamines is Priamine® from Croda, derived from dimerized fatty acids (Scheme 1).

2. Results and Discussion

2.1. Design of a Fully Biobased Epoxy Resin

The solubility tests of Lignoboost® KL showed that it was fully soluble in tetrahydrofuran, partially soluble in methanol and acetone but not quite in ethyl acetate. Consequently, methanol and acetone were chosen as fractionation solvents, and the properties of the extracted lignin were analyzed (Table 1 and Supplementary Materials S1–S6).
The methanol extracted fraction, KLMeOH, with the lowest polydispersity index (PDI), molecular weight (Mw), and glass transition (Tg), was chosen for the biopolymer development. Initial efforts were directed towards using lignin as a curing agent for the epoxy group. The quest for a lignin-epoxy resin goes decades back [15,16]. There is an extensive body of literature showing that the hydroxyl groups in the lignin can react with terminal epoxy groups in molecules such as (polyethelene) glycerol digylicidy ether [17,18,19,20,21]. However, EVO such as ESO or ELO did not yield a fully cured product, probably due to the lower reactivity of internal epoxy groups. Consequently, the addition of a second curing agent, namely a biobased diamine derived from dimer fatty acids (Priamine 1074 ®) was considered and successfully tested. The miscibility of the non-polar oils with polar lignin was not always optimal but could be addressed by transesterifying the EVO with methanol (Scheme 1). Apart from improving the compatibility of the mixture, the use of methyl esters of EVO (ESOme and ELOme) led to samples with higher Tg than those prepared with the EVO. Although the transesterification process was carried out in the lab, it is worth noting that there are commercial suppliers of ESOme and ELOme.

2.2. Possible Curing Mechanism

The reactivity of epoxy groups towards hydroxyl and amine groups is well understood [22], and its curing can be followed using infrared spectroscopy [13]. In our system, besides the epoxy and the amine groups, the hydroxyl groups from lignin were also present. In order to better understand the interaction between the three components, the curing mechanism was studied. More specifically, we wanted to prove that the lignin reacts with the EVO and that it gets incorporated in the structure. Our hypothesis was that the reaction of lignin with an excess of EVO led to an intermediate with epoxy groups still available to be cured upon addition of the diamine (Figure 1 and Scheme 2) [19]. In order to prove that the lignin reacted with the epoxide groups and was not merely embedded in the cured epoxy matrix, the curing of the resin was analyzed by DSC and an exotherm was observed (Supplementary Materials S7). This is in line with previous research [20]. Furthermore, a cured sample was immersed in tetrahydrofuran and kept for 48 h. Afterwards, the epoxy resin was removed, and the liquid was analyzed by 1H NMR. It showed that the leaching corresponded to the diamine and not to lignin (Supplementary Materials S8). This result is not surprising considering that an excess of diamine in relation to epoxides was used. IR showed the disappearance of the stretch corresponding to the epoxy group at 825 cm−1 as well as the increase of the broad hydroxyl stretch between 3200 and 3500 cm1 (Figure 2). To our surprise, we noticed that the curing with diamine resulted in the appearance of another peak at around 1650 cm−1 (Figure 1). We identified it as that of the C=O stretch of the amide, resulting from the reaction of the ester of EVO with the excess of diamine (Scheme 2).

2.3. Influence of the Dimer Diamine Content

This finding encouraged us to further explore the effect of the amount of the diamine on the properties of the epoxy resins. Fixing the amount of lignin to half the weight of the ELOme, various equivalents of diamine to epoxy equivalents in ELOme were tested (Table 2). The Young’s modulus (EYoung) was exponentially correlated (Supplementary Materials S9) with the amount of diamine, which is understandable considering its long alkyl chain. Interestingly, other thermomechanical properties did not follow the same trend. Both the tensile strength and glass transition temperature gave similar results for all the samples but one. When one equivalent of diamine was used, the sample had a higher strength and Tg. These results suggest that with one equivalent of diamine, the cross-linking is the highest. Furthermore, they reinforce the proposed curing mechanism. Because some of the OH groups of lignin reacted with the epoxy groups of the EVO, the one equivalent of the diamine was actually in excess to the epoxy groups of the EVO, and the higher cross-linking must have come from the amide formation.

2.4. Influence of the Lignin Content on the Mechanical Properties

Consequently, we fixed the amount of diamine to one equivalent to the epoxy groups in the ELOme, and we moved on to explore the influence of the KLMeOH content on the thermomechanical properties of the resulting polymers (Table 3). Both Young’s modulus and the tensile strength showed an exponential increase with an increasing amount of lignin (Figure 2a). Because of the long aliphatic chains of both ELOme and the diamine, the polymer resulting from their mixture was an elastic although easily breakable material. The incorporation of lignin dramatically changed the properties, and with 12.5% weight of KLMeOH in the composition, the Young’s modulus increased ten-fold. Notably, doubling that amount of lignin resulted in a fifty-fold increase in EYoung compared with the sample without lignin. Testing the limits, a resin with an even higher percentage of lignin (36.4%) was also tested but resulted in a brittle sample. Besides the mechanical properties, the effect of lignin was also noticeable in the color of the samples, which ranged from dark orange to dark brown (Figure 2b).

2.5. Influence of the Lignin Content on the Thermal Properties

Lignin also had a marked effect on the Tg. The cross-linked epoxy resin resulting from the curing between the ELOme and the diamine showed a glass transition temperature of −20 °C (Figure 3). This result is in line with previous research on epoxy resins derived from EVO and diamines derived from fatty acids [23]. As with the mechanical properties, the effect of KLMeOH on the glass transition followed an exponential increase: 6% of lignin had no influence, but 12.5% of KLMeOH resulted in a Tg of −12 °C, and the resin with 22.2% of lignin had a glass transition of 0 °C (Figure 3). A similar exponential trend had been observed before for an epoxy-lignin-amine system [19]. In that case, the epoxy component was polyethelene glycerol digylicidy ether and the amine triethylene tetramine. Despite the differences with our system, the glass transitions are surprisingly close for a defined amount of lignin. This fact underlines the strong impact lignin has on the thermal properties of epoxy resins.
Likewise, the presence of KLMeOH had a profound impact on the thermal stability of the resins. Although there are some exceptions [24], the incorporation of lignin in a polymeric matrix typically leads to increased thermal stability [25]. TGA experiments (Figure 4 and Table 4) showed increased stability as the content of lignin in the sample rose. The sample without lignin was completely consumed at 500 °C, which is in agreement with previous research on EVO/dimer systems [23]. By contrast, the sample with 12.5% of KLMeOH in weight showed 14% of residual weight. Importantly, the residual weight cannot just be attributed to the remaining lignin, as the sample with 22% weight of KLMeOH retained 40% of weight at 500 °C. Interestingly, the same exponential effect to that of the Young modulus of the resins was also observed here. That is, the effect from doubling the lignin content (from 12.5% to 22% of the total weight) had a greater impact than that from not having lignin at all to having a 12.5% content.

2.6. Influence of the Type of Lignin on the Thermomechanical Properties

After the observed strong effect of the amount of lignin on the thermomechanical properties of the resins, we wondered how these would be influenced by the characteristics of lignin (Table 5). Different fractions of KL showed a positive correlation between the Mw and the Young’s modulus, in line with previous reports [13]. That is, the higher the Mw, the higher the Young’s modulus. However, no such trend was observed for the ultimate tensile strength (ΣBreak) or elongation at break (ΕBreak). The Tg of the epoxy resins made from different Kraft lignins had a remarkably similar value, and only that of the acetone extracted fraction was slightly higher than the rest. A similar effect had been noted before for lignin-based epoxy resins [13].
One of the features of lignin is the variability and heterogenicity among different samples, and therefore we were interested in comparing a KL from another source. West Fraser KL led to epoxy resins with not striking but noticeable differences. The resin containing West Fraser KL had a slightly lower Young’s modulus than Lignoboost KL, which points again to a relation between the Mw and the Young’s modulus. However, this seems to not be a linear relation, because West Fraser KL had a Mw of 4080 but a EYoung lower than KLAcetone, which had a Mw of 2540. Despite its relatively low Young’s modulus, the epoxy resin made from West Fraser KL showed the highest ΣBreak and ΕBreak of the series.
Fractionation of technical lignins is a good approach to reduce polydispersity and Mw, thus allowing for better miscibility and reactivity in the prepolymer mixture. Even lower molecular weight fractions can be obtained from the depolymerization of lignin. These streams are attractive because they can be in oily form and thus directly blended with the other components without the need for solvents [10]. To that end, solvent-extracted, base-catalyzed depolymerization (BCD) oil from Eucalyptus, with a Mw of 330 and PDI of 1.4, was tested. The polymer resulting from the incorporation of 22% of such lignin showed a Tg of 9 °C, significantly higher than the samples prepared with KL. Moreover, the structural differences of lignin had a great impact on the mechanical properties, leading to harder epoxy resins (higher Young’s modulus and lower ΕBreak, Table 5 and Figure 5). Contrary to the case of KL, where reducing the Mw and polydispersity led to samples with a lower EYoung, the low Mw of BCD lignin oil did not result in a less stiff material. Moreover, the use of such lignin oil allowed us to increase the content of lignin. A sample with 36.4% of lignin content could be prepared, which displayed a Young’s modulus of 60 MPa and a Tg of 15 °C.

3. Materials and Methods

3.1. Chemicals

Epoxidized soybean oil (Efka® PL 5382) was kindly provided by BASF; Epoxidized linseed oil (Lankroflex™) was kindly provided by Valtris. Dimer diamine (Priamine 1074®) was kindly provided by Croda (AHEW 138g/equiv.). Lignoboost® Kraft lignin was provided by Innventia Institute. West Fraser Kraft lignin was kindly provided by West Fraser. Base-catalyzed depolymerized (BCD) solvent-extracted eucalyptus lignin oil was kindly provided by Fraunhofer Institute. Tetrahydrofuran was purchased from Fisher Scientific, methanol and ethanol from Acros Organics, and 1-methylimidazol from Alfa Aesar. Sodium hydroxide was purchased from Sigma-Aldrich.

3.2. Transesterification of EVO

The formation of methyl esters of epoxidized soybean and linseed oil was carried out following a modified literature procedure [26]: 2 g of NaOH were dissolved in 50 mL of methanol and transferred to a round bottom flask containing 100 g of epoxidized vegetable oil. 5 mL of dichloromethane were added, and the mixture was stirred for 2 h at 50 °C. It was then let to stand overnight so that the glycerol would settle in the bottom. The upper, liquid phase was transferred to a round bottom flask, and the methanol was removed under reduced pressure. The epoxy equivalent weight of epoxidized soybean oil methyl ester was determined to be 230 g/equiv. and 184 g/equiv. for the epoxidized linseed oil methyl ester.

3.3. Lignin Fractionation and Characterization

Solvent extraction was performed by dissolving 10 g of lignin in 150 mL of a solvent (methanol or acetone), stirring overnight, filtering through a Büchner funnel, followed by concentrating the filtrate and finally drying the lignin at 50 °C under vacuum for 16 h. The lignin hydroxyl content was determined by 31P NMR according to a literature procedure [27].

3.4. Preparation and Curing of Resins

An amount of lignin (LignoBoost Kraft or the solvent-extracted fractions) was dissolved in 2 mL of tetrahydrofuran and mixed with 1 g of epoxidized vegetable oil (linseed, soybean, or their methyl esters). Alternatively, ethanol can be used as a solvent. The mixture was stirred at 70 °C for 1 h in an open flask. Afterwards, an amount of Priamine 1074 was added, and the mixture was stirred for 1 min and poured in a Teflon mold. The Teflon mold was placed in a vacuum oven (850 mbar) at 50 °C for 1 h to allow the solvent to evaporate. Then, the Teflon mold was placed in an oven and cured at 120 °C for 4 h and at 150 °C for 16 h. The curing could also be done at 120 °C for 20 h in the presence of 1-methylimidazole as a catalyst without an influence on the outcome. When BCD Eucalyptus lignin was used, no solvent was required, and thus the required amount of lignin was mixed with 1 g of epoxidized vegetable oil and stirred at 70 °C for 30 min in an open flask. The rest of the protocol was as described above.

3.5. Chemical Analysis

Gel permeation chromatography was performed on a Styragel HR1 column eluting with tetrahydrofuran with RID detection. The hydroxyl content was quantitatively determined using 31P NMR spectroscopy, as described in the literature [27]. The epoxy equivalent weight of methyl esters of the epoxidized vegetable oils was determined by potentiometric titration following ASTM Standard D1652−04.

3.6. Thermal Analysis

Possible thermal phase transitions in all of the cured resin specimens were investigated using differential scanning calorimetry (DSC). The DSC measurements were conducted with TA Discovery DSC 250 by subjecting the cured epoxy resins to a heat–cool–heat cycle from −80 to 200 °C at a 20 °C/min rate under a nitrogen atmosphere. Normalized heat flows were plotted as a function of the temperature, and the plots were analyzed. The glass transition temperature (Tg) was defined as the half value of the heat capacity change (ΔCp/2). Thermal gravimetric analyses (TGA) were performed to gain insight into the degradation temperature of the resins. TGA measurements were carried out in a nitrogen environment (flow rate 20 mL min−1) using a Netzsch STA 449c machine at a 10 °C min−1 heating rate from 25 to 800 °C.

3.7. Spectroscopic Analysis

Attenuated total reflectance-Fourier transform infrared (ATR-FTIR) analyses of the epoxy resins were performed using a Nicolet iS10 spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) operating at laboratory atmospheric conditions. The measurements were performed in the attenuated reflectance (ATR) mode using a diamond crystal. The spectral range was 4000 to 500 cm−1. The scans were performed with a 4 cm−1 scan resolution and 32 scans per sample. Blank scans were subtracted from the sample scans prior to their analysis.

3.8. Tensile Test

The tensile tests of the cured epoxy resins were conducted according to ASTM D638, using an Instron machine model 2412 (Instron, England). Three replicates were measured for each sample, with the dimensions of ASTM D638 Type V. The tests were performed at 22 ± 2 °C and at 50–60% relative humidity. The crosshead speed was 2.5 mm/min. Young’s modulus, ultimate tensile strength, and percentage elongation at break were calculated from the stress-strain curves on the basis of the initial sample dimensions.

4. Conclusions

A series of fully biobased epoxy resins made from renewable resources were prepared, and their thermo-mechanical properties were analyzed. Lignin, rich in aromatic structures, gives stiffness and consistency to the epoxy resins, which are otherwise soft, flexible, and breakable due to long aliphatic chains of the fatty acid derivatives. Solvent extracted Kraft lignin was used due to its more defined profile. At a low lignin content, the effects were barely noticeable, but at a 12.5 weight% of lignin both the glass transition temperature and the Young’s modulus increased, and the rise was even more pronounced at a 22 weight%. It is thus not a linear but an exponential correlation. Higher amounts of lignin could not be incorporated if solvent-extracted Kraft lignin was used. Depolymerized and subsequently solvent-extracted lignin, liquid and with low Mw, could be used in higher amounts (36.4%), leading to harder epoxy resins. The fact that all the components of the resin are bulk chemicals opens the door to the production of fully biobased resins on an industrial level.

5. Patents

Ortiz, P.; Vendamme, R. Bio Based Epoxy Resin. PCT/EP2019/075067.

Supplementary Materials

The following are available online, 31P NMR characterization of lignin S1–S3; GPC characterization of lignins S4–S8; Proof of epoxy curing S9–S10; Plot of equiv. of diamine vs. Young’s Modulus of cured samples S11; DSC of cured samples S12–S13; TGA of cured samples S14.

Author Contributions

Conceptualization, P.O. and R.V.; methodology, P.O.; investigation, P.O.; writing—original draft preparation, P.O.; writing—review and editing, P.O., R.V. and W.E. All authors have read and agreed to the published version of the manuscript.


This research was funded by the province of Noord-Brabant (The Netherlands) in the framework of the activities at the Shared Research Center Biorizon.


The authors would like to thank BASF for providing epoxidized soybean oil (Efka® PL 5382); Valtris for providing epoxidized linseed oil (Lankroflex™); Croda for providing dimer diamine (Priamine 1074®); Innventia Institute for providing Lignoboost® Kraft lignin. West Fraser for providing West Fraser Kraft lignin; Fraunhofer Institute for providing base-catalyzed depolymerized (BCD) solvent-extracted eucalyptus lignin oil.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Gupta, A.K. Waste and Biomass to Clean Energy. In Handbook of Clean Energy Systems; Wiley: New York, NY, USA, 2015; pp. 1–24. [Google Scholar]
  2. Lie, Y.; Ortiz, P.; Vendamme, R.; Vanbroekhoven, K.; Farmer, T.J. BioLogicTool: A Simple Visual Tool for Assisting in the Logical Selection of Pathways from Biomass to Products. Ind. Eng. Chem. Res. 2019, 58, 15945–15957. [Google Scholar] [CrossRef]
  3. Aeschelmann, F.; Carus, M. Biobased Building Blocks and Polymers in the World: Capacities, Production, and Applications–Status Quo and Trends Towards 2020. Ind. Biot. 2015, 11, 154–159. [Google Scholar] [CrossRef]
  4. Bobade, S.K.; Paluvai, N.R.; Mohanty, S.; Nayak, S.K. Bio-Based Thermosetting Resins for Future Generation: A Review. Polym.-Plast. Technol. 2016, 55, 1863–1896. [Google Scholar] [CrossRef]
  5. Ortiz, P.; Vendamme, R. Bio Based Epoxy Resin. PCT/EP2019/075067.
  6. Auvergne, R.; Caillol, S.; David, G.; Boutevin, B.; Pascault, J.-P. Biobased Thermosetting Epoxy: Present and Future. Chem. Rev. 2014, 114, 1082–1115. [Google Scholar] [CrossRef] [PubMed]
  7. Baroncini, E.A.; Yadav, S.K.; Palmese, G.R.; Stanzione, J.F. Recent Advances in Bio-Based Epoxy Resins and Bio-Based Epoxy Curing Agents. J. Appl. Polym. Sci. 2016, 133, 44103. [Google Scholar] [CrossRef][Green Version]
  8. Wang, R.; Schuman, T. Chapter 9-Towards Green: A Review of Recent Developments in Bio-renewable Epoxy Resins from Vegetable Oils. In Green Materials from Plant Oils; Liu, Z., Kraus, G., Eds.; The Royal Society of Chemistry: Cambridge, UK, 2015; pp. 202–241. [Google Scholar]
  9. Rinaldi, R.; Jastrzebski, R.; Clough, M.T.; Ralph, J.; Kennema, M.; Bruijnincx, P.C.A.; Weckhuysen, B.M. Paving the Way for Lignin Valorisation: Recent Advances in Bioengineering, Biorefining and Catalysis. Angew. Chem. Int. Edit. 2016, 55, 8164–8215. [Google Scholar] [CrossRef][Green Version]
  10. Feghali, E.; Torr, K.M.; van de Pas, D.J.; Ortiz, P.; Vanbroekhoven, K.; Eevers, W.; Vendamme, R. Thermosetting Polymers from Lignin Model Compounds and Depolymerized Lignins. Top. Curr. Chem. (Z) 2018, 376, 32. [Google Scholar] [CrossRef]
  11. Passoni, V.; Scarica, C.; Levi, M.; Turri, S.; Griffini, G. Fractionation of Industrial Softwood Kraft Lignin: Solvent Selection as a Tool for Tailored Material Properties. ACS Sustain. Chem. Eng. 2016, 4, 2232–2242. [Google Scholar] [CrossRef]
  12. Duval, A.; Vilaplana, F.; Crestini, C.; Lawoko, M. Solvent Screening for the Fractionation of Industrial Kraft Lignin. Holzforschung 2015, 70, 11–20. [Google Scholar] [CrossRef]
  13. Gioia, C.; Lo Re, G.; Lawoko, M.; Berglund, L. Tunable Thermosetting Epoxies Based on Fractionated and Well-Characterized Lignins. J. Am. Chem. Soc. 2018, 140, 4054–4061. [Google Scholar] [CrossRef][Green Version]
  14. Froidevaux, V.; Negrell, C.; Caillol, S.; Pascault, J.-P.; Boutevin, B. Biobased Amines: From Synthesis to Polymers; Present and Future. Chem. Rev. 2016, 116, 14181–14224. [Google Scholar] [CrossRef] [PubMed]
  15. Nieh, W.L.-S.; Glasser, W.G. Lignin Epoxide: Synthesis and Characterization. In Lignin; Glasser, W.G., Sarkanen, S., Eds.; American Chemical Society: Washington, DC, USA, 1989; Volume 397, pp. 506–514. [Google Scholar]
  16. Simionescu, C.I.; Rusan, V.; Macoveanu, M.M.; Cazacu, G.; Lipsa, R.; Vasile, C.; Stoleriu, A.; Ioanid, A. Lignin/Epoxy Composites. Compos. Sci. Technol. 1993, 48, 317–323. [Google Scholar] [CrossRef]
  17. Delmas, G.-H.; Benjelloun-Mlayah, B.; Bigot, Y.L.; Delmas, M. BioligninTM Based Epoxy Resins. J. Appl. Polym. Sci. 2013, 127, 1863–1872. [Google Scholar] [CrossRef]
  18. Engelmann, G.; Ganster, J. Bio-Based Epoxy Resins with Low Molecular Weight Kraft Lignin and Pyrogallol. Holzforschung 2013, 68, 435–446. [Google Scholar] [CrossRef]
  19. Nonaka, Y.; Tomita, B.; Hatano, Y. Synthesis of Lignin/Epoxy Resins in Aqueous Systems and Their Properties. Holzforschung 2007, 51, 183–187. [Google Scholar] [CrossRef]
  20. Li, R.J.; Gutierrez, J.; Chung, Y.-L.; Frank, C.W.; Billington, S.L.; Sattely, E.S. A Lignin-Epoxy Resin Derived from Biomass as an Alternative to Formaldehyde-Based Wood Adhesives. Green Chem. 2018, 20, 1459–1466. [Google Scholar] [CrossRef]
  21. Ortiz, P.; Wiekamp, M.; Vendamme, R.; Eevers, W. Bio-Based Epoxy Resins from Biorefinery By-Products. BioResources 2019, 14, 3200–3209. [Google Scholar]
  22. Gibson, G. Chapter 27—Epoxy Resins. In Brydson’s Plastics Materials, 8th ed.; Gilbert, M., Ed.; Elsevier: Oxford, UK, 2017; pp. 773–797. [Google Scholar]
  23. Stemmelen, M.; Lapinte, V.; Habas, J.-P.; Robin, J.-J. Plant Oil-Based Epoxy Resins from Fatty Diamines and Epoxidized Vegetable Oil. Eur. Polym. J. 2015, 68, 536–545. [Google Scholar] [CrossRef][Green Version]
  24. Ismail, T.N.M.T.; Hassan, H.A.; Hirose, S.; Taguchi, Y.; Hatakeyama, T.; Hatakeyama, H. Synthesis and Thermal Properties of Ester-Type Crosslinked Epoxy Resins Derived from Lignosulfonate and Glycerol. Polym. Int. 2010, 59, 181–186. [Google Scholar] [CrossRef]
  25. Xu, C.; Ferdosian, F. Conversion of Lignin into Bio-Based Chemicals and Materials; Green Chemistry and Sustainable Technology; Springer: Berlin/Heidelberg, Germany, 2017. [Google Scholar]
  26. Sahoo, S.K.; Mohanty, S.; Nayak, S.K. Toughened Bio-Based Epoxy Blend Network Modified with Transesterified Epoxidized Soybean Oil: Synthesis and Characterization. RSC Adv. 2015, 5, 13674–13691. [Google Scholar] [CrossRef]
  27. Pu, Y.; Cao, S.; Ragauskas, A.J. Application of Quantitative 31P NMR in Biomass Lignin and Biofuel Precursors Characterization. Energy Environ. Sci. 2011, 4, 3154–3166. [Google Scholar] [CrossRef]
Sample Availability: Samples of the cured epoxy resins are available from the authors.

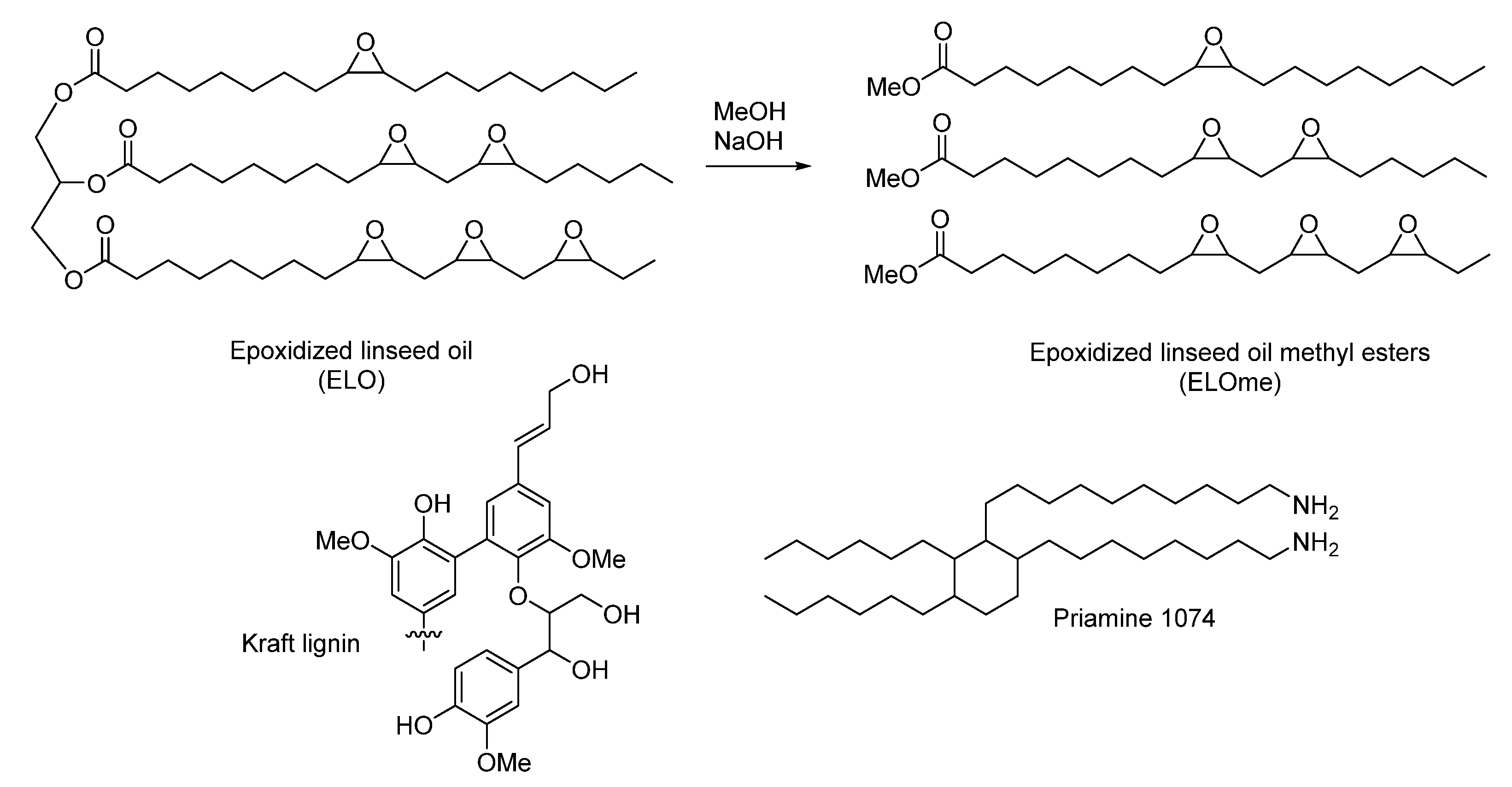

Scheme 1. Biobased building blocks used in this study to produce biobased epoxy resins.
Scheme 1. Biobased building blocks used in this study to produce biobased epoxy resins.
Molecules 25 01158 sch001

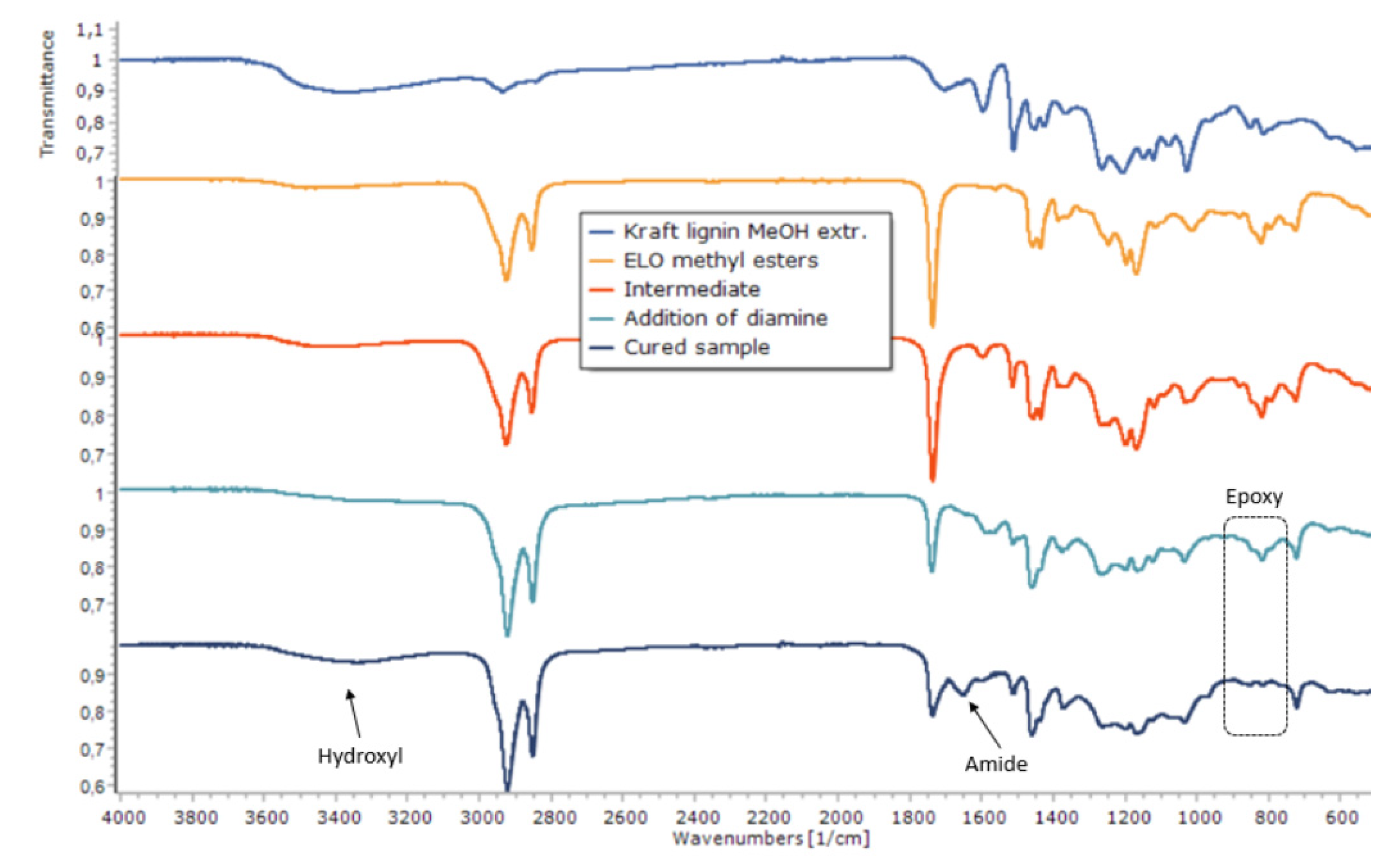

Figure 1. Infrared spectra of the starting materials and the evolution of the mixture during the curing process.
Figure 1. Infrared spectra of the starting materials and the evolution of the mixture during the curing process.
Molecules 25 01158 g001

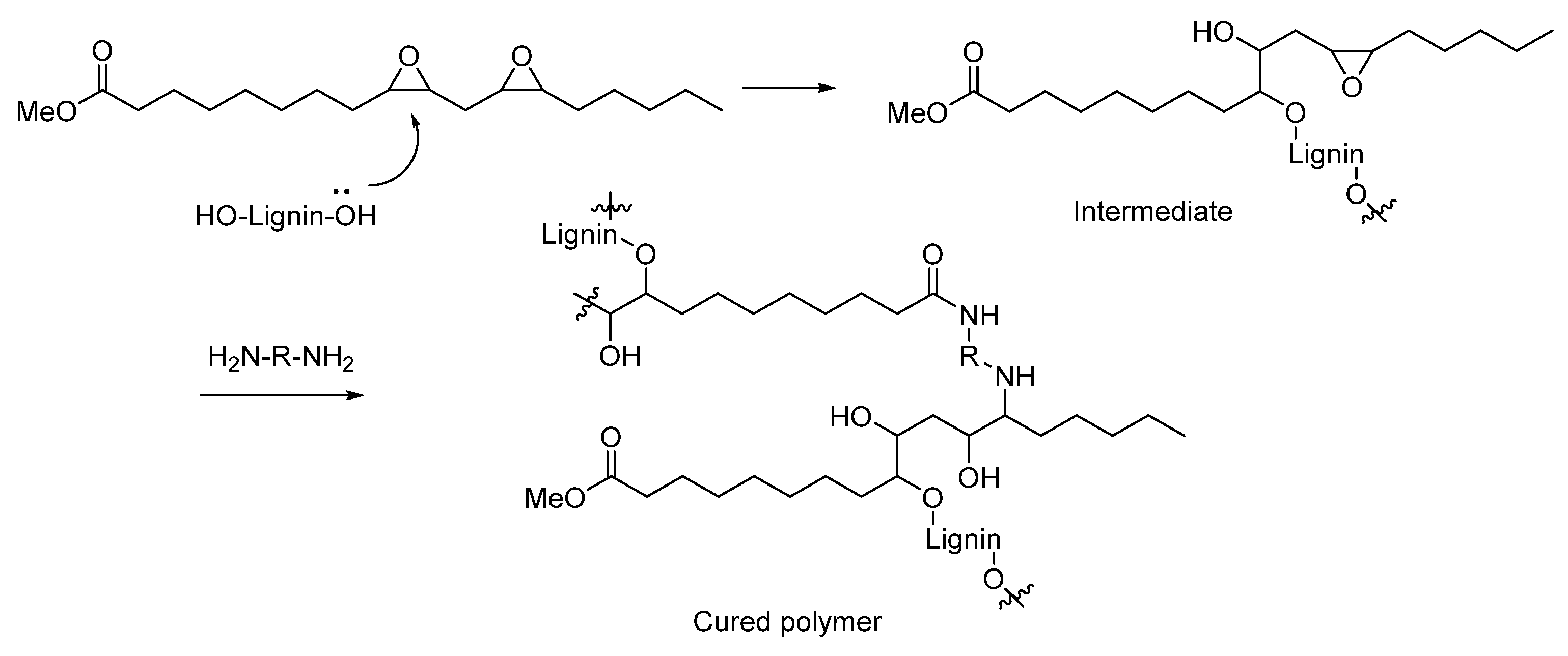

Scheme 2. Proposed mechanism of the curing of the epoxy resins.
Scheme 2. Proposed mechanism of the curing of the epoxy resins.
Molecules 25 01158 sch002

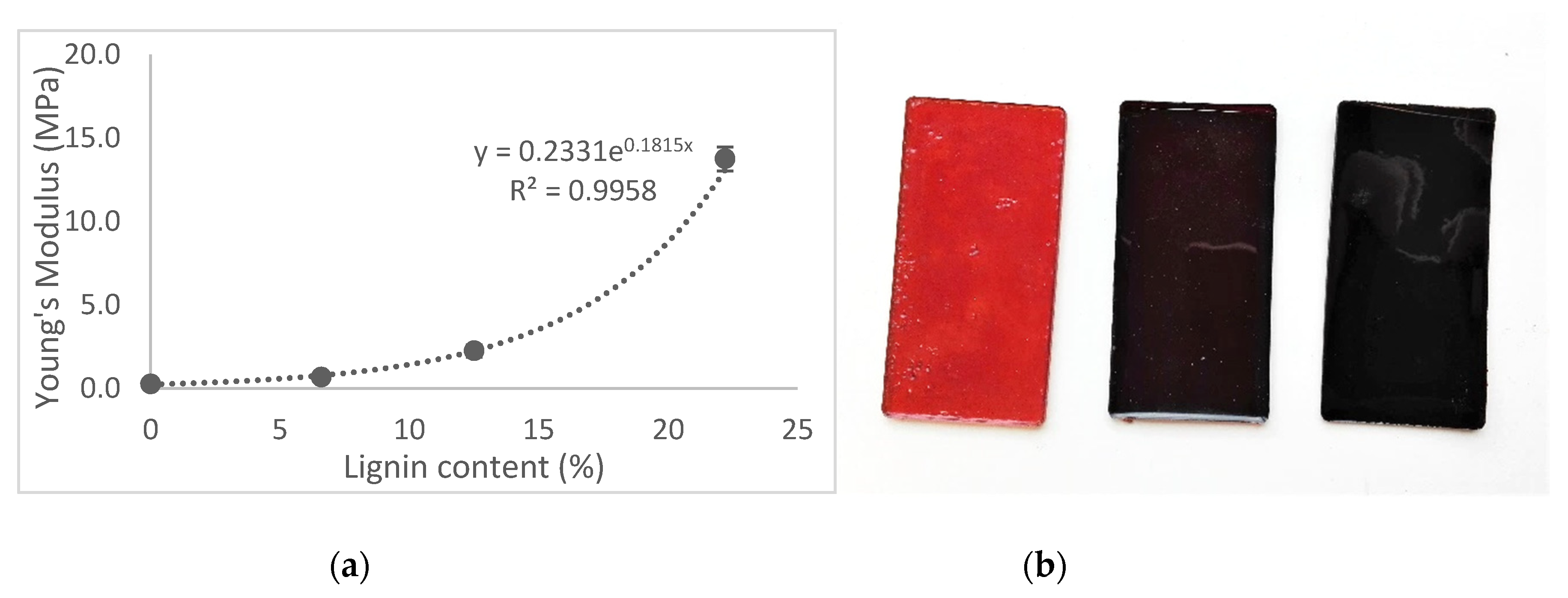

Figure 2. (a) Correlation between the lignin content and Young’s modulus of the cured epoxy resins. (b) Physical appearance of epoxy resins with 0%, 12.5%, and 22.2% weight of KLMeOH.
Figure 2. (a) Correlation between the lignin content and Young’s modulus of the cured epoxy resins. (b) Physical appearance of epoxy resins with 0%, 12.5%, and 22.2% weight of KLMeOH.
Molecules 25 01158 g002

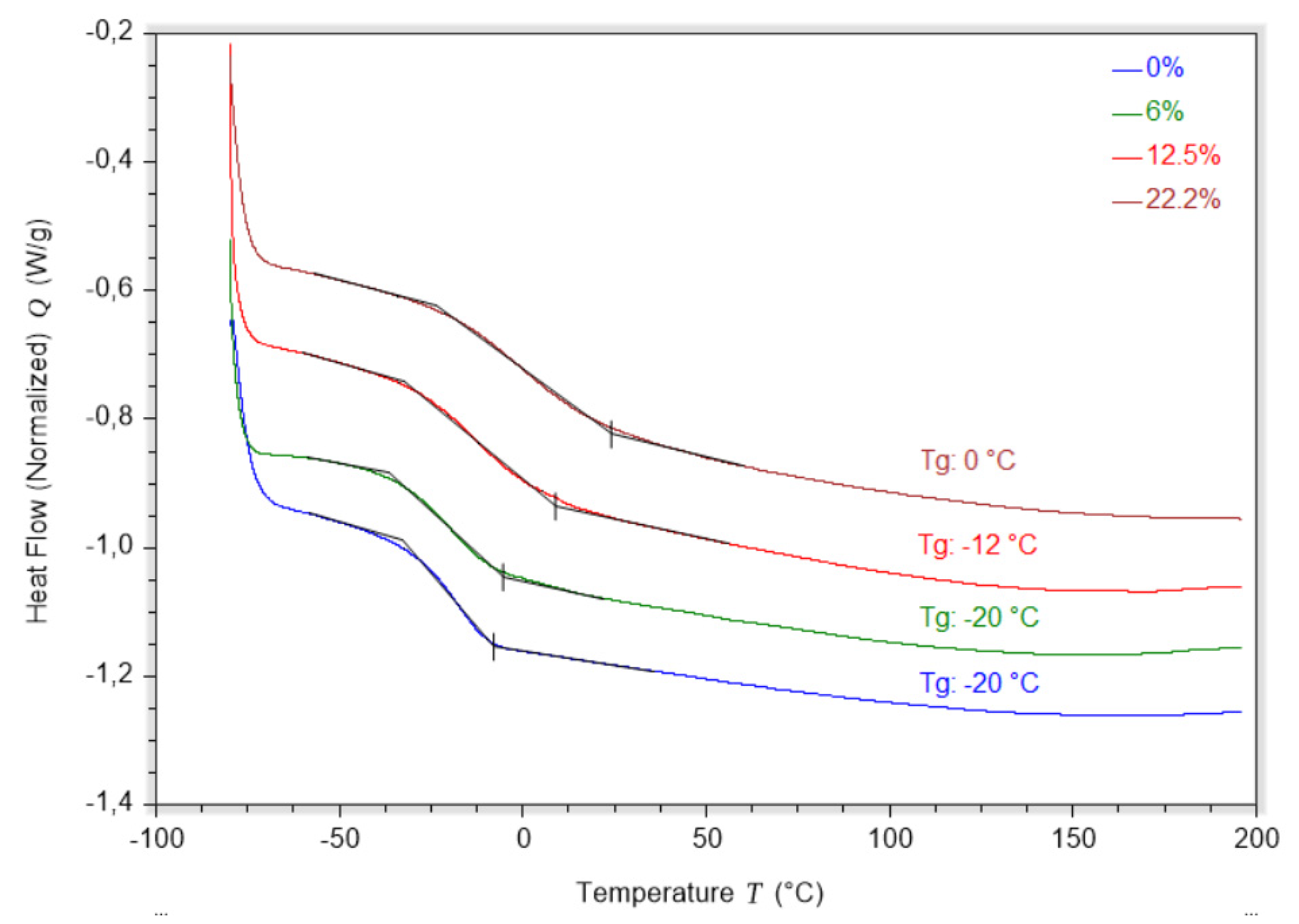

Figure 3. Influence of the KLMeOH content (expressed as weight%) on the Tg.
Figure 3. Influence of the KLMeOH content (expressed as weight%) on the Tg.
Molecules 25 01158 g003

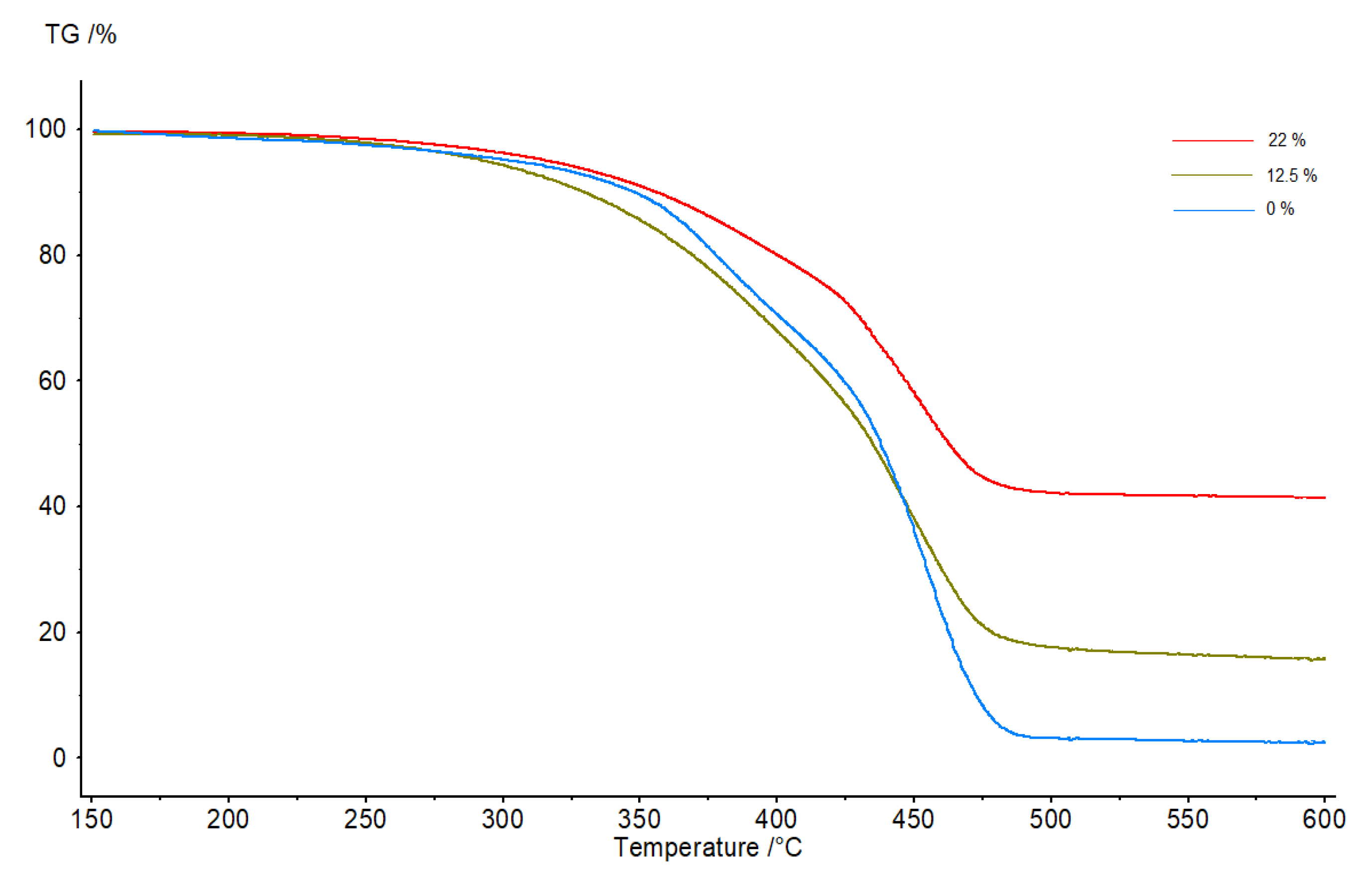

Figure 4. The TGA curves of epoxy resins with an increasing amount of KLMeOH (expressed as weight %).
Figure 4. The TGA curves of epoxy resins with an increasing amount of KLMeOH (expressed as weight %).
Molecules 25 01158 g004

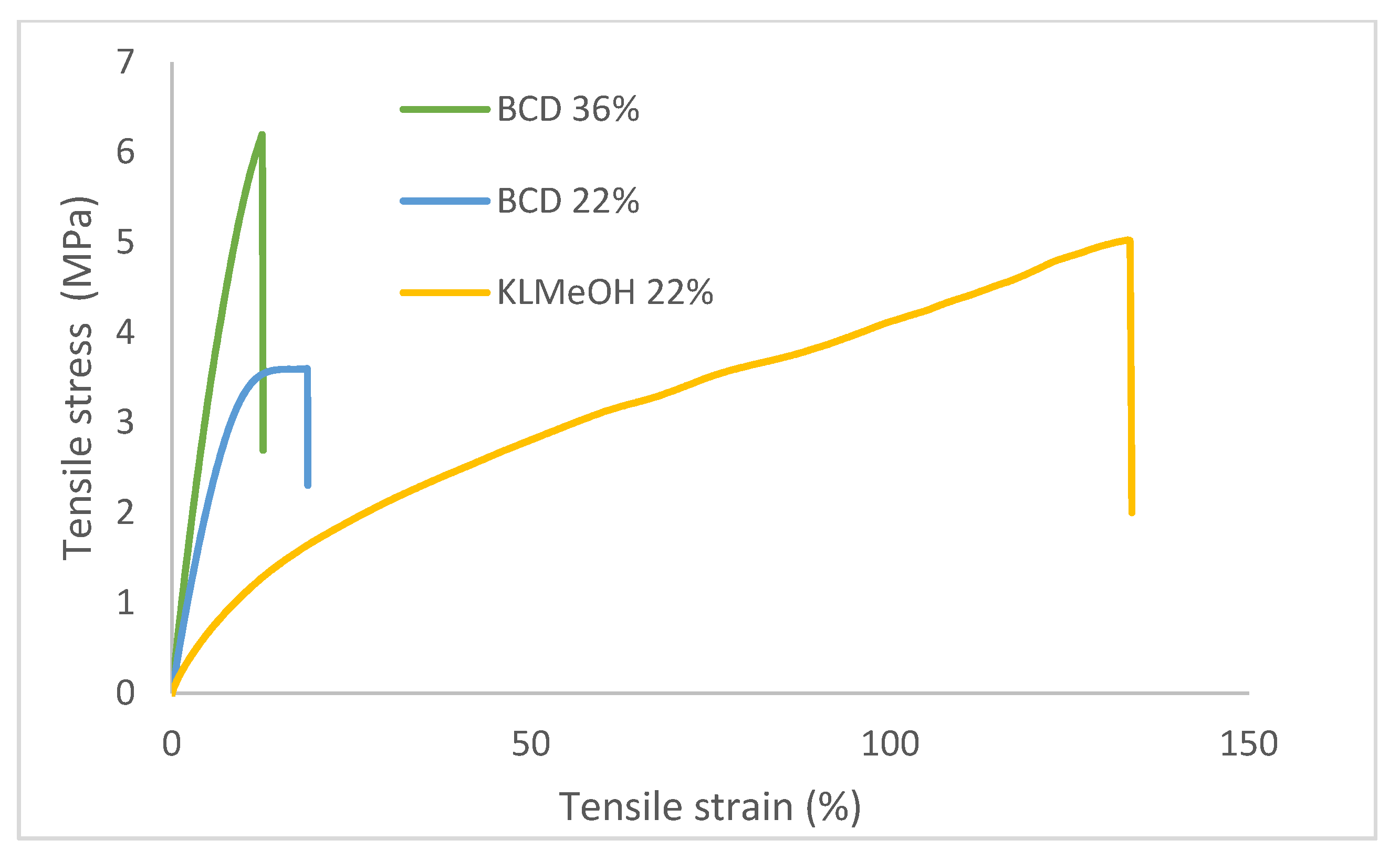

Figure 5. Selected tensile stress-strain curves of different cured epoxy resins.
Figure 5. Selected tensile stress-strain curves of different cured epoxy resins.
Molecules 25 01158 g005
Table 1. Characterization of lignin fractions.
Table 1. Characterization of lignin fractions.
Lignin FractionYield (%)Mw (g/mol) 1PDI 1Tg (°C) 2Aliphatic OH (mmol/g) 3Aromatic OH (mmol/g) 3COOH (mmol/g) 3
1 Determined by GPC. 2 Determined by DSC. 3 Determined by 31P NMR.
Table 2. The effect of the diamine content on the thermomechanical properties of the epoxy resins.
Table 2. The effect of the diamine content on the thermomechanical properties of the epoxy resins.
Diamine Equiv. to ELOme.EYoung (MPa) 1ΣBreak(MPa) 1ΕBreak (%) 1Tg (°C) 2
0.7522.1 ± 1.62.5 ± 0.147 ± 2−2
113.8 ± 1.34.0 ± 0.7114 ± 140
1.257.4 ± 0.42.2 ± 0.1100 ± 33−5
1.54.7 ± 1.12.2 ± 0.3144 ± 15−6
1 Calculated by tensile test. Data are the average of three test pieces ± SD. 2 Determined by DSC (S10 in Supplementary Materials).
Table 3. Influence of the lignin content on the mechanical properties of the cured epoxy resins.
Table 3. Influence of the lignin content on the mechanical properties of the cured epoxy resins.
KLMeOH Content (% weight) 1EYoung (MPa) 2ΣBreak(MPa) 2ΕBreak (%) 2
00.26 ± 0.010.4 ± 0.1197 ± 11
60.7 ± 0.10.6 ± 0.1105 ± 15
12.52.2 ± 0.41.8 ± 0.4129 ± 16
22.213.8 ± 1.34.0 ± 0.7114 ± 14
1 Lignin content as the % weight of lignin in the resin. 2 Calculated by tensile test. Data are the average of three test pieces ± SD.
Table 4. Thermal decomposition data from the TGA curves.
Table 4. Thermal decomposition data from the TGA curves.
Lignin Content (% weight) 12.5% Weight Loss (°C)5% Weight Loss (°C)Residual Mass at 800 °C (% weight)
1 Lignin content as the % weight of KLMeOH in the resin.
Table 5. Effect of the lignin type on the thermomechanical properties of the epoxy resins.
Table 5. Effect of the lignin type on the thermomechanical properties of the epoxy resins.
Lignin TypeLignin Content (% weight) 1Mw (g/mol) 2Dispersity 2EYoung (MPa) 3ΣBreak (MPa) 3ΕBreak (%) 3Tg (°C) 4
KLMeOH22.216102.013.8 ± 1.34.0 ± 0.7114 ± 140
KLAcetone22.225402.220.9 ± 1.65.7 ± 0.4 121 ± 144
KL22.252003.535.2 ± 9.04.1 ± 1.1 41 ± 60
West Fraser KL22.240803.817.6 ± 0.86.8 ± 0.7135 ± 130
BCD oil22.23301.431.1 ± 1.33.6 ± 0.221 ± 39
BCD oil36.43301.460.2 ± 9.66.5 ± 0.321 ± 815
1 Lignin content as the weight% of lignin in the resin. 2 Determined by GPC (Supplementary Materials S4–S6; S11–S12). 3 Calculated by tensile test. Data are the average of three test pieces ± SD. 4 Determined by DSC (Supplementary Materials S13).
