Tetrel Bonding and Other Non-Covalent Interactions Assisted Supramolecular Aggregation in a New Pb(II) Complex of an Isonicotinohydrazide

by
Ghodrat Mahmoudi
1,*,
Marjan Abedi
2,
Simon E. Lawrence
3,
Ennio Zangrando
4,
Maria G. Babashkina
5,
Axel Klein
5,*,
Antonio Frontera
6 and
Damir A. Safin
7,8,9,*
1
Department of Chemistry, Faculty of Science, University of Maragheh, Maragheh P.O. Box 55181-83111, Iran
2
Department of Chemistry, Faculty of Science, University of Mohaghegh Ardabili, Ardabil P.O. Box 56199-11367, Iran
3
School of Chemistry, Analytical and Biological Chemistry Research Facility, Synthesis and Solid State Pharmaceutical Centre, University College Cork, College Road, T12 K8AF Cork, Ireland
4
Department of Chemical and Pharmaceutical Sciences, University of Trieste, Via L. Giorgieri 1, 34127 Trieste, Italy
5
Department für Chemie, Institut für Anorganische Chemie, Universität zu Köln, Greinstraße 6, D-50939 Köln, Germany
6
Department of Chemistry, Universitat de les Illes Balears, Crta de Valldemossa km 5.7, 7122 Palma de Mallorca Baleares, Spain
7
Institute of Chemistry, University of Tyumen, Volodarskogo Str. 6, 625003 Tyumen, Russia
8
West-Siberian Interregional Scientific and Educational Center, 625003 Tyumen, Russia
9
Innovation Center for Chemical and Pharmaceutical Technologies, Ural Federal University named after the First President of Russia B.N. Eltsin, Mira Str. 19, 620002 Ekaterinburg, Russia
*
Authors to whom correspondence should be addressed.
Molecules 2020, 25(18), 4056; https://doi.org/10.3390/molecules25184056
Submission received: 14 August 2020 / Revised: 1 September 2020 / Accepted: 2 September 2020 / Published: 4 September 2020
(This article belongs to the Special Issue Synthesis and Investigation of Novel Coordination Compounds)
Browse Figures
Review Reports Versions Notes

Abstract

:
A new supramolecular Pb(II) complex [PbL(NO2)]n was synthesized from Pb(NO3)2, N’-(1-(pyridin-2-yl)ethylidene)isonicotinohydrazide (HL) and NaNO2. [PbL(NO2)]n is constructed from discrete [PbL(NO2)] units with an almost ideal N2O3 square pyramidal coordination environment around Pb(II). The ligand L− is coordinated through the 2-pyridyl N-atom, one aza N-atom, and the carbonyl O-atom. The nitrite ligand binds in a κ2-O,O coordination mode through both O-atoms. The Pb(II) center exhibits a hemidirected coordination geometry with a pronounced coordination gap, which allows a close approach of two additional N-atoms arising from the N=C(O) N-atom of an adjacent molecule and from the 4-pyridyl N-atom from the another adjacent molecule, yielding a N4O3 coordination, constructed from two Pb–N and three Pb–O covalent bonds, and two Pb⋯N tetrel bonds. Dimeric units in the structure of [PbL(NO2)]n are formed by the Pb⋯N=C(O) tetrel bonds and intermolecular electrostatically enforced π+⋯π− stacking interactions between the 2- and 4-pyridyl rings and further stabilized by C–H⋯π intermolecular interactions, formed by one of the methyl H-atoms and the 4-pyridyl ring. These dimers are embedded in a 2D network representing a simplified uninodal 3-connected fes (Shubnikov plane net) topology defined by the point symbol (4∙82). The Hirshfeld surface analysis of [PbL(NO2)] revealed that the intermolecular H⋯X (X = H, C, N, O) contacts occupy an overwhelming majority of the molecular surface of the [PbL(NO2)] coordination unit. Furthermore, the structure is characterized by intermolecular C⋯C and C⋯N interactions, corresponding to the intermolecular π⋯π stacking interactions. Notably, intermolecular Pb⋯N and, most interestingly, Pb⋯H interactions are remarkable contributors to the molecular surface of [PbL(NO2)]. While the former contacts are due to the Pb⋯N tetrel bonds, the latter contacts are mainly due to the interaction with the methyl H-atoms in the π⋯π stacked [PbL(NO2)] molecules. Molecular electrostatic potential (MEP) surface calculations showed marked electrostatic contributions to both the Pb⋯N tetrel bonds and the dimer forming π+⋯π− stacking interactions. Quantum theory of atoms in molecules (QTAIM) analyses underlined the tetrel bonding character of the Pb⋯N interactions. The manifold non-covalent interactions found in this supramolecular assembly are the result of the proper combination of the polyfunctional multidentate pyridine-hydrazide ligand and the small nitrito auxiliary ligand.

Graphical Abstract

1. Introduction

Non-covalent interactions were first recognized by J. D. van der Waals in his doctoral thesis about one and a half century ago [1]. The most prominent example for the crucial role of non-covalent interactions is probably the double helix structure of DNA [2,3]. Different types of non-covalent interactions, such as hydrogen bonding, π⋯π interaction, halogen bonding, chalcogen bonding, pnictogen bonding, tetrel bonding, (an)agostic bonding, and cation/anion⋯π interaction, can be distinguished, and their role in all areas of molecular chemistry and biology is eminent [3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23]. Amongst them, non-covalent π⋯π interactions, also called π-stacking, found between aromatic systems, are of great interest due to their broad applications [4,5,6,7,8,9,10,11,13,14,15,16,18]. Moreover, «stacking interactions» can also be addressed to aliphatic systems [14]. Notably, benzene and cyclohexane interact more efficiently (−3.01 kcal/mol) [18] than benzene (−2.758 kcal/mol) [14] and cyclohexane (−2.62 kcal/mol) [7] dimers.
On the other hand, the coordination chemistry of Pb(II) gains particular interest from the large ionic radius of this heavy p-block metal ion, its rich variety of coordination numbers from 2 up to 10, and the peculiar feature of the 6s2 lone-pair in the coordination sphere of its complexes [17,19,22,24,25,26,27,28,29,30]. This lone-pair can be stereochemically active, which is called hemidirectional or non-active, for which the term “holodirectional” was coined (Chart 1) [19,24,25,26,27,28,29,30]. The background is the observation that the electron pair on the Pb(II) atom is either stereochemically irrelevant (holodirected) or demanding space (hemidirected) [17,19].
The hemidirected coordination allows Pb(II) to participate in the formation of tetrel bonds, which are of great importance for the resulting topology of Pb(II) coordination compounds [17,19,22,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42]. Although the occurrence of hemidirected or holodirected bonding cannot be reliably predicted [19,28,29,30,31,40,41], recent work using polyfunctional multidentate ligands, such as carboxylates of 2-thiols or heterocycles [19,24,25,26,27,28], or the per se polyfunctional thiothiosemicarbazones, hydrazones, or Schiff base ligands of the salen or salan type [29,30,31,32,33,34,35,36,37,38,39,40,41,42] allowed formation of tetrel bonds. We also have recently contributed to this and have found the polyfunctional 1-(pyridin-2-yl)ethylideneisonicotinohydrazide ligand (HL, Scheme 1) extremely versatile to build up supramolecular Pb(II) complexes or coordination polymers with rich non-covalent interactions, including the reliable formation of tetrel bonding [32,38,42]. Particularly, we have studied the heteroleptic complexes and coordination compounds of the type [PbL(SCN)]n and [Pb(HL)(NCS)2]n [32], and [Pb(HL)Cl2]n [38]. From the isomeric 1-(pyridin-2-yl)ethylidenenicotinohydrazide ligand (HL’, Scheme 1) compounds of the type [Pb2(HL’)2(NO3)2(NCS)2], [PbL’(OAc)]2, {[Pb(HL’)(OAc)]ClO4}n, {[PbL’]ClO4}n·nH2O, [PbL(N3)]n and [PbL’(NO2)]n [37], and [Pb(HL’)(NO3)2]n and [PbL’(CH3O)]n [39] have been studied. We recently reported also the homoleptic complex [Pb(L’’)2] containing the N’-(4-hydroxybenzylidene)isonicotinohydrazide ligand [42].
In view of the interesting structure of the previously described nitrito nicotinohydrazide compound [Pd(L’(NO2)]n [37], we reacted a mixture of Pb(NO3)2 and 1-(pyridin-2-yl)ethylideneisonicotinohydrazide (HL) with NaNO2 and received the corresponding isonicotino isomer [PbL(NO2)]n, which turned out to have a completely different structure compared with [PbL’(NO2)]n (Scheme 1). The nature and energetic features of the two Pb∙∙∙N tetrel bonds were studied by density functional theory (DFT) and molecular electrostatic potential (MEP) calculations, which demonstrate the presence of a σ-hole at the Pb(II) ion.

2. Results and Discussion

The reaction of a mixture of Pb(NO3)2 and HL with NaNO2 in MeOH led to a new supramolecular heteroleptic coordination compound [PbL(NO2)]n (Scheme 1). The compound was isolated as a crystalline air- and moisture-stable solid that was characterized through elemental analysis, FTIR spectroscopy, single-crystal X-ray diffraction, and Hirshfeld surface analysis.
The FTIR spectrum of [PbL(NO2)]n contains characteristic bands for the C=O and C=N bonds at 1632 and 1590 cm−1, respectively. The methyl C–H fragments showed resonances at 2921 cm−1.
Compound [PbL(NO2)]n crystallized in the monoclinic space group P21/n, with one coordination unit [PbL(NO2)] in the asymmetric unit. The deprotonated L− and the nitrito NO2− ligands were covalently bound to the metal center, yielding an almost ideal N2O3 square pyramidal coordination environment around the Pb(II) atom (Figure 1), as evidenced from the so-called τ5-descriptor of about 0.08 (Table 1) [43]. The ligand L− is tridentately coordinated through the 2-pyridyl and the aza N-atoms and the carbonyl O-atom. The nitrite ligand binds in a κ2-O,O coordination mode through both O-atoms to Pb(II).
This structure is completely different from that of the previously reported nicotinohydrazide isomer [PbL’(NO2)]n [37]. In this coordination polymer, Pb(II) shows a distorted, non-octahedral six-fold coordination in which the pending 3-pyridyl N-atom bridges between two metals (Scheme 1 and Table 1).
The Pb–N bond lengths in [PbL(NO2)]n are 2.462(4) and 2.583(4) Å, with Pb–N(N) < Pb–N2-Py. The Pb–O distance with the carbonyl oxygen atom is shorter and of 2.387(3) Å. These values are in line with data from related hydrazide Pb(II) complexes [32,35,37,38,39,42]. The same bonds with the nitrite oxygen atoms differ significantly. Particularly, while one of the bonds has the same length as that formed with the carbonyl O atom, the second bond with 2.768(4) Å is the longest within the covalent bonds formed by Pb(II) in the structure of [PbL(NO2)]n.
The covalent bond distances around the Pb(II) atom in [PbL(NO2)]n are very similar to the nicotinohydrazide isomer [PbL’(NO2)]n [37], and, in both cases, the corresponding organic ligand is almost completely planar, as can be seen from the torsion angles of only about 3° between the mean planes formed by the pyridyl rings (Table 1).
The covalent bonds in the central coordination unit are markedly concentrated on one hemisphere of the coordination environment (Figure 1), representing a hemidirected coordination geometry with a pronounced coordination gap, due to the 6s2 lone pair. This allows for two additional N-atoms from adjacent molecules, the aza and the 4-pyridyl N-atoms, to approach the Pb(II) and form two Pb⋯N tetrel bonds (Figure 2). The Pb⋯N=C(O) tetrel bond (3.235(4) Å) is significantly longer than the sum of the covalent radii (2.17 Å) and shorter than the sum of van der Waals radii (3.57 Å), thus supporting its non-covalent nature. It leads to the formation of centrosymmetric dimers [PbL(NO2)]2 (Figure 2), which are further reinforced by bilateral π⋯π stacking interactions, formed between the 2- and 4-pyridyl rings (Figure 2 and Table 2). These dimers are interlinked through bilateral C–H⋯π intermolecular interactions, formed by one of the methyl H-atoms and the 4-pyridyl ring (Figure 2 and Table 3). The slightly shorter Pb⋯N4-Py tetrel bond (3.039(5) Å) leads to a supramolecular aggregation of the dimers into a 2D layer structure (Figure 3). From a topological perspective, this 2D metal–organic layer in [PbL(NO2)]n is assembled from the 3-connected Pb(II) nodes and 3-connected L linkers and can be classified as a uninodal 3-connected fes (Shubnikov plane net) [44] topology defined by the point symbol (4∙82). Thus, the overall topology of [PbL(NO2)]n is a supramolecular 3D framework, formed by multiple non-covalent interactions, such as Pb⋯N tetrel bonds, π⋯π stacking, and C–H⋯π interactions.
This stands in complete contrast to the previously reported nicotinohydrazide isomer [PbL’(NO2)]n, in which a similar Pb⋯N=C(O) tetrel bond and a very dissimilar Pb⋯ONO tetrel bond lead to dimers, which are interconnected through the Pb‒N3-Py coordinative bond, thus forming a zigzag polymeric structure and only one remarkable π⋯π stacking interaction with a centroid–centroid distance of 3.615(3) Å [37].
To further examine the intermolecular interactions in the crystal of [PbL(NO2)]n, we used a Hirshfeld surface analysis [45]. This analysis provides an excellent overview over all intermolecular interactions originating from a species, regardless of its nature. Together with the analysis of the nature of these interactions (XRD data, molecular electrostatic potential (MEP), binding energies from DFT, and quantum theory of atoms in molecules (QTAIM) calculations), it gives a complete picture, whose forces contribute to the molecular and crystal structure. The 2D fingerprint plots [46] of the basic coordination unit [PbL(NO2)] were generated, using CrystalExplorer 3.1 [47], to visualize proportions of the intermolecular interactions. Furthermore, we calculated the enrichment ratios (E) [48] of the intermolecular contacts to estimate the probability of two chemical species to be in contact.
The Hirshfeld surface analysis showed that the intermolecular H∙∙∙X (X = H, C, N, O) contacts occupy an overwhelming majority of the molecular surface of the basic coordination unit [PbL(NO2)] (Figure 4 and Table 4). The shortest H∙∙∙H contacts are shown in the corresponding 2D fingerprint plot at de + di ≈ 2.3 Å, and a clear splitting of the H∙∙∙H fingerprint was found (Figure 4), which is due to the shortest contact being between three atoms, rather than for a direct two-atom contact [45]. The H∙∙∙C contacts in the corresponding 2D plot of [PbL(NO2)] were found in the form of «wings», with the shortest being de + di ≈ 2.8 Å (Figure 4). This is characteristic for C–H⋯π type of interactions [45]. The H∙∙∙N and H∙∙∙O contacts are shown in the corresponding 2D fingerprint plots as two «horns», with the shortest being de + di ≈ 2.4–2.5 Å (Figure 4).
Furthermore, the structure of [PbL(NO2)] is also characterized through intermolecular C∙∙∙C and C∙∙∙N interactions (Figure 4) observed as the area at de = di ≈ 1.7–2.0 Å. They correspond to intermolecular π⋯π stacking interactions between the pyridyl rings. Importantly, intermolecular Pb∙∙∙N and, most interestingly, Pb∙∙∙H interactions are also remarkable contributors into the molecular surface of [PbL(NO2)]. The former contacts are shown in the corresponding 2D fingerprint plot as two sharp «spikes», with the shortest being de + di ≈ 3.0 Å (Figure 4), and correspond to the Pb⋯N tetrel bonds. The latter contacts are mainly due to the interaction with the methyl H-atoms arising from an adjacent π⋯π stacked [PbL(NO2)] unit.
The 2D plot of [PbL(NO2)] exhibits points at large de and di (Figure 4), which are similar to those observed in the 2D plots of benzene [45] and have been observed in similar compounds [49,50,51,52,53,54]. They correspond to regions without any close contacts to adjacent molecules.
The favorable H∙∙∙X (X = H, N, O, Pb) contacts in the structure of [PbL(NO2)]n show enrichment ratios EHH/HN/HO/PbH close to or even higher than unity (Table 4). The H∙∙∙C, C∙∙∙N, and N∙∙∙N contacts are much less favored, and they are consistent with smaller enrichment ratios of EHC/CN/NN = 0.82–0.87. This is explained by the presence of the highly probable C∙∙∙C (ECC = 2.45) and Pb∙∙∙N (EPbN = 3.46) contacts in the structure of the compound. Remaining contacts are discouraged with enrichment ratios ranging from 0.00 to 0.48 (Table 4).
As the Pb⋯N=C(O) tetrel bonding and the π⋯π stacking interactions are the dominating forces for the formation of the dimers in the solid state of [PbL(NO2)]n (Figure 2 and Figure 3), we further analyzed the donor–acceptor properties of the basic coordination unit [PbL(NO2)] through DFT calculations.
First, we computed the molecular electrostatic potential (MEP) surface and found the highest positive values at the Pb(II) atom (+26.7 kcal/mol) representing the σ-hole (Figure 5). The most negative part is located at the 4-pyridyl N-atom (−40.8 kcal/mol) of the ligand L−, which is more electron-richer than the nitrito N- and O-atoms (−31.4, −33.3, and −37.6 kcal/mol). Consequently, the Pb⋯N4-Py tetrel bonding interaction is the most favored contact from an electrostatic point of view in line with the observed structure, d(Pb⋯N4-Py) = 3.039(5) Å (Table 1). The second Pb⋯N=C(O) tetrel bond is much weaker (3.235(4) Å) and consistent with a significantly less negative value at the N=C(O) N-atom (−21.3 kcal/mol). From these MEP calculations, a relatively high probability of a Pb⋯ONO tetrel bond can be concluded. However, no such bond was observed in the structure of [PbL(NO2)]n. In contrast to this, in the nicotinohydrazide isomer [PbL’(NO2)]n, such a Pb⋯ONO tetrel bond was observed, although not very dominant and rather long (3.299(4) Å, Table 1).
An interesting feature of the surface is that the MEP values over the coordinated and non-coordinated pyridine ring centers represent opposite signs (Figure 5). As a consequence, they are well suited to form strong, electrostatically enforced π+⋯π– interactions [6] between the coordinated and non-coordinated pyridine rings of the L‒ ligand, in line with the dimer-promoting stacking interactions found in [PbL(NO2)]n (Figure 2 and Table 2).
The DFT-calculated binding energy of these antiparallel stacked dimers composed of electrostatically enforced π+⋯π– and Pb⋯N=C(O) tetrel interactions (Figure 6) is quite large (ΔE1 = −24.3 kcal/mol), in agreement with the MEP surface analysis. In contrast to this, the calculated interaction energy of the Pb⋯N4-Py tetrel bond is moderately strong (ΔE2 = −10.2 kcal/mol) and comparable to recently reported values [32,35]. When looking at the bond (red spheres), ring (yellow spheres), and cage (blue spheres) critical points (CPs), we found that the π+⋯π− interaction is characterized by two bond CPs that interconnect two atoms of each pyridine ring (Figure 6). The π⋯π stacking is further characterized by additional CPs that interconnect the chelate rings and more ring and cage CPs. Moreover, the two Pb⋯N=C(O) tetrel bonds are characterized by bond CPs and bond paths (Figure 6). The Pb⋯N4-Py tetrel bond contributes, together with a C‒H⋯O interaction, to the overall binding energy of entire assembly (Figure 6). The energy associated to this C–H⋯O interaction was estimated by using the kinetic energy density predictor (E = 0.5 × Vr) to 1.3 kcal/mol. The Pb⋯N4-Py tetrel bond interaction is thus significantly stronger in keeping with the quite short experimentally observed distance of 3.039(5) Å. Thus, this tetrel bond dominates this type of intermolecular interaction and drives the formation of the uninodal 3-connected fes (Shubnikov plane net) topology.

3. Materials and Methods

3.1. Reagents

All reactants were used as received, without further purification. The ligand HL was synthesized by following the available protocol [37].

3.2. Instrumentation

FTIR spectra were recorded on a Bruker Tensor 27 FTIR spectrometer (Bruker, Ettlingen, Germany). Microanalyses were performed, using a Heraeus CHN-O-Rapid analyzer (Heraeus, Hanau, Germany).

3.3. Synthesis of [PbL(NO2)]n

A solution of HL (0.024 g, 0.1 mmol) in MeOH (10 mL) was added dropwise to a solution of Pb(NO3)2 (0.033 g, 0.1 mmol), in the same solvent (10 mL). To this mixture, a solution of NaNO2 (0.014 g, 0.2 mmol) in MeOH (5 mL) was added slowly under stirring. The resulting mixture was stirred at room temperature for 30 min and was left undisturbed for slow evaporation. After about 4 days, yellow X-ray suitable single crystals were formed. Crystals were isolated by filtration. Yield: 0.038 g (78% based on Pb(NO3)2). FTIR, ν: 2921 (CH), 1632(C=O), 1590 (C=N), 1269 (NO2) cm−1. Anal. Calc. for C13H11N5O3Pb (492.46): C 31.71, H 2.25, and N 14.22; found: C 31.80, H 2.28, and N 14.18%.

3.4. Single-Crystal X-Ray Diffraction of [PbL(NO2)]n

The data were collected with a Bruker AXS SMART APEX2 CCD (Bruker, Ettlingen, Germany) diffractometer, operating at 179(2) K and using graphite monochromated Mo-Kα radiation (λ = 0.71073 Å). Cell refinement, indexing, and scaling of the datasets were performed, using the program Bruker Smart Apex and Saint packages [55]. The structure was solved by direct methods and refined by full-matrix least-squares on F2 with anisotropic displacement parameters for all non-hydrogen atoms, using the program SHELXL [56]. The H atoms were included as riding contributions with fixed isotropic displacement parameters in idealized positions. All the calculations were carried out by using the WinGX System, V2013.3 [57]. Crystal structure determination and refinement data are given in Table 5. CCDC-2014301 contains the supplementary crystallographic data for this paper (Supplementary Materials). These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected]).

3.5. DFT Calculations

Gaussian-16 package [58] was used to perform the density functional theory calculations reported herein. In particular, the PBE1PBE-D3 functional [59,60], in combination with the def2-TZVP basis set [61,62], was employed for computing the binding energies and the molecular electrostatic potential (MEP) surfaces. The crystallographic coordinates were used for the calculations. The 0.001 a.u. isosurface was used for mapping the MEP onto the van der Waals surface. The QTAIM analysis [63] was carried out at the same level of theory and using the program AIMAll [64].

4. Conclusions

A new supramolecular Pb(II) coordination compound [PbL(NO2)]n was synthesized through treating a mixture of Pb(NO3)2 and N’-(1-(pyridin-2-yl)ethylidene)isonicotinohydrazide (HL) with NaNO2. The yellow material is composed of discrete mononuclear heteroleptic [PbL(NO2)] coordination units containing the tridentate N^N^O binding deprotonated ligand L− and a κ2-O,O binding nitrito NO2− ligand. Pb(II) exhibits a hemidirected coordination geometry with a pronounced coordination gap. This allows two Pb⋯N=C(O) tetrel bonds of the uncoordinated N-atoms of two symmetry related [PbL(NO2)] molecules forming pronounced dimers in the crystal and Pb⋯N4-Py tetrel bonds to the pending 4-pyridyl group forming a 2D network representing a simplified uninodal 3-connected fes (Shubnikov plane net) topology defined by the point symbol (4∙82). Thus, Pb(II) is in a N4O3 coordination environment, formed by two covalent Pb–N, three covalent Pb–O bonds, and two Pb⋯N tetrel bonds. The Pb⋯N tetrel bonds in the crystal packing of [PbL(NO2)]n are further reinforced by bilateral intermolecular π⋯π stacking interactions, formed between the 2- and 4-p.

Supplementary Materials

The following are available online. The cif and checkcif files.

Author Contributions

Conceptualization, G.M. and D.A.S.; methodology, M.A.; software, S.E.L., E.Z., and A.F.; investigation, all authors; resources, M.A. and A.K.; data curation, E.Z.; writing—original draft preparation, D.A.S., A.F., and M.G.B.; writing—review and editing, D.A.S., M.G.B., and A.K.; visualization, D.A.S. and A.K.; supervision, G.M.; project administration, G.M. and D.A.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the MICIU/AEI of Spain (project CTQ2017-85821-R FEDER funds) and by the Science Foundation Ireland, under grant no. 05/PICA/B802/EC07.

Acknowledgments

G.M. thanks the University of Maragheh for the financial support of this research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Van der Waals, J.D. Over de Continuiteit van den Gas-en Vloiestoftoestand. Ph.D. Thesis, University of Leiden, Leiden, The Netherlands, 1873. [Google Scholar]
  2. Watson, J.D.; Crick, F.H.C. Molecular Structure of Nucleic Acids: A Structure for Deoxyribose Nucleic Acid. Nature 1953, 171, 737–738. [Google Scholar] [CrossRef] [PubMed]
  3. Scheiner, S. New ideas from old concepts: The hydrogen bond. Biochemist 2019, 41, 6–9. [Google Scholar] [CrossRef] [Green Version]
  4. Hobza, P.; Zahradník, R. Intermolecular Interactions between Medium-Sized Systems. Nonempirical and Empirical Calculations of Interaction Energies: Successes and Failures. Chem. Rev. 1988, 88, 871–897. [Google Scholar] [CrossRef]
  5. Müller-Dethlefs, K.; Hobza, P. Noncovalent Interactions:  A Challenge for Experiment and Theory. Chem. Rev. 2000, 100, 143–168. [Google Scholar] [CrossRef]
  6. Janiak, C. A critical account on π–π stacking in metal complexes with aromatic nitrogen-containing ligands. J. Chem. Soc. Dalton Trans. 2000, 3885–3896. [Google Scholar] [CrossRef]
  7. Ran, J.; Wong, M.W. Saturated Hydrocarbon−Benzene Complexes:  Theoretical Study of Cooperative CH/π Interactions. J. Phys. Chem. A 2006, 110, 9702–9709. [Google Scholar] [CrossRef]
  8. Hobza, P.; Zahradník, R.; Müller-Dethlefs, K. The World of Non-Covalent Interactions: 2006. Collect. Czech. Chem. Commun. 2006, 71, 443–531. [Google Scholar] [CrossRef] [Green Version]
  9. Riley, K.E.; Pitoňak, M.; Jurećka, P.; Hobza, P. Stabilization and Structure Calculations for Noncovalent Interactions in Extended Molecular Systems Based on Wave Function and Density Functional Theories. Chem. Rev. 2010, 110, 5023–5063. [Google Scholar] [CrossRef]
  10. Kim, K.S.; Karthikeyan, S.; Singh, N.J. How Different Are Aromatic π Interactions from Aliphatic π Interactions and Non-π Stacking Interactions? J. Chem. Theory Comput. 2011, 7, 3471–3477. [Google Scholar] [CrossRef]
  11. Salonen, L.M.; Ellermann, M.; Diederich, F. Aromatic Rings in Chemical and Biological Recognition: Energetics and Structures. Angew. Chem. Int. Ed. 2011, 50, 4808–4842. [Google Scholar] [CrossRef]
  12. Riley, K.E.; Hobza, P. On the Importance and Origin of Aromatic Interactions in Chemistry and Biodisciplines. Acc. Chem. Res. 2013, 46, 927–936. [Google Scholar] [CrossRef] [PubMed]
  13. Wheeler, S.E. Understanding Substituent Effects in Noncovalent Interactions Involving Aromatic Rings. Acc. Chem. Res. 2013, 46, 1029–1038. [Google Scholar] [CrossRef] [PubMed]
  14. Mahadevi, A.S.; Sastry, G.N. Cooperativity in Noncovalent Interactions. Chem. Rev. 2016, 116, 2775–2825. [Google Scholar] [CrossRef] [PubMed]
  15. Řezáč, J.; Hobza, P. Benchmark Calculations of Interaction Energies in Noncovalent Complexes and Their Applications. Chem. Rev. 2016, 116, 5038–5071. [Google Scholar] [CrossRef]
  16. Biedermann, F.; Schneider, H.-J. Experimental Binding Energies in Supramolecular Complexes. Chem. Rev. 2016, 116, 5216–5300. [Google Scholar] [CrossRef]
  17. Bauzá, A.; Mooibroek, T.J.; Frontera, A. Tetrel Bonding Interactions. Chem. Rec. 2016, 16, 473–487. [Google Scholar] [CrossRef]
  18. Thakuria, R.; Nath, N.K.; Saha, B.K. The Nature and Applications of π–π Interactions: A Perspective. Cryst. Growth Des. 2019, 19, 523–528. [Google Scholar] [CrossRef]
  19. Bauzá, A.; Seth, S.K.; Frontera, A. Tetrel bonding interactions at work: Impact on tin and lead coordination compounds. Coord. Chem. Rev. 2019, 384, 107–125. [Google Scholar] [CrossRef]
  20. Silvi, B.; Alikhani, E.; Ratajczak, H. Towards an unified chemical model of secondary bonding. J. Mol. Model. 2020, 26, 62. [Google Scholar] [CrossRef]
  21. Scheiner, S.; Michalczyk, M.; Zierkiewicz, W. Coordination of anions by noncovalently bonded σ-hole ligands. Coord. Chem. Rev. 2020, 405, 213136. [Google Scholar] [CrossRef]
  22. Alkorta, I.; Elguero, J.; Frontera, A. Not Only Hydrogen Bonds: Other Noncovalent Interactions. Crystals 2020, 10, 180. [Google Scholar] [CrossRef] [Green Version]
  23. Gomilla, R.M.; Frontera, A. Charge assisted halogen and pnictogen bonds: Insights from the Cambridge Structural Database and DFT calculations. CrystEngComm 2020. [Google Scholar] [CrossRef]
  24. Zhao, Y.H.; Xu, H.B.; Fu, Y.M.; Shao, K.Z.; Yang, S.Y.; Su, Z.M.; Hao, X.R.; Zhu, D.X.; Wang, E.B. A Series of Lead(II)-Organic Frameworks Based on Pyridyl Carboxylate Acid N-Oxide Derivatives: Syntheses, Structures, and Luminescent Properties. Cryst. Growth Des. 2008, 8, 3566–3576. [Google Scholar] [CrossRef]
  25. Wang, X.L.; Chen, Y.Q.; Gao, Q.; Lin, H.Y.; Liu, G.C.; Zhang, J.X.; Tian, A.X. Coordination Behavior of 5,6-Substituted 1,10-Phenanthroline Derivatives and Structural Diversities by Coligands in the Construction of Lead(II) Complexes. Cryst. Growth Des. 2010, 10, 2174–2184. [Google Scholar] [CrossRef]
  26. Wibowo, A.C.; Vaughn, S.A.; Smith, M.D.; zur Loye, H.C. Novel Bismuth and Lead Coordination Polymers Synthesized with Pyridine-2,5-Dicarboxylates: Two Single Component “White” Light Emitting Phosphors. Inorg. Chem. 2010, 49, 11001–11008. [Google Scholar] [CrossRef]
  27. He, J.; Zeller, M.; Hunter, A.D.; Xu, Z. White Light Emission and Second Harmonic Generation from Secondary Group Participation (SGP) in a Coordination Network. J. Am. Chem. Soc. 2012, 134, 1553–1559. [Google Scholar] [CrossRef]
  28. Imran, M.; Mix, A.; Neumann, B.; Stammler, H.G.; Monkowius, U.; Gründlinger, P.; Mitzel, N.W. Hemi- and holo-directed lead(II) complexes in a soft ligand environment. Dalton Trans. 2015, 44, 924–937. [Google Scholar] [CrossRef]
  29. Mirdya, S.; Roy, S.; Chatterjee, S.; Bauzá, A.; Frontera, A.; Chattopadhyay, S. Importance of π-Interactions Involving Chelate Rings in Addition to the Tetrel Bonds in Crystal Engineering: A Combined Experimental and Theoretical Study on a Series of Hemi- and Holodirected Nickel(II)/Lead(II) Complexes. Cryst. Growth Des. 2019, 19, 5869–5881. [Google Scholar] [CrossRef]
  30. Mirdya, S.; Banerjee, S.; Chattopadhyay, S. An insight into the non-covalent Pb⋯S and S⋯S interactions in the solid-state structure of a hemidirected lead(II) complex. Cryst. Eng. Comm. 2020, 22, 237–247. [Google Scholar] [CrossRef]
  31. Tan, Y.-X.; Meng, F.-Y.; Wu, M.-C.; Zeng, M.-H. Two Pb(II) dicarboxylates constructed by rigid terephthalate or flexible D(+)-camphorate with different 3D motif based on cooperative effect of steric hindrance of ligand and lone pair electrons. J. Mol. Struct. 2009, 928, 176–181. [Google Scholar] [CrossRef]
  32. Servati, G.M.; Stilinović, V.; Bauzá, A.; Frontera, A.; McArdle, P.; Van Derveer, D.; Ng, S.W.; Mahmoudi, G. Design of Lead(II) Metal-Organic Frameworks Based on Covalent and Tetrel Bonding. Chem. Eur. J. 2015, 21, 17951–17958. [Google Scholar] [CrossRef] [PubMed]
  33. Mahmoudi, G.; Bauzá, A.; Frontera, A.; Garczarek, P.; Stilinović, V.; Kirillov, A.M.; Kennedy, A.; Ruiz-Pérez, C. Metal–organic and supramolecular lead(II) networks assembled from isomeric nicotinoylhydrazone blocks: The effects of ligand geometry and counter-ion on topology and supramolecular assembly. CrystEngComm 2016, 18, 5375–5385. [Google Scholar] [CrossRef] [Green Version]
  34. Mahmoudi, G.; Bauzá, A.; Frontera, A. Concurrent agostic and tetrel bonding interactions in lead(II) complexes with an isonicotinohydrazide based ligand and several anions. Dalton Trans. 2016, 45, 4965–4969. [Google Scholar] [CrossRef]
  35. Mahmoudi, G.; Bauza, A.; Amini, M.; Molins, E.; Mague, J.T.; Frontera, A. On the importance of tetrel bonding interactions in lead(II) complexes with (iso)nicotinohydrazide based ligands and several anions. Dalton Trans. 2016, 45, 10708–10716. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Mahmoudi, G.; Dey, L.; Chowdhury, H.; Bauzá, A.; Ghosh, B.K.; Kirillov, A.M.; Seth, S.K.; Gurbanov, A.V.; Frontera, A. Synthesis and crystal structures of three new lead(II) isonicotinoylhydrazone derivatives: Anion controlled nuclearity and dimensionality. Inorg. Chim. Acta 2017, 461, 192–205. [Google Scholar] [CrossRef]
  37. Mahmoudi, G.; Safin, D.A.; Mitoraj, M.P.; Amini, M.; Kubicki, M.; Doert, T.; Locherere, F.; Fleck, M. Anion-driven tetrel bond-induced engineering of lead(II) architectures with N′-(1-(2-pyridyl)ethylidene)nicotinohydrazide: Experimental and theoretical findings. Inorg. Chem. Front. 2017, 4, 171–182. [Google Scholar] [CrossRef] [Green Version]
  38. Mahmoudi, G.; Gurbanov, A.V.; Hemida, S.R.; Corballo, R.; Amini, M.; Bacchi, A.; Mitoraj, M.P.; Sagan, F.; Kukulka, M.; Safin, D.A. Ligand-Driven Coordination Sphere-Induced Engineering of Hybride Materials Constructed from PbCl2 and Bis-Pyridyl Organic Linkers for Single-Component Light-Emitting Phosphors. Inorg. Chem. 2017, 56, 9698–9709. [Google Scholar] [CrossRef] [PubMed]
  39. Mahmoudi, G.; Zangrando, E.; Mitoraj, M.P.; Gurbanov, A.V.; Zubkov, F.I.; Moosavifar, M.; Konyaeva, I.A.; Kirillov, A.M.; Safin, D.A. Extended lead(II) architectures engineered via tetrel bonding interactions. New J. Chem. 2018, 42, 4959–4971. [Google Scholar] [CrossRef]
  40. Seth, S.K.; Bauzá, A.; Mahmoudi, G.; Stilinović, V.; López-Torres, E.; Zaragoza, G.; Keramidas, A.D.; Frontera, A. On the importance of Pb⋯X (X = O, N, S, Br) tetrel bonding interactions in a series of tetra- and hexa-coordinated Pb(II) compounds. CrystEngComm 2018, 20, 5033–5044. [Google Scholar] [CrossRef]
  41. Afkhami, F.A.; Mahmoudi, G.; Qu, F.; Gupta, A.; Köse, M.; Zangrando, E.; Zubkov, F.I.; Alkorta, I.; Safin, D.A. Supramolecular lead(II) architectures engineered by tetrel bonds. CrystEngComm 2020, 22, 2389–2396. [Google Scholar] [CrossRef]
  42. Afkhami, F.A.; Mahmoudi, G.; Qu, F.; Gupta, A.; Zangrando, E.; Frontera, A.; Safin, D.A. Supramolecular architecture constructed from the hemidirected lead(II) complex with N’-(4-hydroxybenzylidene)isonicotinohydrazide. Inorg. Chim. Acta 2020, 502, 119350. [Google Scholar] [CrossRef]
  43. Addison, A.W.; Nageswara, R.T.; Reedijk, J.; Van Rijn, J.; Verschoor, G.J. Synthesis, structure, and spectroscopic properties of copper(II) compounds containing nitrogen–sulphur donor ligands; the crystal and molecular structure of aqua[1,7-bis(N-methylbenzimidazol-2′-yl)-2,6-dithiaheptane]copper(II) perchlorate. J. Chem. Soc. Dalton Trans. 1984, 1349–1356. [Google Scholar] [CrossRef]
  44. Stroz, K. Plane groups—From basic to advanced crystallographic concepts. Z. Kristallogr. 2003, 218, 642–649. [Google Scholar]
  45. Spackman, M.A.; Jayatilaka, D. Hirshfeld surface analysis. CrystEngComm 2009, 11, 19–32. [Google Scholar] [CrossRef]
  46. Spackman, M.A.; McKinnon, J.J. Fingerprinting intermolecular interactions in molecular crystals. CrystEngComm 2002, 4, 378–392. [Google Scholar] [CrossRef]
  47. Wolff, S.K.; Grimwood, D.J.; McKinnon, J.J.; Turner, M.J.; Jayatilaka, D.; Spackman, M.A. CrystalExplorer 3.1; University of Western Australia: Crawley, WA, Australia, 2012. [Google Scholar]
  48. Jelsch, C.; Ejsmont, K.; Huder, L. The enrichment ratio of atomic contacts in crystals, an indicator derived from the Hirshfeld surface analysis. IUCrJ 2014, 1, 119–128. [Google Scholar] [CrossRef]
  49. Safin, D.A.; Mitoraj, M.P.; Robeyns, K.; Filinchuk, Y.; Vande Velde, C.M.L. Luminescent mononuclear mixed ligand complexes of copper(I) with 5-phenyl-2,2′-bipyridine and triphenylphosphine. Dalton Trans. 2015, 44, 16824–16832. [Google Scholar] [CrossRef]
  50. Babashkina, M.G.; Robeyns, K.; Filinchuk, Y.; Safin, D.A. Detailed studies of the interaction of 3-chloroaniline with O,O′-diphenylphosphorylisothiocyanate. New J. Chem. 2016, 40, 1230–1236. [Google Scholar] [CrossRef]
  51. Safin, D.A.; Vande Velde, C.M.L.; Babashkina, M.G.; Robeyns, K.; Filinchuk, Y. Mononuclear heteroleptic complexes of copper(I) with 5-phenyl-2,2′-bipyridine and triphenylphosphine: Crystal structures, Hirshfeld surface analysis and luminescence properties. New J. Chem. 2016, 40, 6156–6163. [Google Scholar] [CrossRef]
  52. Safin, D.A.; Robeyns, K.; Babashkina, M.G.; Filinchuk, Y.; Rotaru, A.; Jureschi, C.; Mitoraj, M.P.; Hooper, J.; Brela, M.; Garcia, Y. Polymorphism driven optical properties of an anil dye. CrystEngComm 2016, 18, 7249–7259. [Google Scholar] [CrossRef]
  53. Safin, D.A.; Robeyns, K.; Garcia, Y. 1,2,4-Triazole-based molecular switches: Crystal structures, Hirshfeld surface analysis and optical properties. CrystEngComm 2016, 18, 7284–7296. [Google Scholar] [CrossRef]
  54. Safin, D.A.; Babashkina, M.G.; Mitoraj, M.P.; Kubisiak, P.; Robeyns, K.; Bolte, M.; Garcia, Y. An intermolecular pyrene excimer in the pyrene-labeled N-thiophosphorylated thiourea and its nickel(II) complex. Inorg. Chem. Front. 2016, 3, 1419–1431. [Google Scholar] [CrossRef]
  55. APEX3, SAINT; v6.28A; Bruker AXS Inc.: Madison, WI, USA, 2016.
  56. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  57. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Cryst. 2012, 45, 849–854. [Google Scholar] [CrossRef]
  58. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision A.03; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  59. Adamo, C.; Barone, V. Toward reliable density functional methods without adjustable parameters: The PBE0 model. J. Chem. Phys. 1999, 110, 6158–6169. [Google Scholar] [CrossRef]
  60. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A dispersion correction for density functionals, Hartree-Fock and semi-empirical quantum chemical methods DFT-D3. J. Chem. Phys. 2010, 132, 154104. [Google Scholar] [CrossRef] [Green Version]
  61. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef]
  62. Weigend, F. Accurate Coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 2006, 8, 1057–1065. [Google Scholar] [CrossRef]
  63. Bader, R.F.W. A quantum theory of molecular structure and its applications. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  64. Keith, T.A. AIMAll; Version 19.10.12; TK Gristmill Software: Overland Park, KS, USA, 2019. [Google Scholar]
Sample Availability: Samples of the compound [PbL(NO2)]n are available from the authors.
Molecules 25 04056 ch001 550
Chart 1. Simplified diagram for holodirected and hemidirected coordination spheres around Pb(II).
Chart 1. Simplified diagram for holodirected and hemidirected coordination spheres around Pb(II).
Molecules 25 04056 ch001
Molecules 25 04056 sch001 550

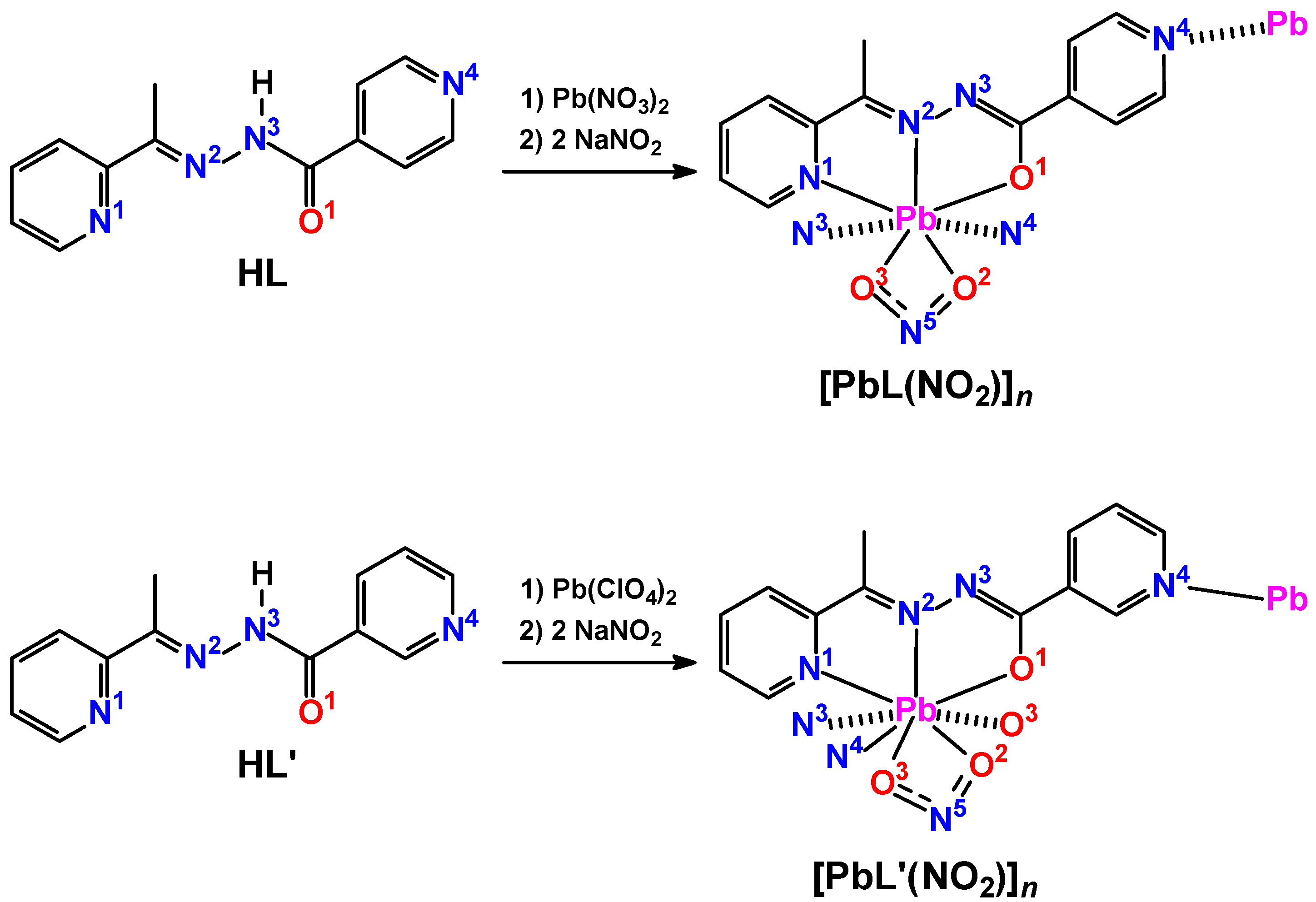

Scheme 1. Syntheses of [PbL(NO2)]n (this work) and [PbL’(NO2)]n [37] (tetrel bonds shown as dashed lines).
Scheme 1. Syntheses of [PbL(NO2)]n (this work) and [PbL’(NO2)]n [37] (tetrel bonds shown as dashed lines).
Molecules 25 04056 sch001
Molecules 25 04056 g001 550

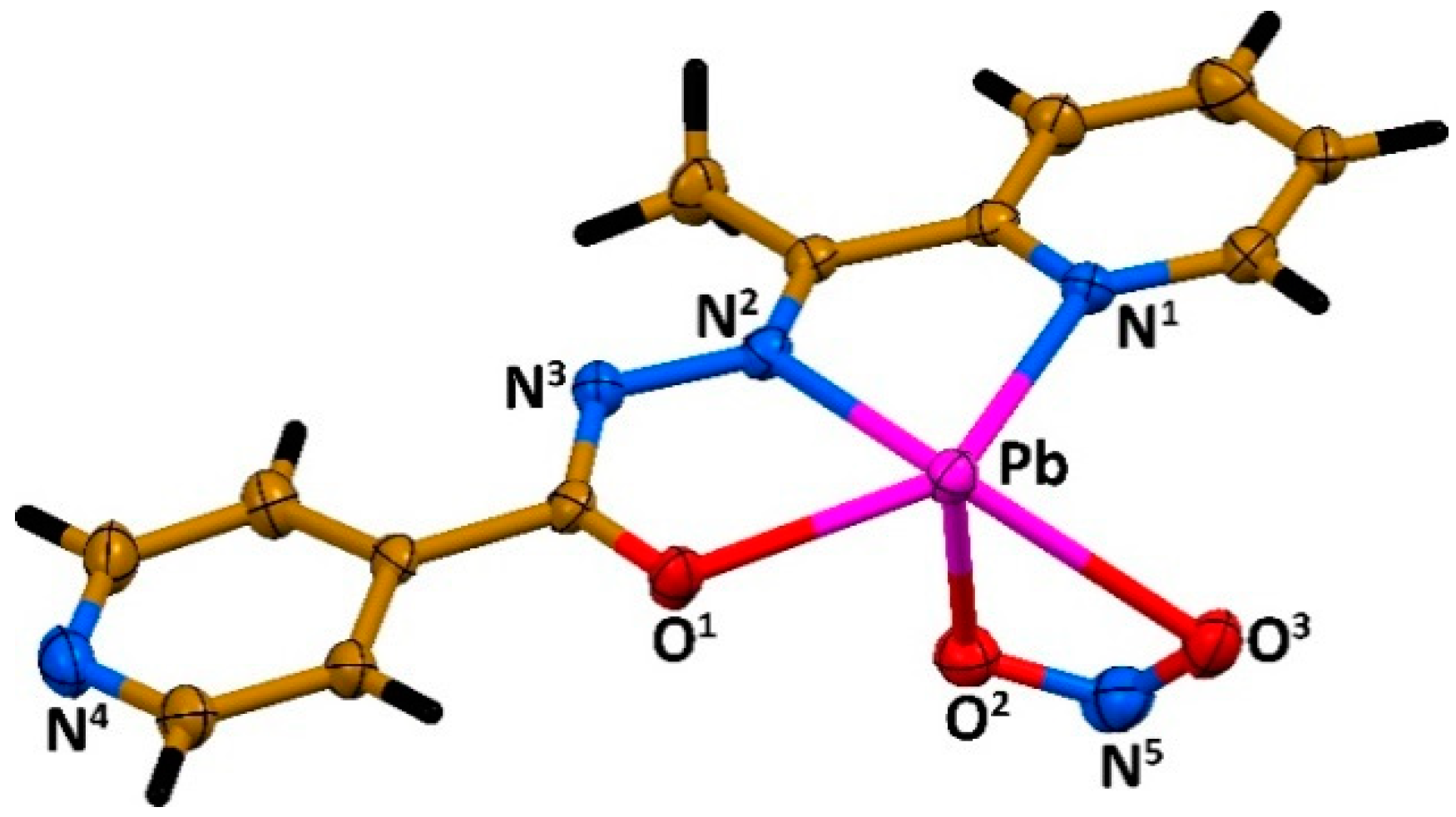

Figure 1. Molecular structure of the [PbL(NO2)] unit in the structure of [PbL(NO2)]n (ellipsoids are drawn at 50% probability level). Color code: H = black, C = gold, N = blue, O = red, and Pb = magenta.
Figure 1. Molecular structure of the [PbL(NO2)] unit in the structure of [PbL(NO2)]n (ellipsoids are drawn at 50% probability level). Color code: H = black, C = gold, N = blue, O = red, and Pb = magenta.
Molecules 25 04056 g001
Molecules 25 04056 g002 550
Figure 2. View on a 1D supramolecular chain in the structure of [PbL(NO2)]n, formed through Pb⋯N=C(O) tetrel bonds, π⋯π stacking, and C–H⋯π interactions (ellipsoids are drawn at 50% probability level). Color code: H = black, C = gold, N = blue, O = red, and Pb = magenta; cyan dashed line = Pb⋯N tetrel bond, yellow dashed line = π⋯π stacking interaction, and gray dashed line = C–H⋯π interaction.
Figure 2. View on a 1D supramolecular chain in the structure of [PbL(NO2)]n, formed through Pb⋯N=C(O) tetrel bonds, π⋯π stacking, and C–H⋯π interactions (ellipsoids are drawn at 50% probability level). Color code: H = black, C = gold, N = blue, O = red, and Pb = magenta; cyan dashed line = Pb⋯N tetrel bond, yellow dashed line = π⋯π stacking interaction, and gray dashed line = C–H⋯π interaction.
Molecules 25 04056 g002
Molecules 25 04056 g003 550

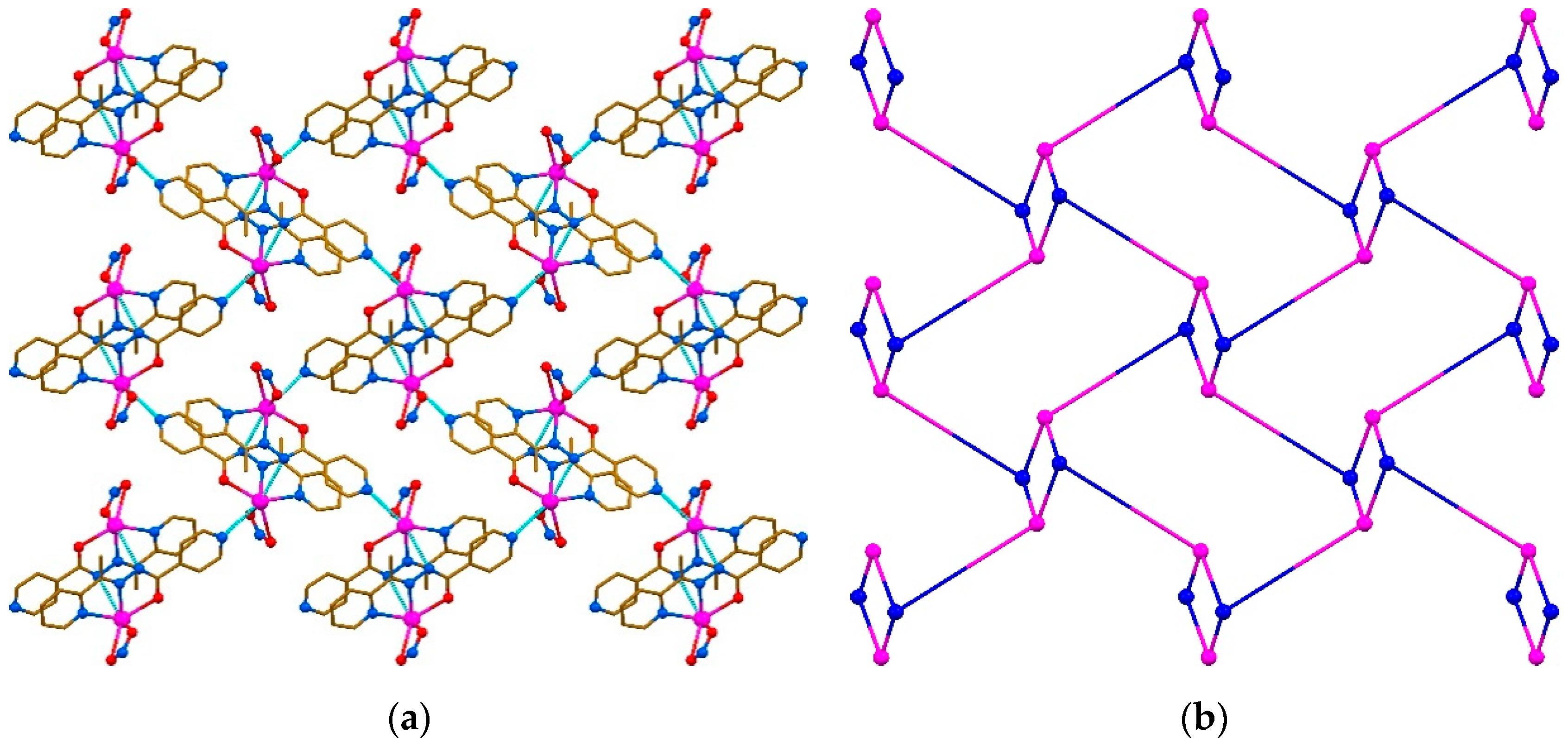

Figure 3. (a) View on the 2D supramolecular layer in the structure of [PbL(NO2)]n, formed through Pb⋯N=C(O) and Pb⋯N4-Py tetrel bonds (H-atoms were omitted for clarity). Color code: C = gold, N = blue, O = red, and Pb = magenta; cyan dashed line = Pb⋯N tetrel bond. (b) Simplified underlying network of [PbL(NO2)]n, considering all Pb⋯N tetrel bonds, with the uninodal 3-connected fes (Shubnikov plane net) topology defined by the point symbol of (4∙82). Color code: Pb = magenta, and L = blue.
Figure 3. (a) View on the 2D supramolecular layer in the structure of [PbL(NO2)]n, formed through Pb⋯N=C(O) and Pb⋯N4-Py tetrel bonds (H-atoms were omitted for clarity). Color code: C = gold, N = blue, O = red, and Pb = magenta; cyan dashed line = Pb⋯N tetrel bond. (b) Simplified underlying network of [PbL(NO2)]n, considering all Pb⋯N tetrel bonds, with the uninodal 3-connected fes (Shubnikov plane net) topology defined by the point symbol of (4∙82). Color code: Pb = magenta, and L = blue.
Molecules 25 04056 g003
Molecules 25 04056 g004 550

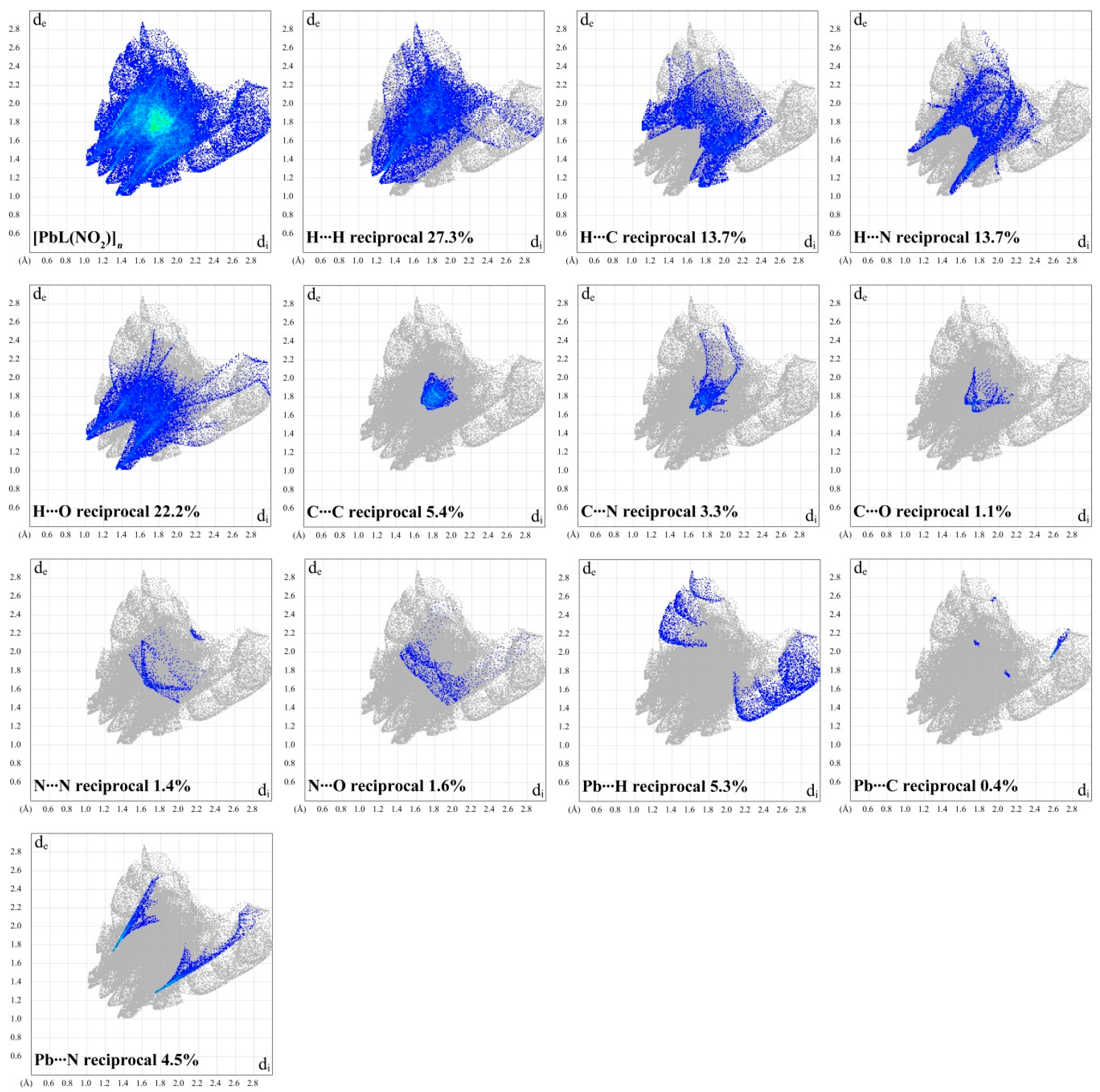

Figure 4. Two-dimensional and decomposed 2D fingerprint plots of observed contacts for [PbL(NO2)]n. The di value is the distance from the surface to the nearest atom interior to the surface, and de is the distance from the surface to the nearest atom exterior to the surface. Color code: blue = a fraction of the surface points of the corresponding contact.
Figure 4. Two-dimensional and decomposed 2D fingerprint plots of observed contacts for [PbL(NO2)]n. The di value is the distance from the surface to the nearest atom interior to the surface, and de is the distance from the surface to the nearest atom exterior to the surface. Color code: blue = a fraction of the surface points of the corresponding contact.
Molecules 25 04056 g004
Molecules 25 04056 g005 550

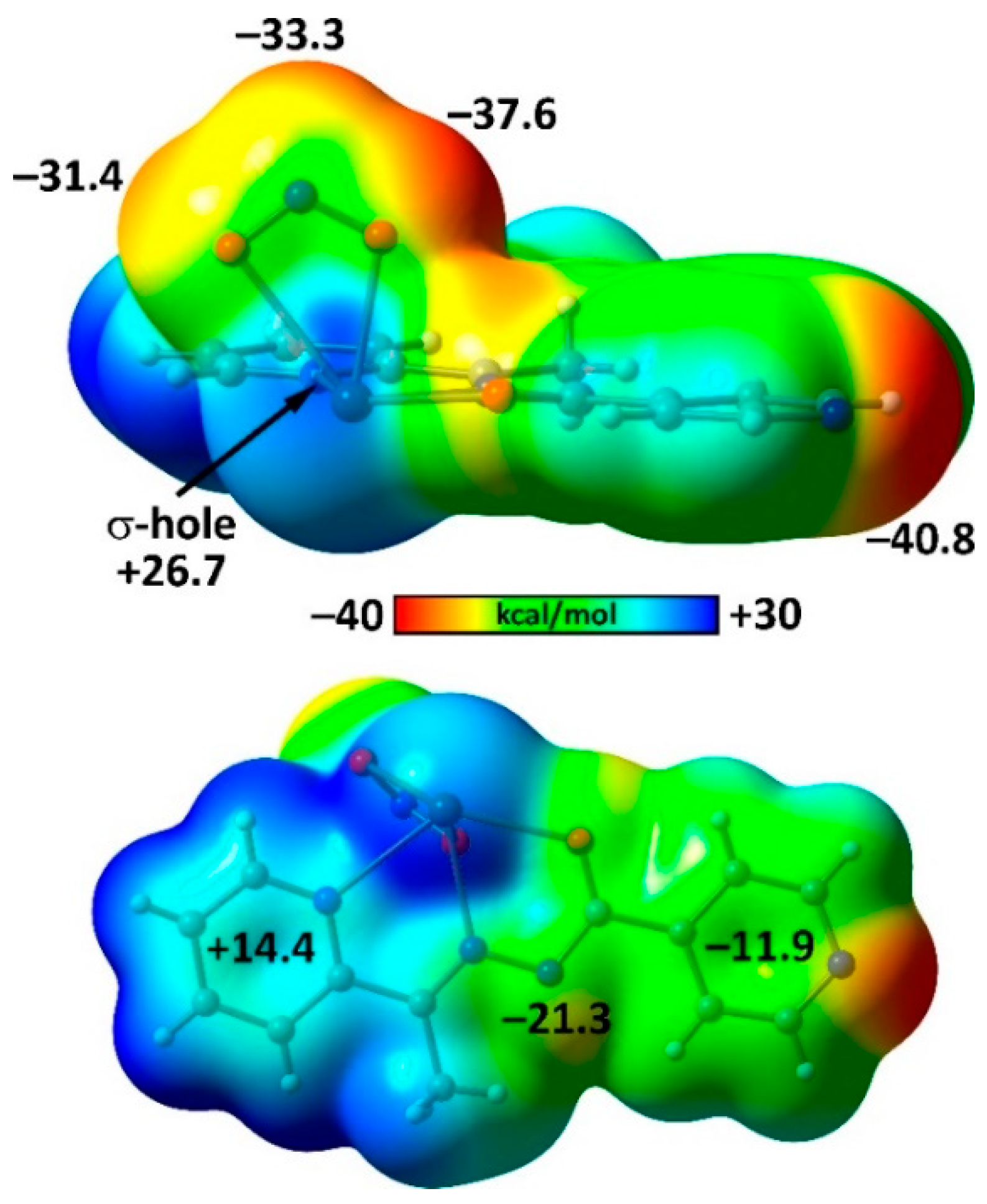

Figure 5. Two views of the molecular electrostatic potential (MEP) surface of [PbL(NO2)] (isosurface 0.001 a.u.). The blue color is used for positive MEP values, and the red color for negative values, as indicated in the legend.
Figure 5. Two views of the molecular electrostatic potential (MEP) surface of [PbL(NO2)] (isosurface 0.001 a.u.). The blue color is used for positive MEP values, and the red color for negative values, as indicated in the legend.
Molecules 25 04056 g005
Molecules 25 04056 g006 550
Figure 6. Quantum theory of atoms in molecules (QTAIM) analysis of (a) the antiparallel stacking dimer in [PbL(NO2)]n as a combination of the Pb⋯N=C(O) tetrel bonds and π+⋯π− interactions and (b) of two basic coordination units in [PbL(NO2)]n forming a Pb⋯N4-Py tetrel bond and C–H⋯O bridging interaction. Bond, ring, and cage critical points are represented by red, yellow, and blue spheres, respectively. Bond paths connecting bond critical points are represented by dashed lines. ΔE = accumulated dimerization energies. ρ(r) = densities at the bond critical points.
Figure 6. Quantum theory of atoms in molecules (QTAIM) analysis of (a) the antiparallel stacking dimer in [PbL(NO2)]n as a combination of the Pb⋯N=C(O) tetrel bonds and π+⋯π− interactions and (b) of two basic coordination units in [PbL(NO2)]n forming a Pb⋯N4-Py tetrel bond and C–H⋯O bridging interaction. Bond, ring, and cage critical points are represented by red, yellow, and blue spheres, respectively. Bond paths connecting bond critical points are represented by dashed lines. ΔE = accumulated dimerization energies. ρ(r) = densities at the bond critical points.
Molecules 25 04056 g006
Table
Table 1. Selected bond lengths (Å) and bond and torsion angles (°) in the structures of [PbL(NO2)]n and [PbL’(NO2)]n a.
Table 1. Selected bond lengths (Å) and bond and torsion angles (°) in the structures of [PbL(NO2)]n and [PbL’(NO2)]n a.
[PbL(NO2)]n (This Work)[PbL’(NO2)]n [37]
Bond lengths (Å)
Pb–N1 (L/L’)2.583(4) (covalent)2.535(5) (covalent)
Pb–N2 (L/L’)2.462(4) (covalent)2.452(4) (covalent)
Pb∙∙∙N3 (L/L’)3.235(4) (tetrel)3.258(4) (tetrel)
Pb∙∙∙N4 (L/L’)3.039(5) (tetrel)2.752(5) (covalent)
Pb–O1 (L/L’)2.387(3) (covalent)2.384(5) (covalent)
Pb–O2 (NO2)2.387(4) (covalent)2.547(4) (covalent), 3.299(4) (tetrel)
Pb–O3 (NO2)2.768(4) (covalent)2.904(5) (covalent)
Bond angles (°)
O1–Pb–O282.35(13)79.90(14)
O1–Pb–O3124.07(13)114.84(15)
O1–Pb–N1128.82(12)130.02(14)
O1–Pb–N265.50(12)65.51(14)
O1–Pb–N4–91.30(14)
O2–Pb–O347.63(14)44.26(14)
O2–Pb–N178.05(13)81.12(14)
O2–Pb–N275.04(13)70.61(14)
O2–Pb–N4–148.15(13)
O3–Pb–N170.93(12)79.40(16)
O3–Pb–N2112.30(13)109.41(14)
O3–Pb–N4–153.72(15)
N1–Pb–N263.90(13)64.62(14)
N1–Pb–N4–81.49(14)
N2–Pb–N4–77.86(13)
Torsion angles (°)
2-Py⋯4-/3-Py3.5(3)3.0(3)
aHL’ = N’-(1-(pyridin-2-yl)ethylidene)nicotinohydrazide.
Table
Table 2. π⋯π inter-ring distances (Å) and angles (°) for [PbL(NO2)]n a.
Table 2. π⋯π inter-ring distances (Å) and angles (°) for [PbL(NO2)]n a.
Cg(I)Cg(J)d[Cg(I)⋯Cg(J)]αβγSlippageSymmetry Transformation
2-Py4-Py3.544(3)3.5(3)19.718.11.1942 − x, 2 −y, 1 − z
4-Py2-Py3.544(3)3.5(3)18.119.71.1002 − x, 2 − y, 1 − z
a Cg(I)⋯Cg(J): distance between ring centroids of the 2-Py and 4-Py rings of the ligand L; α: dihedral angle between planes Cg(I) and Cg(J); β: angle Cg(I) → Cg(J) vector and normal to plane I; γ: angle Cg(I) → Cg(J) vector and normal to plane J; slippage: distance between Cg(I) and perpendicular projection of Cg(J) on ring I.
Table
Table 3. C–H⋯π ring interactions distances (Å) and angles (°) for [PbL(NO2)]n a.
Table 3. C–H⋯π ring interactions distances (Å) and angles (°) for [PbL(NO2)]n a.
C–H(I)d[C–H(I)]Cg(J)d[H(I)⋯Cg(J)]d[C⋯Cg(J)]∠ [CH(I)⋯Cg(J)]Symmetry Transformation
C7–H7B0.984-Py2.813.657(6)1451 – x, 2 – y, 1 – z
a H(I)⋯Cg(J): distance between the H(I) atom and ring centroid of the 4-Py ring of the ligand L; C⋯Cg(J): distance between the C atom and ring centroid; [CH(I)⋯Cg(J)]: angle between the bond C–H(I) and plane Cg(J).
Table
Table 4. Hirshfeld contact surfaces and derived “random contacts” and “enrichment ratios” for [PbL(NO2)]n a.
Table 4. Hirshfeld contact surfaces and derived “random contacts” and “enrichment ratios” for [PbL(NO2)]n a.
HCNOPb
Contacts (C, %)
H27.3––––
C13.75.4–––
N13.73.31.4––
O22.21.11.60.0–
Pb5.30.44.50.00.0
Surface (S, %)
54.814.713.012.55.1
Random contacts (R, %)
H30.0––––
C16.12.2–––
N14.23.81.7––
O13.73.73.31.6–
Pb5.61.51.31.30.3
Enrichment (E) b
H0.91––––
C0.852.45–––
N0.960.870.82––
O1.620.300.480.00–
Pb0.950.273.460.00–
a Values were obtained by using CrystalExplorer 3.1 [47]. b The “enrichment ratios” were not computed when the “random contacts” were lower than 0.9%, as they are not meaningful [48].
Table
Table 5. Crystallographic data for [PbL(NO2)]n.
Table 5. Crystallographic data for [PbL(NO2)]n.
Parameter[PbL(NO2)]n
Chemical formulaC13H11N5O3Pb
Formula weight492.46
Crystal systemmonoclinic
Space groupP21/n
a (Å)8.1660(11)
b (Å)13.2850(17)
c (Å)13.7842(18)
β (°)92.860(4)
V (Å3)1493.5(3)
Z4
Dcalc (g/cm3)2.190
μ(Mo-Kα) (mm−1)11.316
F(000)920
θ range (°)2.13–27.32
Reflections collected18486
No. of unique data3318
Rint0.0505
Observed data [I > 2σ(I)]2666
Parameters refined200
Goodness of fit (F2)1.033
R1 [I > 2σ(I)] 10.0288
wR2 [I > 2σ(I)] 20.0625
1R1 = Σ(||Fo| − |Fc||)/Σ|Fo|, 2 wR2 = [Σw(Fo2 − Fc2)2/Σw Fo2)2]1/2.

Share and Cite

MDPI and ACS Style

Mahmoudi, G.; Abedi, M.; Lawrence, S.E.; Zangrando, E.; Babashkina, M.G.; Klein, A.; Frontera, A.; Safin, D.A. Tetrel Bonding and Other Non-Covalent Interactions Assisted Supramolecular Aggregation in a New Pb(II) Complex of an Isonicotinohydrazide. Molecules 2020, 25, 4056. https://doi.org/10.3390/molecules25184056

AMA Style

Mahmoudi G, Abedi M, Lawrence SE, Zangrando E, Babashkina MG, Klein A, Frontera A, Safin DA. Tetrel Bonding and Other Non-Covalent Interactions Assisted Supramolecular Aggregation in a New Pb(II) Complex of an Isonicotinohydrazide. Molecules. 2020; 25(18):4056. https://doi.org/10.3390/molecules25184056

Chicago/Turabian Style

Mahmoudi, Ghodrat, Marjan Abedi, Simon E. Lawrence, Ennio Zangrando, Maria G. Babashkina, Axel Klein, Antonio Frontera, and Damir A. Safin. 2020. "Tetrel Bonding and Other Non-Covalent Interactions Assisted Supramolecular Aggregation in a New Pb(II) Complex of an Isonicotinohydrazide" Molecules 25, no. 18: 4056. https://doi.org/10.3390/molecules25184056

Article Metrics

Back to TopTop
