Article

Imaging of Fibroblast Activation Protein Alpha Expression in a Preclinical Mouse Model of Glioma Using Positron Emission Tomography

1
Department of Radiology, University of Iowa, Iowa City, IA 52242, USA
2
Department of Radiology, University of North Carolina at Chapel Hill, Chapel Hill, NC 27599, USA
3
Department of Regenerative Medicine, Wake Forest University Health Sciences, Winston-Salem, NC 27157, USA
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(16), 3672; https://doi.org/10.3390/molecules25163672
Received: 20 July 2020 / Revised: 10 August 2020 / Accepted: 11 August 2020 / Published: 12 August 2020
(This article belongs to the Special Issue Radiopharmaceutical Chemistry and Radiotherapy)

Abstract

:
Glioblastoma multiforme (GBM) is the most aggressive glioma of the primary central nervous system. Due to the lack of effective treatment options, the prognosis for patients remains bleak. Fibroblast activation protein alpha (FAP), a 170 kDa type II transmembrane serine protease was observed to be expressed on glioma cells and within the glioma tumor microenvironment. To understand the utility of targeting FAP in this tumor type, the immuno-PET radiopharmaceutical [89Zr]Zr-Df-Bz-F19 mAb was prepared and Lindmo analysis was used for its in vitro evaluation using the U87MG cell line, which expresses FAP endogenously. Lindmo analysis revealed an association constant (Ka) of 10−8 M−1 and an immunoreactivity of 52%. Biodistribution studies in U87MG tumor-bearing mice revealed increasing radiotracer retention in tumors over time, leading to average tumor-to-muscle ratios of 3.1, 7.3, 7.2, and 8.3 at 2, 24, 48 and 72 h, respectively. Small animal PET corroborated the biodistribution studies; tumor-to-muscle ratios at 2, 24, 48, and 72 h were 2.0, 5.0, 6.1 and 7.8, respectively. Autoradiography demonstrated accumulated activity throughout the interior of FAP+ tumors, while sequential tumor sections stained positively for FAP expression. Conversely, FAP tissues retained minimal radioactivity and were negative for FAP expression by immunohistochemistry. These results demonstrate FAP as a promising biomarker that may be exploited to diagnose and potentially treat GBM and other neuroepithelial cancers.

1. Introduction

Gliomas, which are brain tumors thought to originate from neurological progenitor cells, represent a diverse group of central nervous system cancers including astrocytomas, oligodendromas, ependymomas and the most aggressive, glioblastoma multiforme (GBM) [1,2,3]. Despite the use of surgery, radiotherapy and pharmacotherapy, prognosis for patients remains poor. This has led researchers to identify and validate new biomarkers that may be exploited for imaging and therapy so that patient outcomes will improve.
The dipeptidyl peptidase (DPP) family of proteins, which includes DPP4, DPP8, DPP9, and fibroblast activation protein alpha (FAP), catalyze the hydrolysis of penultimate prolyl bonds at the N-terminus of proteins [4]. However, FAP, which is a 170 kDa type II transmembrane serine protease, is unique among this enzyme family because of its endopeptidase activity and substrate selectivity. Moreover, unlike other members of this protein family, FAP expression was observed to be negligible in normal adult tissues, but is prominently expressed on the cell surface of neuroepithelial cancer cells, on tumor associated fibroblasts in over 90% of epithelial cancers and several other pathologies [4,5,6,7,8,9]. Accordingly, several reports that describe strategies to target FAP expression for imaging and therapy using peptides [10,11,12], antibodies [13,14,15,16,17,18,19,20], antibody fragments [6,21,22,23], nanoparticles [24] and small molecules [25,26,27,28,29,30,31,32,33,34] have appeared in the literature.
With respect to neuroepithelial cancers, Mentlein and colleagues, using quantitative reverse transcriptase PCR (RT-PCR) and immunohistochemistry, determined that FAP expression was elevated in several glioma subtypes [5,35]. Moreover, data revealed that FAP enabled glioma cell invasion through brain tissue suggesting its role in tumor cell invasion by facilitating the degradation of the brain parenchyma. Additionally, while examining human tumor samples and tumor cells lines to understand the relevance of FAP expression, Busek and colleagues discovered elevated levels of FAP protein in most human high-grade gliomas with a mesenchymal subtype and in several glioma tumor cells lines [36,37,38,39]. Furthermore, their studies indicated that FAP expression correlated with the activation of genes associated with extracellular matrix remodeling and inflammation suggesting that there may be a link between FAP expression, and the aggressive tissue remodeling, necrosis and inflammatory infiltrates observed in glioma tumors exhibiting a mesenchymal phenotype. Finally, they also found FAP expression on a variety of stromal cell populations within these tumors suggesting that targeting FAP for imaging and therapy may provide a comprehensive treatment strategy that simultaneously targets tumor cells and the pro-tumorigenic microenvironment of these neuroepithelial cancers.
Over the last three decades, 89Zr has increasingly been used to develop PET radiopharmaceuticals because (1) it has favorable decay characteristics for PET imaging, (2) it is routinely produced at private and academic institutions, (3) it has a half-life compatible with that of circulating antibodies (mAbs), and (4) the bifunctional chelator p-isothiocyanatobenzyl-desferrioxamine B (Df-Bz-NCS), which conjugates with mAbs and chelates 89Zr, is readily available to the research community [40,41]. In this report, we describe the synthesis of the PET radiopharmaceutical, [89Zr]Zr-Df-Bz-F19 mAb, which is the radiolabeled version of the anti-FAP monoclonal antibody F19 [16,17,19,20]. Additionally, we evaluate its ability to bind the FAP antigen in vitro using Lindmo analysis and in vivo using small animal PET imaging studies. Furthermore, we demonstrate that the Cerenkov luminescence imaging (CLI) of FAP expression using the Cerenkov radiation, which is emitted by this radiopharmaceutical, and standard optical imaging techniques is possible [42,43,44].

2. Results

2.1. [89Zr]Zr-Df-Bz-F19 Preparation and In Vitro Characterization

DF-Bz-F19 was prepared using standard isothiocyanate chemistry, which involved the reaction of the NCS group of Df-Bz-NCS with available NH2 groups of F19 mAb (Scheme 1). Immunoconjugation was achieved by adding a 5-fold molar excess of Df-Bz-NCS, and purified by PD-10 column with saline (0.9% NaCl). A single peak at 25.2 min in the UV chromatogram demonstrated that the conjugate had high purity (Figure 1a top).
The Df-Bz-F19 conjugate was radiolabeled quantitatively by incubation with 89Zr(ox)2 in 0.5 M HEPES buffer (pH 7.2) at room temperature for 1 h with a radiochemical purity of ≥99.5% (n = 15). Based on radio-HPLC analysis (Figure 1a bottom), the radiopharmaceutical had a retention time of 25.7 min., like the retention time of Df-Bz-F19, suggesting formation of the radiopharmaceutical. In the radio-TLC analysis, 89Zr, which was not incorporated into the immunoconjugate, formed a complex with EDTA and eluted with solvent front (Figure 1b top) while [89Zr]Zr-Df-Bz-F19 conjugate remained at the origin (Figure 1b bottom). The specific activity of [89Zr]Zr-Df-Bz-F19 was calculated as 158.3 ± 1.6 MBq/mg (4.28 ± 0.04 mCi/mg; n = 4). [89Zr]Zr-Df-Bz-F19 showed less than 4% of 89Zr transchelation in human serum after 7 days at physiological temperature (Supplementary Figure S1), suggesting it would be stable upon in vivo injection. Using the FAP+ U87MG cell line and Lindmo analysis, [89Zr]Zr-Df-Bz-F19 had a Ka of 3.03 × 10−8 M−1 (2.76 × 10−8-3.42 × 10−8 M−1 95% confidence interval [CI]), a Bmax of 1.5 × 105 fmol/mg (1.5 × 105–1.68 × 105 fmol/mg 95% CI), and an immunoreactivity (IR) of 52%.

2.2. Biodistribution Studies

[89Zr]Zr-Df-Bz-F19 showed modest blood clearance, with 51% of the activity present at 2 h removed from the blood by 72 h (Figure 2 and Supplementary Table S1). In contrast, slower clearance occurred in the liver and kidney. From 2–72 h, activity in the liver decreased by 19% (p = 0.17), while 35% (p = 0.01) of the 2 h activity was excreted from the kidney by the end of the study. Interestingly, a 30% increase in 89Zr accumulation in bone was observed by 72 h compared to the 2 h time point.
Initial accumulation in the tumor was modest at 2 h, but increased by 175% after 72 h. This yielded average tumor-to-blood ratios of 0.25, 0.93, 1.2, and 1.4 at 2, 24, 48, and 72 h, respectively, and average tumor-to-muscle ratios of 3.1, 7.3, 7.2, and 8.3 at 2, 24, 48, and 72 h, respectively. Measurements in blocking studies were performed at 72 h post-injection by co-injecting the non-radioactive F19 mAb 2 h before injecting [89Zr]Zr-Df-Bz-F19 (Figure 1f). F19 blockade reduced the accumulation of [89Zr]Zr-Df-Bz-F19 in the tumor by 41% at 72 h (p < 0.05). At 72 h, blockade reduced the tumor-to-blood and tumor-to-muscle ratios to 0.84 and 5.6, respectively.

2.3. Small Animal Imaging Studies

Cerenkov luminescence imaging (CLI) experiments using [89Zr]Zr-Df-Bz-F19 indicated increasing luminescence intensity among the FAP+ tumors; background signal gradually decreased over time due to systemic clearance of [89Zr]Zr-Df-Bz-F19 (Figure 3). Ex vivo organ imaging confirmed the in vivo results. Based on ROI analysis, FAP+ tumors had an average radiance of 8.5 × 103 ± 1.5 × 103 p/s/cm2/sr. FAP tissues such as muscle displayed an average radiance not exceeding background levels.
Figure 4a displays a representative result of the volume rendered PET/CT image of an animal receiving [89Zr]Zr-Df-Bz-F19. Localization and increasing accumulation of radioactivity was seen within FAP+ tumors when compared to FAP tissues (e.g., muscle) during the same time course (Supplementary Figure S2). However, radioactivity within tumors was significantly decreased upon the administration of F19 mAb blockade (Figure 4b). Without blockade, tumor-to-muscle ratios at 2, 24, 48, and 72 h were 2.0, 5.0, 6.1, and 7.8, respectively. Similar to the biodistribution results, activity was still observed in the blood pool and within the hepatobiliary system 72 h after the injection of [89Zr]Zr-Df-Bz-F19. Representative results of autoradiography (AR) and immunohistochemistry (IHC) analyses are shown in Figure 5a–f. AR demonstrated the accumulation and retention of activity throughout the interior of the tumor. IHC staining for FAP antigen in sequential tumor sections confirmed the presence of FAP within regions of the tumor, which also demonstrated increased radioactivity accumulation. In contrast, FAP muscle showed non-specific retention of radioactivity barely above background levels, and IHC demonstrated no FAP expression in FAP tissues (e.g., muscle) corroborating the autoradiography results.

3. Discussion

The restricted expression profile of FAP in normal adult tissues along with its overexpression in a variety of pathologies has intensified research efforts that involve the development of anti-FAP therapies and new imaging agents to detect and quantify FAP expression in vivo. As our initial foray in this area, we prepared the PET radiopharmaceutical, [89Zr]Zr-Df-Bz-F19 with high radiochemical purity and a specific activity comparable to other 89Zr-Df immunoconjugates [45,46,47]. Lindmo analysis revealed that [89Zr]Zr-Df-Bz-F19 displayed an affinity for the FAP protease, in agreement with other anti-FAP antibody constructs previously reported [6,16,17,19,20], but demonstrated a modest immunoreactivity, probably caused by altered antigen binding due to the non-selective conjugation of Df-Bz-NCS to the antibody. However, we did not attempt to control thiourea bond formation during Df-Bz-NCS conjugation, since the radiopharmaceutical’s affinity for FAP and the large Bmax observed with the U87MG cell line was considered sufficient for effective tumor targeting [48].
Clearance and retention properties of [89Zr]Zr-Df-Bz-F19 were investigated through biodistribution studies using a xenotransplantation model consisting of nude mice bearing FAP+ U87MG tumors. Although numerous models have used tumors derived from cells engineered to express FAP [49], we chose the U87MG cell line since it endogenously expresses FAP and has been used successfully in previous reports to evaluate probes, which target FAP in vivo [11,12,37]. Furthermore, a cell line with endogenous FAP expression provides a more realistic evaluation of our radiopharmaceutical after injection.
[89Zr]Zr-Df-Bz-F19 effectively targeted cell surface FAP expression with specificity since retained radioactivity was reduced in tumors of animals receiving blockade. Radioactivity retention within the tumor increased rapidly between 2 and 24 h, but only slightly thereafter, suggesting that saturation of antigenic binding sites occurs early in the experimental time course.
Tissue distribution profiles consistent with radiolabeled mAbs included slow clearance of the radiotracer from the blood pool and retention of activity throughout the gut, suggesting hepatobiliary clearance [17,19,20,45,46,47]. Surprisingly, significant amounts of radioactivity were retained in the kidney and in the bone after 72 h and suggests that [89Zr]Zr-Df-Bz-F19 is being metabolized over time in vivo. This behavior was observed with other 89Zr-labeled immunoconjugates and may be attributed to murine metabolism or the less selective nature of murine proteases [40,41]. 89Zr4+ ions sequestered by phosphate-rich hydroxyapatite probably results in the appreciable activity retained in bone, while kidney retention may result from catabolism of the radiopharmaceutical after interaction with the Fc receptor [50]. Once catabolism occurs, the decomplexed 89Zr4+ion may electrostatically interact with the glomerular basement membrane, which is composed of polyanionic heparin sulfate [51,52]. Additionally, given the abundance of phosphate ions within the kidney, 89Zr (IV) phosphates may also be precipitating in this tissue and leading to radioactivity accumulation there. However, other chemical species and retention mechanisms, either alone or in concert, cannot be ruled out in either site. Regardless, these results suggest radiometal chelate instability and reinforce the idea that new bifunctional chelators—which can chelate 89Zr under mild conditions, form kinetically and thermodynamically inert complexes, and withstand the proteolytic environment in vivo—are needed to reduce accumulation of this radiometal in non-target tissues [40,53].
Cerenkov luminescence imaging (CLI), which synergizes nuclear medicine and optical imaging continues to evolve as associated technologies mature and are integrated into preclinical and clinical applications [42,43,44,54,55]. Preclinically, it can augment the information that is provided through biodistribution and small animal PET/CT studies and aids in biomarker discovery and the drug development process. Accordingly, we exploited the prompt release of Cerenkov radiation attributed to positron emission from the 89Zr nucleus to image FAP expression using CLI [44,53]. CLI discriminated between FAP+ (tumor) and FAP (muscle) tissues and FAP+ tumors of varying sizes. Consistent with other studies, tumor visualization became more efficient over time due to the clearance of the circulating radiopharmaceutical from the blood pool and non-target tissues, which was responsible for elevated background during early time points of this study [45,46,47]. Ex vivo imaging of the FAP+ tumor and organs was also performed to investigate the effects that attenuation and scattering of Cerenkov radiation may have had on the observed imaging results obtained with whole animals. Additionally, gamma counting of excised tissues revealed that FAP+ tumors retained the greatest amount of radioactivity. These ex vivo results correlated well with the in vivo results; most radioactivity was retained in the FAP+ tumors.
We also conducted the small animal PET/CT imaging of animals bearing FAP+ tumors to more accurately quantify radiopharmaceutical localization in FAP+ and FAP tissues. Tumor retention and accumulation of radioactivity was evident at every time point in animals receiving [89Zr]Zr-Df-Bz-F19. In accordance with our biodistribution results, [89Zr]Zr-Df-Bz-F19 accumulated rapidly during the first 24 h of the study (Supplementary Figure S2). Increasingly efficient contrast, which was demonstrated by increasing tumor-to-muscle ratios, supported efficient tumor targeting and clearance of [89Zr]Zr-Df-Bz-F19 over time. The specificity of our radiopharmaceutical for FAP was also confirmed by autoradiography and immunohistochemistry performed on FAP+ and FAP tissues excised at the completion of the in vivo imaging studies. These results demonstrate that localization of [89Zr]Zr-Df-Bz-F19 was mainly confined to FAP+ tissues, while FAP tissues retained very little radioactivity. Recent publications have described a more ubiquitous expression of FAP in murine models of cancer, and since murine and human FAP share 89% sequence homology including the catalytic active site, we expected to observe reduced tumor-to-non-target tissue contrast in our in vivo imaging studies [56]. However, this was not the case as FAP+ tumors are clearly defined and distinct from the surrounding flank muscles, which demonstrate negligible FAP expression. These results further corroborate literature describing limited in vivo expression of this biomarker in normal tissues [4,5].
Several limitations to these studies should be considered despite the positive results. Although other protein-based, anti-FAP agents exist [6,17,19,20], our initial investigations into FAP imaging involved the use of the F19 mAb. Although it failed in clinical trials more than two decades ago and has since been marginalized as an anti-FAP mAb by other novel agents [6,15], we chose this mAb because it is commercially available, could be produced in large quantities using hybridoma technology and allowed us to probe FAP expression on glioma cells in a facile manner. Secondly, the use of a mAb-based agent for imaging neuroepithelial tumors may also seem to be a limitation due to the protective nature of the blood—brain barrier (BBB). While the BBB, a natural defensive mechanism, may regulate central nervous system homeostasis and maintain normal brain function, it may also impede the delivery of imaging agents and systemic therapies to brain tumors [57]. However, upon neuroepithelial tumor cell invasion, the BBB is often compromised due to the invasive and aggressive nature of these tumors. Once compromised, large molecules such as mAbs may be able to traverse this barrier although admittedly, in an inefficient manner [3,58]. Furthermore, previous research has demonstrated that the BBB can be permeabilized using several techniques including high-intensity focused ultrasound, external beam radiation and systemic radiotherapy to enhance the administration of agents across this barrier to improve diagnosis and therapy [59,60,61,62,63,64]. Furthermore, these investigations did not use an orthotopic tumor model of GBM. While such a model may recapitulate various aspects of disease more accurately than the subcutaneous tumor model used here, we chose the latter since it allowed us to study FAP targeting without the experimental complexity associated with intracranial tumor implantation. Attempts to extrapolate our findings in an orthotopic paradigm are currently underway in our laboratory. Finally, while CLI did visualize luminescence in FAP+ tissues and not in FAP tissues, gamma counting did detect radioactivity in all excised tissues. This result illustrates the technical hurdles relating to detection sensitivity that can be associated with this imaging modality. Despite this limitation, advances in CLI technology and techniques continue to be made not only for diagnostic imaging but also for image-guided drug delivery and intra-operative guidance [42,43,44,65,66,67,68,69,70]. Currently multi-modal systems exist to detect malignancy though optical and radiometric detection [71,72,73,74]. As technologies and techniques are refined in this research area, it is entirely plausible that radiometric and CLI-enhanced detection have a role in providing intra-operative guidance within the context of neuroepithelia tumor resection.

4. Materials and Methods

4.1. Reagents and Equipment

Zirconium-89 (89Zr: t½ = 78.4 h, β+: 22.8%) was purchased from Washington University School of Medicine (St. Louis, MO, USA) or Sophie Biosciences, Inc. (Dulles, VA, USA) [75]. Unless noted, all other chemicals were purchased from Sigma-Aldrich Chemical Co. (St. Louis, MO, USA), and solutions were prepared using ultrapure water (18 MΩ-cm resistivity). p-isothiocyanatobenzyl-desferrioxamine (Df-Bz-NCS) was purchased from Macrocyclics, Inc. (Dallas, TX, USA). The anti-FAP F19 antibody was obtained through hybridoma technology (ATCC, Manassas, VA, USA) and purified using standard techniques [76,77]. Radiochemistry reaction progress and purity were monitored using analytical high-performance liquid chromatography (HPLC) (Waters, Milford, MA, USA), which runs Empower3 software and is configured with a 1525 binary pump, 2707 autosampler, 2998 photodiode array detector, 2475 multichannel fluorescence detector, 1500 column heater, fraction collector, size exclusion Superdex 200 10/300 GL (GE Healthcare Life Sciences, Piscataway, NJ, USA) column, a Carrol Ramsey 105-s radioactivity detector (Berkeley, CA, USA), and an isocratic mobile phase (0.5 mL/min) consisting of phosphate buffered saline (PBS, pH 7.1 (NaCl 150 mM, Na2HPO4 50 mM, NaH2PO4 50 mM, and NaN3 10 mM)). Radio-TLC analysis was performed on Bioscan AR 2000 radio-TLC scanner equipped with a 10% methane: argon gas supply, a PC interface running Winscan v.3 analysis software (Eckert & Ziegler, Berlin, Germany), and Varian ITLC-SG strips (Agilent Technologies, Santa Clara, CA, USA), with 50 mM EDTA (pH 5) as eluent. Radioactive samples were counted using a Perkin Elmer 2480 Wizard® gamma counter (Waltham, MA, USA) with an energy window of 500–1500 keV. PET and CT images were acquired using a GE eXplore Vista small animal PET/CT scanner (Waukesha, WI, USA).

4.2. Conjugation, 89Zr-Radiolabeling, and Quality Control

[89Zr]Zr-Df-Bz-F19 was prepared using a modified procedure [45,47]. Briefly, F19 mAb (4 mg in 500 µL PBS, pH 7.4) was diluted to 1 mL with normal saline, and the pH adjusted to pH 8.9–9.1 with 0.1 M Na2CO3 (90 µL). Df-Bz-NCS (8 mM; 15 μL of DMSO) was added and the resulting solution was incubated for 30 min at 37 °C using a thermomixer at 550 r.p.m. To remove non-conjugated Df-Bz-NCS, Df-Bz-F19 was purified by PD-10 column using saline (0.9% NaCl). The purified Df-Bz-F19 conjugate was stored at 4 °C and used for 89Zr-radiochemistry.
[89Zr]Zr-oxalate (74−93 MBq in 100–125 µL 1.0 M oxalic acid) and 2 M Na2CO3 (40–50 µL), were placed in a 1.5 mL tube and incubated at room temperature for 3 min followed by pH adjustment to 6.8–7.2 using 0.5 M HEPES buffer (400 μL, pH 7.2). Gentisic acid (100 µL, 5 mg/mL in 0.25 M NaOAc) and 0.3–0.4 mg of Df-Bz-F19 conjugate in PBS buffer (75–100 µL) were then added; the resulting mixture was incubated at room temperature for 1 h. The reaction was quenched with ethylenediaminetetraacetic acid solution (10 μL, 50 mM EDTA), and [89Zr]Zr-DF-Bz-F19 was purified using PD-10 column with 0.25 M sodium acetate/gentisic acid (5 mg/mL) buffer (pH 5.5) as eluent. Radiochemical yield and purity were determined by radio-TLC and HPLC.

4.3. In Vitro Serum Stability of [89Zr]Zr-Df-Bz-F19

In vitro stability was carried out by adding 10 µL of [89Zr]Zr-Df-Bz-F19 (50 μCi, 1.85 MBq) to 500 µL human serum. The solutions (n = 3) were incubated at 37 °C for 7 days and analyzed daily by radio-TLC using a mobile phase consisting of 50 mM EDTA (pH 5) on Varian ITLC-SG strips [45,47].

4.4. Immunoreactivity (IR) Studies

Immunoreactivity of [89Zr]Zr-Df-Bz-F19 to FAP+ U87MG cells was determined by the Lindmo method [78]. Briefly, 50 ng of [89Zr]Zr -Df-Bz-F19 were added to a range of cell concentrations and incubated for 60 min at 4 °C with continuous mixing. Cells were washed three times, pelleted using centrifugation, and the activity within the pellet was measured by gamma counting. Three samples of [89Zr]Zr-Df-Bz-F19 (at the same concentration as that initially added to the cells) were measured at the same time as cell pellets. A background correction was applied by adding 100-fold unlabeled F19 antibody to three tubes containing cells before addition of [89Zr]Zr-Df-Bz-F19. The percentage of [89Zr]Zr-Df-Bz-F19 binding to U87MG cells was calculated ((cpm cell pellet/mean cpm [89Zr]Zr-Df-Bz-F19 standards) × 100), and the percent binding was plotted as a function of cell concentration using GraphPad Prism 5.0 software (San Diego, CA, USA). Immunoreactivity (IR) was calculated from the Y-intercept of the inverse plot of both values.
The association constant (Ka) and the number of antibody molecules bound per cell (Bmax) were determined using Scatchard analysis. Varying concentrations (0.01–8 µM) were added to 2 × 106 U87MG cells and mixed before adding 50 ng of [89Zr]Zr-Df-Bz-F19. After 1 h incubation at 4 °C with continuous mixing, the cells were washed three times and counted as described above. The free, reactive antibody was calculated using the formula: [(100 − %bound)/100 × total antibody × IR fraction]. Specific binding (nM): [total antibody × %bound] was graphed against specific binding/reactive free antibody. The association constant was determined from the negative slope of the line. The number of [89Zr]Zr-Df-Bz-F19 molecules bound per cell (Bmax) was derived from the formula: [X-intercept of Scatchard plot (nM)/1000 × 6.02 × 1023)/2 × 106 cells].

4.5. Xenograft Models

Animal Work was approved by the Wake Forest University Health Sciences and University of Iowa Institutional Animal Care and Use Committees under protocols A17-062 (approval dates 5 May 2017–4 May 2020) and 0012266 (approval dates 8 May 2018–7 May 2021), respectively. Female athymic nu/nu mice (6–8 wks) were obtained from Jackson Laboratories (Bar Harbor, ME, USA). U87MG tumor cells (ATCC) were cultured in ATCC-formulated Eagle’s Minimum Essential Medium (ATCC No. 30-2003). Once at 80% confluency, 1 × 106 cells in 100 µL serum-free culture medium were mixed with Matrigel® (BD Biosciences, San Jose, CA, USA) and subcutaneously injected into the flank. Cell growth was evaluated weekly using manual tumor volume (volume = 0.52 × [width]2 × [length]) measurements.

4.6. Biodistribution

Biodistribution studies were conducted as previously described [45,47,79]. Tumor-bearing mice (n = 6/group) were injected with [89Zr]Zr-Df-Bz-F19 (0.69–0.74 MBq, 3–3.5 µg in 150 µL PBS/mouse) via the tail vein. Blocking studies were also performed whereby animals in this cohort received F19 mAb (0.20 mg/mouse), 2 h before being injected with [89Zr]Zr-Df-Bz-F19. Animals were then sacrificed at 2, 24, 48 and 72 h post-injection (p.i.). Blood, heart, lungs, liver, kidney, spleen, pancreas, stomach, large intestine, small intestine, muscle, fat, bone and tumor were removed, weighed, and subjected to gamma counting. The percent injected dose per gram (%ID/gram) and percent injected dose per organ (%ID/organ) were calculated by comparison to a weighed, counted standard.

4.7. Small Animal Optical Imaging Using Cerenkov Luminescence

Imaging studies were conducted using a modified method [54,67]. Briefly, all tumor-bearing mice received an injection of [89Zr]Zr-Df-Bz-F19 (10.2–10.5 MBq, 48–50 µg in 150 µL PBS/mouse) via the tail vein. Mice were anesthetized with 1–2% isoflurane and imaged at 2, 24, 48 and 72 h p.i. After the 72 h time point, animals were euthanized, and tumors and organs of interest were removed and imaged ex vivo. Optical images were collected using a Xenogen IVIS 100 optical imager (f/stop: 2; binning 1, filed of view B) with no light interference from the excitation lamp. Images were analyzed using Living Image 2.6 software (Caliper Life Sciences, Alameda, CA, USA). The average radiance (p/s/cm2/sr) was used for quantitative region of interest (ROI) analysis from each image. Background correction was performed either through use of dark images acquired at the equivalent instrument integration setting immediately before experimental image collection, or by subtracting background levels in the same experimental image but remote from the area of interest.

4.8. Small Animal PET/CT Imaging

All tumor-bearing mice (n = 6/group) received an injection of [89Zr]Zr-Df-Bz-F19 (7.9–10.2 MBq, 48–50 µg in 150 µL saline/mouse) via the tail vein. Mice were anesthetized with 1–2% isoflurane and imaged for 30 min at 2, 24, 48, and 72 h p.i. Images were reconstructed using ordered subset expectation maximum (OSEM) algorithms, coregistered with the CT image, and the percent injected dose of activity per gram of tissue (%ID/g) was determined at every time point using known procedures [45,47].

4.9. Autoradiography (AR) and Immunohistochemistry (IHC)

Animals were sacrificed and FAP+ tumors and FAP muscle were excised, frozen, embedded in OCT medium and sectioned on a CM1850 cryo-microtome (Leica Microsystems, Inc. Chicago, IL, USA). Tissue sections were fixed in ice-cold acetone for 60 s, allowed to dry and then placed in contact with a BAS-IP MS 2040 E multipurpose phosphor screen inside a standard cassette for 72 h at −80 °C. The screen was imaged using a Typhoon 9210 Variable Mode Imager (Molecular Devices, Sunnyvale, CA, USA) according to an established protocol [80]. Sequential 8 μm sections were used for IHC analysis. Tumor and muscle sections were exposed to rabbit-derived, anti-human FAP mAb (Abcam, Cambridge, UK) and developed using 3,3′-diaminobenzidine (DAB) according to an established protocol [81]. An isotype-matched human IgG control antibody and no primary antibody controls were used for each tissue.

4.10. Statistical Methods

All data are presented as mean ± SD or mean (95% confidence intervals). For statistical classification, a Student’s t test (two-tailed, unpaired) was performed using GraphPad Prism software. Any difference of p < 0.05 was considered significant.

5. Conclusions

The PET radiopharmaceutical [89Zr]Zr-Df-Bz-F19 was evaluated in vitro and in vivo with the U87MG cell line, which endogenously expresses FAP. Despite moderate immunoreactivity, efficient tumor uptake and excellent tumor-to-background contrast was achieved in CLI and small animal PET/CT studies. FAP represents a promising biomarker that can be exploited to target a variety of pathological conditions and possibly the tumor microenvironment using PET.

Supplementary Materials

The following are available online, Figure S1. In vitro serum stability of [89Zr]Zr-Df-Bz-F19. Figure S2. Standard uptake value quantification of [89Zr]Zr-Df-Bz-F19mAb from PET/CT imaging study. Figure S3. Binding Data. Table S1. Biodistribution of [89Zr]Zr-Df-Bz-F19 in U87MG tumor bearing mice.

Author Contributions

The author contributions are as follows: Conceptualization, T.J.W. and F.C.M.; methodology, D.N.P.; H.Y.; L.M.; K.S.; A.S.; data curation, D.N.P.; H.Y.; L.M.; K.S.; A.S.; writing—original draft preparation, T.J.W.; writing—review and editing, T.J.W.; D.N.P.; H.Y.; A.S.; F.C.M.; supervision, T.J.W.; project administration, T.J.W.; funding acquisition, T.J.W. and F.C.M. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by DoD grant W81XWH-13-1-0125 (T.J.W.), NIH grant CA219899-03 (T.J.W.), Wake Forest University Health Sciences and the University of Iowa. The production of 89Zr at Washington University School of Medicine was supported by the Department of Energy Office of Science, Nuclear Physics Isotope Program (DESC0008657). Small animal PET Imaging was provided by the Small Animal Imaging Core facility at the UNC Biomedical Imaging Research Center, which is supported by a Comprehensive Cancer Center (P30CA016086). Cell and Viral Vector Core Lab services were supported by the Comprehensive Cancer Center of Wake Forest University NCI CCSG P30CA012197 grant.

Acknowledgments

The authors thank Jonathan Frank and Kevin Gulley of the Small Animal Imaging Core facility at the UNC Biomedical Imaging Research Center for technical assistance.

Conflicts of Interest

The authors declare they have no conflict of interest.

References

  1. Jackson, C.M.; Lim, M. Immunotherapy for Glioblastoma: Playing Chess, Not Checkers. Clin. Cancer Res. 2018, 24, 4059–4061. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Lim, M.; Xia, Y.; Bettegowda, C.; Weller, M. Current state of immunotherapy for glioblastoma. Nat. Rev. Clin. Oncol. 2018, 15, 422–442. [Google Scholar] [CrossRef] [PubMed]
  3. Shergalis, A.; Bankhead, A.; Luesakul, U.; Muangsin, N.; Neamati, N. Current Challenges and Opportunities in Treating Glioblastoma. Pharmacol. Rev. 2018, 70, 412–445. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Jacob, M.; Chang, L.; Pure, E. Fibroblast activation protein in remodeling tissues. Curr. Mol. Med. 2012, 12, 1220–1243. [Google Scholar] [CrossRef] [PubMed]
  5. Pure, E.; Blomberg, R. Pro-tumorigenic roles of fibroblast activation protein in cancer: Back to the basics. Oncogene 2018, 37, 4343–4357. [Google Scholar] [CrossRef]
  6. Laverman, P.; van der Geest, T.; Terry, S.Y.; Gerrits, D.; Walgreen, B.; Helsen, M.M.; Nayak, T.K.; Freimoser-Grundschober, A.; Waldhauer, I.; Hosse, R.J.; et al. Immuno-PET and Immuno-SPECT of Rheumatoid Arthritis with Radiolabeled Anti-Fibroblast Activation Protein Antibody Correlates with Severity of Arthritis. J. Nucl. Med. 2015, 56, 778–783. [Google Scholar] [CrossRef][Green Version]
  7. van der Geest, T.; Roeleveld, D.M.; Walgreen, B.; Helsen, M.M.; Nayak, T.K.; Klein, C.; Hegen, M.; Storm, G.; Metselaar, J.M.; van den Berg, W.B.; et al. Imaging fibroblast activation protein to monitor therapeutic effects of neutralizing interleukin-22 in collagen-induced arthritis. Rheumatology (Oxford) 2018, 57, 737–747. [Google Scholar] [CrossRef][Green Version]
  8. Acharya, P.S.; Zukas, A.; Chandan, V.; Katzenstein, A.L.; Pure, E. Fibroblast activation protein: A serine protease expressed at the remodeling interface in idiopathic pulmonary fibrosis. Hum. Pathol. 2006, 37, 352–360. [Google Scholar] [CrossRef]
  9. Wang, X.M.; Yao, T.W.; Nadvi, N.A.; Osborne, B.; McCaughan, G.W.; Gorrell, M.D. Fibroblast activation protein and chronic liver disease. Front. Biosci. 2008, 13, 3168–3180. [Google Scholar] [CrossRef][Green Version]
  10. Chopra, A. Fibroblast activation protein alpha-specific, near-infrared peptide probe (KGPGPNQC) linked to Cy5.5 and a quencher dye, QSY21. In Molecular Imaging and Contrast Agent Database (MICAD); National Center for Biotechnology Information: Bethesda, MD, USA, 2004. Available online: http://www.ncbi.nlm.nih.gov/pubmed/23193619 (accessed on 4 July 2020).
  11. Li, J.; Chen, K.; Liu, H.; Cheng, K.; Yang, M.; Zhang, J.; Cheng, J.D.; Zhang, Y.; Cheng, Z. Activatable near-infrared fluorescent probe for in vivo imaging of fibroblast activation protein-alpha. Bioconjug. Chem. 2012, 23, 1704–1711. [Google Scholar] [CrossRef][Green Version]
  12. Lo, P.C.; Chen, J.; Stefflova, K.; Warren, M.S.; Navab, R.; Bandarchi, B.; Mullins, S.; Tsao, M.; Cheng, J.D.; Zheng, G. Photodynamic molecular beacon triggered by fibroblast activation protein on cancer-associated fibroblasts for diagnosis and treatment of epithelial cancers. J. Med. Chem. 2009, 52, 358–368. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Baird, S.K.; Allan, L.; Renner, C.; Scott, F.E.; Scott, A.M. Fibroblast activation protein increases metastatic potential of fibrosarcoma line HT1080 through upregulation of integrin-mediated signaling pathways. Clin. Exp. Metastasis 2015, 32, 507–516. [Google Scholar] [CrossRef] [PubMed]
  14. Baird, S.K.; Rigopoulos, A.; Cao, D.; Allan, L.; Renner, C.; Scott, F.E.; Scot, A.M. Integral membrane protease fibroblast activation protein sensitizes fibrosarcoma to chemotherapy and alters cell death mechanisms. Apoptosis 2015, 20, 1483–1498. [Google Scholar] [CrossRef] [PubMed]
  15. Fischer, E.; Chaitanya, K.; Wuest, T.; Wadle, A.; Scott, A.M.; van den Broek, M.; Schibli, R.; Bauer, S.; Renner, C. Radioimmunotherapy of fibroblast activation protein positive tumors by rapidly internalizing antibodies. Clin. Cancer Res. 2012, 18, 6208–6218. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Kloft, C.; Graefe, E.U.; Tanswell, P.; Scott, A.M.; Hofheinz, R.; Amelsberg, A.; Karlsson, M.O. Population pharmacokinetics of sibrotuzumab, a novel therapeutic monoclonal antibody, in cancer patients. Invest. New Drugs 2004, 22, 39–52. [Google Scholar] [CrossRef] [PubMed]
  17. Scott, A.M.; Wiseman, G.; Welt, S.; Adjei, A.; Lee, F.T.; Hopkins, W.; Divgi, C.R.; Hanson, L.H.; Mitchell, P.; Gansen, D.N.; et al. A Phase I dose-escalation study of sibrotuzumab in patients with advanced or metastatic fibroblast activation protein-positive cancer. Clin. Cancer Res. 2003, 9, 1639–1647. [Google Scholar] [PubMed]
  18. Tahtis, K.; Lee, F.T.; Wheatley, J.M.; Garin-Chesa, P.; Park, J.E.; Smyth, F.E.; Obata, Y.; Stockert, E.; Hall, C.M.; Old, L.J. Expression and targeting of human fibroblast activation protein in a human skin/severe combined immunodeficient mouse breast cancer xenograft model. Mol. Cancer Ther. 2003, 2, 729–737. [Google Scholar]
  19. Tanswell, P.; Garin-Chesa, P.; Rettig, W.J.; Welt, S.; Divgi, C.R.; Casper, E.S.; Finn, R.D.; Larson, S.M.; Old, L.J.; Scott, A.M. Population pharmacokinetics of antifibroblast activation protein monoclonal antibody F19 in cancer patients. Br. J. Clin. Pharmacol. 2001, 51, 177–180. [Google Scholar] [CrossRef]
  20. Welt, S.; Divgi, C.R.; Scott, A.M.; Garin-Chesa, P.; Finn, R.D.; Graham, M.; Carswell, E.A.; Cohen, A.; Larson, S.M.; Old, L.J. Antibody targeting in metastatic colon cancer: A phase I study of monoclonal antibody F19 against a cell-surface protein of reactive tumor stromal fibroblasts. J. Clin. Oncol. 1994, 12, 1193–1203. [Google Scholar] [CrossRef]
  21. Rabenhold, M.; Steiniger, F.; Fahr, A.; Kontermann, R.E.; Ruger, R. Bispecific single-chain diabody-immunoliposomes targeting endoglin (CD105) and fibroblast activation protein (FAP) simultaneously. J. Control. Release 2015, 201, 56–67. [Google Scholar] [CrossRef]
  22. Tansi, F.L.; Ruger, R.; Bohm, C.; Steiniger, F.; Kontermann, R.E.; Teichgraeber, U.K.; Fahr, A.; Hilger, I. Activatable bispecific liposomes bearing fibroblast activation protein directed single chain fragment/Trastuzumab deliver encapsulated cargo into the nuclei of tumor cells and the tumor microenvironment simultaneously. Acta Biomater. 2017, 54, 281–293. [Google Scholar] [CrossRef] [PubMed]
  23. Tansi, F.L.; Ruger, R.; Kollmeier, A.M.; Rabenhold, M.; Steiniger, F.; Kontermann, R.E.; Teichgraeber, U.K.; Fahr, A.; Hilger, I. Targeting the Tumor Microenvironment with Fluorescence-Activatable Bispecific Endoglin/Fibroblast Activation Protein Targeting Liposomes. Pharmaceutics 2020, 12, 370. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Baum, P.; Muller, D.; Ruger, R.; Kontermann, R.E. Single-chain Fv immunoliposomes for the targeting of fibroblast activation protein-expressing tumor stromal cells. J. Drug Target 2007, 15, 399–406. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, H.; Zhao, L.; Ruan, D.; Sun, L.; Lin, Q. 68Ga-FAPI PET/CT Improves Therapeutic Strategy by Detecting a Second Primary Malignancy in a Patient with Rectal Cancer. Clin. Nucl. Med. 2020, 45, 468–470. [Google Scholar] [CrossRef] [PubMed]
  26. Giesel, F.L.; Kratochwil, C.; Lindner, T.; Marschalek, M.M.; Loktev, A.; Lehnert, W.; Debus, J.; Jager, D.; Flechsig, P.; Mier, W.; et al. (68)Ga-FAPI PET/CT: Biodistribution and Preliminary Dosimetry Estimate of 2 DOTA-Containing FAP-Targeting Agents in Patients with Various Cancers. J. Nucl. Med. 2019, 60, 386–392. [Google Scholar] [CrossRef] [PubMed][Green Version]
  27. Koerber, S.A.; Staudinger, F.; Kratochwil, C.; Adeberg, S.; Haefner, M.F.; Ungerechts, G.; Rathke, H.; Winter, E.; Lindner, T.; Syed, M.; et al. The role of FAPI-PET/CT for patients with malignancies of the lower gastrointestinal tract - first clinical experience. J. Nucl. Med. 2020. [Google Scholar] [CrossRef]
  28. Kratochwil, C.; Flechsig, P.; Lindner, T.; Abderrahim, L.; Altmann, A.; Mier, W.; Adberg, S.; Rathke, H.; Rohrich, M.; Winter, H.; et al. (68)Ga-FAPI PET/CT: Tracer Uptake in 28 Different Kinds of Cancer. J. Nucl. Med. 2019, 60, 801–805. [Google Scholar] [CrossRef][Green Version]
  29. Lindner, T.; Altmann, A.; Kraemer, S.; Kleist, C.; Loktev, A.; Kratochwil, C.; Giesel, F.; Mier, W.; Marme, F.; Debus, J.; et al. Design and development of (99m)Tc labeled FAPI-tracers for SPECT-imaging and 188Re therapy. J. Nucl. Med. 2020. [Google Scholar] [CrossRef]
  30. Luo, Y.; Pan, Q.; Yang, H.; Peng, L.; Zhang, W.; Li, F. Fibroblast activation protein targeted PET/CT with (68)Ga-FAPI for imaging IgG4-related disease: Comparison to (18)F-FDG PET/CT. J. Nucl. Med. 2020. [Google Scholar] [CrossRef]
  31. Meyer, C.; Dahlbom, M.; Lindner, T.; Vauclin, S.; Mona, C.; Slavik, R.; Czernin, J.; Haberkorn, U.; Calais, J. Radiation dosimetry and biodistribution of (68)Ga-FAPI-46 PET imaging in cancer patients. J. Nucl. Med. 2019. [Google Scholar] [CrossRef]
  32. Syed, M.; Flechsig, P.; Liermann, J.; Windisch, P.; Staudinger, F.; Akbaba, S.; Koerber, S.A.; Freudlsperger, C.; Plinkert, P.K.; Debus, J.; et al. Fibroblast activation protein inhibitor (FAPI) PET for diagnostics and advanced targeted radiotherapy in head and neck cancers. Eur. J. Nucl. Med. Mol. Imaging 2020. [Google Scholar] [CrossRef] [PubMed]
  33. Varasteh, Z.; Mohanta, S.; Robu, S.; Braeuer, M.; Li, Y.; Omidvari, N.; Topping, G.; Sun, T.; Nekolla, S.G.; Richter, A.; et al. Molecular Imaging of Fibroblast Activity After Myocardial Infarction Using a (68)Ga-Labeled Fibroblast Activation Protein Inhibitor, FAPI-04. J. Nucl. Med. 2019, 60, 1743–1749. [Google Scholar] [CrossRef]
  34. Watabe, T.; Liu, Y.; Kaneda-Nakashima, K.; Shirakami, Y.; Lindner, T.; Ooe, K.; Toyoshima, A.; Nagata, K.; Shimosegawa, E.; Haberkorn, U.; et al. Theranostics Targeting Fibroblast Activation Protein in the Tumor Stroma: (64)Cu- and (225)Ac-Labeled FAPI-04 in Pancreatic Cancer Xenograft Mouse Models. J. Nucl. Med. 2020, 61, 563–569. [Google Scholar] [CrossRef] [PubMed]
  35. Mentlein, R.; Hattermann, K.; Hemion, C.; Jungbluth, A.A.; Held-Feindt, J. Expression and role of the cell surface protease seprase/fibroblast activation protein-alpha (FAP-alpha) in astroglial tumors. Biol. Chem. 2011, 392, 199–207. [Google Scholar] [CrossRef]
  36. Balaziova, E.; Busek, P.; Stremenova, J.; Sromova, L.; Krepela, E.; Lizcova, L.; Sedo, A. Coupled expression of dipeptidyl peptidase-IV and fibroblast activation protein-alpha in transformed astrocytic cells. Mol. Cell Biochem. 2011, 354, 283–289. [Google Scholar] [CrossRef] [PubMed]
  37. Busek, P.; Balaziova, E.; Matrasova, I.; Hilser, M.; Tomas, R.; Syrucek, M.; Zemanova, Z.; Krepela, E.; Belacek, J.; Sedo, A. Fibroblast activation protein alpha is expressed by transformed and stromal cells and is associated with mesenchymal features in glioblastoma. Tumour Biol. 2016, 37, 13961–13971. [Google Scholar] [CrossRef] [PubMed]
  38. Busek, P.; Mateu, R.; Zubal, M.; Kotackova, L.; Sedo, A. Targeting fibroblast activation protein in cancer—Prospects and caveats. Front. Biosci. (Landmark Ed.) 2018, 23, 1933–1968. [Google Scholar]
  39. Matrasova, I.; Busek, P.; Balaziova, E.; Sedo, A. Heterogeneity of molecular forms of dipeptidyl peptidase-IV and fibroblast activation protein in human glioblastomas. Biomed. Pap. Med. Fac. Univ. Palacky Olomouc Czech Repub. 2017, 161, 252–260. [Google Scholar] [CrossRef][Green Version]
  40. Bhatt, N.B.; Pandya, D.N.; Wadas, T.J. Recent Advances in Zirconium-89 Chelator Development. Molecules 2018, 23, 638. [Google Scholar] [CrossRef][Green Version]
  41. Wadas, T.J.; Wong, E.H.; Weisman, G.R.; Anderson, C.J. Coordinating radiometals of copper, gallium, indium, yttrium, and zirconium for PET and SPECT imaging of disease. Chem. Rev. 2010, 110, 2858–2902. [Google Scholar] [CrossRef][Green Version]
  42. Das, S.; Thorek, D.L.; Grimm, J. Cerenkov imaging. Adv. Cancer Res. 2014, 124, 213–234. [Google Scholar] [CrossRef] [PubMed][Green Version]
  43. Tamura, R.; Pratt, E.C.; Grimm, J. Innovations in Nuclear Imaging Instrumentation: Cerenkov Imaging. Semin. Nucl. Med. 2018, 48, 359–366. [Google Scholar] [CrossRef] [PubMed]
  44. Ruggiero, A.; Holland, J.P.; Lewis, J.S.; Grimm, J. Cerenkov luminescence imaging of medical isotopes. J. Nucl. Med. 2010, 51, 1123–1130. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Bhatt, N.B.; Pandya, D.N.; Rideout-Danner, S.; Gage, H.D.; Marini, F.C.; Wadas, T.J. A comprehensively revised strategy that improves the specific activity and long-term stability of clinically relevant 89Zr-immuno-PET agents. Dalton Trans. 2018, 47, 13214–13221. [Google Scholar] [CrossRef]
  46. Tinianow, J.N.; Pandya, D.N.; Pailloux, S.L.; Ogasawara, A.; Vanderbilt, A.N.; Gill, H.S.; Williams, S.P.; Wadas, T.J.; Magda, D.; Marik, J. Evaluation of a 3-hydroxypyridin-2-one (2,3-HOPO) Based Macrocyclic Chelator for 89Zr4+ and Its Use for ImmunoPET Imaging of HER2 Positive Model of Ovarian Carcinoma in Mice. Theranostics 2016, 6, 511–521. [Google Scholar] [CrossRef]
  47. Pandya, D.N.; Bhatt, N.B.; Almaguel, F.; Rideout-Danner, S.; Gage, H.D.; Solingapuram Sai, K.K.; Wadas, T.J. 89Zr-Chloride Can Be Used for Immuno-PET Radiochemistry Without Loss of Antigen Reactivity In Vivo. J. Nucl. Med. 2019, 60, 696–701. [Google Scholar] [CrossRef][Green Version]
  48. Rana, T.M.; Meares, C.F. N-terminal modification of immunoglobulin polypeptide chains tagged with isothiocyanato chelates. Bioconjug. Chem. 1990, 1, 357–362. [Google Scholar] [CrossRef]
  49. Messerschmidt, S.K.; Kolbe, A.; Muller, D.; Knoll, M.; Pleiss, J.; Kontermann, R.E. Novel single-chain Fv’ formats for the generation of immunoliposomes by site-directed coupling. Bioconjug. Chem. 2008, 19, 362–369. [Google Scholar] [CrossRef]
  50. Sarav, M.; Wang, Y.; Hack, B.K.; Chang, A.; Jensen, M.; Bao, L.; Quigg, R.J. Renal FcRn reclaims albumin but facilitates elimination of IgG. J. Am. Soc. Nephrol. 2009, 20, 1941–1952. [Google Scholar] [CrossRef][Green Version]
  51. Morita, H.; Yoshimura, A.; Kimata, K. The role of heparan sulfate in the glomerular basement membrane. Kidney Int. 2008, 73, 247–248. [Google Scholar] [CrossRef][Green Version]
  52. van den Hoven, M.J.; Wijnhoven, T.J.; Li, J.P.; Zcharia, E.; Dijkman, H.B.; Wismans, R.G.; Rops, A.L.; Lensen, J.F.; van den Heuvel, L.P.; van Kuppevelt, T.H.; et al. Reduction of anionic sites in the glomerular basement membrane by heparanase does not lead to proteinuria. Kidney Int. 2008, 73, 278–287. [Google Scholar] [CrossRef] [PubMed][Green Version]
  53. Wadas, T.J.; Wong, E.H.; Weisman, G.R.; Anderson, C.J. Copper chelation chemistry and its role in copper radiopharmaceuticals. Curr. Pharm. Des. 2007, 13, 3–16. [Google Scholar] [CrossRef] [PubMed][Green Version]
  54. Bhatt, N.B.; Pandya, D.N.; Dezarn, W.A.; Marini, F.C.; Zhao, D.; Gmeiner, W.H.; Triozzi, P.L.; Wadas, T.J. Practical Guidelines for Cerenkov Luminescence Imaging with Clinically Relevant Isotopes. Methods Mol. Biol. 2018, 1790, 197–208. [Google Scholar] [CrossRef] [PubMed]
  55. Shaffer, T.M.; Drain, C.M.; Grimm, J. Optical Imaging of Ionizing Radiation from Clinical Sources. J. Nucl. Med. 2016, 57, 1661–1666. [Google Scholar] [CrossRef][Green Version]
  56. Hamson, E.J.; Keane, F.M.; Tholen, S.; Schilling, O.; Gorrell, M.D. Understanding fibroblast activation protein (FAP): Substrates, activities, expression and targeting for cancer therapy. Proteomics Clin. Appl. 2014, 8, 454–463. [Google Scholar] [CrossRef]
  57. Arvantis, C.D.; Askoxylakis, V.; Guo, Y.; Datta, M.; Kloepper, J.; Ferraro, G.B.; Bernabeu, M.O.; Fukumura, D.; McDannold, N.; Jain, R.K. Mechanisms of enhanced drug delivery in brain metastases with focused ultrasound-induced blood–tumor barrier disruption. Proc. Natl. Acad. Sci. USA 2018, 115, E8717–E8726. [Google Scholar] [CrossRef][Green Version]
  58. Arvanitis, C.D.; Ferraro, G.B.; Jain, R.K. The blood-brain barrier and blood-tumour barrier in brain tumours and metastases. Nat. Rev. Cancer 2020, 20, 26–41. [Google Scholar] [CrossRef]
  59. Sattiraju, A.; Solingapuram Sai, K.K.; Xuan, A.; Pandya, D.N.; Almaguel, F.G.; Wadas, T.J.; Herpai, D.M.; Debinski, W.; Mintz, A. IL13RA2 targeted alpha particle therapy against glioblastomas. Oncotarget 2017, 8, 42997–43007. [Google Scholar] [CrossRef][Green Version]
  60. Sattiraju, A.; Sun, Y.; Solingapuram Sai, K.K.; Li, K.C.P.; Mintz, A. Part IV: Image-Guided, Remote-Controlled Opening of the Blood-Brain Barrier for Systemic Brain Tumor Therapy. In Maximizing Local Access to Therapeutic Deliveries in Glioblastoma; De Vleeschouwer, S., Ed.; Glioblastoma: Brisbane, Australia, 2017. [Google Scholar]
  61. Sattiraju, A.; Xiong, X.; Pandya, D.N.; Wadas, T.J.; Xuan, A.; Sun, Y.; Jung, Y.; Sai, K.K.S.; Dorsey, J.F.; Li, K.; et al. Alpha Particle Enhanced Blood Brain/Tumor Barrier Permeabilization in Glioblastomas Using Integrin Alpha-v Beta-3-Targeted Liposomes. Mol. Cancer Ther. 2017, 16, 2191–2200. [Google Scholar] [CrossRef][Green Version]
  62. Sun, Y.; Xiong, X.; Pandya, D.; Jung, Y.; Mintz, A.; Hayasaka, S.; Wadas, T.J.; Li, K.C.P. Enhancing tissue permeability with MRI guided preclinical focused ultrasound system in rabbit muscle: From normal tissue to VX2 tumor. J. Control. Release 2017, 256, 1–8. [Google Scholar] [CrossRef]
  63. Wang, L.; Habib, A.A.; Mintz, A.; Li, K.C.; Zhao, D. Phosphatidylserine-Targeted Nanotheranostics for Brain Tumor Imaging and Therapeutic Potential. Mol. Imaging 2017, 16. [Google Scholar] [CrossRef] [PubMed][Green Version]
  64. Xiong, X.; Sun, Y.; Sattiraju, A.; Jung, Y.; Mintz, A.; Hayasaka, S.; Li, K.C.P. Remote spatiotemporally controlled and biologically selective permeabilization of blood-brain barrier. J. Control. Release 2015, 217, 113–120. [Google Scholar] [CrossRef] [PubMed][Green Version]
  65. Ciarrocchi, E.; Belcari, N. Cerenkov luminescence imaging: Physics principles and potential applications in biomedical sciences. EJNMMI Phys. 2017, 4. [Google Scholar] [CrossRef] [PubMed][Green Version]
  66. Grootendorst, M.R.; Cariati, M.; Kothari, A.; Tuch, D.S.; Purushotham, A. Cerenkov luminescence imaging (CLI) for image-guided cancer surgery. Clin. Transl. Imaging 2016, 4, 353–366. [Google Scholar] [CrossRef] [PubMed][Green Version]
  67. Pandya, D.N.; Hantgan, R.; Budzevich, M.M.; Kock, N.D.; Morse, D.L.; Batista, I.; Mintz, A.; Li, K.C.P.; Wadas, T.J. Preliminary Therapy Evaluation of (225)Ac-DOTA-c(RGDyK) Demonstrates that Cerenkov Radiation Derived from (225)Ac Daughter Decay Can Be Detected by Optical Imaging for In Vivo Tumor Visualization. Theranostics 2016, 6, 698–709. [Google Scholar] [CrossRef] [PubMed][Green Version]
  68. Schwenck, J.; Fuchs, K.; Eilenberger, S.H.; Rolle, A.M.; Castaneda Vega, S.; Thaiss, W.M.; Maier, F.C. Fluorescence and Cerenkov luminescence imaging. Applications in small animal research. Nuklearmedizin 2016, 55, 63–70. [Google Scholar] [CrossRef] [PubMed]
  69. Xu, Y.; Liu, H.; Cheng, Z. Harnessing the power of radionuclides for optical imaging: Cerenkov luminescence imaging. J. Nucl. Med. 2011, 52, 2009–2018. [Google Scholar] [CrossRef][Green Version]
  70. Zhang, J.G.; Liu, H.F. Functional imaging and endoscopy. World J. Gastroenterol 2011, 17, 4277–4282. [Google Scholar] [CrossRef]
  71. Aras, G.; Arican, P.; Cam, R.; Kucuk, N.O.; Ibis, E.; Tuzuner, A.; Soylu, A. Identification of sentinel lymph node in breast cancer by lymphoscintigraphy and surgical gamma probe with peritumoral injection of scintimammographic agent “99mTc MIbI”. Ann. Nucl. Med. 2002, 16, 121–126. [Google Scholar] [CrossRef]
  72. Arcan, P.; Ibis, E.; Aras, G.; Cam, R.; Kucuk, N.O. Identification of sentinel lymph node in stage I-II breast cancer with lymphoscintigraphy and surgical gamma probe: Comparison of Tc-99m MIBI and Tc-99m sulfur colloid. Clin. Nucl. Med. 2005, 30, 317–321. [Google Scholar] [CrossRef]
  73. Atinkaya, C.; Ozlem Kucuk, N.; Koparal, H.; Aras, G.; Sak, S.D.; Ozdemir, N. Mediastinal intraoperative radioisotope sentinel lymph node mapping in non-small-cell lung cancer. Nucl. Med. Commun. 2005, 26, 717–720. [Google Scholar] [CrossRef] [PubMed]
  74. Zulfikaroglu, B.; Koc, M.; Ozmen, M.M.; Kucuk, N.O.; Ozalp, N.; Aras, G. Intraoperative lymphatic mapping and sentinel lymph node biopsy using radioactive tracer in gastric cancer. Surgery 2005, 138, 899–904. [Google Scholar] [CrossRef] [PubMed]
  75. Holland, J.P.; Sheh, Y.; Lewis, J.S. Standardized methods for the production of high specific-activity zirconium-89. Nucl. Med. Biol. 2009, 36, 729–739. [Google Scholar] [CrossRef] [PubMed][Green Version]
  76. Rettig, W.J.; Garin-Chesa, P.; Beresford, H.R.; Oettgen, H.F.; Melamed, M.R.; Old, L.J. Cell-surface glycoproteins of human sarcomas: Differential expression in normal and malignant tissues and cultured cells. Proc. Natl. Acad. Sci. USA 1988, 85, 3110–3114. [Google Scholar] [CrossRef][Green Version]
  77. Rettig, W.J.; Su, S.L.; Fortunato, S.R.; Scanlan, M.J.; Raj, B.K.; Garin-Chesa, P.; Healey, J.H.; Old, L.J. Fibroblast activation protein: Purification, epitope mapping and induction by growth factors. Int. J. Cancer 1994, 58, 385–392. [Google Scholar] [CrossRef] [PubMed]
  78. Boven, E.; Lindmo, T.; Mitchell, J.B.; Bunn, P.A., Jr. Selective cytotoxicity of 125I-labeled monoclonal antibody T101 in human malignant T cell lines. Blood 1986, 67, 429–435. [Google Scholar] [CrossRef][Green Version]
  79. Pandya, D.N.; Bhatt, N.; Yuan, H.; Day, C.S.; Ehrmann, B.M.; Wright, M.; Bierbach, U.; Wadas, T.J. Zirconium tetraazamacrocycle complexes display extraordinary stability and provide a new strategy for zirconium-89-based radiopharmaceutical development. Chem. Sci. 2017, 8, 2309–2314. [Google Scholar] [CrossRef][Green Version]
  80. Gambhir, S.S.; Barrio, J.R.; Wu, L.; Iyer, M.; Namavari, M.; Satyamurthy, N.; Bauer, E.; Parrish, C.; MacLaren, D.G.; Borghei, A.R.; et al. Imaging of adenoviral-directed herpes simplex virus type 1 thymidine kinase reporter gene expression in mice with radiolabeled ganciclovir. J. Nucl. Med. 1998, 39, 2003–2011. [Google Scholar]
  81. Hoang, L.L.; Tacha, D.E.; Qi, W.; Yu, C.; Bremer, R.E.; Chu, J.; Haas, T.S.; Cheng, L. A newly developed uroplakin II antibody with increased sensitivity in urothelial carcinoma of the bladder. Arch. Pathol. Lab. Med. 2014, 138, 943–949. [Google Scholar] [CrossRef]
Scheme 1. Preparation of [89Zr]Zr-Df-Bz-F19 mAb.
Scheme 1. Preparation of [89Zr]Zr-Df-Bz-F19 mAb.
Molecules 25 03672 sch001

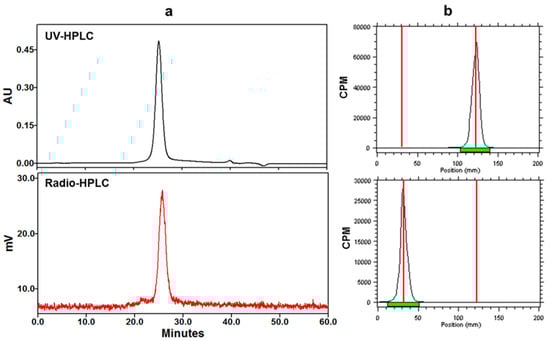

Figure 1. Quality control of [89Zr]Zr-Df-Bz-F19. (a) UV-HPLC chromatogram (280 nm) of Df-Bz-F19 (top) compared with radio-HPLC chromatogram of [89Zr]Zr-Df-Bz-F19 (bottom). Chromatograms demonstrate that [89Zr]Zr-Df-Bz-F19 can be prepared with high purity. The radiotracer also demonstrates the same retention time as the unlabeled antibody; (b) Radio-ITLC of [89Zr]Zr(ox)2 (top), and [89Zr]Zr-Df-Bz-F19 (bottom). In this ITLC-SG system, unchelated [89Zr]Zr(ox)2 was complexed by the eluent EDTA to form [89Zr]Zr-EDTA, which eluted with the solvent front (Rf ~ 1), while [89Zr]Zr-Df-Bz-F19 remained at the origin (Rf ~ 0).
Figure 1. Quality control of [89Zr]Zr-Df-Bz-F19. (a) UV-HPLC chromatogram (280 nm) of Df-Bz-F19 (top) compared with radio-HPLC chromatogram of [89Zr]Zr-Df-Bz-F19 (bottom). Chromatograms demonstrate that [89Zr]Zr-Df-Bz-F19 can be prepared with high purity. The radiotracer also demonstrates the same retention time as the unlabeled antibody; (b) Radio-ITLC of [89Zr]Zr(ox)2 (top), and [89Zr]Zr-Df-Bz-F19 (bottom). In this ITLC-SG system, unchelated [89Zr]Zr(ox)2 was complexed by the eluent EDTA to form [89Zr]Zr-EDTA, which eluted with the solvent front (Rf ~ 1), while [89Zr]Zr-Df-Bz-F19 remained at the origin (Rf ~ 0).
Molecules 25 03672 g001

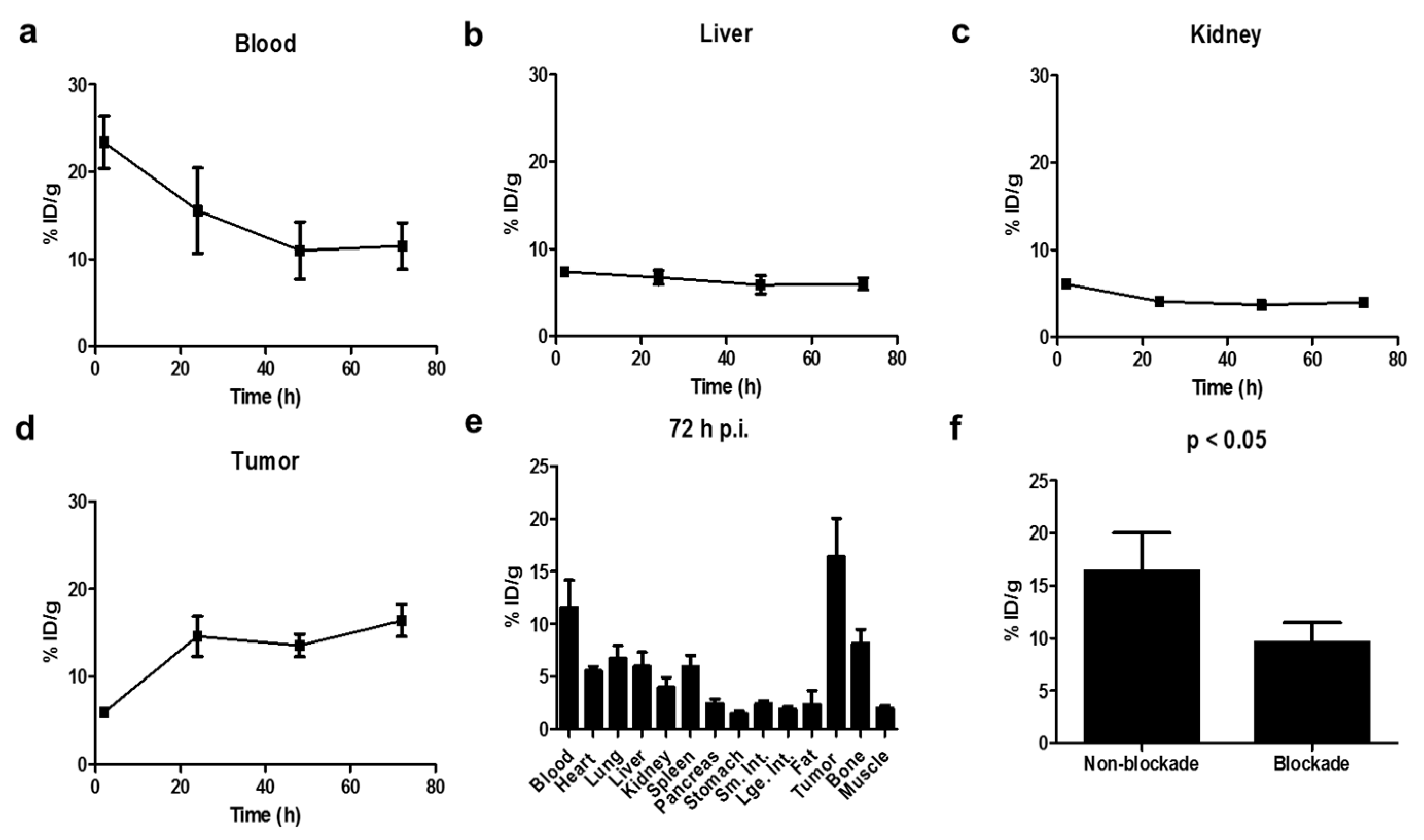

Figure 2. Biodistribution data of [89Zr]Zr-Df-Bz-F19 in select tissues: (a) blood; (b) liver; (c) kidney; (d) U87MG tumor; (e) The complete biodistribution profile of [89Zr]Zr-Df-Bz-F19 at 72 h p.i.; (f) The influence of F19 mAb blockade on the retention of [89Zr]Zr-Df-Bz-F19 in tumor tissue.
Figure 2. Biodistribution data of [89Zr]Zr-Df-Bz-F19 in select tissues: (a) blood; (b) liver; (c) kidney; (d) U87MG tumor; (e) The complete biodistribution profile of [89Zr]Zr-Df-Bz-F19 at 72 h p.i.; (f) The influence of F19 mAb blockade on the retention of [89Zr]Zr-Df-Bz-F19 in tumor tissue.
Molecules 25 03672 g002

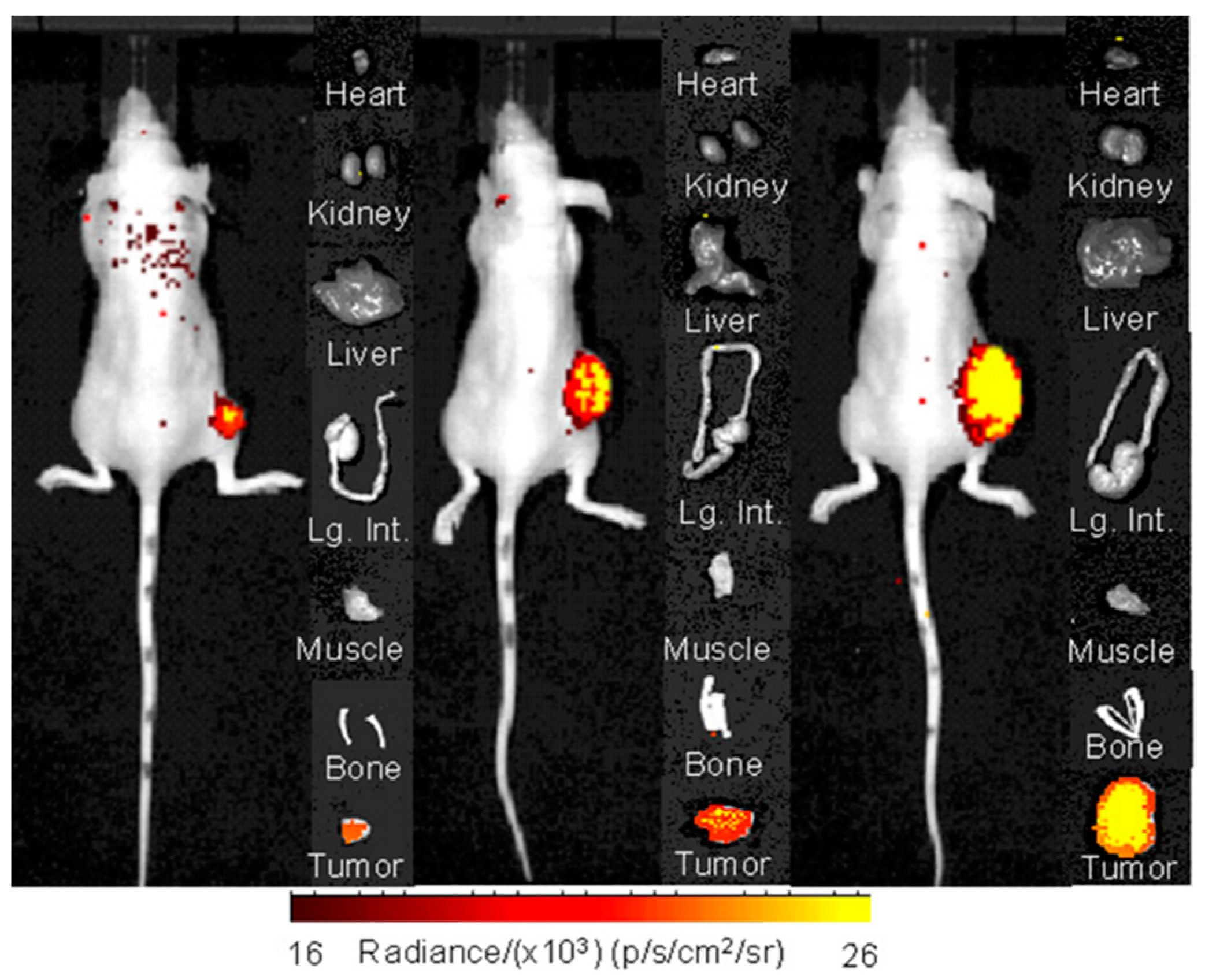

Figure 3. Cerenkov luminescence imaging of FAP+ U87MG tumor-bearing mice at 72 h p.i. using [89Zr]Zr-Df-Bz-F19.
Figure 3. Cerenkov luminescence imaging of FAP+ U87MG tumor-bearing mice at 72 h p.i. using [89Zr]Zr-Df-Bz-F19.
Molecules 25 03672 g003

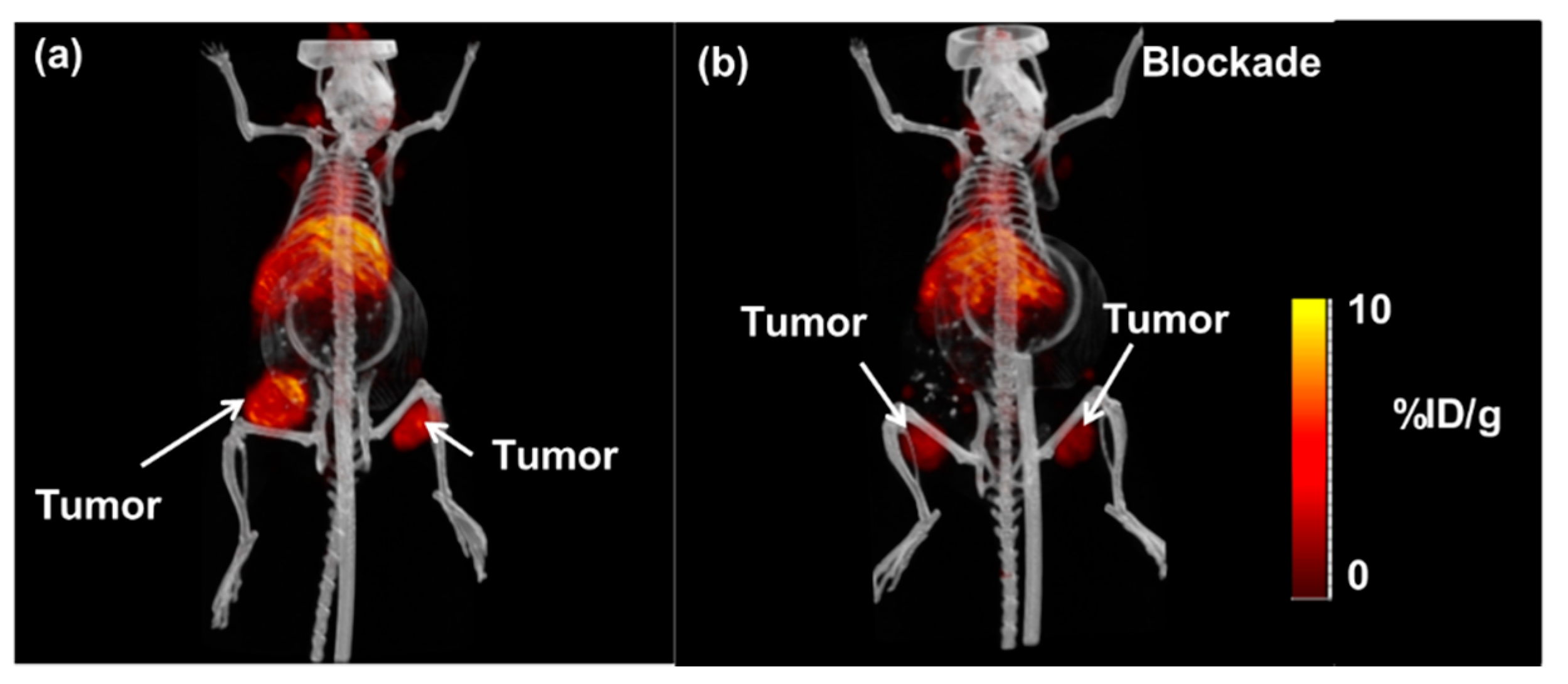

Figure 4. (a) Whole body volume rendered PET/CT image (72 h p.i.) of an animal receiving [89Zr]Zr-Df-Bz-F19, showing tumor retention of the radiotracer; (b) whole body volume rendered PET/CT image (72 h p.i.) of an animal receiving [89Zr]Zr-Df-Bz-F19 and F19 mAb blockade. Radioactivity within tumors is significantly reduced upon blockade. Arrows indicate position of tumor.
Figure 4. (a) Whole body volume rendered PET/CT image (72 h p.i.) of an animal receiving [89Zr]Zr-Df-Bz-F19, showing tumor retention of the radiotracer; (b) whole body volume rendered PET/CT image (72 h p.i.) of an animal receiving [89Zr]Zr-Df-Bz-F19 and F19 mAb blockade. Radioactivity within tumors is significantly reduced upon blockade. Arrows indicate position of tumor.
Molecules 25 03672 g004

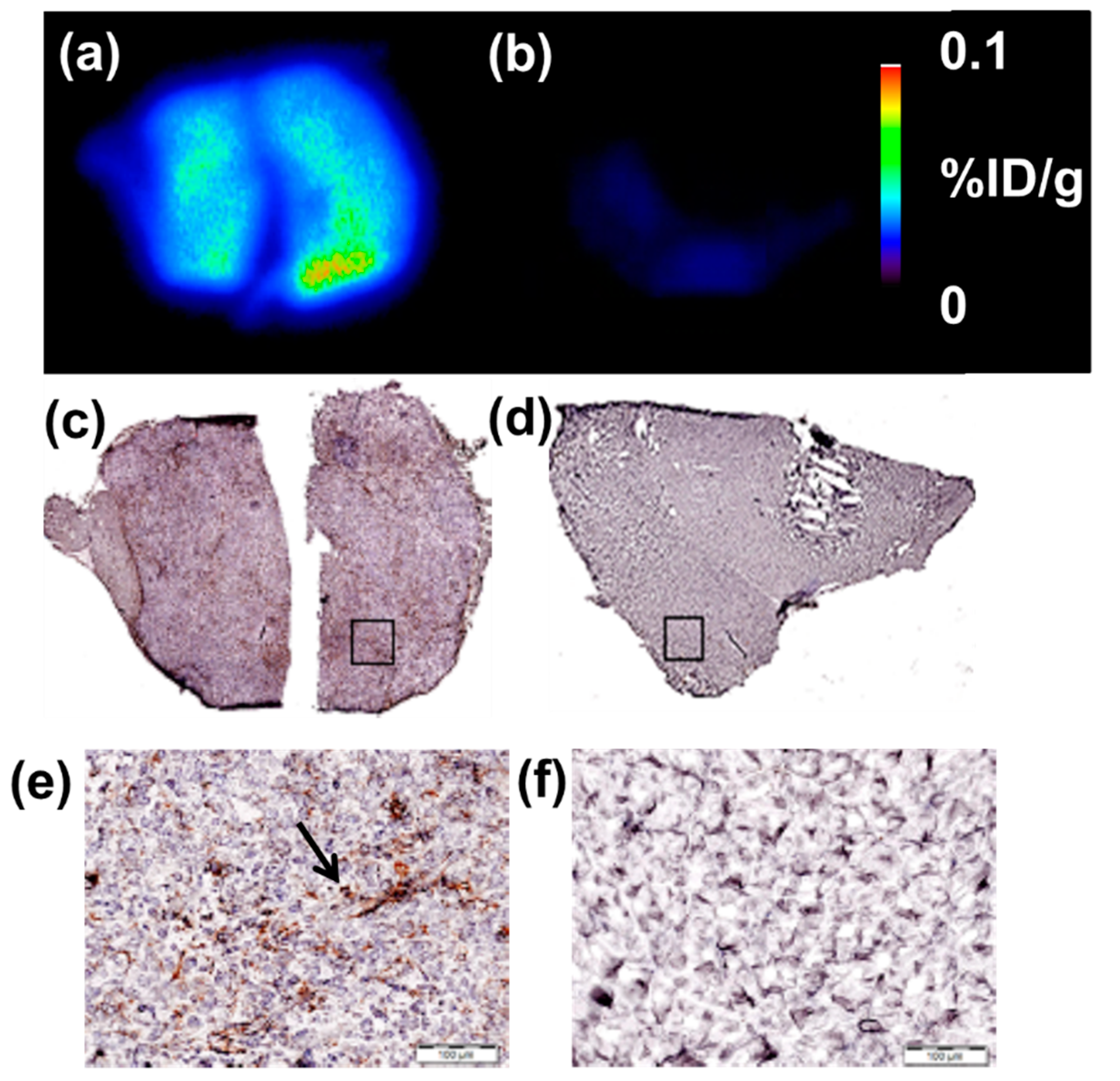

Figure 5. Autoradiography and histology confirm the presence of [89Zr]Zr-Df-Bz-F19 in only FAP+ tissues. (a) Autoradiography corroborates results of small animal imaging experiments; radioactivity is localized in the FAP+ tumor; (b) FAP tissues (e.g., muscle) demonstrated non-specific and minimal accumulation of radioactivity; Macroscopic view of sequential tumor (c) and muscle (d) slices used to corroborate autoradiographic studies; black squares indicate spatial area where tissue magnification (100×) occurred to observe the presence (e) or absence (f) of FAP expression in each tissue. Arrows indicate FAP expression.
Figure 5. Autoradiography and histology confirm the presence of [89Zr]Zr-Df-Bz-F19 in only FAP+ tissues. (a) Autoradiography corroborates results of small animal imaging experiments; radioactivity is localized in the FAP+ tumor; (b) FAP tissues (e.g., muscle) demonstrated non-specific and minimal accumulation of radioactivity; Macroscopic view of sequential tumor (c) and muscle (d) slices used to corroborate autoradiographic studies; black squares indicate spatial area where tissue magnification (100×) occurred to observe the presence (e) or absence (f) of FAP expression in each tissue. Arrows indicate FAP expression.
Molecules 25 03672 g005

Share and Cite

MDPI and ACS Style

Pandya, D.N.; Sinha, A.; Yuan, H.; Mutkus, L.; Stumpf, K.; Marini, F.C.; Wadas, T.J. Imaging of Fibroblast Activation Protein Alpha Expression in a Preclinical Mouse Model of Glioma Using Positron Emission Tomography. Molecules 2020, 25, 3672. https://doi.org/10.3390/molecules25163672

AMA Style

Pandya DN, Sinha A, Yuan H, Mutkus L, Stumpf K, Marini FC, Wadas TJ. Imaging of Fibroblast Activation Protein Alpha Expression in a Preclinical Mouse Model of Glioma Using Positron Emission Tomography. Molecules. 2020; 25(16):3672. https://doi.org/10.3390/molecules25163672

Chicago/Turabian Style

Pandya, Darpan N., Akesh Sinha, Hong Yuan, Lysette Mutkus, Kristina Stumpf, Frank C. Marini, and Thaddeus J. Wadas. 2020. "Imaging of Fibroblast Activation Protein Alpha Expression in a Preclinical Mouse Model of Glioma Using Positron Emission Tomography" Molecules 25, no. 16: 3672. https://doi.org/10.3390/molecules25163672

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
