Article

Covalently Functionalized DNA Duplexes and Quadruplexes as Hybrid Catalysts in an Enantioselective Friedel–Crafts Reaction

by
Surjendu Dey
and
Andres Jäschke
*
Institute of Pharmacy and Molecular Biotechnology, Heidelberg University, 69120 Heidelberg, Germany
*
Author to whom correspondence should be addressed.
Molecules 2020, 25(14), 3121; https://doi.org/10.3390/molecules25143121
Submission received: 26 May 2020 / Revised: 19 June 2020 / Accepted: 2 July 2020 / Published: 8 July 2020
(This article belongs to the Special Issue Advances in Catalytic DNA)
Browse Figures
Versions Notes

Abstract

The precise site-specific positioning of metal–ligand complexes on various DNA structures through covalent linkages has gained importance in the development of hybrid catalysts for aqueous-phase homogeneous catalysis. Covalently modified double-stranded and G-quadruplex DNA-based hybrid catalysts have been investigated separately. To understand the role of different DNA secondary structures in enantioselective Friedel–Crafts alkylation, a well-known G-quadruplex-forming sequence was covalently modified at different positions. The catalytic performance of this modified DNA strand was studied in the presence and absence of a complementary DNA sequence, resulting in the formation of two different secondary structures, namely duplex and G-quadruplex. Indeed, the secondary structures had a tremendous effect on both the yield and stereoselectivity of the catalyzed reaction. In addition, the position of the modification, the topology of the DNA, the nature of the ligand, and the length of the linker between ligand and DNA were found to modulate the catalytic performance of the hybrid catalysts. Using the optimal linker length, the quadruplexes formed the (−)-enantiomer with up to 65% ee, while the duplex yielded the (+)-enantiomer with up to 62% ee. This study unveils a new and simple way to control the stereochemical outcome of a Friedel–Crafts reaction.

Graphical Abstract

1. Introduction

The Friedel–Crafts reaction was first reported in 1877 [1,2]. Since then, it has become one of the most versatile methods for the formation of carbon–carbon bonds, and enantioselective Friedel–Crafts alkylation reactions have gained particular importance [3,4,5]. While the classical Friedel–Crafts reactions were performed under strictly anhydrous conditions, in recent years numerous attempts were made to expand this reaction to aqueous media [6]. Among other strategies, hybrid catalysis is an emerging concept in aqueous-phase homogeneous asymmetric catalysis [7,8,9,10]. Here, catalytically active transition metal complexes are embedded in the chiral scaffold of biopolymers, such as proteins or nucleic acids, which behave as a second coordination sphere for increased reactivity and/or enantioselectivity [11,12,13,14,15,16]. Thus, the structure of biopolymers plays a crucial role in catalysis.
The concept of DNA-based hybrid catalysts was first reported by Roelfes and Feringa in 2005, where the combination of a double-stranded (ds) DNA and a Cu(II)-complex covalently bound to an intercalating moiety was tested [17]. Since then, this approach has been successfully expanded to various enantioselective reactions, such as Diels–Alder reactions [17,18,19,20,21], inverse electron-demand hetero-Diels–Alder reactions [22], Friedel–Crafts alkylations [23,24,25,26,27], Michael additions [28,29,30], fluorinations [31], syn-hydrations [32], and metal–organic reactions [33]. In all cases, a non-covalent strategy was used to combine the dsDNA and different Cu(II)–ligand complexes. Besides dsDNA, other nucleic acid scaffolds, such as DNA hairpins [34], hybrid DNA/RNA or dsRNA [35], and peptide nucleic acid (PNA) [36], were also used to construct enantioselective catalysts. Recently, a cyclic dinucleotide-based catalyst [37] and a guanosine-based self-assembly [38] were reported for enantioselective Friedel–Crafts reactions.
Among the various nucleic acid scaffolds, the G-quadruplex family is quite promising owing to its high structural diversity, which makes it a favorable candidate for the development of hybrid catalysts [39,40,41]. Two well-known G-quadruplex-forming sequences, namely the human telomeric G-quadruplex (h-Tel), and a region of the c-kit promoter (c-kit) in combination with Cu(II) ions, have been successfully applied to asymmetric Diels–Alder, Friedel–Crafts and sulfoxidation reactions [42,43,44,45,46,47,48]. Among these two quadruplexes, h-Tel showed higher catalytic activity and stereoselectivity. In addition, an assembly of G-triplex DNA and Cu(II) was utilized in an asymmetric Diels–Alder reaction, but showed only moderate enantioselectivity [49]. In most of these studies, the binding of Cu(II) to the G-quadruplex sequences was assumed to be unspecific and probably due to electrostatic interactions. The nature of these interactions makes precise positioning of the catalytic metal ion relative to the bound substrate impossible, which in turn prevents the prediction of the parameters that determine activity and selectivity in these reactions. To overcome these problems, a site-specific covalent attachment strategy can be an alternative, allowing the covalent anchoring of the transition-metal ligand complex to the DNA in a precise manner, thus enabling the understanding of structure–function relationships [50,51,52,53,54,55,56,57,58,59,60].
Previously, we reported a new type of efficient and stereoselective hybrid catalyst and its application to asymmetric Michael additions in water [61,62]. In these catalysts, c-kit G-quadruplex DNA was site-specifically linked—via covalent tethers—to bipyridyl (bpy) ligands coordinated to Cu(II) ions. We observed that the stereoselectivity of the reaction can be easily tuned by choosing different attachment positions on the DNA sequence. We furthermore found that several different factors, such as the position of modification, the topology of the quadruplex, the nature of the ligand, and the length of the linker between the ligand and DNA, dictate the catalytic activity and stereoselectivity.
Herein, we report a direct comparison of G-quadruplex and duplex DNA-based hybrid catalysts, formed by covalent attachment of different bpy-linker constructs to the quadruplex forming sequences and their application on an enantioselective Friedel–Crafts alkylation. Surprisingly, the stereoselectivity could be tuned by selecting an appropriate linker length and DNA structure. While quadruplexes preferentially formed the (−)-enantiomer with up to 65% ee, the best duplex yielded the (+)-enantiomer with up to 62% ee.

2. Results and Discussion

2.1. Synthesis

For our investigation, we chose the c-kit wild-type (wt) sequence (5′-AGGGAGGGCGCT-GGGAGGAGGG-3′), which forms a unique all-parallel G-quadruplex structure according to high-resolution structural data from X-ray crystallography [63] and NMR spectroscopy [64] (as shown in Figure 1a). Based on this structural information and our previous experience [61,62], positions 12 and 10 were picked as sites of attachment for the bpy ligand. As position 12 was located in an apical loop segment, the influence of a bulky substitution was not noticeable according to crystallographic studies [63]. On the other hand, position 10 was highly important to the formation of the unique all-parallel folding topology. Mutating G10 with T, namely c-kit-T10, favored an alternative quadruplex folding, as observed in CD-spectroscopic measurements [64]. While the exact structure of this quadruplex is unknown, our previous studies suggest a mixed parallel–antiparallel topology [61,62,64]. A hypothetical structure of the c-kit-T10 mutant is drawn in Figure 1e. Both quadruplex-forming sequences can be turned into double-stranded structures by the addition of a full-length complementary DNA strand. We systematically substituted the thymidine residues T12 and T10 by various deoxyuridine-bpy conjugates differing only in the number of sp3-hybrized carbon atoms within the linker (between 0 and 8). The respective phosphoramidites were synthesized as described earlier [61,62]. The modified DNA strands were synthesized by solid-phase deoxyoligonucleotide synthesis and purified by HPLC (Figure S1, see the Supporting Information for details).

2.2. Catalytic Properties

To investigate the catalytic activity of the modified G-quadruplexes (GQ) and dsDNA with covalently linked bpy-moieties in combination with Cu(II), a model enantioselective Friedel–Crafts reaction of (E)-1-(1-methyl-1H-imidazol-2-yl)but-2-en-1-one (1) and 5-methoxy-1H-indole (2) was chosen [23]. The catalysts were prepared in situ by the combination of 2.5 mol% Cu(NO3)2 (25 μM) and a slight excess of bpy-linked DNA (33.3 μM).
First, we examined the reaction utilizing different dU12-modified G-quadruplexes in combination with Cu(II) (Table 1, entries 3–10). While propargyl-bpy and butynyl-bpy showed relatively lower conversion (Table 1, entries 3 and 4), longer linkers (n > 2) yielded almost quantitative conversion (Table 1, entries 5–10). In most of the cases, the (−)-enantiomer was favoured with up to −65% ee using a pentynyl-bpy linker (Table 1, entry 5). However, reversal of stereoselectivity was observed for the octynyl and decynyl linkers with +29% and +8% ee, respectively (Table 1, entries 8 and 10). Furthermore, a series of control experiments were performed utilizing either Cu(NO3)2 (Table 1, entries 1 and 2, and Table S1) or different Cu(II)-complexes (Table S2) in the absence or presence of c-kit(wt) or c-kit-T10 (both the GQ and dsDNA). In the case of Cu(NO3)2, low conversion with almost negligible stereoinduction (Table 1, entries 1 and 2; Table S1) was noticed. On the other hand, low to moderate conversion along with very low stereoselectivity (always in favour of the (+)-enantiomer) was obtained by employing different Cu(II)-complexes (Table S2). These results confirm the importance of the covalent bpy-linker attachment to the DNA, which enhances the catalytic efficiency and also shows that the stereoinduction is instigated by the topology of the DNA scaffold, and not by the chirality of the modified nucleoside.
Intrigued by these results, we changed the DNA structure from G-quadruplex to double-stranded. For these experiments, the dU12-modified sequences were combined with a complementary DNA sequence to fold into the dsDNA, which was used as a catalyst in combination with Cu(II) for the same enantioselective Friedel–Crafts alkylation. Again, an increase in conversion starting from 27% for propargyl-bpy (Table 1, entry 3) to almost quantitative for heptynyl-bpy and longer linkers (Table 1, entries 7–10) was achieved. Surprisingly, the stereoselectivity obtained by applying linker lengths n ≤ 4 and n = 8 for the dU12-modified dsDNA was opposite to that obtained with the dU12-modified quadruplex for the same linkers (Table 1, entries 3–6 and 10). In contrast, for the linker lengths (n = 5–7), both the dU12-modified quadruplex and dsDNA showed similar stereoselectivity for the product formation (Table 1, entries 7–9).
Next, we tested the dU10-modified quadruplexes which are likely to fold differently based on our previous CD measurements [61,62] (Figures S2 and S3). These quadruplexes gave significantly lower yields than the dU12-GQs, ranging from 44% to 68% and never approaching quantitative yields (Table 1, entries 3–10). In all cases, the (+)-enantiomer was obtained in excess with up to +45% ee (Table 1, entry 4). Remarkably, the preferentially formed enantiomer was always opposite to that obtained with the dU12-modified quadruplexes, except for the octynyl-bpy and the decynyl-bpy linkers (Table 1, entries 8 and 10).
The dU10-modified dsDNA was our next focus. In this case, a steady increase in conversion was observed with increasing linker length (Table 1, entries 3–10). Again, the (+)-enantiomer was obtained in excess in all cases. Here, the nonynyl-bpy linker was found to induce the highest stereoselectivity (+53% ee).
From the systematic studies of different dU12 and dU10-modified quadruplexes and dsDNA in the enantioselective Friedel–Crafts product formation, the roles of the bpy-linker modification and the DNA secondary structure are clearly visible. The optimal bpy-linker for achieving high enantioselectivity depends on the DNA structure. In the case of the dU12 modification, the pentynyl-bpy (−65% ee) and the propargyl-bpy (+62% ee) linkers were found to be more efficient for the quadruplex and dsDNA, respectively (Figure 2a). However, the butynyl-bpy (+45% ee) and the nonynyl-bpy (+53% ee) linkers more strongly induced stereoselectivity in the case of the dU10 modification with quadruplex and dsDNA structures, respectively (Figure 2b). Comparing all results, three trends were revealed with respect to the percentage of product formation. In the case of small linkers (n ≤ 3), the trend GQ(dU12)> GQ(dU10)> ds(dU12)> ds(dU10) was noticed (Table 1, entries 3–5). Using the hexynyl linker (n = 4), the order became GQ(dU12)> ds(dU12)> GQ(dU10)> ds(dU10) (Table 1, entry 6). Surprisingly, a third trend GQ(dU12)> ds(dU12)> ds(dU10)> GQ(dU10) was also observed for n ≥ 4 (Table 1, entries 7–10).
In the above experiments, the bpy ligand was connected to the deoxyuridine using different flexible linkers with up to ten rotatable atoms (sp3-hybridized C, ether-O), which contribute large translational and rotational degrees of freedom. Thus, the options for positioning the ligand with respect to the DNA were limited only by the length of the linker. Therefore, we extended our study by introducing a rigid linker in which an ethynyl bridge between the bpy ligand and C5-position of the deoxyuridine was chosen (Figure S4) [62,65,66,67,68]. An ethynyl bridge offers no translational and very little rotational degrees of freedom compared to the flexible systems. By applying the ethynyl-bpy modified dU12 and dU10 quadruplexes in the Friedel–Crafts alkylation, the (+) enantiomer was observed in excess and showed +45% and +30% ee, respectively (Table 1, entry 11). However, the corresponding dsDNA yielded lower enantioselectivity with the (−) enantiomer in excess. In this case, tuning of stereoselectivity is clearly due to the change in DNA structure. Comparing the results of the percentage of product formation (Table 1, entry 11), the trend GQ(dU12)> GQ(dU10)>ds(dU12)>ds(dU10) was observed, which is similar to the small flexible linkers (n ≤ 3) (Table 1, entries 3-5). Remarkably, the conversion yield utilizing the rigid ethynyl bridge is similar to the more flexible propargyl derivative, however the enantioselectivity results are different (compare entries 3 and 11 in Table 1). These trends suggest that the respective catalytic centers have different architectures. However, in the absence of high-resolution structural data and absolute stereochemistries, it is impossible to pinpoint the molecular reasons for these differences.
Looking at rate acceleration and stereoselectivity at the same time, the propargyl-bpy and the ethynyl-bpy derivatives (except for the dU12-GQ) can hardly be called “catalysts”, as there is no rate acceleration, compared to the unmodified DNA strands (compare lanes 3 and 11 with 1 and 2 in Table 1). It is questionable whether in these cases the catalytic copper ion is at all coordinated to the bpy ligand. The moderate to high stereoinduction in these cases may be solely due to restricted access to the catalytic center which could be a copper ion coordinated directly to the DNA. Starting with butynyl, the reaction rate increases significantly in all four formats, indicating that at least two sp3-hybridized carbon atoms in the linker are required for the formation of an efficient hybrid catalyst that accelerates the reaction and modulates the stereochemistry. In these cases, the catalytic center is likely composed of copper, the bpy ligand, and heteroatoms of specific nucleobases.
While the different enantioselectivities of the two different quadruplex topologies (dU12 vs. dU10) are in agreement with our previous work on DNA-catalyzed Michael additions [61,62], the large difference in reaction yields was unexpected, indicating that the relations uncovered here cannot be easily generalized and extended to other chemical transformations. Furthermore, the different reaction yields and partly opposite enantioselectivities of the two very similar DNA duplexes (dU12 vs. dU10) are surprising. The major difference between these two duplexes is that the bpy-linker-modified dU residue is located between two C residues in the case of dU10, while it is between a C and a G in dU12. The latter system consistenly delivers higher reaction yields and mostly higher levels of stereoselectivity. Thus, both for DNA quadruplexes and duplexes the direct vicinity of the catalytic center has a large influence on the catalytic performance.

3. Conclusions

In summary, we found that DNA sequences covalently modified with linker-bpy-Cu(II) complexes can be efficient catalysts for enantioselective Friedel–Crafts alkylation. Our experiments suggest that the secondary structures of DNA, the position of modification, the topology of the DNA, the nature of the ligand, and the length of the linker between the ligand and the DNA are all important factors for the catalytic efficiency. Applying these hybrid catalysts, stereochemical outcomes of the reaction can be tuned. The quadruplex DNA yielded the (−)-enantiomer with up to 65% ee, however double-stranded DNA provided the (+)-enantiomer with up to 62% ee. Furthermore, our experiments show that the dependence of linker length on catalyst performance is far from trivial and even very long, flexible linkers can still lead to potent and selective catalysts. Finally, we believe that our findings open a new avenue to construct efficient DNA-based hybrid catalysts, which may develop into useful tools for asymmetric catalysis under environmentally benign conditions.

Supplementary Materials

The following are available online at https://www.mdpi.com/1420-3049/25/14/3121/s1, Figure S1: HPLC chromatograms of modified oligonucleotides [2,3], Figure S2: CD-spectra of c-kit(wt) oligonucleotide modified at position 12 in 20 mM MOPS (pH=7) + 100 mM KCl. All formed G-quadruplexes [2,3], Figure S3: CD-spectra of c-kit oligonucleotide modified at position 10 in 20 mM MOPS (pH=7) + 100 mM KCl. All formed G-quadruplexes [2,3], Figure S4. Folding of different G-quadruplex and dsDNA sequences in the presence of Cu(II), Table S1: Friedel-Crafts alkylation reaction using different catalytic conditions [a], Table S2:Friedel-Crafts alkylation reaction using different catalytic conditions [a].

Author Contributions

Conceptualization, S.D. and A.J.; Data curation, S.D.; Formal analysis, S.D. and A.J.; Funding acquisition, A.J.; Investigation, S.D.; Methodology, S.D.; Visualization, S.D.; Writing–original draft, S.D.; Writing–review and editing, A.J. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Deutsche Forschungsgemeinschaft, SFB 623 “Molecular Catalysis”.

Acknowledgments

The authors thank D. Zetschok for support in the synthesis. S. Suhm is gratefully acknowledged for technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Friedel, C.; Crafts, J.M. C. R. Hebd. Seances Acad. Sci. 1877, 84, 1392. [Google Scholar]
  2. Friedel, C.; Crafts, J.M. C. R. Hebd. Seances Acad. Sci. 1877, 84, 1450. [Google Scholar]
  3. Poulsen, T.B.; Jørgensen, K.A. Catalytic Asymmetric Friedel−Crafts Alkylation Reactions—Copper Showed the Way. Chem. Rev. 2008, 108, 2903–2915. [Google Scholar] [CrossRef] [PubMed]
  4. Rueping, M.; Nachtsheim, B.J. A review of new developments in the Friedel–Crafts alkylation – From green chemistry to asymmetric catalysis. Beilstein J. Org. Chem. 2010, 6, 6. [Google Scholar]
  5. Rueping, M.; Raja, S.; Núñez, A. Asymmetric Brønsted Acid-Catalyzed Friedel–Crafts Reactions of Indoles with Cyclic Imines - Efficient Generation of Nitrogen-Substituted Quaternary Carbon Centers. Adv. Synth. Catal. 2011, 353, 563–568. [Google Scholar] [CrossRef]
  6. Kitanosono, T.; Masuda, K.; Xu, P.; Kobayashi, S. Catalytic Organic Reactions in Water toward Sustainable Society. Chem. Rev. 2018, 118, 679–746. [Google Scholar] [CrossRef] [PubMed]
  7. Rioz-Martínez, A.; Roelfes, G. DNA-based hybrid catalysis. Curr. Opin. Chem. Biol. 2015, 25, 80–87. [Google Scholar] [CrossRef]
  8. Duchemin, N.; Heath-Apostolopoulos, I.; Smietana, M.; Arseniyadis, S. A decade of DNA-hybrid catalysis: From innovation to comprehension. Org. Biomol. Chem. 2017, 15, 7072–7087. [Google Scholar] [CrossRef]
  9. Yum, J.H.; Park, S.; Sugiyama, H. G-quadruplexes as versatile scaffolds for catalysis. Org. Biomol. Chem. 2019, 17, 9547–9561. [Google Scholar] [CrossRef]
  10. Mansot, J.; Vasseur, J.-J.; Arseniyadis, S.; Smietana, M. α,β-Unsaturated 2-Acyl-Imidazoles in Asymmetric Biohybrid Catalysis. ChemCatChem 2019, 11, 5686–5704. [Google Scholar] [CrossRef]
  11. Steinreiber, J.; Ward, T.R. Artificial metalloenzymes as selective catalysts in aqueous media. Coord. Chem. Rev. 2008, 252, 751–766. [Google Scholar] [CrossRef]
  12. Boersma, A.J.; Megens, R.P.; Feringa, B.L.; Roelfes, G. DNA-based asymmetric catalysis. Chem. Soc. Rev. 2010, 39, 2083–2092. [Google Scholar] [CrossRef] [PubMed]
  13. Park, S.; Sugiyama, H. DNA-Based Hybrid Catalysts for Asymmetric Organic Synthesis. Angew. Chem., Int. Ed. 2010, 49, 3870–3878. [Google Scholar] [CrossRef] [PubMed]
  14. Silverman, S.K. DNA as a Versatile Chemical Component for Catalysis, Encoding, and Stereocontrol. Angew. Chem., Int. Ed. 2010, 49, 7180–7201. [Google Scholar] [CrossRef] [PubMed]
  15. Bos, J.; Roelfes, G. Artificial metalloenzymes for enantioselective catalysis. Curr. Opin. Chem. Biol. 2014, 19, 135–143. [Google Scholar] [CrossRef]
  16. Jäschke, A. Selective Hybrid Catalysts Based on Nucleic Acids. In Molecular Catalysts; Wiley-VCH Verlag: Weinheim, Germany, 2014; pp. 377–392. [Google Scholar] [CrossRef]
  17. Roelfes, G.; Feringa, B.L. DNA-based asymmetric catalysis. Angew. Chem., Int. Ed. 2005, 44, 3230–3232. [Google Scholar] [CrossRef]
  18. Roelfes, G.; Boersma, A.J.; Feringa, B.L. Highly enantioselective DNA-based catalysis. Chem. Commun. 2006, 635–637. [Google Scholar] [CrossRef]
  19. Boersma, A.J.; Feringa, B.L.; Roelfes, G. alpha,beta-unsaturated 2-acyl imidazoles as a practical class of dienophiles for the DNA-Based catalytic asymmetric diels-alder reaction in water. Org. Lett. 2007, 9, 3647–3650. [Google Scholar] [CrossRef]
  20. Wang, J.; Benedetti, E.; Bethge, L.; Vonhoff, S.; Klussmann, S.; Vasseur, J.J.; Cossy, J.; Smietana, M.; Arseniyadis, S. DNA vs. Mirror-Image DNA: A Universal Approach to Tune the Absolute Configuration in DNA-Based Asymmetric Catalysis. Angew. Chem. Int. Ed. 2013, 52, 11546–11549. [Google Scholar] [CrossRef]
  21. Bai, J.K.; Zhou, H.; Sun, X.L.; Chen, D.; Li, C.; Qiao, R.Z. Insight into Stereo-Induction by Minor Modification in the Ligand in DNA-Based Hybrid Catalysis. Catal. Lett. 2018, 148, 3315–3324. [Google Scholar] [CrossRef]
  22. Mansot, J.; Lauberteaux, J.; Lebrun, A.; Mauduit, M.; Vasseur, J.-J.; Marcia de Figueiredo, R.; Arseniyadis, S.; Campagne, J.-M.; Smietana, M. DNA-Based Asymmetric Inverse Electron-Demand Hetero-Diels–Alder. Chem.—Eur. J. 2020, 26, 3519–3523. [Google Scholar] [CrossRef]
  23. Boersma, A.J.; Feringa, B.L.; Roelfes, G. Enantioselective Friedel-Crafts Reactions in Water Using a DNA-Based Catalyst. Angew. Chem., Int. Ed. 2009, 48, 3346–3348. [Google Scholar] [CrossRef] [PubMed]
  24. Park, S.; Ikehata, K.; Watabe, R.; Hidaka, Y.; Rajendran, A.; Sugiyama, H. Deciphering DNA-based asymmetric catalysis through intramolecular Friedel-Crafts alkylations. Chem. Commun. 2012, 48, 10398–10400. [Google Scholar] [CrossRef] [PubMed]
  25. Petrova, G.P.; Ke, Z.; Park, S.; Sugiyama, H.; Morokuma, K. The origin of enantioselectivity for intramolecular Friedel–Crafts reaction catalyzed by supramolecular Cu/DNA catalyst complex. Chem. Phys. Lett. 2014, 600, 87–95. [Google Scholar] [CrossRef]
  26. García-Fernández, A.; Megens, R.P.; Villarino, L.; Roelfes, G. DNA-Accelerated Copper Catalysis of Friedel–Crafts Conjugate Addition/Enantioselective Protonation Reactions in Water. J. Am. Chem. Soc. 2016, 138, 16308–16314. [Google Scholar] [CrossRef]
  27. Zhou, H.; Chen, D.; Bai, J.K.; Sun, X.L.; Li, C.; Qiao, R.Z. Effect of ligand sequence-specific modification on DNA hybrid catalysis. Org. Biomol. Chem. 2017, 15, 6738–6745. [Google Scholar] [CrossRef]
  28. Coquiѐre, D.; Feringa, B.L.; Roelfes, G. DNA-Based catalytic enantioselective Michael reactions in water. Angew. Chem., Int. Ed. 2007, 46, 9308–9311. [Google Scholar] [CrossRef]
  29. Megens, R.P.; Roelfes, G. DNA-based catalytic enantioselective intermolecular oxa-Michael addition reactions. Chem. Commun. 2012, 48, 6366–6368. [Google Scholar] [CrossRef][Green Version]
  30. Li, Y.H.; Wang, C.H.; Jia, G.Q.; Lu, S.M.; Li, C. Enantioselective Michael addition reactions in water using a DNA-based catalyst. Tetrahedron 2013, 69, 6585–6590. [Google Scholar] [CrossRef]
  31. Shibata, N.; Yasui, H.; Nakamura, S.; Toru, T. DNA-Mediated enantioselective carbon-fluorine bond formation. Synlett 2007, 1153–1157. [Google Scholar] [CrossRef]
  32. Boersma, A.J.; Coquiѐre, D.; Geerdink, D.; Rosati, F.; Feringa, B.L.; Roelfes, G. Catalytic enantioselective syn hydration of enones in water using a DNA-based catalyst. Nat. Chem. 2010, 2, 991–995. [Google Scholar] [CrossRef] [PubMed]
  33. Rioz-Martínez, A.; Oelerich, J.; Ségaud, N.; Roelfes, G. DNA-Accelerated Catalysis of Carbene-Transfer Reactions by a DNA/Cationic Iron Porphyrin Hybrid. Angew. Chem. Int. Ed. 2016, 55, 14136–14140. [Google Scholar] [CrossRef] [PubMed]
  34. Marek, J.J.; Singh, R.P.; Heuer, A.; Hennecke, U. Enantioselective Catalysis by Using Short, Structurally Defined DNA Hairpins as Scaffold for Hybrid Catalysts. Chem.—Eur. J. 2017, 23, 6004–6008. [Google Scholar] [CrossRef] [PubMed]
  35. Marek, J.J.; Hennecke, U. Why DNA Is a More Effective Scaffold than RNA in Nucleic Acid-Based Asymmetric Catalysis—Supramolecular Control of Cooperative Effects. Chem.—Eur. J. 2017, 23, 6009–6013. [Google Scholar] [CrossRef]
  36. Bai, J.K.; Chen, D.; Li, C.; Wang, H.S.; Qiao, R.Z. PNA as Hybrid Catalyst Scaffold Catalyzed Asymmetric Friedel–Crafts Alkylation. Catal. Lett. 2020. [Google Scholar] [CrossRef]
  37. Wang, C.; Hao, M.; Qi, Q.; Dang, J.; Dong, X.; Lv, S.; Xiong, L.; Gao, H.; Jia, G.; Chen, Y.; et al. Highly Efficient Cyclic Dinucleotide Based Artificial Metalloribozymes for Enantioselective Friedel–Crafts Reactions in Water. Angew. Chem. Int. Ed. 2020, 59, 3444–3449. [Google Scholar] [CrossRef]
  38. Bai, J.; Sun, X.; Wang, H.; Li, C.; Qiao, R. Guanosine-Based Self-Assembly as an Enantioselective Catalyst Scaffold. J. Org. Chem. 2020, 85, 2010–2018. [Google Scholar] [CrossRef]
  39. Burge, S.; Parkinson, G.N.; Hazel, P.; Todd, A.K.; Neidle, S. Quadruplex DNA: Sequence, topology and structure. Nucleic Acids Res. 2006, 34, 5402–5415. [Google Scholar] [CrossRef]
  40. Lane, A.N.; Chaires, J.B.; Gray, R.D.; Trent, J.O. Stability and kinetics of G-quadruplex structures. Nucleic Acids Res. 2008, 36, 5482–5515. [Google Scholar] [CrossRef]
  41. Qin, Y.; Hurley, L.H. Structures, folding patterns, and functions of intramolecular DNA G-quadruplexes found in eukaryotic promoter regions. Biochimie 2008, 90, 1149–1171. [Google Scholar] [CrossRef] [PubMed]
  42. Roe, S.; Ritson, D.J.; Garner, T.; Searle, M.; Moses, J.E. Tuneable DNA-based asymmetric catalysis using a G-quadruplex supramolecular assembly. Chem. Commun. 2010, 46, 4309–4311. [Google Scholar] [CrossRef] [PubMed]
  43. Wang, C.H.; Li, Y.H.; Jia, G.Q.; Liu, Y.; Lu, S.M.; Li, C. Enantioselective Friedel-Crafts reactions in water catalyzed by a human telomeric G-quadruplex DNA metalloenzyme. Chem. Commun. 2012, 48, 6232–6234. [Google Scholar] [CrossRef] [PubMed]
  44. Wang, C.H.; Jia, G.Q.; Zhou, J.; Li, Y.H.; Liu, Y.; Lu, S.M.; Li, C. Enantioselective Diels-Alder Reactions with G-Quadruplex DNA-Based Catalysts. Angew. Chem., Int. Ed. 2012, 51, 9352–9355. [Google Scholar] [CrossRef]
  45. Wilking, M.; Hennecke, U. The influence of G-quadruplex structure on DNA-based asymmetric catalysis using the G-quadruplex-bound cationic porphyrin TMPyP4 center dot Cu. Org. Biomol. Chem. 2013, 11, 6940–6945. [Google Scholar] [CrossRef]
  46. Li, Y.; Cheng, M.; Hao, J.; Wang, C.; Jia, G.; Li, C. Terpyridine-Cu(ii) targeting human telomeric DNA to produce highly stereospecific G-quadruplex DNA metalloenzyme. Chem. Sci. 2015, 6, 5578–5585. [Google Scholar] [CrossRef]
  47. Li, Y.; Wang, C.; Hao, J.; Cheng, M.; Jia, G.; Li, C. Higher-order human telomeric G-quadruplex DNA metalloenzyme catalyzed Diels-Alder reaction: An unexpected inversion of enantioselectivity modulated by K+ and NH4+ ions. Chem. Commun. 2015, 51, 13174–13177. [Google Scholar] [CrossRef] [PubMed]
  48. Cheng, M.; Li, Y.; Zhou, J.; Jia, G.; Lu, S.-M.; Yang, Y.; Li, C. Enantioselective sulfoxidation reaction catalyzed by a G-quadruplex DNA metalloenzyme. Chem. Commun. 2016, 52, 9644–9647. [Google Scholar] [CrossRef]
  49. Xu, X.; Mao, W.; Lin, F.; Hu, J.; He, Z.; Weng, X.; Wang, C.-J.; Zhou, X. Enantioselective Diels–Alder reactions using a G-triplex DNA-based catalyst. Catal. Commun. 2016, 74, 16–18. [Google Scholar] [CrossRef]
  50. Caprioara, M.; Fiammengo, R.; Engeser, M.; Jäschke, A. DNA-Based Phosphane Ligands. Chem.—Eur. J. 2007, 13, 2089–2095. [Google Scholar] [CrossRef]
  51. Jakobsen, U.; Rohr, K.; Vogel, S. Toward a Catalytic Site in DNA: Polyaza Crown Ether as Non-Nucleosidic Building Blocks in DNA Conjugates. Nucleosides Nucleotides Nucleic Acids 2007, 26, 1419–1422. [Google Scholar] [CrossRef]
  52. Oltra, N.S.; Roelfes, G. Modular assembly of novel DNA-based catalysts. Chem. Commun. 2008, 6039–6041. [Google Scholar] [CrossRef]
  53. Tang, Z.; Gonçalves, D.P.N.; Wieland, M.; Marx, A.; Hartig, J.S. Novel DNA Catalysts Based on G-Quadruplex Recognition. Chembiochem 2008, 9, 1061–1064. [Google Scholar] [CrossRef] [PubMed]
  54. Fournier, P.; Fiammengo, R.; Jäschke, A. Allylic Amination by a DNA-Diene-Iridium(I) Hybrid Catalyst. Angew. Chem. Int. Ed. 2009, 48, 4426–4429. [Google Scholar] [CrossRef] [PubMed]
  55. Gjonaj, L.; Roelfes, G. Novel Catalyst Design by using Cisplatin To Covalently Anchor Catalytically Active Copper Complexes to DNA. ChemCatChem 2013, 5, 1718–1721. [Google Scholar] [CrossRef]
  56. Park, S.; Zheng, L.; Kumakiri, S.; Sakashita, S.; Otomo, H.; Ikehata, K.; Sugiyama, H. Development of DNA-Based Hybrid Catalysts through Direct Ligand Incorporation: Toward Understanding of DNA-Based Asymmetric Catalysis. ACS Catalysis 2014, 4, 4070–4073. [Google Scholar] [CrossRef]
  57. Park, S.; Okamura, I.; Sakashita, S.; Yum, J.H.; Acharya, C.; Gao, L.; Sugiyama, H. Development of DNA Metalloenzymes Using a Rational Design Approach and Application in the Asymmetric Diels–Alder Reaction. ACS Catalysis 2015, 5, 4708–4712. [Google Scholar] [CrossRef]
  58. Mansot, J.; Aubert, S.; Duchemin, N.; Vasseur, J.-J.; Arseniyadis, S.; Smietana, M. A rational quest for selectivity through precise ligand-positioning in tandem DNA-catalysed Friedel–Crafts alkylation/asymmetric protonation. Chem. Sci. 2019, 10, 2875–2881. [Google Scholar] [CrossRef] [PubMed]
  59. Yum, J.H.; Park, S.; Hiraga, R.; Okamura, I.; Notsu, S.; Sugiyama, H. Modular DNA-based hybrid catalysts as a toolbox for enantioselective hydration of α,β-unsaturated ketones. Org. Biomol. Chem. 2019, 17, 2548–2553. [Google Scholar] [CrossRef]
  60. Park, S.; Matsui, H.; Fukumoto, K.; Yum, J.H.; Sugiyama, H. Histidine-conjugated DNA as a biomolecular depot for metal ions. RSC Advances 2020, 10, 9717–9722. [Google Scholar] [CrossRef]
  61. Dey, S.; Jäschke, A. Tuning the Stereoselectivity of a DNA-Catalyzed Michael Addition through Covalent Modification. Angew. Chem. Int. Ed. 2015, 54, 11279–11282. [Google Scholar] [CrossRef]
  62. Dey, S.; Rühl, C.L.; Jäschke, A. Catalysis of Michael Additions by Covalently Modified G-Quadruplex DNA. Chem.—Eur. J. 2017, 23, 12162–12170. [Google Scholar] [CrossRef]
  63. Wei, D.G.; Parkinson, G.N.; Reszka, A.P.; Neidle, S. Crystal structure of a c-kit promoter quadruplex reveals the structural role of metal ions and water molecules in maintaining loop conformation. Nucleic Acids Res. 2012, 40, 4691–4700. [Google Scholar] [CrossRef] [PubMed]
  64. Phan, A.T.; Kuryavyi, V.; Burge, S.; Neidle, S.; Patel, D.J. Structure of an unprecedented G-quadruplex scaffold in the human c-kit promoter. J. Am. Chem. Soc. 2007, 129, 4386–4392. [Google Scholar] [CrossRef] [PubMed]
  65. Hurley, D.J.; Seaman, S.E.; Mazura, J.C.; Tor, Y. Fluorescent 1,10-Phenanthroline-Containing Oligonucleotides Distinguish between Perfect and Mismatched Base Pairing. Org. Lett. 2002, 4, 2305–2308. [Google Scholar] [CrossRef] [PubMed]
  66. Hurley, D.J.; Tor, Y. Ru(II) and Os(II) Nucleosides and Oligonucleotides:  Synthesis and Properties. J. Am. Chem. Soc. 2002, 124, 3749–3762. [Google Scholar] [CrossRef]
  67. Kalachova, L.; Pohl, R.; Hocek, M. Synthesis of 2′-Deoxyuridine and 2′-Deoxycytidine Nucleosides Bearing Bipyridine and Terpyridine Ligands at Position 5. Synthesis 2009, 105–112. [Google Scholar] [CrossRef]
  68. Kalachova, L.; Pohl, R.; Hocek, M. Synthesis of nucleoside mono- and triphosphates bearing oligopyridine ligands, their incorporation into DNA and complexation with transition metals. Org. Biomol. Chem. 2012, 10, 49–55. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are available from the authors.
Molecules 25 03121 g001

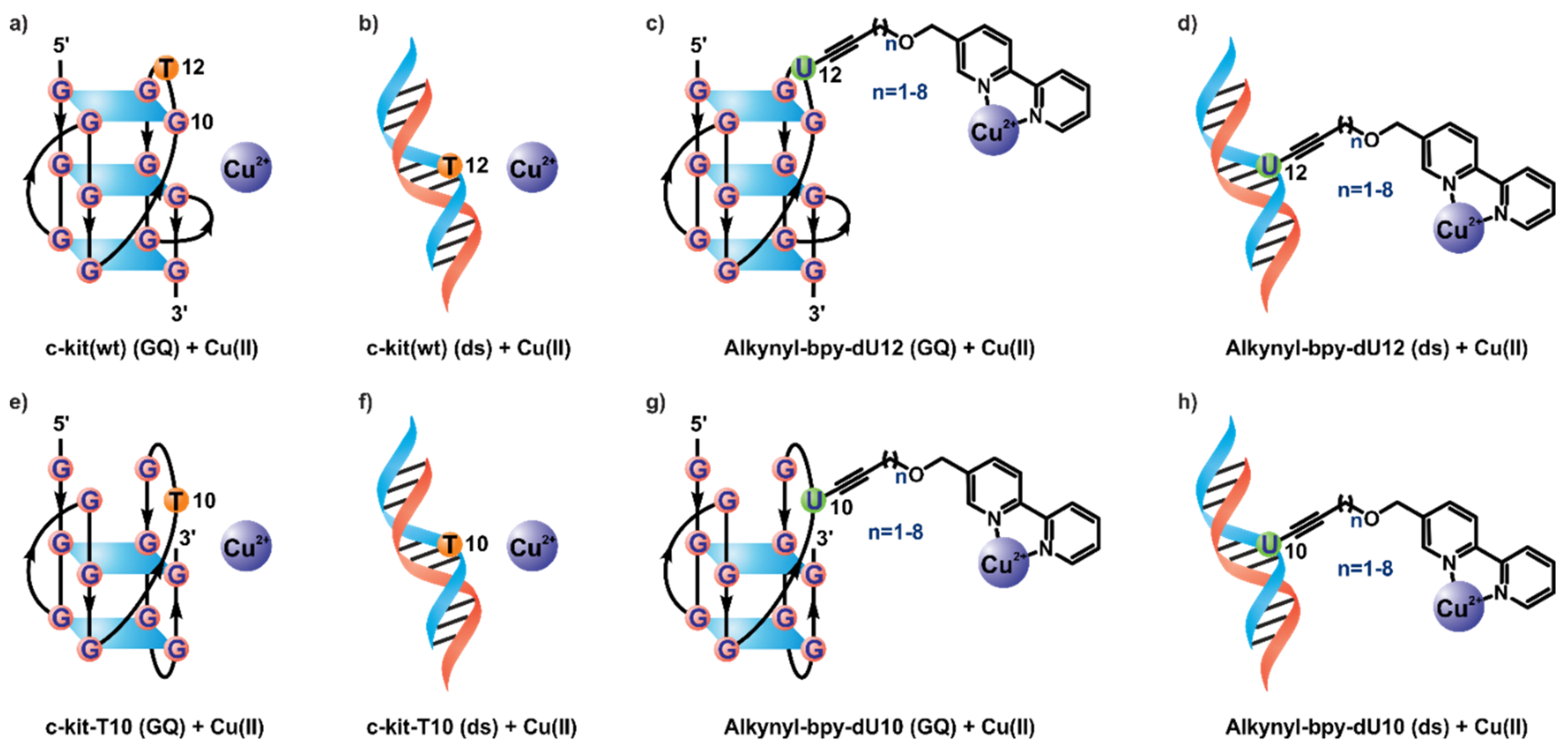

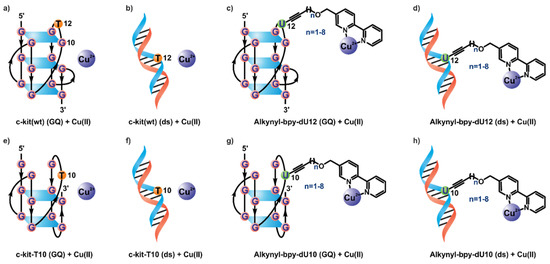

Figure 1. Folding of different G-quadruplex and dsDNA sequences in the presence of Cu(II). (a) Folding of (GQ) c-kit(wt) DNA as observed [63,64]. (b–h) Schematic representation of hypothetical folding and metal binding of (ds) c-kit(wt) (b), (GQ) dU12-modified DNA (c), (ds) dU12-modified DNA (d), (GQ) c-kit-T10 DNA (e), (ds) c-kit-T10 DNA (f), (GQ) dU10-modified DNA (g), and (ds) dU10-modified DNA (h). All double-stranded (ds) samples included 1 equivalent corresponding complementary DNA strand.
Figure 1. Folding of different G-quadruplex and dsDNA sequences in the presence of Cu(II). (a) Folding of (GQ) c-kit(wt) DNA as observed [63,64]. (b–h) Schematic representation of hypothetical folding and metal binding of (ds) c-kit(wt) (b), (GQ) dU12-modified DNA (c), (ds) dU12-modified DNA (d), (GQ) c-kit-T10 DNA (e), (ds) c-kit-T10 DNA (f), (GQ) dU10-modified DNA (g), and (ds) dU10-modified DNA (h). All double-stranded (ds) samples included 1 equivalent corresponding complementary DNA strand.
Molecules 25 03121 g001
Molecules 25 03121 g002

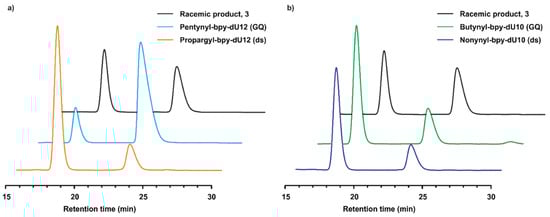

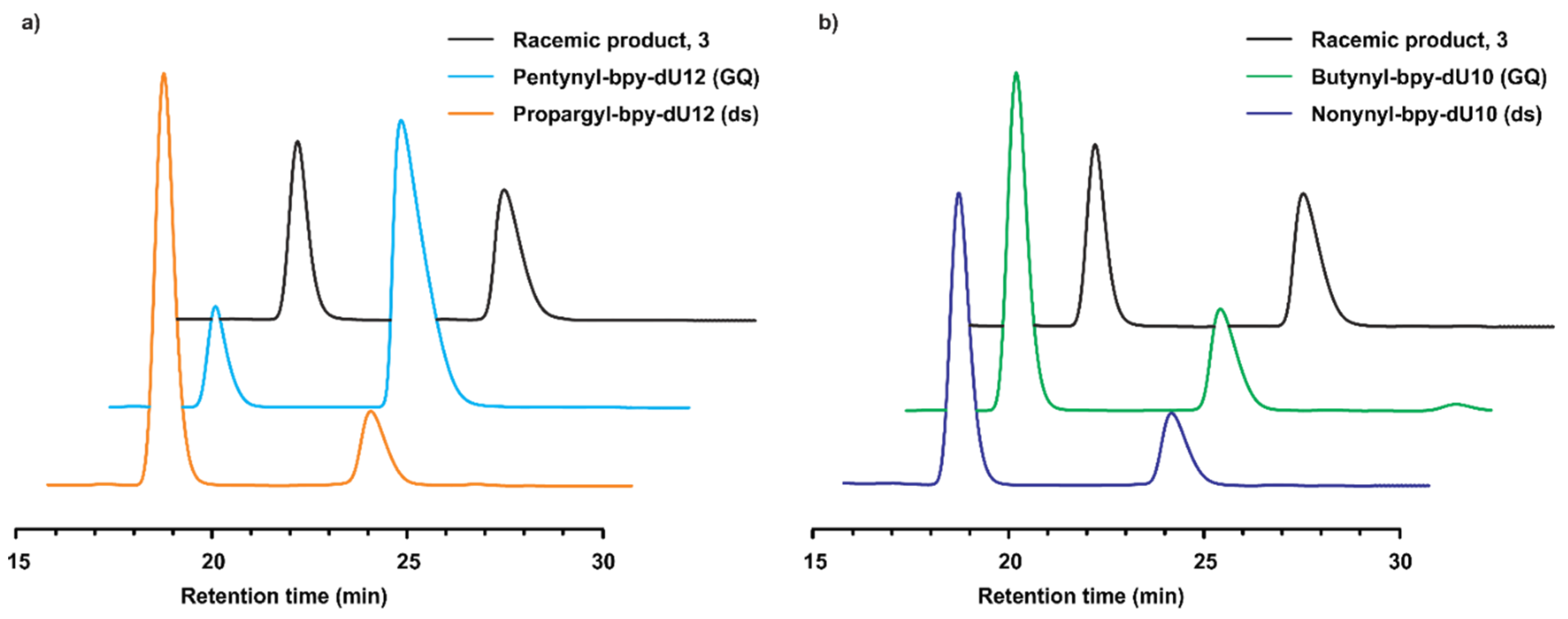

Figure 2. Comparison of chiral HPLC chromatograms of product 3. (a) Comparison of the Friedel–Crafts alkylation product 3 using different dU12-modified DNA structures. (b) Comparison of the Friedel–Crafts alkylation product 3 using different dU10-modified DNA structures.
Figure 2. Comparison of chiral HPLC chromatograms of product 3. (a) Comparison of the Friedel–Crafts alkylation product 3 using different dU12-modified DNA structures. (b) Comparison of the Friedel–Crafts alkylation product 3 using different dU10-modified DNA structures.
Molecules 25 03121 g002

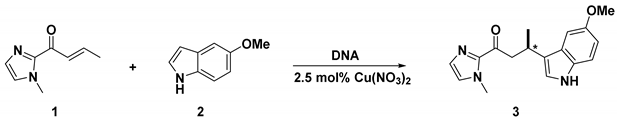

Table 1. Results of the Friedel–Crafts alkylation reaction catalyzed by dU12/dU10-modified c-kit DNA and Cu(II).a
Table 1. Results of the Friedel–Crafts alkylation reaction catalyzed by dU12/dU10-modified c-kit DNA and Cu(II).a
Molecules 25 03121 i001
EntryDNA/LinkerndU12-modified DNAdU10-modified DNA
GQ-DNAds-DNAGQ-DNAds-DNA
conv (%) bee (%) b, cconv (%) bee (%) b, cconv (%) bee (%) b, cconv (%) bee (%) b, c
1c-kit(wt)-34<−528<+5----
2c-kit-T10-----45<+521<+5
3Propargyl-bpy164−2327+6244+1723+37
4Butynyl-bpy278−3548+1664+4536+21
5Pentynyl-bpy399−6563+2568+1449<+5
6Hexynyl-bpy499−1979+865+1661+31
7Heptynyl-bpy599−2299−867+1088+33
8Octynyl-bpy699+2999+766+2189+40
9Nonynyl-bpy799−1399−2364+889+53
10Decynyl-bpy899+899−1165+791+38
11Ethynyl-bpy-68+4528<−545+3021−19
a See the Experimental Section for detailed reaction condition. All experiments were performed in triplicate. b Both conversion and ee were calculated by using chiral HPLC; results are reproducible within ±5%. c (+) and (−) symbols refer to isomers with low and high retention times, respectively, from the chiral HPLC column.
