Article

Cyperus articulatus L. (Cyperaceae) Rhizome Essential Oil Causes Cell Cycle Arrest in the G2/M Phase and Cell Death in HepG2 Cells and Inhibits the Development of Tumors in a Xenograft Model

1
Gonçalo Moniz Institute, Oswaldo Cruz Foundation (IGM-FIOCRUZ/BA), Bahia, Salvador 40296-710, Brazil
2
Metabolomics and Mass Spectrometry Research Group, Amazonas State University (UEA), Amazonas, Manaus 690065-130, Brazil
3
Department of Clinical Propaedeutics and Integrated Clinical, Faculty of Dentistry, Federal University of Bahia, Bahia, Salvador 40301-155, Brazil
4
Department of Chemistry, Federal University of Amazonas (UFAM), Amazonas, Manaus 690065-130, Brazil
5
Oswaldo Cruz Institute, Oswaldo Cruz Foundation, Rio de Janeiro 21040-360, Brazil
6
Amazonia Museum (MUSA), Amazonas, Manaus 69099-415, Brazil
*
Authors to whom correspondence should be addressed.
Molecules 2020, 25(11), 2687; https://doi.org/10.3390/molecules25112687
Received: 19 May 2020 / Revised: 1 June 2020 / Accepted: 4 June 2020 / Published: 9 June 2020
(This article belongs to the Special Issue Cytotoxic Activity of Plant Extracts)

Abstract

:
Cyperus articulatus L. (Cyperaceae), popularly known in Brazil as “priprioca” or “piriprioca”, is a tropical and subtropical plant used in popular medical practices to treat many diseases, including cancer. In this study, C. articulatus rhizome essential oil (EO), collected from the Brazilian Amazon rainforest, was addressed in relation to its chemical composition, induction of cell death in vitro and inhibition of tumor development in vivo, using human hepatocellular carcinoma HepG2 cells as a cell model. EO was obtained by hydrodistillation using a Clevenger-type apparatus and characterized qualitatively and quantitatively by gas chromatography coupled to mass spectrometry (GC-MS) and gas chromatography with flame ionization detection (GC-FID), respectively. The cytotoxic activity of EO was examined against five cancer cell lines (HepG2, HCT116, MCF-7, HL-60 and B16-F10) and one non-cancerous one (MRC-5) using the Alamar blue assay. Cell cycle distribution and cell death were investigated using flow cytometry in HepG2 cells treated with EO after 24, 48 and 72 h of incubation. The cells were also stained with May–Grunwald–Giemsa to analyze the morphological changes. The anti-liver-cancer activity of EO in vivo was evaluated in C.B-17 severe combined immunodeficient (SCID) mice with HepG2 cell xenografts. The main representative substances of this EO sample were muskatone (11.6%), cyclocolorenone (10.3%), α-pinene (8.26%), pogostol (6.36%), α-copaene (4.83%) and caryophyllene oxide (4.82%). EO showed IC50 values for cancer cell lines ranging from 28.5 µg/mL for HepG2 to >50 µg/mL for HCT116, and an IC50 value for non-cancerous of 46.0 µg/mL (MRC-5), showing selectivity indices below 2-fold for all cancer cells tested. HepG2 cells treated with EO showed cell cycle arrest at G2/M along with internucleosomal DNA fragmentation. The morphological alterations included cell shrinkage and chromatin condensation. Treatment with EO also increased the percentage of apoptotic-like cells. The in vivo tumor mass inhibition rates of EO were 46.5–50.0%. The results obtained indicate the anti-liver-cancer potential of C. articulatus rhizome EO.

Graphical Abstract

1. Introduction

Natural products are an important source of new drugs for a wide range of diseases. In the latest review of natural medicines published by DJ Newman and GM Cragg of the National Institutes of Health (United States of America), they reported that 76.4% of all new drugs approved by the FDA from 1981 to 2019 (n = 1881) are natural products or natural-based components [1]. In particular, some plant-derived drugs are among the most important antineoplastic agents, including the family of vinca alkaloids isolated from Catharanthus roseus G. Don [2], etoposide obtained by the semi-synthesis from podophyllotoxin isolated from rhizome of Podophyllum peltatum L. [3], and paclitaxel isolated from the bark of Taxus brevifolia Nutt [4].
Cyperus articulatus L. (Cyperaceae), popularly known in Brazil as “priprioca” or “piriprioca”, is a circa 2-meter-tall medicinal plant that grows in swampy areas and/or near riverbanks in tropical and subtropical regions [5,6]. In African and American countries, C. articulatus rhizomes are used in popular medical practices to treat many disorders, including infections, fevers, pain, seizures, gastrointestinal and urinary disorders, bleeding, irregular menstruation, cancer, and as an abortion agent/contraceptive [5,6,7,8,9,10,11,12]. People in the Amazon grind or suck the rhizome with water to drink. It is also sold in herbal medicine stores in the USA and South America as a fluid extract or in capsules [6].
Previous pharmacological studies with crude extracts of C. articulatus and its components have reported this plant as a source of anticonvulsant [13], sedative [14], antifungal [15], anti-plasmodial [16], anti-Onchocerca [17], antibacterial [18], antioxidant [19] and cytotoxic [19] agents. Regarding its cytotoxic properties, Kavaz et al. [19] published a preliminary study showing that C. articulatus rhizome essential oil (EO), collected in northern Nigeria, exhibited cytotoxicity against human breast adenocarcinoma MDA-MB-231 cells, and its chemical composition included sesquiterpenes, monoterpenes, nootkatone, 6-methyl-3,5-heptadien-2-one, retinene, nopinone, cycloeucalenol, anozol, toosendanin, furanone, ethanone and vitamin A [19]. Here, the C. articulatus rhizome EO, collected in the Brazilian Amazon rainforest, was studied for its chemical composition, induction of cell death in vitro and the inhibition of tumor development in vivo using human hepatocellular carcinoma HepG2 cells as a cell model.

2. Results

2.1. Chemical Analysis of Cyperus articulatus Rhizome Essential Oil

The EO recovery from rhizome of C. articulatus was 0.58 ± 0.04% (w/w), in which a composition dominated by terpenoids was observed (Table 1). Among the different types, monoterpenes (hydrocarbons 14.59%; oxygenated 8.29%) and sesquiterpenes (hydrocarbons 8.98%; oxygenated 47.49%) and trace of diterpenes were identified. The main representative substances of this EO sample were muskatone (11.60 ± 1.19%), cyclocolorenone (10.30 ± 1.02%), α-pinene (8.26 ± 0.74), pogostol (6.36 ± 0.88%), α-copaene (4.83 ± 0.45%) and caryophyllene oxide (4.82 ± 0.44%).

2.2. Cyperus articulatus Rhizome Essential Oil Induces Cytotoxicity in a Panel of Cancer Cell Lines

The cytotoxic activity of EO was examined against five cancer cell lines (HepG2, HCT116, MCF-7, HL-60 and B16-F10) and one non-cancerous one (MRC-5) using the Alamar blue assay after 72 h of incubation (Table 2). EO showed IC50 values for cancer cell lines ranging from 28.5 µg/mL for HepG2 to >50 µg/mL for HCT116, and IC50 value for non-cancerous MRC-5 cells of 46.0 µg/mL. Doxorubicin was used as a positive control and exhibited IC50 values for cancer cell lines ranging from 0.03 µg/mL for HepG2 to 0.3 µg/mL for MCF-7 and an IC50 value for non-cancerous MRC-5 cells of 0.2 µg/mL. 5-Fluorouracil was also used as a positive control and showed IC50 values for cancer cell lines ranging from 0.2 µg/mL for HepG2 to 1.8 µg/mL for MCF-7 and IC50 value for non-cancerous MRC-5 cells of 7.5 µg/mL. The selectivity indexes (SIs) were calculated and are shown in Table 3. The EO showed low selectivity with an SI below 2-fold for all cancer cells tested.
Then, we quantified the number of viable HepG2 cells by trypan blue exclusion (TBE) assay after 24, 48 and 72 h of incubation with EO (Figure 1). At concentrations of 12.5, 25 and 50 μg/mL, EO reduced the number of viable cells by 37.9, 47.9 and 61.4% after 48 h, and by 42.2, 58.8 and 87.9% after 72 h, respectively. Doxorubicin, at 1 μg/mL, reduced the number of viable cells by 43.0% after 24 h, 85.5% after 48 h and 98.9% after 72 h.

2.3. Cyperus articulatus Rhizome Essential Oil Causes Cell Cycle Arrest in the G2/M Phase and Cell Death in HepG2 Cells

The morphological changes in HepG2 cells treated with EO were analyzed by optical microscopy using the May–Grunwald–Giemsa stain after 24, 48 and 72 h of incubation (Figure 2). Treatment with EO caused cell shrinkage and/or chromatin condensation, morphological changes associated to apoptotic cell death. Doxorubicin also caused morphological changes related to apoptosis.
The content of intracellular DNA in HepG2 cells treated with EO, at concentrations of 12.5, 25 and 50 μg/mL, was also quantified by flow cytometry after 24, 48 and 72 h of incubation to measure the fragmentation of internucleosomal DNA (DNA that was sub-diploid in size [sub-G0/G1]) and the distribution of cell cycle (phases G0/G1, S and G2/M). HepG2 cultures treated with EO showed cell cycle arrest in the G2/M phase, along with the fragmentation of internucleosomal DNA (Figure 3 and Figure 4). The cultures treated with EO showed 24.7, 27.7 and 24.3% of cells in the G2/M phase in the highest concentration after 24, 48 and 72 h of incubation, against 16.1, 10.3, 15.4 % observed for the negative control, respectively. The percentages of cells with DNA fragmentation were 22.0, 26.0 and 36.4%, at concentrations of 12.5, 25 and 50 μg/mL, respectively, against 9.0% observed for the negative control after 72 h of incubation. Doxorubicin (1 μg/mL) also caused cell cycle arrest in the G2/M phase, followed by the fragmentation of internucleosomal DNA.
Cell death was also evaluated by flow cytometry using annexin V-FITC/propidium iodide (PI) staining and the percentage of cells in viable (annexin V-FITC/PI double negative cells), early apoptotic (annexin V-FITC positive, but PI negative cells), late apoptotic (annexin V-FITC/PI double positive cells) and necrotic stages (PI positive, but annexin V-FITC negative cells) were quantified after 24 h, 48 h and 72 h of incubation (Figure 5 and Figure 6). Treatment with EO increased the percentage of early and late apoptotic cells.

2.4. Cyperus articulatus Rhizome Essential Oil Inhibits Tumor Development in a Xenograft Model

The in vivo anti-liver-cancer activity of EO was evaluated in C.B-17 severe combined immunodeficient (SCID) mice with HepG2 cell xenografts. EO was administrated at doses of 40 and 80 mg/kg intraperitoneally, once a day, for 21 consecutive days. These doses were selected based on previous studies, using EO in tumor-bearing mice models [20,21]. The animals treated with EO showed an average tumor mass weight of 0.27 ± 0.05 g and 0.25 ± 0.02 g in the lowest and highest doses, respectively, while 0.51 ± 0.05 g was observed in the negative control group (Figure 7A). 5-Fluorouracil (10 mg/kg) was used as a positive and had an average tumor mass weight of 0.30 ± 0.04 g. The rates of tumor inhibition were 46.5–50.0 % (p < 0.05) for EO (Figure 7B). 5-Fluorouracil caused a tumor mass inhibition rate of 44.2 %. In the histological analysis of the tumors, we observed a carcinoma organized in multiple hypovascularized nodules delimited by a fibrous capsule, composed of hyperchromatic and highly malignant pleomorphic cells, in all groups. The tumor cells were actively dividing with the visible necrotic area observed in all groups, despite a lower frequency of mitoses in mice treated with EO at the highest dose. Degeneration and necrosis were observed in all groups, but to a lesser extent in the negative control and EO (lowest dose) groups (Figure 8).
Body and organ weight (liver, kidney, lung and heart) and hematological analyses of peripheral blood from C.B-17 SCID mice with HepG2 cell xenografts treated with EO were measured. Interestingly, no significant changes were observed in body and organ weight (p > 0.05) (Table 4) or hematological parameters (p > 0.05) (Table 5) in any group.
Histological analyses of the liver, kidney, lung and heart were also performed (Figure 9). The hepatic and portal architecture were preserved in most livers, except for two animals of the EO group (highest dose) and all animals of the 5-fluorouracil (5-FU) group, for presenting the focal areas of coagulation necrosis. The histopathological changes observed were vascular congestion, hydropic degeneration and focal inflammation, predominantly mononuclear, in the portal region, ranging from mild to moderate. In the kidneys, the tissue architecture was maintained, however, histopathological changes were observed in all experimental groups, such as moderate vascular congestion and the thickening of the basal membrane of the renal glomerulus, varying from mild to moderate, with decreased urinary space. In addition, focal areas of coagulation necrosis were observed in two animals treated with EO at the lowest dose.
The architecture of the pulmonary parenchyma was partially maintained in all groups and there was a thickening of the alveolar septum with a decrease in air space, varying from mild to moderate, in all experimental groups. Significant inflammation, predominantly of mononuclear cells, edema, congestion and hemorrhage were frequently observed, ranging from mild to severe. It is important to note that histopathological changes were more evident in the lungs of mice treated with EO at the highest dose. No histopathological changes were observed in the hearts of all animals in this study (data not shown).

3. Discussion

Herein, we demonstrate, for the first time, that C. articulatus rhizome EO causes cell cycle arrest in the G2/M phase and cell death in HepG2 cells and inhibits the development of tumors in a xenograft model. The main chemical constituents present in this EO sample were muskatone, cyclocolorenone, α-pinene, pogostol, α-copaene and caryophyllene oxide. The compositional results obtained are in accordance with the previously published EO of C. articulatus rhizome collected in the state of Pará, Brazil [5,22]. On the other hand, the same species, when collected in African countries (e.g., Egypt), presented different main compositions, including γ-patchoulene, caryophyllene oxide and α-cadinol [23], indicating a high variability in the composition of EO. Water stress, nutrition, soil and climate conditions, and other abiotic factors can be responsible for these variations.
In our cytotoxic screening program, extract/EO samples with an IC50 value below 30 μg/mL against cancer cell lines are selected for further studies [24,25,26,27,28]. C. articulatus rhizome EO showed an IC50 value of 28.5 μg/mL against liver cancer HepG2 cells, presenting moderate potency when compared to doxorubicin that showed an IC50 value of 0.03 μg/mL and 5-fluorouracil with an IC50 value of 0.2 μg/mL for this cell line. As mentioned above, C. articulatus rhizome EO, collected in northern Nigeria, showed cytotoxicity against human breast adenocarcinoma MDA-MB-231 cells [19]. Here, we demonstrate the cytotoxicity of C. articulatus rhizome EO, collected in the Brazilian Amazon rainforest, against five cancer cell lines (HepG2, HCT116, MCF-7, HL-60 and B16-F10) and one non-cancerous one (MRC-5). Interestingly, many of the main chemical constituents found in Nigeria’s EO sample are not found in the Brazilian EO sample.
In the Cyperus genus, Kilani et al. [29] reported that EO from the tuber of C. rotundus caused cytotoxicity in L1210 leukemia cell line with an IC50 value of 49 μg/mL and increased apoptotic DNA fragmentation. The main constituents identified were α-cyperone and cyperene. In another study, the EO from rhizomes of C. rotundus showed α-cyperone, cyperene and α-selinene as major components and was cytotoxic to human neuroblastoma SH-SY5Y cells with an IC50 value 1000 μg/mL [30]. The EO of the entire plant of C. longus induced cell death in human prostate adenocarcinoma PC3 (IC50 = 39.91 μg/mL) and MCF-7 (IC50 = 31.35 μg/mL) cell lines, and β-himachalene, α-caryophyllene oxide, irisone, β-caryophyllene oxide, humulene oxide, viridiflorol, aristolone and longiverbenone were the main chemical constituents found [31].
In relation to the cytotoxic study with the main chemical constituents of C. articulatus rhizome EO, the cytotoxic potential of α-pinene, α-copaene and caryophyllene oxide were previously reported [32,33,34,35,36]. α-Pinene, at 1000 μg/mL, inhibited the human carcinoma hepatocellular BEL-7402 cells proliferation, arresting cell growth in the G2/M phase of the cell cycle, decreasing gene and protein expressions of Cdc25C, and reducing the cycle dependence on kinase 1 (CDK1) activity [32,33]. Moreover, α-pinene (20 μg/mL) inhibited the progression of cell cycle in the G2/M phase and induced apoptotic cell death through the activation of caspase in human ovarian carcinoma PA-1 cells [34]. α-Copaene has been reported to suppress the proliferation of the normal neuron and N2a neuroblastoma cells of rats with an IC50 value of 400 μg/mL [35]. Caryophyllene oxide, at a concentration of 10 μg/mL, induced apoptosis in the PC-3 and MCF-7 cell lines by activating reactive oxygen species (ROS)-mediated mitogen-activated protein kinase (MAPK) and inhibiting the constitutive cascades of PI3K/AKT/mTOR/S6K1 signaling [36]. Cytotoxicity data for muskatone, cyclocolorenone and pogostol were not found. On the other hand, the mixture of the main and minor constituents of C. articulatus rhizome EO must be responsible for its cytotoxicity, since α-pinene, α-copaene and caryophyllene oxide represent less than 20% of this EO.
In addition, C. articulatus rhizome EO caused the cell cycle arrest in the G2/M phase and cell death in HepG2 cells, suggesting that this oil acts causing interruptions in the progress of the cell cycle. The EO from Pinus koraiensis (Pinaceae) also arrested the cell cycle in the G2/M phase and induced cell death in gastric adenocarcinoma MGC-803 cells. The main chemical constituents were α-pinene, limonene and β-pinene [37]. The EO from the leaves of Melaleuca alternifolia (Myrtaceae) arrested the cell cycle in the G2/M phase, causing cell death in human melanoma A-375 cells and squamous cell carcinoma HEp-2 cells [38].
Furthermore, C. articulatus rhizome EO inhibited the development of liver cancer HepG2 cells in a mouse xenograft model. At doses of 40 and 80 mg/kg intraperitoneally for 21 consecutive days, the inhibition rates of tumor mass were 46.5–50.0%. In addition, no significant side effects were found in this in vivo study, suggesting that, although this EO has shown low selectivity with SI below 2-fold for all cancer cells (compared to doxorubicin with an SI greater than 7-fold and 5-fluorouracil with an SI greater than 4-fold), it appears to be safe for systemic administration. The amount of EO obtained was a limitation to test it in different cell models, as well as to obtain a dose–response curve in vivo using a larger number of doses. Likewise, Guatteria megalophylla leaf essential also inhibited the development of HL-60 cells in a xenograft model with tumor mass inhibition rates of 16.6-48.8% at doses of 50 and 100 mg/kg, when administrated intraperitoneally once a day for nine consecutive days [28]. In addition, Chen et al. [33] demonstrated that 200 μL of α-pinene (2.67 mL/kg) injected subcutaneously for 14 ten days every two days inhibited 69.1% of tumor development in nude mice with BEL-7402 cells [33].

4. Material and Methods

4.1. Plant Material

The rhizomes of C. articulatus species were collected in April 2014 from the preserved green area of a private farm owned by H.H.F. Koolen located in the municipality of Rio Preto da Eva, state of Amazonas, Brazil (2° 43′ 11.2” S e 59° 31′ 08.5” W). The confirmation of the plant’s authenticity was carried out at the Herbarium of the National Institute of Research of the Amazon (INPA) in comparison to a previously deposited voucher (#24945). This work was registered (SISGEN: A50A14E) and carried out under Brazilian laws to access genetic resources.

4.2. Essential Oil Extraction

After collection, the fresh plant material was extracted directly by hydrodistillation with a Clevenger-type apparatus. For this, 750 g of crushed material was extracted for a period of 4 h in 3000 mL of ultrapure water (18.2 MΩ). Then, the obtained EO was extracted three times with chloroform, dried over anhydrous Na2SO4 and filtered through a nylon membrane (pore size 0.22 μm, Whatman, Maidstone, UK).

4.3. Chemical Analysis

The identification of chemical constituents was evaluated by gas chromatography coupled to mass spectrometry (GC-MS) with a model equipment GCMS/QP2010 Plus (Shimadzu, Kyoto, Japan) equipped with a capillary column Rtx-5 MS (30 m × 0.25 mm × 0.25 μm, Restek). Helium at a flow of 1.02 mL/min was the carrier, and injections (1 μL) were performed with 1.5 mg/mL EO stock solution in chloroform with a 1:50 partition ratio. The column temperature program was 50 to 285 °C with gradual increases of 3 °C/min. The injector and ion source temperatures were 215 and 265 °C, respectively. First, constituent identifications were based on comparisons of the spectra obtained with those stored in the Wiley 8th edition library (only similarities > 90% were considered) [39]. Confirmations were performed by calculating of the retention indices (RI) according to the equation of Van den Dool and Kratz [40] compared to a homologous series consisting by linear hydrocarbons ranging from n-C7 to n-C30. A semi-quantitative analysis was performed to obtain the relative quantity of each EO component. For that, gas chromatography with flame ionization detection (GC-FID) was applied. A system consisting of a GC2010 device (Shimadzu, Kyoto, Japan) equipped with an Rtx-5 capillary column was used under the same conditions as the GC-MS analysis. Relative quantities (%) were calculated in relation to the total chromatogram area of three independent replications.

4.4. In Vitro Cytotoxicity

4.4.1. Cells

Cell lines HepG2 (human hepatocellular carcinoma), HCT116 (human colon carcinoma), MCF-7 (human breast adenocarcinoma), HL-60 (human promyelocytic leukemia), B16-F10 (mouse melanoma) and MRC-5 (fibroblast from human lung) were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA) and were cultured following the instructions in the ATCC animal cell culture guide. All cell lines were tested for mycoplasma using a mycoplasma stain kit (Sigma-Aldrich) to validate the use of contamination-free cells. Cell viability was examined by the trypan blue exclusion (TBE) assay in all experiments. All experiments were carried out in an exponential growth phase.

4.4.2. Cytotoxicity Assay

Cell viability was quantified by the Alamar blue assay as previously described [41,42,43]. Briefly, cells were seeded in 96-well plates. EO (in eight different concentrations ranging from 0.4 to 50 μg/mL), dissolved in dimethyl sulfoxide (DMSO, Vetec Química Fina Ltd.a, Duque de Caxias, RJ, Brazil), was added to each well and incubated for 72 h. Doxorubicin (in eight different concentrations ranging from 0.04 to 5 μg/mL) (purity ≥ 95%, doxorubicin hydrochloride, Laboratory IMA S.A.I.C., Buenos Aires, Argentina) and 5-fluorouracil (in eight different concentrations ranging from 0.2 to 25 μg/mL) (5-FU, purity > 99%; Sigma Chemical Co., St Louis, MO, USA) were used as positive controls. At the end of the treatment, 20 μL of a stock solution (0.312 mg/mL) of resazurin (Sigma-Aldrich Co., Saint Louis, MO, USA) was added to each well. Absorbances at 570 and 600 nm were measured using a SpectraMax 190 Microplate Reader (Molecular Devices, Sunnyvale, CA, USA). The values of half-maximum inhibitory concentration (IC50) and their respective 95% confidence intervals were calculated by non-linear regression through concentration–response curves. The selectivity index (SI) was calculated using the following formula: SI = IC50 (non-cancerous cells)/IC50 (cancer cells).

4.4.3. Trypan Blue Exclusion Assay

The number of viable cells and non-viable (stained with trypan blue) was determined by TBE assay. In summary, 10 μL of trypan blue (0.4%) was added to 90 μL of cell suspension and cells were counted using a Neubauer chamber.

4.4.4. Internucleosomal DNA Fragmentation and Cell Cycle Distribution

The fragmentation of internucleosomal DNA and the distribution of the cell cycle were carried out as previously described [44]. Briefly, the cells were harvested in a permeabilization solution (0.1% triton X-100, 2 µg/mL PI, 0.1% sodium citrate and 100 µg/mL RNAse, all from Sigma-Aldrich Co.) and incubated in the dark for 15 min at room temperature. Then, cell fluorescence was measured by flow cytometry. At least 104 events were recorded per sample using a BD LSRFortessa cytometer along with BD FACSDiva Software (BD Biosciences, San Jose, CA, EUA) and Flowjo Software 10 (Flowjo LCC, Ashland, OR, USA). Cell debris was omitted from the analyses.

4.4.5. May-Grunwald-Giemsa Staining

The cells were cultured on a coverslip and stained with May–Grunwald–Giemsa. The morphological changes were examined by optical microscopy (Olympus BX41) using Image-Pro software (Media Cybernetics).

4.4.6. Cell Death Quantification

The FITC Annexin V Apoptosis Detection Kit I (BD Biosciences, San Jose, CA, USA) was used to quantify cell death, and analyses were performed according to the manufacturer′s instructions. Cell fluorescence was measured by flow cytometry, as described above.

4.5. In Vivo Antitumor Study

4.5.1. Animals

Fifty C.B-17 severe combined immunodeficient (SCID) mice (females, 25–30 g) were obtained and kept at the animal facilities of the Gonçalo Moniz Institute-FIOCRUZ (Salvador, Bahia, Brazil). The animals were housed in cages with free access to food and water. All animals were subjected to a 12:12 h light–dark cycle (lights on at 6:00 a.m.). The animal ethics committee of the Gonçalo Moniz Institute-FIOCRUZ approved the experimental protocol used (number #06/2015).

4.5.2. Human Hepatocellular Carcinoma Xenograft Model

Human hepatocellular carcinoma xenograft model was performed as previously described [45,46,47]. In summary, HepG2 cells (107 cells per 500 µL) were implanted subcutaneously in the left frontal axils of the mice. At the beginning of the experiment, the mice were randomly divided into four groups. Group 1: animals received injections of vehicle with 5% DMSO solution (n = 20). Group 2: animals received injections of 5-fluorouracil (10 mg/kg, Sigma-Aldrich, n = 10). Group 3: animals received injections of EO at 40 mg/kg (n = 10). Group 4: animals received injections of EO at 80 mg/kg (n = 10). Beginning one day after tumor implantation, the animals were treated intraperitoneally for 21 consecutive days. One day after the end of the treatment, the animals were anesthetized (50 mg/kg thiopental) and peripheral blood samples were collected from the brachial artery. The animals were euthanized by anesthetic overdose (100 mg/kg thiopental) and the tumors were excised and weighed.

4.5.3. Toxicological Analysis

The animals were weighed at the beginning and the end of the experiment to assess the toxicological effects. All animals were observed for signs of abnormality throughout the study. Hematological analyses were performed using an Advia 60 hematology system (Bayer, Leverkusen, Germany). Livers, kidneys, lungs and hearts were collected, weighed and examined for signs of thick lesion formation, color change and/or hemorrhage. After macroscopic examination, the tumors, livers, kidneys, lungs and hearts were fixed in 4% buffered formalin and embedded in paraffin. The tissue sections were stained with hematoxylin and eosin (and Periodic acid-Schiff for kidneys slides), and a pathologist performed the analysis under an optical microscope.

4.6. Statistical Analysis

Data were presented as mean ± S.E.M. or as IC50 values with 95% confidence intervals obtained by nonlinear regressions. The differences between the experimental groups were compared through analysis of variance (ANOVA) followed by the Student–Newman–Keuls test (p < 0.05). All statistical analyses were performed using the GraphPad Prism (Intuitive Software for Science; San Diego, CA, USA).

5. Conclusions

In summary, C. articulatus rhizome EO presents muskatone, cyclocolorenone, α-pinene, pogostol, α-copaene and caryophyllene oxide as the main chemical constituents. In addition, this oil causes cell cycle arrest in the G2/M phase and cell death in HepG2 cells and inhibits tumor development in a xenograft model. The results obtained indicate the anti-liver-cancer potential of C. articulatus rhizome EO. Future studies should be directed to this EO to clarify the mechanism of action and toxicological aspects to develop C. articulatus as a new herbal medicine.

Author Contributions

Conceived and designed the experiments, M.L.N., M.A.V.-S, H.H.F.K. and D.P.B. Collected the plant material and performed the chemical experiments, E.J.S.P.d.L., A.A.X.A., E.V.C., F.M.A.d.S. and H.H.F.K. Performed plant authenticity, N.M.D.C. Performed the in vitro and in vivo experiments, M.L.N., S.S.F., V.R.S. and L.d.S.S. Performed the histological analysis, R.B.D. and C.A.G.R. Analyzed the data, M.L.N., C.A.G.R., M.A.V.-S., H.H.F.K. and D.P.B. Contributed reagents/materials/analysis tools, M.B.P.S., C.A.G.R., M.A.V.S., H.H.F.K. and D.P.B. Wrote the paper, H.H.F.K. and D.P.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by Brazilian agencies: Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES); Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq); Fundação de Amparo à Pesquisa do Estado do Amazonas (FAPEAM); and Fundação de Amparo à Pesquisa do Estado da Bahia (FAPESB).

Acknowledgments

The authors would like to thanks the histotechnology and flow cytometry cores of FIOCRUZ-Bahia for the histological techniques and data collection of flow cytometry, respectively.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Newman, D.J.; Cragg, G.M. Natural Products as Sources of New Drugs over the Nearly Four Decades from 01/1981 to 09/2019. J. Nat. Prod. 2020, 83, 770–803. [Google Scholar] [CrossRef] [PubMed]
  2. Moudi, M.; Go, R.; Yien, C.Y.S.; Nazre, M. Vinca alkaloids. Int. J. Prev. Med. 2013, 4, 1231–1235. [Google Scholar] [PubMed]
  3. Lau, W.; Sattely, E.S. Six enzymes from mayapple that complete the biosynthetic pathway to the etoposide aglycone. Science 2015, 349, 1224–1228. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Weaver, B.A. Taxol/paclitaxel kills cancer cells. Mol. Biol. Cell 2014, 25, 2677–2681. [Google Scholar] [CrossRef]
  5. Zoghbi, M.G.B.; Andrade, E.H.A.; Oliveira, J.; Carreira, L.M.M.; Guilhon, G.M.S.P. Yield and chemical composition of the essential oil of the stems and rhizomes of Cyperus articulatus L. cultivated in the state of Pará, Brazil. J. Essent. Oil Res. 2006, 18, 10–12. [Google Scholar] [CrossRef]
  6. Taylor, L. Piri-piri. The Tropical Plant Database. Raintree. 2019. Available online: http://www.rain-tree.com/piri-piri.htm (accessed on 27 December 2019).
  7. Hoet, P. The use of certain plants from the traditional pharmacopoeia of Peru. Plant Med. Phytother. 1980, 14, 193–201. [Google Scholar]
  8. Feo, V. Medicinal and magical plants in the northern Peruvian andes. Fitoterapia 1992, 63, 417–440. [Google Scholar]
  9. Valera, G.A. Medicina Indigena. Las Plantas Medicinales y su Beneficio en la Salud (Shipibo—Conibo); Centro Orientamento Educativo: Pulcalpa, Peru, 1994. [Google Scholar]
  10. Bum, E.N.; Meier, C.L.; Urwyler, S.; Wang, Y.; Herrling, P.L. Extracts from rhizomes of Cyperus articulatus (Cyperaceae) displace [3H] CGP39653 and [3H] glycine binding from cortical membranes and selectively inhibit NMDA receptor-mediated neurotransmission. J. Ethnopharmacol. 1996, 54, 103–111. [Google Scholar] [CrossRef]
  11. Milliken, W.; Albert, B. The use of medicinal plants by the yanomami indians of Brazil. Econ. Bot. 1996, 50, 10–25. [Google Scholar] [CrossRef]
  12. Nguta, J.M.; Appiah-Opong, R.; Nyarko, A.K.; Yeboah-Manu, D.; Addo, P.G. Medicinal plants used to treat TB in Ghana. Int. J. Mycobacteriol. 2015, 4, 116–123. [Google Scholar] [CrossRef]
  13. Herrera-Calderon, O.; Santiváñez-Acosta, R.; Pari-Olarte, B.; Enciso-Roca, E.; Montes, V.M.C.; Acevedo, J.L.A. Anticonvulsant effect of ethanolic extract of Cyperus articulatus L. leaves on pentylenetetrazol induced seizure in mice. J. Tradit. Complement. Med. 2017, 8, 95–99. [Google Scholar] [CrossRef] [PubMed]
  14. Rakotonirina, V.S.; Bum, E.N.; Rakotonirina, A.; Bopelet, M. Sedative properties of the decoction of the rhizome of Cyperus articulatus. Fitoterapia 2001, 72, 22–29. [Google Scholar] [CrossRef]
  15. Duarte, M.C.; Figueira, G.M.; Sartoratto, A.; Rehder, V.L.; Delarmelina, C. Anti-Candida activity of Brazilian medicinal plants. J. Ethnopharmacol. 2005, 97, 305–311. [Google Scholar] [CrossRef]
  16. Rukunga, G.M.; Muregi, F.W.; Omar, S.A.; Gathirwa, J.W.; Muthaura, C.N.; Peter, M.G.; Heydenreich, M.; Mungai, G.M. Anti-plasmodial activity of the extracts and two sesquiterpenes from Cyperus articulatus. Fitoterapia 2008, 79, 188–190. [Google Scholar] [CrossRef]
  17. Metuge, J.A.; Nyongbela, K.D.; Mbah, J.A.; Samje, M.; Fotso, G.; Babiaka, S.B.; Cho-Ngwa, F. Anti-Onchocerca activity and phytochemical analysis of an essential oil from Cyperus articulatus L. BMC Complement. Altern. Med. 2014, 14, 223. [Google Scholar] [CrossRef][Green Version]
  18. Freires, I.A.; Bueno-Silva, B.; Galvão, L.C.; Duarte, M.C.; Sartoratto, A.; Figueira, G.M.; de Alencar, S.M.; Rosalen, P.L. The effect of essential oils and bioactive fractions on Streptococcus mutans and Candida albicans biofilms: A confocal analysis. Evid. Based Complement. Alternat. Med. 2015, 2015, 871316. [Google Scholar] [CrossRef][Green Version]
  19. Kavaz, D.; Idris, M.; Onyebuchi, C. Physiochemical characterization, antioxidative, anticancer cells proliferation and food pathogens antibacterial activity of chitosan nanoparticles loaded with Cyperus articulatus rhizome essential oils. Int. J. Biol. Macromol. 2019, 123, 837–845. [Google Scholar] [CrossRef]
  20. Ferraz, R.P.; Bomfim, D.S.; Carvalho, N.C.; Soares, M.B.; Silva, T.B.; Machado, W.J.; Prata, A.P.; Costa, E.V.; Moraes, V.R.; Nogueira, P.C.; et al. Cytotoxic effect of leaf essential oil of Lippia gracilis Schauer (Verbenaceae). Phytomedicine 2013, 20, 615–621. [Google Scholar] [CrossRef][Green Version]
  21. Rodrigues, A.C.; Bomfim, L.M.; Neves, S.P.; Menezes, L.R.; Dias, R.B.; Soares, M.B.; Prata, A.P.; Rocha, C.A.; Costa, E.V.; Bezerra, D.P. Antitumor properties of the essential oil from the leaves of Duguetia gardneriana. Planta Med. 2015, 81, 798–803. [Google Scholar] [CrossRef]
  22. Silva, N.C.; Gonçalves, S.F.; Araújo, L.L.; Kasper, A.A.M.; Fonseca, A.L.; Sartoratto, A.; Castro, K.C.F.; Moraes, T.M.P.; Baratto, C.; Varotti, F.P.; et al. In vitro and in vivo antimalarial activity of the volatile oil of Cyperus articulatus (Cyperaceae). Acta Amaz. 2019, 49, 334–342. [Google Scholar] [CrossRef][Green Version]
  23. Hassanein, H.D.; Nazif, N.M.; Shahat, A.A.; Hammouda, F.M.; Aboutable, E.A.; Saleh, M.A. Chemical diversity of essential oils from Cyperus articulatus, Cyperus esculentus and Cyperus papyrus. J. Essent. Oil Bear. Plants 2014, 17, 251–264. [Google Scholar] [CrossRef]
  24. Suffness, M.; Pezzuto, J.M. Assays related to cancer drug discovery. In Methods in Plant Biochemistry: Assays for Bioactivity; Hostettmann, K., Ed.; Academic Press: London, UK, 1990; pp. 71–133. [Google Scholar]
  25. Ribeiro, S.S.; Jesus, A.M.; Anjos, C.S.; Silva, T.B.; Santos, A.D.; Jesus, J.R.; Andrade, M.S.; Sampaio, T.S.; Gomes, W.F.; Alves, P.B.; et al. Evaluation of the cytotoxic activity of some Brazilian medicinal plants. Planta Med. 2012, 78, 1601–1606. [Google Scholar] [CrossRef] [PubMed][Green Version]
  26. Silva, T.B.; Costa, C.O.; Galvão, A.F.; Bomfim, L.M.; Rodrigues, A.C.; Mota, M.C.; Dantas, A.A.; Santos, T.R.; Soares, M.B.; Bezerra, D.P. Cytotoxic potential of selected medicinal plants in northeast Brazil. BMC Complement. Altern. Med. 2016, 16, 199. [Google Scholar] [CrossRef] [PubMed][Green Version]
  27. Rodrigues, A.C.B.C.; Oliveira, F.P.; Dias, R.B.; Sales, C.B.S.; Rocha, C.A.G.; Soares, M.B.P.; Costa, E.V.; Silva, F.M.A.D.; Rocha, W.C.; Koolen, H.H.F.; et al. In vitro and in vivo anti-leukemia activity of the stem bark of Salacia impressifolia (Miers) A. C. Smith (Celastraceae). J. Ethnopharmacol. 2019, 231, 516–524. [Google Scholar] [CrossRef] [PubMed]
  28. Costa, R.G.A.; Anunciação, T.A.D.; Araujo, M.D.S.; Souza, C.A.; Dias, R.B.; Sales, C.B.S.; Rocha, C.A.G.; Soares, M.B.P.; Silva, F.M.A.D.; Koolen, H.H.F.; et al. In vitro and in vivo growth inhibition of human acute promyelocytic leukemia HL-60 cells by Guatteria megalophylla Diels (Annonaceae) leaf essential oil. Biomed. Pharmacother. 2020, 122, 109713. [Google Scholar] [CrossRef]
  29. Kilani, S.; Ledauphin, J.; Bouhlel, I.; Ben Sghaier, M.; Boubaker, J.; Skandrani, I.; Mosrati, R.; Ghedira, K.; Barillier, D.; Chekir-Ghedira, L. Comparative study of Cyperus rotundus essential oil by a modified GC/MS analysis method. Evaluation of its antioxidant, cytotoxic, and apoptotic effects. Chem. Biodivers. 2008, 5, 729–742. [Google Scholar] [CrossRef]
  30. Hu, Q.P.; Cao, X.M.; Hao, D.L.; Zhang, L.L. Chemical composition, antioxidant, DNA damage protective, cytotoxic and antibacterial activities of Cyperus rotundus rhizomes essential oil against foodborne pathogens. Sci. Rep. 2017, 7, 45231. [Google Scholar] [CrossRef][Green Version]
  31. Memariani, T.; Hosseini, T.; Kamali, H.; Mohammadi, A.; Ghorbani, M.; Shakeri, A.; Spandidos, D.A.; Tsatsakis, A.M.; Shahsavand, S. Evaluation of the cytotoxic effects of Cyperus longus extract, fractions and its essential oil on the PC3 and MCF7 cancer cell lines. Oncol. Lett. 2016, 11, 1353–1360. [Google Scholar] [CrossRef][Green Version]
  32. Chen, W.Q.; Xu, B.; Mao, J.W.; Wei, F.X.; Li, M.; Liu, T.; Jin, X.B.; Zhang, L.R. Inhibitory effects of α-pinene on hepatoma carcinoma cell proliferation. Asian Pac. J. Cancer Prev. 2014, 7, 3293–3297. [Google Scholar] [CrossRef][Green Version]
  33. Chen, W.; Liu, Y.; Li, M.; Mao, J.; Zhang, L.; Huang, R.; Jin, X.; Ye, L. Anti-tumor effect of α-pinene on human hepatoma cell lines through inducing G2/M cell cycle arrest. J. Pharmacol. Sci. 2015, 127, 332–338. [Google Scholar] [CrossRef][Green Version]
  34. Hou, J.; Zhang, Y.; Zhu, Y.; Zhou, B.; Ren, C.; Liang, S.; Guo, Y. α-Pinene induces apoptotic cell death via caspase activation in human ovarian cancer cells. Med. Sci. Monit. 2019, 25, 6631–6638. [Google Scholar] [CrossRef] [PubMed]
  35. Turkez, H.; Togar, B.; Tatar, A.; Geyıkoglu, F.; Hacımuftuoglu, A. Cytotoxic and cytogenetic effects of α-copaene on rat neuron and N2a neuroblastoma cell lines. Biologia 2014, 69, 936–942. [Google Scholar] [CrossRef]
  36. Park, K.R.; Nam, D.; Yun, H.M.; Lee, S.G.; Jang, H.J.; Sethi, G.; Cho, S.K.; Ahn, K.S. β-Caryophyllene oxide inhibits growth and induces apoptosis through the suppression of PI3K/AKT/mTOR/S6K1 pathways and ROS-mediated MAPKs activation. Cancer Lett. 2011, 312, 178–188. [Google Scholar] [CrossRef]
  37. Zhang, Y.; Xin, C.; Qiu, J.; Wang, Z. Essential oil from Pinus Koraiensis pinecones inhibits gastric cancer cells via the HIPPO/YAP signaling pathway. Molecules 2019, 24, 3851. [Google Scholar] [CrossRef][Green Version]
  38. Ramadan, M.A.; Shawkey, A.E.; Rabeh, M.A.; Abdellatif, A.O. Expression of P53, BAX, and BCL-2 in human malignant melanoma and squamous cell carcinoma cells after tea tree oil treatment in vitro. Cytotechnology 2018, 71, 461–473. [Google Scholar] [CrossRef] [PubMed]
  39. John Wiley & Sons Ltd. Wiley Registry 8th Edition/NIST 05 Mass Spectral Library, 8th ed.; Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
  40. Van Den Dool, H.; Kratz, P.D. A generalization of the retention index system including linear temperature programmed gas-liquid partition chromatography. J. Chromatogr. A 1963, 11, 463–471. [Google Scholar] [CrossRef]
  41. Ahmed, S.A.; Gogal, R.M., Jr.; Walsh, J.E. A new rapid and simple non-radioactive assay to monitor and determine the proliferation of lymphocytes: An alternative to [3H]-thymidine incorporation assay. J. Immunol. Methods 1994, 170, 211–224. [Google Scholar] [CrossRef]
  42. Santos, L.S.; Silva, V.R.; Menezes, L.R.A.; Soares, M.B.P.; Costa, E.V.; Bezerra, D.P. Xylopine induces oxidative stress and causes G2/M phase arrest, triggering caspase-mediated apoptosis by p53-independent pathway in HCT116 cells. Oxid. Med. Cell Longev. 2017, 2017, 7126872. [Google Scholar] [CrossRef][Green Version]
  43. Silva, V.R.; Correa, R.S.; Santos, L.S.; Soares, M.B.P.; Batista, A.A.; Bezerra, D.P. A ruthenium-based 5-fluorouracil complex with enhanced cytotoxicity and apoptosis induction action in HCT116 cells. Sci. Rep. 2018, 8, 288. [Google Scholar] [CrossRef][Green Version]
  44. Nicoletti, I.; Migliorati, G.; Pagliacci, M.C.; Grignani, F.; Riccardi, C. A rapid and simple method for measuring thymocyte apoptosis by propidium iodide staining and flow cytometry. J. Immunol. Methods 1991, 139, 271–279. [Google Scholar] [CrossRef]
  45. Lima, E.J.S.P.; Alves, R.G.; D Elia, G.M.A.; Anunciação, T.A.D.; Silva, V.R.; Santos, L.S.; Soares, M.B.P.; Cardozo, N.M.D.; Costa, E.V.; Silva, F.M.A.D.; et al. Antitumor effect of the essential oil from the leaves of Croton matourensis Aubl. (Euphorbiaceae). Molecules 2018, 23, 2974. [Google Scholar] [CrossRef] [PubMed][Green Version]
  46. Carvalho, N.C.; Neves, S.P.; Dias, R.B.; Valverde, L.F.; Sales, C.B.S.; Rocha, C.A.G.; Soares, M.B.P.; Dos Santos, E.R.; Oliveira, R.M.M.; Carlos, R.M.; et al. A novel ruthenium complex with xanthoxylin induces S-phase arrest and causes ERK1/2-mediated apoptosis in HepG2 cells through a p53-independent pathway. Cell Death Dis. 2018, 9, 79. [Google Scholar] [CrossRef] [PubMed][Green Version]
  47. Neves, S.P.; Carvalho, N.C.; Silva, M.M.; Rodrigues, A.C.B.C.; Bomfim, L.M.; Dias, R.B.; Sales, C.B.S.; Rocha, C.A.G.; Soares, M.B.P.; Batista, A.A.; et al. Ruthenium complexes containing heterocyclic thioamidates trigger caspase-mediated apoptosis through MAPK signaling in human hepatocellular carcinoma cells. Front. Oncol. 2019, 9, 562. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Sample of the EO is not available from the authors.

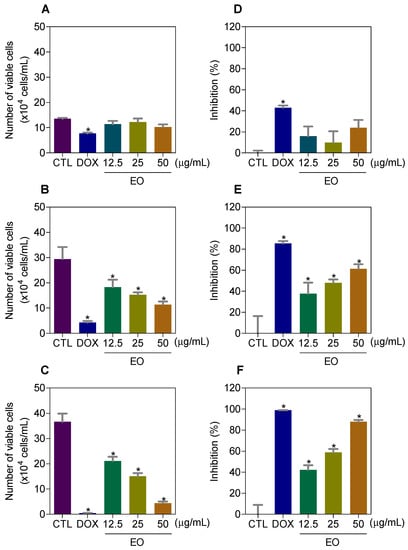

Figure 1. Effect of Cyperus articulatus rhizome essential oil (EO) on the viability of HepG2 cells, as measured by the trypan blue dye exclusion assay after 24 (A,D), 48 (B,E) and 72 (C,F) h of incubation. The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX, 1 µg/mL) was used as a positive control. The data are presented as the mean ± S.E.M. of three independent experiments carried out in duplicate. * p < 0.05 compared with the negative control by ANOVA, followed by the Student–Newman–Keuls test.
Figure 1. Effect of Cyperus articulatus rhizome essential oil (EO) on the viability of HepG2 cells, as measured by the trypan blue dye exclusion assay after 24 (A,D), 48 (B,E) and 72 (C,F) h of incubation. The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX, 1 µg/mL) was used as a positive control. The data are presented as the mean ± S.E.M. of three independent experiments carried out in duplicate. * p < 0.05 compared with the negative control by ANOVA, followed by the Student–Newman–Keuls test.
Molecules 25 02687 g001
Figure 2. Effect of Cyperus articulatus rhizome essential oil (EO) on HepG2 cell morphology. The cells were stained with May-Grunwald–Giemsa and examined by optical microscopy (bar = 50 μm). The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX) was used as a positive control. The arrows indicate cell shrinkage or cells with nuclear condensation.
Figure 2. Effect of Cyperus articulatus rhizome essential oil (EO) on HepG2 cell morphology. The cells were stained with May-Grunwald–Giemsa and examined by optical microscopy (bar = 50 μm). The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX) was used as a positive control. The arrows indicate cell shrinkage or cells with nuclear condensation.
Molecules 25 02687 g002

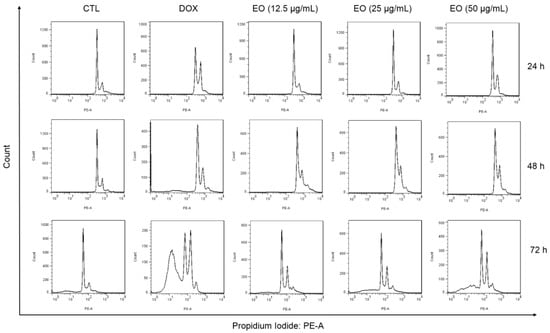

Figure 3. Representative flow cytometric histograms of the cell cycle distribution of HepG2 cells treated with Cyperus articulatus rhizome essential oil (EO). The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX, 1 µg/mL) was used as a positive control. Ten thousand events were evaluated per experiment, and cell debris was omitted from the analysis.
Figure 3. Representative flow cytometric histograms of the cell cycle distribution of HepG2 cells treated with Cyperus articulatus rhizome essential oil (EO). The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX, 1 µg/mL) was used as a positive control. Ten thousand events were evaluated per experiment, and cell debris was omitted from the analysis.
Molecules 25 02687 g003

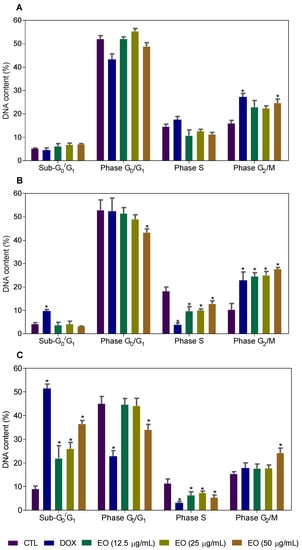

Figure 4. Effect of Cyperus articulatus rhizome essential oil (EO) on the cell cycle distribution of HepG2 cells after 24 (A), 48 (B) and 72 (C) h. The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX) was used as a positive control. The data are presented as the mean ± S.E.M. of three independent experiments carried out in duplicate. Ten thousand events were evaluated per experiment, and cell debris was omitted from the analysis. * p < 0.05 compared with the negative control by ANOVA, followed by the Newman–Keuls test.
Figure 4. Effect of Cyperus articulatus rhizome essential oil (EO) on the cell cycle distribution of HepG2 cells after 24 (A), 48 (B) and 72 (C) h. The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX) was used as a positive control. The data are presented as the mean ± S.E.M. of three independent experiments carried out in duplicate. Ten thousand events were evaluated per experiment, and cell debris was omitted from the analysis. * p < 0.05 compared with the negative control by ANOVA, followed by the Newman–Keuls test.
Molecules 25 02687 g004

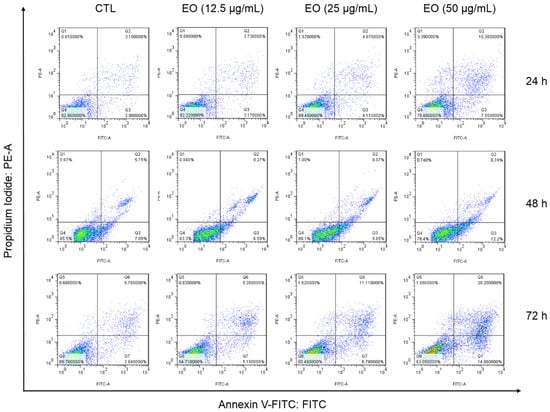

Figure 5. Representative flow cytometric dotplots of the cell death induction of HepG2 cells treated with Cyperus articulatus rhizome essential oil (EO), as measured by flow cytometry using annexin V-FITC/PI staining. The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX, 1 µg/mL) was used as a positive control. Ten thousand events were evaluated per experiment, and cell debris was omitted from the analysis.
Figure 5. Representative flow cytometric dotplots of the cell death induction of HepG2 cells treated with Cyperus articulatus rhizome essential oil (EO), as measured by flow cytometry using annexin V-FITC/PI staining. The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX, 1 µg/mL) was used as a positive control. Ten thousand events were evaluated per experiment, and cell debris was omitted from the analysis.
Molecules 25 02687 g005
Figure 6. Effect of Cyperus articulatus rhizome essential oil (EO) on the induction of cell death in HepG2 cells, as measured by flow cytometry using annexin V-FITC/PI staining. The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX, 1 µg/mL) was used as a positive control. Ten thousand events were evaluated per experiment, and cell debris was omitted from the analysis. The data are presented as the mean ± S.E.M. of three independent experiments carried out in duplicate. * p < 0.05 compared with the negative control by ANOVA, followed by the Student–Newman–Keuls test.
Figure 6. Effect of Cyperus articulatus rhizome essential oil (EO) on the induction of cell death in HepG2 cells, as measured by flow cytometry using annexin V-FITC/PI staining. The negative control (CTL) was treated with a vehicle (0.5% DMSO) used to dilute EO, and doxorubicin (DOX, 1 µg/mL) was used as a positive control. Ten thousand events were evaluated per experiment, and cell debris was omitted from the analysis. The data are presented as the mean ± S.E.M. of three independent experiments carried out in duplicate. * p < 0.05 compared with the negative control by ANOVA, followed by the Student–Newman–Keuls test.
Molecules 25 02687 g006

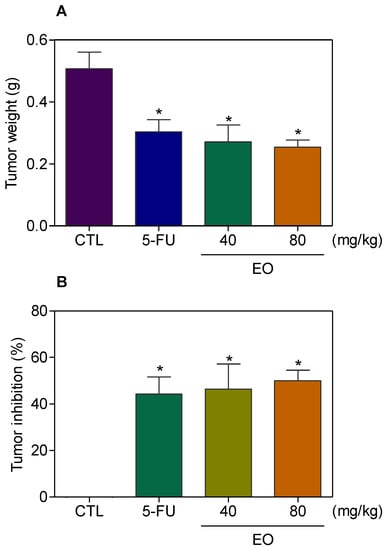

Figure 7. In vivo anti-liver-cancer effect of Cyperus articulatus rhizome essential oil (EO) in C.B-17 severe combined immunodeficient (SCID) mice with HepG2 cell xenografts. (A) Tumor weight (g) after treatment. (B) Tumor inhibition (%) after treatment. The negative control (CTL) was treated with a vehicle (5% DMSO) used to dilute EO, and 5-fluorouracil (5-FU, 10 mg/kg) was used as a positive control. Beginning 1 day after tumor implantation, the animals were treated intraperitoneally for 21 consecutive days. The data are presented as the mean ± S.E.M. of 10–20 animals. * p < 0.05 compared to the negative control by ANOVA, followed by the Student–Newman–Keuls test.
Figure 7. In vivo anti-liver-cancer effect of Cyperus articulatus rhizome essential oil (EO) in C.B-17 severe combined immunodeficient (SCID) mice with HepG2 cell xenografts. (A) Tumor weight (g) after treatment. (B) Tumor inhibition (%) after treatment. The negative control (CTL) was treated with a vehicle (5% DMSO) used to dilute EO, and 5-fluorouracil (5-FU, 10 mg/kg) was used as a positive control. Beginning 1 day after tumor implantation, the animals were treated intraperitoneally for 21 consecutive days. The data are presented as the mean ± S.E.M. of 10–20 animals. * p < 0.05 compared to the negative control by ANOVA, followed by the Student–Newman–Keuls test.
Molecules 25 02687 g007
Figure 8. Representative histological analysis of tumors stained with hematoxylin and eosin and analyzed by optical microscopy. The asterisks indicate areas of necrosis. The negative control (CTL) was treated with a vehicle (5% DMSO) used to dilute EO, and 5-fluorouracil (5-FU, 10 mg/kg) was used as a positive control. Beginning 1 day after tumor implantation, the animals were treated intraperitoneally for 21 consecutive days.
Figure 8. Representative histological analysis of tumors stained with hematoxylin and eosin and analyzed by optical microscopy. The asterisks indicate areas of necrosis. The negative control (CTL) was treated with a vehicle (5% DMSO) used to dilute EO, and 5-fluorouracil (5-FU, 10 mg/kg) was used as a positive control. Beginning 1 day after tumor implantation, the animals were treated intraperitoneally for 21 consecutive days.
Molecules 25 02687 g008
Figure 9. Representative histological analysis of the lungs, livers and kidneys of the C.B-17 SCID mice with HepG2 cell xenografts treated with Cyperus articulatus rhizome essential oil (EO). Lungs and livers were stained with hematoxylin and eosin, and kidneys were stained with Periodic acid-Schiff, and all slides were analyzed by light microscopy. The negative control (CTL) was treated with a vehicle (5% DMSO) used to dilute EO. 5-Fluorouracil (5-FU, 10 mg/kg) was used as a positive control. Beginning 1 day after tumor implantation, the animals were treated intraperitoneally for 21 consecutive days. Asterisks indicate the areas of vascular congestion, thin arrows indicate coagulation necrosis and thick arrows represent hydropic degeneration.
Figure 9. Representative histological analysis of the lungs, livers and kidneys of the C.B-17 SCID mice with HepG2 cell xenografts treated with Cyperus articulatus rhizome essential oil (EO). Lungs and livers were stained with hematoxylin and eosin, and kidneys were stained with Periodic acid-Schiff, and all slides were analyzed by light microscopy. The negative control (CTL) was treated with a vehicle (5% DMSO) used to dilute EO. 5-Fluorouracil (5-FU, 10 mg/kg) was used as a positive control. Beginning 1 day after tumor implantation, the animals were treated intraperitoneally for 21 consecutive days. Asterisks indicate the areas of vascular congestion, thin arrows indicate coagulation necrosis and thick arrows represent hydropic degeneration.
Molecules 25 02687 g009
Table 1. Chemical composition of Cyperus articulatus rhizome essential oil (EO).
Table 1. Chemical composition of Cyperus articulatus rhizome essential oil (EO).
Peak NumberCompoundRetention Time
(min)
RIProportionalArea (%)
1α-Pinene5.509318.26 ± 0.74
2Verbenene6.059670.44 ± 0.06
3β-Pinene6.739754.54 ± 0.52
4p-Cymene8.3110250.42 ± 0.05
5Limonene8.5010280.93 ± 0.11
6Isopinocarveol13.111602.13 ± 0.20
7β-Phellandren-8-ol13.511630.32 ± 0.02
8α-Phellandren-8-ol14.411680.81 ± 0.10
9Terpinen-4-ol14.911740.22 ± 0.05
10α-Terpineol15.511900.63 ± 0.03
11Myrtenol15.811983.47 ± 0.37
12Verbenone16.412050.71 ± 0.08
13α-Copaene24.613754.83 ± 0.45
14β-Elemene25.513940.35 ± 0.02
15α-Gurjunene25.814091.55 ± 0.17
16β-Caryophyllene26.114351.03 ± 0.11
17β-Copaene27.814401.22 ± 0.12
18Unknown28.9-0.84 ± 0.05
19Unknown29.9-0.15 ± 0.01
20Caryophyllene oxide30.715504.82 ± 0.44
21Unknown 31.4-1.51 ± 0.11
22β-Copaen-4-α-ol32.315704.74 ± 0.40
23Unknown37.7-0.72 ± 0.04
24Unknown38.3-1.82 ± 0.15
25Spathulenol39.015883.68 ± 0.38
26Unknown43.8-0.43 ± 0.05
27Globulol44.915912.72 ± 0.29
28Unknown45.1-0.90 ± 0.08
29Unknown45.5-0.58 ± 0.06
30Muskatone46.0168111.60 ± 1.19
31Cyperol46.516841.84 ± 0.15
32Unknown46.9-0.92 ± 0.09
33Pogostol47.216876.36 ± 0.88
34Unknown47.4-1.60 ± 0.21
35Unknown47.7-1.02 ± 0.10
36Unknown48.0-1.30 ± 0.16
37(E,E)-Farnesol48.117401.43 ± 0.15
38Cyclocolorenone48.4175310.30 ± 1.02
39Unknown49.3-0.21 ± 0.02
40Unknown49.5-0.49 ± 0.05
41Unknown50.2-0.19 ± 0.01
42(E)-Isogeraniol51.618170.72 ± 0.04
Σhydrocarbon monoterpenes 14.59
Σoxygenated monoterpenes 8.29
Σhydrocarbon sesquiterpenes 8.98
Σoxygenated sesquiterpenes 47.49
Σtotal identified 80.07
RI: Retention Index.
Table 2. In vitro cytotoxicity of Cyperus articulatus rhizome essential oil (EO).
Table 2. In vitro cytotoxicity of Cyperus articulatus rhizome essential oil (EO).
Cell LinesHistological TypeIC50 (95% CI) in µg/mL
EODOX5-FU
Cancer cells
HepG2Human hepatocellular carcinoma28.5
(23.8–36.4)
0.03
(0.01–0.2)
0.2
(0.1–0.4)
HCT116Human colon carcinoma>500.1
(0.1–0.2)
0.5
(0.3–1.1)
MCF-7Human breast adenocarcinoma36.7
(26.7–50.5)
0.3
(0.2–0.4)
1.8
(0.7–2.3)
HL-60Human promyelocytic leukemia33.51
(27.3–41.2)
0.04
(0.02–0.08)
1.6
(1.2–2.2)
B16-F10Mouse melanoma39.7
(32.1–49.0)
0.2
(0.2–0.2)
0.5
(0.3–0.8)
Non-cancerous cell
MRC-5Human lung fibroblast46.0
(39.6–53.6)
0.2
(0.1–0.5)
7.5
(5.2–11.0)
The data are presented as IC50 values, in μg/mL, with their respective 95% confidence interval (95% CI) obtained by nonlinear regression from three independent experiments carried out in duplicate, as measured by the Alamar blue assay after 72 h of incubation. Doxorubicin (DOX) and 5-fluorouracil (5-FU) were used as positive controls.
Table 3. Selectivity index of Cyperus articulatus rhizome essential oil (EO).
Table 3. Selectivity index of Cyperus articulatus rhizome essential oil (EO).
Cancer CellsNon-Cancerous Cells
MRC-5
EODOX5-FU
HepG21.669.737.5
HCT116n.d.16.115
MCF-71.37.54.2
HL-601.452.34.7
B16-F101.211.015
The data are presented as the selectivity index (SI) calculated using the following formula: SI = IC50 (non-cancerous cells)/IC50 (cancer cells). Doxorubicin (DOX) and 5-fluorouracil (5-FU) were used as positive controls. n.d. = not determined.
Table 4. Effect of Cyperus articulatus rhizome essential oil (EO) on body and relative organ weight from C.B-17 SCID mice with HepG2 cell xenografts.
Table 4. Effect of Cyperus articulatus rhizome essential oil (EO) on body and relative organ weight from C.B-17 SCID mice with HepG2 cell xenografts.
ParametersCTL5-FUEO
Dose (mg/kg)-104080
Survival20/2010/1010/1010/10
Initial body weight (g)21.4 ± 0.519.6 ± 0.621.0 ± 0.421.0 ± 0.5
Final body weight (g)22.1 ± 0.520.5 ± 0.519.8 ± 0.921.9 ± 0.5
Liver (g/100 g body weight)4.8 ± 0.24.8 ± 0.25.4 ± 0.34.9 ± 0.3
Kidney (g/100 g body weight)1.5 ± 0.11.5 ± 0.11.7 ± 0.11.5 ± 0.1
Heart (g/100 g body weight)0.5 ± 0.10.6 ± 0.10.6 ± 0.10.6 ± 0.1
Lung (g/100 g body weight)0.8 ± 0.10.8 ± 0.10.7 ± 0.10.8 ± 0.1
Beginning 1 day after tumor implantation, the animals were treated intraperitoneally for 21 consecutive days. The negative control (CTL) was treated with a vehicle (5% DMSO) used to dilute EO. 5-Fluorouracil (5-FU, 10 mg/kg) was used as a positive control. The data are presented as the mean ± S.E.M. of 10–20 animals.
Table 5. Effect of Cyperus articulatus rhizome essential oil (EO) on the hematological parameters of peripheral blood samples from C.B-17 SCID mice with HepG2 cell xenografts.
Table 5. Effect of Cyperus articulatus rhizome essential oil (EO) on the hematological parameters of peripheral blood samples from C.B-17 SCID mice with HepG2 cell xenografts.
ParametersCTL5-FUEO
Dose (mg/kg)-104080
Erythrocytes (106/mm3)5.2 ± 1.17.6 ± 0.85.4 ± 1.16.7 ± 1.3
Hemoglobin (g/dL)21.2 ± 4.817.7 ± 3.126.8 ± 0.718.0 ± 1.4
MCV (fL)43.8 ± 0.445.0 ± 3.041.5 ± 0.544.8 ± 0.5
Platelets (103/mm3)247.2 ± 38.5222.1 ± 41.6456.7 ± 112.2464.1 ± 62.4
Leukocytes (103/mm3)5.2 ± 0.82.5 ± 0.67.6 ± 0.72.9 ± 0.7
Differential leukocytes (%)
Granulocytes24.128.425.734.3
Lymphocytes41.546.152.240.4
Monocytes33.625.521.225.3
Beginning 1 day after tumor implantation, the animals were treated intraperitoneally for 21 consecutive days. The negative control (CTL) was treated with a vehicle (5% DMSO) used to dilute EO. 5-Fluorouracil (5-FU, 10 mg/kg) was used as a positive control. The data are presented as the mean ± S.E.M. of 7-14 animals. MCV: Mean Corpuscular Volume.

Share and Cite

MDPI and ACS Style

Nogueira, M.L.; Lima, E.J.S.P.d.; Adrião, A.A.X.; Fontes, S.S.; Silva, V.R.; Santos, L.d.S.; Soares, M.B.P.; Dias, R.B.; Rocha, C.A.G.; Costa, E.V.; Silva, F.M.A.d.; Vannier-Santos, M.A.; Cardozo, N.M.D.; Koolen, H.H.F.; Bezerra, D.P. Cyperus articulatus L. (Cyperaceae) Rhizome Essential Oil Causes Cell Cycle Arrest in the G2/M Phase and Cell Death in HepG2 Cells and Inhibits the Development of Tumors in a Xenograft Model. Molecules 2020, 25, 2687. https://doi.org/10.3390/molecules25112687

AMA Style

Nogueira ML, Lima EJSPd, Adrião AAX, Fontes SS, Silva VR, Santos LdS, Soares MBP, Dias RB, Rocha CAG, Costa EV, Silva FMAd, Vannier-Santos MA, Cardozo NMD, Koolen HHF, Bezerra DP. Cyperus articulatus L. (Cyperaceae) Rhizome Essential Oil Causes Cell Cycle Arrest in the G2/M Phase and Cell Death in HepG2 Cells and Inhibits the Development of Tumors in a Xenograft Model. Molecules. 2020; 25(11):2687. https://doi.org/10.3390/molecules25112687

Chicago/Turabian Style

Nogueira, Mateus L., Emilly J. S. P. de Lima, Asenate A. X. Adrião, Sheila S. Fontes, Valdenizia R. Silva, Luciano de S. Santos, Milena B. P. Soares, Rosane B. Dias, Clarissa A. Gurgel Rocha, Emmanoel V. Costa, Felipe M. A. da Silva, Marcos A. Vannier-Santos, Nállarett M. D. Cardozo, Hector H. F. Koolen, and Daniel P. Bezerra. 2020. "Cyperus articulatus L. (Cyperaceae) Rhizome Essential Oil Causes Cell Cycle Arrest in the G2/M Phase and Cell Death in HepG2 Cells and Inhibits the Development of Tumors in a Xenograft Model" Molecules 25, no. 11: 2687. https://doi.org/10.3390/molecules25112687

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
