# DFT Computed Dielectric Response and THz Spectra of Organic Co-Crystals and Their Constituent Components

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Results and Discussion

#### 2.1. Co-Crystals

#### 2.2. Improving Agreement with Experiment

## 3. Materials and Methods

#### 3.1. Pellet Fabrication

#### 3.2. Dielectric Measurements

#### 3.3. Terahertz Spectroscopy

#### 3.4. Computational Details

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Steed, J.W. The Role of Co-Crystals in Pharmaceutical Design. Trends Pharm. Sci.
**2013**, 34, 185–193. [Google Scholar] [CrossRef] [PubMed] - Chieng, N.; Rades, T.; Aaltonen, J. An overview of recent studies on the analysis of pharmaceutical polymorphs. J. Pharm. Biomed. Anal.
**2011**, 55, 618–644. [Google Scholar] [CrossRef] [PubMed] - Vishweshwar, P.; McMahon, J.A.; Bis, J.A.; Zaworotko, M.J. Pharmaceutical Co-Crystals. J. Pharm. Sci.
**2006**, 95, 499–516. [Google Scholar] [CrossRef] [PubMed] - King, M.D.; Korter, T.M. Noncovalent Interactions between Modified Cytosine and Guanine DNA Base Pair Mimics Investigated by Terahertz Spectroscopy and Solid-State Density Functional Theory. J. Phys. Chem. A
**2011**, 115, 14391–14396. [Google Scholar] [CrossRef] [PubMed] - Wallace, V.P.; Taday, P.F.; Fitzgerald, A.J.; Woodward, R.M.; Cluff, J.; Pye, R.J.; Arone, D.D. Terahertz Pulsed Imaging and Spectroscopy for Biomedical and Pharmaceutical Applications. Faraday Discuss.
**2004**, 126, 255–263. [Google Scholar] [CrossRef] [PubMed] - Berry, D.J.; Steed, J.W. Pharmaceutical Cocrystals, Salts and Multicomponent Systems; Intermolecular Interactions and Property Based Design. Adv. Drug Deliv. Rev.
**2017**, 117, 3–24. [Google Scholar] [CrossRef] - Braga, D.; Maini, L.; Grepioni, F. Mechanochemical preparation of co-crystals. Chem. Soc. Rev.
**2013**, 42, 7638–7648. [Google Scholar] [CrossRef] [PubMed] - Urbanus, J.; Roelands, C.P.M.; Verdoes, D.; Jansens, P.J.; ter Horst, J.H. Co-Crystallization as a Separation Technology: Controlling Product Concentrations by Co-Crystals. Cryst. Growth Des.
**2010**, 10, 1171–1179. [Google Scholar] [CrossRef] - McIntosh, A.I.; Yang, B.; Goldup, S.M.; Watkinson, M.; Donnan, R.S. Terahertz Spectroscopy: A Powerful New Tool for the Chemical Sciences? Chem. Soc. Rev.
**2012**, 41, 2072–2082. [Google Scholar] [CrossRef] - Ruggiero, M.T.; Sutton, J.J.; Fraser-Miller, S.J.; Zaczek, A.J.; Korter, T.M.; Gordon, K.C.; Zeitler, J.A. Revisiting the Thermodynamic Stability of Indomethacin Polymorphs with Low-Frequency Vibrational Spectroscopy and Quantum Mechanical Simulations. Cryst. Growth Des.
**2018**, 18, 6513–6520. [Google Scholar] [CrossRef] - Taday, P.F.; Bradley, I.V.; Arnone, D.D.; Pepper, M. Using Terahertz Pulse Spectroscopy to Study the Crystalline Structure of a Drug: A Case Study of the Polymorphs of Ranitidine Hydrochloride. J. Pharm. Sci.
**2003**, 92, 831–838. [Google Scholar] [CrossRef] [PubMed] - Larkin, P.J.; Wasylyk, J.; Raglione, M. Application of Low- and Mid-Frequency Raman Spectroscopy to Characterize the Amorphous-Crystalline Transformation of Indomethacin. Appl. Spectrosc.
**2015**, 69, 1217–1228. [Google Scholar] [CrossRef] [PubMed] - Zeitler, J.A.; Newnham, D.A.; Taday, P.F.; Threlfall, T.L.; Lancaster, R.W.; Berg, R.W.; Strahan, C.J.; Pepper, M.; Gordon, K.C.; Rades, T. Characterization of Temperature-Induced Phase Transitions in Five Polymorphic Forma of Sulfathiazole by Terahertz Pulsed Spectroscopy and Differential Scanning Calorimetry. J. Pharm. Sci.
**2006**, 95, 2486–2498. [Google Scholar] [CrossRef] [PubMed] - Inoue, M.; Hisada, H.; Koide, T.; Carriere, J.; Heyler, R.; Fukami, T. In Situ Monitoring of Crystalline Transformation of Carbamazepine Using Probe-Type Low Frequency Raman Spectroscopy. Org. Process Res. Dev.
**2017**, 21, 262–265. [Google Scholar] [CrossRef] - Zeitler, J.A.; Taday, P.F.; Gordon, K.C.; Pepper, M.; Rades, T. Solid-State Transition Mechanism in Carbamazepine Polymorphs by Time-Resolved Terahertz Spectroscopy. Chem. Phys. Chem.
**2007**, 8, 1924–1927. [Google Scholar] [CrossRef] [PubMed] - Neu, J.; Nemes, C.T.; Regan, K.P.; Williams, M.R.C.; Schmuttenmaer, C.A. Exploring the solid state phase transition in DL-norvaline with terahertz spectroscopy. Phy. Chem. Chem. Phys.
**2018**, 20, 276–283. [Google Scholar] [CrossRef] - Nyugen, K.L.; Friscic, T.; Day, G.M.; Gladden, L.F.; Jones, W. Terahertz time-domain spectroscopy and the quantitative monitoring of mechanochemical cocrystal formation. Nat. Mater.
**2007**, 6, 206–209. [Google Scholar] - Delaney, S.P.; Korter, T.M. Terahertz Spectroscopy and Computational Investigation of the Flufenamic Acid/Nicotinamide Cocrystal. J. Phys. Chem. A
**2015**, 119, 3269–3276. [Google Scholar] [CrossRef] [PubMed] - King, M.D.; Ouellette, W.; Korter, T.M. Noncovalent Interactions in Paired DNA Nucleobases Investigated by Terahertz Spectroscopy and Solid-State Density Functional Theory. J. Phys. Chem. A
**2011**, 115, 9467–9478. [Google Scholar] [CrossRef] [PubMed] - Druzbicki, K.; Mielcarek, J.; Kiwilsza, A.; Troupet, L.; Collet, E.; Pajzderska, A.; Wasicki, J. Computationally Assisted (Solid State Density Functional Theory) Structural (X-ray) and Vibrational Spectroscopy (FT-IR, FT-RS, TDs-THz) Characterization of the Cardiovascular Drug Lacidipine. Cryst. Growth Des.
**2015**, 15, 2817–2830. [Google Scholar] [CrossRef] - Hohenberg, P.; Kohn, W. Inhomogeneous Electron Gas. Phys. Rev.
**1964**, 136, B864–B871. [Google Scholar] [CrossRef] - Kohn, W.; Sham, L.J. Self-Consistent Equations Including Exchange and Correlation Effects. Phys. Rev.
**1965**, 140, A1133. [Google Scholar] [CrossRef] - Stillinger, F.H.; Weber, T.A. Computer simulation of local order in condensed phases of silicon. Phys. Rev. B
**1985**, 31, 5262–5271. [Google Scholar] [CrossRef] - Bernard, J.E.; Zunger, A. Electronic structure of ZnS, ZnSe, ZnTe, and their pseudobinary alloys. Phys. Rev. B
**1987**, 36, 3199–3228. [Google Scholar] [CrossRef] - Rappe, A.M.; Rabe, K.M.; Kaxiras, E.; Joannopoulos, J.D. Optimized Pseudopotentials. Phys. Rev. B Rapid Commun.
**1990**, 41, 1227–1230. [Google Scholar] [CrossRef] - Ramer, N.J.; Rappe, A.M. Designed Nonlocal Pseudopotentials for Enhanced Transferability. Phys. Rev. B
**1999**, 59, 12471–12478. [Google Scholar] [CrossRef] - Vanderbilt, D. Soft Self-Consistent Pseudopotentials in a Generalized Eigenvalue Formalism. Phys. Rev. B Rapid Commun.
**1990**, 41, 7892–7895. [Google Scholar] [CrossRef] - Hamann, D.R. Optimized norm-conserving Vanderbilt pseudopotentials. Phys. Rev. B
**2013**, 88, 085117. [Google Scholar] [CrossRef] [Green Version] - Garrity, K.F.; Bennett, J.W.; Rabe, K.M.; Vanderbilt, D. Pseudopotentials for high-throughput DFT calculations. Comput. Mater. Sci.
**2014**, 81, 446–452. [Google Scholar] [CrossRef] [Green Version] - Lejaeghere, K.; Bihlmayer, G.; Bjorkman, T.; Blaha, P.; Blugel, S.; Blum, V.; Caliste, D.; Castelli, I.E.; Clark, S.J.; Corso, A.D.; et al. Reproducibility in density functional theory calculations of solids. Science
**2016**, 351, aad3000. [Google Scholar] [CrossRef] - Perdew, J.P.; Chevary, J.A.; Vosko, S.H.; Jackson, K.A.; Pederson, M.R.; Singh, D.J.; Fiolhais, C. Atoms, molecules, solids and surfaces: Applications of the generalized gradient approxiamtion for exchange and correlations. Phys. Rev. B
**1992**, 46, 6671–6687. [Google Scholar] [CrossRef] - Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett.
**1996**, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed] - Adamo, C.; Barone, V. Toward reliable density functional methods without adjustable parameters: The PBE0 model. J. Chem. Phys.
**1999**, 110, 6158–6170. [Google Scholar] [CrossRef] - Gonze, X.; Amadon, B.; Anglade, P.; Beuken, J.M.; Bottin, F.; Boulanger, P.; Bruneval, F.; Caliste, D.; Caracas, R.; Cote, M.; et al. ABINIT: First-Principles Approach to Material and Nanosystem Properties. Comp. Phys. Commun.
**2009**, 180, 2582–2615. [Google Scholar] [CrossRef] - Giannozzi, P.; Baroni, S.; Bonini, N.; Calandra, M.; Car, R.; Cavazzoni, C.; Ceresoli, D.; Chiarotti, G.L.; Cococcioni, M.; Dabo, I.; et al. QUANTUM-ESPRESSO: A Modular and Open-Source Software Project for Quantum Simulation of Materials. J. Phys. Condens. Matter
**2009**, 21, 395502. [Google Scholar] [CrossRef] [PubMed] - Giustino, F. Materials Modelling Using Density Functional Theory: Properties and Preditions; Oxford University Press: Oxford, UK, 2014. [Google Scholar]
- Roy, A.; Bennett, J.W.; Rabe, K.M.; Vanderbilt, D. Half-Heusler Semiconductors as Piezoelectrics. Phys. Rev. Lett.
**2012**, 109, 037601. [Google Scholar] [CrossRef] [PubMed] - Bennett, J.W.; Garrity, K.F.; Rabe, K.M.; Vanderbilt, D. Orthorhombic ABC Semiconductors as Antiferroelectrics. Phys. Rev. Lett.
**2013**, 110, 017603. [Google Scholar] [CrossRef] - Lee, J.H.; Rabe, K.M. Large spin-phonon coupling and magnetically induced phonon anisotropy in SrMO
_{3}perovskites (M=V, Cr, Mn, Fe, Co). Phys. Rev. B**2011**, 84, 104440. [Google Scholar] [CrossRef] - Lee, J.H.; Rabe, K.M. Coupled Magnetic-Ferroelectric Metal-Insulator Transition in Epitaxially Strianed SrCoO
_{3}from First-Principles. Phys. Rev. Lett.**2011**, 107, 067601. [Google Scholar] [CrossRef] - Yu, L.; Kokenyesi, R.S.; Kaszler, D.A.; Zunger, A. Inverse Design of High Absorption Thin-Film Photovoltaic Materials. Adv. Energy Mater.
**2013**, 3, 43–48. [Google Scholar] [CrossRef] - Dion, M.; Rydberg, H.; Schroder, E.; Langreth, D.C.; Lundquist, B.I. Van der Waals Density Functional for General Geometries. Phys. Rev. Lett.
**2004**, 92, 246401. [Google Scholar] [CrossRef] [PubMed] - Grimme, S. Semiempirical GGA-type density functional constructed with a long-range dispersion correction. J. Comput. Chem.
**2006**, 27, 1787–1799. [Google Scholar] [CrossRef] [PubMed] - Schwabe, T.; Grimme, S. Double-hybrid density functionals with long-range dispersion corrections: Higher accuracy and extended applicability. Phys. Chem. Chem. Phys.
**2007**, 9, 3397–3406. [Google Scholar] [CrossRef] [PubMed] - Chai, J.D.; Head-Gordon, M. Long-range corrected hybrid density functionals with damped atom-atom dispersion corrections. Phys. Chem. Chem. Phys.
**2008**, 10, 6615–6620. [Google Scholar] [CrossRef] [PubMed] - Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parameterization of density functional dispeersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys.
**2010**, 132, 154104. [Google Scholar] [CrossRef] [PubMed] - Berland, K.; Cooper, V.R.; Lee, K.; Schroder, E.; Thonhauser, T.; Hyldgaard, P.; Lundqvist, B.I. van der Waals forces in density functional theory: a review of the vdW-DF method. Rep. Prog. Phys.
**2015**, 78, 066501. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Thanthiriwatte, K.S.; Hohenstein, E.G.; Burns, L.A.; Sherrill, C.D. Assessment of the Performance of DFT and DFT-D methods for describing distance dependence of hydrogen-bonded interactions. J. Chem. Theory Comput.
**2011**, 7, 88–96. [Google Scholar] [CrossRef] [PubMed] - Peverati, R.; Baldridge, K.K. Implementation and Performance of DFT-D with Respect to Basis Set and Functional for Study of Dispersion Interactions in Nanoscale Aromatic Hydrocarbons. J. Chem. Theory Comput.
**2008**, 4, 2030–2048. [Google Scholar] [CrossRef] [PubMed] - Caldeweyher, E.; Bannwarth, C.; Grimme, S. Extension of the D3 Dispersion Coefficient. J. Chem. Phys.
**2017**, 147, 034112. [Google Scholar] [CrossRef] [PubMed] - Grimme, S. Density functional theory with London dispersion corrections. Wiley Interdiscip. Rev.
**2011**, 1, 211–228. [Google Scholar] [CrossRef] - Vansant, J.; Smets, G.; Declercq, J.P.; Germain, G.; Meerssche, M.V. Azastilbenes. 1. Synthesis, characterization, and structure. J. Org. Chem.
**1980**, 45, 1557–1565. [Google Scholar] [CrossRef] - Ide, S.; Karacan, N.; Tufan, Y. 1,2-Bis(4-pyridyl)ethane. Acta Cryst. C
**1995**, 51, 2304–2305. [Google Scholar] [CrossRef] [Green Version] - Sundaralingham, M.; Jensen, L.H. Refinement of the structure of salicylic acid. Acta Cryst.
**1965**, 18, 1053–1058. [Google Scholar] [CrossRef] [Green Version] - King, M.D.; Korter, T.M. Modified Corrections for London Forces in Solid-State Density Functional Theory Calculations of Structure and Lattice Dynamics of Molecular Crystals. J. Phys. Chem. A
**2012**, 116, 6927–6934. [Google Scholar] [CrossRef] [PubMed] - Raglione, M.E.; Zhang, T.; Arnold, M.A. Stability of Polytetrafluoroethylene, Polyethylene, and Polystyrene Pellets as a Matrix for Analytical Terahertz Spectroscopy. Int. J. Exp. Spectrosc. Tech.
**2018**, 3. in press. [Google Scholar] - Rupasinghe, T.P.; Hutchins, K.M.; Bandaranayake, B.S.; Ghorai, S.; Karunatilake, C.; Bucar, D.K.; Swenson, D.C.; Arnold, M.A.; MacGillivray, L.R.; Tivanski, A.V. Mechanical Properties of a Series of Macro- and Nanodimensional Organic Cocrystals Correlate with Atomic Polarizability. J. Am. Chem. Soc.
**2015**, 137, 12768–12771. [Google Scholar] [CrossRef] [PubMed] - Naftaly, M.; Miles, R.E. Terahertz time-domain spectroscopy of silicate glasses and the relationship to material properties. J. Appl. Phys.
**2007**, 102, 043517. [Google Scholar] [CrossRef] - Looyenga, H. Dielectric constants of homogeneous mixture. Mol. Phys.
**1965**, 9, 501–511. [Google Scholar] [CrossRef] - Sun, J.; Lucyszyn, S. Extracting Complex Dielectric Properties from Reflection-Transmission Mode Spectroscopy. IEEE Access
**2018**, 6, 1–20. [Google Scholar] [CrossRef] - Monkhorst, H.J.; Pack, J.D. Special Points for Brillouin-Zone Integrations. Phys. Rev. B
**1976**, 13, 5188–5192. [Google Scholar] [CrossRef] - Cockayne, E.; Burton, B.P. Phonons and Static Dielectric Constant in CaTiO
_{3}from First Principles. Phys. Rev. B**2000**, 62, 3735–3743. [Google Scholar] [CrossRef] - Cockayne, E. First-principles calculations of the dielectric properties of perovskite-type materials. J. Eur. Ceram.
**2003**, 23, 2375–2379. [Google Scholar] [CrossRef] - Bennett, J.W.; Grinberg, I.; Rappe, A.M. Effect of symmetry lowering on the dielectric response of BaZrO
_{3}. Phys. Rev. B**2006**, 73, 180102R. [Google Scholar] [CrossRef] - Bennett, J.W.; Grinberg, I.; Rappe, A.M. Nonmonotonic Composition Dependence of the Dielectric Response of Ba
_{1−x}Ca_{x}ZrO_{3}. Chem. Mater.**2008**, 20, 5134–5138. [Google Scholar] [CrossRef] - Bennett, J.W.; Grinberg, I.; Rappe, A.M. Effect of substituting S for O: The sulfide perovskite BaZrS
_{3}investigated with density functional theory. Phys. Rev. B**2009**, 79, 235115. [Google Scholar] [CrossRef] - Gonze, X.; Lee, C. Dynamical matrices, Born effective charges, dielectric permittivity tensors, and interatomic force constants from density-functional perturbation theory. Phys. Rev. B
**1997**, 55, 10355–10368. [Google Scholar] [CrossRef] - Ghosez, P.; Michenaud, J.P.; Gonze, X. Dynamical atomic charges: The case of ABO
_{3}compounds. Phys. Rev. B**1998**, 58, 6224–6240. [Google Scholar] [CrossRef] - Zhang, F.; Wang, H.W.; Tominaga, K.; Hayashi, M. Characteristics of Low-Frequency Molecular Phonon Modes Studied by THz Spectroscopy and Solid-State ab initio Theory: Polymorphs I and III of Diflunisal. J. Phys. Chem. B
**2016**, 120, 1698–1710. [Google Scholar] [CrossRef] - Ruggiero, M.T.; Zeitler, J.A.; Erba, A. Intermolecular anharmonicity in molecular crystals: Interplay between experimental low-frequency dynamics and quantum quasi-harmonic simulations of solid purine. Chem. Commun.
**2017**, 53, 3781–3784. [Google Scholar] [CrossRef] - Brandenburg, J.G.; Potticary, J.; Sparkes, H.A.; Price, S.L.; Hall, S.R. Thermal Expansion of Carbamazepine: Systematic Crystallographic Measurements Challenge Quantum Chemical Calculations. J. Phys. Chem. Lett.
**2017**, 8, 4319–4324. [Google Scholar] [CrossRef] - Ruggiero, M.T.; Zhang, W.; Bond, A.D.; Mittleman, D.M.; Zeitler, J.A. Uncovering the Connection Between Low-Frequency Dynamics and Phase Transformation Phenomena in Molecular Solids. Phys. Rev. Lett.
**2018**, 120, 196002. [Google Scholar] [CrossRef] [PubMed] - Tkatchenko, A. Accurate Molecular Van der Waals Interactions from Ground State Electron Density and Free-Atom Reference Data. Phys. Rev. Lett.
**2009**, 102, 073005. [Google Scholar] [CrossRef] [PubMed] - Moellmann, J.; Grimme, S. DFT-D3 Study of Some Molecular Crystals. J. Phys. Chem. C
**2014**, 118, 7615–7621. [Google Scholar] [CrossRef] - Wang, C.W.; Hui, K.; Chai, J.D. Short- and long-range corrected hybrid density functionals with the D3 dispersion corrections. J. Chem. Phys.
**2016**, 145, 204101. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Goerigk, L. Treating London-Dispersion Effects with the Latest Minnesota Density Functionals: Problems and Possible Solutions. J. Phys. Chem. Lett.
**2015**, 6, 3891–3896. [Google Scholar] [CrossRef] [PubMed] - Towns, J.; Cockerill, T.; Dahan, M.; Foster, I.; Gaither, K.; Grimshaw, A.; Hazlewood, V.; Lanthrop, S.; Lifka, D.; Peterson, G.D.; et al. XSEDE:Accelerating Scientific Discovery. Comp. Sci. Eng.
**2014**, 16, 62–74. [Google Scholar] [CrossRef]

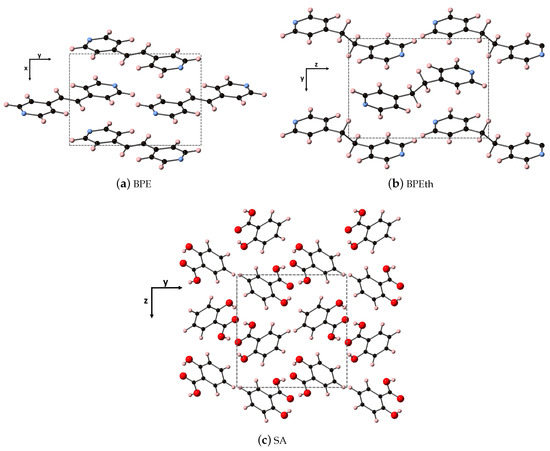

**Figure 1.**Shown here are the co-crystal components (

**a**) BPE, (

**b**) BPEth, and (

**c**) SA. Atoms of carbon, hydrogen, nitrogen, and oxygen are depicted as black, light pink, light blue, and red spheres, respectively. Dashed lines represent the crystallographic axes of the primitive lattice unit cell for each of the components.

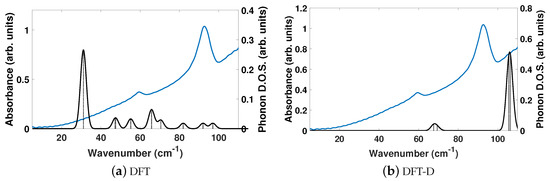

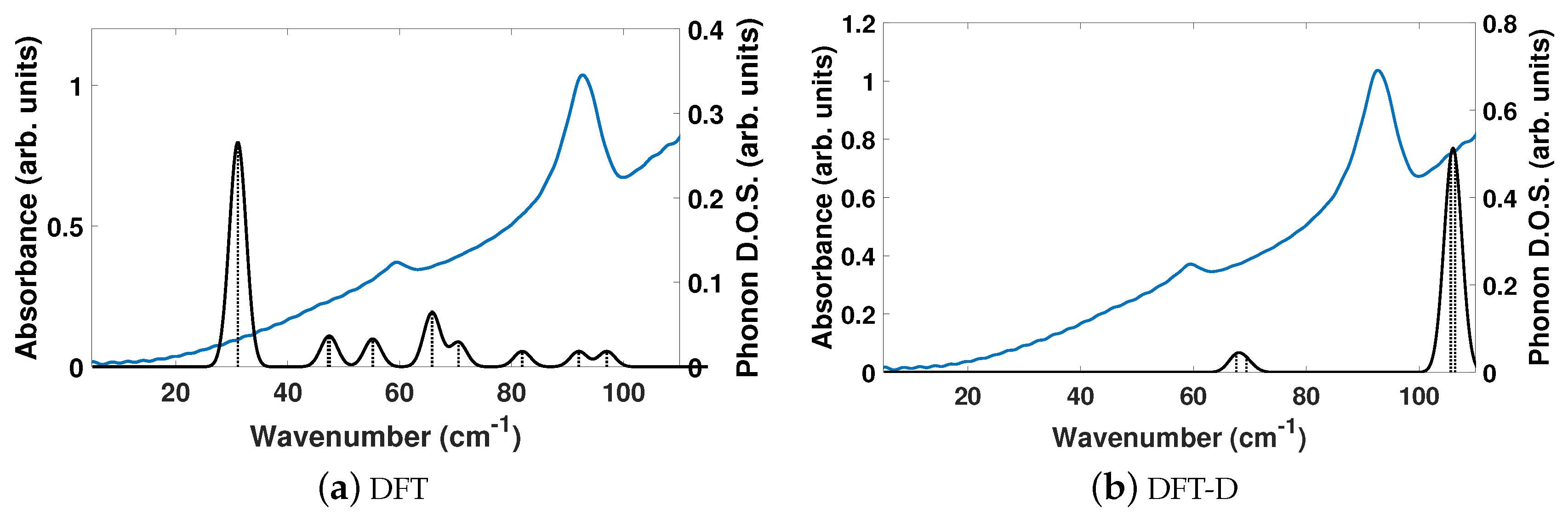

**Figure 2.**Comparisons of the computed phonon modes (black solid curves) to experimentally obtained THz spectra (solid blue curves) of BPE using (

**a**) DFT and (

**b**) DFT-D. Dashed black vertical lines are the normalized phonon mode intensity used to obtain the phonon density of states (DOS). All measurements are given in arbitrary units.

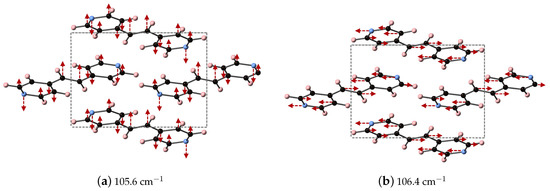

**Figure 3.**Depicted here are the DFT-D computed IR active vibrational modes of BPE that occur at (

**a**) 105.6 cm

^{−1}(along the x-direction) and (

**b**) 106.4 cm

^{−1}(along the y-direction. Color scheme is the same as before, but red arrows indicate relative atomic displacements. The displacements of H atoms are not shown for clarity.

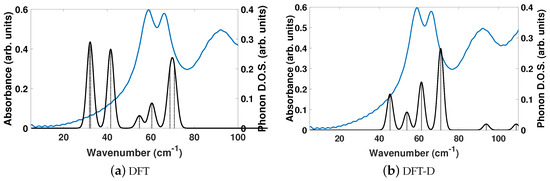

**Figure 4.**Same description as in Figure 2, but for 1,2-bis(4-pyridyl)ethane (BPEth).

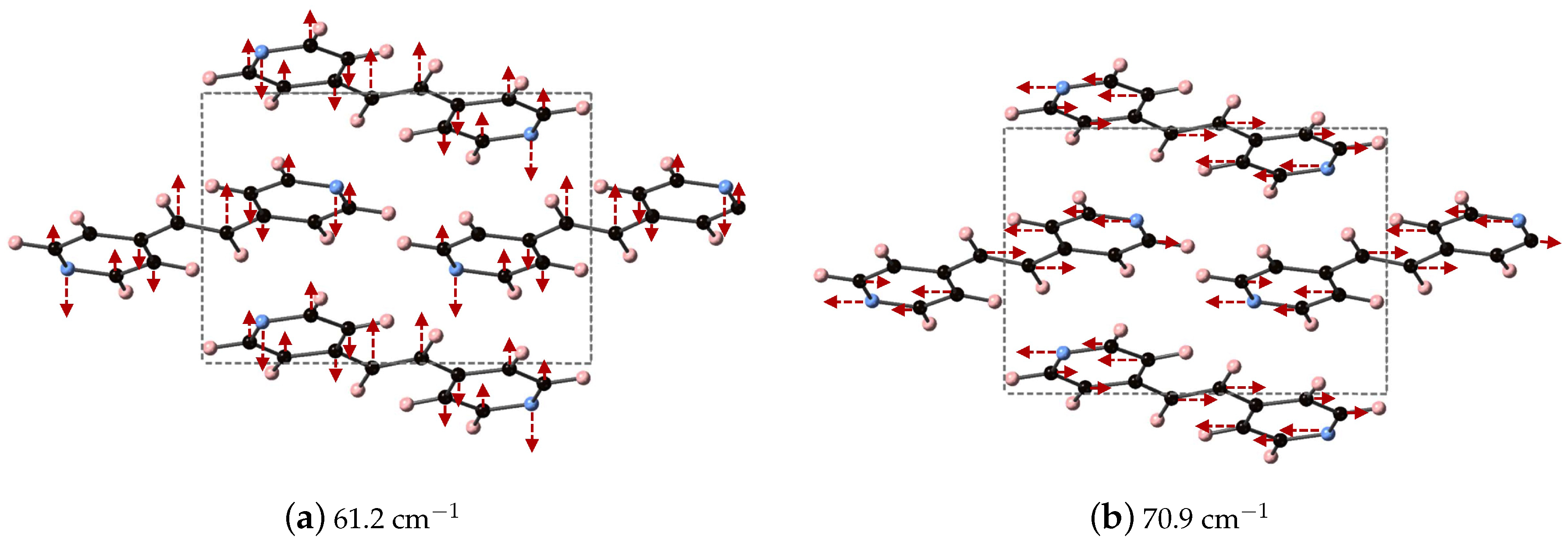

**Figure 5.**Depicted here are the DFT-D computed IR active vibrational modes of BPEth that occur at (

**a**) 61.2 cm

^{−1}(along the y-direction) and (

**b**) 70.9 cm

^{−1}(along the x-direction).

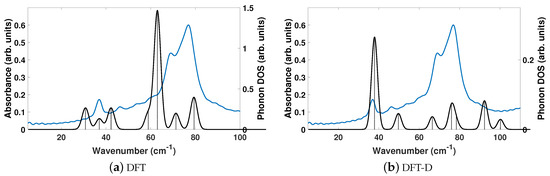

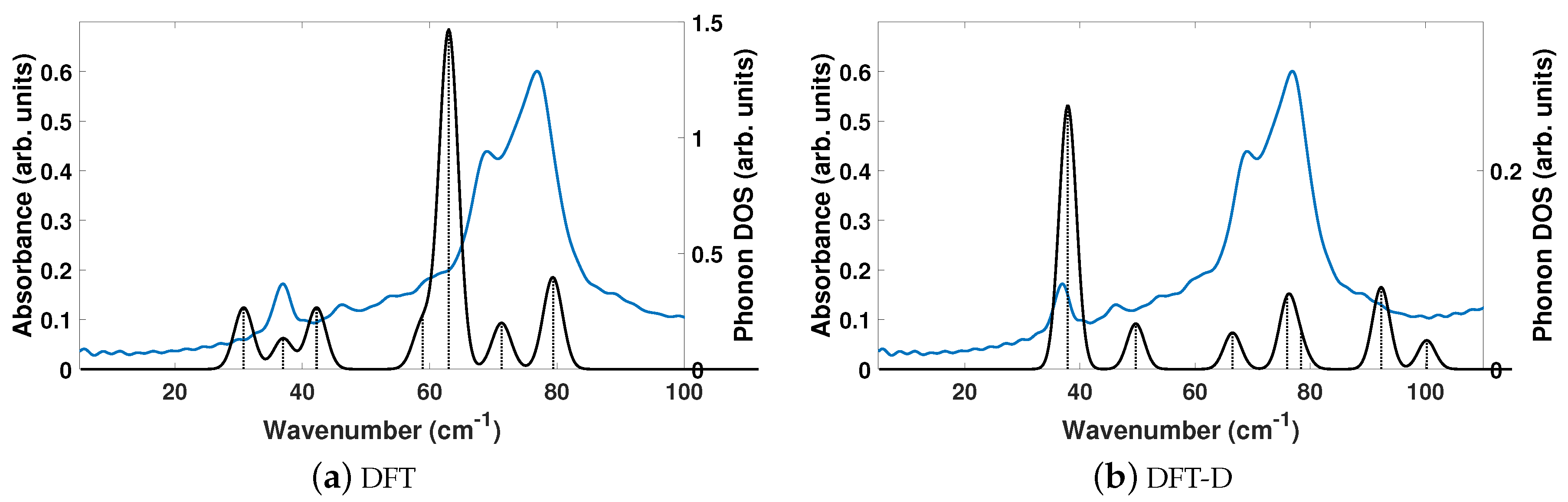

**Figure 6.**Same description as in Figure 2, but for salicylic acid (SA).

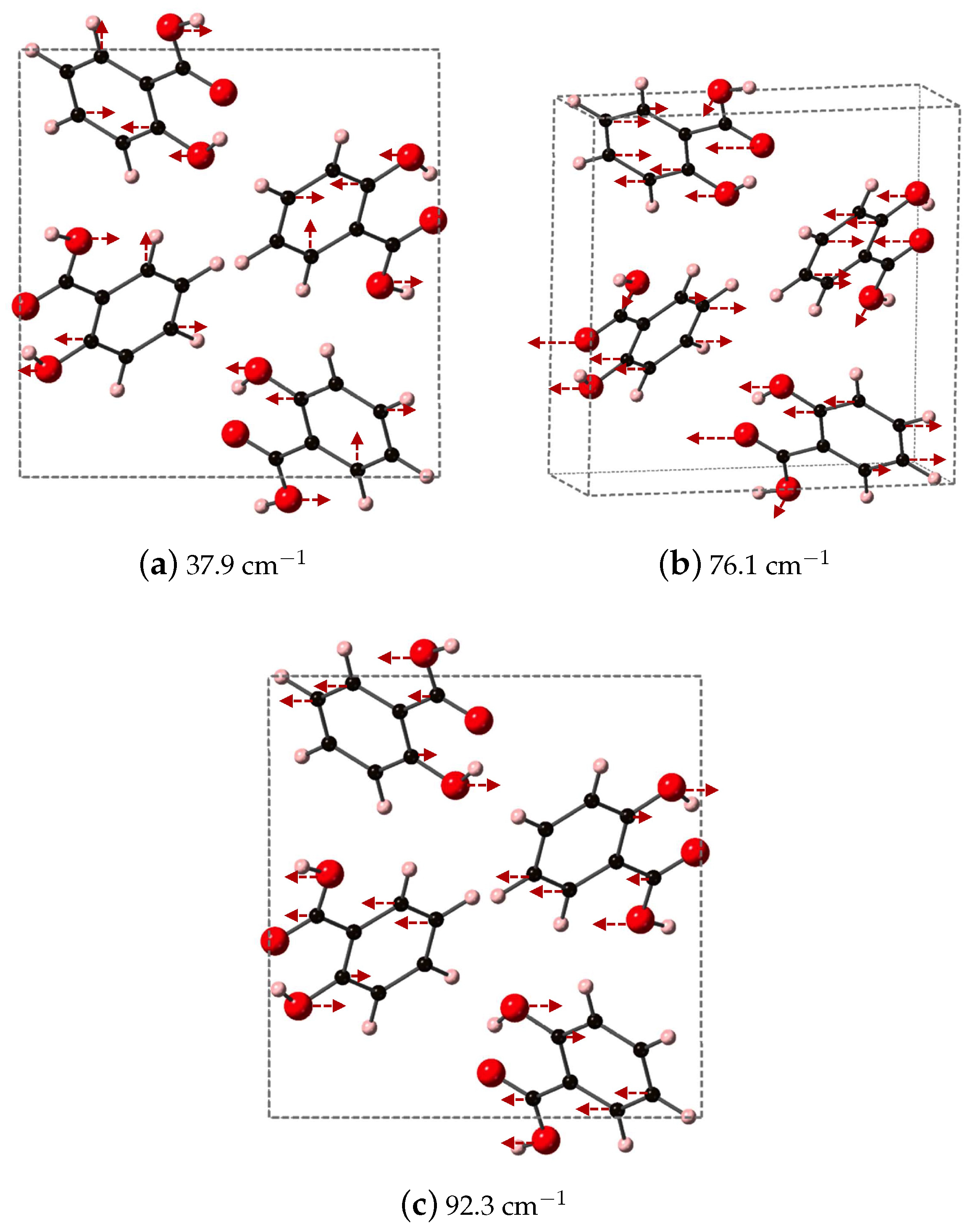

**Figure 7.**Shown here are the DFT-D computed IR active modes of SA that occur at (

**a**) 37.9 cm

^{−1}(along y); (

**b**) 76.1

^{−1}(along xz); and (

**c**) 92.3

^{−1}(along y).

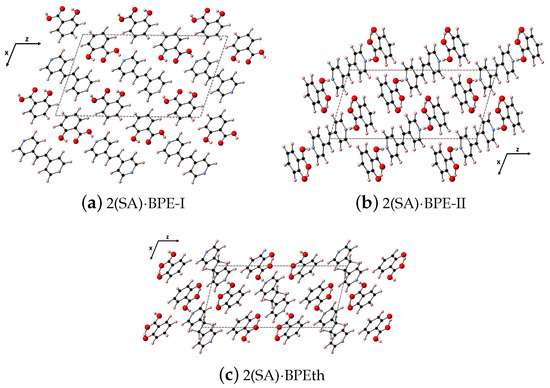

**Figure 8.**Shown here are the co-crystals (

**a**) 2(SA)·BPE-I; (

**b**) 2(SA)·BPE-II; and (

**c**) 2(SA)·BPEth. Color scheme is as before in Figure 1.

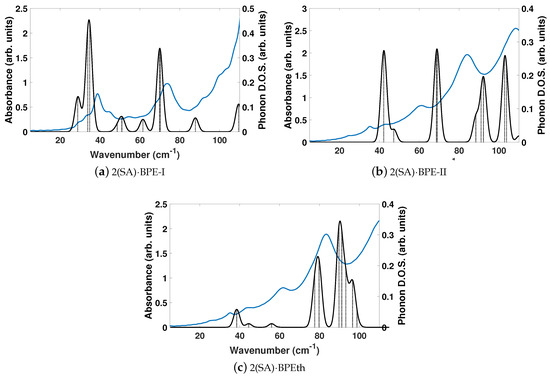

**Figure 9.**Shown here are comparisons of the computed phonon modes (black solid curves) to experimentally obtained THz spectra (solid blue curves) of (

**a**) 2(SA)·BPE-I; (

**b**) 2(SA)·BPE-II; and (

**c**) 2(SA)·BPEth using DFT-D. Dashed black vertical lines are the normalized phonon mode intensity used to obtain the phonon density of states (DOS). All measurements are given in arbitrary units.

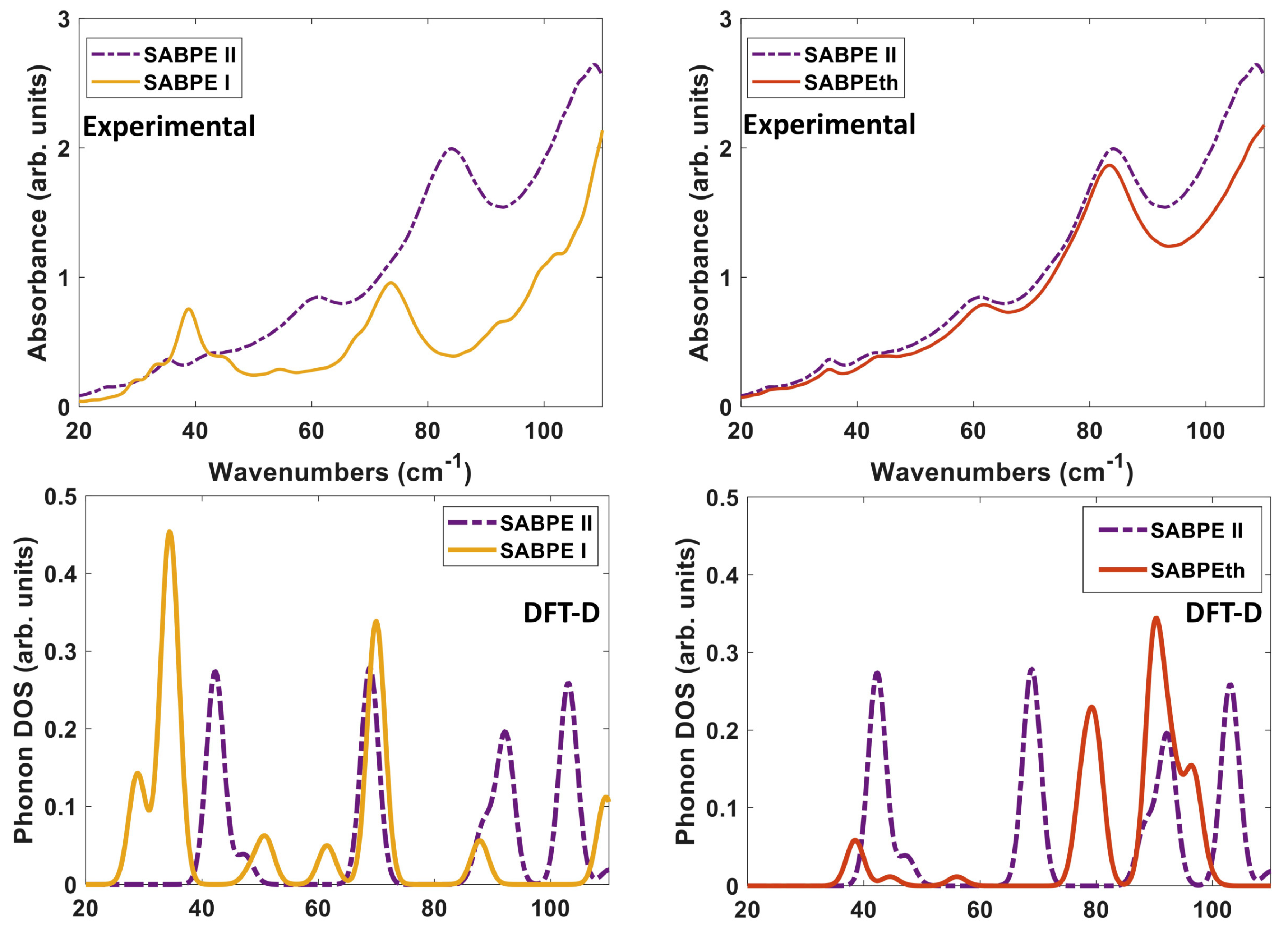

**Figure 10.**Comparisons of the Experimental THz spectra (

**top**) and DFT-D computed phonon modes (

**bottom**) of (

**left**) 2(SA)·BPE-I (solid yellow line) and 2(SA)·BPE-II (dash-dotted purple line), and (

**right**) 2(SA)·BPE-II (dash-dotted purple line) and 2(SA)·BPEth (solid orange line).

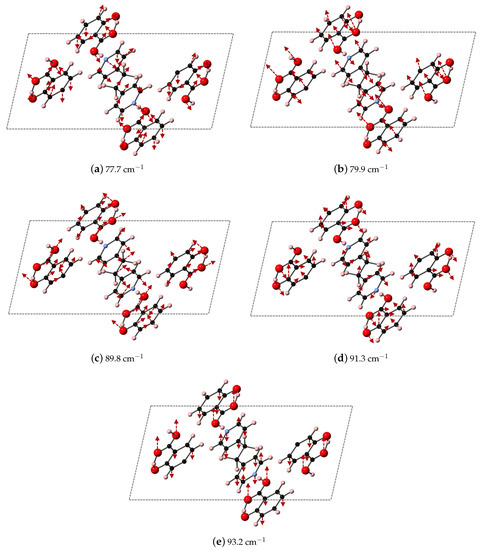

**Figure 11.**Shown here are the DFT-D computed IR active modes of 2(SA)·BPEth that occur at (

**a**) 77.7 cm

^{−1}(along xz); (

**b**) 79.9 cm

^{−1}(along y); (

**c**) 89.8 cm

^{−1}(along xz); (

**d**) 91.3 cm

^{−1}(along y); and (

**e**) 93.2 cm

^{−1}(along xz).

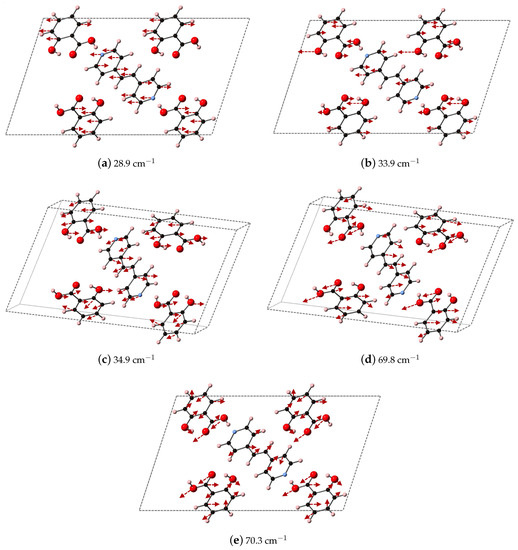

**Figure 12.**Plotted here are the DFT-D computed IR active modes of 2(SA)·BPE-I that occur at (

**a**) 28.9 cm

^{−1}(along xz); (

**b**) 33.9 cm

^{−1}(along xz); (

**c**) 34.9 cm

^{−1}(along y); (

**d**) 69.8 cm

^{−1}(along y); and (

**e**) 70.3 cm

^{−1}(along xz).

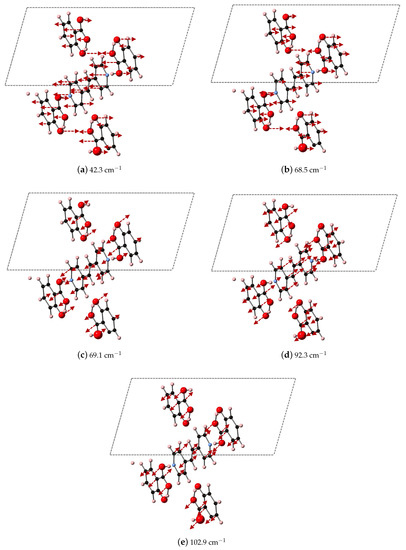

**Figure 13.**Depicted here are the DFT-D computed IR active modes of 2(SA)·BPE-II that occur at (

**a**) 42.3 cm

^{−1}(along xz); (

**b**) 68.5 cm

^{−1}(along z); (

**c**) 69.1 cm

^{−1}(along y); (

**d**) 92.3 cm

^{−1}(along xz); and (

**e**) 102.9 cm

^{−1}(along xz).

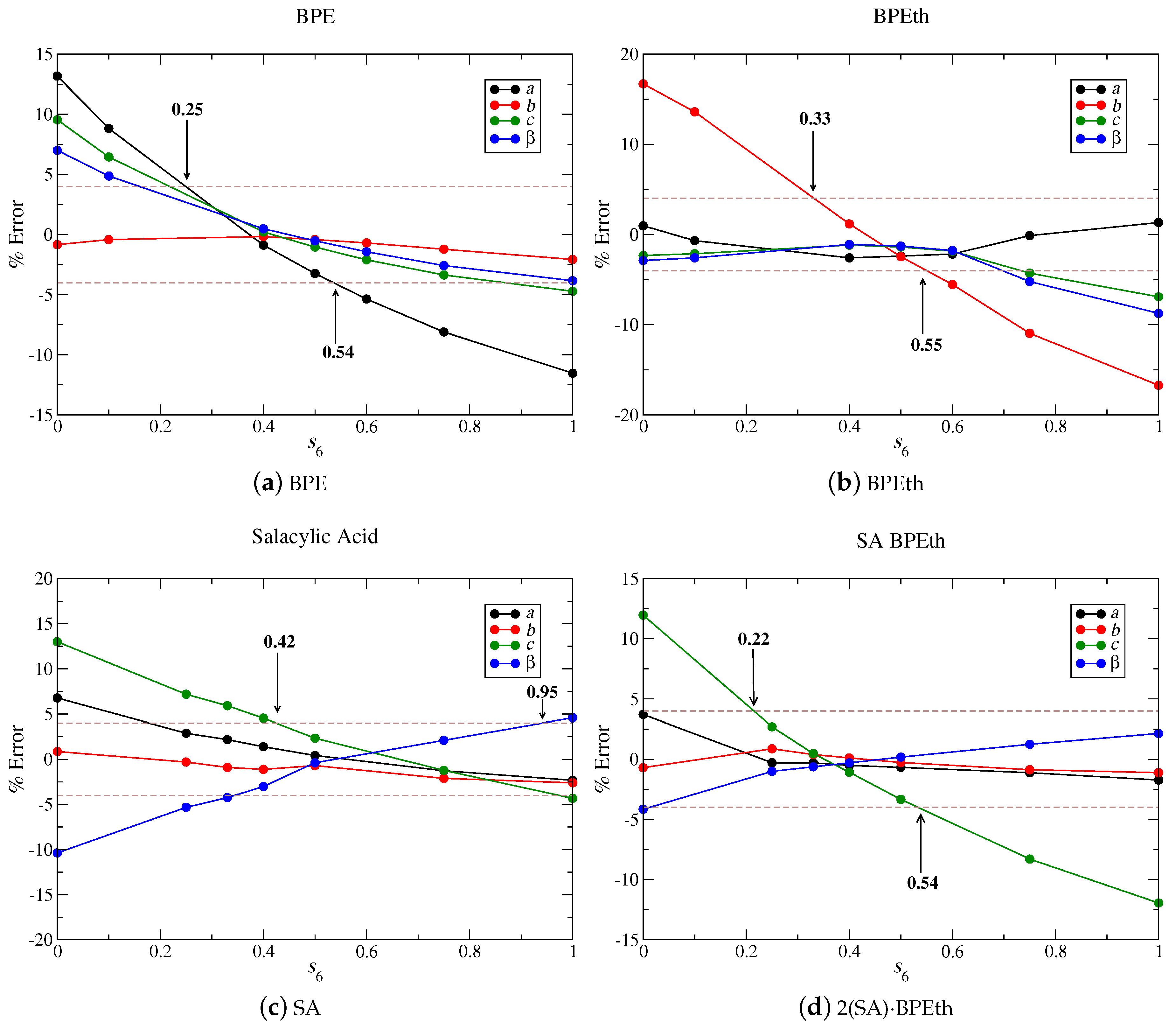

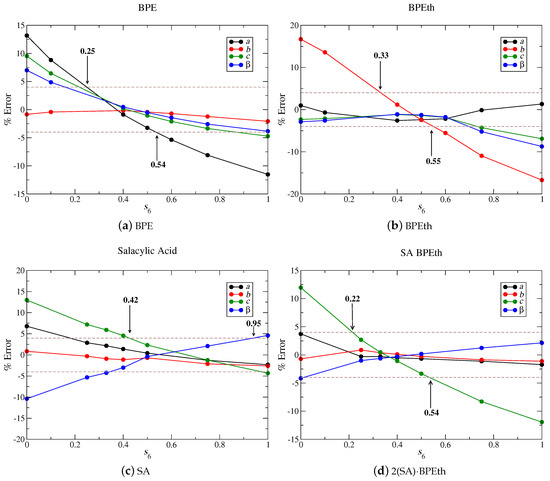

**Figure 14.**For co-crystal components (

**a**) BPE; (

**b**) BPEth; and (

**c**) SA, we vary s

_{6}from 0 to 1 to determine how DFT-D computed lattice parameters a, b, c, and β will be affected when compared to experimentally determined lattice parameters. The same tests for co-crystal 2(SA)·BPEth yield a similar range of s

_{6}in which lattice constant underestimation may be minimized. Brown dashed lines denote ±4% error with respect to experimentally determined lattice parameters.

**Table 1.**Lattice parameters of co-crystal components BPE, BPEth, and SA, using DFT (top) and DFT-D (bottom). All lattice constants are reported in units of Å, and both the experimental value and % deviation from experimentally determined values are given in parentheses.

${\mathit{a}}_{\mathbf{DFT}}$ | ${\mathit{b}}_{\mathbf{DFT}}$ | ${\mathit{c}}_{\mathbf{DFT}}$ | ${\mathit{\beta}}_{\mathbf{DFT}}$ | |
---|---|---|---|---|

(Å) | (Å) | (Å) | ||

BPE | 11.00 (7.82, +40.66) | 10.38 (10.56, −1.70) | 6.89 (5.77, +19.41) | 116.89 (92.68, +26.12) |

BPEth | 5.69 (5.56, +2.33) | 9.64 (8.16, +18.14) | 11.33 (11.35, −0.18) | 99.26 (100.73, −1.45) |

SA | 5.20 (4.89, +6.38) | 11.02 (11.20, −1.64) | 14.83 (11.24, +31.94) | 75.39 (92.49, −18.49) |

BPE | 7.30 (7.82, −6.66) | 10.51 (10.56, −0.50) | 5.56 (5.77, −2.87) | 90.39 (92.68, −2.47) |

BPEth | 5.31 (5.56, −4.53) | 7.80 (8.16, −4.38) | 11.11 (11.35, −2.16) | 98.73 (100.73, −1.99) |

SA | 4.85 (4.89, −0.78) | 11.02 (11.20, −1.64) | 11.27 (11.24, +0.23) | 93.54 (92.49, +1.14) |

**Table 2.**Comparison of experimentally determined dielectric constant, $\u03f5$, to the isotropically averaged values computed using DFT and DFT-D for the co-crystal components BPE, BPEth, and SA. Percent deviation from experiment is shown in parenthesis for DFT and DFT-D.

Experiment | DFT | DFT-D | |
---|---|---|---|

BPE | 3.43 ± 0.08 | 2.68 (−21.87) | 3.92 (+14.29) |

BPEth | 3.13 ± 0.15 | 2.68 (−14.38) | 3.25 (+3.83) |

SA | 3.09 ± 0.04 | 3.70 (+19.74) | 2.79 (−9.71) |

**Table 3.**Mode-by-mode analysis of the directional components of the IR active response of BPE for DFT (top) and DFT-D (bottom) for the THz frequency range of 20–110 cm${}^{-1}$. $\omega $ are given in units of cm${}^{-1}$ and all $\u03f5$ are unitless. Asterisks (*) are next to the frequencies with high contributions to ${\u03f5}_{\mu}$, and are shown in Figure 3. The two final rows in each of the DFT and DFT-D calculations are the total ionic portion of the dielectric response per direction x, y, z per mode $\mu $ (denoted as ${\u03f5}_{\mu}$), and the directionally decomposed electronic contribution of the dielectric response ${\u03f5}_{\infty}$.

Method | $\mathit{\omega}$ | ${\mathit{\u03f5}}_{\mathit{x}}$ | ${\mathit{\u03f5}}_{\mathit{y}}$ | ${\mathit{\u03f5}}_{\mathit{z}}$ |
---|---|---|---|---|

DFT | 31.1 | - | 0.29 | - |

47.2 | - | 0.01 | - | |

47.5 | - | 0.03 | - | |

55.2 | 0.02 | - | 0.03 | |

65.8 | - | 0.07 | - | |

70.5 | 0.01 | - | 0.03 | |

81.9 | 0.02 | - | 0.00 | |

92.0 | - | 0.06 | - | |

97.0 | 0.02 | - | 0.00 | |

${\u03f5}_{\mu}$ | 0.12 | 0.55 | 0.15 | |

${\u03f5}_{\infty}$ | 1.97 | 2.86 | 2.40 | |

DFT-D | 67.6 | - | 0.02 | - |

69.5 | 0.01 | - | 0.00 | |

105.6 * | 0.15 | - | 0.00 | |

106.4 * | - | 0.15 | - | |

${\u03f5}_{\mu}$ | 0.44 | 0.30 | 0.14 | |

${\u03f5}_{\infty}$ | 2.63 | 4.63 | 3.62 |

Method | $\mathit{\omega}$ | x | y | z |
---|---|---|---|---|

DFT | 31.8 | - | 0.11 | - |

32.5 | - | 0.10 | - | |

41.6 | 0.10 | - | 0.16 | |

54.8 | - | 0.03 | - | |

60.5 | - | 0.06 | - | |

68.8 | 0.10 | - | 0.01 | |

70.8 | - | 0.11 | - | |

${\u03f5}_{\mu}$ | 0.26 | 0.48 | 0.22 | |

${\u03f5}_{\infty}$ | 2.20 | 2.18 | 2.69 | |

DFT-D | 45.4 | - | 0.06 | - |

53.9 | 0.03 | - | 0.00 | |

61.2 * | - | 0.08 | - | |

70.9 * | 0.13 | - | 0.04 | |

93.8 | - | 0.01 | - | |

108.9 | 0.00 | - | 0.01 | |

${\u03f5}_{\mu}$ | 0.24 | 0.43 | 0.13 | |

${\u03f5}_{\infty}$ | 2.97 | 2.55 | 3.43 |

Method | $\mathit{\omega}$ | x | y | z |
---|---|---|---|---|

DFT | 30.8 | - | 0.04 | - |

37.0 | 0.02 | - | 0.00 | |

42.2 | - | 0.02 | - | |

42.3 | 0.02 | - | 0.00 | |

58.9 | 0.03 | - | 0.00 | |

63.0 | - | 0.22 | - | |

71.3 | 0.03 | - | 0.00 | |

79.2 | - | 0.04 | - | |

79.5 | 0.09 | - | 0.00 | |

${\u03f5}_{\mu}$ | 0.79 | 1.01 | 0.44 | |

${\u03f5}_{\infty}$ | 3.00 | 3.11 | 2.73 | |

DFT-D | 37.9 * | - | 0.29 | - |

49.7 | 0.05 | - | 0.00 | |

66.5 | - | 0.04 | - | |

76.1 * | 0.07 | - | 0.03 | |

78.4 | - | 0.02 | - | |

92.3 * | - | 0.09 | - | |

100.2 | 0.03 | - | 0.01 | |

${\u03f5}_{\mu}$ | 0.55 | 0.69 | 0.28 | |

${\u03f5}_{\infty}$ | 2.19 | 2.32 | 2.34 |

**Table 6.**Lattice parameters of co-crystals using DFT (top) and DFT-D (bottom). All lattice constants are reported in units of Åand % deviation from experimentally determined values are given in parentheses after the experimentally determined values.

Co-Crystal | ${\mathit{a}}_{\mathbf{DFT}}$ | ${\mathit{b}}_{\mathbf{DFT}}$ | ${\mathit{c}}_{\mathbf{DFT}}$ | ${\mathit{\beta}}_{\mathbf{DFT}}$ |
---|---|---|---|---|

(Å) | (Å) | (Å) | ||

2(SA)·BPE-I | 13.48 (11.93, +12.99) | 4.89 (4.87, +0.45) | 20.71 (20.25, −2.27) | 99.81 (106.92, −6.65) |

2(SA)·BPE-II | 9.12 (8.76, +4.11) | 6.48 (6.81, −4.85) | 24.65 (19.66, +25.38) | 110.86 (105.34, +5.24) |

2(SA)·BPEth | 9.25 (8.63, +7.18) | 6.49 (6.86, −5.39) | 22.35 (19.55, +14.32) | 91.94 (101.36, −9.29) |

2(SA)·BPE-I | 11.76 (11.93, −1.41) | 4.89 (4.87, +0.45) | 19.89 (20.25, −1.08) | 108.07 (106.92, +1.08) |

2(SA)·BPE-II | 8.73 (8.76, −0.34) | 6.87 (6.81, +0.91) | 18.06 (19.66, −8.15) | 105.91 (105.34, +0.54) |

2(SA)·BPEth | 8.61 (8.63, −0.26) | 6.88 (6.86, +0.34) | 17.98 (19.55, −8.02) | 102.92 (101.36, +1.54) |

**Table 7.**Experimentally determined THz frequencies for the co-crystals 2(SA)·BPE form I and II, and 2(SA)·BPEth, given in units of cm${}^{-1}$. Values are partitioned to highlight similarities and differences.

2(SA)·BPE-I | 29.5 | 33.5 | 38.8 | 44.9 | 54.6 | 68.1 | 73.7 | 92.7 | 99.6 | 102.4 | ||

2(SA)·BPE-II | 24.9 | 35.4 | 42.8 | 60.8 | 84.0 | 108.7 | ||||||

2(SA)·BPEth | 35.2 | 43.6 | 61.6 | 83.4 | 110.7 |

**Table 8.**Mode-by-mode analysis of the directional components of the IR active response of 2(SA)·BPEth co-crystal using DFT-D for the THz frequency range of 20–110 cm${}^{-1}$. $\omega $ are given in units of cm${}^{-1}$ and all $\u03f5$ are unitless. Asterisks are next to the frequencies that have high contributions to ${\u03f5}_{\mu}$ and are plotted in Figure 11. The final two rows are the total ionic portion of the dielectric response per direction (x, y, z) per mode $\mu $ (denoted as ${\u03f5}_{\mu}$), and the directionally decomposed electronic contribution of the dielectric response ${\u03f5}_{\infty}$.

System | $\mathit{\omega}$ | x | y | z |
---|---|---|---|---|

2(SA)·BPEth | 38.5 | 0.00 | - | 0.05 |

44.5 | - | 0.01 | - | |

56.0 | - | 0.01 | - | |

77.7 * | 0.09 | - | 0.05 | |

79.9 * | - | 0.15 | - | |

89.8 * | 0.22 | - | 0.06 | |

91.3 | - | 0.08 | - | |

93.2 * | 0.02 | - | 0.10 | |

96.6 * | 0.12 | - | 0.01 | |

98.9 | - | 0.01 | - | |

${\u03f5}_{\mu}$ | 0.99 | 1.57 | 0.85 | |

${\u03f5}_{\infty}$ | 3.02 | 3.19 | 2.71 |

2(SA)·BPE-I | 28.9 * | 0.00 | - | 0.08 |

33.9 * | 0.01 | - | 0.12 | |

34.9 * | - | 0.15 | - | |

48.5 | - | 0.01 | - | |

50.9 | 0.01 | - | 0.02 | |

51.1 | - | 0.01 | - | |

61.5 | 0.02 | - | 0.02 | |

69.8 * | - | 0.13 | - | |

70.3 * | 0.06 | - | 0.02 | |

87.8 | 0.01 | - | 0.03 | |

109.5 | 0.06 | - | 0.02 | |

${\u03f5}_{\mu}$ | 0.58 | 2.19 | 1.66 | |

${\u03f5}_{\infty}$ | 2.86 | 3.16 | 3.14 | |

2(SA)·BPE-II | 41.5 | - | 0.01 | - |

42.3 * | 0.02 | - | 0.28 | |

47.3 | - | 0.04 | - | |

68.5 * | 0.00 | - | 0.11 | |

69.1 * | - | 0.19 | - | |

88.4 | 0.07 | - | 0.03 | |

90.9 | - | 0.02 | - | |

92.3 * | 0.19 | - | 0.02 | |

102.9 * | 0.24 | - | 0.02 | |

103.9 | - | 0.04 | - | |

110.2 | - | 0.02 | - | |

${\u03f5}_{\mu}$ | 0.79 | 1.01 | 0.64 | |

${\u03f5}_{\infty}$ | 3.44 | 3.72 | 2.83 |

**Table 10.**Experimentally determined $\u03f5$ of co-crystals compared to the isotropically averaged $\u03f5$ computed using DFT-D. Percent deviation from experiment is in parentheses.

Experiment | DFT-D | |
---|---|---|

2(SA)·BPE-I | 6.13 ± 0.19 | 4.53 (−26.10) |

2(SA)·BPE-II | 4.89 ± 0.05 | 4.14 (−15.34) |

2(SA)·BPEth | 7.82 ± 0.15 | 4.11 (−47.44) |

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Bennett, J.W.; Raglione, M.E.; Oburn, S.M.; MacGillivray, L.R.; Arnold, M.A.; Mason, S.E.
DFT Computed Dielectric Response and THz Spectra of Organic Co-Crystals and Their Constituent Components. *Molecules* **2019**, *24*, 959.
https://doi.org/10.3390/molecules24050959

**AMA Style**

Bennett JW, Raglione ME, Oburn SM, MacGillivray LR, Arnold MA, Mason SE.
DFT Computed Dielectric Response and THz Spectra of Organic Co-Crystals and Their Constituent Components. *Molecules*. 2019; 24(5):959.
https://doi.org/10.3390/molecules24050959

**Chicago/Turabian Style**

Bennett, Joseph W., Michaella E. Raglione, Shalisa M. Oburn, Leonard R. MacGillivray, Mark A. Arnold, and Sara E. Mason.
2019. "DFT Computed Dielectric Response and THz Spectra of Organic Co-Crystals and Their Constituent Components" *Molecules* 24, no. 5: 959.
https://doi.org/10.3390/molecules24050959
