Article

Chromo-Fluorogenic Detection of Soman and Its Simulant by Thiourea-Based Rhodamine Probe

by
Shengsong Li
1,†,
Yongchao Zheng
1,2,*,†,
Weiqiang Chen
3,
Meiling Zheng
4,
He Zheng
1,2,
Zhe Zhang
1,
Yan Cui
1,2,
Jinyi Zhong
1,2,* and
Chonglin Zhao
1,2,*
1
Research Institute of Chemical Defense, Beijing 102205, China
2
State Key Laboratory of NBC Protection for Civilian, Beijing 102205, China
3
Institute of Modern Physics, Chinese Academy of Sciences, Lanzhou 730000, China
4
Laboratory of Organic NanoPhotonics and CAS Key Laboratory of Bio-Inspired Materials and Interfacial Science, Technical Institute of Physics and Chemistry, Chinese Academy of Sciences, Beijing 100190, China
*
Authors to whom correspondence should be addressed.
†
These authors have contributed equally to this work.
Molecules 2019, 24(5), 827; https://doi.org/10.3390/molecules24050827
Submission received: 3 February 2019 / Revised: 18 February 2019 / Accepted: 18 February 2019 / Published: 26 February 2019
(This article belongs to the Special Issue Advanced Analysis of Contaminants of Emerging Concern )
Browse Figures
Versions Notes

Abstract

:
Here, we introduced a novel thiourea-based rhodamine compound as a chromo-fluorogenic indicator of nerve agent Soman and its simulant diethyl chlorophosphate (DCP). The synthesized probe N-(rhodamine B)-lactam-2-(4-cyanophenyl) thiourea (RB-CT), which has a rhodamine core linked by a cyanophenyl thiosemicarbazide group, enabled a rapidly and highly sensitive response to DCP with clear fluorescence and color changes. The detection limit was as low as 2 × 10−6 M. The sensing mechanism showed that opening of the spirolactam ring following the phosphorylation of thiosemicarbazides group formed a seven-membered heterocycle adduct, according to MS analysis and TD-DFT calculations. RB-CT exhibited high detecting selectivity for DCP, among other organophosphorus compounds. Moreover, two test kits were employed and successfully used to detect real nerve agent Soman in liquid and gas phase.

1. Introduction

Nerve agents are a class of highly toxic organophosphates, mainly including Tabun (GA), Sarin (GB), Soman (GD), and VX [1] (Scheme 1). These compounds are extremely dangerous because they are able to enter human body through respiration or penetration and inhibit the activity of the acetylcholinesterase, then the accumulation of acetylcholine in the synapse causes neuromuscular paralysis and eventually death [2]. Due to the easy production, high toxicity, being colorless and odorless, and the possible use in terrorist attacks, the development of reliable and rapid detection systems for nerve agents is highly desirable [3]. In addition, rapidly discriminating the distribution of nerve agents in the contaminated areas can also provide effective guidance for subsequent decontamination operations and further safety confirmation.
Several methodologies have been employed for the detection of nerve agents, including enzymatic assays [4,5], interferometry [6], ion mobility spectroscopy [7], electrochemistry [8], micro-cantilevers [9,10], and photonic crystals [11]. Nevertheless, these protocols usually have some drawbacks, such as operation complexity, non-portability, difficulties in real-time monitoring, etc. As alternatives to these procedures, some new approaches have been explored involving molecularly imprinted polymers [12], nanoparticles [13], and chromo-fluorogenic probes [14,15,16,17,18,19,20,21,22]. Above all, chromo-fluorogenic probes have recently gained increasing interest due to their cost-effectiveness, simplicity, and “naked-eye” detection [23,24].
A typical chromo-fluorogenic probe is usually formed by two moieties: (1) a chromo-fluorogenic reporter group, which translates the binding event into the change of color and fluorescence, mainly containing rhodamine [22], fluorescein [15], boron dipyrromethene (BODIPY) [16,17], azo [14,20], and cyanine dye [18]; (2) a selective reactive group, which provides a reactive binding site for nucleophilic attack, mainly containing hydroxyl [15,25], oxime [19], and amino groups [26]. Recently, thiourea has been proved to be capable of reacting with nerve agents through hydrogen-bond interaction between N-H protons of thiourea and phosphonate oxygen or hydrolyzed products [27,28]. It has been also proven that the reaction of thiosemicarbazide group can induce opening of the spirolactam ring in rhodamine B accompanied with color change and enhanced fluorescence [29]. Thus, the thiosemicarbazide group is expected to become a reactive group bonding with rhodamine B core for chromo-fluorogenic detection of nerve agents and simulants.
Herein, a rhodamine B based probe N-(rhodamine B)-lactam-2-(4-cyanophenyl) thiourea (RB-CT) was designed and synthesized, and as shown in Scheme 2, the electron-withdrawing cyanophenyl group in the molecule could promote the intramolecular charge transfer (ICT) process to enhance activity of ring-opening reaction and strengthen the change of color. Spectra analysis and mechanism study confirmed the probe was capable of the rapid detection of diethyl chlorophosphate (DCP, a simulant of the Soman) with remarkable change of color and fluorescence through the phosphorylation of the thiosemicarbazide group. Finally, the probe was also successfully used in the detection of GD in both liquid and gas phase.

2. Results and Discussion

2.1. Spectroscopic Properties

To demonstrate the response of RB-CT to nerve agents, absorption and fluorescence spectra were first studied. DCP was used as low-toxic simulant because of its similar chemical structure and reactivity with nerve agents (Tabun, Sarin and Soman). Et3N (3 Vt%) was added in the CH3CN solution of RB-CT to avoid the interference of proton. As shown in Figure 1a, an obvious absorption band at 560 nm was observed after the addition of DCP in the RB-CT solution. The change in color from colorless to pink implied the spirolactam ring-opening reaction of RB-CT caused by DCP (Figure 1b). The thiosemicarbazide group of RB-CT is likely to react with DCP, resulting in a remarkable enhancement of absorption intensity. The result highlights that RB-CT is of high potential as a naked-eye probe for the detection of nerve agents.
Figure 1c presented the fluorescence spectra of RB-CT with increasing concentration of DCP; a new fluorescent band at 583 nm appears and shows remarkable enhancement. The spectral changes provided further evidence for the opening of the spirolactam ring, according to the changes in absorption spectra. Moreover, the fluorescence intensity of RB-CT showed a good linear relationship at the concentration of DCP in the range of 0.1 × 10−3–1.9 × 10−3 M (Figure 1d).
The limit of detection (LOD) was determined from the fluorescence spectral data, using the equation K × Sb1/S, where K = 3, Sb1 is the standard deviation of blank measurements and S is the slope of the calibration curve. The limit of detection was found to be 2 × 10−6 M, indicating high sensitivity to detect DCP by RB-CT. The sensing ability for the naked eye was evaluated by immobilizing RB-CT on silica plates. After the plates were dipped in the CH3CN solution of DCP (2–2000 ppm), clear enhancement of the fluorescence was observed by the naked eye in the range of 20 and 2000 ppm (Figure S1), which demonstrates the LOD for the naked eye is as low as the value calculated.

2.2. Reaction Kinetics Study

To investigate the reaction kinetics of RB-CT and DCP, time-dependent fluorescence change was performed under different DCP concentrations at room temperature. As shown in Figure 2a, the reaction was almost complete and the fluorescence intensity was saturated within 1200 s in all cases. The kinetic constants were further examined following pseudo-first-order kinetic rate law as the clear linear relationships between the change of fluorescence intensity and reaction time (Figure S2). The observed rate constants kobs, half-life time t1/2, and the constant rates (k) were summarized in Table 1. The average half-life time was about 280 s, less than 5 min. The short half-life times are the basis for the rapid detection of nerve agents.

2.3. Mechanism Study

The absorption and fluorescence changes can be attributed to the opening of spirolactam ring via nucleophilic reaction between RB-CT and DCP. An ESI analysis was employed to investigate the possible products and a major peak at 708.3223 was observed, which indicated the phosphorylation of RB-CT (Figure S3). The new singlet observed (δ 0.32) in the 31P NMR spectrum of DCP after addition of RB-CT gives further evidence for the occurrence of phosphorylation reaction (Figure S4). As the formation of a heterocycle in RB-CT/DCP adduct is a reasonable mechanism [30,31], DFT and TD-DFT calculations were used to confirm the structure of the adduct through optimizing the geometries formed by nucleophilic attack with different nitrogen sites in the thiosemicarbazide group. The proposed mechanism was presented in Scheme 2; a seven-membered heterocycle was proved to be a favorable adduct structure owing to its relatively lower energy, which also agreed well with the mass spectrometry result (Figure S5). The optimized structures of RB-CT and RB-CT/DCP adducts were shown in Figure 3. The HOMO–LUMO energy gap (2.651 eV) of the adduct is less than that of RB-CT (3.885 eV) and the electron densities in LUMO are more concentrated in the thiourea group after the reaction. The calculated main contributing electronic transitions for S0→S1 energy state are HOMO→LUMO (2.14 eV/578 nm) and HOMO-1→LUMO+1 (2.34 eV/530 nm), which is consistent with the absorption band at 560 nm obtained experimentally. The considerable difference in the energy and electronic transition can shed light on the changes of absorption spectra and color.

2.4. Interferents

As organophosphorus pesticides often act as interferences to render false positives during the detection of nerve agents, several conventional organophosphorus compounds were chosen as target species to study the selectivity of RB-CT. As shown in Figure 4, the interferences did not cause any obvious color and fluorescence changes in DCP, which indicated the selective detection of DCP can be achieved by RB-CT, among other conventional organophosphorus compounds. It is noted that although proton can induce the spirolactam ring opening of the rhodamine molecule [32], RB-CT exhibited little changes of color and fluorescence intensity in the presence of hydrochloric acid. Thus, the false-positive caused by proton can be effectively avoided under the detection condition with the addition of 3% Et3N, since the suitable detection pH range of the probe is 7.0 to 10.0 (Figure S6).

2.5. Practical Application toward Real Nerve Agent

To confirm in situ and rapid sensing ability of RB-CT toward real nerve agents, we have investigated the response characteristics of the probe to GD in both liquid and gas phase. Clear color changes under sunlight and fluorescence enhancement irradiated by UV lamp were all observed by the naked eye immediately in liquid and within 10 min in gas phase (40 ppm GD introduced in a flask as an aerosol) (as shown in Figure 5). The remarkable visual differences did not fade or quench after 24 h, which indicated the irreversible cyclization had occurred [33]. The above results illustrate the potential application of RB-CT in the rapid and facile naked-eye detection of nerve agents in both liquid and vapor phases.

3. Materials and Methods

3.1. Materials

All of the solvents were obtained from Beijing Chemical Reagent Company and used without further purification. Rhodamine B, 4-cyanophenyl isothiocyanate and anhydrous magnesium sulfate (MgSO4) were purchased from Aladdin In. Co. (Los Angeles, CA, USA). Diethyl chlorophosphate (DCP) was purchased from Sigma Co. (Louis, MO, USA). Nerve agent GD (the purity is 80 %) was provided by the Research Institute of Chemical Defense of China.

3.2. Measurements

The ESI mass analysis was performed using an Q Exactive HF-X Hybrid Quadrupole-Orbitrap Mass Spectrometer (Thermo Scientific, Waltham, MA, USA). The 1H NMR spectra were recorded on AV 400 spectrometer (Bruker, Karlsruhe, Germany). Chemical shifts were expressed in parts per millions (δ) downfield from the internal standard tetramethyl silane and were reported as s (singlet), d (doublet), bs (broad singlet), t (triplet), and m (multiplet). Absorbance and fluorescence spectra were recorded at room temperature with a Hitachi U-3900 UV-Visible spectrophotometer and F-4500 fluorescence spectrophotometer, respectively, using a fluorescence cell of 10 mm path. The excitation wavelength was set to 540 nm (slit width 5 nm), and emission was monitored from 560–700 nm (slit width 5 nm). Column chromatography was conducted over silica gel (mesh 100–200).

3.3. Synthetic Procedures

As shown in Scheme 3, compound 1 was synthesized using the reported procedure [34]. Compound 2 was synthesized in a facile way.
Synthesis of compound 1: In a 100 mL flask, 1 mL hydrazine hydrate was drop-wise added to a solution of rhodamine B (1.67 mmol, 800 mg) in anhydrous CH3OH (30 mL), the mixed solution was then stirred and heated to 80 ℃, and refluxed for 6 h. Pure water (30 mL) was added and the solvent was extracted with EtOAc (3 × 60 mL), after the organic phase was dried with anhydrous MgSO4 and evaporated, orange solid compound 1 (356 mg, 48.8% yield) was obtained, and used without further purification.
The 1H NMR (400 MHz, DMSO-d6) δ 7.82 (d, J = 8.3 Hz, 1H), 7.58-7.48 (m, 2H), 7.04 (d, J = 8.0 Hz, 1H), 6.41 (d, J = 17.1 Hz, 6H), 4.32 (s, 2H), 3.36 (d, J = 7.0 Hz, 8H), 1.14 (t, J = 6.9 Hz, 12H) (Figure S7).
Synthesis of compound 2(RB-TU probe): To a solution of compound 1 (0.22 mmol, 100 mg) in 1.5 mL DMF, a solution of 4-cyanophenyl isothiocyanate (0.31 mmol,50 mg) in 1.5 mL DMF was added, the reaction mixture was stirred for 12 h at room temperature. After the solution evaporated, the residue was purified by flash chromatography (EtOAc: hexane = 1:10) to afford RB-TU probe (36 mg, 26.6% yield).
The 1H NMR (400 MHz, Chloroform-d) δ 8.01 (d, J = 7.6 Hz, 1H), 7.72 - 7.57 (m, 3H), 7.44 (d, J = 8.4 Hz, 2H), 7.34 (d, J = 8.5 Hz, 2H), 7.29 (d, J = 7.6 Hz, 1H), 6.97 (s, 1H), 6.47 (d, J = 8.8 Hz, 2H), 6.42 (d, J = 2.5 Hz, 2H), 6.29 (d, J = 2.6 Hz, 1H), 6.27 (d, J = 2.6 Hz, 1H), 3.32 (qd, J = 7.2, 2.5 Hz, 8H), 1.15 (t, J = 7.0 Hz, 12H) (Figure S8).
HR-MS (C36H36N6O2S): Calcd.: 616.2620; Found: 617.2681(9.9 ppm) (Figure S9).

3.4. Reaction Kinetics Study

The fluorescence spectra of RB-CT (1.0 × 10−6 M) were recorded after the addition of DCP in the concentrations of 4.0 × 10−4 M, 5.0 × 10−4 M, 6.0 × 10−4 M, and 1.2 × 10−3 M over a 0–1200 s incubation period at room temperature. The observed rate constants kobs and corresponding half-life time t1/2 were determined according to Equations (1) and (2).
ln[(Fmax-Ft)/Fmax] = −kobst
t1/2 = ln2/kobs
where Fmax and Ft are maximum fluorescence intensity obtained after the reaction was completed and the fluorescence intensities at 583 nm at reaction time t.

3.5. Computational Methods

Quantum chemical calculations were carried out by Gaussian 09 package [35]. Geometry was optimized using density functional theory (DFT) functional B3LYP [36,37,38] and 6–31G (d) basis set [39,40]. Time-dependent density functional theory (TD-DFT) calculation [41] was also performed at the same level of theory. Considering the effects of the environment on the calculated energies, solvation effects were considered throughout geometry optimizations via the self-consistent reaction field (SCRF) and conductor-like polarizable continuum model (CPCM) method [42].

3.6. Interferents

Selectivity and specificity tests were performed with different organophosphorus compounds (OPs), i.e., dimethyl methylphosphonate (DMMP), triphenyl phosphate (TPP), trimethyl phosphate (TMP), acephate, isocarbophos, and dimethoate (Scheme 1). To 2 mL reagent solution of the probe molecule (1.0 × 10−5 M) in CH3CN containing 3% Et3N, 20 μL stock solution of OPs (1.0 × 10−1 M) was added. The solutions were incubated at room temperature for 5 min and the fluorescence spectra was recorded.

3.7. The Preparation of Test Kits of Real Nerve Agents in Liquid and Gas Phase

The test kits toward GD in liquid and gas phase were produced by the following steps. For liquid phase, a waterman filter paper was soaked in the CH3CN solution of RB-CT (1.0 × 10−4 M, 3% Et3N), after the solvent was air-dried, a “GD” logo was patterned by GD. For gas phase, a solution of RB-CT in CH3CN (1.0 × 10−4 M, 3% Et3N) was sprayed onto a filter paper to spell out “GD” first, after the solvent was air-dried, the paper was exposed to GD vapor in a flask (40 ppm introduced as an aerosol) for 10 mins. The LCt50 and LD50 of Soman are estimated to be 100 mg min/m3 and 300 mg/individual, respectively [43].
Safety Note: Only highly qualified and experienced personnel should work with CWAs employed here, as described in the experimental part below. Due to the high volatility and toxicity of the CWAs, all of the experiments in this part were carried out inside a safety fume hood and operated under efficient ventilation systems. To avoid any risk of CWA inhalation, respiratory protection of involved personnel was provided by protective breathing masks equipped with combined NBC filters.

4. Conclusions

In conclusion, we have designed and synthesized a novel probe N-(rhodamine B)-lactam-2-(4-cyanophenyl) thiourea for chromogenic and fluorogenic detection of nerve agents. The probe undergoes an irreversible opening-ring reaction following the form of a seven-membered heterocycle adduct in the presence of DCP, accompanied by the obvious color change from colorless to pink, which has been confirmed by MS analysis and TD-DFT calculations. The response is that instantaneously half-life time is about 280 s at room temperature and the detection limit was found to be 2 × 10−6 M. Furthermore, we have demonstrated that the probe is applicable for rapid and facile in situ detection of GD with the naked eye in both liquid and vapor phase.

Supplementary Materials

The following are available online. Figure S1: The limit of detection for naked eye. Figure S2: Calibration plots by using fluorescence intensity of RB-CT (1 µM) as a function of reaction time t in different DCP concentrations. Figure S3: ESI-MS spectrum of RB-CT/DCP adduct. Figure S4: 31P NMR spectra of DCP and RB-CT with DCP in CD3CN. Figure S5: HOMO-LUMO energy levels of TD-DFT optimized geometries of probe and predicted RB-CT/DCP adducts. Figure S6: The plot of pH versus fluorescence intensity of free RB-CT and RB-CT+DCP. Figure S7: 1H NMR Spectrum of Compound 1. Figures S8 and S9: 1H NMR and ESI-MS Spectra of RB-CT.

Author Contributions

Y.Z. and W.C. conceived the idea and designed the experiments; S.L. and Y.Z. performed the synthesis, characterization, and co-wrote the manuscript draft; S.L., H.Z., Y.C., and Z.Z. discussed the data and the mechanisms; M.Z. and C.Z. contributed to spectra analysis; C.Z., J.Z., M.Z., and W.C. edited and revised the manuscript; Y.Z. and M.Z. assisted in DFT and TD-DFT calculation; Authors S.L. and Y.Z. contributed equally. All authors discussed the results and commented on the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China (Grant No. 2017YFC0108500).

Acknowledgments

The authors thank the financial support of the National Key Research and Development Program of China (Grant No. Grant No. 2017YFC0108500). The authors would like to thank Prof. Dr. Shi-Lu Chen for valuable guidance and discussion about the quantum chemistry calculation, and Dr. Xiang-Xi Meng for discussions in the synthesis and purification process of RB-CT.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Szinicz, L. History of chemical and biological warfare agents. Toxicology 2005, 214, 167–181. [Google Scholar] [CrossRef] [PubMed]
  2. Gunderson, C.H.; Lehmann, C.R.; Sidell, F.R.; Jabbari, B. Nerve agents: A review. Neurology 1992, 42, 946–950. [Google Scholar] [CrossRef] [PubMed]
  3. Lei, Z.; Yang, Y. A concise colorimetric and fluorimetric probe for sarin related threats designed via the "covalent-assembly" approach. J. Am. Chem. Soc. 2014, 136, 6594–6597. [Google Scholar] [CrossRef] [PubMed]
  4. Russell, R.J.; Pishko, M.V.; Simonian, A.L.; Wild, J.R. Poly(ethylene glycol) hydrogel-encapsulated fluorophore-enzyme conjugates for direct detection of organophosphorus neurotoxins. Anal. Chem. 1999, 71, 4909–4912. [Google Scholar] [CrossRef] [PubMed]
  5. Russell, A.J.; Berberich, J.A.; Drevon, G.F.; Koepsel, R.R. Biomaterials for mediation of chemical and biological warfare agents. Annu. Rev. Biomed. Eng. 2003, 5, 1–27. [Google Scholar] [CrossRef] [PubMed]
  6. Kim, S.; Cho, B.; Sohn, H. Detection of nerve agent stimulants based on photoluminescent porous silicon interferometer. Nanoscale Res. Lett. 2012, 7, 527. [Google Scholar] [CrossRef] [PubMed]
  7. Sorribes-Soriano, A.; de la Guardia, M.; Esteve-Turrillas, F.A.; Armenta, S. Trace analysis by ion mobility spectrometry: From conventional to smart sample preconcentration methods. A review. Anal. Chim. Acta 2018, 1026, 37–50. [Google Scholar] [CrossRef] [PubMed]
  8. Maresova, E.; Tomecek, D.; Fitl, P.; Vlcek, J.; Novotny, M.; Fiser, L.; Havlova, S.; Hozak, P.; Tudor, A.; Glennon, T.; et al. Textile chemiresistors with sensitive layers based on polymer ionic liquids: Applicability for detection of toxic gases and chemical warfare agents. Sens. Actuator B-Chem. 2018, 266, 830–840. [Google Scholar] [CrossRef]
  9. Walker, J.P.; Kimble, K.W.; Asher, S.A. Photonic crystal sensor for organophosphate nerve agents utilizing the organophosphorus hydrolase enzyme. Anal. Bioanal Chem. 2007, 389, 2115–2124. [Google Scholar] [CrossRef] [PubMed]
  10. He, W.; Liu, Z.; Du, X.; Jiang, Y.; Xiao, D. Analytical application of poly{methyl[3-(2-hydroxy-3,4-difluoro)phenyl]propyl siloxane} as a QCM coating for DMMP detection. Talanta 2008, 76, 698–702. [Google Scholar] [CrossRef] [PubMed]
  11. Kittle, J.D.; Fisher, B.P.; Esparza, A.J.; Morey, A.M.; Iacono, S.T. Sensing Chemical Warfare Agent Simulants via Photonic Crystals of the Morpho didius Butterfly. ACS Omega 2017, 2, 8301–8307. [Google Scholar] [CrossRef] [PubMed]
  12. Roy, K.S.; Mazumder, A.; Goud, D.R.; Dubey, D.K. A simplistic designing of molecularly imprinted polymers for derivative of nerve agents marker using P-31{H-1}NMR. Eur. Polym. J. 2018, 98, 105–115. [Google Scholar] [CrossRef]
  13. Nanda Kumar, D.; Satija, J.; Chandrasekaran, N.; Mukherjee, A. Acetylcholinesterase-based inhibition screening through in situ synthesis of gold nanoparticles: Application for detection of nerve agent simulant. J. Mol. Liq. 2018, 249, 623–628. [Google Scholar] [CrossRef]
  14. Costero, A.M.; Parra, M.; Gil, S.; Gotor, R.; Mancini, P.M.E.; Martinez-Manez, R.; Sancenon, F.; Royo, S. Chromo-fluorogenic detection of nerve-agent mimics using triggered cyclization reactions in push-pull dyes. Chem. Asian J. 2010, 5, 1573–1585. [Google Scholar] [CrossRef] [PubMed]
  15. Goud, D.R.; Pardasani, D.; Tak, V.; Dubey, D.K. A highly selective visual detection of tabun mimic diethyl cyanophosphate (DCNP): effective discrimination of DCNP from other nerve agent mimics. RSC Adv. 2014, 4, 24645. [Google Scholar] [CrossRef]
  16. Barba-Bon, A.; Costero, A.M.; Gil, S.; Martinez-Manez, R.; Sancenon, F. Selective chromo-fluorogenic detection of DFP (a Sarin and Soman mimic) and DCNP (a Tabun mimic) with a unique probe based on a boron dipyrromethene (BODIPY) dye. Org. Biomol. Chem. 2014, 12, 8745–8751. [Google Scholar] [CrossRef] [PubMed]
  17. Kim, Y.; Jang, Y.J.; Lee, D.; Kim, B.-S.; Churchill, D.G. Real nerve agent study assessing pyridyl reactivity: Selective fluorogenic and colorimetric detection of Soman and simulant. Sens. Actuator B-Chem. 2017, 238, 145–149. [Google Scholar] [CrossRef]
  18. Ali, S.S.; Gangopadhyay, A.; Maiti, K.; Mondal, S.; Pramanik, A.K.; Guria, U.N.; Uddin, M.R.; Mandal, S.; Mandal, D.; Mahapatra, A.K. A chromogenic and ratiometric fluorogenic probe for rapid detection of a nerve agent simulant DCP based on a hybrid hydroxynaphthalene-hemicyanine dye. Org. Biomol. Chem. 2017, 15, 5959–5967. [Google Scholar] [CrossRef] [PubMed]
  19. Cai, Y.-C.; Li, C.; Song, Q.-H. Selective and visual detection of a nerve agent mimic by phosphorylation and protonation of quinolin oximes. J. Mater. Chem. C 2017, 5, 7337–7343. [Google Scholar] [CrossRef]
  20. Royo, S.; Costero, A.M.; Parra, M.; Gil, S.; Martinez-Manez, R.; Sancenon, F. Chromogenic, specific detection of the nerve-agent mimic DCNP (a tabun mimic). Chemistry 2011, 17, 6931–6934. [Google Scholar] [CrossRef] [PubMed]
  21. Pascual, L.; Sayed, S.E.; Martínez-Máñez, R.; Costero, A.M.; Gil, S.; Gaviña, P.; Sancenón, F. Acetylcholinesterase-Capped Mesoporous Silica Nanoparticles That Open in the Presence of Diisopropylfluorophosphate (a Sarin or Soman Simulant). Org. Lett. 2016, 18, 5548–5551. [Google Scholar] [CrossRef] [PubMed]
  22. Sarkar, H.S.; Ghosh, A.; Das, S.; Maiti, P.K.; Maitra, S.; Mandal, S.; Sahoo, P. Visualisation of DCP, a nerve agent mimic, in Catfish brain by a simple chemosensor. Sci. Rep. 2018, 8, 3402. [Google Scholar] [CrossRef] [PubMed]
  23. Chen, L.; Wu, D.; Yoon, J. Recent Advances in the Development of Chromophore-Based Chemosensors for Nerve Agents and Phosgene. ACS Sens. 2018, 3, 27–43. [Google Scholar] [CrossRef] [PubMed]
  24. Royo, S.; Martínez-Máñez, R.; Sancenón, F.; Costero, A.M.; Parra, M.; Gil, S. Chromogenic and fluorogenic reagents for chemical warfare nerve agents’ detection. Chem. Commun. 2007, 4839–4847. [Google Scholar] [CrossRef]
  25. El Sayed, S.; Pascual, L.; Agostini, A.; Martinez-Manez, R.; Sancenon, F.; Costero, A.M.; Parra, M.; Gil, S. A Chromogenic Probe for the Selective Recognition of Sarin and Soman Mimic DFP. ChemistryOpen 2014, 3, 142–145. [Google Scholar] [CrossRef] [PubMed]
  26. Khan, M.S.J.; Wang, Y.-W.; Senge, M.O.; Peng, Y. Sensitive fluorescence on-off probes for the fast detection of a chemical warfare agent mimic. J. Hazard Mater. 2018, 342, 10–19. [Google Scholar] [CrossRef] [PubMed]
  27. Ha, S.; Lee, M.; Seo, H.O.; Song, S.G.; Kim, K.S.; Park, C.H.; Kim, I.H.; Kim, Y.D.; Song, C. Structural Effect of Thioureas on the Detection of Chemical Warfare Agent Simulants. ACS Sens. 2017, 2, 1146–1151. [Google Scholar] [CrossRef] [PubMed]
  28. Kumar, V.; Rana, H.; Raviraju, G.; Garg, P.; Baghel, A.; Gupta, A.K. Chromogenic and fluorogenic multianalyte detection with a tuned receptor: refining selectivity for toxic anions and nerve agents. RSC Adv. 2016, 6, 59648–59656. [Google Scholar] [CrossRef]
  29. Yang, Y.K.; Keunjeong Yook, A.; Tae, J. A Rhodamine-Based Fluorescent and Colorimetric Chemodosimeter for the Rapid Detection of Hg2+ Ions in Aqueous Media. J. Am. Chem. Soc. 2005, 127, 16760–16761. [Google Scholar] [CrossRef] [PubMed]
  30. Goswami, S.; Manna, A.; Paul, S. Rapid ‘naked eye’ response of DCP, a nerve agent simulant: from molecules to low-cost devices for both liquid and vapour phase detection. RSC Adv. 2014, 4, 21984–21988. [Google Scholar] [CrossRef]
  31. So, H.-S.; Angupillai, S.; Son, Y.-A. Prompt liquid-phase visual detection and low-cost vapor-phase detection of DCP, a chemical warfare agent mimic. Sens. Actuators B: Chem. 2016, 235, 447–456. [Google Scholar] [CrossRef]
  32. Ramette, R.W.; Sandell, E.B. Rhodamine B Equilibria. J. Am. Chem. Soc. 1956, 78, 4872–4878. [Google Scholar] [CrossRef]
  33. Gotor, R.; Gaviña, P.; Ochando, L.E.; Chulvi, K.; Lorente, A.; Martínez-Máñez, R.; Costero, A.M. BODIPY dyes functionalized with 2-(2-dimethylaminophenyl)ethanol moieties as selective OFF–ON fluorescent chemodosimeters for the nerve agent mimics DCNP and DFP. RSC Adv. 2014, 4, 15975–15982. [Google Scholar] [CrossRef]
  34. Yang, X.-F.; Guo, X.-Q.; Zhao, Y.-B. Development of a novel rhodamine-type fluorescent probe to determine peroxynitrite. Talanta 2002, 57, 883–890. [Google Scholar] [CrossRef]
  35. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision D. 01; Gaussian. Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  36. Lee, C.; Yang, W.; Parr, R.G. Development of the Colle-Salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef]
  37. Becke, A.D. A new mixing of Hartree–Fock and local density-functional theories. J. Chem. Phys. 1993, 98, 1372–1377. [Google Scholar] [CrossRef]
  38. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  39. Hehre, W.J.; Ditchfield, R.; Pople, J.A. Self—Consistent Molecular Orbital Methods. XII. Further Extensions of Gaussian—Type Basis Sets for Use in Molecular Orbital Studies of Organic Molecules. J. Chem. Phys. 1972, 56, 2257–2261. [Google Scholar] [CrossRef]
  40. Francl, M.M.; Pietro, W.J.; Hehre, W.J.; Binkley, J.S.; Gordon, M.S.; DeFrees, D.J.; Pople, J.A. Self-consistent molecular orbital methods. XXIII. A polarization-type basis set for second-row elements. J. Chem. Phys. 1982, 77, 3654–3665. [Google Scholar] [CrossRef]
  41. Bauernschmitt, R.; Ahlrichs, R. Treatment of electronic excitations within the adiabatic approximation of time dependent density functional theory. Chem. Phys. Lett. 1996, 256, 454–464. [Google Scholar] [CrossRef]
  42. Ming, W.W.; Wiberg, K.B.; Frisch, M.J. Solvent effects. 3. Tautomeric Equilibria of Formamide and 2-pyridone in the Gas Phase and Solution: an ab Initio SCRF Study. J. Am. Chem. Soc. 1992, 114, 1645–1652. [Google Scholar] [CrossRef]
  43. Sadik, O.A.; Land, W.H., Jr.; Wang, J. Targeting Chemical and Biological Warfare Agents at the Molecular Level. Electroanalysis 2003, 15, 1149–1159. [Google Scholar] [CrossRef]
Sample Availability: Samples of compounds 1–2 are available from the authors.
Molecules 24 00827 sch001 550
Scheme 1. Chemical structures of nerve-agents Sarin, Soman, Tabun, and VX, their simulant DCP, and some organophosphorus compounds as potential interferences.
Scheme 1. Chemical structures of nerve-agents Sarin, Soman, Tabun, and VX, their simulant DCP, and some organophosphorus compounds as potential interferences.
Molecules 24 00827 sch001
Molecules 24 00827 g001 550

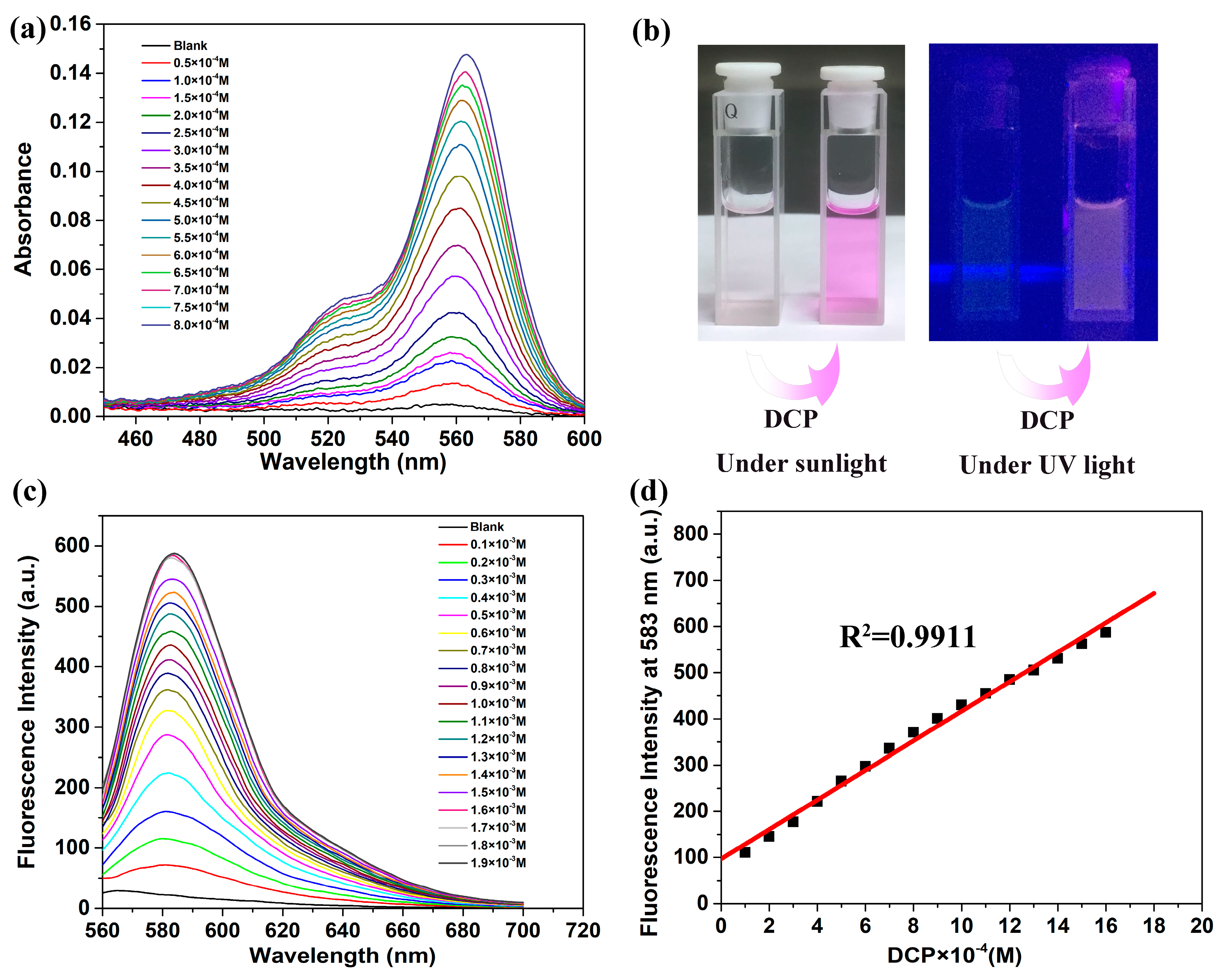

Figure 1. (a) Absorption spectra of RB-CT (1.0 × 10−5 M) upon the addition of DCP (0.5 × 10−4–8.0 × 10−4 M) in CH3CN (3% Et3N). (b) The images of the RB-CT solution before and after the addition of DCP under sun light (left) and UV light (right). (c) Fluorescence spectra of RB-CT (1.0 × 10−6 M) at λex = 540 nm, upon the addition of DCP (0.1 × 10−3–1.9 × 10−3 M) in CH3CN (3% Et3N). (d) Plot of emission intensity of RB-CT at 583 nm.
Figure 1. (a) Absorption spectra of RB-CT (1.0 × 10−5 M) upon the addition of DCP (0.5 × 10−4–8.0 × 10−4 M) in CH3CN (3% Et3N). (b) The images of the RB-CT solution before and after the addition of DCP under sun light (left) and UV light (right). (c) Fluorescence spectra of RB-CT (1.0 × 10−6 M) at λex = 540 nm, upon the addition of DCP (0.1 × 10−3–1.9 × 10−3 M) in CH3CN (3% Et3N). (d) Plot of emission intensity of RB-CT at 583 nm.
Molecules 24 00827 g001
Molecules 24 00827 g002 550

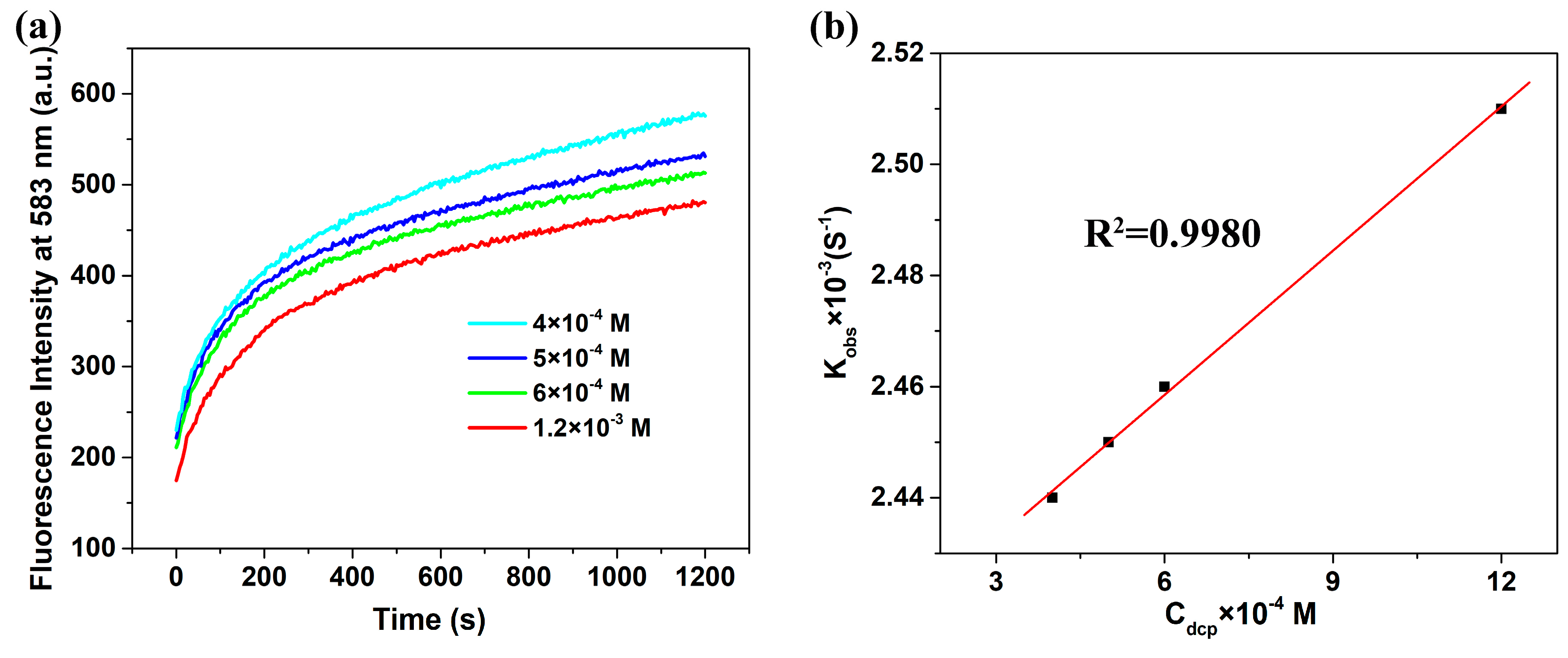

Figure 2. (a) Kinetic profiles of the fluorescence intensity at 583 nm of RB-CT ((1.0 × 10−6 M, CH3CN, 3% Et3N) after the addition of 4.0 × 10−4 M, 5.0 × 10−4 M, 6.0 × 10−4 M, and 1.2 × 10−3 M DCP. (b)The correlation between kobs and the concentration of DCP.
Figure 2. (a) Kinetic profiles of the fluorescence intensity at 583 nm of RB-CT ((1.0 × 10−6 M, CH3CN, 3% Et3N) after the addition of 4.0 × 10−4 M, 5.0 × 10−4 M, 6.0 × 10−4 M, and 1.2 × 10−3 M DCP. (b)The correlation between kobs and the concentration of DCP.
Molecules 24 00827 g002
Molecules 24 00827 sch002 550

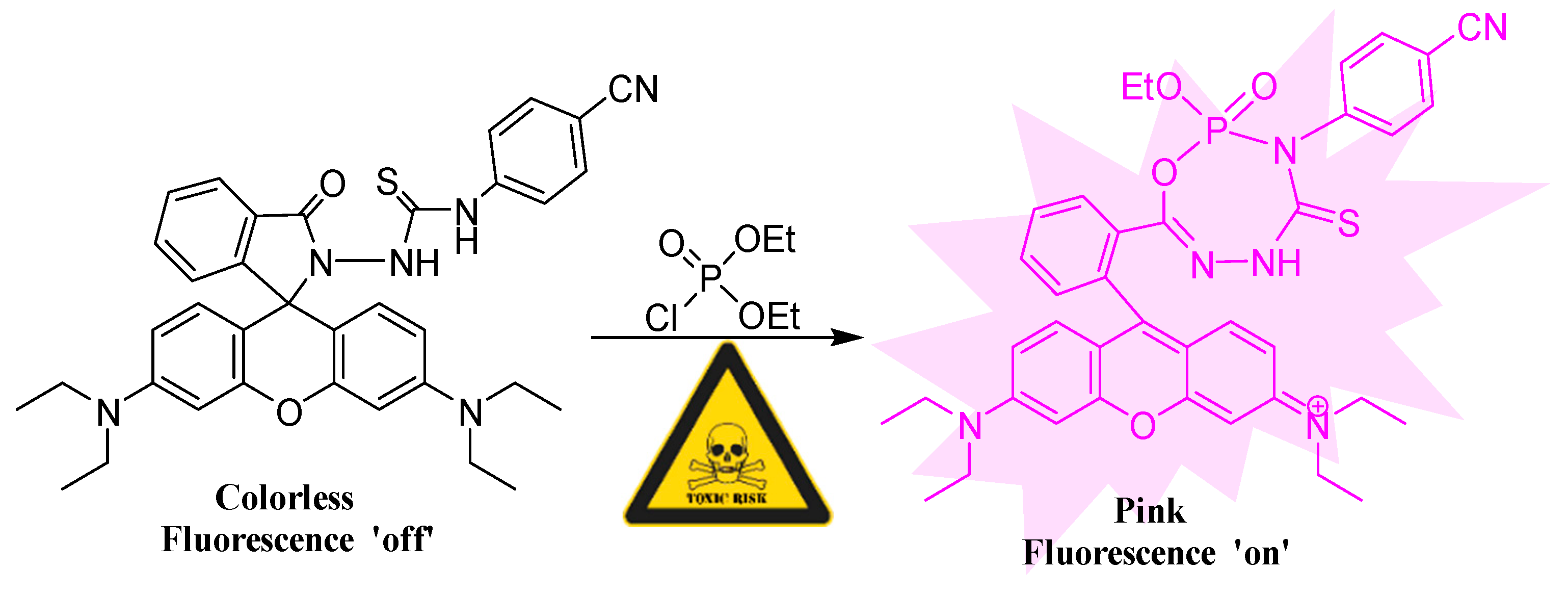

Scheme 2. Proposed mechanism of RB-CT with DCP.
Scheme 2. Proposed mechanism of RB-CT with DCP.
Molecules 24 00827 sch002
Molecules 24 00827 g003 550

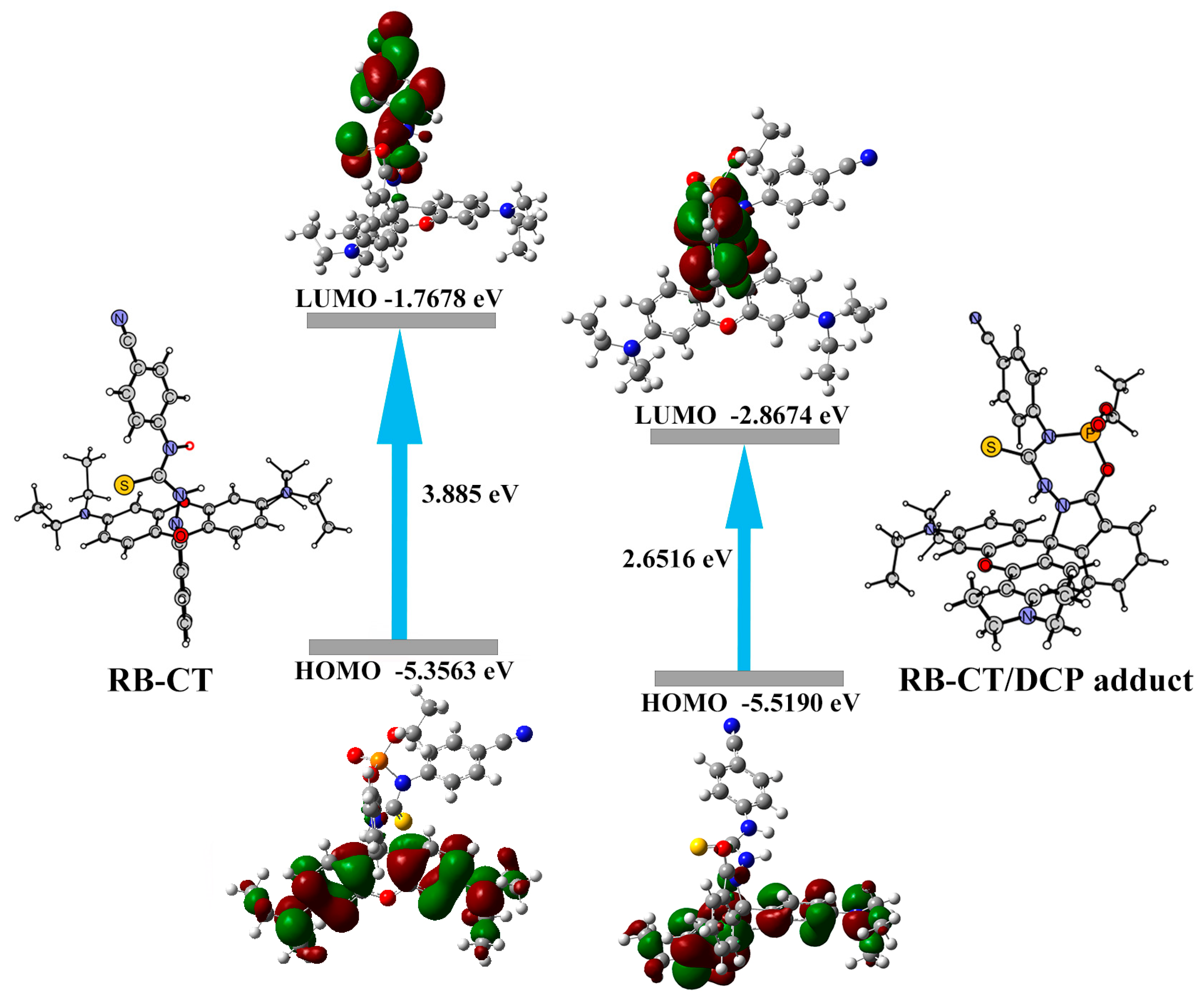

Figure 3. Energy optimized structures, HOMO-LUMO energy levels, and interfacial plots of the orbitals of RB-CT and RB-CT/DCP adduct.
Figure 3. Energy optimized structures, HOMO-LUMO energy levels, and interfacial plots of the orbitals of RB-CT and RB-CT/DCP adduct.
Molecules 24 00827 g003
Molecules 24 00827 g004 550
Figure 4. (a) Relative fluorescence intensity of RB-CT (1 × 10−5 M, CH3CN, 3% Et3N) at 583 nm after the addition of different organophosphorus compounds (1.0 × 10−3 M). Blank is the CH3CN solution of RB-CT without Et3N. (b) Relative color change of RB-CT after the addition of different organophosphorus compounds under sunlight and UV light.
Figure 4. (a) Relative fluorescence intensity of RB-CT (1 × 10−5 M, CH3CN, 3% Et3N) at 583 nm after the addition of different organophosphorus compounds (1.0 × 10−3 M). Blank is the CH3CN solution of RB-CT without Et3N. (b) Relative color change of RB-CT after the addition of different organophosphorus compounds under sunlight and UV light.
Molecules 24 00827 g004
Molecules 24 00827 g005 550
Figure 5. (a) Color change of filter paper treated with RB-CT solution (1.0 × 10−4 M in CH3CN, 3% Et3N) and GD in liquid phase under sunlight (left) and UV light (right). (b) Color change of filter paper treated with RB-CT solution (1.0 × 10−4 M in CH3CN, 3% Et3N) and exposed to GD in gas phase under sunlight (left) and UV light (right).
Figure 5. (a) Color change of filter paper treated with RB-CT solution (1.0 × 10−4 M in CH3CN, 3% Et3N) and GD in liquid phase under sunlight (left) and UV light (right). (b) Color change of filter paper treated with RB-CT solution (1.0 × 10−4 M in CH3CN, 3% Et3N) and exposed to GD in gas phase under sunlight (left) and UV light (right).
Molecules 24 00827 g005
Molecules 24 00827 sch003 550

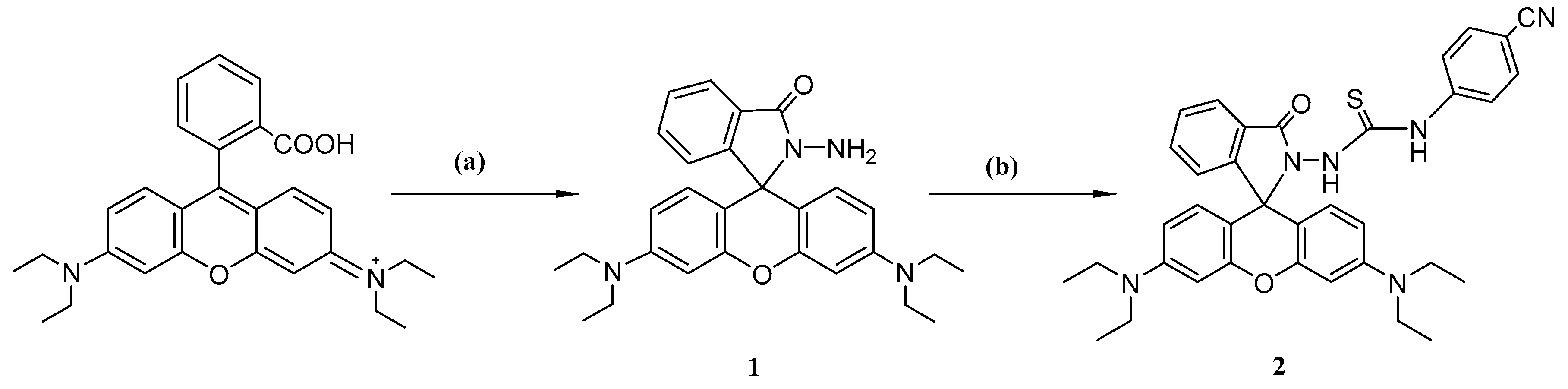

Scheme 3. Synthesis route of RB-TU. Reagents and conditions: (a) CH3OH, hydrazine hydrate, 80 °C, 6 h; (b) DMF, 4-cyanophenyl isothiocyanate, r.t, 12 h.
