Review

Free Accessible Databases as a Source of Information about Food Components and Other Compounds with Anticancer Activity–Brief Review

by
Piotr Minkiewicz
*,
Marta Turło
,
Anna Iwaniak
and
Małgorzata Darewicz
University of Warmia and Mazury in Olsztyn, Chair of Food Biochemistry, Plac Cieszyński 1, 10-726 Olsztyn-Kortowo, Poland
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(4), 789; https://doi.org/10.3390/molecules24040789
Submission received: 30 January 2019 / Revised: 19 February 2019 / Accepted: 20 February 2019 / Published: 22 February 2019
(This article belongs to the Special Issue Natural Products for Cancer Chemoprevention)
Browse Figures
Versions Notes

Abstract

:
Diet is considered to be a significant factor in cancer prevention and therapy. Many food components reveal anticancer activity. The increasing number of experiments concerning the anticancer potential of chemical compounds, including food components, is a challenge for data searching. Specialized databases provide an opportunity to overcome this problem. Data concerning the anticancer activity of chemical compounds may be found in general databases of chemical compounds and databases of drugs, including specialized resources concerning anticancer compounds, databases of food components, and databases of individual groups of compounds, such as polyphenols or peptides. This brief review summarizes the state of knowledge of chemical databases containing information concerning natural anticancer compounds (e.g., from food). Additionally, the information about text- and structure-based search options and links between particular internet resources is provided in this paper. Examples of the application of databases in food and nutrition sciences are also presented with special attention to compounds that are interesting from the point of view of dietary cancer prevention. Simple examples of potential database search possibilities are also discussed.

Graphical Abstract

1. Introduction

An appropriate diet is considered to be an important factor in cancer therapy and prevention. Therapeutic and preventive role of dietary compounds against cancer is the object of extensive studies, continuously presented in numerous reviews [1,2,3,4]. These reviews include also anticancer applicability of individual substances such as curcumin [5,6], quercetin [7], resveratrol [8,9] or lunasin [10], and individual food resources, such as pomegranate [11,12].
The increasing number of experiments concerning data on chemical compounds described in literature is challenging for data retrieval and requires new solutions for this purpose [13,14]. This also concerns anticancer drugs and food components. Bibliographic databases (e.g., Medline, Scopus, Google Scholar) are used as major information resources. An example flowchart of bibliographic database screening was presented by Khan et al. [7].
Specialized databases of chemical compounds, their structures, reactions and biological activity are emerging, but are still under-utilized tools in food science [14,15,16,17,18]. They may be used together with other bioinformatic and cheminformatic tools serving for simulation and prediction of physico-chemical properties as well as biological activity of food components [14,18,19].
Jensen et al. [20,21] have performed high-throughput analysis of the synergistic action of drugs and food components. They provided thousands of examples of the similar activity of drugs and compounds originating from food resources and products. Lacroix et al. [22] analysed the interactions between polyphenols from foods and proteins, including those being drug targets. Naveja et al. [23] supported the above results by finding that several structural and physico-chemical features of drugs and food components are similar. Details concerning particular compounds and their activity and status (activity confirmed by clinical trials, experiment in vivo on animals or in vitro) are summarized, e.g., in chemical and biochemical databases. The databases may thus be helpful tools for food science and education. In our previous publication [16], we presented general information concerning databases of compounds with low molecular weight, their enzymatic reactions and metabolism. The above review also discussed search options, links between databases and examples of their potential application in food and nutrition sciences.
The aim of this review is to provide a brief description of free accessible databases annotating compounds, e.g., food components of interest in the context of anticancer properties.

2. Medical, Chemical, Biochemical and Food Databases

The web addresses of selected free accessible chemical, medical and biochemical databases are summarized in Table 1. Data concerning compounds with experimentally proven or potential anticancer activity may be found in databases of drugs (e.g., specialized databases of anticancer drugs). Such databases, among others, annotate natural compounds including those occurring in food resources. Specialized medical databases are focused on biomedical data concerning given substances (biological test results), whereas data concerning physico-chemical properties of particular compounds are available via links to general databases such as PubChem [24] or ChemSpider [25].
The Clinical Trials database includes data concerning synthetic drugs and compounds of natural origin. Curcumin may serve as an example of such a substance [26]. Databases concerning food are focused both on the occurrence of particular compounds in various food resources, such as FooDB, and on human health effects, such as NutriChem [27]. The latter summarizes the information concerning interactions of drugs and food components, including synergistic activity as well as the influence of food components on drug pharmacokinetics (time-dependent changes of drug concentration in the body). PhytoHub annotates the components of plant origin foods. Drug databases also include compounds of food origin. Nutraceuticals belonging to major categories of compounds are annotated in the DrugBank [28].
Databases of individual groups of compounds may also provide information on compounds with anticancer activity. The BIOPEP-UWM (formerly BIOPEP) database of bioactive peptides provides, among others, the largest collection of antioxidative (free radical scavenging) peptide sequences [29]. Free radical scavenging peptides are considered as suitable compounds in cancer prevention, among other health benefits [30]. BIOPEP-UWM also annotates several peptides revealing cytotoxicity against cancer cell lines and other anticancer activities. The above-mentioned database also provides the opportunity to calculate the quantitative parameters describing proteins as potential precursors of bioactive peptides (e.g., possessing anticancer activity) [29,31]. Hydrolysates of food proteins and individual peptides may reveal anticancer activity via various mechanisms [32]. More anticancer peptide sequences together with information concerning biological tests may be found in the CancerPPD database [33]. Polyphenols are considered to be major anticancer and antioxidant food components [34]. They interact with many proteins, including these known as drug targets according to the DrugBank database. Polyphenols are annotated in Phenol-Explorer [35] and databases provided by the US Department of Agriculture (USDA). Some of the carotenoids annotated in the Carotenoids Database [36] also reveal anticancer and/or antioxidant activity.
Databases of enzymes, such as BRENDA [46] provide data about substrates and products of enzymatic reactions, as well as inhibitors and activators of enzymes. Data concerning proteins (enzymes and receptors) as drug targets are also available in both general databases (such as ChEMBL [45]) and specialized drug databases (such as DrugBank [28]). The information about enzymes involved in the metabolism of drugs and other bioactive compounds, including food components, is also available in the KEGG database [38]. Both BRENDA and KEGG are sources of information about the role of particular enzymes in metabolic pathways. Among these two databases, KEGG provides information which is easier to find by the user, whereas BRENDA is more comprehensive. OpenTargets [47] is a specific database containing information about the relationships between enzymes and diseases (e.g., abnormal enzyme activity associated with disease). Annotation of an enzyme in the OpenTargets database together with the term “neoplasm” means, however, only that some experiments concerning this enzyme were performed during research in the area of oncology. Experiments annotated in OpenTargets did not always result in finding any relationships between enzyme activity and cancer. On the other hand, some enzymes in this database are targets for substances with anticancer activity. UniProt [48], the most comprehensive database of protein sequences is applied as a reference database for all databases containing information about enzymes (DrugBank, ChEMBL, KEGG, BRENDA).
Apart from specialized medical databases, some general databases such as PubChem [24] and ChEMBL [45] also contain results of biological tests, including these relevant in the context of neoplasm treatment and prevention (e.g., cytotoxicity against cancer cell lines). The PubChem database also annotates negative test results (tests revealing the lack of expected bioactivity). General databases, especially PubChem, serve as reference databases for more specialized ones (e.g., DrugBank, DrugCentral, KEGG Drug, FooDB). PubChem CID (Compound ID) serves as an unambiguous identifier, recommended for use in research articles and enabling searches using special programs, such as Chemical Translation Service [52].
Metabases such as Labworm or MetaComBio [49] provide access to many databases and other bioinformatic and cheminformatic tools. They are continuously updated and may serve to find, in the future, new databases of interest. Information about categories attributed to particular databases in MetaComBio, presented in Table 1, may facilitate searches in the above metabase.
Databases presented above offer free access (i.e., without fee) to their content. There are also commercial resources annotating and processing information about chemical compounds (for instance SciFinder, provided by American Chemical Society or OmicTools, provided by omicX company).

3. Search Options and Links between Databases

Table 2 shows the search options and links between particular data resources. The advantages and disadvantages of particular search options have been discussed in our previous review [16]. Briefly: there are two general search options: text search (including compound common or chemical names, disease names including particular types of cancer, English or Latin names of plant and animal species being resources of food or natural products, interesting as potential drugs or any terms associated with given compound, resource or disease) and a structure-based search involving annotation of molecules using chemical codes, especially SMILES (Simplified Molecular Input Line Entry Specification) [52] and InChI (International Chemical Identifier) [53] and structures drawn using the molecular editors. The text search is more intuitive but requires knowledge of compound names and other terms in English. The same compound may have several common names. Chemical names of particular compounds, recommended by International Union of Pure and Applied Chemistry (IUPAC) are univocal, but for more complex molecules (e.g., glycosides) they are difficult to be constructed even using specialized programs. The same compound, if it is especially well-known, may have many common or medical names. It may provide a problem with using common names as a query in database searches. The application of InChIKeys [54] as a query may be also considered as a text search. InChIKeys are unambiguous signatures always containing 27 characters. Some of the compounds annotated in the PubChem database [24] are described using InChIKeys instead of common names.
Searching based on compound structure is an emerging strategy [16]. As mentioned previously [16], there are two possible ways for a structure input: drawing via molecule editor or input of a structure written using chemical code (especially SMILES). Some databases (e.g., DrugBank, ChEMBL, ChemSpider, FooDB and PhytoHub) offer a combined opportunity–import of SMILES code via molecule editor and display compound structure. Some molecule editors are able to display inappropriate valence of particular atoms or missed configuration of substituents around asymmetric carbon atoms–typical errors occurring in publicly available molecule structures [55]. An efficient search requires knowledge of compound structures, including stereoisomers.
Search engines of general, drug and food databases enable finding set of compounds with structures similar to the query molecule. The coefficient proposed by Rogers and Tanimoto [56], entitled the Tanimoto coefficient, seems to be the most popular measure to date for the similarity between two molecules [16,18]. It is usually expected that compounds with a similar molecular structure possess similar biological activity. On the other hand, the possibility of the occurrence of so-called “activity cliffs”, understood as slight changes in structure leading to significant changes of biological activity, should also be taken into account [18,56,57].
The screening of databases of low molecular compounds may be supported by computer applications such as Chemical Translation Service [51]. This program provides the opportunity to convert a chemical name or InChIKey of a compound into ID numbers in many databases (e.g., PubChem and ChemSpider). Translation between SMILES, InChI, InChIKeys and chemical names is possible using the Chemical Identifier Resolver [50] or ChemRTP. The second program is designed for prediction of physico-chemical properties of compounds. Full access to ChemRTP program and associated MolInstints database requires subscription, but option of conversion of SMILES or drawn structure into chemical name, InChI or InChIKey is free-accessible.
Amino acid sequences are the first option of a structure-based search in databases of peptides, proteins and enzymes (e.g., BIOPEP-UWM [29], ChEMBL [45], UniProt [48]). BIOPEP-UWM provides two sequence-based search option: substructure (subsequence) search as the option finding all peptide sequences containing a given fragment as default and exact match as an alternative opportunity, chosen by the user. Databases annotating enzymes, such as BRENDA [46], ChEMBL [45] or UniProt [48] offer the possibility of finding sequences similar to the query sequence. BLAST [58] is the most popular algorithm serving this purpose.
Links between the databases mentioned in this article are presented in Table 2. The significance of such links was emphasized in our previous review [16]. They may be applied for finding information via “navigating the network of links and cross-links between databases” [16]. This option includes the opportunity for the access of a single compound, enzyme or disease data in multiple databases using a single search engine. ChemSpider [25] provides multiple links to data concerning extensively studied and well-known compounds. ChEMBL [45] is another database offering external links. The utility of such links may be illustrated by the following example. The BRENDA database [46] does not provide (December 2018) a search option to find ligand data using SMILES–the most popular chemical code. This gap may be filled by using the ChEMBL search engine and then finding a link to BRENDA. As emphasized in our previous article, the PubChem database is used as a reference data source for other databases, annotating both information concerning drugs and food components. Recently, PubChem has started to utilize external links to data of particular compounds in other resources (e.g., ChemSpider or ChEMBL).

4. Examples of Current Applications of Internet Databases in Food and Nutrition Science

Extensive studies, including mining of data concerning the biological activity of food components of plant origin, have been performed by Jensen et al. [20]. The authors used, among others, ChEMBL [45] and KEGG [38] databases to find bioactive compounds and the metabolic pathways associated with them. A structure-based search utilizing SMILES strings was applied for the ChEMBL screening. The authors found over 20,000 compounds originating from c.a. 16,000 plant species, which may be beneficial in the treatment of c.a. 1600 diseases. Many foods may be considered as promising in the treatment of various kinds of cancer although further experimental studies are necessary to confirm such predictions. A case study on colon cancer has been discussed as an example illustrating the potential of data mining supported by chemical databases. The authors have found 623 compounds from 519 plants, revealing the effect on metabolic pathways, which may potentially lead to suppression of colon cancer. Some of these plants were objects of experimental studies concerning supporting colon cancer therapy by diet. Next 1415 compounds revealed high similarity (using Tanimoto coefficient as similarity measure) to drugs and phytochemicals active against colon cancer. This result may indicate the direction for further experimental work aimed at finding new anticancer compounds, although negative results are also possible due to the presence of activity cliffs. Jensen et al. [20] have pointed out that most of the active compounds occur in many plant species even if there is no close taxonomic relation between them. This finding is consistent with the data summarized in the FooDB database.
Another publication of Jensen et al. [21] concerns the interactions between 1800 drugs and 4000 foods of plant origin. Food components may affect the fate of drugs (including anticancer ones) in the human body. Drug absorption involves, for example, binding with proteins acting as carriers. Drugs may be substrates for enzymes, which convert them into inactive products. Foods may also enhance the shelf life of drugs by inhibition of enzymes catalysing their reactions, for example. The negative effect of foods on drug activity may occur if drug and food components interact with the same carrier. In that case, food components may compete with drugs and thus inhibit their absorption. Anticancer compounds belong to the main classes of drugs with an activity affected by diet. The authors used data from DrugBank [28] and ChEMBL [45] databases. Their results are summarized in the NutriChem [27] database. The above findings served as a basis for designing of dietary recommendations based on knowledge concerning biological activity of food components [59].
A typical example of the application of chemical databases is their use for calculating the intake of compounds of interest. The daily intake of polyphenols in various countries was calculated on the basis of data summarized in the Phenol-Explorer and USDA [60,61,62]. The intake of particular foods was reported by participants. The daily intake of polyphenols was calculated using data concerning diet, received from participants and the polyphenol content in individual food items, annotated in the above databases.
Phenol-Explorer was also used for the survey of interactions between polyphenols of food origin and proteins [22]. Drug targets, annotated in the DrugBank [28] database, include proteins which are polyphenol interactors. Two protein classes: nuclear receptors and cyclin-dependent kinases, are considered important in the context of cancer development and thus as potential targets of anticancer drugs. On the other hand, it should be noted that interactions of food components with proteins which are drug targets are not always beneficial. As pointed out by Jensen et al. [21], they may also be antagonists of drugs. Naveja et al. [23] have recommended FooDB as an alternative resource for studies involving the structure, properties and content of polyphenols in particular foods.
Terlikowska et al. [26] have summarized the results of clinical trials concerning the anticancer activity of a well-known food component, curcumin and its analogues, on the basis of data retrieved from the ClinicalTrials database. Curcumin and its analogues and derivatives (e.g., dimers and glycosides) are annotated in the FooDB database. Clinical trials have confirmed the anticancer activity of curcumin against primary epithelial ovarian cancer. Moreover, curcumin revealed a synergistic effect with some chemotherapeutics. This compound may also be considered as safe (not revealing significant negative side effects).
An example application of a specialized peptide database–BIOPEP-UWM was described by Borawska et al. [63,64]. The database application included determination of the location of antioxidative fragments within carp (Cyprinus carpio) [63] and salmon (Salmo salar) [64] protein sequences (building of profiles of potential biological activity of protein fragments [29]) and simulation of proteolysis by human digestive enzymes. All operations were performed using amino acid sequences, annotated using a standard one-letter code. Protein sequences of both fish species were taken from the UniProt database. The above in silico predictions were followed by experimental measurements of antioxidant activity using typical tests utilizing DPPH (1,1-diphenyl-2-picrylhydrazyl), ABTS (2,2-azinobis(3-ethyl)-benzothiazoline-6-sulfonic acid) and ferric reducing power. Peptides predicted to be released by digestive enzymes, as well as these occurring in protein sequences, were identified using reversed-phase high performance liquid chromatography coupled with tandem mass spectrometry (RP-HPLC-MS/MS). Peptide detection was supported by the prediction of MS/MS spectra and retention times. Another possibility is the identification of peptides followed by a database search to identify which ones are bioactive (e.g., antioxidative or cytotoxic).

5. Possible Simple Search Schemes to Use for Finding Information Concerning Anticancer Compounds from Food Science

Two possible search schemes concerning the anticancer activity of food components and the influence of food-derived compounds on the metabolic fate of known anticancer compounds are presented in Figure 1 and Figure 2, respectively.
Figure 1 presents a scheme for searching for the anticancer properties of components of apples. The Latin name Malus domestica is used as a query for interrogation of the FooDB database. Apple (Malus pumila) is among the results. There are 314 compounds from apples annotated in the FooDB database. (+)-Syringaresinol (IUPAC chemical name: 4-[(1S,3aR,4S,6aR)-4-(4-hydroxy-3,5-dimethoxyphenyl)-hexahydrofuro[3,4-c]furan-1-yl]-2,6-dimethoxyphenol) belonging to the compound class named lignans, is first of them. Its status in apples is annotated as “detected, not quantified”. It has been found in 18 plants, including barley, common buckwheat, common wheat, garden tomato, grape wine, kiwi, pineapple, rye, sesame and tofu. It was quantified in most of these resources. Compound information in the FooDB database contains direct links to corresponding pages in PubChem [24] and KEGG [38]. A structure-based search using the ChemSpider [25] search engine and SMILES representation as a query provides access to other databases, e.g., ChEMBL. There is an alternative opportunity. SMILES code may be converted into InChIKey using the Chemical Identifier Resolver program. The resulting InChIKey may be used for a GoogleTM search with similar results. ChEMBL annotates cytotoxic activity against mouse cancer cell lines, as mentioned in Figure 1 and against several lines of human cancer cells in vitro. The ChEMBL compound data card contains a link to (+)-Syringaresinol data in the BRENDA [46] database, providing information on enzymes catalysing its reactions, for example. Such data may be helpful in the prediction of compound metabolism.
Another possible search scheme is presented in Figure 2. It concerns the search for compounds affecting the metabolic fate of anticancer substances using quercetin as an example. The BRENDA [46] database provides comprehensive information on enzymes catalysing reactions of this compound. Users may perform searches directly in the BRENDA database using the text search option with “quercetin” as a query. A structure-based search is possible via the ChEMBL [45] database search engine using SMILES representation. The compound report card in the ChEMBL database offers external links to compound data in several other databases, e.g., BRENDA. This database contains information on the status of quercetin as an enzyme ligand: substrate, product inhibitor or activator. The metabolism of quercetin involves reactions in which it acts as a substrate. Human enzymes are also considered. Catechol oxidase (EC 1.10.3.1) catalyses quercetin oxidation with unknown products. The enzyme was investigated in vitro. BRENDA provides a list of species producing this enzyme, including Homo sapiens. Inhibitors of enzymes catalysing quercetin reactions may be expected as factors extending the shelf-life of this compound and thus enhancing its biological activity. (−)-Epigallocatechin is the first compound annotated in BRENDA as an inhibitor of catechol oxidase. The FooDB database provides a list of 26 food resources containing the above compound, e.g., broad bean, pecan nut and tea. The above result of database searching can be considered the starting point for further investigations. Catechol oxidase is annotated as an enzyme catalysing quercetin oxidation in vitro, but its effect in vivo was not reported. The same remark concerns the role of (−)-epigallocatechin as an enzyme inhibitor. It is possible to utilize many search schemes using the databases presented in this review. Moreover, the number of databases available is increasing rapidly.
The use of databases has drawn some criticism. Recommendations concerning the curation of datasets and search procedures include taking into account the strengths and weaknesses of databases and the recognition and correction of possible errors in query structures [54,65,66]. Published opinions about databases may also not be up to date. For example, in our review from 2016 [16] we published the opinion that ChemSpider possesses a simpler search engine than PubChem. The interface of the second database has been significantly modified and is now more user-friendly than in 2016.
Education in the areas of food science, human nutrition and dietetics can utilize the benefits and meet the challenges of the big data era. The potential of Internet databases in teaching chemistry has been recently emphasized by Tuvi-Arad and Blonder [67]. Databases may serve as tools supporting classic, printed handbooks. Molecule structures annotated in databases and datasets are considered to be a specific language. Particular molecule structures (words used as keywords) may be drawn using special programs called “molecule editors” or annotated using computer-readable codes (e.g., SMILES). The use of modern chemistry language to ask questions on the Internet is a useful skill for students of food technology and human nutrition, as a field of study involving chemistry. Data mining from databases classified as chemical, using a structure-based search (i.e., asking questions using chemical language) has been added to courses for food science students at our faculty [16,49].

6. Recommendations for Database Choice

Choice of particular database should be done taking into account two crucial factors: database content and search options. Advantages and weak points of some databases relevant for food science were discussed in our previous review [16]. Recommendations for database choice are discussed here using general and medical databases as examples.
Questions concerning database content are as follows. How many compounds are annotated in the database? How comprehensive is information about each compound? Does database contain unique information? How often is the database updated? Does database contain errors in compound structures or in other information?
PubChem database is the largest database of low-molecular compounds. On the other hand, most of compounds annotated in this database are not well-known. ChEMBL contains less compounds than PubChem but provides more information about biological activity of any of them. DrugBank provides most extensive description of drugs among medical and pharmaceutical databases. Information in this database is more extensive than in smaller and more specialized databases of anticancer drugs and compounds. It offers also many external links (see Table 2). On the other hand, brief information may be easier to find and process by the user. For instance, KEGG database provides rapid access to information concerning enzymes and metabolic pathways involving reactions catalyzed by them, whereas BRENDA database offers much more details concerning these enzymes. KEGG may be thus recommended for preliminary search, BRENDA—as a source of more detailed information. ClinicalTrials database is an example of database providing unique information—a systematic review of clinical investigations concerning particular compounds, including both drugs and nutraceuticals. Open Targets provides the most extensive review on association between enzymes (abnormal activity of enzymes) and diseases. The largest databases mentioned in this review (PubChem, UniProt, ChEMBL, DrugBank) are also systematically updated. UniProt includes up to c.a. half million new protein sequences per month. The recent version of DrugBank is the fifth in its history. Various errors (e.g., errors in structure, inappropriate reference citations) occur in all existing databases. They always provide processed “second hand” information. PubChem curators have recently performed standardization of molecule structures [68], intended to help in elimination of errors during submission of compound data. Taking in mind above-mentioned remarks, especially these concerning data uniqueness and occurrence of errors we can recommend confrontation of more than one database to obtain complete and reliable information.
The search engine is the second important factor affecting database usefulness. A potential user should consider three main questions when using specific database. How many search options offers particular database? Is the search engine user-friendly? Is the search engine unfailing i.e., do all available options work properly? If database content justifies acceptance of some problems with search engine there is fourth question: how to overcome or omit these problems?
Text search seems to be more intuitive search option. DrugBank, DrugCentral and NPCARE databases offer search using drug name, protein target name and disease name (in that case cancer type). In the DrugBank search engine disease name search option is labeled as “Indication”. Particular drug databases offer some additional text search options such as pathway (DrugBank) compound class (NPACT), names of genes asociated with cancer (NPCARE) or tissues and cell lines (PharmacoDB). Smaller databases enable relatively rapid browse list of compounds of interest as compared with the larger ones.
Databases mentioned in this review can be divided into two major categories according to Table 2. The first category covers databases providing only text-based search whereas the second one includes both text- and structure-based search. Amino acid sequences are considered as structures for the purpose of this classification. As mentioned previously [16] we recommend the second category. Using the program named molecule editor (molecular editor) is one of the most popular options of query input [16]. Molecular editors allow drawing the molecule structure and convert it into SMILES code. JSME editor [69], used e.g., at the website of Chemical Structure Lookup Service is easy to use and may be recommended for beginners (e.g., for students during classes concerning chemical information [49]). On the other hand, Marvin JS (Provider: ChemAxon, Budapest, Hungary) possesses more options, e.g., displaying of absolute configuration (Rectus or Sinister) around asymmetric carbon atoms (important in the context of work with chiral molecules) and detection of errors such as missed chirality centers (displayed by using “?” character instead of “R” or “S”) or inappropriate valence of particular atoms. The last option makes Marvin JS a useful tool if structure validation and correction of errors is necessary [54]. Moreover, the second of above-mentioned editors offers output of structure in additional formats (e.g., InChI and InChIKey). The Marvin JS Molecule editor is applied in search engines of ChEMBL, DrugBank and FooDB databases.
The search engine of PubChem database is recently an excellent example of simplicity. Search engine is available via the tab "Try the PubChem Search Beta" at the homepage. This search engine offers one window integrating search by text and structure (annotated using SMILES or InChI Code). Search engine accepts compound name, chemical formula, CAS Registry Number, InChIKey (not annotated at list of available options below window serving for query input), SMILES or InChI. Separate icon entitled “Draw structure” enables the access to molecule editor. As mentioned above, we published [16] opinion that search engine of PubChem is complex and less user-friendly as compared with ChemSpider. Recently, simplicity of both search engines is comparable. The "Try the PubChem Search Beta" tab at PubChem website corresponds to the “Simple search” option of ChemSpider whereas PubChem’s “Draw structure”–to “Structure search” option of ChemSpider.
There is one more reason to consider PubChem search engine as excellent. Search options in PubChem and ChemSpider are almost the same, but the first database is more unfailing than the second one. This difference may be illustrated by the following example. There are two versions of aromatic rings annotation in SMILES: Kekulé version (for instance l-tryptophan is annotated as C1=CC2=C(C=C1)[N](C=C2C[C@@H](C(=O)O)N)[H]) and aromatic version (l-tryptophan representation is c1ccc2c(c1)c(c[nH]2)C[C@@H](C(=O)O)N). l-Tryptophan is an example of a molecule containing fused aromatic rings. PubChem search engine accepts both kinds of SMILES representations of compounds containing fused aromatic rings (e.g., tryptophan and peptides containing this amino acid, polyphenols etc.). ChemSpider search engine accepts only Kekulé version. This problem may be omitted using InChI or InChIKey as a query for the “Simple search” option. Use of InChI representation of L-tryptophan as a query for structure search results (14 February 2019) in finding tryptophan with missed chirality center (without defined configuration around asymmetric carbon atom–DL-tryptophan). Any search option in PubChem using InChI or aromatic version of SMILES leads to appropriate result i.e., finding l-tryptophan data. Moreover, PubChem molecule editor automatically generates Kekulé version of SMILES representation of aromatic molecule on the basis of InChI or aromatic SMILES representation. Kekulé version of SMILES string of molecule with fused aromatic rings may be successfully used for search in ChemSpider. This advantage of PubChem is a result of recently performed standardization of aromatic molecule representations based on Kekulé version of SMILES [68].
If the search engine does not offer some opportunity (e.g., structure-based search), the user may look for the possibility of using another search engine following by link to database of interest. For instance, data annotated in ClinicalTrials and BRENDA databases may be available via the ChEMBL search engine using both text and structure-based search. Links to compound data in KEGG are available at ChemSpider, DrugBank and FooDB websites. ChemSpider, ChEMBL, DrugBank and FooDB offer access to data in many other information sources.

7. Final Remarks

Databases can enhance access to data concerning chemical compounds with biological activity, making them interesting from the point of view of designing diets supporting anticancer therapy. This advantage is important in the “Big Data Era”. On the other hand, information from databases cannot replace experiments in the creation of new knowledge, although information retrieved may identify gaps in the existing information and show the direction for the design of new research.
Chemical compound databases are commonly used in chemical, pharmaceutical, and biological sciences. Their use in food and nutrition sciences is not as extensive as in the above-mentioned areas. Examples presented here suggest that databases may be helpful tools in both research and education. Role of the databases is expected to increase in the near future.

Author Contributions

P.M., M.T., A.I. and M.D. collected data concerning particular databases and written the manuscript. P.M., A.I. and M.D. are curators of the MetaComBio website and BIOPEP-UWM database.

Funding

Project financially supported by Minister of Science and Higher Education in the range of the program entitled “Regional Initiative of Excellence” for the years 2019–2022, Project No. 010/RID/2018/19, amount of funding 12000000 PLN.

Conflicts of Interest

The Authors declare no conflict of interests.

Abbreviations

B16F10Symbol of mouse skin melanoma cells
BLASTBasic Local Alignment Search Tool
BRENDABraunschweig Enzyme Database
CASChemical Abstracts Service
ChemRTPChemical Real Time Predictions
CIDCompound Identifier (in PubChem database)
EMBLEuropean Molecular Biology Laboratory
InChIInternational Chemical Identifier
InChIKeyKey of International Chemical Identifier
IUPACInternational Union of Pure and Applied Chemistry
KEGGKyoto Encyclopedia of Genes and Genomes
MetaComBioMeta Compound Bioactivity
NPACTNaturally Occurring Plant-based Anti-cancer Compound-Activity-Target
NPCARENatural Products for CAncer gene REgulation
QSARQuantitative Structure-Activity Relationship
RAbsolute configuration of substituents around asymmetric carbon atom-Rectus
SAbsolute configuration of substituents around asymmetric carbon atom-Sinister
SMILESSimplified Molecular Input Line Entry System or Simplified Molecular Input Line Entry Specification
USDAUnited States Department of Agriculture
UWMUniversity of Warmia and Mazury

References

  1. Nosrati, N.; Bakovic, M.; Paliyath, G. Molecular mechanisms and pathways as targets for cancer prevention and progression with dietary compounds. Int. J. Mol. Sci. 2017, 18, 2050. [Google Scholar] [CrossRef] [PubMed]
  2. Chen, H.; Liu, R.H. Potential mechanisms of action of dietary phytochemicals for cancer prevention by targeting cellular signaling transduction pathways. J. Agric. Food Chem. 2018, 66, 3260–3276. [Google Scholar] [CrossRef] [PubMed]
  3. Khan, M.I.; Rath, S.; Adhami, V.M.; Mukhtar, H. Targeting epigenome with dietary nutrients in cancer: Current advances and future challenges. Pharmacol. Res. 2018, 129, 375–387. [Google Scholar] [CrossRef] [PubMed]
  4. Rajoka, M.S.R.; Jin, M.; Haobin, Z.; Li, Q.; Shao, D.; Huang, Q.; Shi, J. Impact of dietary compounds on cancer-related gut microbiota and microRNA. Appl. Microbiol. Biotechnol. 2018, 102, 4291–4303. [Google Scholar] [CrossRef] [PubMed]
  5. Mock, C.D.; Jordan, B.C.; Selvam, C. Recent advances of curcumin and its analogues in breast cancer prevention and treatment. RSC Adv. 2015, 5, 75575–75588. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Rauf, A.; Imran, M.; Orhan, I.E.; Bawazeer, S. Health perspectives of a bioactive compound curcumin: A review. Trends Food Sci. Technol. 2018, 74, 33–45. [Google Scholar] [CrossRef]
  7. Khan, F.; Niaz, K.; Maqbool, F.; Hassan, F.I.; Abdollahi, M.; Venkata, K.C.N.; Nabavi, S.M.; Bishayee, A. Molecular targets underlying the anticancer effects of quercetin: An update. Nutrients 2016, 8, 529. [Google Scholar] [CrossRef] [PubMed]
  8. Rauf, A.; Imran, M.; Butt, M.S.; Nadeem, M.; Peters, D.G.; Mubarak, M.S. Resveratrol as an anti-cancer agent: A review. Crit. Rev. Food Sci. Nutr. 2018, 58, 1428–1447. [Google Scholar] [CrossRef] [PubMed]
  9. Navarro, G.; Martínez-Pinilla, E.; Ortiz, R.; Noé, V.; Ciudad, C.J.; Franco, R. Resveratrol and related stilbenoids, nutraceutical/dietary complements with health-promoting actions: Industrial production, safety, and the search for mode of action. Compr. Rev. Food Sci. Food Saf. 2018, 17, 808–826. [Google Scholar] [CrossRef]
  10. Hsieh, C.-C.; Martínez-Villaluenga, C.; de Lumen, B.O.; Hernández-Ledesma, B. Updating the research on the chemopreventive and therapeutic role of the peptide Lunasin. J. Sci. Food Agric. 2018, 98, 2070–2079. [Google Scholar] [CrossRef]
  11. Sharma, P.; McClees, S.F.; Afaq, F. Pomegranate for prevention and treatment of cancer: An update. Molecules 2017, 22, 177. [Google Scholar] [CrossRef] [PubMed]
  12. Khwairakpam, A.D.; Bordoloi, D.; Thakur, K.K.; Monisha, J.; Arfuso, F.; Sethi, G.; Mishra, S.; Kumar, A.P.; Kunnumakkara, A.B. Possible use of Punica granatum (Pomegranate) in cancer therapy. Pharmacol. Res. 2018, 133, 53–64. [Google Scholar] [CrossRef] [PubMed]
  13. Williams, A.J.; Pence, H.E. The future of chemical information is now. Chem. Int 2017, 39, 9–14. [Google Scholar] [CrossRef]
  14. Marvin, H.J.P.; Janssen, E.M.; Bouzembrak, Y.; Hendriksen, P.J.M.; Staats, M. Big data in food safety: An overview. Crit. Rev. Food Sci. Nutr. 2017, 57, 2286–2295. [Google Scholar] [CrossRef] [PubMed]
  15. Martínez-Mayorga, K.; Peppard, T.L.; Medina-Franco, J.L. Software and online resources: Perspectives and potential applications. In Foodinformatics. Applications of Chemical Information to Food Chemistry; Martinez-Mayorga, K., Medina-Franco, J.L., Eds.; Springer: Cham, Switzerland, 2014; pp. 233–248. [Google Scholar] [CrossRef]
  16. Minkiewicz, P.; Darewicz, M.; Iwaniak, A.; Bucholska, J.; Starowicz, P.; Czyrko, E. Internet databases of the properties, enzymatic reactions, and metabolism of small molecules-search options and applications in food science. Int. J. Mol. Sci. 2016, 17, 2039. [Google Scholar] [CrossRef] [PubMed]
  17. Scotti, L.; Júnior, F.J.B.M.; Ishiki, H.M.; Ribeiro, F.F.; Duarte, M.C.; Santana, G.S.; Oliveira, T.B.; de Fátima Formiga Melo Diniz, M.; Quintans-Júnior, L.J.; Scotti, M.T. Computer-aided drug design studies in food chemistry. In Natural and Artificial Flavoring Agents and Food Dyes; Grumezescu, A.M., Holban, A.M., Eds.; Elsevier: Amsterdam, Netherlands, 2018; pp. 261–297. [Google Scholar] [CrossRef]
  18. Peña-Castillo, A.; Méndez-Lucio, O.; Owen, J.R.; Martínez-Mayorga, K.; Medina-Franco, J.L. Chemoinformatics in food science. In Applied Chemoinformatics: Achievements and Future Opportunities; Engel, T., Gasteiger, J., Eds.; Wiley-VC: Weinheim, Germany, 2018; pp. 501–525. [Google Scholar] [CrossRef]
  19. Holton, T.A.; Vijayakumar, V.; Khaldi, N. Bioinformatics: Current perspectives and future directions for food and nutritional research facilitated by a food-wiki database. Trends Food Sci. Technol. 2013, 34, 5–17. [Google Scholar] [CrossRef]
  20. Jensen, K.; Panagiotou, G.; Kouskoumvekaki, I. Integrated text mining and chemoinformatics analysis associates diet to health benefit at molecular level. PLoS Comput. Biol. 2014, 10, e1003432. [Google Scholar] [CrossRef]
  21. Jensen, K.; Ni, Y.; Panagiotou, G.; Kouskoumvekaki, I. Developing a molecular roadmap of drug-food interactions. PLoS Comput. Biol. 2015, 11, e1004048. [Google Scholar] [CrossRef]
  22. Lacroix, S.; Klicic Badoux, J.; Scott-Boyer, M.-P.; Parolo, S.; Matone, A.; Priami, C.; Morine, M.J.; Kaput, J.; Moco, J. A computationally driven analysis of the polyphenol-protein interactome. Sci. Rep. 2018, 8, 2232. [Google Scholar] [CrossRef] [Green Version]
  23. Naveja, J.J.; Rico-Hidalgo, M.P.; Medina-Franco, J.L. Analysis of a large food chemical database: Chemical space, diversity, and complexity. F1000Research 2018, 7, 993. [Google Scholar] [CrossRef]
  24. Kim, S.; Thiessen, P.A.; Bolton, E.E.; Chen, J.; Fu, G.; Gindulyte, A.; Han, L.; He, J.; He, S.; Shoemaker, B.A.; et al. PubChem substance and compound databases. Nucleic Acids Res. 2016, 44, D1202–D1213. [Google Scholar] [CrossRef] [PubMed]
  25. Williams, A.J.; Tkachenko, V. The Royal Society of Chemistry and the delivery of chemistry data repositories for the community. J. Comput. Aided Mol. Des. 2014, 28, 1023–1030. [Google Scholar] [CrossRef] [PubMed]
  26. Terlikowska, K.M.; Witkowska, A.M.; Zujko, M.E.; Dobrzycka, B.; Terlikowski, S.J. Potential application of curcumin and its analogues in the treatment strategy of patients with primary epithelial ovarian cancer. Int. J. Mol. Sci. 2014, 15, 21703–21722. [Google Scholar] [CrossRef] [PubMed]
  27. Ni, Y.; Jensen, K.; Kouskoumvekaki, I.; Panagiotou, G. NutriChem 2.0: Exploring the effect of plant based foods on human health and drug efficacy. Database 2017, 2017, bax044. [Google Scholar] [CrossRef] [PubMed]
  28. Wishart, D.S.; Feunang, Y.D.; Guo, A.C.; Lo, E.J.; Marcu, A.; Grant, J.R.; Sajed, T.; Johnson, D.; Li, C.; Sayeeda, Z.; et al. DrugBank 5.0: A major update to the DrugBank database for 2018. Nucleic Acids Res. 2018, 46, D1074–D1082. [Google Scholar] [CrossRef] [PubMed]
  29. Minkiewicz, P.; Dziuba, J.; Iwaniak, A.; Dziuba, M.; Darewicz, M. BIOPEP database and other programs for processing bioactive peptide sequences. J. AOAC Int. 2008, 91, 965–980. [Google Scholar] [PubMed]
  30. Lorenzo, J.M.; Munekata, P.E.S.; Gómez, B.; Barba, F.J.; Mora, L.; Pérez-Santaescolástica, C.; Toldrá, F. Bioactive peptides as natural antioxidants in food products–A review. Trends Food Sci. Technol. 2018, 79, 136–147. [Google Scholar] [CrossRef]
  31. Iwaniak, A.; Minkiewicz, P.; Darewicz, M.; Sieniawski, K.; Starowicz, P. BIOPEP database of sensory peptides and amino acids. Food Res. Int. 2016, 85, 155–161. [Google Scholar] [CrossRef]
  32. Chalamaiah, M.; Yu, W.; Wu, J. Immunomodulatory and anticancer protein hydrolysates (peptides) from food proteins: A review. Food Chem. 2018, 245, 205–222. [Google Scholar] [CrossRef]
  33. Tyagi, A.; Tuknait, A.; Anand, P.; Gupta, S.; Sharma, M.; Mathur, D.; Joshi, A.; Singh, S.; Gautam, A.; Raghava, G.P.S. CancerPPD: A database of anticancer peptides and proteins. Nucleic Acids Res. 2015, 43, D837–D843. [Google Scholar] [CrossRef]
  34. Niedzwiecki, A.; Roomi, M.W.; Kalinovsky, T.; Rath, M. Anticancer efficacy of polyphenols and their combinations. Nutrients 2016, 8, 552. [Google Scholar] [CrossRef] [PubMed]
  35. Rothwell, J.A.; Pérez-Jiménez, J.; Neveu, V.; Medina-Ramon, A.; M’Hiri, N.; García-Lobato, P.; Manach, C.; Knox, C.; Eisner, R.; Wishart, D.S.; et al. Phenol-Explorer 3.0: A major update of the Phenol-Explorer database to incorporate data on the effects of food processing on polyphenol content. Database 2013, 2013, bat070. [Google Scholar] [CrossRef] [PubMed]
  36. Yabuzaki, J. Carotenoids Database: Structures, chemical fingerprints and distribution among organisms. Database 2017, 2017, bax004. [Google Scholar] [CrossRef] [PubMed]
  37. Ursu, O.; Holmes, J.; Knockel, J.; Bologa, C.G.; Yang, J.J.; Mathias, S.L.; Nelson, S.J.; Oprea, T.I. DrugCentral: Online drug compendium. Nucleic Acids Res. 2017, 45, D932–D939. [Google Scholar] [CrossRef] [PubMed]
  38. Kanehisa, M.; Furumichi, M.; Tanabe, M.; Sato, Y.; Morishima, K. KEGG: New perspectives on genomes, pathways, diseases and drugs. Nucleic Acids Res. 2017, 45, D353–D361. [Google Scholar] [CrossRef] [PubMed]
  39. Siramshetty, V.B.; Eckert, O.A.; Gohlke, B.-O.; Goede, A.; Chen, Q.; Devarakonda, P.; Preissner, S.; Preissner, R. SuperDRUG2: A one stop resource for approved/marketed drugs. Nucleic Acids Res. 2018, 46, D1137–D1143. [Google Scholar] [CrossRef] [PubMed]
  40. Gohlke, B.-O.; Nickel, J.; Otto, R.; Dunkel, M.; Preissner, R. CancerResource-updated database of cancer-relevant proteins, mutations and interacting drugs. Nucleic Acids Res. 2016, 44, D932–D937. [Google Scholar] [CrossRef]
  41. Tym, J.E.; Mitsopoulos, C.; Coker, E.A.; Razaz, P.; Schierz, A.C.; Antolin, A.A.; Al-Lazikanican, B. SAR: An updated cancer research and drug discovery knowledgebase. Nucleic Acids Res. 2016, 44, D938–D943. [Google Scholar] [CrossRef]
  42. Mangal, M.; Sagar, P.; Singh, H.; Raghava, G.P.S.; Agarwal, S.M. NPACT: Naturally Occurring Plant-based Anti-cancer Compound-Activity-Target database. Nucleic Acids Res. 2013, 41, D1124–D1129. [Google Scholar] [CrossRef]
  43. Choi, H.; Cho, S.Y.; Pak, H.J.; Kim, Y.; Choi, J.-Y.; Lee, Y.J.; Gong, B.H.; Kang, Y.S.; Han, T.; Choi, G.; et al. NPCARE: Database of natural products and fractional extracts for cancer regulation. J. Cheminform. 2017, 9, 2. [Google Scholar] [CrossRef]
  44. Smirnov, P.; Kofia, V.; Maru, A.; Freeman, M.; Ho, C.; El-Hachem, N.; Adam, G.-A.; Ba-alawi, W.; Safikhani, Z.; Haibe-Kains, B. PharmacoDB: An integrative database for mining in vitro anticancer drug screening studies. Nucleic Acids Res. 2018, 46, D994–D1002. [Google Scholar] [CrossRef] [PubMed]
  45. Gaulton, A.; Hersey, A.; Nowotka, M.; Bento, A.P.; Chambers, J.; Mendez, D.; Mutowo, P.; Atkinson, F.; Bellis, L.J.; Cibrián-Uhalte, E.; et al. The ChEMBL database in 2017. Nucleic Acids Res. 2017, 45, D945–D954. [Google Scholar] [CrossRef] [PubMed]
  46. Placzek, S.; Schomburg, I.; Chang, A.; Jeske, L.; Ulbrich, M.; Tillack, J.; Schomburg, D. BRENDA in 2017: New perspectives and new tools in BRENDA. Nucleic Acids Res. 2017, 45, D380–D388. [Google Scholar] [CrossRef] [PubMed]
  47. Koscielny, G.; An, P.; Carvalho-Silva, D.; Cham, J.A.; Fumis, L.; Gasparyan, R.; Hasan, S.; Karamanis, N.; Maguire, M.; Papa, E. Open Targets: A platform for therapeutic target identification and validation. Nucleic Acids Res. 2017, 45, D985–D994. [Google Scholar] [CrossRef] [PubMed]
  48. The UniProt Consortium, UniProt: The universal protein knowledgebase. Nucleic Acids Res. 2017, 45, D158–D169. [CrossRef] [PubMed]
  49. Minkiewicz, P.; Iwaniak, A.; Darewicz, M. Using internet databases for food science organic chemistry students to discover chemical compound information. J. Chem. Educ. 2015, 92, 874–876. [Google Scholar] [CrossRef]
  50. Muresan, S.; Sitzmann, M.; Southan, C. Mapping between databases of compounds and protein targets. Methods Mol. Biol. 2012, 910, 145–164. [Google Scholar] [CrossRef] [PubMed]
  51. Wohlgemuth, G.; Haldiya, P.K.; Willighagen, E.; Kind, T.; Fiehn, O. The Chemical Translation Service—A web-based tool to improve standardization of metabolomic reports. Bioinformatics 2010, 26, 2647–2648. [Google Scholar] [CrossRef]
  52. Weininger, D. SMILES, a chemical language and information system. 1. Introduction to methodology and encoding rules. J. Chem. Inf. Comput. Sci. 1988, 28, 31–36. [Google Scholar] [CrossRef]
  53. Heller, S.R.; McNaught, A.; Pletnev, I.; Stein, S.; Tchekhovskoi, D. InChI, the IUPAC International Chemical Identifier. J. Cheminform. 2015, 7, 23. [Google Scholar] [CrossRef]
  54. Minkiewicz, P.; Iwaniak, A.; Darewicz, M. Annotation of peptide structures using SMILES and other chemical codes–practical solutions. Molecules 2017, 22, 2075. [Google Scholar] [CrossRef] [PubMed]
  55. Rogers, D.J.; Tanimoto, T.T. A computer program for classifying plants. Science 1960, 132, 1115–1118. [Google Scholar] [CrossRef] [PubMed]
  56. Hu, Y.; Stumpfe, D.; Bajorath, J. Advancing the activity cliff concept. F1000Research 2013, 2, 199. [Google Scholar] [CrossRef] [PubMed]
  57. Stumpfe, D.; de la Vega de León, A.; Dimova, D.; Bajorath, J. Follow up: Advancing the activity cliff concept, part II. F1000Research 2014, 3, 75. [Google Scholar] [CrossRef] [PubMed]
  58. Altschul, S.F.; Madden, T.L.; Schäffer, A.A.; Zhang, J.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucleic Acids Res. 1997, 25, 3389–3402. [Google Scholar] [CrossRef] [PubMed]
  59. Zheng, T.; Ni, Y.; Li, J.; Chow, B.K.C.; Panagiotou, G. Designing dietary recommendations using system level interactomics analysis and network-based inference. Front. Physiol. 2017, 8, 753. [Google Scholar] [CrossRef] [PubMed]
  60. Witkowska, A.M.; Zujko, M.E.; Waśkiewicz, A.; Terlikowska, K.M.; Piotrowski, W. Comparison of various databases for estimation of dietary polyphenol intake in the population of Polish adults. Nutrients 2015, 7, 9299–9308. [Google Scholar] [CrossRef] [PubMed]
  61. Nascimento-Souza, M.A.; Gontijo de Paiva, P.; Pérez-Jiménez, J.; Castro Franceschini, S.C.; Queiroz Ribeiro, A. Estimated dietary intake and major food sources of polyphenols in elderly of Viçosa, Brazil: A population-based study. Eur. J. Nutr. 2018, 57, 617–627. [Google Scholar] [CrossRef] [PubMed]
  62. Karam, J.; del Mar Babiloni, M.; Tur, J.A. Polyphenol estimated intake and dietary sources among older adults from Mallorca Island. PLoS ONE 2018, 13, e0191573. [Google Scholar] [CrossRef] [PubMed]
  63. Borawska, J.; Darewicz, M.; Vegarud, G.E.; Minkiewicz, P. Antioxidant properties of carp (Cyprinus carpio L.) protein ex vivo and in vitro hydrolysates. Food Chem. 2016, 194, 770–779. [Google Scholar] [CrossRef]
  64. Borawska, J.; Darewicz, M.; Pliszka, M.; Vegarud, G.E. Antioxidant properties of salmon (Salmo salar L.) protein fraction hydrolysates revealed following their ex vivo digestion and in vitro hydrolysis. J. Sci. Food Agric. 2016, 96, 2764–2772. [Google Scholar] [CrossRef] [PubMed]
  65. Fourches, D.; Muratov, E.; Tropsha, A. Trust, but verify: On the importance of chemical structure curation in cheminformatics and QSAR modeling research. J. Chem. Inf. Model. 2010, 50, 1189–1204. [Google Scholar] [CrossRef] [PubMed]
  66. Fourches, D.; Muratov, E.; Tropsha, A. Trust, but verify II: A practical guide to chemogenomics data curation. J. Chem. Inf. Model. 2016, 56, 1243–1252. [Google Scholar] [CrossRef] [PubMed]
  67. Tuvi-Arad, I.; Blonder, R. Technology in the service of pedagogy: Teaching with chemistry databases. Isr. J. Chem. 2019. [Google Scholar] [CrossRef]
  68. Hähnke, V.D.; Kim, S.; Bolton, E.E. PubChem chemical structure standardization. J. Cheminform. 2018, 10, 36. [Google Scholar] [CrossRef]
  69. Bienfait, B.; Ertl, P. JSME: A free molecule editor in JavaScript. J. Cheminform. 2013, 5, 24. [Google Scholar] [CrossRef]
Molecules 24 00789 g001 550

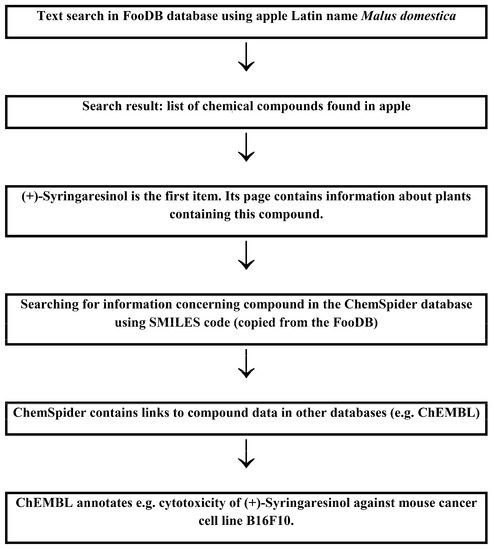

Figure 1. Possible search scheme aimed at finding the anticancer activity of compounds derived from apples (Malus domestica) using (+)-Syringaresinol as an example.
Figure 1. Possible search scheme aimed at finding the anticancer activity of compounds derived from apples (Malus domestica) using (+)-Syringaresinol as an example.
Molecules 24 00789 g001
Molecules 24 00789 g002 550

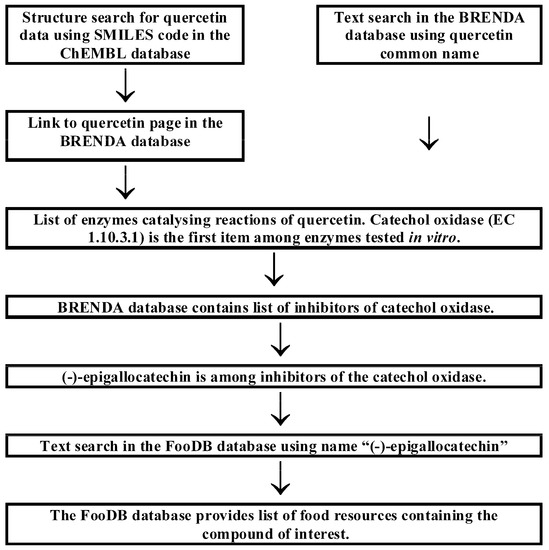

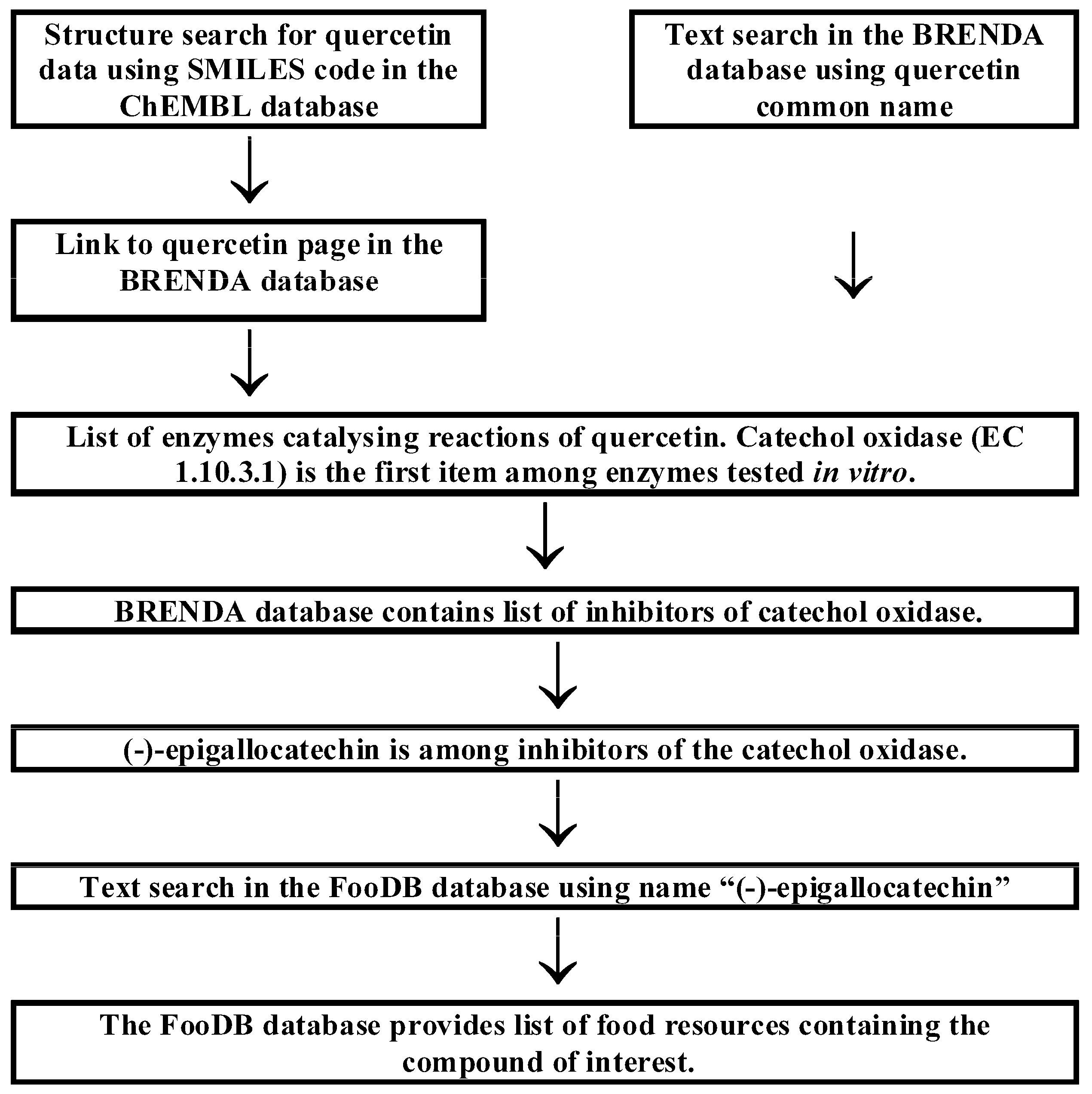

Figure 2. Possible search scheme aimed at finding inhibitors of enzymes catalysing reactions of quercetin.
Figure 2. Possible search scheme aimed at finding inhibitors of enzymes catalysing reactions of quercetin.
Molecules 24 00789 g002
Table
Table 1. Web addresses of databases containing information about anticancer compounds.
Table 1. Web addresses of databases containing information about anticancer compounds.
DatabaseWebsiteReferenceProvider
General databases of drugs (MetaComBio category: “Pharmacologically active compounds”)
ClinicalTrialshttps://clinicaltrials.gov/*National Institutes of Health, Bethesda, MD, USA
DrugBankhttps://www.drugbank.ca/[28]University of Alberta, Edmonton, Canada
DrugCentralhttp://drugcentral.org/[37]University of New Mexico, Albuquerque, NM, USA
KEGG drughttp://www.genome.jp/kegg/drug/[38]Kyoto University, Kyoto, Japan
SuperDrughttp://cheminfo.charite.de/superdrug2/[39]Charité University of Medicine, Berlin, Germany
Specialized databases of anticancer drugs, including natural products (MetaComBio category: “Pharmacologically active compounds”)
CancerResourcehttp://data-analysis.charite.de/care/[40]Charité University of Medicine, Berlin, Germany
canSARhttp://cansar.icr.ac.uk/[41]Institute of Cancer Research, London, UK
NPACThttp://crdd.osdd.net/raghava/npact/[42]Institute of Microbial Technology, Chandigargh, India
NPCAREhttp://silver.sejong.ac.kr/npcare/[43]Sejong University, Seoul, South Korea
PharmacoDBhttps://pharmacodb.pmgenomics.ca/[44]Princess Margaret Cancer Centre, Toronto, Canada
General databases of food components (MetaComBio category: “Food components”)
FooDBhttp://foodb.ca/*University of Alberta, Edmonton, Canada
NutriChemhttp://147.8.185.62/services/NutriChem-2.0/[27]The University of HongKong, Hong Kong
PhytoHubhttp://phytohub.eu/*Institut National de la Recherche Agronomique, Paris, France
USDA Food Composition Databaseshttps://ndb.nal.usda.gov/ndb/search/list*US Department of Agriculture, Washington, DC, USA
Databases of individual classes of compounds (e.g., from food), revealing antioxidative and anticancer activity (MetaComBio categories: “Food components”, “Amino acids and peptides”, “Lipids”, “Phenolic compounds”)
BIOPEP-UWMhttp://www.uwm.edu.pl/biochemia/index.php/pl/biopep[29,31]University of Warmia and Mazury in Olsztyn, Olsztyn, Poland
CancerPPDhttp://crdd.osdd.net/raghava/cancerppd/index.php[33]Institute of Microbial Technology, Chandigargh, India
Carotenoids Databasehttp://carotenoiddb.jp/[36]National Institute of Genetics, Mishima, Japan
Phenol-Explorerhttp://phenol-explorer.eu/[35]Institut National de la Recherche Agronomique, Lyon, France
USDA Flavonoidshttps://data.nal.usda.gov/dataset/usda-databaseflavonoid-content-selected-foods-release-32-november-2015*US Department of Agriculture, Washington, DC, USA
USDA Isoflavoneshttps://data.nal.usda.gov/dataset/usda-database-isoflavones-isoflavone-content-selected-foods-release-21-november-2015*US Department of Agriculture, Washington, DC, USA
USDA Proanthocyanidinshttps://data.nal.usda.gov/dataset/usda-databaseproanthocyanidin-content-selected-foods-release-2-2015*US Department of Agriculture, Washington, DC, USA
General databases of compounds with low molecular weight (MetaComBio category: “Miscellaneous compounds”)
ChEMBLhttps://www.ebi.ac.uk/chembldb/[45]European Bioinformatics Institute, Hinxton, UK
ChemSpiderhttp://www.chemspider.com/Default.aspx[25]Royal Society of Chemistry, London, UK
PubChemhttps://pubchem.ncbi.nlm.nih.gov/[24]National Center for Biotechnology Information, Bethesda, MD, USA
Databases of enzymes (MetaComBio category: “Biochemical reactions”)
BRENDAhttp://www.brenda-enzymes.org/[46]Technical University of Braunschweig, Braunschweig, Germany
OpenTargetshttps://www.targetvalidation.org/[47]International group “OpenTargets Consortium”, Hinxton, UK
Database of proteins
UniProthttp://www.uniprot.org/[48]European Bioinformatics Institute, Hinxton, UK
Metabases (MetaComBio category: “Metabases”)
LabWormhttps://labworm.com/*Independent group, Jerusalem, Israel
MetaComBiohttp://www.uwm.edu.pl/metachemibio/index.php/about-metacombio[49]University of Warmia and Mazury in Olsztyn, Olsztyn, Poland
Programs supporting database search (MetaComBio category: “Programs”)
Chemical Identifier Resolverhttps://cactus.nci.nih.gov/chemical/structure[50]National Cancer Institute; Bethesda, MD, USA
Chemical Translation Servicehttp://cts.fiehnlab.ucdavis.edu/[51]University of California Davis, Davis, CA, USA
ChemRTP (MolInstincts) **http://www.chemrtp.com/*ChemEssen Inc. Seoul, South Korea
* No reference available. ** Commercial resource offering free access to part of its content. All above resources were accessed between October 2018 and February 2019.
Table
Table 2. Search options and links between databases containing information about anticancer compounds.
Table 2. Search options and links between databases containing information about anticancer compounds.
DatabaseSearch OptionsLinks *
General databases of drugs
ClinicalTrialsText search: drug namesLinks from ChEMBL
DrugBankText search: drug names, target names, metabolic pathways, disease names (indications). Search may include filters, e.g., “nutraceuticals”
Structure search: input using SMILES or InChI codes; input via molecular editor, opportunities for exact, similarity or substructure search		Links from ChemSpider, KEGG, SuperDrug, FooDB
Links to many databases, e.g., PubChem, KEGG, ChEMBL, ChemSpider, UniProt **
DrugCentralText search: drug names; target names, disease, pharmacologic actionLinks from SuperDrug
Links to ChEMBL, UniProt **, DrugBank, KEGG Drug, PubChem
KEGG drugText search: drug namesLinks from ChemSpider, DrugCentral; PubChem; SuperDrug
Links to PubChem, BRENDA
SuperDrugText search: drug names
Structure search: structure input via molecular editor, possible import of mol (mdl molfile) format to the editor;
opportunities for exact match or search by similarity		Links to UniProt **, DrugBank, DrugCentral, KEGG Drug, ChEMBL and PubChem
Specialized databases of anticancer drugs
CancerResourceText search: drug name; PubChem CID; target name, target protein no. in UniProt
Structure search: SMILES code or structure drawn using molecular editor, search by similarity		Links to PubChem and UniProt **
canSARText search: drug name, target nameLinks to ChEMBL and UniProt **
NPACTText search: compound name, compound class, PubChem CID; InChIKey
Structure search: SMILES code		Links to PubChem and UniProt **
NPCAREText search: cancer type, gene name of target protein, genus organism being source of compoundLinks to PubChem and UniProt **
PharmacoDBBrowse list of compounds, tissues, cell lines and targets
Text search: drug names		No links
General databases of food components
FooDBText search: names of compounds, food products and organisms;
Structure search: SMILES or InChI, molecular editor, similarity search		Links from ChemSpider;
Links to ChemSpider, PubChem, DrugBank, ChEMBL, Phenol Explorer, KEGG
NutriChemText search: compound and disease name
Structure search: SMILES, InChI or molecular editor		No links
PhytoHubText search: compound name, food name, molecular formula
Structure search: SMILES, InChI or molecular editor		Links to PubChem
USDA Food Composition DatabasesText search: names of compoundsNo links
Databases of individual classes of compounds
BIOPEP-UWMText search: name; reference; activity; sequence search (including exact match); search based on InChIKeyNo links
CancerPPDText search including name, origin or other terms associated with peptide;
Sequence search;
Structure search: SMILES		No links
Carotenoids DatabaseText search: compound name;
Browse list of compounds		Links to KEGG
Phenol-ExplorerText search: names of compounds and organisms;
Browse lists of compounds and organisms		Links from FooDB
Links to PubChem
USDA FlavonoidsBrowse list of compoundsNo links
USDA IsoflavonesBrowse list of compoundsNo links
USDA ProanthocyanidinsBrowse list of compoundsNo links
General databases of compounds with low molecular weight
ChEMBLText search: names of compounds and targets,
Browse list of targets
Structure search: input as a SMILES or via molecular editor, exact match or similarity search
Search based on amino acid sequences–exact match or similarity search		Links from ChemSpider, PubChem, DrugBank, FooDB
Links to PubChem, ChemSpider, BRENDA ***, UniProt **, Open Targets **
ChemSpiderText search: chemical name, common name or InChIKey
Structure search using SMILES, InChI or molecule editor		Links to compound data in many databases (e.g., PubChem, ChEMBL, DrugBank, FooDB)
PubChemText search: chemical name, common name or InChIKey
Structure search using SMILES, InChI or molecule editor
Opportunities of search via exact match, similarity, substructure or superstructure		Links from many databases (e.g., ChemSpider, ChEMBL, KEGG, BRENDA, DrugBank, FooDB)
Links to ChEMBL, ChemSpider
Databases of enzymes
BRENDAText search: ligand name, enzyme name
Structure search: molecule editor, option “substructure search”		Links from ChEMBL;
Links to PubChem, UniProt **
OpenTargetsText search including enzyme name and EC numberLinks from ChEMBL **
Database of proteins
UniProtText search: protein name, organism name
Search based on amino acid sequence by similarity		Links from DrugBank **, DrugCentral **, Super Drug **, Cancer Resource **, canSAR **, NPACT **, NPCARE **, ChEMBL **, BRENDA **
Links to: ChEMBL **,
Metabases
LabWormBrowse lists of databases, classified according to contentLinks to homepages of individual databases
MetaComBioBrowse lists of databases, classified according to contentLinks to homepages of individual databases
* List of links restricted to databases summarized in this article. ** Links to target data. *** Links to compound and target data.

Share and Cite

MDPI and ACS Style

Minkiewicz, P.; Turło, M.; Iwaniak, A.; Darewicz, M. Free Accessible Databases as a Source of Information about Food Components and Other Compounds with Anticancer Activity–Brief Review. Molecules 2019, 24, 789. https://doi.org/10.3390/molecules24040789

AMA Style

Minkiewicz P, Turło M, Iwaniak A, Darewicz M. Free Accessible Databases as a Source of Information about Food Components and Other Compounds with Anticancer Activity–Brief Review. Molecules. 2019; 24(4):789. https://doi.org/10.3390/molecules24040789

Chicago/Turabian Style

Minkiewicz, Piotr, Marta Turło, Anna Iwaniak, and Małgorzata Darewicz. 2019. "Free Accessible Databases as a Source of Information about Food Components and Other Compounds with Anticancer Activity–Brief Review" Molecules 24, no. 4: 789. https://doi.org/10.3390/molecules24040789

Article Metrics

Back to TopTop
