Article

One-Pot Two-Step Synthesis of 2-Aryl benzimidazole N-oxides Using Microwave Heating as a Tool

by
Fabrizio Politano
,
Ana K. Gran-Magano
and
Nicholas E. Leadbeater
*
Department of Chemistry, University of Connecticut, 55 North Eagleville Road, Storrs, CT 06269-3060, USA
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(20), 3639; https://doi.org/10.3390/molecules24203639
Submission received: 19 September 2019 / Revised: 4 October 2019 / Accepted: 8 October 2019 / Published: 9 October 2019
(This article belongs to the Special Issue Microwave-Mediated Chemistry)
Browse Figures
Versions Notes

Abstract

:
A methodology is reported for the preparation of 2-aryl-benzimidazole-3-oxide derivatives. By means of a one-pot two-step protocol, a library of 42 new compounds has been prepared. Reactions were performed in a total time of 40 min using microwave heating as a tool. A streamlined work-up process was also developed, allowing for facile isolation of the products. The methodology offers a more sustainable approach than previous routes, with only water and ethanol being used as solvents, and the products being isolated by means of a simple filtration without the need for any further purification.

Graphical Abstract

1. Introduction

Nitrogen-containing heterocyclic compounds play a vital role in drug development because they can increase binding efficiency and solubility as well as facilitate the formation of salts. These properties improve oral absorption and bioavailability of the drug [1,2]. The benzimidazole scaffold falls into this category. This motif is present in several commercial available pharmaceuticals that are used for the treatment of different diseases and disorders, such as ulcers, high blood pressure, tumors, and allergies, as well as fungal, bacterial, and viral infections (Figure 1) [3,4,5,6]. Some 1-alkoxy-2-alkylbenzimidazoles obtained from 2-nitroanilines have shown anti-human immunodeficiency virus (HIV) activity [7]. Other benzimidazoles have shown antagonist activity of the chemokine receptor responsible for autoimmune diseases such as multiple sclerosis and rheumatoid arthritis [8]. More recently, the lithium salts of benzimidazoles have found use in the development of lithium-ion batteries [9,10,11]. The wide range of applications of benzimidazole derivatives has reignited interest in the development of improved synthetic routes.
Benzimidazole N-oxide derivatives have a unique functionality, due to the N-O moiety that can act effectively as a push-pull electron donor/acceptor group; the N+-O− group being strongly polarizable in both directions [12]. In addition, the N-O moiety can improve the solubility of the compounds in polar solvents [13,14]. These features furnish benzimidazole N-oxides with unique and interesting chemical [15] and biological [16] properties. For example, some imidazole and benzimidazole N-oxides show anti-protozoa activity when tested against Trypanosoma cruzi and Trichomonas vaginalis [17]. Despite the potential applicability of these compounds, there are relatively few synthetic routes to reach them.
The synthesis of benzimidazole N-oxides is usually carried on through base-mediated cyclization reactions of o-nitroanilines [18] instead of direct oxidation of benzimidazoles [19]. One approach involves a two-step process [20,21,22]. In the first step, 2-nitroanilines are prepared through an SNAr reaction between a suitably-functionalized haloarene and an amine. This is followed by a cyclization. Both steps employ solvents such as 1,4-dioxane and dimethylformamide (DMF), which are undesirable from a sustainability viewpoint [23,24,25,26,27,28]. In our research, we have attempted to address this drawback by developing a continuous-flow process using ethanol, 2-propanol, and water as solvents [29]. This procedure works well with substrates bearing short-chain alkyl substituents, but shows some drawbacks when more non-polar substituents, due to precipitation of the 2-nitroaniline intermediates with concommitant clogging of the flow reactor. In order to prepare a broader range of benzimidazole-N-oxides for screening in a biological assay, we have turned our attention to developing an improved protocol for their preparation. Microwave heating has proven an excellent tool in this endeavor.
Since the first reports in 1986 [30,31], microwave heating has found application in a wide range of organic transformations. Indeed, it can be said that if a reaction requires heating, microwave irradiation proves to be a valuable tool. With the advent of microwave units designed with the synthetic chemist in mind, the number of reports has increased rapidly [32]. Reactions can be performed safely in sealed vessels and a range of parameters such as temperature, pressure, and stirring speed can be monitored in real-time. This leads to robust, reproducible methodologies [33,34]. Here, we report the rapid and efficient synthesis of 42 new benzimidazole N-oxide derivatives by a one-pot two-step methodology facilitated by microwave heating.

2. Results and Discussion

2.1. Synthesis

Our starting point for developing our methodology was to build on the previously reported two-step route [29,35]. Our objective was to use ethanol as the solvent for the SNAr reaction between o-nitrochlorobenzene derivatives (1a-c) and a range of different aryl amines (2a-n) (Scheme 1).
Optimal conditions were found to involve heating the reaction mixture for 20 min at 120 °C. This led to the formation of the desired aniline product, 3, in good to excellent yield. Rather than isolate this intermediate, our objective was to convert the 2-nitroanilines directly to the corresponding benzimidazole N-oxides. We achieved this by adding a quantity of 0.5 M aqueous potassium carbonate K2CO3 and subjecting the reaction mixture to a further heating cycle of 20 min at 120 °C. After this time, the crude product mixture was assayed using 1H-NMR spectroscopy. In all cases, conversion to the desired benzimidazole N-oxide, 4, was greater than 90%, the remaining material being identified as unreacted intermediate 3.

2.2. Product Isolation

With a synthetic methodology in hand, our attention turned to isolation of the benzimidazole N-oxides in high purity. This proved to be the most challenging aspect of the study. We initially followed a literature protocol [29]. This consisted of an initial liquid-liquid extraction with ethyl acetate in order to remove any unreacted aniline, 3, since this is preferentially soluble in the organic layer. Acidification of the aqueous phase in order to protonate the benzimidazole derivative, followed by extraction with ethyl acetate, gave the desired 2-aryl-benzimidazole N-oxide derivative, 4, in pure form. We followed this work-up protocol for four representative examples, but in each case, the isolated yield obtained was unacceptably low (Table 1). Therefore, we decided to develop a more effective product isolation workflow.
In the acidification step of the literature work-up protocol, we observed the formation of a precipitate. This was not something that had been reported when using simple substrates. We believed that in our family of compounds the hydrophobic groups (aryl moieties) attached to the 2-position of the benzimidazole ring played a key role in the precipitation process. This made us probe the acid-base characteristics of benzimidazole N-oxides. These compounds are involved in a double acid-base equilibrium (Scheme 2) and the pKa values of some examples have been reported in the literature [21,22]. The averages of these values are approximately 2.2 for pKa1 and 6.3 for pKa2. We posited that although the products formed in our study deviated from the examples that had been studied previously in that they bore different substituents, the pKa values would be analogous. With this in mind, we modified our work-up such that we directly acidified the crude product mixture to a pH of between 2 and 6 in the reaction vessel directly after the second heating step. When the pH was in this range, precipitation was observed, but outside of this pH range, the species formed (5 and 6) are soluble in the reaction medium, meaning that product isolation is challenging. Cooling the product mixture in the vessel using an ice bath led to further precipitation. Filtering the solid and allowing it to dry furnished us with the desired product in pure form. Not only does this approach allow us to obtain the products in far superior isolated yield as compared to the previous purification protocol (Table 1), it also negates the need for extraction and hence the use of organic solvents. With this work-up protocol in hand, we proceeded to isolate 42 benzimidazole N-oxide derivatives bearing aryl substituents in the 2-position of the heterocycle ring. Excellent to good yields were obtained in each case (Table 2). The synthetic methodology was applicable to a range of benzylamine substrates as well as heterocyclic amines, and a range of functional groups on the aromatic ring of the amine were well tolerated. Extending the method to use with phenethylamine was possible, albeit at the expense of isolated yield. We attribute this to the difference in the physical properties of the product. We observed full conversion from 1 to 3 and also a high conversion of 3 to 4. Therefore, a loss of product is occurring in the precipitation process.

2.3. Expanding the Substrate Scope, Applicability, and Scale of the Reaction

In an attempt to broaden the substrate scope of the reaction, we first turned attention to the nitrochlorobenzene component. We attempted the reaction using 2-nitrochlorobenzene (1d) as a substrate, but no benzimidazole N-oxide formation was observed. This follows the trend previously noted for similar substrates [20,22,36]. The lack of highly electron-withdrawing groups near the NH on 3 reduces the acidity of the NH proton. The deprotonation of 3 is proposed as the first step of the cyclization mechanism, and thus, reducing the propensity for this impacts the efficacy of the reaction [22,37]. Moving to the amine component, while we have previously shown that the reaction can be performed using alkylamines [29], product isolation using our new approach proved challenging.
Reactions were performed using a 1:2 stoichiometric ratio of nitrochlorobenzene derivative to benzylamine, the second equivalent of amine serving as a sacrificial scavenger of the HCl formed in the SNAr step. In the case of the benzylamines used in our study, the fact that a second equivalent of amine was employed did not prove to be an issue; the amines are readily commercially available and inexpensive. However, should the amine be challenging to source or prepare, an alternative approach would be to use a cheap tertiary amine as the scavenger. To this end, we performed the reaction of 1a with 2a using a 1:1 stoichiometric ratio of the two components and added one equivalent of triethylamine as an acid scavenger. We obtained an 85% isolated yield of 4aa as compared to 95% when using two equivalents of 2a. This shows the applicability of the modified approach, albeit with a slight diminution in product yield.
We attempted to scale up the reaction by process intensification. Our methodology was developed and the substrate scope probed at the 0.3 mmol scale using a 10-mL capacity microwave vial. On increasing the scale five-fold to 1.5 mmol, an identical product yield of 4aa was obtained in the case of the reaction of 1a with 2a. However, performing the reaction at the 3 mmol scale led to a significant drop in yield. We have shown previously that for the preparation of this class of heterocycle, continuous-flow processing offers a valuable approach for further scale-up [29].

3. Materials and Methods

3.1. General

All reactions were performed using a CEM Discover SP monomode microwave unit, in a closed vessel. Temperature was measured by means of an infrared (IR) temperature sensor located in the floor of the microwave unit. Nuclear magnetic resonance (NMR) spectra (1H, 13C, 19F) were performed at 300 K using either a Brüker Avance Ultra Shield 300 MHz, Brüker DRX-400 400 MHz, or Brüker Avance 500 MHz spectrometer (Billerica, MA, USA). 1H NMR spectra were referenced to residual non-deuterated dimethylsulfoxide (2.50 ppm) in deuterated dimethylsulfoxide (d6-DMSO). 13C NMR spectra were referenced to DMSO (39.52 ppm). 19F NMR spectra were referenced to hexafluorobenzene (−164.9 ppm). Melting points were determined with a Barnstead Electrotherm 1001D Mel-Temp capillary melting point apparatus in open capillaries and are uncorrected. High-resolution mass spectra were performed on a JEOL AccuTOF-DART SVP 100 unit employing a positive direct analysis in real time (DART) ionization method, using polyethylene glycol (PEG) as the internal standard. Reactions were monitored by 1H NMR spectroscopy.

3.2. Chemicals

Deuterated dimethylsulfoxide (d6-DMSO) was purchased from Cambridge Isotope Laboratories. The o-nitro-chlorobenzene derivatives were purchased from Oakwood Chemicals or Alfa Aesar. Ethanol was obtained from Pharmaco. Potassium carbonate was purchased from J. T. Baker. Hexafluorobenzene was purchased from Oakwood Chemicals. All amines employed were purchased from Oakwood Chemicals and used without purification.

3.3. Representative Procedure for the Synthesis of Benzimidazole-N-oxides

7-Nitro-2-phenyl-1H-benzimidazole 3-oxide (4aa): 2-Chloro-1,3-dinitrobenzene (0.3 mmol, 1 eq), benzylamine (0.6 mmol, 2 eq) and ethanol (3 mL) were added to a 10 mL-capacity glass tube equipped with a magnetic stir bar. The reaction mixture was sealed with a septum and placed into a CEM Discover SP microwave unit. The contents of the vessel was heated to 120 °C using an initial microwave power of 100 W and held at this temperature for 20 min, the microwave power automatically fluctuating to hold the reaction mixture at the desired temperature. The reaction mixture was stirred constantly. After the allotted time, the reaction mixture was allowed to cool to below 50 °C before taking the vessel out of the microwave unit. The septum was removed, 0.5 M aqueous potassium carbonate (2 mL) was added, and the septum was then replaced. The mixture was then replaced into the microwave unit and heated at 120 °C for 20 min using an identical protocol to that for the first step of the reaction. After cooling, removing from the microwave unit, and de-capping, water (5 mL) was added directly into the glass reaction vessel. The product mixture was acidified with 2 M hydrochloric acid to a pH of between 2 and 5 at which point a yellow solid precipitated from the solution. The stir bar was removed and the reaction vessel placed into an ice bath for 1 h to promote further product precipitation. After this time, the solid product was removed by filtration and dried at 80 °C. Analytically pure 4aa was obtained as a yellow powder (73 mg, 95%); characterized by melting point determination, 1H- and 13C-NMR spectroscopy, and high-resolution mass spectrometry (see the Supplementary Materials).

4. Conclusions

Using a one-pot-two step protocol, a library of 42 novel 2-aryl benzimidazole-3-oxide derivatives were prepared. The use of microwave heating as a tool greatly facilitated the procedure, a total reaction time of 40 min being all that was needed. Ethanol and water were employed as solvents. This, in conjunction with a work-up protocol that involves a simple precipitation and filtration, thereby obviating the need for aqueous-organic extraction, offers a sustainable route to the synthesis and isolation of this class of compound. The products obtained bear diverse structural characteristics, thereby furnishing them with potentially interesting biological activity; this is an area of ongoing study in our group. In addition, post-synthesis modification of the benzimidazole N-oxide products could further yield compounds of biological and chemical interest.

Supplementary Materials

The following are available online, NMR spectra and high-resolution mass spectra of products.

Author Contributions

Conceptualization, F.P. and N.E.L.; methodology, F.P. and A.K.G.-M.; formal analysis, F.P. and A.K.G.-M.; investigation, F.P. and A.K.G.-M.; resources, N.E.L.; data curation, F.P. and A.K.G.-M.; writing—original draft preparation, F.P. and A.K.G.-M.; writing—review and editing, F.P. and A.K.G.-M.; supervision, F.P. and N.E.L.; project administration, F.P. and N.E.L.; funding acquisition, F.P. and N.E.L.

Funding

This research was funded in part by the University of Connecticut Program in Accelerated Therapeutics for Healthcare. A fellowship to F.P. by the Fulbright Program and Ministerio de Educación de la Nación Argentina is gratefully acknowledged.

Acknowledgments

We thank Adam Graichen for equipment support for high-resolution mass spectrometry.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. DeSimone, R.W.; Currie, K.S.; Mitchell, S.A.; Darrow, J.W.; Pippin, D.A. Privileged structures: Applications in drug discovery. Comb. Chem. High Throughput Screen. 2004, 7, 473–494. [Google Scholar] [CrossRef]
  2. Leeson, P.D.; Springthorpe, B. The influence of drug-like concepts on decision-making in medicinal chemistry. Nat. Rev. Drug Discov. 2007, 6, 881–890. [Google Scholar] [CrossRef] [PubMed]
  3. Preston, P.N. Synthesis, reactions, and spectroscopic properties of benzimidazoles. Chem. Rev. 1974, 74, 279–314. [Google Scholar] [CrossRef]
  4. Bansal, Y.; Silakari, O. The therapeutic journey of benzimidazoles: A review. Bioorganic Med. Chem. 2012, 20, 6208–6236. [Google Scholar] [CrossRef] [PubMed]
  5. Mamedov, V.A. Recent advances in the synthesis of benzimidazol(on)es: Via rearrangements of quinoxalin(on)es. RSC Adv. 2016, 6, 42132–42172. [Google Scholar] [CrossRef]
  6. Narasimhan, B.; Sharma, D.; Kumar, P. Benzimidazole: A medicinally important heterocyclic moiety. Med. Chem. Res. 2012, 21, 269–283. [Google Scholar] [CrossRef]
  7. Gardiner, J.M.; Loyns, C.R. Synthesis of novel 1-, 1,4- and 1,7-substituted 2-mercapto- and 2-methylmercapto- benzimidazoles: Acyclic analogues of the HIV-1 RT inhibitor, TIBO. Tetrahedron 1995, 51, 11515–11530. [Google Scholar] [CrossRef]
  8. Hayes, M.E.; Wallace, G.A.; Grongsaard, P.; Bischoff, A.; George, D.M.; Miao, W.; McPherson, M.J.; Stoffel, R.H.; Green, D.W.; Roth, G.P. Discovery of small molecule benzimidazole antagonists of the chemokine receptor CXCR3. Bioorganic Med. Chem. Lett. 2008, 18, 1573–1576. [Google Scholar] [CrossRef] [PubMed]
  9. Scheers, J.; Johansson, P.; Szczeciński, P.; Wieczorek, W.; Armand, M.; Jacobsson, P. Benzimidazole and imidazole lithium salts for battery electrolytes. J. Power Sources 2010, 195, 6081–6087. [Google Scholar] [CrossRef]
  10. Niedzicki, L.; Oledzki, P.; Bitner, A.; Bukowska, M.; Szczecinski, P. Benzimidazole-derived anion for lithium-conducting electrolytes. J. Power Sources 2016, 306, 573–577. [Google Scholar] [CrossRef]
  11. Wang, F.M.; Pradanawati, S.A.; Yeh, N.H.; Chang, S.C.; Yang, Y.T.; Huang, S.H.; Lin, P.L.; Lee, J.F.; Sheu, H.S.; Lu, M.L.; et al. Robust Benzimidazole-Based Electrolyte Overcomes High-Voltage and High-Temperature Applications in 5 v Class Lithium Ion Batteries. Chem. Mater. 2017, 29, 5537–5549. [Google Scholar] [CrossRef]
  12. Li, D.; Wu, P.; Sun, N.; Lu, Y.-J.; Wong, W.-L.; Fang, Z.; Zhang, K. The Diversity of Heterocyclic N-oxide Molecules: Highlights on their Potential in Organic Synthesis, Catalysis and Drug Applications. Curr. Org. Chem. 2019, 23, 616–627. [Google Scholar] [CrossRef]
  13. Boiani, M.; Boiani, L.; Denicola, A.; Torres De Ortiz, S.; Serna, E.; Vera De Bilbao, N.; Sanabria, L.; Yaluff, G.; Nakayama, H.; Rojas De Arias, A.; et al. 2H-benzimidazole 1,3-dioxide derivatives: A new family of water-soluble anti-trypanosomatid agents. J. Med. Chem. 2006, 49, 3215–3224. [Google Scholar] [CrossRef]
  14. Chugunova, E.A.; Samsonov, V.A.; Gazizov, A.S.; Burilov, A.R.; Pudovik, M.A.; Sinyashin, O.G. 2H-Benzimidazole N-oxides: Synthesis, chemical properties, and biological activity. Russ. Chem. Bull. 2018, 67, 1955–1970. [Google Scholar] [CrossRef]
  15. Albini, A. Synthetic Utility of Amine N-Oxides. Synthesis (Stuttg). 1993, 1993, 263–277. [Google Scholar] [CrossRef]
  16. Boiani, M.; Gonzalez, M. Imidazole and Benzimidazole Derivatives as Chemotherapeutic Agents. Mini-Reviews Med. Chem. 2005, 5, 409–424. [Google Scholar] [CrossRef]
  17. Aguirre, G.; Boiani, M.; Cerecetto, H.; Gerpe, A.; González, M.; Sainz, Y.F.; Denicola, A.; de Ocáriz, C.O.; Nogal, J.J.; Montero, D.; et al. Novel Antiprotozoal Products: Imidazole and BenzimidazoleN-Oxide Derivatives and Related Compounds. Arch. Pharm. (Weinheim) 2004, 337, 259–270. [Google Scholar] [CrossRef]
  18. Nikitina, P.A.; Perevalov, V.P. Methods of synthesis and physicochemical properties of 1-hydroxyimidazoles, imidazole 3-oxides, and their benzoannulated analogs. Chem. Heterocycl. Compd. 2017, 53, 123–149. [Google Scholar] [CrossRef]
  19. Blaszczak-Światkiewicz, K.; Mirowski, M.; Kaplinska, K.; Kruszynśki, R.; Trzesowska-Kruszyńska, A.; Mikiciuk-Olasik, E. New benzimidazole derivatives with potential cytotoxic activity—Study of their stability by RP-HPLC. Acta Biochim. Pol. 2012, 59, 279–288. [Google Scholar] [CrossRef]
  20. Buján de Vargas, E.I.; Cañas, A.I. From N-n-butyl-2,6-dinitroaniline to a Fused Heterocyclic N-oxide. Tetrahedron Lett. 1996, 37, 767–770. [Google Scholar] [CrossRef]
  21. Buján, E.I.; Salum, M.L. A simple synthesis of benzimidazole N-oxides from 2-nitroaniline derivatives—Scope and limitations. Can. J. Chem. 2004, 82, 1322–1327. [Google Scholar] [CrossRef]
  22. Buján, E.I.; Salum, M.L. FromN-(dinitrophenyl) amino acids to benzimidazole N-oxides. Synthesis, kinetics and mechanism. J. Phys. Org. Chem. 2006, 19, 187–195. [Google Scholar] [CrossRef]
  23. Prat, D.; Pardigon, O.; Flemming, H.W.; Letestu, S.; Ducandas, V.; Isnard, P.; Guntrum, E.; Senac, T.; Ruisseau, S.; Cruciani, P.; et al. Sanofi’s Solvent Selection Guide: A Step Toward More Sustainable Processes. Org. Process Res. Dev. 2013, 17, 1517–1525. [Google Scholar] [CrossRef]
  24. Prat, D.; Hayler, J.; Wells, A. A Survey of Solvent Selection Guides. Green Chem. 2014, 16, 4546–4551. [Google Scholar] [CrossRef]
  25. Prat, D.; Wells, A.; Hayler, J.; Sneddon, H.; McElroy, C.R.; Abou-Shehada, S.; Dunn, P.J. CHEM21 selection guide of classical- and less classical-solvents. Green Chem. 2016, 18, 288–296. [Google Scholar] [CrossRef]
  26. Alfonsi, K.; Colberg, J.; Dunn, P.J.; Fevig, T.; Jennings, S.; Johnson, T.A.; Kleine, H.P.; Knight, C.; Nagy, M.A.; Perry, D.A.; et al. Green chemistry tools to influence a medicinal chemistry and research chemistry based organisation. Green Chem. 2008, 10, 31–36. [Google Scholar] [CrossRef]
  27. Alder, C.M.; Hayler, J.D.; Henderson, R.K.; Redman, A.M.; Shukla, L.; Shuster, L.E.; Sneddon, H.F. Updating and further expanding GSK’s solvent sustainability guide. Green Chem. 2016, 18, 3879–3890. [Google Scholar] [CrossRef]
  28. Diorazio, L.J.; Hose, D.R.J.; Adlington, N.K. Toward a More Holistic Framework for Solvent Selection. Org. Process Res. Dev. 2016, 20, 760–773. [Google Scholar] [CrossRef] [Green Version]
  29. Politano, F.; Buján, E.I.; Leadbeater, N.E. Preparation of benzimidazole N-oxides by a two-step continuous flow process. Chem. Heterocycl. Compd. 2016, 52, 952–957. [Google Scholar] [CrossRef]
  30. Gedye, R.; Smith, F.; Westaway, K.; Ali, H.; Baldisera, L.; Laberge, L.; Rousell, J. The use of microwave ovens for rapid organic synthesis. Tetrahedron Lett. 1986, 27, 279–282. [Google Scholar] [CrossRef]
  31. Giguere, R.J.; Bray, T.L.; Duncan, S.M.; Majetich, G. Application of commercial microwave ovens to organic synthesis. Tetrahedron Lett. 1986, 27, 4945–4948. [Google Scholar] [CrossRef]
  32. Loupy, A.; de la Hoz, A. (Eds.) Microwaves in Organic Synthesis, 3rd ed.; Wiley: Weinheim, Germany, 2012. [Google Scholar]
  33. Leadbeater, N. Microwave Heating as a Tool for Sustainable Chemistry; CRC Press: Boca Raton, FL, USA, 2011; ISBN 9781439812709. [Google Scholar]
  34. Kappe, C.O.; Dallinger, D.; Murphree, S.S. Practical Microwave Synthesis for Organic Chemists; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2008; ISBN 9783527623907. [Google Scholar]
  35. Politano, F. Síntesis de N-óxidos de Bencimidazol Asistida por Microondas y en Flujo Continuo. Ph.D. Thesis, Universidad Nacional de Córdoba, Córdoba, Argentina, 2018. [Google Scholar]
  36. Szczeciński, P.; Bartusik, D. Cyclisation of N-alkyl-2,4-dinitro-6-trifluoromethylanilines. J. Chem. Res. 2002, 2002, 84–85. [Google Scholar] [CrossRef]
  37. Buján, E.I.; Cañas, A.I.; de Rossi, R.H. Amines as leaving groups in nucleophilic aromatic substitution reactions. Part 5.1 Substitution vs. N-oxide formation in the reaction of N-n-butyl-2,6-dinitroaniline with hydroxide ions. J. Chem. Soc. Perkin Trans. 2 2001, 1973–1977. [Google Scholar]
Sample Availability: Samples of the compounds reported here are not available from the authors.
Molecules 24 03639 g001 550

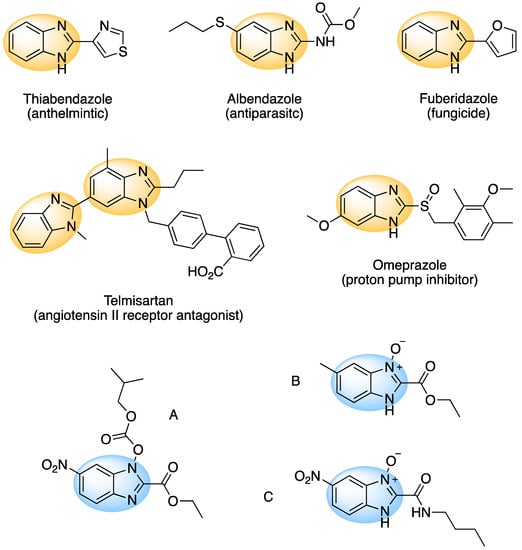

Figure 1. A range of pharmaceuticals containing the benzimidazole motif (highlighted in yellow). A, B, and C are compounds bearing the benzimidazole N-oxide motif (highlighted in blue) that show anti-protozoa activity.
Figure 1. A range of pharmaceuticals containing the benzimidazole motif (highlighted in yellow). A, B, and C are compounds bearing the benzimidazole N-oxide motif (highlighted in blue) that show anti-protozoa activity.
Molecules 24 03639 g001
Molecules 24 03639 sch001 550

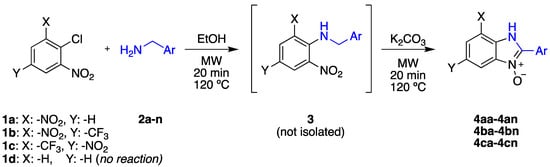

Scheme 1. Synthesis of 2-aryl-benzimidazole N-oxide derivatives.
Scheme 1. Synthesis of 2-aryl-benzimidazole N-oxide derivatives.
Molecules 24 03639 sch001
Molecules 24 03639 sch002 550

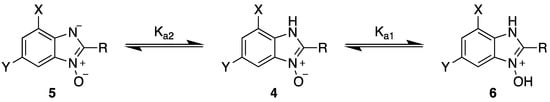

Scheme 2. Acid-base equilibria present in benzimidazole N-oxide derivatives.
Scheme 2. Acid-base equilibria present in benzimidazole N-oxide derivatives.
Molecules 24 03639 sch002
Table
Table 1. Comparative isolated yields obtained for four representative products using the previous and improved work-up protocols.
Table 1. Comparative isolated yields obtained for four representative products using the previous and improved work-up protocols.
ProductIsolated Yield (%)
Previously Reported Work-UpNew Work-Up
Molecules 24 03639 i0013186
4ai
Molecules 24 03639 i0021484
4ac
Molecules 24 03639 i0033185
4ah
Molecules 24 03639 i0042079
4al
Table
Table 2. The library of 2-aryl-benzimidazole 3-oxides prepared in this study a.
Table 2. The library of 2-aryl-benzimidazole 3-oxides prepared in this study a.
Amine Molecules 24 03639 i005 Molecules 24 03639 i006 Molecules 24 03639 i007
Molecules 24 03639 i008 Molecules 24 03639 i009 Molecules 24 03639 i010 Molecules 24 03639 i011
2a4aa (95%; 95% *)4ba (88%)4ca (88%)
Molecules 24 03639 i012 Molecules 24 03639 i013 Molecules 24 03639 i014 Molecules 24 03639 i015
2b4ab (88%)4bb (98%)4cb (90%)
Molecules 24 03639 i016 Molecules 24 03639 i017 Molecules 24 03639 i018 Molecules 24 03639 i019
2c4ac (76%)4bc (93%)4cc (83%)
Molecules 24 03639 i020 Molecules 24 03639 i021 Molecules 24 03639 i022 Molecules 24 03639 i023
2d4ad (99%)4bd (86%)4cd (76%)
Molecules 24 03639 i024 Molecules 24 03639 i025 Molecules 24 03639 i026 Molecules 24 03639 i027
2e4ae (99%)4be (90%)4ce (78%)
Molecules 24 03639 i028 Molecules 24 03639 i029 Molecules 24 03639 i030 Molecules 24 03639 i031
2f4af (98%)4bf (91%)4cf (84%)
Molecules 24 03639 i032 Molecules 24 03639 i033 Molecules 24 03639 i034 Molecules 24 03639 i035
2g4ag (51%)4bg (99%)4cg (92%)
Molecules 24 03639 i036 Molecules 24 03639 i037 Molecules 24 03639 i038 Molecules 24 03639 i039
2h4ah (77%)4bh (96%)4ch (67%)
Molecules 24 03639 i040 Molecules 24 03639 i041 Molecules 24 03639 i042 Molecules 24 03639 i043
2i4ai (86%)4bi (89%)4ci (99%)
Molecules 24 03639 i044 Molecules 24 03639 i045 Molecules 24 03639 i046 Molecules 24 03639 i047
2j4aj (88%)4bj (85%)4cj (80%)
Molecules 24 03639 i048 Molecules 24 03639 i049 Molecules 24 03639 i050 Molecules 24 03639 i051
2k4ak (74%)4bk (96%)4ck (94%)
Molecules 24 03639 i052 Molecules 24 03639 i053 Molecules 24 03639 i054 Molecules 24 03639 i055
2l4al (79%)4bl (98%)4cl (84%)
Molecules 24 03639 i056 Molecules 24 03639 i057 Molecules 24 03639 i058 Molecules 24 03639 i059
2m4am (61%)4bm (87%)4cm (84%)
Molecules 24 03639 i060 Molecules 24 03639 i061 Molecules 24 03639 i062 Molecules 24 03639 i063
2n4an (42%)4bn (52%)4cn (73%)
a Isolated yields in parentheses. * Isolated yield of reaction performed on 1.5 mmol scale.
