Globular and Fibrous Proteins Modified with Deep Eutectic Solvents: Materials for Drug Delivery

Department of Chemistry, University of Leicester, University Road, Leicester LE1 7RH, UK
VTT Technical Research Centre of Finland Ltd., Tietotie 4 E, FI-02150 VTT, Finland
School of Chemical Engineering and Analytical Science, University of Manchester, Oxford Rd, Manchester, M13 9PL, UK
Author to whom correspondence should be addressed.
Molecules 2019, 24(19), 3583;
Received: 23 August 2019 / Revised: 30 September 2019 / Accepted: 1 October 2019 / Published: 4 October 2019
(This article belongs to the Special Issue Ionic Liquids for Chemical and Biochemical Applications II)

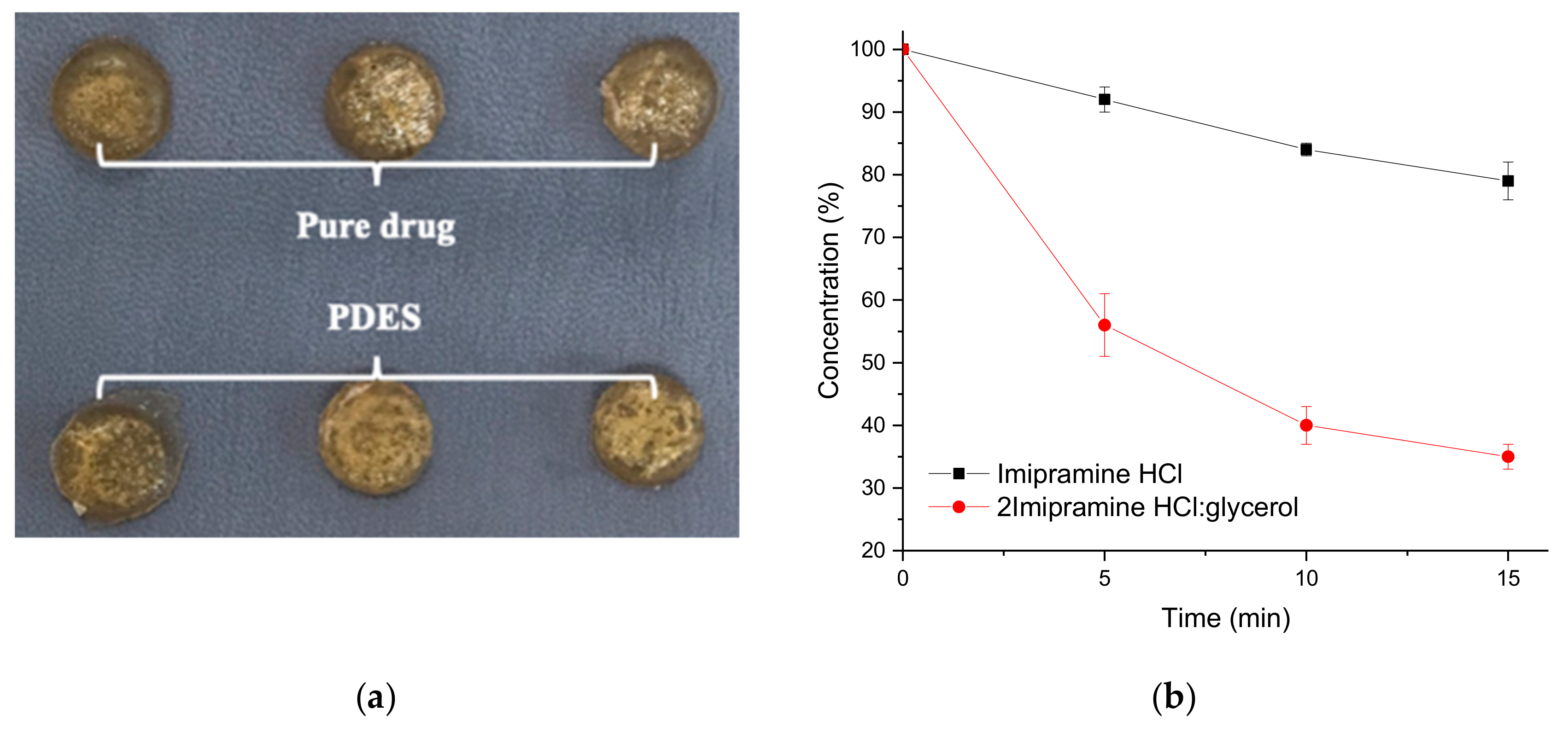

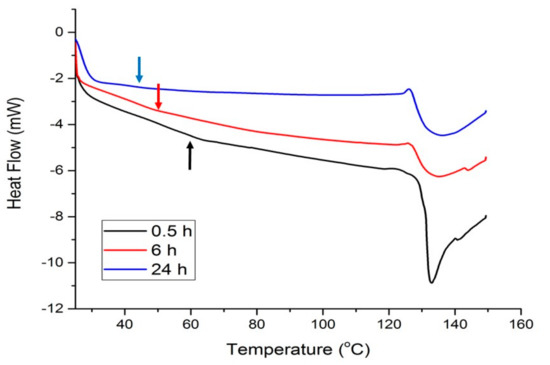

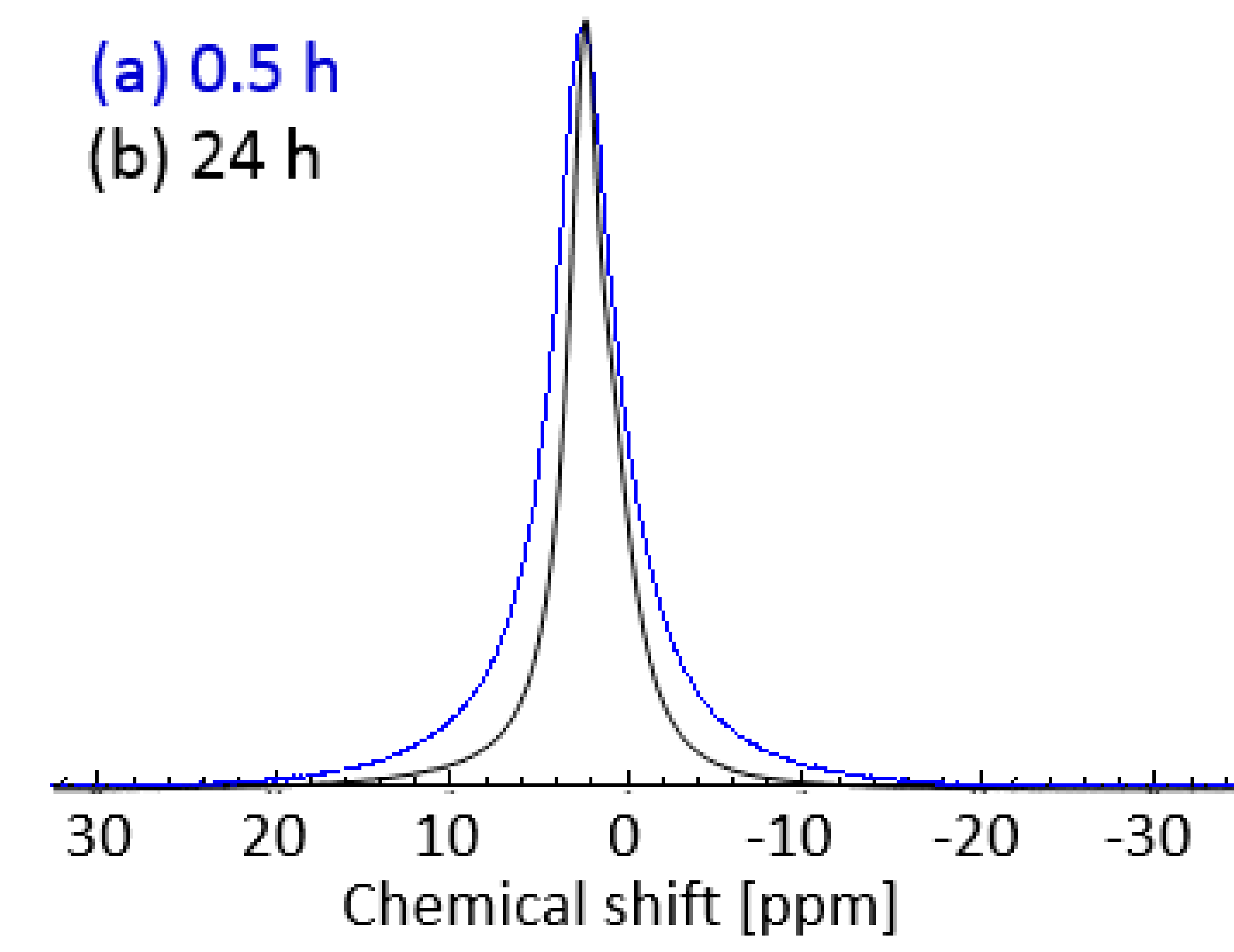

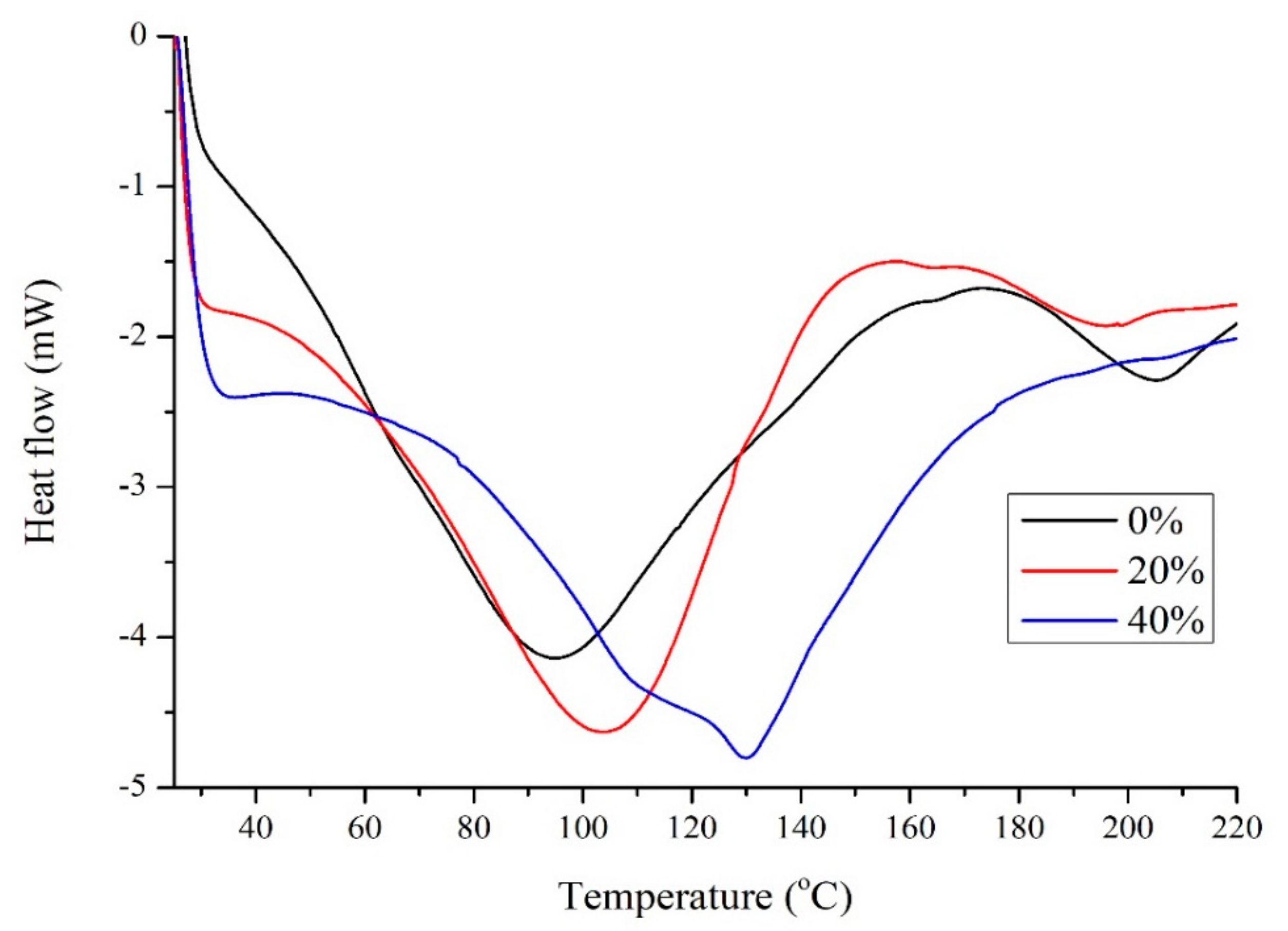

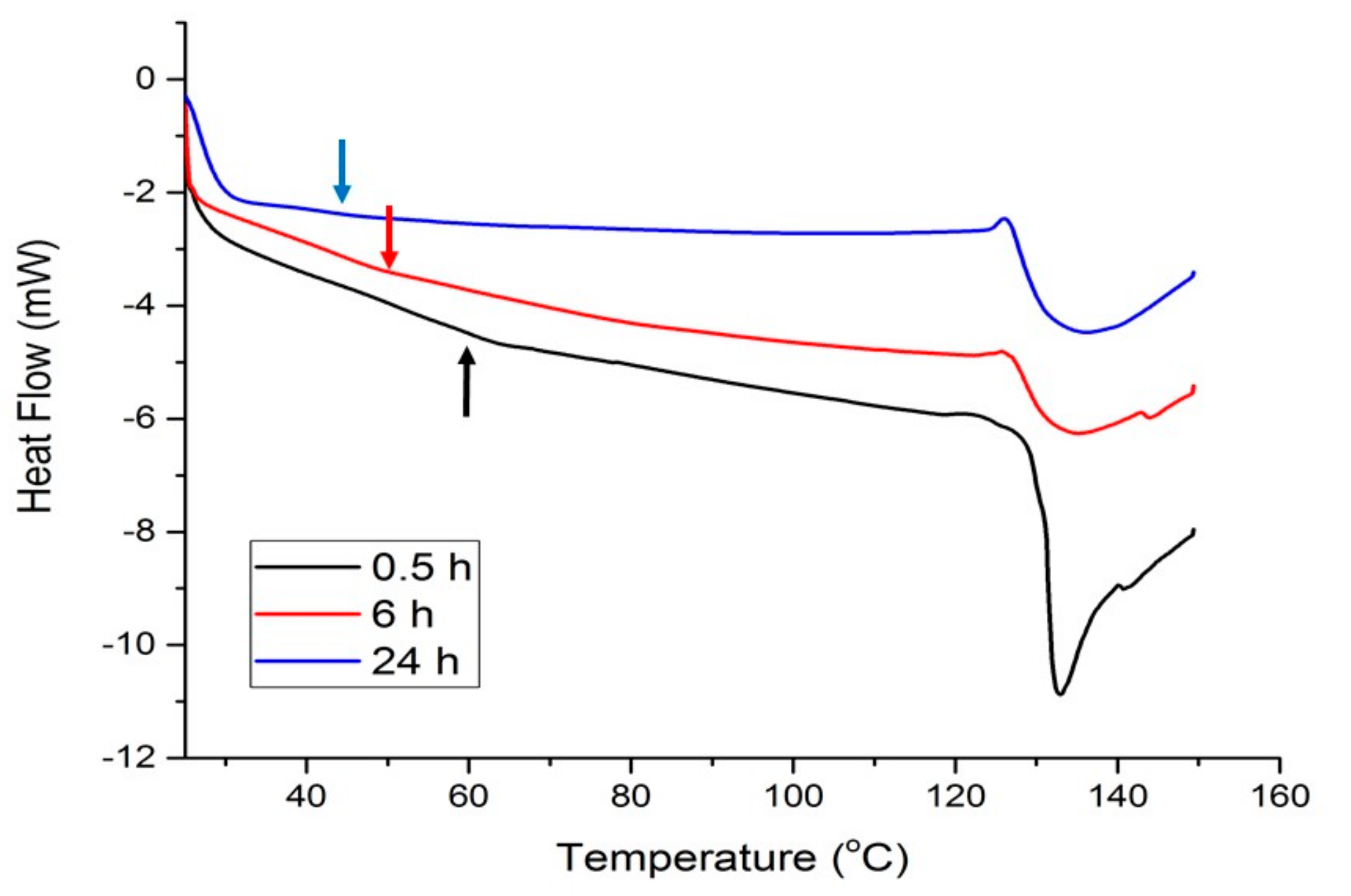

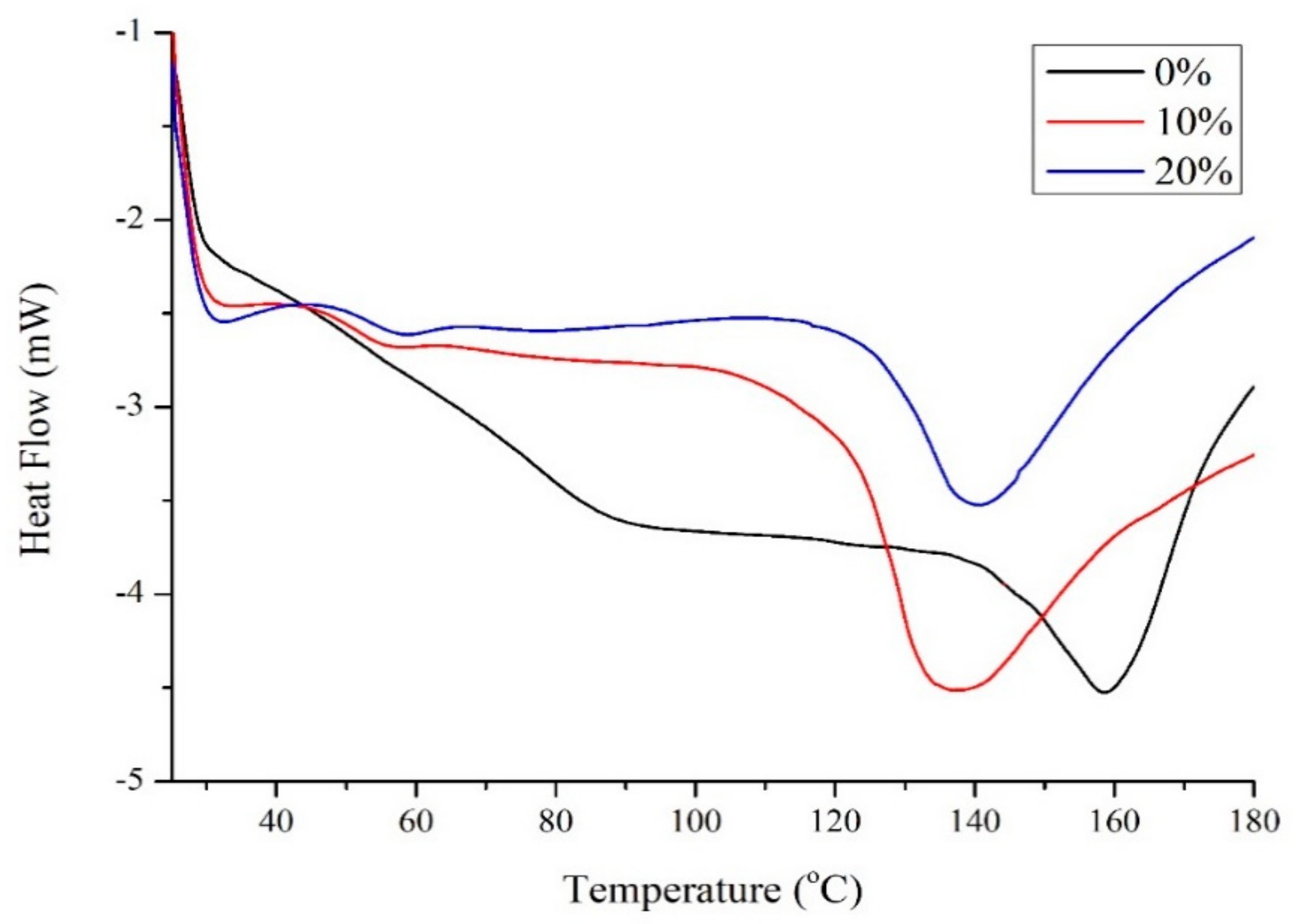

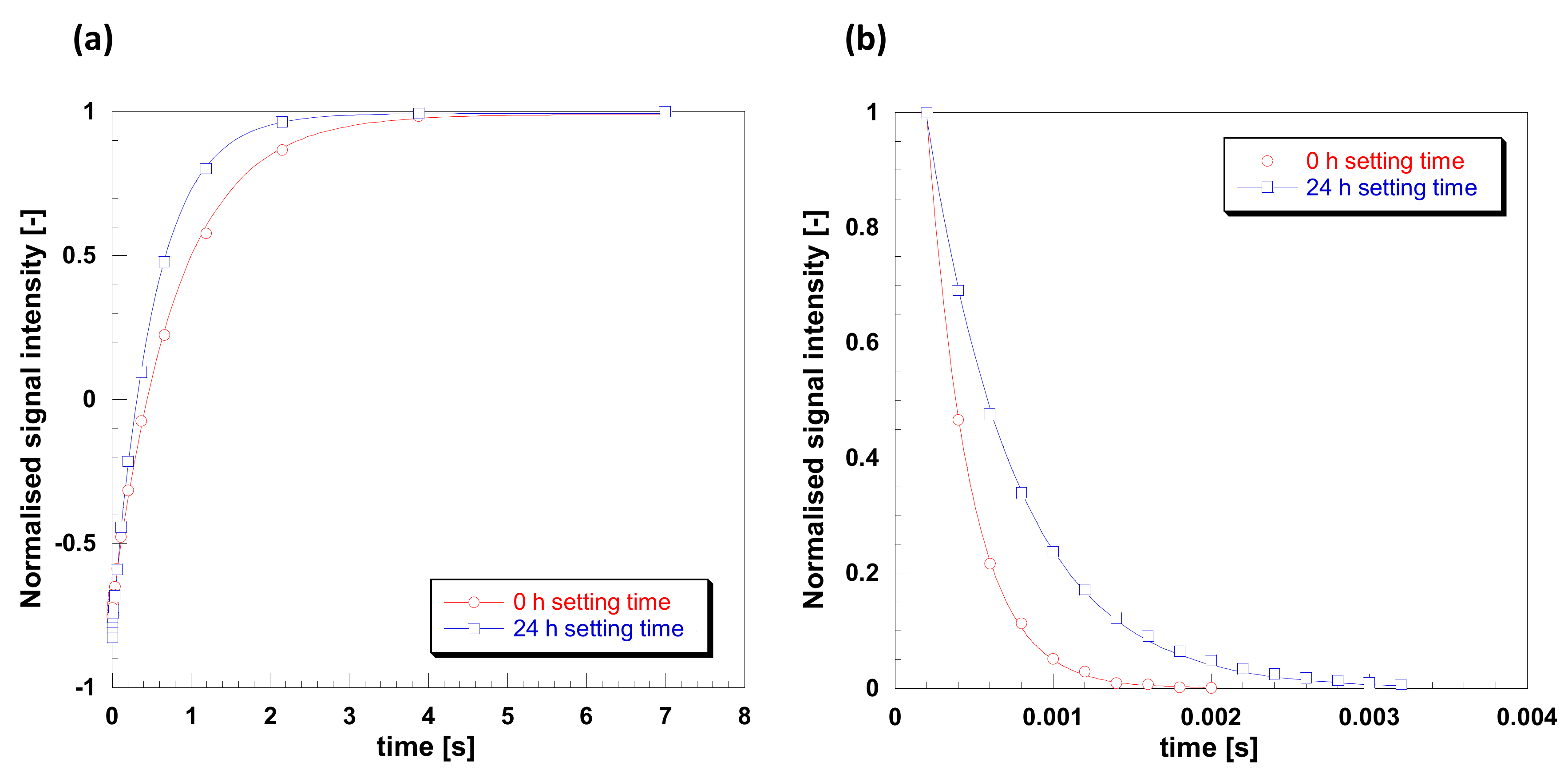

Proteinaceous materials have numerous structures, many of which aid in the roles they perform. Some need to impart strength while others need elasticity or toughness. This study is the first to investigate the modification of both globular and fibrous protein, namely, zein, soy protein and gelatin, using deep eutectic solvents (DES) to form bioplastics, which may have application in drug delivery systems. The effects of DES content on the thermal and mechanical properties of the material were determined. Zein and soy are globular proteins, which both showed a significant change in the properties by the addition of DES. Both of these materials were, however, weaker and less ductile than the starch based materials previously reported in the literature. The material made from gelatin, a fibrous protein, showed variable properties depending on how long they were in contact with each other before pressing. Conductivity and NMR measurements indicate the existence of a continuous liquid phase, which are useful in the demonstrated application of transdermal drug delivery systems. It is shown that pharmaceutical DESs can be gelled with gelatin and this method is three times faster at delivering a pharmaceutical active ingredient across the skin barrier than from a corresponding solid formulation. View Full-Text
Keywords: zein; soy; gelatin; deep eutectic solvent; drug delivery; transdermal zein; soy; gelatin; deep eutectic solvent; drug delivery; transdermal
Show Figures

Graphical abstract

MDPI and ACS Style

Qu, W.; Häkkinen, R.; Allen, J.; D’Agostino, C.; Abbott, A.P. Globular and Fibrous Proteins Modified with Deep Eutectic Solvents: Materials for Drug Delivery. Molecules 2019, 24, 3583.
