Identification and Characterization of trans-Isopentenyl Diphosphate Synthases Involved in Herbivory-Induced Volatile Terpene Formation in Populus trichocarpa

by
Nathalie D. Lackus
1,
Nora P. Petersen
1,
Raimund Nagel
2,
Axel Schmidt
1,
Sandra Irmisch
3,
Jonathan Gershenzon
1 and
Tobias G. Köllner
1,*
1
Max Planck Institute for Chemical Ecology, Department of Biochemistry, Hans-Knöll-Strasse 8, 07745 Jena, Germany
2
Iowa State University, Roy J. Carver Department of Biochemistry, Biophysics and Molecular Biology, 4254 Molecular Biology Building, 2437 Pammel Drive, Ames, IA 50011, USA
3
Michael Smith Laboratories, University of British Columbia, Vancouver, BC V6T 1Z4, Canada
*
Author to whom correspondence should be addressed.
Molecules 2019, 24(13), 2408; https://doi.org/10.3390/molecules24132408
Submission received: 29 May 2019 / Revised: 17 June 2019 / Accepted: 26 June 2019 / Published: 29 June 2019
(This article belongs to the Special Issue Plant Isoprenoids)
Browse Figures
Versions Notes

Abstract

:
In response to insect herbivory, poplar releases a blend of volatiles that plays important roles in plant defense. Although the volatile bouquet is highly complex and comprises several classes of compounds, it is dominated by mono- and sesquiterpenes. The most common precursors for mono- and sesquiterpenes, geranyl diphosphate (GPP) and (E,E)-farnesyl diphosphate (FPP), respectively, are in general produced by homodimeric or heterodimeric trans-isopentenyl diphosphate synthases (trans-IDSs) that belong to the family of prenyltransferases. To understand the molecular basis of herbivory-induced terpene formation in poplar, we investigated the trans-IDS gene family in the western balsam poplar Populus trichocarpa. Sequence comparisons suggested that this species possesses a single FPP synthase gene (PtFPPS1) and four genes encoding two large subunits (PtGPPS1.LSU and PtGPPS2.LSU) and two small subunits (PtGPPS.SSU1 and PtGPPS.SSU2) of GPP synthases. Transcript accumulation of PtGPPS1.LSU and PtGPPS.SSU1 was significantly upregulated upon leaf herbivory, while the expression of PtFPPS1, PtGPPS2.LSU, and PtGPPS.SSU2 was not influenced by the herbivore treatment. Heterologous expression and biochemical characterization of recombinant PtFPPS1, PtGPPS1.LSU, and PtGPPS2.LSU confirmed their respective IDS activities. Recombinant PtGPPS.SSU1 and PtGPPS.SSU2, however, had no enzymatic activity on their own, but PtGPPS.SSU1 enhanced the GPP synthase activities of PtGPPS1.LSU and PtGPPS2.LSU in vitro. Altogether, our data suggest that PtGPPS1.LSU and PtGPPS2.LSU in combination with PtGPPS.SSU1 may provide the substrate for herbivory-induced monoterpene formation in P. trichocarpa. The sole FPP synthase PtFPPS1 likely produces FPP for both primary and specialized metabolism in this plant species.

1. Introduction

Plant specialized metabolites provide protection against herbivores not only by acting as toxins and feeding deterrents but also by serving as defensive signals. Many plant species, for example, emit complex volatile blends upon herbivory that can attract herbivore enemies [1] or signal impending danger to distant parts of the same plant or neighboring plant [2]. Herbivory-induced plant volatile blends are often complex and possess dozens of substances from diverse classes of natural compounds, including terpenes, green leaf volatiles, aromatic compounds, and nitrogen-containing amino acid derivatives [3]. Although their qualitative and quantitative composition differs between plant species, herbivory-induced volatile blends are often dominated by monoterpenes and sesquiterpenes [1].
One of the most important enzyme groups in plant terpene biosynthesis is the trans-isoprenyl diphosphate synthases (trans-IDSs), which belong to the family of prenyl transferases [4,5,6]. IDS enzymes catalyze condensations of the basic C5 terpene building blocks, isopentenyl diphosphate (IPP) and dimethylallyl diphosphate (DMAPP), to generate C10, C15, C20, and larger prenyl diphosphates [4,7,8]. These monoterpene, sesquiterpene, and diterpene precursors, geranyl diphosphate (GPP), (E,E)-farnesyl diphosphate (FPP), and (E,E,E)-geranylgeranyl diphosphate (GGPP), respectively, are produced by short-chain trans-IDS enzymes that are designated as geranyl diphosphate synthases (GPPSs), farnesyl diphosphate synthases (FPPSs), and geranylgeranyl diphosphate synthases (GGPPSs) according to their major product. Longer prenyl diphosphates such as geranylfarnesyl diphosphate (GFPP) or solanesyl diphosphate are formed by medium-chain and long-chain IDSs [9].
Crystal structures of trans-IDS proteins from bacteria, fungi, animals, and plants have revealed a common tertiary structure consisting of 13 α-helices [10,11,12,13,14]. Ten of these α-helices surround a large central cavity and the size and geometric structure of this pocket are thought to be critical for product specificity, with large amino acids at the bottom blocking further chain elongation of the prenyl diphosphate in the active site [7]. The entrance to the pocket is flanked by two highly conserved DD(xx)2/4D motifs named the first aspartate-rich motif (FARM) and the second aspartate-rich motif (SARM) [10]. The aspartate residues of the FARM and SARM motifs were shown to bind divalent metal ions such as magnesium (Mg2+) or manganese (Mn2+) that in turn bind the diphosphate of the homo-allylic substrate [15].
In plants, trans-IDSs usually occur as dimers or as tetramers [14]. While FPPSs and GGPPSs act solely as homodimers, GPPSs can be active both as homo- and heterodimers. The heterodimers consist of a large subunit (LSU) possessing the two DD(xx)2/4D motifs required for catalysis and a catalytically inactive small subunit (SSU) that modulates the catalytic efficiency and chain length specificity of the protein complex [16,17,18,19]. The amino acid motif CxxxC, which is located upstream of the FARM motif and highly conserved among the small and large subunits of heterodimeric plant GPPSs, has been shown to play a critical role in the physical interactions between the two subunits [17].
In previous studies, we investigated the formation and ecological functions of herbivory-induced volatiles emitted from different poplar species [20,21,22,23,24]. The western balsam poplar (Populus trichocarpa), for example, releases more than 50 volatiles when damaged by gypsy moth larvae (Lymantria dispar) [20]. Some of the emitted compounds have been shown to deter attacking caterpillars, while others are attractive to a generalist parasitoid [22,24]. The most prominent components of the P. trichocarpa volatile blend are the monoterpene (E)-β-ocimene and the sesquiterpene (E,E)-α-farnesene, which together comprise more than 60% of the total herbivory-induced volatile emission [20]. Terpene synthases (TPS) able to convert the terpene precursors GPP and FPP into monoterpenes and sesquiterpenes, respectively, have been identified in P. trichocarpa and gene expression analysis showed that they are significantly upregulated upon herbivory [20,21,25]. Whether poplar trans-IDS enzymes also control the formation of terpene volatiles by providing increased pools of GPP and FPP upon herbivory is unknown.
To understand the contribution of trans-IDSs to the formation of herbivory-induced monoterpenes and sesquiterpenes in poplar, we investigated putative GPPS and FPPS enzymes in the poplar model species P. trichocarpa. Heterologous expression in Escherichia coli and enzyme assays with purified recombinant proteins were performed to functionally characterize the identified candidates. Analysis of IDS gene expression by RNAseq and quantitative real-time PCR showed that the formation of GPP is likely catalyzed by two GPPSs and increases upon herbivory, while FPP is constitutively produced by a single FPPS in P. trichocarpa leaves.

2. Results

2.1. The trans-IDS Gene Family in P. trichocarpa Possesses a Single FPPS Gene and Four Putative GPPS Genes

A BLAST analysis showed that P. trichocarpa possesses 16 genes with high sequence similarity to trans-IDS genes from other plants (Figure 1). According to their position in a phylogenetic tree of plant trans-IDS genes, two of these candidates (Potri.006g003400 and Potri.016g004100) were considered as putative FPPS genes. However, since the protein encoded by Potri.016g004100 lacked about 160 amino acids including the catalytically important FARM motif (Figure S1), the gene was assumed to be a pseudogene. The remaining putative FPPS gene Potri.006g003400 was named PtFPPS1. Two other genes, Potri.007g031100 and Potri.005g127100, showed similarity to a GPPS large subunit from hops and were designated as PtGPPS1.LSU and PtGPPS2.LSU, respectively. Two putative GPPS small subunits Potri.015g043400 and Potri.009g139600 grouped together with the catalytically inactive small subunits of GPPSs from hops and rice and so were named PtGPPS.SSU1 and PtGPPS.SSU2, respectively. The remaining ten IDS candidates were classified as GGPPS genes, medium-chain IDS genes, or long-chain IDS genes based on their sequence similarity to respective IDS genes from other plants (Figure 1). Because they are not involved in volatile terpene formation, they were not considered further in this study.
In general, the monoterpene precursor GPP is produced in plastids and the sesquiterpene precursor FPP is produced in the cytosol [26]. A signal peptide prediction showed that the putative GPPS proteins PtGPPS1.LSU, PtGPPS2.LSU, PtGPPS.SSU1, and PtGPPS.SSU2 indeed contained N-terminal signal peptides that likely target the proteins to plastids (Figure S2). PtFPPS1, however, had no signal peptide and is therefore presumably located in the cytosol. The characteristic FARM and SARM motifs required for catalytic activity could be identified in PtFPPS1, PtGPPS1.LSU, PtGPPS2.LSU, and PtGPPS.SSU2 (Figure S1). Both motifs were absent in the small subunit PtGPPS.SSU1. The CxxxC motif was present in all small and large GPPS subunits but not in PtFPPS1. Notably, PtGPPS.SSU2 contained a second CxxxC motif located upstream of the SARM motif (Figure S1).

2.2. PtGPPS1.LSU and PtGPPS.SSU1 are Induced Upon Herbivory

The analysis of RNAseq data obtained from gypsy moth larvae-damaged and undamaged P. trichocarpa leaves [27] revealed that transcript accumulation of PtGPPS1.LSU and PtGPPS.SSU1 was significantly increased in herbivore-damaged leaves in comparison to undamaged control leaves (Figure 2). The expression of PtFPPS1, PtGPPS2.LSU, and PtGPPS.SSU2, however, was not influenced by the herbivory treatment. Three of the putative long-chain IDS genes, Potri.010g138800, Potri.006g135300, and Potri.001g380500, also showed no changes in transcript accumulation upon herbivory, while the remaining IDS genes including the putative FPPS pseudogene Potri.016g004100 were not or nearly not expressed in this organ (Figure 2).
A qRT-PCR analysis with PtFPPS1, PtGPPS1.LSU, PtGPPS2.LSU, PtGPPS.SSU1, and PtGPPS.SSU2 confirmed the herbivory-induced upregulation of PtGPPS1.LSU and PtGPPS.SSU1 gene expression (Figure S3).

2.3. PtFPPS1 Produces FPP While PtGPPS1.LSU and PtGPPS2.LSU Have GPPS and GGPPS Activity In Vitro

The full-length open reading frame (ORF) of PtFPPS1 and the N-terminal truncated ORFs of PtGPPS1.LSU (Δ71), PtGPPS2.LSU (Δ72), PtGPPS.SSU1 (Δ41), and PtGPPS.SSU2 (Δ45) lacking the predicted signal peptide sequences were cloned into a bacterial expression vector and heterologously expressed in Escherichia coli. Purified recombinant proteins were incubated with the potential substrates IPP and DMAPP and product formation was analyzed using liquid chromatography–tandem mass spectrometry (LC-MS/MS). The enzyme assays revealed that PtFPPS1 catalyzes the condensation of IPP and DMAPP to FPP and traces of GGPP (Figure 3). PtGPPS1.LSU and PtGPPS2.LSU, however, produced both GPP and GGPP, but no FPP. Under the conditions in our assays, the GPPS activity of PtGPPS1.LSU was higher in comparison to its GGPPS activity, while PtGPPS2.LSU showed the opposite behavior and produced more GGPP than GPP (Figure 4). The two GPPS small subunits PtGPPS.SSU1 and PtGPPS.SSU2 had no activity when assayed with IPP and DMAPP (Figure S4).

2.4. The Small Subunit PtGPPS.SSU1 Enhances the GPPS Activity of PtGPPS1.LSU and PtGPPS2.LSU In Vitro

It has been reported that small subunits of heterodimeric GPPS complexes can influence the activity and product specificity of the large GPPS subunits [14,16]. Thus, we tested the effect of PtGPPS.SSU1 and PtGPPS.SSU2 on the catalytic activity of PtGPPS1.LSU and PtGPPS2.LSU. Assays containing equal amounts of purified recombinant PtGPPS1.LSU and PtGPPS.SSU1 showed higher GPPS activity and lower GGPPS activity in comparison to assays containing only the large subunit PtGPPS1.LSU (Figure 4). The product specificity of PtGPPS2.LSU was also influenced by PtGPPS.SSU1. While PtGPPS2.LSU produced GGPP as main product when assayed alone, the chain-length specificity was significantly shifted towards increased GPPS activity by PtGPPS.SSU1 (Figure 4). PtGPPS.SSU2, however, did not influence the activity or chain-length specificity of PtGPPS1.LSU and PtGPPS2.LSU in our in vitro assays (Figure S5).

3. Discussion

Terpenes represent one of the largest groups of natural compounds and are ubiquitous in almost all kingdoms of life. In plants, terpenes play important roles in defense against insects and pathogens. Poplars, for example, produce volatile terpenes in response to insect herbivory and the released terpenes have been discussed as attractants for herbivore enemies, as antimicrobial compounds, and as inter- and intra-plant defense signals [20,24,25]. To investigate the formation of herbivory-induced terpenes in poplar, we identified and characterized trans-IDS enzymes that provide the precursors for mono- and sesquiterpenes in the model poplar species P. trichocarpa.
P. trichocarpa possesses a mid-sized trans-IDS gene family with 16 members, a number similar to that reported from Arabidopsis, which has been shown to contain 17 trans-IDS genes [28]. Based on sequence comparisons and dendrogram analysis, the individual poplar genes could be assigned to subfamilies of functionally-related trans-IDSs (Figure 1). Two out of the 16 putative trans-IDS genes, PtGPPS1.LSU and PtGPPS2.LSU, grouped together with GPPS, GGPPS, and GFPPS from other plants and were thus considered as potential GPPS genes in this study. Another group of three related poplar genes (Potri.017g124700, Potri.017g124600, and Potri.004g090600) clustered in the same clade of the phylogenetic tree; however, the low bootstrap value for this branching does not support a reliable prediction of enzymatic function. More importantly, Potri.017g124700, Potri.017g124600, and Potri.004g090600 were not expressed in undamaged and herbivore-damaged poplar leaves and so were excluded from the list of candidates potentially involved in herbivore induced mono- and sesquiterpene formation in this organ. The two remaining GPPS candidates PtGPPS1.LSU and PtGPPS2.LSU were similar to the large subunit of a heterodimeric GPPS from hops [17] and produced GPP and GGPP when tested with IPP and DMAPP as substrates (Figure 3). Notably, each protein showed a different product specificity. While PtGPPS1.LSU showed a preference for the formation of GPP, PtGPPS2.LSU formed more GGPP than GPP (Figure 4). Catalytic promiscuity in vitro has been reported for other short-chain IDS enzymes [14,29,30,31,32]. The multifunctional PaIDS1 from Norway spruce, for example, was shown to produce GPP and GGPP when assayed with IPP and DMAPP [31], while PaIDS3 from the same species formed GPP, FPP, and GGPP in vitro [30,31]. However, whether such catalytic promiscuity also occurs in vivo and has biological relevance is still unclear.
While FPPSs and GGPPSs usually function as homodimers, GPPSs can form heterodimers consisting of a large subunit containing all amino acid motifs necessary for catalytic activity and a small subunit that is catalytically inactive [14]. Biochemical characterization of several heterodimeric GPPS complexes in different plants revealed that the small subunits can modulate the activity and chain-length specificity of the enzyme complex [14,16,17,18,33]. The large subunit of hops G(G)PPS, for example, was shown to produce GPP, FPP, and GGPP from IPP and DMAPP in vitro. Coexpression of G(G)PPS with the small subunit GPPS.SSU, however, yielded a heterodimeric complex exhibiting enhanced catalytic formation of GPP [17]. Among the 16 putative trans-IDSs identified in P. trichocarpa, two (PtGPPS.SSU1 and PtGPPS.SSU2) showed significant sequence similarity to small GPPS subunits from other plants (Figure 1). One of them, PtGPPS.SSU1, was found to be induced upon herbivory (Figure 2) and the recombinant protein modified the chain-length specificity of PtGPPS1.LSU towards increased GPPS activity in vitro (Figure 4). Because PtGPPS1.LSU was also highly upregulated upon herbivory, we propose that both proteins form a heterodimeric GPPS complex that provides GPP as a precursor for the herbivory-induced formation of monoterpenes in planta. The GPP-forming activity of PtGPPS2.LSU was also enhanced by PtGPPS.SSU1 in vitro and it is thus conceivable that PtGPPS2.LSU-PtGPPS.SSU1 complexes may also contribute to herbivory-induced GPP formation. In the absence of PtGPPS.SSU1 in undamaged leaves, PtGPPS2.LSU by itself could form GGPP and GPP for other metabolic processes. Transcript accumulation of the second small subunit PtGPPS.SSU2 was not influenced by herbivory (Figure 2). In contrast to PtGPPS.SSU1, recombinant PtGPPS.SSU2 did not influence the chain-length specificity of PtGPPS1.LSU and PtGPPS2.LSU in vitro. Notably, PtGPPS.SSU2 possessed both the FARM and the SARM motifs but showed no IDS activity (Figure S1). It is conceivable that PtGPPS.SSU2 functions as an interaction partner for other constitutively expressed trans-IDS genes and modulates their activities. The elucidation of its exact role in prenyl diphosphate formation would be a worthwhile aim for future studies.
FPPS genes have been identified and characterized in a number of plant species from diverse families. Database surveys and detailed investigations with Arabidopsis thaliana, Zea mays, Artemisia tridentata, and the tree species Eucommia ulmoides suggest that plants usually possess small FPPS gene families with two to five members [34,35,36,37,38]. The different FPPS gene copies of a plant species can be differentially regulated, resulting in distinct spatial and temporal expression patterns [36,39]. The maize fpps1 gene, for example, is strongly expressed in roots and has been suggested to provide the precursor for the formation of constitutive sesquiterpenes and triterpenes in this organ. Maize fpps3, however, is induced upon caterpillar feeding in leaves and likely controls the herbivory-induced production of defense sesquiterpenes [36]. In contrast to maize and other plants, P. trichocarpa possesses only one functional FPPS gene PtFPPS1, which is constitutively expressed in leaves and not induced upon herbivory (Figure 2). Biochemical characterization of purified recombinant PtFPPS1 confirmed its activity as FPPS (Figure 3). Another poplar gene (Potri.016g004100) that grouped together with PtFPPS1 in the FPPS clade of plant trans-IDS genes (Figure 1) was characterized as a pseudogene. Its ORF encodes a protein lacking significant parts of typical FPPS sequences such as the FARM motif essential for catalytic activity (Figure S1). Moreover, RNAseq data as well as our unsuccessful attempts to amplify the ORF from cDNA suggest that Potri.016g004100 is not expressed in poplar leaves (Figure 2). Since no other obvious FPPS genes could be identified in the P. trichocarpa genome, it is likely that PtFPPS1 acts as the sole FPPS and provides a constitutive pool of FPP for both primary and specialized metabolism. In this scenario, the herbivory-induced formation of volatile sesquiterpenes may be controlled by the upregulation of poplar sesquiterpene synthases as already reported in previous studies [20,21] and/or by an increase of metabolic flux through the mevalonate pathway.

4. Material and Methods

4.1. Plants and Insects

Populus trichocarpa trees were propagated from monoclonal stem cuttings (clone 625, NW-FVA, Hann. Münden, Germany) and grown under summer conditions in the greenhouse (24 °C, 60% rel. humidity, 16 h/8 h light cycle) in a 1:1 mixture of sand and soil (Klasmann potting substrate, Klassmann-Deilmann, Geeste, Germany), until they reached about 1 m in height. Gypsy moth (Lymantria dispar) egg batches were kindly provided by Melody Keena (USDA Forest Service, Hamden, CT, USA). After hatching, the caterpillars were reared on an artificial diet (Gypsy moth diet, MP Biomedicals LLC, Illkirch, France) until they reached the third instar.
For the herbivore treatment, trees were enclosed with a PET bag (“Bratschlauch”, Toppits, Minden, Germany) by fixing the ends of the bags to the branches with cable binders. Caterpillars were starved individually for 24 h before they were released on the trees in the bag (50 third instar caterpillars per tree). Caterpillars were allowed to feed for 24 h (17:00–17:00). Leaf material was harvested immediately at the end of the treatment, flash-frozen with liquid nitrogen and stored at −80 °C until further use. Five biological replicates were performed for both the control and herbivory treatments.

4.2. RNA Extraction and Reverse Transcription

Total RNA was extracted from frozen and ground leaf material using the InviTrap Spin Plant RNA Mini Kit (STRATEC, Birkenfeld, Germany) according to manufacturer’s instructions. The RNA was analyzed on an Agilent Bioanalyzer 2100 and RNA 6000 Nano Labchip using the Expert software (Agilent version B.02.02.SI258, Santa Clara, CA, USA) to determine quality, integrity, and rRNA ratios. A NanoDrop 2000c (Thermo Fisher Scientific, Erlangen, Germany) was used for RNA quantification. cDNA was synthesized from DNase I-treated (Thermo Fisher Scientific, Erlangen, Germany) total RNA using SuperScript III First-Strand Synthesis SuperMix (Thermo Fisher Scientific, Erlangen, Germany).

4.3. Identification and Isolation of trans-IDS Genes

To identify putative P. trichocarpa trans-IDS genes, a thorough search of the Phytozome database (http://www.phytozome.net/poplar) was conducted using the amino acid sequences of AtFPPS1 (At5G47770), AtSPS1 (At1G78510), and AtGGPPS2 (At2g18620) from Arabidopsis thaliana and HlGPPS.SSUI (FJ455406) from Humulus lupulus as an input for BLASTP analyses. One of the resulting sequences was tentatively annotated as FPP synthase (PtFPPS1 (Potri.006g003400)) and four sequences were tentatively annotated as large and small subunits of GPP synthases (PtGPPS1.LSU (Potri.007g031100), PtGPPS2.LSU (Potri.005g127100), PtGPPS.SSU1 (Potri.015g043400), and PtGPPS.SSU2 (Potri.009g139600)).
The full-length ORF of PtFPPS1 and the N-terminal truncated ORFs of PtGPPS1.LSU, PtGPPS2.LSU, PtGPPS.SSU1, and PtGPPS.SSU2 lacking the putative signal peptides predicted with the programs ChloroP (http://www.cbs.dtu.dk/services/ChloroP/), TargetP (http://www.cbs.dtu.dk/services/TargetP/), and PREDOTAR (https://urgi.versailles.inra.fr/Tools/Predotar) (Figure S2) were amplified from cDNA made from herbivore-damaged P. trichocarpa leaves using the primers listed in Table 1 and cloned into the expression vectors pASK-IBA33+ (IBA-GmbH, Göttingen, Germany, PtGPPS1.LSU, PtGPPS2.LSU, PtGPPS.SSU1, and PtGPPS.SSU2) or pASK-IBA37+ (PtFPPS1). The constructs were introduced into the E. coli strain TOP10 (Thermo Fisher Scientific, Erlangen, Germany) and fully sequenced to check for amplification errors.

4.4. Heterologous Expression and Enzyme Assays

Liquid cultures of bacteria harboring the expression constructs were grown at 18 °C to an OD600 of 0.5. Anhydrotetracycline (IBA-GmbH, Göttingen, Germany) was added at a final concentration of 200 µg l−1, and the cultures were incubated for 16 h at 18 °C. Cells were collected by centrifugation and disrupted by a 4 × 30 s treatment with a sonicator (Bandelin UW2070, Berlin, Germany) in chilled extraction buffer (50 mM MOPSO, pH 8.0, 500 mM NaCl, 20 mM imidazole, 1% Tween 20, and 10% (v/v) glycerol). The debris was separated by centrifugation for 20 min at 16,100 g and 4 °C. The C-terminal His-tagged proteins PtGPPS1.LSU, PtGPPS2.LSU, PtGPPS.SSU1, and PtGPPS.SSU2 as well as the N-terminal His-tagged protein PtFPPS1 were purified using Ni-NTA spin columns (Qiagen, Hilden, Germany) according to the manufacturer’s instructions. The purified proteins were eluted with 50 mM Tris-HCl (pH 8.0) containing 0.5 M NaCl, 250 mM imidazole, and 10% (v/v) glycerol and desalted into assay buffer (25 mM MOPSO, pH 7.2, 10% (v/v) glycerol) by passage through an Econopac 10DG column (BioRad, Hercules, CA, USA). Enzyme assays were carried out using 6 µg of purified protein, 10 mM MgCl2 and 0.1 mM MnCl2 as cofactors, and the substrates IPP and DMAPP (each 50 µM) in 100 µL assay buffer at 30 °C for 1 h. Assay results are reported as the mean of at least three independent replicates.

4.5. LC-MS/MS Analysis of GPP, FPP, and GGPP

Enzyme products were analyzed using an Agilent 1200 HPLC system (Agilent Technologies, Santa Clara, CA, USA) coupled to an API 3200 triple-quadrupole mass spectrometer (Applied Biosystems, Foster City, CA, USA). For separation, a ZORBAX Extended C-18 column (1.8 μm, 50 mm × 4.6 mm; Agilent Technologies, Santa Clara, CA, USA) was used. The mobile phase consisted of 5 mM ammonium bicarbonate in water as solvent A and acetonitrile as solvent B, with the flow rate set at 0.8 mL/min and the column temperature kept at 20 °C. Separation was achieved by using a gradient starting at 0% B (v/v), increasing to 10% B in 2 min, 64% B in 12 min, and 100% B in 2 min (1-min hold), followed by a change to 0% B in 1 min (5-min hold) before the next injection. The injection volume for samples and standards was 3 μL and the autosampler temperature was 4 °C. The mass spectrometer was used in the negative electrospray ionization (EI) mode. Optimal settings were determined using standards. Levels of ion source gases 1 and 2 were set at 60 and 70 psi, respectively, with a temperature of 700 °C. Curtain gas was set at 30 psi and collision gas was set at 7 psi, with all gases being nitrogen. Ion spray voltage was maintained at −4200 V. Multiple-reaction monitoring (MRM) was used to monitor analyte parent ion-to-product ion formation: m/z 312.9/79 for GPP, m/z 380.9/79 for FPP, and m/z 449/79 for GGPP. Data analysis was performed using Analyst Software 1.6 Build 3773 (Applied Biosystems, Foster City, CA, USA).

4.6. Gene Expression Analysis (RNAseq and qRT-PCR)

For the analysis of poplar trans-IDS gene expression, we reanalyzed the raw data (SRA accession number PRJNA516861) of an RNAseq experiment recently described in Günther et al. [27]. In this experiment, eight transcriptomes of P. trichocarpa leaves (four biological replicates of untreated control trees and four biological replicates of gypsy moth-treated trees) were sequenced on an IlluminaHiSeq 2500 sequencer (Max Planck Genome Center, Cologne, Germany) with 18 Mio reads per library (100 base pair, single end). Trimming of the obtained Illumina reads and mapping to the poplar gene model version 3.0 (https://phytozome.jgi.doe.gov/pz/portal.html) were performed with the program CLC Genomics Workbench (Qiagen Bioinformatics, Hilden, Germany) (mapping parameter: length fraction, 0.7; similarity fraction, 0.9; max number of hits, 25). Empirical analysis of digital gene expression (EDGE) implemented in the program CLC Genomics Workbench was used for gene expression analysis.
Qualitative real time polymerase chain reactions (qRT-PCRs) were performed in optical 96-well plates using a Stratagene Mx3000P real-time thermocycler (Stratagene, Carlsbad, CA, USA). Brilliant SYBR Green QPCR Master Mix (Agilent Technologies, Santa Clara, CA, USA) containing a double strand intercalating dye was used to visualize the amplification progress by reading the fluorescence. ROX was used as an internal standard to normalize the fluorescence. As negative controls, samples containing water instead of cDNA were used. Five biological replicates with each three technical replicates were performed. Each reaction contained cDNA and sequence-specific primers (Table 1) in a volume of 25 μL. Primer efficiency was tested using five different dilutions (1- to 64-fold) and calculated with the standard curve method [40]. The thermocycler protocol was performed with an initial denaturing step for 10 min at 95 °C followed by 40 cycles of 30 s with 95 °C, 60 s with 55 °C, and 60 s at 72 °C. For primer efficiency tests, the runs were followed by a melting curve analysis consisting of one cycle with 95 °C for 30 s, 55 °C for 30 s and 95 °C for 30 s. For each primer pair, the amplification products were cloned into the pCR4-TOPO TA vector (Thermo Fisher Scientific, Erlangen, Germany) and sequenced. Amplification was analyzed with the MxPro QPCR Software (Agilent Technologies, Santa Clara, CA, USA). The FPP synthase gene PtFPPS1 was used as housekeeping gene for the qRT analysis of other trans-IDS genes, since the fluctuation of its Ct values (~0,9 Ct) was minimal between control plants and herbivore-treated plants.

4.7. Sequence Analysis and Tree Reconstruction

A multiple sequence alignment of identified poplar trans-IDS genes and characterized trans-IDS genes from other plants was computed using the MUSCLE (codon) algorithm (gap open, −2.9; gap extend, 0; hydrophobicity multiplier, 1.2; clustering method, UPGMB) implemented in MEGA6 [41]. Based on this alignment, a tree was reconstructed with MEGA6 using a maximum likelihood algorithm and the Kimura 2-parameter model. Codon positions included were 1st + 2nd + 3rd + noncoding. All positions with less than 80% site coverage were eliminated. Ambiguous bases were allowed at any position. A bootstrap resampling analysis with 1000 replicates was performed to evaluate the topology of the generated tree.

4.8. Statistical Analysis

Throughout the manuscript, data are presented as means ± SE. To compare relative expression of PtGPPS1.LSU, PtGPPS2.LSU, PtGPPS.SSU1, and PtGPPS.SSU2, in comparison between control and gypsy moth damaged P. trichocarpa leaves and the catalytic activity of PtGPPS1.LSU and PtGPPS2.LSU with/without PtGPPS.SSU1, Student’s t-tests or Mann–Whitney Rank Sum Tests were performed with SigmaPlot 11.0 for Windows (Systat Software Inc., Erkrath, Germany). Whenever necessary, the data were transformed through exponentiation to meet statistical assumptions such as normality and homogeneity of variances.

4.9. Accession Numbers

Sequence data for genes in this article can be found in the GenBank under the following identifiers: PtFPPS1 (MK492685), PtGPPS1.LSU (MK492686), PtGPPS2.LSU (MK492687), PtGPPS.SSU1 (MK492683), and PtGPPS.SSU2 (MK492684).

Supplementary Materials

The following are available online. Figure S1. Amino acid comparison of PtFPPS1, PtGPPS1.LSU, PtGPPS2.LSU, PtGPPS.SSU1, and PtGPPS.SSU2 with FPPS and GPPS from other plants. The first aspartate-rich motif (FARM), the second aspartate-rich motif (SARM) and the two CxxxC motifs are marked with red boxes. The predicted signal peptides of the poplar IDS proteins are underlined. Figure S2. Signal peptide prediction of PtFPPS1, PtGPPS1.LSU, PtGPPS2.LSU, PtGPPS.SSU1, and PtGPPS.SSU2. Signal peptide (cTP) prediction was done using the web-based prediction programs chlorop v1.1 (http://www.cbs.dtu.dk/services/ChloroP/) (A), targetp v1.1 (http://www.cbs.dtu.dk/services/TargetP/) (B), and Predotar v1.04 (https://urgi.versailles.inra.fr/predotar/) (C). Figure S3. Relative expression of putative IDS genes in undamaged (control) and Lymantria dispar-damaged (herbivory) leaves of Populus trichocarpa. Gene expression was analyzed using quantitative RT-PCR. Means and standard errors are shown (n = 5). Asterisks indicate statistical significance in Student’s t-tests and from Mann-Whitney Rank Sum Tests, respectively. PtFPPS1 (P = 0.151, T = 20.00); PtGPPS1.LSU (P = 0.008, T = 15.00); PtGPPS2.LSU (P = 0.329, t = 1.040); PtGPPS.SSU1 (P = 0.008, T = 15.00); PtGPPS.SSU2 (P = 0.796, t = 0.268). Figure S4. PtGPPS.SSU1 and PtGPPS.SSU2 have no IDS activity when tested with IPP and DMAPP. The genes were heterologously expressed in Escherichia coli and purified recombinant proteins were incubated with the substrates IPP and DMAPP. Product analysis was done using LC-MS/MS. Enzyme products were identified using authentic standards. An empty vector was expressed under the same conditions, assayed with IPP and DMAPP, and used as negative control. Figure S5. The activity of PtGPPS1.LSU (A) and PtGPPS2.LSU (B) is not influenced by PtGPPS.SSU2. The genes were heterologously expressed in Escherichia coli and purified recombinant proteins were incubated with the substrates IPP and DMAPP. Product analysis was done using LC-MS/MS. Enzyme products were identified using authentic standards.

Author Contributions

Conceptualization, T.G.K.; Investigation, N.D.L., N.P.P., R.N., A.S., S.I., and T.G.K.; Resources, J.G.; Supervision, J.G. and T.G.K.; Writing—original draft, N.D.L. and T.G.K.; and Writing—review and editing, N.D.L., N.P.P., R.N., A.S., S.I., J.G., and T.G.K.

Funding

This research was funded by the Max-Planck Society.

Acknowledgments

We thank Claudia Wenderoth for excellent technical assistance and Birgit Zenner and Andreas Weber for rearing the poplar trees.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Unsicker, S.B.; Kunert, G.; Gershenzon, J. Protective perfumes: The role of vegetative volatiles in plant defense against herbivores. Curr. Opin. Plant Biol. 2009, 12, 479–485. [Google Scholar] [CrossRef] [PubMed]
  2. Riedlmeier, M.; Ghirardo, A.; Wenig, M.; Knappe, C.; Koch, K.; Georgii, E.; Dey, S.; Parker, J.E.; Schnitzler, J.P.; Vlot, A.C. Monoterpenes support systemic acquired resistance within and between plants. Plant Cell 2017, 29, 1440–1459. [Google Scholar] [CrossRef] [PubMed]
  3. Dudareva, N.; Klempien, A.; Muhlemann, J.K.; Kaplan, I. Biosynthesis, function and metabolic engineering of plant volatile organic compounds. New Phytol. 2013, 198, 16–32. [Google Scholar] [CrossRef] [PubMed]
  4. Nagel, R.; Schmidt, A.; Peters, R.J. Isoprenyl diphosphate synthases: The chain length determining step in terpene biosynthesis. Planta 2018. [Google Scholar] [CrossRef] [PubMed]
  5. Closa, M.; Vranova, E.; Bortolotti, C.; Bigler, L.; Arro, M.; Ferrer, A.; Gruissem, W. The Arabidopsis thaliana FPP synthase isozymes have overlapping and specific functions in isoprenoid biosynthesis, and complete loss of FPP synthase activity causes early developmental arrest. Plant J. 2010, 63, 512–525. [Google Scholar] [CrossRef] [PubMed]
  6. Wu, S.; Schalk, M.; Clark, A.; Miles, R.B.; Coates, R.; Chappell, J. Redirection of cytosolic or plastidic isoprenoid precursors elevates terpene production in plants. Nat. Biotechnol. 2006, 24, 1441–1447. [Google Scholar] [CrossRef]
  7. Liang, P.-H.; Ko, T.-P.; Wang, A.H.J. Structure, mechanism and function of prenyltransferases. Eur. J. Biochem. 2002, 269, 3339–3354. [Google Scholar] [CrossRef]
  8. Vandermoten, S.; Haubruge, E.; Cusson, M. New insights into short-chain prenyltransferases: Structural features, evolutionary history and potential for selective inhibition. Cell. Mol. Life Sci. 2009, 66, 3685–3695. [Google Scholar] [CrossRef]
  9. Wang, K.C.; Ohnuma, S.-I. Isoprenyl diphosphate synthases. Biochim. Biophys. Acta 2000, 1529, 33–48. [Google Scholar] [CrossRef]
  10. Tarshis, L.C.; Yan, M.; Poulter, C.D.; Sacchettini, J.C. Crystal structure of recombinant farnesyl diphosphate synthase at 2.6-Ang. Resolution. Biochemistry 1994, 33, 10871–10877. [Google Scholar] [CrossRef]
  11. Hosfield, D.J.; Zhang, Y.; Dougan, D.R.; Broun, A.; Tari, L.W.; Swanson, R.V.; Finn, J. Structural basis for bisphosphonate-mediated inhibition of isoprenoid biosynthesis. J. Biol. Chem. 2004, 279, 8526–8529. [Google Scholar] [CrossRef]
  12. Kavanagh, K.L.; Dunford, J.E.; Bunkoczi, G.; Russell, R.G.; Oppermann, U. The crystal structure of human geranylgeranyl pyrophosphate synthase reveals a novel hexameric arrangement and inhibitory product binding. J. Biol. Chem. 2006, 281, 22004–22012. [Google Scholar] [CrossRef] [PubMed]
  13. Chang, T.H.; Guo, R.T.; Ko, T.P.; Wang, A.H.; Liang, P.H. Crystal structure of Type-III geranylgeranyl pyrophosphate synthase from Saccharomyces cerevisiae and the mechanism of product chain length determination. J. Biol. Chem. 2006, 281, 14991–15000. [Google Scholar] [CrossRef] [PubMed]
  14. Chang, T.H.; Hsieh, F.L.; Ko, T.P.; Teng, K.H.; Liang, P.H.; Wang, A.H. Structure of a heterotetrameric geranyl pyrophosphate synthase from mint (Mentha piperita) reveals intersubunit regulation. Plant Cell 2010, 22, 454–467. [Google Scholar] [CrossRef] [PubMed]
  15. Dickschat, J.S. Isoprenoids in three-dimensional space: The stereochemistry of terpene biosynthesis. Nat. Prod. Rep. 2011, 28, 1917–1936. [Google Scholar] [CrossRef] [PubMed]
  16. Tholl, D.; Kish, C.M.; Orlova, I.; Sherman, D.; Gershenzon, J.; Pichersky, E.; Dudareva, N. Formation of monoterpenes in Antirrhinum majus and Clarkia breweri flowers involves heterodimeric geranyl diphosphate synthases. Plant Cell 2004, 16, 977–992. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, G.; Dixon, R.A. Heterodimeric geranyl(geranyl)diphosphate synthase from hop (Humulus lupulus) and the evolution of monoterpene biosynthesis. Proc. Natl. Acad. Sci. USA 2009, 106, 9914–9919. [Google Scholar] [CrossRef] [PubMed]
  18. Orlova, I.; Nagegowda, D.A.; Kish, C.M.; Gutensohn, M.; Maeda, H.; Varbanova, M.; Fridman, E.; Yamaguchi, S.; Hanada, A.; Kamiya, Y.; et al. The small subunit of snapdragon geranyl diphosphate synthase modifies the chain length specificity of tobacco geranylgeranyl diphosphate synthase in planta. Plant Cell 2009, 21, 4002–4017. [Google Scholar] [CrossRef] [PubMed]
  19. Nagegowda, D.A. Plant volatile terpenoid metabolism: Biosynthetic genes, transcriptional regulation and subcellular compartmentation. FEBS Lett. 2010, 584, 2965–2973. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Danner, H.; Boeckler, G.A.; Irmisch, S.; Yuan, J.S.; Chen, F.; Gershenzon, J.; Unsicker, S.B.; Köllner, T.G. Four terpene synthases produce major compounds of the gypsy moth feeding-induced volatile blend of Populus trichocarpa. Phytochemistry 2011, 72. [Google Scholar] [CrossRef] [PubMed]
  21. Irmisch, S.; Jiang, Y.; Chen, F.; Gershenzon, J.; Köllner, T.G. Terpene synthases and their contribution to herbivore-induced volatile emission in western balsam poplar (Populus trichocarpa). BMC Plant Biol. 2014, 14. [Google Scholar] [CrossRef] [PubMed]
  22. Irmisch, S.; McCormick, A.C.; Boeckler, G.A.; Schmidt, A.; Reichelt, M.; Schneider, B.; Block, K.; Schnitzler, J.P.; Gershenzon, J.; Unsicker, S.B.; et al. Two herbivore-induced cytochrome P450 enzymes CYP79d6 and CYP79d7 catalyze the formation of volatile aldoximes involved in poplar defense. Plant Cell 2013, 25. [Google Scholar] [CrossRef] [PubMed]
  23. Irmisch, S.; McCormick, A.C.; Günther, J.; Schmidt, A.; Boeckler, G.A.; Gershenzon, J.; Unsicker, S.B.; Köllner, T.G. Herbivore-induced poplar cytochrome P450 enzymes of the CYP71 family convert aldoximes to nitriles which repel a generalist caterpillar. Plant J. 2014, 80, 1095–1107. [Google Scholar] [CrossRef] [PubMed]
  24. McCormick, A.C.; Irmisch, S.; Reinecke, A.; Boeckler, G.A.; Veit, D.; Reichelt, M.; Hansson, B.S.; Gershenzon, J.; Köllner, T.G.; Unsicker, S.B. Herbivore-induced volatile emission in black poplar: Regulation and role in attracting herbivore enemies. Plant Cell Environ. 2014, 37, 1909–1923. [Google Scholar] [CrossRef] [PubMed]
  25. Lackus, N.D.; Lackner, S.; Gershenzon, J.; Unsicker, S.B.; Köllner, T.G. The occurrence and formation of monoterpenes in herbivore-damaged poplar roots. Sci. Rep. 2018, 8, 17936. [Google Scholar] [CrossRef] [PubMed]
  26. Vranova, E.; Coman, D.; Gruissem, W. Structure and dynamics of the isoprenoid pathway network. Mol. Plant 2012, 5, 318–333. [Google Scholar] [CrossRef] [PubMed]
  27. Günther, J.; Lackus, N.D.; Schmidt, A.; Huber, M.; Stödler, H.-J.; Reichelt, M.; Gershenzon, J.; Köllner, T.G. Separate pathways contribute to the herbivore-induced formation of 2-phenylethanol in poplar. Plant Physiol. 2019, 180, 767–782. [Google Scholar] [CrossRef]
  28. Jia, Q.; Chen, F. Catalytic functions of the isoprenyl diphosphate synthase superfamily in plants: A growing repertoire. Mol. Plant 2016, 9, 189–191. [Google Scholar] [CrossRef]
  29. Cervantes-Cervantes, M.; Gallagher, C.E.; Zhu, C.; Wurtzel, E.T. Maize cDNAs expressed in endosperm encode functional farnesyl diphosphate synthase with geranylgeranyl diphosphate synthase activity. Plant Physiol. 2006, 141, 220–231. [Google Scholar] [CrossRef]
  30. Schmidt, A.; Gershenzon, J. Cloning and characterization of two different types of geranyl diphosphate synthases from norway spruce (Picea abies). Phytochemistry 2008, 69, 49–57. [Google Scholar] [CrossRef]
  31. Schmidt, A.; Wächtler, B.; Temp, U.; Krekling, T.; Séguin, A.; Gershenzon, J. A bifunctional geranyl and geranylgeranyl diphosphate synthase is involved in terpene oleoresin formation in Picea abies. Plant Physiol. 2010, 152, 639–655. [Google Scholar] [CrossRef] [PubMed]
  32. Hsiao, Y.Y.; Jeng, M.F.; Tsai, W.C.; Chuang, Y.C.; Li, C.Y.; Wu, T.S.; Kuoh, C.S.; Chen, W.H.; Chen, H.H. A novel homodimeric geranyl diphosphate synthase from the orchid Phalaenopsis bellina lacking a DD(x)2-4D motif. Plant J. 2008, 55, 719–733. [Google Scholar] [CrossRef] [PubMed]
  33. Rai, A.; Smita, S.S.; Singh, A.K.; Shanker, K.; Nagegowda, D.A. Heteromeric and homomeric geranyl diphosphate synthases from Catharanthus roseus and their role in monoterpene indole alkaloid biosynthesis. Mol. Plant 2013, 6, 1531–1549. [Google Scholar] [CrossRef] [PubMed]
  34. Cunillera, N.; Arró, M.; Delourme, D.; Karst, F.; Boronat, A.; Ferrer, A. Arabidopsis thaliana contains two differentially expressed farnesyl-diphosphate synthase genes. J. Biol. Chem. 1996, 271, 7774–7780. [Google Scholar] [CrossRef] [PubMed]
  35. Dhar, M.K.; Koul, A.; Kaul, S. Farnesyl pyrophosphate synthase: A key enzyme in isoprenoid biosynthetic pathway and potential molecular target for drug development. New Biotechnol. 2013, 30, 114–123. [Google Scholar] [CrossRef] [PubMed]
  36. Richter, A.; Seidl-Adams, I.; Köllner, T.G.; Schaff, C.; Tumlinson, J.H.; Degenhardt, J. A small, differentially regulated family of farnesyl diphosphate synthases in maize (Zea mays) provides farnesyl diphosphate for the biosynthesis of herbivore-induced sesquiterpenes. Planta 2015, 241, 1351–1361. [Google Scholar] [CrossRef] [PubMed]
  37. Hemmerlin, A.; Rivera, S.B.; Erickson, H.K.; Poulter, C.D. Enzymes encoded by the farnesyl diphosphate synthase gene family in the big sagebrush Artemisia tridentata ssp. Spiciformis. J. Biol. Chem. 2003, 278, 32132–32140. [Google Scholar] [CrossRef]
  38. Wang, L.; Jing, T.; Li, T.; Du, H.; Wuyun, T.-N. Identification and expression analysis of the Eucommia ulmoides farnesyl diphosphate synthase gene family to reveal the key gene involved in rubber biosynthesis. Acta Physiol. Plant. 2017, 40, 11. [Google Scholar] [CrossRef]
  39. Zhang, Y.; Li, Z.X.; Yu, X.D.; Fan, J.; Pickett, J.A.; Jones, H.D.; Zhou, J.J.; Birkett, M.A.; Caulfield, J.; Napier, J.A.; et al. Molecular characterization of two isoforms of a farnesyl pyrophosphate synthase gene in wheat and their roles in sesquiterpene synthesis and inducible defence against aphid infestation. New Phytol. 2015, 206, 1101–1115. [Google Scholar] [CrossRef]
  40. Pfaffl, M.W. A new mathematical model for relative quantification in real-time RT-PCR. Nucleic Acids Res. 2001, 29, e45. [Google Scholar] [CrossRef]
  41. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. Mega6: Molecular evolutionary genetics analysis version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed]
Data Availability: All data generated or analyzed during this study are included in the main text or supplement of this published article.
Molecules 24 02408 g001 550

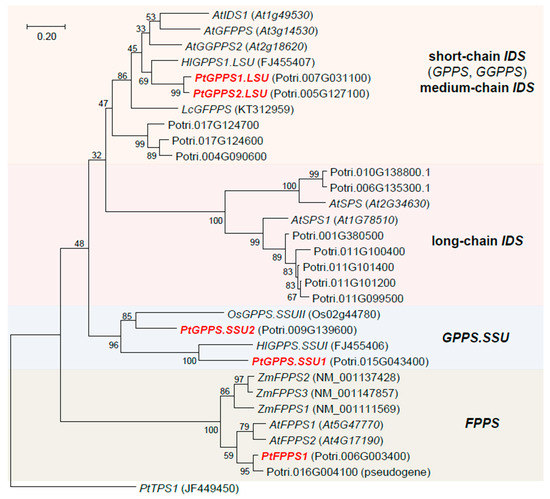

Figure 1. Rooted tree of putative IDS genes of Populus trichocarpa together with a selection of characterized IDS genes from other plant species. Bootstrap values (n = 1000 replicates) are shown next to the branches. The tree is drawn to scale, with branch lengths in units of base substitutions per site. Genes characterized in this study are shown in bold and red. The P. trichocarpa terpene synthase gene PtTPS1 was used as outgroup. Accession numbers (NCBI) or gene identifiers are given in parentheses.
Figure 1. Rooted tree of putative IDS genes of Populus trichocarpa together with a selection of characterized IDS genes from other plant species. Bootstrap values (n = 1000 replicates) are shown next to the branches. The tree is drawn to scale, with branch lengths in units of base substitutions per site. Genes characterized in this study are shown in bold and red. The P. trichocarpa terpene synthase gene PtTPS1 was used as outgroup. Accession numbers (NCBI) or gene identifiers are given in parentheses.
Molecules 24 02408 g001
Molecules 24 02408 g002 550

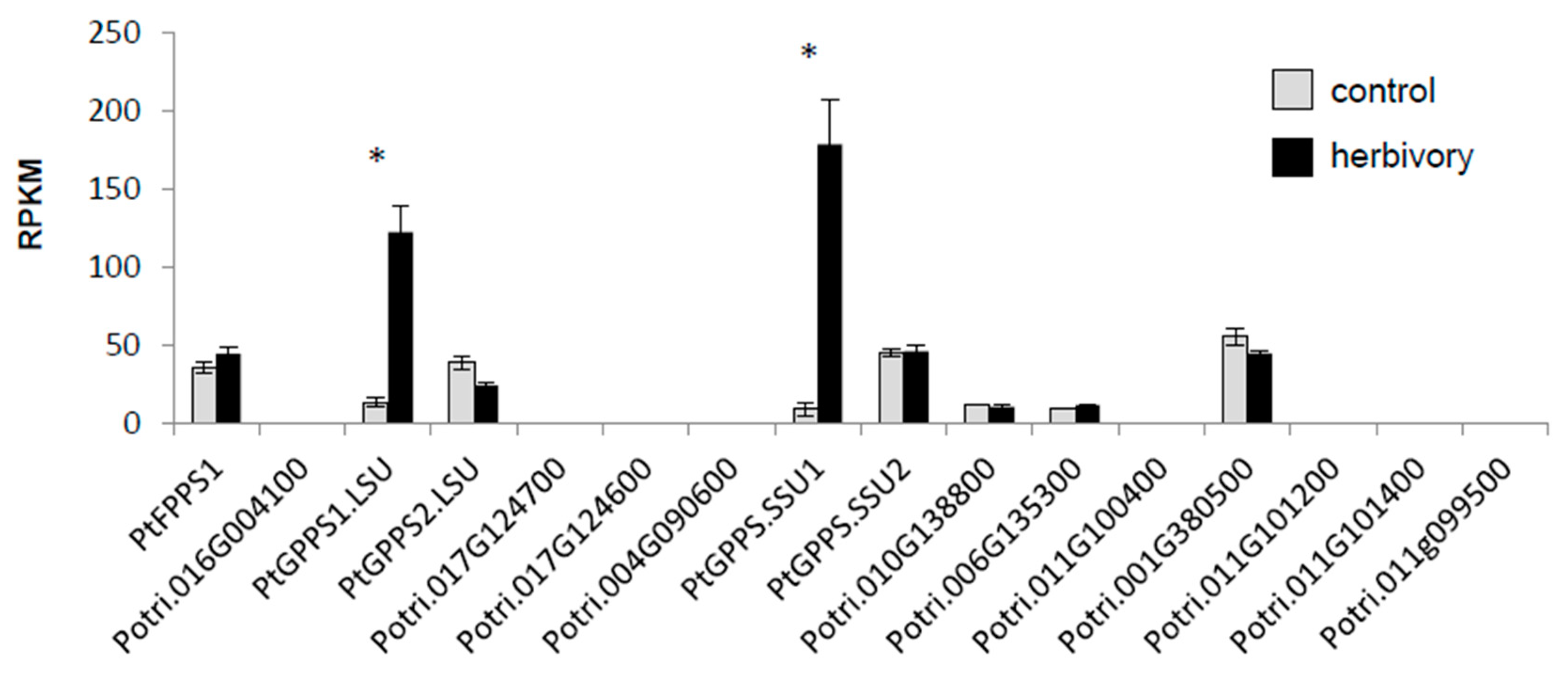

Figure 2. Transcript accumulation of putative IDS genes in Lymantria dispar-damaged and undamaged Populus trichocarpa leaves. Gene expression in herbivore-damaged (herbivory) and undamaged (control) leaves was analyzed by Illumina sequencing and mapping the reads to the transcripts of the P. trichocarpa genome version v3.0. Expression was normalized to RPKM (reads per kilobase of transcript per million mapped reads). Significant differences in EDGE tests (p ≤ 0.001) are visualized by asterisks. Means ± SE are shown (n = 4 biological replicates). PtFPPS1 (p = 0.10443, weighted difference (WD) = 1.61411 × 10−5); Potri.016g004100 (p = 1, WD = 9.19891 × 10−8); PtGPPS1.LSU (p = 5.45471 × 10−27, WD = 0.000173475); PtGPPS2.LSU (p = 0.008505317, WD = −2.06885 × 10−5); Potri.017g124700 (p = 1, WD = 6.61109 × 10−9); Potri.017g124600 (p = 1, WD = −1.12331 × 10−8); Potri.004g090600 (p = 0.500021071, WD = 7.53238 × 10−7); PtGPPS.SSU1 (p = 5.0039 × 10−28, WD = 0.000269403); PtGPPS.SSU2 (p = 0.667703669, WD = 4.49444 × 10−6); Potri.010g138800 (p = 0.918085163, WD = −1.05663 × 10−6); Potri.006g135300 (p = 0.338295043, WD = 3.93657 × 10−6); Potri.011g100400 (p = 1, WD = 0); Potri.001g380500 (p = 0.253763889, WD = −1.31158× 10−5); Potri.011g101200 (p = 1, WD = 1.12627 × 10−7); Potri.011g101400 (p = 1, WD = 1.04422 × 10−7); Potri.011g099500, no expression detected.
Figure 2. Transcript accumulation of putative IDS genes in Lymantria dispar-damaged and undamaged Populus trichocarpa leaves. Gene expression in herbivore-damaged (herbivory) and undamaged (control) leaves was analyzed by Illumina sequencing and mapping the reads to the transcripts of the P. trichocarpa genome version v3.0. Expression was normalized to RPKM (reads per kilobase of transcript per million mapped reads). Significant differences in EDGE tests (p ≤ 0.001) are visualized by asterisks. Means ± SE are shown (n = 4 biological replicates). PtFPPS1 (p = 0.10443, weighted difference (WD) = 1.61411 × 10−5); Potri.016g004100 (p = 1, WD = 9.19891 × 10−8); PtGPPS1.LSU (p = 5.45471 × 10−27, WD = 0.000173475); PtGPPS2.LSU (p = 0.008505317, WD = −2.06885 × 10−5); Potri.017g124700 (p = 1, WD = 6.61109 × 10−9); Potri.017g124600 (p = 1, WD = −1.12331 × 10−8); Potri.004g090600 (p = 0.500021071, WD = 7.53238 × 10−7); PtGPPS.SSU1 (p = 5.0039 × 10−28, WD = 0.000269403); PtGPPS.SSU2 (p = 0.667703669, WD = 4.49444 × 10−6); Potri.010g138800 (p = 0.918085163, WD = −1.05663 × 10−6); Potri.006g135300 (p = 0.338295043, WD = 3.93657 × 10−6); Potri.011g100400 (p = 1, WD = 0); Potri.001g380500 (p = 0.253763889, WD = −1.31158× 10−5); Potri.011g101200 (p = 1, WD = 1.12627 × 10−7); Potri.011g101400 (p = 1, WD = 1.04422 × 10−7); Potri.011g099500, no expression detected.
Molecules 24 02408 g002
Molecules 24 02408 g003 550

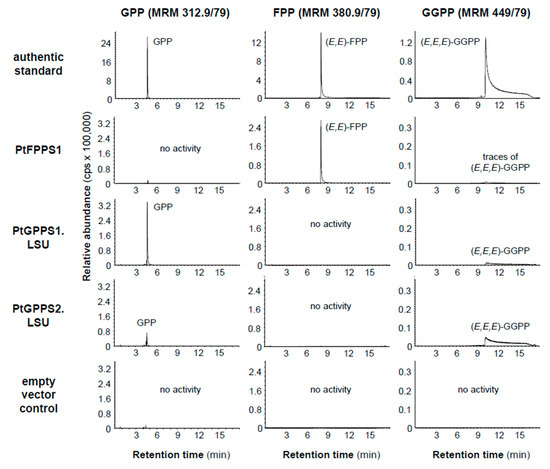

Figure 3. IDS activity of PtFPPS1, PtGPPS1.LSU, and PtGPPS2.LSU. The genes were heterologously expressed in Escherichia coli and purified recombinant proteins were incubated with the substrates IPP and DMAPP. Products were analyzed using LC-MS/MS and identified with authentic standards. The empty expression vector was expressed under the same conditions, assayed with IPP and DMAPP, and used as negative control.
Figure 3. IDS activity of PtFPPS1, PtGPPS1.LSU, and PtGPPS2.LSU. The genes were heterologously expressed in Escherichia coli and purified recombinant proteins were incubated with the substrates IPP and DMAPP. Products were analyzed using LC-MS/MS and identified with authentic standards. The empty expression vector was expressed under the same conditions, assayed with IPP and DMAPP, and used as negative control.
Molecules 24 02408 g003
Molecules 24 02408 g004 550

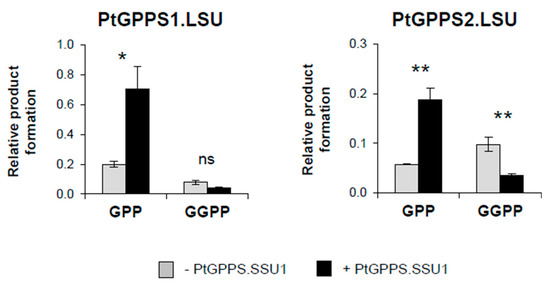

Figure 4. The small subunit PtGPPS.SSU1 enhances the GPPS activity of PtGPPS1.LSU and PtGPPS2.LSU. Purified recombinant PtGPPS1.LSU and PtGPPS2.LSU were incubated with IPP and DMAPP either in the presence (black bars) or absence (grey bars) of purified recombinant PtGPPS.SSU1. Product formation was analyzed by LC-MS/MS and quantified using authentic standards. Means ± SE of triplicate assays are shown. Asterisks indicate statistical significance in Student’s t-tests and from Mann–Whitney Rank Sum Tests, respectively. PtGPPS1.LSU ± PtGPPS.SSU1 GPP (p = 0.010, t = −4.067); PtGPPS1.LSU ± PtGPPS.SSU1 GGPP (p = 0.075, t = 2.241); PtGPPS2.LSU ± PtGPPS.SSU1 GPP (p = 0.003, t = −5.379); PtGPPS2.LSU ± PtGPPS.SSU1 GGPP (p = 0.009, t = 4.091).
Figure 4. The small subunit PtGPPS.SSU1 enhances the GPPS activity of PtGPPS1.LSU and PtGPPS2.LSU. Purified recombinant PtGPPS1.LSU and PtGPPS2.LSU were incubated with IPP and DMAPP either in the presence (black bars) or absence (grey bars) of purified recombinant PtGPPS.SSU1. Product formation was analyzed by LC-MS/MS and quantified using authentic standards. Means ± SE of triplicate assays are shown. Asterisks indicate statistical significance in Student’s t-tests and from Mann–Whitney Rank Sum Tests, respectively. PtGPPS1.LSU ± PtGPPS.SSU1 GPP (p = 0.010, t = −4.067); PtGPPS1.LSU ± PtGPPS.SSU1 GGPP (p = 0.075, t = 2.241); PtGPPS2.LSU ± PtGPPS.SSU1 GPP (p = 0.003, t = −5.379); PtGPPS2.LSU ± PtGPPS.SSU1 GGPP (p = 0.009, t = 4.091).
Molecules 24 02408 g004
Table
Table 1. Oligonucleotides used for isolation (cloning) and qRT-PCR analysis (qRT-PCR) of poplar trans-IDS genes.
Table 1. Oligonucleotides used for isolation (cloning) and qRT-PCR analysis (qRT-PCR) of poplar trans-IDS genes.
NameSequenceUsage
PtFPPS1-fwdATGGTAGGTCTCAGCGCATGGCAGATCTGAAGTCAACGTTCcloning
PtFPPS1-revATGGTAGGTCTCATATCATTTCTGCCTCTTGTAAATTTTAGCCcloning
PtGPPS1.LSU-fwdATGGTAGGTCTCAAATGCCCACTTTTGATTTCAAGTCTTACAcloning
PtGPPS1.LSU-revATGGTAGGTCTCAGCGCTGTTTTGCCTGTAAGCAATGTAATTAGcloning
PtGPPS2.LSU-fwdATGGTAACCTGCATTAAATGCCCACTTTTGATTTCAAGTCTTATATcloning
PtGPPS2.LSU-revATGGTAACCTGCATTAGCGCTGTTTTGCCTGTAAGCAATGTAATTAGcloning
PtGPPS.SSU1-fwdATGGTAGGTCTCAAATGGCAACTTCCAATGGCACTACTTACcloning
PtGPPS.SSU1-revATGGTAGGTCTCAGCGCTAACATTGCCGGAAGTGGTCCCTcloning
PtGPPS.SSU2-fwdATGGTAGGTCTCAAATGTCAAAAACACCCCAGTTTGATTTAAAcloning
PtGPPS.SSU2-revATGGTAGGTCTCAGCGCTACTTGACTCACCAAAACTGAAACCcloning
PtFPPS1-fwd1GGTTGCCCAAGGTTGGTCTTATTGCqRT-PCR
PtFPPS1-rev1TGAGTAGTAGGCGGTCTTGTACTGqRT-PCR
PtGPPS1.LSU-fwd1TGGCGAAAGCTATTGGqRT-PCR
PtGPPS1.LSU-rev1CGGTTCCTCCACCTAATATGqRT-PCR
PtGPPS2.LSU-fwd1GTTGCTGGACAAGTTGTGqRT-PCR
PtGPPS2.LSU-rev1TCCAATACTCCTCGCGTATCqRT-PCR
PtGPPS.SSU1-fwd1TGCTCCAGCCTTGTGCATAGqRT-PCR
PtGPPS.SSU1-rev1ACCATCCCATCTCCTGTTAGqRT-PCR
PtGPPS.SSU2-fwd1GATTGCTAGCCGGTGCCAAGqRT-PCR
PtGPPS.SSU2-rev1CCTCCGCTACCTCTATAGCCqRT-PCR
