Next Article in Journal
The Association between Green and Black Tea Consumption on Successful Aging: A Combined Analysis of the ATTICA and MEDiterranean ISlands (MEDIS) Epidemiological Studies
Previous Article in Journal
Anti-Inflammatory Compounds from Atractylodes macrocephala
Previous Article in Special Issue
Activation and Disproportionation of Zr2Fe Alloy as Hydrogen Storage Material
Article Menu
Issue 10 (May-2) cover image

Export Article

Open AccessArticle

Hydrogen Desorption Properties of LiBH4/xLiAlH4 (x = 0.5, 1, 2) Composites

Key Laboratory of Air-driven Equipment Technology of Zhejiang Province, Quzhou University, Quzhou 324000, China
Department of Materials Science and Engineering, Zhejiang University, Hangzhou 310058, China
Author to whom correspondence should be addressed.
Academic Editor: Barbara Bonelli
Molecules 2019, 24(10), 1861;
Received: 22 March 2019 / Revised: 10 May 2019 / Accepted: 13 May 2019 / Published: 15 May 2019
(This article belongs to the Special Issue Advances in Hydrogen Storage Materials Research)
PDF [3394 KB, uploaded 15 May 2019]

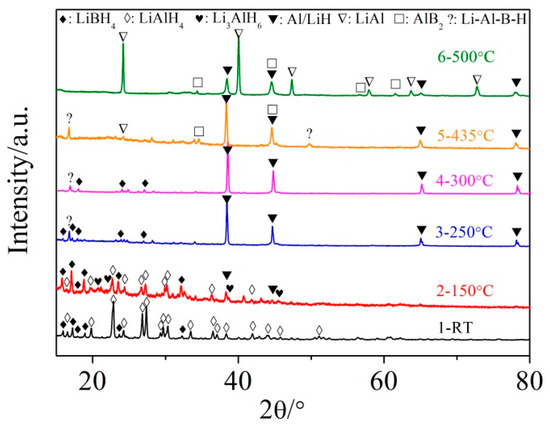

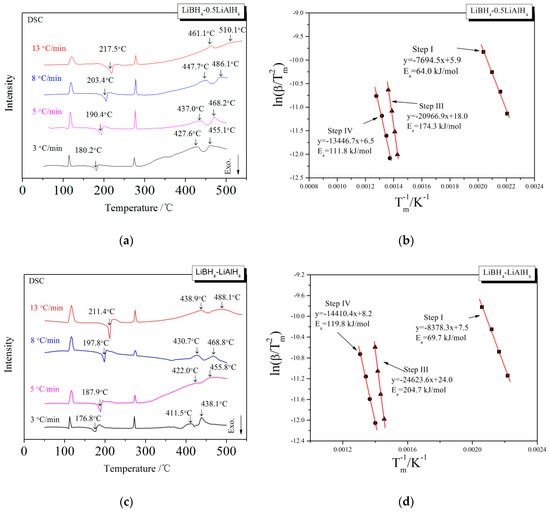

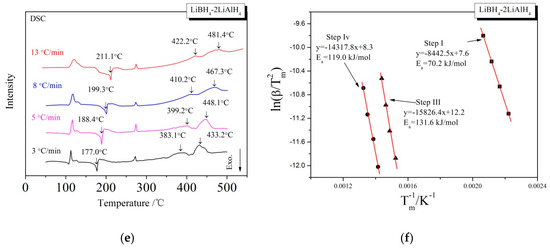

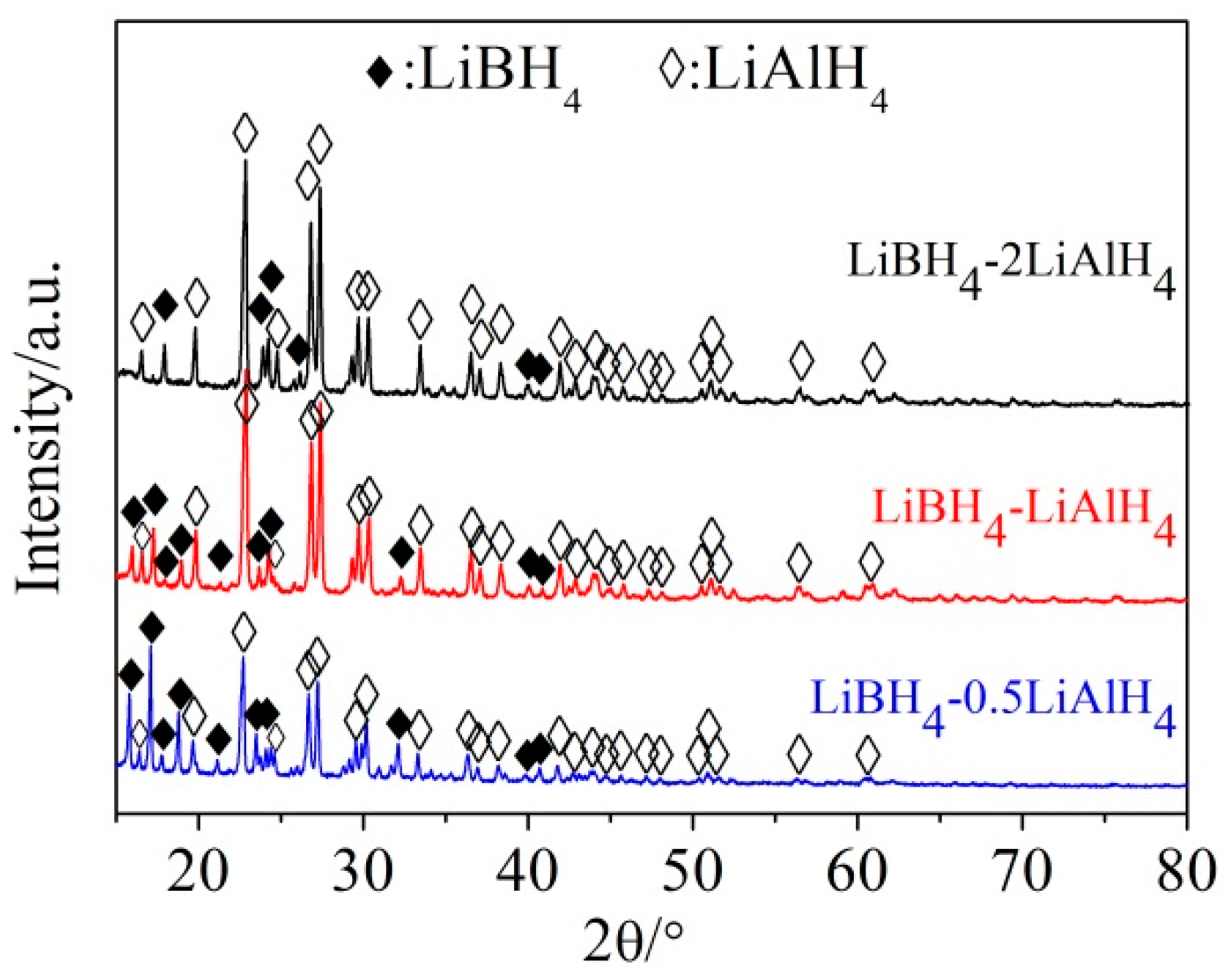

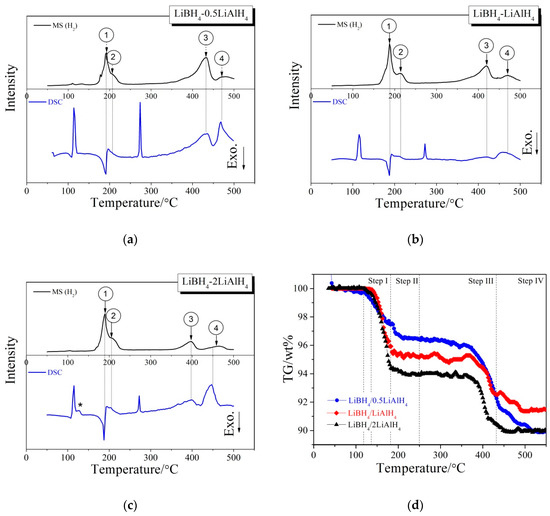

A detailed analysis of the dehydrogenation mechanism of LiBH4/xLiAlH4 (x = 0.5, 1, 2) composites was performed by thermogravimetry (TG), differential scanning calorimetry (DSC), mass spectral analysis (MS), powder X-ray diffraction (XRD) and scanning electronic microscopy (SEM), along with kinetic investigations using a Sievert-type apparatus. The results show that the dehydrogenation pathway of LiBH4/xLiAlH4 had a four-step character. The experimental dehydrogenation amount did not reach the theoretical expectations, because the products such as AlB2 and LiAl formed a passivation layer on the surface of Al and the dehydrogenation reactions associated with Al could not be sufficiently carried out. Kinetic investigations discovered a nonlinear relationship between the activation energy (Ea) of dehydrogenation reactions associated with Al and the ratio x, indicating that the Ea was determined both by the concentration of Al produced by the decomposition of LiAlH4 and the amount of free surface of it. Therefore, the amount of effective contact surface of Al is the rate-determining factor for the overall dehydrogenation of the LiBH4/xLiAlH4 composites. View Full-Text
Keywords: LiBH4LiAlH4; activation energy; hydrogen storage materials; dehydrogenation LiBH4LiAlH4; activation energy; hydrogen storage materials; dehydrogenation

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

He, Q.; Zhu, D.; Wu, X.; Dong, D.; Xu, M.; Tong, Z. Hydrogen Desorption Properties of LiBH4/xLiAlH4 (x = 0.5, 1, 2) Composites. Molecules 2019, 24, 1861.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
