Open AccessArticle
Molecules 2018, 23(7), 1649;

Synthesis of a Novel Fluorescent Ruthenium Complex with an Appended Ac4GlcNAc Moiety by Click Reaction

Beijing Area Major Laboratory of Peptide and Small Molecular Drugs, Engineering Research Center of Endogenous Prophylactic of Ministry of Education of China, School of Pharmaceutical Sciences, Capital Medical University, Beijing 100069, China
Key Laboratory of Systems Biomedicine (Ministry of Education) and Collaborative Innovation Center of Systems Biomedicine, Shanghai Center for Systems Biomedicine (SCSB), Shanghai Jiao Tong University, 800 Dongchuan Road, Shanghai 200240, China
Author to whom correspondence should be addressed.
Received: 9 June 2018 / Revised: 1 July 2018 / Accepted: 2 July 2018 / Published: 6 July 2018
(This article belongs to the Collection Advances in Click Chemistry)
Full-Text   |   PDF [1440 KB, uploaded 6 July 2018]   |

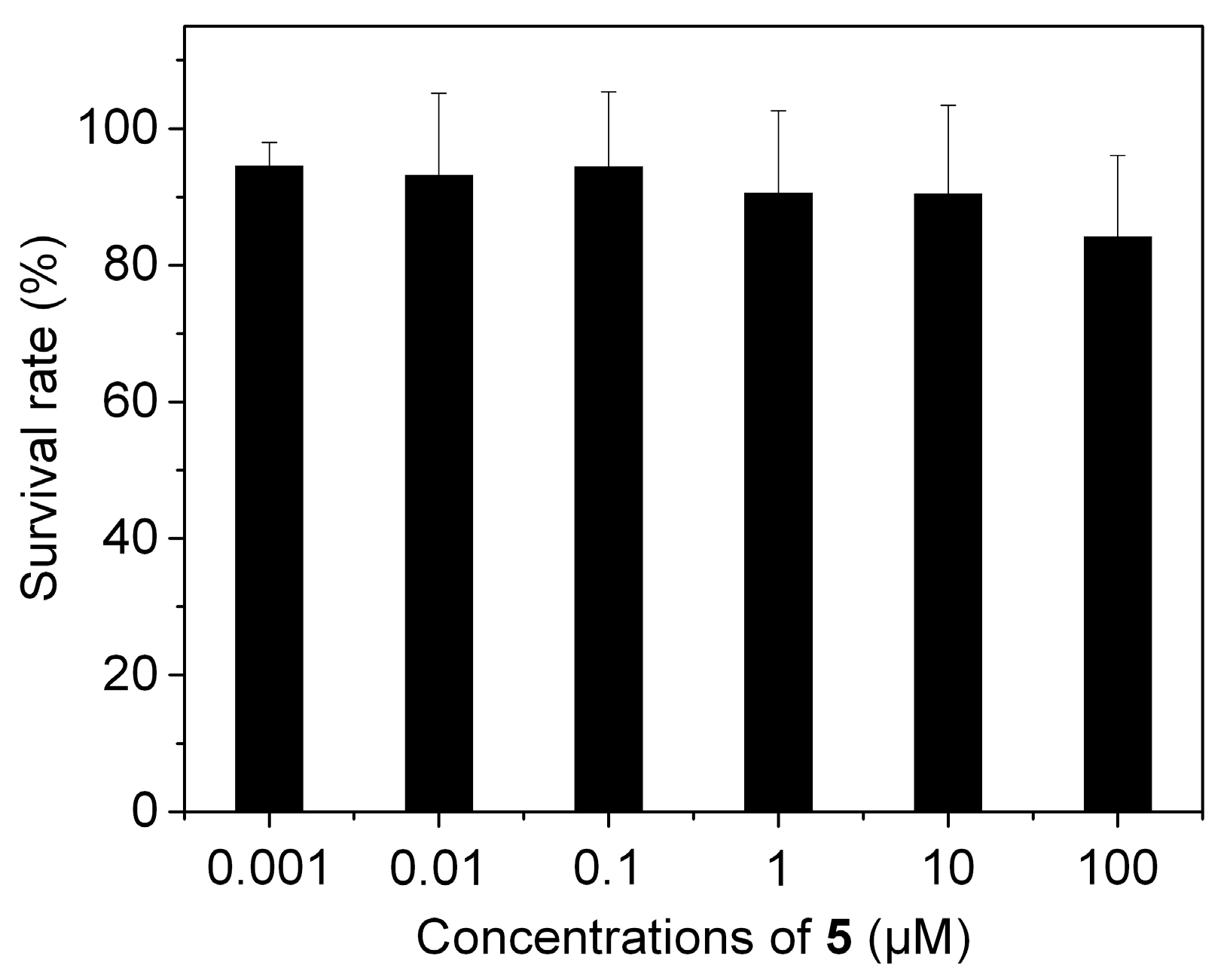

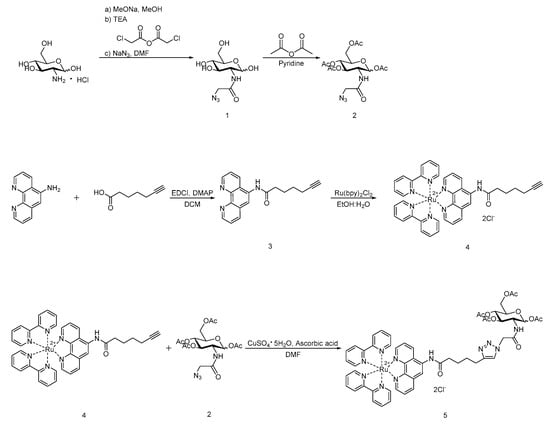

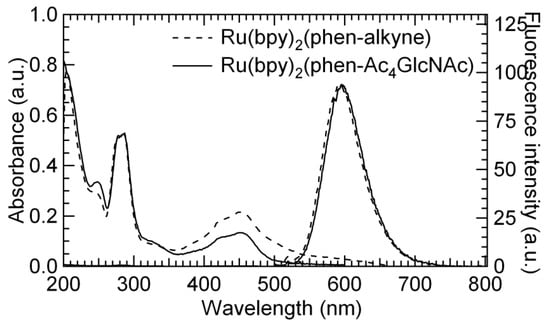

The O-linked β-N-acetylglucosamine (O-GlcNAc) modification is an abundant post-translational modification in eukaryotic cells, which plays a fundamental role in the activity of many cells and is associated with pathologies like type II diabetes, Alzheimer’s disease or some cancers. However, the precise connexion between O-GlcNAc-modified proteins and their function in cells is largely undefined for most cases. Confocal microscopy is a powerful and effective tool for in-cell elucidation of the function of biological molecules. Chemical labeling of non-ultraviolet or non-fluorescent carbohydrates with fluorescent tag is an essential step that makes intra-cellular microscopic inspection possible. Here we report a strategy based on the 1,3-dipolar cycloaddition, called click chemistry, between unnatural N-acetylglucosamine (GlcNAc) analogues Ac4GlcNAc (substituted with an azido group) and the corresponding fluorescent tag Ru(bpy)2(Phen-alkyne)Cl2 (4) to synthesize the fluorescent dye Ru(bpy)2(Phen-Ac4GlcNAc)Cl2 (5) under mild and neutral reaction conditions. Moreover, 5 showed good stability, desirable fluorescence characteristics, and exhibited rather low levels of cytotoxicity against sensitive MCF-7 cells. Additionally, we have achieved successful fluorescent imaging of 5 transported in living MCF-7 cells. Cell images displayed that proteins are potentially labelled with 5 in the cytoplasm. View Full-Text
Keywords: O-GlcNAc; click chemistry; cell imaging; fluorescent labeling; living cells O-GlcNAc; click chemistry; cell imaging; fluorescent labeling; living cells

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Cheng, Q.; Cui, Y.; Xiao, N.; Lu, J.; Fang, C.-J. Synthesis of a Novel Fluorescent Ruthenium Complex with an Appended Ac4GlcNAc Moiety by Click Reaction. Molecules 2018, 23, 1649.
