Communication

Design, Synthesis, and In Vitro Evaluation of Novel Histone H3 Peptide-Based LSD1 Inactivators Incorporating α,α-Disubstituted Amino Acids with γ-Turn-Inducing Structures

by
Yosuke Ota
1,*,
Taeko Kakizawa
2,
Yukihiro Itoh
1 and
Takayoshi Suzuki
1,3,*
1
Department of Chemistry, Graduate School of Medical Science, Kyoto Prefectural University of Medicine, 1-5 Shimogamohangi-Cho, Sakyo-Ku, Kyoto 606-0823, Japan
2
Department of Chemistry and Biochemistry, School of Advanced Science and Engineering, Waseda University, Shinjuku, Tokyo 169-8555, Japan
3
Core Research for Evolutional Science and Technology (CREST), Japan Science and Technology Agency (JST), 4-1-8 Honcho, Kawaguchi, Saitama 332-0012, Japan
*
Authors to whom correspondence should be addressed.
Molecules 2018, 23(5), 1099; https://doi.org/10.3390/molecules23051099
Submission received: 2 May 2018 / Revised: 4 May 2018 / Accepted: 4 May 2018 / Published: 6 May 2018
(This article belongs to the Special Issue Transcription Factors as Therapeutic Targets)
Browse Figures
Versions Notes

Abstract

Lysine-specific demethylase 1 (LSD1) mainly removes methyl groups of mono- or di-methylated lysine residues at the fourth position of histone H3 to epigenetically regulate the expression of genes associated with several diseases, such as cancer. Therefore, LSD1 inactivators are expected to be used as therapeutic agents. In this study, to identify novel peptide-based LSD1 inactivators, we focused on the X-ray structure of LSD1 complexed with a H3 peptide-based suicide substrate. It has been proposed that a methylated histone substrate forms three consecutive γ-turn structures in the active pocket of LSD1. Based on this, we designed and synthesized novel histone H3 peptide-based LSD1 inactivators 2a–c by incorporating various α,α-disubstituted amino acids with γ-turn-inducing structures. Among synthetic peptides 2a–c, peptide 2b incorporating two 1-aminocyclohexanecarboxylic acids at both sides of a lysine residue bearing a trans-2-phenylcyclopropylamine (PCPA) moiety, which is a pharmacophore for LSD1 inactivation, was the most potent and selective LSD1 inactivator. These findings are useful for the further development of histone H3 peptide-based LSD1 inactivators.

1. Introduction

The methylation of lysine residues on histones is involved in the epigenetic control of gene expression associated with not only many cellular events but also several diseases [1]. Histone methylation and demethylation reactions are catalyzed by a series of histone lysine methyltransferases (HKMTs) and histone lysine demethylases (KDMs), respectively [1]. Thus, the methylation is reversibly regulated by both HKMTs and KDMs.
Lysine-specific demethylase 1 (LSD1), which is one of the KDMs and a flavin adenine dinucleotide (FAD)-dependent oxidase, catalytically removes the methyl groups of mono- or di-methylated lysine residues at the fourth position of histone H3 (H3K4me1/me2) [2]. In prostate cancer cells, LSD1 acquires H3K9me1/me2 demethylation activity by interacting with an androgen receptor [3]. In addition, LSD1 demethylates methyl groups of mono- or di-methylated lysine residues of non-histone proteins (e.g., p53, DNMT, and E2F1) to regulate their activities and functions [4,5,6]. LSD1 forms a co-repression complex with CoREST, recruiting other transcription factors, such as HDAC1, Gfi-1b, TLX, KHMTs, and other KDMs [7,8,9,10,11], to epigenetically regulate the expression of the genes associated with several diseases, such as cancer, globin disorders, and viral infections [12,13,14]. Therefore, LSD1 is interesting as a molecular target for the therapy of diseases. To date, a number of LSD1 inactivators have been developed [15,16,17] and some of them are being evaluated in clinical trials for cancer [18,19].
We have reported several peptide- or small molecule-based LSD1 inactivators so far [20,21,22,23,24,25,26,27,28,29]. For instance, PCPA-Lys-4 H3-21, a peptide-based LSD1 inactivator [22] (Figure 1), drops off trans-2-phenylcyclopropylamine (PCPA), a pharmacophore for LSD1 inactivation [30,31], in the active pocket of LSD1 to inactivate LSD1 potently and selectively. Further, we identified NCD38, a potent and selective small molecule LSD1 inhibitor [22] (Figure 1) that showed sufficient bioactivity in in vivo studies [32,33]. Following these findings, we considered that it is possible to improve the LSD1 inhibitory activities of peptide- or small molecule-based LSD1 inactivators. In particular, a novel design of peptide-based LSD1 inactivators could lead to high specificity toward LSD1 and their off-target effects could be limited as compared with small molecule inhibitors. Thus, peptide-based LSD1 inactivators could exhibit high therapeutic potential toward LSD1-associated diseases [12,13,14].
In 2007, Cole, Yu, and co-workers reported a co-crystal structure of LSD1 with a histone H3-based suicide substrate incorporating N-methylpropargylamine, and revealed that the substrate reacted with FAD to form three consecutive γ-turn structures in the active pocket of LSD1 (Figure 2) [34]. The unique secondary structures could contribute to the substrate specificity toward LSD1 [34]. Based on that report, we envisioned that the LSD1 inhibitory activities of peptide-based inactivators would be improved by regulating their secondary structures. Thus, peptides that easily form three consecutive γ-turn structures should exhibit strong LSD1 inhibitory activity and high selectivity. Herein we report novel histone H3 peptide-based LSD1 inactivators incorporating α,α-disubstituted amino acids that work as γ-turn inducers.

2. Results

2.1. Design

Previously, it was reported that α,α-disubstituted amino acids predominantly induced the formation of γ-turn structures [35]. Thus, we hypothesized that the introduction of α,α-disubstituted amino acids into the sequence of a histone H3-based peptide would stabilize the formation of three consecutive γ-turn structures in the active pocket of LSD1. To verify the hypothesis, we selected LSD1 inactivator 1 as the model and reference peptide (Figure 3), because peptide 1 has both a concise sequence and appropriate LSD1 inhibitory activity [28]. We designed histone H3 peptide-based LSD1 inactivators 2a–c by incorporating two of the following α,α-disubstituted amino acids: 2-aminoisobutyric acid (Aib) (2a), 1-aminocyclohexanecarboxylic acid (Acc) (2b), and 2-aminoadamantane-2-carboxylic acid (Aadc) (2c), one on each side of the lysine residue bearing a PCPA moiety (Figure 3).

2.2. Synthesis

The synthesis of H3-11 peptide analogs 2 is shown in Scheme 1. Peptides 2 were synthesized by Fmoc-based solid-phase peptide synthesis (SPPS) according to modified previous procedures for histone H3-based peptides [22,25,28]. Initially, we prepared peptides 3 incorporating the α,α-disubstituted amino acids by Fmoc-based SPPS. Next, peptides 3 were converted into mesylates 4 with mesyl chloride (MsCl), and then the mesyl groups of 4 were substituted with PCPA to obtain desired precursors 5. Precursors 5 were cleaved from the resin and purified by high-performance liquid chromatography (HPLC) followed by lyophilization and identification by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry (MALDI-TOF MS) to obtain the desired peptides 2 as a white powder.

2.3. In Vitro Evaluation of LSD1 Inhibitory Activity

We assayed for the LSD1 inhibitory activities of novel peptides 2a–c. The assay was performed with an LSD1 Fluorometric Drug Discovery Kit (Enzo Life Sciences, New York, NY, USA, BML-AK544-0001). The results are summarized in Table 1. Control peptide 1 inactivated LSD1 potently compared to PCPA. As expected, the LSD1 inhibitory activities of novel peptides 2a–c were higher than that of 1. In particular, peptide 2b was the most potent LSD1 inactivator among the peptides tested in this study. Next, we examined the time-dependency of LSD1 inhibition by peptides 2a–c. As shown in Supplementary Figure S1, peptide 2a–c inhibited LSD1 enzyme activities in a time-dependent manner, which indicates that peptides 2a–c inactivate LSD1 irreversibly. We also assayed for the inhibitory activities of monoamine oxidases (MAOs), which are FAD-dependent oxidases associated with neurotransmitter metabolism [36], to investigate the selectivity toward LSD1. For this investigation, we used a MAO-GloTM Assay System (Promega, Madison, WI, USA, V1401). As shown in Table 1, all peptides did not inactivate MAO-A or MAO-B at the concentration of 10 µM, whereas PCPA, the positive control, inactivated both MAO-A and MAO-B. Furthermore, we tested the inhibitory activities of peptides 2a–c for KDM4C, an isoform of α-ketoglutarate/Fe(II)-dependent KDMs [37]. As a result, peptides 2a–c hardly inhibited KDM4C activities at a concentration of 10 μM (Supplementary Figure S2). Thus, the novel peptides 2a–c were found to be irreversible LSD1-selective inactivators.

3. Discussion

In this work, we designed and synthesized γ-turn-inducing novel peptides 2a–c incorporating α,α-disubstituted amino acids and evaluated them in an in vitro LSD1 inhibitory assay. We revealed that peptides 2a–c were potent and selective LSD1 inactivators compared to reference peptide 1. In particular, peptide 2b incorporating one Acc each on both sides of the lysine residue bearing the PCPA moiety showed the most potent LSD1 inhibitory activity and the highest LSD1 selectivity (>170-fold).
Based on these results and our previous findings [22,25,28], we consider that peptides 2a–c incorporating α,α-disubstituted amino acids as γ-turn inducers, particularly 2b, form three consecutive γ-turn structures in the active pocket of LSD1 to be highly recognized by LSD1 and thereby strongly inactivating LSD1 (Figure 4). Indeed, our docking study using a short model peptide based on 2b suggested that it forms three consecutive γ-turn structures and binds to the active pocket of LSD1 (Supplementary Figure S3). Although we have not obtained any experimental results regarding the secondary structures of the peptides incorporating α,α-disubstituted amino acids in the active pocket of LSD1, structural investigation using various approaches, such as NMR analysis and computational chemistry, is underway.
The structures of peptides are often a source of problems, such as low membrane permeability or low tolerance to proteases, but those problems could be solved by introducing drug delivery systems [38]. Meanwhile, it was reported that more hydrophobic histone H3-based cyclic peptides penetrate the cell membrane to exert an antiproliferative effect on cancer cells by inhibiting LSD1 in the cells, but less hydrophobic non-cyclic ones do not [39,40]. Recently, it was also reported that a more hydrophobic H3-based cyclic peptide stabilized by a disulfide bridge penetrates the cell membrane and inhibits LSD1, thereby inducing histone methylation, whereas a less hydrophobic non-cyclic one does not [41]. Thus, we speculate that our peptides incorporating α,α-disubstituted amino acids might passively penetrate the cell membrane to regulate LSD1 cellular function, because the peptides have hydrophobic properties and secondary structures stabilized by γ-turn inducers. In addition, it was reported that the introduction of unnatural amino acids into the original peptide sequence could improve the tolerance to protease [39,42]. Thus, we also expect that our peptides would exhibit protease tolerance. In the future, we are going to test the cellular activities of our peptides.

4. Materials and Methods

4.1. General Methods

All reagents were purchased and used as received. Fmoc-Aib-OH and Fmoc-Acc-OH were purchased from Watanabe Chemical Industries (Hiroshima, Japan). Fmoc-Aadc-OH was prepared from H-Aadc-OH (Ark Pharm, Arlington Heights, IL, USA) via a standard method for Fmoc introduction [43]. Obtained peptides were purified by preparative HPLC and the purity was estimated by analytical HPLC. Preparative HPLC was performed with a pump system of JASCO PU-2028 Plus (JASCO , Tokyo, Japan) and a Cosmosil 5C18-AR-II column (20 × 250 mm, Nacalai Tesque, Kyoto, Japan) using a linear gradient of 0.1% trifluoroacetic acid (TFA) in CH3CN and 0.1% aqueous TFA at the flow rate of 5.0 mL min−1, and detection was at 220 nm. Analytical HPLC was carried out with a pump system of JASCO PU-2028 Plus and a Cosmosil 5C18-AR-II column (4.6 × 250 mm, Nacalai Tesque) using a linear gradient of 0.1% TFA in CH3CN and 0.1% TFA in H2O (1.0 mL min−1, 220 nm). All peptides were characterized by MALDI-TOF MS using a Bruker Autoflex (Bruker, Billerica, MA, USA) with α-cyano-4-hydroxycinnamic acid (CHCA) as the matrix.

4.2. Synthesis of Peptides with γ-Turn Inducers

PCPA-Lys-4 peptides were synthesized using a modified strategy based on the published method for PCPA-Lys-4 H3-21 [22,25,28]. The synthesis of the protected mesyl-Lys-4 peptide sequence was accomplished on the resin based on standard Fmoc-based SPPS according to literature [44,45,46] and Boc-Ala-OH was used as the N-terminal amino acid. The resin was treated with 5 equivalents of trans-2-phenylcyclopropylamine hydrochloride and 10 equivalents of Et3N in 1:1 solution of H2O/CH3CN for 3 days at room temperature. Deprotection and cleavage from the resin were performed with TFA/thioanisole/H2O (85:10:5) solution. The desired peptide was collected by preparative RP-HPLC and lyophilized to give a white powder. MALDI-TOF MS (m/z): Calcd. for PCPA-Lys-4 H3-11 (1) ([M + H]+): 1364.529. Found: 1364.322. Calcd. for Aib peptide (2a) ([M + H]+): 1305.572. Found: 1305.155. Calcd. for Acc peptide (2b) ([M + H]+): 1385.702. Found: 1385.293. Calcd. for Aadc peptide (2c) ([M + H]+): 1489.854. Found: 1489.370.

4.3. Assay for LSD1 Inhibitory Activity

Assays for LSD1 inhibitory activity were performed using an LSD1 Fluorometric Drug Discovery Kit (Enzo Life Sciences, BML-AK544-0001). Inhibitors were pre-incubated with LSD1 (0.5 µg/well; room temperature; 15 min) before reactions were initiated by the addition of H3K4me2 peptide (2.3 µg/well, 20 µM) into all wells except the blank. After incubation (room temperature; 30 min), CeLLestialTM Red and HRP in the assay buffer were added and the incubation was prolonged (room temperature; 5 min). The fluorescence of the wells was measured on a 2030 ARVOTM X3 Multilabel Reader (PerkinElmer, Waltham, MA, USA, excitation: 540 nm; detection: 590 nm) and % inhibition was calculated from the fluorescence readings of inhibited wells relative to those of control wells. The concentration of test compounds that resulted in 50% inhibition was determined by plotting log [Inh] against the logit function of the % inhibition. IC50 values were determined by regression analysis of the concentration/inhibition data.

4.4. Assay for MAO Inhibitory Activity

Assays for MAO inhibitory activity were carried out according to the supplier’s protocol using a MAO-GloTM Assay System (Promega, V1401). MAO-A (18 units/mL) or MAO-B (6 units/mL) (Sigma-Aldrich, Saint Louis, MO, USA, 25 µL/well), 160 µM (for MAO-A) or 16 µM (for MAO-B) (4S)-4,5-dihydro-2-(6-hydroxybenzothiazolyl)-4-thiazolecarboxylic acid (12.5 µL/well), a MAO substrate, and various concentrations of inhibitors (12.5 µL/well) were incubated at room temperature. Reactions were stopped after 60 min by adding reconstituted Luciferin Detection Reagent (50 µL/well). Then, 20 min after the addition of this reagent, the chemiluminescence of the wells was measured with a 2030 ARVOTM X3 Multilabel Reader (PerkinElmer). For data processing, the same procedure as that for LSD1 inhibitory activity was used.

5. Conclusions

In summary, we described the design, synthesis, and in vitro evaluation of the LSD1 inhibitory activities of novel histone H3 peptide-based LSD1 inactivators 2a–c incorporating α,α-disubstituted amino acids as γ-turn inducers. We revealed that the peptides 2a–c were potent and selective LSD1 inactivators compared to reference peptide 1. In particular, peptide 2b incorporating one Acc on each side of lysine residue bearing a PCPA moiety was the most potent and selective LSD1 inactivator. These findings are useful for the further development of histone H3 peptide-based LSD1 inactivators. Detailed studies of peptides incorporating γ-turn inducers are underway in our laboratory.

Supplementary Materials

Figure S1: Tine-dependent inhibition of LSD1 by 2a, 2b and 2c, Figure S2: KDM4C inhibitory activities of 2a, 2b and 2b, Figure S3: View of the binding pose of a model peptide based on 2b in the active pocket of LSD1.

Author Contributions

T.S. conceived and designed the experiments; T.S. and Y.I. supervised the experiments; T.K. synthesized the peptides; Y.O. performed the biological experiments; Y.O. and Y.I. performed the docking study; Y.O., T.K., Y.I. and T.S. discussed and wrote the manuscript.

Acknowledgments

We thank Takaki Koide for technical support. This work was supported in part by the Waseda University Grant for Special Research Projects (T.K.; project number 2015K-191, 2017B-151, 2017K-199), a Grant-in-Aid for Scientific Research (T.K.; C, 26460159) from MEXT (The Ministry of Education, Culture, Sports, Science and Technology), the JST CREST program (T.S.; JPMJCR14L2), and the Project for Cancer Research and Therapeutic Evolution (T.S.).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Greer:, E.L.; Shi, Y. Histone methylation: A dynamic mark in health, disease and inheritance. Nat. Rev. Genet. 2012, 13, 343–357. [Google Scholar] [CrossRef] [PubMed]
  2. Shi, Y.; Lan, F.; Matson, C.; Mulligan, P.; Whetstine, J.R.; Cole, P.A.; Casero, R.A.; Shi, Y. Histone Demethylation Mediated by the Nuclear Amine Oxidase Homolog LSD1. Cell 2004, 119, 941–953. [Google Scholar] [CrossRef] [PubMed]
  3. Metzger, E.; Wissmann, M.; Yin, N.; Müller, J.M.; Schneider, R.; Peters, A.H.F.M.; Günther, T.; Buettner, R.; Schüle, R. LSD1 demethylates repressive histone marks to promote androgen-receptor-dependent transcription. Nature 2005, 437, 436–439. [Google Scholar] [CrossRef] [PubMed]
  4. Huang, J.; Sengupta, R.; Espejo, A.B.; Lee, M.G.; Dorsey, J.A.; Richter, M.; Opravil, S.; Shiekhattar, R.; Bedford, M.T.; Jenuwein, T.; et al. p53 is regulated by the lysine demethylase LSD1. Nature 2007, 449, 105–108. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, J.; Hevi, S.; Kurash, J.K.; Lei, H.; Gay, F.; Bajko, J.; Su, H.; Sun, W.; Chang, H.; Xu, G.; et al. The lysine demethylase LSD1 (KDM1) is required for maintenance of global DNA methylation. Nat. Genet. 2009, 41, 125–129. [Google Scholar] [CrossRef] [PubMed]
  6. Kontaki, H.; Talianidis, I. Lysine Methylation Regulates E2F1-Induced Cell Death. Mol. Cell 2010, 39, 152–160. [Google Scholar] [CrossRef] [PubMed]
  7. Lee, M.G.; Wynder, C.; Cooch, N.; Shiekhattar, R. An essential role for CoREST in nucleosomal histone 3 lysine 4 demethylation. Nature 2005, 437, 432–435. [Google Scholar] [CrossRef]
  8. Saleque, S.; Kim, J.; Rooke, H.M.; Orkin, S.H. Epigenetic regulation of hematopoietic differentiation by Gfi-1 and Gfi-1b is mediated by the cofactors CoREST and LSD1. Mol. Cell 2007, 27, 562–572. [Google Scholar] [CrossRef] [PubMed]
  9. Yokoyama, A.; Takezawa, S.; Schüle, R.; Kitagawa, H.; Kato, S. Transrepressive function of TLX requires the histone demethylase LSD1. Mol. Cell. Biol. 2008, 28, 3995–4003. [Google Scholar] [CrossRef] [PubMed]
  10. Tsai, M.-C.; Manor, O.; Wan, Y.; Mosammaparast, N.; Wang, J.K.; Lan, F.; Shi, Y.; Segal, E.; Chang, H.Y. Long Noncoding RNA as Modular Scaffold of Histone Modification Complexes. Science 2010, 329, 689–693. [Google Scholar] [CrossRef] [PubMed]
  11. Wissmann, M.; Yin, N.; Müller, J.M.; Greschik, H.; Fodor, B.D.; Jenuwein, T.; Vogler, C.; Schneider, R.; Günther, T.; Buettner, R.; et al. Cooperative demethylation by JMJD2C and LSD1 promotes androgen receptor-dependent gene expression. Nat. Cell Biol. 2007, 9, 347–353. [Google Scholar] [CrossRef] [PubMed]
  12. Højfeldt, J.W.; Agger, K.; Helin, K. Histone lysine demethylases as targets for anticancer therapy. Nat. Rev. Drug Discov. 2013, 12, 917–930. [Google Scholar] [CrossRef] [PubMed]
  13. Shi, L.; Cui, S.; Engel, J.D.; Tanabe, O. Lysine-specific demethylase 1 is a therapeutic target for fetal hemoglobin induction. Nat. Med. 2013, 19, 291–294. [Google Scholar] [CrossRef] [PubMed]
  14. Liang, Y.; Vogel, J.L.; Narayanan, A.; Peng, H.; Kristie, T.M. Inhibition of the histone demethylase LSD1 blocks α-herpesvirus lytic replication and reactivation from latency. Nat. Med. 2009, 15, 1312–1317. [Google Scholar] [CrossRef] [PubMed]
  15. Suzuki, T.; Miyata, N. Lysine Demethylases Inhibitors. J. Med. Chem. 2011, 54, 8236–8250. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, X.; Huang, B.; Suzuki, T.; Liu, X.; Zhan, P. Medicinal chemistry insights in the discovery of novel LSD1 inhibitors. Epigenomics 2015, 7, 1379–1396. [Google Scholar] [CrossRef] [PubMed]
  17. McAllister, T.E.; England, K.S.; Hopkinson, R.J.; Brennan, P.E.; Kawamura, A.; Schofield, C.J. Recent Progress in Histone Demethylase Inhibitors. J. Med. Chem. 2016, 59, 1308–1329. [Google Scholar] [CrossRef] [PubMed]
  18. Maes, T.; Mascaró, C.; Ortega, A.; Lunardi, S.; Ciceri, F.; Somervaille, T.C.P.; Buesa, C. KDM1 histone lysine demethylases as targets for treatments of oncological and neurodegenerative disease. Epigenomics 2015, 7, 609–626. [Google Scholar] [CrossRef] [PubMed]
  19. Mohammad, H.P.; Smitheman, K.N.; Kamat, C.D.; Soong, D.; Federowicz, K.E.; Van Aller, G.S.; Schneck, J.L.; Carson, J.D.; Liu, Y.; Butticello, M.; et al. A DNA Hypomethylation Signature Predicts Antitumor Activity of LSD1 Inhibitors in SCLC. Cancer Cell 2015, 28, 57–69. [Google Scholar] [CrossRef] [PubMed]
  20. Ueda, R.; Suzuki, T.; Mino, K.; Tsumoto, H.; Nakagawa, H.; Hasegawa, M.; Sasaki, R.; Mizukami, T.; Miyata, N. Identification of Cell-Active Lysine Specific Demethylase 1-Selective Inhibitors. J. Am. Chem. Soc. 2009, 131, 17536–17537. [Google Scholar] [CrossRef] [PubMed]
  21. Ogasawara, D.; Suzuki, T.; Mino, K.; Ueda, R.; Khan, M.N.A.; Matsubara, T.; Koseki, K.; Hasegawa, M.; Sasaki, R.; Nakagawa, H.; et al. Synthesis and biological activity of optically active NCL-1, a lysine-specific demethylase 1 selective inhibitor. Bioorg. Med. Chem. 2011, 19, 3702–3708. [Google Scholar] [CrossRef] [PubMed]
  22. Ogasawara, D.; Itoh, Y.; Tsumoto, H.; Kakizawa, T.; Mino, K.; Fukuhara, K.; Nakagawa, H.; Hasegawa, M.; Sasaki, R.; Mizukami, T.; et al. Lysine-Specific Demethylase 1-Selective Inactivators: Protein-Targeted Drug Delivery Mechanism. Angew. Chem. Int. Ed. 2013, 52, 8620–8624. [Google Scholar] [CrossRef] [PubMed]
  23. Itoh, Y.; Ogasawara, D.; Ota, Y.; Mizukami, T.; Suzuki, T. Synthesis, LSD1 Inhibitory Activity, and LSD1 Binding Model of Optically Pure Lysine-PCPA Conjugates. Comput. Struct. Biotechnol. J. 2014, 9, e201402002. [Google Scholar] [CrossRef] [PubMed]
  24. Ahmed Khan, M.N.; Tsumoto, H.; Itoh, Y.; Ota, Y.; Suzuki, M.; Ogasawara, D.; Nakagawa, H.; Mizukami, T.; Miyata, N.; Suzuki, T. Design, synthesis, and biological activity of N-alkylated analogue of NCL1, a selective inhibitor of lysine-specific demethylase 1. Medchemcomm 2015, 6, 407–412. [Google Scholar] [CrossRef]
  25. Kakizawa, T.; Ota, Y.; Itoh, Y.; Tsumoto, H.; Suzuki, T. Histone H3 peptide based LSD1-selective inhibitors. Bioorg. Med. Chem. Lett. 2015, 25, 1925–1928. [Google Scholar] [CrossRef] [PubMed]
  26. Itoh, Y.; Aihara, K.; Mellini, P.; Tojo, T.; Ota, Y.; Tsumoto, H.; Solomon, V.R.; Zhan, P.; Suzuki, M.; Ogasawara, D.; et al. Identification of SNAIL1 Peptide-Based Irreversible Lysine-Specific Demethylase 1-Selective Inactivators. J. Med. Chem. 2016, 59, 1531–1544. [Google Scholar] [CrossRef] [PubMed]
  27. Miyamura, S.; Araki, M.; Ota, Y.; Itoh, Y.; Yasuda, S.; Masuda, M.; Taniguchi, T.; Sowa, Y.; Sakai, T.; Suzuki, T.; et al. C–H activation enables a rapid structure–activity relationship study of arylcyclopropyl amines for potent and selective LSD1 inhibitors. Org. Biomol. Chem. 2016, 14, 8576–8585. [Google Scholar] [CrossRef] [PubMed]
  28. Kakizawa, T.; Ota, Y.; Itoh, Y.; Suzuki, T. Histone H3 peptides incorporating modified lysine residues as lysine-specific demethylase 1 inhibitors. Bioorg. Med. Chem. Lett. 2018, 28, 167–169. [Google Scholar] [CrossRef] [PubMed]
  29. Ota, Y.; Miyamura, S.; Araki, M.; Itoh, Y.; Yasuda, S.; Masuda, M.; Taniguchi, T.; Sowa, Y.; Sakai, T.; Itami, K.; et al. Design, synthesis and evaluation of γ-turn mimetics as LSD1-selective inhibitors. Bioorg. Med. Chem. 2018, 26, 775–785. [Google Scholar] [CrossRef] [PubMed]
  30. Schmidt, D.M.Z.; McCafferty, D.G. trans-2-Phenylcyclopropylamine is a mechanism-based inactivator of the histone demethylase LSD1. Biochemistry 2007, 46, 4408–4416. [Google Scholar] [CrossRef] [PubMed]
  31. Yang, M.; Culhane, J.C.; Szewczuk, L.M.; Jalili, P.; Ball, H.L.; Machius, M.; Cole, P.A.; Yu, H. Structural Basis for the Inhibition of the LSD1 Histone Demethylase by the Antidepressant trans-2-Phenylcyclopropylamine. Biochemistry 2007, 46, 8058–8065. [Google Scholar] [CrossRef] [PubMed]
  32. Sareddy, G.R.; Viswanadhapalli, S.; Surapaneni, P.; Suzuki, T.; Brenner, A.; Vadlamudi, R.K. Novel KDM1A inhibitors induce differentiation and apoptosis of glioma stem cells via unfolded protein response pathway. Oncogene 2017, 36, 2423–2434. [Google Scholar] [CrossRef] [PubMed]
  33. Sugino, N.; Kawahara, M.; Tatsumi, G.; Kanai, A.; Matsui, H.; Yamamoto, R.; Nagai, Y.; Fujii, S.; Shimazu, Y.; Hishizawa, M.; et al. A novel LSD1 inhibitor NCD38 ameliorates MDS-related leukemia with complex karyotype by attenuating leukemia programs via activating super-enhancers. Leukemia 2017, 31, 2302–2314. [Google Scholar] [CrossRef] [PubMed]
  34. Yang, M.; Culhane, J.C.; Szewczuk, L.M.; Gocke, C.B.; Brautigam, C.A; Tomchick, D.R.; Machius, M.; Cole, P.A.; Yu, H. Structural basis of histone demethylation by LSD1 revealed by suicide inactivation. Nat. Struct. Mol. Biol. 2007, 14, 535–539. [Google Scholar] [CrossRef] [PubMed]
  35. Kuroda, Y.; Ueda, H.; Nozawa, H.; Ogoshi, H. Adamantyl amino acid as γ-turn inducer for peptide. Tetrahedron Lett. 1997, 38, 7901–7904. [Google Scholar] [CrossRef]
  36. Youdim, M.B.H.; Edmondson, D.; Tipton, K.F. The therapeutic potential of monoamine oxidase inhibitors. Nat. Rev. Neurosci. 2006, 7, 295–309. [Google Scholar] [CrossRef] [PubMed]
  37. Whetstine, J.R.; Nottke, A.; Lan, F.; Huarte, M.; Smolikov, S.; Chen, Z.; Spooner, E.; Li, E.; Zhang, G.; Colaiacovo, M.; et al. Reversal of Histone Lysine Trimethylation by the JMJD2 Family of Histone Demethylases. Cell 2006, 125, 467–481. [Google Scholar] [CrossRef] [PubMed]
  38. Christophersen, P.C.; Fano, M.; Saaby, L.; Yang, M.; Nielsen, H.M.; Mu, H. Characterization of particulate drug delivery systems for oral delivery of Peptide and protein drugs. Curr. Pharm. Des. 2015, 21, 2611–2628. [Google Scholar] [CrossRef] [PubMed]
  39. Kumarasinghe, I.R.; Woster, P.M. Synthesis and Evaluation of Novel Cyclic Peptide Inhibitors of Lysine-Specific Demethylase 1. ACS Med. Chem. Lett. 2014, 5, 29–33. [Google Scholar] [CrossRef] [PubMed]
  40. Kumarasinghe, I.R.; Woster, P.M. Cyclic by peptide inhibitors of lysine-specific demethylase 1 with improved potency identified by alanine scanning mutagenesis. Eur. J. Med. Chem. 2018, 148, 210–220. [Google Scholar] [CrossRef] [PubMed]
  41. Meng, X.; Li, J.; Zheng, M.; Zuo, L.; Sun, C.; Zhu, Y.; Fang, L.; Liu, L.; Zhou, X. Stable H3 peptide was delivered by gold nanorods to inhibit LSD1 activation and induce human mesenchymal stem cells differentiation. Oncotarget 2017, 8, 23110–23119. [Google Scholar] [CrossRef] [PubMed][Green Version]
  42. Karstad, R.; Isaksen, G.; Brandsdal, B.O.; Svendsen, J.S.; Svenson, J. Unnatural amino acid side chains as S1, S1’, and S2’ probes yield cationic antimicrobial peptides with stability toward chymotryptic degradation. J. Med. Chem. 2010, 53, 5558–5566. [Google Scholar] [CrossRef] [PubMed]
  43. Brimble, M.A.; Kowalczyk, R.; Harris, P.W.R.; Dunbar, P.R.; Muir, V.J. Synthesis of fluorescein-labelled O-mannosylated peptides as components for synthetic vaccines: Comparison of two synthetic strategies. Org. Biomol. Chem. 2008, 6, 112–121. [Google Scholar] [CrossRef] [PubMed]
  44. Culhane, J.C.; Wang, D.; Yen, P.M.; Cole, P.A. Comparative analysis of small molecules and histone substrate analogues as LSD1 lysine demethylase inhibitors. J. Am. Chem. Soc. 2010, 132, 3164–3176. [Google Scholar] [CrossRef] [PubMed]
  45. Szewczuk, L.M.; Culhane, J.C.; Yang, M.; Majumdar, A.; Yu, H.; Cole, P.A. Mechanistic analysis of a suicide inactivator of histone demethylase LSD1. Biochemistry 2007, 46, 6892–6902. [Google Scholar] [CrossRef] [PubMed]
  46. Culhane, J.C.; Szewczuk, L.M.; Liu, X.; Da, G.; Marmorstein, R.; Cole, P.A. A mechanism-based inactivator for histone demethylase LSD1. J. Am. Chem. Soc. 2006, 128, 4536–4537. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Not available.
Molecules 23 01099 g001

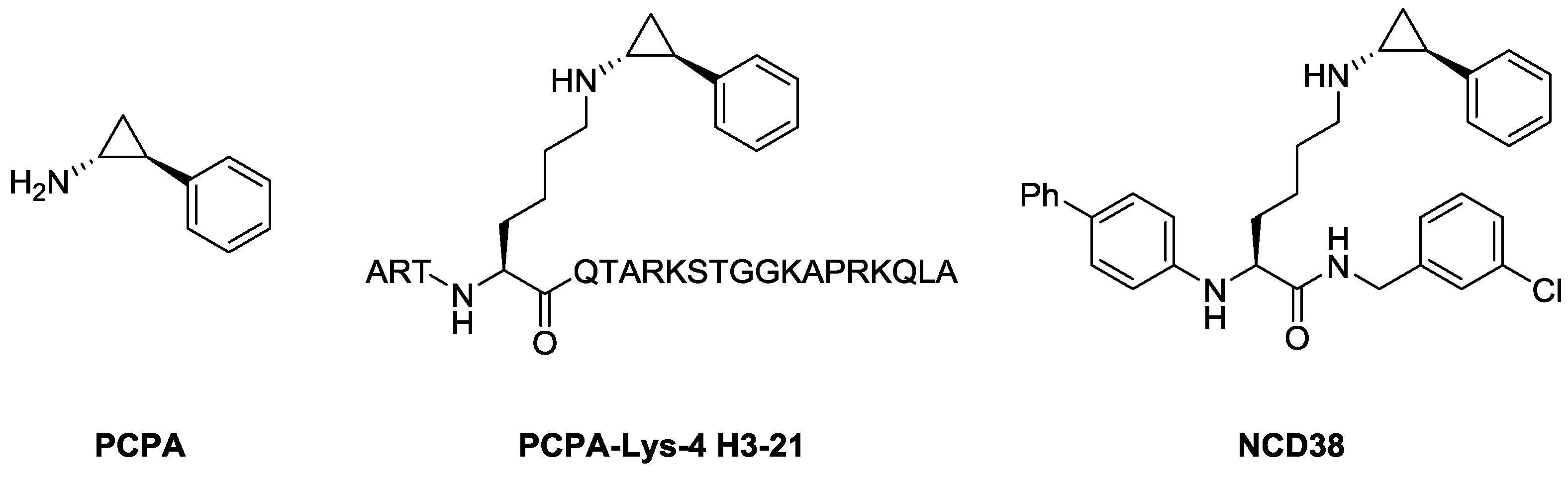

Figure 1. Structures of trans-2-phenylcyclopropylamine (PCPA) and its analogs as LSD1 inactivators.
Figure 1. Structures of trans-2-phenylcyclopropylamine (PCPA) and its analogs as LSD1 inactivators.
Molecules 23 01099 g001
Molecules 23 01099 g002
Figure 2. Secondary structure of a histone H3-based suicide substrate in the active pocket of LSD1 (PDB: 2UXN). (A) View of the secondary structure of the histone H3-based suicide substrate in the active pocket of LSD1. Intramolecular hydrogen bonds are indicated by the white dotted line and their lengths are shown in italics. (B) Schematic diagram of the secondary structure of the histone H3-based suicide substrate in the active pocket of LSD1. Intramolecular hydrogen bonds are indicated by the red line and their lengths are shown in italics.
Figure 2. Secondary structure of a histone H3-based suicide substrate in the active pocket of LSD1 (PDB: 2UXN). (A) View of the secondary structure of the histone H3-based suicide substrate in the active pocket of LSD1. Intramolecular hydrogen bonds are indicated by the white dotted line and their lengths are shown in italics. (B) Schematic diagram of the secondary structure of the histone H3-based suicide substrate in the active pocket of LSD1. Intramolecular hydrogen bonds are indicated by the red line and their lengths are shown in italics.
Molecules 23 01099 g002
Molecules 23 01099 g003

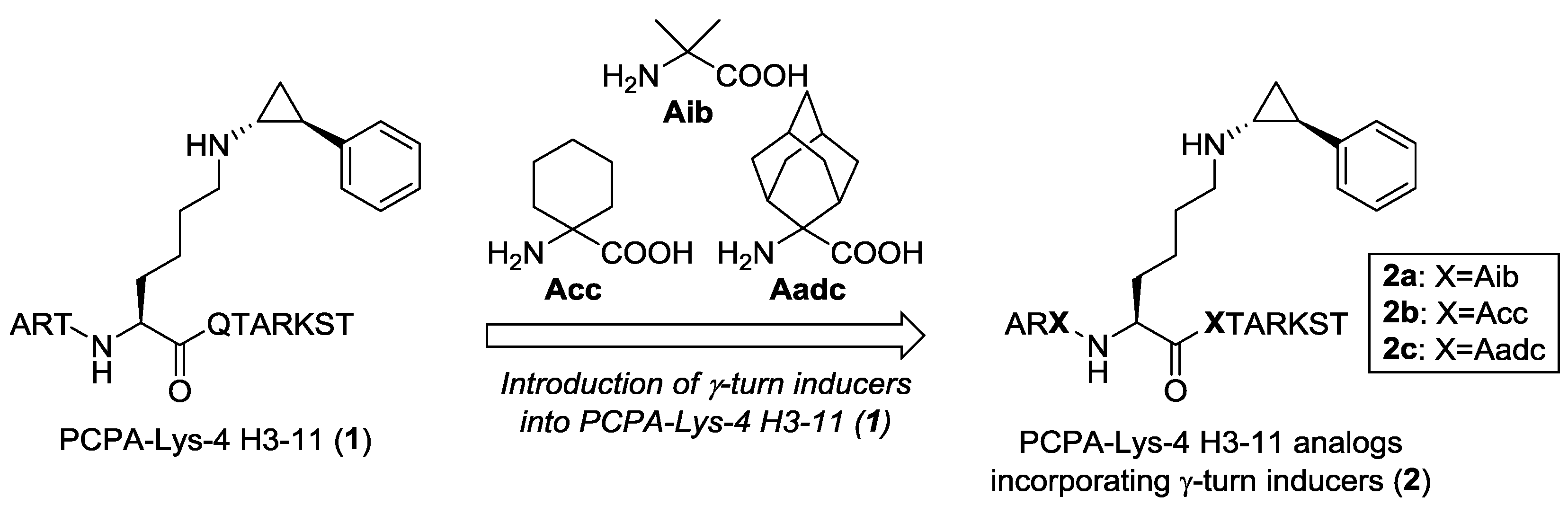

Figure 3. Structure of PCPA-Lys 4 H3-11 (1) (left). Design of novel histone H3 peptide-based LSD1 inactivators 2a–c incorporating α,α-disubstituted amino acids that work as γ-turn inducers (right).
Figure 3. Structure of PCPA-Lys 4 H3-11 (1) (left). Design of novel histone H3 peptide-based LSD1 inactivators 2a–c incorporating α,α-disubstituted amino acids that work as γ-turn inducers (right).
Molecules 23 01099 g003
Molecules 23 01099 sch001
Scheme 1. Preparation of novel histone H3 peptide-based LSD1 inactivators 2a–c with γ-turn inducers by Fmoc-based SPPS (Boc-Ala-OH was used as the N-terminal amino acid). Reagents and conditions: (a) MsCl, Et3N in THF; (b) PCPA, Et3N in H2O:CH3CN solution; (c) TFA, thioanisole, H2O; and (d) preparative HPLC. Peptide chains shown in italics are protected.
Scheme 1. Preparation of novel histone H3 peptide-based LSD1 inactivators 2a–c with γ-turn inducers by Fmoc-based SPPS (Boc-Ala-OH was used as the N-terminal amino acid). Reagents and conditions: (a) MsCl, Et3N in THF; (b) PCPA, Et3N in H2O:CH3CN solution; (c) TFA, thioanisole, H2O; and (d) preparative HPLC. Peptide chains shown in italics are protected.
Molecules 23 01099 sch001
Molecules 23 01099 g004
Figure 4. A proposed secondary structure of histone H3 peptide-based LSD1 inactivator 2b in the active pocket of LSD1 is shown in a schematic diagram. Intramolecular hydrogen bonds are indicated in red.
Figure 4. A proposed secondary structure of histone H3 peptide-based LSD1 inactivator 2b in the active pocket of LSD1 is shown in a schematic diagram. Intramolecular hydrogen bonds are indicated in red.
Molecules 23 01099 g004
Table 1. LSD1 and MAO inhibitory activities of peptides 2a–c.
Table 1. LSD1 and MAO inhibitory activities of peptides 2a–c.
CompoundIC50 (µM) 1
LSD1MAO-AMAO-B
PCPA16.5 ± 1.96.00 ± 1.386.54 ± 0.51
10.126 ± 0.002>10>10
2a0.0891 ± 0.0053>10>10
2b0.0584 ± 0.0025>10>10
2c0.0724 ± 0.0040>10>10
1 Values are means ± S.D. of at least three experiments.
