Review

Potential Antivirals: Natural Products Targeting Replication Enzymes of Dengue and Chikungunya Viruses

by
Ana Flávia Costa da Silveira Oliveira
1,2,
Róbson Ricardo Teixeira
3,*,
André Silva de Oliveira
1,2,
Ana Paula Martins de Souza
3,
Milene Lopes da Silva
3 and
Sérgio Oliveira de Paula
1,*
1
Departamento de Biologia Geral, Universidade Federal de Viçosa, Av. P.H. Rolfs, S/N, 36570-900 Viçosa, MG, Brazil
2
Instituto Federal de Educação, Ciência e Tecnologia do Norte de Minas, 39900-000 Almenara, MG, Brazil
3
Departamento de Química, Universidade Federal de Viçosa, Av. P.H. Rolfs, S/N, 36570-900 Viçosa, MG, Brazil
*
Authors to whom correspondence should be addressed.
Molecules 2017, 22(3), 505; https://doi.org/10.3390/molecules22030505
Submission received: 20 December 2016 / Revised: 9 March 2017 / Accepted: 17 March 2017 / Published: 22 March 2017

Abstract

:
Dengue virus (DENV) and chikungunya virus (CHIKV) are reemergent arboviruses that are transmitted by mosquitoes of the Aedes genus. During the last several decades, these viruses have been responsible for millions of cases of infection and thousands of deaths worldwide. Therefore, several investigations were conducted over the past few years to find antiviral compounds for the treatment of DENV and CHIKV infections. One attractive strategy is the screening of compounds that target enzymes involved in the replication of both DENV and CHIKV. In this review, we describe advances in the evaluation of natural products targeting the enzymes involved in the replication of these viruses.

1. Introduction

Neglected tropical diseases (NTDs) compose a group of infections that primarily affects the world’s poorest populations; they continue to be the leading cause of morbidity and mortality among the poorest people in developing countries [1,2,3,4]. NTDs affect more than one billion individuals who have inadequate access to safe water, sanitation and appropriate housing. The NTDs are caused by helminths, protozoa and tropical bacteria. Because of their link to poverty in developing countries, diseases caused by several arboviruses, including dengue virus (DENV) and chikungunya virus (CHIKV), should be considered NTDs [3].
CHIKV is a mosquito-transmitted alphavirus that belongs to the Togaviridae family [5]. It is a reemergent arbovirus that is responsible for chikungunya fever (CHIKF), severe joint pain and rash [6]. CHIKF was first described in 1952 after an outbreak along the borders of Tanzania (former Tanganyika) and Mozambique. This alphavirus is transmitted by mosquitoes of the Aedes genus, including A. aegypti, A. furcifer and A. albopictus [6,7]. In 2006, CHIKV was responsible for an epidemic of unprecedented magnitude in the Indian Ocean, stressing the need for new therapeutic approaches. Since that time, researchers have acquired a better understanding of CHIKV biology, which should lead to the identification of new, active molecules against this reemergent pathogen [8].
DENV, like CHIKV, is a reemergent arbovirus. Within the last two decades, it has become the most important and frequently transmitted arbovirus worldwide [9]. The incidence of DENV has increased approximately 30-fold over the past 50 years. Approximately 50–100 million new infections are estimated to occur annually in more than 100 endemic countries, and further spread has been documented to areas that were previously unaffected. Each year, hundreds of thousands of serious cases of infection arise, which result in approximately 20,000 deaths; additionally, 264 disability-adjusted life years per million inhabitants per year are lost, with an estimated cost for outpatient cases and hospitalizations ranging from US$514–1394. The actual numbers are probably much worse, since the underreporting of DENV cases has been documented [9,10,11,12,13]. This disease comprises four viral serotypes (DENV 1–4), and its spectrum ranges from asymptomatic infection to dengue fever, dengue hemorrhagic fever and dengue shock syndrome. Moreover, DENV infection may lead to death. All four serotypes of DENV are transmitted to humans by A. aegypti and A. albopictus mosquitoes [14,15,16].
Considering the severity of these diseases, several investigations have been conducted during the past few years to identify antiviral compounds with which to treat them. The development of antiviral therapies remains a high priority for the World Health Organization (WHO).

2. Natural Products as a Source of Pharmaceuticals

Several approaches have been used for drug discovery [17], including the use of natural products, which can be explored for the research and development of new pharmaceuticals. Several drugs for treating a variety of diseases have been discovered via the screening of natural compounds obtained from animals, microorganisms, marine organisms and plants. Such drugs include natural products, semi-synthetic analogs derived from active natural products and entirely synthetic compounds designed using natural products as models. Since the early days of drug discovery, chemical constituents isolated from natural sources have been explored as a source of novel therapeutics. Statistically, about 50% of new chemical entities are obtained from either natural products or natural product analogs [18,19,20,21].
Several plants have been shown to possess anti-DENV and anti-CHIKV activities. According to a WHO factsheet, 80% of the population of certain Asian and African countries depends on traditional medicines for primary healthcare due to economic and geographic constraints [16,22,23,24,25]. Because of their few (or unknown) adverse effects, the global use of medicinal plants or herbal-based medicines is steadily growing. Even though a number of plants is known for their anti-DENV and anti-CHIKV activities, few investigations have been published on the isolation (identification) and evaluation of compounds from plants with anti-DENV and anti-CHIKV activities [16].
In this review, we describe advances in the evaluation of natural products targeting the enzymes involved in the replication of DENV and CHIKV. Most of the compounds described below are natural products isolated from plant species. However, examples of substances isolated from other natural sources are also presented. Investigations of plant extracts that possess antiviral activities are also discussed. In addition, the results of in silico studies are also highlighted.

3. Structural Biology of DENV

DENV particles are about 50 nm in diameter. The DENV RNA genome of 10,723 nucleotides encodes an uninterrupted open reading frame, which directs the synthesis of the polyprotein precursor NH2-C-prM-E-NS1-NS2A-NS2B-NS3-NS4A-NS4B-NS5-COOH, where C is the capsid protein, M is a membrane-associated protein, E is the envelope protein and NS1-NS5 are nonstructural proteins [25,26,27].
Proteins NS3 and NS5 are integral components of the viral replication complex and are involved in viral RNA genome synthesis, methylation of the 5′ cap of the viral genome and polyprotein processing, among other activities [19].

3.1. NS3

NS3 is a multifunctional enzyme, which acts as a protease for polyprotein processing, an RNA triphosphatase for capping nascent viral RNA and a helicase, along with cofactor NS2B, for unwinding the double-stranded, replicative form of RNA [28]. NS3 is sufficiently conserved within the four DENV serotypes [28]. Dissecting its structural and functional domains is thus critical to improving the understanding of the flavivirus life cycle and assisting in the design of effective antiviral drugs. Furthermore, the conservation of domain structures across the Flaviviridae family suggests conservation of functions [22,26].
The NS3 protease is required for the production of mature viruses and plays a key role in maintaining infectivity. This enzyme mediates the cleavage of polyproteins into functional proteins that are required for viral propagation. The dimeric protease NS2B-NS3 is responsible for protein processing at the junctions of NS2A/NS2B, NS2B/NS3, NS3/NS4A and NS4B/NS5, as well as internal DENV sites within C, 2A, NS3 and NS4A, thus making the nonstructural NS2B-NS3 protease an ideal target for drug design against DENV infection [29,30,31].
The helicase domain of NS3 has seven structural motifs that are reminiscent of superfamily 2 helicases. It has three subdomains with significant sequence identity and structural similarity to other flavivirus helicases. Subdomains I and II are also structurally similar to the corresponding domains in the hepatitis C virus, suggesting a common mechanism of action [26,32,33,34].
The combined activities of the polynucleotide-stimulated helicase and nucleoside triphosphatase (NTPase) regions in the C-terminal domain are required for both melting secondary structures prior to the initiation of RNA synthesis and unwinding RNA duplexes; these actions occur by either separating double-stranded RNA intermediates that are formed during viral RNA synthesis or removing proteins bound to viral RNA using a translocase function. DENV with impaired helicase activity loses its ability to replicate, demonstrating the importance of the NS3 helicase domain in the viral life cycle. For this reason, inhibitors or modulators of these enzymes are of great interest as therapeutic agents [26,35,36,37].

3.2. NS5

NS5 is the largest (104 kDa) and most conserved protein in DENV. Specifically, residues 320–368 are strictly conserved among the flaviviruses. These residues have also been implicated in the interaction between NS5 and NS3 [38,39]. The important role of NS5 in DENV replication makes these proteins interesting targets for virus inhibition [26]. Similar to NS3, NS5 possesses two major activities, an RNA-dependent RNA polymerase (RdRp; residues 320–900) at its C-terminal end and a methyltransferase (MTase; residues 1–296) at its N-terminal end [26,40]. The NS5 MTase is a surface polyprotein that is essential for the attachment of the virus to the host cell. Thus, the ligand-bound crystal structure of the N-terminal domain of the NS5 MTase has become a crucial tool for current drug discovery efforts. The crystal structure of the RdRp shows an active site with two zinc ion-binding motifs, which are ideal targets for designing novel RdRp inhibitors [4,41,42].
The NS5 RdRp plays a vital role in the replication of viral RNA. Following viral entry and translation of the viral genome, the NS5 RdRp performs de novo RNA synthesis, generating negative-sense RNA from the positive-sense viral RNA template. The latter then serves as a template for the synthesis of more positive-sense RNA strands, which are either used for protein translation or packaged into infectious virions [43,44,45].
The flavivirus MTase catalyzes two very distinct methylation reactions, but there is only a single binding site for the methyl donor. It is likely that the RNA substrate repositions itself after the first reaction so that the second reaction can proceed [45,46].
Natural compounds that display inhibitory effects against DENV enzymes are described below. The evaluation of a compound’s activity against viral enzymes can be investigated in two ways. First, the effect of a substance can be assessed directly on the enzyme (enzymatic assay). Second, the evaluation can be carried out in replicon cell lines (which are unable to produce infectious particles, but are capable of RNA replication) using a virus strain (post-treatment assay). For the post-treatment assay, host cells are initially infected with viruses, which can attach to and enter the cell. Then, the viruses that did not attach to the host cells are removed. Finally, the compound under investigation is added. An observation of virus inhibition indicates that the compound acts on the virus replication process, which involves several enzymes. The compound is thus assumed to act on one or more viral enzymes. Molecular docking is another important approach that has been used to investigate inhibitors of viral enzymes. The results from molecular docking experiments and in vitro analyses help streamline the screening processes.

3.3. Direct Inhibitory Activities of Natural Compounds against DENV Enzymes

Boesenbergia rotunda (L.) Mansf. Kulturpfl (Br) is a member of the ginger family. A phytochemical investigation of yellow rhizomes of this species from Thailand led to the isolation of six compounds, which are shown in Figure 1.
These compounds were assayed against the DENV-2 NS3 protease [47]. The enzymatic assays were carried out using the fluorogenic peptide Boc-Gly-Arg-Arg-MCA, which is an active substrate of the DENV-2 NS3 protease. Initially, the activities of the six compounds against NS3 were evaluated at three different concentrations (120, 240 and 400 ppm); all compounds inhibited NS3 protease activity in a concentration-dependent manner. The most active compounds were 5 and 6. The activities of these compounds were further evaluated at 40, 80 and 160 ppm. The inhibitory activity of Compound 5 ranged from 27.1% (40 ppm)–99.8% (400 ppm), whereas the inhibitory activity of Compound 6 ranged from 52.0% (40 ppm)–99.8% (400 ppm). Individually, Compounds 2 and 4 were found to have low inhibitory activity. However, when these flavones were combined, an increase in inhibitory activity was noticed (synergistic effect). Kinetic studies carried out with Compounds 1, 4, 5 and 6 resulted in the determination of their Ki values (345 for 1; 377 for 4; 25 for 5; and 21 for 6). Compounds 1 and 4 appeared to function via a noncompetitive mechanism, whereas Compounds 5 and 6 displayed competitive inhibition [47].
Litaudon and co-workers biologically screened 1350 ethyl acetate extracts obtained from various parts of 650 New Caledonian plants. The extracts were screened at a concentration of 50 μg/mL in a DENV polymerase assay using the RdRp domain of DENV-2 NS5. A second screen of 320 active extracts at a concentration of 10 μg/mL was then performed, which resulted in the selection of 49 extracts exhibiting enzymatic inhibition of at least 80%. An extract from the bark of Cryptocarya chartacea displayed significant enzymatic inhibitory activity (90% at 10 μg/mL) and was subsequently selected for fractionation. Flavonoids 717 (Figure 2) were isolated from this extract [48].
As can be seen in Figure 2, flavonoids 817 inhibited the DENV NS5 RdRp, with IC50 values ranging from 1.8 μM (Compound 15)–72.5 μM (Compound 13). Pinocembrin (7) was found to be inactive against the DENV-2 NS5 RdRp, suggesting that the aliphatic portion of the chartaceone structure plays an important role in the inhibition of the polymerase. In this investigation, the authors also evaluated the effects of the isolated compounds on nasopharyngeal carcinoma cells. No compounds were found to be toxic to this cell line at a concentration of 10 μg/mL [48].

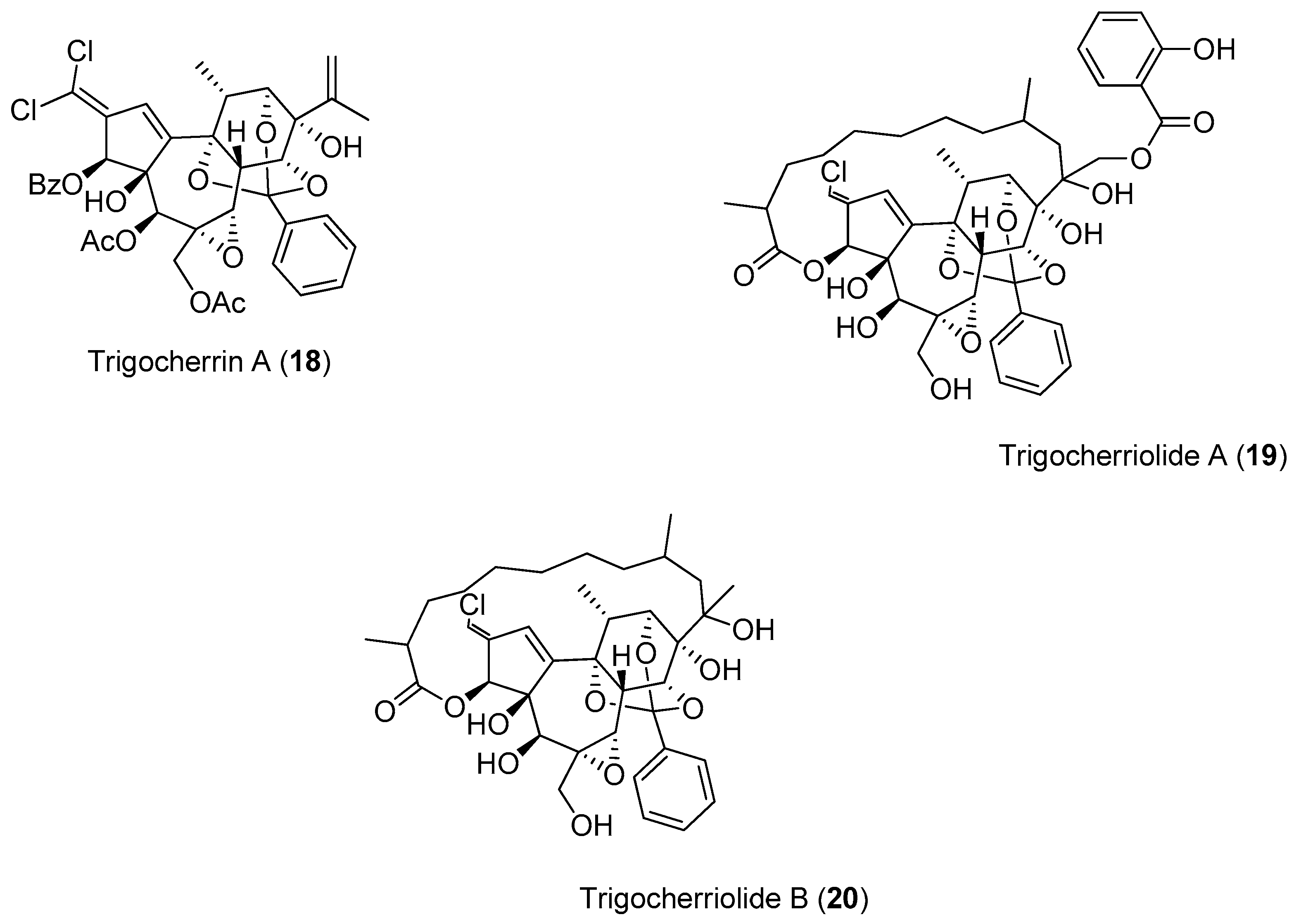

The investigation of the ethyl acetate extracts of the bark and wood of Trigonostemon cherrieri, a rare endemic plant from New Caledonia, resulted in the isolation of a series of very complex, oxygenated diterpenoids, which included Compounds 1820. These compounds were screened against the DENV NS5 RdRp (Figure 3).
Compounds 1820 were capable of inhibiting the DENV NS5 RdRp. Compound 19 was the most potent (IC50 = 3.1 μM), with an inhibitory activity more than 150-times lower than 3-deoxy-Guanosine Triphosphate (3-deoxy-GTP) (0.02 μM), which was used as the reference compound [49].
To identify new inhibitors of the DENV-2 NS5 RdRp, Litaudon and co-workers screened 820 ethyl acetate extracts from different parts of 400 plants collected in Madagascar. The bark extract of Flacourtia ramontchi was selected for fractionation, because of its pronounced effect on the DENV-2 NS5 RdRp. The compounds shown in Figure 4 were isolated from this extract and fully characterized [50]. The data displayed in Figure 4 reveal that among the isolated phenolic glycosides 2131, Compounds 22, 27 and 30 were the most active. The cinnamic acid derivative Compound 31 showed significant inhibitory activity, although its activity is about four-times lower than the positive control. However, no structure-activity relationships could be established for any of these compounds.

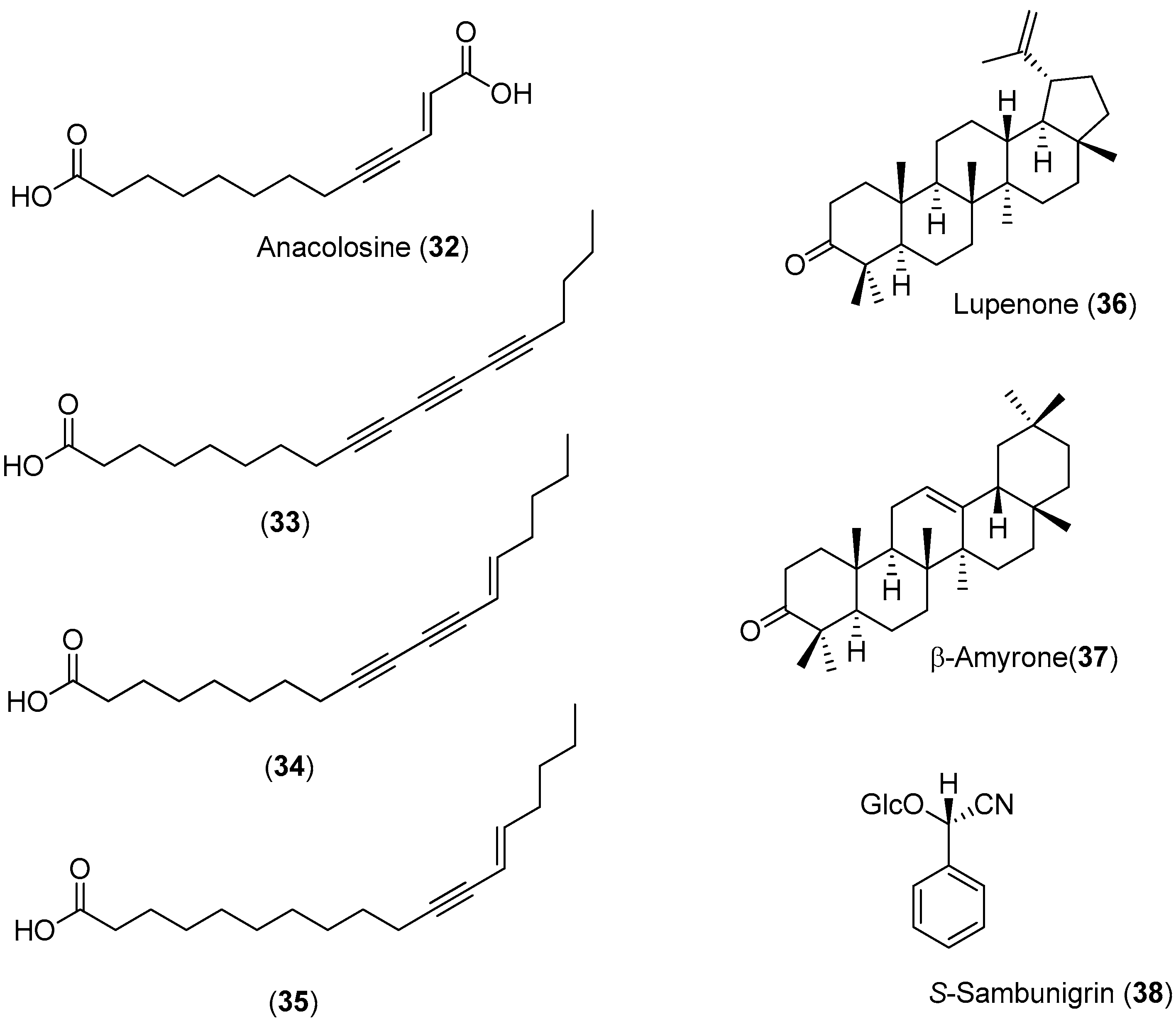

Anacolosa pervilleana is a Madagascan plant whose leaves, bark and young shoots are used in traditional medicines for the treatment of schistosomiasis, syphilis and general weakness. Four acetylenic carboxylic acids (Compounds 3235), two triterpenes (Compounds 36 and 37) and one aromatic compound (Compound 38) were isolated from the leaf ethyl acetate extract of this species (Figure 5) [51].
The acetylenic acids were found to be the most active compounds, inhibiting the DENV NS5 RdRp with approximately the same efficacy. The observed IC50 values (<3 μM) were about 100-times lower than the reference compound, 3′-deoxy-GTP [51].

3.4. Direct Inhibitory Activities of Plant Extracts against DENV Enzymes

The medicinal plants Vernonia cinerea, Hemigraphis reptans, Hedyotis auricularia, Laurentia longiflora, Tridax procumbens and Senna angustifolia were used to evaluate their abilities to inhibit the DENV NS3 protease. The highest inhibitory effects were observed for the ethanolic extract of S. angustifolia leaves, the methanolic extract of V. cinerea leaves and the ethanolic extract of T. procumbens stems (IC50 values: 30.1 ± 3.4, 23.7 ± 4.1 and 25.6 ± 3.8 μg/mL, respectively). The most active extracts were also tested in vitro against DENV-2-infected Vero cells, which were able to maintain a normal morphology without cytopathic effects. The percent viral inhibition of the extracts of V. cinerea (80.6% ± 6.1%) and T. procumbens (64.0% ± 9.4%) was significantly higher than that of S. angustifolia extract (26.3% ± 3.8%), as measured by a plaque-forming assay and RT-qPCR [52]. The authors of this investigation did not analyze which compounds were responsible for the observed activities.

3.5. Indirect Inhibitory Activities of Compounds and Extracts against DENV Enzymes

The plant Houttuynia cordata is a popular vegetable consumed in the northern and eastern regions of Thailand. Its aqueous extract was evaluated for inhibitory activity against DENV-2 within the 10–100-mg/mL concentration range. Both pre- and post-incubation of HepG2 cells with H. cordata extract resulted in a significant reduction in intracellular DENV-2 RNA production, correlating with a decrease in DENV-2 protein expression. The extract directly inhibited intracellular viral RNA replication, with an effective concentration (EC50) of 0.8 mg/mL. Within the 10–40-mg/mL concentration range, the H. cordata extract also exhibited a protective effect on virion release from infected LLC-MK2 cells (Rhesus Monkey Kidney Epithelial Cells). The reduction in RNA production and decrease in DENV-2 protein expression suggest the inhibition of viral enzymatic activity by the aqueous extract. High-performance liquid chromatography of the aqueous extract revealed that hyperoside (Compound 39) (Figure 6) is the major component of the extract, suggesting that this flavonoid plays an important role in DENV-2 inhibition. The aqueous extract had no toxic effects on human blood cells [53].

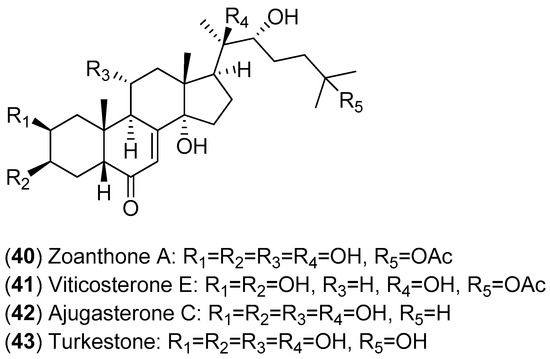

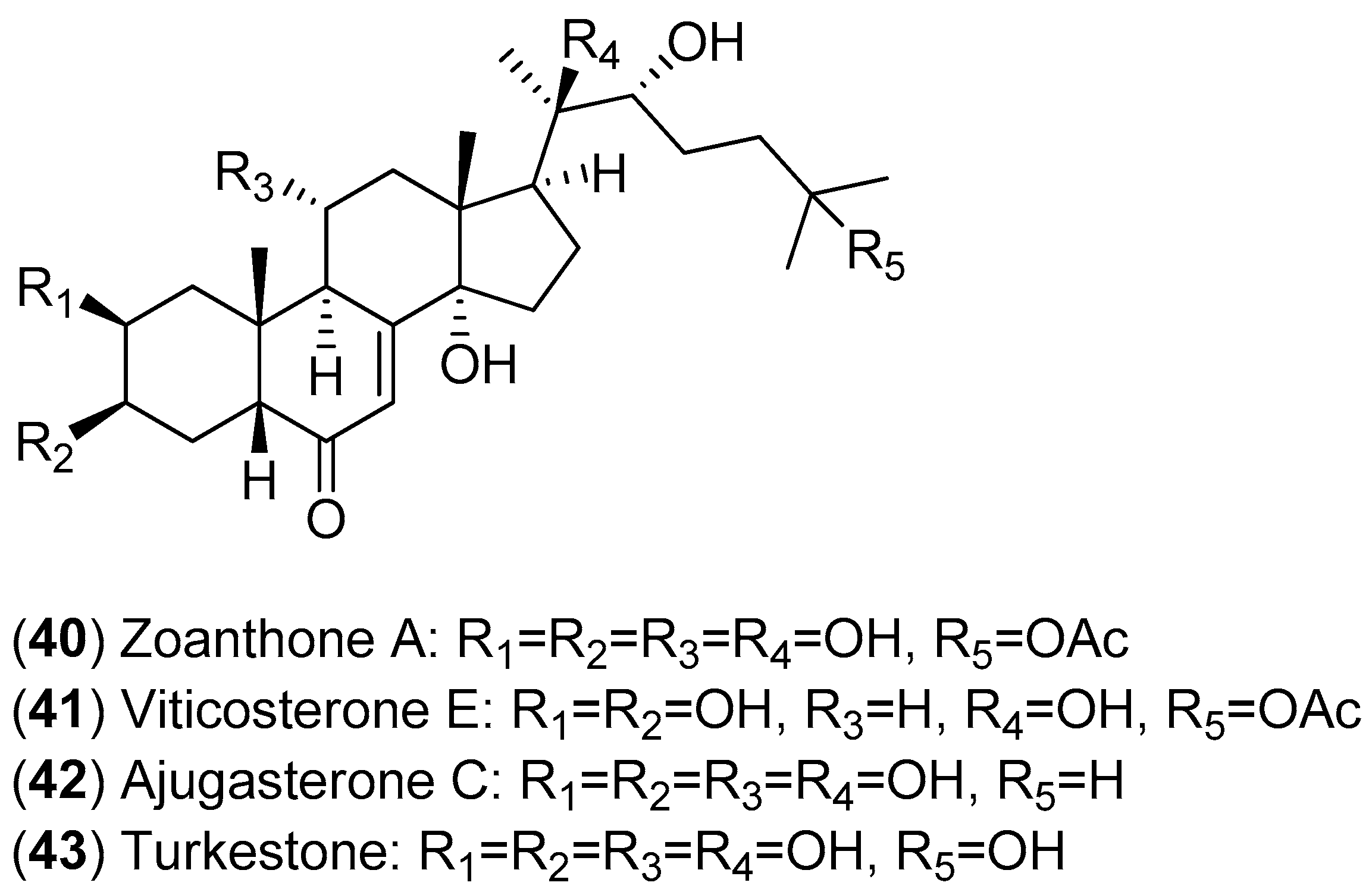

The fractionation of the ethanolic extract of Zoanthus spp. (sea anemone) collected in Taiwan resulted in the isolation of 14 ecdysones; the inhibitory activities of these compounds against DENV-2 were evaluated. Among the isolated ecdysonoids, Compounds 4043 were the most potent. The results shown in Figure 7 suggest that ajugasterone C (Compound 42) is equipotent to 2′-C-methylcytidine (positive control), with a better Seletive Index (SI). In addition, the most active ecdysone, Compound 42, was also tested against other DENV serotypes. Ecdysone 42 was found to be active against all DENV serotypes, with the following EC50 values: DENV-1 (15.70 ± 2.36 μM), DENV-3 (9.48 ± 0.24 μM) and DENV-4 (12.15 ± 1.22 μM) with a high CC50 (the 50% cytotoxic concentration). After analyses of both the structure-activity relationship and molecular docking, the authors proposed that ecdysone 42 impairs DENV RNA replication by blocking the viral polymerase channel [54].

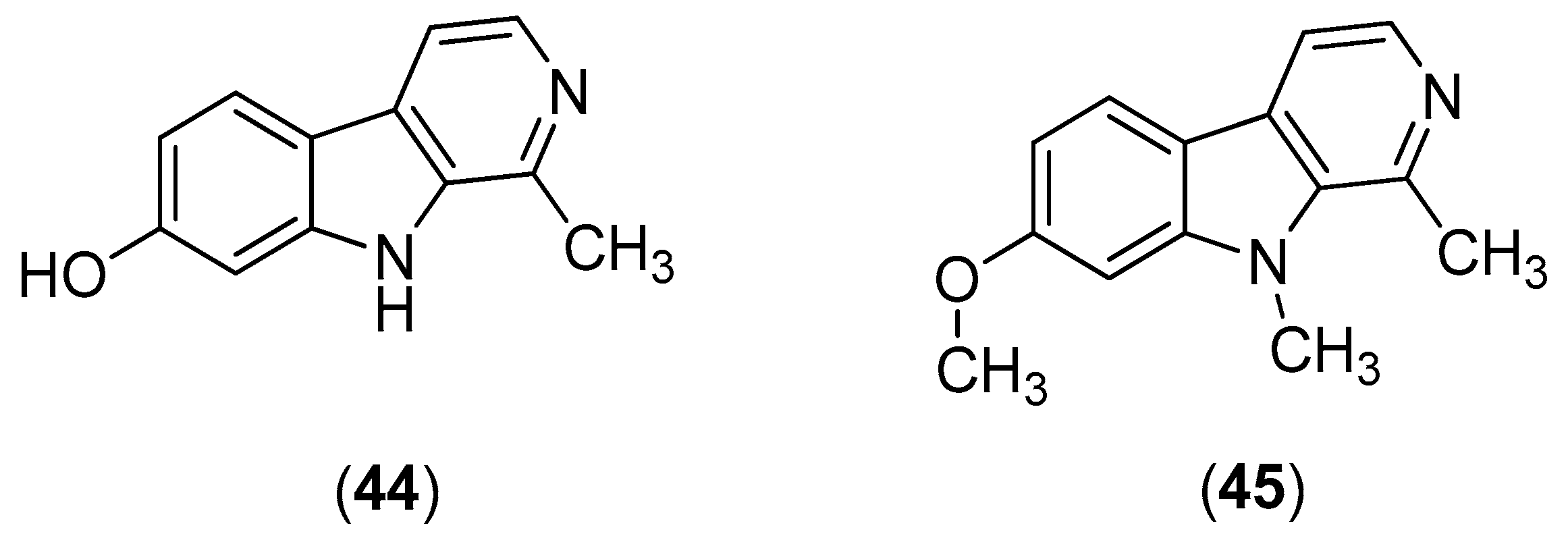

β-Carbolines are widespread plant and animal alkaloids that possess important biological activities [55]. Quintana and co-workers evaluated the effects of natural and synthetic β-carbolines; they found that the natural product harmol (Compound 44) and its synthetic derivative 9-N-methylharmine (Compound 45) were the most potent alkaloids, with inhibitory activities against DENV-2 and SI values of 56.2 and 61.3, respectively (Figure 8). Vero cells were infected with DENV at a multiplicity of infection (MOI) of 1 or 0.1 PFU/cell. At 48 h post-infection, the cells were lysed; and the supernatants were harvested; virus yields were quantified by plaque assay. The results indicate that the compounds likely act via viral enzyme inhibition. Harmol (Compound 44) and 9-N-methylharmine (Compound 45) were also found to possess inhibitory effects against DENV-1, DENV-3 and DENV-4, albeit with lower efficiencies than against DENV-2 [56].

3.6. In Silico Investigations of DENV Enzyme Inhibitors

Galiano and co-authors conducted an in silico study to identify new inhibitors of the NS5 RdRp in the four DENV serotypes. They used a chemical library of 372,792 non-nucleotide compounds to perform molecular docking experiments at the binding site of the RNA template tunnel of the polymerase. After the screening process was completed, 39 compounds were identified as leading DENV RdRp inhibitor candidates. The selected compounds had a highly negative free energy variation (∆G) when docked to the binding site of the RNA template tunnel in the four DENV serotypes. In addition, the majority of the selected compounds had favorable druggability and optimal ADMET (absorption, distribution, metabolism, excretion, and toxicity) properties [57]. Among the 39 selected compounds, 10 (Compounds 4655 in Figure 9) were natural products.
Recently, Power and Setzer reported an in silico investigation of natural products as potential antiviral agents against DENV protease (NS2B-NS3pro), helicase (NS3 helicase), MTase, RdRp and the virus envelope. A total of 2194 plant-derived natural products were docked. The compound set was composed of 290 alkaloids (68 indole alkaloids, 153 isoquinoline alkaloids, 5 quinoline alkaloids, 13 piperidine alkaloids, 14 steroidal alkaloids and 37 miscellaneous alkaloids), 678 terpenoids (47 monoterpenoids, 169 sesquiterpenoids, 265 diterpenoids, 81 steroids and 96 triterpenoids), 20 aurones, 81 chalcones, 349 flavonoids, 120 isoflavonoids, 74 lignans, 58 stilbenoids, 169 miscellaneous polyphenolic compounds, 100 coumarins, 28 xanthones, 67 quinones and 160 miscellaneous natural compounds. Polyphenolic compounds, flavonoids, chalcones and other phenolics were identified as the most strongly docking ligands for DENV protein targets [58], as shown in Figure 10 for selected ligands 5659 for DENV NS2B-NS3.

4. Structural Biology of CHIKV

The genome of CHIKV is a positive-sense, single-stranded RNA (ssRNA) genome, consisting of two open reading frames: The 5′ end encodes nonstructural proteases necessary for the formation of viral replicase complexes, and the 3′ end encodes structural proteins necessary for receptor binding and cell membrane fusion [4]. Alphaviruses have a positive-sense ssRNA genome that is approximately 11 kb in length and encodes nine proteins. Four nonstructural proteins (nsP1-nsP4) are encoded by the 5′ end of the genome. The 3′ end of the genome encodes a polyprotein precursor containing three structural proteins: PE2 (the precursor of E3 and E2), E1 and the capsid protein (C) [59].
The nonstructural proteins nsP1, nsP2 and nsP4 possess enzymatic activities. They are involved in viral RNA genome synthesis, methylation of the 5′ cap of the viral genome and protein processing, among other activities [59].

4.1. nsP1

CHIKV nsP1 is a palmitoylated protein, consisting of 535 amino acids. The N-terminal region of nsP1 is responsible for the MTase and guanylyltransferase activities involved in capping and methylation of the newly-formed viral genomic and subgenomic RNAs. Recently, this protein was reported to play a crucial role in the downregulation of bone marrow stromal antigen-2 (BST-2), suggesting that nsP1 would be a potential target of BST-2-mediated therapeutics targeting CHIKV [7,59]. Elimination of nsP1 abolishes CHIKV replication. nsP1 genes are highly conserved in CHIKV strains and are important for virus proliferation in host cells. Therefore, nsP1 represents a rational target for antiviral therapies [60].

4.2. nsP2

The nonstructural protein nsP2 possesses numerous enzymatic activities and functional roles. This viral protein consists of an N-terminal domain with RNase and NTPase activities and a protease domain and an MTase-like region of unknown function at its C-terminus. In addition to its role as a cofactor of the viral polymerase complex, nsP2 is a virulence factor [4].
Similar to DENV NS3, CHIKV nsP2 cleaves viral polyproteins into four nonstructural proteins via the thiol protease complex at its C-terminus. The proteolytic activity of nsP2 plays an important role in the cleavage of nonstructural polyproteins, which are critical for viral replication. On the other hand, the RNA triphosphatase activity essential for RNA capping is found in the N-terminus of nsP2. The recently-solved crystal structure of CHIKV nsP2 might function as a crucial starting point for the development of novel antivirals targeting CHIKV [4,7,61,62]. The complete nucleotide sequence of the CHIKV genome revealed that nsP2 is the largest nonstructural protein: 798 amino acids long with a large, net positive charge [63].

4.3. nsP4

CHIKV nsP4 is an RdRp that is believed to participate in protein unfolding in the host cell, which helps replicate genomic RNA via a negative-strand RNA. CHIKV nsP4 also helps transcribe the 26S subgenomic mRNA, which encodes structural proteins [64,65].
Mature CHIKV nsP2 has been found to interact with both nsP1 and nsP4. Newly-synthesized simple strand RNAs may then be capped by nsP2 (RNA triphosphatase activity) and nsP1 (MTase and guanylyltransferase activities), suggesting that the interactions between nsP1, nsP2 and nsP4 are indispensable, as observed in a study of CHIKV nsPs [66,67]. Based on the crucial role of the CHIKV enzymes in viral replication, nsP1, nsP2 and nsP4 are important antiviral drug targets.

4.4. Direct Inhibitory Activities of Compounds against CHIKV Enzymes

Lucas-Hourani and collaborators [8] conducted a phenotypic assay to identify CHIKV inhibitors that target nsP2 [8]. In their investigation, the inhibitory activities of 3040 compounds, at a final concentration of 10 μg/mL (average concentration of 30 ± 13 μM), were tested; the natural compound derivative 60, shown in Figure 11, partially blocks nsP2 activity. This compound was then tested for its potential impact on CHIKV replication in vitro: HEK-293T cells were infected with CHIKV-Luc (MOI = 0.2) in the presence of the compound at 7.75, 15.5 or 31 μM (5, 10 or 20 μg/mL, respectively). A 50% reduction in Renilla luciferase activity was observed in the presence of Compound 60 at 31 μM (the IC50 value), thus demonstrating a weak, but statistically-significant inhibition of viral replication [8].

4.5. Indirect Inhibitory Activities of Compounds and Extracts against CHICKV Enzymes

The diterpenoids shown in Figure 3 were not evaluated against a specific CHIKV enzyme; however, all of them inhibited virus replication in the post-treatment assay of Vero cells, as seen in Table 1. Even though a specific target was not identified, the inhibitory effects suggest that enzymes involved in replication were affected. From the data presented in Table 1, the selective indices for Compounds 18, 19 and 20 correspond to 23, 2.4 and 2.7, respectively. Compounds 1820 were found to be more potent than chloroquine, which was used as a positive control [49].
Using a cell-based bioassay, the natural products shown in Figure 5 were also evaluated for inhibitory activities against CHIKV. Although Compounds 3335 had antiviral effects (Table 2), no selectivity was observed. On the contrary, terpenes 36 (EC50 = 77 μM) and 37 (EC50 = 86 μM) presented lower, but selective activity against CHIKV (an SI of about three) [51].

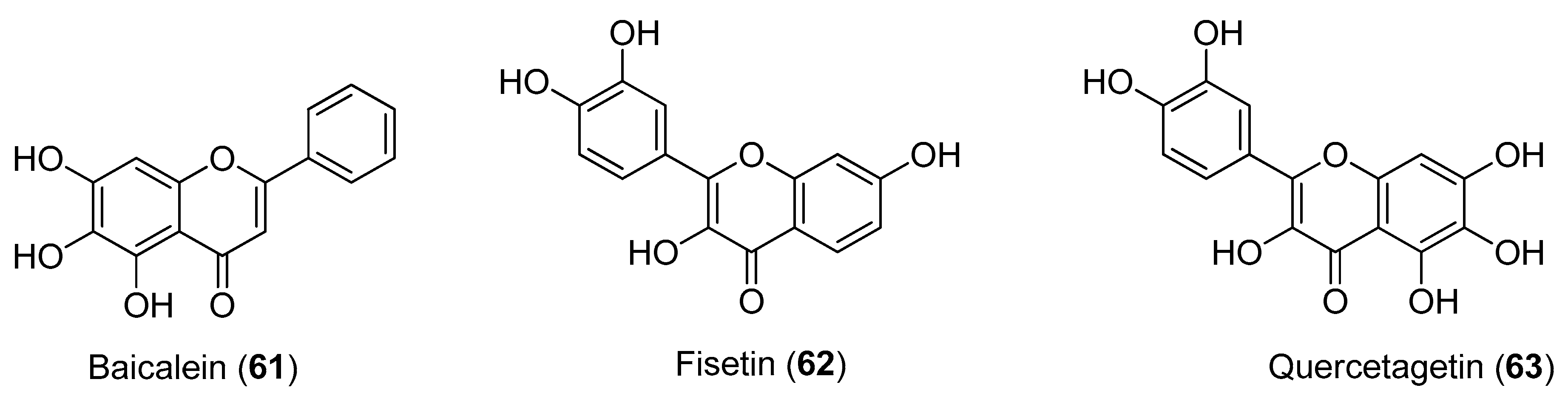

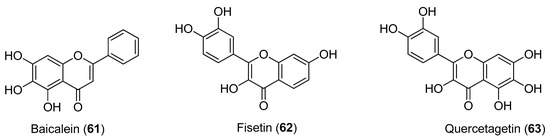

The flavonoids shown in Figure 12 were investigated for their inhibitory activities against CHIKV. qRT-PCR, immunofluorescence assay and western blot analyses all indicated that baicalein (Compound 61), fisetin (Compound 62) and quercetagetin (Compound 63) affect CHIKV RNA production and viral protein expression, with IC50 values of 1.89 μg/mL (6.99 μM), 8.44 μg/mL (29.5 μM) and 13.85 μg/mL (43.52 μM), respectively, and minimal cytotoxicity. These data provide the first evidence of the intracellular anti-CHIKV activities of these compounds [68].
The CHIKV replicon cell line, BHK-CHIKV-NCT, was validated and used for screening 356 compounds, including 123 natural compounds and 233 clinically-approved drugs and other pharmaceutical compounds. After a 48-h exposure of the cell line to the compounds at a concentration of 50 mM, cellular EGFP appeared red, as the endpoint of the primary screen. The limit of the screen was set at a greater than 75% reduction of the EGFP signal, and the antiviral activities of all active compounds were confirmed in a second experiment that examined both EGFP and Rluc marker levels. The dose-dependent suppression of marker genes in the replicon vector after the 48-h exposure was observed for natural compounds apigenin (Compound 64), chrysin (Compound 65), naringenin (Compound 66) and silybin (Compound 67). The IC50 values for EGFP and Rluc are shown in Figure 13. All compounds showed low cytotoxicity with CC50 values greater than 200 μM, except for naringenin (Compound 85), which had a CC50 value of 122.1 μM [69].

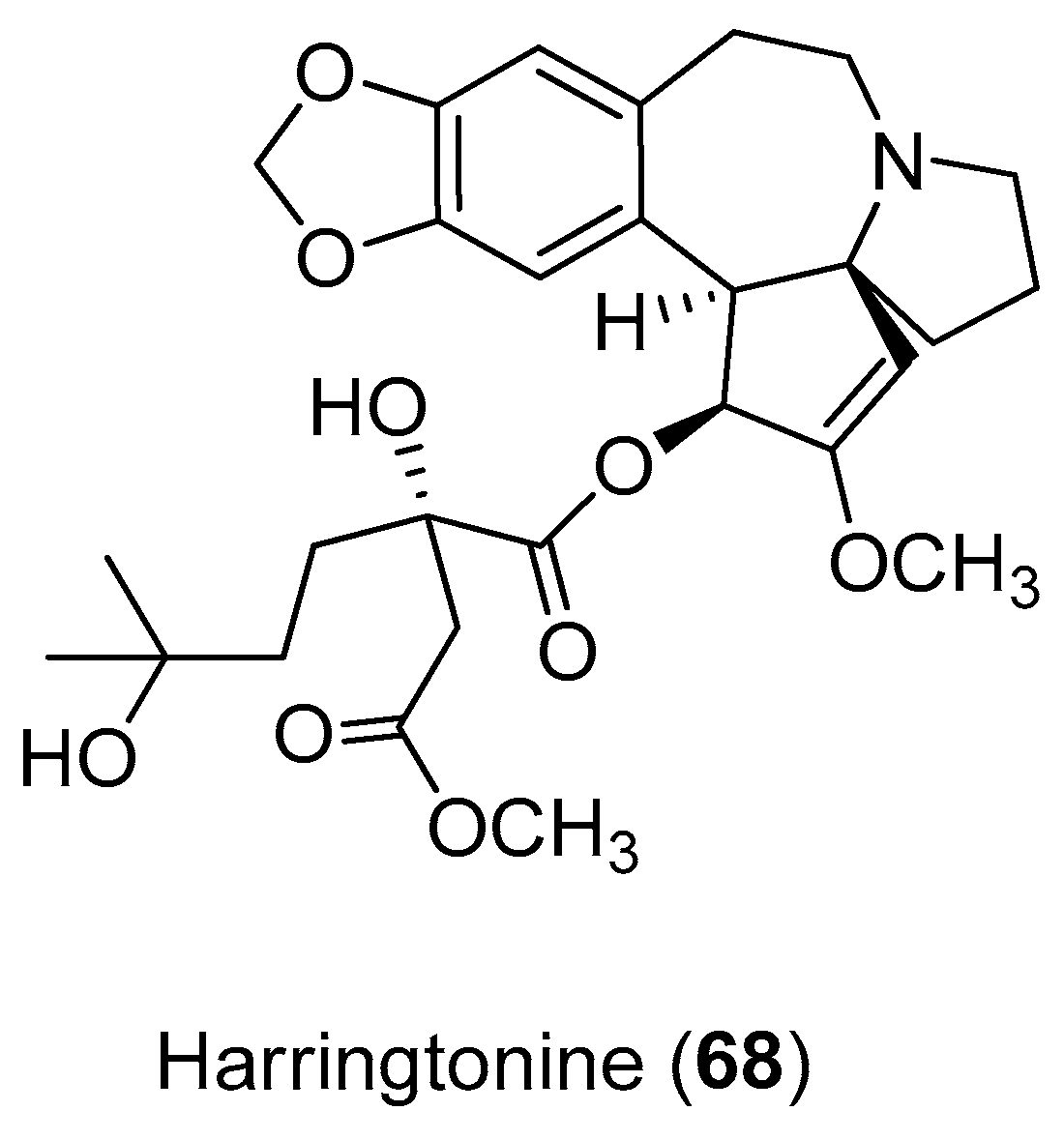

Harringtonine (Compound 68) (Figure 14), a cephalotaxine alkaloid, potently inhibited CHIKV infection (EC50 = 0.24 μM), with minimal cytotoxicity (cell viability >90%). Harringtonine treatment resulted in a significant dose-dependent reduction in both negative- and positive-sense RNAs in both CHIKV strains, suggesting that it inhibited a phase in the CHIKV replication cycle that occurs before RNA production. Additionally, results also suggest that this alkaloid may inhibit CHIKV protein production, leading to a decrease in infectious virus titers [70].
Inhibitory activities of the aqueous, aqueous-ethanolic and ethanolic extracts of the roots of Decalepis hamiltonii and the leaves of Vitex negundo and Hyptis suaveolens were assessed against two strains (Asian and East Central South African lineages) of CHIKV in a post-treatment assay. Both the V. negundo ethanolic extract and the H. suaveolens aqueous-ethanolic extract were found to effectively inhibit the Asian strain, with both exhibiting 50% virus inhibition at a concentration of 15.62 μg/mL. The selectivity index of H. suaveolens (16) was higher than that of V. negundo (2) against the Asian CHIKV strain. No extracts were able to inhibit the East Central South African CHIKV strain, presumably because of the higher virulence and replicative features of the East Central South African strain compared to the Asian strain [71].

4.6. In Silico Investigations of CHIKV Enzyme Inhibitors

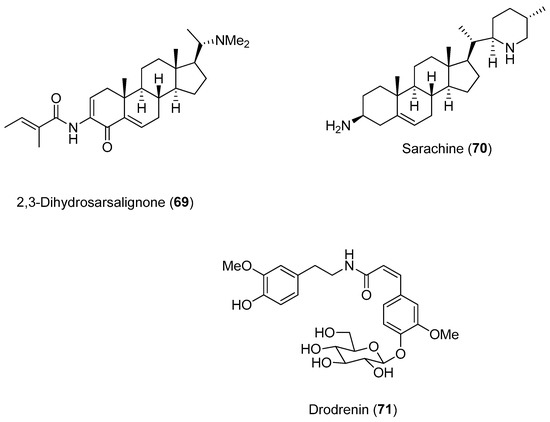

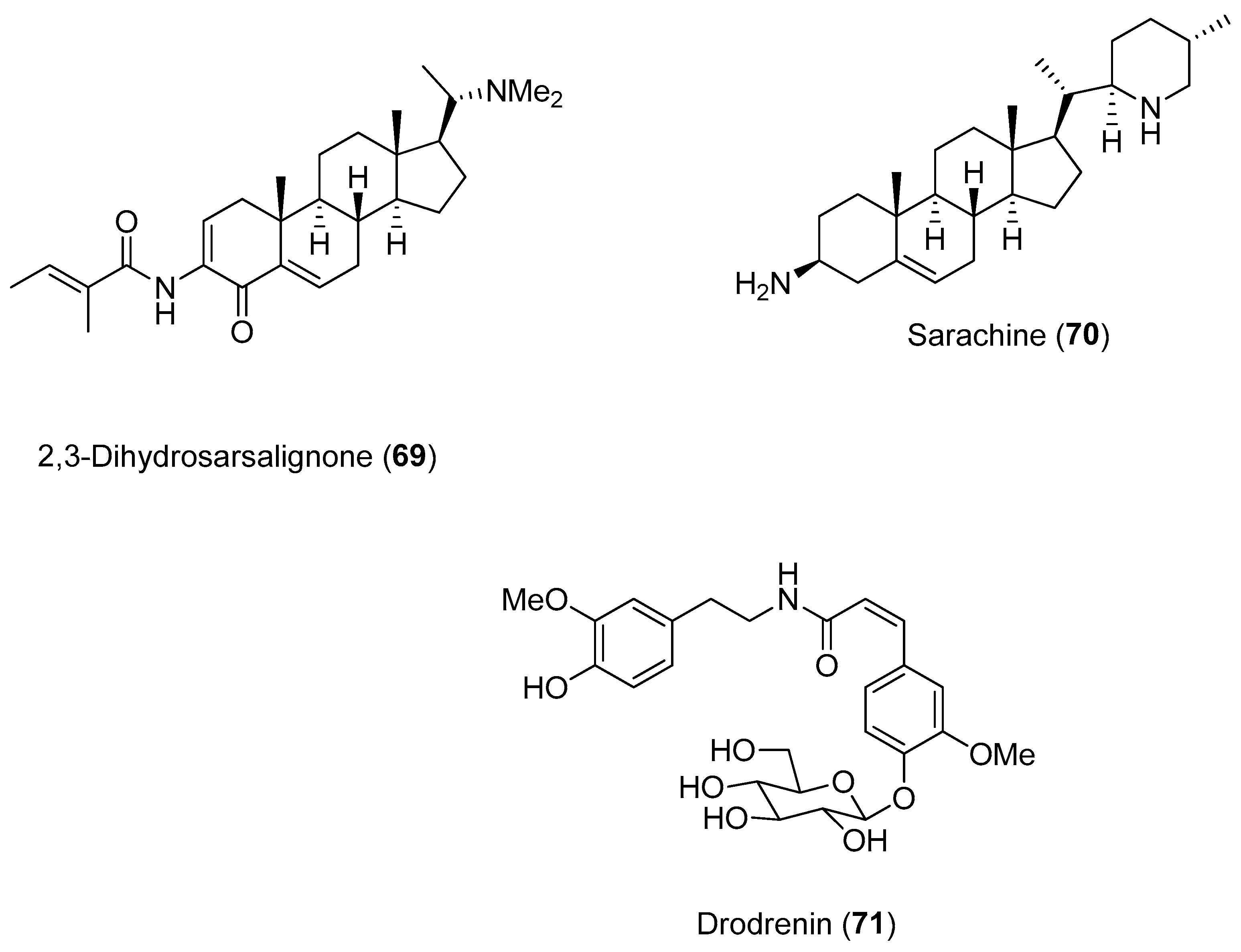

Setzer and collaborators conducted a molecular docking investigation to identify alphavirus protease inhibitors from natural compounds [72]. The inhibitory activities of 2174 natural substances were screened against several proteases, including nsP2 CHIKV. Several compounds presented notable docking energies and selectivities when screened against CHIKV nsP2, including the alkaloids 2,3-dehydrosarsalignone (Compound 69) and sarachine (Compound 70) (Figure 15). Both compounds occupy the same position in their lowest-energy docked position with the CHIKV protease.
The amide glucoside drodrenin (Compound 71) was also selective for the CHIKV nsP2 protease; the glucose moiety of drodrenin occupies a position near the active site (close to amino acids Cys1013 and His1083).

5. Concluding Remarks

The exploitation of the natural product pool has afforded compounds and extracts that present important inhibitory effects on enzymes involved in DENV and CHIKV replication and protein expression. This is an important approach since inhibition of these enzymes can disrupt the virus life cycle. Most of the studies herein described were conducted in vitro using enzymatic assays [8,47,48,49,50,51,52] or viral strain/replicon on cells evaluating replication, inhibition and/or protein expression [49,51,52,53,54,56,68,69,70,71]. Three studies were conducted utilizing the in silico docking approach [57,58,72]. In vivo investigations of the described compounds and extracts were not reported. Most of the described enzymatic assays were carried out on DENV enzymes, and just one used CHIKV enzyme [8]. For CHIKV, assays performed on cells with a viral strain are one important option. Further investigations with heterologous expression of CHIKV enzymes for antiviral analyses are necessary so that a more profound evaluation of compounds against viral enzymes could be accomplished. In order to obtain a deeper understanding of the potential of the described natural products and extracts as antivirals for DENV and CHIKV, it is essential to carry out detailed in vitro and in vivo studies. It is important to mention that subsequent clinical trials are necessary, since efficiency in vitro is indicative, but it does not represent a guarantee of a good clinical trial. Considering the natural compounds described in this review, it is noticed that flavonoids are the ones that have been more extensively investigated.
Most of the investigations described in this review were performed with natural products from plant extracts. However, other sources of natural products, such as animals, microorganisms and marine organisms, should be explored towards the discovery of antivirals against DENV and CHIKV. It is also important to mention the fact that structures of natural compounds can be optimized, in terms of biological activities, via synthetic transformations. Thus, the compounds described in this review might be useful as starting points for synthetic endeavors towards the synthesis of more potent compounds against DENV and CHIKV. Finally, it is noticed from this review that, to date, there are few reports on the effect of natural products on dengue and chikungunya viral enzymes. In other words, the natural product pool is relatively unexplored in this regard. Considering the vast array of compounds available from nature, it is possible to anticipate that more investigations in this field will be described in the near future.

Acknowledgments

We are grateful to FAPEMIG (Fundação de Amparo à Pesquisa de Minas Gerais), CNPq, and CAPES. The funders had no role in the study design, data collection, analysis, decision to publish or preparation of this manuscript.

Author Contributions

The authors, A.F.C.d.S.O., R.R.T., A.S.d.O., A.P.M.d.S., M.L.d.S. and S.O.d.P., contributed equally to the preparation of this review.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Neglected tropical diseases: Becoming less neglected. Lancet 2014, 383, 1269.
  2. Hotez, P.J.; Molyneux, D.H.; Fenwick, A.; Ottesen, E.; Ehrlich, S.S.; Sachs, J.D. Incorporating a rapid-impact package for neglected tropical diseases with programs for HIV/AIDS, tuberculosis, and malaria. PLoS Med. 2006, 3, e102. [Google Scholar] [CrossRef] [PubMed]
  3. LaBeaud, A.D. Why arboviruses can be neglected tropical diseases. PLoS Negl. Trop. Dis. 2008, 2, e247. [Google Scholar] [CrossRef] [PubMed]
  4. Bhakat, S.; Karubiu, W.; Jayaprakash, V.; Soliman, M.E.S. A perspective on targeting non-structural proteins to combat neglected tropical diseases: Dengue, West Nile and Chikungunya viruses. Eur. J. Med. Chem. 2014, 87, 677–702. [Google Scholar] [CrossRef] [PubMed]
  5. Schuffenecker, I.; Iteman, I.; Michault, A.; Murri, S.; Frangeul, L.; Vaney, M.C.; Lavenir, L.; Pardigon, N.; Reynes, J.M.; Pettinelli, F.; et al. Genome microevolution of Chikungunya viruses causing the Indian Ocean outbreak. PLoS Med. 2006, 3, e263. [Google Scholar] [CrossRef] [PubMed]
  6. Bhakat, S.; Soliman, M.E.S. Chikungunya virus (CHIKV) inhibitors from natural sources: A medicinal chemistry perspective. J. Nat. Med. 2015, 69, 451–462. [Google Scholar] [CrossRef] [PubMed]
  7. Rashad, A.A.; Mahalingam, S.; Keller, P.A. Chikungunya virus: Emerging targets and new opportunities for medicinal chemistry. J. Med. Chem. 2014, 57, 1147–1166. [Google Scholar] [CrossRef] [PubMed]
  8. Lucas-Hourani, M.; Lupan, A.; Desprès, P.; Thoret, S.; Pamlard, O.; Dubois, J.; Guillou, C.; Tangy, F.; Vidalain, P.O.; Munier-Lehmann, H. A Phenotypic Assay to Identify Chikungunya Virus Inhibitors Targeting the Nonstructural Protein nsP2. J. Biomol. Scr. 2013, 18, 172–179. [Google Scholar] [CrossRef] [PubMed]
  9. World Health Organization (WHO). Global Strategy for Dengue Prevention and Control, 2012–2020; WHO: Geneva, Switzerland, 2012. [Google Scholar]
  10. Gubler, D.J. Dengue, Urbanization and Globalization: The Unholy Trinity of the 21(st) Century. Trop. Med. Health 2011, 39, 3–11. [Google Scholar] [CrossRef] [PubMed]
  11. Dengue, Countries or Areas at Risk. 2011. Available online: http://gamapserver.who.int/mapLibrary/Files/Maps/Global_DengueTransmission_ITHRiskMap.png (accessed on 30 May 2016).
  12. Gibbons, R.V.; Vaughn, D.W. Dengue: An escalating problem. BMJ 2002, 324, 1563–1566. [Google Scholar] [CrossRef]
  13. Murray, N.E.A.; Quam, M.B.; Wilder-Smith, A. Epidemiology of dengue: Past, present and future prospects. Clin. Epidemiol. 2013, 5, 299–309. [Google Scholar] [PubMed]
  14. Gubler, D.J. Dengue and dengue hemorrhagic fever. Clin. Microbiol. Rev. 1998, 11, 480–496. [Google Scholar] [PubMed]
  15. Wright, P.F.; Durbin, A.P.; Whitehead, S.S.; Ikizler, M.R.; Henderson, S.; Blaney, J.E.; Thumar, B.; Ankrah, S.; Rock, M.T.; McKinney, B.A.; et al. Phase 1 trial of the dengue virus type 4 vaccine candidate rDEN4{Delta}30–4995 in healthy adult volunteers. Am. J. Trop. Med. Hyg. 2009, 81, 834–841. [Google Scholar] [CrossRef] [PubMed]
  16. Teixeira, R.R.; Pereira, W.L.; Oliveira, A.F.C.S.; Silva, A.M.; Oliveira, A.S.; Silva, M.L.; Silva, C.C.; Paula, S.O. Natural Products as Source of Potential Dengue Antivirals. Molecules 2014, 19, 8151–8176. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Nielsch, U.; Fuhrmann, U.; Jaroch, S. (Eds.) New Approaches to Drug Discovery; Springer International Publishing: Cham, Switzerland, 2016; p. 341.
  18. Fros, J.J.; Liu, W.J.; Prow, N.A.; Geertsema, C.; Ligtenberg, M.; Vanlandingham, D.L.; Schnettler, E.; Vlak, J.M.; Suhrbier, A.; Khromykh, A.A.; et al. Chikungunya Virus Nonstructural Protein 2 Inhibits Type I/II Interferon-Stimulated JAK-STAT Signaling. J. Virol. 2010, 84, 10877–10887. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Koehn, F.E.; Carter, G.T. The evolving role of natural products in drug discovery. Nat. Rev. Drug. Discov. 2005, 4, 206–220. [Google Scholar] [CrossRef] [PubMed]
  20. Li, J.W.; Vederas, J.C. Drug discovery and natural products: End of an era or an endless frontier? Science 2009, 325, 161–165. [Google Scholar] [CrossRef] [PubMed]
  21. Molinari, G. Natural products in drug discovery: Present status and perspectives. Adv. Exp. Med. Biol. 2009, 655, 13–27. [Google Scholar] [PubMed]
  22. Kudi, A.C.; Myint, S.H. Antiviral activity of some Nigerian medicinal plants extracts. J. Ethnopharmacol. 1999, 68, 289–294. [Google Scholar] [CrossRef]
  23. Traditional Medicine. Available online: http://www.who.int/mediacentre/factsheets/2003/fs134/en/ (accessed on 2 February 2014).
  24. Betancur-Galvis, L.A.; Saez, J.; Granados, H.; Slazar, A.; Ossa, J.E. Antitumor and antiviral activity of Colombian medicinal plant extracts. Mem. Inst. Oswaldo Cruz 1999, 94, 531–535. [Google Scholar] [CrossRef] [PubMed]
  25. Chambers, T.J.; Hahn, C.S.; Galler, R.; Rice, C.M. Flavivirus genome organization, expression, and replication. Annu. Rev. Microbiol. 1990, 44, 649–688. [Google Scholar] [CrossRef] [PubMed]
  26. Oliveira, A.S.; Silva, M.L.; Oliveira, A.F.C.; Silva, C.C.; Teixeira, R.R.; Paula, S.O. NS3 and NS5 Proteins: Important Targets for Anti-Dengue Drug Design. J. Braz. Chem. Soc. 2014, 25, 1759–1769. [Google Scholar] [CrossRef]
  27. Tay, M.Y.; Saw, W.G.; Zhao, Y.; Chan, K.W.; Singh, D.; Chong, Y.; Forwood, J.K.; Ooi, E.E.; Grüber, G.; Lescar, J.; et al. The C-terminal 50 amino acid residues of dengue NS3 protein are important for NS3-NS5 interaction and viral replication. J. Biol. Chem. 2015, 290, 2379–2394. [Google Scholar] [CrossRef] [PubMed]
  28. Lorenz, I.C.; Allison, S.L.; Heinz, F.X.; Helenius, A. Folding and dimerization of tick-borne encephalitis virus envelope proteins prM and E in the endoplasmic reticulum. J. Virol. 2002, 76, 5480–5491. [Google Scholar] [CrossRef] [PubMed]
  29. Bollati, M.; Alvarez, K.; Assenberg, R.; Baronti, C.; Canard, B.; Cook, S.; Coutard, B.; Decroly, E.; de Lamballerie, X.; Gould, E.A.; et al. Structure and functionality in flavivirus NS-proteins: Perspectives for drug design. Antiviral Res. 2010, 87, 125–148. [Google Scholar] [CrossRef] [PubMed]
  30. Holmes, E.C.; Burch, S.S. The causes and consequences of genetic variation in dengue virus. Trends Microbiol. 2000, 8, 74–77. [Google Scholar] [CrossRef]
  31. Pugachev, K.V.; Guirakhoo, F.; Trent, D.W.; Monath, T.P. Traditional and novel approaches to flavivirus vaccines. Int. J. Parasitol. 2003, 33, 567–582. [Google Scholar] [CrossRef]
  32. Timiri, A.K.; Sinha, B.N.; Jayaprakash, V. Progress and prospects on DENV protease inhibitors. Eur. J. Med. Chem. 2016, 19, 125–143. [Google Scholar] [CrossRef] [PubMed]
  33. Gorbalenya, A.E.; Koonin, E.V. Helicases: Amino acid sequence comparisons and structure-function relationships. Curr. Opin. Struct. Biol. 1993, 3, 419–429. [Google Scholar] [CrossRef]
  34. Luo, D.; Xu, T.; Hunke, C.; Grüber, G.; Vasudevan, S.G.; Lescar, J. Crystal structure of the NS3 protease-helicase from dengue virus. J. Virol. 2008, 82, 173–183. [Google Scholar] [CrossRef] [PubMed]
  35. Xu, T.; Sampath, A.; Chao, A.; Wen, D.; Nanao, M.; Chene, P.; Vasudevan, S.G.; Lescar, J. Structure of the Dengue virus helicase/nucleoside triphosphatase catalytic domain at a resolution of 2.4 A. J. Virol. 2005, 79, 10278–10288. [Google Scholar] [CrossRef] [PubMed]
  36. Sampath, A.; Padmanabhan, R. Molecular targets for flavivirus drug discovery. Antiviral Res. 2009, 81, 6–15. [Google Scholar] [CrossRef] [PubMed]
  37. Matusan, A.E.; Pryor, M.J.; Davidson, A.D.; Wright, P.J. Mutagenesis of the Dengue virus type 2 NS3 protein within and outside helicase motifs: Effects on enzyme activity and virus replication. J. Virol. 2001, 75, 9633–9643. [Google Scholar] [CrossRef] [PubMed]
  38. Kapoor, M.; Zhang, L.; Ramachandra, M.; Kusukawa, J.; Ebner, K.E.; Padmanabhan, R. Association between NS3 and NS5 proteins of dengue virus type 2 in the putative RNA replicase is linked to differential phosphorylation of NS5. J. Biol. Chem. 1995, 270, 19100–19106. [Google Scholar] [PubMed]
  39. Johansson, M.; Brooks, A.J.; Jans, D.A.; Vasudevan, S.G. A small region of the dengue virus-encoded RNA-dependent RNA polymerase, NS5, confers interaction with both the nuclear transport receptor importin-beta and the viral helicase, NS3. J. Gen. Virol. 2001, 82, 735–745. [Google Scholar] [CrossRef] [PubMed]
  40. Egloff, M.P.; Benarroch, D.; Selisko, B.; Romette, J.L.; Canard, B. An RNA cap (nucleoside-2′-O-)-methyltransferase in the flavivirus RNA polymerase NS5: Crystal structure and functional characterization. EMBO J. 2002, 21, 2757–2768. [Google Scholar] [CrossRef] [PubMed]
  41. Junaid, M.; Angsuthanasombat, C.; Wikberg, J.E.; Ali, N.; Katzenmeier, G. Modulation of enzymatic activity of dengue virus nonstructural protein NS3 nucleoside triphosphatase/helicase by poly(U). Biochemistry (Mosc.) 2013, 78, 925–932. [Google Scholar] [CrossRef] [PubMed]
  42. Egloff, M.P.; Decroly, E.; Malet, H.; Selisko, B.; Benarroch, D.; Ferron, F.; Canard, B. Structural and functional analysis of methylation and 5′-RNA sequence requirements of short capped RNAs by the methyltransferase domain of dengue virus NS5. J. Mol. Biol. 2007, 21, 723–736. [Google Scholar] [CrossRef] [PubMed]
  43. Yap, T.L.; Xu, T.; Chen, Y.L.; Malet, H.; Egloff, M.P.; Canard, B.; Vasudevan, S.G.; Lescar, J. Crystal structure of the dengue virus RNA-dependent RNA polymerase catalytic domain at 1.85-angstrom resolution. J. Virol. 2007, 81, 4753–4765. [Google Scholar] [CrossRef]
  44. Caillet-Saguy, C.; Lim, S.P.; Shi, P.Y.; Lescar, J.; Bressanelli, S. Polymerases of hepatitis C viruses and flaviviruses: Structural and mechanistic insights and drug development. Antiviral Res. 2014, 105, 8–16. [Google Scholar] [CrossRef] [PubMed]
  45. Selisko, B.; Wang, C.; Harris, E.; Canard, B. Regulation of Flavivirus RNA synthesis and replication. Curr. Opin. Virol. 2014, 9, 74–83. [Google Scholar] [CrossRef] [PubMed]
  46. Lim, S.P.; Noble, C.G.; Shi, P.Y. The dengue virus NS5 protein as a target for drug discovery. Antiviral Res. 2015, 119, 57–67. [Google Scholar] [CrossRef]
  47. Kiat, T.S.; Pippen, R.; Yusof, R.; Ibrahim, H.; Khalid, N.; Rahman, N.A. Inhitory activity of cyclohexenyl chalcone derivatives and flavonoids of fingerroot, Boesenbergia rotunda (L.), towards dengue-2 virus NS3 protease. Bioorg. Med. Chem. Lett. 2006, 16, 3337–3340. [Google Scholar] [CrossRef] [PubMed]
  48. Allard, P.-M.; Dau, E.T.H.; Eydoux, C.; Guillemont, J.-C.; Dumontet, V.; Poullain, C.; Canard, B.; Guéritte, F.; Litaudon, M. Alkylated flavanones from the bark of Cryptocarya chartacea as dengue virus NS5 polymerase inhibitors. J. Nat. Prod. 2011, 74, 2446–2453. [Google Scholar] [CrossRef]
  49. Allard, P.-M.; Leyssen, P.; Martin, M.-T.; Bourjot, M.; Dumontet, V.; Eydoux, C.; Guillemot, J.-C.; Cannard, B.; Poullain, C.; Guéritte, F.; et al. Antiviral chlorinated daphnane diterpenoid orthoesters from the bark and wood of Trigonostemon cherrieri. Phytochemistry 2012, 84, 160–168. [Google Scholar] [CrossRef] [PubMed]
  50. Bourjot, M.; Leyssen, P.; Eydoux, C.; Guillemot, J.-C.; Canard, B.; Rasoanaivo, P.; Guéritte, F.; Litaudon, M. Flacourtosides A-F, phenolic glycosides isolated from Flacourtia ramontchi. J. Nat. Prod. 2012, 75, 752–758. [Google Scholar] [CrossRef] [PubMed]
  51. Bourjot, M.; Leyssen, P.; Eydoux, C.; Guillemot, J.-C.; Canard, B.; Rasoanaivo, P.; Guéritte, F.; Litaudon, M. Chemical constituents of Anacolosa pervillena and their antiviral activities. Fitoterapia 2012, 83, 1076–1080. [Google Scholar] [CrossRef] [PubMed]
  52. Rothan, H.A.; Zulqarnain, M.; Ammar, Y.A.; Tan, E.C.; Rahman, N.A.; Yusof, R. Screening of antiviral activities in medicinal plants extracts against dengue virus using dengue NS2B-NS3 protease assay. Trop. Biomed. 2014, 31, 286–296. [Google Scholar] [PubMed]
  53. Leardkamolkarn, V.; Sirigulpanit, W.; Phurimsak, C.; Kumkate, S.; Himakoun, L.; Sripanidkulchai, B. The inhibitory actions of Houttuynia cordata aqueous extract on dengue virus and dengue-infected cells. J. Food Biochem. 2012, 36, 86–92. [Google Scholar] [CrossRef]
  54. Cheng, Y.-B.; Lee, J.-C.; Lo, I.-W.; Chen, S.-R.; Hu, H.-C.; Wu, Y.-H.; Wu, Y.-C.; Chang, F.-R. Ecdysones from Zoanthus spp. with inhibitory activity against dengue virus 2. Bioorg. Med. Chem. Lett. 2016, 26, 2344–2348. [Google Scholar] [CrossRef] [PubMed]
  55. Peduto, A.; Filosa, R.; de Caprariis, P.; de Feo, V.; Li, S.; Wang, P.; de Martino, L. 1-methoxy-canthin-6-one and related β-carbolines: From natural compound to synthesis and biological activities. In Studies in Natural Products Chemistry; Atta-ur-Rahman, Ed.; Elsevier: Amsterdam, The Netherlands, 2012; Volume 38, pp. 81–104. [Google Scholar]
  56. Quintana, V.M.; Piccini, L.E.; Panozzo Zénere, J.D.; Damonte, E.B.; Ponce, M.A.; Castilla, V. Antiviral activity of natural and synthetic β-carbolines against dengue virus. Antiviral Res. 2016, 134, 26–33. [Google Scholar] [CrossRef] [PubMed]
  57. Galiano, V.; Garcia-Valtanen, P.; Micol, V.; Encinar, J.A. Looking for inhibitors of the dengue virus NS5 RNA-dependent RNA-polymerase using a molecular docking approach. Drug Des. Dev. Ther. 2016, 10, 3163–3181. [Google Scholar] [CrossRef] [PubMed]
  58. Powers, C.N.; Setzer, W.N. An In-Silico investigation of phytochemicals as antiviral agents against dengue fever. Comb. Chem. High Throughput Screen. 2016, 19, 516–536. [Google Scholar] [CrossRef]
  59. Porta, J.; Prasad, V.M.; Wang, C.I.; Akahata, W.; Ng, L.F.P.; Rossmann, M.G. Structural Studies of Chikungunya Virus-like Particles Complexed with Human Antibodies: Neutralization and Cell-to-Cell Transmission. J. Virol. 2016, 90, 1169–1177. [Google Scholar] [CrossRef] [PubMed]
  60. Wyles, D.L. Antiviral resistance and the future landscape of hepatitis C virus infection therapy. J. Infect. Dis. 2013, 207, S33–S39. [Google Scholar] [CrossRef] [PubMed]
  61. Parashar, D.; Paingankar, M.S.; Kumar, S.; Gokhale, M.D.; Sudeep, A.B.; Shinde, S.B.; Arankalle, V.A. Administration of E2 and NS1 siRNAs inhibit chikungunya virus replication in vitro and protects mice infected with the virus. PLoS Negl. Trop. Dis. 2013, 7, e2405. [Google Scholar] [CrossRef] [PubMed]
  62. Onufriev, A.; Bashford, D.; Case, D.A. Modification of the generalized Born model suitable for macromolecules. J. Phys. Chem. 2000, 104, 3712–3720. [Google Scholar] [CrossRef]
  63. Pastorino, B.A.; Peyrefitte, C.N.; Almeras, L.; Grandadam, M.; Rolland, D.; Tolou, H.J.; Bessaud, M. Expression and biochemical characterization of nsP2 cysteine protease of Chikungunya virus. Virus Res. 2008, 131, 293–298. [Google Scholar] [CrossRef] [PubMed]
  64. Khan, A.H.; Morita, K.; Parquet, M.D.; Mdel, C.; Hasebe, F.; Mathenge, E.G.; Igarashi, A. Complete nucleotide sequence of chikungunya virus and evidence for an internal polyadenylation site. J. Gen. Virol. 2002, 83, 3075–3084. [Google Scholar] [CrossRef] [PubMed]
  65. Kumar, S.; Mamidi, P.; Kumar, A.; Basantray, I.; Bramha, U.; Dixit, A.; Maiti, P.K.; Singh, S.; Suryawanshi, A.R.; Chattopadhyay, S.; et al. Development of novel antibodies against non-structural proteins nsP1, nsP3 and nsP4 of chikungunya virus: Potential use in basic research. Arch. Virol. 2015, 160, 2749–2761. [Google Scholar] [CrossRef] [PubMed]
  66. Karpe, Y.A.; Pingale, K.D.; Kanade, G.D. Activities of proteasome and m-calpain are essential for Chikungunya virus replication. Virus Genes 2016. [Google Scholar] [CrossRef] [PubMed]
  67. Sreejith, R.; Rana, J.; Dudha, N.; Kumar, K.; Gabrani, R.; Sharma, S.K.; Gupta, A.; Vrati, S.; Chaudhary, V.K.; Gupta, S. Mapping interactions of Chikungunya virus nonstructural proteins. Virus Res. 2012, 169, 231–236. [Google Scholar] [CrossRef] [PubMed]
  68. Lani, R.; Hassandarvish, P.; Shu, M.-H.; Phoon, W.H.; Chu, J.J. H.; Higgs, S.; Vanlandingham, D.; Bakar, S.A.; Zandi, K. Antiviral activity of selected flavonoids against Chikungunya virus. Antiviral Res. 2016, 133, 50–61. [Google Scholar] [CrossRef] [PubMed]
  69. Pohjala, L.; Utt, A.; Varjak, M.; Lulla, A.; Merits, A.; Ahola, T.; Tammela, P. Inhibitors of alphavirus entry and replication identified with a stable Chikungunya replicon cell line and virus-based assays. PLoS ONE 2011, 6, e28923. [Google Scholar] [CrossRef] [PubMed]
  70. Kaur, P.; Thiruchelvan, M.; Lee, R.C.H.; Chen, K.C.; Ng, M.L.; Chu, J.J.H. Inhibition of Chikungunya virus replication by harringtonine, a novel antiviral that suppresses viral protein expression. Antimicrob. Agents Chemother. 2013, 57, 155–167. [Google Scholar] [CrossRef] [PubMed]
  71. Kothandan, S.; Swaminathan, R. Evaluation in vitro antiviral activity of Vitex Negundo L., Hyptis saveolens (L.) poit., Decalepis hamiltonii Wight & Arn., to Chikungunya virus. Asian Pac. J. Trop. Dis. 2014, 4 (Suppl. 1), S111–S115. [Google Scholar]
  72. Byler, K.G.; Collins, J.T.; Ogungbe, I.V.; Setzer, W.N. Alphavirus protease inhibitors from natural sources: A homology modeling and molecular docking investigation. Comp. Biol. Biochem. 2016, 64, 163–184. [Google Scholar] [CrossRef] [PubMed]

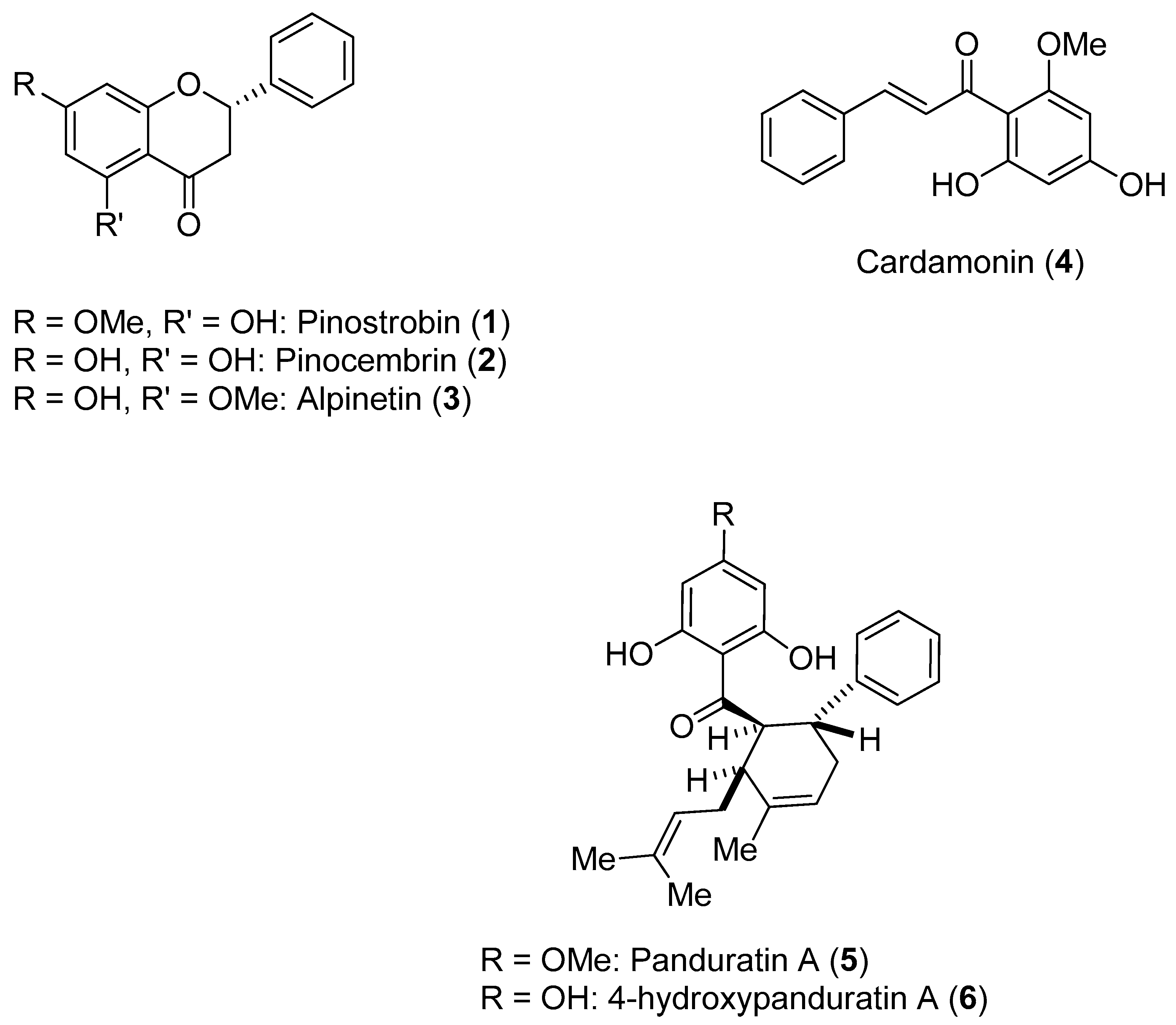

Figure 1. Natural products isolated from the rhizomes of B. rotunda (L.).
Figure 1. Natural products isolated from the rhizomes of B. rotunda (L.).
Molecules 22 00505 g001

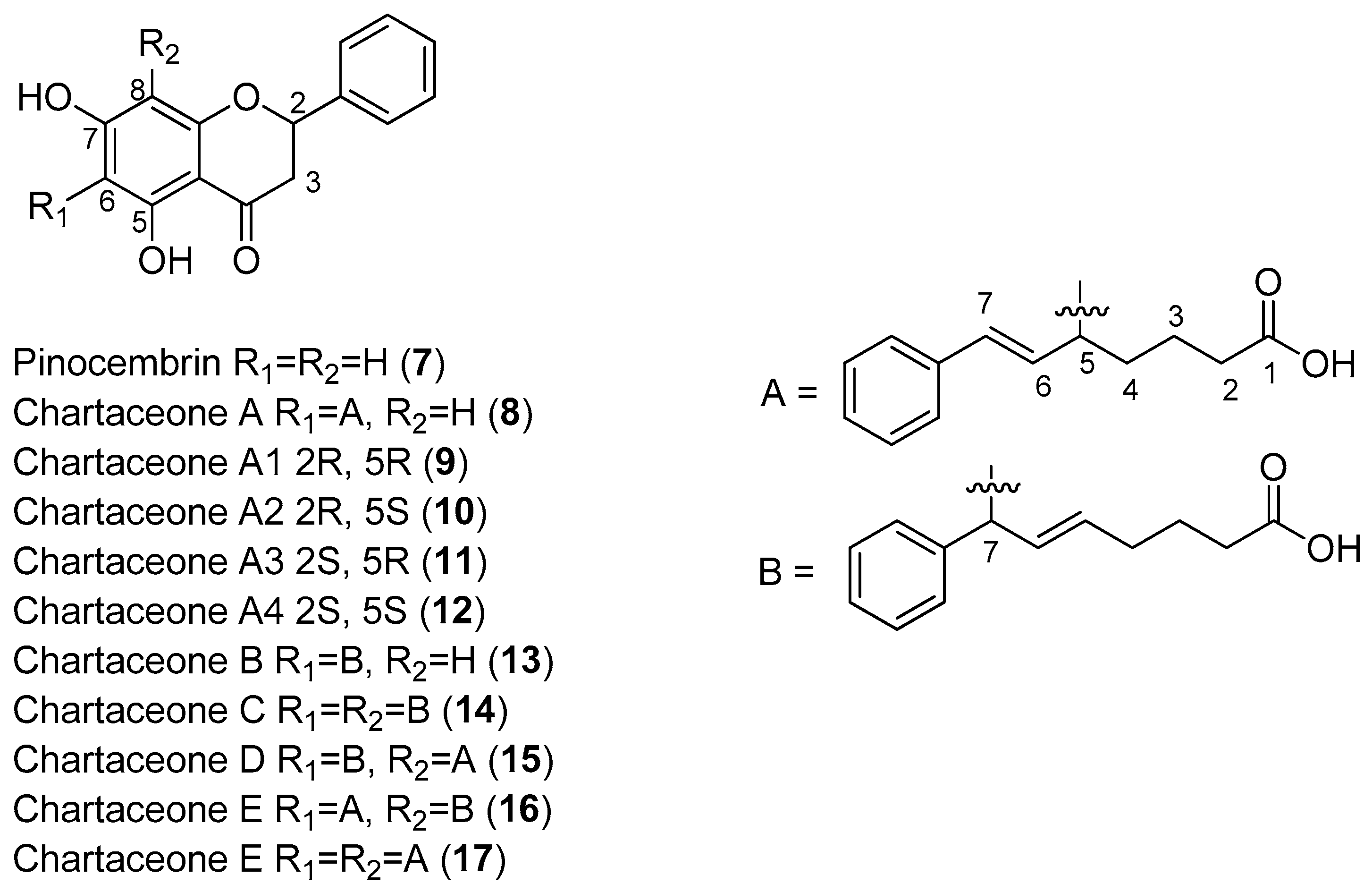

Figure 2. Chemical constituents isolated from the bark of Cryptocarya chartacea.
Figure 2. Chemical constituents isolated from the bark of Cryptocarya chartacea.
Molecules 22 00505 g002

CompoundPolymerase Activity Inhibition aCytotoxicity b
7Not active0
814.8 ± 2.43.2
915.3 ± 1.40
109.0 ± 3.511
1127.0 ± 6.50
127.4 ± 2.26
1372.5 ± 15.30
144.2 ± 0.10
151.8 ± 1.20
162.9 ± 0.30
172.4 ± 0.30
a IC50 (μM) values are the mean values ± SD (n = 3); b % of inhibition at 10 μg/mL.
Figure 3. Diterpenoids from T. cherrieri and their antiviral effects against the dengue virus (DENV) NS5 RdRp.
Figure 3. Diterpenoids from T. cherrieri and their antiviral effects against the dengue virus (DENV) NS5 RdRp.
Molecules 22 00505 g003

CompoundDENV RdRp Inhibitory Activity (IC50 in μM)
1812.7 ± 0.2
193.1 ± 0.2
2016.0 ± 1.3
3′-deoxy-GTP0.02

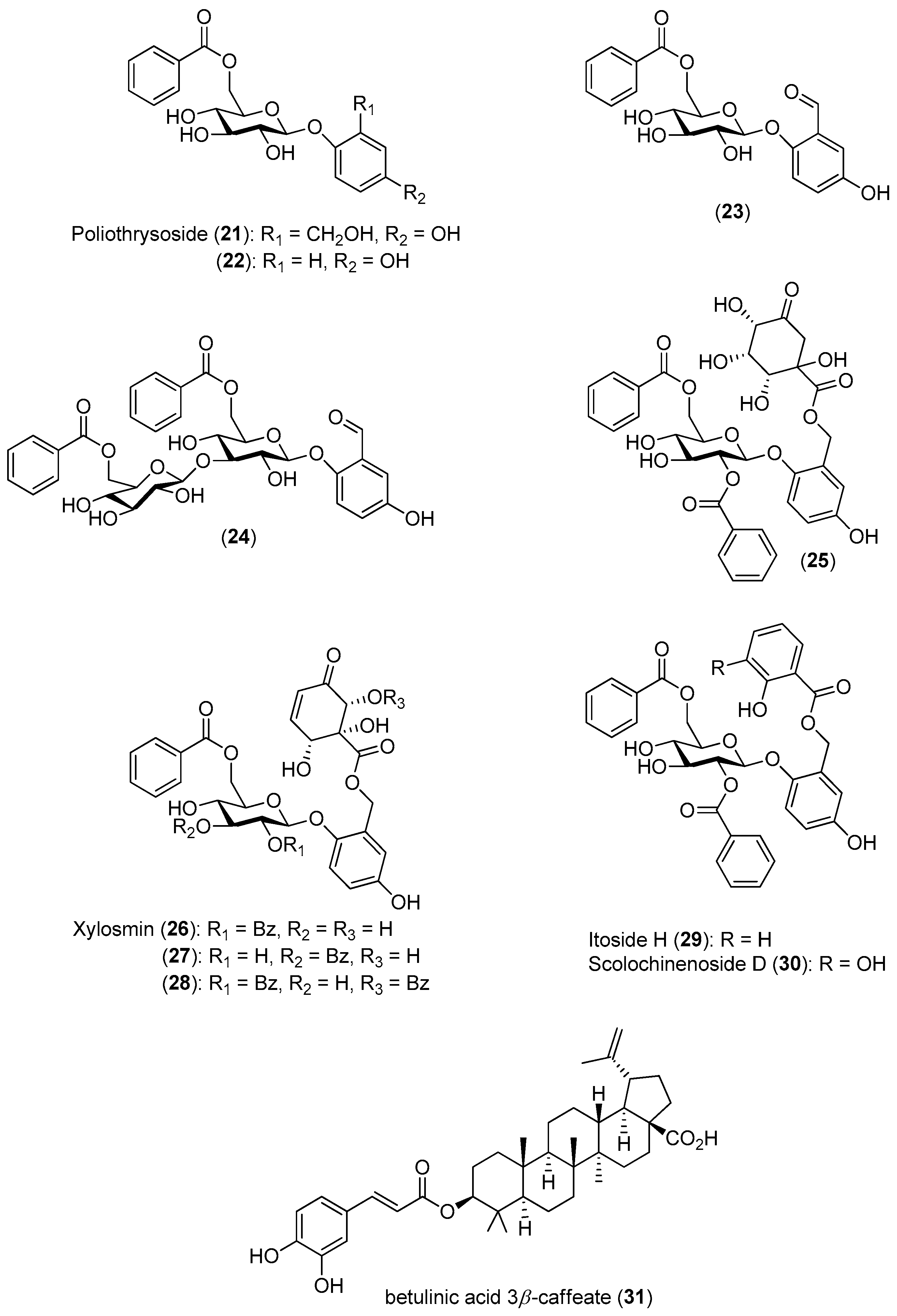

Figure 4. Natural compounds isolated from the ethyl acetate bark extract of F. ramontchi and their inhibitory effects on the DENV-2 NS5 RdRp.
Figure 4. Natural compounds isolated from the ethyl acetate bark extract of F. ramontchi and their inhibitory effects on the DENV-2 NS5 RdRp.
Molecules 22 00505 g004

CompoundPolymerase Inhibition (IC50 in μM)
21>50
229.3 ± 2.8
2371.1 ± 1.2
2423.8 ± 2.7
2535.5 ± 3.8
2624.3 ± 3.4
2713.4 ± 1.9
2839.8 ± 1.6
2937.8 ± 3.6
309.5 ± 5.0
310.85 ± 0.10
3′-deoxy-GTP0.02
Figure 5. Structures of Compounds 3238 and their antiviral activities.
Figure 5. Structures of Compounds 3238 and their antiviral activities.
Molecules 22 00505 g005

CompoundIC50 (in μM) DENV RdRp
322.5 ± 0.1
332.7 ± 0.4
342.2 ± 0.5
352.7 ± 0.4
36>10
37>10
38>10
3′-deoxy-GTP0.02

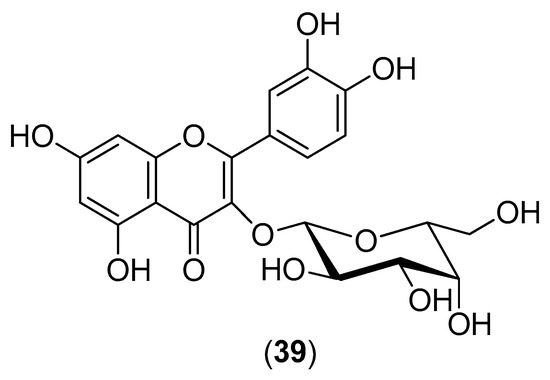

Figure 6. Structure of hyperoside (Compound 39), the major component of the H. cordata extract.
Figure 6. Structure of hyperoside (Compound 39), the major component of the H. cordata extract.
Molecules 22 00505 g006
Figure 7. Structures of ecdysones 4043.
Figure 7. Structures of ecdysones 4043.
Molecules 22 00505 g007

CompoundEC50 (μM)CC50 (μM)SI (CC50/EC50)
4019.61 ± 2.46>700>36.7
4139.76 ± 2.14>700>17.6
4210.05 ± 2.37>700>69.7
4338.15 ± 2.40>700>18.3
2′-C-methylcytidine11.20 ± 0.394.75 ± 4.15>8.5
Figure 8. β-Carbolines harmol (Compound 44) and its synthetic derivative 9-N-methylharmine (Compound 45).
Figure 8. β-Carbolines harmol (Compound 44) and its synthetic derivative 9-N-methylharmine (Compound 45).
Molecules 22 00505 g008

CompoundCC50 (μM)EC50 (μM)SI
44203.3 ± 1.23.3 ± 0.461.3
45178.6 ± 11.53.2 ± 0.656.2

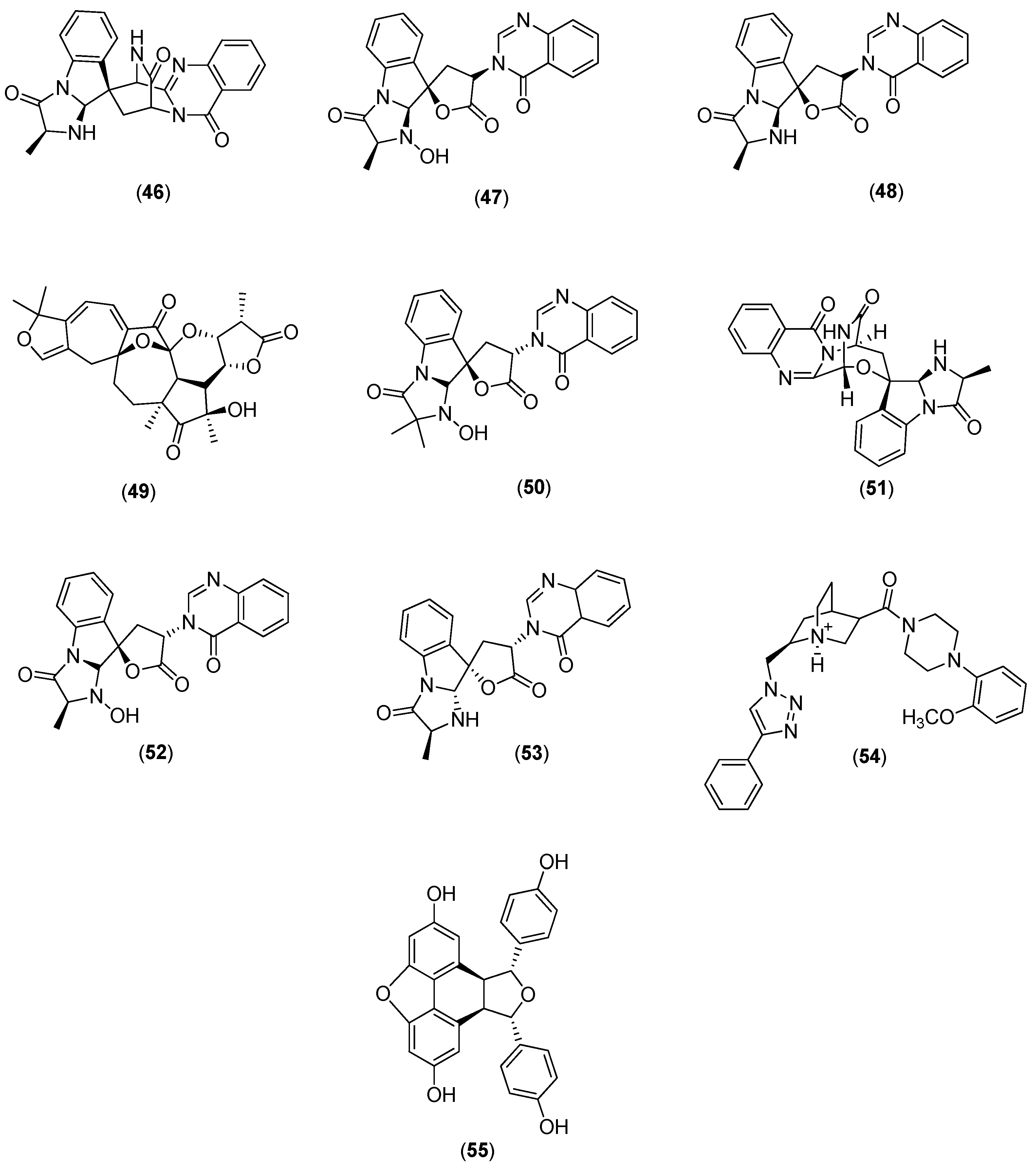

Figure 9. Structures of natural products 4655 selected as leading candidate DENV RdRp inhibitors by Galiano and co-authors [57].
Figure 9. Structures of natural products 4655 selected as leading candidate DENV RdRp inhibitors by Galiano and co-authors [57].
Molecules 22 00505 g009

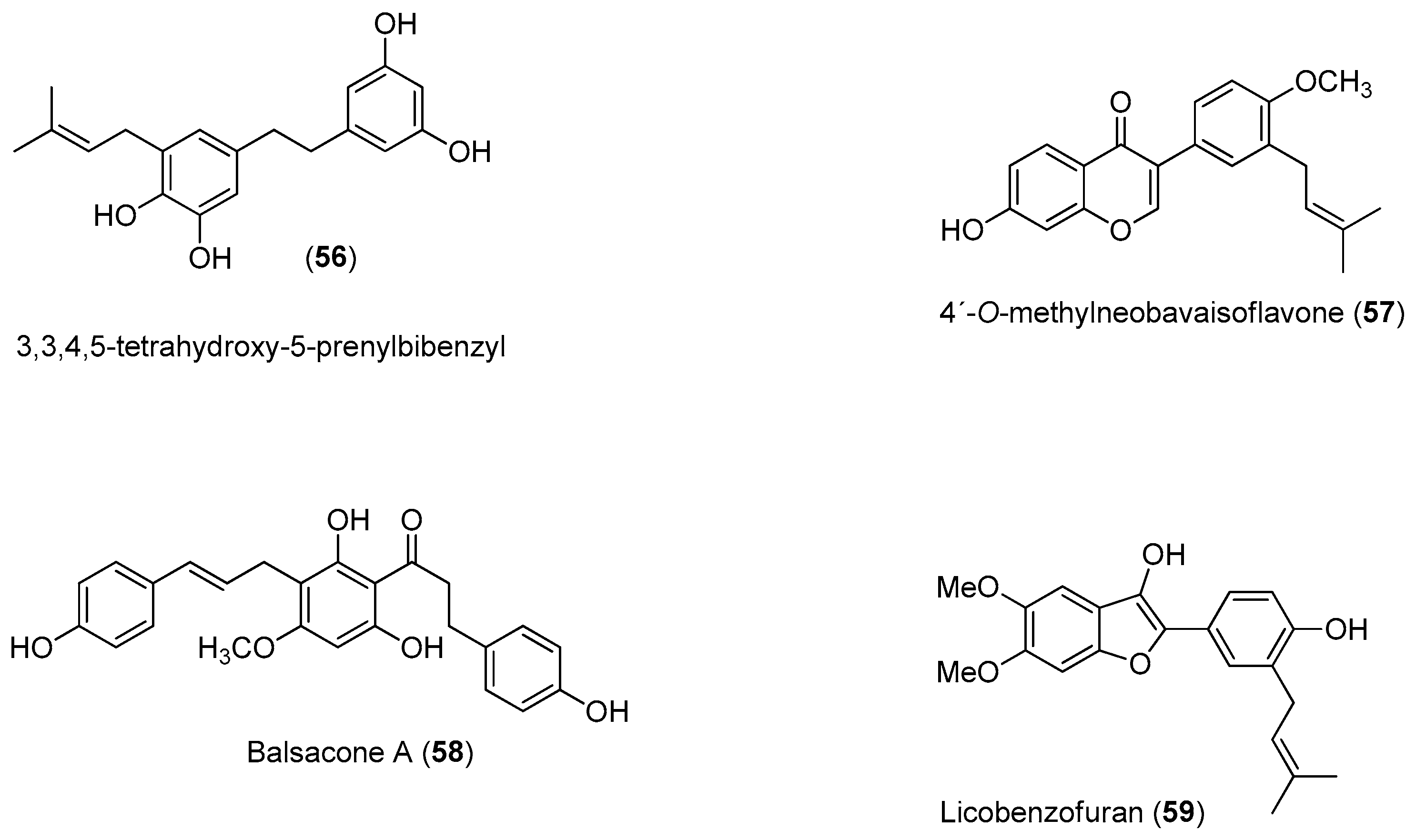

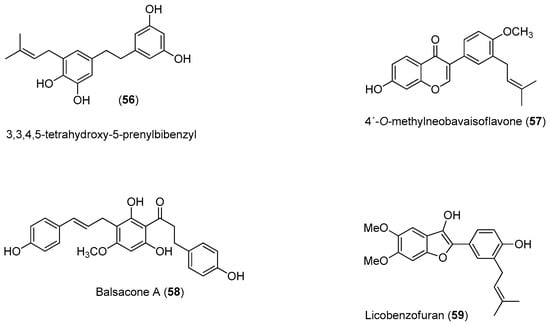

Figure 10. Identified compounds by Power and Setzer [58] as strongly docking ligands for DENV protein targets.
Figure 10. Identified compounds by Power and Setzer [58] as strongly docking ligands for DENV protein targets.
Molecules 22 00505 g010

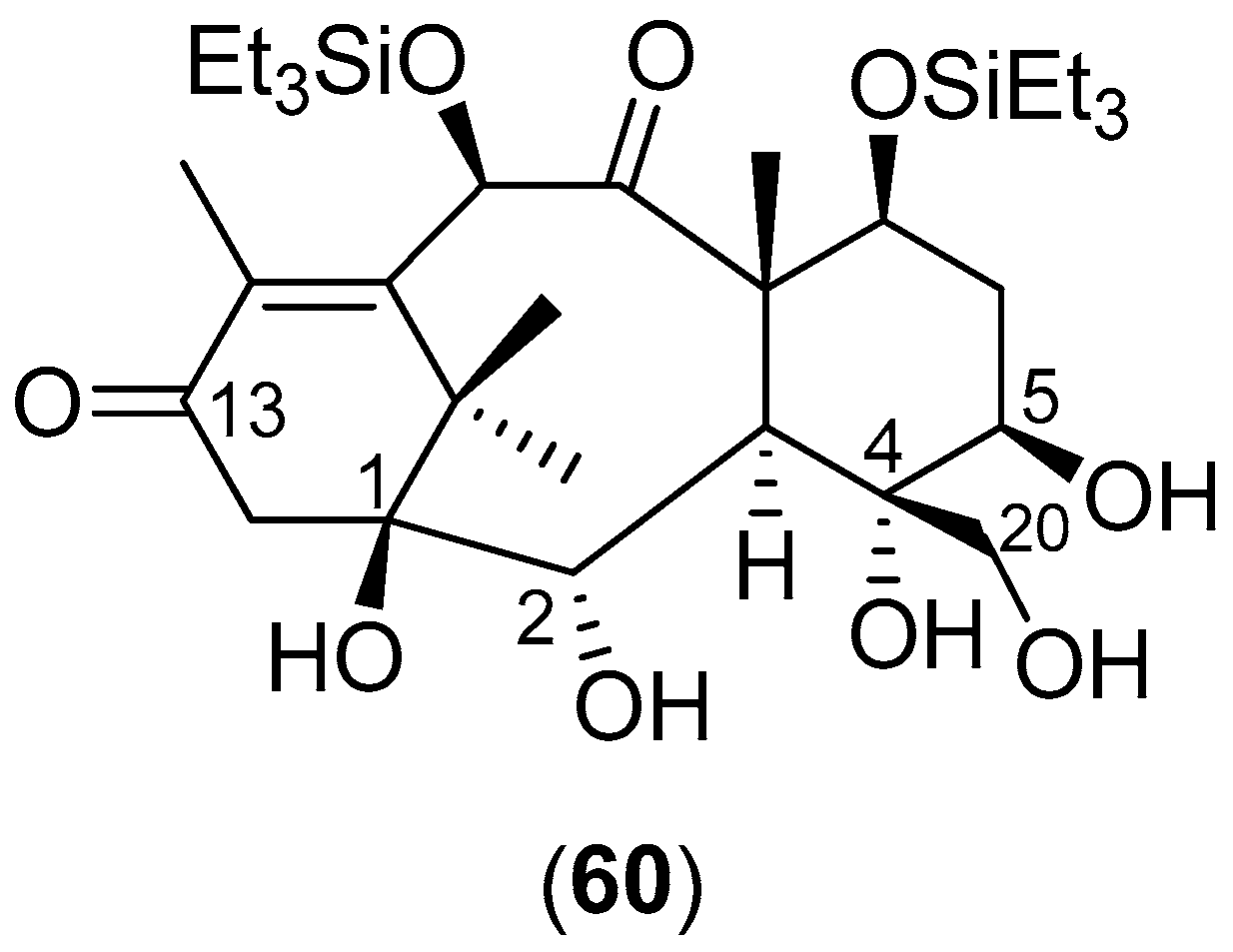

Figure 11. Structure of Compound 60.
Figure 11. Structure of Compound 60.
Molecules 22 00505 g011
Figure 12. Structures of flavonoids 6163.
Figure 12. Structures of flavonoids 6163.
Molecules 22 00505 g012

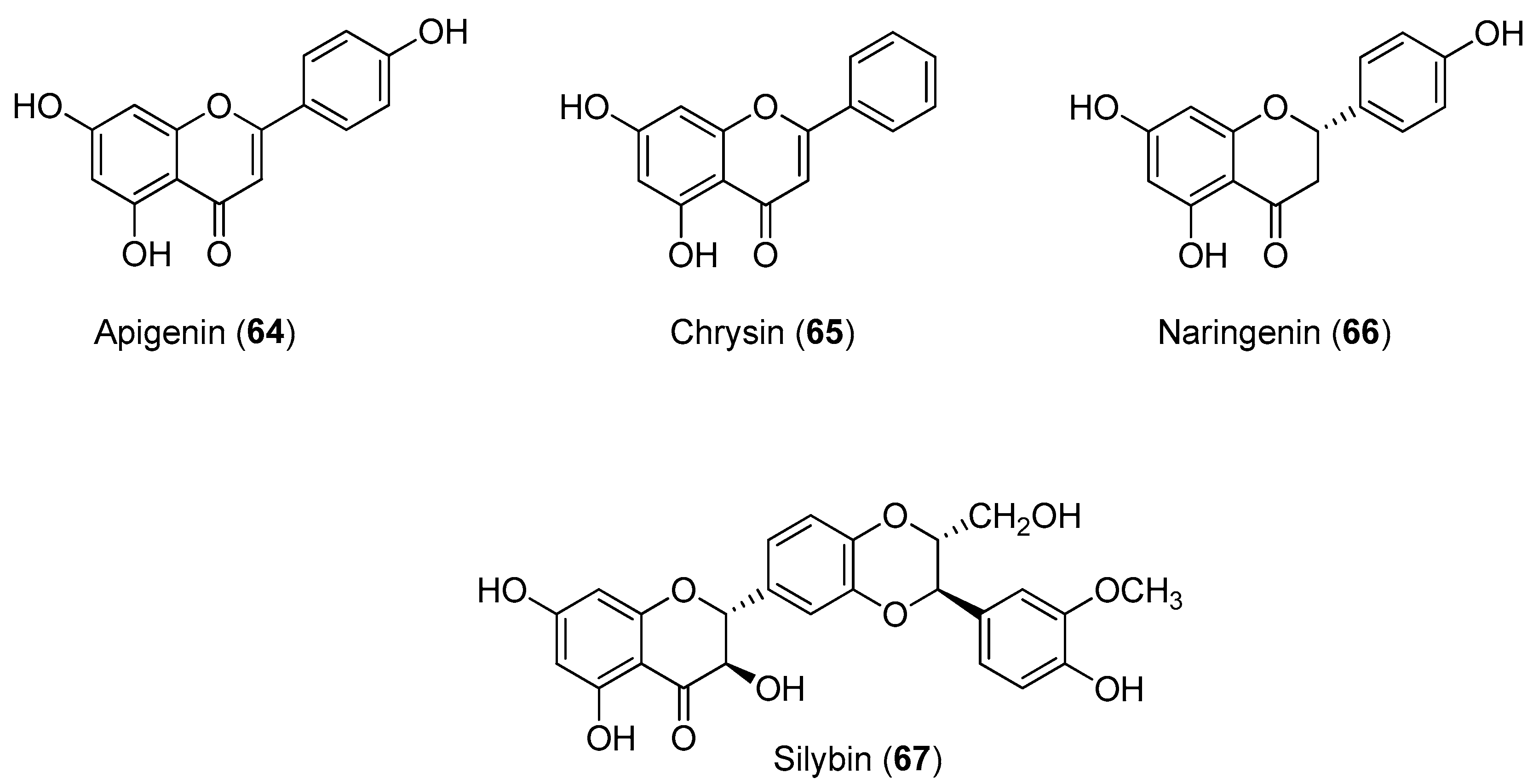

Figure 13. Structures of flavonoids 64 and 67.
Figure 13. Structures of flavonoids 64 and 67.
Molecules 22 00505 g013

CompoundEGPF (in μM)Rluc (in μM)
6422.528.3
6546.850.2
6625.830.0
6771.159.8
Figure 14. The alkaloid harringtonine (Compound 68).
Figure 14. The alkaloid harringtonine (Compound 68).
Molecules 22 00505 g014
Figure 15. Structures of Compounds 6971, which were selective for the CHIKV nsP2 protease [72].
Figure 15. Structures of Compounds 6971, which were selective for the CHIKV nsP2 protease [72].
Molecules 22 00505 g015
Table 1. Antiviral activities of Compounds 1820 against chikungunya virus (CHIKV) replication.
Table 1. Antiviral activities of Compounds 1820 against chikungunya virus (CHIKV) replication.
CompoundEC50 (in μM) CHIKVCC50 (in μM) Vero Cells
181.5 ± 0.635 ± 8
191.9 ± 0.64.6 ± 0.8
203.9 ± 1.010.5 ± 0.1
Chloroquine11.0 ± 2.1100 ± 25
Table 2. Effects of Compounds 3238 on CHIKV and Vero cells.
Table 2. Effects of Compounds 3238 on CHIKV and Vero cells.
CompoundEC50 (in μM) CHIKVCC50 (in μM) Vero Cells
32>420>420
33>3030
34>2323
35>3030
3677 ± 26>235
3786 ± 9>235
38>426>426
Chloroquine11 ± 7ND

Share and Cite

MDPI and ACS Style

Oliveira, A.F.C.d.S.; Teixeira, R.R.; Oliveira, A.S.d.; Souza, A.P.M.d.; Silva, M.L.d.; Paula, S.O.d. Potential Antivirals: Natural Products Targeting Replication Enzymes of Dengue and Chikungunya Viruses. Molecules 2017, 22, 505. https://doi.org/10.3390/molecules22030505

AMA Style

Oliveira AFCdS, Teixeira RR, Oliveira ASd, Souza APMd, Silva MLd, Paula SOd. Potential Antivirals: Natural Products Targeting Replication Enzymes of Dengue and Chikungunya Viruses. Molecules. 2017; 22(3):505. https://doi.org/10.3390/molecules22030505

Chicago/Turabian Style

Oliveira, Ana Flávia Costa da Silveira, Róbson Ricardo Teixeira, André Silva de Oliveira, Ana Paula Martins de Souza, Milene Lopes da Silva, and Sérgio Oliveira de Paula. 2017. "Potential Antivirals: Natural Products Targeting Replication Enzymes of Dengue and Chikungunya Viruses" Molecules 22, no. 3: 505. https://doi.org/10.3390/molecules22030505

Article Metrics

Back to TopTop
