Synthesis, Spectral Characterization of Several Novel Pyrene-Derived Aminophosphonates and Their Ecotoxicological Evaluation Using Heterocypris incongruens and Vibrio fisheri Tests

Department of Organic Chemistry, Faculty of Chemistry, University of Łódź, Tamka 12, 91-403 Łódź, Poland
Institute of Chemistry, Environmental Protection and Biotechnology, Jan Długosz University in Częstochowa, 13/15 Armii Krajowej Av., 42-200 Częstochowa, Poland
Authors to whom correspondence should be addressed.
M.Sc. student at the Faculty of Chemistry, University of Łódź (Academic Year 2015–2016).
Molecules 2016, 21(7), 936;
Received: 26 June 2016 / Revised: 12 July 2016 / Accepted: 14 July 2016 / Published: 19 July 2016
(This article belongs to the Special Issue Recent Advances in Organophosphorus Chemistry)


Four diphenyl pyrene-derived aminophosphonates were synthesized. Attempts were made to synthesize diphenyl N-(R)-α-methylbenzylamino(pyren-1-yl)methylphosphonate (3e) in order to obtain the chiral aminophosphonate bearing a pyrene moiety. Because these attempts failed, dimethyl and dibenzyl N-(R)-α-methylbenzyl substituted aminophosphonates 4 and 5 were synthesized and the predominant diastereoisomer of dimethyl aminophosphonate 4 was isolated. The resolution of the diastereomeric mixture of 5 failed. Aminophosphonates 3ad and the predominant diastereoisomer of 4 were investigated in terms of their ecotoxicity using tests performed on the ostracode Heterocypris incongruens and the fluorescent bacterium Vibrio fisheri. The tests confirmed the moderate-to-high ecotoxicity of aminophosphonates 3ad and 4, but no evident correlation between the structure and toxicity has been found.

Graphical Abstract

1. Introduction

Aminophosphonic derivatives are well known for their biological activity. They are described as effective inhibitors of various enzymes and, therefore they find applications as crop protective [1], antibacterial [2] or anticancer [3] agents. Analogues of C-phenylphosphonoglycine, have been demonstrated to show activity in various fields as herbicides and plant growth regulators [4], agrochemical fungicides [5,6] and glutamate receptor agonists and antagonists [7].
In a sort of logical consequence, a lot of compounds from this group have been synthesized, including those bearing benzene and its polycyclic aromatic analogues [8], five- and six-membered heteroaromatic rings [9,10], and even the ferrocene [11] moiety. Their syntheses are generally based on the Kabachnik-Fields and the aza-Pudovik reactions [12,13,14].
In contrast, aminophosphonic derivatives of 1-pyrene, i.e., amino(1-pyrene)methylphosphonic compounds have been described only twice in the chemical literature. Hudson et al. [15] reported the synthesis of diethyl N‑benzhydrylamino(1-pyrene)methyl phosphonate, and Jayaprakash and co-workers [16] described the synthesis of a series of N‑aryl substituted, diethyl amino(1-pyrene)methyl phosphonates and results of preliminary studies on their fluorescence properties.
We have tried to fill this void and very recently have published results of our studies on the synthesis, photophysical properties and cytotoxic action of a series of α-aminophosphonates bearing pyren-1-yl moieties [17]. They demonstrated moderate-to-satisfactory cytotoxicities against two colon cancer cell lines. Such interesting biological properties may result in potential future applications and their biological hazards should be evaluated using typical biotoxicological tests.
Herein, we wish to report the synthesis of a new series of N-substituted-C-(pyren-1-yl)-phosphonoglycine derivatives and their ecotoxicological properties evaluated using ostracode (Heterocypris incongruens) and fluorescence bacteria Vibrio fisheri tests.
Nowadays, ecotoxicology faces the challenge of evaluating and predicting the effects of a variety of chemicals on aquatic species and ecosystems. Since a chemical pollutant may follow various routes from a source to the target, there is an urgent need to follow their potential ecotoxicological impact using different biotests [18,19,20,21].
Toxkit microbiotests are presently used in many countries worldwide for biomonitoring of contaminated waters and soils. These small-scale bioassays are becoming more and more popular in laboratories all over the world because of their various useful advantages, such as high degree of standardization and precision, simple testing procedures which are very clearly documented down to the last detail, operation with small sample volumes, the repeatability as well as giving comparable results to equivalent ISO and OECD full-scale tests. However, the major advantage of Toxkit microbiotests in comparison to conventional bioassays is that the tested microorganisms are incorporated in the kits in a dormant or immobilized form, from which they can be hatched or activated “on demand” prior to carrying out the toxicity tests [22].
The Microtox® system test with the luminescent bacterium Vibrio fischeri and the crustacean Heterocypris incongruens, when used as bioindicator allows one to monitor potential toxicity of soil or water contaminants in a rapid, simple and inexpensive way. This bioanalytical technique allows one to overcome some disadvantages of the traditional physicochemical methods such as concentration of toxic substances below analytical limits or potential chemical interactions leading to additive, synergistic or antagonistic effect which cannot be identified using the abovementioned methods. The Vibrio fischeri bioassay can be applied in all types of water, including surface and ground water, wastewater, drilling sump fluids and many other aqueous solutions [23]. Both Vibrio fischeri and Heterocypris incongruens bioassay tests have been already successfully used for ecotoxicity determination of various pharmaceuticals, pesticides, ionic liquids, detergents, heavy metals, road dust, eluates and organic extracts of wastes, etc. [24,25,26,27,28,29,30].
As it was mentioned above, the aim of the study was the preliminary evaluation of the potential toxicity of newly synthesized aminophosphonates 3ad and 4, if introduced to the environment. In order to perform it, the Microtox® test using the bioluminescent bacterium Vibrio fischeri was employed to examine the acute toxicity of sediment eluates loaded with tested compounds. Due to the cost effective, simple operation and time-savings, the biotest based on the bioluminescence inhibition of Vibrio fischeri is probably the most widely applied bacterial test used for environmental pollution monitoring.
However, due to fact that the obtained substances are almost insoluble in water, the Microtox® solid phase test (MSPT), as a one of the most popular tests for sediment toxicity assessments due to its simplicity, reproducibility, ecological relevance and sensitivity, has been used [26,31,32,33].
Additionally, the standardized crustacean biotest with Heterocypris incongruens was selected as a representative benthic invertebrate species for screening the toxicity of sediments containing the tested substances. Crustaceans are promising representative species of the benthic environment as they spend their lives swimming in water and in direct contact with the sediment. Therefore, the Ostracodtoxkit® test has been used for toxicity evaluation. The toxicity test using mentioned freshwater ostracodes is a sub-chronic static test that exposes individuals to whole sediments over a period of 6 days, the endpoints being mortality and growth changes [34].

2. Results and Discussion

2.1. Synthesis of Aminophosphonic Derivatives 3ae, 4 and 5 Bearing 1-Pyrene Moieties

Schiff bases 1ae were synthesized following the published and commonly known procedure by simple mixing pyrene-1-carboxaldehyde with an appropriate amine in hexane (in a case of p-anisidine, p-toluidine and aniline) or methanol (for benzylamine and (R)-α-methylbenzylamine) and stirring them at room temperature for 24 h; the reaction with p-anisidine required 48 h [14]. This procedure gave imines 1ae, which were isolated and used for further conversions without any purification. 1H-NMR spectra were recorded only to verify the identity, based on the diagnostic 1H-NMR singlet corresponding to the proton of the azomethine group (–CH=N–) above 8 ppm [17].
Aminophosphonates 3ad, 4 and 5 were synthesized basing on the aza-Pudovik reaction, i.e., the addition of diphenyl phosphite to imines 1ad. However, important modifications were necessary to be introduced, whereby reactions were carried out in a small amount of dichloromethane and diphenyl phosphite was used in three-fold excess. The reaction mixtures were heated for 5 min then stirred for 24 h at room temperature. After workup as described in the Experimental Section, the resulting aminophosphonates 3ad were obtained in 60%–70% yields (Scheme 1). They were purified by column chromatography on neutral aluminum oxide, because diphenyl amino(1-pyrene)methylphosphonates 3ad decomposed on silica gel.
The identity of synthesized compounds was verified by means of 1H-, 31P- and 13C-NMR as well as by FT-IR spectroscopy. The proton NMR spectra of diphenyl pyrene-derived aminophosphonates 3ad showed the characteristic signals of all compounds, i.e., the doublet corresponding to the proton from the CH-P bond and the system of signals attributable to the pyrene ring protons. The 13C-NMR spectra revealed the presence of two doublets at around 150 ppm with a coupling constant close to 10 Hz, which are attributed to the phenyl ring carbons from the P-O-C groups. Doublets in the 50–55 ppm range with coupling constants between 150 and 160 Hz are easily recognizable as C-P bond signals. IR bands at around 1250 cm−1 correspond to the bending vibrations of P=O bonds, while the presence of aromatic carbon-carbon bonds was confirmed by characteristic bands at around 1600, 1570, 1500 and 1450 cm−1. Scans of NMR spectra are collected in the Supplementary Materials as Figures S1–S7.
In order to obtain the chiral, non-racemic diphenyl ester of a phosphonoglycine derivative bearing a pyren-1-yl moiety, the synthesis of diphenyl N-(R)-α-methylbenzylamino(pyren-1-yl)-methylphosphonate (3e) was performed using the method described above. The resulting mixture contained two diastereomers in a 100:15 ratio, but all attempts to purify the product by column chromatography on neutral aluminum oxide caused extensive decomposition of the product. From among available adsorbents, silica gel was totally inconvenient (vide supra), and chromatography on microcrystalline cellulose with chloroform allowed us to get rid of impurities only roughly, i.e., crude diphenyl N-(R)-α-methylbenzylamino(pyren-1-yl)methylphosphonate (3e) was obtained.
Thus, in order to investigate the stereochemistry of phosphite addition to the azomethine bond of pyrene-1-carboxaldimine 1e, addition of dimethyl and dibenzylphosphites has been performed. Dimethyl N-(R)-α-methylbenzylamino(pyren-1-yl)methylphosphonate (4) was obtained as a mixture of two diastereoisomers in a 100:13 ratio. We succeeded in separation of the predominant diastereoisomer using column chromatography on silica gel. Its absolute configuration however could not be determined, because the predominant isomer of aminophosphonate 4 is a dense oily liquid, thus an X-ray study could not be performed. Isolation of the minor diastereoisomer of 4 failed, it was always obtained in a mixture with the major one.
Dibenzyl N-(R)-α-methylbenzylamino(pyren-1-yl)methylphosphonate (5) was obtained as a mixture of two diastereoisomers in a 100:26 ratio. Unfortunately, the obtained mixture of diastereoisomers was not separable by column chromatography, as all applied solvent systems led to mixtures with different ratios of isomers. However, the crude diastereomeric mixture of 5 was purified by column chromatography on silica gel to give satisfactory elemental analysis results.
Thus the obtained diphenyl aminophosphonates 3ad and the isolated predominant diastereoisomer of 4 were tested in terms of their ecotoxicity using two popular ecotoxicological tests, the ostracode Heterocypris incongruens and fluorescence bacteria Vibrio fisheri.

2.2. Ecotoxicological Properties of Aminophosphonates 3ad and 4

2.2.1. Microtox Toxicity Assay

Bioassays are the complementary tool for characterizing the biological effects and hazards of contaminated sediments or soils. During the solid phase Microtox® assay the bioluminescent bacteria are exposed to a sediment suspension and their response reflects totally the action of toxic agents along with synergists and antagonists present in a given sample. The effects on light emission are evaluated in the liquid phase that remains after removal of the sediments by filtration. Effective concentration (EC50) values (Table 1) were calculated from the concentration–response curves (Figure 1).
Obtained EC50 values ranged between 92 and 533 mg/kg of dry weight of soil, depending on the tested compound. Among the compounds 3ac with aromatic substituents on the amine groups, diphenyl N-(4-methoxyphenyl)amino(pyren-1-yl)methylphosphonate (3b) was found to be the most toxic, with the lowest EC50 value (92.63 mg/kg). Much less harmful action against Vibrio fischeri was found for the N-(4-methylphenyl) derivative 3c (EC50 = 214.5 mg/kg), while diphenyl N-phenylamino(pyren-1-yl)methylphosphonate (3a) demonstrated nearly a lack of toxicity. Thus, the presence of a substituent at the phenyl group linked to nitrogen seems to be crucial in terms of toxicological properties of the studied compounds 3ac. The results also showed that a methoxy substituent increases the toxicity of the compound 3b in comparison with the methyl substituted aminophosphonate 3c.
Among the aminophosphonates 3d and 4 having the amino groups substituted with non-aromatic groups, results were indeed surprising. Diphenyl N-benzylamino(pyren-1-yl)methylphosphonate (3d) with a N-benzyl substituent demonstrated five times higher toxicity (EC50 = 102.7 mg/kg) as compared to the N-(R)-α-methylbenzylamino derivative 4 (EC50 = 533.1 mg/kg). Therefore we can conclude that the presence of a methyl substituent in the benzyl moiety dramatically decreases the toxicity of compound 4.

2.2.2. Ostracod Test Kit

Ostracodtoxkit FTM is the very first sediment-contact microbiotest with a crustacean test species for the assessment of the total toxicity of sediments, hence covering the toxic hazards of both dissolved and not dissolved pollutants. Considering the very low solubility of synthesized aminophosphonates 3ad and 4, it seemed justified to evaluate reliably their potential toxicity.
The first criterion of the effect on tested crustaceans is the percent of mortality. Toxicity was expressed in % of mortality, i.e., the lethal effect of the sample on the number of ostracods compared with the control plate. As it was expected, the mortality of ostracodes increased with growing concentration of tested substance in soil (Figure 2). The concentration 500 mg/kg of soil was found to be lethal for all samples. However, among all tested compounds, N-benzylamino(pyren-1-yl)methylphosphonate (3d) demonstrated the highest toxicity at every concentration when compared to other samples (with the sole exception of aminophosphonate 4 at a concentration of 100 mg/kg of soil). Even at a concentration of 10 mg/kg of dry weight of soil, compound 3d caused 10% mortality of crustaceans, while other samples at this concentration did not show any mortal effect.
Growth inhibition is the second criterion of the toxic effect indicated by the Ostracodtoxkit F™ microbiotest. This criterion allows one to evaluate the sub-lethal toxicity of sediments. The growth inhibition is determined by comparing the size of surviving ostracods living in the test sediment with the size of ostracods living in the reference sediment at the end of the test. Determination of the sub-lethal impact of sediment toxicants is justified only for sediments which do not cause a high ostracod mortality. It is advised that the growth inhibition should only be determined for sediments which mortality was found to be less than 30%. Therefore, the growth inhibition was chosen as a criterion of sub-lethal effects to determine toxicity not inducing substantial mortality in the test organisms. Consequently, measurements of lengths were only performed when the mortality was less than 30%. In this respect, the growth inhibition rates have not been measured for aminophosphonates 3c, 3d and 4 at concentrations of 100, 250 and 500 mg per kg of soil dry weight. Crustaceans were more resistant against compounds 3a and 3b and their growth inhibition reached ca. 20% for a concentration of 100 mg/kg of soil, nevertheless it was not measured at 250 and 500 mg per kg of soil dry weight. Values of growth inhibition for compounds 3c, 3d and 4 at 50 mg/kg of soil concentration varied between 16% and 23% (Figure 3).
Comparison of results of luminescence inhibition for Vibrio fischeri tests with growth inhibition of crustaceans for all concentration of compounds did not show any reasonable relationship. Only diphenyl N-benzylamino(pyren-1-yl)methylphosphonate (3d), which was strongly toxic for Vibrio fischeri (EC50 ~ 103 mg/kg of soil) also revealed the highest mortality of ostracods even at a concentration of 10 mg/kg of soil.
However, diphenyl N-(4-methoxyphenyl)amino(pyren-1-yl) methylphosphonate (3b) that induced a very strong luminescence inhibition in V. fischeri was only moderately toxic for crustaceans considering both the mortality and the growth inhibition index. On the other hand, diphenyl N-phenylamino(pyren-1-yl)methylphosphonate (3a), being nearly non-toxic for V. fischeri (EC50 close to 500 mg/kg of soil) is also very weakly toxic for ostracods (with respect to both criteria, the mortality and the growth inhibition).
Thus, based on the obtained results, Vibrio fischeri bacteria were very sensitive to aminophosphonates 3b and 3d, since relatively low effective concentration (EC50) values were determined, while for ostracods, the highest negative impact considering both mortality and inhibition growth have been found for diphenyl N-benzylamino(pyren-1-yl)methylphosphonate (3d). Therefore, being the most toxic against both tested organisms, the aminophosphonate 3d should be considered as a potentially hazardous compound for environment, which may be toxic against many other living species. Its high toxicity may be related with its N-benzyl group, which is more flexible than other substituents and may bind more easily to enzymes or receptors of the tested organisms. Nevertheless, this is only a very preliminary hypothesis, which requires further verification.
The usefulness of bioassays for the assessment of areas affected by phosphate industry wastes has already been reported and discussed [35,36]. Authors performing risk assessments in such contaminated areas have proven that the development of sensitive and observable organisms as bio-indicators for monitoring and management of the environmental pollution is a very useful tool to complement chemical analyses. Biological analysis allows one to reflect the harmful effects of contaminants on organisms and provides data to reveal the mechanisms of the toxic effects including formation, development and removal of contaminants.
Since the soil is generally the reservoir for agrochemical residues, the evaluation of any xenobiotics including pesticides using a simple battery of assay tests is strongly needed to control level and fate of their residues. In a successful study focused on the ecotoxicological evaluation of select pesticides (chlorpyrifos, glyphosate, vinclozolin, endosulfan) present in agricultural soils, Antunes et al have reported the use of standard aquatic bioassays for testing of soil eluates [30].
Our obtained effective concentration values are very close to the inhibition concentration (IC50) values for herbicides examined by Joly et al. [28]. Toxicity values of the pesticides S-metolachlor, nicosulfuron and benoxacor were 178.4, 167.8 and 93.3 mg/L, respectively. In this respect, the toxicity of the first two herbicides are close to that of the tested aminophosphonate 3c, while the last IC50 value matches the values of compounds 3b and 3d. Nevertheless, the action of aminophosphonates 3ad and 4 against V. fischeri demonstrated much lower toxicity when compared to the herbicides tested by the mentioned authors.
Ostracodtoxit tests using Heterocypris incongruens are also a very useful tool for environmental toxicity determination. Results related to mortality and growth inhibition of ostracods correlated with various types of polycyclic aromatic hydrocarbons (PAHs) have been reported by Cvancarova et al. [37]. They found that H. incongruens was strongly sensitive to bioavailable PAHs, while luminescence inhibition of V. fischeri varied widely between ca. 15%–90% depending on the type of soil examined.
Oleszczuk and Hollert [38], in their studies devoted to determination of the influence of different soils on sewage sludge toxicity, have found that the mortality values of Heterocypris incongruens ranged from 0.26% to 11.5% depending on the sludge tested [39]. Growth inhibition values ranged from 10.7% to 36.2% depending on the type of sludge. Płaza et al. [39] applied Microtox®, Ostracodtoxkit F, to assay bioremediation processes in soils heavily contaminated with petroleum. The test species demonstrated varying sensitivity to soils and the effects on test organisms exposed to tested soils correlated with the soil contaminants’ concentrations [39].
Results of toxicity against H. incongruens obtained for the studied aminophosphonates 3ad and 4 were at a similar level. The mortality varied from ca. 5% until 70% for the concentration range 10–100 mg per kg of soil. At higher concentrations, the tested compounds were practically lethal for crustaceans. The growth inhibition varied from 16% up to 23% for a concentration of 50 mg per kg of soil. All the data presented above lead us to stress the necessity of handling pyrene-derived aminophosphonic derivatives with special care, as they may be potentially hazardous for the environment.

3. Materials and Methods

3.1. Chemistry

All solvents (POCh, Gliwice, Poland) were applied routinely and dried prior to use. Commercial reagents (Aldrich, Poznań, Poland) were generally used as received. NMR spectra were recorded on an Avance III 600 MHz apparatus (Bruker, Billerica, MA, USA) operating at 600 MHz (1H-NMR), 150 MHz (13C-NMR) and 243 MHz (31P-NMR). IR spectra were recorded on a Nexus FT-IR spectrometer (Thermo Nicolet, Waltham, MA, USA). Rotations were measured using a 241 MC polarimeter (Perkin-Elmer, Waltham, MA, USA). Melting points were measured using a MelTemp II apparatus (Bibby Scientific Limited, Staffordshire, UK), in a capillary and were not corrected. Elemental analyses were performed in the Laboratory of Microanalysis, the Center of Molecular and Macromolecular Studies PAS in Łódź and the Laboratory of Molecular Spectroscopy at the Faculty of Chemistry, University of Łódź.

3.1.1. General Procedure for Synthesis of Phosphonates 3ad, 4 and 5

Equimolar quantities of 1-pyrenecarboxaldehyde and amine (2 mmol each) were dissolved in hexane (1ac) or methanol (1de) (20 mL) and stirred at reflux for 24 h (1bc, 1de) or 48 h (1a). The reaction was monitored by 1H-NMR and after the completion, the solvent was removed under reduced pressure, and obtained products were used directly for further conversion. Imine (1 mmol) and the appropriate phosphite 2AC (3 mmol or 5–6 mmol in a case of dimethyl phosphite due to the low solubility of the imine in it) were placed in a 25 mL round-bottom flask, which was heated with stirring on a water bath for 5 min until all of the imine was dissolved in the phosphite. In the case of derivatives 3ad, dichloromethane (2 mL) was added in order to improve the solubility. Then the mixture was stirred at room temperature for 24 h. The crude aminophosphonates were purified by column chromatography on neutral aluminum oxide using chloroform as eluent.
Diphenyl N-phenylamino(pyren-1-yl)methylphosphonate (3a). Y = 0.41 g (76%), yellow solid, m.p. 184–185 °C. 1H-NMR (CDCl3): δ 8.38 (d, 3JHH = 9.3 Hz, Hpyr, 1H); 8.28 (dd, 3JHH = 8.0 and 4JHH = 2.6 Hz, Hpyr, 1H); 8.20 (t, Hpyr, 3JHH = 8.0 Hz, 2H); 8.12 (d, 3JHH = 8.0 Hz, Hpyr, 1H); 8.10 (d, 3JHH = 9.2 Hz, Hpyr, 1H); 8.07–8.06 (m, Hpyr, 1H); 8.04–8.01 (m, Hpyr, 2H); 7.30–7.29 (m, HPh, 5H); 6.94 (t, 3JHH = 7.4 Hz, HPh, 1H); 6.84 (dd, 3JHH(1) = 3JHH(2) = 7.8 Hz, HPh, 2H); 6.79 (app. d, 3JHH = 8.5 Hz, p-C6H4, 2H); 6.67 (d, 3JHH = 7.4 Hz, HPh, 2H); 6.46 (app. d, 3JHH = 8.5 Hz, p-C6H4, 2H); 5.92 (d, 2JPH = 24.1 Hz, CHP, 1H); 5.10–5.08 (m, POCH2, 2H); 4.65 and 4.22 (Part of AMX system, 2JHH = 11.6 Hz and 3JPH = 7.8 and 8.5 Hz, POCH2, 2H). 13C-NMR (CDCl3): δ 150.7 (d, 2JCP = 9.9 Hz, CPOC); 150.3 (d, 2JCP = 9.5 Hz, CPOC); 146.1 (d, 3JCP = 15.27 Hz, CPh); 131.6 (Cpyr); 131.5 (d, 4JCP = 3.1 Hz, Cpyr); 130.8 (Cpyr); 130.2 (Cpyr) 130.0 (CPh); 129.6 (Cpyr); 129.5 (d, 4JCP = 2.0 Hz, CPh); 128.7 (Cpyr); 128.6 (d, 4JCP = 2.1 Hz, Cpyr); 127.9 (Cpyr); 127.7 (Cpyr); 127.4 (Cpyr); 127.0 (Cpyr); 126.8 (Cpyr); 126.3 (Cpyr); 125.8 (CPh); 125.7 (CPh); 125.6 (d, 4JCP = 3.4 Hz, Cpyr); 125.5 (Cpyr); 125.2 (Cpyr); 125.0 (Cpyr); 122.1 (Cpyr); 120.9 (d, 3JCP = 4.0 Hz, CPh); 119.9 (d, 3JCP = 4.4 Hz, CPh); 119.1 (CPh); 114.2 (CPh); 52.2 (d, 1JCP = 154.6 Hz, PC). 31P-NMR (CDCl3): δ 16.16. IR (KBr): 3313 (νCH); 3037; 2923 (CH3); 1600, 1581; 1524, 1483 (C=C); 1249 (P=O); 1214; 1185; 1062; 1021 (P-O); 941; 853; 824; 622.Elemental analysis: Calcd. for C35H26NO3P: C, 77.91; H, 4.86; N, 2.60. Found: C, 77.76, H, 4.86, N, 2.79.
Diphenyl N-(4-methoxyphenyl)amino(pyren-1-yl)methylphosphonate (3b). Y = 0.3 g (52%), yellow solid, m.p. 161 °C. 1H-NMR (CDCl3): δ 8.49 (d, 3JHH = 9.2 Hz, Hpyr, 1H); 8.34 (dd, 3JHH = 7.7 and 4JHH = 1.9 Hz, Hpyr, 1H); 8.24-8.21 (m, Hpyr, 3H); 8.14 (d, Hpyr, 3JHH = 8.1 Hz, 1H); 8.08 (d, 3JHH = 8.9 Hz, Hpyr, 1H); 8.04 (d, 3JHH = 7.7 Hz, Hpyr, 1H); 8.02–8.01 (m, Hpyr, 2H); 7.31–7.28 (m, HPh, 2H); 7.19–7.16 (m, HPh, 3H); 6.95–6.92 (m, HPh, 2H); 6.89–6.87 (m, HPh, 1H); 6.62–6.58 (m, HPh, p-C6H4, 6H); 6.23 (d, 2JPH = 24.4 Hz, CHP, 1H); 3.61 (s, CH3, 3H). 13C-NMR (CDCl3): δ 153.2 (d, 2JCP = 5.4 Hz, Cpara); 150.7 (d, 2JCP = 9.9 Hz, CPOC); 150.3 (d, 2JCP = 9.7 Hz, CPOC); 131.5 (Cpyr); 131.2 (d, 4JCP = 3.2 Hz, Cpyr); 130.8 (Cpyr); 130.0 (CPh); 129.7 (Cpyr); 129.6 (d, 3JCP = 7.2 Hz, Cpyr); 129.5 (CPh); 128.8 (Cpyr); 128.6 (Cpyr); 127.9 (Cpyr); 127.7 (Cpyr); 126.3 (CPh); 125.8 (CPh); 125.6 (Cpyr); 125.6 (Cpyr); 125.5 (Cpyr); 125.2 (d, 4JCP = 1.8 Hz, Cpyr); 125.0 (Cpyr); 124.9 (Cpyr); 122.2 (Cpyr); 121.0 (d, 3JCP = 4.2 Hz, CPh); 120.0 (d, 4JCP = 4.4 Hz, CPh); 115.7 (d, 4JCP = 9.7 Hz, CPh); 115.1 (Cpara); 55.7 (CAr-OC); 53.0 (d, 1JCP = 154.3 Hz, PC). 31P-NMR (CDCl3): δ 16.32. IR (KBr): 3383 (νNH); 3294 (νCH); 3037; 2958 (CH3); 1591, 1511, 1486; 1451 (C=C); 1245 (P=O); 1211; 1068; 1024 (P-O); 941; 834; 815; 618. Elemental analysis: Calcd. for C36H28NO4P: C, 75.91; H, 4.95; N, 2.46. Found: C, 75.76, H, 5.06, N, 2.54.
Diphenyl N-(4-methylphenyl)amino(pyren-1-yl)methylphosphonate (3c). Y = 0.44 g (79%), yellow solid, m.p. 181–182 °C. 1H-NMR (CDCl3): δ 8.51 (d, 3JHH = 9.3 Hz, Hpyr, 1H); 8.34 (dd, 3JHH = 8.2 and 4JHH = 2.5 Hz, Hpyr, 1H); 8.25-8.21 (m, Hpyr, 3H); 8.13 (d, Hpyr, 3JHH = 8.2 Hz, 1H); 8.08 (d, 3JHH = 8.9 Hz, Hpyr, 1H); 8.04 (t, 3JHH = 7.6 Hz, Hpyr, 1H); 8.01 (d, 3JHH = 8.8 Hz, Hpyr, 2H); 7.31–7.29 (m, HPh, 2H); 7.20–7.15 (m, HPh, 3H); 7.05–7.02 (m, HPh, 2H); 6.94–6.91 (m, HPh, 2H); 6.88-6.86 (m, HPh, 1H); 6.68-6.64 (m, HPh, 3H); 6.58–6.57 (m, HPh, 2H); 6.31 (d, 2JPH = 24.6 Hz, CHP, 1H). 13C-NMR (CDCl3): δ 150.7 (d, 2JCP = 9.8 Hz, CPOC); 150.3 (d, 2JCP = 9.7 Hz, CPOC); 143.7 (d, 2JCP = 15.9 Hz, Cpara); 131.6 (Cpyr); 131.2 (d, 4JCP = 3.2 Hz, Cpyr); 130.8 (Cpyr); 130.0 (CPh); 129.8 (Cpyr); 129.6 (d, 3JCP = 7.3 Hz, Cpyr); 129.5 (Cpara); 128.8 (d, 4JCP = 2.1 Hz, Cpyr); 128.6 (Cpyr); 128.3 (Cpyr); 127.8 (Cpara); 127.7 (d, 4JCP = 1.6 Hz, Cpyr); 126.3 (Cpyr); 125.8 (Cpyr); 125.6 (CPh); 125.5 (d, 4JCP = 2.3 Hz, Cpyr); 125.5 (CPh); 125.2 (d, 4JCP = 1.9 Hz, Cpyr); 125.0 (Cpyr); 124.9 (Cpyr); 122.2 (Cpyr); 121.0 (d, 3JCP = 4.0 Hz, CPh); 120.0 (d, 3JCP = 4.4 Hz, CPh); 114.3 (Cpara); 52.5 (d, 1JCP = 155.1 Hz, PC); 20.5 (CAr-OC). 31P-NMR (CDCl3): δ 15.23. IR (KBr): 3303 (νCH); 2923 (CH3); 1591, 1489, 1458 (C=C); 1268 (P=O); 1024 (P-O); 926, 840; 770; 688. Elemental analysis: Calcd. for C36H28NO3P: C, 78.11; H, 5.10; N, 2.53. Found: C, 77.86; H, 5.31; N, 2.47.
Diphenyl N-benzylamino(pyren-1-yl)methylphosphonate (3d). Y = 0.43 g (77%), yellow solid, m.p. 118–119 °C. 1H-NMR (CDCl3): δ 8.51–8.49 (m, Hpyr, 1H); 8.26 (d, 3JHH = 8.0 Hz, Hpyr, 1H); 8.24–8.21 (m, Hpyr, 3H); 8.13–8.09 (m, Hpyr, 3H); 8.04 (t, 3JHH = 7.6 Hz, Hpyr, 1H); 7.29–7.25 (m, HPh, 5H); 7.20–7.19 (m, HPh, 2H); 7.15–7.13 (m, HPh, 3H); 7.02–7.00 (m, HPh, 2H); 6.93 (app. t, 3JHH = 7.4 Hz, HPh, 1H); 6.73 (app. d, 3JHH = 8.2 Hz, HPh, 2H); 5.58 (d, 2JPH = 20.8 Hz, CHP, 1H); 3.93 (d, 3JHH = 13.3 Hz, NCH2, 1H); 3.66 (d, 3JHH = 13.3 Hz, NCH2, 1H). 13C-NMR (CDCl3): δ 151.0 (d, 2JCP = 9.9 Hz, CPOC); 150.5 (d, 2JCP = 9.7 Hz, CPOC); 139.1 (CPh); 131.6 (Cpyr); 131.4 (d, 4JCP = 3.0 Hz, Cpyr); 130.8 (Cpyr); 130.4 (Cpyr); 130.3 (Cpyr) 130.0 (Cpyr); 129.9 (Cpyr); 129.8 (CPh); 129.5 (CPh); 128.8 (CPh); 128.6 (CPh); 128.2 (Cpyr); 128.0 (Cpyr); 127.7 (d, 4JCP = 1.5 Hz, Cpyr); 127.5 (Cpyr); 126.3 (Cpyr); 125.7 (CPh); 125.5 (d, 4JCP = 2.8 Hz, Cpyr); 125.4 (CPh); 125.2 (Cpyr); 125.0 (Cpyr); 122.7 (Cpyr); 120.8 (d, 3JCP = 4.3 Hz, CPh); 120.3 (d, 3JCP = 4.3 Hz, CPh); 51.6 (d, 3JCP = 17.8 Hz, PCNC). 31P-NMR (CDCl3): δ 16.22. IR (KBr): 3386 (νNH); 3041, 2917 (CH3); 1616, 1587, 1518, 1451 (C=C); 1245 (P=O); 1066; 1024 (P-O); 941, 843; 777; 618. Elemental analysis: Calcd. for C36H28NO3P: C, 78.11; H, 5.10; N, 2.53. Found: C, 77.81; H, 5.24; N, 2.40.

3.1.2. Dimethyl N-(R)-α-Methylbenzylamino(pyren-1-yl)methylphosphonate (4)

The reaction was carried out as it is described above, but the post-reaction mixture was dissolved in dichloromethane and washed three times with a saturated aqueous sodium bicarbonate solution. The organic layer was dried, the solvent was removed in vacuo and the residual oil was purified by column chromatography on silica gel with chloroform as eluent. The procedure gave 440 mg of 4 as a dense yellow oil. Isolated predominant diastereomer: Y = 0.4 g (92%, after column chromatography), dense yellow oil. [ α ] D 20 = −48.3° (c = 0.1, CHCl3). 1H-NMR (CDCl3): δ 8.29–8.27 (m, Hpyr, 1H); 8.22 (d, 3JHH = 8.0 Hz, Hpyr, 1H); 8.21–8.18 (m, Hpyr, 3H); 8.10–8.06 (m, Hpyr, 3H); 8.02 (t, 3JHH = 7.6 Hz, Hpyr, 1H); 7.25–7.23 (m, PhH, 2H); 7.22–7.20 (m, PhH, 2H); 7.19–7,16 (m, PhH, 1H); 5.33 (d, 2JPH = 21.1 Hz, CHP, 1H); 3.91 (q, 3JHH = 6.5 Hz, CHPh, 1H); 3.86 (d, 3JPH = 10.5 Hz, POCH3, 3H); 3.26 (d, 3JPH = 10.5 Hz, POCH3, 3H); 1.39 (d, 3JHH = 6.5 Hz, CHCH3, 3H). 13C-NMR (CDCl3): δ 145.2 (CPh); 131.6 (Cpyr); 131.1 (d, 4JCP = 2.3 Hz, Cpyr); 130.8 (Cpyr); 130.3 (Cpyr); 129.4 (d, 3JCP = 7.7 Hz, Cpyr); 128.6 (CPh); 128.2 (Cpyr); 127.8 (Cpyr); 127.7 (Cpyr); 127.3 (CPh); 127.0 (CPh); 126.2 (Cpyr); 126.1 (Cpyr); 125.6 (Cpyr); 125.4 (d, 4JCP = 2.8 Hz, Cpyr); 125.3 (Cpyr); 125.1 (Cpyr); 125.0 (Cpyr); 55.8 (d, 3JCP = 11.9 Hz, PCNC); 54.0 (d, 2JCP = 7.4 Hz, POC); 53.6 (d, 2JCP = 7.2 Hz, POC); 29.9 (Caliph); 27.8 (Caliph). 31P-NMR (CDCl3): δ 26.70. IR (KBr): 3440 (νNH); 3309 (νCH); 2949 (CH2); 1600, 1584, 1511, 1454 (C=C); 1242 (P=O); 1055; 1027 (P-O); 846; 815; 761; 609. Elemental analysis: Calcd. for C27H26NO3P: C, 73.12; H, 5.91; N, 3.16. Found: C, 73.15, H, 5.72, N, 2.96. Mixture of diastereomers—the minor diastereomer is denoted with an asterisk. 1H-NMR (CDCl3): δ 8.29–8.28 (m, Hpyr, 1H); 8.23–8.22 (m, Hpyr, 1H); 8.21–8.17 (m, Hpyr, 3H); 8.17–8.16* (m, Hpyr, 1H); 8.10–8.06 (m, Hpyr, 3H); 8.03–8.00 (m, Hpyr, 1H); 7.95–7.94* (m, Hpyr, 1H); 7.30–7.26* (m, PhH); 7.24–7.22 (m, PhH, 2H); 7.22–7.20 (m, PhH, 2H); 7.19–7.16 (m, PhH, 1H); 7.12–7.10 (m, PhH); 5.33 (d, 2JPH = 21.0 Hz, CHP, 1H); 4.98* (d, 2JPH = 21.7 Hz, CHP, 1H); 3.91 (q, 3JHH = 6.5 Hz, CHPh, 1H); 3.86 (d, 3JPH = 10.6 Hz, POCH3, 3H); 3.83* (d, 3JPH = 10.5 Hz, POCH3, 3H); 3.50* (q, 3JHH = 6.6Hz, CHPh, 1H); 3.26 (d, 3JPH = 10.4 Hz, POCH3, 3H); 3.23* (d, 3JPH = 10.4 Hz, POCH3, 3H); 1.39 (d, 3JHH = 6.5 Hz, CHCH3, 3H); 1.34* (d, 3JHH = 6.6 Hz, CHCH3, 3H). 31P-NMR (CDCl3): δ 26.70 and 26.18* (10:4). Elemental analysis: Calctd for C27H26NO3P: C, 73.12; H, 5.91; N, 3.16. Found: C, 73.17, H, 5.85, N, 3.10.

3.1.3. Dibenzyl N-(R)-α-Methylbenzylamino(pyren-1-yl)methylphosphonate (5)

The procedure was identical as in a case of aminophosphonate 4. Mixture of diastereoisomers—the predominant diastereoisomer is denoted with an asterisk (13C-NMR data are quoted with two decimal digits due to the large number of signals situated very close one to another). Y = 0.12 g, (20%, after column chromatography), dense yellow oil (mixture). 1H-NMR (CDCl3): δ 8.21–8.20 (m, Hpyr, 2H); 8.16* (d, 3JHH = 7.5 Hz, Hpyr, 1H); 8.15–8.12 (m, Hpyr); 8.10–8.06 (m, Hpyr, 4H); 8.03–8.01 (m, Hpyr, 1H); 7.98* (d, 3JHH = 9.3 Hz, Hpyr, 1H); 7.38–7.36 (m, PhH, 2H); 7.34–7.32 (m, PhH, 3H); 7.22–7.17 (m, PhH, 5H); 6.97–6.94* (m, PhH, 2H); 6.92–6.90 (m, PhH); 6.89–6.86* (m, PhH, 2H); 6.83–6.81 (m, PhH); 6.76–6.74 (m, PhH, 2H); 6.68–6.66 (m, PhH); 5.38* (d, 2JPH = 21.0 Hz, CHP, 1H); 5.26* and 5.10* (Part of ABX system, 2JHH = 11.8 and 3JPH = 8.6 and 7.0 Hz, OCH2Ph, 2H); 5.24–5.22 (m, CHP); 5.13–5.03 (m, OCH2Ph); 4.72* and 4.39* (part of AMX system, 2JHH = 11.8 and 3JPH = 8.4 and 7.3 Hz, OCH2Ph, 2H); 4.67-4.64 (m, OCH2Ph); 4.40–4.35 (m, OCH2Ph); 3.93* (q, 3JHH = 6.4 Hz, CHPh, 1H); 1.33* (d, 3JHH = 6.4 Hz, CHCH3, 3H); 1.30–1.29 (m, CHCH3). 13C-NMR (CDCl3): δ 145.21 (CAr); 144.28 (CAr); 136.83 (CAr); 136.79 (CAr); 136.01 and 135.98 (CAr); 131.58 (CAr); 131.06 and 131.05 (CAr); 130.87 (CAr); 130.41 (CAr); 129.57 and 129.52 (CAr); 128.67 and 128.66 (CAr); 128.63 (CAr); 128.45 (CAr); 128.41 (CAr); 128.12 (CAr); 128.03 (CAr); 127.98 (CAr); 127.85 (CAr); 127.75, 127.74, 127.71 and 127.70 (CAr); 127.49 and 127.48 (CAr); 127.43 (CAr); 127.29 (CAr); 126.98 (CAr); 126.13 (CAr); 125.49 (CAr); 125.40 (CAr); 125.32 and 125.30 (CAr); 125.19 (CAr); 125.16 (CAr); 125.09 (CAr); 125.00 (CAr); 124.97 (CAr); 68.79 and 68.75 (POC); 68.64 and 68.60 (POC); 68.34 and 68.30 (POC); 68.10 and 68.06 (POC); 55.94 (Caliph); 55.86 (Caliph); 55.58 (Caliph); 55.46 (Caliph); 24.92 (Caliph); 22.85 (Caliph). 31P-NMR (CDCl3): δ 25.31*; 24.64 (4:1).Elemental analysis: Calcd. for C39H34NO3P: C, 78.64; H, 5.75; N, 2.35. Found: C, 78.48, H, 5.96, N, 2.16.

3.1.4. Diphenyl N-(R)-α-Methylbenzylamino(pyren-1-yl)methylphosphonate (3e)

To a solution of the imine 1e (1mmol) and diphenyl phosphite (1 mmol) in dichloromethane (ca. 2 mL) was slowly added BF3·OEt2 (24 mg, 0.67 mmol) via syringe. The mixture was stirred at room temperature for 24 h while monitoring the course of the reaction using 31P-NMR spectroscopy or TLC. The solvent was removed in vacuo and the residual oil was roughly purified by column chromatography on microcrystalline cellulose with chloroform as eluent to give 3e as a brown oil in 0.9 g (72%) yield of a crude product. Further attempts to purify and to analyze the product resulted in its decomposition.

3.2. Toxicity Tests

3.2.1. Microtox® Toxicity Assay

The method is based on the analysis of light emission reduction of luminescent bacteria (Vibrio fischeri) under toxic stress. The tests were carried out in a Microtox® M500 analyzer according to the 1992 Microtox® Manual. The Microtox® Solid-Phase Test (MSPT) was adopted to report of Doe et al. [31]. The MSPT procedure allows the test organisms to come direct contact with the solid sample in an aqueous suspension of the test sample. Thus it is possible to detect toxicity which is due to the insoluble solids that are not in the solution.
All materials and reagents were purchased from MODERNWATER (New Castle, DE, USA). Toxicity was determined by using the marine luminescent bacterium, Vibrio fischeri, naturally adapted to a saline environment. Briefly, bacteria were regenerated with 1 mL of Reconstitution Solution (0.01%) and placed in the reagent well of the Microtox®. A suspension of 7 g of the sediment was prepared in 35 mL of a Solid Phase Diluent (3.5% NaCl) and was magnetically stirred for 10 min. Then a series of dilutions were made and bacteria (approx. 1 × 106 cell·mL−1 per assay) were exposed to these dilutions and to a blank (3.5% NaCl solution) for 20 min. Next, after filtration, the light output of supernatants containing exposed bacteria was measured after 5 min with a Microtox® Analyzer 500. Inhibition was calculated as the concentration of compound loaded to sediment (mg/L) that caused a 50% reduction in the light emitted by the bacteria, and EC50 along with 95% confidence limit determined by the software provided with the Analyzer.

3.2.2. Ostracod Test Kit

Ecotoxicity evaluation of synthesized compounds was performed in a short term contact test using Ostracodtoxkit F™ provided by MicroBiotests Inc. (Gent, Belgium). This direct sediment contact bioassay was performed in multiwell test plates using neonates of the benthic ostracod crustacean Heterocypris incongruens hatched from cysts [35]. After 6 days of contact with the sediment (or soil) the percentage mortality and the growth of the crustaceans were determined and compared to the results obtained in a non-treated reference sediment (soil).
Briefly, according to manual of Ostracodtoxkit test, the cysts (Heterocypris incongruens) were transferred into a Petri dish filled with 10 mL standard fresh water (reconstituted water) and were incubated at 25 °C for 52 h under continuous illumination (approx. 3000–4000 lux).
After 48 h of cysts incubation, pre-feeding of the freshly hatched ostracods was performed with algae (spirulina-powder) provided in the test kit. Next, after hatching, before feeding with algal food suspension, the length measurements of ostracod neonates has been done. Algae (Selenastrum capricornutum) used as feed in the test plate were reconstituted according to the manufacturer’s procedure. Each well of a test plate was filled in the following order: 2 mL standard freshwater, 2 × 500 μL of sediment (soil) treated and non-treated for comparison (blank), 2 mL already prepared algal suspension, 10 ostracods. The test plates were covered with Parafilm® and closed by a lid. Then multiwall plates were incubated at 25 °C in darkness for 6 days. After 6 days of exposure, the ostracods have been recovered from the multiwells to determine the percentage mortality. To calculate the growth inhibition of survived organisms, their length measurements have been also done. Mortality of test organisms was determined in six replicates. The measurement of length was carried out by means of a micrometric strip placed on the bottom of a glass microscope plate. Growth inhibition (GI) of H. incongruens in the test sediment was calculated as follows:
% growth inhibition = 100 − [(growth in test sed./growth in ref. sed.) × 100]
Statistical differences between variables were analyzed with ANOVA.

4. Conclusions

To conclude, a series of diphenyl pyrene-derived aminophosphonates 3ad, 4 and 5 has been prepared. Our previous study [17] revealed that pyrene-derived aminophosphonates have interesting cytotoxic properties against colon cancer cell lines, therefore, the ecotoxicity of the newly synthesized compounds has been evaluated using the crustacean Heterocypris incongruens and bacterium Vibrio fischeri biotests. The evaluation demonstrated clearly that all compounds 3ad and 4 are toxic in a moderate to high degree and that diphenyl N-benzylamino(pyren-1-yl) methylphosphonate (3d) shows the highest degree of ecotoxicity. It has been also revealed that a weak correlation between the toxicity against H. incongruens and against V. fischeri has been found and the structure-toxicity correlation is rather problematic.
Although no evident correlations between the structure of the tested compounds and their toxicity have been observed, the combination of the different bioassays—the Microtox® and Ostracodtoxkit F™ tests—has been proved to be a very useful tool for determining and comparing the potential toxicities of examined substances 3ad and 4 as well as for the assessment of their toxicity interactions.

Supplementary Materials

The following are available online at:, scans of 1H, 13C and 31P NMR of compounds 3ad, 4 and 5.


We thank the Polish National Centre of Science (NCN) for funding the work in the framework of the grant no. 2014/13/B/NZ9/02418. Within the framework of this grant, funds for covering the costs to publish in open access were scheduled.

Author Contributions

Jarosław Lewkowski and Piotr Rychter conceived and designed the experiments; Maria Rodriguez Moya and Marta Chmielak performed the chemical experiments; Diana Rogacz and Kamila Lewicka performed the ecotoxicological experiments; Jarosław Lewkowski and Piotr Rychter analyzed the data (Jarosław Lewkowski chemistry, Piotr Rychter. ecotoxicity); Jarosław Lewkowski and Piotr Rychter wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.


  1. Kafarski, P.; Lejczak, B.; Tyka, R.; Koba, L.; Pliszczak, E.; Wieczorek, P. Herbicidal activity of phosphonic, phosphinic, and phosphonous acid analogues of phenylglycine and phenylalanine. J. Plant Growth Regul. 1995, 14, 199–203. [Google Scholar] [CrossRef]
  2. Kafarski, P.; Lejczak, B. Biological Activity of Aminophosphonic Acids. Phosphorus Sulfur Silicon Relat. Elem. 1991, 63, 193–215. [Google Scholar] [CrossRef]
  3. Kafarski, P.; Lejczak, B. Aminophosphonic Acids of Potential Medical Importance. Curr. Med. Chem. Anti-Cancer Agents 2001, 1, 301–312. [Google Scholar] [CrossRef] [PubMed]
  4. Hudson, H.R. Aminophosphonic and Aminophosphinic Acids and their Derivatives as Agrochemicals. In Aminophosphonic and Aminophosphinic Acids: Chemistry and Biological Activity; Kukhar, V.P., Hudson, H.R., Eds.; Wiley and Sons: Chichester, UK, 2000. [Google Scholar]
  5. Maier, L.; Diel, P.J. Organic Phosphorus Compounds 94. Preparation, Physical and Biological Properties of Aminoarylmethylphosphonic- and -Phosphonous Acids. Phosphorus Sulfur Silicon Relat. Elem. 1991, 57, 57–64. [Google Scholar] [CrossRef]
  6. Hudson, H.R. Phosphorus-Containing Fungicides: A Review of Current Research and Prospects. Phosphorus Sulfur Silicon Relat. Elem. 1999, 144–146, 441–444. [Google Scholar] [CrossRef]
  7. Jane, D.E. Neuroactive aminophosphonic and aminophosphinic acid derivatives. In Aminophosphonic and Aminophosphinic Acids: Chemistry and Biological Activity; Kukhar, V.P., Hudson, H.R., Eds.; Wiley and Sons: Chichester, UK, 2000. [Google Scholar]
  8. Mohd-Pahmi, S.H.; Hussein, W.M.; Schenk, G.; McGeary, R.P. Synthesis, modelling and kinetic assays of potent inhibitors of purple acid phosphatase. Bioorg. Med. Chem. Lett. 2011, 21, 3092–3094. [Google Scholar] [CrossRef] [PubMed]
  9. Klimczak, A.A.; Kuropatwa, A.; Lewkowski, J.; Szemraj, J. Synthesis of new N-arylamino(2-furyl)methylphosphonic acid diesters, and in vitro evaluation of their cytotoxicity against esophageal cancer cells. Med. Chem. Res. 2013, 22, 852–860. [Google Scholar] [CrossRef]
  10. Boduszek, B. The Acidic Cleavage of Pyridylmethyl(amino)phosphonates. Formation of the Corresponding Amines. Tetrahedron 1996, 52, 12483–12494. [Google Scholar] [CrossRef]
  11. Lewkowski, J.; Rzeźniczak, M.; Skowroński, R.; Zakrzewski, J. The first synthesis of ferrocenyl aminophosphonic esters. J. Organomet. Chem. 2001, 631, 105–109. [Google Scholar] [CrossRef]
  12. Keglevich, G.; Bálint, E. The Kabachnik–Fields Reaction: Mechanism and Synthetic Use. Molecules 2012, 17, 12821–12835. [Google Scholar] [CrossRef] [PubMed]
  13. Ali, T.E.; Abdel-Kariem, S.M. Methods for the synthesis of α-heterocyclic/heteroaryl-α-aminophosphonic acids and their esters. ARKIVOC 2015, 6, 246–287. [Google Scholar] [CrossRef]
  14. Kafarski, P.; Górny vel Górniak, M.; Andrasiak, I. Kabachnik-Fields Reaction under Green Conditions—A Critical Overview. Curr. Green Chem. 2015, 2, 218–222. [Google Scholar] [CrossRef]
  15. Hudson, H.R.; Lee, R.J.; Matthews, R.W. 1-Amino-1-aryl- and 1-Amino-1-heteroaryl-methanephosphonicacids and Their N-Benzhydryl–Protected Diethyl Esters: Preparation and Characterization. Phosphorus Sulfur Silicon Relat. Elem. 2004, 179, 1691–1709. [Google Scholar] [CrossRef]
  16. Jayaprakash, S.H.; Uma Maheswara Rao, K.; Satheesh Krishna, B.; Siva Prasad, S.; Syama Sundar, C.; Suresh Reddy, C. PAA-SIO2 Catalyzed Synthesis, Uv Absorption, and Fluorescence Emission Studies of Diethyl (aryl/hetero aryl amino)(pyren-1-yl)-methylphosphonates. Phosphorus Sulfur Silicon Relat. Elem. 2015, 190, 449–460. [Google Scholar] [CrossRef]
  17. Lewkowski, J.; Rodriguez Moya, M.; Wrona-Piotrowicz, A.; Zakrzewski, J.; Kontek, R.; Gajek, G. Synthesis, fluorescent properties and the promising cytotoxicity of pyrene-derived aminophosphonates. Beilstein J. Org. Chem. 2016, 12, 1229–1235. [Google Scholar] [CrossRef]
  18. Ma, X.Y.; Wang, X.C.; Ngo, H.H.; Guo, W.; Wu, M.N.; Wang, N. Bioassay based luminescent bacteria: Interferences, improvements, and applications. Sci. Total. Environ. 2014, 468–469, 1–11. [Google Scholar] [CrossRef] [PubMed]
  19. Connon, R.E.; Geist, J.; Werner, I. Effect-Based Tools for Monitoring and Predicting the Ecotoxicological Effects of Chemicals in the Aquatic Environment. Sensors 2012, 12, 12741–12771. [Google Scholar] [CrossRef] [PubMed]
  20. Lewkowski, J.; Malinowski, Z.; Matusiak, A.; Morawska, M.; Rogacz, D.; Rychter, P. The Effect of New Thiophene-Derived Aminophosphonic Derivatives on Growth of Terrestrial Plants: A Seedling Emergence and Growth Test. Molecules 2016, 21, 694. [Google Scholar] [CrossRef] [PubMed]
  21. Matusiak, A.; Lewkowski, J.; Rychter, P.; Biczak, R. Phytotoxicity of New Furan-derived Aminophosphonic Acids, NAryl Furaldimines and 5Nitrofuraldimine. J. Agric. Food Chem. 2013, 61, 7673–7678. [Google Scholar] [CrossRef] [PubMed]
  22. MicroBioTests. Toxkit Advantages/Assets. Available online: (accessed on 19 July 2016).
  23. Baran, A.; Tarnawski, M. Phytotoxkit/Phytotestkit and Microtoxs as tools for toxicity assessment of sediments. Ecotox. Environ. Safe. 2013, 98, 19–27. [Google Scholar] [CrossRef] [PubMed]
  24. Weltens, R.; Deprez, K.; Michiels, L. Validation of Microtox as a first screening tool for waste classification. Waste Manage. 2014, 34, 2427–2433. [Google Scholar] [CrossRef] [PubMed]
  25. Yu, X.; Zuo, J.; Tang, X.; Li, R.; Li, Z.; Zhang, F. Toxicity evaluation of pharmaceutical wastewaters using the alga Scenedesmus obliquus and the bacterium Vibrio fischeri. J. Hazard. Mat. 2014, 266, 68–74. [Google Scholar] [CrossRef] [PubMed]
  26. Rosado, D.; Usero, J.; Morillo, J. Assessment of heavy metals bioavailability and toxicity toward Vibrio fischeri in sediment of the Huelva estuary. Chemosphere 2016, 153, 10–17. [Google Scholar] [CrossRef] [PubMed]
  27. Montalban, M.G.; Hidalgo, J.M.; Collado-Gonzalez, M.; Banos, F.G.D.; Víllora, G. Assessing chemical toxicity of ionic liquids on Vibrio fischeri: Correlation with structure and composition. Chemosphere 2016, 155, 405–414. [Google Scholar] [CrossRef] [PubMed]
  28. Joly, P.; Bonnemoy, F.; Charvy, J.-C.; Bohatier, J.; Mallet, C. Toxicity assessment of the maize herbicides S-metolachlor, benoxacor, mesotrione and nicosulfuron, and their corresponding commercial formulations, alone and in mixtures, using the Microtox test. Chemosphere 2013, 93, 2444–2450. [Google Scholar] [CrossRef] [PubMed]
  29. Pedrazzani, R.; Ceretti, E.; Zerbini, I.; Casale, R.; Gozio, E.; Bertanza, G.; Gelatti, U.; Donato, F.; Feretti, D. Biodegradability, toxicity and mutagenicity of detergents: Integrated experimental evaluations. Ecotoxicol. Environ. Saf. 2012, 84, 274–281. [Google Scholar] [CrossRef] [PubMed]
  30. Antunes, S.C.; Pereira, J.L.; Cachada, A.; Duarte, A.C.; Goncalves, P.; Sousa, J.P.; Pereira, R. Structural effects of the bioavailable fraction of pesticides in soil: Suitability of elutriate testing. J. Hazard. Mater. 2010, 184, 215–225. [Google Scholar] [CrossRef] [PubMed]
  31. Burga Perez, K.F.; Charlatchka, R.; Sahli, L.; Ferard, J.-F. New methodological improvements in the Microtox® solid phase assay. Chemosphere 2012, 86, 105–110. [Google Scholar] [CrossRef] [PubMed]
  32. Stronkhorst, J.; Ciarelli, S.; Schipper, C.A.; Postma, J.F.; Dubbeldam, M.; Vangheluwe, M.; Brils, J.M.; Hooftman, R. Inter-laboratory comparison of five marine bioassays for evaluating the toxicity of dredged material. Aquat. Ecosyst. Health Manag. 2004, 7, 147–159. [Google Scholar] [CrossRef]
  33. Doe, K.; Scroggins, R.; Mcleay, D.; Wohlgeschaffen, G. Solid-phase test for sediment toxicity using the luminescent bacterium Vibrio fischeri. In Small-Scale Freshwater Toxicity Investigations; Blaise, C., Férard, J.F., Eds.; Springer: Dordrecht, Holland, 2005; Volume 1, pp. 107–136. [Google Scholar]
  34. ISO. Water Quality—Determination of Fresh Water Sediment Toxicity to Heterocyprisincongruens (Crustacea, Ostracoda), 1st ed.; ISO 14371:2012; The International Organization for Standardization: Geneva, Switzerland, 2012. [Google Scholar]
  35. Martínez-Sánchez, M.J.; Pérez-Sirvent, C.; García-Lorenzo, M.L.; Martínez-López, S.; Bech, J.; García-Tenorio, R.; Bolívar, J.P. Use of bioassays for the assessment of areas affected by phosphate industry wastes. J. Geochem. Explor. 2014, 147, 130–138. [Google Scholar] [CrossRef]
  36. Gouider, M.; Feki, M.; Sayadi, S. Bioassay and use in irrigation of untreated and treated wastewaters from phosphate fertilizer industry. Ecotoxicol. Environ. Saf. 2010, 73, 932–938. [Google Scholar] [CrossRef] [PubMed]
  37. Cvancarova, M.; Kresinova, Z.; Cajthaml, T. Influence of the bioaccessible fraction of polycyclic aromatic hydrocarbons on the ecotoxicity of historically contaminated soils. J. Hazard. Mater. 2013, 254–255, 116–124. [Google Scholar] [CrossRef] [PubMed]
  38. Oleszczuk, P.; Hollert, H. Comparison of sewage sludge toxicity to plants and invertebrates in three different soils. Chemosphere 2011, 83, 502–509. [Google Scholar] [CrossRef] [PubMed]
  39. Płaza, G.; Nałęcz-Jawecki, G.; Ulfig, K.; Brigmon, R.L. The application of bioassays as indicators of petroleum-contaminated soil remediation. Chemosphere 2005, 59, 289–296. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds 2ad, 4 and 5 are available from the authors.

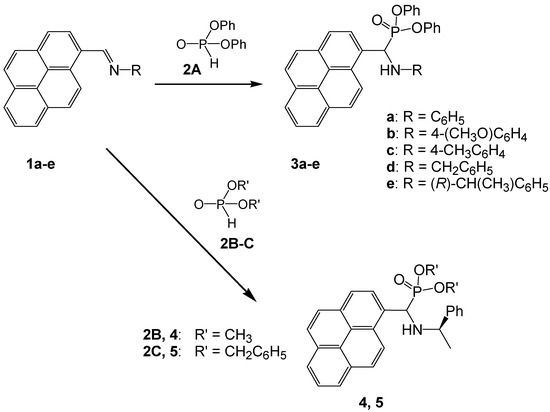

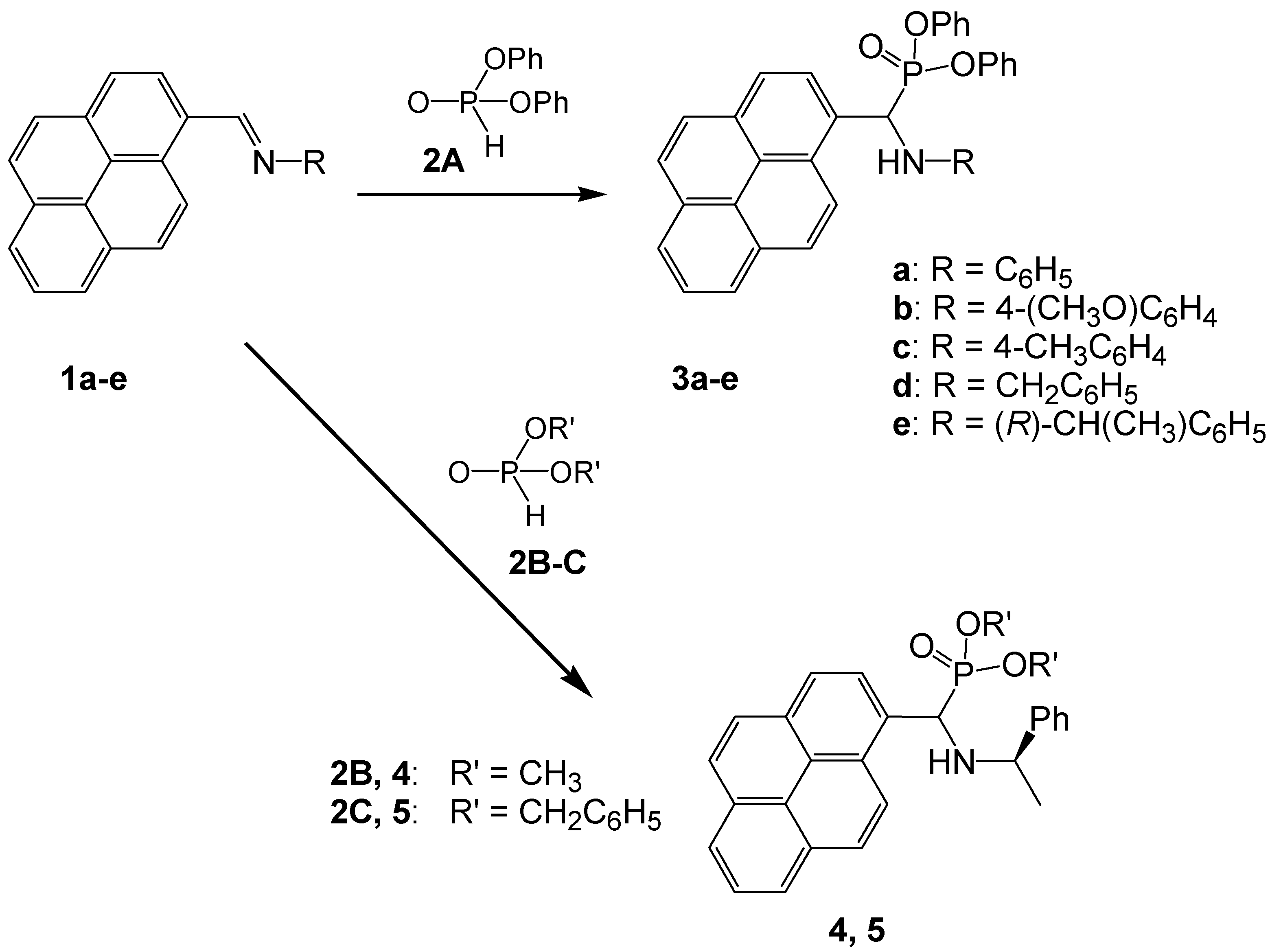

Scheme 1. Synthesis of N-substituted amino(1-pyrene)methylphosphonates 3ae, 4 and 5.
Scheme 1. Synthesis of N-substituted amino(1-pyrene)methylphosphonates 3ae, 4 and 5.
Molecules 21 00936 sch001

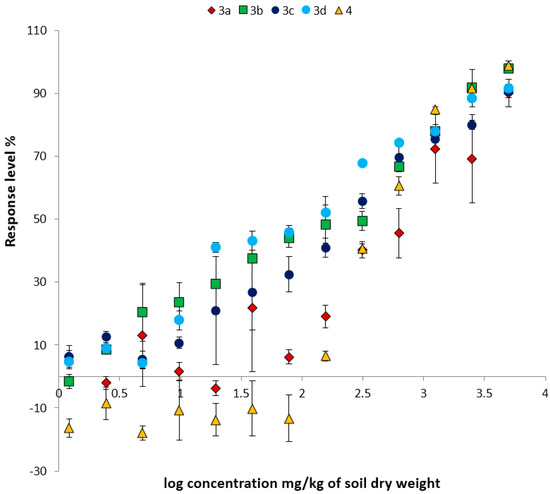

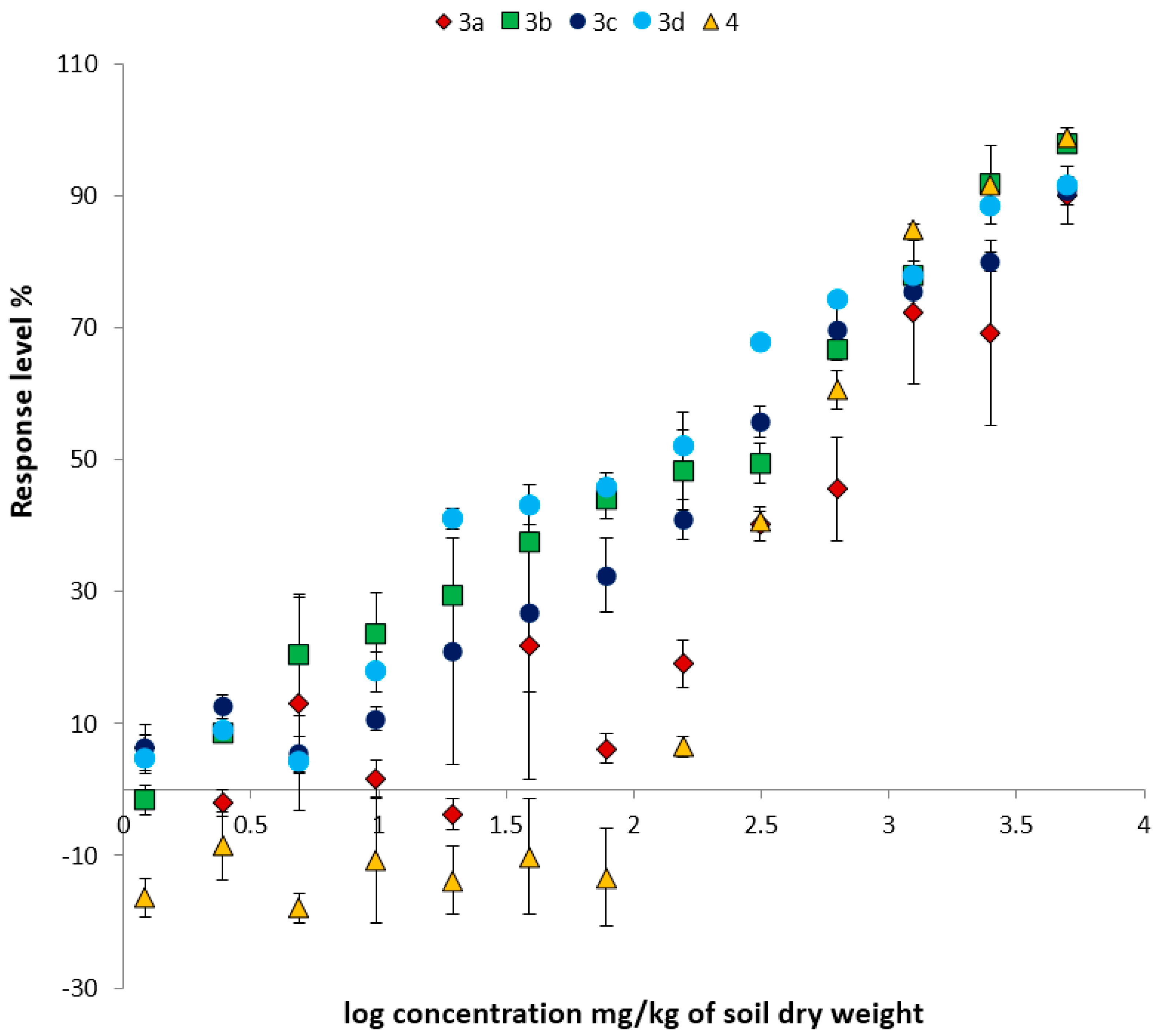

Figure 1. The EC50 graded dose-response curves for the five tested compounds 3ad and 4. Overlapped curves are plotted by the Microtox® Analyzer 500 software. Error bars represent standard deviation error (SD, n = 3 determinations).
Figure 1. The EC50 graded dose-response curves for the five tested compounds 3ad and 4. Overlapped curves are plotted by the Microtox® Analyzer 500 software. Error bars represent standard deviation error (SD, n = 3 determinations).
Molecules 21 00936 g001

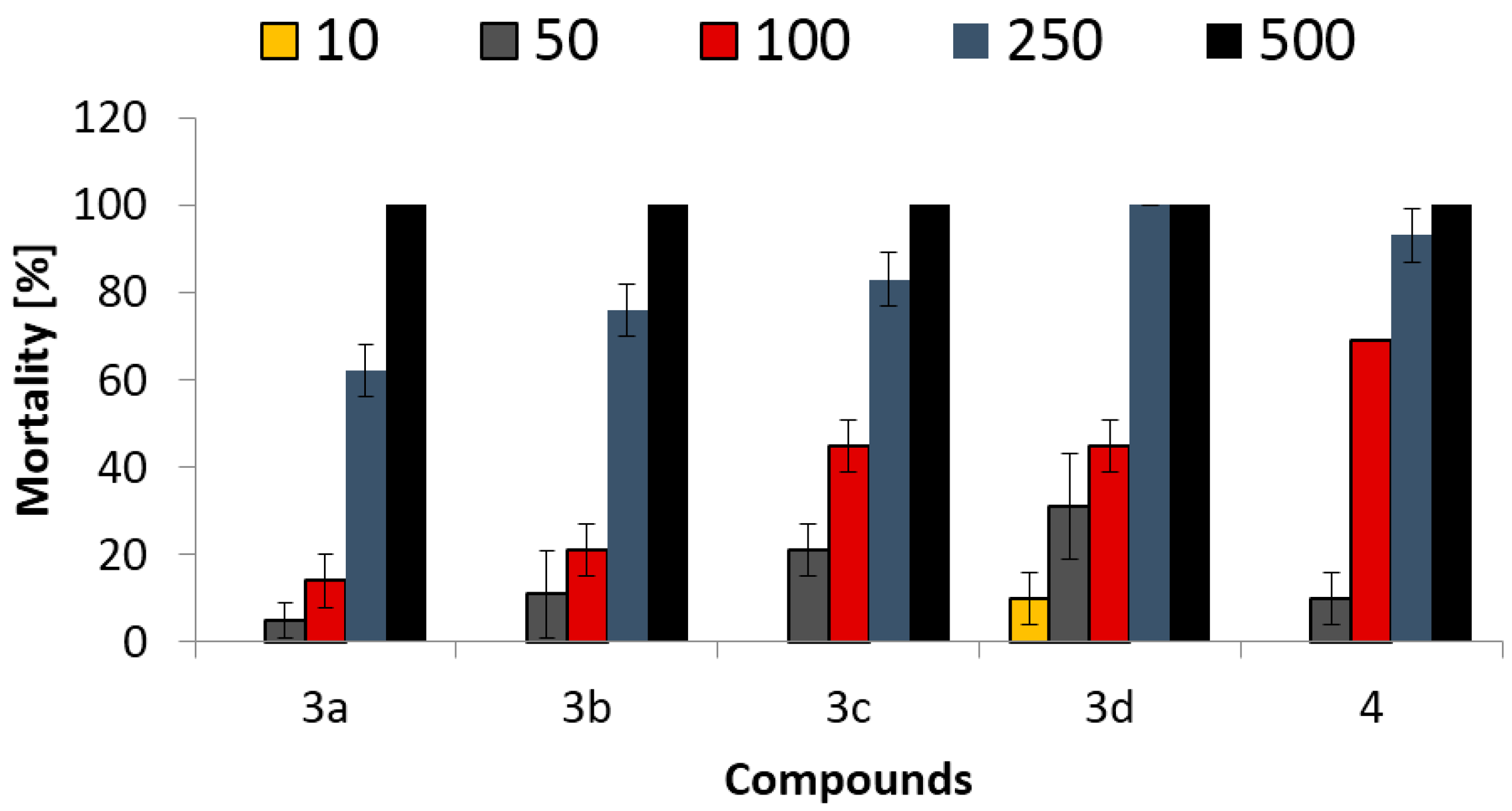

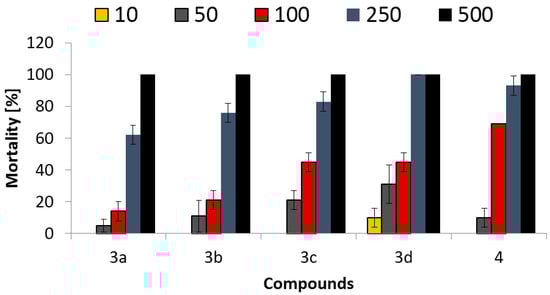

Figure 2. The mortality (%) of Heterocypris incongruens living in soil contaminated with pyrene-derived aminophosphonates 3ad and 4 at concentrations: 10, 50, 100 and 500 mg/kg of soil dry weight. Error bars represent standard deviation error (SD, n = 6 determinations).
Figure 2. The mortality (%) of Heterocypris incongruens living in soil contaminated with pyrene-derived aminophosphonates 3ad and 4 at concentrations: 10, 50, 100 and 500 mg/kg of soil dry weight. Error bars represent standard deviation error (SD, n = 6 determinations).
Molecules 21 00936 g002

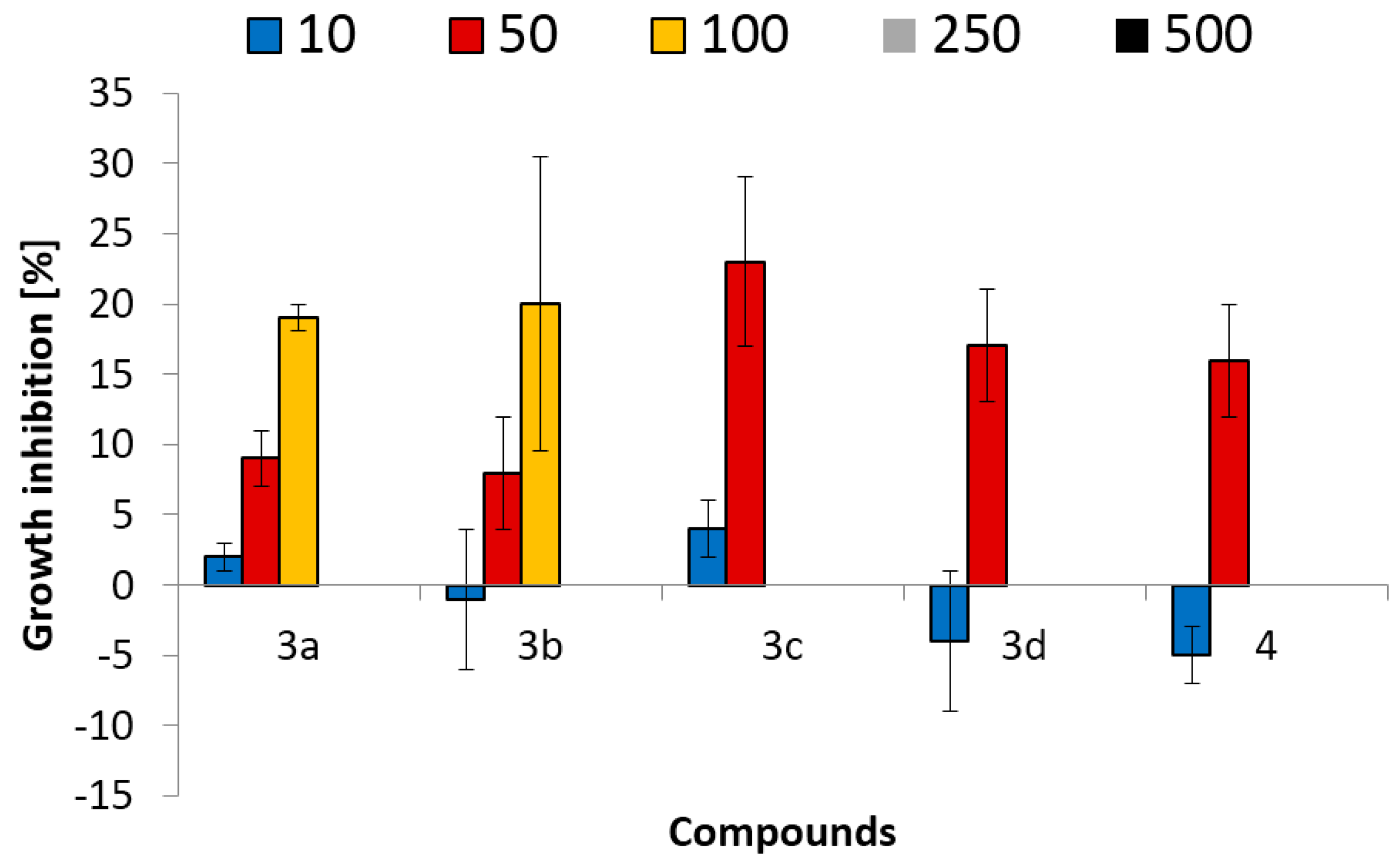

Figure 3. Growth inhibition (%) of Heterocypris incongruens living in soil contaminated with pyrene-derived aminophosphonates 3ad and 4 at concentrations of 10, 50, 100 and 500 mg/kg of soil dry weight. Error bars represent standard deviation error (SD, n = 6 determinations).
