Molecules 2016, 21(4), 516; doi:10.3390/molecules21040516

Article
Synthesis and Antitumor Evaluation of Novel 5-Hydrosulfonyl-1H-benzo[d]imidazol-2(3H)-one Derivatives
1
Individualized Medication Key Laboratory of Sichuan Province, Sichuan Academy of Medical Science & Sichuan Provincial People’s Hospital, Chinese Academy of Sciences Sichuan Translational Medicine Research Hospital, School of Medicine, Center for Information in Medicine, University of Electronic Science and Technology of China, Chengdu 610072, Sichuan, China
2
Bioengineering College, Xihua University, Chengdu 610039, Sichuan, China
3
State Key Laboratory of Biotherapy, West China Hospital, Sichuan University, Chengdu 610041, Sichuan, China
These authors contributed equally to this work.
*
Authors to whom correspondence should be addressed.
Academic Editor: Jean Jacques Vanden Eynde
Received: 26 January 2016 / Accepted: 31 March 2016 / Published: 20 April 2016

Abstract

:
A series of novel 5-hydrosulfonyl-1H-benzo[d]imidazol-2(3H)-one derivatives bearing natural product substructures has been successfully synthesized and their antitumor activity studied. These newly synthesized derivatives were characterized by 1H-NMR, 13C-NMR and high resolution mass spectral data, then screened as antitumor agents against the A549, HCC1937, and MDA-MB-468 human tumor cell lines using MTT cell proliferation assays. The results show that some of these compounds can effectively inhibit the growth of these cancerous cells, with compound 5b being the best one (IC50 = 2.6 μM). Flow cytometry data revealed that compound 5b induced apoptosis of HCC1937 cells with increased solution concentration. The structure and activity relationships (SAR) of these compounds is summarized.
Keywords:
antitumor activity; 5-hydrosulfonyl-1H-benzo[d]imidazol-2(3H)-one; synthesis

1. Introduction

Cancer poses a threat to worldwide health due to its high mortality. Environmental degradation has been associated with increased cancer incidence [1]. It is estimated that the global incidence of cancer in both men and women will increase from an estimated 12.7 million cases in 2008 to 20.3 million by 2030, a net increase of about 60% [2]. Therefore, it is very urgent to develop new, high effective and safe antitumor drugs.
Dibromophakellstatin (Figure 1), a natural product isolated from Phakellia mauritiana, has good antitumor activity [3]. Dibromophakellstatin, a new cancer cell growth inhibitor, has a dihydrobenzoimidazol-2-one scaffold [4]. Other dihydro-benzoimidazol-2-one analogues have been found to be effective compounds when used as hypoglycemia agents [5], muscarinic acetylcholine esterase inhibitors [6], antimicrobial agents [7] and pigments [8]. In recent years, dihydro-benzoimidazol-2-one, was used as a novel scaffold in the tumor therapeutic area, and attentions on it has been increasing. Dihydrobenzoimidazol-2-one derivatives show increased anti-tumor activity by inhibiting different receptors [9,10,11,12,13,14], now there has been great progress in the study of dihydro-benzoimidazol-2-one derivatives. Thus, halopemide [15] (Figure 1) is the first potent, direct-acting, drug-like, small-molecule phospholipase D1/2 (PLD1/2) inhibitor; UV01555069 and UV0359595 are potent selective phospholipase D1 (PLD1) inhibitors [16,17]; 5-(5-((2-aminoethyl)amino)pyrazolo[1,5-a]pyrimidin-3-yl)-1H-benzo[d]imidazol-2(3H)-one is a Pim-1/2 kinase inhibitor [18]. Other effects, such as reversible Cdc25 inhibition [19]; dual CCR3/H1 antagonism [20]; and non-thiolfarnesyltransferase inhibition [21] are also reported. In the above studies, structural modifications were mainly performed at the 1-, 3- and 5-positions of the dihydrobenzoimidazol-2-one ring. The sulfonamide group is an important pharmacophore that often appears in antitumor drugs. E7010 [22], for example, is a kind of tubulin inhibitor containing a sulfonamide group and it was shown that the sulfonamide group played an important role in its activity. To the best of our knowledge, however, the replacement of a sulfamide group at the 5-position of the dihydrobenzoimidazol-2-one scaffold is not reported.
Because dihydrobenzoimidazol-2-one derivatives have potential antitumor activity, we focused our attention on introducing proper functional groups into the dihydrobenzoimidazol-2-one ring. Previous studies on the dihydrobenzoimidazol-2-one scaffold showed that such compounds have potent antitumor activity, so in this work a series of 5-hydrosulfonyl-1H-benzo[d]imidazol-2(3H)-one derivatives has been designed and synthesized by introducing the sulfamide groups at the 5-position. The new compounds were tested for their anti-cancer activity against some different cell lines and it was found that compound 5b (Table 1) has the best activity against the HCC1937 cell line.

2. Results and Discussion

2.1. Chemistry

The novel 5-hydrosulfonyl-1H-benzo[d]imidazol-2(3H)-one derivatives described herein were synthesized as shown in Scheme 1. Substitution reactions of 2-nitroaniline (1) with benzyl bromide or (2-bromoethyl)benzene and NaOH in acetone gave compounds 2, then chlorosulfonation with chlorosulfonic acid and another substitution reaction with ammonia derivatives in tetrahydrofuran (THF) gave compounds 3, which were reduced by Fe/HCl to afford compounds 4, which were then cyclized with triphosgene (BTC) in anhydrous THF to give compounds 5ao. All the newly synthesized compounds were characterized on the basis of their 1H-NMR, 13C-NMR and HRMS data.

2.2. Anti-Cancer Activity

Compounds 5ao were evaluated for their cytotoxic activity in vitro against some human cancer cell lines, including A549, HCC1937 and MDA-MB-468 by applying a MTT colorimetric assay. Doxorubicin was used as positive control. The calculated IC50 values were reported differently according to the different cancer cells. The results are summarized in Table 1. The data in Table 1 shows that some of the synthesized compounds exhibited distinct cytotoxic activity against the A549, HCC1937 and MDA-MB-468 human cancer cell lines in vitro.

2.3. Flow Cytometry

To exhibit a far more explicit function of compound 5b on HCC1937 Cells, we did a cell flow experiment with HCC1937. When the concentration of 5b was 7.5 μM, the proportion of apoptotic cells was 11.4%. When the concentration was 10 μM, the proportion of apoptotic cells was 13.4%. When the concentration was 15 μM, the proportion of apoptotic cells was 12.9%. When the concentration was 20 μM, the proportion of apoptotic cells was 29%. The proportion of apoptotic cells in control group was 6.7%. As the concentration increased, the number of apoptotic cells increased gradually and the number of apoptotic cells and concentration were directly proportional, although there was no significant difference between 10 μM and 15 μM. The results are shown in Figure 2.
Using the Pharmacophores Ligand module of the Profiler DS3.1 program to reverse the drug group screening, a total of 1300 targets were screened. According to the reverse pharmacodynamic docking method, 5b has a good effect on CDK2. The results are shown in Table 2. In the molecular docking of compound 5b and CDK2, the oxygen atom of the sulfonic group and SER141 amino acid residues form hydrogen bond interactions, suggesting that compound 5b has a good binding capacity to CDK2 protein. The results are shown in Figure 3.

2.4. Discussion

We have designed and synthesized some novel 5-hydrosulfonyl-1H-benzo[d]imidazol-2(3H)-one derivatives, and evaluated their antitumor activities against the A549, HCC1937 and MDA-MB-468 cell lines. Many of the new compounds displayed cytotoxicity toward the tested cell lines. The structure–activity relationship results suggest that sulfamine groups (R) and substituted phenyl or benzyl (R1) substituent groups in the dihydrobenzoimidazol-2-one ring are associated with the cytotoxicity activity. When R1 is phenyl and R is 1-methylpiperazine (compound 5a) or tetrahydro-2H-pyran (compound 5b), the activity toward the A549, HCC1937 and MDA-MB-468 cell lines is good (IC50 = 2.6–9 μM), whereas when R is cyclohexanamine (compound 5c) or piperidine (compound 5d) the resulting compound exhibits equivalent to 10-fold inferior potency compared to 5a and 5b. On the other hand, the aliphatic moieties 5h and 5i and the various amino moieties found in 5e, 5f, 5g and 5j resulted in almost no activity. When R1 is benzyl, various R moieties exhibited similar activity as when R1 was phenyl. Further studies on additional related structural modifications are currently in progress in our laboratory. To investigate the apoptotic effects in HCC1937 cells following stimulation with 7.5, 10, 15 or 20 μmol/L of 5b, flow cytometry analyses were used. The data revealed that the 5b-induced apoptosis rate of HCC1937 cells increased from 11.4% to 29% as the concentration increased.

3. Materials and Methods

3.1. General Information

Chemical reagents were obtained from commercial suppliers, and were dried and purified by standard methods when necessary. The progress of reactions was monitored by thin layer chromatography (TLC) using silica gel plates. The 1H-NMR and 13C-NMR spectra were recorded on a Bruker (Bruker, Rheinstetten, Germany) AVANCE III400 Hz spectrometer using CDCl3 or DMSO-d6 as solvent. Tetramethylsilane (δ = 0.00 ppm) was used as an internal standard. HRMS data were obtained using Bruker micrOTOF-Q instrument or TOF-MS instrument.

3.2. Synthesis

The preparation of the compounds 5ao was accomplished by the series of steps described below for the preparation of 5a.

3.2.1. N-Benzyl-2-Nitroaniline (2a)

To a solution of 2-nitroaniline (1, 1.38 g, 10 mmol) and NaOH (480 mg, 12 mmol) in acetone (20 mL), the reaction mixture was maintained at 65 °C over 15 min while stirring, then benzyl bromide (1.43 mL, 12 mmol) was added dropwise over 5 min. After the suspension was stirred at 65 °C for 1 h, the reaction mixture was poured into water and extracted with ethyl acetate (3 × 15 mL). The combined organic layers were washed by brine (3 × 15 mL) and dried over anhydrous MgSO4. The solvent was removed in vacuo, and the residue was purified by flash chromatography on silica gel to obtain 2a (2.1 g, 92%) as a yellow solid. 1H-NMR (DMSO-d6) δ ppm: 8.66 (s, 1H, NH), 8.08 (d, 1H, ArH), 7.45 (t, 1H, ArH), 7.39–7.33 (m, 4H, ArH), 7.25 (t, 1H, ArH), 6.92 (d, 1H, ArH), 6.67 (t, 1H, ArH) 4.63 (d, 2H, CH2). 13C-NMR (DMSO-d6) δ ppm: 144.89, 138.49, 136.37, 131.29, 128.55, 128.55, 127.04, 126.91, 126.91, 126.19, 115.39, 114.88, 45.68. HRMS: calcd. for C13H12N2O2+ [M + Na]+: 251.0796, found: 251.0798. Melting point: 73.8−74.9 °C. 1H-NMR, 13C-NMR and HRMS spectra are provided in the Supplementary Materials.

3.2.2. N-Benzyl-4-(morpholinosulfonyl)-2-nitroaniline (3a)

Chlorosulfonic acid (10 mL) was cooled at 0 °C for 10 min, then the compound 2a (2.28 g, 10 mmol) was added slowly. After stirring for 4 h at 0 °C, the reaction mixture was poured into ice water (50 mL), and then extracted with ethyl acetate (3 × 15 mL). The organic layer was dried over anhydrous MgSO4 and concentrated in vacuo. The residue was purified by flash chromatography on silica gel to obtain the intermediate. A solution of the intermediate (327 mg, 1 mmol) and morpholine (87 μL, 1 mmol) in tetrahydrofuran (5 mL) was stirred for 0.5 h at room temperature, then the solvent was removed in vacuo. The residual solid was purified by flash chromatography on silica gel to give compound 3a (358 mg, 65%) as a yellow solid. Melting point: 80.1−81.7 °C. 1H-NMR (DMSO-d6) δ ppm: 8.78 (t, 1H, NH), 8.09 (d, 1H, ArH), 7.77–7.60 (m, 4H, ArH), 7.43 (t, 1H, ArH), 6.90 (d, 1H, ArH), 6.69 (t, 1H, ArH), 4.78 (d, 2H, CH2), 3.57 (s, 4H, CH2), 2.75 (s, 4H, CH2). 13C-NMR (DMSO-d6) δ ppm: 144.47, 140.61, 136.27, 134.46, 131.98, 131.98, 131.64, 131.64, 129.68, 126.27, 125.86, 114.96, 65.18, 65.18, 45.77, 45.77, 45.02. HRMS: calcd. for C17H19N3O5S+ [M + Na]+: 400.0943, found: 400.0946.

3.2.3. N′-Benzyl-4-(morpholinosulfonyl)benzene-1,2-diamine (4a)

A mixture of silica gel (1.5 g, 4 equivalents), and iron dust (140 mg, 2.5 mmol) was added to an ethyl alcohol/water (4:1) mixture (10 mL), the mixture was adjusted to pH 4~5 with 1 N HCl. After stirring for 10 min at 80 °C, compound 3a (377 mg, 1 mmol) was added. The reaction mixture was stirred for 1 h at the same temperature and filtered, the filtrate was adjusted to pH 8~9 with saturated NaHCO3, some silica gel was added to the mixture and filtered. The mixture was added to the water (100 mL), and then extracted with ethyl acetate (3 × 15 mL). The organic layer was dried over anhydrous MgSO4 and concentrated in vacuo. The residue was purified by flash chromatography on silica gel to obtain 4a (277 mg, 80%) as a brown solid. Melting point: 178.3−179.4 °C. 1H-NMR (DMSO-d6) δ ppm: 7.73 (d, 1H, ArH), 7.65–7.54 (m, 3H, ArH), 6.55 (d, 1H, ArH), 6.35–6.34 (m, 2H, ArH), 6.26 (d, 1H, ArH), 5.35 (t, 1H, NH), 4.58 (s, 2H, NH2), 4.44 (d, 2H, CH2), 3.55 (t, 4H, CH2), 2.68 (s, 4H, CH2). 13C-NMR (DMSO-d6) δ ppm: 142.41, 135.46, 134.77, 134.07, 132.21, 129.25, 129.25, 126.02, 126.02, 125.70, 117.23, 114.23, 65.19, 65.19, 46.15, 45.74, 45.74. HRMS: calcd. for C17H21N3O3S+ [M + H]+: 348.1382, found:348.1368.

3.2.4. Benzyl-5-(morpholinosulfonyl)-1H-benzo[d]imidazol-2(3H)-one (5a)

To a solution of 4a (347 mg, 1 mmol) in anhydrous tetrahydrofuran (3 mL) at 0 °C for 10 min, a solution of triphosgene (148 mg, 0.6 mmol) in anhydrous tetrahydrofuran (3 mL) was added dropwise at the same temperature. After stirring for 30 min, the reaction mixture was poured into water (30 mL) and adjusted to pH 8~9 with saturated NaHCO3, and then extracted with ethyl acetate (3 × 15 mL). The organic layer was dried over anhydrous MgSO4 and concentrated in vacuo. The residue was purified by flash chromatography on silica gel to afford 5a (280 mg, 75%) as a white solid. Melting point: 198.5−200.1 °C. 1H-NMR (DMSO-d6) δ ppm: 11.02 (s, 1H, NH), 7.65 (d, 4H, ArH), 7.08–6.93 (m, 4H, ArH), 5.16 (s, 2H, CH2), 3.57 (s, 4H, CH2), 2.76 (s, 4H, CH2). 13C-NMR (DMSO-d6) δ ppm: 154.33, 138.89, 134.64, 132.20, 129.89, 128.29, 128.29, 126.59, 126.59, 126.24, 121.25, 120.59, 108.98, 65.17, 65.17, 45.75, 42.67, 42.67. HRMS: calcd. for C18H19N3O4S+ [M + Na]+: 396.0994, found: 396.0992.
The following compounds were similarly prepared:
Benzyl-5-(4-methylpiperazin-1-ylsulfonyl)-1H-benzo[d]imidazol-2(3H)-one (5b). Melting point: 107.2−108.1 °C. 1H-NMR (DMSO-d6) δ ppm: 11.01 (s, 1H, NH), 7.64 (d, 4H, ArH), 7.08–6.93 (m, 4H, ArH), 5.15 (s, 2H, CH2), 2.79 (s, 4H, CH2), 2.27 (s, 4H, CH2), 2.10 (s, 3H, CH3). 13C-NMR (DMSO-d6) δ ppm: 154.32, 138.84, 135.24, 132.03, 129.78, 128.28, 128.28, 126.46, 126.46, 126.17, 121.22, 120.58, 108.95, 53.33, 53.33, 45.57, 45.57, 45.20, 42.66. HRMS: calcd. for C19H22N4O3S+ [M + H]+:387.1491, found: 387.1456.
Benzyl-N-cyclohexyl-2-oxo-2,3-dihydro-1H-benzo[d]imidazole-5-sulfonamide (5c). Melting point: 166.7−167.2 °C. 1H-NMR (DMSO-d6) δ ppm: 11.01 (d, 1H, NH), 7.78–7.46 (m, 5H, ArH, NH), 6.91–6.98 (m, 4H, ArH), 5.11 (s, 2H, CH2), 2.82 (s, 1H, CH), 1.49–1.41 (m, 5H, CH2), 1.09–1.00 (m, 5H, CH2). 13C-NMR (DMSO-d6) δ ppm: 154.29, 142.62, 138.43, 131.13, 129.71, 128.31, 128.31, 126.61, 126.61, 125.28, 121.12, 120.51, 108.89, 52.04, 52.04, 42.82, 33.10, 33.10, 24.76, 24.28. HRMS: calcd. for C20H23N3O3S+ [M + Na]+: 408.1358, found: 408.1363.
Benzyl-5-(piperidin-1-ylsulfonyl)-1H-benzo[d]imidazol-2(3H)-one (5d). Melting point: 189.4−190.5 °C. 1H-NMR (CDCl3) δ ppm: 9.86 (s, 1H, NH), 7.69 (t, 2H, ArH), 7.55–7.47 (m, 2H, ArH), 7.14–6.98 (m, 3H, ArH), 6.81 (d, 1H, ArH), 5.18 (s, 2H, CH2), 2.91 (t, 4H, CH2), 1.71 (s, 2H, CH2), 1.59–1.56 (m, 4H, CH2). 13C-NMR (CDCl3) δ ppm: 155.53, 137.55, 137.05, 131.38, 129.63, 127.96, 127.96, 127.00, 127.00, 126.30, 122.12, 121.55, 109.90, 46.87, 46.87, 44.04, 25.12, 25.12, 23.43. HRMS: calcd. for C19H21N3O3S+ [M + H]+: 372.1382, found: 372.1400.
N,1-Dibenzyl-2-oxo-2,3-dihydro-1H-benzo[d]imidazole-5-sulfonamide (5e). Melting point: 160.6–185.9 °C. 1H-NMR (DMSO-d6) δ ppm: 11.00 (s, 1H, NH), 8.16 (t, 1H, ArH), 7.75 (s, 1H, ArH), 7.67 (d, 1H, ArH), 7.56–7.50 (m, 2H, ArH), 7.24–7.14 (m, 4H, ArH), 7.05–6.94 (m, 4H, ArH), 5.09 (s, 2H, CH2), 3.92 (d, 2H, CH2), 3.17 (d, 1H, NH). 13C-NMR (DMSO-d6) δ ppm: 154.30, 141.11, 138.47, 137.42, 131.16, 129.80, 128.32, 128.32, 128.14, 128.14, 127.50, 127.50, 127.07, 127.07, 125.46, 125.46, 125.17, 121.18, 120.60, 46.09, 42.81. HRMS: calcd. for C21H19N3O3S+ [M + Na]+: 416.1045, found: 416.1030.
N-(3-Benzoylphenyl)-1-benzyl-2-oxo-2,3-dihydro-1H-benzo[d]imidazole-5-sulfonamide (5f). Melting point: 85.2−86.3 °C. 1H-NMR (DMSO-d6) δ ppm: 11.00 (d, 1H, NH), 10.00 (s, 1H, NH), 7.64–6.89 (m, 17H, ArH), 5.00 (d, 2H, CH2). 13C-NMR (CDCl3) δ ppm: 198.58, 155.08, 139.47, 138.78, 137.64,137.56, 133.84, 133.21, 132.80, 131.87, 129.78, 128.26, 128.26, 128.21, 127.83, 127.66, 126.60, 126.60, 126.18, 126.18, 125.96, 123.54, 122.70, 122.07, 121.79, 109.64, 43.79. HRMS: calcd. for C27H21N3O4S+ [M + Na]+: 506.1150, found: 506.1171.
Benzyl-2-oxo-N-phenyl-2,3-dihydro-1H-benzo[d]imidazole-5-sulfonamide (5g). Melting point: 91.9−93.3 °C. 1H-NMR (DMSO-d6) δ ppm: 10.98 (s, 1H, NH), 10.27 (s, 1H, NH), 7.72–7.40 (m, 4H, ArH), 7.22–6.88 (m, 9H, ArH), 5.04 (s, 2H, CH2). 13C-NMR (DMSO-d6) δ ppm: 154.23, 139.86, 138.60, 137.39, 131.83, 129.69, 129.69, 129.58, 128.99, 128.99, 125.66, 125.66, 125.38, 124.08, 121.14, 120.17, 119.95, 119.95, 108.89, 54.87. HRMS: calcd. for C20H17N3O3S+ [M + Na]+: 402.0888, found: 402.0893.
Benzyl-N-cyclopropyl-2-oxo-2,3-dihydro-1H-benzo[d]imidazole-5-sulfonamide (5h). Melting point: 168.6−170.3 °C. 1H-NMR (DMSO-d6) δ ppm: 11.03 (s, 1H, NH), 7.90 (s, 1H, NH), 7.71 (s, 2H, ArH), 7.61–7.57 (m, 2H, ArH), 7.03–6.92 (m, 4H, ArH), 5.13 (s, 2H, CH2), 1.99 (s, 1H, CH), 0.36–0.25 (m, 4H, CH2). 13C-NMR (DMSO-d6) δ ppm: 154.29, 140.58, 138.44, 131.40, 129.73, 129.55, 128.29, 125.66, 125.31, 121.18, 120.55, 108.92, 107.99, 42.77, 24.04, 4.99, 4.99. HRMS: calcd. for C17H17N3O3S+ [M + Na]+: 366.0888, found: 366.0860.
Benzyl-N-isopropyl-2-oxo-2,3-dihydro-1H-benzo[d]imidazole-5-sulfonamide (5i). Melting point: 173.4−174.7 °C. 1H-NMR (DMSO-d6) δ ppm: 11.02 (s, 1H, NH), 7.75–7.54 (m, 5H, ArH), 7.00–6.92 (m, 4H, ArH), 5.12 (s, 2H, CH2), 3.20–3.14 (m, 1H, NH), 0.87 (d, 6H, CH3). 13C-NMR (DMSO-d6) δ ppm: 154.30, 142.22, 138.47, 131.08, 129.73, 129.50, 129.50, 128.31, 128.31, 125.37, 124.95, 121.14, 120.54, 45.20, 41.28, 23.05, 23.05. HRMS: calcd. for C17H19N3O3S+ [M + Na]+: 368.1045, found: 368.1051.
Benzyl-2-oxo-N-o-tolyl-2,3-dihydro-1H-benzo[d]imidazole-5-sulfonamide (5j). Melting point: 223.6−225.7 °C. 1H-NMR (DMSO-d6) δ ppm: 10.97 (s, 1H, NH), 9.55 (d, 1H, NH), 7.62–7.42 (m, 4H, ArH), 7.09–6.85 (m, 8H, ArH), 5.04 (s, 2H, CH2), 1.83 (s, 3H, CH3). 13C-NMR (DMSO-d6) δ ppm: 154.22, 140.94, 138.60, 134.47, 134.08, 131.73, 130.55, 129.71, 129.46, 128.31, 128.31, 126.41, 126.41, 126.15, 125.63, 125.15, 121.14, 120.55, 108.89, 42.75, 17.38. HRMS: calcd. for C21H19N3O3S+ [M + Na]+: 416.1045, found: 416.1067.
N-Cyclohexyl-2-oxo-1-phenethyl-2,3-dihydro-1H-benzo[d]imidazole-5-sulfonamide (5k). Melting point: 187.0−188.5 °C. 1H-NMR (DMSO-d6) δ 10.80 (s, 1H, NH), 7.68 (d, 2H, ArH), 7.56 (d, 1H, ArH), 7.43 (t, 2H, ArH), 7.06 (s, 1H, ArH), 6.95 (s, 3H, ArH), 4.03 (dd, 2H, CH2), 3.04 (s, 2H, CH2), 2.87 (s, 1H, CH), 1.99 (s, 1H, NH), 1.56–1.39 (m, 5H, CH2), 1.23–1.08 (m, 5H, CH2). 13C-NMR (DMSO-d6) δ ppm: 153.99, 142.98, 140.29, 129.98, 129.98, 129.46, 129.46, 128.08, 126.25, 120.67, 120.33, 108.62, 107.72, 59.72, 51.94, 33.52, 33.13, 33.13, 26.30, 24.83, 24.83. HRMS: calcd. for C21H19N3O3S+ [M + Na]+: 422.1514, found: 422.1471.
5-(4-Methylpiperazin-1-ylsulfonyl)-1-phenethyl-1H-benzo[d]imidazol-2(3H)-one (5l). Melting point: 218.2−219.6 °C. 1H-NMR (DMSO-d6) δ ppm: 10.81 (s, 1H, NH), 7.57 (d, 2H, ArH), 7.46 (d, 2H, ArH), 6.93 (s, 4H, ArH), 4.06 (t, 2H, CH2), 3.07 (t, 2H, CH2), 2.80 (s, 4H, CH2), 2.34 (s, 4H, CH2), 2.15 (s, 3H, CH3). 13C-NMR (DMSO-d6) δ ppm: 153.99, 144.44, 132.62, 130.02, 129.80, 127.97, 127.97, 127.56, 127.56, 120.65, 120.49, 108.63, 107.62, 53.45, 53.45, 45.61, 45.61, 45.26, 40.95, 33.72. HRMS: calcd. for C20H24N4O3S+ [M + Na]+: 423.1467, found: 423.1453.
N-Cyclopropyl-2-oxo-1-phenethyl-2,3-dihydro-1H-benzo[d]imidazole-5-sulfonamide (5m). Melting point: 217.8−218.9 °C. 1H-NMR (DMSO-d6) δ ppm: 10.80 (s, 1H, NH), 7.82 (s, 1H, NH), 7.67 (d, 2H, ArH), 7.44 (d, 2H, ArH), 7.03 (s, 1H, ArH), 6.93 (s, 3H, ArH), 4.07 (t, 2H, CH2), 3.06 (t, 2H, CH2), 1.96 (s, 1H, CH), 0.44–0.34 (m, 4H, CH2). 13C-NMR (DMSO-d6) δ ppm: 154.00, 143.45, 138.19, 130.00, 129.53, 128.05, 128.05, 126.81, 126.81, 120.64, 120.31, 108.61, 107.70, 40.90, 33.55, 23.97, 5.02, 5.02. HRMS: calcd. for C20H24N4O3S+ [M + Na]+: 380.1045, found: 380.1005.
Phenethyl-5-(piperidin-1-ylsulfonyl)-1H-benzo[d]imidazol-2(3H)-one (5n). Melting point: 183.3−184.3 °C. 1H-NMR (DMSO-d6) δ ppm: 10.81 (s, 1H, NH), 7.56 (d, 2H, ArH), 7.44 (d, 2H, ArH), 6.97–6.90 (m, 4H, ArH), 3.07 (t, 2H, CH2), 2.75 (t, 4H, CH2), 1.99 (s, 1H, CH2), 1.51 (d, 4H, CH2), 1.37 (t, 2H, CH2), 1.18 (t, 1H, CH2). 13C-NMR (DMSO-d6) δ ppm: 157.26, 141.15, 138.64, 134.21, 129.19, 129.19, 129.06, 129.06, 126.36, 123.51, 122.25, 113.41, 108.10, 48.21, 48.21, 45.89, 35.33, 24.74, 24.74, 23.42. HRMS: calcd. for C20H23N3O3S+ [M + H]+: 386.1538, found: 386.1543.
5-(Morpholinosulfonyl)-1-phenethyl-1H-benzo[d]imidazol-2(3H)-one (5o). Melting point: 102.3−104.1 °C. 1H-NMR (DMSO-d6) δ ppm: 10.79 (d, 1H, NH), 7.5–7.45 (m, 4H, ArH), 6.96 (dd, 4H, ArH), 4.10–4.06 (m, 2H, CH2), 3.60 (s, 4H, CH2), 3.14–3.06 (m, 2H, CH2), 2.71 (d, 4H, CH2). 13C-NMR (DMSO-d6) δ ppm: 154.03, 144.66, 140.23, 134.27, 134.03, 132.16, 129.32, 127.62, 125.64, 120.69, 120.31, 108.64, 107.73, 65.21, 65.21, 45.75, 45.75, 40.96, 33.72. HRMS: calcd. for C19H21N3O4S+ [M + Na]+: 410.1150, found: 410.1155.

3.3. Cell Proliferation Assay

All target compounds were evaluated for their cytotoxic activities (%) in vitro against human cancer cell lines, including A549, HCC1937 and MDA-MB-468, by applying the MTT colorimetric assay. The cell concentration was adjusted to 2 × 104/mL using complete culture medium, then 100 μL cell suspension was inoculated in each well of a 96-well culture plate and cultured for 24 h. All the target compounds were adjusted to different concentrations ranging from 1.25 μmol/L to 40 μmol/L, then 100 μL solution was added to each well of 96-well culture plate and 100 μL complete culture medium was added to the control group. Cells were placed under 5% CO2 at 37 °C and cultured for 48 h. Then 5 mg/mL MTT 20 μL was added to each well of 96-well culture plate and cultured for another 2~4 h. The medium was removed and 150 μL DMSO was added to each well of 96-well culture plate, then oscillated and mixed 15 min. The absorbance (A) of each well was measured in terms of optical density at a wavelength of 570 nm, each cell viability assay was performed in triplicate and taken the average value, then calculated the IC50. Doxorubicin was the positive control drug.

3.4. Flow Cytometry

The Annexin V-FITC apoptosis detection kit was used to detect apoptotic cells according to the manufacturer’s protocol. Briefly, cells were gently washed with PBS and collected using trypsinization, disaggregated to a single cell suspension and incubated with 5 μL of Annexin V-FITC and 10 μL of a PI solution for 15 min in the dark. The apoptotic cells were detected using a flow cytometer (BD, San Diego, CA, USA), then quantified and the percentage of apoptotic cells measured.

4. Conclusions

In conclusion, we have successfully developed an efficient method for the synthesis of a series of novel 5-hydrosulfonyl-1H-benzo[d]imidazol-2(3H)-one derivatives via a simple four step route. This method has the advantages of convenient operation, the ready availability of starting reagents, mild reaction conditions employed, as well as good yields. Next the prepared compounds were screened against A549, HCC1937 and MDA-MB-468 human tumor cell lines using an MTT cell proliferation assay. The results suggested that some of these compounds were effective in inhibiting these cancer cells’ growth, especially compound 5b which was the most potent one (IC50 = 2.6 μM) against HCC1937. The SAR data was summarized. Unfortunately only derivatives where R1 was a benzyl or phenyl group could be prepared and other aromatic and heterocyclic aromatics ccould not be synthesized by us. The flow cytometry data revealed that the 5b induced apoptosis of HCC1937 cells as the concentration increased.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/21/4/516/s1. Characterization data on compounds 2a, 3a, 4a, 5ao.

Acknowledgments

We are grateful to Rui Li (Sichuan University) for his MS analysis on this manuscript. Financial support from Natural Science Foundation of China (No. 81302643), China Postdoctoral Science Foundation (No. 2014M552374), and Sichuan Provincial Health Department Research Project (No. 120077) is gratefully acknowledged.

Author Contributions

Guang Ouyang, Rongsheng Tong, Jinqi Li, Lan Bai, Liang Ouyang, Xingmei Duan, Fengqiong Li, Pin He, Jianyou Shi and Yuxin He performed the experiments. Jianyou Shi and Yuxin He designed the experiments, Guang Ouyang and Jianyou Shi wrote the paper. All authors took part in data analysis and discussion. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Goss, P.E.; Strasser-Weipp, K.; Lee-Bychkovskyet, B.L. Challenges to effective cancer control in China, India, and Russia. Lancet. Oncol. 2014, 15, 489–538. [Google Scholar] [CrossRef]
  2. Bray, F.; Jemal, A.; Greyet, N. Global cancer transitions according to the Human Development Index (2008–2030): A population-based study. Lancet. Oncol. 2012, 13, 790–801. [Google Scholar] [CrossRef]
  3. Pettit, G.R.; McNulty, J.; Herald, D.L.; Doubek, D.L.; Chapuis, J.C.; Schmidt, J.M.; Tackett, L.P.; Boyd, M.R. Antineoplastic Agents. 362. Isolation and X-ray crystal structure of dibromophakellstatin from the Indian Ocean Sponge Phakellia Mauritiana. J. Nat. Prod. 1997, 60, 180–183. [Google Scholar] [CrossRef] [PubMed]
  4. Cafieri, F.; Fattorusso, E.; Mangoni, A. Longamide and 3,7-dimethylisoguanine, two novel alkaloids from the marine sponge Agel aslongissima. Tetrahedron Lett. 1995, 36, 7893–7896. [Google Scholar] [CrossRef]
  5. Liu, W.; Lau, F.; Liu, K. Benzimidazolones: A New class of selective peroxisome proliferator-activated receptor γ (PPARγ) modulators. J. Med. Chem. 2011, 54, 8541–8554. [Google Scholar] [CrossRef] [PubMed]
  6. Budzik, B.; Garzya, V.; Shi, D. Selective, novel N-substituted benzimidazolones as potent, selective, CNS-penetrant, and orally active M1 mAChR agonists. ACS Med. Chem. Lett. 2010, 1, 244–248. [Google Scholar] [CrossRef] [PubMed]
  7. Li, S.K.; Ji, Z.Q.; Zhang, J.W. Synthesis of 1-Acyl-3-isopropenylbenzimidazolone derivatives and their activity against botrytis cinerea. J. Agric. Food. Chem. 2010, 58, 2668–2672. [Google Scholar] [CrossRef] [PubMed]
  8. Scherrer, N.C.; Stefan, Z.; Francoise, D. Synthetic organic pigments of the 20th and 21st century relevant to artist’s paints: Raman spectra reference collection. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2009, 73, 505–524. [Google Scholar] [CrossRef] [PubMed]
  9. Bruncko, M.; Tahir, S.K.; Song, X. N-Aryl-benzimidazolones as novel small molecule HSP90 inhibitors. Bioorg. Med. Chem. Lett. 2010, 20, 7503–7506. [Google Scholar] [CrossRef] [PubMed]
  10. Wu, Z.; Robinson, R.G.; Fu, S. Rapid assembly of diverse and potent allosteric Akt inhibitors. Bioorg. Med. Chem. Lett. 2008, 18, 2211–2214. [Google Scholar] [CrossRef] [PubMed]
  11. Lindsley, C.W.; Zhao, Z.; Leister, W.H. Allosteric Akt (PKB) inhibitors: Discovery and SAR of isozyme selective inhibitors. Bioorg. Med. Chem. Lett. 2005, 15, 761–764. [Google Scholar] [CrossRef] [PubMed]
  12. Khodarahmi, G.A.; Chen, C.S.; Hakimelahi, G.H. Design, synthesis, and cytotoxicity of 4-sulfonamide substituted benzamidobenzimidazolones and an acyl benzimidazolone. J. Iran. Chem. Soc. 2005, 2, 124–134. [Google Scholar] [CrossRef]
  13. Ballante, F.; Caroli, A.; Wickersham, R.B. Hsp90 inhibitors, part 1: Definition of 3-D QSAutogrid/R models as a tool for virtual screening. J. Chem. Inf. Model. 2014, 54, 956–969. [Google Scholar] [CrossRef] [PubMed]
  14. Rzasa, R.M.; Kaller, M.R.; Liu, G. Structure-activity relationships of 3,4-dihydro-1H-quinazolin-2-one derivatives as potential CDK5 inhibitors. Bioorg. Med. Chem. 2007, 15, 6574–6595. [Google Scholar] [CrossRef] [PubMed]
  15. Monovich, L.; Mugrage, B.; Quadros, E. Optimization of halopemide for phospholipase D2 inhibition. Bioorg. Med. Chem. Lett. 2007, 17, 2310–2311. [Google Scholar] [CrossRef] [PubMed]
  16. Scott, S.A.; Selvy, P.E.; Buck, J.R. Design of isoform-selective phospholipase D inhibitors that modulate cancer cell invasiveness. Nat. Chem. Biol. 2009, 5, 108–117. [Google Scholar]
  17. Lewis, J.A.; Scott, S.A.; Lavieri, R. Design and synthesis of isoform-selective phospholipase D (PLD) inhibitors. Part I: Impact of alternative halogenated privilegedstructures for PLD1 specificity. Bioorg. Med. Chem. Lett. 2009, 19, 1916–1920. [Google Scholar] [PubMed]
  18. Dwyer, M.; Keertikar, P.K.; Paruch, K. Discovery of pyrazolo[1,5-a]pyrimidine-based Piminhibitors: A template-based approach. Bioorg. Med. Chem. Lett. 2013, 23, 6178–6182. [Google Scholar] [CrossRef] [PubMed]
  19. Collins, J.C.; Armstrong, A.; Chapman, K.L. Prospective use of molecular field points in ligand-based virtual screening: Efficient identification of new reversible Cdc25 inhibitors. Med. Chem. Commun. 2013, 4, 1148–1155. [Google Scholar] [CrossRef]
  20. Furber, M.; Alcaraz, L.; Luckhurst, C. Discovery and evolution of phenoxypiperidinehydroxyamide dual CCR3/H1 antagonists. Part I. Bioorg. Med. Chem. Lett. 2012, 22, 7702–7706. [Google Scholar] [CrossRef] [PubMed]
  21. Li, Q.; Li, T.; Woods, K.W. Benzimidazolones and indoles as non-thiol farnesyltransferase inhibitors based on tipifarnib scaffold: Synthesis and activity. Bioorg. Med. Chem. Lett. 2005, 15, 2918–2922. [Google Scholar] [CrossRef] [PubMed]
  22. Steve, Y.; Cho, E.; Cynthia, M. Plasma and cerebrospinal fluid pharmacokinetics of intravenously administered ABT-751 in non-human primates. Cancer Chemother. Pharmacol. 2007, 4, 563–567. [Google Scholar]
  • Sample Availability: Samples of all the compounds are available from the authors.

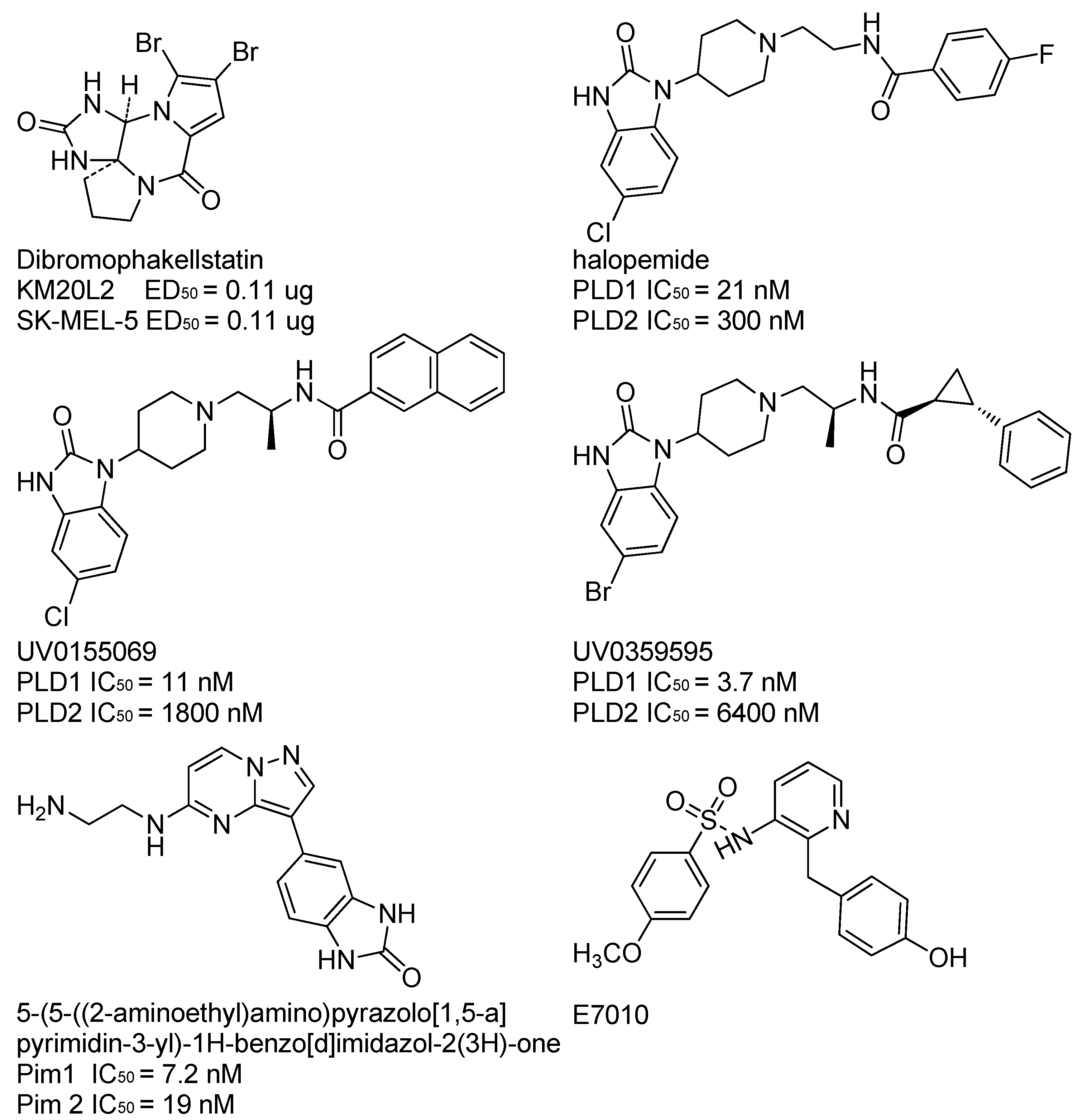

Figure 1. Structures and activities of dibromophakellstatin 1A, halopemide 2A, isoform-selective PLD (PLD1 selective) inhibitors 3A and 4A, Pim 1/2 inhibitor 5-(5-((2-aminoethyl)amino)pyrazolo[1,5-a]pyrimidin-3-yl)-1H-benzo[d]imidazol-2(3H)-one, tubulin inhibitor E7010.
Figure 1. Structures and activities of dibromophakellstatin 1A, halopemide 2A, isoform-selective PLD (PLD1 selective) inhibitors 3A and 4A, Pim 1/2 inhibitor 5-(5-((2-aminoethyl)amino)pyrazolo[1,5-a]pyrimidin-3-yl)-1H-benzo[d]imidazol-2(3H)-one, tubulin inhibitor E7010.
Molecules 21 00516 g001

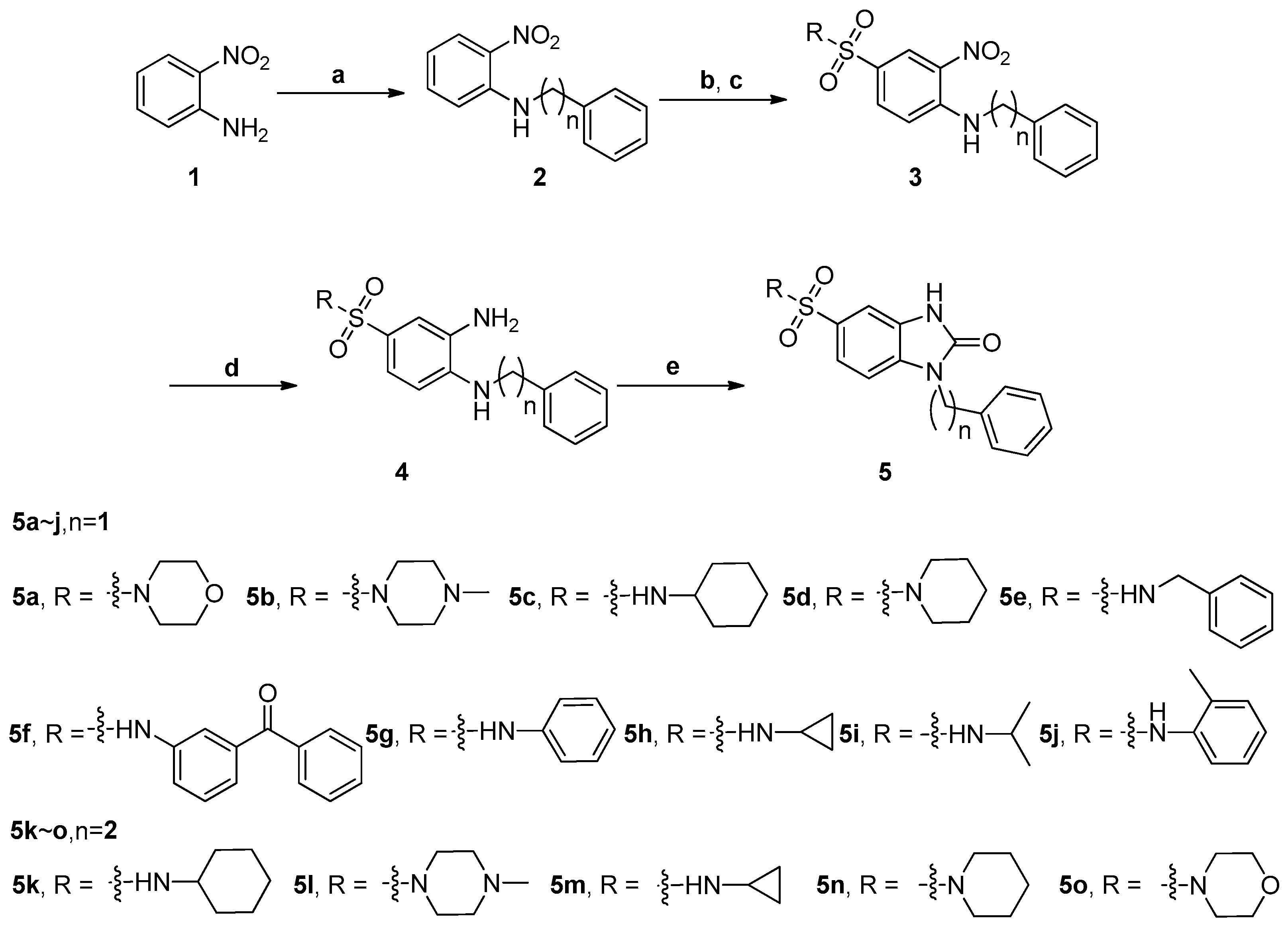

Scheme 1. Syntheses of compounds 5ao. Reactions and conditions: (a) NaOH, benzyl bromide or (2-bromoethyl)benzene, acetone, 65 °C, 1.5 h; (b) chlorosulfonic acid, 0 °C, 4 h; (c) ammonia derivatives, THF, rt, 0.5 h; (d) Fe/HCl, silica gel, 80% ethyl alcohol, 80 °C, 1 h; (e) triphosgene, anhydrous THF, 0 °C, 0.5 h.
Scheme 1. Syntheses of compounds 5ao. Reactions and conditions: (a) NaOH, benzyl bromide or (2-bromoethyl)benzene, acetone, 65 °C, 1.5 h; (b) chlorosulfonic acid, 0 °C, 4 h; (c) ammonia derivatives, THF, rt, 0.5 h; (d) Fe/HCl, silica gel, 80% ethyl alcohol, 80 °C, 1 h; (e) triphosgene, anhydrous THF, 0 °C, 0.5 h.
Molecules 21 00516 sch001

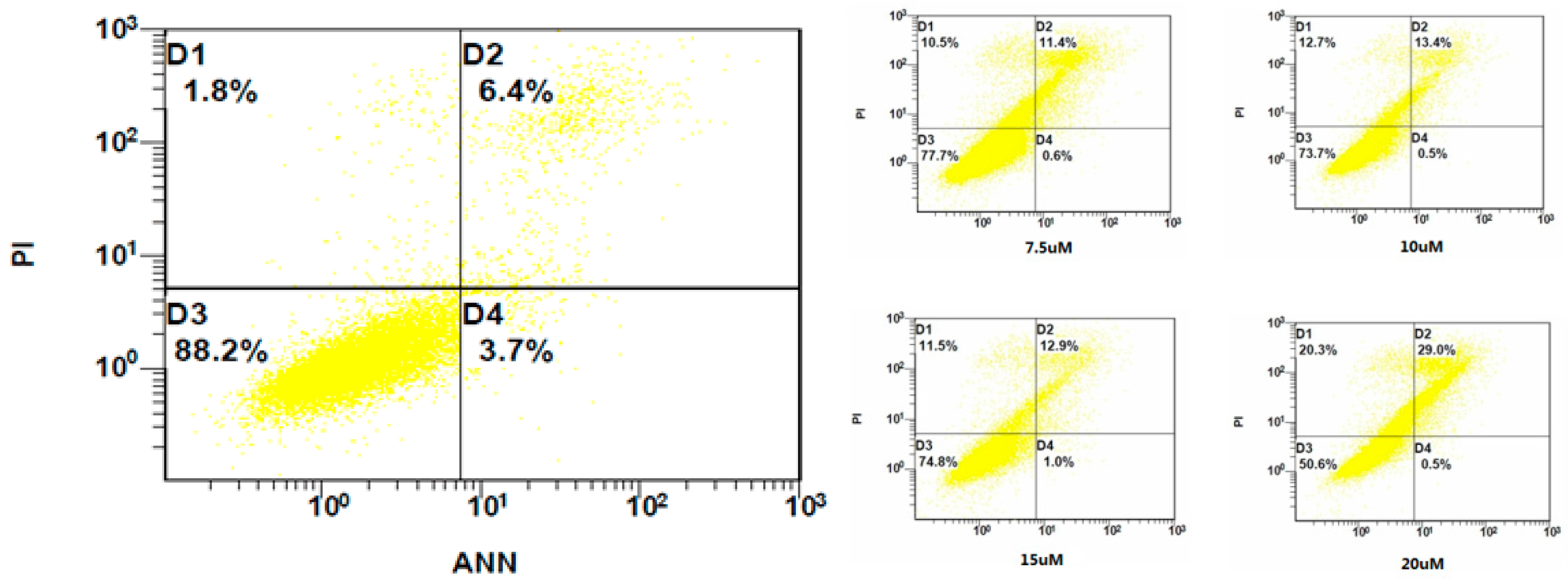

Figure 2. Flow cytometry results.
Figure 2. Flow cytometry results.
Molecules 21 00516 g002

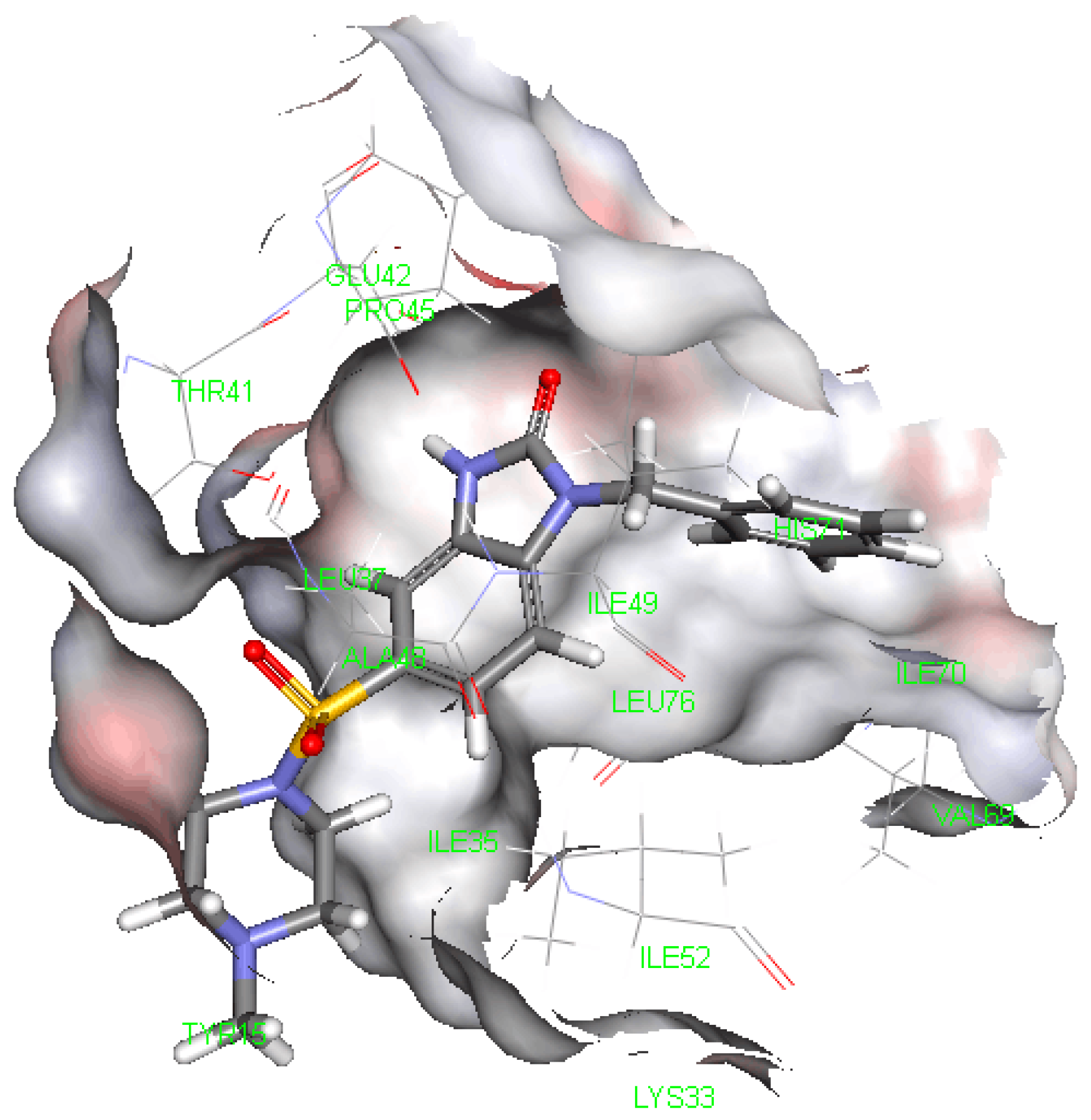

Figure 3. Molecular docking of 5b and CDK2.
Figure 3. Molecular docking of 5b and CDK2.
Molecules 21 00516 g003
Table 1. In vitro cytotoxic activity of target compounds: 5ao. Molecules 21 00516 i001
Table 1. In vitro cytotoxic activity of target compounds: 5ao. Molecules 21 00516 i001
No.CompoundMDA-MB-48A549HCC1937Hek293
15a9 ± 0.675.2 ± 0.357.8 ± 0.49>10,000
25b6.3 ± 0.453.1 ± 0.172.6 ± 0.21292.6
35c>20088 ± 6.1105 ± 8.9248.2
45d73 ± 6.977 ± 6.885 ± 7.1756.4
55e>200>200127 ± 9.9>10,000
65f82 ± 6.1>200>200>10,000
75g>200>200152 ± 9.82000.9
85h>200>200>200369.7
95i>200>200>200708.9
105j>200>200>200665.9
115k135 ± 9.7116 ± 7.6>200383.6
125l22 ± 1.615 ± 1.118 ± 1.26312.3
135m>200>200>200447.6
145n12 ± 1.0216 ± 0.922 ± 1.3>10,000
155o15 ± 0.939.7 ± 0.8811 ± 0.71>10,000
Doxorubicin2.7 ± 0.192.5 ± 0.134.8 ± 0.2212.2
Table 2. Reverse pharmacodynamic docking results.
Table 2. Reverse pharmacodynamic docking results.
Pharmacophores that Fit Each Molecule
NamePharmacophoreFit ValueClassSubclassFamilyAcronym
5b1e9h-inr-2.50-h-10.036708EnzymesEC2. -(transferases)Kinases (serine threonine)CDK2
