# Classical, Quantum and Event-by-Event Simulation of a Stern–Gerlach Experiment with Neutrons

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

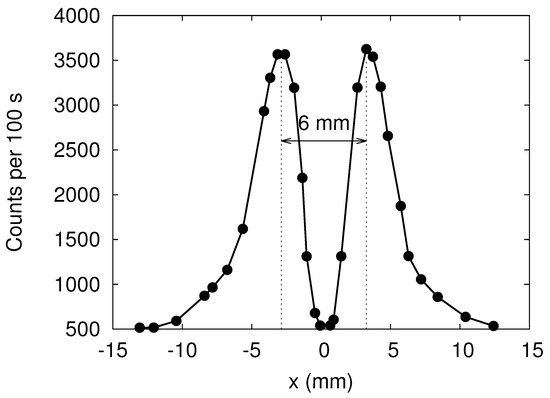

## 2. Neutron Experiment

## 3. Newtonian Mechanics

#### 3.1. Model for the Magnetic Field

#### 3.2. Analytically Solvable Cases

#### 3.3. Model Parameters

#### 3.4. Numerical Solution of Equation (3)

#### 3.5. Newtonian Dynamics: Simulation Results for Neutrons

## 4. Quantum-Theoretical Model

#### 4.1. Quantum Theory: Simulation Results

#### 4.2. Quantum Theory: Simplified Model

## 5. Event-by-Event Simulation

- 4.
- If $y\in [{y}_{0},{y}_{1}]$ set $\mathbf{F}=\gamma \phantom{\rule{0.277778em}{0ex}}{B}_{1}{S}^{z}{\mathbf{e}}_{z}-\gamma \phantom{\rule{0.277778em}{0ex}}{B}_{1}{S}^{x}{\mathbf{e}}_{x}$,

- 4.
- If $y\in [{y}_{0},{y}_{1}]$: the
**first**time that the event $\parallel \mathbf{B}\left(\mathbf{x}\right)\parallel >0$ occurs, that is when the particle enters the region where $\parallel \mathbf{B}\left(\mathbf{x}\right)\parallel >0$, use Equation (16) with $\mathbf{s}=\mathbf{S}$ to align the vector $\mathbf{S}$ along the magnetic field ${s}_{\mathbf{b}}\mathbf{B}\left(\mathbf{x}\right)$ and compute $\mathbf{F}=\gamma \phantom{\rule{0.277778em}{0ex}}{B}_{1}{S}^{z}{\mathbf{e}}_{z}-\gamma \phantom{\rule{0.277778em}{0ex}}{B}_{1}{S}^{x}{\mathbf{e}}_{x}$.

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Appendix A. Large Static Field B_{0}

## Appendix B. Numerical Solution of Equation (3)

- $\mathbf{v}\leftarrow \mathbf{v}+\tau \mathbf{F}/2m$,
- $\mathbf{x}\leftarrow \mathbf{x}+\tau \mathbf{v}$,
- $\mathbf{S}\leftarrow \mathbf{R}\left(\tau \right)\mathbf{S}$
- $\mathbf{F}=\gamma \phantom{\rule{0.277778em}{0ex}}{B}_{1}{S}^{z}{\mathbf{e}}_{z}-\gamma \phantom{\rule{0.277778em}{0ex}}{B}_{1}{S}^{x}{\mathbf{e}}_{x}$,
- $\mathbf{v}\leftarrow \mathbf{v}+\tau \mathbf{F}/2m$,

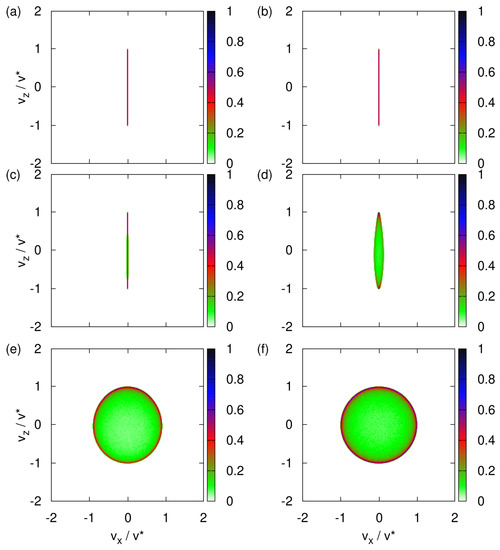

**Figure A1.**Histograms of the transverse velocity distribution obtained by solving the classical equations of motion Equation (3) for the model parameters pertaining to imaginary silver particles and for different values of the uniform magnetic field ${B}_{0}$. The initial magnetic moments distributed randomly (see text) (

**a**) ${B}_{0}=1\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**b**) ${B}_{0}=0.1\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**c**) ${B}_{0}=0.01\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**d**) ${B}_{0}=0.001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**e**) ${B}_{0}=0.0001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**f**) ${B}_{0}=0.00001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$.

## Appendix C. Newtonian Dynamics: Imaginary Silver Particles

## Appendix D. Quantum-Theoretical Model

#### Appendix D.1. Momentum Representation

#### Appendix D.2. Textbook Model

#### Appendix D.3. Dimensionless Form

#### Appendix D.4. Initial State

#### Appendix D.5. Simulation Method

#### Appendix D.6. TDPE Solver: Technical Aspects

#### Appendix D.7. Quantum Dynamics: Imaginary Silver Particles

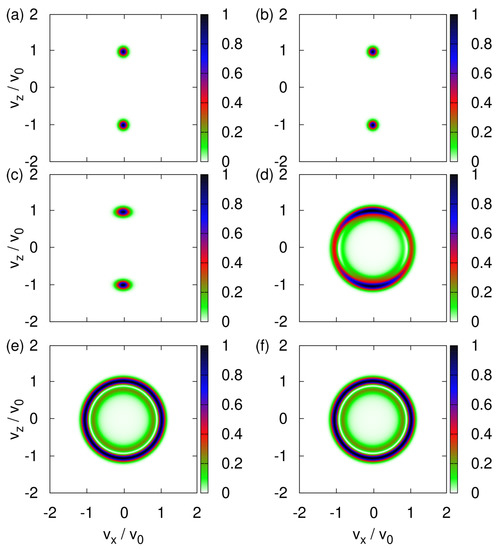

**Figure A2.**Probability distributions $|\langle {v}_{x},{v}_{z}|\mathsf{\Phi}\left({t}^{*}\right)\rangle {|}^{2}$ of the transverse velocity distribution obtained by solving the TDPE Equation (A24) with the initial state given by Equation (A27) and for the model parameters pertaining to imaginary silver particles (${v}_{0}={v}^{*}$). Initially, the variance (dimensionless) $\sigma =0.1$ and the spin state is $\left(\right|\uparrow \rangle +|\downarrow \rangle )/\sqrt{2}$. (

**a**) ${B}_{0}=1\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**b**) ${B}_{0}=0.1\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**c**) ${B}_{0}=0.01\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**d**) ${B}_{0}=0.001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**e**) ${B}_{0}=0.0001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**f**) ${B}_{0}=0.00001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$.

## References

- Gerlach, W.; Stern, O. Der experimentelle Nachweis der Richtungsquantelung im Magnetfeld. Z. Phys.
**1922**, 9, 349–352. [Google Scholar] [CrossRef] - Frisch, R.; Segrè, E. Über die Einstellung der Richtungsquantelung. II. Z. Phys.
**1933**, 80, 610–616. [Google Scholar] [CrossRef] - Gerlach, W.; Stern, O. Über die Richtungsquantelung im Magnetfeld. Ann. Phys.
**1924**, 379, 673–699. [Google Scholar] [CrossRef] - Bohm, D. Quantum Theory; Prentice-Hall: New York, NY, USA, 1951. [Google Scholar]
- Feynman, R.P.; Leighton, R.B.; Sands, M. The Feynman Lectures on Physics; Addison-Wesley: Reading, MA, USA, 1965; Volume 3. [Google Scholar]
- Baym, G. Lectures on Quantum Mechanics; W.A. Benjamin: Reading, MA, USA, 1974. [Google Scholar]
- Ballentine, L.E. Quantum Mechanics: A Modern Development; World Scientific: Singapore, 2003. [Google Scholar]
- Hannout, M.; Hoyt, S.; Kryowonos, A.; Widom, A. Quantum measurement theory and the Stern–Gerlach experiment. Am. J. Phys.
**1998**, 66, 377–379. [Google Scholar] [CrossRef] - Schmidt-Böcking, H. The Stern-Gerlach experiment re-examined by an experimenter. Europhys. News
**2019**, 50, 15–19. [Google Scholar] [CrossRef] - Hamelin, B.; Xiromeritis, N.; Liaud, P. Calcul, Montage et expérimentation d’un nouveau type d’aimant de <stern et gerlach> comme polariseur ou analyseur de polarisation des neutrons. Nucl. Instrum. Methods
**1975**, 125, 79–84. [Google Scholar] - Platt, D.E. A modern analysis of the Stern–Gerlach experiment. Am. J. Phys.
**1992**, 60, 306–308. [Google Scholar] [CrossRef] - de Heer, W.A.; Milani, P.; Chtelain, A. Spin relaxation in small free iron clusters. Phys. Rev. Lett.
**1990**, 65, 488–491. [Google Scholar] [CrossRef] - Diaz-Bachs, A.; Katsnelson, M.I.; Kirilyuk, A. Kramers degeneracy and relaxation in vanadium, niobium and tantalum clusters. New J. Phys.
**2018**, 20, 043042. [Google Scholar] [CrossRef] - Batelaan, H.; Gay, T.J.; Schwendiman, J.J. Stern-Gerlach Effect for Electron Beams. Phys. Rev. Lett.
**1997**, 79, 4517–4521. [Google Scholar] [CrossRef] - Rutherford, G.H.; Grobe, R. A Comment on the Letter by H. Batelaan, T. J. Gay, and J. J. Schwendiman, Phys. Rev. Lett. 79, 4517 (1997). Phys. Rev. Lett.
**1998**, 81, 4772–4773. [Google Scholar] [CrossRef] - Batelaan, H.; Gay, T.J. Batelaan and Gay Reply. Phys. Rev. Lett.
**1998**, 81, 4473. [Google Scholar] [CrossRef] - Garraway, B.M.; Stenholm, S. Observing the spin of a free electron. Phys. Rev. A
**1999**, 60, 63–79. [Google Scholar] [CrossRef] - Henkel, C.; Jacob, G.; Stopp, F.; Schmidt-Kaler, F.; Keil, M.; Japha, Y.; Folman, R. Stern–Gerlach splitting of low-energy ion beams. New J. Phys.
**2019**, 21, 083022. [Google Scholar] [CrossRef] - De Raedt, H.; Katsnelson, M.I.; Michielsen, K. Logical inference derivation of the quantum theoretical description of Stern-Gerlach and Einstein-Podolsky-Rosen-Bohm experiments. Ann. Phys.
**2018**, 396, 96–118. [Google Scholar] [CrossRef] - De Raedt, H.; Katsnelson, M.I.; Willsch, D.; Michielsen, K. Separation of conditions as a prerequisite for quantum theory. Ann. Phys.
**2019**, 403, 112–135. [Google Scholar] [CrossRef] - Potel, G.; Barranco, F.; Cruz-Barrios, S.; Gómez-Camacho, J. Quantum mechanical description of Stern-Gerlach experiments. Phys. Rev. A
**2005**, 71, 052106. [Google Scholar] [CrossRef] - Hsu, B.C.; Berrondo, M.; Huele, J.F.S.V. Stern-Gerlach dynamics with quantum propagators. Phys. Rev. A
**2011**, 83, 012109. [Google Scholar] [CrossRef] - Jackson, J.D. Classical Electrodynamics, 3rd ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 1962. [Google Scholar]
- Majorana, E. Atomi orientati in campo magnetico variabile. Il Nuovo Cimento
**1932**, 9, 43–50. [Google Scholar] [CrossRef] - Alstrøm, P.; Hjorth, P.; Mattuck, R. Paradox in the classical treatment of the Stern–Gerlach experiment. Am. J. Phys.
**1982**, 50, 697–698. [Google Scholar] [CrossRef] - Scully, M.O.; Lamb, W.E.; Barut, A. On the theory of the Stern-Gerlach apparatus. Found. Phys.
**1987**, 17, 575–583. [Google Scholar] [CrossRef] - Vigué, J. Some comments on the historical paper by H. Schmidt-Böcking “The Stern-Gerlach experiment re-examined by an experimenter” (EPN 50/3 pp. 15-19). Europhys. News
**2019**, 50, 22–23. [Google Scholar] [CrossRef] - Rauch, H.; Werner, S.A. Neutron Interferometry: Lessons in Experimental Quantum Mechanics, Wave-Particle Duality, and Entanglement; Oxford: London, UK, 2015. [Google Scholar]
- Brun, E.; Oeser, J.; Staub, H.H.; Telschow, C.G. The nuclear magnetic moments of K
^{41}, Y^{87}, Ag^{107}, and Ag^{109}. Phys. Rev.**1954**, 93, 172–173. [Google Scholar] [CrossRef] - Rapaport, D.C. The Art of Molecular Dynamics Simulation, 2nd ed.; Cambridge University Press: Cambridge, UK, 2004. [Google Scholar]
- Schwinger, J. The algebra of microscopic measurements. Proc. Natl. Acad. Sci. USA
**1959**, 45, 1542–1553. [Google Scholar] [CrossRef] - De Raedt, K.; De Raedt, H.; Michielsen, K. Deterministic event-based simulation of quantum phenomena. Comp. Phys. Commun.
**2005**, 171, 19–39. [Google Scholar] [CrossRef] - Zhao, S.; De Raedt, H.; Michielsen, K. Event-by-event simulation model of Einstein-Podolsky-Rosen-Bohm experiments. Found. Phys.
**2008**, 38, 322–347. [Google Scholar] [CrossRef] - Zhao, S.; Yuan, S.; De Raedt, H.; Michielsen, K. Computer simulation of Wheeler’s delayed choice experiment with photons. Europhys. Lett.
**2008**, 82, 40004. [Google Scholar] [CrossRef] - Jin, F.; Yuan, S.; De Raedt, H.; Michielsen, K.; Miyashita, S. Particle-only model of two-beam interference and double-slit experiments with single photons. J. Phys. Soc. Jpn.
**2010**, 79, 074401. [Google Scholar] [CrossRef] - De Raedt, H.; Jin, F.; Michielsen, K. Event-based simulation of neutron interferometry experiments. Quantum Matter
**2012**, 1, 1–21. [Google Scholar] [CrossRef] - De Raedt, H.; Michielsen, K. Event-by-event simulation of quantum phenomena. Ann. Phys.
**2012**, 524, 393–410. [Google Scholar] [CrossRef] - Michielsen, K.; De Raedt, H. Event-based simulation of quantum physics experiments. Int. J. Mod. Phys. C
**2014**, 25, 01430003. [Google Scholar] [CrossRef] - Donker, H.C.; De Raedt, H.; Michielsen, K. Event-by-event simulation of a quantum delayed-choice experiment. Comp. Phys. Commun.
**2014**, 185, 3109–3118. [Google Scholar] [CrossRef] - De Raedt, H.; Michielsen, K. Discrete-event simulation of uncertainty in single-neutron experiments. Front. Phys.
**2014**, 2, 14.1–14.12. [Google Scholar] [CrossRef] - De Raedt, H.; Michielsen, K.; Hess, K. The digital computer as a metaphor for the perfect laboratory experiment: Loophole-free Bell experiments. Comp. Phys. Commun.
**2016**, 209, 42–47. [Google Scholar] [CrossRef] - Willsch, M.; Willsch, D.; Michielsen, K.; De Raedt, H. Discrete-Event Simulation of Quantum Walks. Front. Phys.
**2020**, 8, 145. [Google Scholar] [CrossRef] - De Raedt, H.; Jattana, M.S.; Willsch, D.; Willsch, M.; Jin, F.; Michielsen, K. Discrete-event simulation of an extended Einstein-Podolsky-Rosen-Bohm experiment. Front. Phys.
**2020**, 8, 160. [Google Scholar] [CrossRef] - De Raedt, H.; Katsnelson, M.I.; Michielsen, K. Quantum theory as the most robust description of reproducible experiments. Ann. Phys.
**2014**, 347, 45–73. [Google Scholar] [CrossRef] - Patil, S.H. Quantum mechanical description of the Stern-Gerlach experiment. Eur. J. Phys.
**1998**, 19, 25–30. [Google Scholar] [CrossRef] - Tal-Ezer, H.; Kosloff, R. An accurate and efficient scheme for propagating the time-dependent Schrödinger equation. J. Chem. Phys.
**1984**, 81, 3967–3971. [Google Scholar] [CrossRef] - De Raedt, H.; Michielsen, K.; Kole, J.S.; Figge, M.T. One-step finite-difference time-domain algorithm to solve the Maxwell equations. Phys. Rev. E
**2003**, 67, 056706. [Google Scholar] [CrossRef] - De Raedt, H. Product formula algorithms for solving the time-dependent Schrödinger equation. Comp. Phys. Rep.
**1987**, 7, 1–72. [Google Scholar] [CrossRef]

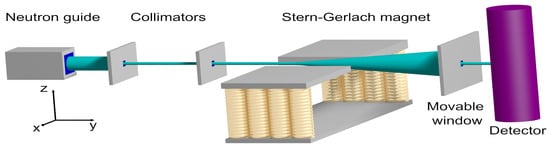

**Figure 1.**Diagram (not to scale) of a Stern–Gerlach experiment with cold neutrons, performed by Hamelin et al. [10]. After passing through the collimators, most neutrons travel along the y-direction. The cone indicates the directions in which the neutron may, but not necessarily have to, leave the magnetic field region.

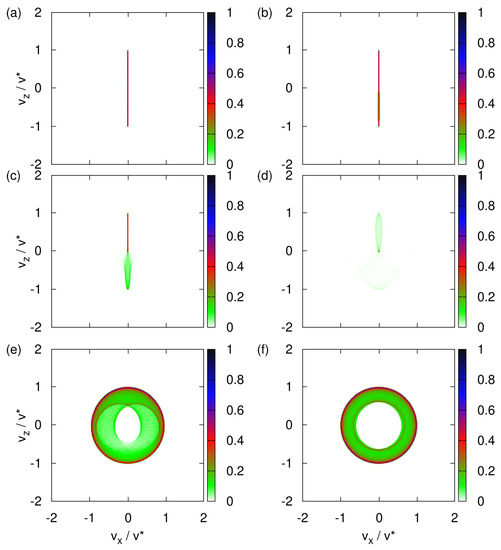

**Figure 3.**Histograms of the transverse velocity distribution obtained by the solving the classical equations of motion Equation (3) with the initial magnetic moments distributed randomly (see text) and for different values of the uniform magnetic field ${B}_{0}$. (

**a**) ${B}_{0}=1\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**b**) ${B}_{0}=0.1\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**c**) ${B}_{0}=0.01\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**d**) ${B}_{0}=0.001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$, hard to see but looks similar to a projection of an elongated pacifier; (

**e**) ${B}_{0}=0.0001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**f**) ${B}_{0}=0.00001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$.

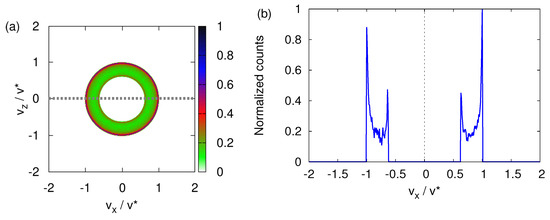

**Figure 4.**(

**a**) Histogram of the transverse velocity distribution obtained by solving the classical equations of motion Equation (3) for ${B}_{0}=0$, with the initial magnetic moments distributed randomly (see text). (

**b**) Distribution of the number of particles obtained by integrating the histogram shown in (

**a**) for ${v}_{z}\in [-{v}^{*},{v}^{*}]/100$, as indicated by the gray dashed line in (

**a**).

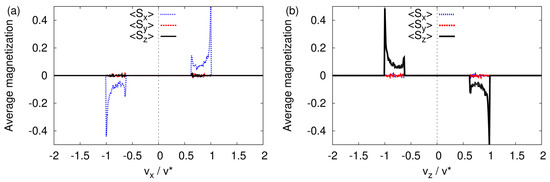

**Figure 5.**Histogram of the average of the three spin components in the transverse velocity distribution obtained by solving the classical equations of motion Equation (3) with the initial magnetic moments distributed randomly (see text). (

**a**) Average calculated by integrating the spin data for ${v}_{z}\in [-{v}^{*},{v}^{*}]/100$. (

**b**) Average calculated by integrating the spin data for ${v}_{x}\in [-{v}^{*},{v}^{*}]/100$.

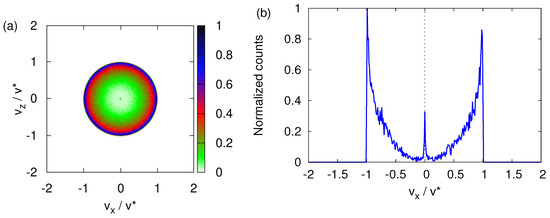

**Figure 6.**(

**a**) Same as Figure 4a except that as the particles depart from the source, the variance of the transverse velocity ${\sigma}_{v}=0.28{v}^{*}$. (

**b**) Distribution of the number of particles obtained by integrating the histogram shown in (

**a**) for ${v}_{z}\in [-{v}^{*},{v}^{*}]/100$. The distribution obtained by integrating the same histogram for ${v}_{x}\in [-{v}^{*},{v}^{*}]/100$ looks identical and is therefore not shown.

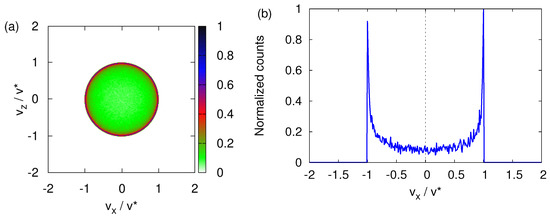

**Figure 7.**Same as Figure 4 except that the parameters for neutrons have been replaced by the parameters for imaginary silver particles.

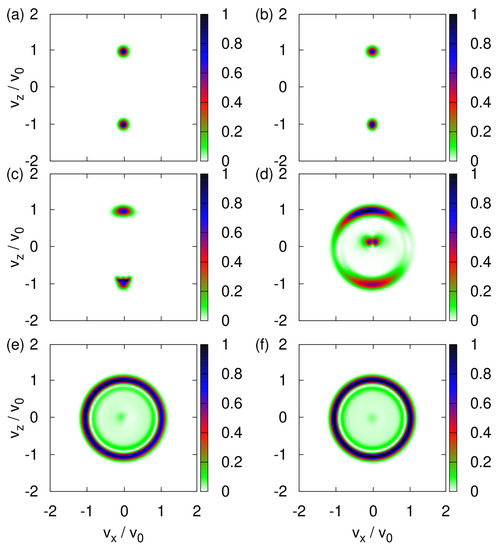

**Figure 8.**Probability distribution $|\langle {v}_{x},{v}_{z}|\mathsf{\Phi}({t}^{*}/10)\rangle {|}^{2}$ (${v}_{0}={v}^{*}/10$) obtained by solving the TDPE Equation (A24) with the initial state given by Equation (A27). Initially, the (dimensionless) variance $\sigma =0.1$ and the spin state is $\left(\right|\uparrow \rangle +|\downarrow \rangle )/\sqrt{2}$. (

**a**) ${B}_{0}=1\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**b**) ${B}_{0}=0.1\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**c**) ${B}_{0}=0.01\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**d**) ${B}_{0}=0.001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**e**) ${B}_{0}=0.0001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$; (

**f**) ${B}_{0}=0.00001\phantom{\rule{0.277778em}{0ex}}\mathrm{T}$.

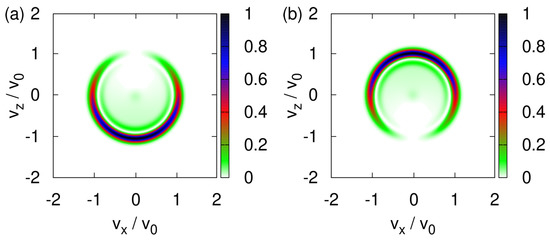

**Figure 9.**(

**a**) Probability distribution $|\langle {v}_{x},{v}_{z}|\mathsf{\Phi}({t}^{*}/10)\rangle {|}^{2}$ (${v}_{0}={v}^{*}/10$) of the transverse velocity distribution obtained by solving the TDPE Equation (A24) with the initial state given by Equation (A27) and ${B}_{0}=0$. Initially, the (dimensionless) variance $\sigma =0.1$ and the spin state is $|\uparrow \rangle $. (

**b**) Same as (a) except that the initial spin state is $|\downarrow \rangle $.

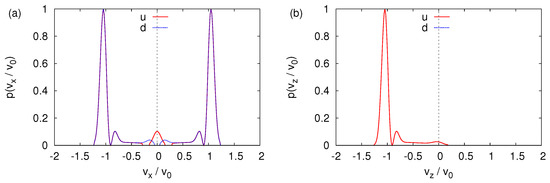

**Figure 10.**(

**a**) One-dimensional probability distributions $p\left({v}_{x}\right)={\left|{\mathsf{\Phi}}_{+1}({v}_{x},{v}_{z}=0,{t}^{*}/10)\right|}^{2}$ (u, solid line) and $p\left({v}_{x}\right)={\left|{\mathsf{\Phi}}_{-1}({v}_{x},{v}_{z}=0,{t}^{*}/10)\right|}^{2}$ (d, dotted line), extracted from the data shown in Figure 9a. Except for $|{v}_{x}/{v}_{0}|\le 0.2$, the difference between two distributions is too small to be visible in the plot. (

**b**) One-dimensional probability distributions $p\left({v}_{z}\right)={\left|{\mathsf{\Phi}}_{+1}({v}_{x}=0,{v}_{z},{t}^{*}/10)\right|}^{2}$ (u, solid line) and $p\left({v}_{z}\right)={\left|{\mathsf{\Phi}}_{-1}({v}_{x}=0,{v}_{z},{t}^{*}/10)\right|}^{2}$ (d, dotted line), extracted from the data shown in Figure 9a. The probability distributions $|{\mathsf{\Phi}}_{-1}({v}_{x}=0,{v}_{z},{t}^{*}/10){|}^{2}$ is too small to be visible in the plot. Except for $|{v}_{x}/{v}_{0}|\le 0.2$, the difference between two distributions is too small to be visible in the plot. For presentation purposes, each distribution is normalized such that its maximum is one. As in Figure 9, ${v}_{0}={v}^{*}/10$.

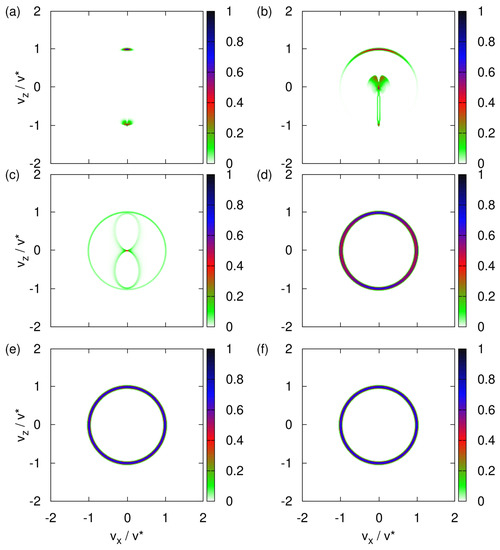

**Figure 11.**Histograms of the transverse velocity distribution obtained by event-by-event simulation. The classical equations of motion (Equation (3)) are modified to include a one-time projection of the spin vector $\mathbf{S}$ along the direction of the magnetic field using the procedure described in the text. The initial magnetic moments of the particles are distributed randomly. The variance of the transverse velocity ${\sigma}_{v}=0.014{v}^{*}$. (
