# Thermodynamics at Solid–Liquid Interfaces

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theory of Phonons

## 3. Methodology

## 4. Results

## 5. Conclusions

- The thermal conductivity increases with increasing the strength of the solid–liquid interaction. Up to ${\epsilon}_{sl}=0.8$ $\epsilon $, this increase is linear. The slope of the thermal conductivity between ${\epsilon}_{sl}=0.8$ $\epsilon $ and ${\epsilon}_{sl}=1$ $\epsilon $ decreases, suggesting a possible asymptotic state. However, further simulations covering a broader range of solid–liquid interactions are required to confirm the above.

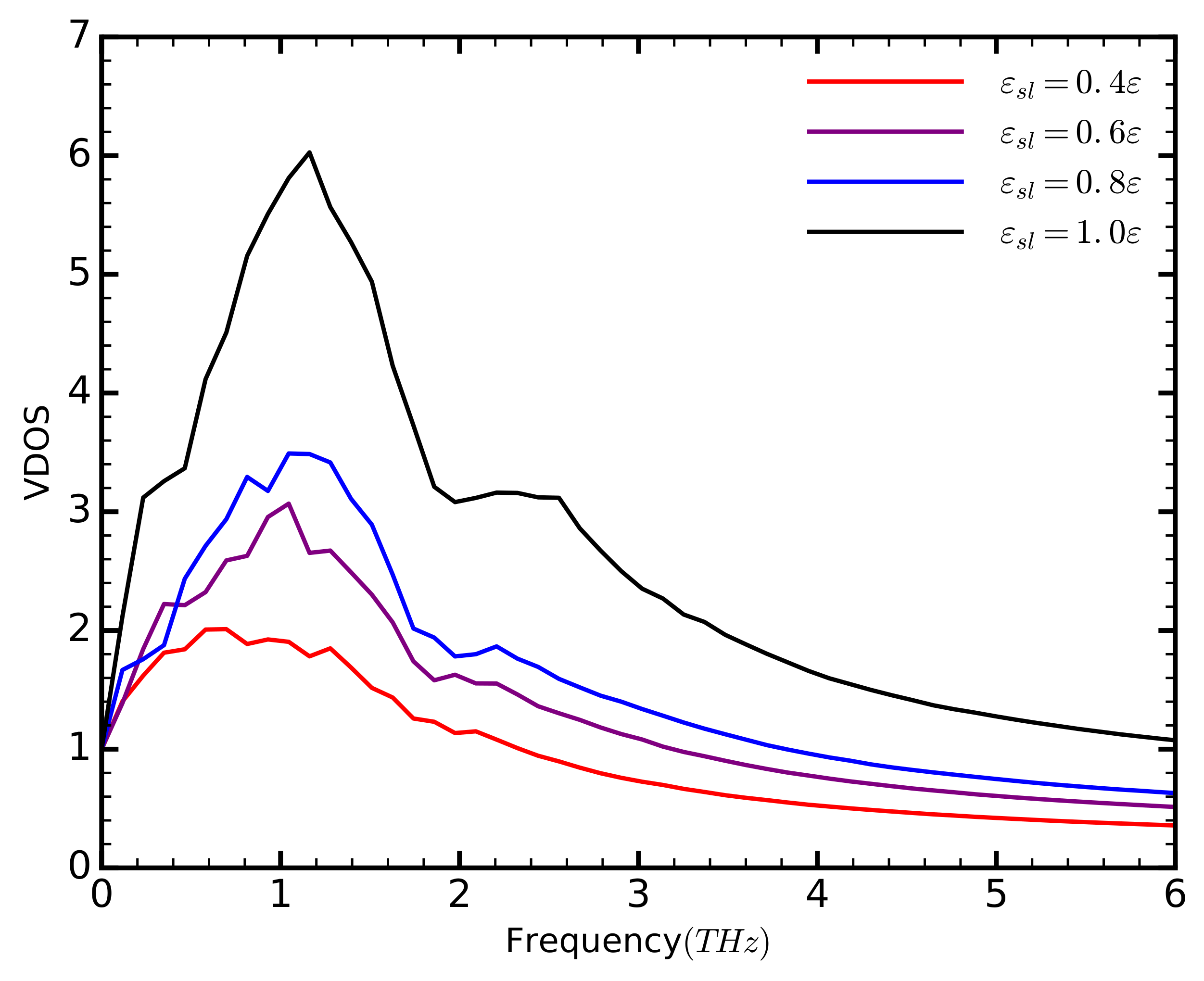

- We attribute the observed increase of the thermal conductivity to a larger number of phonon states available in the system. The thermal conductivity does not, however, follow the trend of the VDOS. We attribute this to the Umklapp scattering, which is known to increase as the number of phonons increases. Scattering events have a negative effect on thermal conductivity; this is probably the reason for the decreasing slope of the thermal conductivity for ${\epsilon}_{sl}>0.8$ $\epsilon $.
- We speculate that as the strength of the solid–liquid interaction further increases and more phonon modes become available, an increase in scattering will cause the thermal conductivity to reach an asymptotic state and even decrease. A similar phenomenon is observed with respect to the temperature effects on the thermal conductivity of CNTs.

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## References

- Frenkel, Y.I. Kinetic Theory of Liquids; Dover Publications Inc.: Mineola, NY, USA, 1955. [Google Scholar]
- Copley, J.R.D.; Rowe, J.M. Short-wavelength collective excitations in liquid rubidium observed by coherent neutron scattering. Phys. Rev. Lett.
**1974**, 32, 49–52. [Google Scholar] [CrossRef] - Grimsditch, M.; Bhadra, R.; Torell, L.M. Shear waves through the glass-liquid transformation. Phys. Rev. Lett.
**1989**, 62, 2616–2619. [Google Scholar] [CrossRef] [PubMed] - Pilgrim, W.C.; Hosokawa, S.; Saggau, H.; Sinn, H.; Burkel, E. Temperature dependence of collective modes in liquid sodium. J. NonCryst. Solids
**1999**, 250–252, 96–101. [Google Scholar] [CrossRef] - Pilgrim, W.; Morkel, C. State dependent particle dynamics in liquid alkali metals. J. Phys. Condens. Matter
**2006**, 18, R585. [Google Scholar] [CrossRef] [PubMed] - Trachenko, K. Heat capacity of liquids: An approach from the solid phase. Phys. Rev. B
**2008**, 78, 104201. [Google Scholar] [CrossRef] - Bolmatov, D.; Trachenko, K. Liquid heat capacity in the approach from the solid state: Anharmonic theory. Phys. Rev. B
**2011**, 84, 054106. [Google Scholar] [CrossRef] - Bolmatov, D.; Brazhkin, V.; Trachenko, K. The phonon theory of liquid thermodynamics. Sci. Rep.
**2012**, 2, 421. [Google Scholar] [CrossRef] [PubMed] - Li, L.; Kazoe, Y.; Mawatari, K.; Sugii, Y.; Kitamori, T. Viscosity and wetting property of water confined in extended nanospace simultaneously measured from highly-pressurized meniscus motion. J. Phys. Chem. Lett.
**2012**, 3, 2447–2452. [Google Scholar] [CrossRef] [PubMed] - Markesteijn, A.; Hartkamp, R.; Luding, S.; Westerweel, J. A comparison of the value of viscosity for several water models using Poiseuille flow in a nano-channel. J. Chem. Phys.
**2012**, 136, 134104. [Google Scholar] [CrossRef] [PubMed] - Papanikolaou, M.; Frank, M.; Drikakis, D. Effects of surface roughness on shear viscosity. Phys. Rev. E
**2017**, 95, 033108. [Google Scholar] [CrossRef] [PubMed] - Sofos, F.; Karakasidis, T.; Liakopoulos, A. Transport properties of liquid argon in krypton nanochannels: Anisotropy and non-homogeneity introduced by the solid walls. Int. J. Heat Mass Transf.
**2009**, 52, 735–743. [Google Scholar] [CrossRef] - Duda, J.C.; English, T.S.; Piekos, E.S.; Soffa, W.A.; Zhigilei, L.V.; Hopkins, P.E. Implications of cross-species interactions on the temperature dependence of Kapitza conductance. Phys. Rev. B
**2011**, 84, 193301. [Google Scholar] [CrossRef] - Caplan, M.E.; Giri, A.; Hopkins, P.E. Analytical model for the effects of wetting on thermal boundary conductance across solid/classical liquid interfaces. J. Chem. Phys.
**2014**, 140, 154701. [Google Scholar] [CrossRef] - Ramos-Alvarado, B.; Kumar, S.; Peterson, G. Solid-liquid thermal transport and its relationship with wettability and the interfacial liquid structure. J. Phys. Chem. Lett.
**2016**, 7, 3497–3501. [Google Scholar] [CrossRef] [PubMed] - Wang, X.; Cheng, P.; Quan, X. Molecular dynamics simulations of thermal boundary resistances in a liquid between two solid walls separated by a nano gap. Int. Commun. Heat Mass Transf.
**2016**, 77, 183–189. [Google Scholar] [CrossRef] - Frank, M.; Drikakis, D. Solid-like heat transfer in confined liquids. Microfluid. Nanofluid.
**2017**, 21, 148. [Google Scholar] [CrossRef] - Sarkar, S.; Selvam, R.P. Molecular dynamics simulation of effective thermal conductivity and study of enhanced thermal transport mechanism in nanofluids. J. Appl. Phys.
**2007**, 102, 074302. [Google Scholar] [CrossRef] - Li, L.; Zhang, Y.; Ma, H.; Yang, M. Molecular dynamics simulation of effect of liquid layering around the nanoparticle on the enhanced thermal conductivity of nanofluids. J. Nanopart. Res.
**2010**, 12, 811–821. [Google Scholar] [CrossRef] - Asproulis, N.; Drikakis, D. Boundary slip dependency on surface stiffness. Phys. Rev. E
**2010**, 81, 061503. [Google Scholar] [CrossRef] [PubMed] - Kim, B.H.; Beskok, A.; Cagin, T. Thermal interactions in nanoscale fluid flow: Molecular dynamics simulations with solid–liquid interfaces. Microfluid. Nanofluid.
**2008**, 5, 551–559. [Google Scholar] [CrossRef] - Che, J.; Çağın, T.; Deng, W.; Goddard, W.A., III. Thermal conductivity of diamond and related materials from molecular dynamics simulations. J. Chem. Phys.
**2000**, 113, 6888–6900. [Google Scholar] [CrossRef] - McGaughey, A.; Kaviany, M. Thermal conductivity decomposition and analysis using molecular dynamics simulations. Part I. Lennard-Jones argon. Int. J. Heat Mass Transf.
**2004**, 47, 1783–1798. [Google Scholar] [CrossRef] - Eapen, J.; Li, J.; Yip, S. Mechanism of thermal transport in dilute nanocolloids. Phys. Rev. Lett.
**2007**, 98, 028302. [Google Scholar] [CrossRef] [PubMed] - Li, J.; Porter, L.; Yip, S. Atomistic modeling of finite-temperature properties of crystalline β-SiC: II. Thermal conductivity and effects of point defects. J. Nucl. Mater.
**1998**, 255, 139–152. [Google Scholar] [CrossRef] - Frank, M.; Drikakis, D.; Asproulis, N. Thermal conductivity of nanofluid in nanochannels. Microfluid. Nanofluid.
**2015**, 19, 1011–1017. [Google Scholar] [CrossRef] [Green Version] - Allen, M.P.; Tildesley, D.J. Computer Simulation of Liquids; Oxford University Press: Oxford, UK, 2017. [Google Scholar]
- Müller-Plathe, F. A simple nonequilibrium molecular dynamics method for calculating the thermal conductivity. J. Chem. Phys.
**1997**, 106, 6082. [Google Scholar] [CrossRef] - Barrat, J.L.; Chiaruttini, F. Kapitza resistance at the liquid-solid interface. Mol. Phys.
**2003**, 101, 1605–1610. [Google Scholar] [CrossRef] - Marconnet, A.M.; Panzer, M.A.; Goodson, K.E. Thermal conduction phenomena in carbon nanotubes and related nanostructured materials. Rev. Mod. Phys.
**2013**, 85, 1295. [Google Scholar] [CrossRef] - Pop, E.; Mann, D.; Wang, Q.; Goodson, K.; Dai, H. Thermal conductance of an individual single-wall carbon nanotube above room temperature. Nano Lett.
**2006**, 6, 96–100. [Google Scholar] [CrossRef] [PubMed] - Soong, C.Y.; Yen, T.H.; Tzeng, P.Y. Molecular dynamics simulation of nanochannel flows with effects of wall lattice-fluid interactions. Phys. Rev. E
**2007**, 76, 036303. [Google Scholar] [CrossRef] [PubMed] - Papanikolaou, M.; Frank, M.; Drikakis, D. Nanoflow over a fractal surface. Phys. Fluids
**2016**, 28, 082001. [Google Scholar] [CrossRef] - Giannakopoulos, A.; Sofos, F.; Karakasidis, T.; Liakopoulos, A. Unified description of size effects of transport properties of liquids flowing in nanochannels. Int. J. Heat Mass Transf.
**2012**, 55, 5087–5092. [Google Scholar] [CrossRef]

**Figure 1.**The thermal conductivity of the liquid in the x-direction as a function of the channel length in the same direction, ${L}_{x}$, for a channel of height 6.58 $\sigma $, and a strength of solid–liquid interaction ${\epsilon}_{sl}=0.8$ $\epsilon $. The thermal conductivity converges for channel lengths greater than 10 $\sigma $.

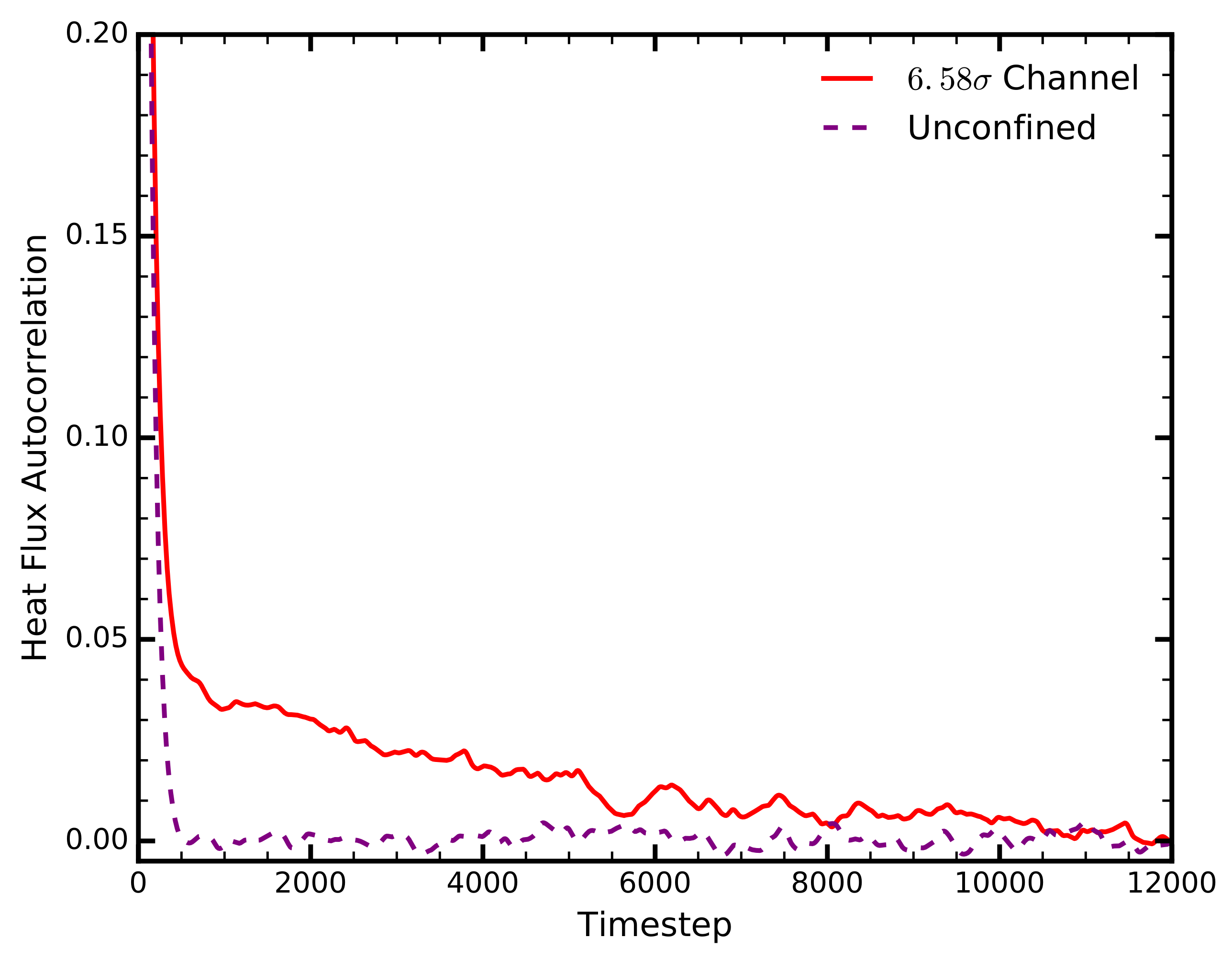

**Figure 2.**The Heat Flux Autocorrelation Function for bulk and confined liquid argon, for ${\epsilon}_{sl}=0.8$ $\epsilon $. Reconstructed from Frank and Drikakis [17].

**Figure 3.**The component of the thermal conductivity in the direction parallel to the surface, as a function of the strength of the solid–liquid interaction. The different curves correspond to the thermal conductivity as calculated by directly integrating HFACF (■); the thermal conductivity as calculated by fitting a sum of two exponential functions on the HFACF (◆); and the decomposed short- (●), long-range (◆) components of the thermal conductivity.

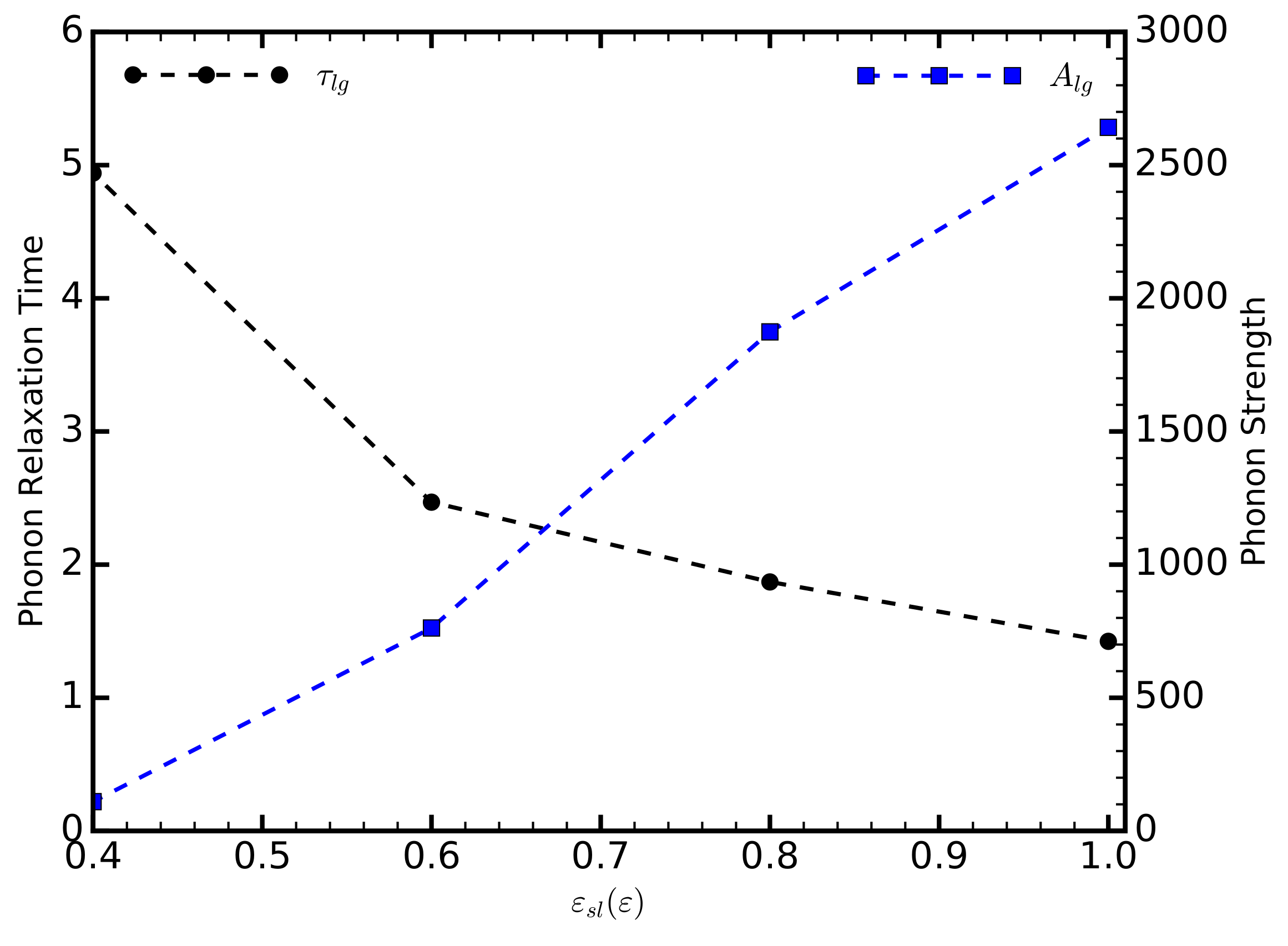

**Figure 4.**The relaxation time, and strength of the long-range phonons, as a function of the strength of the solid–liquid interaction.

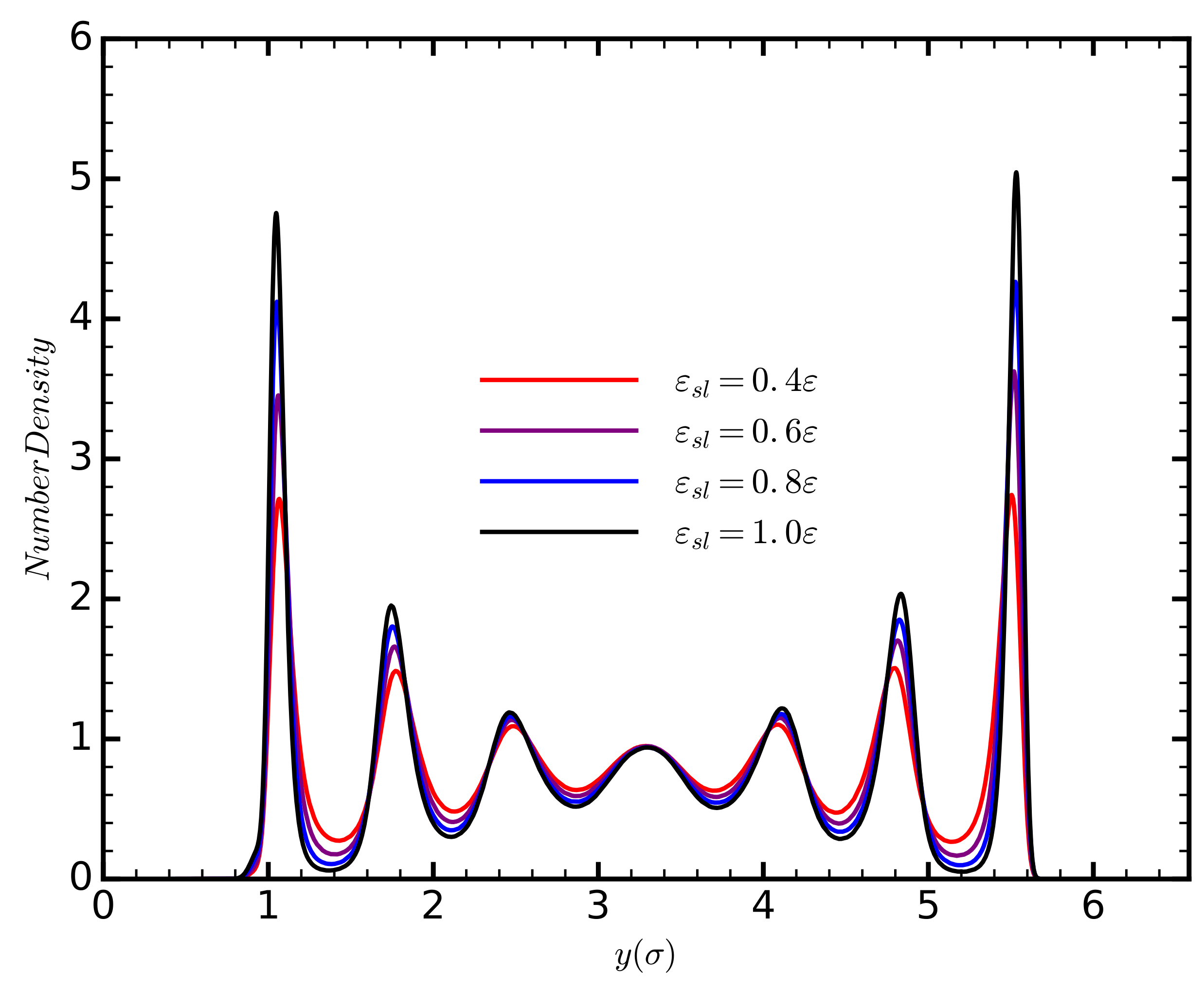

**Figure 5.**The density profiles of the liquid for different values of the strength of the solid–liquid interaction.
