# Random Walk Null Models for Time Series Data

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

#### 1.1. Notation and Terminology

#### 1.2. Permutation Entropy and KL Divergence

#### 1.3. Contributions

## 2. Distributions of Patterns in Random Walks

#### 2.1. Equality in Any Random Walk

## 3. KL Divergence Method

#### 3.1. Simple Validation Measure

## 4. Motivating Examples

## 5. Data Descriptions

- RAND: A sequence of 2000 uniform random numbers drawn between zero and one;
- NORM RW: A simulated random walk whose steps are drawn at random from the standard normal distribution, $(\mu ,\sigma )=(0,1)$;
- N-DRIFT RW: A simulated random walk whose steps are drawn at random from the normal distribution with $(\mu ,\sigma )=(0.701832,14.945)$; this is the normal curve fitted to the returns in the S&P 500 data below.
- UNIF RW: A simulated random walk whose steps are drawn uniformly at random from the uniform distribution on the interval $[-0.5,0.5]$;
- SP500: The daily closing values of the S&P 500 from 24 January 2009–31 December 2016. Data provided by Morningstar and accessed through [31];
- MEX: Average daily temperatures in Mexico City from 20 June 2011–31 December 2016. Data provided by the World Meteorological Organization through [31];
- NYC: Average daily temperatures in New York City from 20 June 2011–31 December 2016; data provided by the National Oceanic and Atmospheric Administration through [31];
- HEART: Instantaneous heart rate measurements taken at $0.5$ s intervals collected at the Massachusetts Institute of Technology [32].

## 6. Applications of KL Divergence Method

## 7. Inefficiency in Financial Markets

## 8. Summary and Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Abbreviations

KL | Kullback–Liebler |

PE | Permutation Entropy |

NPE | Normalized Permutation Entropy |

## Appendix A. Null Model Distributions

**Table A1.**The values of ${\mathbb{P}}_{Z}(\pi )$ for the normal distribution with $\mu =0$ and in the uniform case for $\mathbb{P}(Y>0)=b$, where $\frac{1}{2}\le b\le 1$.

Pattern | Normal: $\mathit{\mu}=0$ | Uniform: $\mathit{\mu}=0$ | Uniform: $\mathbb{P}(\mathit{Y}>0)=\mathit{b}$ |
---|---|---|---|

{123} | $1/4$ | $1/4$ | ${b}^{2}$ |

{132, 213} | $1/8$ | $1/8$ | $(1/2){(1-b)}^{2}$ |

{231, 312} | $1/8$ | $1/8$ | $(1/2)({b}^{2}+2b-1)$ |

{321} | $1/4$ | $1/4$ | ${(1-b)}^{2}$ |

{1234} | 0.1250 | $1/8$ | ${b}^{3}$ |

{1243, 2134} | 0.0625 | 1/16 | $(1/2)b(1-b)(3b-1)$ |

{1324} | 0.0417 | 1/24 | $(1/3)(1-b)(7{b}^{2}-5b+1)$ |

{1342, 3124} | 0.0208 | 1/24 | $(1/6){(1-b)}^{2}(4b-1)$ |

{1423, 2314} | 0.0355 | 1/48 | $(1/6){(1-b)}^{2}(5b-2)$ |

{1432, 2143, 3214} | 0.0270 | 1/48 | $\left(\right)$ |

{2341, 3412, 4123} | 0.0270 | 1/48 | $(1/6){(1-b)}^{3}$ |

{2413} | 0.0146 | 1/48 | $(1/6){(1-b)}^{3}$ |

{2431, 4213} | 0.0208 | 1/24 | $\left(\right)$ |

{3142} | 0.0146 | 1/48 | $\left(\right)$ |

{3241, 4132} | 0.0355 | 1/48 | $(1/6){(1-b)}^{3}$ |

{3421, 4312} | 0.0625 | 1/16 | $(1/2){(1-b)}^{3}$ |

{4231} | 0.0417 | 1/24 | $(1/3){(1-b)}^{3}$ |

{4321} | 0.1250 | 1/8 | ${(1-b)}^{3}$ |

## Appendix B. Permutation Equivalence Classes

## Appendix C. Data Plots

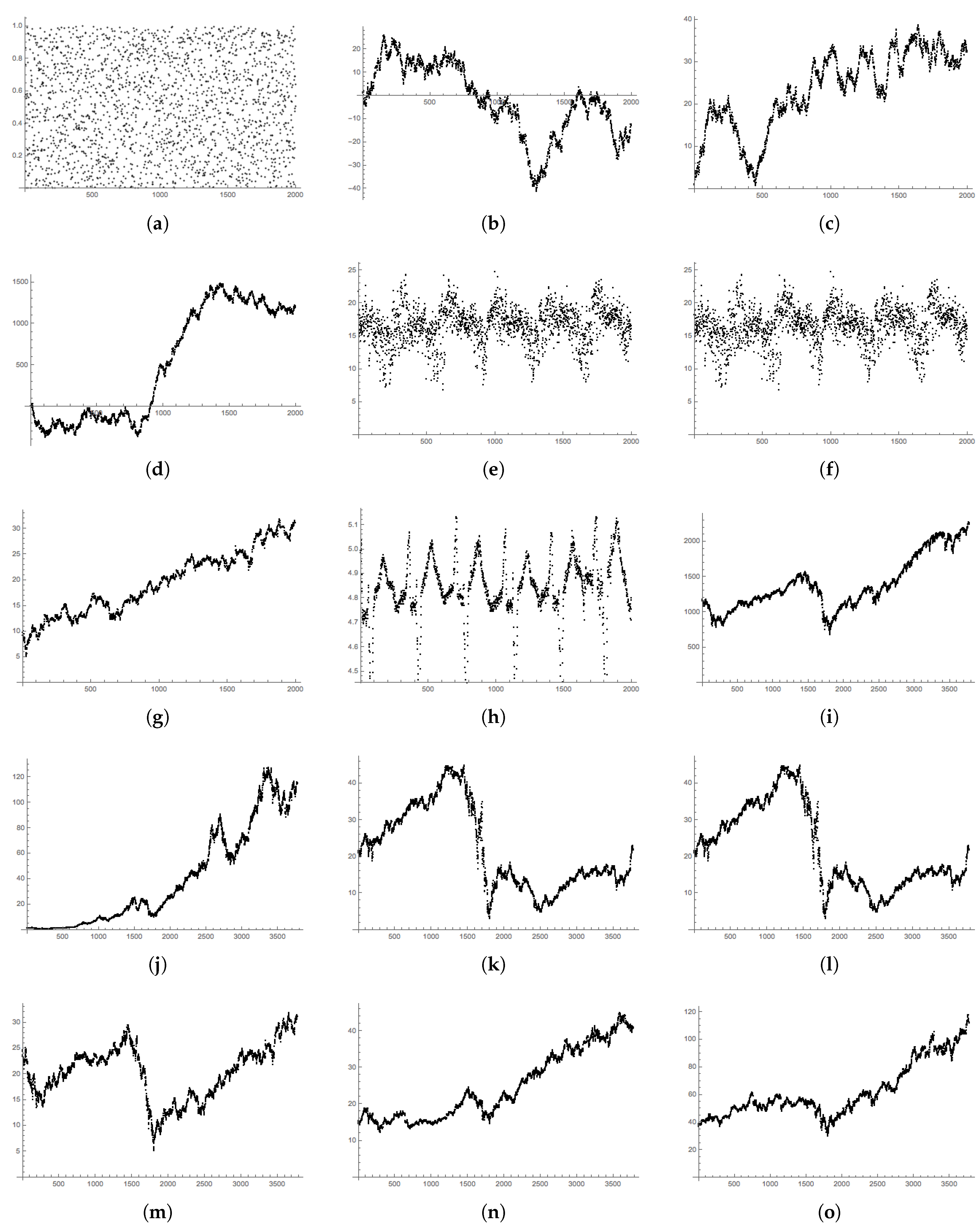

**Figure A1.**Graphs of the time series used throughout this paper; see Section 5. Time series (

**a**–

**h**) are of length $N=2000$. Stock data (

**i**–

**o**), used in Section 7, are closing prices for trading days from 1 January 2002–1 January 2017 and of length $N=3777$. (

**a**) RAND; (

**b**) NORM RW; (

**c**) UNIF RW; (

**d**) N-DRIFT RW; (

**e**) MEX; (

**f**) NYC; (

**g**) GE; (

**h**) HEART; (

**i**) StockSP500; (

**j**) Stock AAPL; (

**k**) Stock AMZN; (

**l**) Stock BAC; (

**m**) Stock GE; (

**n**) Stock KO; (

**o**) Stock UPS.

## References

- Amigó, J.M.; Zambrano, S.; Sanjuán, M.A.F. Combinatorial detection of determinism in noisy time series. Europhys. Lett.
**2008**, 83, 60005. [Google Scholar] [CrossRef] - Bandt, C. Autocorrelation type functions for big and dirty data series. arXiv, 2014; arXiv:1411.3904. [Google Scholar]
- Bariviera, A.F.; Zunino, L.; Guercio, M.B.; Martinez, L.B.; Rosso, O.A. Revisiting the European sovereign bonds with a permutation-information-theory approach. Eur. Phys. J. B
**2013**, 86, 509. [Google Scholar] [CrossRef] - Hou, Y.; Liu, F.; Gao, J.; Cheng, C.; Song, C. Characterizing Complexity Changes in Chinese Stock Markets by Permutation Entropy. Entropy
**2017**, 19, 514. [Google Scholar] [CrossRef] - Lim, J.R. Rapid Evaluation of Permutation Entropy for Financial Volatility Analysis—A NovelHash Function using Feature-Bias Divergence. Available online: https://www.doc.ic.ac.uk/teaching/distinguished-projects/2014/j.lim.pdf (accessed on 15 Novermber 2017).
- Ortiz-Cruz, A.; Rodriguez, E.; Ibarra-Valdez, C.; Alvarez-Ramirez, J. Efficiency of crude oil markets: Evidences from informational entropy analysis. Energy Policy
**2012**, 41, 365–373. [Google Scholar] [CrossRef] - Zunino, L.; Bariviera, A.F.; Guercio, M.B.; Martinez, L.B.; Rosso, O.A. On the efficiency of sovereign bond markets. Phys. A Stat. Mech. Appl.
**2012**, 391, 4342–4349. [Google Scholar] [CrossRef] - Zunino, L.; Zanin, M.; Tabak, B.M.; Pérez, D.G.; Rosso, O.A. Forbidden patterns, permutation entropy and stock market inefficiency. Phys. A Stat. Mech. Appl.
**2009**, 388, 2854–2864. [Google Scholar] [CrossRef] - Li, D.; Li, X.; Liang, Z.; Voss, L.J.; Sleigh, J.W. Multiscale permutation entropy analysis of EEG recordings during sevoflurane anesthesia. J. Neural Eng.
**2010**, 7, 1–4. [Google Scholar] [CrossRef] [PubMed] - Li, X.; Ouyang, G.; Richards, D.A. Predictability analysis of absence seizures with permutation entropy. Epilepsy Res.
**2007**, 77, 70–74. [Google Scholar] [CrossRef] [PubMed] - Liu, T.; Yao, W.; Wu, M.; Shi, Z.; Wang, J.; Ning, X. Multiscale permutation entropy analysis of electrocardiogram. Phys. A Stat. Mech. Appl.
**2017**, 471, 492–498. [Google Scholar] [CrossRef] - Nicolaou, N.; Georgiou, J. Detection of epileptic electroencephalogram based on permutation entropy and support vector machines. Expert Syst. Appl.
**2012**, 39, 202–209. [Google Scholar] [CrossRef] - Olofsen, E.; Sleigh, J.W.; Dahan, A. Permutation entropy of the electroencephalogram: A measure of anaesthetic drug effect. Br. J. Anaesth.
**2008**, 101, 810–821. [Google Scholar] [CrossRef] [PubMed] - Weck, P.J.; Schaffner, D.A.; Brown, M.R.; Wicks, R.T. Permutation entropy and statistical complexity analysis of turbulence in laboratory plasmas and the solar wind. Phys. Rev. E Stat. Nonlinear Soft Matter Phys.
**2015**, 91, 023101. [Google Scholar] [CrossRef] [PubMed] - Zunino, L.; Pérez, D.G.; Martín, M.T.; Garavaglia, M.; Plastino, A.; Rosso, O.A. Permutation entropy of fractional Brownian motion and fractional Gaussian noise. Phys. Lett. A
**2008**, 372, 4768–4774. [Google Scholar] [CrossRef] - Keller, K.; Mangold, T.; Stolz, I.; Werner, J. Permutation Entropy: New Ideas and Challenges. Entropy
**2017**, 19, 134. [Google Scholar] [CrossRef] - Riedl, M.; Müller, A.; Wessel, N. Practical considerations of permutation entropy. Eur. Phys. J. Spec. Top.
**2013**, 222, 249–262. [Google Scholar] [CrossRef] - Zanin, M.; Zunino, L.; Rosso, O.A.; Papo, D. Permutation entropy and its main biomedical and econophysics applications: A review. Entropy
**2012**, 14, 1553–1577. [Google Scholar] [CrossRef] - Fama, E.F. The Behavior of Stock-Market Prices. J. Bus.
**1965**, 38, 34–105. [Google Scholar] [CrossRef] - Fama, E.F. Random Walks in Stock Market Prices. Financ. Anal. J.
**1995**, 51, 75–80. [Google Scholar] [CrossRef] - Bandt, C.; Shiha, F. Order Patterns in Time Series. J. Time Ser. Anal.
**2007**, 28, 646–665. [Google Scholar] [CrossRef] - Sinn, M.; Keller, K. Estimation of ordinal pattern probabilities in Gaussian processes with stationary increments. Comput. Stat. Data Anal.
**2011**, 55, 1781–1790. [Google Scholar] [CrossRef] - Bandt, C.; Pompe, B. Permutation entropy: A natural complexity measure for time series. Phys. Rev. Lett.
**2002**, 88, 174102. [Google Scholar] [CrossRef] [PubMed] - Ouyang, G.; Dang, C.; Richards, D.A.; Li, X. Ordinal pattern based similarity analysis for EEG recordings. Clin. Neurophysiol.
**2010**, 121, 694–703. [Google Scholar] [CrossRef] [PubMed] - Bandt, C. Permutation Entropy and Order Patterns in Long Time Series. In Time Series Analysis and Forecasting; Springer: Berlin, Germany, 2016; pp. 61–73. [Google Scholar]
- Kullback, S.; Leibler, R.A. On Information and Sufficiency. Ann. Math. Statist.
**1951**, 22, 79–86. [Google Scholar] [CrossRef] - Martinez, M.; Elizalde, S. The frequency of pattern occurrence in random walks. In Proceedings of the 27th International Conference on Formal Power Series and Algebraic Combinatorics (FPSAC 2015), Discrete Mathematics & Theoretical Computer Science, DMTCS Proceedings, Daejeon, Korea, 6–10 July 2105. [Google Scholar]
- Kenyon, R.; Kral, D.; Radin, C.; Winkler, P. Permutations with fixed pattern densities. arXiv, 2015; arXiv:1506.02340. [Google Scholar]
- Elizalde, S.; Moore, K. Patterns of Negative Shifts and Beta-Shifts. arXiv, 2015; arXiv:1512.04479. [Google Scholar]
- Martinez, M.A. Equivalences on Patterns in Random Walks. Ph.D. Thesis, Dartmouth College, Hanover, NH, USA, 2015. [Google Scholar]
- Wolfram Research, Inc. Mathematica, Version 11.2. Available online: http://support.wolfram.com/kb/472 (accessed on 15 Novermber 2017).
- Goldberger, A.L.; Rigney, D.R. Nonlinear Dynamics at the Bedside. In Institute for Nonlinear Science; Theory of Heart; Springer: New York, NY, USA, 1991; pp. 583–605. [Google Scholar]
- Jegadeesh, N.; Titman, S. Returns to Buying Winners and Selling Losers: Implications for Stock Market Efficiency. J. Financ.
**1993**, 48, 65–91. [Google Scholar] [CrossRef] - Jegadeesh, N.; Titman, S. Profitability of Momentum Strategies: An Evaluation of Alternative Explanations. Natl. Bur. Econ. Res.
**1999**. [Google Scholar] [CrossRef]

**Figure 1.**The regions of integration for patterns in uniform random walks for (

**a**) $n=3$ and (

**b**) $n=4$, sketched here for $b=0.65$.

**Figure 2.**The distribution of patterns of length $n=4$, listed in lexicographical order , for (

**a**) the normal random walk with $\mu =0$, (

**b**) the uniform random walk with $\mathbb{P}(Y>0)=0.5$ and (

**c**) the uniform random walk with $\mathbb{P}(Y>0)=0.65$.

**Figure 3.**The distribution of patterns of length $n=4$ in a length 2000 uniform random walk with $b=0.65$ (

**a**). The true distribution of patterns in the uniform random walk with $\mathbb{P}(Y>0)=0.65$ (

**b**) is a much closer fit than the uniform distribution of patterns in white noise (

**c**).

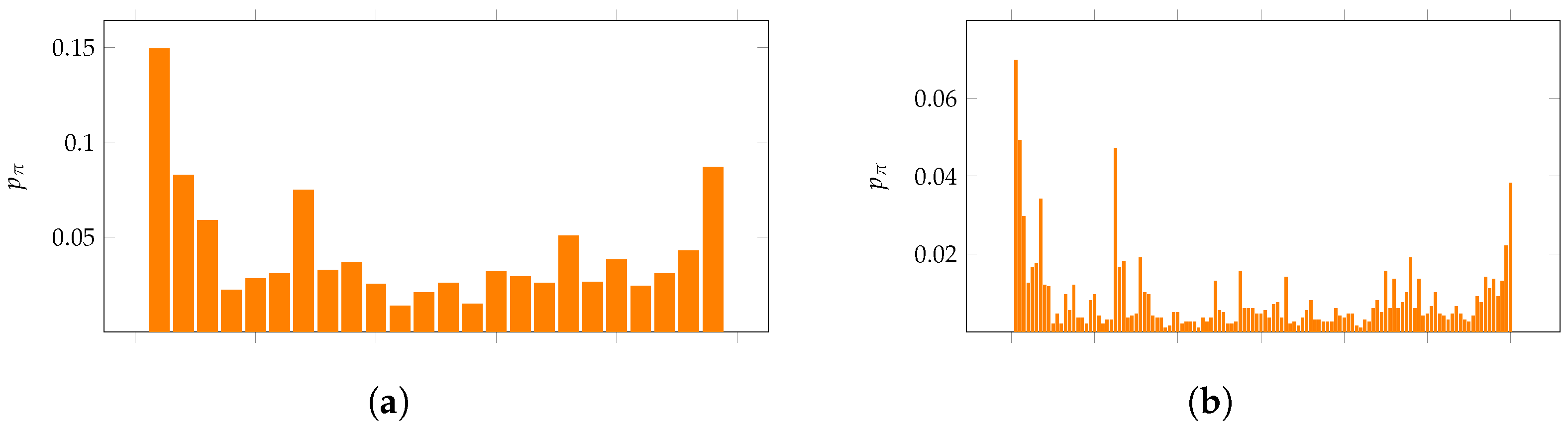

**Figure 4.**The distribution of patterns, listed in lexicographical order, for the uniform random walk null model for closing prices in the S&P 500 of length (

**a**) $n=4$ and (

**b**) $n=5$. Note that the distributions are far from uniform as is characteristic of random walk data.

**Figure 5.**Comparison of null model distributions for the S&P 500 data to the uniform distribution. The difference $|{p}_{\pi}-{P}_{Z}(\pi )|$ is plotted for each of the four null models: ${Y}_{1}=N(0.702,14.945)$ (orange), ${Y}_{2}=U(0.5441)$ (blue), ${Y}_{3}=U(0.5279)$ (red) and the uniform distribution (gray).

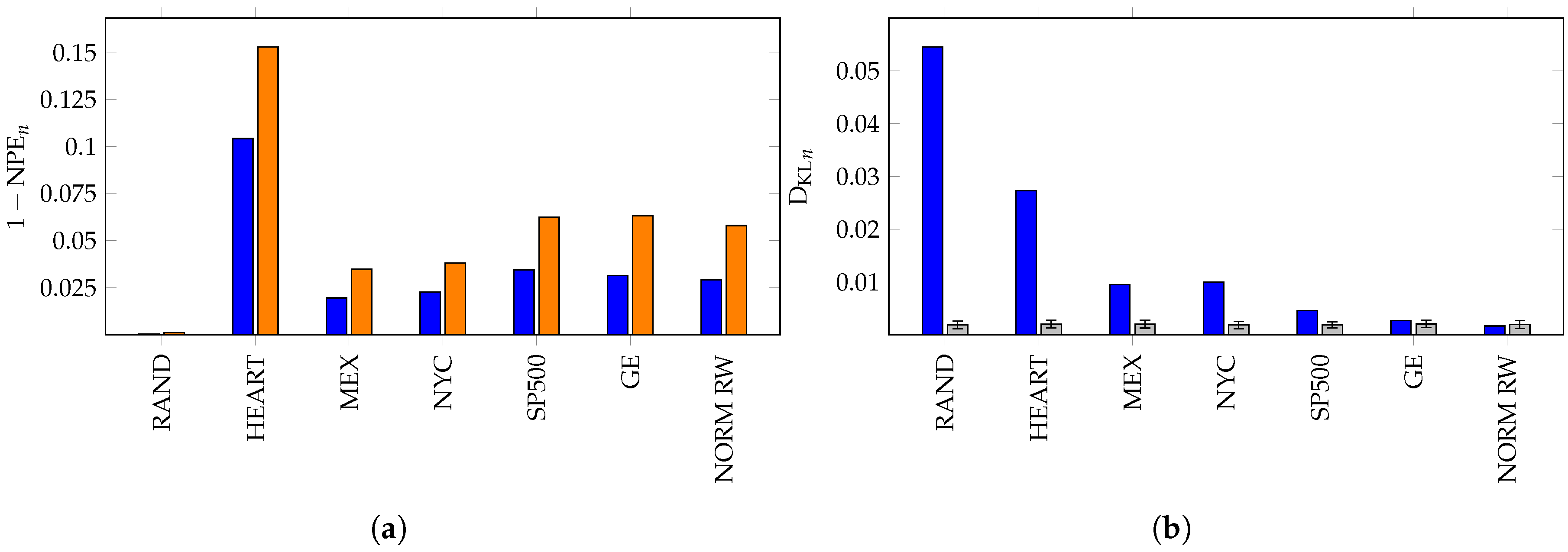

**Figure 6.**In (

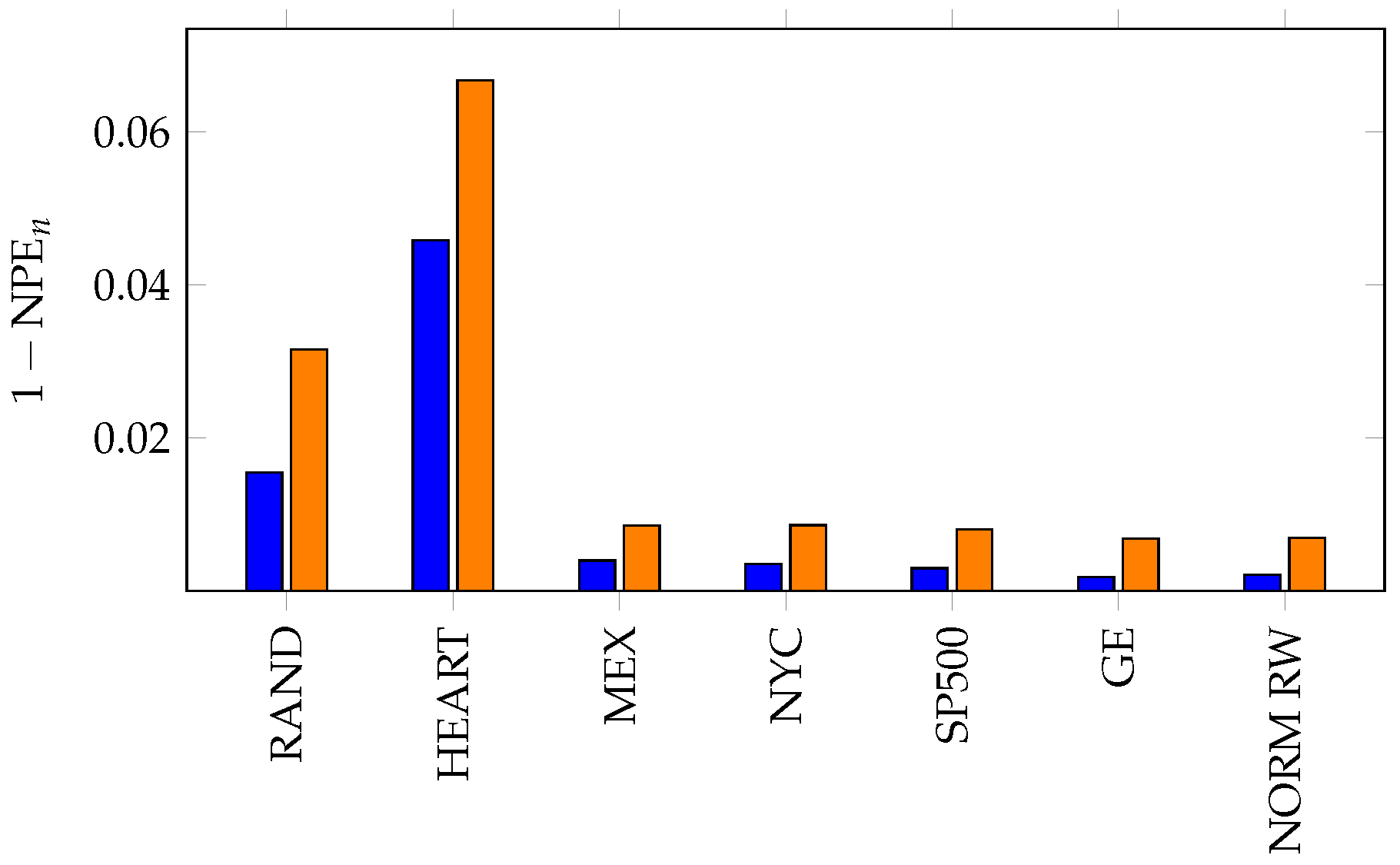

**a**), we compute $1-{\mathrm{NPE}}_{n}(X)$ for the time series for $n=4$ (in blue) and $n=5$ (in orange). In (

**b**), we compute ${\mathrm{D}}_{\mathrm{K}\mathrm{L}\mathrm{n}}(X)$ for $n=4$ and the data of length $N=2000$ (blue). We generate 400 random walks $\widehat{X}$ of length $N=2000$ and compute ${\mathrm{D}}_{\mathrm{K}\mathrm{L}\mathrm{n}}(\widehat{X})$ for each. The mean and errors are plotted in gray.

**Figure 7.**We compute $1-{\mathrm{NPE}}_{n}(X)$ for the time series of steps $\{{X}_{t+1}-{X}_{t}\}$ for $n=4$ (in blue) and $n=5$ (in orange). This can be used as a measure of step independence and was presented in [5] as a measure of volatility in developing economic markets.

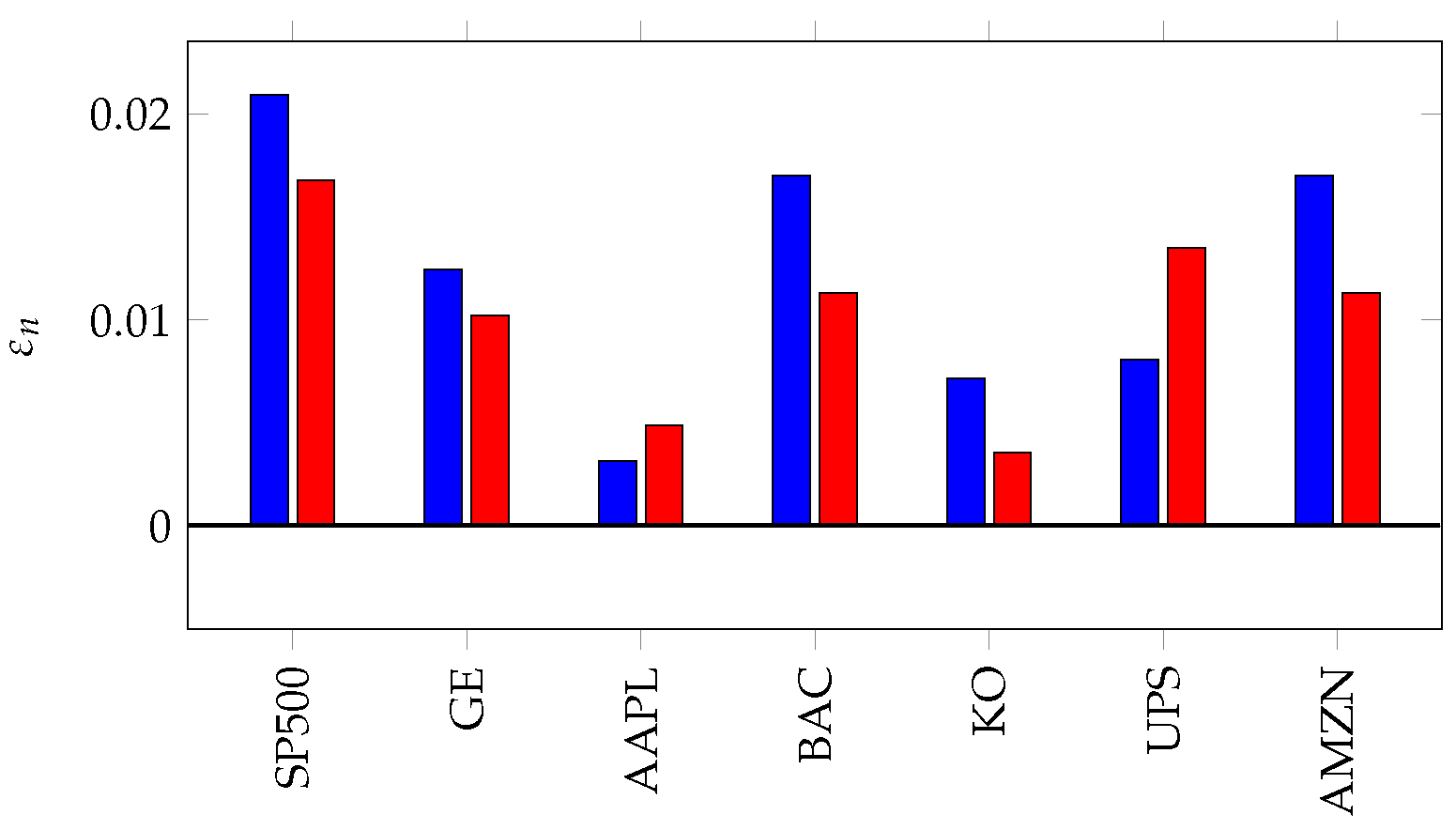

**Figure 8.**Values of ${\epsilon}_{4}^{+}$ in blue and ${\epsilon}_{4}^{-}$ in red. Larger values of ${\epsilon}_{n}^{+}$ (respectively ${\epsilon}_{n}^{-}$) correspond to markets containing more increasing (respectively decreasing) runs than predicted by the independent steps of the random walk model.

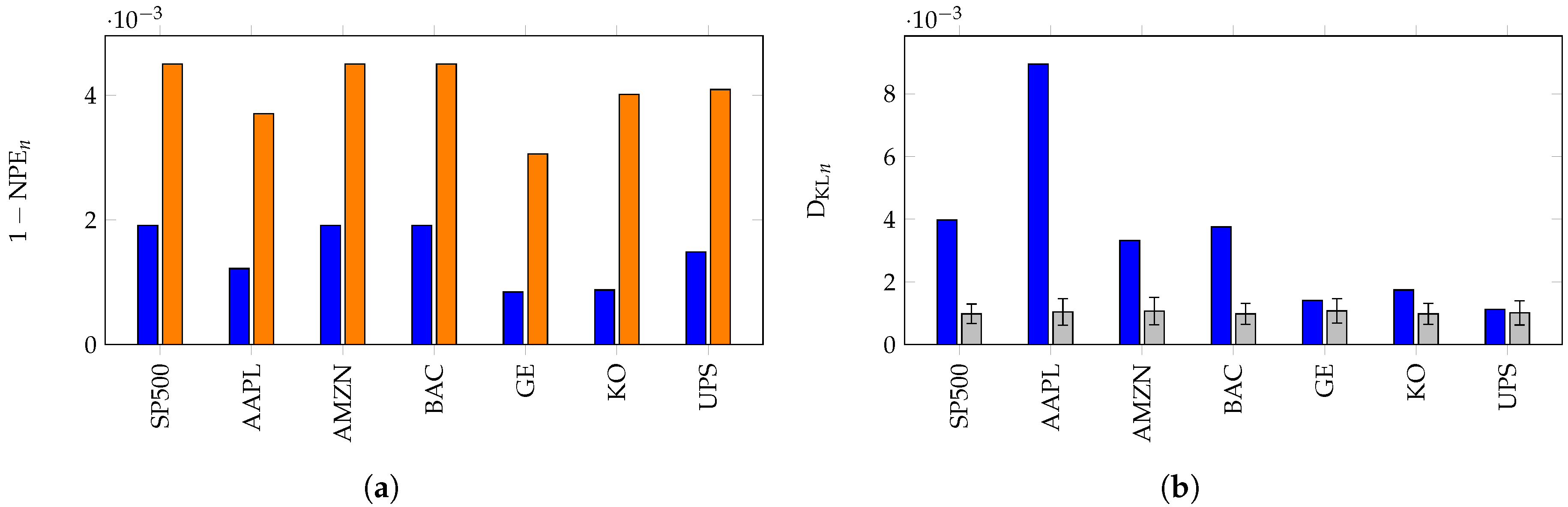

**Figure 9.**In (

**a**), we compute $1-{\mathrm{NPE}}_{n}(X)$ for the time series of steps for $n=4$ (in blue) and $n=5$ (in orange). In (

**b**), we compute ${\mathrm{D}}_{\mathrm{K}\mathrm{L}\mathrm{n}}(X)$ for $n=4$ and the data of length $N=2000$ (blue). We generate 400 random walks $\widehat{X}$ (associated with X) of length $N=2000$ and compute ${\mathrm{D}}_{\mathrm{K}\mathrm{L}\mathrm{n}}(\widehat{X})$ for each. The mean and errors are plotted in gray.

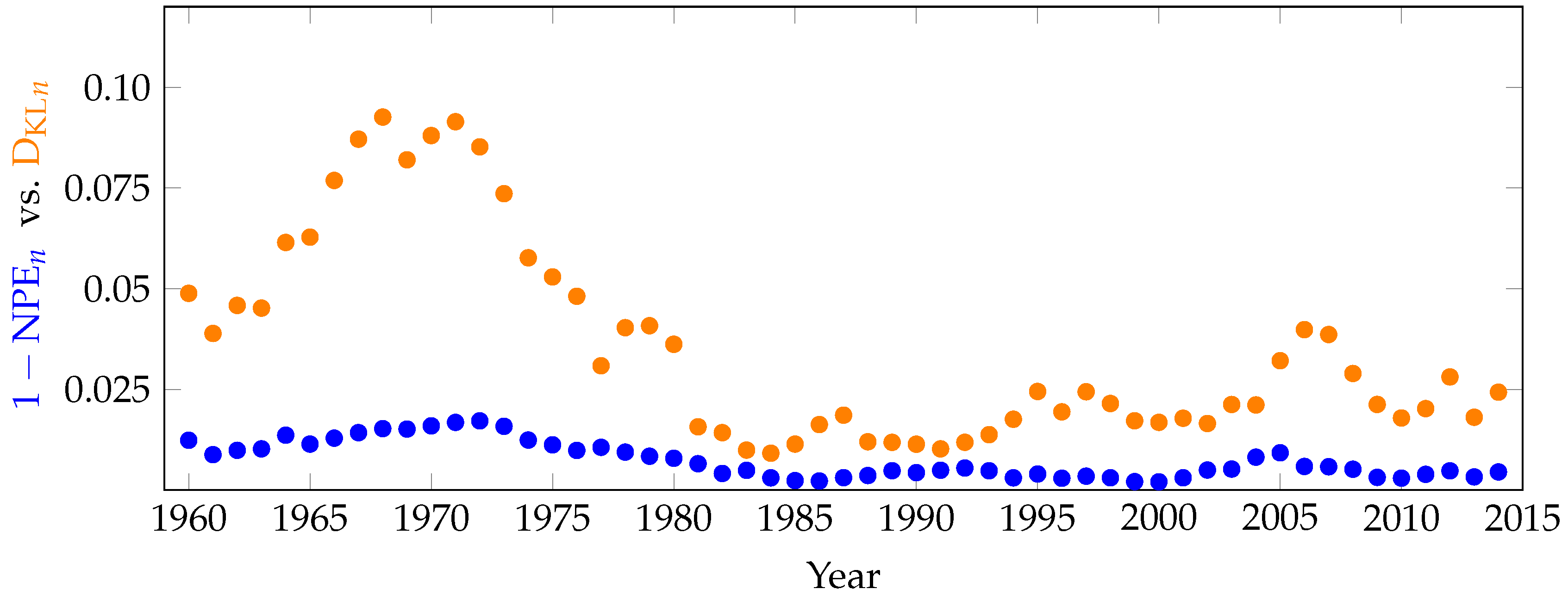

**Figure 10.**Computation of ${\mathrm{D}}_{\mathrm{K}\mathrm{L}4}$ (orange) and the permutation entropy of the steps (blue) on historical S&P500 daily closing prices during each five-year window surrounding the year on the x-axis. Both of these metrics can be treated as a proxy for inefficiency, but the ${\mathrm{D}}_{\mathrm{K}\mathrm{L}4}$ provides significantly more information.

**Table 1.**Computations of permutation entropy and the number of forbidden patterns for a range of time series of length $N=2000$ described in Section 5. RAND, a sequence of 2000 uniform random numbers drawn between zero and one; N-DRIFT RW, a simulated random walk whose steps are drawn at random from the normal distribution with $(\mu ,\sigma )=(0.701832,14.945)$; NORM RW, a simulated random walk whose steps are drawn at random from the standard normal distribution, $(\mu ,\sigma )=(0,1)$; UNIF RW, a simulated random walk whose steps are drawn uniformly at random from the uniform distribution on the interval $[-0.5,0.5]$; MEX, average daily temperatures in Mexico City from 20 June 2011–31 December 2016.

Data | Forbidden Patterns | Permutation Entropy | ||||
---|---|---|---|---|---|---|

$\mathit{n}=4$ | $\mathit{n}=5$ | $\mathit{n}=6$ | $\mathit{n}=4$ | $\mathit{n}=5$ | $\mathit{n}=6$ | |

RAND | 0 | 0 | 48 | 0.999 | 0.992 | 0.970 |

NORM RW | 0 | 0 | 190 | 0.942 | 0.916 | 0.875 |

N-DRIFT RW | 0 | 0 | 207 | 0.932 | 0.900 | 0.857 |

UNIF RW | 0 | 0 | 216 | 0.930 | 0.899 | 0.855 |

MEX | 0 | 0 | 129 | 0.965 | 0.952 | 0.926 |

NYC | 0 | 0 | 115 | 0.962 | 0.950 | 0.924 |

SP500 | 0 | 0 | 199 | 0.938 | 0.907 | 0.863 |

GE | 0 | 2 | 210 | 0.937 | 0.906 | 0.863 |

HEART | 0 | 8 | 344 | 0.847 | 0.813 | 0.777 |
