Modeling and Analysis of Entropy Generation in Light Heating of Nanoscaled Silicon and Germanium Thin Films

Abstract

In this work, the irreversible processes in light heating of Silicon (Si) and Germanium (Ge) thin films are examined. Each film is exposed to light irradiation with radiative and convective boundary conditions. Heat, electron and hole transport and generation-recombination processes of electron-hole pairs are studied in terms of a phenomenological model obtained from basic principles of irreversible thermodynamics. We present an analysis of the contributions to the entropy production in the stationary state due to the dissipative effects associated with electron and hole transport, generation-recombination of electron-hole pairs as well as heat transport. The most significant contribution to the entropy production comes from the interaction of light with the medium in both Si and Ge. This interaction includes two processes, namely, the generation of electron-hole pairs and the transferring of energy from the absorbed light to the lattice. In Si the following contribution in magnitude comes from the heat transport. In Ge all the remaining contributions to entropy production have nearly the same order of magnitude. The results are compared and explained addressing the differences in the magnitude of the thermodynamic forces, Onsager’s coefficients and transport properties of Si and Ge.

1. Introduction

The study of transport phenomena and irreversible processes is necessary in the development of many technological devices. Multilayer systems are involved, for instance, in the development of new type of coats which have application as glues, filters, among others, as well as in thermoelectrics, optoelectronics, solar cells, thermal barriers, mirrors, etc. The effects of light incidence in some applications must be understood in order to know how heating affects the performance of the device. Secondary mirrors are used in solar energy concentration devices where high concentrated solar radiation heats them degrading their physical properties. An alternative to reduce heat flow in this process are photonic crystals which can be designed by minimizing the transferring of energy to the structure [1]. Semiconductor technology is being used to exploit the waste heat from various household and industrial processes as in electronic, automotive, and other industries. Development of new thermoelectric materials for that purpose has been rapid in past few years. The analysis of entropy production is being used to characterize materials as, for instance, in the case of ferromagnetic materials under the application of oscillating electromagnetic fields [2] or in the case of thermoelectric materials in thermal oscillating regimes [3,4]. The study of dissipation and irreversibility in different processes in physics and engineering is in the above context a useful tool to found optimization procedures. The minimum entropy production principle states that a system evolves in time reaching a minimum entropy production rate at the stationary state. This often establishes a relation between irreversible processes and optimal performance [5,6]. The investigation of these relationships in dielectric thin films constitutes the foundation of the understanding of behavior and performance of multilayer systems. This theme has attracted the interest of the scientific community [7–10] and it is the one we are interested in.

In this work, we address the problem of light heating of Si and Ge thin films and study in detail the contributions to the entropy production in the system. This involves irreversible processes associated with heat transferring, particle transport and generation of electron-hole pairs via light-matter interaction. The main interest in considering Si and Ge is due to their importance as constituent materials in the field of quantum dots, quantum wires and quantum wells [11]. Here, we quantify and compare the entropy generation as produced by dissipative fluxes both in the case of Silicon and Germanium thin films. We explain differences in terms of the transport properties of each material as well as the magnitude of thermodynamic forces producing fluxes. The modeling is based on balance equations of mass and energy obtained from fundamental principles of irreversible thermodynamics. They are solved by using a high order numerical method, the so called Spectral Chebyshev Collocation method [12,13], in order to validate solutions obtained from Wolfram Mathematica 10.0. The survey is as follows. In Section 2 we include a description of the physical model used to study the dissipative processes and entropy production in a semiconductor film. The model is obtained from basic principles of irreversible thermodynamics by means of a suitable choosing of thermodynamic forces and fluxes. This leads to identify six processes producing entropy in the system related with the heat transport. They are particle transport and generation-recombination of electron-hole pairs, besides the absorption of light in the medium through two mechanisms, namely, the generation of electron-hole pairs and the transferring of energy from the incident light to the lattice. The Chebyshev Collocation method is described at the end of this section. Our results concerning the stationary profiles of heat flux, particle density distributions and generation-recombination pairs rate as well as the associated entropy production to each dissipative process can be seen in Section 3, where it is also included a discussion focused to the understanding of the differences in the contributions to entropy production for Si and Ge. We end the article with some concluding remarks in Section 4.

2. Methods

2.1. The System

The considered system is schematically shown in Figure 1. It consists of a thin film (in grey) of Si (Ge) with thickness L. The incidence of the light beam is from the left as it can be seen. Air is assumed to the left of the film and a heat and particle source to the right. This last may be conceived like a substrate at constant temperature which conducts charged particles. In the left boundary we suppose that the film radiates energy at temperature $T(0)$ and losses heat by convection. In the right boundary the temperature is fixed with value $T(L)=T_0$ and $n(L)=n_0(T_0)$, $p(L)=p_0(T_0)$, where $n_0$ and $p_0$ are the electron and hole densities at the fixed value of temperature $T_0$. Initial conditions are represented by uniform distributions of temperature and particle densities.

2.2. Mathematical Model

Due to the progress in the microscaling techniques the film thickness may be reduced to become comparable to the phonon mean free path (PMFP). When the thickness is below the PMFP the heat and charged particles transport regime becomes of the ballistic type. This may make necessary to use a radiative transport equation to describe energy transfer [14]. Otherwise, the transport pertains mainly to the diffusive regime. In this work, the film thickness of the film is constrained to be above the PMFP in such a way that the classical constitutive equations together with continuity and energy conservation equations represent a valid autonomous mesoscopic theory to describe heat and particle transport in the system. Combination of the internal energy conservation and the continuity equations for electron and holes densities with suitable constitutive equations leads to a transport model where the incident light energy is incorporated as a volumetric heat source to account for the absorption of energy by the medium. The three so obtained equations can be solved with the above boundary conditions for the temperature and the particle densities to obtain the space distribution of quantities of interest.

We then start by stating the basic assumptions made to formulate the governing equations of densities and fluxes [15]: (a) The system is considered as constituted by the host lattice (a particle and heat conductor rigid solid) and two species, namely, electrons and holes subjected to drift and diffusion. This system is denoted here on as LEH. The lattice is assumed to be non-magnetizable; (b) Each of the three components (lattice, electrons and holes) is locally in thermodynamic equilibrium; (c) They are able to interchange energy with each other by various scattering mechanisms; (d) The three components are in thermal equilibrium; (e) The admissible states of electrons and holes are determined by their particle densities and chemical potentials, as well as the local equilibrium temperature. For the case of the host lattice its physical states are defined solely by its temperature; (f) The internal electric energy is of electrostatic nature and the associated field is given by Poisson equation (Equation (A32) below). The electric potential $\phi$ is not a dynamic variable. For a more detailed discussion about this point see [15]; (g) The whole system is thermally coupled to the ambient and the electromagnetic field of the incident light.

Some comments on condition d) are in order. The thermal equilibrium among species in the system is reached if one assumes that electrons in the conduction band do not have enough energy to produce effects such as tunneling and others, but they only stay in the conduction band and then recombine with holes. This assumption is supported by the fact that there are no externally applied high electric fields that could provide the energy needed for the electrons tunnel out of the material. This led us to write the particle flows with constant mobility and diffusion coefficients. In this situation, both the lattice and the populations of electrons and holes are not far from the equilibrium, which allows us to assume that they are in thermal equilibrium with the lattice. It must be noted that inhomogeneities in the electron density and local cross effects in the system (as Seebeck’s) make the electrons in the conduction band flow during the time they stay in the conduction band.

The model derived from the above assumptions is obtained along basic principles of irreversible thermodynamics. In order to make this paper self-contained the thermodynamic formalism is exposed in detail in Appendix A (see also [16]).

2.3. The Reduced Model

The resulting equations are very complicated and highly non-linear. They were simplified through a dimensional analysis. The final form of the dynamic equations used to describe heat and particle transport can be seen below in Equations (1)–(3). They were obtained from Equations (A1) and (A2) and (A34) with Equations (A26)–(A28) and (B1) and the dimensional analysis found in Appendix C. The continuity and energy conservation dimensional equations for the stationary state read as follows:

$$\begin{array}{l}{K}_B{L}_{11}T(x){\left(\frac{\partial n}{\partial x}\right)}^2-2K_B{L}_{11}n(x)\frac{\partial T}{\partial x}\frac{\partial n}{\partial x}+K_B{L}_{11}T(x)n(x)\frac{{\partial }^{2}n}{\partial x^2}\\ -\left(L_{13}+K_B{L}_{11}Log\left(\frac{n}{N_c}\right)\right)n{(x)}^2\frac{{\partial }^{2}T}{\partial x^2}=0,\end{array}$$

(1)

$$\begin{array}{l}-K_B{L}_{21}T(x){\left(\frac{\partial p}{\partial x}\right)}^2+2K_B{L}_{21}p(x)\frac{\partial T}{\partial x}\frac{\partial p}{\partial x}+K_B{L}_{21}T(x)p(x)\frac{{\partial }^{2}p}{\partial x^2}\\ -\left(L_{23}-K_B{L}_{21}Log\left(\frac{p}{N_v}\right)\right)p{(x)}^2\frac{{\partial }^{2}T}{\partial x^2}=0,\end{array}$$

(2)

$$L_{35}\frac{{\partial }^{2}T}{\partial x^2}+P=0,$$

(3)

where $n(x)$ and $p(x)$ are the particle densities of electrons and holes, respectively, $T(x)$ is the thermal equilibrium temperature of the electrons, the holes and the lattice. The quantities $L_{ij}$ are Onsager’s coefficients described in Appendix A, while $P(x)$ is the energy of incident light transferred as heat to the lattice. $K_B$ is the Boltzmann’s constant. It is worth mentioning that in the stationary state the generation rate of electron-hole pairs equals the net recombination rate, i.e., $R-G=0$. This is the reason why the term $R-G$ does not appear in Equations (1) and (2). The complete reduced equations can be seen in Appendix C.

The potential function $\phi$ of the self-consistent electric field is given by Poisson’s Equation, transcribed here from Appendix A:

$$\frac{\partial }{\partial x}\left(\epsilon \frac{\partial \phi }{\partial x}\right)=q\left(n-p\right)$$

(A32)

In the next section we establish the boundary conditions accompanying Equations (1)–(3).

2.4. Boundary Conditions

Boundary conditions (b.c.) for temperature and particle densities have been extensively studied [17–19]. We assume here radiation and convective b.c. for the temperature equation, Equation (3), at the left hand side of the film and Dirichlet b.c. at the right hand side. The last implies that the system is in contact with a heat and particle reservoir at a constant temperature $T_0$ at $x=L$. The thermal b.c. are then written as:

$${K\frac{\partial T}{\partial x}|}_{x=0}=h\left(T\left(0\right)-T_{\infty }\right)+\epsilon \sigma \left(T{\left(0\right)}^4-T_{\infty }{}^4\right)$$

(4)

$$T\left(L\right)=T_0$$

(5)

In expression (4), h is the convection coefficient of the air surrounding the thin film on the left and $\epsilon$ and $\sigma$ the emissivity of the material and the Stephan-Boltzmann constant, respectively.

For the particle density equations, Equations (1) and (2), zero particle flux is assumed at the left hand side of the film while at the right hand side b.c. are $n(L)=n_0(T_0)$ and $p(L)=p_0(T_0)$. These conditions read as follows (see Equations (A26) and (A27) in Appendix A)

$$\begin{array}{l}{\left(L_{11}\frac{\partial {\nu }_n}{\partial x}-L_{12}{E}_x-L_{13}\frac{\partial T}{\partial x}\right)|}_{x=0}=0,\\ {\left(-L_{21}\frac{\partial {\nu }_p}{\partial x}+L_{22}{E}_x-L_{23}\frac{\partial T}{\partial x}\right)|}_{x=0}=0\end{array}$$

(6)

$$\begin{array}{l}n\left(L\right)=N_c{e}^{-\frac{E_g}{2K_B{T}_0}}\\ p\left(L\right)=N_v{e}^{-\frac{E_g}{2K_B{T}_0}}\end{array}$$

(7)

As it can be seen, the electron and hole densities have been written in terms of their equilibrium values at temperature $T_0$ in $x=L$. In Equations (6) and (7)$N_c$ and $N_v$ are the densities of states in the conduction and the valence band, respectively, and $E_g$ is the gap energy of the material. Note that, as it can be shown, the continuity equations do not support a finite solution if the particle fluxes are zero at both sides of the film and therefore the steady state for particle densities does not exist. This is due to the fact that the incident light acts as a continuous source of particles in the system and the walls would be preventing the passage of particles outside. Finally, the b.c. for the electric potential $\phi$ in Poisson equation, Equation (A32), is taken of Dirichlet type [20]. This condition fixes the zero level of electric potential energy at the film walls. It is given as

$$\phi (0)=\phi (L)=0.$$

(8)

2.5. Solutions for n, p and T

In this short section, we describe how the solutions of the stationary Equations (1)–(3) with b.c. Equations (4)–(8) are obtained. First we note that the temperature field becomes decoupled from Equations (1) and (2). We then find an analytical solution of Equation (3) for the stationary state, obtained with Wolfram Mathematica 10.0, where the source term is taken from Equations (B1). It reads

$$T(x)=k_{0T}+k_{1T}{e}^{-ax}+k_{2T}{e}^{-bx}+k_{3T}x$$

(9)

For numerical values of the constants in the above equation see Appendix D. Afterwards the continuity Equations (1) and (2) are numerically solved for n and p with Mathematica and the solutions validated with a high order numerical method described in the next subsection.

2.6. Spectral Chebyshev Collocation Method

The numerical method used here is based on the Spectral Chebyshev Collocation (SCC) method which assumes that an unknown Partial Differential Equation (PDE) solution can be represented by a global, interpolating, Chebyshev partial sum. This form is often convenient, particularly if the solution is required for some other calculation where its rapid and accurate evaluation is important. In a finite-difference method, the approximation of a derivative at a grid point involves only very few neighboring grid values of the function, while the Chebyshev approximation involves all the grid values. The global character of spectral methods is beneficial for accuracy. Once the finite Chebyshev series representing the solution is substituted into the differential equation the coefficients are determined so that the differential equation is satisfied at certain points within the range under consideration. In this spectral method, the PDE equation is required to be satisfied exactly at the interior points, namely, the Gauss-Lobatto collocation points given by

$$x_i=\cos \left(\frac{i\pi }{N}\right)$$

(10)

with $i=1,\mathrm{...},N-1$.

In Equation (10)N denotes the size of the grid. The number of points is chosen so that, along with the initial or boundary conditions, there are enough equations to find the unknown coefficients. The positions of the points in the range are chosen to make small the residual obtained when the approximate solution is substituted into the differential equation. The range in which the solution is required is assumed finite, and, for convenience, a linear transformation of the independent variable is made to make the new range (−1, 1).

Finally, an additional property of the spectral methods is the easiness with which the accuracy of the computed solution can be estimated. This can be done by simply checking the decrease of the spectral coefficients. There is no need to perform several calculations by modifying the resolution, as is usually done in finite-difference and similar methods for estimating the “grid-convergence”. A further explanation of this spectral method can be found in [12,13].

The spatial derivative terms in Equations (1) and (2) were expressed on derivative matrices expanded on Chebychev polynomials. The matrix-diagonalization method was used to solve the coefficient equation system in physical space directly. A coordinate transformation was necessary either to map the computational interval to −1 < x < 1.

In Section 3 we report and discuss our results concerning the temperature and particle density profiles in the stationary state as well as the contributions to the entropy production.

3. Results and Discussions

In this section, our main results are displayed and discussed. They were obtained by using the values for Silicon (Si) and Germanium (Ge) parameters given in

Table 1. Values of physical constants. $K_0$ is the thermal conductivity, $\rho$ is the thermal resistivity, $g_n$ and $g_p$are electric conductivities of electrons and holes, respectively, $E_g$ is the gap energy, $\alpha$ is the absorption coefficient and $\eta$ is the refractive index.

Material	$K_0$$(W/mK)$	$\rho$$\left(mK/W\right)$	$g_n$$(1/m\Omega )$	$g_p$$(1/m\Omega )$	$E_g$$(eV)$	${\alpha }_{}$$(1/m)$	$\eta$
Si	$148$	$0.0067$	$0.0002$	$0.00003$	$1.12$	$1\times {10}^7$	$4.01$
Ge	$59.9$	$0.0167$	$1.601$	$0.47$	$0.66$	$7\times {10}^7$	$4.01$

and Appendix D. The assumed value of the electric field of the incident light is $E_0=613.99N/C$ which corresponds to the intensity of the solar light on earth. The film thickness is 100 $nm$. The convection coefficient of the air surrounding the thin film on the left is taken as $h=5$$W/m^{2}K$ and the emissivity $\epsilon$ is 0.88 and 0.09 for Si and Ge, respectively. Finally, the reference temperature is $T_0=330$ K.

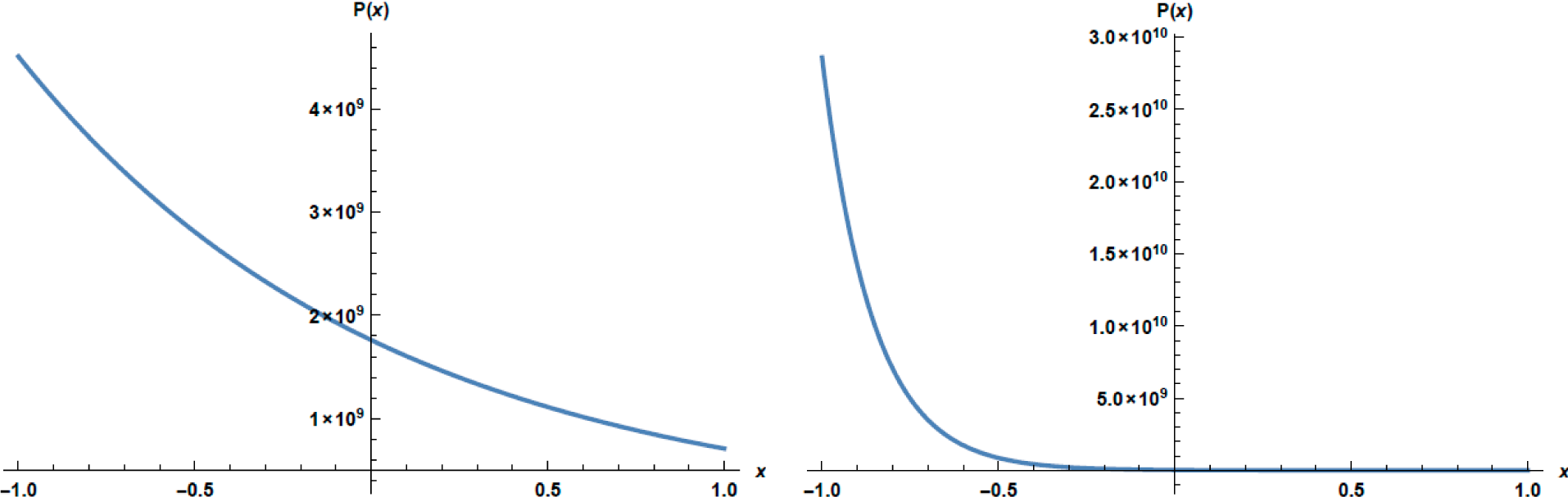

In Figure 2, it can be seen the source term $P(x)$ of the energy conservation equation as a function of the position within the material. The x domain has been redefined from $[0,L]$ to $[-1,1]$ in this and the following figures. P decays much faster in Ge than in Si. In Ge it diminishes almost one order of magnitude in the first third of the length of the medium, while in Si it decrements more or less a half of one order of magnitude in the whole length of the device. Moreover, in $x=-1$ its magnitude in Ge is greater than in Si by almost one order of magnitude. The behavior of P in the profile allows one to understand some of the following results shown in Figures 3–8.

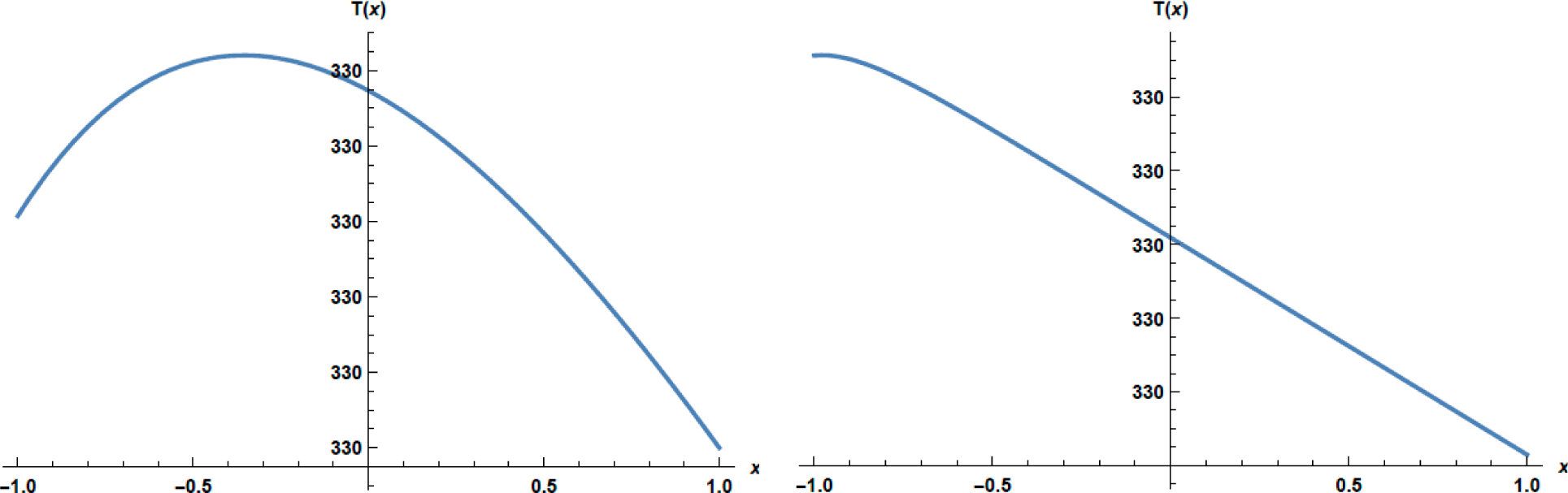

In Figure 3, we present the stationary temperature profile for Si (left) and Ge (right) films. We remark the parabolic-like form of the profile in both cases. As mentioned, $T(x)$ was obtained by analytically solving Equation (3) in the stationary state with the b.c. (4) and (5). The temperature in the profile is strongly influenced by $P(x)$ in the energy conservation equation. The displacement of the maximum of temperature to the left in both cases (Si and Ge) is due to the decaying behavior of $P(x)$ shown in Figure 2.

The stationary electron densities in the profile can be seen in Figure 4 where the left graph corresponds to Si and that on the right to Ge. They were obtained by solving Equation (1) in the stationary state. It can be seen how the temperature gradient produces a redistribution of the electron density in the profile.

In Figure 5 it can be seen the stationary hole densities in the profile. The figure on the left corresponds to Si and that on the right to Ge. The displacement of the maximum density to the left in the case of Ge is due to the extreme position of its maximum temperature as seen in Figure 3. Ultimately this is a result of the spatial distribution of the light energy transferred to the lattice as inner energy.

Note that the electron and hole densities for Ge are bigger by a factor of ${10}^3$ and of ${10}^4$ than those for Si, respectively. This can be understood in terms of the difference in the gap energy in Ge which is smaller than that of Si (see Table 1 above). All the particle profiles shown in Figures 4 and 5 were obtained by solving Equations (1) and (2) with the stationary profile of the temperature in the system and b.c. (6) and (7) for the particle densities and (8) for the electric potential.

A few words on the dissipative flows are appropriate at this point. The result obtained for the heat flux from the numerical temperature distribution (Equation (C3)) shows that it is directed outwards the device in the part of the spatial domain to the left of the maximum temperature. On the right of this maximum, it is also directed outwards. This behavior is found for both Si and Ge. Moreover, in the case of Ge a constant positive value is observed in practically the whole right part of the domain. The electron and hole fluxes have a different behavior. The electrons flow toward the left side in all the domain of the film while the holes flow towards the constant temperature side. In this way, the fluxes oppose one another in the spatial domain. The generation-recombination of electron-hole pairs vanishes in the whole domain as a consequence of the stationary condition, namely $-R+G=0$.

Our next graphs concern the contributions to the entropy production from different dissipative processes. They can be seen in Figures 6–8, where the cases of Silicon and Germanium have been plotted on the left and on the right respectively. We begin with the entropy produced by the heat flux in Figure 6. Both graphs have a minimum entropy production which coincides with the position of the maximum temperature in the profile (Figure 3) where the heat flux vanishes.

The entropy produced by the transport of electrons and holes through the lattice for both Si and Ge can be seen in Figure 7. As appreciated in the figure, the entropy production due to the particle fluxes is O( ${10}^{-5}$) for electron flux in the case of Si, while it is O( ${10}^{-2}$) for Ge; for holes they are O( ${10}^{-5}$) and O( ${10}^{-1}$), respectively. The outstanding differences among the respective entropy productions can be explained if one considers two facts: first, the magnitude of the entropy production is mostly determined by the term in the chemical potential derivative in Equations (A26) and (A27) for electrons and holes. From this it is inferred that the entropy production is determined by the coefficients $L_{11}$ and $L_{21}$ for electrons and holes, respectively. Accordingly with Appendix D$L_{11}$ and $L_{21}$for Ge are bigger by a factor of ${10}^4$ than the values of the same coefficients for Si. It is worth mentioning the fact that the entropy production increases toward the constant temperature side in all cases. This is explained by the fact that the particle flux also increases toward the same side.

In Figure 8, we show the entropy produced by the interaction of the light with matter transferring energy to the lattice. Clearly, it dominates over all other dissipative processes in the LEH system by almost 10 orders of magnitude. The spatial distributions nearly follow the shape of the spatial distributions of the source term P in Figure 2. The final figure of this sequel is that of the partial entropy production defined as

$${\mathrm{\sigma }}_{PARTIAL}={\mathrm{\sigma }}_{Jq}+{\sigma }_{Jn}+{\mathrm{\sigma }}_{Jp}+{\mathrm{\sigma }}_{RG}$$

(11)

This can be seen in Figure 9, where it was plotted by omitting the contribution of the entropy produced by the light-matter interaction. If this last is included, the graphs look like the graphs of the entropy production due to the transferring of energy from light to the lattice (Figure 8) hiding the contribution of all other dissipative effects. Anyway, they adopt the general features of the dominant contribution, i.e., the entropy produced by heat transport in the case of Si and the joint effect of all the contributions in the case of Ge.

We finalize this section by showing the global values (the entropy is integrated in the spatial domain) of the contributions to entropy production and the total value of it for Si and Ge.

Table 2. Comparison of global contributions to the entropy production from different dissipative processes: Heat flux ( $J_q$), electron flux ( $J_n$), hole flux ( $J_p$), electron-hole generation-recombination processes (R and G) and conversion of energy light in heat (P). It is also included the electron and hole mean densities.

Material	${\sigma }_{J{q}_{global}}$$\left(\frac{J}{K{m}^{3}s}\right)$	${\sigma }_{J{n}_{global}}$$\left(\frac{J}{K{m}^{3}s}\right)$	${\sigma }_{J{p}_{global}}$$\left(\frac{J}{K{m}^{3}s}\right)$	${\sigma }_{RG}$$\left(\frac{J}{K{m}^{3}s}\right)$	${\sigma }_{P_{global}}$$\left(\frac{J}{K{m}^{3}s}\right)$	${\sigma }_{Partia{l}_{global}}$$\left(\frac{J}{K{m}^{3}s}\right)$	$n_{mean}$$\left(\frac{1}{m^3}\right)$	$p_{mean}$$\left(\frac{1}{m^3}\right)$
Si	1.891 × 10−3	7.732 × 10−6	5.599 × 10−5	0	1.232 × 107	1.959 × 10−3	1.155 × 1016	4.538 × 1015
Ge	4.662 × 10−2	2.381 × 10−2	7.999 × 10−2	0	1.238 × 107	1.599 × 10−1	2.567 × 1019	1.634 × 1019

contains the data of such values corresponding to heat flux, electron and holes fluxes and generation-recombination processes, light energy conversion in heat, as well as the total entropy production without the contribution due to the light energy conversion.

4. Conclusions

In this final section, some further comments are included. First, we would like to comment on the experimental support needed for any theoretical whose aim is to describe a physical phenomenon. Next, we try to justify our numerical model and finally we make general comments on our results.

Up to the best of the author’s knowledge there are not experimental observations that can be used to support the results obtained in this work. In fact, this work has been conceived to motivate experimentalists to address the problem of the use of entropy production criterion to optimize thermal nanostructured devices. Our aim here is to establish a theoretical and numerical basis to address that problem. Nevertheless, the continuity equations in our model (Equations (1) and (2)) admit an analytical solution if the temperature is assumed constant in the domain (as indeed it is). We have compared the numerical solutions with the analytical one and have found a great agreement. It seems to us that this could justify in some extent the used numerical model.

The following are final comments on our results.

(a) It is noted that the temperatures of Si and Ge depend on several factors but mainly on the temperature of heat source at $x=1$. As a matter of fact, the profile in both cases shows an almost flat shape due to the contact of the film with the heat source at a temperature $T_0$. Its spatial distribution is also determined by the magnitude of the absorption coefficient and the energy input due to the incident light at $x=-1$, as well as the b.c. at the same position. (b) We note that all the profiles in Figures 3 and 5 corresponding to the temperature and the particle densities show an extreme value at some position where the fluxes vanish (in fact, for the particle densities this position is at $x=-1$). This is the reason why the corresponding contributions to the entropy production show a minimum (in fact, they vanish) at the same position. c) We refer now to the different contributions to entropy production displayed in Figures 6 and 8 and the global values shown in Table 2. It is seen that the conversion of light energy in heat (P) is the dominant irreversible process in both Si and Ge. After this, the hole transport process is the most important in Ge while in Si is the heat transport. In Ge the remaining contributions (due to heat flux and electron transport) are on the same order of magnitude. In both materials, the smallest contributions to the entropy production are the generation-recombination of electron-hole pairs which vanish by the stationary condition. d) The fact that the entropy production due to particle transport (both electrons and holes) is bigger for Ge than for Si can be understood if one pays attention to the differences in the magnitude of Onsager’s coefficients $L_{11}$ and $L_{21}$. As shown in Appendix D, they are bigger by a factor of ${10}^4$ in Ge than in Si. Their chemical potential gradients are on the same order. e) The entropy produced by heat transport process is bigger in the case of Ge than that of Si. The temperature gradient is responsible for this difference since in the case of Ge it is one order of magnitude bigger than in the case of Si. The thermal conductivities are on the same order. f) The summed global contributions to entropy production excepting those coming from the transferring of the energy of incident light into the material is represented in Table 2 by ${\sigma }_{Partia{l}_{global}}$.

To conclude, we summarize this work as follows. We have calculated the contributions to the entropy production in Si and Ge thin films with light incidence. The system was considered to be constituted by the lattice and two different species, namely, electrons and holes. The model was based on principles of irreversible thermodynamics. Heat transfer, particle transport and electron-hole generation-recombination processes were included as well as light-matter interaction. The final form of balance and constitutive equations for electron density, holes density, internal energy, heat flux, electron flux, holes flux and recombination processes, respectively, is shown in Appendix A in Equations (A1) to (A8). We have seen that the relative magnitude of thermodynamic forces, Onsager’s coefficients and transport coefficients determine and explain the relative magnitude of the contributions to the entropy generation in the two materials considered. The most significant contribution to the entropy production comes from the interaction of light with the medium in both Si and Ge. This interaction includes two processes, namely, the generation of electron-hole pairs and the transferring of energy from the absorbed light to the lattice. The last is the dominant irreversible process in the LEH system for both Si and Ge.

The results contained in this work may be useful to the design of thin films used in electronic industry where the control of irreversible processes is an important issue.
