Performance Analysis of a Coal-Fired External Combustion Compressed Air Energy Storage System
2. Coal-Fired CAES

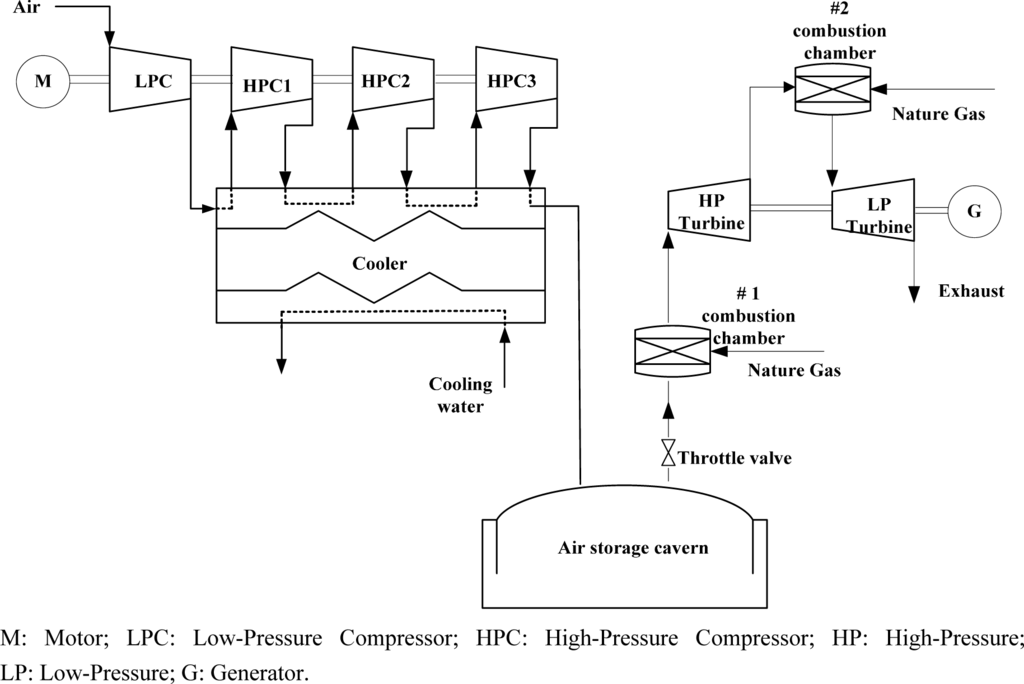

2.1. Introduction of the Traditional CAES
2.2. Proposed Coal-Fired CAES
2.3. Parameter Selection
3. Simulation of the Proposed Coal-Fired CAES
3.1. Evaluation Criterion
3.2. Process Simulation
3.3. Thermodynamic Performance Analysis

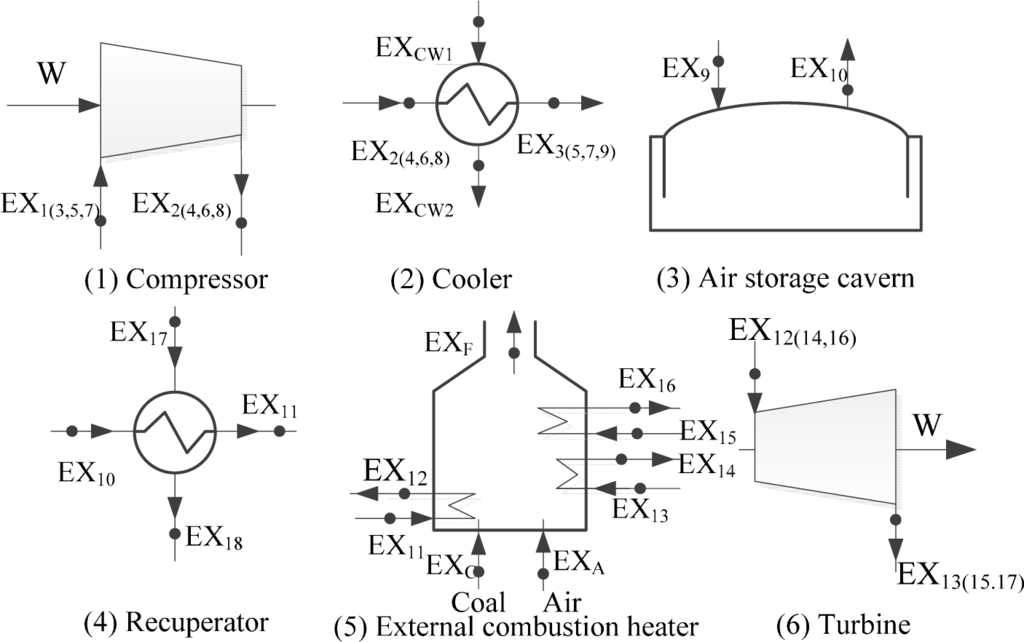

4.1. Exergy Analysis
4.2. Techno-Economic Analysis
4.2.1. Investment Cost Estimation of CAES Plant

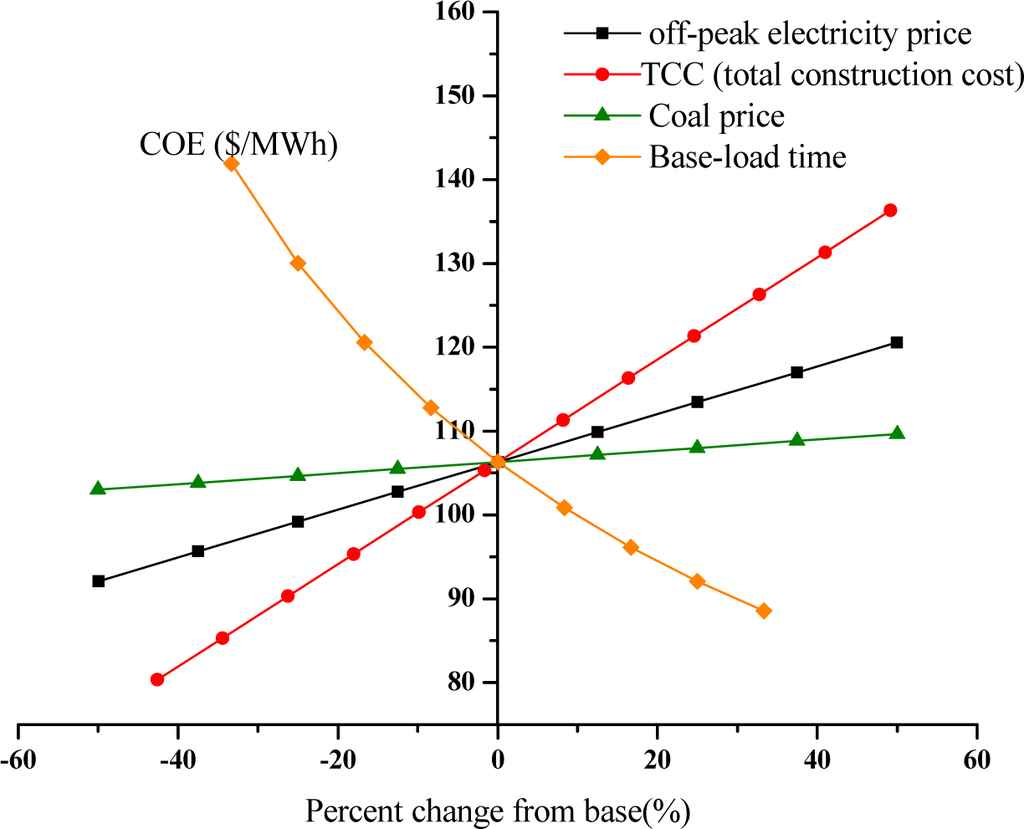

4.2.2. Sensitivity Analysis
- For most of the “Three Norths” area in China, the off-peak electricity price can be reduced to $40/MWh at most, which means more effort should be devoted to regulating the grid purchase price to further reduce the COE. The on-peak electricity price in most areas in China is about $96/MWh to $130/MWh , exceptionally; however, this price can reach up to $193/MWh in some areas (e.g., Beijing) . Hence, more power generated by the CAES plant should be delivered to these areas. Corresponding policies should be implemented for the energy storage plants. For example, more government subsidies should be provided to regulate the grid purchase price of energy storage plants. The power grid should be more mature.
- In this study, the construction cost of the coal-fired CAES plant is estimated by referring to the existing CAES plants. The investment cost of the air storage cavern is about 16% of the total construction cost. Such a cost can be reduced significantly if suitable air storage caverns are discovered. The cost of the low-temperature turbine is also relatively low because of the low requirement for high temperature resistance. These two factors are beneficial to reduce the TCC of the coal-fired CAES plant.
- Power grids are becoming more complicated to regulate when renewable power is in parallel with the power grid. Therefore, more peak load shaving units will be needed, and CAES can make a contribution. In this way, more power can be stored to then generate more electricity annually by the CAES plant to provide more effective power peak load shaving. Therefore, the base-load time is increased, thereby significantly reducing the COE of the CAES plant.
- The improvement of the equipment performance and system configuration makes the system perform well. The recuperator reduces the exhaust heat loss considerably and increases the outlet air temperature of the gas storage cavern. However, the combustion efficiency and heat exchange efficiency of the external heater are lower than those of the combustion chamber. As a result, the overall efficiency of the coal-fired CAES reaches 48.37%, higher than that of the Huntorf CAES, but lower than the improved Huntorf CAES, noting that the efficiency of the electricity of the proposed CAES is the highest.
- The exergy efficiency of the proposed coal-fired CAES is 47.22%, approximately 7% higher than that of Huntorf. This improvement is mainly attributed to the decrement of the exergy of the exhaust stream; the largest exergy destruction observed in the external combustion heater. Therefore, the exergy efficiency can be further improved through measures, such as optimizing the external combustion heater. Additionally, the cooling compression heat exergy is wasted in vain, so utilizing the cooling compression heat properly can also increase the exergy efficiency.
- In terms of techno-economic performance, the COE of the coal-fired CAES is $106.33/MWh, which is 26% lower compared to the conventional NG-fuel CAES with a similar capacity. The reason is that the price of NG is far higher compared to that of coal. Sensitivity analysis is conducted by varying factors, such as off-peak electricity price, coal price, total construction cost and annual base-load time. The proposed CAES will be more competitive if the following conditions are addressed: (i) the power grid should be improved to encourage energy storage plants with the least delay possible; (ii) the cost of a low-temperature turbine is lower; the total construction cost can also be reduced provided that a suitable cavern is found; (iii) more power can be stored to enable the CAES plant to generate more power for power peak load shaving.
Conflicts of Interest
- Chen, H.S.; Cong, T.N.; Yang, W.; Tan, C.Q.; Li, Y.L.; Ding, Y.L. Progress in electrical energy storage system: A critical review. Prog. Nat. Sci. 2009, 19, 292–294. [Google Scholar]
- Fernandes, D.; Pitie, F.; Caceres, G.; Baeyens, J. Thermal energy storage: “How previous findings determine current research priorities”. Energy 2012, 39, 246–257. [Google Scholar]
- Gil, A.; Medrano, M.; Martorell, I.; Lazaro, A.; Dolado, P.; Zalba, B.; Cabeza, L.F. State of the art on high temperature thermal energy storage for power generation. Part 1—Concepts, materials and modellization. Renew. Sustain. Energy Rev 2010, 14, 31–55. [Google Scholar]
- Delille, G.; Francois, B. A review of some technical and economic features of energy storage technologies for distribution system integration. Ecol. Eng. Environ. Prot. 2008, 1, 40–49. [Google Scholar]
- Zach, K.; Auer, H.; Lettner, G. Report summarizing the current Status, Role and Costs of Energy Storage Technologies; StoRE Project: Vienna, Austria, 2011. [Google Scholar]
- Cavallo, A.J. Energy storage technologies for utility scale intermittent renewable energy systems. J. Sol. Energy Eng 2001, 123, 387–388. [Google Scholar]
- Fertig, E.; Apt, J. Economics of compressed air energy storage to integrate wind power: A case study in ERCOT. Energy Policy 2011, 39, 2337–2338. [Google Scholar]
- Crotogino, F.; Mohmeyer, K.U.; Scharf, R; Huntorf, CAES. More than 20 years of successful operation, In Proceedings of Solution Mining Research Institute Meeting, Orlando, FL, USA, 15–18 April 2001.
- Zafirakis, D.; Kaldellis, J.K. Autonomous dual-mode CAES systems for maximum wind energy contribution in remote island networks. Energy Convers. Manag. 2010, 51, 2150–2161. [Google Scholar]
- Zhao, P.; Dai, Y.; Wang, J. Design and thermodynamic analysis of a hybrid energy storage system based on A-CAES (adiabatic compressed air energy storage) and FESS (flywheel energy storage system) for wind power application. Energy 2014, 70, 674–684. [Google Scholar]
- Kim, Y.-T.; Lee, Y.-H. A hybrid energy storage system using pump compressed air and micro-hydro turbine. Renew. Energy. 2014, 65, 117–122. [Google Scholar]
- Zunft, S.; Jakiel, C.; Koller, M.; Bullough, C. Adiabatic compressed air energy storage for the grid integration of wind power, In Proceedings of the 6th International Workshop on Large-Scale Integration of Wind Power and Transmission Networks for Offshore Windfarms, Delft, The Netherlands, 26–28 October 2006.
- Grazzini, G.; Milazzo, A. Exergy analysis of a CAES with thermal energy storage, In Proceedings of the 5th European Thermal Sciences Conference, Eindhoven, The Netherlands, 18–22 May 2008.
- Zhang, Y.; Yang, K.; Li, X.; Xu, J. The thermodynamic effect of thermal energy storage on compressed air energy storage system. Renew. Energy. 2013, 50, 227–235. [Google Scholar]
- National Bureau of Statistics of China. Available online: http://www.stats.gov.cn/tjsj/ndsj/2013/indexch.htm accessed on 31 December 2013. In Chinese.
- Pan, P.; Wang, X. Modern Drying Technology; Liu, X., Ed.; Chemical Industry Press: Beijing, China, 2006; pp. 1395–1399, In Chinese. [Google Scholar]
- Wang, Y. Configuration Analyses and Optimization Design of Hot-Blast Stove. Master’s Thesis, Harbin Institute of Technology, Harbin, China, 2006; pp. 12–15. [Google Scholar]
- Yuri, M.; Masada, I.; Tsukagoshi, K.; Ito, E.; Hada, S. Development of 1600°C-class high-efficiency gas turbine for power generation applying J-Type technology. Mitsubishi Heavy Ind. Tech. Rev. 2013, 50, 2–10. [Google Scholar]
- Gas Turbine World, Gas Turbine Word 2013 GTW Handbook; Volume 30, Pequot Publishing Inc: Fairfield, CT, USA, 2013; pp. 20–35.
- Shi, X.J.; Agnew, B.; Che, D.F.; Cao, J.M. Performance enhancement of conventional combined cycle power plant by inlet air cooling, inter-cooling and LNG cold energy utilization. Appl. Therm. Eng. 2010, 30, 2005–2006. [Google Scholar]
- Taylor, J.; Halnes, A. Analysis of compressed air energy storage, In Proceedings of PCIC Europe 2010 Conference Record, Oslo, Norway, 15–17 June 2010; pp. 1–5.
- Mao, J.X. The Road of High Efficiency Coal Power in China. accessed on 16 July 2014. Available online: http://www.esc.ethz.ch/events/seminars/Mao.pdf.
- Kim, Y.M.; Favrat, D. Energy and exergy analysis of a micro-compressed air energy storage and air cycle heating and cooling system. Energy 2010, 35, 213–220. [Google Scholar]
- Liu, W.; Liu, L.; Zhou, L.; Huang, J.; Zhang, Y.; Xu, G.; Yang, Y. Analysis and optimization of a compressed air energy storage-combined cycle system. Entropy 2014, 16, 3103–3120. [Google Scholar]
- Kim, Y.-M.; Lee, J.-H.; Kim, S.-J.; Favrat, D. Potential and evolution of compressed air energy storage: Energy and exergy analyses. Entropy 2012, 14, 1501–1521. [Google Scholar]
- Song, Z. Energy Conservation Principle; Water Power Press: Beijing, China, 1985; pp. 212–292, In Chinese. [Google Scholar]
- Szargu, J.; Stryrylska, T. Approximate determination of the exergy of fuels. Brennstoff-Warme-Kraft 1964, 16, 589–596. [Google Scholar]
- Desai, N.; Gonzalez, S.; Pemberton, D.J.; Rathjen, T.W. The Economic Impact of CAES on Wind in TX, OK, and NM; Ridge Energy Storage & Grid Services LP; Texas State Energy Conservation Office: Austin, TX, USA, 2005. [Google Scholar]
- Denholm, P.; Sioshansi, R. The value of compressed air energy storage with wind in transmission-constrained electric power systems. Energy Policy 2009, 37, 3149–3158. [Google Scholar]
- Drury, E.; Denholm, P.; Sioshansi, R. The value of compressed air energy storage in energy and reserve markets. Energy 2011, 36, 4959–4967. [Google Scholar]
- Schainker, R.B.; Abhi, R. Compressed Air Energy Storage Scoping Study for California; Report Number CEC-500-2008-069; Electric Power Research Institute: Palo Alto, CA, USA, November 2008; pp. 21–37. [Google Scholar]
- The peak and valley time price will carried out in Gansu province. Bjx Smartgrid Homepage. Available online: http://www.chinasmartgrid.com.cn/news/20140313/496662.shtml accessed on 13 March 2014.
- Bejing Municipal Commission of development and reform. Available online: http://www.bj.sgcc.com.cn/html/files/2014-01/23/20140123183233629433184.pdf accessed on 20 January 2014.
- The average price of steam coal in China. Available online: http://www.sxcoal.com/dlm/index.html accessed on 16 July 2014.
- Madlener, R.; Latz, J. Economics of centralized and decentralized compressed air energy storage for enhanced grid integration of wind power. Appl. Energy. 2013, 101, 299–309. [Google Scholar]
- Xu, G.; Wu, Y.; Yang, Y.; Zhang, K.; Song, X. A novel integrated system with power generation, CO2 capture, and heat supply. Appl. Therm. Eng. 2013, 61, 110–120. [Google Scholar]
- Intergovernmental Panel on Climate Change, 2006 IPCC Guidelines for National Greenhouse Gas Inventories; Institute for Global Environmental Strategies: Kanagawa, Japan, 2006.
|Energy storage subsystem||Working hours||h||8||8|
|Air mass flow||kg/s||108||108|
|Pressure ratio of high-pressure compressor||–||3||2.15|
|Pressure ratio of low-pressure compressor||–||3||6|
|Adiabatic efficiency of high-pressure compressor||%||86||80|
|Adiabatic efficiency of low-pressure compressor||%||86||82|
|Inlet air pressure of gas storage cavern||bar||82||46–72|
|Power generation subsystem||Working hours||h||2||2|
|Air mass flow||kg/s||417||417|
|Inlet pressure of high-pressure turbine||bar||64||42|
|Inlet temperature of high-pressure turbine||°C||580||550|
|Inlet pressure of intermediate pressure turbine||bar||25.6||–|
|Inlet temperature of intermediate pressure turbine||°C||580||–|
|Inlet pressure of low-pressure turbine||bar||5.12||11|
|Inlet temperature of low-pressure turbine||°C||580||825|
|Adiabatic efficiency of high-pressure turbine||%||88||85|
|Adiabatic efficiency of intermediate pressure turbine||%||90||–|
|Adiabatic efficiency of low-pressure turbine||%||90||85|
|LHV of coal||MJ/kg||29.31||29.31|
|LHV of nature gas||MJ/kg||50.03||50.03|
|Efficiency of external combustion heater||%||80||–|
|streams||T (°C)||P (bar)||M (kg/s)||streams||T (°C)||P (bar)||M (kg/s)|
|Parameter||Coal-fired CAES||Huntorf||Improved Huntorf|
|Main parametersof system||Power consumption by compressors (MW)||56.45||57.90||53.00|
|Generation of electricity power (MW)||317.15||295.55||306.31|
|Coal input (MJ/s)||429.85||–||–|
|NG input (MJ/s)||–||476.79||335.53|
|Power consumption by compressors||451.59||33.62||463.22||31.71||424.02||37.66|
|Exergy input of coal||889.80||66.24||–||–||–||–|
|Exergy input of NG||–||–||995.54||68.15||699.99||62.17|
|Generation of electricity power||634.29||47.22||590.97||40.46||612.61||54.41|
|Exergy of exhaust air||9.22||0.69||153.29||10.49||20.21||1.8|
|Sub-system of energy storage||–||–||–||–||–||–|
|Air storage room||27.96||2.08||35.78||2.45||34.98||3.11|
Sub-system of electricity generation
|External combustion heater||494.79||36.83||–||–||–||–|
|Total exergy output||1346.81||100.26||1455.12||99.61||1123.13||99.75|
|Error of exergy input & output (%)||−0.26||0.39||0.25|
|Exergy efficiency (%)||47.22||40.46||54.41|
|Compressor||11.67||Power Consumption: 56 MW|
|Turbine||47.55||Total Installed: 317 MW|
|Cooler||11.67||Heat Transfer Area: 714,400 ft2|
|Recuperator||3.31||Heat Transfer Area: 220,770 ft2|
|Air storage carven||31.70||12 h of storage|
|Cost, aboveground equipment||million $||161.67|
|Cost, cavern development||million $||31.70|
|Total construction cost||million $||193.37|
|Off-peak electricity price||$/MWh||40.00|
