Wire electrochemical discharge machining (WECDM) integrates the effectiveness of electrical discharge machining (EDM) with the superior quality of electrochemical machining (ECM), leading to enhanced machining efficiency, excellent surface finish, and significant potential for advancement. However, previous research has mainly focused on the processing of non-metallic materials, with little research in the field of the microfabrication of thick metal materials. The wire electrochemical discharge machining process with large aspect ratios is more complex. Accordingly, a unidirectional traveling wire electrochemical discharge micromachining (UWECDMM) method using a glycol-based electrolyte was proposed. The method employs a glycol solution with low conductivity and a neutral salt, facilitating enhanced mass transfer efficiency through a unidirectional traveling wire, and enabling the realization of high-efficiency, high-precision, and recast-free processing. The phenomenon of discharge in UWECDMM was observed in real-time with a high-speed camera, while the voltage and current waveforms throughout the machining process were carefully analyzed. It was found that electrolysis and discharge alternate. Experiments were conducted to investigate the wire traveling pattern, the recast layer, and the wear of the wire electrode. It was found that due to the small energy of a single discharge, the wear of wire electrodes is minimal after multiple uses and can be reused. Under optimal parameters, a machined surface without a recast layer can be obtained. In the final stages, a standard structure was machined on plates of 10 mm thickness made of pure nickel and 304 stainless steel, using a tungsten wire measuring 30 μm in diameter. The feed rate achieved was 1 μm/s, the surface roughness (Ra) measured 0.06 μm, and the absence of a recast layer confirmed the method’s sustainability and quality traits, indicating significant potential in microfabrication. Full article

With the development of MEMS, the machining demand and requirements for difficult-to-machine metal micro parts are getting higher. Microelectric discharge machining is an effective method to process difficult-to-machine metals. However, the recast layer caused by high temperatures in microelectric discharge machining affects the properties of machined materials. Here, we propose the wire electrochemical discharge micro-machining (WECDMM) and develop a new electrolyte system, which removes the recast layer. In this study, the mechanism of WECDMM was elucidated. The electrolyte was optimized through a comparison experiment, and NaNO₃-glycol solution was determined as the best electrolyte. The influences of key process parameters including the conductivity of the electrolyte, pulse voltage, pulse-on time and wire feed rate were analyzed on the slit width, standard deviation, the radius of fillet at the entrance of the slit and roughness. Typical microstructures were machined, which verified the machining ability of WECDMM. Full article

With the increasing application of three-dimensional pure aluminum microstructures in micro-electromechanical systems (MEMS) and for fabricating terahertz components, high-quality micro-shaping of pure aluminum has gradually attracted attention. Recently, high-quality three-dimensional microstructures of pure aluminum with a short machining path have been obtained through wire electrochemical micromachining (WECMM), owing to its sub-micrometer-scale machining precision. However, machining accuracy and stability decrease owing to the adhesion of insoluble products on the surface of the wire electrode in long-duration WECMM, which limits the application of pure aluminum microstructures with a long machining path. In this study, the bipolar nanosecond pulses are used to improve the machining accuracy and stability in long-duration WECMM of pure aluminum. A negative voltage of −0.5 V was considered appropriate based on experimental results. Compared with the traditional WECMM using unipolar pulses, the machining accuracy of the machined micro-slit and the duration of stable machining were significantly improved in long-duration WECMM using bipolar nanosecond pulses. Full article

With the development of fabrication technology for terahertz rectangular cavity devices, the fabrication process of integral terahertz waveguide cavities has received much attention because of its beneficial effect on improving the transmission of terahertz signals. However, smaller feature sizes, higher dimensional accuracy, and more stringent requirements for cavity surface roughness and edge radius make it difficult to manufacture terahertz waveguide cavities with a high operating frequency by using existing micro-manufacturing technology. At the same time, the smaller feature size also makes it more difficult to realize uniform metallization on the inner surface of a terahertz waveguide cavity. In this paper, a new and improved combined manufacturing process based on wire electrochemical micromachining and electrochemical deposition is proposed to realize the integral fabrication and uniform metallization of the inner surface of a high-frequency terahertz metal rectangular waveguide cavity. A detailed description and analysis of this combined process are carried out, together with corresponding experimental investigations. An integral 1.7 THz hollow-core metal rectangular waveguide cavity with an end-face size of 165.9 μm × 88.3 μm, an edge radius of less than 10 μm, an internal bottom surface roughness of less than 0.10 μm, and an internal side surface roughness of less than 0.40 μm was manufactured, and high-quality metallization of its inner surface was also achieved. Full article

Pure nickel microstructures have been widely used in MEMS and have great application potential as a sacrificial mandrel for fabricating terahertz micro-cavity components. The performance of MEMS and terahertz micro-cavity components can be significantly improved through the use of high-quality pure nickel microstructures. Up to now, microfabrication techniques, such as laser micromachining, wire electrical-discharge machining, and cold-spray additive manufacturing, have been used to machine various types of such microstructures. However, huge challenges are involved in using these micromachining techniques to fabricate pure-nickel microstructures with controllable size and good dimensional accuracy, surface roughness, and edge radius. In this paper, taking the example of a pure-nickel rectangular mandrel that corresponds to the size of the end face of a 1.7-THz rectangular waveguide cavity, the machining processes for the electrochemical deposition of pure-nickel microstructures with controllable size, high dimensional accuracy, and good surface roughness and edge radius are discussed systematically. This proposed method can be used to manufacture various types of high-quality pure-nickel microstructures. Full article

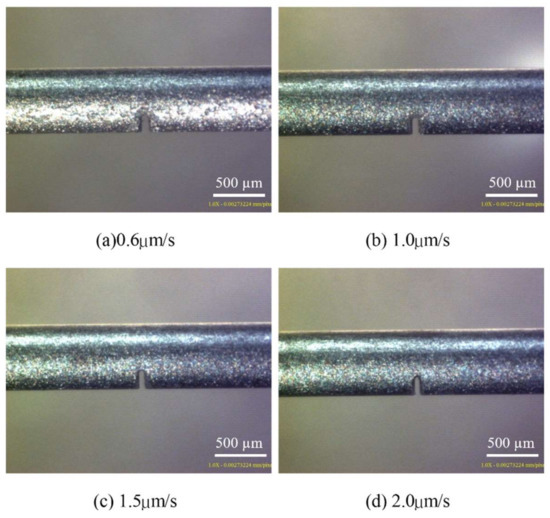

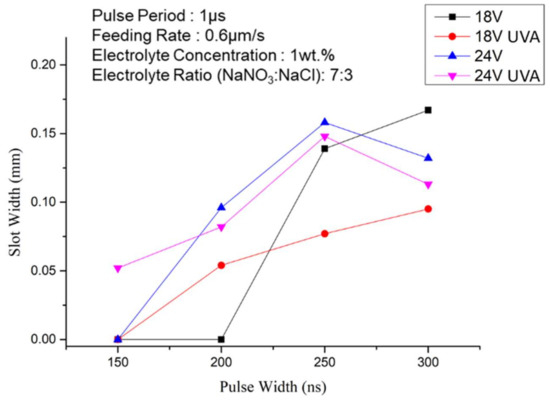

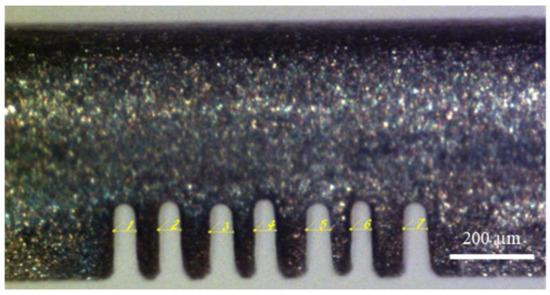

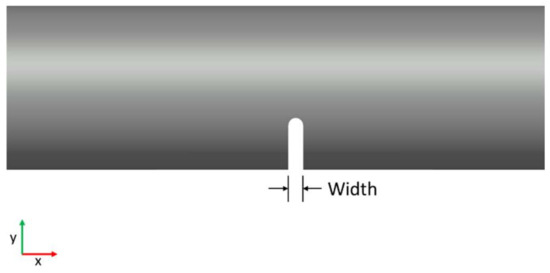

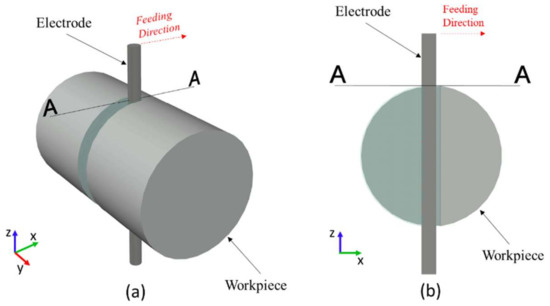

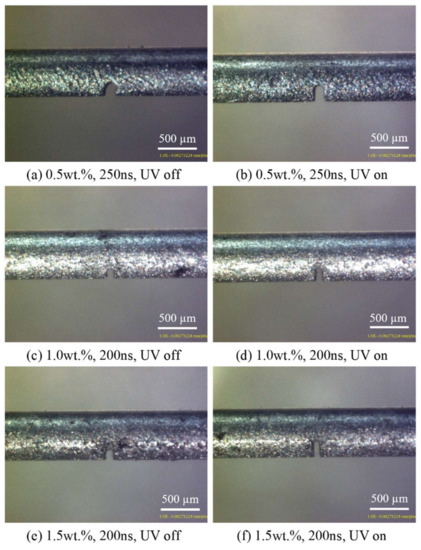

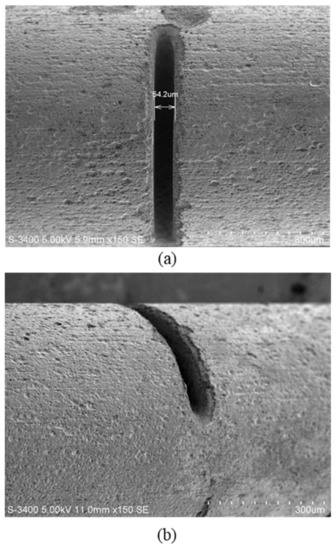

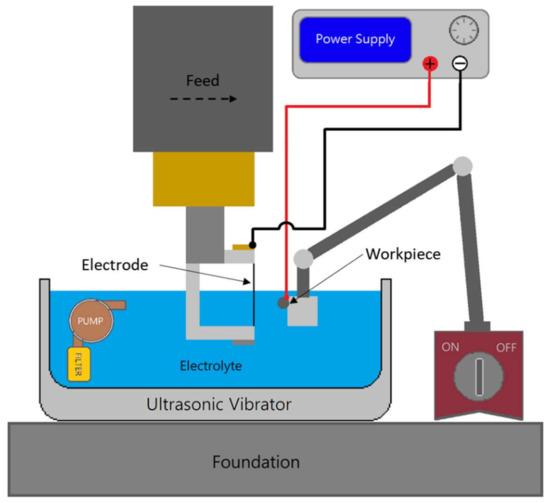

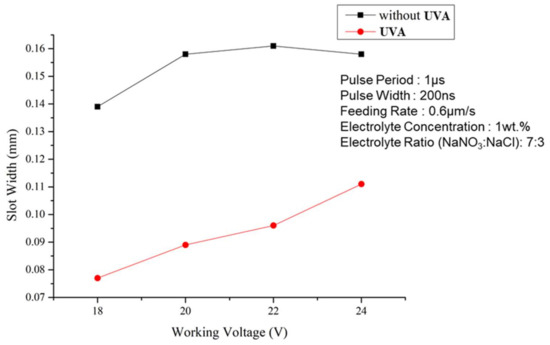

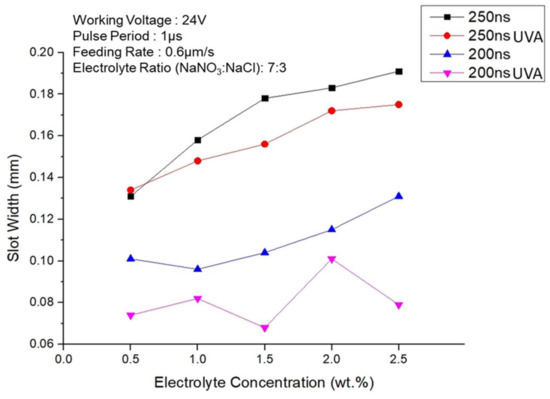

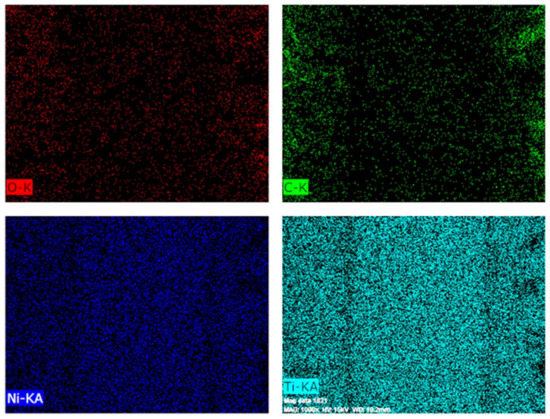

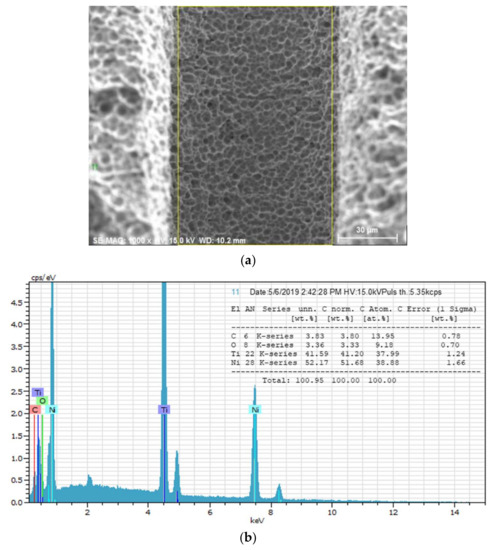

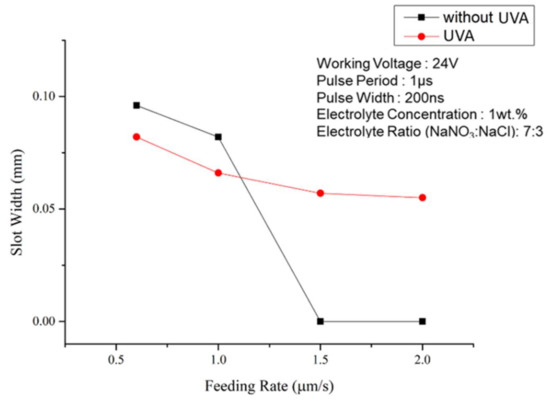

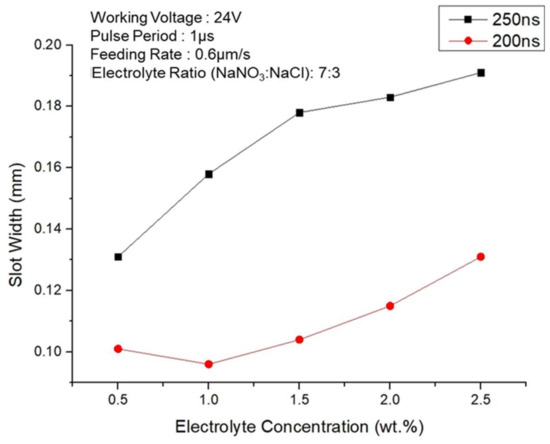

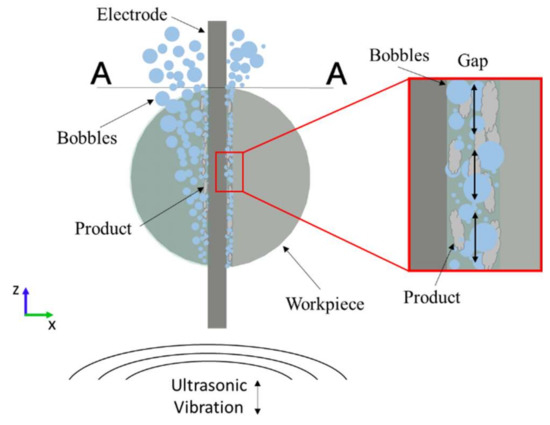

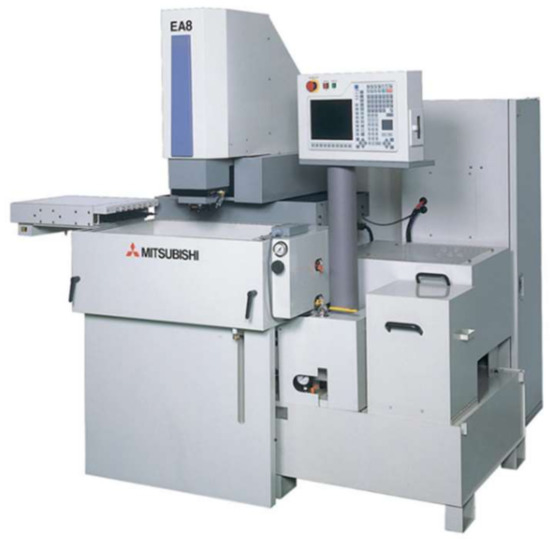

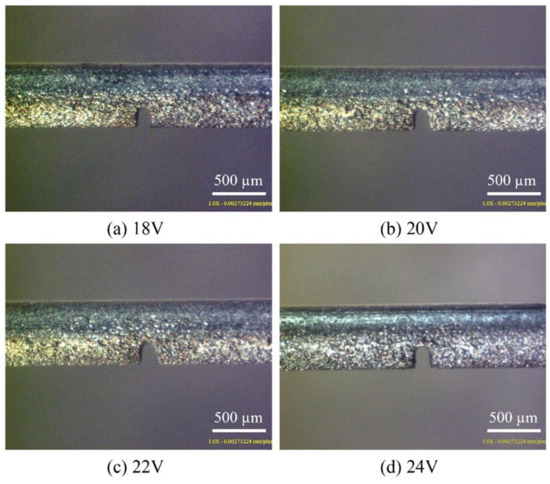

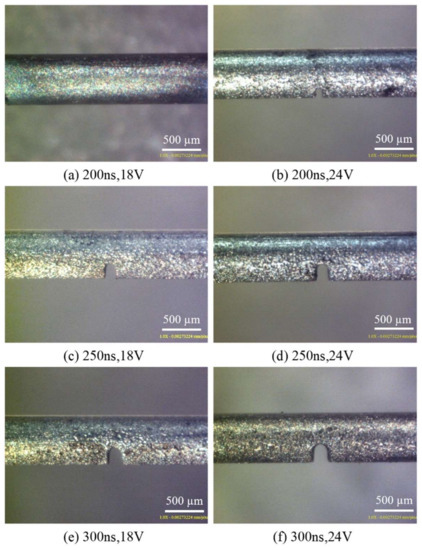

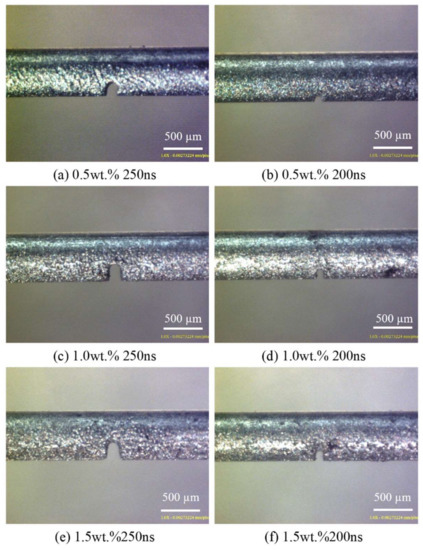

In this research, the main purpose was to study the applicability of a machining method on microscale medical-equipment manufacturing. The characteristics of wire electrochemical micromachining (WECMM) against NiTi 50-50 wire was investigated. The study utilized a tungsten wire 0.03 mm in diameter as an electrode to cut a fine slot into the nickel–titanium wire. In order to reach a high-precision WECMM finish, an ultrashort pulse power generator was used as a power source to minimize the stray current effect, thus improving the machining accuracy. During the process, various machining parameters were tested for their effects on machining characteristics. In addition, ultrasonic-vibration-aided WECMM was investigated to determine whether it benefited the machining characteristics. The experiment’s results showed that under such an experiment setting, microslots can be successfully manufactured. Furthermore, with the advance adjustment of experimental parameters, the machining accuracy was improved. Finally, a fine slot was manufactured under the optimum experiment parameters and aided by ultrasonic vibration. Full article

Many microslits are typically manufactured on quartz substrates and are used to improve their industrial performance. The fabrication of microslits on quartz is difficult and expensive to achieve using recent traditional machining processes due to its hardness, electrically insulating nature, and brittleness. The key objective of the current study was to demonstrate the fabrication of microslits on quartz material through a magnetohydrodynamics (MHD)-assisted traveling wire-electrochemical discharge micromachining process. Hydrogen gas bubbles were concentrated around the entire wire surface during electrolysis. This led to a less active dynamic region of the wire electrode, which decreased the adequacy of the electrolysis process and the machining effectiveness. The test results affirmed that the MHD convection approach evacuated the gas bubbles more rapidly and improved the void fraction in the gas bubble scattering layer. Furthermore, the improvements in the material removal rate and length of the cut were 85.28% and 48.86%, respectively, and the surface roughness was reduced by 30.39% using the MHD approach. A crossover methodology with a Taguchi design and ANOVA was utilized to study the machining performance. This exploratory investigation gives an unused strategy that shows a few advantages over the traditional TW-ECDM process. Full article

Wire electrochemical micromachining (WECMM) technology is regarded a promising method to fabricate high aspect ratio microstructures on hard-to-machining materials, however, the by-product accumulation in the machining gap limits its application. In this paper, a new method called ultrasonic-assisted wire electrochemical micromachining (UA-WECMM) is proposed to improve the machining performance of WECMM. Firstly, a flow-field simulation in the machining gap was carried out; the results showed that the ultrasonic vibration of electrode can remarkably enhance the mass transport in the machining gap and improve the machining condition. Secondly, experiments were performed to confirm the effect of ultrasonic vibration, which illustrated that the vibration with proper amplitude can reduce the slit width and improve the morphology of machined surface. Moreover, the influence of other machining parameters were also discussed. Finally, a T-type micro connector with good surface roughness (Ra 0.286 μm) was fabricated on a 300-μm-thick 304 stainless steel workpiece and a micro gear (diameter: 3.362 mm; Ra: 0.271 μm) with an aspect ratio of 7 was fabricated on a 2-mm-thick workpiece. It is proved that the proposed ultrasonic-assisted wire electrochemical micromachining method has considerable potential and broad application prospects. Full article

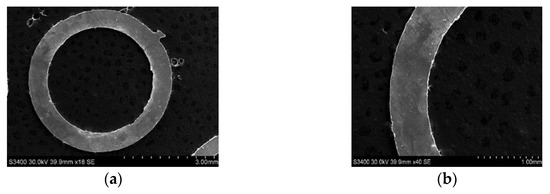

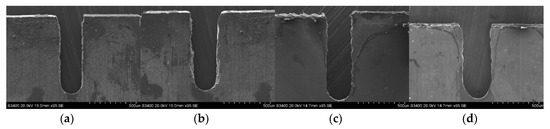

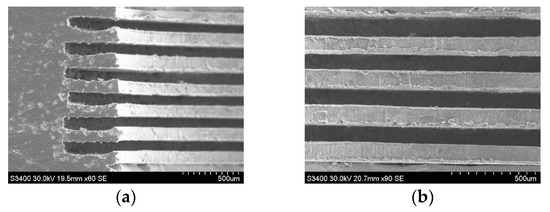

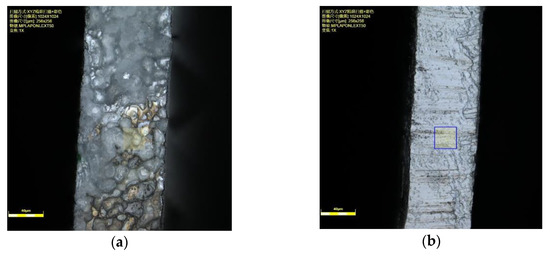

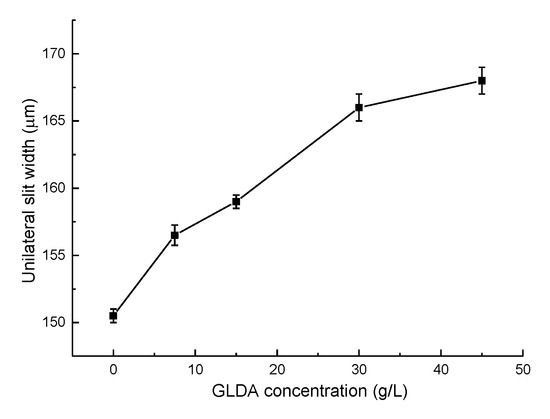

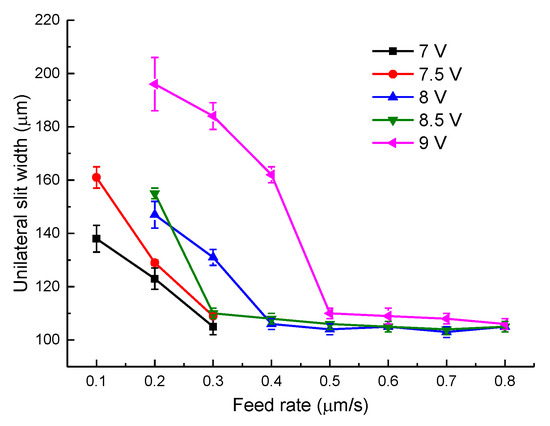

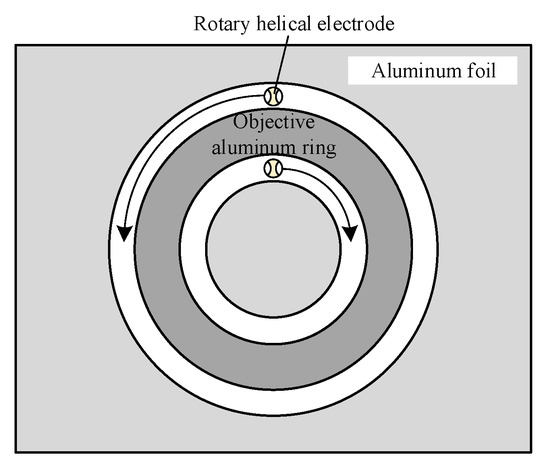

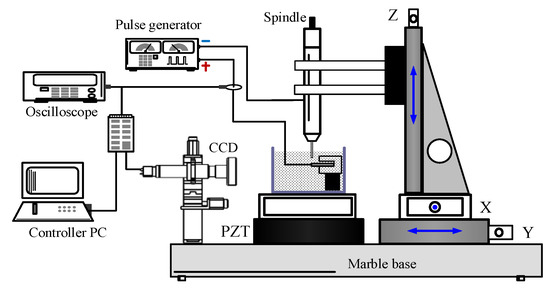

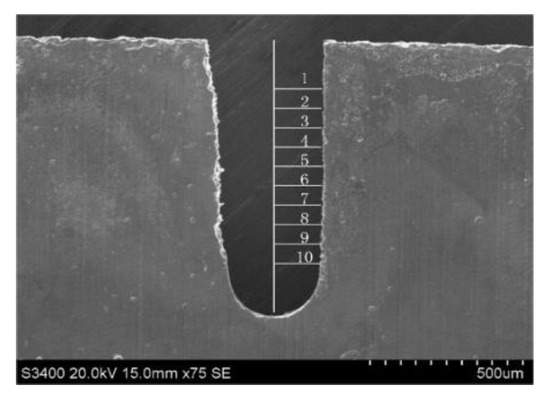

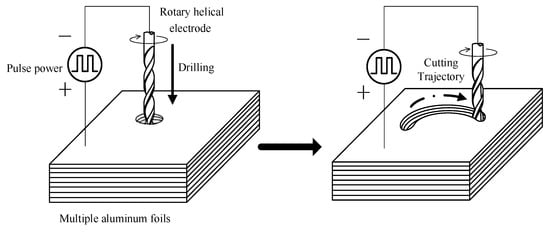

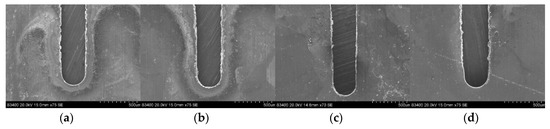

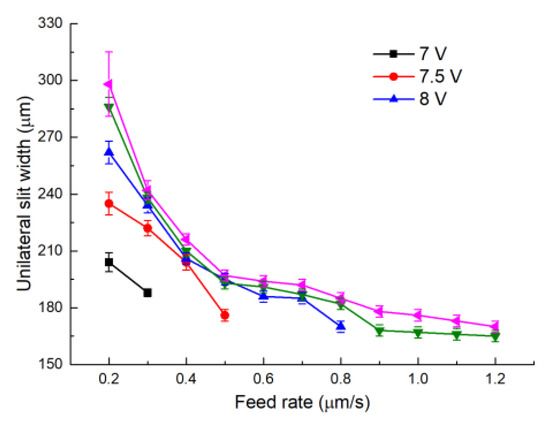

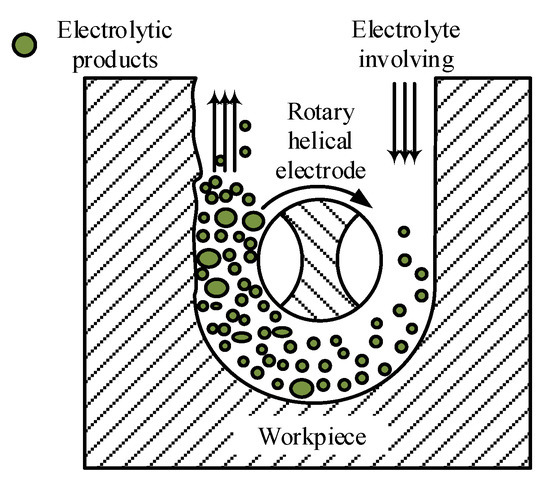

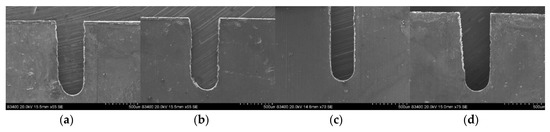

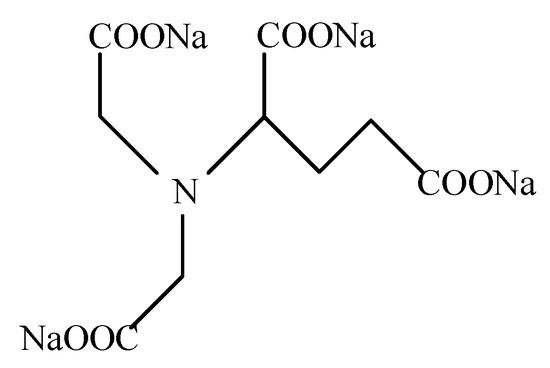

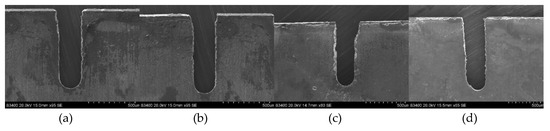

With the increase of working frequency, the feature size of a corrugated horn will be greatly reduced, causing challenges for fabrication. This paper investigated wire electrochemical micromachining (WECMM) of aluminum rings for assembly of a mandrel for electroforming, which has been a primary method for producing corrugated horns. By utilizing a rotary helical electrode and green additives, the removal efficiency of electrolytic products in WECMM was improved. It was found that the machined slits had good unilateral consistency on the left side of the electrode feeding direction when the electrode rotated clockwise. Complexing agent glutamic diacetic acid (GLDA) can compete with OH⁻ for Al³⁺ and has an obvious effect in reducing insoluble electrolytic products. From experimental investigations on typical parameters, an optimal parameter combination considering slit homogeneity and machining efficiency was obtained. In an electrolyte solution containing 15 g/L sodium nitrate solution and 15 g/L GLDA, 100 μm-thick aluminum rings with good edge and surface qualities were fabricated at a rate of 1.2 μm/s using a helical electrode with a diameter of 0.3 mm. Finally, these aluminum rings were successfully applied to make an internal corrugated sample with a rib width of 100 μm and a groove depth of 500 μm. Full article

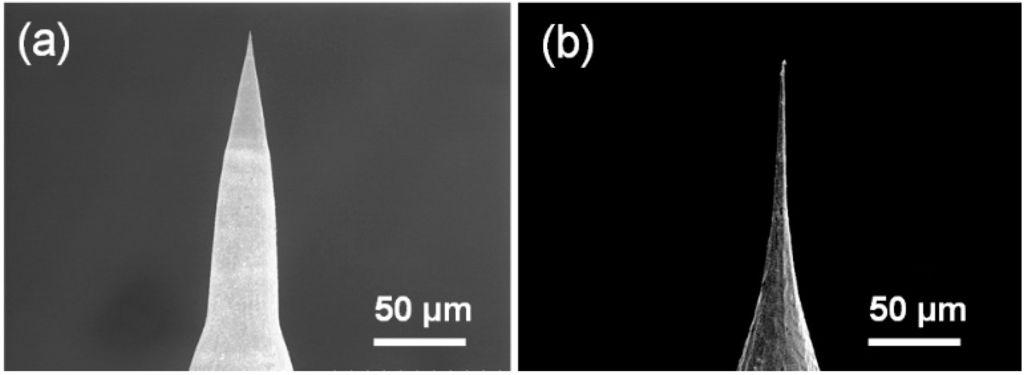

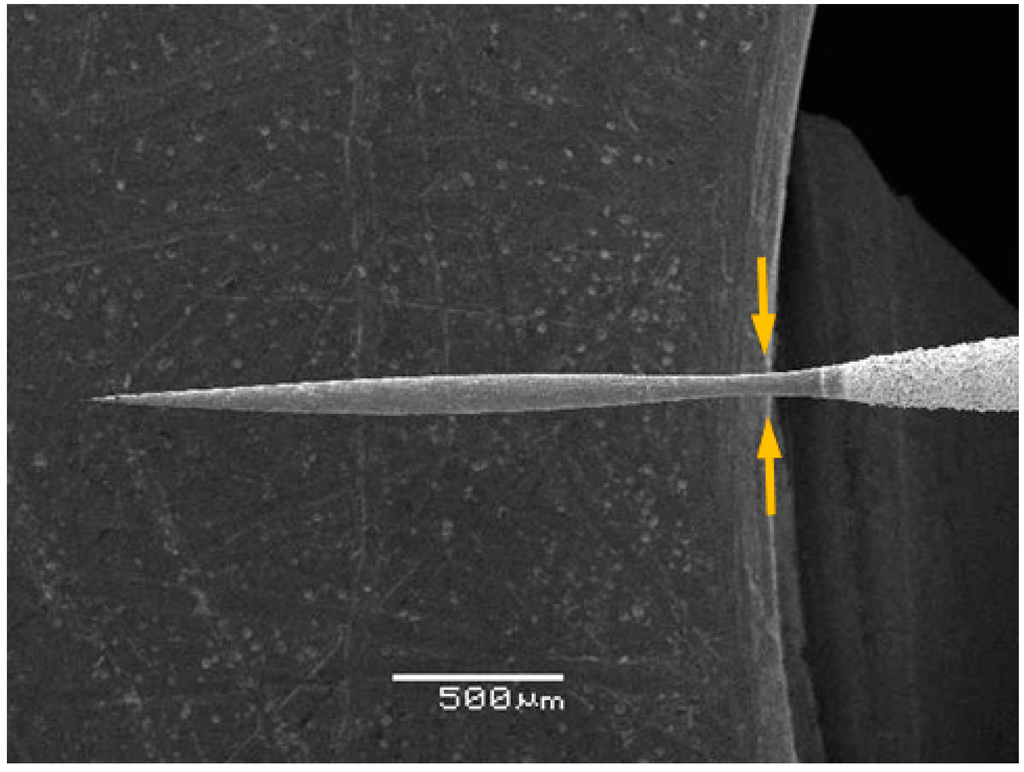

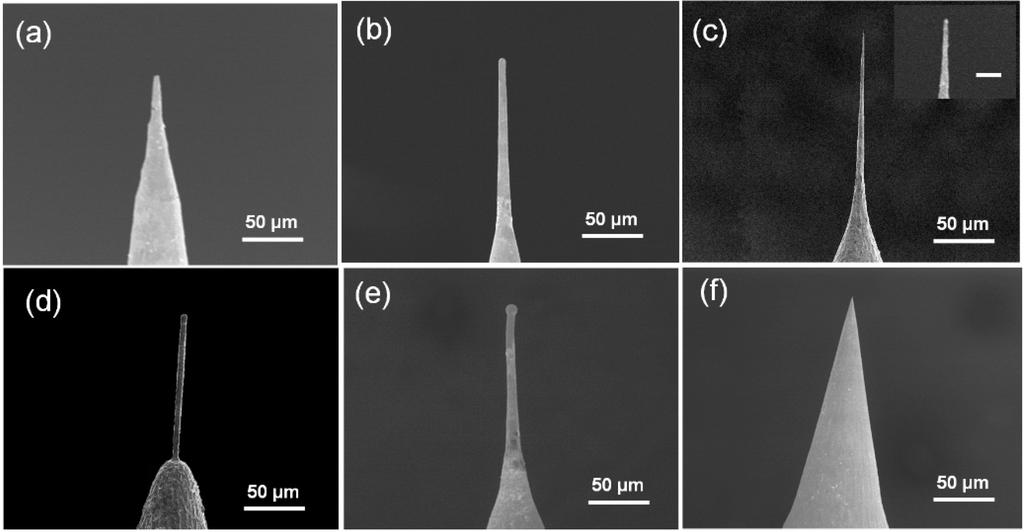

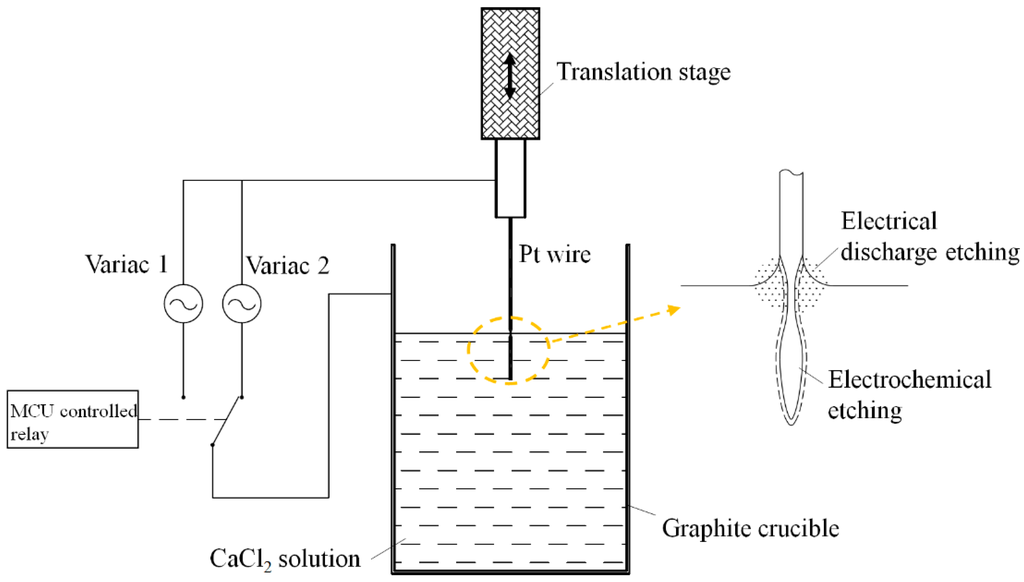

Using a graphite crucible as the counter-electrode, platinum microprobes with an aspect ratio of 30 and a tip apex radius less than 100 nm were fabricated by an electrochemical discharge etching process. The “neck-in” structure on the platinum wire induced by the electrical discharge at the liquid-air interface plays a key role in the probe shape and the voltage of the following pure electrochemical etching determines the final probe aspect ratio and tip dimensions. Moreover, the shape and diameter of the graphite counter-electrode also exhibit a significant effect on the realization of high-aspect-ratio probes. The method presented here provides a simple and rapid approach to the fabrication of micro-tools for micromachining, micromanipulation, as well as biomedical applications. Full article
