Search Results (74)

SnS_1−xSe_x (x = 0–1) films composed of vertically oriented nanosheet arrays were fabricated by vacuum thermal evaporation. The compositions of the SnS_1−xSe_x films were well tuned from SnS to SnSe, while their structures and morphology maintained the orthorhombic phase and the uniform nanosheet arrays. Se doping enhances the light absorption of the films, especially in the near-infrared region. The direct and indirect band gaps of the SnS_1−xSe_x (x = 0–1) nanosheet arrays films gradually changed from 1.26 eV and 1.12 eV for SnS to 1.00 eV and 0.79 eV for SnSe, respectively, with the change in compositions. The adjustable band gap makes these films promising candidates for infrared photodetectors and solar energy devices. Full article

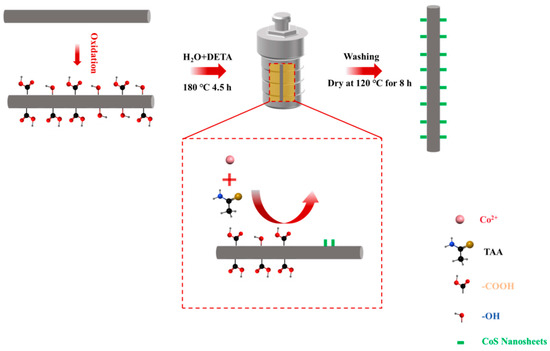

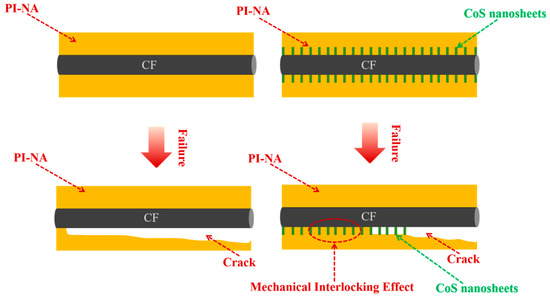

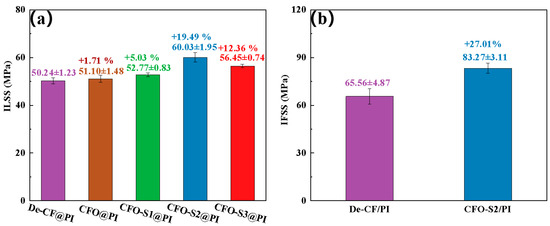

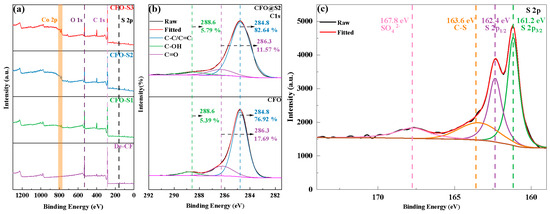

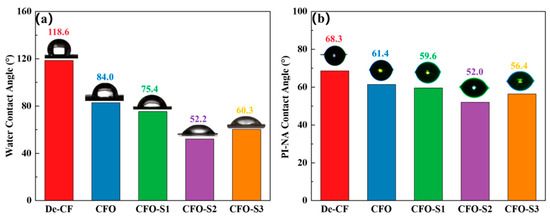

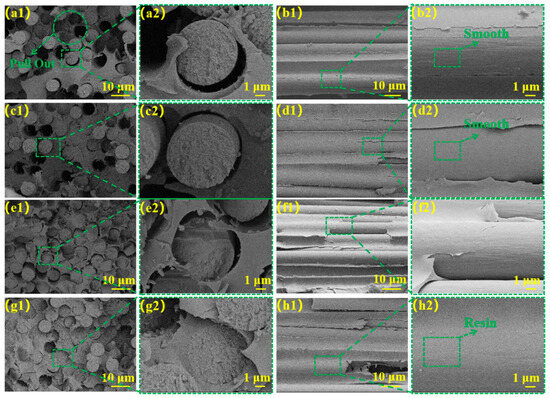

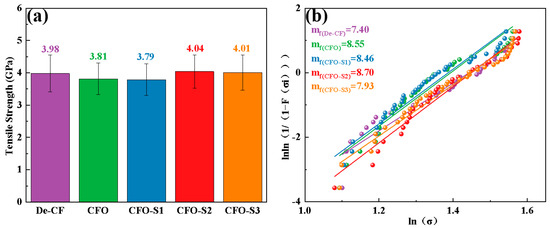

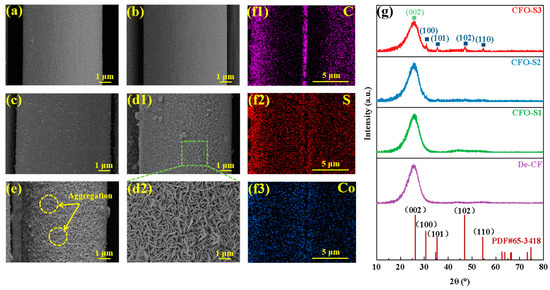

This study presents a novel method for altering the surface properties of carbon fiber (CF) to improve the bonding strength at its interface with norbornene–polyimide (PI-NA) resin. Cobaltous sulfide (CoS) nanosheets were successfully synthesized on the CF surface using a solvothermal method combined with a chemical sulfidation process. The modification increased the specific surface area and surface roughness of the CFs, enhancing the interfacial mechanical lock-in effect between the fibers and the resin. This facilitated effective load transfer between the resin and the fibers, thereby significantly improving the interfacial strength of CF-reinforced polymers (CFRPs). The experimental findings showed that after solvothermal treatment with a precursor solution of 0.006 g/mL for 4.5 h, vertical CoS nanosheets were successfully grown on the CF surface. The interlaminar shear strength (ILSS) and interfacial shear strength (IFSS) of the modified CF reached 60.03 MPa and 83.27 MPa, respectively, representing increases of 19.49% and 27.01% compared to untreated fiber composites. This research demonstrates that this method is simple to apply and promising in terms of industrial scalability. Full article

Monitoring trace toluene exposure is critical for early-stage lung cancer screening via breath analysis, yet conventional chemiresistive sensors face fundamental limitations, including compromised selectivity in complex VOC matrices and humidity-induced signal drift, with prevailing p–n heterojunction architectures suffering from inherent charge recombination and environmental instability. Herein, we pioneer a 2D core–shell n–n heterojunction strategy through rational design of TiO₂@MoS₂ heterostructures, where vertically aligned MoS₂ nanosheets are epitaxially grown on 2D TiO₂ derived from graphene-templated synthesis, creating built-in electric fields at the heterojunction interface that dramatically enhance charge carrier separation efficiency. At 240 °C, the TiO₂@MoS₂ sensor exhibits a superior response (R_a/R_g = 9.8 to 10 ppm toluene), outperforming MoS₂ (R_a/R_g = 2.8). Additionally, the sensor demonstrates rapid response/recovery kinetics (9 s/16 s), a low detection limit (50 ppb), and excellent selectivity against interfering gases and moisture. The enhanced performance is attributed to unidirectional electron transfer (TiO₂ → MoS₂) without hole recombination losses, methyl-specific adsorption through TiO₂ oxygen vacancy alignment, and steric exclusion of non-target VOCs via size-selective MoS₂ interlayers. This work establishes a transformative paradigm in gas sensor design by leveraging n–n heterojunction physics and 2D core–shell synergy, overcoming long-standing limitations of conventional architectures. Full article

This study is based on the strategies of composite and element doping. Herein, P-MoS₂/rGO materials were synthesized using a solvent-assisted hydrothermal method. The MoS₂ nanosheets were uniformly and vertically grown on rGO; meanwhile, the optimized structure of MoS₂ was achieved by P doping, resulting in improved catalytic performance and structural stability. Under alkaline conditions, the P-MoS₂/rGO catalyst exhibits good electrocatalytic activity, demonstrating a Tafel slope of 70.7 mV dec⁻¹ and an overpotential of 172.8 mV at 10 mA/cm². Notably, even after 3000 consecutive LSV tests, the curves still show a high degree of overlap, indicating exceptional stability. Full article

To significantly improve the tribological performance of epoxy resin (EP), a novel h-BN/MoS₂ composite was successfully synthesized using spherical MoS₂ particles with lamellar self-assembly generated through the calcination method, followed by utilizing the “bridging effect” of a silane coupling agent to achieve a uniform and vertically oriented decoration of hexagonal boron nitride (h-BN) nanosheets on the MoS₂ surface. The chemical composition and microstructure of the h-BN/MoS₂ composite were systematically investigated. Furthermore, the enhancement effect of composites with various contents on the frictional properties of epoxy coatings was studied, and the mechanism was elucidated. The results demonstrate that the uniform decoration of h-BN enhances the chemical stability of MoS₂ in friction tests, and the MoS₂ prevents oxidation and maintains its self-lubricating properties. Consequently, due to the protective effect of h-BN and the synergistic interaction between h-BN and MoS₂, the 5 wt % h-BN/MoS₂ composite exhibited the best friction and wear resistance when incorporated into EP. Compared to pure EP coatings, its average friction coefficient and specific wear rate (0.026 and 1.5 × 10⁻⁶ mm³ N⁻¹ m⁻¹, respectively) were significantly reduced. Specifically, the average friction coefficient decreased by 88% and the specific wear rate decreased by 99%, highlighting the superior performance of the h-BN/MoS₂-enhanced epoxy composite coating. Full article

Homogeneous aptasensors that eliminate the need for probe labeling or immobilization hold significant potential for the rapid detection of tumor biomarkers. Herein, a homogeneous aptasensor with electrochemical (EC) and electrochemiluminescence (ECL) dual detection channels was developed by integrating nanochannel-based probe enrichment and DNase I cleavage for selective detection of the tumor biomarker, carbohydrate antigen 125 (CA125). A two-dimensional (2D) composite probe was prepared by assembling the CA125-specific aptamer and the cationic probe tris(2,2′-bipyridyl)Ru(II) (Ru(bpy)₃²⁺), which exhibited both EC and ECL properties, onto graphene oxide (GO) nanosheets (Ru(bpy)₃²⁺/Apt@GO). A vertically ordered mesoporous silica film (VMSF) with ultrasmall, uniform, and vertically aligned nanochannel arrays was rapidly grown on the inexpensive and disposable indium tin oxide (ITO) electrode, forming the detection interface. Due to the size exclusion effect of the ultrasmall nanochannels in VMSF, the Ru(bpy)₃²⁺/Apt@GO probe was unable to penetrate the nanochannels, resulting in no detectable Ru(bpy)₃²⁺ signal on the electrode. Upon specific recognition of CA125 by the aptamer, an aptamer-CA125 complex was formed and subsequently detached from GO. DNase I then cleaved the aptamer-CA125 complex, releasing CA125 and allowing Ru(bpy)₃²⁺ to dissociate into the solution. This enzymatic cleavage enabled CA125 to re-enter the binding cycle, amplifying the release of Ru(bpy)₃²⁺ into the solution. The electrostatic adsorption of the cationic Ru(bpy)₃²⁺ by VMSF significantly enhanced both the EC and ECL signals. The constructed aptasensor exhibited a linear EC detection range for CA125 from 0.1 U/mL to 100 ng/mL, with a limit of detection (LOD) of 91 mU/mL. For ECL detection, CA125 was detected over a range from 0.001 to 100 U/mL, with a LOD as low as 0.4 mU/mL. The developed aptasensor demonstrated excellent selectivity and was successfully applied to the dual-mode EC/ECL detection of CA125 in fetal bovine serum samples. Full article

This study investigates the chemical and structural modifications of vertically aligned tungsten disulfide–tungsten trioxide (WS₂-WO₃) nanosheets decorated with silver nanoparticles (Ag(NPs)) under nitrogen plasma conditions. The synthesized vertically aligned WS₂-WO₃ nanosheets were functionalized through direct-current (DC) magnetron sputtering, forming silver-decorated samples. Structural changes, as well as the size and distribution of Ag(NPs), were characterized using scanning electron microscopy (SEM). Chemical state analysis was conducted via X-ray photoelectron spectroscopy (XPS), while Raman spectroscopy was employed to investigate vibrational modes. The findings confirmed the successful decoration of Ag(NPs) and identified unexpected compound transformations that were dependent on the duration of functionalization. The synthesized and functionalized samples were evaluated for their sensing capabilities towards Rhodamine B (RhB) through surface-enhanced resonance Raman scattering (SERRS). This study discusses the impact of substrate morphology and the shape and size of nanoparticles on the enhancement of SERRS mechanisms, achieving an enhancement factor (EF) of approximately 1.6 × 10⁶ and a limit of detection (LOD) of 10⁻⁹ M. Full article

The NiCo₂O₄ Nanosheets@Carbon fibers composites have been successfully synthesized by a facile co-electrodeposition process. The mesoporous NiCo₂O₄ nanosheets aligned vertically on the surface of carbon fibers and crosslinked with each other, producing loosely porous nanostructures. These hybrid composite electrodes exhibit high specific capacitance in a three-electrode cell. The asymmetric supercapacitor (NiCo₂O₄ Nanosheets@Carbon fibers//Graphene oxide) displayed a high specific capacitance of 91 F g⁻¹ and excellent cycling stability with a capacitance retention of 94.5% at 5 A g⁻¹ after 10,000 cycles. The device also achieved a notable energy density of 52 Wh kg⁻¹ coupled with a power density of 3.5 kW kg⁻¹ and a high power density of 7.1 kW kg⁻¹ with an energy density of 21 Wh kg⁻¹. This study shed light on the great potential of this asymmetric device as future supercapacitor. Full article

The development of supercapacitors with ultrahigh power density, high energy density, and compatible integration for wearable microelectronic devices is significant but challenging. Herein, a bimetallic metal–organic framework (Ni/Co-MOF) with oriented nanosheets was obtained via triethylamine (TEA) guiding using a hydrothermal treatment, in which the TEA guides the vertically oriented array structures of the Ni/Co-MOF and ensures a fast ion/electron transmission path. Subsequently, an asymmetric supercapacitor was rationally designed by applying the bimetallic MOF cathode and an activated carbon (AC) anode. The obtained Ni/Co-MOF sample offers a high storage capacity of 2034 F g⁻¹ at 0.5 A g⁻¹ by harnessing the optimized Ni/Co-MOF with uniformly oriented nanosheet arrays. The constructed asymmetric supercapacitors exhibited a large voltage window of 1.4 V in 3.0 M KOH and an outstanding energy density of 29.5 Wh kg⁻¹ at a power density of 199.1 W kg⁻¹ was obtained, with a remarkable capacitance retention of 89% after 2000 cycles. Full article

Vertically ordered mesoporous silica films (VMSF) are a class of porous materials composed of ultrasmall pores and ultrathin perpendicular nanochannels, which are attractive in the areas of electroanalytical sensors and molecular separation. However, VMSF easily falls off from the carbonaceous electrodes and thereby impacts their broad applications. Herein, carbon nitride nanosheets (CNNS) were served as an adhesive layer for stable growth of VMSF on the glassy carbon electrode (GCE). CNNS bearing plentiful oxygen-containing groups can covalently bind with silanol groups of VMSF, effectively promoting the stability of VMSF on the GCE surface. Benefiting from numerous open nanopores of VMSF, modification of VMSF’s external surface with carbohydrate antigen 15-3 (CA15-3)-specific antibody allows the target-controlled transport of electrochemical probes through the internal silica nanochannels, yielding sensitive quantitative detection of CA15-3 with a broad detection range of 1 mU/mL to 1000 U/mL and a low limit of detection of 0.47 mU/mL. Furthermore, the proposed VMSF/CNNS/GCE immunosensor is capable of highly selective and accurate determination of CA15-3 in spiked serum samples, which offers a simple and effective electrochemical strategy for detection of various practical biomarkers in complicated biological specimens. Full article

Supercapacitors have gained increased attention in recent years due to their significant role in energy storage devices; their impact largely depends on the electrode material. The diversity of energy storage mechanisms means that various electrode materials can provide unique benefits for specific applications, highlighting the growing trend towards nanocomposite electrodes. Typically, these nanocomposite electrodes combine pseudocapacitive materials with carbon-based materials to form heterogeneous structural composites, often requiring complex multi-step preparation processes. This study introduces a straightforward approach to fabricate a non-carbon-based Mo@MoO₂ nanosheet composite electrode using a one-step thermal evaporating vapor deposition (TEVD) method. This novel electrode features Mo at the core and MoO₂ as the shell and demonstrates exceptional electrochemical performance. Specifically, at a current density of 1 A g⁻¹, it achieves a storage capacity of 205.1 F g⁻¹, maintaining virtually unchanged capacity after 10,000 charge–discharge cycles at 2 A g⁻¹. The outstanding long-cycle stability is ascribed to the vertical two-dimensional geometry, the superior conductivity, and pseudocapacitance of the Mo@MoO₂ core-shell nanosheets. These attributes significantly improve the electrode’s charge storage capacity, charge transfer speed, and structural integrity during the cycling process. The development of the one-step grown Mo@MoO₂ nanosheets offers a promising way for the advancement of high-performance, non-carbon-based supercapacitor nanocomposite electrodes. Full article

This study investigates the simultaneous decoration of vertically aligned molybdenum disulfide nanostructure (VA-MoS₂) with Ag nanoparticles (NPs) and nitrogen functionalization. Nitrogen functionalization was achieved through physical vapor deposition (PVD) DC-magnetron sputtering using nitrogen as a reactive gas, aiming to induce p-type behavior in MoS₂. The utilization of reactive sputtering resulted in the growth of three-dimensional silver structures on the surface of MoS₂, promoting the formation of silver nanoparticles. A comprehensive characterization was conducted to assess surface modifications and analyze chemical and structural changes. X-ray photoelectron spectroscopy (XPS) showed the presence of silver on the MoS₂ surface. Scanning electron microscopy (SEM) confirmed successful decoration with silver nanoparticles, showing that deposition time affects the size and distribution of the silver on the MoS₂ surface. Full article

In this paper, we demonstrate a comprehensive study of NF₃-based selective etching processes for inner spacer formation and for channel release, enabling stacked horizontal gate-all-around Si nanosheet transistor architectures. A cyclic etching process consisting of an oxidation treatment step and an etching step is proposed and used for SiGe selective etching. The cyclic etching process exhibits a slower etching rate and higher etching selectivity compared to the direct etching process. The cycle etching process consisting of Recipe 1, which has a SiGe etching rate of 0.98 nm/cycle, is used for the cavity etch. The process achieved good interlayer uniformity of cavity depth (cavity depth ≤ 5 ± 0.3 nm), while also obtaining a near-ideal rectangular SiGe etch front shape (inner spacer shape = 0.84) and little Si loss (0.44 nm@ each side). The cycle etching process consisting of Recipe 4 with extremely high etching selectivity is used for channel release. The process realizes the channel release of nanosheets with a multi-width from 30 nm to 80 nm with little Si loss. In addition, a selective isotropic etching process using NF₃/O₂/Ar gas mixture is used to etch back the SiN film. The impact of the O₂/NF₃ ratio on the etching selectivity of SiN to Si and the surface roughness of SiN after etching is investigated. With the introduction of O₂ into NF₃/Ar discharge, the selectivity increases sharply, but when the ratio of O₂/NF₃ is up to 1.0, the selectivity tends to a constant value and the surface roughness of SiN increases rapidly. The optimal parameter is O₂/NF₃ = 0.5, resulting in a selectivity of 5.4 and a roughness of 0.19 nm. Full article

Ni₃Si₂O₅(OH)₄ rods (NS) were synthesized via a hydrothermal method, employing natural wollastonite as a template. The hierarchical Ni₃Si₂O₅(OH)₄ rods exhibited vertically oriented nanosheets, resulting in a substantial increase in the specific surface area (from 2.24 m²/g to 178.4 m²/g). Subsequently, a CdS/Ni₃Si₂O₅(OH)₄ composite photocatalyst (CdS/NS) was prepared using a chemical deposition method. CdS was uniformly loaded onto the surface of the Ni₃Si₂O₅(OH)₄ nanosheets, successfully forming a heterojunction with Ni₃Si₂O₅(OH)₄. The CdS/NS photocatalyst in the presence of lactic acid as a sacrificial agent demonstrated an impressive H₂ production rate of 4.05 mmol h⁻¹ g⁻¹, around 40 times higher than pure CdS. The photocorrosion of CdS was effectively solved after loading. After four cycles, the performance of CdS/NS remained stable, showing the potential for sustainable applications. After photoexcitation, electrons moved from Ni₃Si₂O₅(OH)₄ to the valence band of CdS, where they interacted with the holes via an enhanced interface contact. Simultaneously, electrons in CdS transitioned to its conduction band, facilitating hydrogenation. The enhanced performance was attributed to the improved CdS dispersion by Ni₃Si₂O₅(OH)₄ loading and efficient photogenerated carrier separation through the heterojunction formation. This work provides new perspectives for broadening the applications of mineral materials and developing heterojunction photocatalysts with good dispersibility and recyclability. Full article

Developing novel supercapacitor electrodes with high energy density and good cycle stability has aroused great interest. Herein, the vertically aligned CoNiO₂/Co₃O₄ nanosheet arrays anchored on boron doped diamond (BDD) films are designed and fabricated by a simple one-step electrodeposition method. The CoNiO₂/Co₃O₄/BDD electrode possesses a large specific capacitance (214 mF cm⁻²) and a long-term capacitance retention (85.9% after 10,000 cycles), which is attributed to the unique two-dimensional nanosheet architecture, high conductivity of CoNiO₂/Co₃O₄ and the wide potential window of diamond. Nanosheet materials with an ultrathin thickness can decrease the diffusion length of ions, increase the contact area with electrolyte, as well as improve active material utilization, which leads to an enhanced electrochemical performance. Additionally, CoNiO₂/Co₃O₄/BDD is fabricated as the positive electrode with activated carbon as the negative electrode, this assembled asymmetric supercapacitor exhibits an energy density of 7.5 W h kg⁻¹ at a power density of 330.5 W kg⁻¹ and capacity retention rate of 97.4% after 10,000 cycles in 6 M KOH. This work would provide insights into the design of advanced electrode materials for high-performance supercapacitors. Full article
