Search Results (43)

In this study, a kind of sustainable ultra-high-performance concrete (UHPC) was designed by using coal gangue ceramsite (CGC) and a modified Andreasen–Andersen model. However, when CGC lightweight aggregate with high water absorption is used in UHPC with a low water–cement ratio, CGC has an adverse effect on the working performance of UHPC and may lead to the decrease of mechanical properties. This study found that a 5% silane coupling agent KH560 can make CGC hydrophobic, and cause its contact angle to increase from 0° to 111.32°. Adding 100% hydrophobic modified CGC into UHPC will significantly improve its working performance, with the highest increase of 38.51%. At the same time, the addition of 20% modified CGC can further improve the compressive strength of UHPC (28 days reached 150.1 MPa), reduce the internal porosity by 21.4%, and make the interface bond more compact. In addition, the hydration degree of UHPC has also been improved, a result caused by the cement obtaining more free water for a more complete hydration reaction. This study can provide a new scheme for solving the problem of the solid waste of coal gangue. Full article

While a large diameter is critical for maintaining water delivery efficiency in prestressed concrete cylinder pipes (PCCPs), excessive weight fundamentally limits their practical application. This study proposes a weight reduction strategy through material optimization and structural redesign. A full-scale experimental model of 2.8 m inner diameter PCCP was used to validate the finite element analysis method. Comparative numerical models were established to analyze strain/stress distribution in mortar coatings when using ultra-high-performance concrete (UHPC) versus conventional concrete cores. The key findings reveal that UHPC implementation reduces maximum coating strain by 20–30% compared to its conventional concrete counterparts. Multivariate linear regression analysis yielded a predictive formula that explicitly correlates the elastic modulus of the concrete core, core thickness, and mortar stress. This relationship permits the direct optimization of core thickness reductions according to the elastic modulus characteristics of UHPC materials. Verification through two case studies demonstrated a 25–35% core thickness reduction compared to the Chinese standard specifications while maintaining structural integrity, corresponding to an 18–22% total weight reduction. The proposed methodology successfully resolves the inherent weight limitation of conventional PCCPs while achieving equivalent hydraulic capacity, providing an effective pathway for sustainable infrastructure development through material-efficient design. Full article

Orthotropic Steel Bridge Decks (OSBDs) are often used in long-span bridges due to their high performance and ease of installation. However, issues such as fatigue cracking and the deterioration of asphalt overlays due to their local stiffness inefficiency necessitate innovative solutions. Orthotropic Steel–Ultra-High-Performance Concrete Composite Bridge Decks (OS-UHPC-CBDs) have enhanced OSBD performance; however, they have disadvantages such as a heavier weight and high initial cost requirements. In this study, an Orthotropic Steel–Lightweight Ultra-High-Performance Concrete Composite Bridge Deck (OS-LUHPC-CBD) is proposed as a solution that integrates a novel Lightweight Ultra-High-Performance Concrete (LUHPC) with a high-strength Q425 steel deck and trapezoidal ribs. A comprehensive experimental investigation, including full-scale four-point bending tests, was undertaken to evaluate the flexural behavior of the proposed OS-LUHPC-CBD compared to the OS-UHPC-CBD. The experimental results show that the proposed OS-LUHPC-CBD has equivalent flexural capacity and improved ductility compared to the OS-UHPC-CBD. This study found the proposed OS-LUHPC-CBD to be a promising solution for application in long-span bridges with an 8.4% lighter weight and a 6.8% lower cost, and with the same ease of construction as OS-UHPC-CBDs. A finite element model with a strong correlation was developed and validated through the experimental results. Based on this, a parametric study was undertaken on the effect of the key geometric design parameters on the flexural capacity of the OS-LUHPC-CBD. Full article

Sandwich panels, consisting of two concrete wythes that encase an insulating core, are designed to improve energy efficiency and reduce the weight of construction applications. This research examines the thermal and flexural properties of a novel sandwich panel that incorporates ultra-high-performance fiber-reinforced concrete (UHPFRC) and cellular lightweight concrete (CLC) as its core material. Seven sandwich panel specimens were tested for their thermo-flexural performance using four-point bending tests. The experimental parameters included variations in UHPFRC thickness (20 mm and 30 mm) and different shear connector types (shear keys, steel bars, and post-tension steel bars). The study also assessed the effects of adding steel mesh reinforcement to the UHPFRC layer and evaluated the performance of UHPFRC box sections without a CLC core. The analysis concentrated on several critical factors, such as initial, ultimate, and serviceability loads, load–deflection relationships, load–end slip, load–strain relationships, composite action ratios, crack patterns, and failure modes. The thermal properties of the UHPFRC and CLC were evaluated using a transient plane source technique. The results demonstrated that panels using post-tension steel bars as shear connectors achieved flexural performance, and the most favorable composite action ratios reached 68.8%. Conversely, the box section exhibited a brittle failure mode when compared to the other sandwich panels tested. To effectively evaluate mechanical and thermal properties, it is important to design panels that have adequate load-bearing capacity while maintaining low thermal conductivity. This study introduced a thermo-mechanical performance coefficient to evaluate both the thermal and mechanical performance of the panels. The findings indicated that sandwich panels with post-tension steel bars achieved the highest thermo-mechanical performance, while those with steel connectors had the lowest performance. Full article

This article, for the first time, investigates the potential of Sludge Gasification Slag (SGS), a byproduct of urban sewage sludge gasification, as a lightweight aggregate in ultra-high-performance concrete (UHPC), proposing a novel sustainable solution for the utilization of SGS. The UHPC mix design followed the modified Andreasen and Andersen model, incorporating pretreated SGS, cement, silica fume (SF), river sand, and a high-efficiency water-reducing agent. A total of eight experimental groups were developed, including five pre-wetted groups (I1–I5) and three dry groups (N1–N3), to evaluate the rheological and mechanical properties of UHPC. For the first time, this study combines scanning electron microscopy (SEM) and nitrogen adsorption techniques to investigate the interfacial transition zone (ITZ) and porosity of SGS-UHPC, providing insights into the influence of SGS on the matrix. The results show that SGS, due to its irregular particle shape and high water absorption capacity, negatively impacts the flowability of the fresh mix. However, when the SGS content reached 7.5%, the plastic viscosity of the UHPC mix peaked. Notably, after 28 days of curing, the compressive strength of the 5% pre-wetted SGS group exceeded that of the control group by 5%, indicating a time-dependent strength improvement. This enhancement is primarily attributed to the water release effect of SGS, which optimizes the ITZ and strengthens the overall matrix. The findings suggest that SGS, when used at dosages below 7.5%, can be effectively incorporated into UHPC, offering a promising, environmentally friendly alternative for sustainable construction applications. Full article

This research investigates the impact of waste glass powder, high-frequency ultrasonics (HFUS) dispersion, and liquid glass treatment on aluminum-based ultra-lightweight concrete. Substituting up to 80% of Portland cement with waste glass powder significantly delays hydration and reduces compressive strength by 77%. However, applying HFUS dispersion for 60 s to a mixture with 30% waste glass powder substitution restored compressive strength to the reference value of 3.1 MPa. The combined HFUS and liquid glass treatment enhanced compressive strength by 87%, increased density by 32%, and significantly reduced prosody. Scanning electron microscopy revealed a progressively denser cement matrix with each treatment, highlighting the synergistic effects of these methods in improving concrete properties. Full article

Sludge ceramsite (SC) can be utilized as a lightweight aggregate in concrete, especially in external wall materials, due to the increasing volume of polluted sludge, which contributes to water system deterioration and poses greater threats to human health. The influence of the fresh mortar’s slump flow on the dispersion of ceramsite was studied. The ultrasonic sound velocity, capillary water absorption rate, compressive strength, and coefficient of variation (CV) were measured in this study. Thermogravimetric (TG) analysis, ultra depth-of-field microscope scanning, X-ray diffraction (XRD), scanning electron microscopy (SEM), and energy dispersive spectrometry (EDS) were used to analyze the performance mechanism of the ceramsite concrete. The results indicated that adding SC could reduce the fluidity of the fresh concrete, with a reduction by rates of up to 2.04%. The addition of WRA could improve the fluidity by rates of up to 60.77%. The relationship between the ultrasonic sound speed and the increasing fluidity could be deduced as a negative correlation. The water absorption was negatively correlated with the compressive strength. The concrete with a slump flow of 12.35 and 12.5 cm reached the maximum compressive strength, which had the lowest water absorption, and demonstrated internal homogeneity. The optimum slump flow was 12.35 and 12.5 cm. With the slump flow of 12.5 cm, the corresponding CV was the lowest, showing the optimum SC’s dispersion. Through TG, XRD, and SEM analyses, it was verified that the addition of 0.6% WRA promoted the hydration of cement. In addition, SC increased the hydration products. Full article

Lightweight aggregate concrete, known for its light weight, thermal insulation, and excellent durability, has garnered significant attention and is considered an ideal material for lightweight ultra-high-performance concrete. Previous research has discovered that prewetting lightweight aggregates can continuously release water during the setting and hardening process of concrete, providing internal curing. However, the moisture release behavior of prewetted lightweight aggregates under different temperature and humidity conditions, as well as their internal curing mechanisms in low water–cement ratio mixtures, remains unclear and requires further investigation. In response to environmental sustainability, this study utilizes industrial waste γ-C₂S to produce a high-strength carbonized γ-C₂S lightweight aggregate (CC) and primarily compares the water absorption and release characteristics of three different types of lightweight aggregates, focusing on the influence of curing temperature and humidity on the water release behavior of the prewetted CC and establishing a water release model for the prewetted CC in cement-based materials. The experimental results indicate that the water absorption rates of the self-made high-performance lightweight aggregate (CC), magnesian lightweight aggregate (MC), and shale lightweight aggregate (SC) conform to the typical Boxlucas equation. In an air environment, the CC has the longest water release duration, followed by the MC, with the SC being the fastest. The water storage performance of the prewetted SC was poor, while the 100% prewetted CC exhibited better water storage during the mixing stage. When the CC is 100% prewetted, it can significantly increase the free water content in the interfacial transition zone, aiding in the hydration of the interfacial transition zone and enhancing the efficiency of shrinkage compensation by the expansive agent. This improvement contributes to the mechanical strength and volumetric stability of cement-based materials. Full article

This study delved into the integration of carbon nanotubes (CNTs) in Ultra-High Performance Concrete (UHPC), exploring aspects such as mechanical properties, microstructure analysis, accelerated chloride penetration, and life service prediction. A dispersed CNT solution (0.025 to 0.075 wt%) was employed, along with a superplasticizer, to ensure high flowability in the UHPC slurry. In addition, the combination of high-strength functional artificial lightweight aggregate (ALA) and micro hollow spheres (MHS) was utilized as a replacement for fine aggregate to not only reduce the weight of the concrete but also to increase its mechanical performance. Experimental findings unveiled that an increased concentration of CNT in CNT1 (0.025%) and CNT2 (0.05%) blends led to a marginal improvement in compressive strength compared to the control mix. Conversely, the CNT3 (0.075%) mixture exhibited a reduction in compressive strength with a rising CNT content as an admixture. SEM analysis depicted that the heightened concentration of CNTs as an admixture induced the formation of nanoscale bridges within the concrete matrix. Ponding test results indicated that, for all samples, the effective chloride transport coefficient remained below the standard limitation of 1.00 × 10⁻¹² m²/s, signifying acceptable performance in the ponding test for all samples. The life service prediction outcomes affirmed that, across various environmental scenarios, CNT1 and CNT2 mixtures consistently demonstrated superior performance compared to all other mixtures. Full article

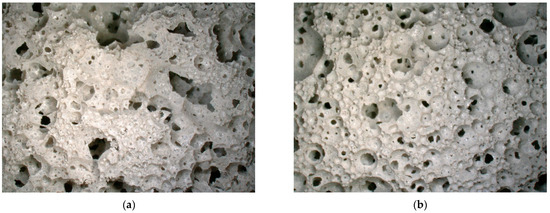

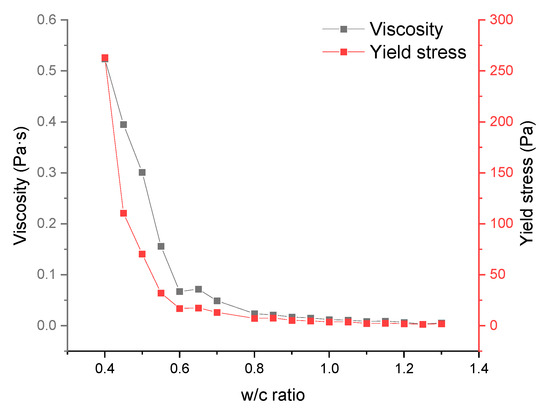

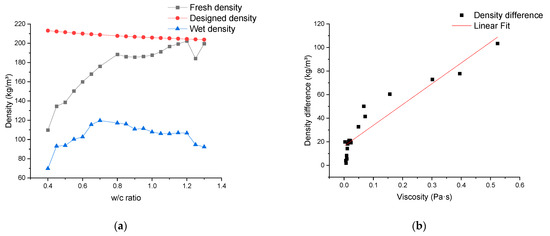

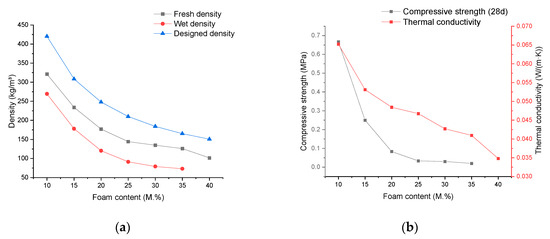

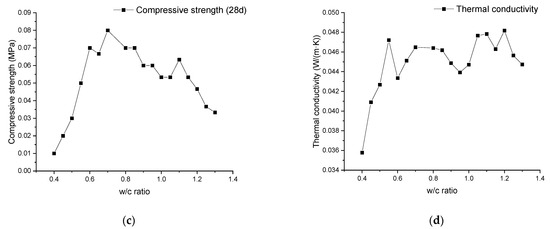

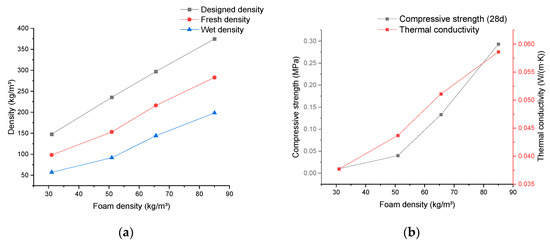

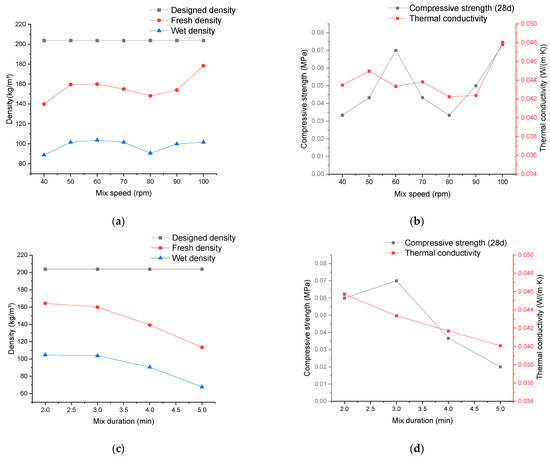

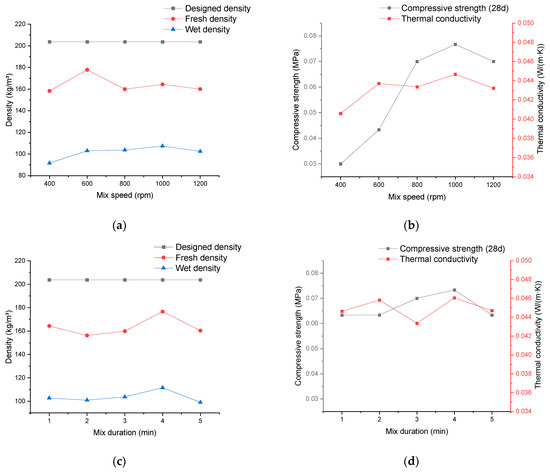

The research focuses on ultra-lightweight foam concrete with a dry density below 200 kg/m³, primarily used as insulation material. Factors that may affect material properties are categorized into mixing techniques and material composition, and experimental investigations were conducted on the impact of these factors on the rheological properties of cement slurry, density at different time intervals, compressive strength, and thermal conductivity of foam concrete samples. The experimental results indicate the influence of mixing speed and mixing duration on the instrument during the cement slurry production and mixing process with foam. Additionally, variations in foam concrete sample properties are observed due to the water-to-cement ratio, foam content, and foam density in the selected material compositions. By analyzing the material density at different time intervals, the relationship between the ambient air trapped during the mixing process and the viscosity of the material can be indirectly observed. This analysis can also reveal the correlation between the unplanned air content and the properties of the material. Full article

Lightweight engineered cementitious composites (LW-ECCs) not only offer comparable mechanical strengths compared with conventional concrete, but also increase the tensile strain of the composite and exhibit strain-hardening behavior, and can be utilized in weight-critical structures such as buildings in seismically active areas. Hollow glass microsphere is a type of ultra-lightweight inorganic non-metallic hollow sphere and it has been deemed as one of the potential sustainable fillers of cement composites. This study aims to investigate the drying shrinkage behavior of LW-ECCs mix designs incorporating different types of hollow glass microspheres (HGMs). Eight types of HGMs with different densities (0.2–0.6 g/cm³) and particle size distributions were incorporated to replace fly ash at 80 and 100 vol% with HGMs. Drying shrinkage was measured from the age of 2 days and up to 91 days. The results demonstrate that all LW-ECCs at 91 days showed greater shrinkage than the control mix, deformation ranged from 1140–1877 µε; 80% replacement ratio of HGMs was regarded as the optimum due to less shrinkage than 100% HGM mixes; the mix incorporating 80% H60 type of HGMs was the relatively most desired mix which had the least shrinkage at 91 days compared to other LW-ECCs, and the strains of the mix using H60 were 1140 and 1385 µε at 91 days for 80% and 100% replacement, respectively. Full article

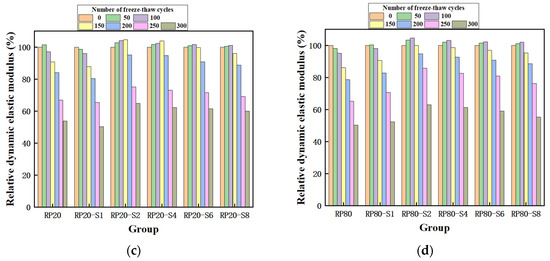

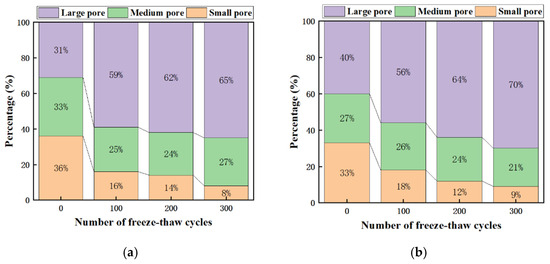

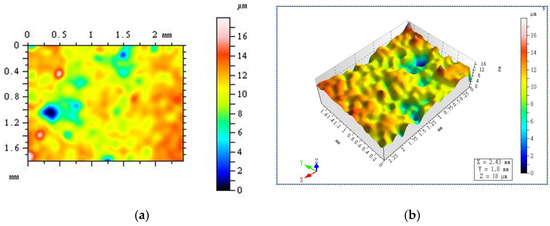

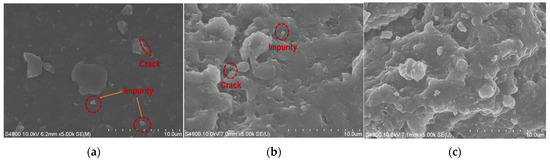

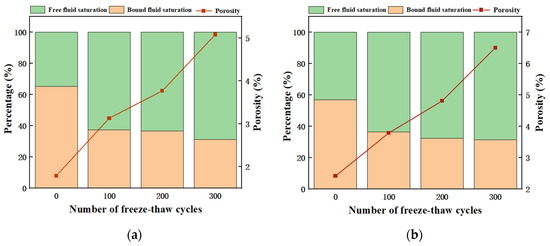

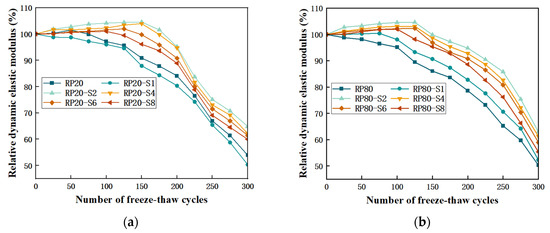

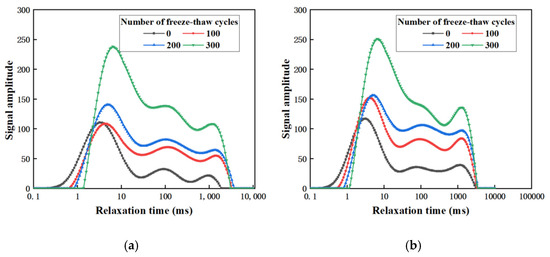

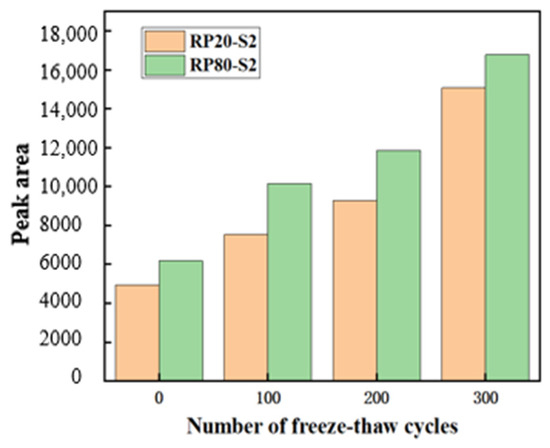

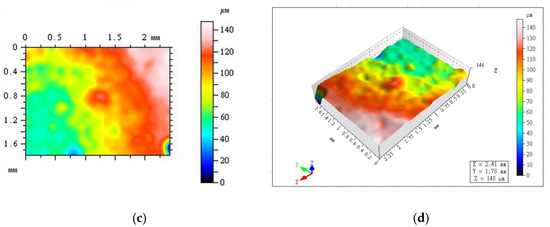

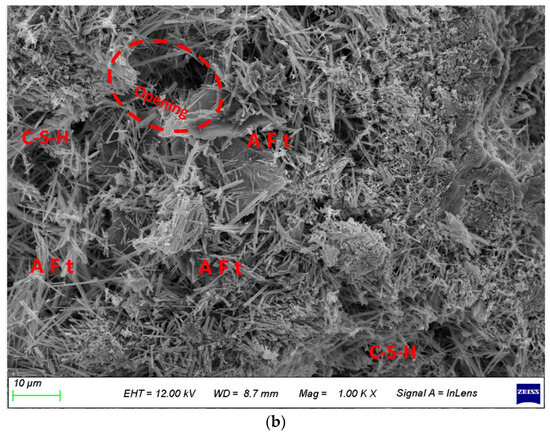

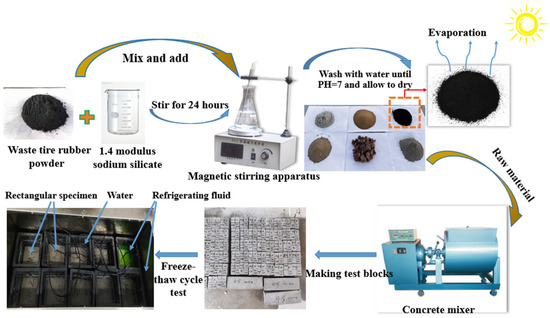

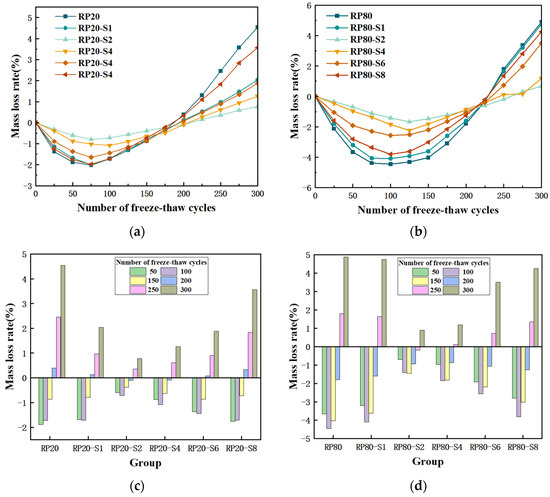

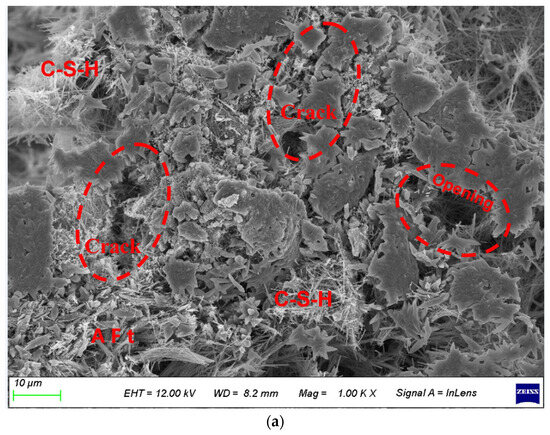

To improve the durability of pumice lightweight aggregate concrete applied in cold and drought areas, sodium silicate-modified waste tire rubber powder is used to treat the pumice lightweight aggregate concrete. The pumice lightweight aggregate concrete studied is mainly used in river lining structures. It will be eroded by water flow and the impact of ice and other injuries, resulting in reduced durability, and the addition of modified rubber will reduce the damage. The durability, including mass loss rate and relative dynamic elastic modulus of pumice lightweight aggregate concrete with different sodium silicate dosages and rubber power particle sizes, is analyzed under freeze-thaw cycles, and the microstructure is further characterized by using microscopic test methods such as nuclear magnetic resonance tests, ultra-depth 3D microscope tests, and scanning electron microscopy tests. The results showed that the durability of pumice lightweight aggregate concrete is significantly improved by the addition of modified waste tire rubber powder, and the optimum durability is achieved when using 2 wt% sodium silicate modified rubber power with a particle size of 20, and then the mass loss rate decreased from 4.54% to 0.77% and the relative dynamic elastic modulus increased from 50.34% to 64.87% after 300 freeze-thaw cycles compared with other samples. The scanning electron microscopy test result showed that the surface of rubber power is cleaner after the modification of sodium silicate, so the bonding ability between rubber power and cement hydration products is improved, which further improved the durability of concrete under the freeze-thaw cycle. The results of the nuclear magnetic resonance test showed that the pore area increased with the number of freeze-thaw cycles, and the small pores gradually evolved into large pores. The effect of sodium silicate on the modification of rubber power with different particle sizes is different. After the treatment of 2 wt% sodium silicate, the relationship between the increased rate of pore area and the number of freezing-thawing cycles is 23.8/times for the pumice lightweight aggregate concrete containing rubber power with a particle size of 20 and 35.3/times for the pumice lightweight aggregate concrete containing a particle size of 80 rubber power, respectively. Full article

The use of waste in the production of building materials is one of the possible ways to solve problems related to the sustainable management of non-degradable waste and difficult-to-recycle secondary resources. In this paper, a method is proposed for the non-autoclave production of an ultra-lightweight cellular concrete based on Portland cement, glass waste and liquid glass. A mixture of sodium hexafluorosilicate and hydroxide is used as a hardening activator, an aluminum powder serves as a gas-forming agent. The setting and hardening of raw mixtures occurs under the action of exothermal heat release due to a complex of chemical reactions occurring in the system, and the resulting material does not require additional heat treatment. It is optimal to use two fractions of glass waste to achieve acceptable material strength: coarse crushed (fineness modulus F_m = 0.945) and finely ground (specific surface S_sp = 450–550 m²/kg) glass. Glass particles of the fine fraction of glass, along with Portland cement, participate in hydrolytic and structure-forming processes, while glass particles of the coarse fraction play the role of reinforcing filler. The influence of the dispersion of glass and the density of liquid glass on the density, porosity, strength, water absorption and water resistance of the resulting cellular material was determined. At an average density of cellular concrete in the dry state of 150–320 kg/m³, the following characteristics can be achieved: a compressive strength up to 2.0 MPa, bending strength up to 0.38 MPa, thermal conductivity coefficient of the material in the range 0.05–0.09 W/(K·m), and a maximum operating temperature of 800 °C. The proposed ultra-lightweight cellular concrete can be used as a non-combustible heat and sound insulation material, as well as a repairing composition; the cellular concrete blocks can be used as filling masonry and for the construction of non-bearing internal walls. Full article

Bottom slamming loads cause considerable local damage to a ship’s body and reduce the ship’s structural performance against harsh sea waves. Although extensive studies have worked on stiffening elements to compensate for local damage due to slamming loads, few studies have concentrated on the ship’s body itself while using new generations of composite plates. Accordingly, a numerical study is conducted to determine the effect of using ultra-lightweight high-ductility cementitious composite in steel–concrete–steel (SCS) composite plate to mitigate bottom slamming loads. A large-scale model of the ship using SCS composite plates is modelled in Abaqus software, and fluid–solid (FSI) interaction is precisely modelled using the Coupled Eulerian–Lagrangian (CEL) method. The results show that using the CEL method with a large-scale 3D model precisely simulates FSI by providing a 6.5% deviation from the experimental result. Moreover, using an SCS plate when considering ultra-lightweight high-ductility cementitious composite results in a considerable reduction (around 95%) in the maximum strain of the ship body and, accordingly, reduces local damage so that, although about 22% of the strain of the outer layer is transferred to the inner part of the ship body containing only steel plate, almost 0% stress transfer is observed for the SCS-based ship’s structure. Full article

The production of concrete leads to substantial carbon emissions (~8%) and includes reinforcing steel which is prone to corrosion and durability issues. Carbon-fiber-reinforced concrete is attractive for structural applications due to its light weight, high modulus, high strength, low density, and resistance to environmental degradation. Recycled/repurposed carbon fiber (rCF) is a promising alternative to traditional steel-fiber reinforcement for manufacturing lightweight and high-strength concrete. Additionally, rCF offers a sustainable, economical, and less energy-intensive solution for infrastructure applications. In this paper, structure–process–property relationships between the rheology of mix design, carbon fiber reinforcement type, thermal conductivity, and microstructural properties are investigated targeting strength and lighter weight using three types of concretes, namely, high-strength concrete, structural lightweight concrete, and ultra-lightweight concrete. The concrete mix designs were evaluated non-destructively using high-resolution X-ray computed tomography to investigate the microstructure of the voids and spatially correlate the porosity with the thermal conductivity properties and mechanical performance. Reinforced concrete structures with steel often suffer from durability issues due to corrosion. This paper presents advancements towards realizing concrete structures without steel reinforcement by providing required compression, adequate tension, flexural, and shear properties from recycled/repurposed carbon fibers and substantially reducing the carbon footprint for thermal and/or structural applications. Full article
