The oxygen blast furnace (OBF) process presents a promising low-carbon pathway for the smelting of vanadium–titanium magnetite (VTM). This study develops an innovative mathematical model based on mass and heat balance principles, specifically tailored to the OBF smelting of VTM. The model systematically investigates the effects of key parameters—including pulverized coal injection ratio, recycling gas volume, hydrogen content in the recycling gas, and charge composition—on furnace productivity, hearth activity, and the tuyere raceway zone. The results show that increasing the pulverized coal injection ratio slightly reduces productivity and theoretical flame temperature: for every 25 kg/tHM increase in the coal ratio, the theoretical flame temperature decreases by 21.95 °C; moreover, indirect reduction is enhanced and the heat distribution within the furnace is significantly improved. A higher recycling gas volume markedly increases productivity and optimizes hearth thermal conditions, accompanied by enhanced blast kinetic energy and an expanded tuyere raceway zone, albeit with a notable drop in combustion temperature. Increased hydrogen content in the recycling gas promotes productivity, but may weaken blast kinetic energy and reduce the stability of the raceway zone. Furthermore, a higher titanium content in the charge increases the difficulty of iron oxide reduction, resulting in lower CO utilization and reduced productivity. Full article

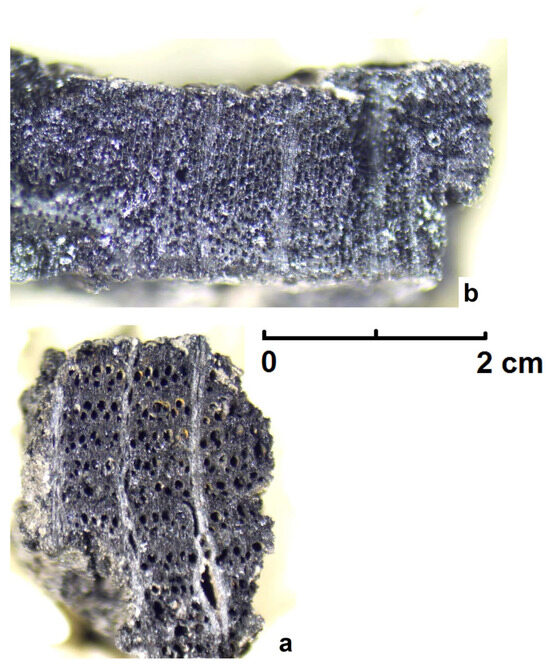

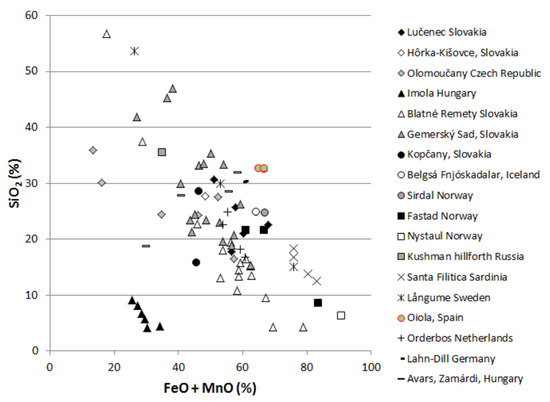

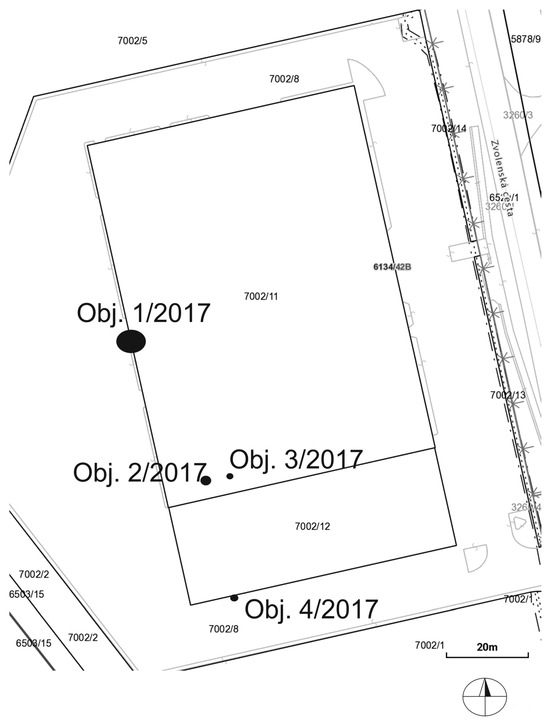

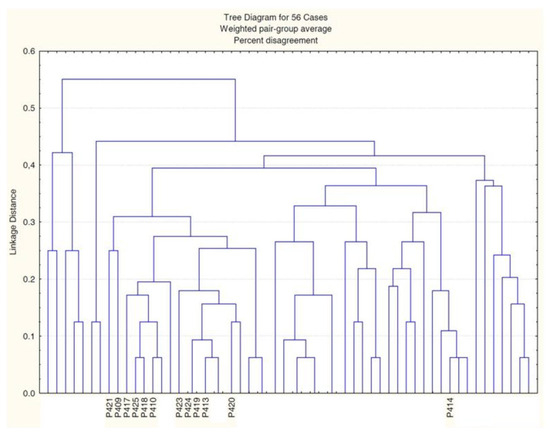

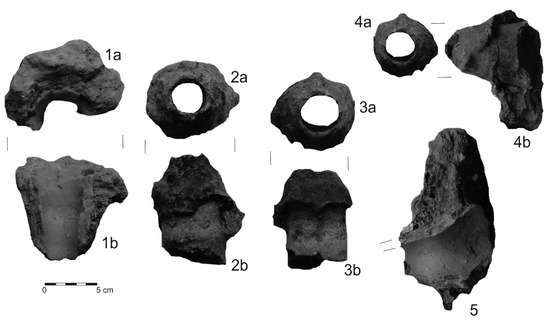

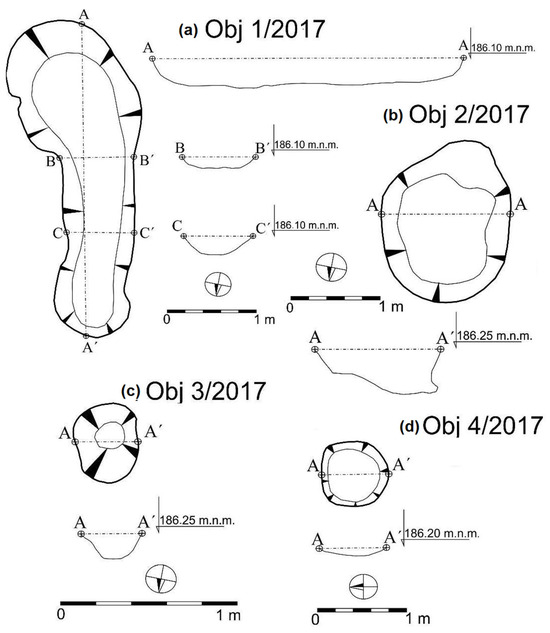

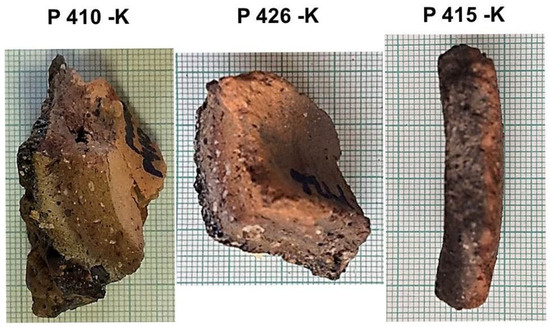

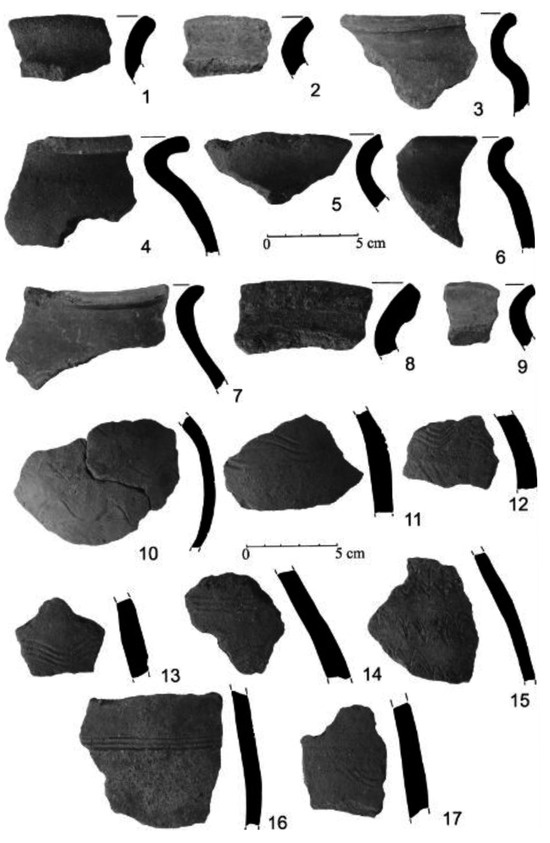

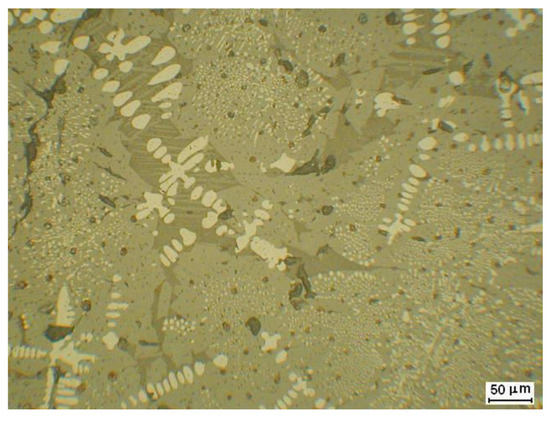

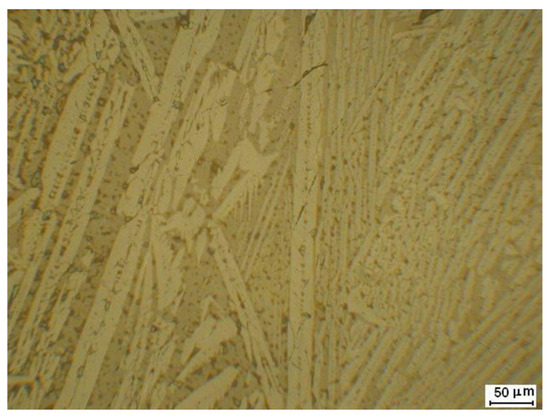

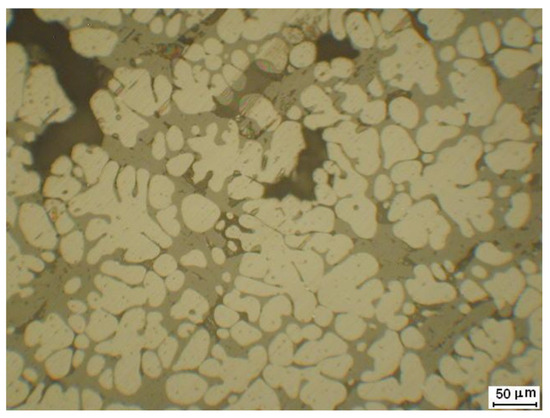

Archeological structures connected with iron metallurgy were identified in the outskirts of the town Lučenec, Slovakia. Based on the shapes and decoration of the ceramic fragments, it was possible to date them to the 9th or 10th century. The first group of discovered metallurgical materials included slags with low wüstite content, which looks like slag from younger higher-shaft furnaces. The second group included slags which could be attributed to the technology common at the time of the site’s existence: iron smelting in lower free-standing shaft furnaces with average efficiency. The third group were slags from the forging of iron blooms to remove pores and slag particles. The fourth group consisted of ceramics fragments (tuyeres and refractory material). Bog ore was probably smelted using principally oak wood charcoal. Full article

The injection of hydrogen into a blast furnace is a promising technology to fulfill the low-carbon ironmaking purpose. A three-dimensional computational fluid dynamic (CFD) model is developed to investigate the effect of hydrogen injection rate and blast oxygen enrichment rate on the tuyere, raceway, and surrounding coke bed behaviors. It was found that hydrogen injection leads to a higher water vapor volume fraction in the raceway and a higher hydrogen fraction in the coke bed. The magnitude of velocity and temperature near the tuyere only increase slightly due to the cold inlet temperature of hydrogen, which also results in lower coke bed temperature. The volume-averaged temperature decreases from 2146 K to 2129 K when the injection rate increases from 0 to 1000 Nm³/h. Oxygen enrichment rate presents a highly positive correlation with temperature in the raceway and coke bed, water vapor and carbon dioxide volume fraction in the raceway, and pulverized coal burnout rate. Because more carbon participates in the raceway reaction with an increase in oxygen enrichment rate from 0% to 10%, the final carbon monoxide fraction in the coke bed increases from 0.29 to 0.40, and the final hydrogen fraction decreases from 0.15 to 0.13. With the increase in hydrogen injection, the temperature of the raceway and the coke bed decreased slightly. Pulverized coal burnout changes little with the hydrogen injection rate increasing from 500 Nm³/h to 1500 Nm³/h, which is because hydrogen combustion promotes pulverized coal at the front part of the raceway but inhibits it at the end due to the relative lack of oxygen. These results will help better understand the combustion behavior in the tuyere and raceway of the blast furnace with oxygen-rich blast and hydrogen injection. Full article

Injecting hydrogen-rich fuel into blast furnaces is an effective strategy to reduce carbon dioxide (CO₂) emissions. The present study established a three-dimensional (3D) model based on a coherent jet of hydrogen-rich fuel. The combustion characteristics and the flow, heat, and mass transfer behaviors in the reaction region were simulated by the Computational Fluid Dynamics (CFD) method. The effects of fuel jet velocity on the distributions of gas velocity, temperature, and species in the reaction region were systematically analyzed. The results show that hydrogen-rich fuel burned around the main jet, generating a high-temperature, low-density flame. As flame length increased, the main jet experienced less decay. The outward expansion of the jet caused continuous diffusion of gas temperature and its components. As the fuel jet velocity increased, the temperature along the main jet centerline rose sharply, while the length of the high-concentration gas region extended. Doubling the jet velocity increased its centerline velocity by 11% and raised the average reaction region temperature by 4.12%. The obtained highlighted results are of paramount importance for optimizing hydrogen-rich smelting in blast furnaces. Full article

The steel industry accounts, according to the International Energy Agency, for ~6.7% of global CO₂ emissions, and the major portion of its contribution is from steelmaking via the blast furnace (BF) route. In the short term, a significant reduction in fossil CO₂ emissions can be achieved through the introduction of bio-coal into the BF as part of cold bonded briquettes, by injection, or as part of coke. The use of bio-coal-containing residue briquettes was previously demonstrated in industrial trials in Sweden, whereas bio-coal injection was only tested on a pilot scale or in one-tuyere tests. Therefore, industrial trials replacing part of the pulverized coal (PC) were conducted. It was concluded that the grinding, conveying, and injection of up to 10% of charcoal (CC) with PC can be safely achieved without negative impacts on PC injection plant or BF operational conditions and without losses of CC with the dust. From a process point of view, higher addition is possible, but it must be verified that grinding and conveying is feasible. Through an experimentally validated computational fluid flow model, it was shown that a high moisture content and the presence of oversized particles delay devolatilization and ignition, lowering the combustion efficiency. By using CC with similar heating value to PC, compositional variations in the injected blend are not critical. Full article

The metallurgical tasks at different stages of converter blowing are different. The process operation and physical properties of molten baths are also different. It is very important to determine the flow characteristics of molten baths at different blowing stages for optimizing process operation. In this paper, a three-dimensional, full-scale model of a 120 t top–bottom combined blowing converter is established. Based on the parameters of oxygen lance position, bath temperature, bottom blowing intensity, and bath physical properties at different blowing stages, the changes in bath flow field, turbulent kinetic energy, impact depth, impact area, and wall shear force with blowing process are studied. The results show that at the initial stage of blowing, the lance position is high, the impact depth of the molten bath is 0.23 m, the impact area is 5.06 m², the dead zone area of the longitudinal section is 0.40 m², and the high-speed zone area is 2.73 m². As the blowing time increases, the lance position decreases, the impact depth of the molten bath increases, the impact area decreases, and the internal velocity of the molten bath increases. In the later stage of tuyere blowing, the lance level decreases to its lowest, the impact depth increases to 0.42 m, the impact area decreases to 2.83 m², the dead zone area of longitudinal section decreases to 0.18 m², and the high-speed area increases to 3.34 m². The area with the highest wall shear stress is situated within the gas–slag–metal three-phase region, where the lining experiences the most significant erosion. The fluctuation in the slag–metal interface is small, and the wall shear force is 2.80 Pa at the initial stage of blowing. From the early to late stages of blowing, the lance position decreases, the fluctuation range of the slag–metal interface increases, and the erosion of the furnace lining increases. In the later stage of blowing, the maximum wall shear force is 3.81 Pa. Full article

The steel industry is an important foundation of the national economy and the livelihood of the people, producing a large amount of carbon dioxide gas, accounting for about 70% of the carbon dioxide gas generated in the steel industry, which occurs during the ironmaking process. Therefore, the key technology to reduce the pollution and improve competitiveness is to increase the stability of blast furnace production and the quality of hot metal. Since the operation requirements for temperature control in the vanadium-titanium blast furnace are dramatically different compared to the traditional ones due to the low fluidity of vanadium-titanium slag, maintaining the required hot metal temperature within a narrow range with smaller fluctuations is essential. In addition, the adjustment parameters of the lower part have a significant influence on the tuyere combustion flame temperature during the daily operation of blast furnaces. At present, there is no relevant research on the online detection and analysis of vanadium-titanium blast furnace tuyere combustion flame temperature. In this study, the temperature of four tuyeres in a 500 m³ vanadium and titanium blast furnace at Jianlong Steel was detected by an online detection system. The tuyere combustion flame temperature was then calculated using colorimetric temperature measuring methodology at various times and at four distinct locations. After that, the calibration analyses, imaging parameter and the temperature tendencies in different directions of the blast furnace were investigated. This study not only offers new methods for understanding the regularity of operation and increasing the degree of visualization in vanadium and titanium smelting blast furnaces but also provides technical support for intelligent and low-carbon operation in blast furnaces. Full article

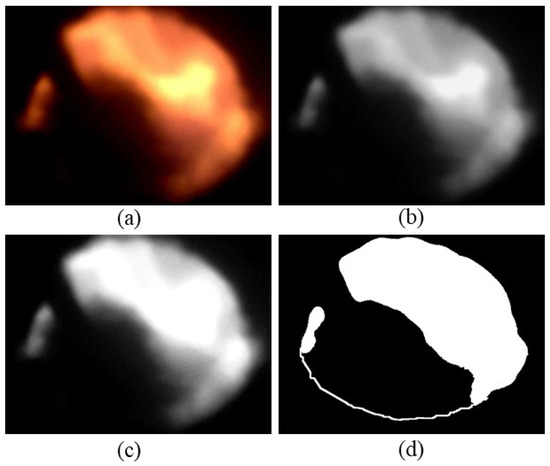

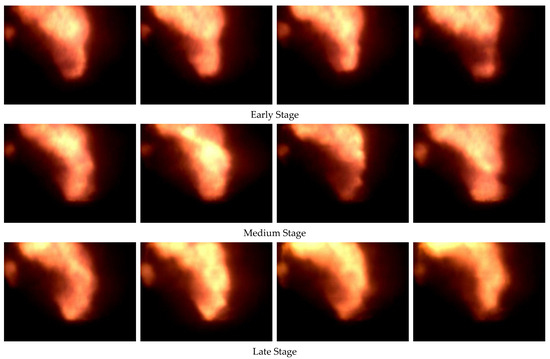

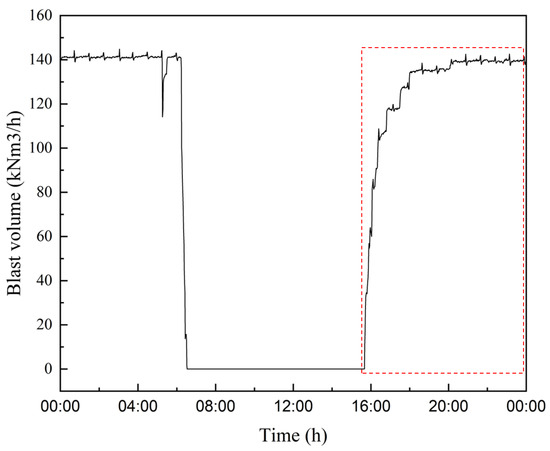

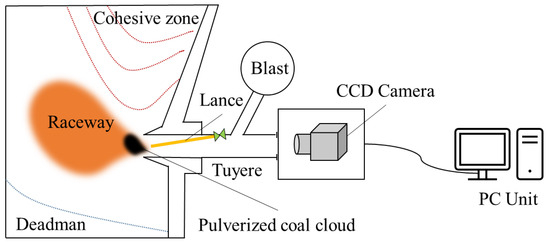

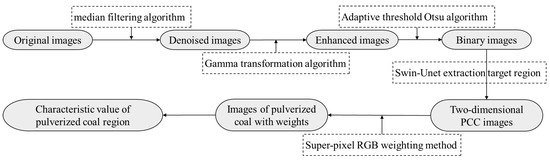

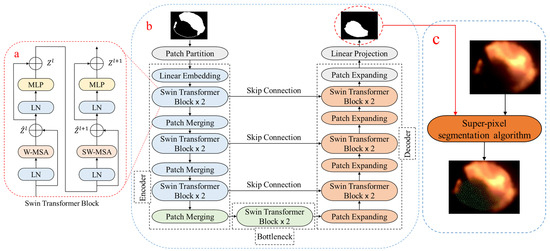

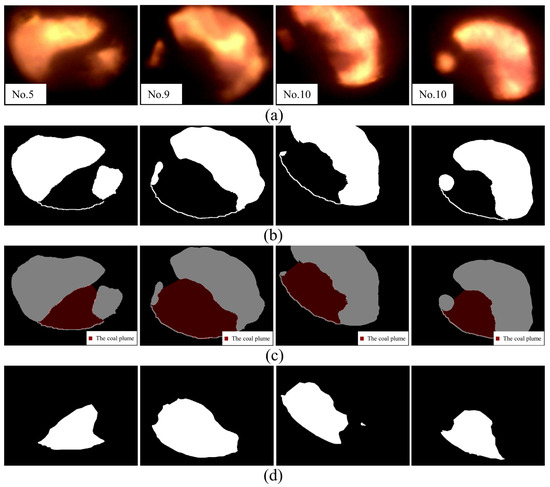

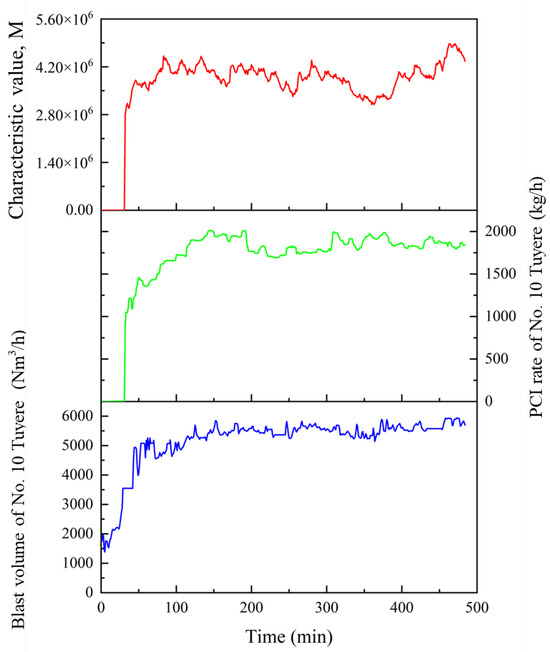

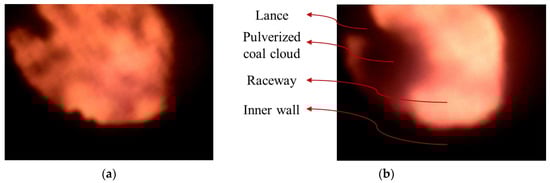

The conditions in the combustion zones, i.e., the raceways, are crucial for the operation of the blast furnace. In recent years, advancements in tuyere cameras and image processing and interpretation techniques have provided a better means by which to obtain information from this region of the furnace. In this study, a comprehensive approach is proposed to visually monitor the status of the pulverized coal cloud at the tuyeres based on a carefully designed processing strategy. Firstly, tuyere images are preprocessed to remove noise and enhance image quality, applying the adaptive Otsu algorithm to detect the edges of the coal cloud, enabling precise delineation of the pulverized coal region. Next, a Swin–Unet model, which combines the strengths of Swin Transformer and U-Net architecture, is employed for accurate segmentation of the coal cloud area. The extracted pulverized coal cloud features are analyzed using RGB super-pixel weighting, which takes into account the variations in color within the cloud region. It is demonstrated that the pulverized coal injection rate shows a correlation with the state of the cloud detected based on the images. The effectiveness of this visual monitoring method is validated using real-world data obtained from a blast furnace of SSAB Europe. The experimental results align with earlier research findings and practical operational experience. Full article

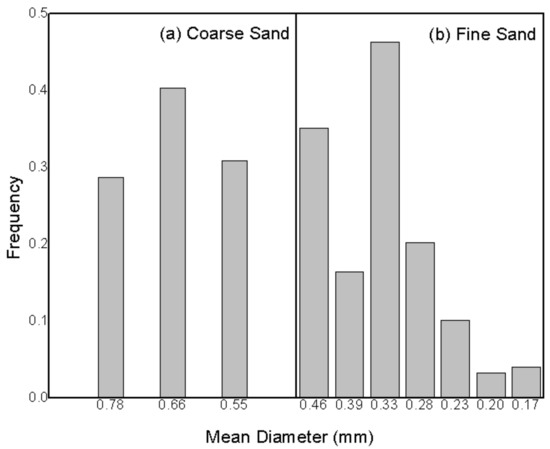

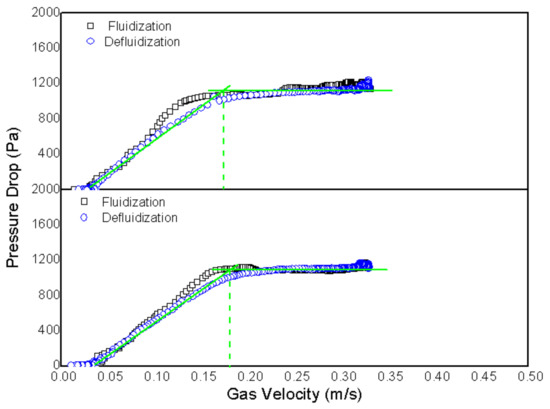

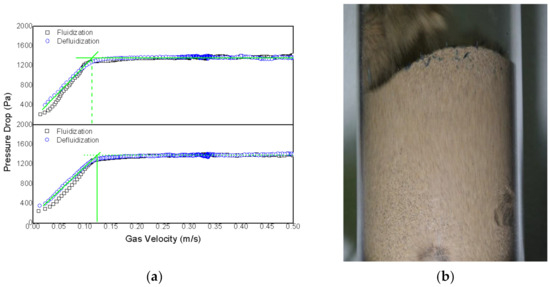

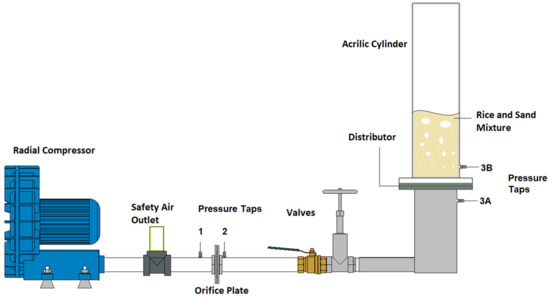

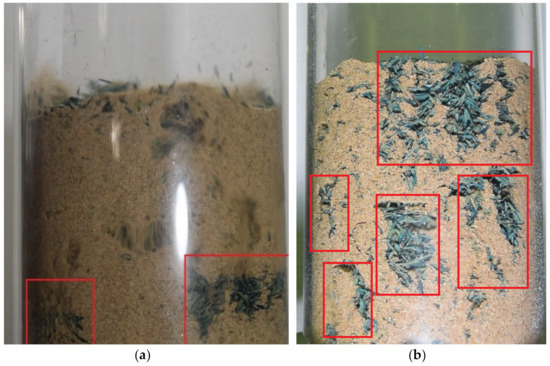

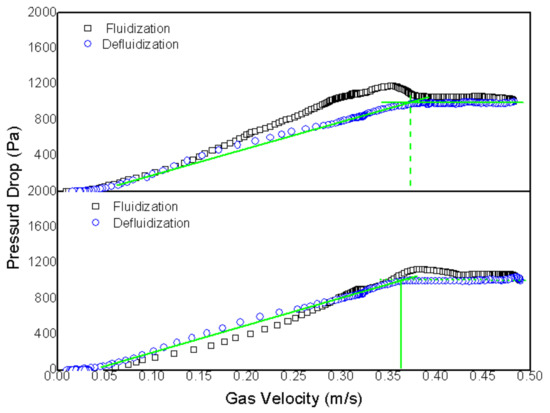

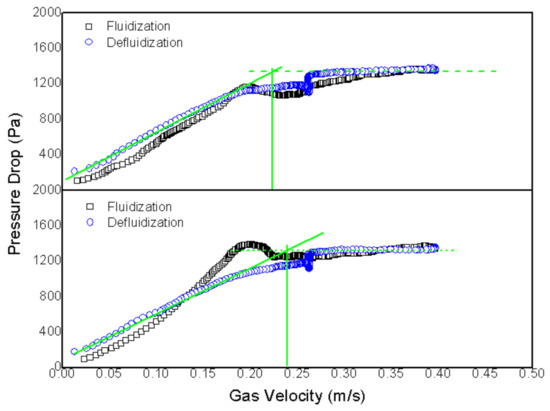

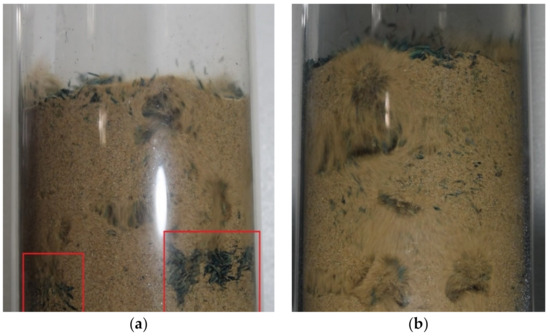

This work studies a fluidization system through cold experiments by using a mixture of rice husk and sand to investigate three parameters: type of bed distributor (perforated plate and plate with Tuyere-type injectors), sand granulometry (mean diameters of 324 µm and 647 µm) and rice husk mass ratio (from 1% to 10% of rice husk). The results reveal that the perforated distributor plate achieved a lower minimum fluidization velocity. However, the plate with Tuyere injectors generated better mixing, thus reducing possible stagnation points. An increase in the mean diameter of the sand raises the minimum fluidization velocity but also facilitates the formation of preferential channels. As for the rice husk mass ratio, values of over 5% cause stagnation points and preferential channels. It was also found that the relation between minimum fluidization velocity and rice husk ratio follows an exponential behavior, and an equation was developed to better describe their relation. Full article

Computational fluid dynamics (CFD)-based simulation has been the traditional way to model complex industrial systems and processes. One very large and complex industrial system that has benefited from CFD-based simulations is the steel blast furnace system. The problem with the CFD-based simulation approach is that it tends to be very slow for generating data. The CFD-only approach may not be fast enough for use in real-time decisionmaking. To address this issue, in this work, the authors propose the use of machine learning techniques to train and test models based on data generated via CFD simulation. Regression models based on neural networks are compared with tree-boosting models. In particular, several areas (tuyere, raceway, and shaft) of the blast furnace are modeled using these approaches. The results of the model training and testing are presented and discussed. The obtained $R^2$ metrics are, in general, very high. The results appear promising and may help to improve the efficiency of operator and process engineer decisionmaking when running a blast furnace. Full article

The blast furnace tuyere is a key position in hot metal production and is primarily observed to assess the internal state of the furnace. However, detecting abnormal tuyere conditions has relied heavily on manual judgment, leading to certain limitations. We proposed a tuyere abnormality detection model based on knowledge distillation and a vision transformer (ViT) to address this issue. In this approach, ResNet50 is employed as the Teacher model to distill knowledge into the Student model, ViT. Firstly, we introduced spatial attention modules to enhance the model’s perception and feature-extraction capabilities for different image regions. Furthermore, we simplified the depth of the ViT and improved its self-attention mechanism to alleviate training losses. In addition, we employed the knowledge distillation strategy to achieve model lightweighting and enhance the model’s generalization capability. Finally, we evaluate the model’s performance in tuyere abnormality detection and compare it with other classification methods such as VGG-19, ResNet-101, and ResNet-50. Experimental results showed that our model achieved a classification accuracy of 97.86% on a tuyere image dataset from a company, surpassing the original ViT model by 1.12% and the improved ViT model without knowledge distillation by 0.34%. Meanwhile, the model achieved a competitive classification accuracy of 90.31% and 77.65% on the classical fine-grained image datasets, Stanford Dogs and CUB-200-2011, respectively, comparable to other classification models. Full article

A new tuyere small sleeve coating structure that balances the high thermal conductivity of the copper substrate with the high wear resistance of the protective layer was developed in this paper. This structure can achieve a low-carbon blast furnace by reducing the heat loss from the tuyere. The 3D model was established via Solidworks for modeling and Ansys for numerical simulation, the temperature field of the annular wear-resistant layer structure tuyere small sleeve with different widths of the wear-resistant layer was analyzed and compared with the temperature and stress field of traditional tuyere small sleeve. The results show that the design of the annular wear-resistant layer structure of the tuyere small sleeve is more effective. The new annular wear-resistant layer structure for the tuyere small sleeve results in a decrease of 24 K in the average temperature of the wear-resistant coating. The comparison of this structure with tuyere sleeves without wear-resistant coatings shows a 16.7% reduction in heat loss, improves the wear resistance of the tuyere, providing new technological ideas for low-carbon blast furnace production. Compared with the tuyere sleeve completely covered with a wear-resistant coating, the maximum thermal stress of this structure decreased from 624.98 Mpa to 427.99 Mpa, resulting in a reduction of 31.5%, which is beneficial for the service life of the tuyere sleeve. The copper surface temperature of the new tuyere small sleeve is in a safe range when the temperature is below 2273 K. Full article

Parameters of shaft tuyere have vital effects on the gas flow distribution and working condition in the TGR-OBF, which determine the production index, CO₂ emission reduction, and economic benefit. To clarify the effects of shaft tuyere parameters on gas movement behavior and burden reduction in oxygen blast furnaces, a 2D steady-state model based on actual plant conditions in China is published in this study. The shaft of the blast furnace can be divided into region I near the wall and region II close to the center, which was influenced by top gas and bosh gas, respectively. The farthest movement distance of the top gas along the radial direction was defined as the penetration depth decided by its kinetic energy ratio. As the height of shaft tuyere decreased from 5/10 L to 1/10 L, the penetration depth decreased from 1.615 m to 1.308 m, and the reduction degree of iron-bearing burden before entering the cohesive zone increased from 0.925 to 0.982. With the shaft tuyere diameters increased from 0.088 m to 0.096 m with a constant blast velocity, the penetration depth was kept elongated at 1.24 m, and the reduction degree before entering the cohesive zone increased from 0.972 to 0.983. While the blast volume of top gas was kept constant, the reduction degree before entering the cohesive zone increased from 0.969 to 0.986. When the shaft tuyere angles increased from −20° to 20°, both the distribution of temperature and CO fraction moved towards the upper shaft slightly, and the penetration depth was kept around 1.24. Under experimental conditions, a low-height shaft tuyere was appropriate for an oxygen blast furnace. Within a certain control range, the changes of shaft tuyere diameters and angles had a small effect on the oxygen blast furnace. Full article

Temperature is one of the important factors that affect the fatigue failure of the welds in orthotropic steel desks (OSD) between U-ribs and bridge decks. In this study, a new analysis method for temperature-induced stress in U-ribs is proposed based on multi-scale finite element (FE) models and monitoring data First, the long-term temperature data of a long-span cable-stayed bridge is processed. This research reveals that a vertical temperature gradient is observed rather than a transverse temperature gradient on the long-span steel box girder bridge with tuyere components. There is a linear relationship between temperature and temperature-induced displacement, taking into account the time delay effect (approximately one hour). Then, a multi-scale FE model is established using the substructure method to condense each segment of the steel girder into a super-element, and the overall bridge temperature-induced displacement and temperature-induced stress of the local U-rib on the OSD are analyzed. The agreement between the calculated temperature-induced stresses and measured values demonstrates the effectiveness of the multi-scale modeling strategy. This approach provides a valuable reference for the evaluation and management of bridge safety. Finally, based on the multi-scale FE model, the temperature-induced strain distribution of components on the OSD is studied. This research reveals that the deflection of the girder continually changes with the temperature variation, and the temperature-induced strain of the girder exhibits a variation range of approximately 100 με. Full article

A numerical simulation procedure is proposed for analyzing the partial replacement of pulverized coal injection by hydrogen, oxygen, and blast furnace gas (BFG) injections mixed with pulverized coal (PCI) within the tuyeres of large blast furnaces. The massive use of hydrogen-rich gas is extremely interesting for ironmaking blast furnaces in the context of net-zero carbon hot metal production. Likewise, this new approach allows for increasing productivity and for reducing the specific emissions of carbon dioxide toward a net-zero carbon ironmaking technology. Nevertheless, the mixture of pulverized coal injection and gas injection is a complex technology. In addition to the impact on chemical reactions and energy exchange, the internal temperature and gas flow patterns can also change drastically. With a view to assessing the state of the furnace in this complex operation, a comprehensive mathematical model utilizing multiphase theory was developed. The model simultaneously handles bulk solids (sinter, pellets, small coke, granular coke, and also iron ore), gas, liquid metal and slag, and coal powder phases. The associated conservation equations take into account momentum, mass, chemical species, and energy while being discretized and solved using finite volume techniques. The numerical model was validated against the reference operating conditions using 220 kg per ton of pig iron (kg/t_HM) of pulverized coal. Therefore, the combined injection of different concentrations of fuel hydrogen, blast furnace gas, and oxygen was simulated for replacing 40, 60, and 80 kg/t_HM of coal injection. Theoretical analysis showed that the best scenario with stable operation conditions could be achieved with a productivity increase of 20% corresponding to a CO₂ reduction of 15% and 60 kg/t_HM of PCI replacement. Full article
