Search Results (9)

Paving blocks are widely used in engineering construction for durable pavement surfaces characterized by their interlocking capability to enhance structural integrity. This study explores the potential use of char as a byproduct from coal pyrolysis and an alternative raw material to natural aggregates in developing paving blocks, aiming to reduce the associated environmental issues associated with the uncontrolled and excessive mining of natural resources. This study finds the paving blocks made from char to have the required engineering properties as mentioned by ASTM standard C936. Trass and trass-lime are added as supplementary cementitious materials (SCMs) to enhance the performance of char-based paving blocks. The incorporation of SCMs as a cement replacement also aims to reduce the carbon footprint arising from increased cement use. The compressive strength increased from 55.7 MPa to 65.71 MPa at 12.5% cement replacement with trass-lime. The water absorption is reduced to 4.63% from 4.95%. Beneficial effects towards freeze–thaw durability and abrasion resistance are also observed on trass-lime-incorporated paving blocks. This study signifies the remarkable potential use of coal-derived char and SCMs in developing light, high-strength, and durable paving blocks, showcasing their competitive engineering performance. These new char-based paving blocks will contribute towards a more sustainable construction environment and advance the current construction and engineering practices. Full article

The measurement of the meshing stiffness in gear pairs is a technological problem. Many studies have been conducted, but a few results are available. A tailored test bench was designed and realized to measure the Static Transmission Error in two mating gears to address this issue. The bench is capable of testing several kinds of gears, e.g., spur, helical, conical, and internal, and it measures the transmission error concerning the applied torque. The Static Transmission Error is due to the variable stiffness of the gear teeth during a mesh cycle. In this paper, a dynamical method for measuring gear mesh stiffness is presented. The tooth stiffness is estimated from the torsional modal behavior of the rotating parts of the test bench. The dynamics of the system are acquired using accelerometers and very precise encoders to measure the angular accelerations and displacements of rotating parts. The torsional mode shapes are identified; those that show a vibrational behavior of the gears that do not follow the transmission ratio’s sign of the mating kinematic condition are selected because they depend on the flexibility of the teeth. In such a way, the engagement stiffness is estimated from the natural frequencies of the selected mode-shapes and the known inertia of gears and shafts. The experimentally identified results are also compared with numerical values computed with a commercial software for mutual validation. Full article

In this article, the physico-mechanical properties and hydration processes of cement pastes containing three additives are introduced. Cement was replaced with pumice, trass, waste chalcedonite powder at 30% by mass and a combination of pumice or trass and waste chalcedonite powder in the amounts of 15% each. The main aim of this research was to assess the properties of two- or three-component binders to save cement in these binders. Rheological properties such as consistency, yield stress, viscosity and thixotropy were determined, in addition to porosity, 7-day and 28-day flexural and compressive strength and bulk density. Additionally, the heat evolution and degree of hydration of the tested pastes were compared. The use of all additives resulted in a reduction in the consistency of the tested pastes. The highest compressive strength measured after 28 days was observed for the cement paste with a 30% content of waste chalcedonite powder, which is related to it having the best pozzolanic activity of the materials used. The results of this research have confirmed that pumice, trass and waste chalcedonite powder can be used as components of blended Portland cements. Full article

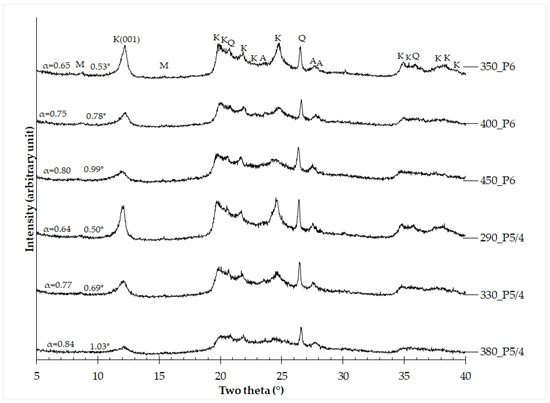

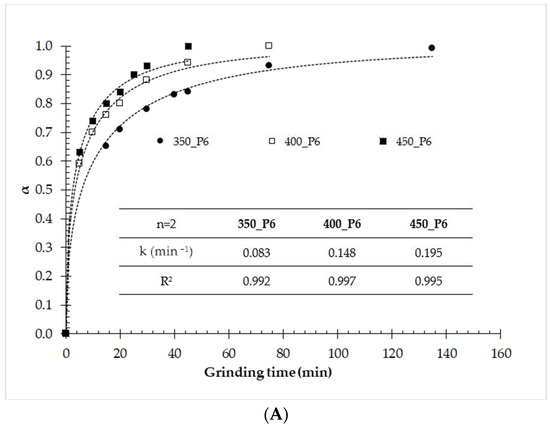

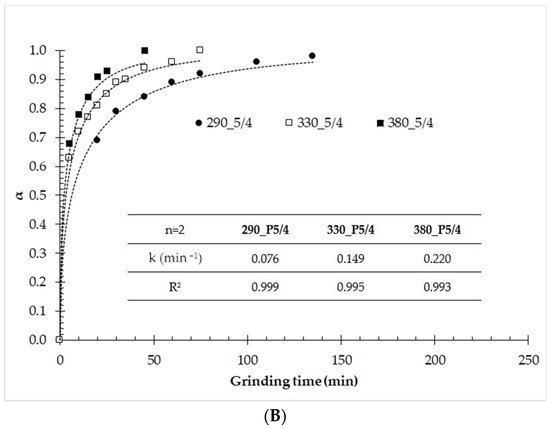

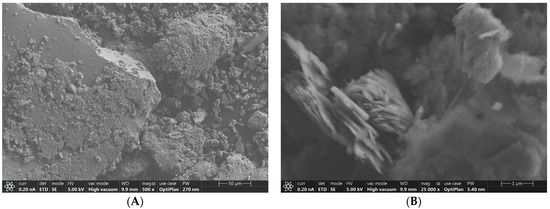

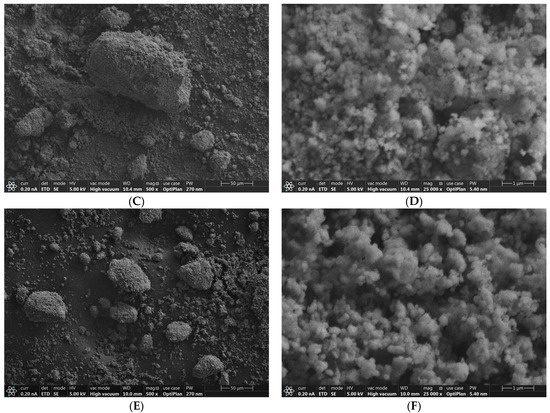

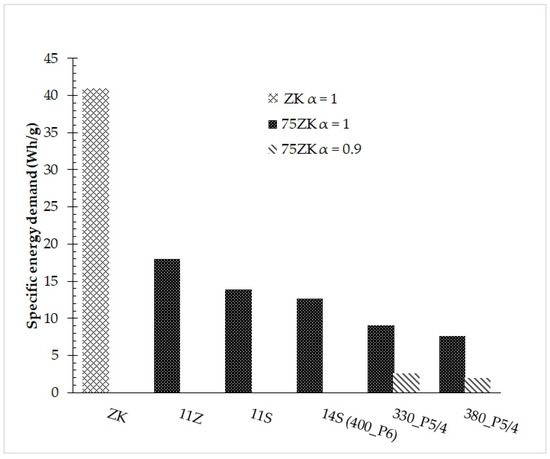

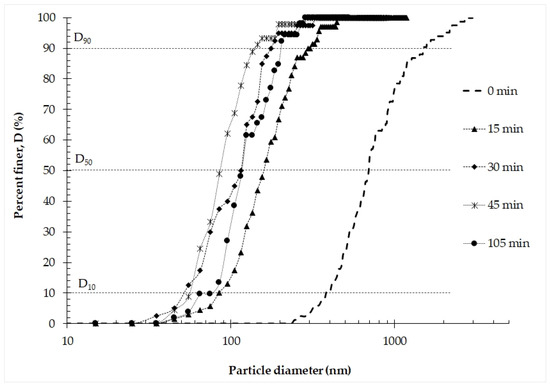

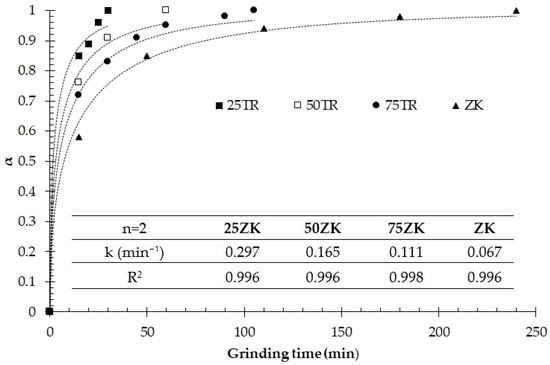

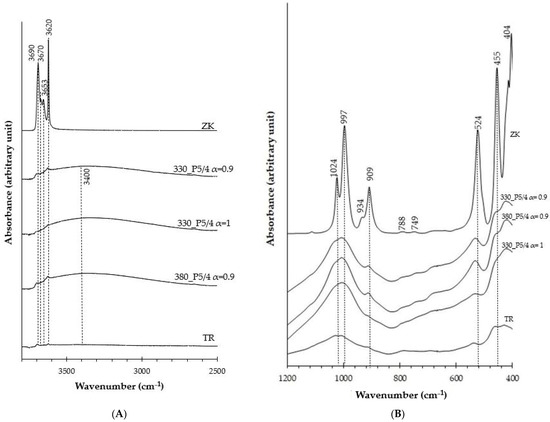

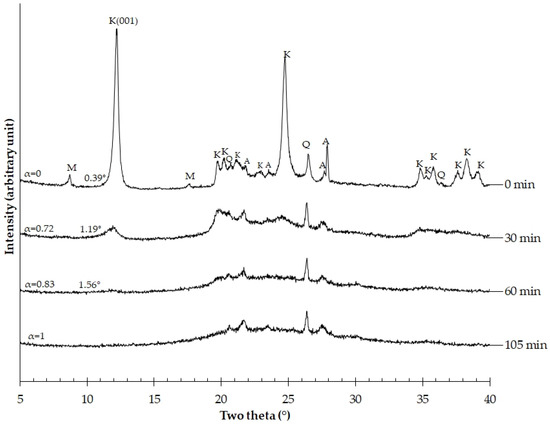

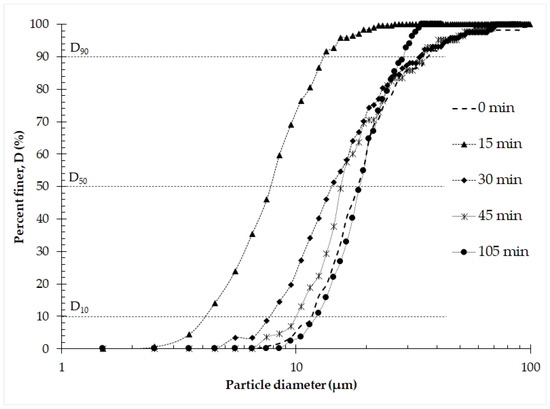

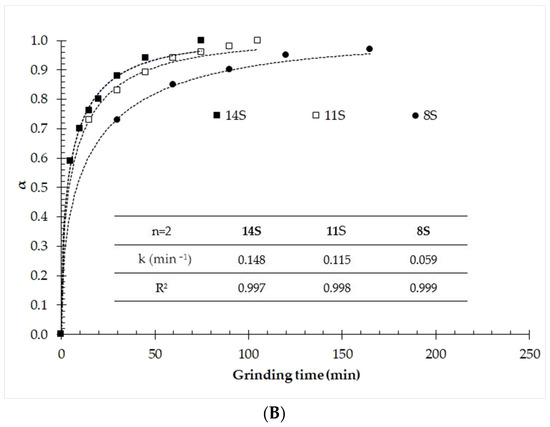

At present, to achieve further reductions in CO₂ emissions in the cement industry, it is essential to improve the efficiency of grinding processes and reduce the energy demand. This study examined the effects of various grinding parameters (addition of trass, ball to powder mass ratio (BPR), material of grinding bodies and jars, rotational speed, and mill type) to minimize the energy consumption of the mechanochemical activation of kaolinite. X-ray diffraction, Fourier transform infrared spectroscopy, inductively coupled plasma optical emission spectroscopy, scanning electron microscopy, and specific surface area measurements were used to examine the influence of grinding parameters. It was found that the addition of as little as 25% (mass percent) trass reduced the specific energy demand for the complete amorphization of kaolinite by 56%. The application of steel grinding bodies (instead of ZrO₂ ones) had a slight influence on the amorphization kinetics of kaolinite, but it could mechanochemically activate 30% more samples at the same BPR and specific energy demand. The use of the four-pot milling instead of the one-pot could considerably decrease the specific energy demand of the complete and incomplete (α = 0.9) amorphization of kaolinite. Overall, a 94% reduction was achieved in specific energy demand with steel grinding material, 14:1 BPR, four-pot milling, and the incomplete amorphization of kaolinite. Full article

The influence of four naturally occurring mineral additives (zeolite, diatomite, trass and bentonite) on the hydration and properties of cement pastes and mortars was investigated. The materials change the phase composition, heat of hydration (determined by calorimetry) and mechanical properties of composites. After 28 days, the amount of Ca(OH)₂ was reduced by up to 23% and up to 35% more C-S-H was formed, as proved by TG measurements. Differences were observed in the kinetics of heat release, especially for 25% of the addition. In the calorimetric curves, an additional exothermic effect is observed, related to the alteration in the hydration of C₃A in cement. From the point of view of beneficial influence on mechanical properties of mortars, the additives could be ranked as follows: bentonite < diatomite, zeolite < trass after 2 days and bentonite < diatomite < trass < zeolite after 28 days of curing. The highest compressive strength (58.5 MPa) was observed for the sample with a 10% addition of zeolite. Zeolite, trass, bentonite and diatomite are all pozzolanic materials; however, their activity varies to an extent due to the differences in their specific surface area and the content of the amorphous phase, responsible for the pozzolanic reaction. Full article

In this paper, a three-dimensional model for the estimation of the deflections, load sharing attributes, and contact conditions will be presented for pairs of meshing teeth in a spur gear transmission. A nonlinear iterative approach based on a semi-analytical formulation for the deformation of the teeth under load will be employed to accurately determine the point of application of the load, its intensity, and the number of contacting pairs without a priori assumptions. At the end of this iterative cycle the obtained deflected shapes are then employed to compute the pressure distributions through a contact mechanics model with non-Hertzian features and a technique capable of obtaining correct results even at the free edges of the finite length contacting bodies. This approach is then applied to a test case with excellent agreement with its finite element counterpart. Finally, several results are shown to highlight the influence on the quasi-static behavior of spur gears of different kinds and amounts of flank and face-width profile modifications. Full article

A circular economy becomes an object of actual discussions as a real alternative to the existing linear economy system. The problem is actually in Estonia also, first of all in the sector of heat and power production which based mainly on the combustion of local solid fossil fuel—Estonian oil shale (OS) resulting in the formation of ~5–6 million tons of OS ashes annually. The thermooxidative decomposition of OS samples from different deposits and estimation of the possibilities of utilization of OS ashes formed at both—pulverized firing (PF) and circulating fluidized bed combustion (CFBC) of Estonian OS were studied. The thermal analysis combined with evolved gas analysis (EGA) methods like Fourier transform infrared (FTIR) and mass-spectroscopy (MS) was exploited. It was established that the differences in the thermal behaviour of different OS samples are caused by the differences in the chemical matrix of organic matter, chemical and mineralogical composition of the inorganic part of OS, and morphology of samples. It was also found that moderate grinding of OS ashes with simultaneous moderate water treatment notably improved the SO₂ binding efficiency of cyclone ash, and that the strength and leachability characteristics of granulated OS ashes strongly depend on the post-granulation treatment conditions allowing to increase the soil neutralizing ability of the granulated products. This overview was based on our investigations carried out during the last fifteen years. Full article

Results from an investigation of the mechanical size reduction with the Szego Mill™ as a pretreatment method for lignocellulosic biomass are presented. Pretreatment is a highly expensive and energy-consuming step in lignocellulosic biomass processing. Therefore, it is vital to study and optimize different pretreatment methods to find a most efficient production process. The biomass was milled with the Szego Mill™ using three different approaches: dry milling, wet milling and for the first time nitrogen assisted wet milling was tested. Bioethanol and biogas production were studied, but also fibre analysis and SEM (scanning electron microscope) analysis were carried out to characterize the effect of different milling approaches. In addition, two different process flows were used to evaluate the efficiency of downstream processing steps. The results show that pretreatment of barely straw with the Szego Mill™ enabled obtaining glucose concentrations of up to 7 g L⁻¹ in the hydrolysis mixture, which yields at hydrolysis efficiency of 18%. The final ethanol concentrations from 3.4 to 6.7 g L⁻¹ were obtained. The lowest glucose and ethanol concentrations were measured when the biomass was dry milled, the highest when nitrogen assisted wet milling was used. Milling also resulted in an 6–11% of increase in methane production rate during anaerobic digestion of straw. Full article

This paper presents a method of utilising ilmenite MUD created during the production of titanium dioxide (TiO₂) according to the sulphate method as an additive for Portland cement composites. After the production process, undissolved MUD was additionally rinsed with water and filtrated in the factory to make it more useful (R-MUD) for implementation and also to turn back some of the by-products of the production of TiO₂. R-MUD is less hazardous waste than MUD. It has a lower concentration of sulphuric acid and some heavy metals. The rinsing process raised the concentration of SiO₂, which is a valuable part of R-MUD because of its potential pozzolanic activity. This means that the R-MUD might be a reactive substitute of part of Portland cement in building composites. The article presents the results of research on the pozzolanic activity of R-MUD and other materials with proved pozzolanic activity, such as silica fume, fly ash and natural pozzolana (trass). Tests were performed using thermal analysis techniques. The tests showed that the pozzolanic activity or R-MUD after three days is at the same level as silica fume and after 28 days it is twice as high as the activity of fly ash. Beyond the 180th day of curing, R-MUD had the same level of activity as fly ash. The summary is supplemented by calorimetric tests, which confirm the high reactivity of R-MUD compared to other commonly used concrete additives, already in the initial hydration period. In summary, heat of hydration after 72 h of Portland cement with R-MUD is at the same level as the heat of hydration of Portland cement with silica fume and also pure Portland cement grout. The results confirm that the process of formation of micro-silica contained in R-MUD react with calcium hydroxide to form the C-S-H phase, which is responsible for the microstructure of cement composites. Full article
