Next Article in Journal
Chirality in Atomically Thin CdSe Nanoplatelets Capped with Thiol-Free Amino Acid Ligands: Circular Dichroism vs. Carboxylate Group Coordination
Next Article in Special Issue
Durability of Concrete with Superabsorbent Polymer (SAP) Assessed Using Depth of Carbonation and NDT Ultrasonic Methods
Previous Article in Journal
On the Durability of Icephobic Coatings: A Review
Previous Article in Special Issue
Influence of the ANN Hyperparameters on the Forecast Accuracy of RAC’s Compressive Strength


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Materials
Volume 17
Issue 1
10.3390/ma17010236
materials-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles thumb_up
...
Endorse textsms
...
Comment
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Physico-Mechanical Properties and Hydration Processes of Cement Pastes Modified with Pumice, Trass and Waste Chalcedonite Powder

by
Edyta Spychał
1,* and
Martin Vyšvařil
2
1
Department of Technology and Organization of Construction, Faculty of Civil Engineering and Architecture, Kielce University of Technology, Al. Tysiąclecia Państwa Polskiego 7, 25-314 Kielce, Poland
2
Institute of Chemistry, Faculty of Civil Engineering, Brno University of Technology, Veveří 331/95, 602 00 Brno, Czech Republic
*
Author to whom correspondence should be addressed.
Materials 2024, 17(1), 236; https://doi.org/10.3390/ma17010236
Submission received: 30 November 2023 / Revised: 26 December 2023 / Accepted: 27 December 2023 / Published: 31 December 2023
(This article belongs to the Special Issue Advances in Cement, Lime and Concrete)
Browse Figures
Versions Notes

Abstract

:
In this article, the physico-mechanical properties and hydration processes of cement pastes containing three additives are introduced. Cement was replaced with pumice, trass, waste chalcedonite powder at 30% by mass and a combination of pumice or trass and waste chalcedonite powder in the amounts of 15% each. The main aim of this research was to assess the properties of two- or three-component binders to save cement in these binders. Rheological properties such as consistency, yield stress, viscosity and thixotropy were determined, in addition to porosity, 7-day and 28-day flexural and compressive strength and bulk density. Additionally, the heat evolution and degree of hydration of the tested pastes were compared. The use of all additives resulted in a reduction in the consistency of the tested pastes. The highest compressive strength measured after 28 days was observed for the cement paste with a 30% content of waste chalcedonite powder, which is related to it having the best pozzolanic activity of the materials used. The results of this research have confirmed that pumice, trass and waste chalcedonite powder can be used as components of blended Portland cements.

1. Introduction

Cement is a basic binder used in the production of diverse pastes, mortars and concretes. The cement industry is characterized by high emissions and high energy and material consumption. It is estimated that the production of 1 ton of Portland clinker causes emissions of about 0.8–0.9 tons of CO2 [1,2]. Cement production is responsible for about 5% of global carbon dioxide emissions [3,4]. Greenhouse gas emissions such as NOx, SO2, CO and CO2 are a serious problem worldwide [1,3,4,5,6]. Different actions are constantly taken to limit this phenomenon. The most important suggestions for solutions to reduce carbon dioxide emissions in the cement industry worldwide are [1,2,3,4,5,6,7,8,9,10,11,12]:
  • The replacement of Portland clinker with other materials (pozzolanic and waste materials), resulting in a new type of Portland cement with additions—compositions with two– or three–ingredient binders;
  • The popularization of multi-component and low–clinker cements;
  • The efficient use of raw materials and alternative fuels (e.g., biomass);
  • The popularization of energy-saving technologies (e.g., belite, sulfoaluminate).
Significant topics in cement production include not only the reduction of environmental pollution or reduction of emissions of CO2 but also the protection of the natural environment through the use of waste materials [1,2,4,13,14,15]. Siliceous fly ash, granulated blast furnace slag and limestone powder are the most popular non-clinker raw materials [1,5]. Due to the limited quantity of siliceous fly ash and granulated blast furnace slag in the decarbonization of the energy and metallurgy sectors, other alternative materials are being looked for [1,9]. The best solutions include raw materials with pozzolanic properties that do not require additional thermal or chemical treatment, such as zeolite, spongilite, diatomite, pumice and trass [16,17,18,19,20,21]. Some of these natural pozzolans have been used to improve the performance of non-hydraulic binders since ancient times. Pozzolanic materials can have a positive impact on the durability of building materials, especially on their rheological and mechanical properties. These effects are related to the amelioration of the pore structure caused by the calcium silicate hydrate (C–S–H) phase, which is an effect of a pozzolanic reaction [22]. Pumice is a raw material produced from solidified igneous volcanic rock lava. The cellular structure of pumice is the result of the formation of bubbles or air voids when gases contained in lava flowing from volcanoes are trapped during cooling [23,24]. Studies in which cement was partially replaced in pastes were carried out by, among others, the authors of the publications [19,21,23]. Kocak et al. [19] tested cement mortars modified with pumice and diatomite, and they replaced 5% or 10% of the cement with the addition of one of these or 10 or 20% with their combination. The authors stated that pumice and diatomite were characterized by lower pozzolanic activity at the early stages and a higher activity at the later stages. Cement mortars with 10% and 20% contents of one of the additions, tested after 28 days, met the requirements for cement class 42.5. Hossain [23], in his research, replaced cement with a content of pumice from 0% to 25%. The pumice caused a delay in the initial and final setting times of the pastes by about 15% compared to cement paste without any pumice addition. This raw material caused a decrease in the compressive strength of more than 25% when cement was replaced with a 25% content of pumice. Hamade et al. [25] conducted a comprehensive review of the effects of pumice on the mechanical properties of cement concrete. In most of the analyzed research, an increase in the amount of pumice leads to a lower apparent density, a reduction in workability and a reduction in mechanical properties. Trass is a material of volcanic origin and comes from pyroclastic rocks [26]. The analysis of the influence of trass on the properties of cement composites has not been as widely considered as the case of pumice. Kapeluszna et al. [17] tested cement pastes and mortars modified with 10% and 25% trass. This had a slight impact on the water demand of the cements. As it turned out, an increase in this material resulted in a shortening of the setting time of the pastes, reducing the consistency of the mortars and reducing their flexural and compressive strengths. On the other hand, the results of the compressive strength testing of mortars with 25% content of trass after 28 days were higher than the results of the 7-day strength testing, which proves the pozzolanic properties of this material.
A good idea in the production of Portland cement with additions and low-clinker cements is the use of waste stone powders such as granite, marble, basalt or chalcedonite powder [15,27,28,29,30,31,32,33,34]. Abdelaziz M.A. et al. [29] tested cement pastes and mortars modified with limestone dust and basalt dust. In their opinion, it is beneficial to use 4–12% content by mass of quarry dust—the mechanical properties of these modified mortars were better than those of the control mortars. Prokopski et al. [30] show that granite powder in dry cement mortars can increase workability. Stone waste in the amount of 50–100 kg/m3 can increase compressive strength by about 15–40%. The greater the amount of granite powder, the higher the adhesion of mortars. The positive influence of granite powder (in the amounts of 5% and 10% by mass) on consistency and water absorption was confirmed by Woźniak et al. [32]. The replacement of cement with an optimum 10% content of granite powder reduced the mechanical properties of masonry mortars. According to the authors, the optimal amount of this stone powder is 10% by mass of cement if we want to achieve an acceptable reduction in bending and compressive strength. Chalcedonite powder is produced as a waste product during the production of aggregates from rocks of sedimentary origin [35,36]. Its use as a substitute for cement composites is not widely known. Only a few publications are available on this subject (similar to trass). Naziemiec et al. [37] presented examples of the use of chalcedonite in building and road engineering, the cement industry and sanitary engineering in a general way. Kotwa et al. [38] tested concretes with a constant amount of waste chalcedonite powder, which was equal to 15% relative to the cement. The addition of stone powder caused a reduction in compressive strength by a maximum of about a few percent compared to the results for strength for different classes of concrete. Water absorption for modified concretes was obtained in the range from 4.2% to 4.9%. In publication [15], cement mortars were modified with chalcedonite powder in amounts of 5%, 20%, 35% and 50%. Using this material in the range from 5% to 35% reduced compressive strength by a maximum of about 31% after 28 days and by a maximum of about 38% compared to reference concretes. Samples with 5% and 20% chalcedonite powder were characterized by the best mechanical properties.
In the literature, there is research in which two– or three–component binders are used [5,39,40,41,42,43,44]. This solution enables the use of the positive properties of individual raw materials. Often, the synergistic effect of two or three ingredients results in comparable or even better mechanical properties than the paste or mortar without modification or material with only one additive [5,43,44].
The purpose of the research in this article includes the possibility of reducing carbon dioxide emissions in the cement industry by replacing a part of cement with one or two other ingredients. The focus of the research was two- or three-component binders. By analyzing the available literature and the possibilities of using various amounts and types of raw materials other than cement, two natural additives were selected for research (pumice and trass) as well as waste natural material from aggregate production—waste chalcedonite powder. The research program included replacing cement with 30% additive(s) by mass and obtaining the composition of CEM II cement—Portland cement B variety (almost the upper limit for the amount of additive). The purpose of the additive combinations used was to assess the most favorable cement–additive(s) system among the selected ones. It was important not only to assess the properties of pastes modified with one of the additions but also to assess their interaction in the three-component binder, due to the possibility of using waste materials. The research mainly focuses on the effects of these additives on the physical and mechanical properties of blended cement pastes. Consistency research was supplemented by rheological measurements, especially the determination of yield stress and viscosity. Additionally, the paper analyses the role of pumice, trass and waste chalcedonite powder in hydration processes.

2. Materials and Methods

2.1. Materials

In this research, commercial cement CEM I 42.5 R (Górażdże Cement S.A., Górażdże, Poland); three additives, pumice (Vulkalit WR, Vulcatec Riebensahm GmbH, Kretz, Germany), trass (Tubag, Sievert Poland Sp. z o.o., Strzelin, Poland) and waste chalcedonite powder (Crusil Sp. z o.o., Inowłódz, Poland); and tap water were used. All additives were used in the form of fine powder. The chemical composition of the cement and additives is introduced in Table 1. This was measured with an Axios X-ray fluorescence (XRF) spectrometer (Malvern Panalytical Ltd., Royston, UK). It is evident that pumice, trass and waste chalcedonite powder containing more than 70% hydraulic oxides (SiO2, Al2O3, Fe2O3) represented a very good prerequisite for the pozzolanic activity of these materials and met the requirements for N and F pozzolans according to ASTM C618 [45].
The specific surface area of each raw material was tested by Blaine’s method [46] and was equal to 3686 cm2/g for cement, 8250 cm2/g for pumice, 6210 cm2/g for trass and 13,164 cm2/g for waste chalcedonite powder. The high specific surface areas of the particles of pumice, trass and waste chalcedonite powder had a significant effect on their pozzolanic activity. Table 2 represents the pozzolanic activity of pumice, trass and waste chalcedonite powder as tested by the Chappelle test [47]. In this method, the material is considered to be pozzolanically active when the amount of reacted Ca(OH)2 within the tested material after 24 h is at least 650 mg Ca(OH)2/1 g. As shown by the research performed, pumice and waste chalcedonite powder met the condition of pozzolanity. On the other hand, trass did not reach the required values even after 3 days of reaction and was evaluated as inactive. The low pozzolanic activity values of the trass were probably caused by the small specific surface area of its particles. The particle size distributions of the cement and all additives are shown in Figure 1. These were determined by Helos KR laser diffraction analyzer dry dispersion (Sympatec GmbH, Clausthal–Zellerfeld, Germany). Waste chalcedonite powder was characterized by the smallest grain size; conversely, pumice had the biggest grain size. The particle size distributions of cement and trass were similar. Cement and all raw materials had particle sizes in the range from 0 to 100 µm.

2.2. Composition of Pastes

In total, six pastes were designed, for which the percentage compositions of all binders can be found in Table 3. The compositions of pastes for individual tests are presented in Table 4, Table 5 and Table 6. The main binder in the tested pastes was cement, which was partially replaced by 30% pumice (CP), trass (CT), waste chalcedonite powder (CCH) or a combination of pumice or trass with waste chalcedonite powder in the amounts of 15% each (CPCH; CTCH). Reference cement paste (C) without additives was also prepared.

2.3. Methods

  • All ingredients were weighed with an accuracy of 0.1 g for most studies. Cement and additions for calorimetric measurements were weighed with an accuracy of 0.0001 g.
  • Consistency was tested with a mini-slump cone test [48]. The research was performed on a flow table (Figure 2a). The mini–cone form was filled with paste and then the form was removed. Firstly, flow diameter was measured with a caliper four times. Secondly, the height (H) of the sample after flow was tested each time (Figure 2b). The dry ingredients were mixed with tap water manually. The mixing procedure was 1 min of mixing, then a 2 min break, then 1 min of mixing followed by 1 min break, then measurement.
Materials 17 00236 g002

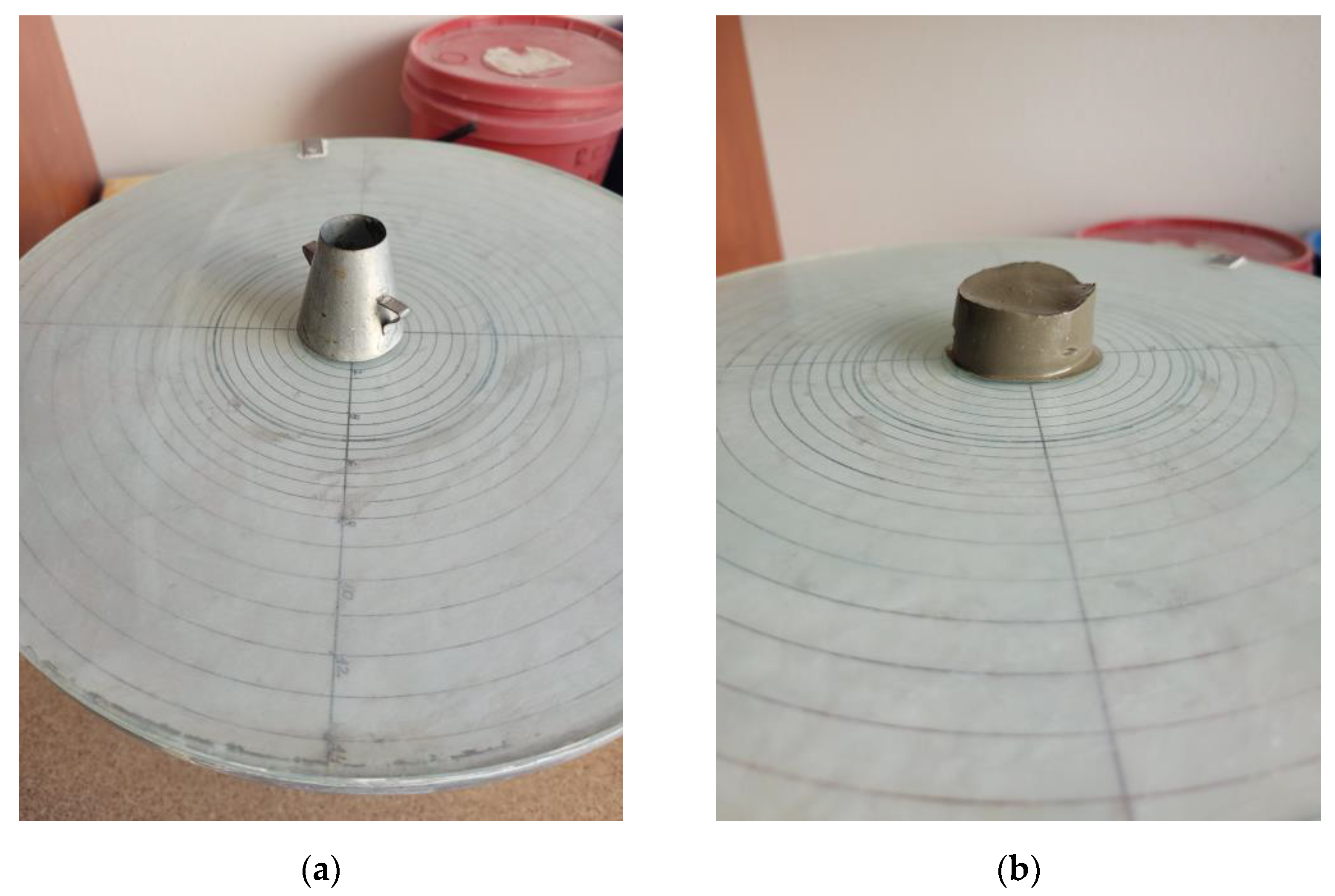

Figure 2. Consistency research: (a) view of the flow table and mini-cone form; (b) view of the sample.
Figure 2. Consistency research: (a) view of the flow table and mini-cone form; (b) view of the sample.
Materials 17 00236 g002
  • Rheological experiments were done using a Discovery HR–1 (TA Instruments, New Castle, DE, USA) accompanied by a DIN rotor. Flow curves were obtained 5 min and 30 min after adding water to the binder(s) (the first contact of water, cement and additives) at the temperature of 20 °C. The shear rate gradually changed from 1 s−1 to 100 s−1 and then from 100 s−1 to 1 s−1. The Herschel–Bulkley model [49] was used to calculate the following parameters: yield stress (τ0), consistency coefficient (K) (analogous to plastic viscosity) and fluidity index (n); thixotropy was calculated using the TRIOS software based on the hysteresis area between two flow curves. The dry ingredients were mixed with tap water. The mixing procedure involved 1 min of mixing manually then a 2 min break, followed by placing of the sample in the rheometer cylinder and then measurement.
  • The paste mixtures for testing hardened materials were prepared in 20 mm × 20 mm × 100 mm moulds. Raw materials and water were mixed for 1 min manually and then the moulds were filled with paste. All of the samples were stored in plastic bags for 24 h to avoid water evaporation; afterwards, they were removed and placed in boxes on a grid above the water level. Mechanical properties tests were performed after 7 and 28 days of curing. Flexural strength (Figure 3a) was determined using a standard three–point bending test (the spacing between the supports was equal to 7 cm), and compressive strength (Figure 3b) was measured on the far edge of both residual pieces obtained from the flexural test. The compressed surface was a square with sides of 2 cm × 2 cm. The average of three measurements for each type of paste was taken as the final flexural strength and the average of six measurements for each type of paste was taken as the final compressive strength.
Materials 17 00236 g003

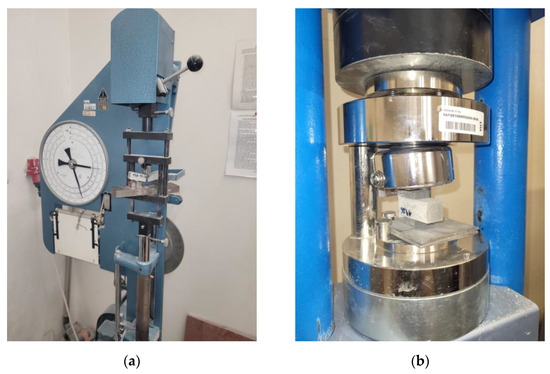

Figure 3. View of samples during research on mechanical properties: (a) flexural strength; (b) compressive strength.
Figure 3. View of samples during research on mechanical properties: (a) flexural strength; (b) compressive strength.
Materials 17 00236 g003
  • Porosity, bulk density, apparent density and total pore area were measured with mercury intrusion porosimetry (MIP) using a PoreSizer 9310 (Micromeritics BV, Eindhoven, The Netherlands), generating a maximum pressure of 207 MPa and making it possible to evaluate a theoretical pore diameter of 0.006 μm. The measurements were performed on the cut part of the hardened paste, including both the interior and surface of the paste. Each paste was measured three times, and the results were averaged. MIP tests were performed on the samples remaining after mechanical properties research.
  • Hydration processes were studied with calorimetric measurements using TAM Air 8–channel isothermal microcalorimeters (TA Instruments, New Castle, DE, USA). The changes in heat evolution for the first 7 days of the setting and hardening processes were monitored. The temperature of the calorimeter was constant and equal to 25 °C. Additionally, the degree of hydration was calculated for all samples, according to the pattern given in publication [50]. All dry ingredients were weighed and poured into a measuring box (small jar) (Figure 4a) and then the appropriate amount of water was measured (Figure 4b). The samples were seasoned in a calorimeter for 24 h. After this time, water was added to the dry ingredients, the mixture was mixed, and the measurements began.
Materials 17 00236 g004

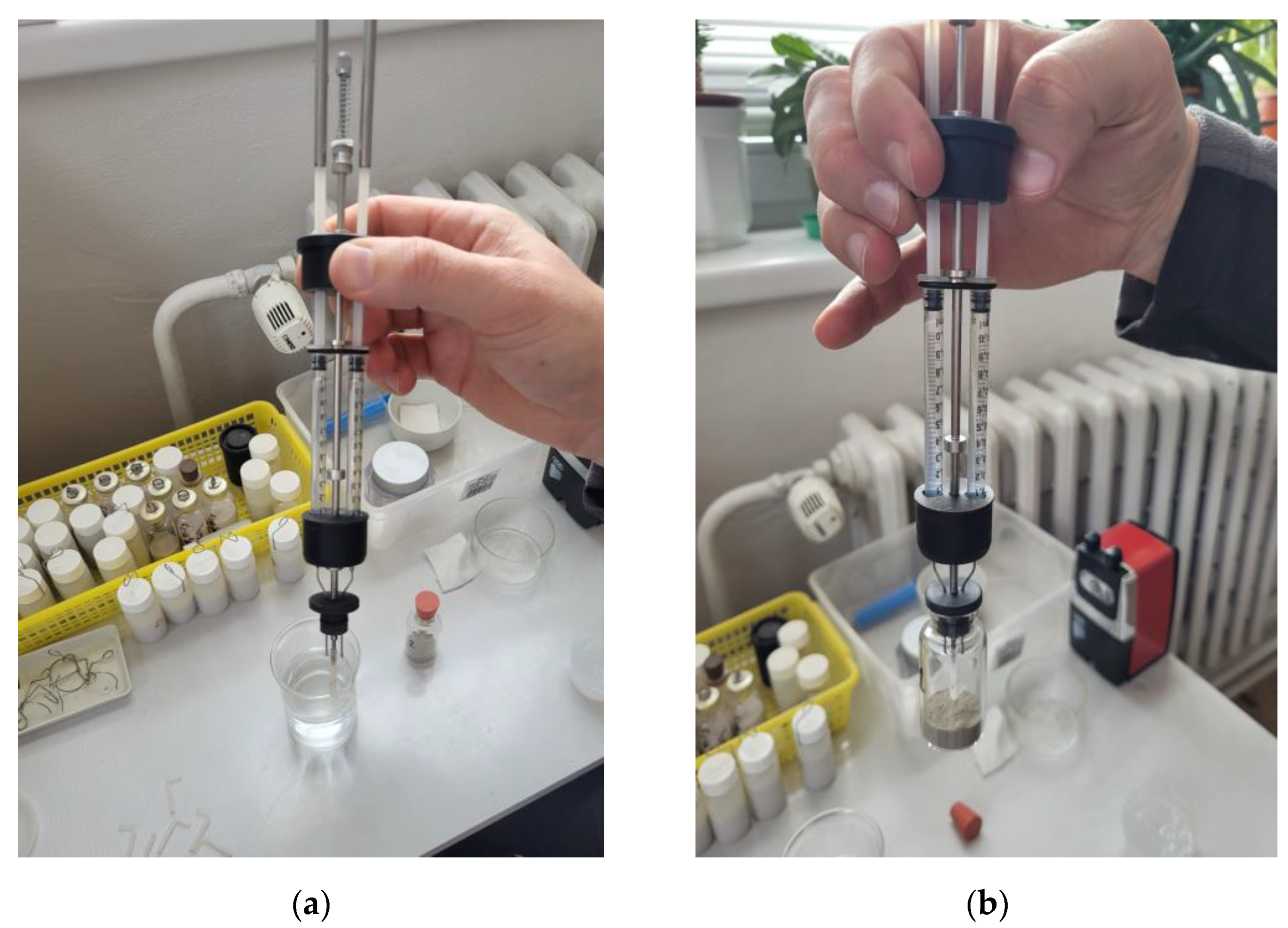

Figure 4. View of samples before calorimetric measurements: (a) view of ingredients; (b) view of the prepared sample.
Figure 4. View of samples before calorimetric measurements: (a) view of ingredients; (b) view of the prepared sample.
Materials 17 00236 g004

3. Results and Discussion

3.1. Physical Properties

The results for the consistency of all tested pastes are presented in Table 7.
Pastes containing additives had lower flow and a higher H parameter, mainly because of their smaller grain size and larger specific surface area versus cement. Mini-slump flow was reduced by about 33–37%. Pumice and trass additions decreased mini-slump flow by about 33%, waste chalcedonite powder by about 37%, a combination of pumice and waste chalcedonite powder by about 35%, and a combination of trass and waste chalcedonite powder by about 33%. The influence of 30% waste chalcedonite powder (CCH paste) on consistency was the most significant (due to it having the smallest grain size among all additives). The addition of waste chalcedonite powder in three-component pastes resulted in their slight thickening. The results of this research are consistent with the conclusions from publication [15], but opposite to the results from publication [33].
The results concerning the rheological measurements of pastes are introduced in Table 8. The flow curves of cement paste and cement pastes with 30% additive(s) are presented in Figure 5. Results for yield stress, consistency coefficients and thixotropy measured after 5 and 30 min are shown in Figure 6, Figure 7 and Figure 8.
A detailed look at the flow curves of the pastes shows that a denser structure of the pastes was formed over time, as the flow curves measured 30 min after mixing lie at higher shear stress values than the 5 min flow curves. The curves also indicate the thixotropic behavior of the pure cement paste, meaning that it thinned over time during mixing. Pastes with additives showed worse thixotropy (Table 8, Figure 8), and CCH and CTCH pastes were even rheopectic at the initial stage. This deterioration of flow properties during mixing was probably caused by increased absorption of water on the large surfaces of the additive particles. Over time, the thixotropic behavior of all pastes improved. The change in the composition of the cement pastes did not have a significant effect on the character of their behavior with increasing shear rate; all pastes were pseudoplastic (shear-thinning, n < 1).
Analysis of rheological results showed that the majority of pastes with additive(s) were characterized by higher yield stress compared to the control sample (paste C), which is in agreement with the results of consistency measurement (lower flow values). On the other hand, the results for the consistency coefficient (plastic viscosity) were different. Pumice and trass negatively affected the K parameter compared to reference cement paste. Both waste chalcedonite powder and a combination of waste chalcedonite powder with pumice or trass positively affected the viscosity to higher values. Despite the smaller grain sizes of all three additives compared to cement, only waste chalcedonite powder increased the viscosity of the modified pastes. Waste chalcedonite powder acts as a thickening agent, which is mainly due to the large specific surface area of its particles. It is necessary to apply a higher shear stress to make such mixtures flow, and they flow less under the same conditions (they have higher viscosity). The incorporation of waste chalcedonite powder into cement pastes also increased the crystalline particle content, as chalcedonite consists of porous quartz grains with cryptocrystalline SiO2 [42], and mixtures with a higher crystalline content are more reluctant to flow. The individual crystals have to be arranged in the shear direction and require greater force to move, resulting in higher shear stress values. Waste chalcedonite powder affects the rheological properties of cement pastes very similarly to another natural pozzolan, spongilite [51].
The macro−structural properties of the tested pastes are presented in Table 9. The tested pastes were characterized by bulk densities in the range of 1.38–1.56 g/cm3, the highest being for the reference C sample. On the other hand, the apparent density ranged from 2.09 g/cm3 to 2.26 g/cm3, being highest for the C and CCH samples. The total pore areas for all materials varied. The reference sample (paste C) had a total pore area equal to 22.67 m2/g. This parameter of pastes with addition(s) was higher by 29–35% than for the reference sample, the highest value being for the sample with the addition of pumice. The porosity of the control paste C was equal to 31.12%, but this variable was in the range of 32.47–36.86% for the modified materials. Among all pastes with additives, the paste with waste chalcedonite powder had the highest porosity (36.86%). This may be caused by the nature of the stone powder. All additives significantly increased total pore area, but only slightly increased porosity. Interestingly, the material with the highest porosity (CCH) had a relatively low total pore area.
Incremental pore volume is shown graphically in Figure 9. This parameter varied depending on the type of addition(s). The addition of waste chalcedonite powder (in any case) increased the pore diameter in the range of 0.01–0.1 μm compared to the reference sample and pastes with pumice and trass. On the other hand, the change in pore diameter was the highest for cement paste and paste with trass, in the range of 0.01–1.0. Increasing the volume of larger pores at the expense of smaller pores resulted in a decrease in the bulk density and a reduction in the total pore area. Waste chalcedonite powder increased the size of smaller pores, but the addition of trass caused the pores to become larger in diameter.

3.2. Mechanical Parameters

The results for flexural and compressive strength after 7 and 28 days are compared in Table 10 and Table 11 and Figure 10 and Figure 11. Additionally, changes in strength over time were calculated. Flexural strength measured after 7 and 28 days was the highest for samples with pumice. These results were similar to the results for the reference sample. The highest decrease in flexural strength after 28 days was recorded for the paste with trass (about 25.7% compared to the C sample). The compressive strength results were different. Cement paste had the highest compressive strength after 7 days. Pastes with a combination of two additives were characterized by the highest compressive strength (from modified pastes). The lowest compressive strength was noted in the case of the paste with waste chalcedonite powder, but its strength increased with time. The increase in strength between days 7 and 28 was equal to about 13%. Pumice and waste chalcedonite powder had slightly different effects when comparing compressive strength results after 7 days. Paste with pumice had a higher strength after 7 days than paste with stone powder and similar results to the reference sample. On the other hand, the result for compressive strength (after 28 days) was the highest for paste with waste chalcedonite powder. The pozzolanic activity of the waste chalcedonite powder was the highest among the three additives but required a longer time to become active. Partial replacement of the pumice with waste chalcedonite powder did not negatively affect the 28-day compressive strength of the pastes. In the case of pumice and waste chalcedonite powder, a paste containing both additives was characterized by a decrease of about 19% in strength compared to a sample containing only pumice.

3.3. Calorimetric Measurements

The heat of the hydration processes and the cumulative normalized heat of the tested pastes are presented in Figure 12 and Figure 13. The influences of pumice, trass and waste chalcedonite powder on the mentioned pastes were studied to note the mechanisms of setting and hardening processes. The results for the heat release rate indicate that the additives and their combinations affected the hydration processes of cement. The courses of the hydration curves varied depending on the type of additive(s), which is probably related to the pozzolanic activity of the raw materials. The second maximum (the main peak) was noted in both modified samples after about 6–7 h of hydration (earlier than in the case of the reference sample, cement paste). The initial signal is attributed to the dissolution and wetting of cement grains and also to the incipient formation of ettringite. The incorporation of additives led to a reduction of but an acceleration in heat flow. The induction time for all cement pastes was about 1.5 h. Based on the course of the curves (Figure 12), it can be concluded that the use of the additive(s) accelerates hydration processes, which is represented by the second peak being within the first 2–3 h of measurements (peak corresponding to C3S hydration). The extra-fine particles in the system increase the heterogeneous nucleation effect, and the dormant period is shorter. The third peak is associated with the point of solid gypsum exhaustion and the accelerated reactivity of the aluminate phase. The third peak appears as a small shoulder for plain cement (after 15 h) and progresses to a clearer peak with increasing waste chalcedonite powder content. The period of occurrence is accelerated for cement pastes with additives. Trass appears to have the least effect on aluminate hydration, followed by pumice. Tydlitát et. al. stated that the lower gypsum content and the increase in reactive aluminum content in blended cement pastes are behind the accentuation of heat development during the hydration of aluminate phases [52]. However, in the current research, it was found that the intensification of heat release in the same time range occurs in the case of the addition of waste chalcedonite powder, where no active aluminum is present. Therefore, the resulting paste contains a lower content of aluminates than pure cement paste. Similar results were obtained for cement pastes with 10% and 20% replacement of cement by silica fume, i.e., addition without active aluminum [53]. In contrast, cement pastes with pumice and trass, which contained a larger amount of Al2O3 than cement, did not show any significant changes in the hydration of aluminates compared to the reference paste.
The cumulative normalized heat in the paste after 168 h is the highest in the reference sample (without additives). However, cement pastes with chalcedonite powder and a combination of waste chalcedonite powder with pumice or trass had higher cumulative heat (Figure 13 and Table 12) and degree of hydration (Table 13) values than cement paste with pumice and trass. According to accumulated heat−release data, the stimulation effect of additives occurred up to 15–17 h. Very similar results were obtained when natural zeolite or metakaolin was used as a pozzolanic additive to cement pastes [54,55].

4. Conclusions

The results of this research have shown that pumice, trass and waste chalcedonite powder can be components of blended Portland cements. Partial replacement of pumice, trass and waste chalcedonite powder in cement pastes has significant importance from an ecological and economical point of view. The use of such solutions is consistent with the principles of sustainable development. The properties of pastes with two- and three-component binders vary, depending on the types of additive(s).
  • All additives significantly reduced the flow of cement pastes. They are more water-demanding than cement. This is related to their larger specific surface area and the grain sizes of all additives compared to cement. From a practical point of view, this means that the consistency of mortars or concretes with these raw materials will be worse. Obtaining a flow similar to the reference sample would require an increase in the amount of water or the use of a plasticizer or superplasticizer.
  • Fresh cement pastes generally behave as Hershel–Bulkley fluids with very low yield stress. All the additives used had a thickening effect on the cement pastes, despite their different chemical and mineralogical compositions and specific surface areas. They increased the viscosity and yield stress and decreased the thixotropy of the pastes, which is consistent with the results of the consistency test.
  • Cement paste was characterized by the highest bulk density and apparent density. The use of additives increased the total pore area more than the porosity of the pastes. The increase in the porosity and total pore size of pastes with additives may be reflected in the greater vapor permeability of the materials.
  • The test results show that substitution of cement with 30% pumice, trass or waste chalcedonite powder induces a decrease in flexural and compressive strength after 7 days, but the best compressive strength after 28 days was obtained for the cement paste modified with 30% waste chalcedonite powder.
  • The use of the additive(s) accelerates the hydration processes of cement paste. The stimulation effect of additives occurs mainly at the early stages, up to 15 h, which may be reflected in the acceleration of the binding and hardening processes of these pastes. The total evolved heat of blended cement pastes is lower.
  • Replacing pumice or trass with 50% waste chalcedonite powder does not significantly deteriorate their parameters for consistency and porosity. Yield stress and consistency index are increased. Partial replacement of trass with chalcedonite powder resulted in a decrease in flexural strength, but the stone waste included in the pumice–chalcedonite pastes resulted in an increase in flexural strength after 7 and 28 days. The early compressive strength of paste with a three-component binder is higher than that of pastes modified with only one additive. Moreover, there is no significant deterioration in compressive strength after 28 days when part of the pumice or trass is replaced with waste chalcedonite powder. The use of three-component binders increases the cumulative amount of heat released in the paste and increases the degree of hydration (after 168 h) compared to pastes with pumice or trass.

Author Contributions

Conceptualization, E.S. and M.V.; methodology, E.S. and M.V.; validation, E.S. and M.V.; formal analysis, E.S. and M.V.; investigation, E.S. and M.V.; resources, E.S. and M.V.; data curation, E.S. and M.V.; writing—original draft preparation, E.S.; writing—review and editing, E.S. and M.V.; visualization, E.S. and M.V.; supervision, E.S. and M.V.; project administration, E.S. and M.V.; funding acquisition, E.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a program of the Minister of Science and Higher Education under the Regional Initiative of Excellence in 2019–2022 (project number 025/RID/2018/19; financing amount PLN 12.000.000). The research was also supported by the Czech Science Foundation under project No 21-06582S.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Baran, T. The use of of waste and industrial by-products and possibilities of reducing CO2 emission in the cement industry—Industrial trials. Cem. Lim. Concr. 2021, 3, 169–184. [Google Scholar] [CrossRef]
  2. Baran, T.; Ostrowski, M.; Radelczuk, H.; Francuz, P. The methods of Portland cement clinker production assuring low CO2 emission. Cem. Lim. Concr. 2016, 6, 389–395. [Google Scholar]
  3. Uliasz-Bocheńczyk, A.; Mokrzycki, E. Carbon dioxide emission in the cement industry. Polit. Energet. 2003, 6, 367–375. (In Polish) [Google Scholar]
  4. Siemieniuk, J.; Szatyłowicz, E. Reducing CO2 emissions in the process of cement production. Civil Envir. Eng. 2018, 9, 81–87. (In Polish) [Google Scholar]
  5. Wieczorek, M.; Pichniarczyk, P. Properties of cement with the low Portland clinker and the different content of silica fly ash as well granulated blast furnace slag. Cem. Lim. Concr. 2022, 4, 285–299. [Google Scholar] [CrossRef]
  6. Lewandowski, M.; Kądzielawski, G. Green competencies of cement industry employees in the context of the assumptions of the European Green Deal. Cem. Lim. Concr. 2022, 4, 265–274. [Google Scholar] [CrossRef]
  7. Gartner, E. Industrially Interesting Approaches to “Low-CO2” Cements. Cem. Concr. Res. 2004, 34, 1489–1498. [Google Scholar] [CrossRef]
  8. Środa, B. Innovative technologies in the cement industry. Cem. Lim. Concr. 2021, 5, 444–451. [Google Scholar]
  9. Środa, B. Cementy niskoklinkierowe—Teraźniejszość i skomplikowana przyszłość. Bud. Techn. Archit. 2022, 1–3, 70–73. (In Polish) [Google Scholar]
  10. Bajorek, G.; Drabczyk, M.; Nowicka-Semen, J. The importance of low-clinker cements in shaping the durability of reinforced concrete elements. Build. Mat. 2022, 9, 66–69. [Google Scholar] [CrossRef]
  11. Madlool, N.; Saidur, R.; Hossain, M.; Rahim, N. A critical review on energy use and savings in the cement industries. Renew. Sustain. Energ. Rev. 2011, 4, 2042–2060. [Google Scholar] [CrossRef]
  12. Ali, M.; Saidur, R.; Hossain, M. A review on emission analysis in cement industries. Renew. Sustain. Energ. Rev. 2011, 5, 2252–2261. [Google Scholar] [CrossRef]
  13. Chajec, A. Granite powder vs. fly ash for the sustainable production of air-cured cementitious mortars. Materials 2021, 14, 1208. [Google Scholar] [CrossRef] [PubMed]
  14. Karakurt, C.; Dumangöz, M. Rheological and durability properties of self-compacting concrete produced using marble dust and blast furnace slag. Materials 2022, 15, 1795. [Google Scholar] [CrossRef] [PubMed]
  15. Spychał, E.; Kotwa, A. Assessment of the possibility of using chalcedonite powder as a component of mortars. Struct. Environm. 2022, 4, 119–125. [Google Scholar] [CrossRef]
  16. Vyšvařil, M.; Bayer, P.; Žižlavský, T. Use of spongilites as pozzolanic additives in cement mortars. Solid State Phenom. 2021, 325, 65–70. [Google Scholar] [CrossRef]
  17. Kapeluszna, E.; Szudek, W.; Wolka, P.; Zieliński, A. Implementation of alternative mineral additives in low-emission sustainable cement composites. Materials 2021, 14, 6423. [Google Scholar] [CrossRef] [PubMed]
  18. Degirmenci, N.; Yilmaz, A. Use of diatomite as partial replacement for Portland cement in cement mortars. Constr. Build. Mater. 2009, 23, 284–288. [Google Scholar] [CrossRef]
  19. Kocak, B.; Pınarcı, İ.; Güvenç, U.; Kocak, Y. Prediction of compressive strengths of pumice- and diatomite-containing cement mortars with artificial intelligence-based applications. Constr. Build. Mat. 2023, 385, 131516. [Google Scholar] [CrossRef]
  20. Czapik, P.; Czechowicz, M. Effects of natural zeolite particle size on the cement paste properties. Struct. Environ. 2017, 3, 180–190. [Google Scholar]
  21. Zeyad, A.M.; Almalki, A. Role of particle size of natural pozzolanic materials of volcanic pumice: Flow properties, strength, and permeability. Arab. J. Geosc. 2021, 14, 107. [Google Scholar] [CrossRef]
  22. Kapeluszna, E.; Kotwica, Ł.; Pichór, W.; Nocuń-Wczelik, W. Study of expanded perlite by-product as the mineral addition to Portland cement. Cem. Lim. Concr. 2015, 1, 38–44. [Google Scholar] [CrossRef]
  23. Hossain, K.M.A. Properties of volcanic pumice based cement and lightweight concrete. Cem. Concr. Res. 2004, 34, 283–291. [Google Scholar] [CrossRef]
  24. Rashad, A.M. An overview of pumice stone as a cementitious material—The best manual for civil engineer. Silicon 2021, 13, 551–572. [Google Scholar] [CrossRef]
  25. Hamada, H.M.; Abed, F.; Beddu, S.; Humada, A.M.; Majdi, A. Effect of volcanic ash and natural pozzolana on mechanical properties of sustainable cement concrete: A comprehensive review. Case Stud. Constr. Mater. 2023, 19, e02425. [Google Scholar] [CrossRef]
  26. Joshaghani, A. The effect of trass and fly ash in minimizing alkali-carbonate reaction in concrete. Constr. Build. Mater. 2017, 150, 583–590. [Google Scholar] [CrossRef]
  27. Topçu, I.B.; Bilir, T.; Uygunoğlu, T. Effect of waste marble dust content as filler on properties of self-compacting concrete. Constr. Build. Mater. 2009, 23, 1947–1953. [Google Scholar] [CrossRef]
  28. Li, J.; Che, D.; Liu, Z.; Yu, L.; Ouyang, X. Effect of basalt powder on hydration, rheology and strength development of cement paste. Materials 2022, 15, 8632. [Google Scholar] [CrossRef]
  29. Abdelaziz, M.A.; El-Aleem, S.A.; Menshawy, W.M. Effect of fine materials in local quarry dusts of limestone and basalt on the properties of Portland cement pastes and mortars. Int. J. Eng. Res. 2014, 6, 1038–1056. [Google Scholar]
  30. Prokopski, G.; Marchuk, V.; Huts, A. Granite dust as a mineral component of a dry cement mortar mixtures. Archiv. Civ. Eng. 2020, 3, 81–96. [Google Scholar] [CrossRef]
  31. Czarnecki, S.; Chajec, A.; Malazdrewicz, S.; Sadowski, Ł. The prediction of abrasion resistance of mortars modified with granite powder and fly ash using artificial neural networks. Appl. Scien. 2023, 6, 4011. [Google Scholar] [CrossRef]
  32. Woźniak, Z.Z.; Chajec, A.; Sadowski, Ł. Effect of the partial replacement of cement with waste granite powder on the properties of fresh and hardened mortars for masonry applications. Materials 2022, 15, 9066. [Google Scholar] [CrossRef] [PubMed]
  33. Ramadji, C.; Messan, A.; Prud’homme, E. Influence of granite powder on physico-mechanical and durability properties of mortar. Materials 2020, 13, 5406. [Google Scholar] [CrossRef] [PubMed]
  34. Messaoudene, I.; Jauberthie, R.; Rechache, A.; Bounechada, A. Strength development of ternary blended cement with marble powder and natural pozzolana. Cem. Lim. Concr. 2015, 1, 32–37. [Google Scholar]
  35. Michel, M.M. Characteristics of chalcedonite from Teofilów deposit for possible use in technology of water and wastewater treatment. Gospod. Surowc. Min. 2011, 1, 49–68. (In Polish) [Google Scholar]
  36. Pavlík, Z.; Vyšvařil, M.; Pavlíková, M.; Žižlavský, T.; Záleská, M.; Pivák, A. Lightweight mortars with chalcedonite—Towards functional and durable materials for repair of historical masonry. J. Build. Eng. 2023, 79, 107841. [Google Scholar] [CrossRef]
  37. Naziemiec, Z.; Pichniarczyk, P.; Saramak, D. Current issues of processing and industrial utilization of chalcedonite. J. Pol. Min. Eng. Soc. 2017, 1, 89–96. [Google Scholar]
  38. Kotwa, A.; Ramiączek, P.; Bąk-Patyna, P.; Kowalik, R. Parameters of concrete modified with micronized chalcedonite. Materials 2023, 16, 3602. [Google Scholar] [CrossRef]
  39. Czapik, P.; Cebulski, M. The properties of cement mortar with natural zeolite and silica fume additions. Struct. Environ. 2018, 2, 105–113. [Google Scholar] [CrossRef]
  40. Abo-El-Enein, S.A.; El-kady, G.; El-Sokkary, T.M.; Gharieb, M. Physico-mechanical properties of composite cement pastes containing silica fume and fly ash. HBRC J. 2015, 11, 7–15. [Google Scholar] [CrossRef]
  41. Ghanim, A.A.J.; Rahman, F.U.; Adil, W.; Zeyad, A.M. Experimental investigation of industrial wastes in concrete: Mechanical and microstructural evaluation of pumice powder and fly ash in concrete. Case Stud. Constr. Mat. 2023, 18, e01999. [Google Scholar] [CrossRef]
  42. Brachaczek, W.; Chleboś, A. Effect of limestone powder and silica dust additives on one-component sealing mortar. Build. Mat. 2023, 3, 42–46. [Google Scholar] [CrossRef]
  43. Kabay, N.; Tufekci, M.M.; Kizilkannat, A.B.; Oktay, D. Properties of concrete with pumice powder and fly ash as cement replacement materials. Constr. Build. Mat. 2015, 85, 1–8. [Google Scholar] [CrossRef]
  44. Vance, K.; Aguayo, M.; Oey, T.; Sant, G.; Neithalath, N. Hydration and strength development in ternary Portland cement blends containing limestone and fly ash or metakaolin. Cem. Concr. Compos. 2013, 39, 93–103. [Google Scholar] [CrossRef]
  45. ASTM C 618-17a; Standard Specification for Coal Fly Ash and Raw or Calcined Natural Pozzolan for Use in Concrete. ASTM International: West Conshohocken, PA, USA, 2010.
  46. PN-EN 196-6:2019-01; Metody Badania Cementu. Część 6: Oznaczenie Stopnia Zmielenia. Polski Komitet Normalizacyjny: Warsaw, Poland, 2011. (In Polish)
  47. Raverdy, M.; Brivot, F.; Paillére, A.M.; Dron, R. Appréciation de I’Activité Pouzzolanique des Constituents Secondaires. In 7th International Congress on the Chemistry of Cement; Éditions Septima: Paris, France, 1980; Volume 3, pp. 36–41. [Google Scholar]
  48. Tan, Z.; Bernal, S.A.; Provis, J.L. Reproducible mini-slump test procedure for measuring the yield stress of cementitious pastes. Mater. Struct. 2017, 50, 235. [Google Scholar] [CrossRef] [PubMed]
  49. Žižlavský, T.; Vyšvařil, M. Effect of natural lightweight aggregate on fresh state properties of lime mortars. AIP Conf. Proc. 2021, 2322, 020018. [Google Scholar] [CrossRef]
  50. Spychał, E.; Stępień, P. Effect of cellulose ether and starch ether on hydration of cement processes and fresh-state properties of cement mortars. Materials 2022, 15, 8764. [Google Scholar] [CrossRef]
  51. Vyšvařil, M.; Žižlavský, T.; Rovnaníková, P. Fresh state properties of spongilite blended cement pastes. AIP Conf. Proc. 2021, 2322, 020008. [Google Scholar]
  52. Tydlitát, V.; Zákoutský, J.; Černý, R. Early-stage hydration heat development in blended cements containing natural zeolite studied by isothermal calorimetry. Therm. Act. 2014, 582, 53–58. [Google Scholar]
  53. Rahhal, V.; Cabrera, O.; Talero, R.; Delgado, A. Calorimetry of Portland cement with silica fume and gypsum additions. J. Therm. Anal. Calorim. 2007, 87, 331–336. [Google Scholar] [CrossRef]
  54. Rahhal, V.F.; Pavlík, Z.; Tironi, A.; Castellano, C.C.; Trezza, M.A.; Černý, R.; Irassar, E.F. Effect of cement composition on the early hydration of blended cements with natural zeolite. J. Therm. Anal. Calorim. 2017, 128, 721–733. [Google Scholar] [CrossRef]
  55. Rahhal, V.; Talero, R. Calorimetry of Portland cement with metakaolins, quartz and gypsum additions. J. Therm. Anal. Calorim. 2008, 91, 825–834. [Google Scholar] [CrossRef]
Materials 17 00236 g001

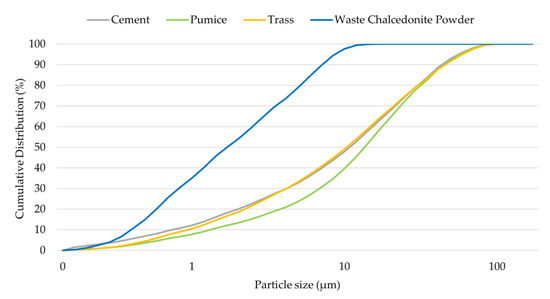

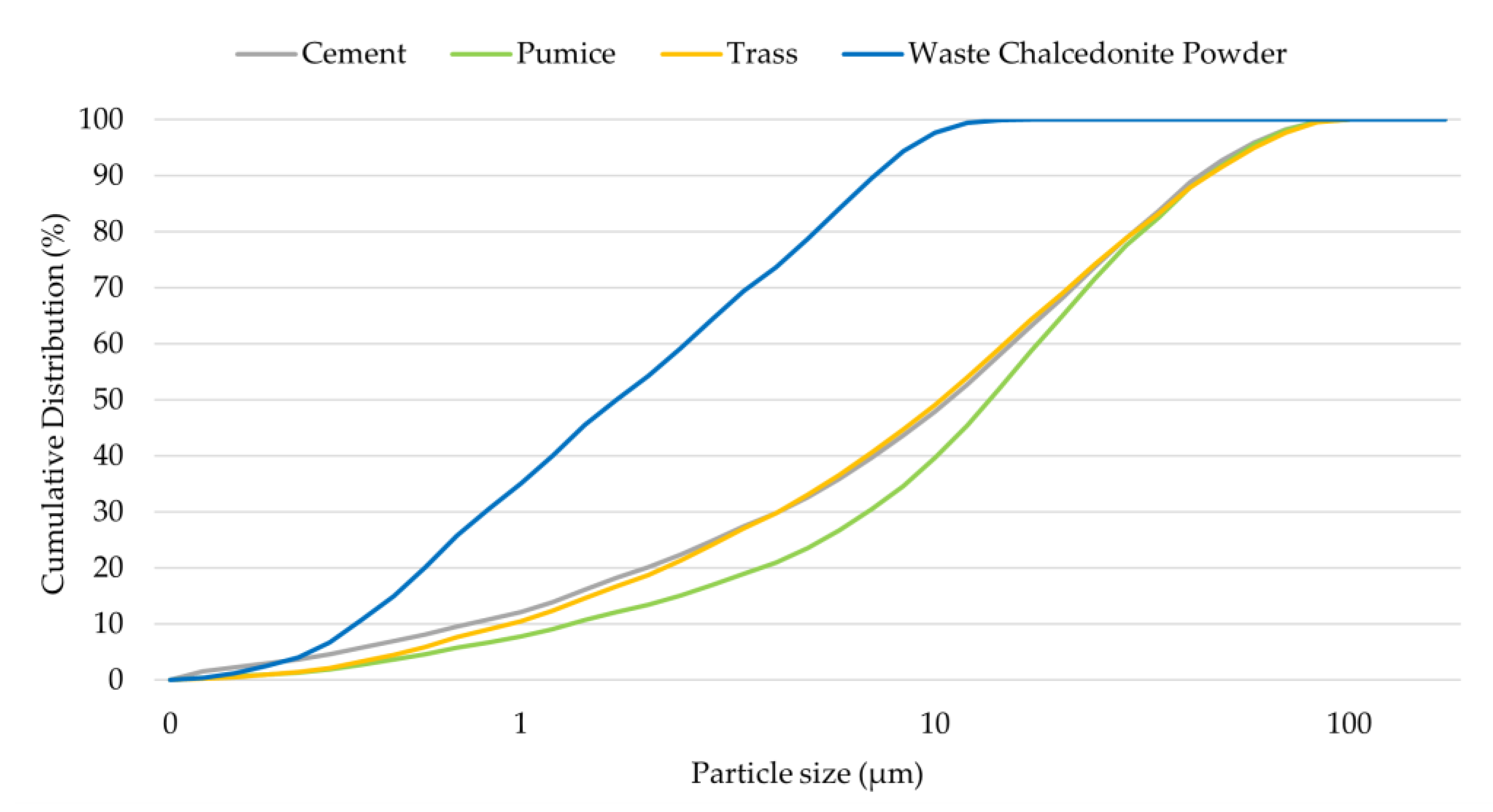

Figure 1. Particle size distributions of cement and additions.
Figure 1. Particle size distributions of cement and additions.
Materials 17 00236 g001
Materials 17 00236 g005aMaterials 17 00236 g005b

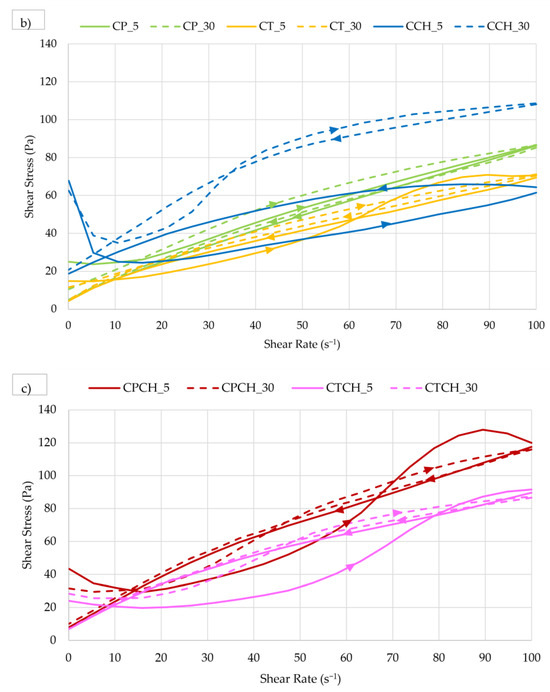

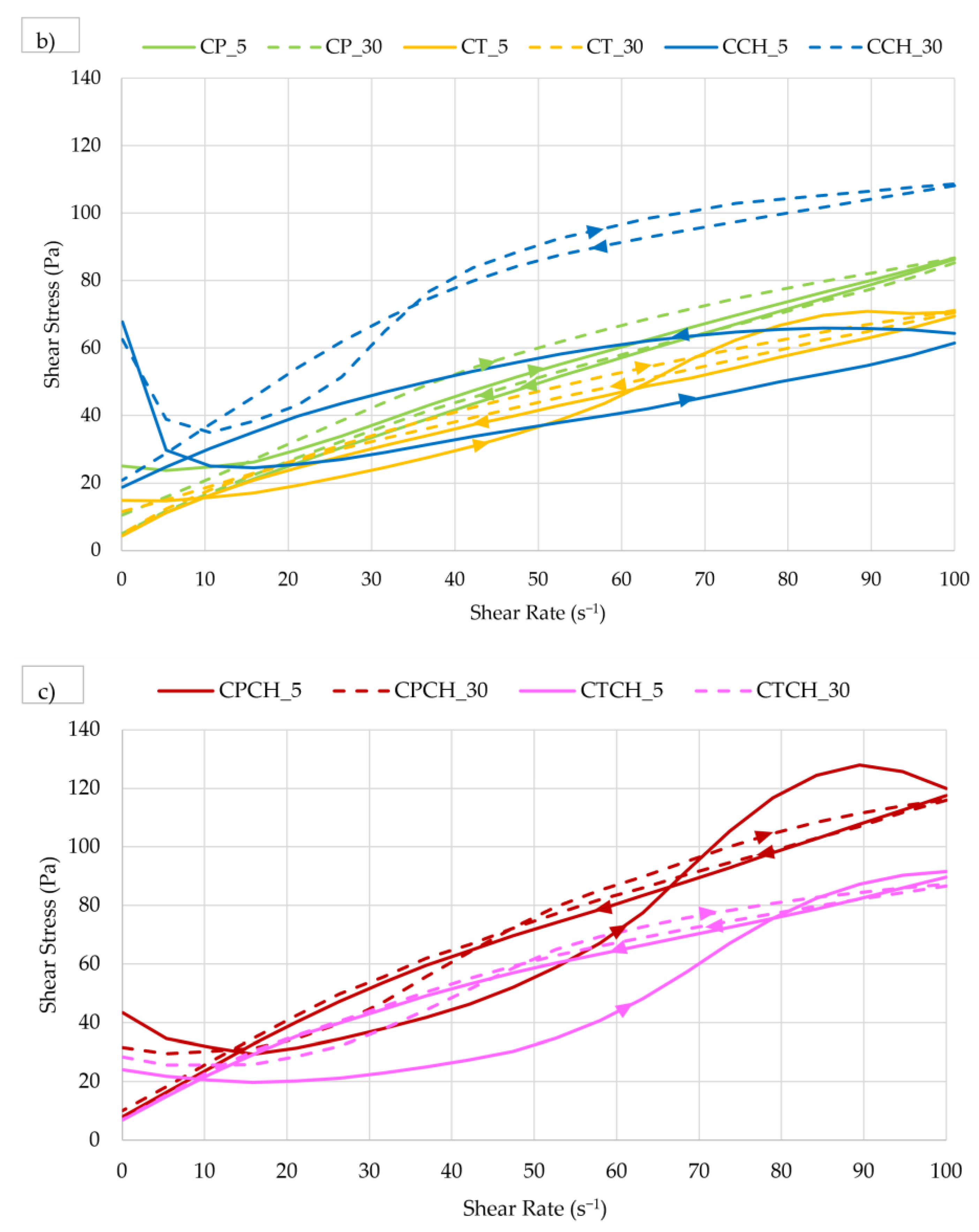

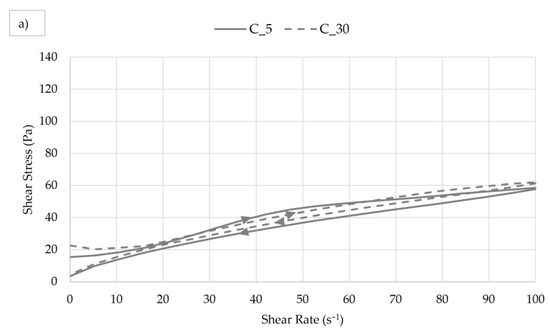

Figure 5. Flow curves for: (a) cement paste; (b) pastes with one additive; (c) pastes with a combination of two additives.
Figure 5. Flow curves for: (a) cement paste; (b) pastes with one additive; (c) pastes with a combination of two additives.
Materials 17 00236 g005aMaterials 17 00236 g005b
Materials 17 00236 g006

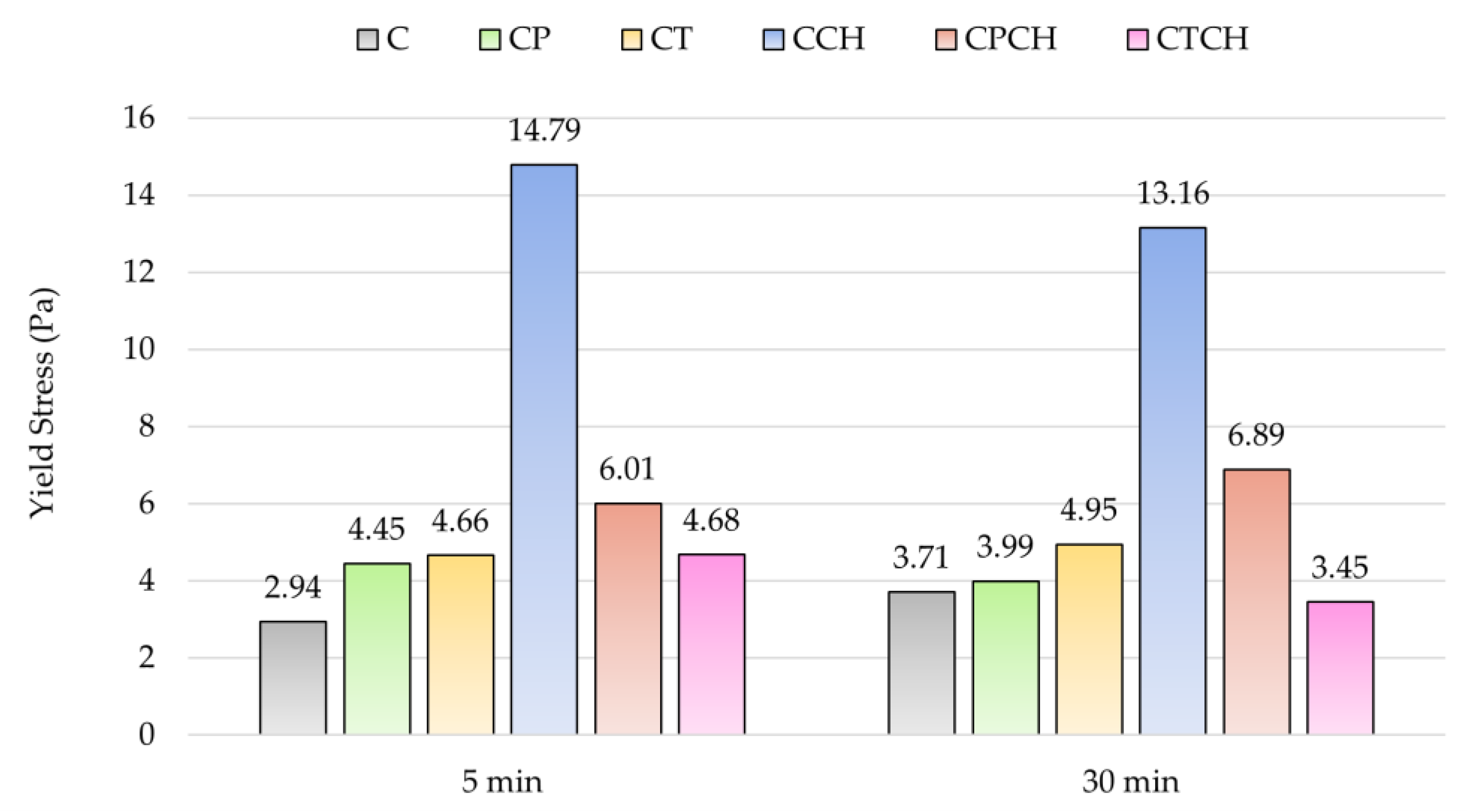

Figure 6. Results for the yield stress of pastes over time.
Figure 6. Results for the yield stress of pastes over time.
Materials 17 00236 g006
Materials 17 00236 g007

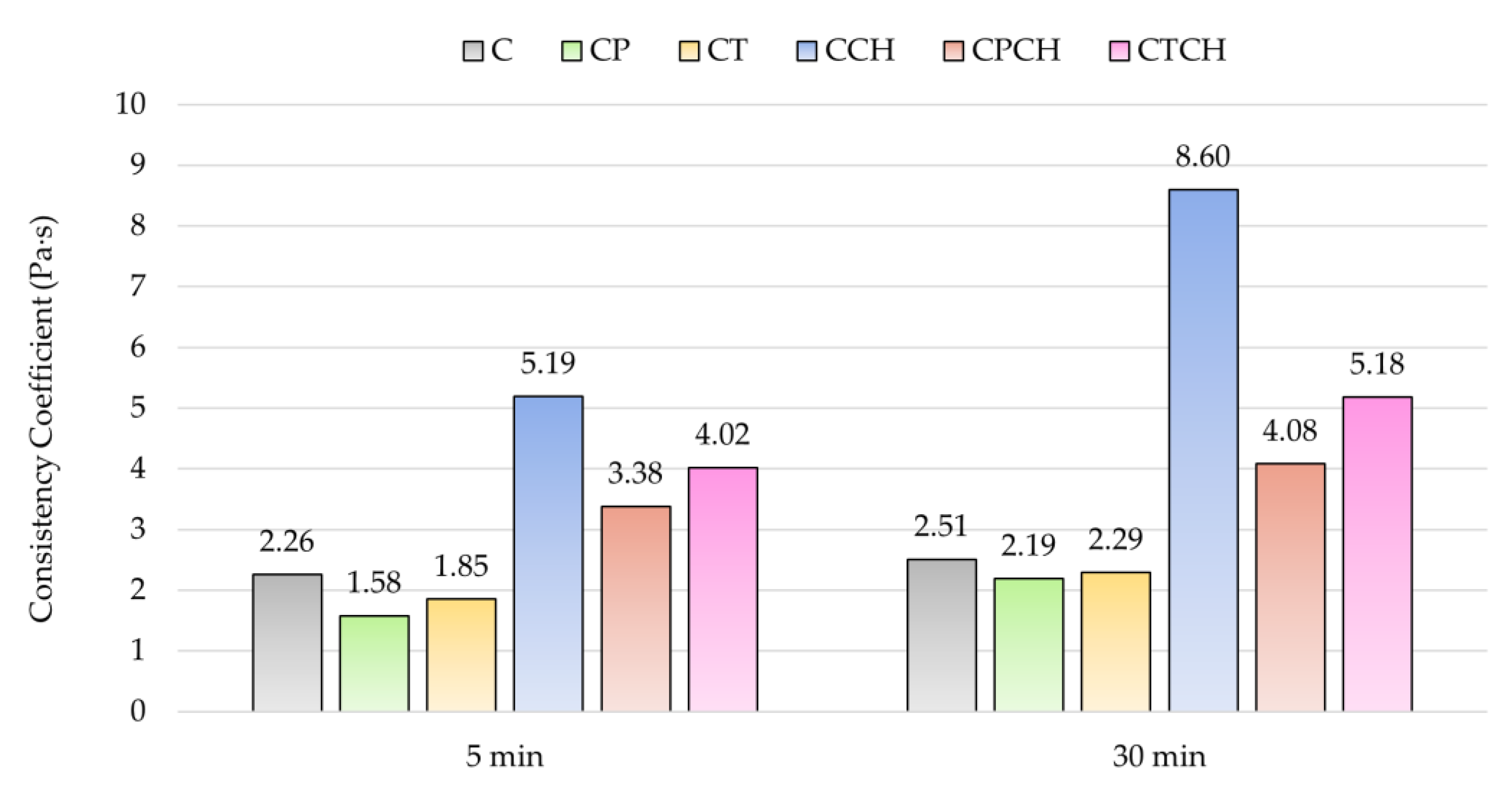

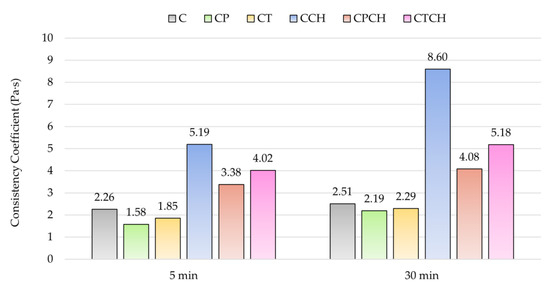

Figure 7. Results of consistency coefficient of pastes over time.
Figure 7. Results of consistency coefficient of pastes over time.
Materials 17 00236 g007
Materials 17 00236 g008

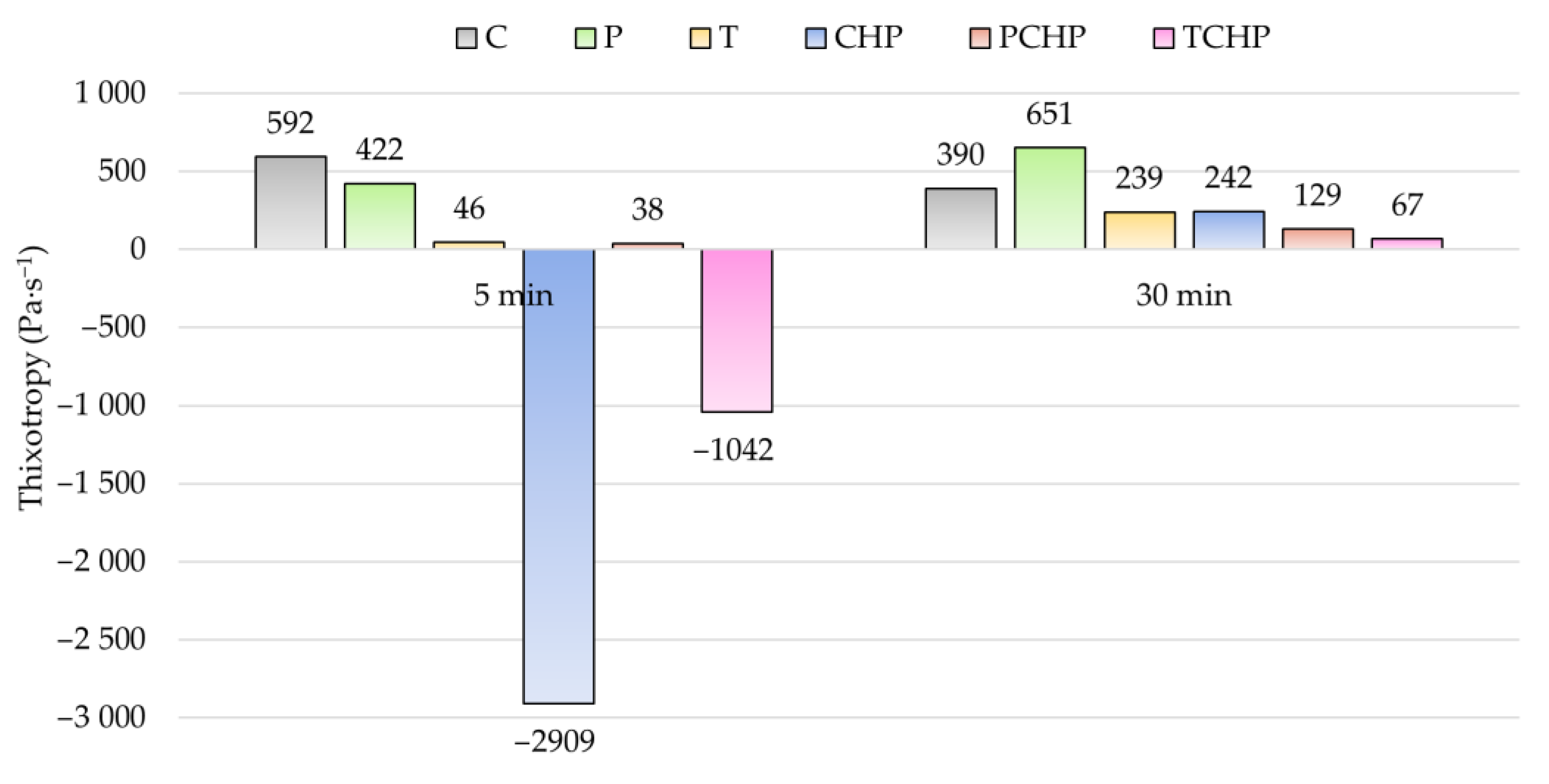

Figure 8. Results for the thixotropy of pastes over time.
Figure 8. Results for the thixotropy of pastes over time.
Materials 17 00236 g008
Materials 17 00236 g009

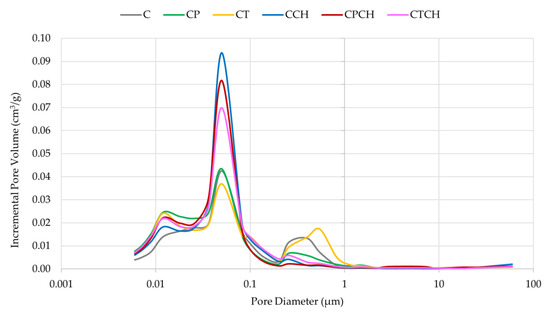

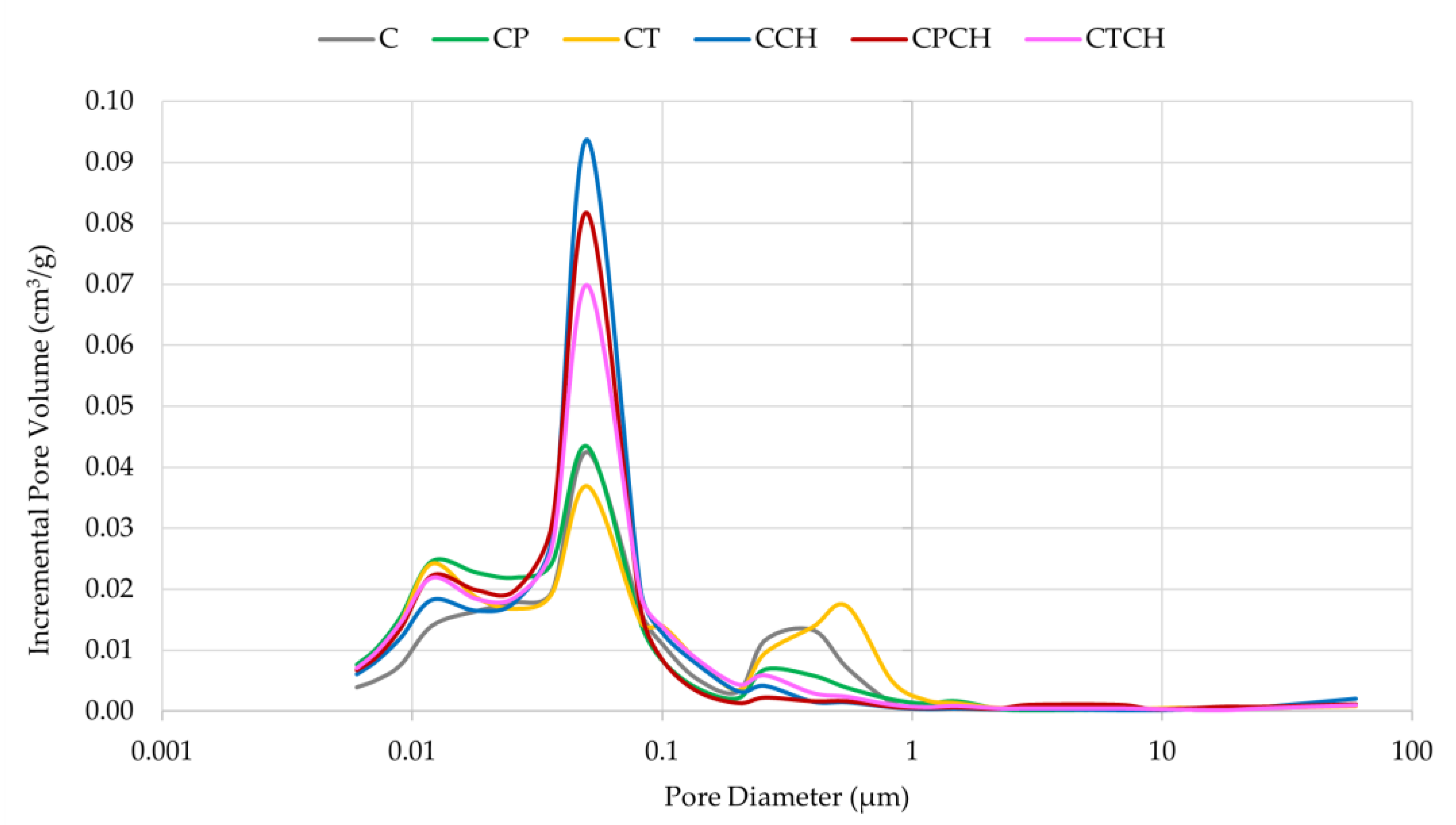

Figure 9. Pore size distributions in the tested pastes.
Figure 9. Pore size distributions in the tested pastes.
Materials 17 00236 g009
Materials 17 00236 g010

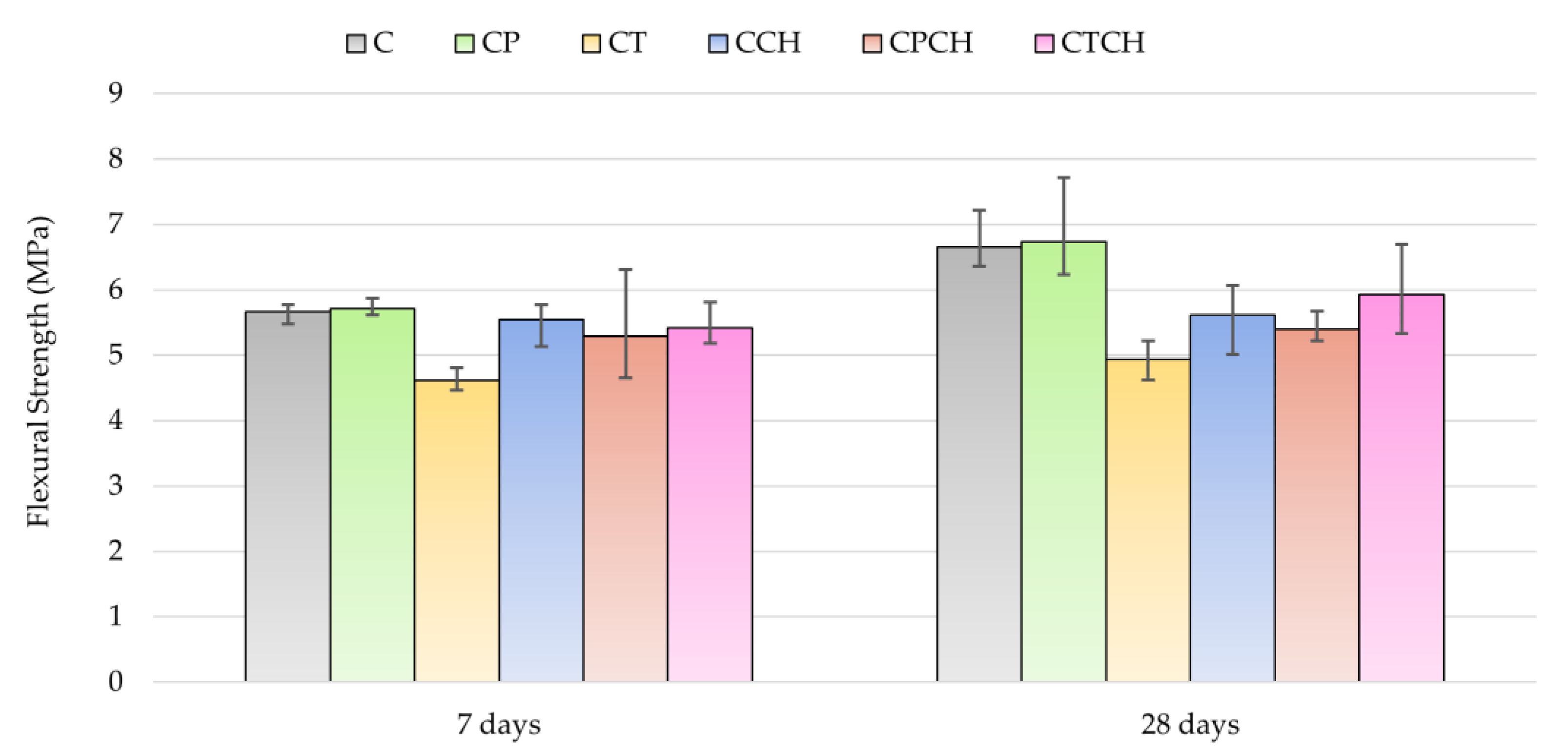

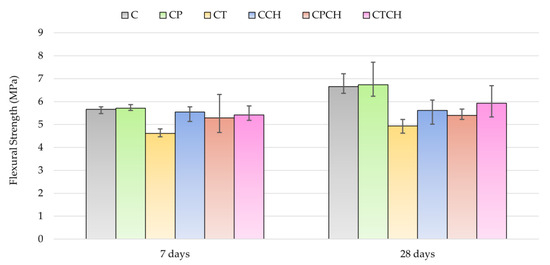

Figure 10. Results for the flexural strengths of pastes over time.
Figure 10. Results for the flexural strengths of pastes over time.
Materials 17 00236 g010
Materials 17 00236 g011

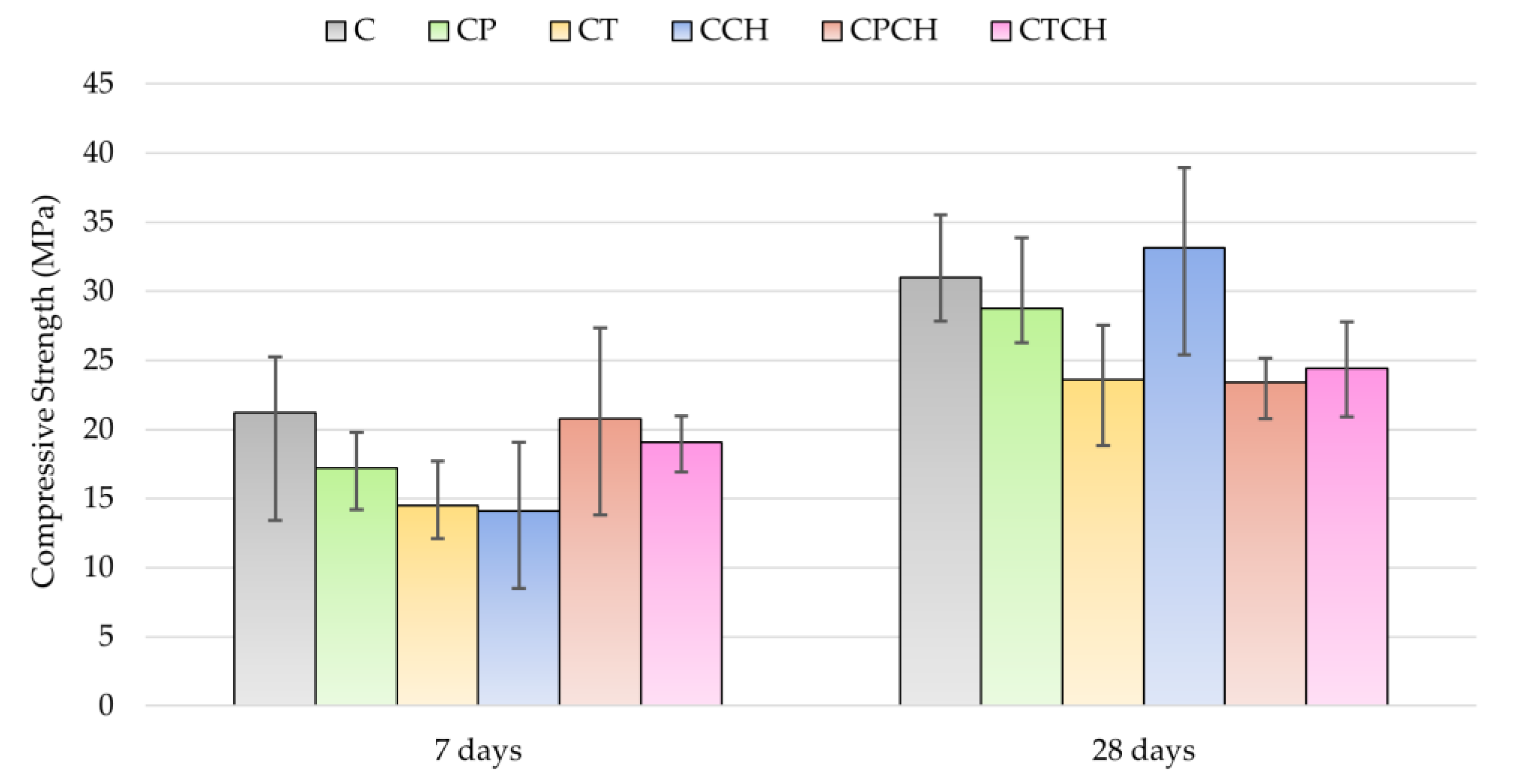

Figure 11. Results for the compressive strengths of pastes over time.
Figure 11. Results for the compressive strengths of pastes over time.
Materials 17 00236 g011
Materials 17 00236 g012

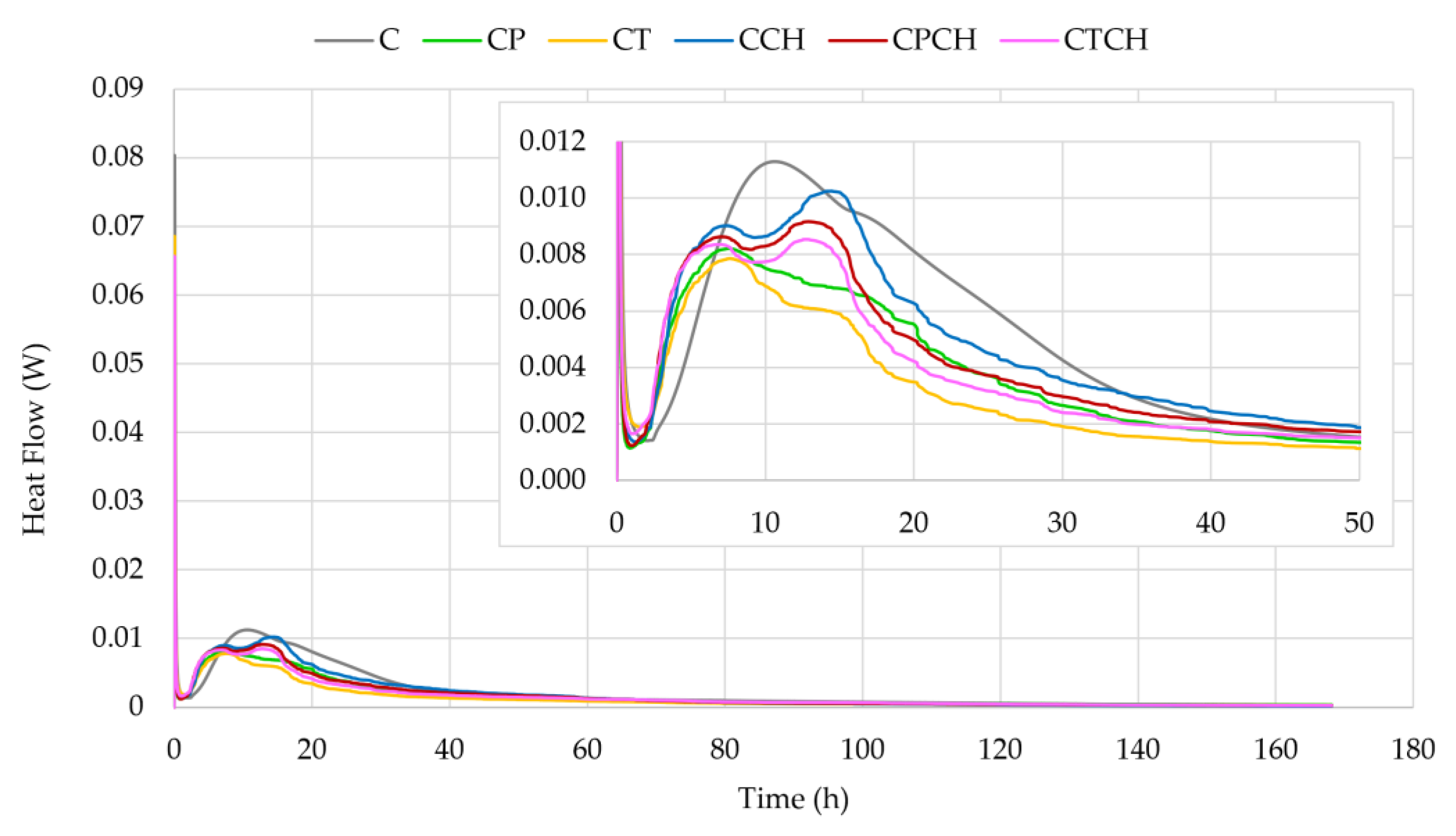

Figure 12. Heat flows of pastes over time.
Figure 12. Heat flows of pastes over time.
Materials 17 00236 g012
Materials 17 00236 g013

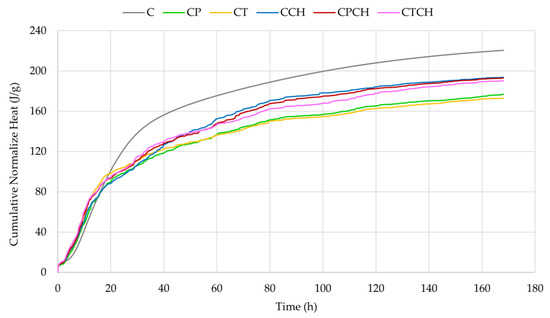

Figure 13. Cumulative normalized heat of pastes over time.
Figure 13. Cumulative normalized heat of pastes over time.
Materials 17 00236 g013
Table 1. Chemical composition of cement, pumice, trass and waste chalcedonite powder.
Table 1. Chemical composition of cement, pumice, trass and waste chalcedonite powder.
Components
(%)		Cement
(C) 		Pumice
(P)		Trass
(T)		Waste Chalcedonite Powder (CH)
SiO218.3354.2750.0899.01
Al2O34.7120.5017.610.84
Fe2O34.252.075.460.04
CaO64.130.654.160.05
MgO1.650.111.700.03
Na2O0.059.203.610.05
K2O0.595.624.670.04
SO32.680.070.050.00
TiO20.260.210.810.02
MnO0.190.420.210.01
P2O50.160.070.340.03
L.O.I.2.996.3810.050.07
Table 2. Pozzolanic activity of the additives.
Table 2. Pozzolanic activity of the additives.
Pozzolanic Activity (mg Ca(OH)2/1 g)PumiceTrassWaste Chalcedonite Powder
After 1 day887516824
After 2 days9106181201
After 3 days9586411382
Table 3. Percentage compositions of all binders.
Table 3. Percentage compositions of all binders.
Component
(wt. %)		CCPCTCCHCPCHCTCH
Cement1007070707070
Pumice03000150
Trass00300015
Waste Chalcedonite Powder000301515
Table 4. Compositions of pastes for consistency and rheological research.
Table 4. Compositions of pastes for consistency and rheological research.
Component
(g)		CCPCTCCHCPCHCTCH
Cement704949494949
Pumice0210010.50
Trass00210010.5
Waste Chalcedonite Powder0002110.510.5
Water353535353535
Table 5. Compositions of pastes for research on mechanical properties and MIP * research.
Table 5. Compositions of pastes for research on mechanical properties and MIP * research.
Component
(g)		CCPCTCCHCPCHCTCH
Cement150105105105105105
Pumice0450022.50
Trass00450022.5
Waste Chalcedonite Powder0004522.522.5
Water757575757575
* MIP—mercury intrusion porosimetry method.
Table 6. Compositions of pastes for calorimetrical measurements.
Table 6. Compositions of pastes for calorimetrical measurements.
Component
(g)		CCPCTCCHCPCHCTCH
Cement42.82.82.82.82.8
Pumice01.2000.60
Trass001.2000.6
Waste Chalcedonite Powder0001.20.60.6
Water222222
Table 7. Consistency of all pastes.
Table 7. Consistency of all pastes.
Type of PasteMini–Slump Flow (mm) H (mm)
C61.3 ± 1.314.5
CP41.0 ± 1.026.4
CT41.2 ± 0.321.8
CCH38.4 ± 0.928.3
CPCH39.7 ± 0.526.4
CTCH40.8 ± 0.124.4
Table 8. Rheological parameters of the pastes.
Table 8. Rheological parameters of the pastes.
Type of PasteTime after Mixing (min)τ0 (Pa)K (Pa·s)n (−)R2Thixotropy
(Pa·s−1)
C_552.942.260.690.99971592
C_30303.712.510.680.99977390
CP_554.451.580.860.99998422
CP_30303.992.190.780.99957651
CT_554.661.850.770.9991246
CT_30304.952.290.730.99951239
CCH_5514.795.190.680.99431−2909
CCH_303013.168.600.530.98294242
CPCH_556.013.380.750.9990838
CPCH_30306.894.080.710.99883129
CTCH_554.684.020.660.99858−1042
CTCH_30303.455.180.610.9966067
Table 9. Parameters from MIP research (pastes after 28 days maturing).
Table 9. Parameters from MIP research (pastes after 28 days maturing).
Type of PasteBulk Density (g/cm3)Apparent Density (g/cm3)Total Pore Area (m2/g)Porosity (%)
C1.562.2622.6731.12
CP1.462.1635.0832.47
CT1.412.1432.0633.84
CCH1.432.2632.4036.86
CPCH1.382.0934.5933.86
CTCH1.422.2134.5935.71
Table 10. Flexural strengths and changes in the flexural strengths of all pastes over time.
Table 10. Flexural strengths and changes in the flexural strengths of all pastes over time.
Type of PasteFlexural Strength (MPa)Changes in Flexural Strength Compared to C (%)
After 7 DaysAfter 28 DaysAfter 7 DaysAfter 28 Days
C5.666.65--
CP5.716.74+0.9+1.4
CT4.614.94−18.5−25.7
CCH5.545.62−2.12−15.5
CPCH5.295.40−6.5−18.8
CTCH5.425.93−4.2−10.8
Table 11. Compressive strengths and changes in compressive strengths of all pastes over time.
Table 11. Compressive strengths and changes in compressive strengths of all pastes over time.
Type of PasteCompressive Strength (MPa)Changes in Compressive Strength Compared to C (%)
After 7 DaysAfter 28 DaysAfter 7 DaysAfter 28 Days
C21.1930.99−−
CP17.2428.76−18.6−7.2
CT14.4823.60−31.7−23.8
CCH14.1233.14−33.4+6.9
CPCH20.7923.40−1.9−24.5
CTCH19.0824.42−10.0−21.2
Table 12. Cumulative normalized heat of all pastes over time.
Table 12. Cumulative normalized heat of all pastes over time.
Type of PasteCumulative Normalized Heat (J/g)
After 24 h After 41 hAfter 168 h
C119.18157.74220.68
CP98.06120.41176.94
CT103.73123.49173.10
CCH95.42127.94193.72
CPCH100.65128.94193.10
CTCH101.55132.17190.46
Table 13. Degree of hydration of tested pastes over time.
Table 13. Degree of hydration of tested pastes over time.
Type of PasteDegree of Hydration (−)
After 24 h After 41 hAfter 168 h
C54.0171.48100.00
CP44.4454.5680.18
CT47.0055.9678.44
CCH43.2457.9887.78
CPCH45.6158.4387.50
CTCH46.0259.8986.31
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Spychał, E.; Vyšvařil, M. Physico-Mechanical Properties and Hydration Processes of Cement Pastes Modified with Pumice, Trass and Waste Chalcedonite Powder. Materials 2024, 17, 236. https://doi.org/10.3390/ma17010236

AMA Style

Spychał E, Vyšvařil M. Physico-Mechanical Properties and Hydration Processes of Cement Pastes Modified with Pumice, Trass and Waste Chalcedonite Powder. Materials. 2024; 17(1):236. https://doi.org/10.3390/ma17010236

Chicago/Turabian Style

Spychał, Edyta, and Martin Vyšvařil. 2024. "Physico-Mechanical Properties and Hydration Processes of Cement Pastes Modified with Pumice, Trass and Waste Chalcedonite Powder" Materials 17, no. 1: 236. https://doi.org/10.3390/ma17010236

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
