Search Results (6)

CFRP (carbon fiber-reinforced polymer) production in Europe is approximately 10,000 metric tons annually, and according to the UK authorities, approximately 35% of end-of-life CFRP waste is currently landfilled. The authors propose a novel recycling process for industrial CFRP waste particles to produce the core of a sandwich CFRP panel through the direct molding method. Industrial CFRP powder from grinding operations was collected, sieved and molded into square panels with and without external skins of virgin CFRP prepreg. Thermogravimetric (TGA) and differential scanning calorimetry (DSC) analysis revealed thermal activation (~70 °C), indicating potential for reprocessing. This study proposes a novel recycling route that directly molds industrial CFRP grinding waste into the core of sandwich structures, with or without virgin CFRP prepreg skins. Key findings: thermal re-processability was confirmed through TGA and DSC, showing activation near 70 °C; electrical conductivity reached 0.045 S/cm through the thickness in sandwich panels, with recycled cores maintaining comparable conductivity (0.04 S/cm); mechanical performance was improved significantly with prepreg skins, as evidenced by three-point bending tests showing enhanced stiffness and strength. These results demonstrate the potential of recycled CFRP waste in multifunctional structural applications, supporting circular economy goals in composite materials engineering. Full article

The efficient dissipation of heat has emerged as a crucial concern for modern electronic devices, given the continuous increase in their power density and consumption. Thus, the utilization of thermally conductive but electrically insulating silicone rubber composites as a thermal interface material has garnered significant interest. In this study, the effects of the filler volume fraction, filler orientation, layer volume fractions, layer configuration, and a number of layers on the thermal conductivity and electrical resistivity of silicone rubber composites were examined using a multiscale finite element modeling strategy. The results demonstrated that modification of the filler orientation can change the thermal conductivity by 28 and 21 times in the in-plane and through-thickness directions, respectively. The in-plane thermal conductivities of silicone rubber/boron nitride and silicone rubber/expanded graphite layers exhibit a percolation phenomenon at filler volume fractions of 35% and 30%, respectively. The electrical resistivity of the composite increases exponentially with a decrease in the number of layers. Full article

Metals are being replaced with high-performance and lightweight polymers, but their low thermal conductivity and poor electrostatic dissipative properties are significant problems. For the protection of sensitive electronic circuitry in automotive and aerospace parts, some device housing materials must provide electrostatic discharge and dissipate heat generated at higher rates as electronic circuits are increasingly miniaturized. Micro-texturing on the film surface can greatly enhance the heat dissipation area and was investigated in this study using low-cost graphite nanoplatelet (GNP)-filled LLDPE films. Micro-finned films (30 vol% GNP) having a 51 ± 10% larger heat-dissipation area were successfully produced using a continuous extrusion process. The through-thickness thermal conductivity of 30 vol% GNP-filled LLDPE was measured at 1.3 W/m·K, which represents a 200% improvement over that of pure LLDPE. For a GNP content of 30 vol%, the surface and volume electrical conductivity of the composite films also increased by 8 orders of magnitude (resistivity down from ≈10¹⁵ to 10⁷ Ω·cm) and electrostatic decay time reduced to a below-resolution limit of 0.01 s, at par with military standard requirements. Thus, micro-fin textured GNP-LLDPE offers a unique combination of electrical and thermal transport desired for the protection of electronic encapsulation materials. Full article

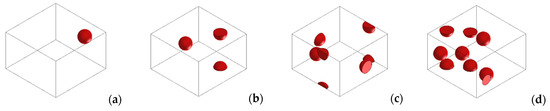

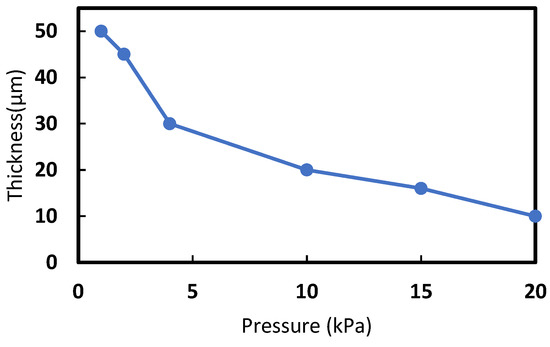

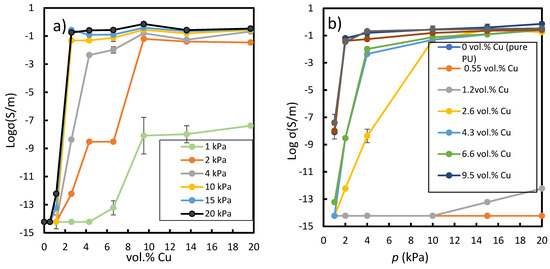

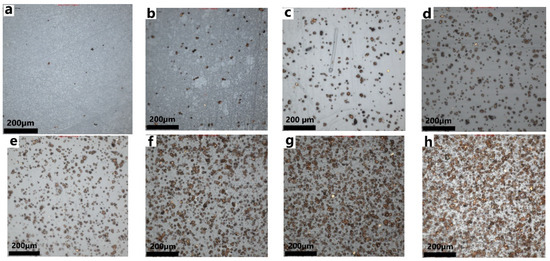

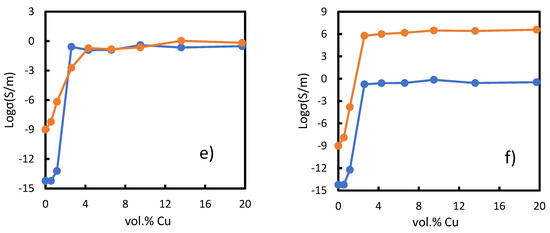

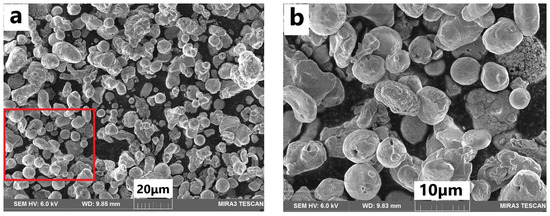

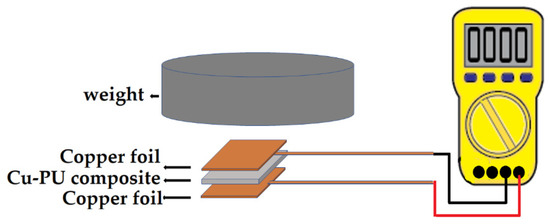

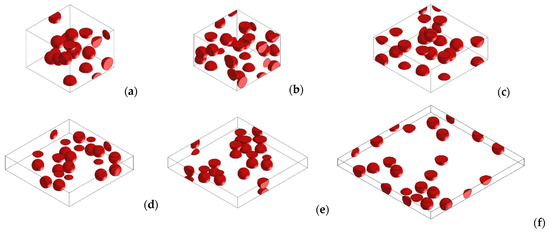

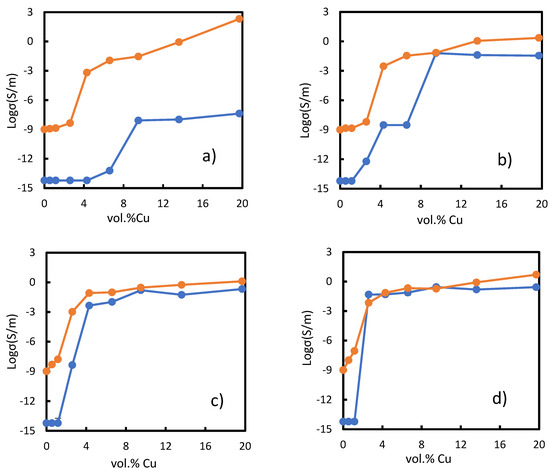

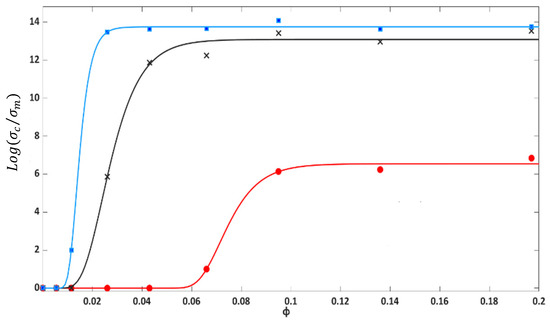

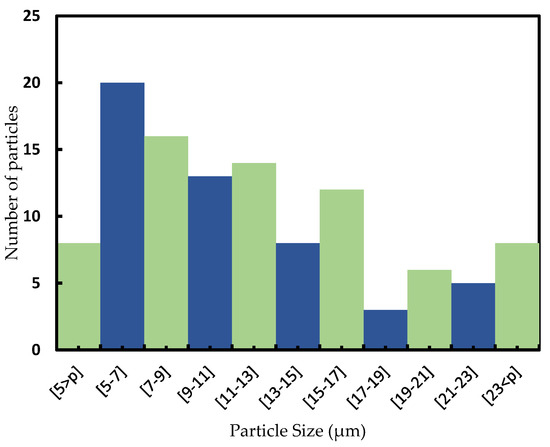

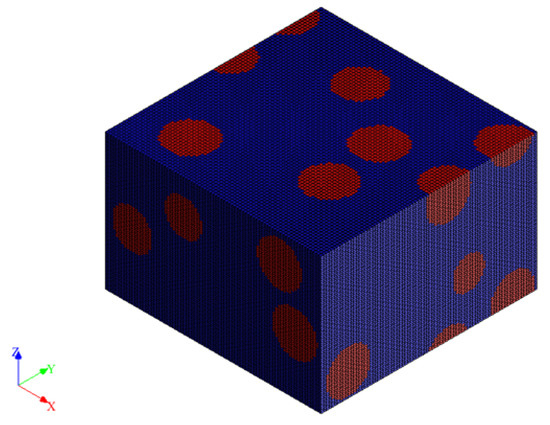

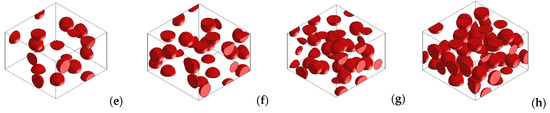

In this study, micro-size copper particles (less than 25 μm) were incorporated into polyurethane (PU) using a solution mixing method and spin-coating technique to fabricate composite films in concentrations from 0.5 to 20 vol.%. The conductivity behaviour of these composites under pressure was studied experimentally and numerically. The conductivity measurements were performed in-plane and through-thickness under pressure. It was found that changes in conductivity only occurred in the z-direction under an applied pressure from 1 to 20 kPa. The results showed that pressure could induce conductivity up to about 7.2 × 10⁻¹ S∙m⁻¹ for composites with a Cu concentration higher than 2.6 vol.%. It seems that applied pressure reduced the thickness of the polymer film, decreasing the distance between copper particles and promoting the formation of a conductive network, thus making the material conductive. A semi-analytical model that can accurately provide the percolation threshold (PT) concentration was used to fit the experimental conductivity. The PT concentrations for PU-Cu composite ranged from 7.1 vol.% to 1.4 vol.% and decreased with the rise in pressure. This is known as a pressure-induced percolation transition phenomenon (PIPT). Finally, the finite element method based on the representative volume element model (FE-RVE) simulation technique was used to predict the conductivity behaviour. This numerical simulation provided a good description of the experimental conductivity after the PT and correctly predicted the PT concentration. This study shows that FE-RVE could be used to effectively simulate the influence of pressure on the electrical properties of a polymer–metal composite, reducing the need for costly and time-consuming experiments. Full article

With shrinking size of electronic devices, increasing performance and accompanying heat dissipation, there is a need for efficient removal of this heat through packaging materials. Polymer materials are attractive packaging materials given their low density and electrical insulating properties, but they lack sufficient thermal conductivity that inhibits heat transfer rate. Hexagonal boron nitride (BN) possesses excellent thermal conductivity and is also electrically insulating, therefore BN-filled polymer composites were investigated in this study. Results showed successful continuous extrusion of BN-filled linear low-density polyethylene through micro-textured dies that is a scalable manufacturing process. Through-thickness thermal conductivity measurements established that 30 vol% BN content led to an over 500% increase in thermal conductivity over that of pure polymer. Textured film surface provided about a 50% increase in surface area when compared with non-textured films. This combination of increased surface area and enhanced thermal conductivity of BN-filled textured films indicates their potential application for improved convective thermal transport. Full article

PEEK appears as an excellent candidate to substitute epoxy resins in carbon fibre laminates for high-performance aeronautical applications. The optimization of the properties and, in particular, of the transition region between the fibres and the matrix appear as a major issue prior to serial production. Graphene, modified with two compatibilizers, has been incorporated in the polymer layer with the purpose of imparting additional functionalities and enhancing the matrix-fibre interaction. It is found that both carbon fibres and modified graphene significantly influence the crystallization behaviour and smaller, and/or more imperfect crystals appear while the degree of crystallinity decreases. Despite this, nanoindentation studies show that the PEEK layer exhibits significant modulus improvements (≈30%) for 5 wt.% of graphene. Most importantly, the study of the local mechanical properties by nanoindentation mapping allows the identification of remarkably high modulus values close to the carbon fibre front. Such a relevant mechanical enhancement can be associated with the accumulation of graphene platelets at the polymer–fibre boundary, as revealed by electron microscopy studies. The results offer a feasible route for interlaminar mechanical improvement based on the higher density of graphene platelets at the fibre front that should promote interfacial interactions. Concerning electrical conductivity, a large anisotropy was found for all laminates, and values in the range ~10⁻⁴ S/cm were found for the through-thickness arrangement as a consequence of the good consolidation of the laminates. Full article
