Epitaxial growth of β-Ga₂O₃ nanowires on silicon substrates was realized by the low-pressure chemical vapor deposition (LPCVD) method. The as-grown Si/Ga₂O₃ heterojunctions were employed in the Underwater DUV detection. It is found that the carrier type as well as the carrier concentration of the silicon substrate significantly affect the performance of the Si/Ga₂O₃ heterojunction. The p-Si/β-Ga₂O₃ (2.68 × 10¹⁵ cm⁻³) devices exhibit a responsivity of up to 205.1 mA/W, which is twice the performance of the devices on the n-type substrate (responsivity of 93.69 mA/W). Moreover, the devices’ performance is enhanced with the increase in the carrier concentration of the p-type silicon substrates; the corresponding device on the high carrier concentration substrate (6.48 × 10¹⁷ cm⁻³) achieves a superior responsivity of 845.3 mA/W. The performance enhancement is mainly attributed to the built-in electric field at the p-Si/n-Ga₂O₃ heterojunction and the reduction in the Schottky barrier under high carrier concentration. These findings would provide a strategy for optimizing carrier transport and interface engineering in solar-blind UV photodetectors, advancing the practical use of high-performance solar-blind photodetectors for underwater application. Full article

Self-powered ultraviolet photodetectors hold significant potential for diverse applications across both military and civilian fields. Owing to its wide bandgap, high electron mobility, and adaptability to various substrates, gallium oxide (Ga₂O₃) serves as a crucial material for fabricating self-powered ultraviolet photodetectors. Photodetectors based on p-n heterojunctions of conductive polymers and gallium oxide have great application potential benefiting from unique advantages of conductive polymers. This review provides an extensive overview of typical ultraviolet photodetectors based on conductive polymer/gallium oxide heterojunctions, focusing on the physical structure, fabrication process, and photoelectric properties of heterojunction devices formed by Ga₂O₃ with conductive polymers like polythiophene, polyaniline, and polycarbazole, etc. Different conductive polymers yield varying performance improvements in the fabricated devices: polythiophene/Ga₂O₃ devices exhibit high conductivity and flexible bandgap tuning to meet diverse wavelength detection needs; PANI/Ga₂O₃ devices feature simple fabrication and low cost, with doping control to enhance charge carrier transport efficiency; polycarbazole/Ga₂O₃ devices offer high thermal stability and efficient hole transport. Among them, the polythiophene/Ga₂O₃ device demonstrates the most superior overall performance, making it the ideal choice for high-performance Ga₂O₃-based photodetectors and a representative of such research. This review identifies the existing technical challenges and provides valuable insights for designing more efficient Ga₂O₃/conductive polymer heterojunction photodetectors. Full article

Herein, we successfully fabricated an Al-doped α-Ga₂O₃ nanorod array on FTO using the hydrothermal and post-annealing processes. To the best of our knowledge, it is the first time that an Al-doped α-Ga₂O₃ nanorod array on FTO has been realized via a much simpler and cheaper way than that based on metal–organic chemical vapor deposition, magnetron sputtering, molecular beam epitaxy, and pulsed laser deposition. And, a self-powered Al-doped α-Ga₂O₃ nanorod array/FTO photodetector was also realized as a photoanode at 0 V (vs. Ag/AgCl) in a photoelectrochemical (PEC) cell, showing a peak responsivity of 1.46 mA/W at 260 nm. The response speed of the Al-doped device was 0.421 s for rise time, and 0.139 s for decay time under solar-blind UV (260 nm) illumination. Compared with the undoped device, the responsivity of the Al-doped device was ~5.84 times larger, and the response speed was relatively faster. When increasing the biases from 0 V to 1 V, the responsivity, quantum efficiency, and detectivity of the Al-doped device were enhanced from 1.46 mA/W to 2.02 mA/W, from ~0.7% to ~0.96%, and from ~6 × 10⁹ Jones to ~1 × 10¹⁰ Jones, respectively, due to the enlarged depletion region. Therefore, Al doping may provide a route to enhance the self-powered photodetection performance of α-Ga₂O₃ nanorod arrays. Full article

The paper presents the long-term evolution and recent development of ultraviolet photodetectors. First, the general theory of ultraviolet (UV) photodetectors is briefly described. Then the different types of detectors are presented, starting with the older photoemission detectors through photomultipliers and image intensifiers. More attention is paid to silicon and different types of wide band gap semiconductor photodetectors such as AlGaN, SiC-based, and diamond detectors. Additionally, Ga₂O₃ is considered a promising material for solar-blind photodetectors due to its excellent electrical properties and a large bandgap energy. The last part of the paper deals with new UV photodetector concepts inspired by new device architectures based on low-dimensional solid materials. It is shown that the evolution of the architecture has shifted device performance toward higher sensitivity, higher frequency response, lower noise, and higher gain-bandwidth products. Full article

A Ag:AZO electrode was used as an electrode for a self-powered solar-blind ultraviolet photodetector based on a Ag₂O/β-Ga₂O₃ heterojunction. The Ag:AZO electrode was fabricated by co-sputtering Ag and AZO heterogeneous targets using the structural characteristics of a Facing Targets Sputtering (FTS) system with two-facing targets, and the electrical, crystallographic, structural, and optical properties of the fabricated thin film were evaluated. A photodetector was fabricated and evaluated based on the research results that the surface roughness of the electrode can reduce the light energy loss by reducing the scattering and reflectance of incident light energy and improving the trapping phenomenon between interfaces. The thickness of the electrodes was varied from 20 nm to 50 nm depending on the sputtering time. The optoelectronic properties were measured under 254 nm UV-C light, the on/off ratio of the 20 nm Ag:AZO electrode with the lowest surface roughness was 2.01 × 10⁸, and the responsivity and detectivity were 56 mA/W and 6.99 × 10¹¹ Jones, respectively. The Ag₂O/β-Ga₂O₃-based solar-blind photodetector with a newly fabricated top electrode exhibited improved response with self-powered characteristics. Full article

All-inorganic perovskites, with their low-cost, simple processes and superior heat stability, have become potential candidate materials for photodetectors (PDs). However, they have no representative responsivity in the deep-ultraviolet (UV) wavelength region. As a new-generation semiconductor, gallium oxide (Ga₂O₃), which has an ultrawide bandgap, is appropriate for solar-blind (200 nm–280 nm) deep-UV detection. In this work, ultrawide-bandgap Ga₂O₃ was introduced into an inorganic perovskite device with a structure of sapphire/β-Ga₂O₃/Indium Zinc Oxide (IZO)/CsPbBr₃. The performance of this perovskite PD was obviously enhanced in the deep UV region. A low-cost, vacuum-free Mist-CVD was used to realize the epitaxial growth of β-Ga₂O₃ film on sapphire. By introducing the Ga₂O₃ layer, the light current of this heterojunction PD was obviously enhanced from 10⁻⁸ to 10⁻⁷, which leds its detectivity (D*) to reach 1.04 × 10¹² Jones under a 254 nm light illumination with an intensity of 500 μW/cm² at a 5 V bias. Full article

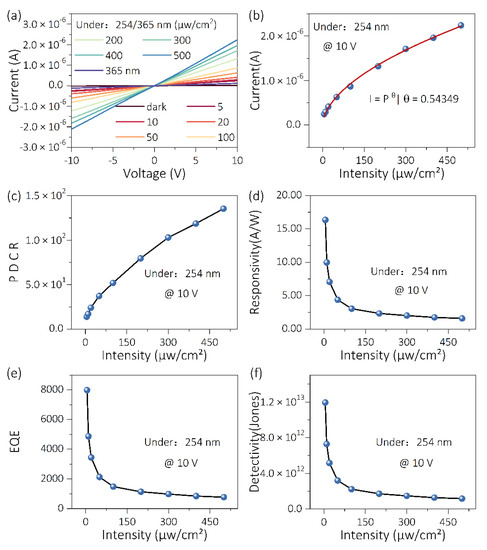

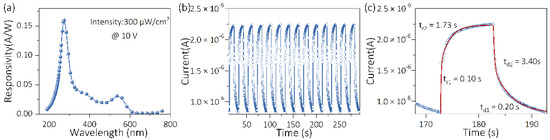

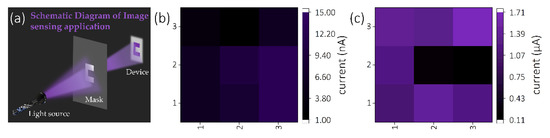

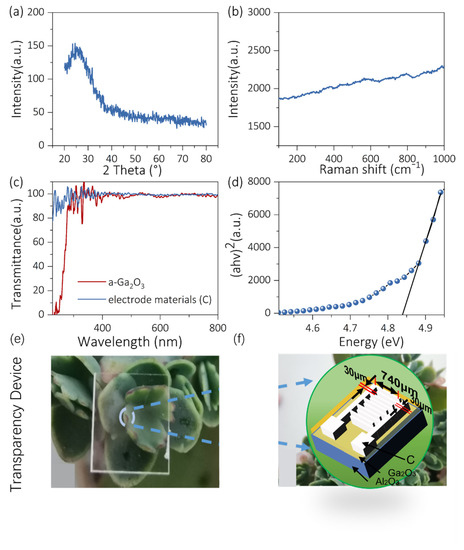

In recent years, transparent electrode materials have had a positive effect on improving the responsivity of photodetectors by increasing the effective illumination area of devices due to their high transmittance. In this work, by using radio frequency magnetron sputtering and simple mask technology, an amorphous Ga₂O₃-based solar-blind UV photodetector with graphitic carbon (C) electrodes was created. The device exhibits a high responsivity of 16.34 A/W, an external quantum efficiency of 7979%, and excellent detectivity of 1.19 × 10¹³ Jones at room temperature under a light density of 5 μw/cm². It has been proved that C electrodes can replace the traditional noble metal electrode. Additionally, the potential of the transparent photodetector array in solar-blind imaging is explored. We believe that the present study will pave the way for the preparation of a fully transparent and high-response solar-blind ultraviolet photodetector array. Full article

Considering practical application and commercialization, the research of non-toxic and stable halide perovskite and its application in the field of photoelectric detection have received great attention. However, there are relatively few studies on deep ultraviolet photodetectors, and the perovskite films prepared by traditional spin-coating method have disadvantages such as uneven grain size and irregular agglomeration, which limit their device performance. Herein, uniform and ordered Cs₃Cu₂I₅ nanonet arrays are fabricated based on monolayer colloidal crystal (MCC) templates prepared with 1 μm polystyrene (PS) spheres, which enhance light-harvesting ability. Furthermore, the performance of the lateral photodetector (PD) is significantly enhanced when using Cs₃Cu₂I₅ nanonet compared to the pure Cs₃Cu₂I₅ film. Under deep ultraviolet light, the Cs₃Cu₂I₅ nanonet PD exhibits a high light responsivity of 1.66 AW⁻¹ and a high detection up to 2.48 × 10¹² Jones. Meanwhile, the unencapsulated PD has almost no response to light above 330 nm and shows remarkable stability. The above results prove that Cs₃Cu₂I₅ nanonet can be a great potential light-absorbing layer for solar-blind deep ultraviolet PD, which can be used as light absorption layer of UV solar cell. Full article

β-Ga₂O₃ has become an ultimate choice of emerging new-generation material for its wide range of compelling applications in power electronics. In this review, we have explored the available radiations in the atmosphere and the effects of radiation on the β-Ga₂O₃ material and devices. The focus in this review summarizes various studies covering different radiation such as swift heavy ions, protons, neutrons, electrons, Gamma, and X-rays to understand the radiation-induced effects on the structure and their reliable performance in harsh environments. In addition, we focused on the various pre-existing defects in β-Ga₂O₃ and the emergence of radiation-induced defects that provoke a severe concern, especially from the device performance point of view. This review presents the irradiation-induced effects on the devices such as high-power devices such as Schottky barrier diodes (SBDs), field-effect transistors (FETs), metal-oxide-semiconductor (MOS) devices, and photodetectors. Some key studies including the changes in carrier concentration with a removal rate, Schottky barrier height (SBH), ideality factor, defect dynamics dielectric damage, interface charge trapping, a thermally activated recovery mechanism for charge carriers at elevated temperature, and diffusion length of minority charge carriers. These reports show that β-Ga₂O₃-based devices could be deployable for space or high-radiation terrestrial applications. These results provide/suggest a better device design based on the radiation degradation studies in the state-of-the-art β-Ga₂O₃ devices. Full article

By combining the enhanced photosensitive properties of zinc oxide nanoparticles and the excellent transport characteristics of graphene, UV-sensitive, solar-blind hybrid optoelectronic devices have been demonstrated. These hybrid devices offer high responsivity and gain, making them well suited for photodetector applications. Here, we report a hybrid ZnO nanoparticle/graphene phototransistor that exhibits a responsivity up to 4 × 10⁴ AW⁻¹ and gain of up to 1.3 × 10⁵ with high UV wavelength selectivity. ZnO nanoparticles were synthesized by pulsed laser fragmentation in liquid to attain a simple, efficient, ligand-free method for nanoparticle fabrication. By combining simple fabrication processes with a promising device architecture, highly sensitive ZnO nanoparticle/graphene UV photodetectors were successfully demonstrated. Full article
