This paper proposes a microwave sensor based on a high-sensitivity slot-loaded rectangular microstrip patch antenna (MPA) for measuring microliter-volume liquid chemicals with high relative permittivity and high loss tangent. A rectangular single-ring complementary split ring resonator (SR-CSRR) slot with a bottom-edge center split (BCS) was inserted along the upper radiating edge of the patch to enhance the relative permittivity sensitivity of the MPA. The first resonant frequency of the proposed SR-CSRR-BCS slot-loaded MPA showed the highest sensitivity compared to the resonant frequencies of the MPAs with other commonly used slots for varying the relative permittivity of the planar substrate type material under test from 1 to 10 when placed above the patch. After designing the scaled SR-CSRR-BCS slot-loaded MPA with the unloaded first resonant frequency at 2.5 GHz, a hollow acrylic cylindrical liquid container with an inner volume of approximately 18.6 μL was placed at the top-edge center of the SR-CSRR-BCS slot to achieve maximum sensitivity. A quarter-wavelength transformer was applied between the patch and the feed line of the MPA to improve the impedance mismatch that occurs when liquid chemicals with a high loss tangent are placed in the container. Water, methanol, and ethanol were carefully selected for test liquids to cover a broad range of relative permittivity and high loss tangents. The proposed SR-CSRR-BCS slot-loaded MPA was designed and fabricated on a 0.76 mm-thick RF-35 substrate, and a reference RS-loaded MPA was designed and fabricated for comparison. The shift in the first resonant frequency of the input reflection coefficient characteristic was used for the sensitivity comparison, and the container was filled with 15 μL of the liquids at 25 °C. The measured sensitivity (%) of the proposed SR-CSRR-BCS slot-loaded MPA for water was 0.45%, which was higher than other antenna-based microwave sensors in the literature. Full article

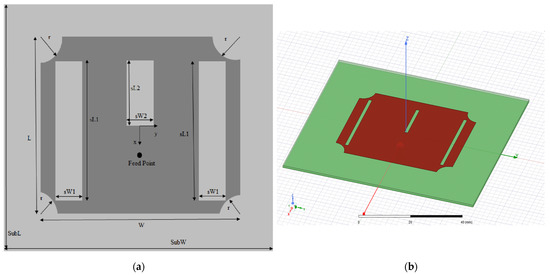

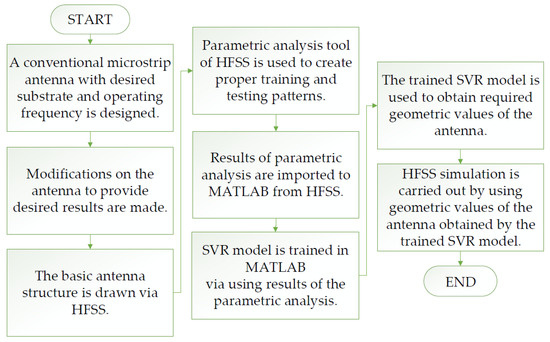

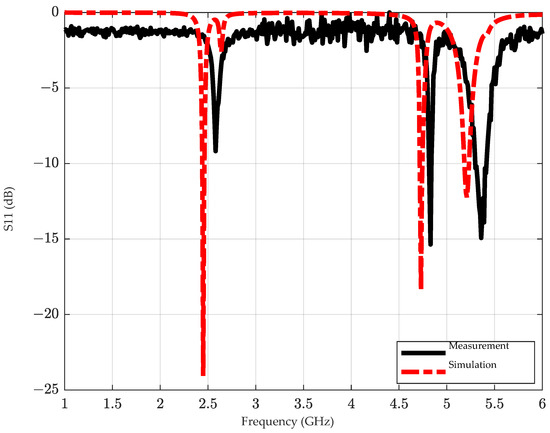

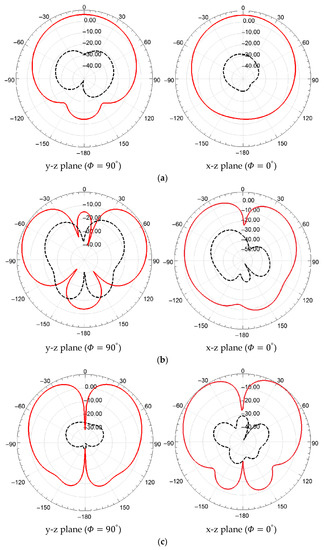

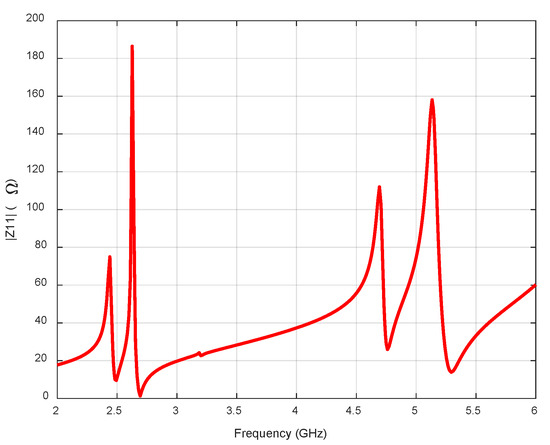

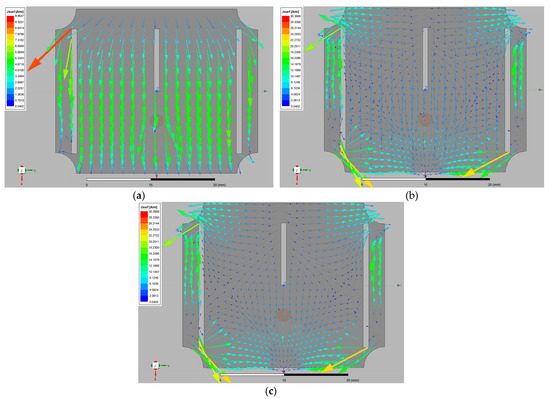

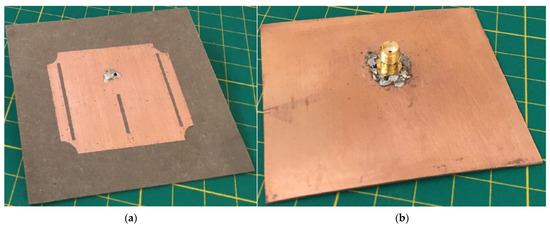

The design process of antenna structures that meet up-to-date requirements takes a long time and brings a high computational load. In this paper, an approach based on Soft Computing (SC) techniques was used to shorten the design time and to achieve an antenna structure that yields performance characteristics as close as possible to the desired values. In order to obtain a microstrip patch antenna with the targeted characteristics and the best accuracy in a faster way, a Support Vector Machine (SVM)-based regression model was employed. A triple-band microstrip antenna with desired resonance frequencies and gain values was designed by using the Support Vector Regression (SVR) model by introducing multiple slots and arc-truncation to the patch antenna. Simulation results of the High-Frequency Structural Simulator (HFSS) and measurements of implementation of the designed antenna are given. Performance characteristics of the obtained antenna are also compared with those given in the literature, which have triple-band properties. In addition, the antenna was redesigned using the optimization tool in HFSS for comparison. The accuracy of the results and required time for design were compared for both the SVR model approach and the HFSS optimization tool. Full article

A Ka-band CPW-Slot-Couple (CSC) fed microstrip antenna with enhanced bandwidth and gain is presented in this paper. To simplify the feed network, the matching slots are designed at the end of the CPW. Consequently, the patch antenna is designed with a low profile, which has a size of 7.2 × 32.6 × 0.508 mm³. Characteristic mode analysis (CMA) is applied to illustrate the principle of the enhancement of the band with the form characteristic mode point of view. A slot based on inductive loading is employed on the parasitic patch to move the resonant frequency of CM3 to the resonant frequency of CM2 for enhanced bandwidth, which avoids introducing additional impedance matching networks. The measured results show that the bandwidth of the proposed monolayer antenna is 14.18% from 24.84 to 28.6 GHz and the peak gain is 7.9 dBi. Due to its attractive properties of low profile, compact configuration, wide band, and high gain, the proposed antenna could be applied to miniaturized millimeter-wave applications. Full article

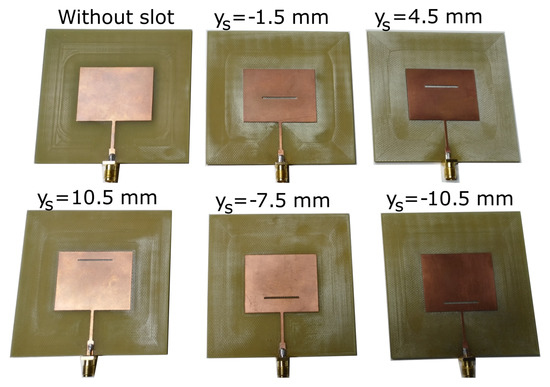

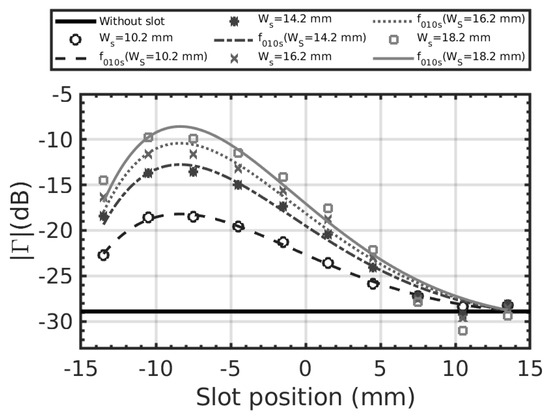

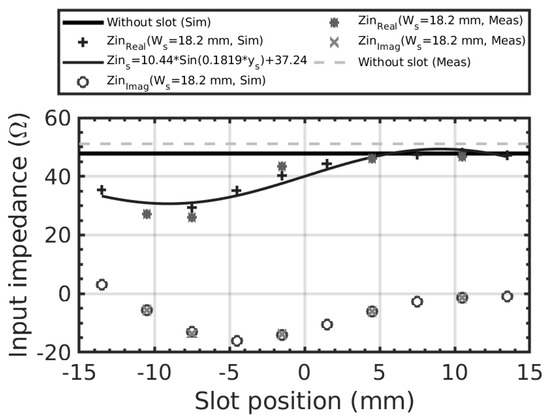

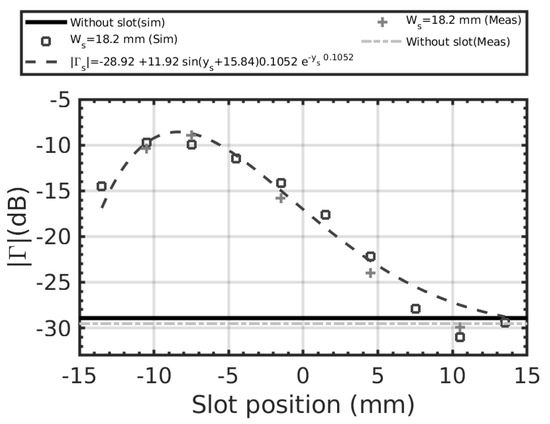

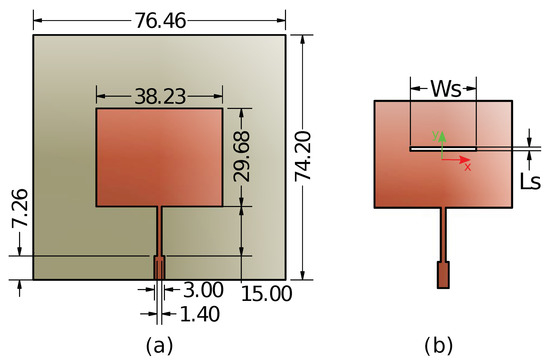

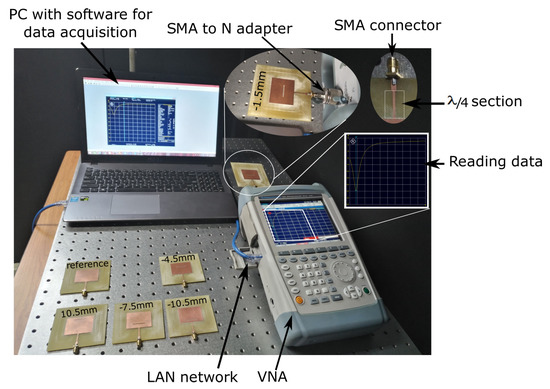

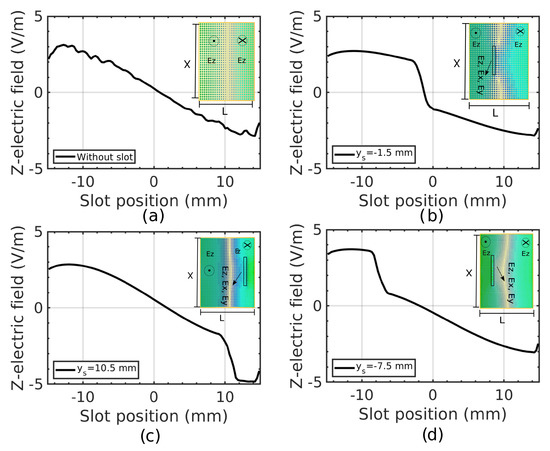

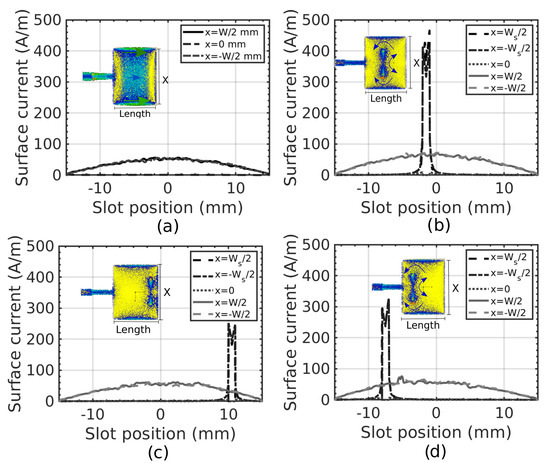

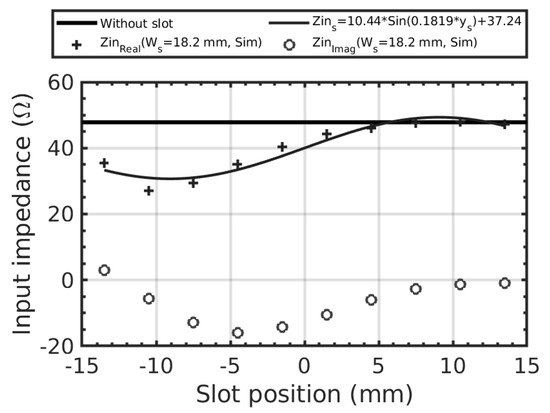

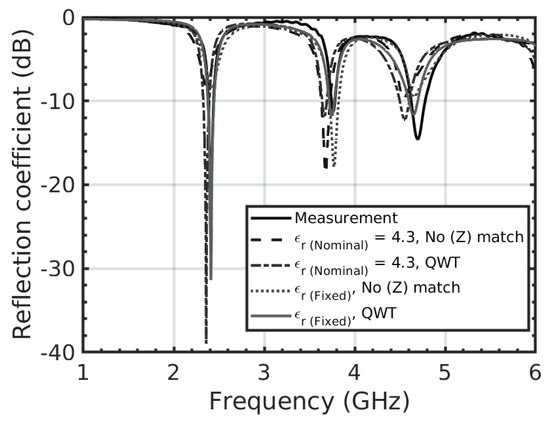

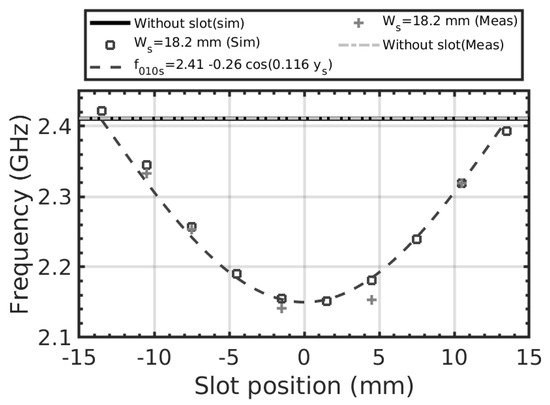

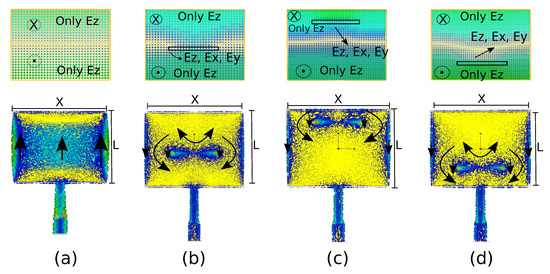

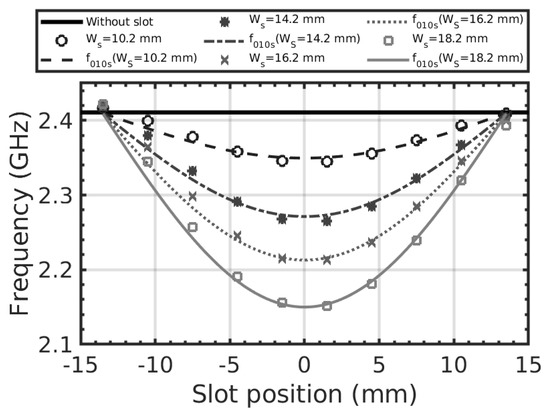

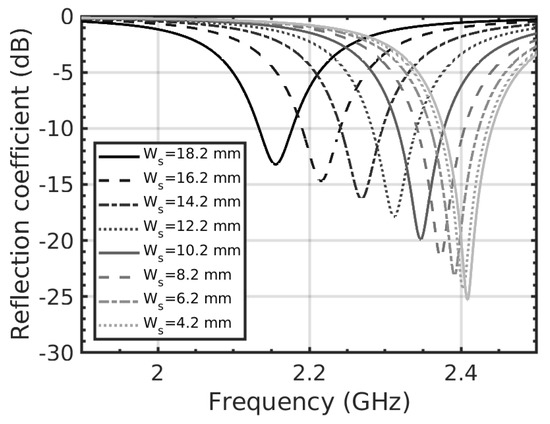

In this study, we developed an analytical model of slot-loaded rectangular microstrip patch antennas based on the simulation results by varying slot parameters. The dominant resonant frequency predicted by such a model is in strong agreement with the experimental results measured at several locations of slot-loaded rectangular microstrip patch antennas. The model enables a reliable and quick computation of the resonant frequency, which generally follows a harmonic behavior that nearly resembles the resonant frequency of a microstrip antenna without a slot, which can be related to a small change in the impedance caused by the slot position. Results showed a good agreement between simulations and measurements for all the slot positions. Mathematical analytic functions to describe the changes in specific characteristic parameters of the slot-loaded rectangular microstrip patch antennas are also included. Full article

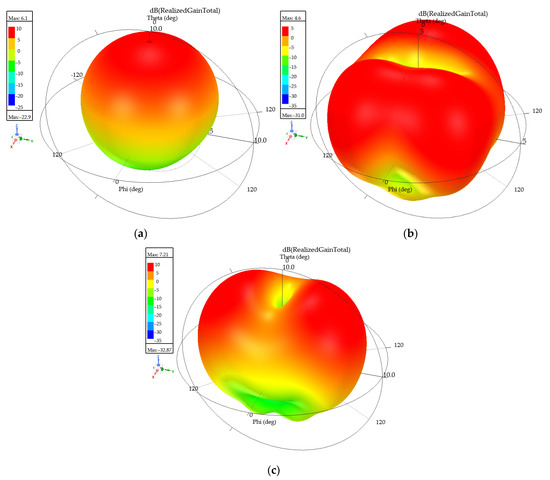

In this paper, we propose a new monopolar microstrip antenna for a high-speed moving swarm sensor network. The proposed antenna shows an extremely thin substrate thickness supported with an omni-directional radiation pattern and wide operation frequency bandwidth. First, to achieve the low-profile monopolar microstrip antenna, the symmetrical center feeding network and the gap-coupled six arrayed patches which form a hexagonal microstrip radiator were utilized. The partially loaded ground-slots under the top patches were employed to improve the radiation performance and adjust the impedance bandwidth. Second, to obtain the broad bandwidth of the low-profile monopolar microstrip antenna, the degenerated non-fundamental TM₀₂ modes, that is, even and odd TM₀₂ modes, were carefully analyzed. To verify the feasibility of the degenerated TM₀₂ mode operation, the parametric study of the proposed antenna was theoretically investigated and implemented with the optimized parameter dimensions. Finally, the fabricated antenna showed a 0.254 mm-thick substrate and demonstrates 1.5-wavelength resonant monopolar radiation with broad impedance bandwidth of 855 MHz and its factional bandwidth of 15.24% at the resonant frequency of 5.57 GHz. Full article

A stepped planar microstrip structure is proposed and demonstrated as a candidate of the ultra-wideband (UWB) antenna in the paper. In the structure, two L-shaped slots are introduced into the rectangular microstrip patch to broaden the current path at both edges of the radiating patch. The impedance bandwidth of the antenna can be extended by using the stepped impedance resonator (SIR) structure at one end of the radiation patch and connecting with the feed line. The symmetrical two I-shaped slots are loaded on the SIR microstrip to improve in-band performance and further widen the operating band. The proposed new structure can have an improvement in the in-band characteristics while extending the operating bandwidth. A broadband impedance bandwidth of 2.39 GHz to 13.78 GHz at S11 < −10 dB is demonstrated based on the proposed novel structure. The reflection coefficient and radiation characteristics are characterized in the paper. The tiny antenna, with the benefit of small area 36 mm × 23 mm, shows potential applications in ultra-wideband communication systems, wireless energy harvesting systems, and other wireless systems. Full article

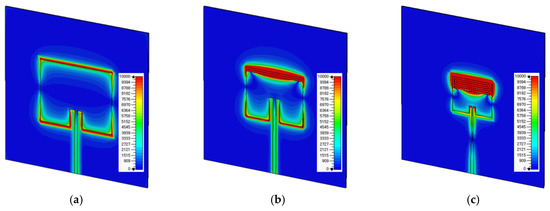

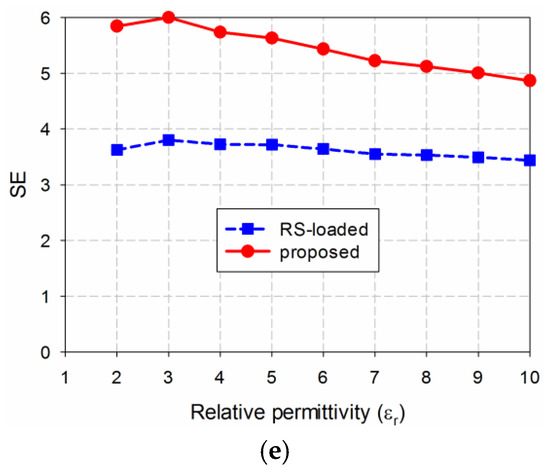

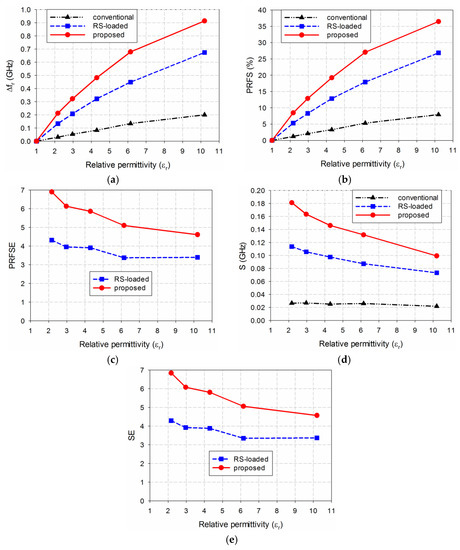

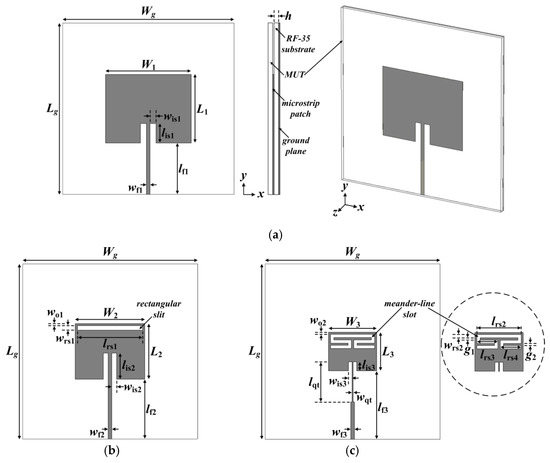

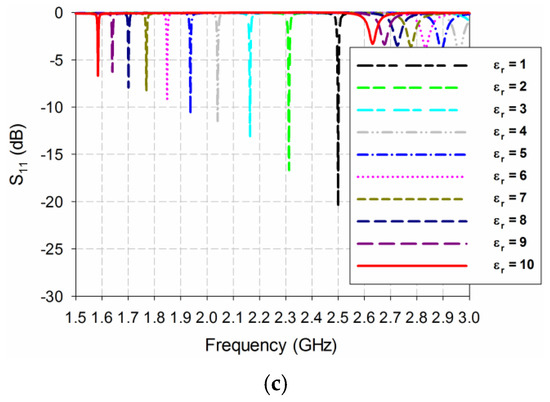

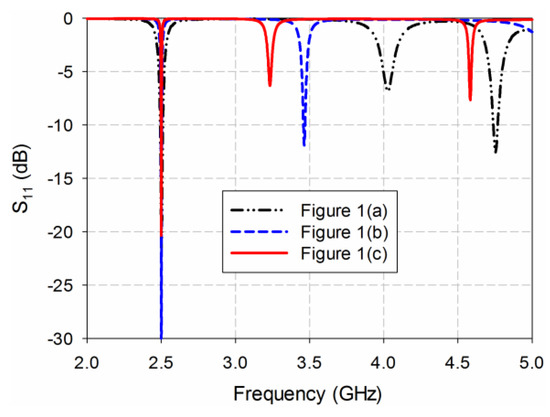

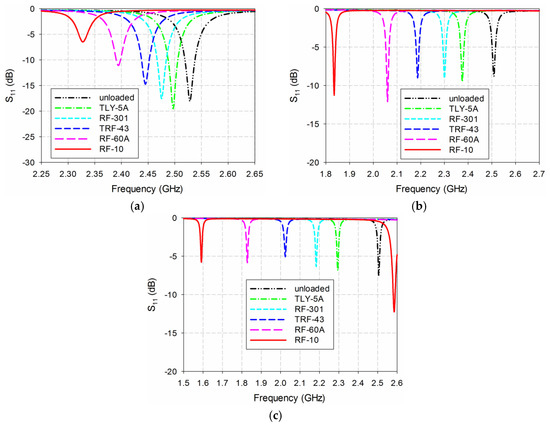

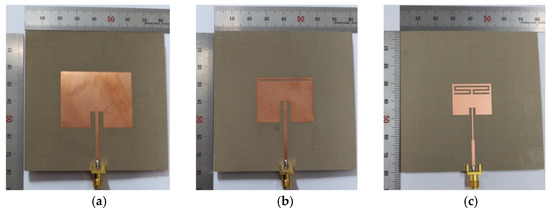

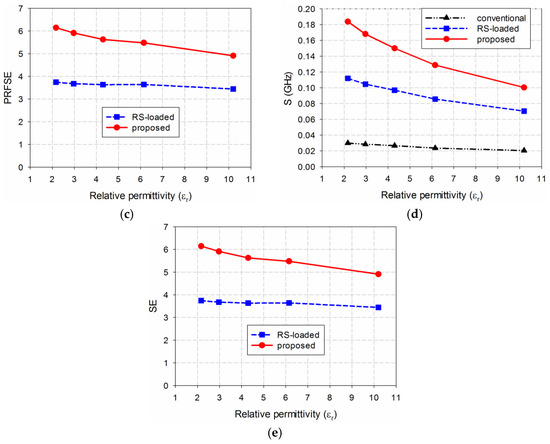

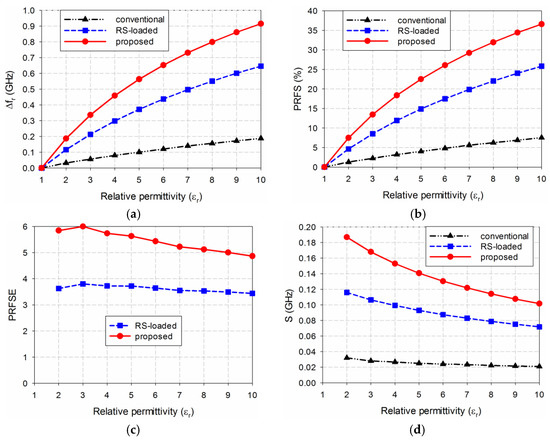

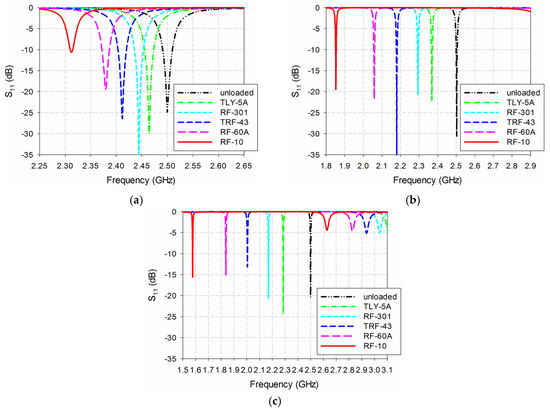

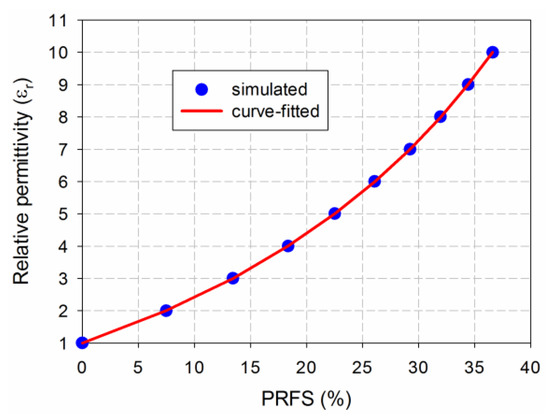

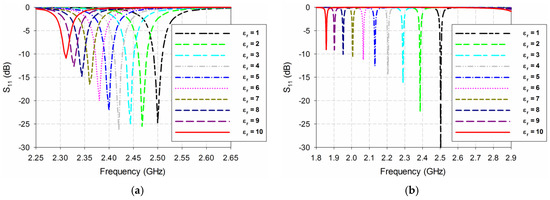

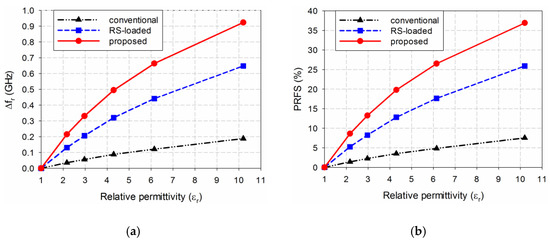

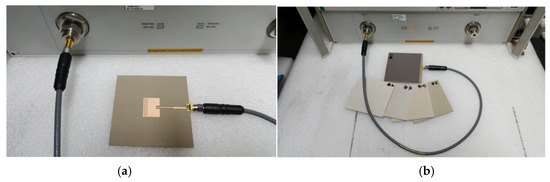

A high-sensitivity microstrip patch sensor antenna (MPSA) loaded with a meander-line slot (MLS) is proposed for the measurement of relative permittivity. The proposed MPSA was designed by etching the MLS along the radiating edge of the patch antenna, and it enhanced the relative permittivity sensitivity with an additional effect of miniaturization in the patch size by increasing the slot length. The sensitivity of the proposed MPSA was compared with that of a conventional rectangular patch antenna and a rectangular slit (RS)-loaded MPSA, by measuring the shift in the resonant frequency of the input reflection coefficient. Three MPSAs were designed and fabricated on a 0.76 mm-thick RF-35 substrate to resonate at 2.5 GHz under unloaded conditions. Sensitivity comparison was performed by using five different standard dielectric samples with dielectric constants ranging from 2.17 to 10.2. The experiment results showed that the sensitivity of the proposed MPSA is 6.84 times higher for a low relative permittivity of 2.17, and 4.57 times higher for a high relative permittivity of 10.2, when compared with the conventional MPSA. In addition, the extracted relative permittivity values of the five materials under tests showed good agreement with the reference data. Full article

A slot-loaded microstrip patch sensor antenna is proposed to enhance sensitivity in measuring the permittivity of planar materials. A thin rectangular slot was etched along the radiating edge of a rectangular patch antenna fed by a microstrip transmission line. Two resonant frequencies were created at a lower frequency compared to the single resonant frequency of a conventional ordinary patch antenna. The sensitivity of the proposed slot-loaded patch antenna was measured by the shift in the resonant frequency of the input reflection coefficient when the planar dielectric superstrate was placed above the patch, and was compared with that of a conventional patch antenna without the slot. The two antennas were designed and fabricated on a 0.76 mm-thick RF-35 substrate for the first resonant frequency to resonate at 2.5 GHz under unloaded conditions. Five different standard dielectric samples with dielectric constants ranging from 2.17 to 10.2 were tested for sensitivity comparison. The experiment results showed that the measured sensitivity of the proposed patch antenna were 3.54 to 4.53 times higher, compared to a conventional patch antenna, for the five samples. Full article

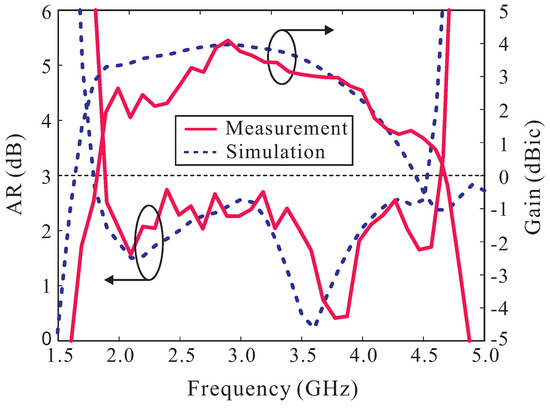

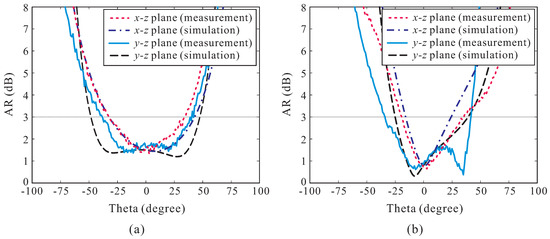

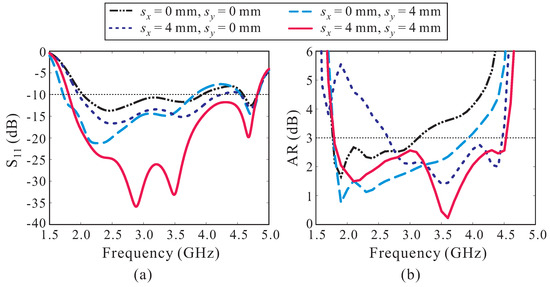

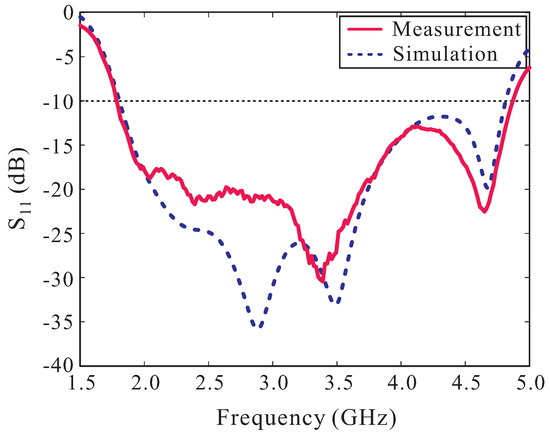

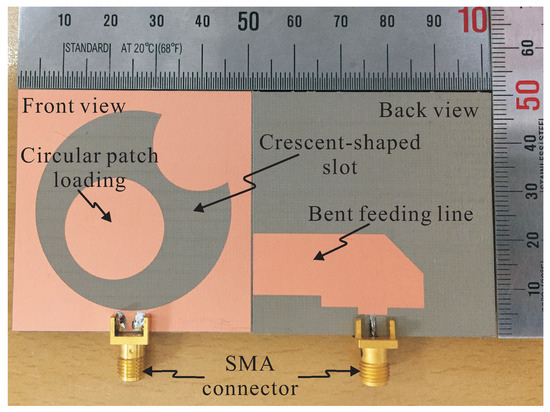

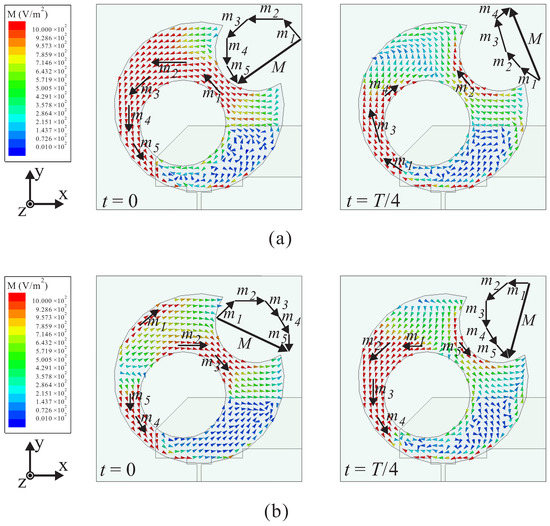

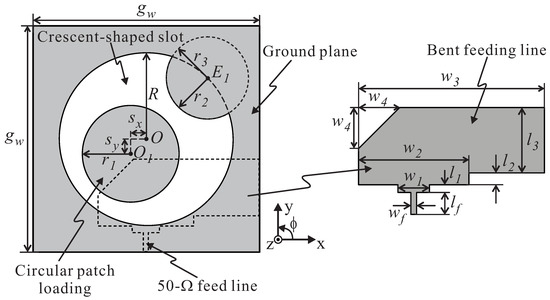

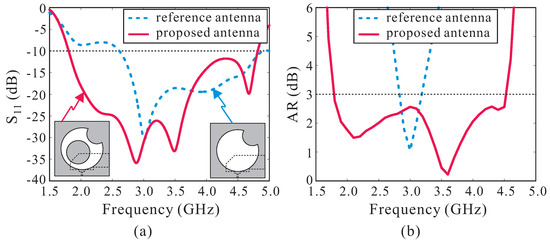

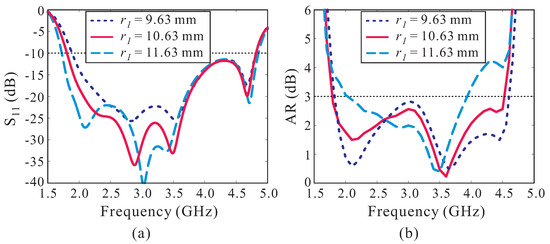

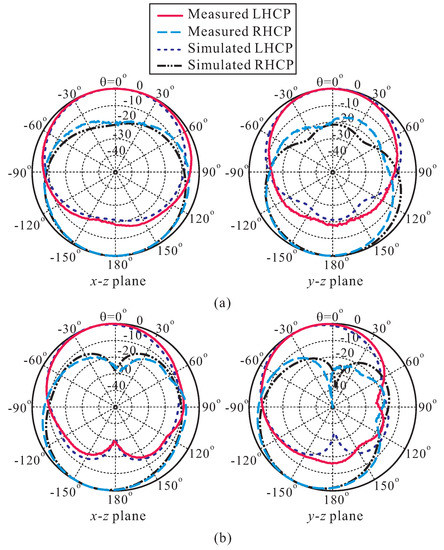

This paper presents the crescent-shaped slot antenna loading of a circular patch that greatly enhances a 3 dB axial-ratio (AR) bandwidth. A bent feeding line was introduced and attached to a 50-$\Omega$ microstrip feed line to achieve circular polarization operation. By loading the circular patch into a crescent-shaped slot at a proper position, the 3 dB AR bandwidth is considerably broadened. An antenna prototype with overall dimensions of 50.8 × 50.8 × 0.5 mm${}^3$ is experimentally demonstrated. Measurement results of the fabricated antenna showed a wide −10 dB reflection bandwidth of 92.33% (1.79–4.86 GHz) and a broad 3 dB AR bandwidth of 84.40% (1.89–4.65 GHz). The measured peak gain of the antenna was approximately 4.09 dBic at 2.9 GHz. Good agreement was also achieved between measurement and simulation results. Full article

A novel miniaturized single-fed circularly-polarized (CP) microstrip patch antenna operating in the Industrial, Scientific, Medical (ISM) band of 2.40–2.48 GHz, is comprehensively proposed for implantable wireless communications. By employing reactive loading in the arrow-shaped slotted patch to form slow wave effect and embedding V-shaped slots into patch to lengthen the current path, the proposed implantable antenna is minimized with the overall dimensions of 9.2 mm × 9.2 mm × 1.27 mm. The radiation patterns of the proposed antenna illustrate the performance of left-handed circular polarization. The simulated results show that an impedance bandwidth of 7.2% (2.39–2.57 GHz) and an axial ratio bandwidth of 3.7% (2.39–2.48 GHz) at the ISM band are achieved, respectively. Ex vivo measured results are in good agreement with the corresponding simulated ones. Full article

In this paper, a microstrip-fed broadband circularly polarized (CP) slot antenna is presented. CP operation can be attained simply by embedding an S-shaped strip. By loading with a multiple-circular-sector patch, which consists of 12 circular-sector patches with identical central angles of 30° and different radii, the 3 dB axial ratio (AR) bandwidth is significantly broadened. To validate the performance of the proposed antenna, an antenna prototype is fabricated and tested. The fabricated antenna is 54 mm × 54 mm × 0.8 mm in size. The measured −10 dB reflection and 3 dB AR bandwidths are 81.06% (1.68–3.97 GHz) and 70.55% (1.89–3.95 GHz), respectively. Within the 3 dB AR bandwidth, the measured peak gain is 3.81 dBic. Reasonable agreement is also obtained between the measured and simulated results. Full article

A new metasurface superstrate structure (MSS)-loaded dual band microstrip line-fed small patch antenna is presented in this paper. The proposed antenna was designed on a ceramic-filled bioplastic sandwich substrate with a high dielectric constant. The proposed 7 × 6 element, square-shaped, single-sided MSS significantly improved the bandwidth and gain of the proposed antenna. The proposed MSS incorporated a slotted patch antenna that effectively increased the measured operating bandwidth from 13.3% to 18.8% and from 14.8% to 23.2% in the lower and upper bands, respectively. Moreover, the average gain of the proposed MSS-based antenna was enhanced from 2.12 dBi to 3.02 dBi in the lower band and from 4.10 dBi to 5.28 dBi in the upper band compared to the patch antenna alone. In addition to the bandwidth and gain improvements, more directive radiation characteristics were also observed from the MSS antenna compared to the patch itself. The effects of the MSS elements and the ground plane length on the reflection coefficient of the antenna were analyzed and optimized. The overall performance makes the proposed antenna appropriate for RFID and WLAN applications. Full article
