Search Results (7)

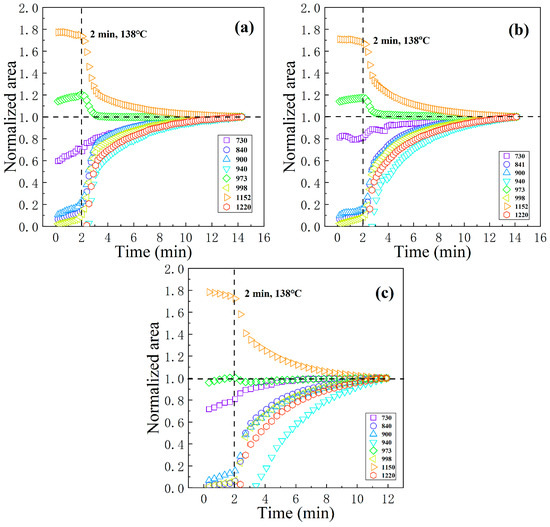

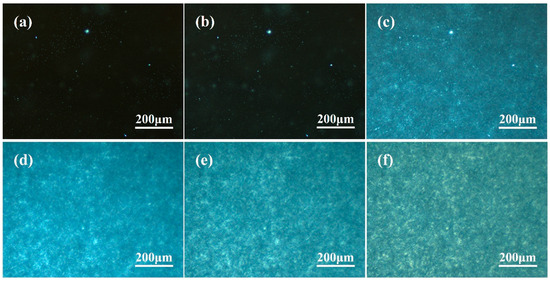

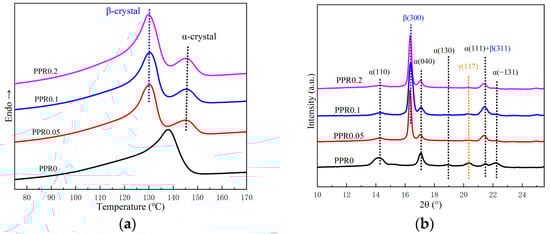

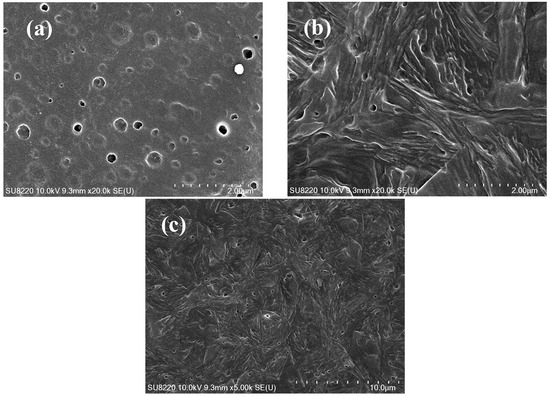

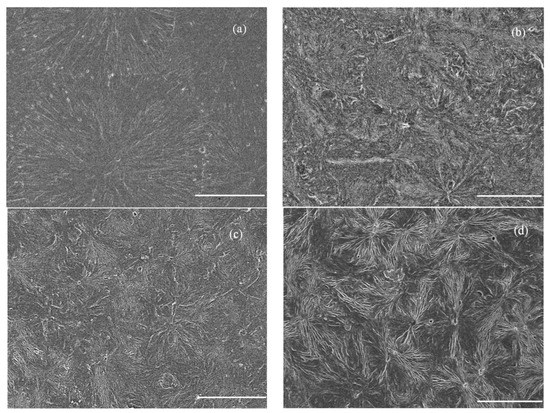

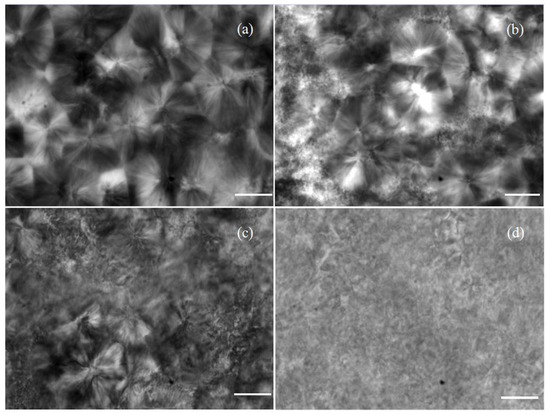

The crystal morphology and conformational changes during crystallization of a polypropylene random copolymer (PPR) are the basis for understanding its crystallization process. In this work, novel rare-earth β-nucleating agent WBN-28 was directly added into PPR to induce β-crystallization. The results of differential scanning calorimetry (DSC) showed that it has an excellent β-crystal-induced effect. The β-crystal content could surpass 85%, calculated from wide-angle X-ray diffraction (WAXD) data. The morphology of the β-crystal and α-crystal was intuitively observed via a polarizing optical microscope (POM). The β-crystallites were interconnected to naturally develop plate-like crystalline regions possessing a certain size, and the α-crystallites with sufficient thicknesses possessed a cross-hatched phenomenon. The bundle-like supramolecular structure of the β-crystal induced by WBN-28 was further observed via a scanning electron microscope (SEM). The conformational changes in the crystallization process of PPR were resolved via high-resolution infrared spectroscopy to understand its β-crystallization in depth. The conformational changes during the crystallization of PPR were found to be different from those of the isotactic polypropylene homopolymer (PPH); they had their own characteristics. This will provide guidance for understanding the β-crystallization of PPR in depth. Full article

Utilizing neodymium-based butadiene rubber as a baseline, this study examines the effect of eco-friendly aromatic TDAE oil, fillers, and crosslinking reactions on neodymium-based rare-earth butadiene rubber (Nd-BR) crystallization behavior. The findings suggest that TDAE oil hinders crystallization, resulting in decreased crystallization temperatures and heightened activation energies (E_a). The crystallization activation energies for 20 parts per hundreds of rubber (PHR) and 37.5 PHR oil stand at −116.8 kJ/mol and −48.1 kJ/mol, respectively, surpassing the −264.3 kJ/mol of the unadulterated rubber. Fillers act as nucleating agents, hastening crystallization, which in turn elevates crystallization temperatures and diminishes E_a. In samples containing 20 PHR and 37.5 PHR oil, the incorporation of carbon black and silica brought the E_a down to −224.9 kJ/mol and −239.1 kJ/mol, respectively. Crosslinking considerably restricts molecular motion and crystallization potential. In the examined conditions, butadiene rubber containing 37.5 PHR oil displayed no crystallization following crosslinking, albeit crystallization was discernible with filler inclusion. Simultaneously, the crystallinity level sharply declined, manifesting cold crystallization behavior. The crosslinking process elevates E_a, while the equilibrium melting point ($T_{\mathrm{m}}^0$) noticeably diminishes. For instance, the $T_{\mathrm{m}}^0$ of pure Nd-BR is approximately −0.135 °C. When blended with carbon black and silica, the $T_{\mathrm{m}}^0$ values are −3.13 °C and −5.23 °C, respectively. After vulcanization, these values decrease to −21.6 °C and −10.16 °C. Evaluating the isothermal crystallization kinetics of diverse materials via the Avrami equation revealed that both the oil and crosslinking process can bring about a decrease in n values, with the Avrami index n for various samples oscillating between 1.5 and 2.5. Assessing the dynamic mechanical attributes of different specimens reveals that Nd-BR crystallization notably curtails its glass transition, marked by a modulus shift in the transition domain and a decrement in loss factor. The modulus in the rubbery state also witnesses a substantial augmentation. Full article

Incorporation of short wood fillers such as wood flour (WF) into polypropylene (PP) often results in a marked reduction of toughness, which is one of the main shortcomings for WF/PP composites. This research reports a facile approach to achieve toughening of WF/PP composites via introducing self-assembling β-nucleating agents into PP matrix. The effect of two kinds of nucleating agents, an aryl amide derivative (TMB5) and a rare earth complex (WBG II), at varying concentrations on the crystallization and mechanical properties of WF/PP composites was comparatively investigated. The results showed that both nucleating agents were highly effective in inducing β-crystal for WF/PP, with β-crystal content (k_β) value reaching 0.8 at 0.05 wt% nucleating agent concentration. The incorporation of TMB or WBG significantly decreased the spherulite size, increased the crystallization temperature and accelerated the crystallization process of WF/PP. As a result of PP crystalline modification, the toughness of composites was significantly improved. Through introducing 0.3 wt% TMB or WBG, the notched impact strength and strain at break of WF/PP increased by approximately 28% and 40%, respectively. Comparatively, although WF/PP-WBG had slightly higher K_β value than WF/PP-TMB at the same concentration, WF/PP/TMB exhibited more uniform crystalline morphology with smaller spherulites. Furthermore, the tensile strength and modulus of WF/PP-TMB were higher than WF/PP-WBG. This matrix crystalline modification strategy provides a promising route to prepare wood filler/thermoplastic composites with improved toughness and accelerated crystallization. Full article

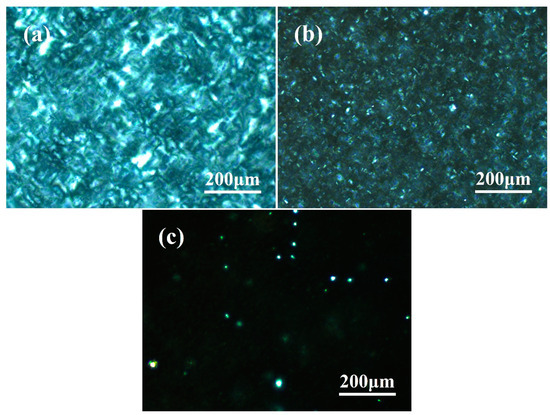

At high temperatures, the insulation performance of polypropylene (PP) decreases, making it challenging to meet the application requirements of metallized film capacitors. In this paper, the dielectric performance of PP is improved by long-chain branching modification and adding different kinds of nucleating agents. The added nucleating agents are organic phosphate nucleating agent (NA-21), sorbitol nucleating agent (DMDBS), rare earth nucleating agent (WBG-Ⅱ) and acylamino nucleating agent (TMB-5). The results show that the long-chain branches promote heterogeneous nucleation and inhibit the motion of molecular chains, thereby enhancing the dielectric properties at high temperatures. Nucleating agents modulate the crystalline morphology of long-chain branched polypropylene (LCBPP), which leads to a decrease in the mean free path of carriers and an increase in trap energy level and trap density. Therefore, the conductivity is reduced and the breakdown strength is improved. Among the added nucleating agents, NA-21 showed a significant improvement in the electrical properties of LCBPP films. At 125 °C, compared with PP, the breakdown strength of the modified film is increased by 26.3%, and the energy density is increased by 66.1%. This method provides a reference for improving the dielectric properties of PP. Full article

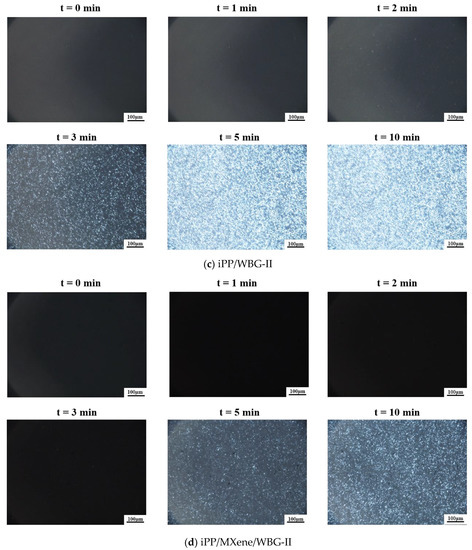

The effects of MXene on the crystallization behavior of β-nucleated isotactic polypropylene (iPP) were comparatively studied. The commonly used MXene Ti₃C₂T_x was prepared by selective etching and its structure and morphology were studied in detail. Then MXene and a rare earth β-nucleating agent (NA) WBG-II were nucleated with iPP to prepare samples with different polymorphic compositions. The crystallization, melting behavior, and morphologies of neat iPP, iPP/MXene, iPP/WBG-II, and iPP/MXene/WBG-II were comparatively studied. The crystallization behavior analysis reveals that a competitive relationship exists between MXene and WBG-II when they were compounded as α and β nucleating agents. In the system, the β-nucleation efficiency (NE) of WBG-II is higher than α-NE of MXene. The β-phase has relatively low thermal stability and would transform to α-phase when cooled below a critical temperature. Full article

In this paper, the crystalline modification of isotactic polypropylene (PP) with a rare earth β nucleating agent (WBG) with different ultrasound conditions was investigated by scanning electron microscopy (SEM), wide-angle X-ray diffraction (XRD), and differential scanning calorimetry (DSC). The relationship between the ultrasound conditions and the crystalline structure, as well as the mechanism for the behavior, were revealed. SEM showed that the dispersion of the nucleating agent in the PP matrix was better at shorter ultrasound distances. In addition, the higher the water cooling temperature, the better the nucleating agent was dispersed in the PP matrix. The results of XRD and DSC showed that the crystallinity and the relative content of the β-crystal were increased with nearer ultrasound distance, as well as increased in higher water cooling temperatures. In particular, under the same conditions, the crystallinity and the relative content of the β-crystal after ultrasonic treatment were much higher than those without ultrasound. Full article

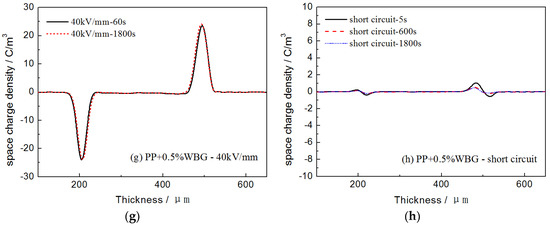

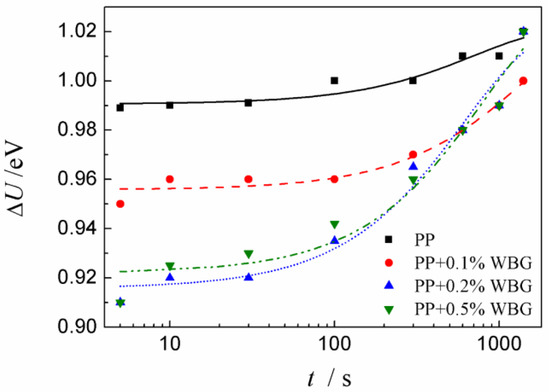

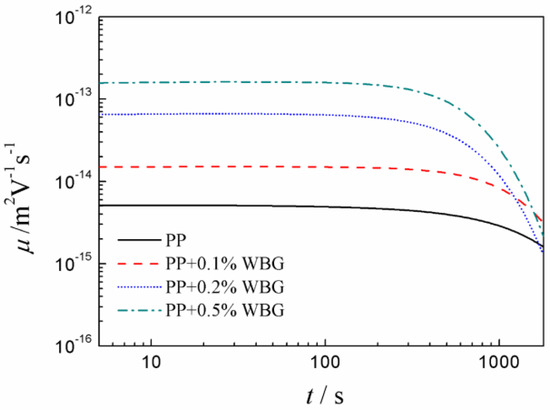

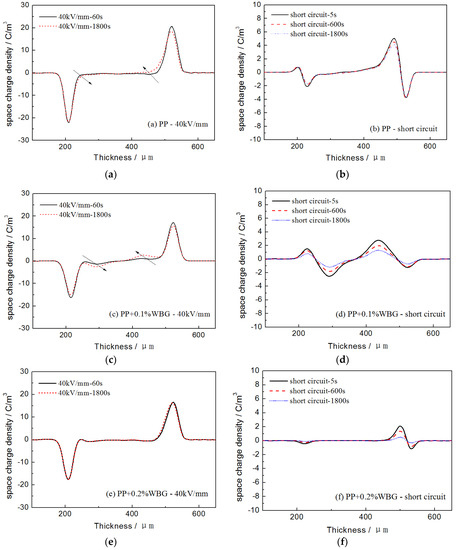

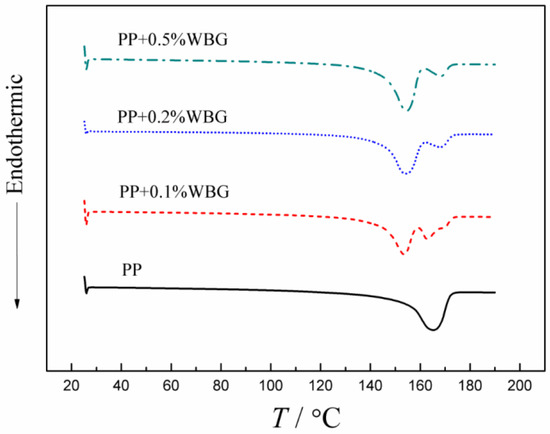

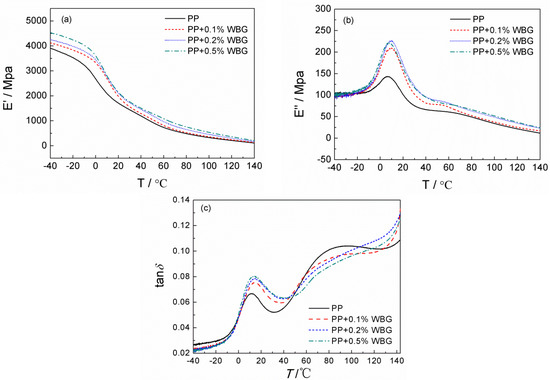

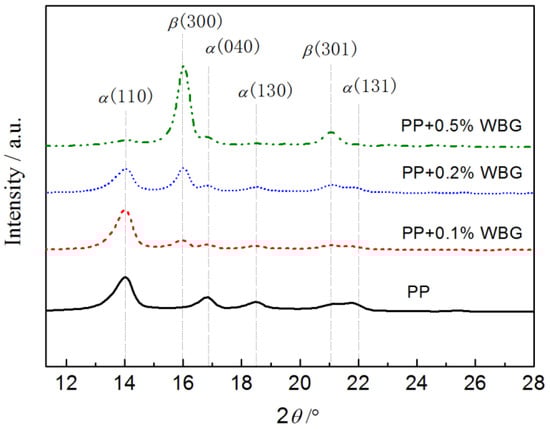

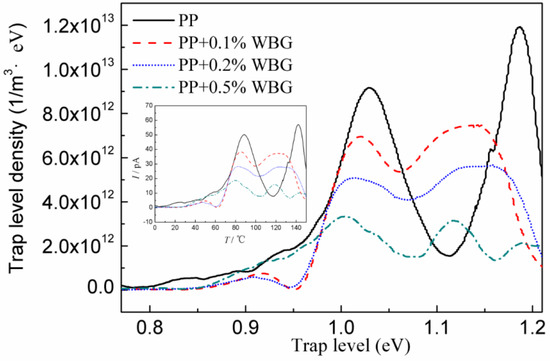

Compared to cross-linked polyethylene, polypropylene has a thermoplastic property and the advantage of recycling. However, the poor impact resistance at low temperature and the corresponding space charge problem restrict the application of polypropylene with the extruded high voltage direct current (HVDC) cable. Sufficient introduction of the β form of the polypropylene crystal can significantly improve impact resistance at low temperatures. Although it has been widely applied in insulation engineering, the effect of β-crystal on the space charge characteristics of polypropylene has rarely been researched until now. In this paper, a rare earth nucleating agent of β-crystal is employed to modify the performance of polypropylene to investigate the effects of nucleating agent content on β-crystalline, mechanical relaxation, trap, and space charge characteristics of polypropylene. The results of differential scanning calorimeter (DSC) and X-ray diffraction (XRD) tests indicate that the relative content of β-crystal in modified polypropylene increases gradually with the increasing concentration of the nucleating agent, approaching 43.5% when the nucleating agent content has been raised to 0.2 wt %, suggesting appreciable efficiency of the nucleating agent utilized in our research. Scanning electron microscopy (SEM) is utilized to characterize the morphology of β-crystal spherulites, which illustrates that the β-spherulites are in bunchy shape, and the lamellar crystals are parallel to each other without an obvious boundary between them. The results of the space charge test demonstrate that the modified polypropylene can substantially suppress space charge accumulation, which is attributed to an increment of β-crystal content by adopting a rare earth nucleating agent. It is indicated from dynamic mechanical analysis (DMA) measurements that the enhancement of β-crystalline in modified polypropylene can distinctly increase and decrease the β and α relaxation losses, respectively, which proves that the defects in β-crystal and amorphous regions are reduced and increased respectively. Thermally stimulated depolarization current tests further confirm that the number of traps caused by defects in the β-form of polypropylene crystal declines definitely, which dominantly accounts for the suppression of space charge accumulation. Full article
