Search Results (7)

Recycled wood fiber (RWF) obtained through the multi-stage processing of waste wood serves as an eco-friendly green construction material, exhibiting lightweight, porous, and high toughness characteristics that demonstrate significant potential as a cementitious reinforcement, offering strategic advantages for environmental protection and resource recycling. In this study, high-performance sulfoaluminate cement (SAC)-RWF composites prepared by modifying RWFs with nano-silica (NS) and a silane coupling agent (KH560) were developed and their effects on mechanical properties, shrinkage behavior, hydration characteristics, and microstructure of SAC-RWF composites were systematically investigated. Optimal performance was achieved at water–cement ratio of 0.5 with 20% RWF content, where the KH560-modified samples showed superior improvement, with 8.5% and 14.3% increases in 28 d flexural and compressive strength, respectively, compared to the control groups, outperforming the NS-modified samples (3.6% and 8.6% enhancements). Both modifiers improved durability, reducing water absorption by 6.72% (NS) and 7.1% (KH560) while decreasing drying shrinkage by 4.3% and 27.2%, respectively. The modified SAC composites maintained favorable thermal properties, with NS reducing thermal conductivity by 6.8% through density optimization, whereas the KH560-treated specimens retained low conductivity despite slight density increases. Micro-structural tests revealed accelerated hydration without new hydration product formation, with both modifiers enhancing cementitious matrix hydration product generation by distinct mechanisms—with NS acting through physical pore-filling, while KH560 established Si-O-C chemical bonds at paste interfaces. Although both modifications improved mechanical properties and durability, the KH560-modified SAC composite group demonstrated superior overall performance than the NS-modified group, providing a technical pathway for developing sustainable, high-performance recycled wood fiber cement-based materials with balanced functional properties for low-carbon construction applications. Full article

This study developed a vinyl acetate-ethylene rapid repair mortar (VAE-RRM) by using a binary blended cementitious system (ordinary Portland cement and sulfoaluminate cement) and vinyl acetate-ethylene (VAE) redispersible polymer powder. The effects of the polymer-to-cement ratio (P/C: 0~2.0%) on setting time, mechanical properties, interfacial bonding, and microstructure were systematically investigated. The results reveal that VAE delayed cement hydration via physical encapsulation and chemical chelation, extending the initial setting time to 182 min at P/C = 2.0%. At the optimal P/C = 0.9%, a synergistic organic–inorganic network enhanced flexural strength (14.62 MPa at 28 d, 34.0% increase) and interfacial bonding (2.74 MPa after interface treatment), though compressive strength decreased to 65.7 MPa due to hydration inhibition. Excessive VAE (P/C ≥ 1.5%) suppressed AFt/C-S-H growth, increasing harmful pores (>1 μm) and degrading performance. Microstructural analysis via scanning electron microscopy (SEM) and mercury intrusion porosimetry (MIP) demonstrates that VAE films bridged hydration products, filled interfacial transition zones (ITZ), and refined pore structures, reducing the most probable pore size from 62.8 nm (reference) to 23.5 nm. VAE-RRM 3 (P/C = 0.9%) exhibited rapid hardening (initial setting time: 75 min), high substrate recovery (83.3%), and low porosity (<10%), offering an efficient solution for urban infrastructure repair. This work elucidates the dual mechanisms of pore refinement and interface reinforcement driven by VAE, providing theoretical guidance for designing high-performance repair materials. Full article

Properties of high early-strength concretes (HESCs) containing Type V, Type III, and rapid hardening calcium sulfoaluminate (CSA) cements were investigated at curing ages of opening time, 24 h, and 28 days. Investigated properties included the fresh (workability, setting time, air content, unit weight, and released heat of hydration), mechanical (compressive and flexural strengths), transport (absorption, volume of permeable voids, water penetration, rapid chloride permeability, and accelerated corrosion resistance), dimensional stability (drying shrinkage), and durability (de-icing salt and abrasion resistance) properties. Test results revealed that the HESC containing Rapid-Set cement achieved the shortest opening time to attain the required minimum strength, followed by Type III and Type V cement HESCs. For the most part, Type V cement HESC produced the best transport and de-icing salt resistance, whereas Rapid-Set cement HESC displayed the best dimensional stability and wear resistance. Full article

The combined effect and corresponding mechanism of nano calcium carbonate (NC) and aluminum sulfate (AS) on the setting and hardening performance of binary blended cement (ordinary Portland cement (OPC) and calcium sulfoaluminate cement (CSA)) were evaluated through multiple experiments, including setting time, calorimetry, compressive strength, X-ray diffraction (XRD), and mercury intrusion porosimetry (MIP). The results showed that, as compared to OPC, OPC-CSA binary blended cement exhibited reduced setting time but decreased early strength, which could be caused by the depressed silicate phase hydration due to the fast supply of aluminate ions during the hydration of aluminate-contained phases contained in CSA. However, through the combined addition of NC and AS, the depressed silicate phase hydration was greatly promoted by NC due to its nucleation effect, and the reduced early strength was significantly improved. Further analysis indicates that the combined addition of NC and AS can promote the formation of C-S-H gel and decrease the porosity of the hardened OPC-CSA binary paste. In this way, one promising repair material with rapid setting and hardening properties was prepared by OPC-CSA binary blended cement with the combined addition of NC and AS. Full article

The use of rapid-hardening cementitious materials for the emergency repair of critical infrastructure in coastal environments is becoming increasingly widespread, and concrete surface hydrophobic protection treatment is equally necessary to improve the durability of both new and old concrete. Among them, silane-based hydrophobic materials play an important role in concrete hydrophobic protection. Graphene oxide (GO)-modified silane materials can significantly improve the hydrophobic performance of coatings, but the hydrophobic mechanism of coatings modifying the sulfoaluminate cement’s main hydration product ettringite (AFt) has not yet been explored. In this study, molecular dynamics simulations were conducted to investigate the wetting properties of water droplets on the surface of AFt, isobutyltriethoxy silane (IBTS)-modified AFt, and IBTS/GO-modified AFt. It was found that the AFt substrate had good hydrophilicity, and the droplets could wet the interface through Ca-O ionic bonds and H-bonds. The IBTS coating initially impeded droplet wetting, but the adsorption stability of IBTS on the AFt substrate surface was poor under droplet action, leading to droplet penetration and dispersion of the IBTS coating on the AFt surface. However, the IBTS/GO coating significantly restricted droplet wetting due to the stable adsorption of GO on the AFt surface and the strong stability of hydrogen bonds between IBTS and GO. In conclusion, selecting a suitable bridging material between AFt and silane is crucial for improving the hydrophobic stability of silane coatings on sulfoaluminate cement materials. Full article

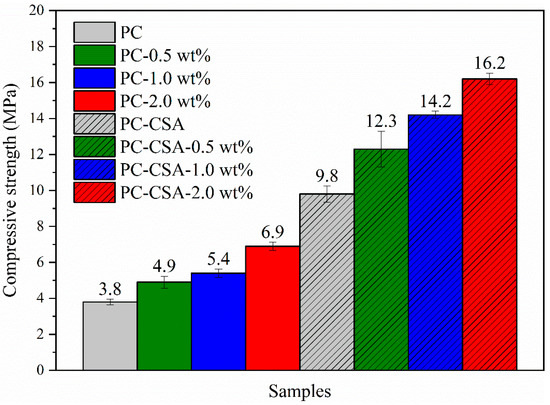

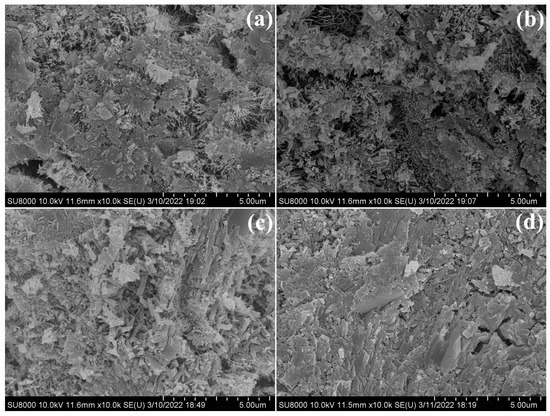

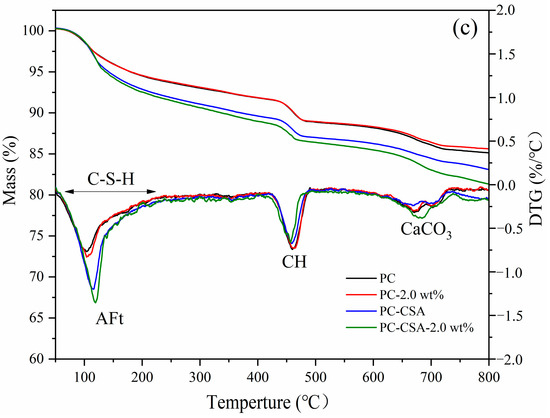

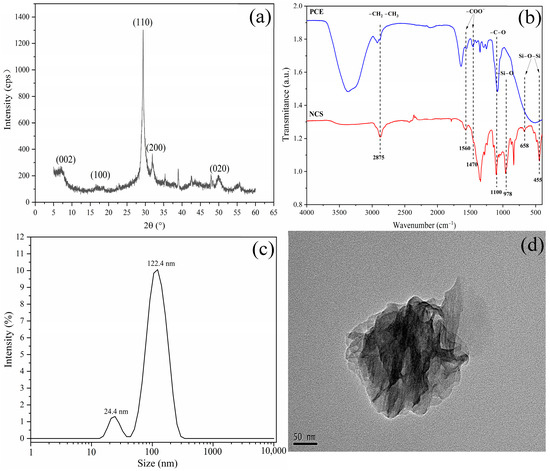

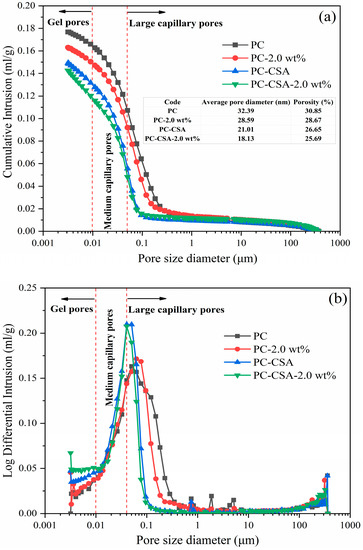

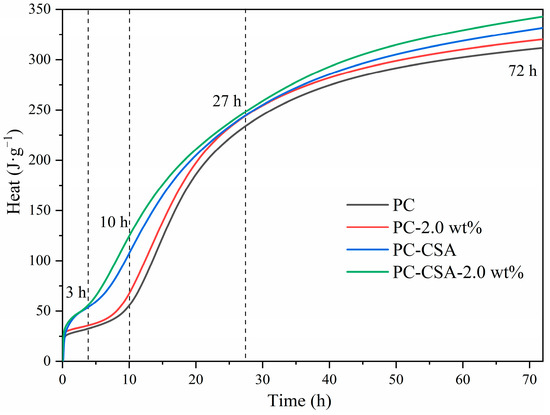

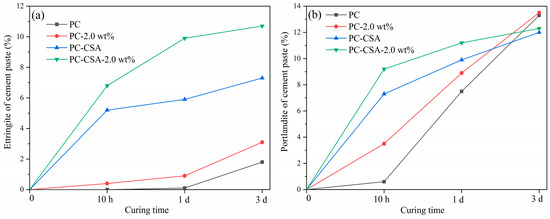

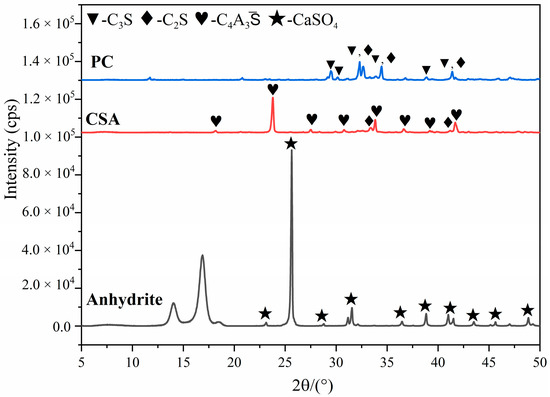

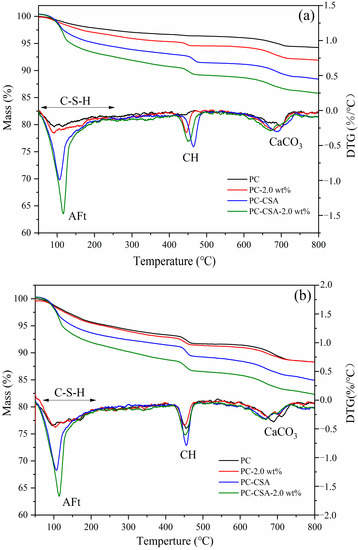

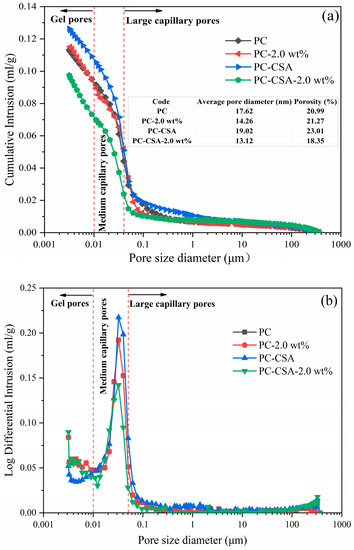

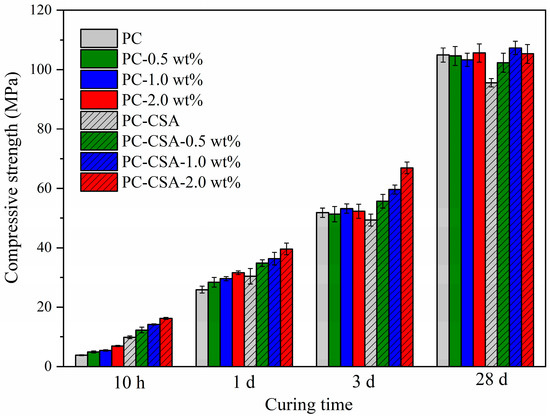

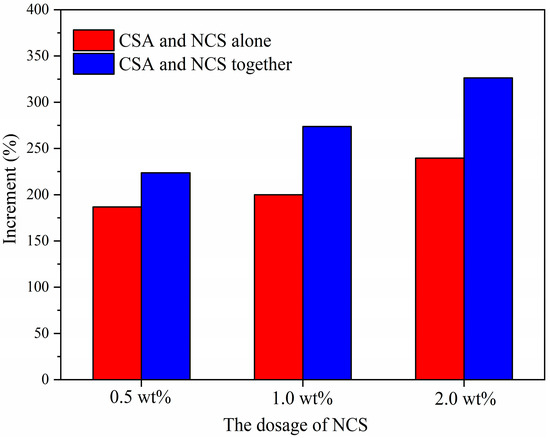

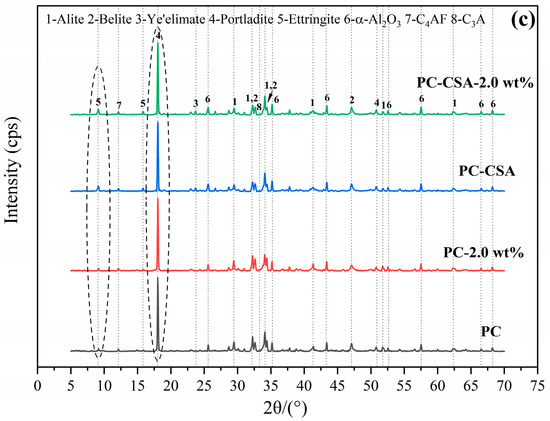

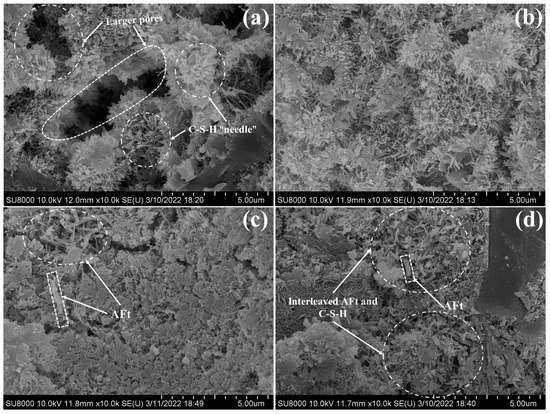

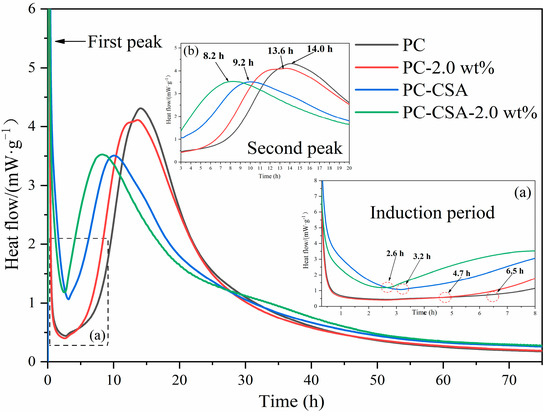

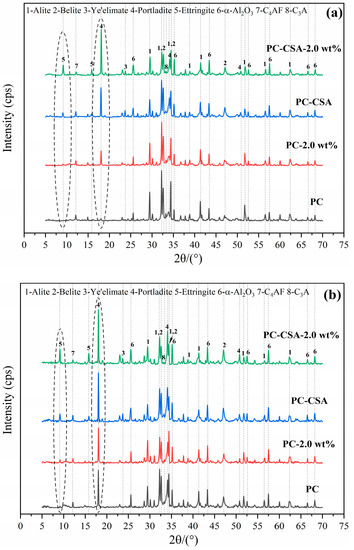

The combined utilization of mineral accelerators and nano-seeding materials is a novel method to promote the early strength of cement-based materials. In this paper, the effects of nano-C-S-H seed (NCS) on the early compressive strength of the Portland cement (PC)– calcium sulfoaluminate cement (CSA) binder were investigated. The results showed that NCS and CSA synergistically contributed to the early strength of PC. In detail, a 326.3% increase in the 10 h compressive strength of PC paste was obtained through the addition of NCS (2 wt%) and CSA (5%) in common. This was higher than the sum of the increases observed with the single additions of CSA (157.9%) or NCS (87.6%), with the same above dosage, in PC. Meanwhile, the early strength enhancement effects of NCS and CSA, when used together in PC, lasted longer than the effects of either used alone. Moreover, the synergetic effect mechanism was analyzed by isothermal calorimeter, QXRD, TGA, MIP, and SEM techniques. The calorimetry, XRD, and TGA results demonstrated that the synergistic mechanism was associated with the synergistic promotion effects of CSA and NCS on the hydrates. The fast hydration of CSA produced large amounts of ettringite and also consumed partial free water to promote the performance of the seeding effect of NCS which, simultaneously, further accelerated the precipitation of C-S-H gel and CH. The high alkie environment was also beneficial for the continuous generation of ettringite. In addition, the results of MIP and SEM measurements showed that the micro-filling effect of NCS significantly optimized the pore structure of a PC-CSA blend-hardened paste. Thus, the synergistic strength enhancement effects of CSA and NCS on PC were attributed to the matching of the promotion of hydration generation and the optimization of pore structures in hardening cement paste. The results of this article provide a new approach to achieving the rapid development of the early strength of cementitious materials, with potential applications in precast concrete and low-temperature construction. Full article

Brownmillerite-belite-sulfoaluminate clinker with different contents of brownmillerite were designed and successfully prepared by using limestone (LS), aluminum tailings (AT), aluminum mine (AM), and anhydrite (AH) calcined at 1330 °C for 30 min. Then, three kinds of brownmillerite-belite-sulfoaluminate cement (BBSC) were obtained by grinding mixtures of the clinker and AH. Hydration and mechanical performances of the prepared BBSC were thus intensively studied. The increase in brownmillerite in BBSC decreased the hydration exothermic rate and delayed the renewed rapid formation of AFt at early hydration stages. However, the formation of C₂AS·8H₂O would be promoted, where the higher the brownmillerite content in BBSC, the earlier the C₂AS·8H₂O formed. The increase in brownmillerite might change the morphologies of the formed AFt, grass-shaped AFt enriched in iron would be the main hydration products in BBSC with a higher content of brownmillerite. The increase in brownmillerite content contributed to the stability improvement in flexural strength and the stable growth in the compressive strength of BBSC. The appropriate content of brownmillerite (20 wt%) can balance the whole hydration reaction process, which was conducive to the development of BBSC mechanical strength, the decrease in the hydration heat release, and the volume stability of hardened pastes. Full article
