Modification Mechanism of Low-Dosage Vinyl Acetate-Ethylene on Ordinary Portland Cement–Sulfoaluminate Cement Binary Blended Rapid Repair Mortar
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials

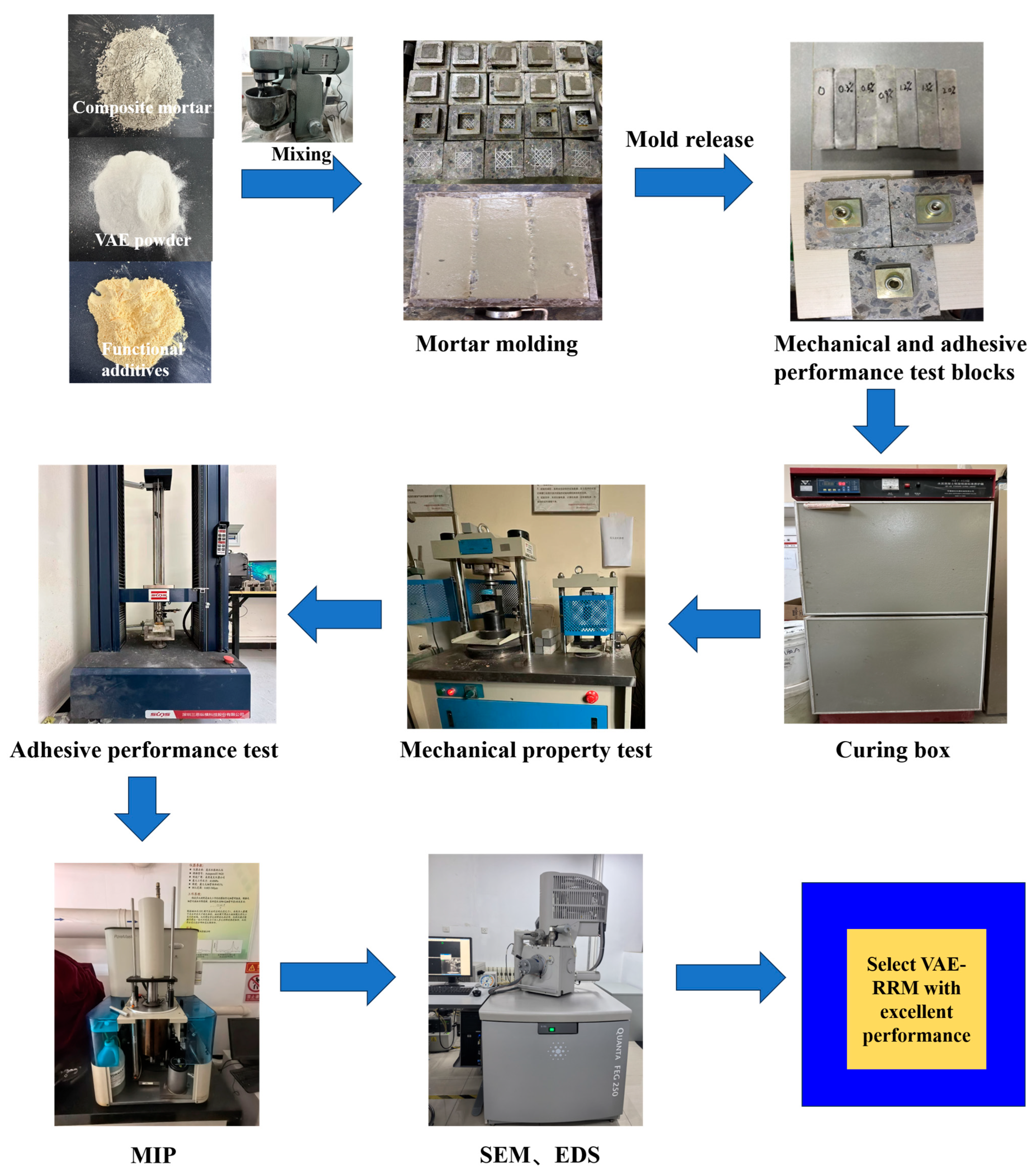

2.2. Sample Preparation
2.3. Test Instruments
2.4. Test Experiments and Characterization Methods
2.4.1. Setting Time Test
2.4.2. Mechanical Performance Test
2.4.3. Bonding Strength Test of Different Substrate Treatments

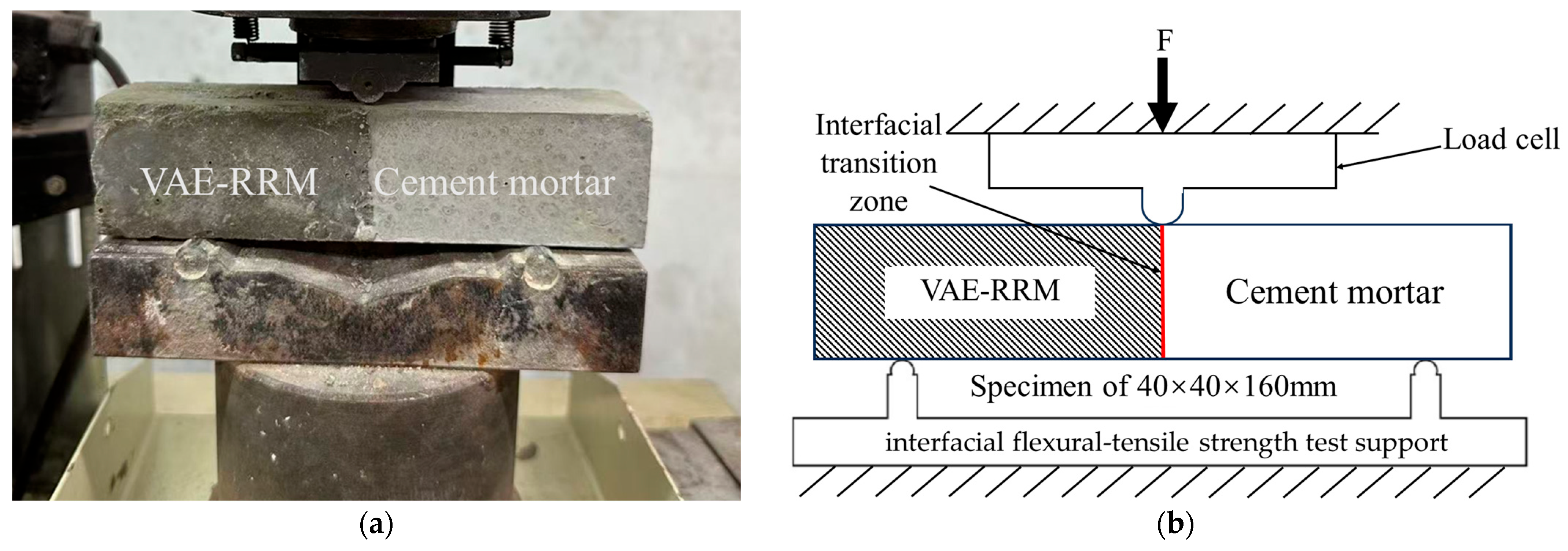

2.4.4. Interfacial Flexural–Tensile Strength Test
2.4.5. Mercury Intrusion Porosimetry (MIP) Test
2.4.6. Microcosmic Observation Experiment
3. Results and Discussion
3.1. Results

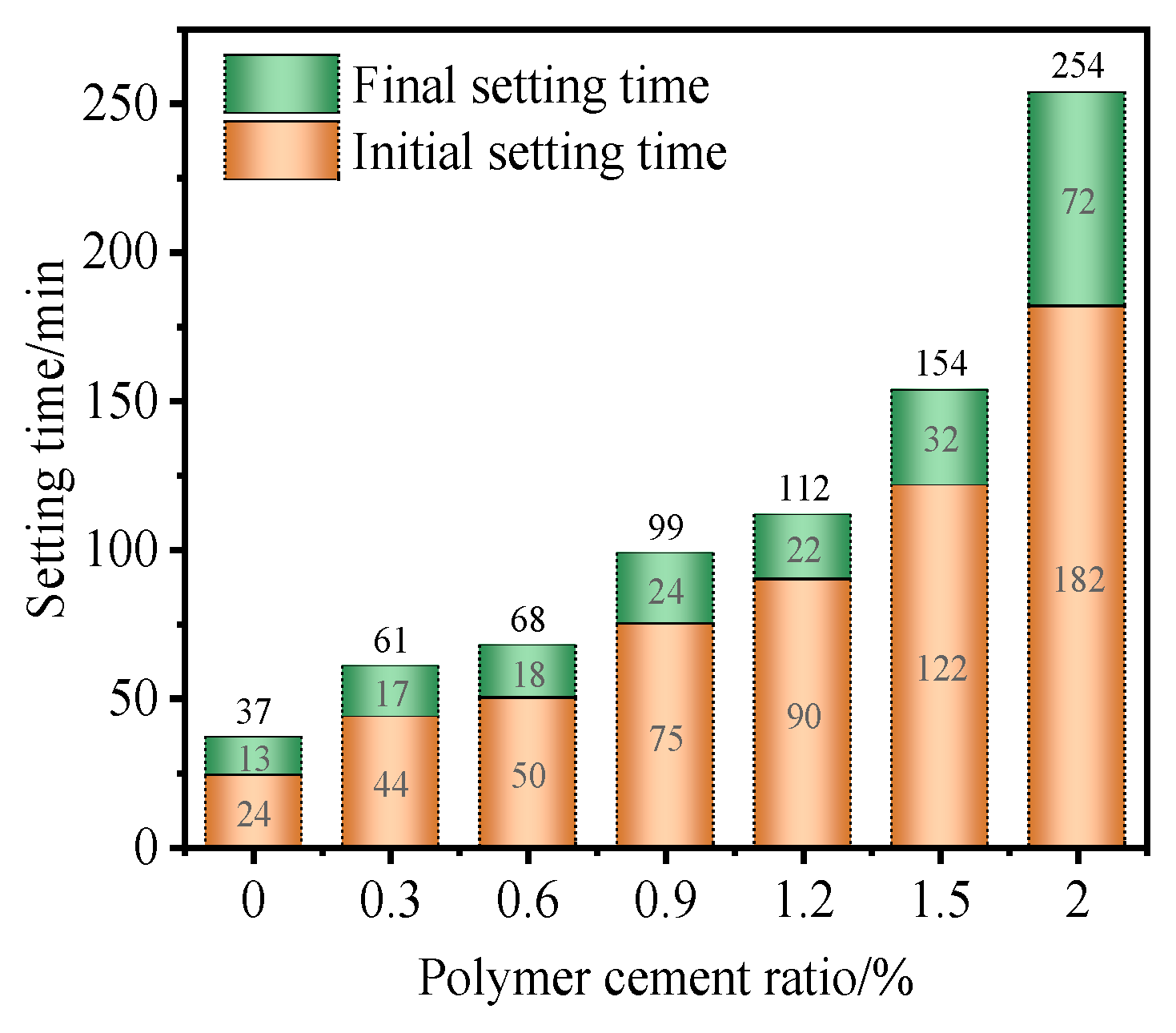

3.1.1. Setting Time

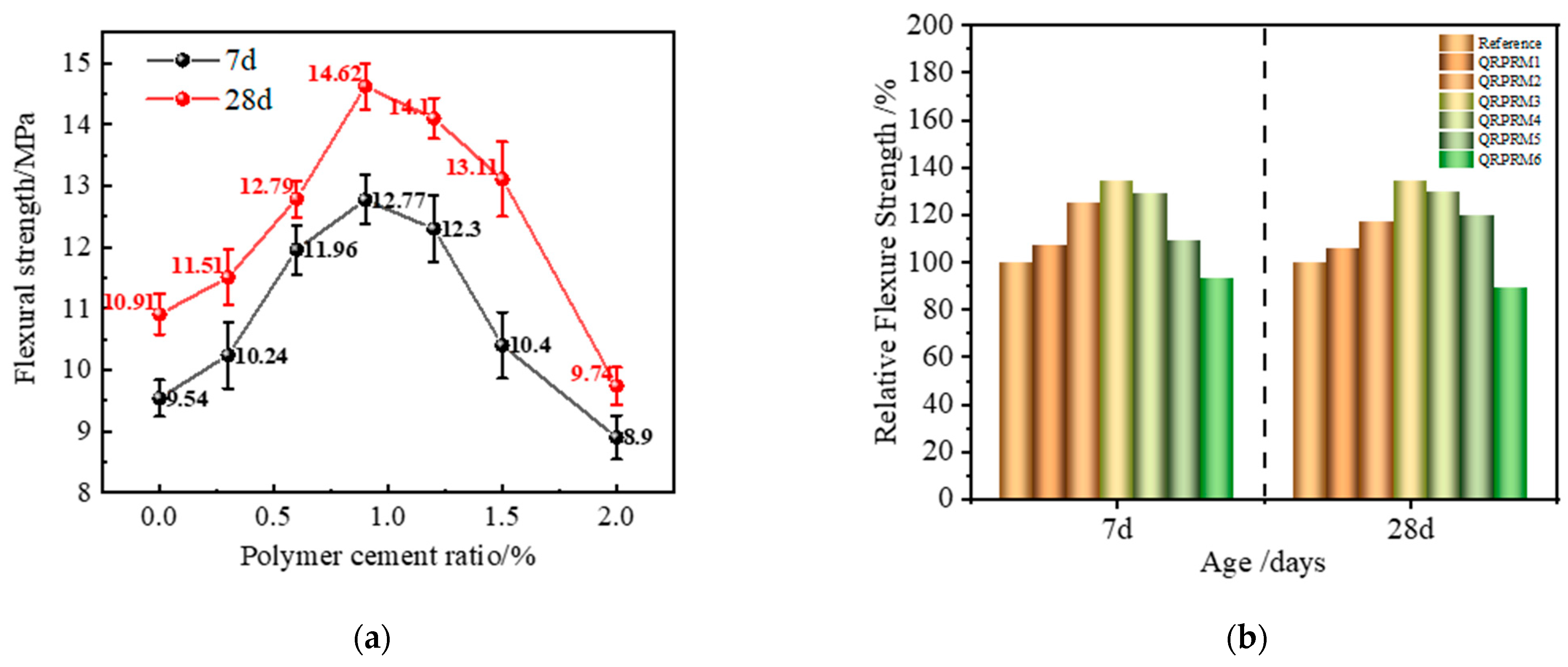

3.1.2. Flexural Strength

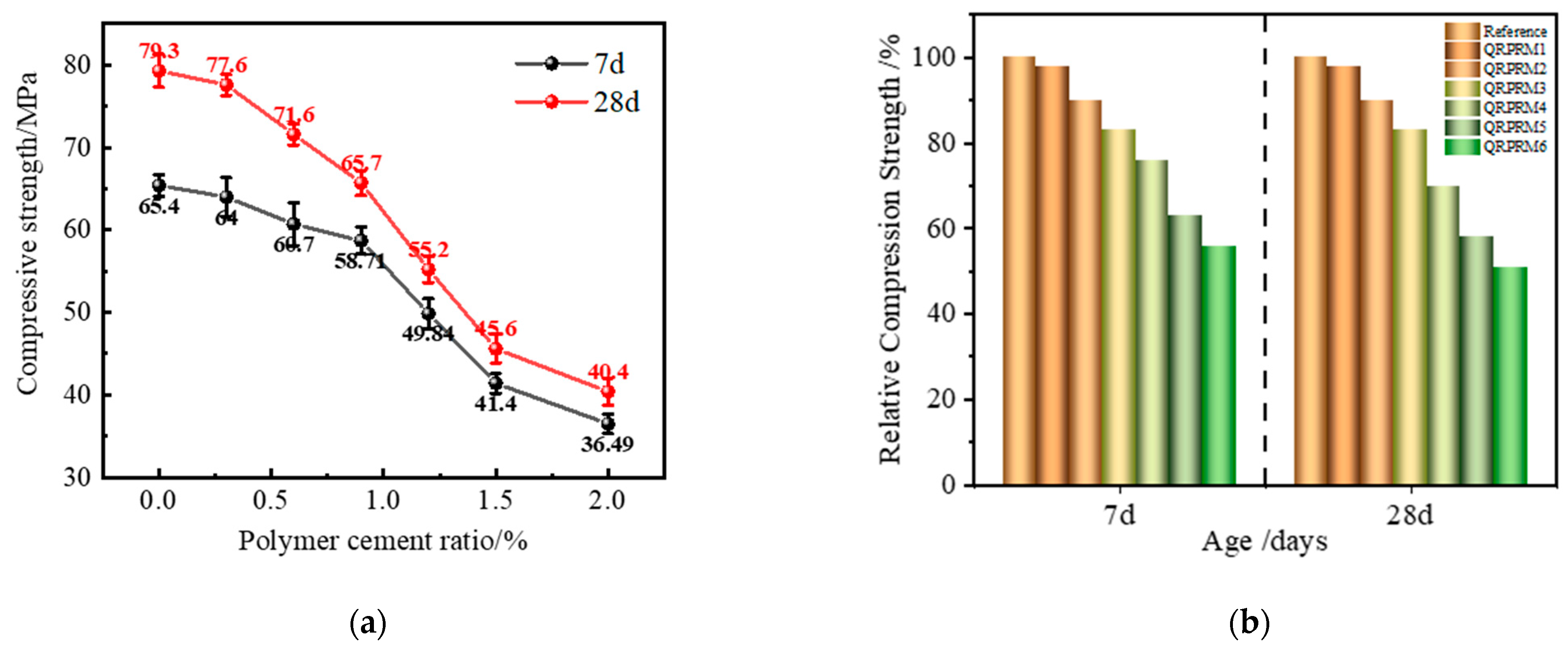

3.1.3. Compressive Strength

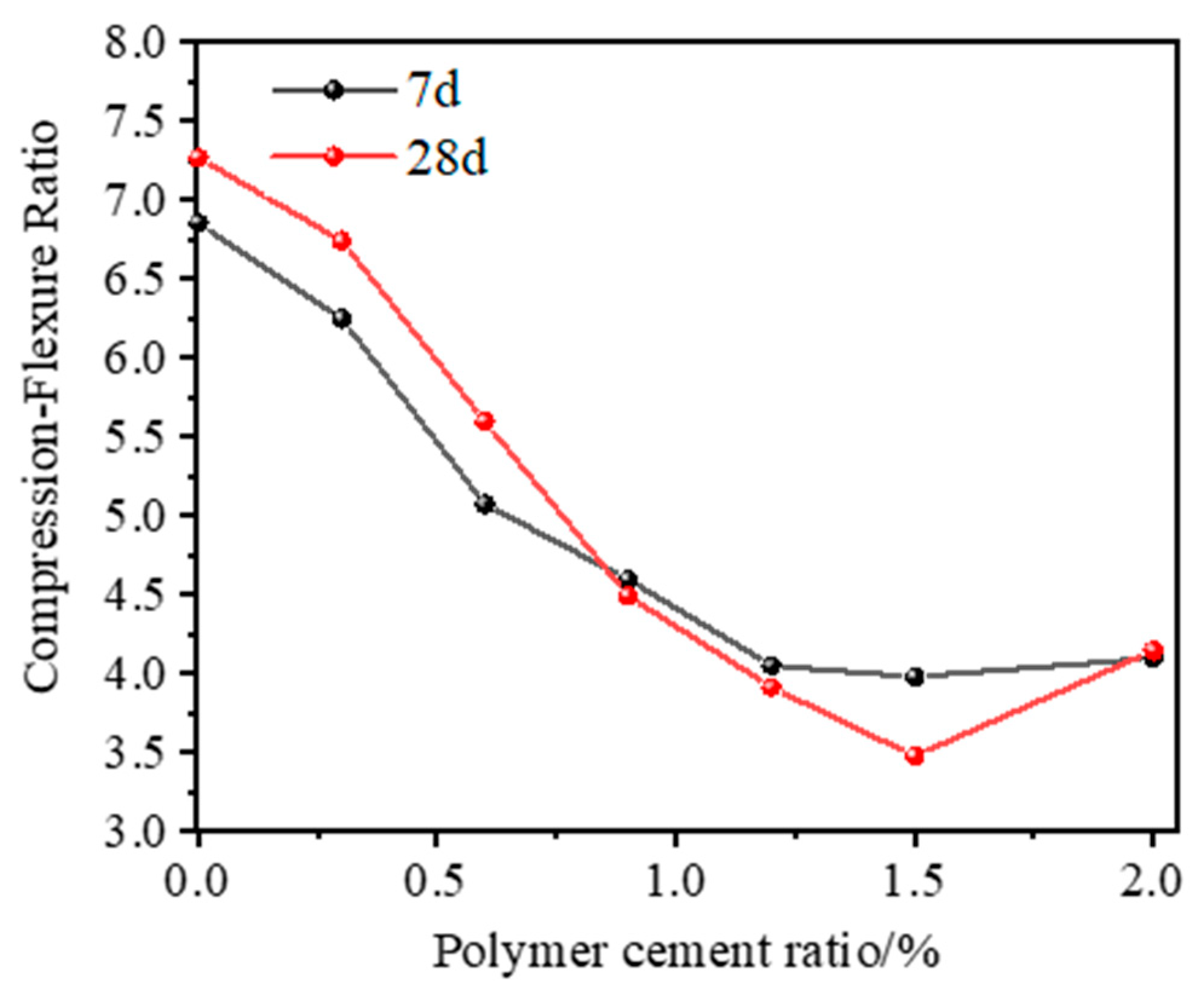

3.1.4. Compression–Flexure Ratio

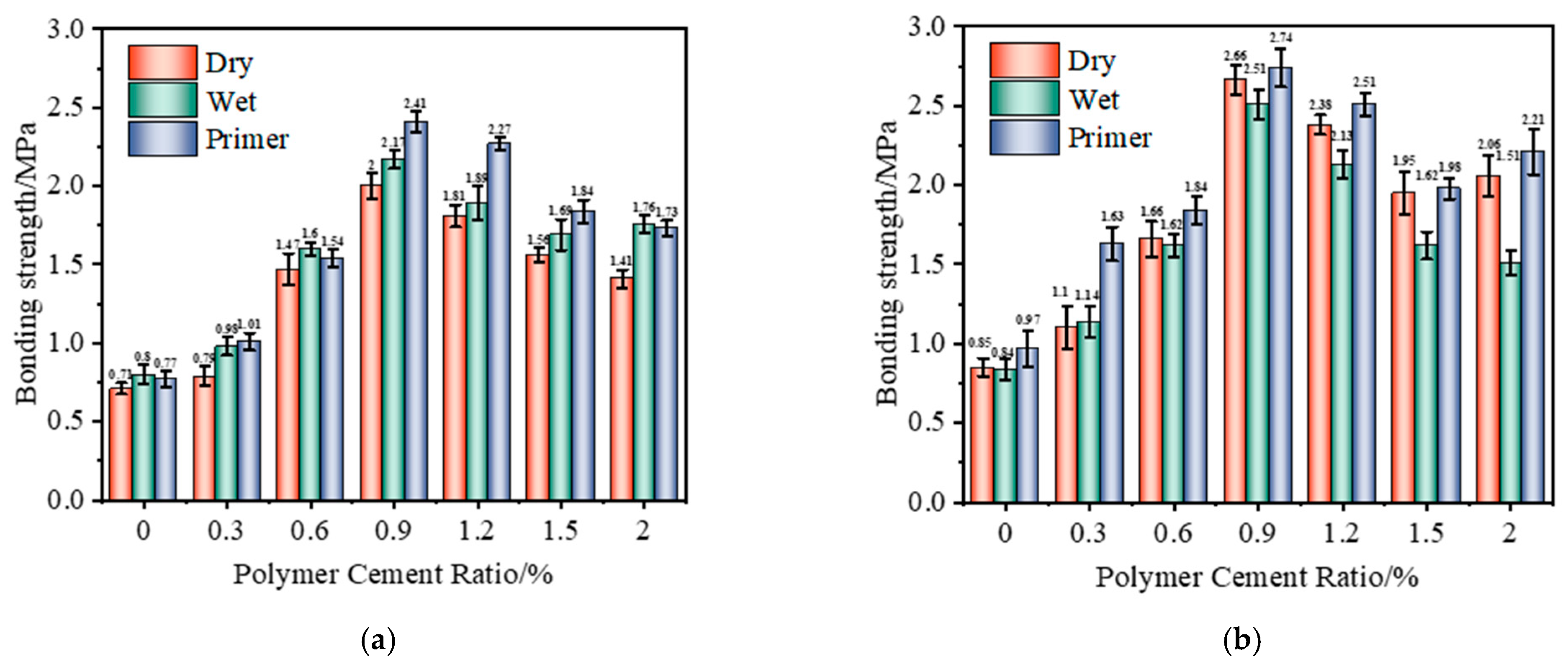

3.1.5. Bonding Performance of Different Interface Treatment Methods

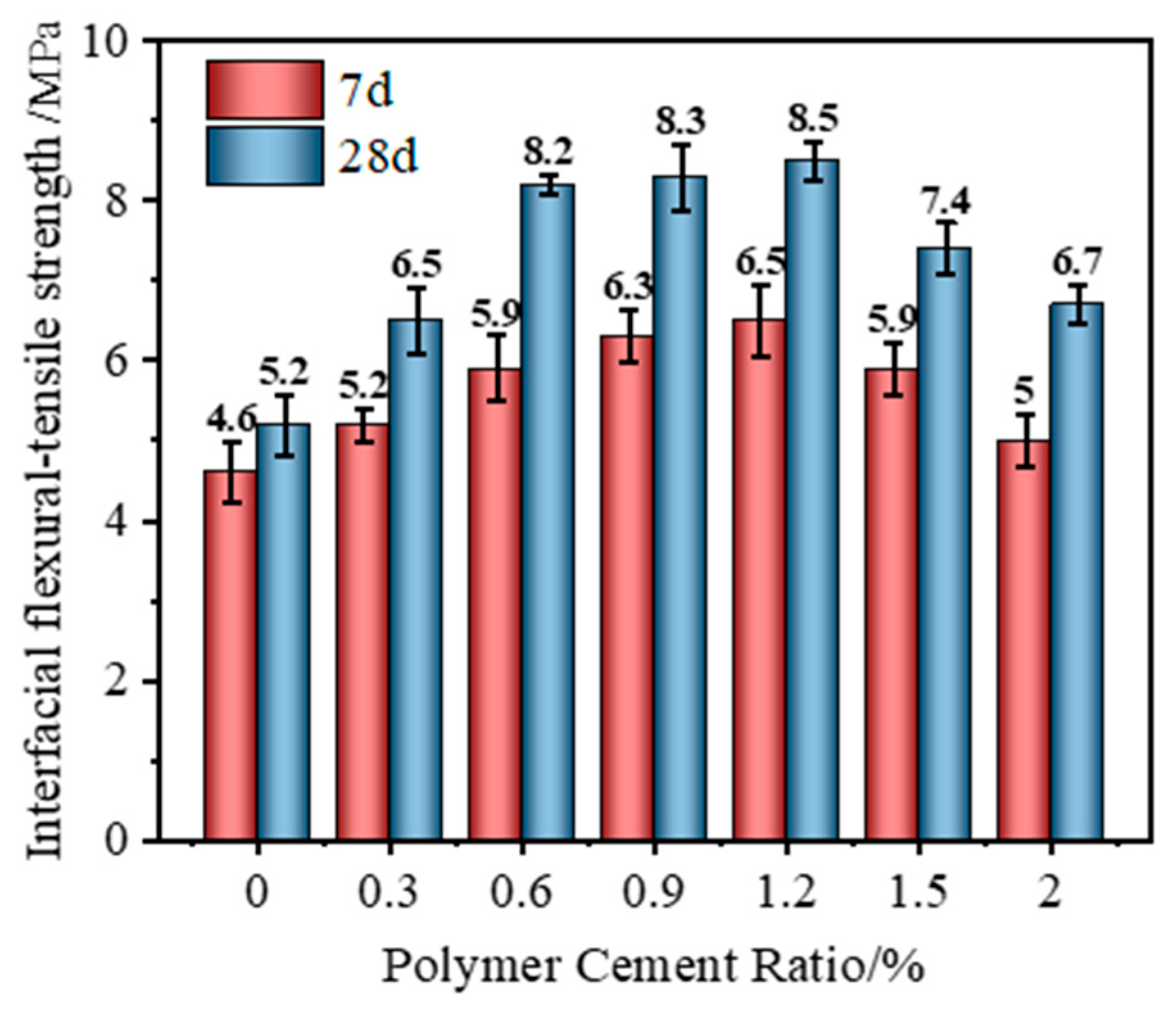

3.1.6. Interfacial Flexural–Tensile Strength Test Results

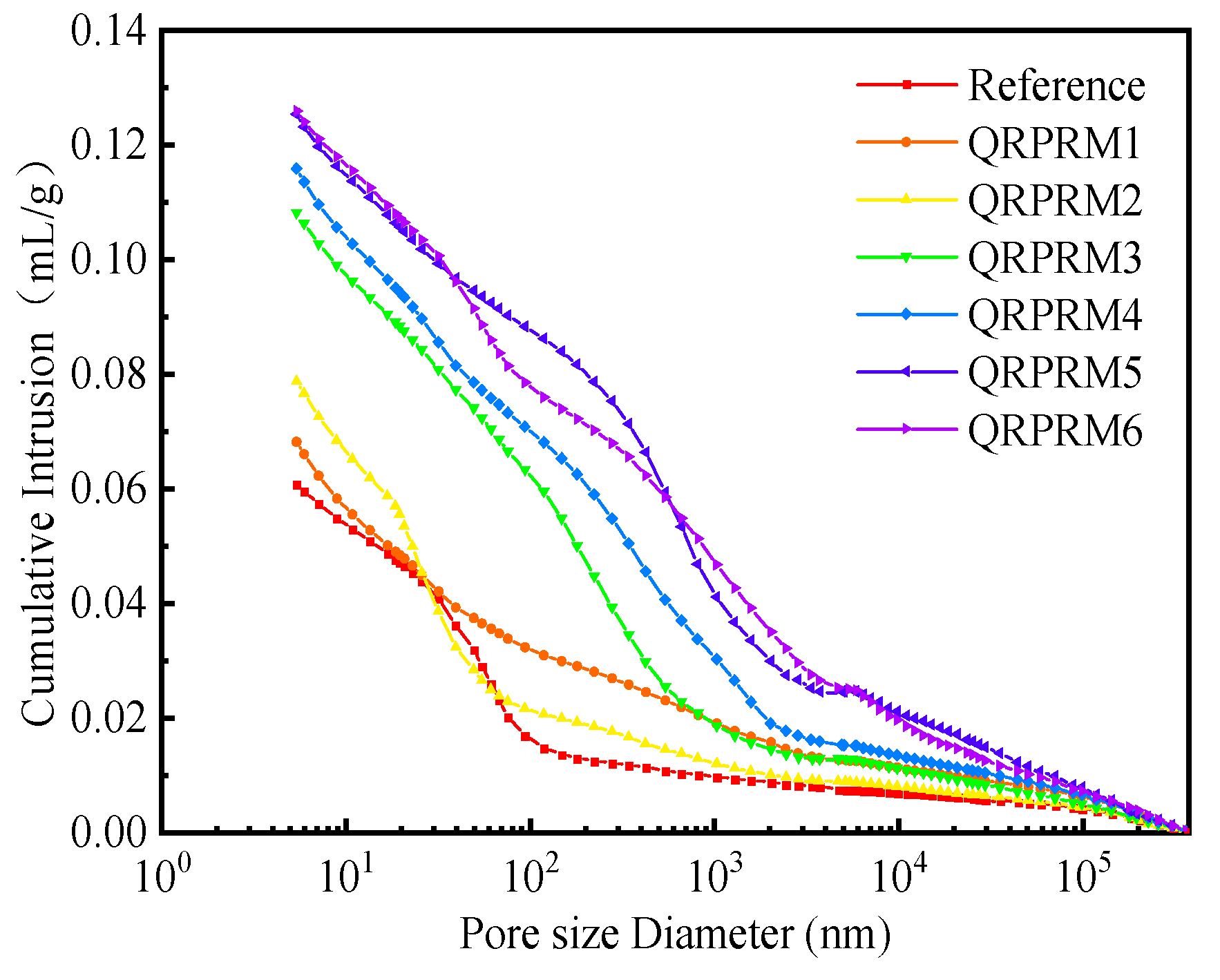

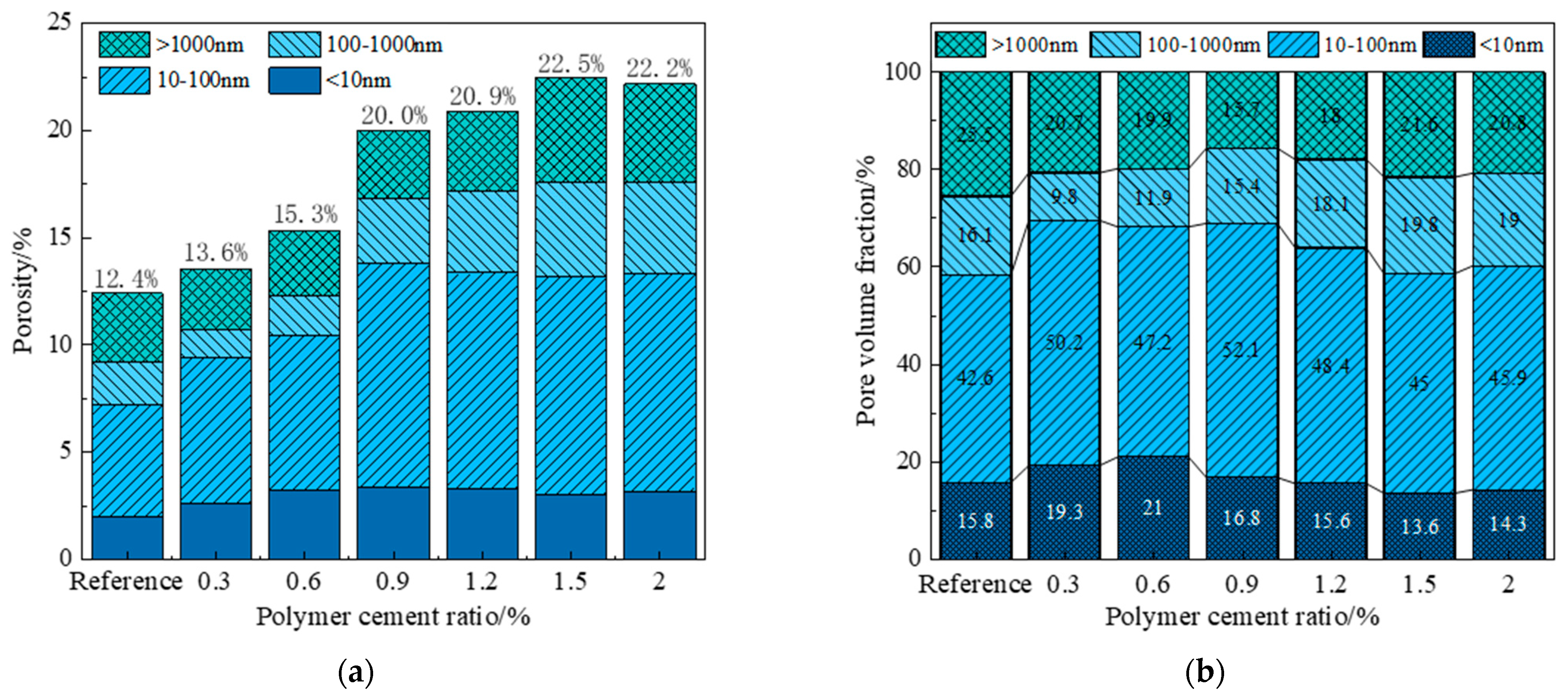

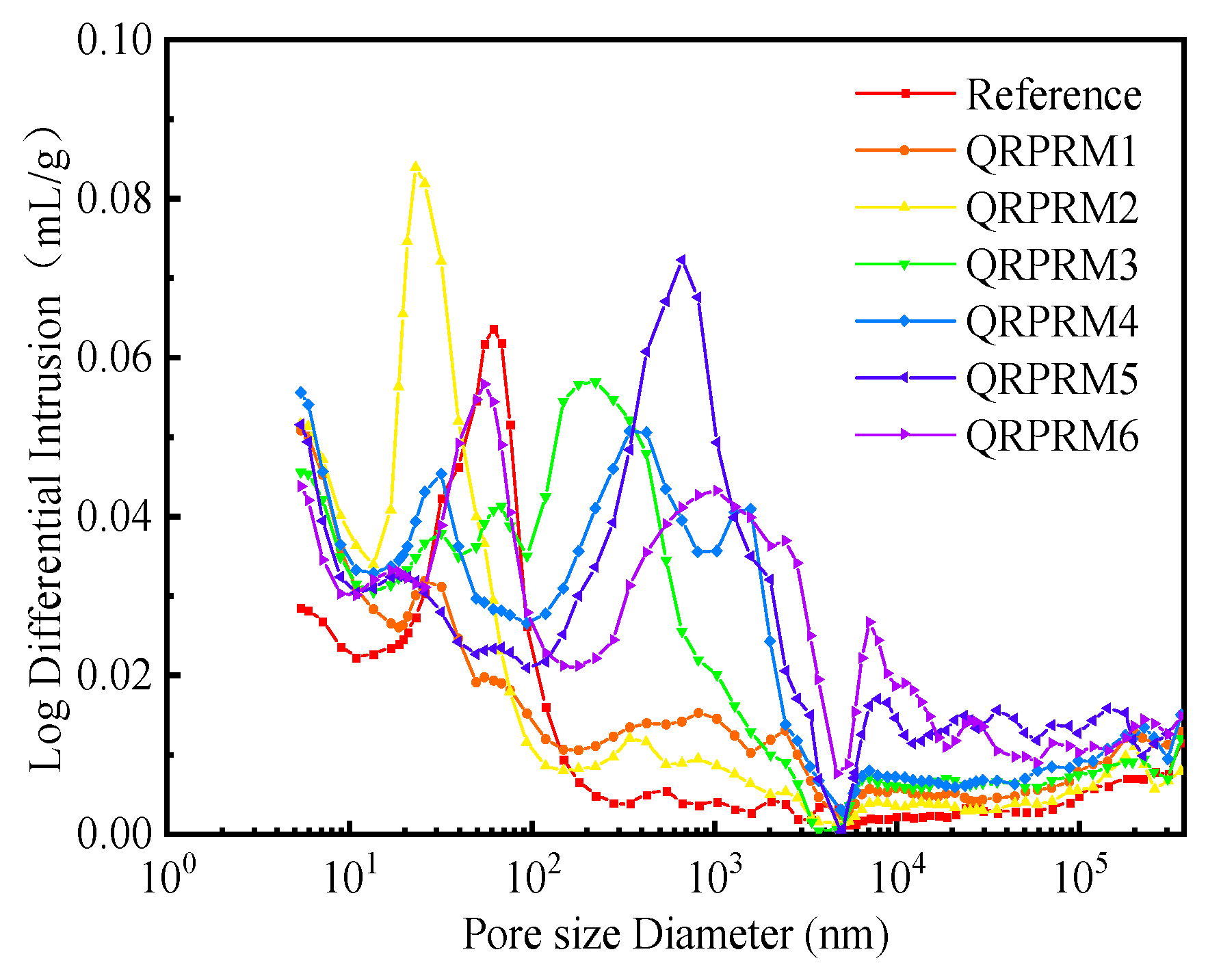

3.1.7. Mercury Intrusion Porosimetry (MIP)
3.1.8. Scanning Electron Microscope Micrograph (SEM) of VAE-Modified Reinforced Mortar Materials

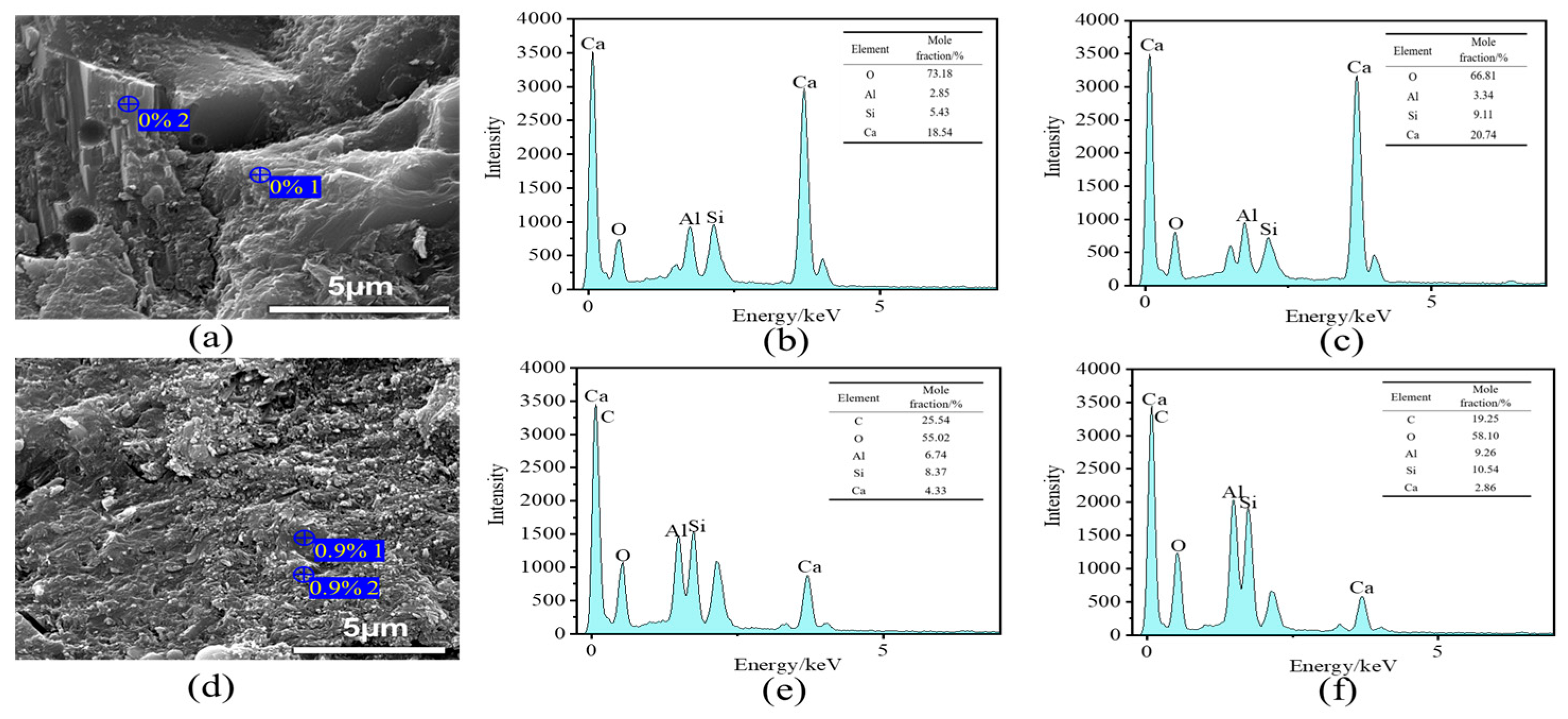

3.1.9. Energy Dispersive Spectroscopy (EDS) Analysis of Content
3.2. Discussion
- Bridging effect. As observed in Figure 15, the incorporation of VAE powder promotes a bridging effect among hydration products in VAE-RRM, which aligns with the findings reported by Song et al. [38]. This consistency confirms the critical role of VAE in enhancing interfacial connectivity within the cementitious matrix. On the one hand, the polymer powder has high activity. After forming an emulsion with water, the active groups such as carboxyl in it will react with the free Ca2+, Mg2+, and Fe2+ ions in the cement hydration products to form a special bridge bond, which adsorbs the hydration products through chemical reactions to make the connection more dense. On the other hand, during the mixing process of the mortar with water, polymer particles disperse into the water to form a VAE emulsion. When the water evaporates and the curing temperature exceeds the minimum film-forming temperature of the polymer, the VAE emulsion particles lose water, come closer to each other, and form a colloidal film structure. This structure encapsulates the hydration products and fills some of the pores. As a flexible structure, the polymer film can produce a certain degree of deformation and has excellent bonding ability, connecting the hydration products of AFt, C-S-H, C-H and aggregates as well as cement particle components and improving the overall pore structure of the mortar to form a three-dimensional organic–inorganic network structure, thereby improving the performance of VAE-RRM.
- Improving the interface transition zone (ITZ). As shown in Figure 16, the ITZ is located in the pore area between aggregates and cement hydration products. It is considered the weakest connection in cement-based materials and has a relatively important influence on the macroscopic mechanical properties and durability of the material. With the formation of the polymer film, the pores in the ITZ are filled, so that the contact between cement hydration products and aggregates is more compact, thereby improving the strength.
- Optimizing the pore structure. As shown in Figure 17, in the benchmark group, the amorphous C-S-H gel and Aft grow around the cement particles, and the pores in the middle are connected with each other to form a 3D pore cluster with direct penetration between the hydration products. After adding the VAE polymer powder, the powder emulsifies and adheres to the surface of the hydration products, filling the original amorphous pores and forming an ellipse directly through the pores. The upper and lower layers of the staggered distribution form a sponge-like pore structure, and optimization of the pore structure not only enhances the overall seepage performance of the mortar but also optimizes its structural toughness.

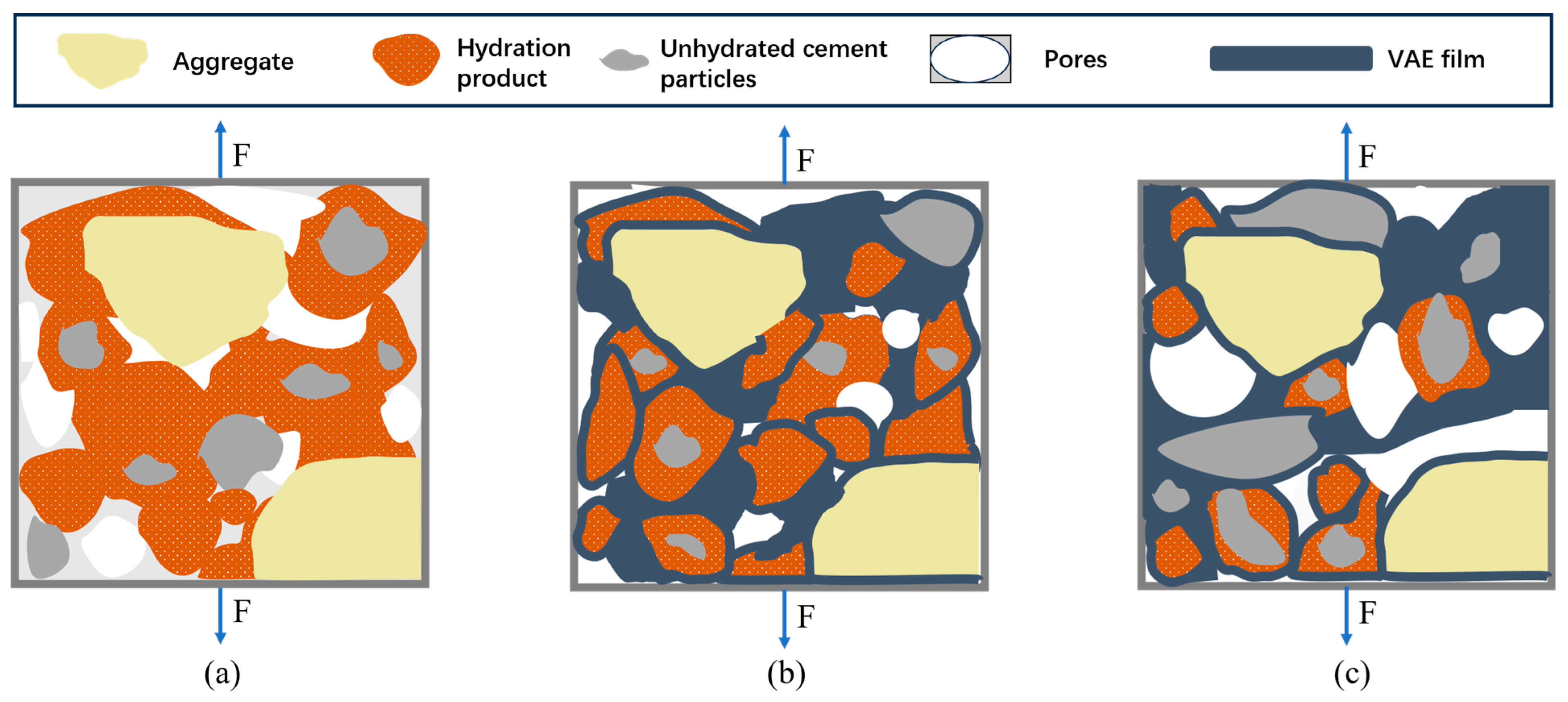

- Optimizing the Load Transfer Mechanism. When the mortar is subjected to external forces, the stresses should be transferred from the cement to the polymer through the interface. A schematic diagram of the load transfer mechanism at different polymer dosages is shown in Figure 18. When VAE is not added, the hydration products of the cement matrix are rigidly connected and cannot withstand the structural deformation brought about by load application, resulting in brittle damage of the cement mortar.
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
VAE-RRM | Vinyl acetate-ethylene rapid repair mortar |
VAE | Vinyl acetate-ethylene |
PRM | Polymer-reinforced mortar |
AC | Acrylic |
SAE | Styrene-acrylic emulsion |
SBR | Styrene-butadiene rubber |
OPCPRM | Ordinary Portland cement polymer-reinforced mortar |
SACPRM | Sulfoaluminate cement polymer-reinforced mortar |
CPRM | Polymer repair and reinforcement mortar with a variety of cementitious materials in a compounding system |
BTRM | Basalt fiber-reinforced polymer mortar |
MIP | Mercury intrusion porosimetry |
SEM | Scanning electron microscope |
EDS | Energy dispersive spectroscopy |
FTIR | Fourier-transform infrared spectroscopy |
AFt | Ettringite |
C-S-H | Calcium Portland hydrate |
C-H | Calcium hydroxide |
ITZ | Interfacial transition zone |
P/C | Polymer/cement |
W/C | Water/cement |
C/S | Cement/sand |
C/CR | Cement/cement water-reducing agent |
References
- Li, K.; Wei, Z.Q.; Qiao, H.X.; Lu, C.G.; Guo, J.; Qiao, G.B. Research progress on the influence of four kinds of admixtures on the properties of polymer cement-based materials. Mater. Rep. 2021, 35, 654–661. (In Chinese) [Google Scholar]
- Alahmad, F.A.; El Maaddawy, T.; Abu-Jdil, B. Performance evaluation of date-pit-reinforced unsaturated-polyester–dune-sand mortars. Constr. Build. Mater. 2025, 462, 139965. [Google Scholar] [CrossRef]
- Zanotti, C.; Banthia, N.; Plizzari, G. A study of some factors affecting bond in cementitious fiber reinforced repairs. Cem. Concr. Res. 2014, 63, 117–126. [Google Scholar] [CrossRef]
- Dawood, E.T. High strength characteristics of cement mortar reinforced with hybrid fibres. Constr. Build. Mater. 2011, 25, 2240–2247. [Google Scholar] [CrossRef]
- Jafari, K.; Tabatabaeian, M.; Joshaghani, A.; Ozbakkaloglu, T. Optimizing the mixture design of polymer concrete: An experimental investigation. Constr. Build. Mater. 2018, 167, 185–196. [Google Scholar] [CrossRef]
- Betioli, A.M.; Hoppe Filho, J.; Cincotto, M.A.; Gleize, P.J.P.; Pileggi, R.G. Chemical interaction between EVA and Portland cement hydration at early-age. Constr. Build. Mater. 2009, 23, 3332–3336. [Google Scholar] [CrossRef]
- Deng, J.; Zhong, M.; Zhang, Z.; Zhu, M. Ultimate and deflection performance of concrete beams strengthened in flexure with basalt-textile-reinforced polymer mortar. Polymers 2023, 15, 445. [Google Scholar] [CrossRef]
- Tabish, M.; Zaheer, M.M.; Baqi, A. Effect of nano-silica on mechanical, microstructural and durability properties of cement-based materials: A review. J. Build. Eng. 2023, 65, 105676. [Google Scholar] [CrossRef]
- Liu, J.P.; Tang, J.H.; Han, F.Y. Toughening and crack prevention of modern concrete: Mechanisms and applications. China Civ. Eng. J. 2021, 54, 47–54, 63. (In Chinese) [Google Scholar]
- Khayat, K.H. Viscosity-enhancing admixtures for cement-based materials—An overview. Cem. Concr. Compos. 1998, 20, 171–188. [Google Scholar] [CrossRef]
- Abdulrahman, P.I.; Bzeni, D.K. Bond strength evaluation of polymer modified cement mortar incorporated with polypropylene fibers. Case Stud. Constr. Mater. 2022, 17, e01387. [Google Scholar] [CrossRef]
- Gupta, R.; Banthia, N. Influence of polypropylene fiber geometry on plastic shrinkage cracking in concrete. Cem. Concr. Res. 2007, 36, 1263–1267. [Google Scholar]
- Hua, X.; Han, K.; Lin, Z.; Yin, B.; Wang, P.; Qi, D.; Hou, D.; Chen, J. Modification of in-situ polymerization of acrylamide and synergies with fiber in enhancing cement-based composite. J. Build. Eng. 2024, 85, 108605. [Google Scholar] [CrossRef]
- Gao, Y.B.; Luo, J.L.; Li, Z.Q.; Zhang, J.G.; Gao, S.; Zhu, X.T.; Zhu, M.; Zhang, L.Q. Orthogonal optimization mix ratio of fiber polymer repair protect mortar and its comprehensive performance realization mechanism. Acta Mater. Compos. Sin. 2023, 40, 5258–5275. (In Chinese) [Google Scholar]
- Peng, Y.; Zhao, G.; Qi, Y.; Zeng, Q. In-situ assessment of the water-penetration resistance of polymer modified cement mortars by μ-XCT, SEM and EDS. Cem. Concr. Compos. 2020, 114, 103821. [Google Scholar] [CrossRef]
- Kim, H.J.; Park, J.Y.; Suh, H.W.; Cho, B.Y.; Park, W.J.; Bae, S.C. Mechanical degradation and thermal decomposition of ethylene-vinyl acetate (EVA) polymer-modified cement mortar (PCM) exposed to high-temperature. Sustainability 2019, 11, 500. [Google Scholar] [CrossRef]
- Pei, X.Q.; Zhu, Y.X.; Zhang, S. Properties of acrylic emulsion modified cement Reinforced Mortar. Bull. Chin. Ceram. Soc. 2020, 39, 409–415. (In Chinese) [Google Scholar]
- Gu, C.; Xu, J.Y.; Meng, B.X. Effect of polypropylene fiber on the mechanical properties of two kinds of polymer-modified mortars. Bull. Chin. Ceram. Soc. 2018, 37, 3764–3768. (In Chinese) [Google Scholar]
- Qu, X.; Zhao, X. Influence of SBR latex and HPMC on the cement hydration at early age. Case Stud. Constr. Mater. 2017, 6, 213–218. [Google Scholar] [CrossRef]
- Barluenga, G.; Hernández-Olivares, F. SBR latex modified mortar rheology and mechanical behaviour. Cem. Concr. Res. 2004, 34, 527–535. (In Chinese) [Google Scholar] [CrossRef]
- Shi, C.; Zou, X.; Wang, P. Influences of ethylene-vinyl acetate and methylcellulose on the properties of calcium sulfoaluminate cement. Constr. Build. Mater. 2018, 193, 474–480. [Google Scholar] [CrossRef]
- Qiao, J.L.; Liu, B.; Ma, L.G.; Li, S.Y.; Ju, X.T. Experimental research on the performance of improved high performance polymer cement mortar. Concrete 2022, 1, 149–152, 160. (In Chinese) [Google Scholar]
- Li, L.; Wang, R.; Lu, Q. Influence of polymer latex on the setting time, mechanical properties and durability of calcium sulfoaluminate cement mortar. Constr. Build. Mater. 2018, 169, 911–922. [Google Scholar] [CrossRef]
- Sun, K.K. Study on Portland Cement-Sulfoaluminate Cement-Based Repair Materials and Their Anti-Corrosion and Impermeability. Ph.D. Thesis, University of Jinan, Jinan, China, 2017. [Google Scholar]
- Kuang, D.L.; Long, J.T.; Zhang, Y.; Yin, Y.P.; Chen, Y. Study on microstructure and properties of VAE modified cement mortar. Appl. Chem. Ind. 2020, 49, 2182–2186. (In Chinese) [Google Scholar]
- Ghai, R.; Bansal, P.; Kumar, M. Mechanical Properties of Styrene-Butadiene-Rubber Latex (SBR) and Vinyl-Acetate-Ethylene (VAE) Polymer-Modified Ferrocement (PMF). J. Polym. Mater. 2016, 33, 111–126. [Google Scholar]
- DL/T 5126-2001; Test Code on Polymer-Modified Cement Mortar. China Electric Power Press: Beijing, China, 2001.
- GB 50728-2011; Technical Code for Safety Appraisal of Engineering Structural Strengthening Materials. Standards Press of China: Beijing, China, 2011.
- JC/T 2381-2016; Repair Mortar. China Building Materials Industry Press: Beijing, China, 2016.
- Wang, P.M.; Sun, L.; Xu, L.L.; Zhang, G.F. Research and application of blends of Portland cement and calcium aluminate cement. Mater. Rev. 2013, 27, 139–143. (In Chinese) [Google Scholar]
- Maranhão, F.L.K.; John, V.M. The influence of moisture on the deformability of cement–polymer adhesive mortar. Constr. Build. Mater. 2011, 25, 2948–2954. [Google Scholar] [CrossRef]
- Cheng, J.; Shi, X.; Xu, L.; Zhang, P.; Zhu, Z.; Lu, S.; Yan, L. Investigation of the Effects of Styrene Acrylate Emulsion and Vinyl Acetate Ethylene Copolymer Emulsion on the Performance and Microstructure of Mortar. J. Build. 2023, 75, 106965. [Google Scholar] [CrossRef]
- Liu, Q.; Lu, L. A Mechanical Strong Polymer-Cement Composite Fabricated by In Situ Polymerization within the Cement Matrix. J. Build. 2021, 42, 103048. [Google Scholar] [CrossRef]
- Fořt, J.; Šál, J.; Böhm, M.; Morales-Conde, M.J.; Pedreño-Rojas, M.A.; Černý, R. Microstructure formation of cement mortars modified by superabsorbent polymers. Polymers 2021, 13, 3584. [Google Scholar] [CrossRef]
- Wang, R.; Yao, L.; Wang, P. Mechanism analysis and effect of styrene–acrylate copolymer powder on cement hydrates. Constr. Build. Mater. 2013, 41, 538–544. [Google Scholar] [CrossRef]
- Ohama, Y. Polymer-based admixtures. Cem. Concr. Compos. 1998, 20, 189–212. [Google Scholar] [CrossRef]
- Wang, M.; Wang, R.; Yao, H.; Farhan, S.; Zheng, S.; Wang, Z.; Du, C.; Jiang, H. Research on the mechanism of polymer latex modified cement. Constr. Build. Mater. 2016, 111, 710–718. [Google Scholar] [CrossRef]
- Song, L.F.; Wei, Y.; Gan, P. Effect of P(BA-VAc) Modified Emulsion on Properties of Cement Mortar. J. Mater. Sci. 2023, 41, 568–575, 596. (In Chinese) [Google Scholar]
Index | Setting Time (min) | Flexural Strength (MPa) | Compressive Strength (MPa) | Specific Surface Area (m2/kg) | Stability (Boiling Method) | |||
---|---|---|---|---|---|---|---|---|
Initial | Final | 3 d | 28 d | 3 d | 28 d | |||
P.O 42.5 | 175 | 239 | 6.0 | 5.9 | 31.9 | 50.9 | 363 | Qualified |
HBSAC 42.5 | 22 | 31 | 6.6 | 7.0 | 33.7 | 46.2 | 501 | Qualified |
Index | CaO | SiO2 | Al2O3 | SO3 | Fe2O3 | MgO |
---|---|---|---|---|---|---|
P.O 42.5 | 52.09 | 23.47 | 8.55 | 2.43 | 4.11 | 3.26 |
HBSAC 42.5 | 40.67 | 18.33 | 16.93 | 14.17 | 1.51 | 5.71 |
Solids Content (%) | Ash Content (%) | Bulk Density (kg/m3) | Particle Size After Redispersion (µm) | Particle Size After Redispersion (µm) | Material Characteristics |
---|---|---|---|---|---|
99 ± 1 | 11 ± 2 | 390–420 | 0.5–8.0 | 4.0 | Opaque film formation with high toughness |
Group No. | (P/C)/% | Water | Cement | Sand | Polymer Powder | Water Reducing Agent |
---|---|---|---|---|---|---|
Reference | 0 | 300 | 800 | 700 | 0 | 0.6 |
VAE-RRM 1 | 0.3 | 2.4 | ||||
VAE-RRM 2 | 0.6 | 4.8 | ||||
VAE-RRM 3 | 0.9 | 7.2 | ||||
VAE-RRM 4 | 1.2 | 9.6 | ||||
VAE-RRM 5 | 1.5 | 12.0 | ||||
VAE-RRM 6 | 2.0 | 16.0 |
Group No. | Compression–Flexure Ratio | |
---|---|---|
7 d | 28 d | |
Reference | 6.9 | 7.3 |
VAE-RRM 1 | 6.3 | 6.7 |
VAE-RRM 2 | 5.1 | 5.6 |
VAE-RRM 3 | 4.6 | 4.5 |
VAE-RRM 4 | 4.1 | 3.9 |
VAE-RRM 5 | 4.0 | 3.5 |
VAE-RRM 6 | 4.1 | 4.1 |
Test Project | 7 d | 28 d |
---|---|---|
Bending strength/MPa | 10.1 | 10.3 |
