This study aims to develop an efficient recovery solution for waste transformer insulating oil, addressing the challenge of incomplete separation of residual oil in existing recovery technologies. A multi-module integrated system is constructed, comprising a waste oil extraction module, a residual oil vaporization module, an exhaust gas treatment module, and an online monitoring module. By combining steps such as oil extraction, residual oil absorption, hot air circulation heating, and negative-pressure low-frequency induction heating, the complete recovery of waste oil is achieved. The recovery process incorporates oil–gas saturation monitoring and an oil–gas precipitation assessment algorithm based on neural networks to enable intelligent control, ensuring thorough recovery of residual oil from transformers. The proposed system and methods demonstrate excellent recovery efficiency and environmental protection effects during the pre-treatment of waste transformer oil. Experiments conducted on 50 discarded transformers showed an average recovery efficiency exceeding 99%, with 49 transformers exhibiting no damage to core components after the recovery process. From a theoretical perspective, this research introduces monitoring and control methods for transformer insulating oil recovery, providing significant support for the green processing and reutilization of discarded transformer insulating oil. From an application value perspective, the recovery process helps reduce environmental pollution and facilitates the disassembly of transformers. This enables better analysis of transformer operating characteristics, thereby enhancing the reliability and safety of power systems. Full article

This article describes an innovative method for the determination of heat flow (specific heat loss; linear heat flow density) from a one-metre length of a twin pipe directly-buried heat network. Such heat losses are currently described by applying analytical procedures based on the heat transfer theory. It is rather complicated to accurately express the heat loss using such procedures, due to the necessity to determine the individual values of thermal resistance. A simpler method to express heat loss is the balance method, as it requires measuring a temperature gradient Δt between the starting point of the heat network and the end point of the heat collection. A suitable measuring device must provide high-accuracy measurements of the temperature. In the case of very well-insulated distribution pipelines and short pipes, the temperature measurements must be accurate to the hundredths of a degree Celsius. It is impossible to install such devices as fixed equipment on every heat distribution network, due to such networks measuring many kilometres and the cost of the appropriate measuring technology. For the aforesaid reasons, the authors created a mathematical model for specific heat losses based on dimensional analysis. This method facilitates the identification of dimensionless criteria based on the relevant dimensional quantities. Functional correlations between the identified criteria may be identified on the basis of the results of physical or numerical experiments. In this study, a database of the results obtained from physical experiments conducted on two heat networks was used. The output of the similarity model was a function describing the heat flow from a one-meter pipe length that was applicable to various alternatives in relation to the geometrical, physical and boundary conditions. The standard deviation of a difference in the heat losses identified by applying the balance method and using the proposed criterial equation for a twin pipe directly-buried pre-insulated heat network was 0.515 W·m⁻¹. Full article

Identifying decarbonization strategies at the district level is increasingly necessary to align the development of urban projects with European climate neutrality objectives. It is well known that district heating and cooling networks are an attractive energy system solution because they permit the integration of renewable energies and local excess of hot or cold sources. The detailed design and optimization of network infrastructures are essential to achieve the full potential of this energy system. The authors conducted an attributional life cycle assessment to compare the environmental profile of five distribution network infrastructures (i.e., pipes, heat carrier fluid, trenches, heat exchangers, valves, and water pumps) based on a study case in Marseille, France. The work aims to put into perspective the environmental profile of subsystems comprising a district heating infrastructure, and compare pipe typologies that can be used to guide decision-making in eco-design processing. Rigid and flexible piping systems were compared separately. The results show that the main impact source is the pipe subsystem, followed by the trench works for most impact categories. The authors underlined the importance of pipe typology choice, which can reduce emissions by up to 80% and 77% for rigid and flexible systems, respectively. Full article

This paper reports the application of RC dynamic models (network of resistances and capacitances analogous to electrical networks) to obtain the heat loss coefficient (HLC) from a dynamic test campaign carried out in an in-use building. It is a well-insulated building located in Gainsborough, U.K. This case study and data were made available to participants in the IEA–EBC Annex 71 project Building Energy Performance Assessment Based on In-Situ Measurements. The analysis reported in this paper is mainly focused on the identification of the main heat transfer contributions and also on the translation of these phenomena to the RC models used to obtain the required HLC. First pre-processing and qualitative analysis were carried out. Afterwards several candidate models were constructed according to different plausible assumptions and approximations. The validity of the results obtained using these models has been evaluated taking into account the agreement among different data series and also the levels of the residuals obtained using the different models. The work concludes obtaining accurate estimates of the HLC from the energy balance including the following relevant contributions: space heating, solar gains, internal gains due to appliances, and internal gains due to metabolic activity. These terms were modelled using the following driving variables: consumption of gas and water, electricity production by the photovoltaic (PV) panels and electricity consumption (modelling internal gains due to appliances and occupancy patterns). Full article

The polyurethane foam in district heating pre-insulated pipes has a critical role to play both as thermal insulation and as load bearing element, as it serves as bond between the medium pipe and the casing. Hence, knowledge on how the foam behaves under multiaxial stresses is of great importance for the design as well as for aging predictions of the network. It is known that cell shape anisotropy in polymeric foams leads to anisotropy in its mechanical properties. In this study, we evaluate and quantify the microstructural anisotropy of PU foam from pre-insulated pipes as well as its mechanical behaviour under compression in the three orthogonal directions. We cover rigid and flexible PU foam, batch and continuous manufacturing, and different pipe diameters. The results were compared with those predicted by available rectangular and Kelvin cell shape models. We have found that PU from pre-insulated pipes is orthotropic and present stronger anisotropy than that typically found in PU slabs. The traditional bonded pipes under consideration behaved in a similar way. However, when comparing the two flexible pipes in this study, despite no significant differences in cell shape anisotropy were found, a significantly different behaviour for the E modulus ratio was observed. This shows that while the manufacturing process exerts the main influence on cell shape anisotropy, to explain the difference in stiffness behaviour other factors need to be taken into consideration, such as cell size and cell size variability. Full article

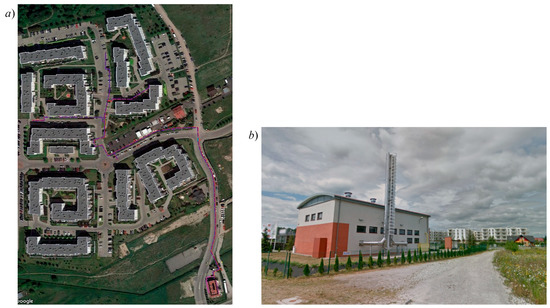

The paper presents an analysis of heat loss and reductions of annual emissions of air pollutants of a quadruple pre-insulated heating network by comparing this solution with the existing pre-insulated network consisting of four pre-insulated single pipes and the variant consisting of two twin pipe pre-insulated. For calculations, an existing heating network located in central Poland was adopted, where heat is transported for heating purposes of buildings and domestic hot water with circulation of domestic hot water through four separate pre-insulated underground pipes. The idea of the construction of four pre-insulated pipes presented in the paper consists in the location of four steel pipes in a common round thermal insulation, which perform the role of heat transport for heating purposes in multi-family buildings (supply and return) and two pipes transporting hot water (a pipe with domestic hot water with circulation). In Poland, heating pipes used in multi-family housing have a larger diameter compared to domestic hot water pipes, which is why standard twin pipe heating pipes have been used in the construction of four pre-insulated networks, in which the domestic hot water pipe has been added to the thermal insulation and circulation of domestic hot water. In order to determine heat losses, a simplified two-dimensional model of conductive heat transfer was developed using Fortran to create a computer program. The results of numerical simulations show that the use of twin pipes for the construction of pre-insulated quadruple networks has contributed to a significant reduction in heat loss in relation to the existing single pre-insulated network (up to 57.1%), while reducing the thermal insulation field of the cross-section of the pre-insulated pipe by 21.4%. Full article

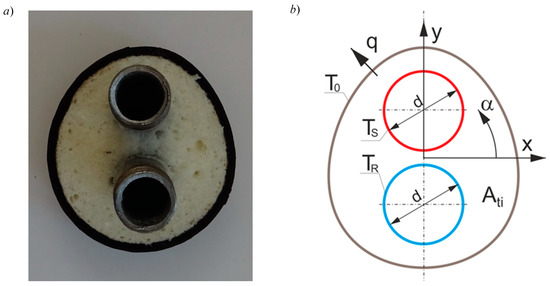

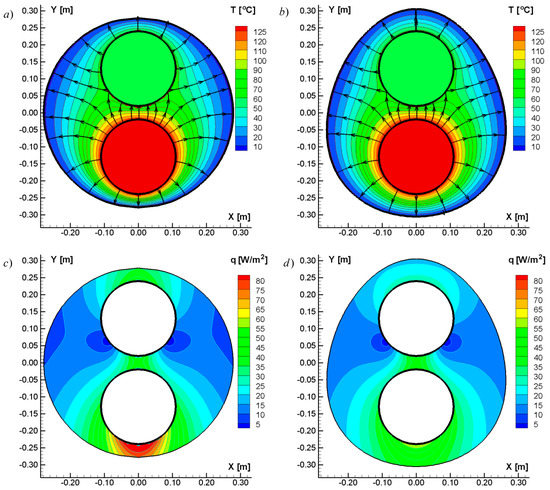

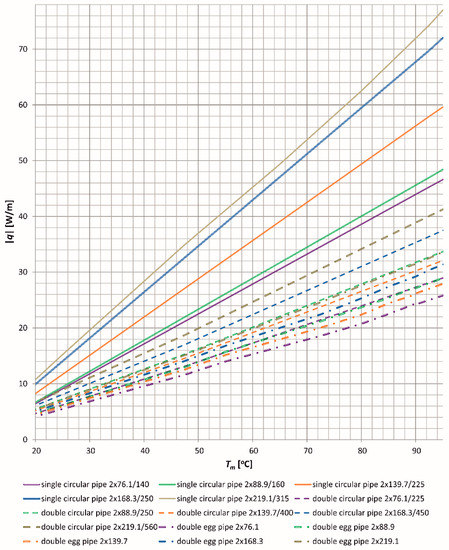

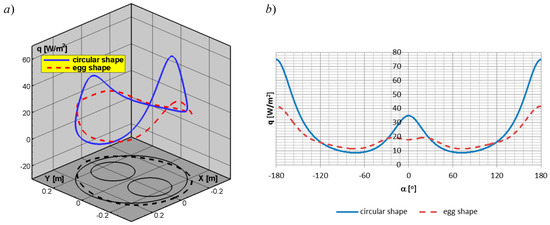

This paper presents possible variants of reducing the heat loss in an existing heating network made from single pre-insulated pipes located in central Europe. In order to achieve this aim, simulations were carried out for five different variants related to the modification of the network operation temperature, replacement of a single network with a double pre-insulated one, and changes in the cross-section geometry of the thermal insulation of the double heating network from circular to egg-shaped. The proposed egg-shaped thermal insulation was obtained by modifying the shape of the Cassini oval, in that the supply pipe has a greater insulation thickness compared to the return pipe. The larger insulation field in the supply pipe contributed to reducing the heat flux density around the supply line and, as a result, to significantly reducing heat loss. The egg-shaped thermal insulation described in the publication in a mathematical formula can be used in practice. This work compares the heat losses for the presented variants and determines the ecological effect. Heat losses were determined using the boundary element method (BEM), using a proprietary computer program written as part of the VIPSKILLS 2016-1-PL01-KA203-026152 project Erasmus+. Full article

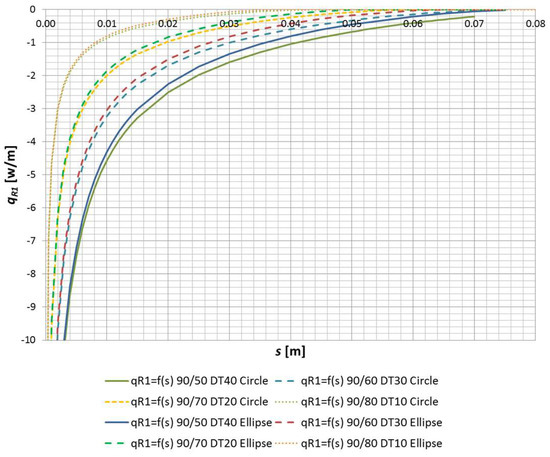

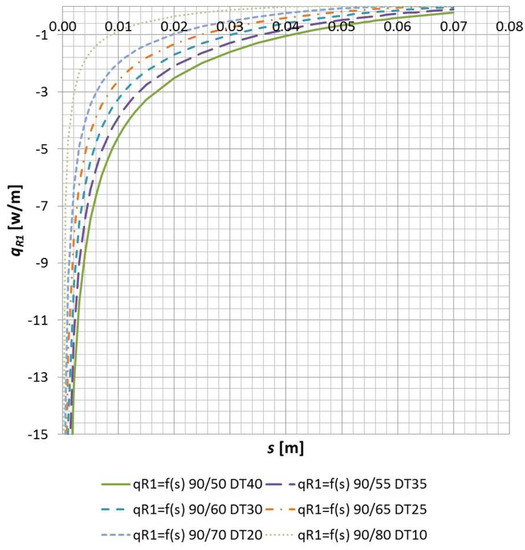

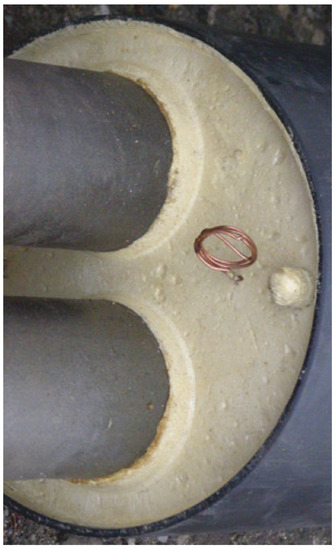

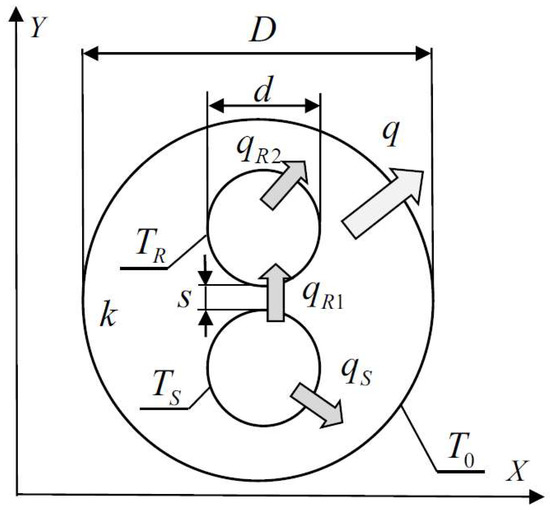

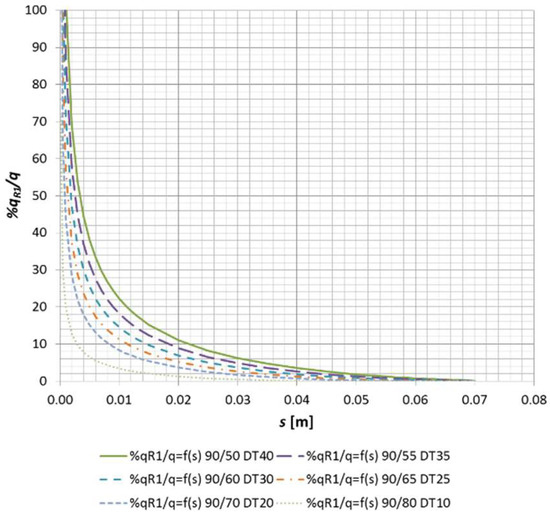

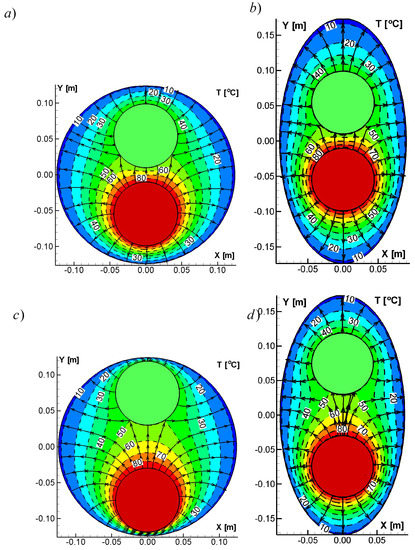

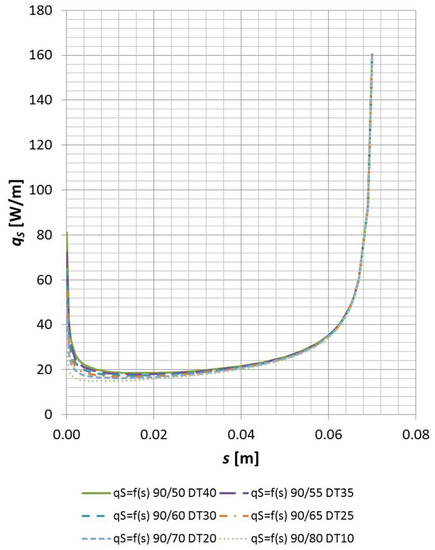

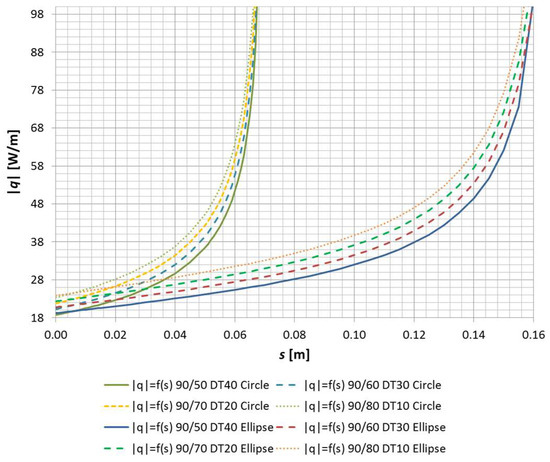

This paper presents the analysis of the heat conduction of pre-insulated double ducts and the optimization of the shape of thermal insulation by applying an elliptical shape. The shape of the cross-section of the thermal insulation is significantly affected by the thermal efficiency of double pre-insulated networks. The thickness of the insulation from the external side of the supply and return pipes affects the heat losses of the double pre-insulated pipes, while the distance between the supply and return pipes influences the heat flux exchanged between these ducts. An assumed elliptical shape with a ratio of the major axis to the minor half axis of an ellipse equaling 1.93 was compared to thermal circular insulation with the same cross-sectional area. All calculations were made using the boundary element method (BEM) using a proprietary computer program written in Fortran as part of the VIPSKILLS project. Full article
