Search Results (7)

Ultrasonic testing (UT) is an important method for concrete, and ultrasonic pulse velocity is commonly used to evaluate the quality of concrete materials in existing studies. The ultrasonic pulse velocity of concrete materials is affected by many factors; therefore, it is necessary to establish a quantitative prediction model for the ultrasonic pulse velocity of concrete materials. Based on the multiscale homogenization method, concrete material is divided into different scales of homogenized materials, namely cement paste, mortar, and concrete. Then, a multiscale ultrasonic pulse velocity model is established through a combination of elasticity formulation and the hydration model. At the three scales of cement paste, mortar, and concrete, the elastic parameters and ultrasonic pulse velocity were predicted with the water-to-cement ratio of 0.35, 0.5, and 0.65, respectively. The ultrasonic pulse velocity of concrete with different water-to-cement ratios and different ages were measured in the test and predicted by the model. The results show that the predicted value of ultrasonic pulse velocity is within the error range of ±1.5% of the measured ultrasonic pulse velocity, suggesting that the established prediction model of ultrasonic pulse velocity can reliably predict the velocity change in concrete materials. Full article

Microstructure development of concrete, mortar, and paste scale of cement-based material (CBM) during the early hydration stage has a significant impact on CBM’s physical, mechanical, and durability characteristics at the high maturity state. The research was carried out using compositions with increased autogenous shrinkage and extended early age period, proposed within the RRT⁺ programme of the COST Action TU1404. The electrical conductivity method, used to follow the solidification process of CBM, is capable of determining the initial and final setting time, and the end of the solidification process acceleration stage for the paste and mortar scale. Simultaneous ultrasonic P- and S-wave transmission measurements revealed that the ratio of velocities V_P/V_S is highly dependent on the presence of aggregates—it is considerably higher for the paste scale compared to the mortar and concrete scale. The deviation from the otherwise roughly constant ratio V_P/V_S for each scale may indicate cracks in the material. The non-linear correlation between the dynamic and static elastic moduli valid over the three scales was confirmed. Additionally, it was found that the static E-modulus correlates very well with the square of the V_S and that the V_S is highly correlated to the cube compressive strength—but a separate trendline exists for each CBM scale. Full article

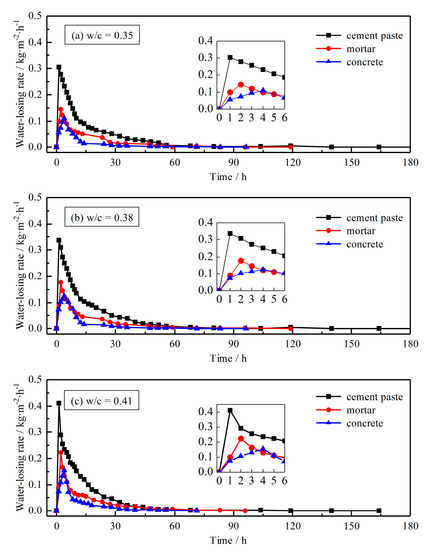

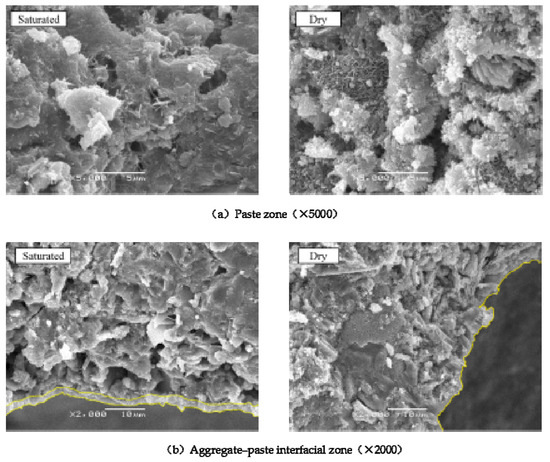

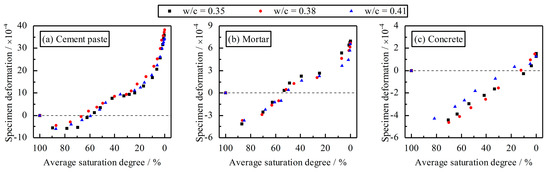

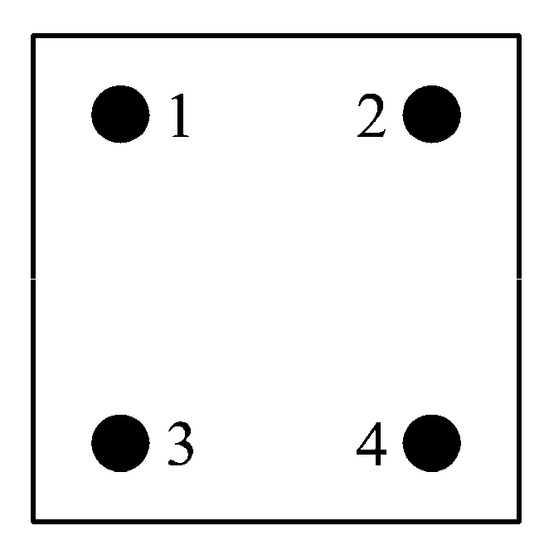

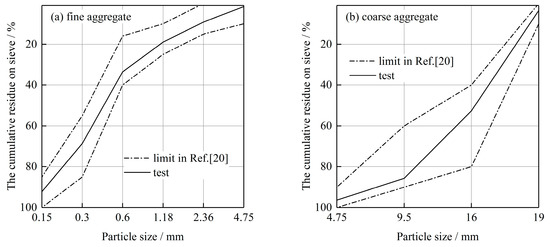

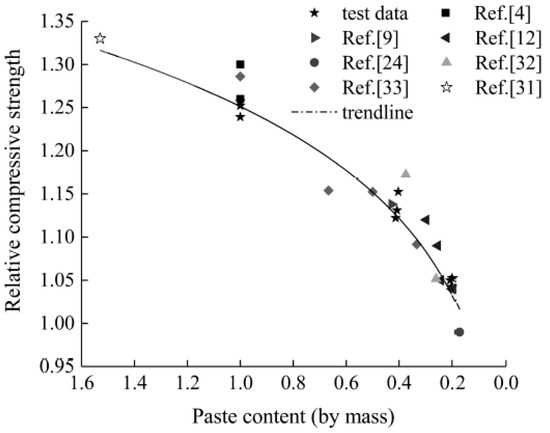

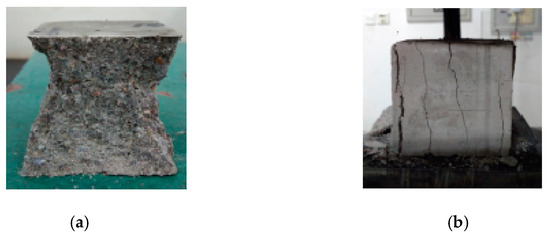

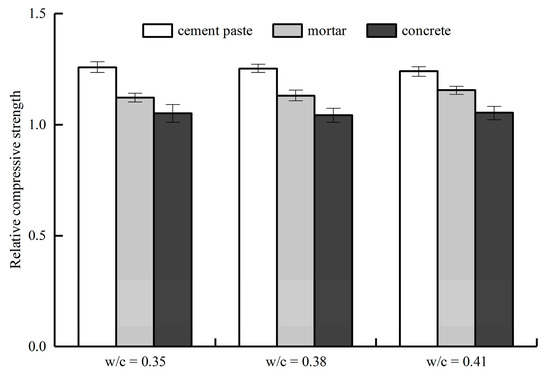

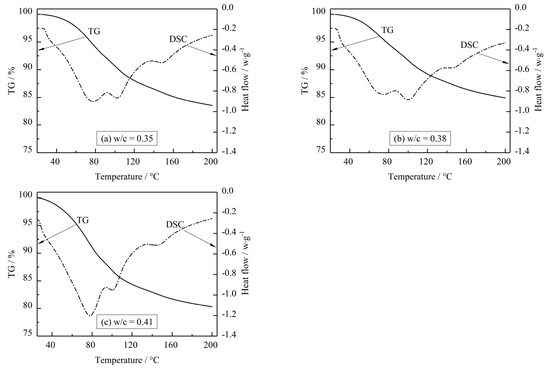

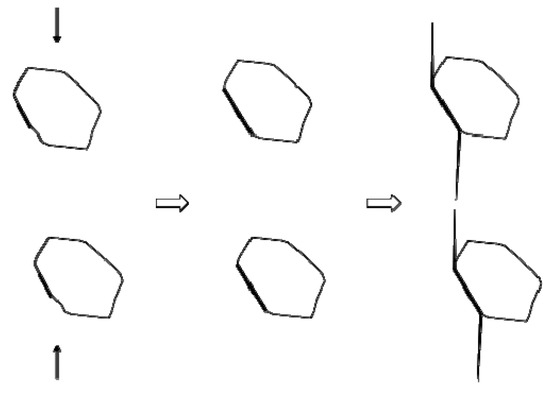

Drying could change the microstructure of cement-based materials and inevitably affect their mechanical properties. The isothermal drying process of concrete at three scales and its effect on compressive behavior and microstructure were investigated. The deformations of cement paste, mortar, and concrete in the drying process all exhibit the characteristics of expansion first and then shrinkage. The porosity and average pore diameter increase after drying, which is mainly attributed to the increase of pores less than 100 nm diameter for paste and to the pores within 100~1000 nm for mortar. Drying makes paste denser, while the bonding between paste and aggregate is weakened. Microstructural studies indicate that the increase in compressive strength of concrete caused by isothermal drying is the competition result between the strengthening effect and the weakening effect, and is related to the paste content. Full article

Recycled concrete, i.e., concrete which contains aggregates that are obtained from crushing waste concrete, typically exhibits a smaller strength than conventional concretes. We herein decipher the origin and quantify the extent of the strength reduction by means of multiscale micromechanics-based modeling. Therefore, the microstructure of recycled concrete is represented across four observation scales, spanning from the micrometer-sized scale of cement hydration products to the centimeter-sized scale of concrete. Recycled aggregates are divided into three classes with distinct morphological features: plain aggregates which are clean of old cement paste, mortar aggregates, and aggregates covered by old cement paste. Macroscopic loading is concentrated via interfacial transition zones (ITZs)—which occur mutually between aggregates, old, and new cement paste—to the micrometer-sized hydrates resolved at the smallest observation scale. Hydrate failure within the most unfavorably loaded ITZ is considered to trigger concrete failure. Modeling results show that failure in either of the ITZs might be critical, and that the failure mode is governed by the mutual stiffness contrast between aggregates, old, and new paste, which depend, in turn, on the concrete composition and on the material’s maturity. The model predicts that the strength difference between recycled concrete and conventional concrete is less pronounced (i) at an early age compared to mature ages, (ii) when the old cement paste content is small, and (iii) when recycling a high-quality parent concrete. Full article

Multiscale modeling for cement-based materials, such as concrete, is a relatively young subject, but there are already a number of different approaches to study different aspects of these classical materials. In this paper, the parameter-passing multiscale modeling scheme is established and applied to address the multiscale modeling problem for the integrated system of cement paste, mortar, and concrete. The block-by-block technique is employed to solve the length scale overlap challenge between the mortar level (0.1–10 mm) and the concrete level (1–40 mm). The microstructures of cement paste are simulated by the HYMOSTRUC3D model, and the material structures of mortar and concrete are simulated by the Anm material model. Afterwards the 3D lattice fracture model is used to evaluate their mechanical performance by simulating a uniaxial tensile test. The simulated output properties at a lower scale are passed to the next higher scale to serve as input local properties. A three-level multiscale lattice fracture analysis is demonstrated, including cement paste at the micrometer scale, mortar at the millimeter scale, and concrete at centimeter scale. Full article

Modeling the complex behavior of concrete for a specific mixture is a challenging task, as it requires bridging the cement scale and the concrete scale. We describe a multiscale analysis procedure for the modeling of concrete structures, in which material properties at the macro scale are evaluated based on lower scales. Concrete may be viewed over a range of scale sizes, from the atomic scale (10⁻¹⁰ m), which is characterized by the behavior of crystalline particles of hydrated Portland cement, to the macroscopic scale (10 m). The proposed multiscale framework is based on several models, including chemical analysis at the cement paste scale, a mechanical lattice model at the cement and mortar scales, geometrical aggregate distribution models at the mortar scale, and the Lattice Discrete Particle Model (LDPM) at the concrete scale. The analysis procedure starts from a known chemical and mechanical set of parameters of the cement paste, which are then used to evaluate the mechanical properties of the LDPM concrete parameters for the fracture, shear, and elastic responses of the concrete. Although a macroscopic validation study of this procedure is presented, future research should include a comparison to additional experiments in each scale. Full article

The aim of this research is to produce self-healing cementitious composites based on the use of cylindrical capsules containing a repairing agent. Cementitious hollow tubes (CHT) having two different internal diameters (of 2 mm and 7.5 mm) were produced by extrusion and used as containers and releasing devices for cement paste/mortar healing agents. Based on the results of preliminary mechanical tests, sodium silicate was selected as the healing agent. The morphological features of several mix designs used to manufacture the extruded hollow tubes, as well as the coatings applied to increase the durability of both core and shell materials are discussed. Three-point bending tests were performed on samples produced with the addition of the above-mentioned cementitious hollow tubes to verify the self-healing effectiveness of the proposed solution. Promising results were achieved, in particular when tubes with a bigger diameter were used. In this case, a substantial strength and stiffness recovery was observed, even in specimens presenting large cracks (>1 mm). The method is inexpensive and simple to scale up; however, further research is needed in view of a final optimization. Full article
