Search Results (9)

Thermal spraying technique has potential in manufacturing economic, profitable thermoelectric coatings. In order to characterize the electrical performance of thermoelectric coatings more conveniently, a simple setup for thermoelectric power factor of thermoelectric coatings is designed and developed. The indigenously designed setup is simple and low-cost. The compact structure makes it easy to cooperate with existing heating furnace, allowing a fast measurement in a variable temperature range. The differential method and the off-axis four-point geometry are used in Seebeck coefficient and electrical resistivity measurement, respectively. The Spring-load unit and other details of construction of the setup are described specifically. The Seebeck coefficient of the plasma-sprayed higher manganese silicide (HMS) coating was measured to be approximately 132.35 μV/K at 150 °C, with measurements showing high linearity (R² > 0.99). The setup demonstrated reliable electrical resistivity results for Cr20Ni80 alloy, closely matching published values (1.16 × 10⁻⁶ Ω·m vs. 1.10 × 10⁻⁶ Ω·m). HMS coating was also characterized from 50 °C to 500 °C to validate the setup on thermoelectric performance characterization across a wide temperature range. These results confirm the reliability of the developed setup. Full article

The research presented in the article is devoted to the study of the influence of phase compounds on the friability of the Fe-Si-Mn-Al complex alloy. The urgency of the problem lies in the development of technology for producing a non-scatterable alloy from manganese-containing ores and high-ash coals. The main goal of this work is to determine the range of alloy compositions and the resulting phases that affect the dispersibility of the alloy, which is critically important for its industrial implementation. Research methods include thermodynamic diagram analysis (TDA) using data on the standard enthalpy of formation of intermetallic compounds, as well as experimental tests in an ore-thermal electric furnace with a capacity of 200 kV*A. The results show that Fe-Si-Mn-Al complex alloys form a variety of silicide and aluminide phases, including intermetallic compounds and ternary systems, which is critical for understanding and controlling their physicochemical properties. When melting a complex alloy, the content of leboite (Fe₃Si₇) in the Fe-Si-Mn-Al system plays a significant role. The development of melting process technology will be aimed at avoiding the FeSi₂-Fe₃Si₇-F₂(FeAl₃Si₂)-Mn₁₁Si₁₉ tetrahedron area. This approach to controlling the composition of a complex alloy is critical to ensuring its consistent friability properties in industrial applications. Thus, this work represents an important step in understanding the physical properties and stability of Fe-Si-Mn-Al complex alloys, which have potential for widespread use in metallurgical and other industrial applications. Full article

This study introduces Sn-substituted higher manganese silicides (MnSi_1.75, HMS) synthesized via an arc-melting process followed by spark plasma sintering (SPS). The influences of Sn concentrations on the thermoelectric performance of Mn(Si_1−xSn_x)_1.75 (x = 0, 0.001, 0.005, 0.01, 0.015) are systematically investigated. Our findings reveal that metallic Sn precipitates within the Mn(Si_1−xSn_x)_1.75 matrix at x ≥ 0.005, with a determined solubility limit of approximately x = 0.001. In addition, substituting Si with Sn effectively reduces the lattice thermal conductivity of HMS by introducing point defect scattering. In contrast to the undoped HMS, the lattice thermal conductivity decreases to a minimum value of 2.0 W/mK at 750 K for the Mn(Si_0.999Sn_0.001)_1.75 sample, marking a substantial 47.4% reduction. Consequently, a figure of merit (ZT) value of ~0.31 is attained at 750 K. This considerable enhancement in ZT is primarily attributed to the suppressed lattice thermal conductivity resulting from Sn substitution. Full article

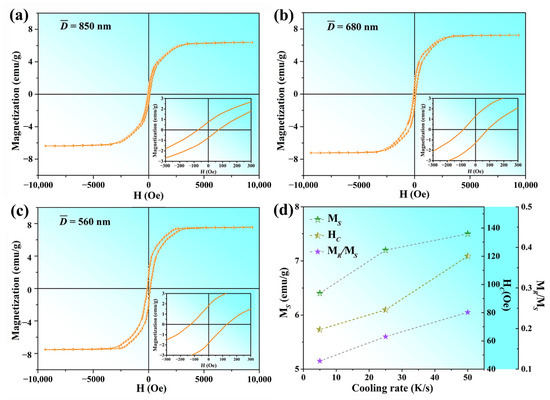

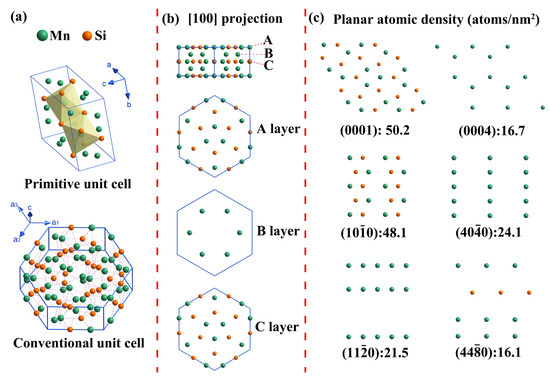

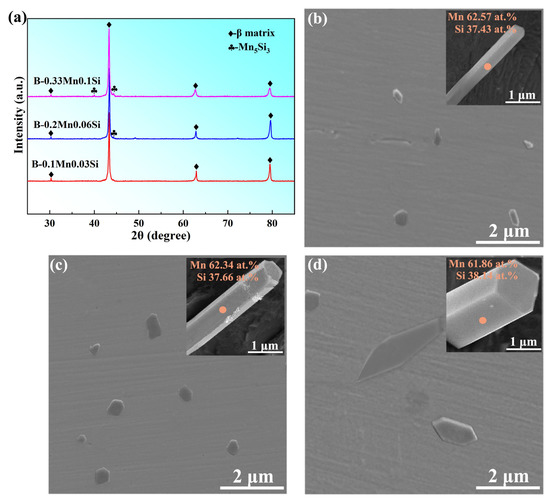

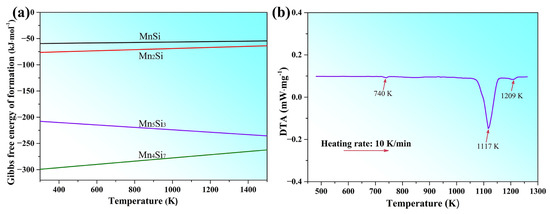

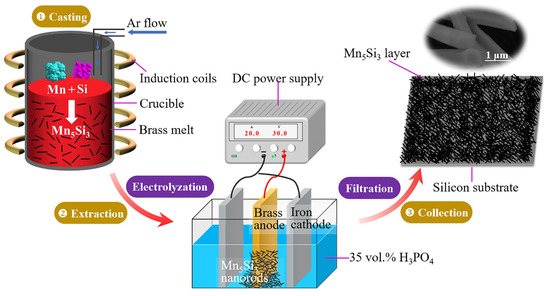

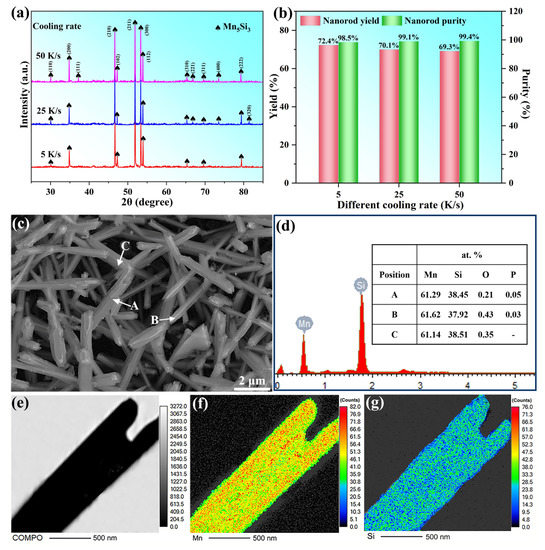

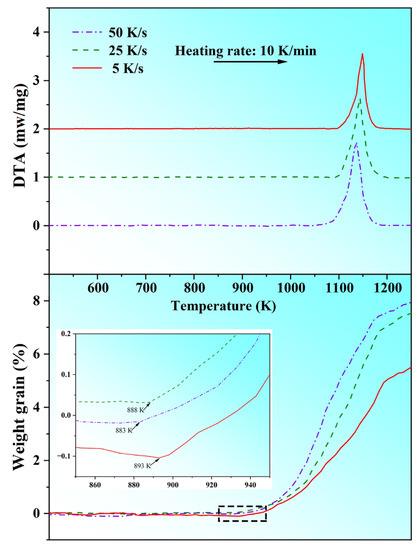

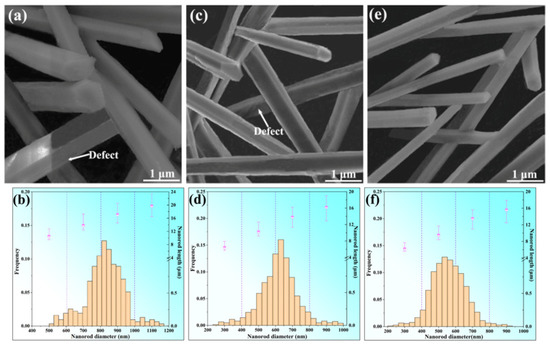

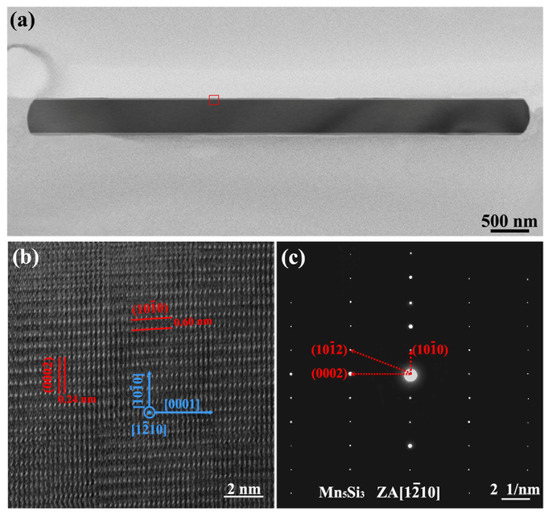

This study presents a simple and innovative approach for producing one-dimensional Mn₅Si₃ nanorods through a casting-extraction process. In this technique, the Mn₅Si₃ nanorods were synthesized by reacting Mn and Si during brass solidification and extracted by electrochemical etching of the brass matrix. The effect of the cooling rate during casting on the nanorods’ dimension, morphology, and magnetic properties was investigated. The results demonstrate that the prepared high-purity Mn₅Si₃ nanorods had a single-crystal D8₈ structure and exhibited ferromagnetism at room temperature. The morphology of the nanorods was an elongated hexagonal prism, and their preferred growth was along the [0001] crystal direction. Increasing the cooling rate from 5 K/s to 50 K/s lead to a decrease in the dimension of the nanorods but an increase in their ferromagnetism. At the optimal cooling rate of 50 K/s, the nanorods had a diameter and length range of approximately 560 nm and 2~11 μm, respectively, with a highest saturation magnetization of 7.5 emu/g, and a maximum coercivity of 120 Oe. These properties make the fabricated Mn₅Si₃ nanorods potentially useful for magnetic storage applications, and this study also provides a new perspective on the preparation of one-dimensional nanomaterials. Full article

We report inelastic neutron scattering (INS) measurements of the phonon dispersion relation in higher manganese silicides (HMSs). A large ingot of HMS is synthesized using a slow cooling method, which is found to have Mn${}_{15}$Si${}_{26}$ as the primary phase. The sample is composed of highly oriented crystallites as confirmed by a neutron pole-figure study and thermal conductivity data. Our INS results are mostly consistent with earlier experimental and theoretical phonon studies in HMS, including the presence of a low-lying twisting mode. However, some discrepancies are also observed. Most notably, a 5 meV gap at the zone center and the softer dispersion relation of the low-lying twisting mode. We discuss the potential origins of these observations and their implications for the thermal properties of HMS. Full article

In this work, we report a novel and efficient silicidation method to synthesize higher manganese silicide (HMS) nanowires with interesting characterization and physical properties. High density silicon nanowire arrays fabricated by chemical etching reacted with MnCl₂ precursor through a unique double tube chemical vapor deposition (CVD) system, where we could enhance the vapor pressure of the precursor and provide stable Mn vapor with a sealing effect. It is crucial that the method enables the efficient formation of high quality higher manganese silicide nanowires without a change in morphology and aspect ratio during the process. X-ray diffraction (XRD), scanning electron microscopy (SEM) and transmission electron microscopy (TEM) were utilized to characterize the HMS nanowires. High-resolution TEM studies confirm that the HMS nanowires were single crystalline Mn₂₇Si₄₇ nanowires of Nowotny Chimney Ladder crystal structures. Magnetic property measurements show that the Mn₂₇Si₄₇ nanowire arrays were ferromagnetic at room temperature with a Curie temperature of over 300 K, highly depending on the relationship between the direction of the applied electric field and the axial direction of the standing nanowire arrays. Field emission measurements indicate that the 20 μm long nanowires possessed a field enhancement factor of 3307. The excellent physical properties of the HMS nanowires (NWs) make them attractive choices for applications in spintronic devices and field emitters. Full article

Muon spin rotation ( $\mu$ SR) spectra recorded for manganese silicide MnSi and interpreted in terms of a quantitative analysis constrained by symmetry arguments were recently published. The magnetic structures of MnSi in zero-field at low temperature and in the conical phase near the magnetic phase transition were shown to substantially deviate from the expected helical and conical structures. Here, we present material backing the previous results obtained in zero-field. First, from simulations of the field distributions experienced by the muons as a function of relevant parameters, we confirm the uniqueness of the initial interpretation and illustrate the remarkable complementarity of neutron scattering and $\mu$ SR for the MnSi magnetic structure determination. Second, we present the result of a $\mu$ SR experiment performed on MnSi crystallites grown in a Zn-flux and compare it with the previous data recorded with a crystal obtained from Czochralski pulling. We find the magnetic structure for the two types of crystals to be identical within experimental uncertainties. We finally address the question of a possible muon-induced effect by presenting transverse field $\mu$ SR spectra recorded in a wide range of temperature and field intensity. The field distribution parameters perfectly scale with the macroscopic magnetization, ruling out a muon-induced effect. Full article

The dissipation of MnSi layered precipitates during solidification is critical for further enhancement of the thermoelectric properties of the higher manganese silicides. We have investigated the effects of partial substitution of V in Mn sites and of Ge in Si sites on the crystal structures and thermoelectric properties of these silicides in detail. As previously reported, a small amount of V-substitution is quite effective in completely dissipating the MnSi striations; in contrast, a small proportion of these MnSi striations always remains present in the Ge-substitution case, even in the vicinity of the Ge solubility limits. For completely MnSi-dissipated samples, domain separation of the regular and highly strained arrangements of the Si atoms is realized. This domain separation suppresses the deterioration of the carrier mobility of the partially V-substituted samples and maintains even higher electrical conductivity to yield a high thermoelectric power factor of ∼2.3 mW/K ${}^2$ m at higher temperatures. Full article

The accurate determination of the thermoelectric properties of a material becomes increasingly difficult as the temperature rises. However, it is the properties at elevated temperatures that are important if thermoelectric generator efficiency is to be improved. It is shown that the dimensionless figure of merit, ZT, might be expected to rise with temperature for a given material provided that minority carrier conduction can be avoided. It is, of course, also necessary that the material should remain stable over the whole operating range. We show that the prediction of high temperature properties in the extrinsic region is possible if the temperature dependence of carrier mobility and lattice thermal conductivity are known. Also, we show how the undesirable effects arising from mixed or intrinsic conduction can be calculated from the energy gap and the relative mobilities of the electrons and the positive holes. The processes involved are discussed in general terms and are illustrated for different systems. These comprise the bismuth telluride alloys, silicon-germanium alloys, magnesium-silicon-tin and higher manganese silicide. Full article
